1
Chapter 1
Introduction
The TBF - 7200 digital receiver is fully compliant with the international Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all assigned to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The frequency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TBF - 7200 digital receiver has the following features:
Page 8
2 Introduction
• Can store up to 2000 television and radio services.
• Can create favourite lists of your favourite services.
•
Can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
Page 9
1.2 Controlling the digital receiver 3
1.2.1 The front panel

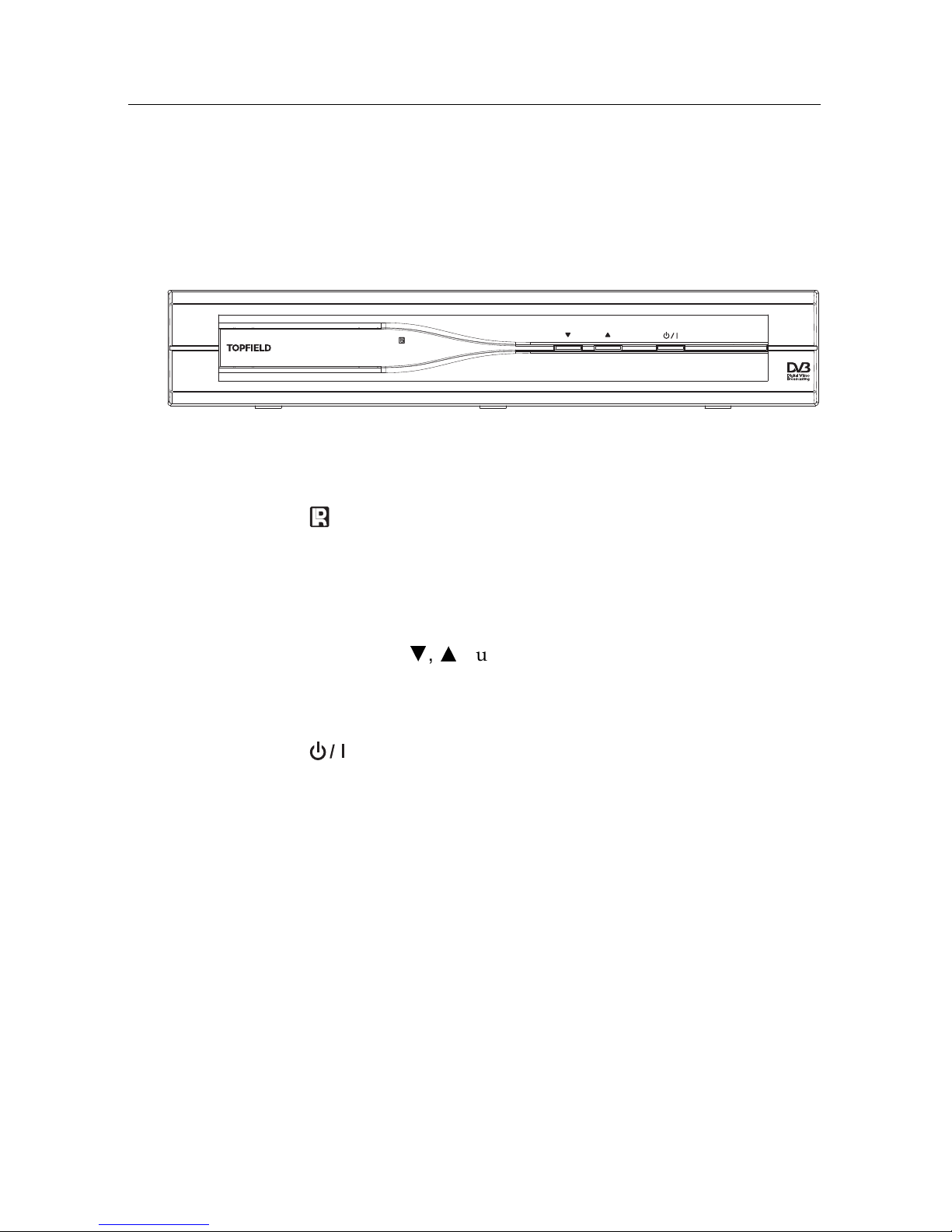

The front panel of the digital receiver has buttons to control
the digital receiver, specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
CHANNEL
Front display
shows the current time in standby mode, and
displays the current service in operation mode.
lamp blinks whenever you press a button on the remote
control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
CHANNELc,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
button switches the digital receiver between standby
mode and operation mode.
Page 10
4 Introduction

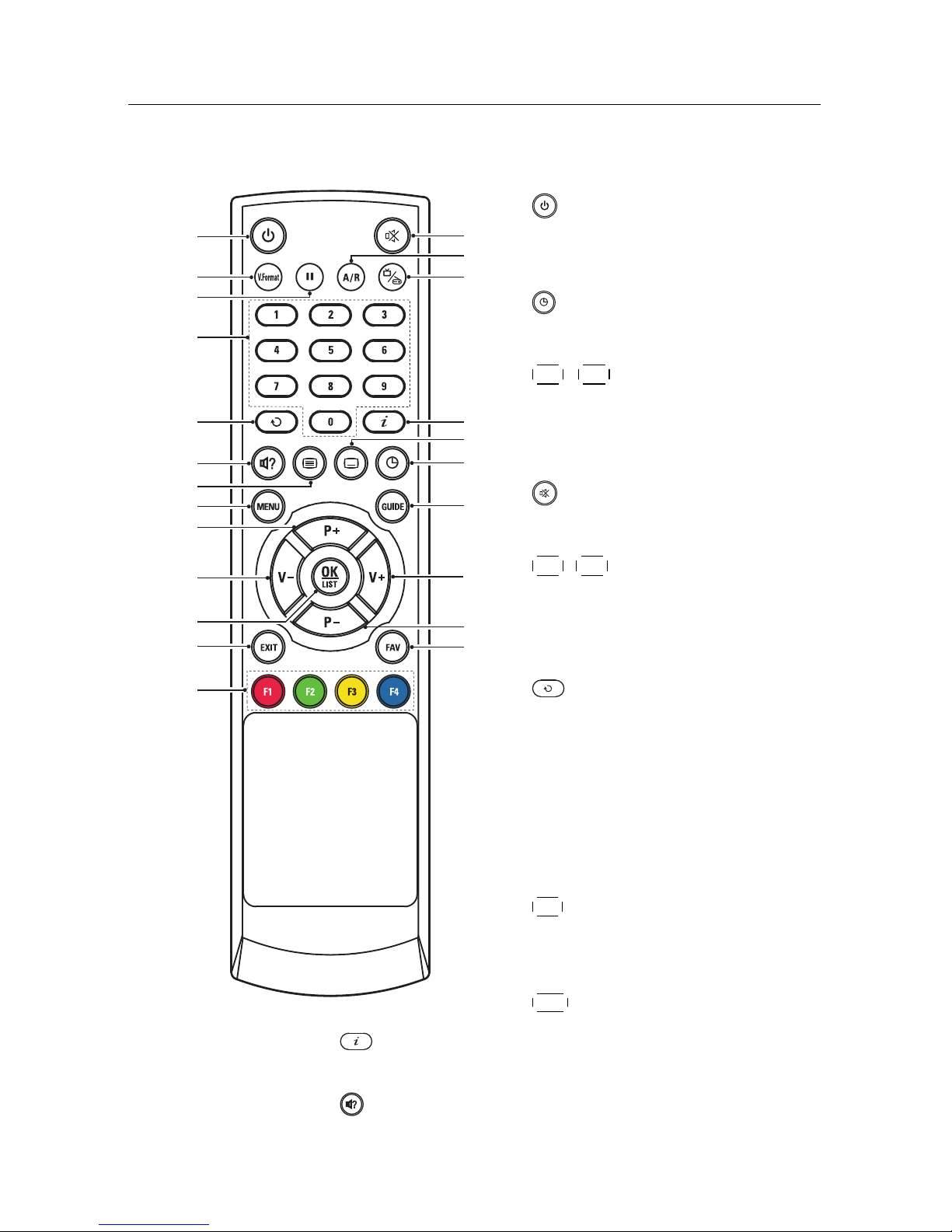

1.2.2 The remote control
14
1
4
18
16
9
12
2
17
3
5
10
15
7
6
11
13
19
3
8
20
21
5
1
button switches the digital receiver between standby mode and
operation mode.
2
is used to set a sleep timer in 10
minute increments.
3
V−
,
V+
buttons decrease or increase the volume. They are also
used to change values for menu options.
4
mutes the sound. Press again
to switch it back on.
5
P−
,
P+
buttons switch to previous or next service. They are also
used to navigate in menus and interactive screens.
6
switches between the current
service and the previously viewed
one.
7
Numeric buttons are used to enter a service number for service
change or to specify values for
menu options.
8
OK
displays the services list. See
§
5.2.1 for more details. It is also
used to select a menu item.
9
FAV displays the favourite lists.
10
displays the service information box. It is also used
to display more information about a programme.
11
is used to select an audio track and a sound mode, or
Page 11
1.2 Controlling the digital receiver 5
a video track of multifeed programme.
12
is used to select a subtitle track.
13
displays teletext.
14
V.Format
changes video resolution. See§3.2.2 for more
details.
15
pauses live television.
16
switches between television services and radio ser-
vices.
17
GUIDE displays the electronic programme guide.
18
A/R changes aspect ratio. See § 3.2.1 for more details.
19
MENU
displays the main menu. It is also used to return
to the previous menu from a submenu.
20
EXIT is used to exit a menu or to hide on-screen info.
21
These buttons have different functions per menu. They
will be guided by on-screen help.
NOTE
When using the remote control, point it at the remote sensor
on the front panel of the digital receiver.
Page 12
6 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• One composite cable (RCA cable)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
•
The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the mains socket. For
Page 13
2.2 Safety precautions 7
the power consumption of the digital receiver, refer to
Table 2.1.
•
The mains socket should be near the equipment. Do not
run an extension lead to the unit.
•
Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
•
Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digital receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
•
Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver
and get the cord replaced.
•
Never open the digital receiver casing under any circumstances, or the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 13 W at maximum in operation
1 W in passive standby
Table 2.2: Physical specifications
Size 260× 46× 190 mm
Weight 1.2 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %
Page 14
8 Setup
2.3 Rear panel connections

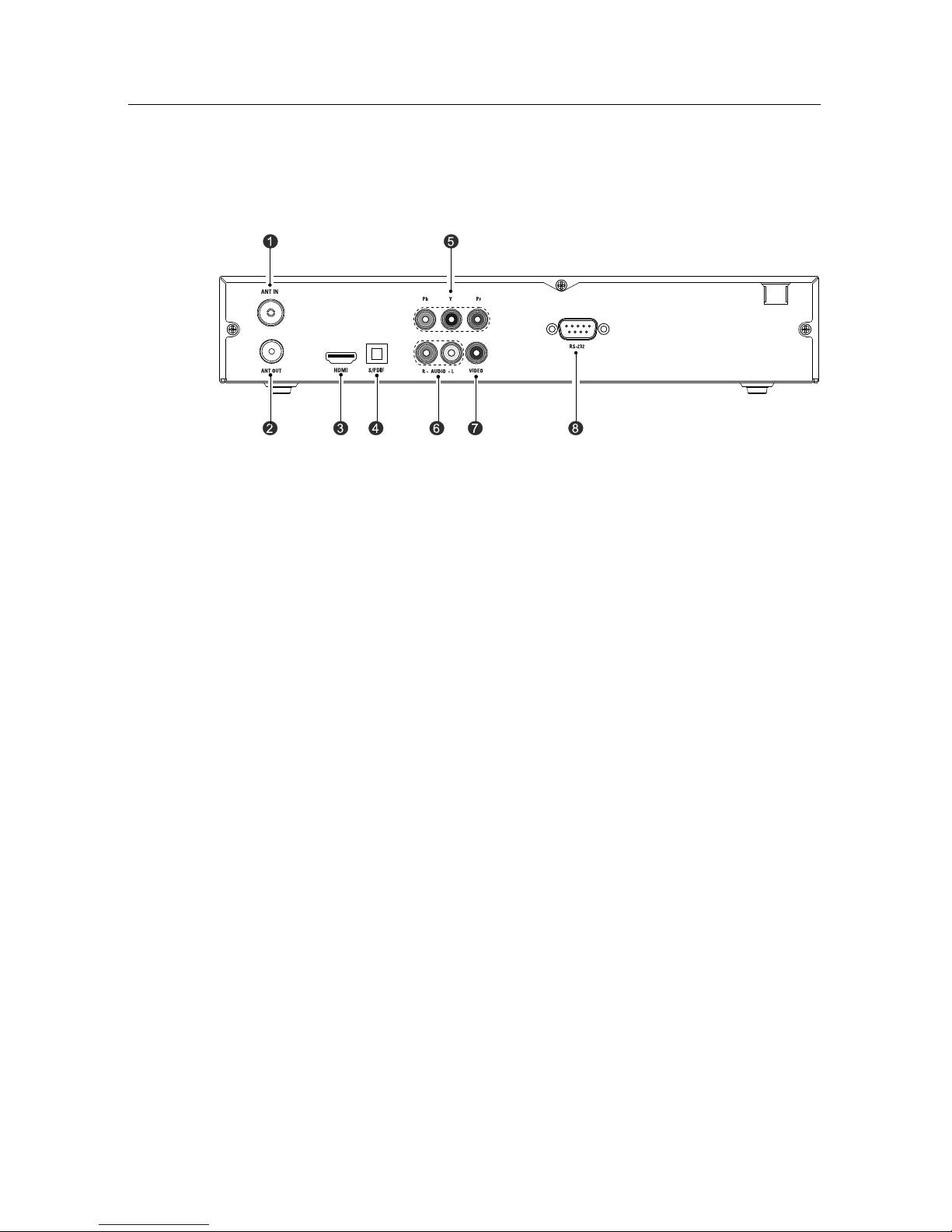

The TBF - 7200 has some connections on the back.
Check what connections your television set has in comparison
with the digital receiver.

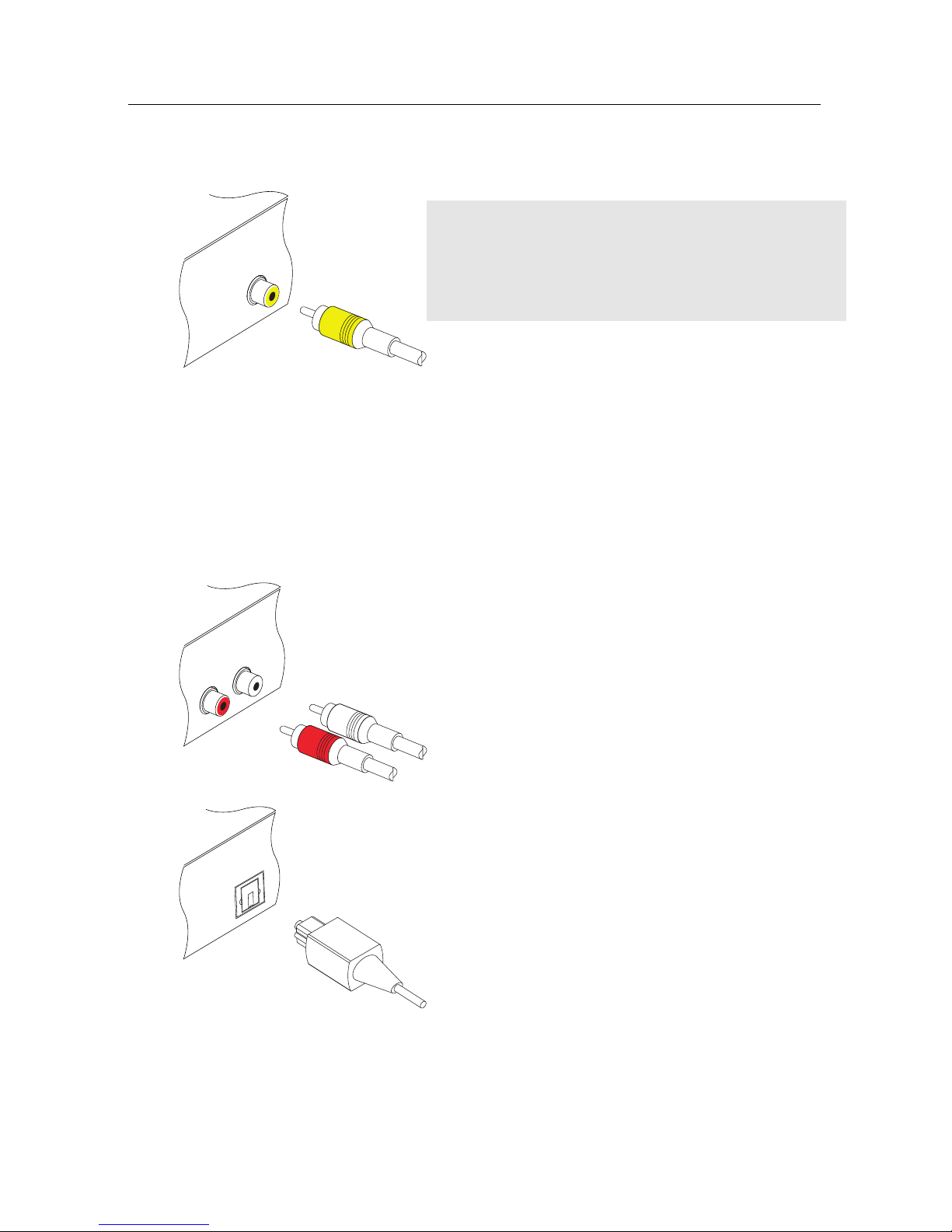

1
ANT IN Terrestrial broadcasting signal input socket.
2
ANT OUT
Terrestrial broadcasting signal output socket
through the ANT IN socket for another digital
receiver.
3
HDMI
Audio and video output socket for the high
definition television set.
4
S/PDIF
Dolby digital output socket for the audio system.
5
Y/Pb/Pr Component video output socket for the tele-
vision set. (green/blue/red)
6
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
7
VIDEO
Composite video output socket for the television set. (yellow)
8
RS-232
Serial port for firmware update and data
transfer.
Page 15
2.4 Connecting up your digital receiver 9
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Dolby Digital audio output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
YPbPr Component video (YUV) output
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting the antenna

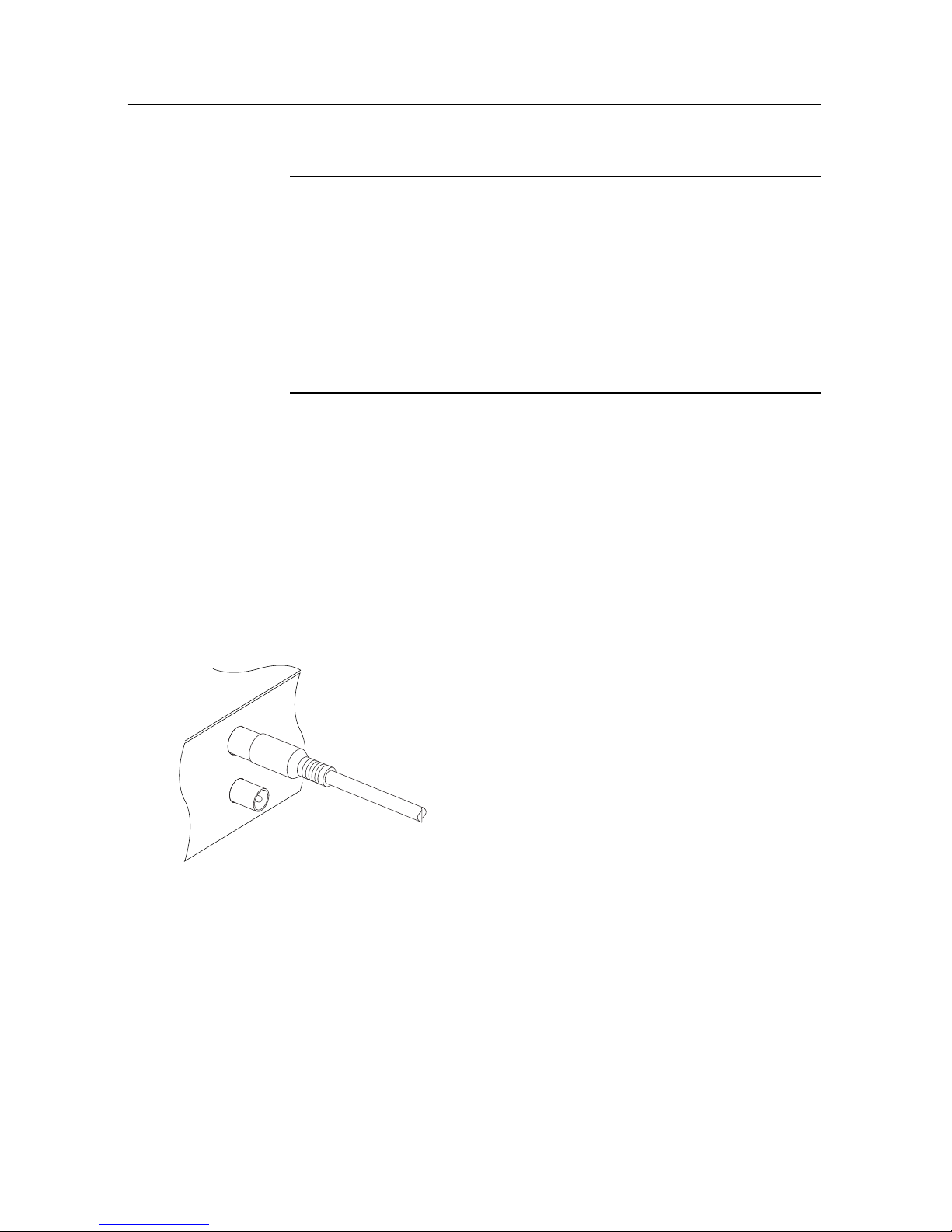

Whatever sort of connection you have between the digital receiver and the television,
you need to connect the digital receiver to
your television antenna so that it can receive
digital television services.
Connect the antenna cable to the ANT IN connector.
If you have another digital receiver, you may
link it from the ANT OUT connector.
2.4.2 Connecting to your television set
Between all the following connectors of the digital receiver, we
recommend you to use the first connector to get best picture
quality. If your television does not have the matching connector,
then use the next connector in the following order for better
picture quality.
Page 16
10 Setup
1. HDMI connector (HDMI)
2. Component connector (YPbPr)
3. Composite connector (VIDEO)
You should configure audio and video settings after connecting
up the digital receiver. See § 3.2 for a detailed description.
To use the HDMI connector

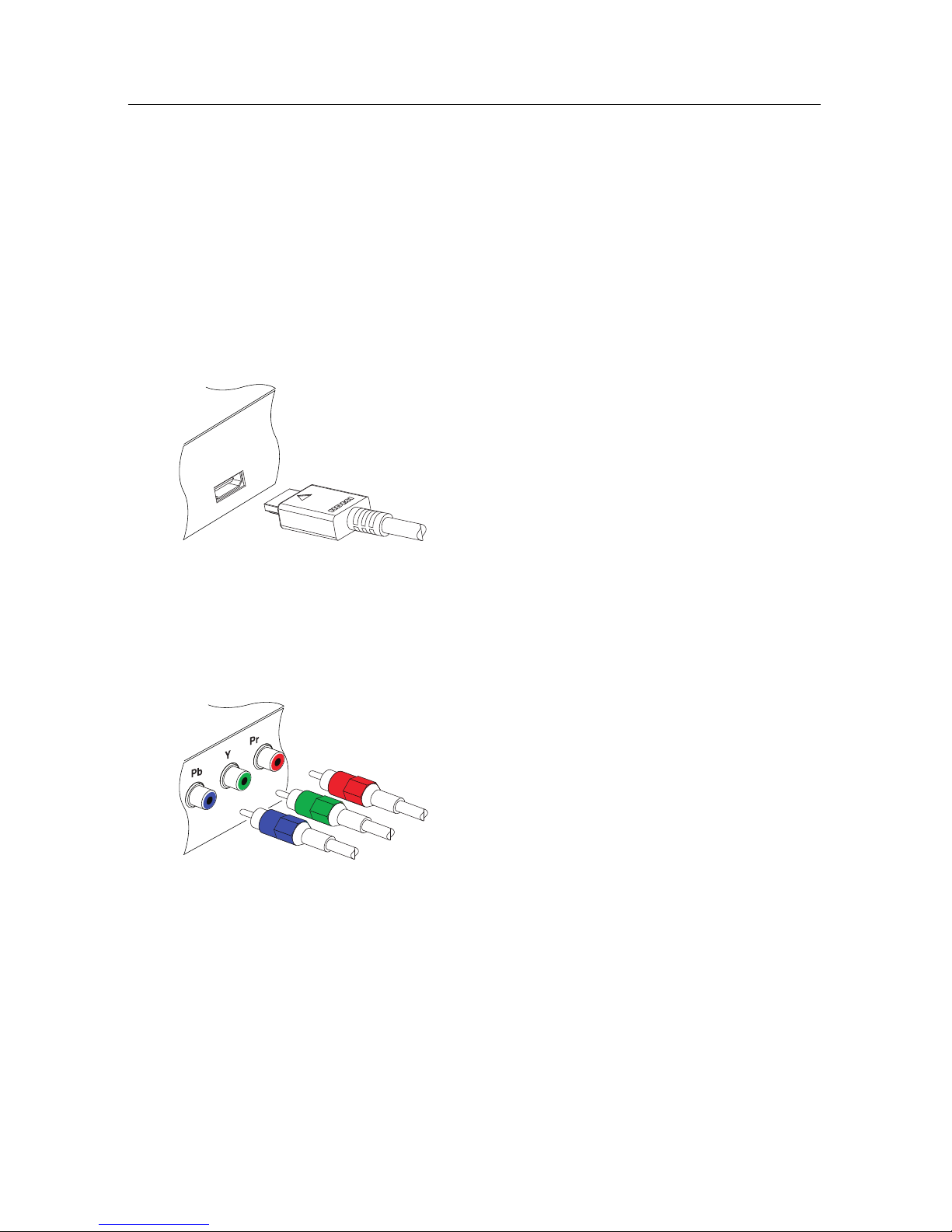

If you have a high definition television set,
you should use a HDMI cable for best results. Plug one end of the cable into the HDMI
socket on the digital receiver, and plug the
other end into the matching socket on your
television. In this case, you do not have to
make audio connection because the HDMI
connector can output stereo audio or Dolby
digital audio.
To use the component video connector
You need to obtain a component video cable
(RCA cable) to use the component video connector. Plug one ends of the cable into the Y
(green), Pb (blue) and Pr (red) sockets on the
digital receiver, and plug the other ends into
the matching sockets on your television.
Page 17
2.4 Connecting up your digital receiver 11
To use the composite video connector
NOTE
You cannot view high definition video with
the composite video connector.
You need to obtain a composite video cable
(RCA cable) to use the composite video connector. Plug one end of the cable into the
VIDEO (yellow) socket on the digital receiver,
and plug the other end into the matching
socket on your television.
To make the audio connection
You need to obtain an audio cable (RCA cable) to connect the audio connectors. Plug
one end of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digital receiver, and plug the other end into the matching sockets on your television or audio system.
To enjoy Dolby digital audio, your television or audio system must be able to decode
Dolby digital audio, and you need to obtain a
S/PDIF cable. Plug one end of the cable into
the S/PDIF socket on the digital receiver, and
plug the other end into the matching socket
on your audio system.
Page 18
12 Setup
2.5 Inserting batteries in the remote control
To insert the batteries, open the battery compartment by removing the lid, and then insert the batteries observing the polarity,
which is marked on the base of the battery compartment.
If the digital receiver no longer reacts properly to remote control commands, the batteries may be flat. Be sure to remove
used batteries. The manufacturer accepts no liability for the
damage resulting from leaking batteries.
NOTE
Batteries, including those which contain no heavy metals, may
not be disposed with other household wastes. Please dispose
of used batteries in an environmentally sound manner. Find
out the legal regulations which apply in your area.
2.6 Switching on for the first time
Now that you have your digital receiver connected, you should
plug it into a mains socket. Ensure that your television set is
turned on, so that you will be able to see the display from the
digital receiver.
2.6.1 Powering on and checking picture
Now, press the button in top left corner on the remote control. After about 10 seconds you may see a picture displaying
a menu. If you do not see a picture, try pressing the
V.Format
button on the remote control. If after several tries you still get
no picture, check that the television is set to the correct input.
If the picture is good, you can skip to§4.1 to search for the
available television and radio services. Otherwise, you may
need to temporarily connect the composite video connector
(VIDEO) to your television set so that you can see the on-screen
menus in order to configure the video settings.
Page 19
13
Chapter 3
Preference Settings
3.1 Language settings
You can select the language in
which the menu would be displayed. In addition to that, you
can select the language of audio
track and of subtitle track.

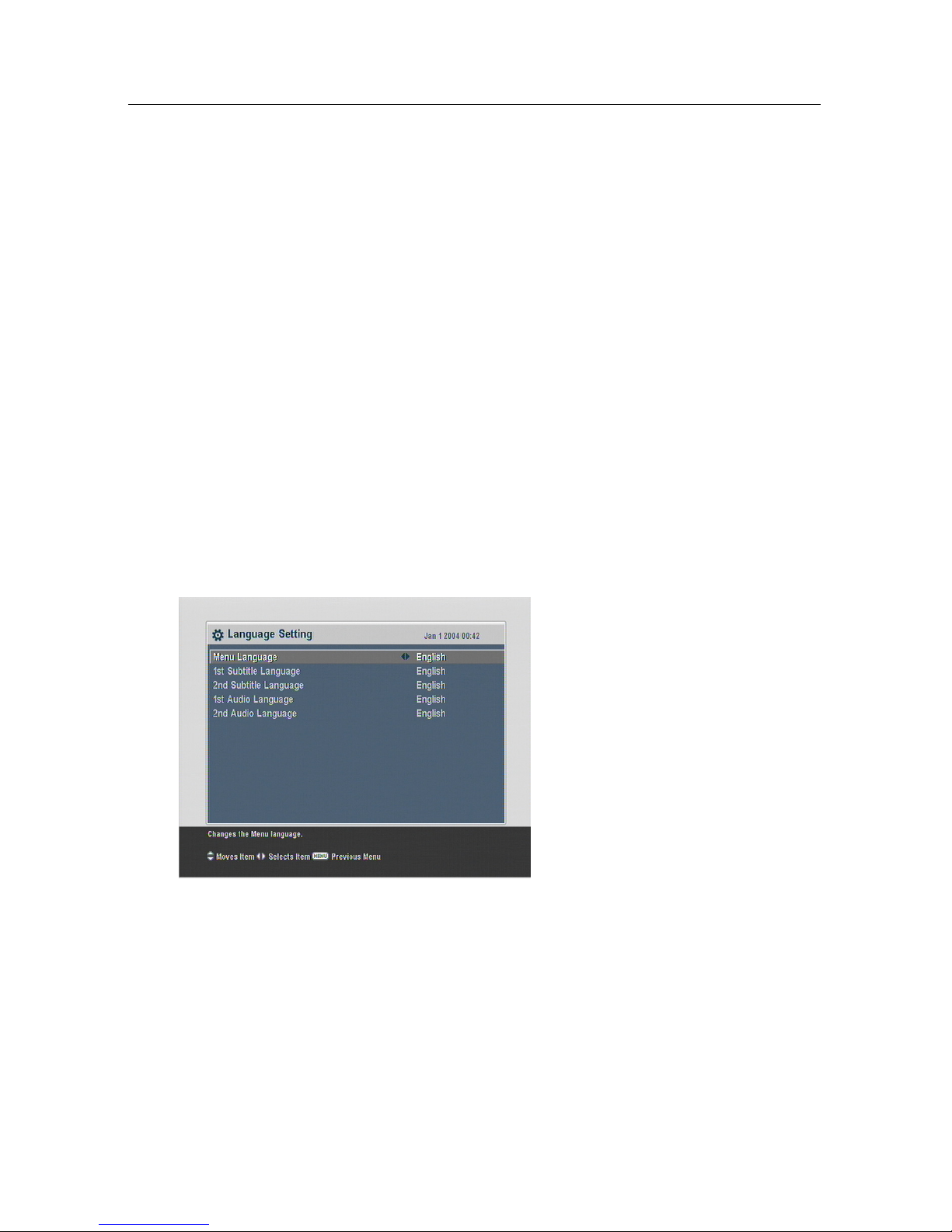

Select the System Setting>Language Setting menu. You should
see a screen like the left figure.
Menu language
Set the Menu Language option to your desired language. Once
you select a language, the menu will be immediately displayed
in the selected language.
Page 20
14 Preference Settings
Subtitle language
Set the 1st Subtitle Language option and the 2nd Subtitle Language option to your desired languages. When you watch a
programme, if the programme has a subtitle track of the language that is designated for the 1st Subtitle Language, it will be
displayed. If the first language is not available but the second
language is available, the subtitle of the second language will
be displayed. If there is no available language, no subtitle will
be displayed.
Apart from this setting, you can select a subtitle track with the
button. See § 5.2.5 for a detailed description.
Audio language
Set the 1st Audio Language option and the 2nd Audio Language option to your desired languages. When you watch a
programme, if the programme has an audio track of the language that is designated for the 1st Audio Language, it will
be outputted. If the first language is not available but the
second language is, the audio of the second language will be
outputted.
Apart from this setting, you can select an audio track with the
button. See § 5.2.4 for a detailed description.
Page 21
3.2 Video and audio settings 15
3.2 Video and audio settings
You have to configure the video
and audio settings appropriately
for your television set and other
appliances.

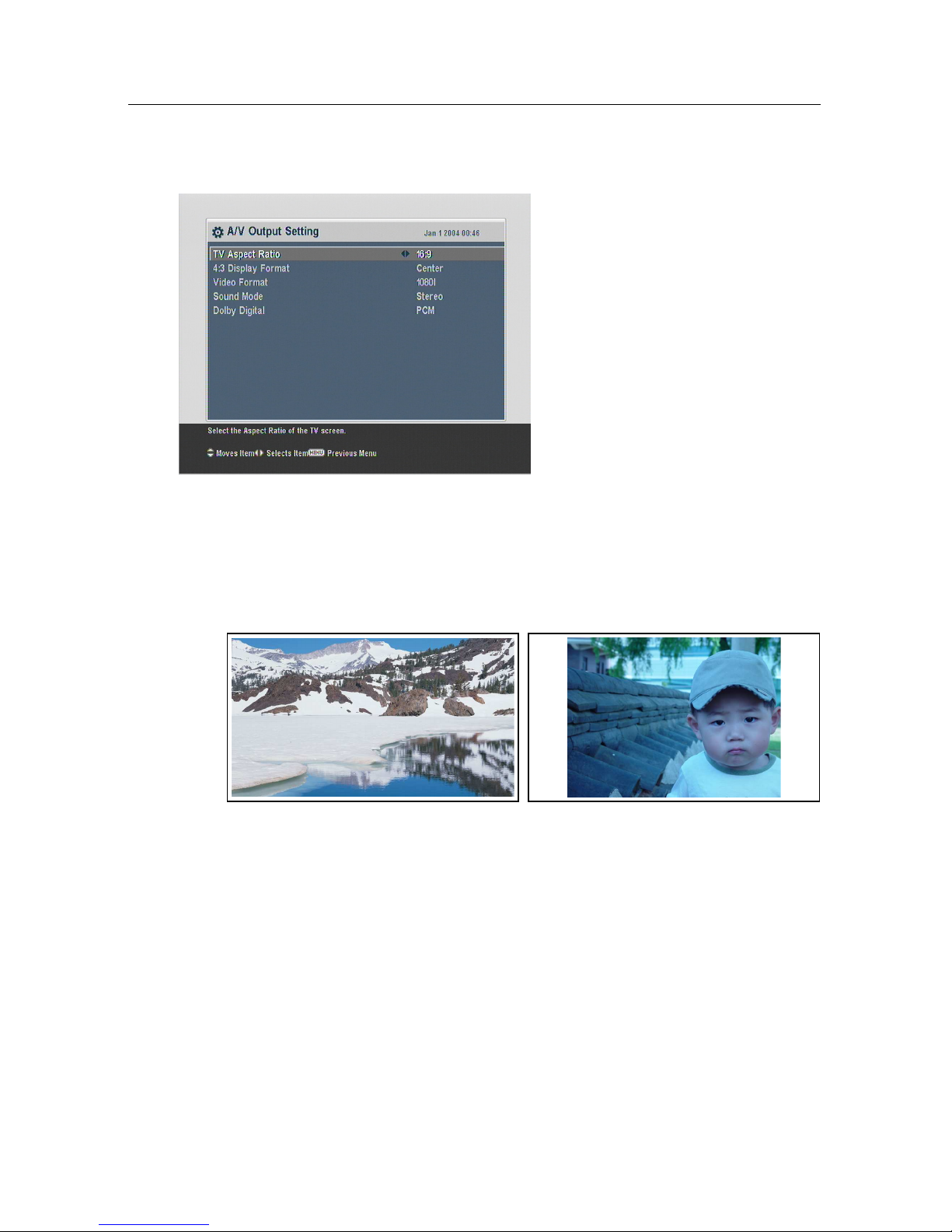

Select the System Setting
>
A/V Output Setting menu. You
should see a screen like the left
figure.
3.2.1 Television aspect ratio
If you have a wide-screen television, set the TV Aspect Ratio
option to 16:9.
You can enjoy both wide-screen programmes and normalscreen programmes with your wide-screen television as the
above figures show. To watch normal-screen programmes in
full screen like the left figure, set the 4:3 Display Format option
to Full. Normal-screen pictures then will be inflated to fit to
the width of the wide screen. Otherwise, to watch them in the
original ratio like the right figure, set it to Center.
Otherwise, if you have a normal-screen television, set the TV
Aspect Ratio option to 4:3.
Page 22
16 Preference Settings

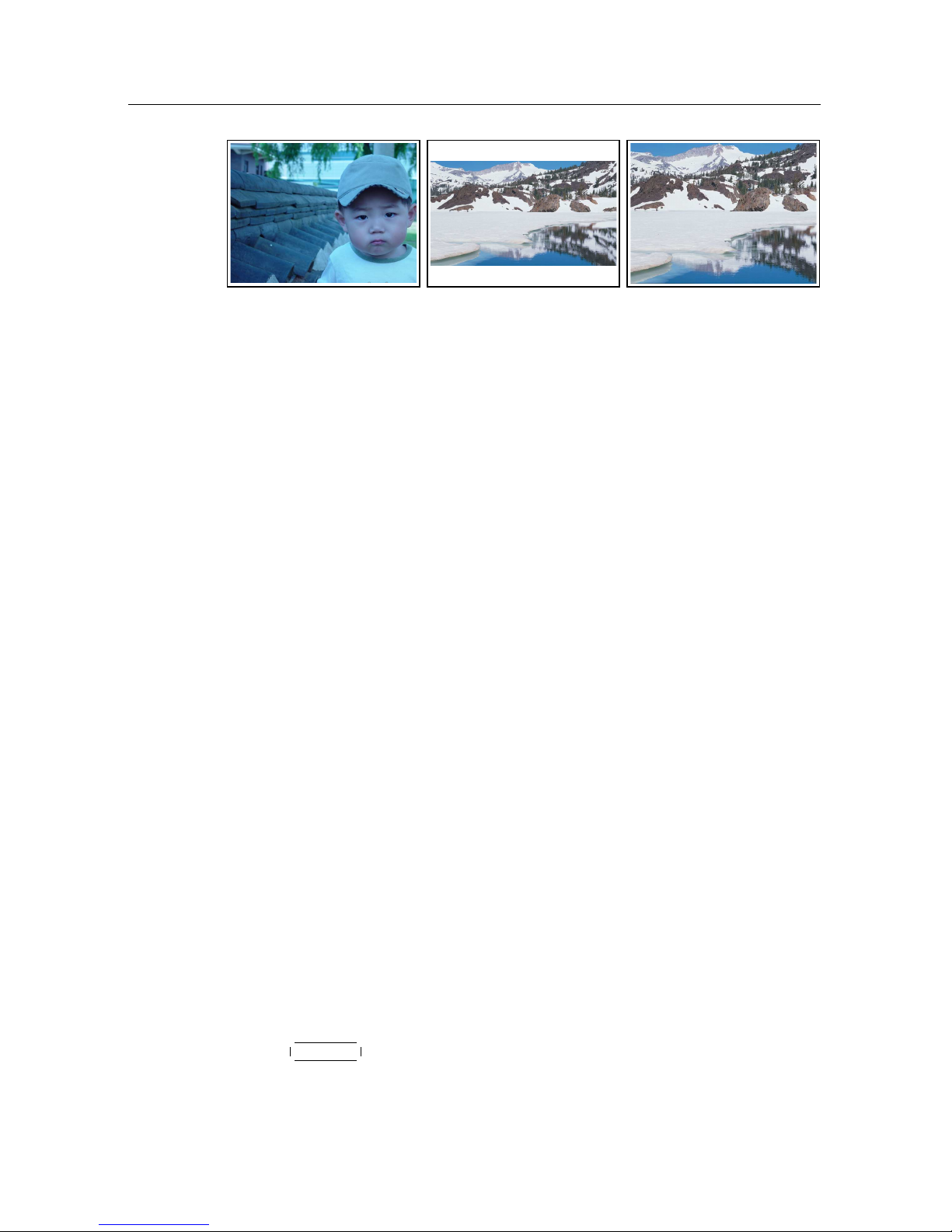

You cannot fully enjoy wide-screen programmes with your
normal-screen television as the above figures show. The left
figure shows a normal picture displayed in the normal screen.
To watch wide-screen programmes in the shape like the centre
figure, set the 16:9 Display Format option to Letter Box. Wide-
screen pictures then will be reduced to fit to the width of the
normal screen. Otherwise, to watch them in the shape like the
right figure, set it to Center extract. Then wide-screen pictures
will be cut out on the left and right sides equally to fit to the
width of the normal screen.
3.2.2 High definition television
The digital receiver supports various video resolutions from
576 to 1080. In general a resolution of 720 or more is considered
high definition. The higher the resolution, the better the quality.
However, if your television set does not support high definition,
you cannot enjoy high definition quality picture.
Set the Video Format option as you desire. If you set this
option to 576P, the digital receiver will present even high
definition programmes in resolution of 576. On the contrary,
if you set it to 1080I, the digital receiver will present even
standard definition programmes in resolution of 1080. It is
recommended to set it to Auto if you have a high definition
television. With that setting the digital receiver will present a
programme as it is without any resolution conversion. While
watching television you can change the resolution with the
V.Format
button. Whenever you press it, the video resolution is
changed in turn.
Page 23
3.3 Local time setting 17
NOTE
You can enjoy only standard definition video with the following
connectors:
• Composite video connector (VIDEO)
3.2.3 Audio mode
Basically, there are two audio sources as you can find two audio
sockets on the back panel of the digital receiver. You can enjoy
only one source or both of them in either stereo or mono. Set
the Sound Mode option as you desire.
Apart from this setting, you can change the sound mode with
the button. See § 5.2.4 for a detailed description.
The digital receiver can output two types of digital audio signals via the S/PDIF connector. One is an encoded signal, and
the other is a decoded signal. If your digital audio system does
not have a Dolby Digital decoder, you have to set the Dolby
Digital option to PCM. Otherwise, set it to Bitstream.
NOTE
If the service you are currently watching does not provide
Dolby digital, you cannot watch the programme with Dolby
sound even though you set the Dolby Digital option to Bit-
stream.
3.3 Local time setting
You should set your local time for timer events.
Page 24
18 Preference Settings

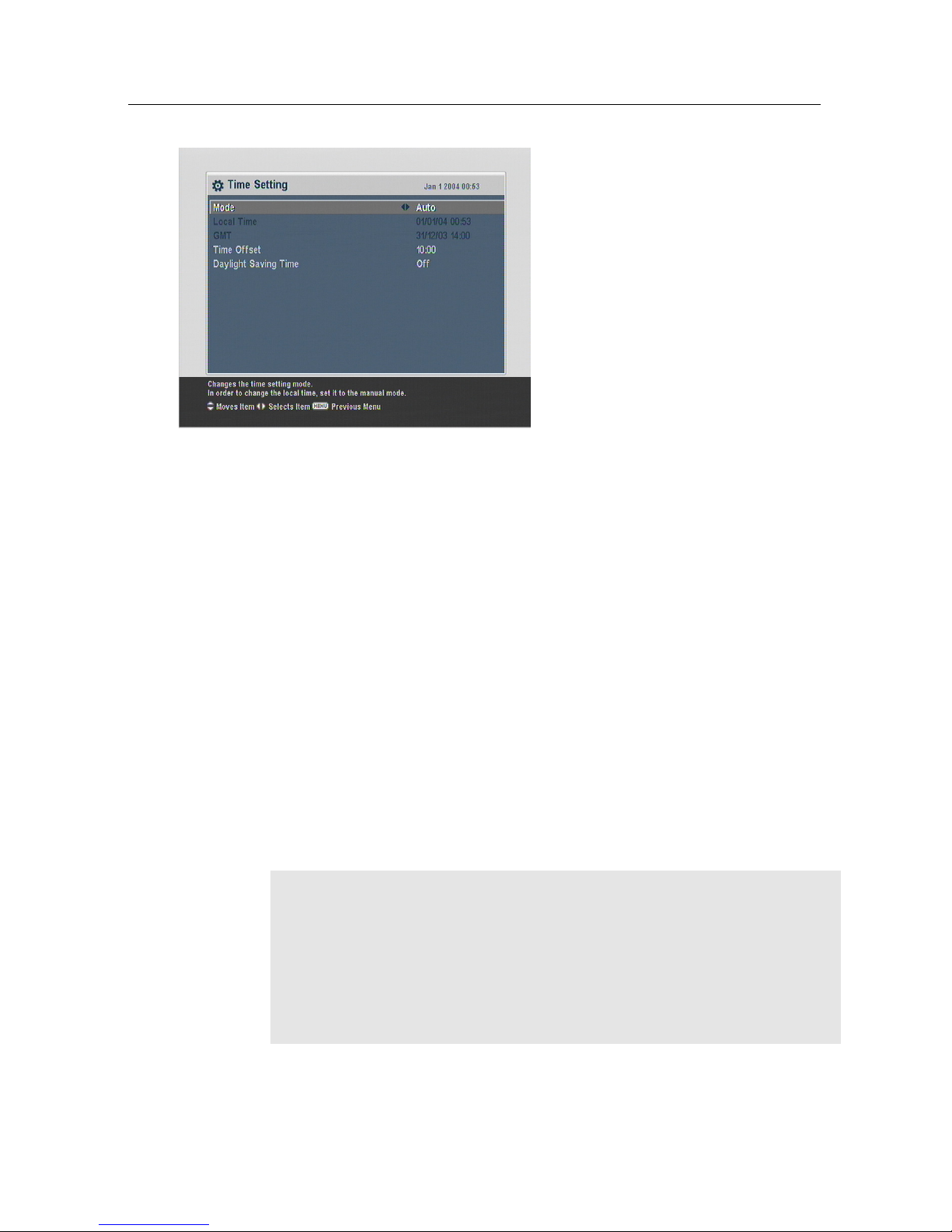

Select the System Setting>Time
Setting menu. You should see a
screen like the left figure.
You can set the clock manually
or use the time signal, Greenwich Mean Time (GMT), carried
as part of the digital television
broadcast.
To use Greenwich Mean Time,
take the following steps:
1.
Set the Mode option to Auto; then the Time Offset option
becomes enabled.
2.
Set the Time Offset option to the time difference between
your time zone and GMT referring to Table 3.1.
3.
Make sure that your local time is correctly displayed on
the Local Time option.
To set the local time manually, set the Mode option to Man-
ual and enter your local time to the Local Time option with
the numeric buttons. The time format is day/month/year 24-
hour:minute.
If daylight saving time is observed in your state at the moment,
set the Daylight Saving Time option to On.
NOTE
Daylight saving time adds one hour to the time when the option is set to On. When setting the time offset from Greenwich
Mean Time, make sure that time offset does not include daylight saving time.
Page 25
3.4 Parental control 19
Table 3.1: Time offset table
Time offset City
GMT − 12:00 Eniwetok, Kwajalein
GMT − 11:00 Midway Island, Samoa
GMT − 10:00 Hawaii
GMT − 09:00 Alaska
GMT − 08:00 Pacific Time US, Canada
GMT − 07:00 Mountain Time US, Canada
GMT − 06:00 Central Time US, Canada, Mexico City
GMT − 05:00 Eastern Time US, Canada, Bogota, Lima
GMT − 04:00 Atlantic Time Canada, La Paz
GMT − 03:30 Newfoundland
GMT − 03:00 Brazil, Georgetown, Buenos Aries
GMT − 02:00 Mid-Atlantic
GMT − 01:00 Azores, Cape Verde Islands
GMT London, Lisbon, Casablanca
GMT + 1:00 Paris, Brussels, Copenhagen, Madrid
GMT + 2:00 South Africa, Kaliningrad
GMT + 3:00 Baghdad, Riyadh, Moscow, St. Petersburg
GMT + 3:30 Tehran
GMT + 4:00 Abu Dhabi, Muscat, Baku, Tbilisi
GMT + 4:30 Kabul
GMT + 5:00 Ekaterinburg, Islamabad, Karachi, Tashkent
GMT + 5:30 Bombay, Calcutta, Madras, New Delhi
GMT + 6:00 Almaty, Dhaka, Colombo
GMT + 7:00 Bangkok, Hanoi, Jakarta
GMT + 8:00 Beijing, Perth, Singapore, Hong Kong
GMT + 9:00 Tokyo, Seoul, Osaka, Sapporo, Yakutsk
GMT + 9:30 Adelaide, Darwin
GMT + 10:00 Eastern Australia, Guam, Vladivostok
GMT + 11:00 Magadan, Solomon Islands, New Caledonia
GMT + 12:00 Fiji, Auckland, Wellington, Kamchatka
3.4 Parental control
In general, television programmes are classified according to
the level of violence, nudity and language of their content.
When you are watching a programme, you can check its programme classification on the information box. For the information box, see § 5.2.3.
You can prevent your children from watching specific programmes by specifying a programme classification.
Page 26
20 Preference Settings

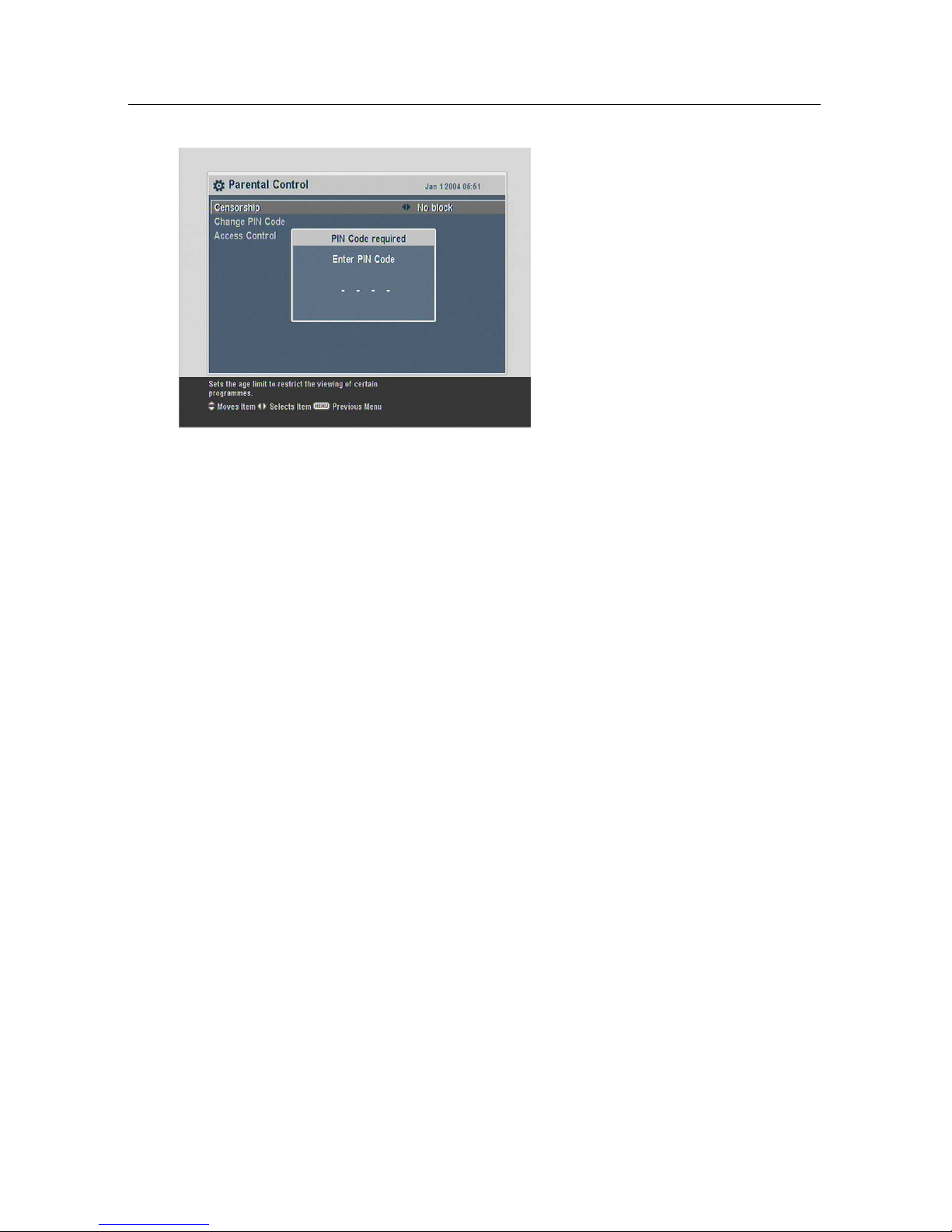

Select the System Setting
>
Parental Control menu. You
should see a screen like the
left figure, and you will be
asked your Personal Identification Number (PIN). The number
is initially set to ‘0000’ as a default.
To block programmes with undesired content for family viewing, set the Censorship option to your desired level among the
following:
No block restricts no prorgramme.
Total block
restricts every programme, even those with no
programme classification.
G
restricts to G or above. G rated programmes are suitable
for all audiences.
PG
restricts to PG or above rated programmes. PG stands
for Parental Guidance, the content of which is mild.
M
restricts to M or above rated programmes. M stands for
Mature, the content of which is moderate in impact.
MA
restricts to MA or above rated programmes. MA stands
for Mature Audiance, the content of which is strong.
R
restricts to R rated programmes. R stands for Restricted
to adults aged 18 years or over, the content of which is
very strong.
AV
restricts to AV rated programmes. AV stands for Adult
Viewing, the content of which is deep hardcore.
Page 27
3.5 Adjusting the On-Screen Display 21
NOTE
If a programme does not have any programme classification
information, your censorship setting will not take effect.
If anyone is trying to watch a programme that is of or above
the censorship setting, the person has to enter the personal
identification number to override.
To change the number, select the Change PIN Code menu; then
an input box appears. You have to enter a desired number
twice for confirmation.
You can also restrict uses of some menus. Selecting the Access
Control menu displays a list of menus that you can lock. If the
Time Setting item is set to Locked, you have to enter the per-
sonal identification number when accessing the Time Setting
menu. If you enter a wrong number, you cannot use the menu.
To release a shut item, set it to Unlocked.
3.5 Adjusting the On-Screen Display
You can adjust the transparency level of the On-Screen Display (OSD). Select the System Setting menu and set the OSD
Transparency option as you desire. Its available range is 0 to
50 percent.
You can adjust the display time of the information box. For the
information box, see§5.2.3. To adjust its display time, select
the System Setting menu and set the Info Box Display Time
option as you desire. Its available range is 1 to 30 seconds. If
you set this option to No Info Box, the information box will not
be displayed when you switch services. However, pressing
the button will display the information box. If you set
this option to Never Hide, the information box will always be
displayed.
In addition, you can raise or lower the position of the information box. Select the System Setting menu and set the Info Box
Page 28
22 Preference Settings
Position option as you desire. Its available range is−10 to+3
lines. The higher you set the option, the lower the information
box will be positioned.
3.5.1 Displaying the time in standby mode
You can display the current time on the front display in standby
mode. To display the time, set the Standby Mode option to
Active standby. Otherwise, set it to Passive standby. When you
set the Standby Mode option to Active standby, the receiver can
also bypass the signal from the antenna.
Page 29
23
Chapter 4
Service Search
After connecting up the digital receiver, you will need to perform a service search.
4.1 Searching broadcasting services

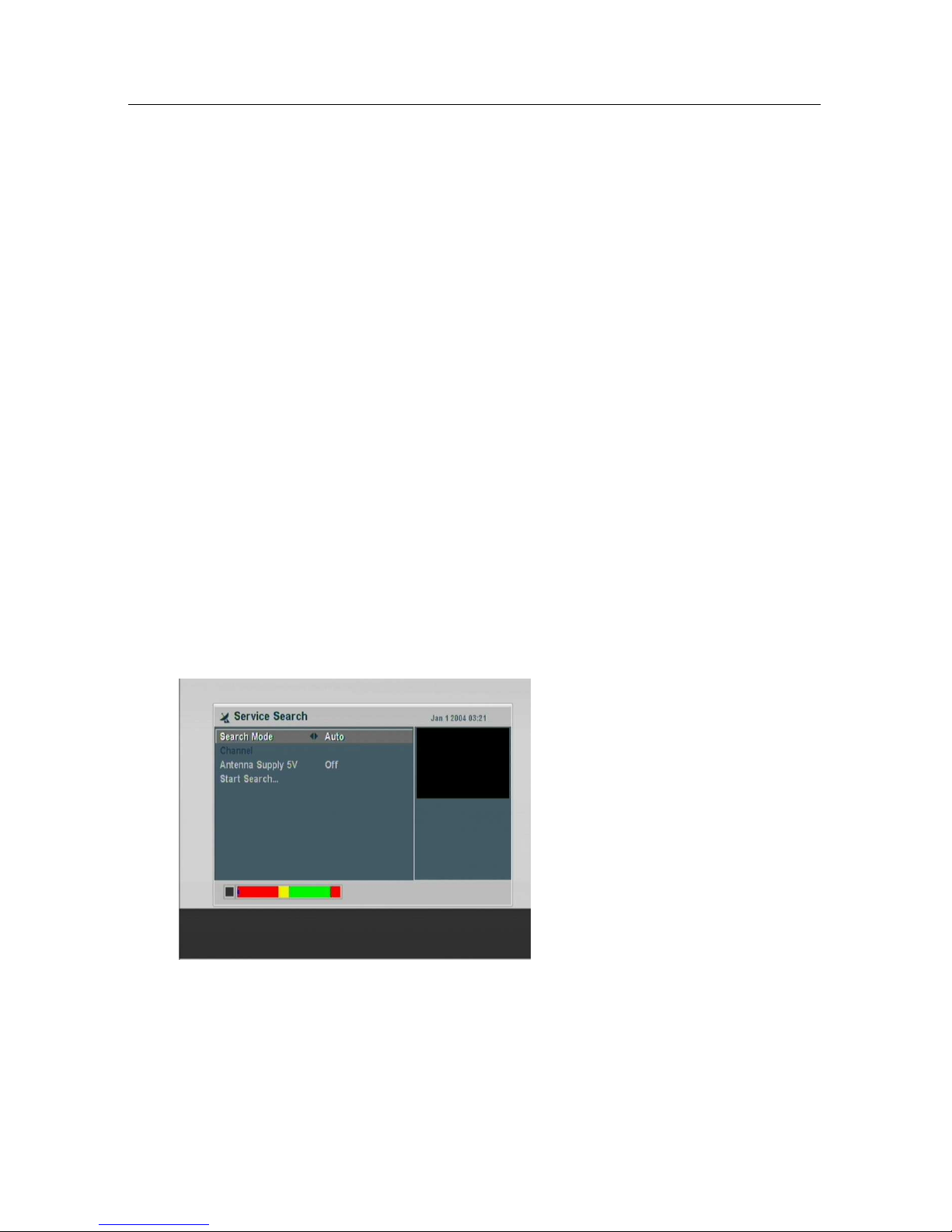

To perform service search, select
the Installation>Service Search
menu. You should see a screen
like the left figure.
You should set the Search Mode option to Auto for the first
time after connecting up the digital receiver; then the digital
receiver will search for all available services.
You may choose to only search for services of a specific transponder because more than one service are provided via each
Page 30
24 Service Search
transponder. To do that, set the Search Mode option to Manual,
and then at the Channel option select your desired transponder.
The number ranges from 6 to 12 in VHF and 28 to 69 in UHF.
To start service search, select the Start Search item; then a list
box appears, in which found services will be listed. When it
has completed, press the
OK
button to save found services.
To stop at any time or to exit without saving, press the
EXIT
button.
4.2 Resetting to factory settings
The digital receiver maintains the following data:
• Services list
• Favourite list
• Timer list
• Preference settings
You can reset all data of the digital receiver. To do that, select
the Installation>Factory Setting menu, and then you get asked
for confirmation. If you select Yes, service entries, favourite
entries and timer events will all be deleted, and preference
options will be reset to the manufacturer’s factory settings.
Page 31
25
Chapter 5
Daily Usage
5.1 Volume control
Use the
V−
and
V+
buttons to alter the volume to a comfortable level. You may need to adjust the volume on your
television set too. To temporarily switch off the sound, press
the button. Press it again to restore the sound to previous
level.
5.2 Watching television
To change services, press the
P+
or
P−
button. Pressing the
button switches to the previously viewed service. In addition, you can switch to your desired service by entering its
service number with the numeric buttons. You can also select a
service to watch in the services list.
5.2.1 The services list
To view the services list, press the
OK button.
Page 32
26 Daily Usage
On the services list, you can see
the service information as follows:
• Service number and name
• Transponder information
To select a desired service, put the highlight bar on its entry
with the
P+
or
P−
button and press the
OK
button; then the
service will be displayed. Pressing the
V−
or
V+
button skips
over 10 entries up or down. Entering a service number with
the numeric buttons puts the highlight bar on its entry.
You can switch between the television services list and the
radio services list by pressing the button.

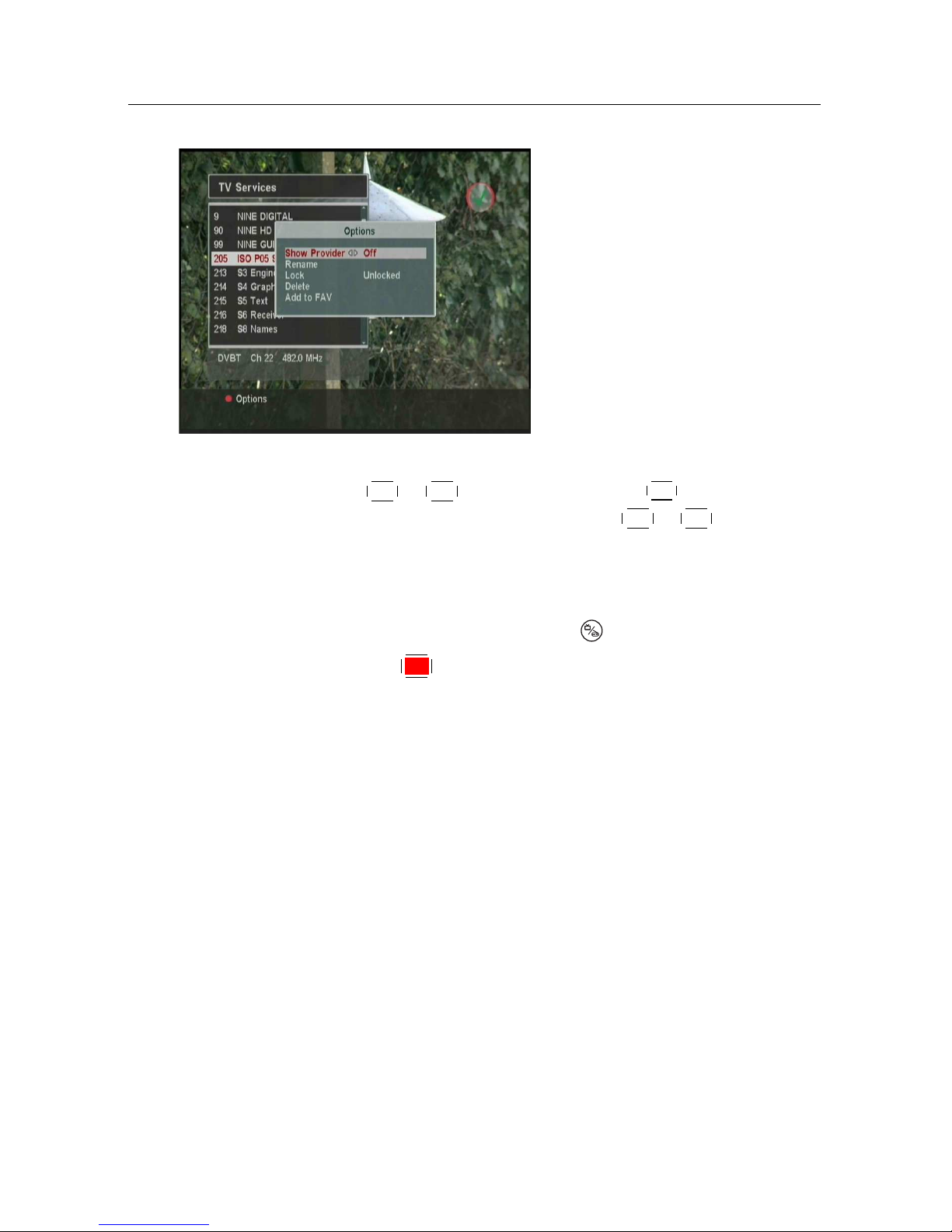

Pressing the
F1
button displays the additional options, with
which you can do the following:
•
By setting the Show Provider option to On, you can view
service entries by groups of broadcasters.
•
To change the name of the highlighted service, select the
Rename option; then the on-screen keyboard appears,
with which you can enter a new name. See§6.2 for how
to use the on-screen keyboard.
•
You can prevent other family members from watching the
highlighted service by setting the Lock option to Locked.
You have to enter your personal identification number to
watch or unlock it.
•
To add the highlighted service into a favourite group,
select the Add to Fav option; then the favourite groups
Page 33
5.2 Watching television 27
will be displayed. Put the highlight bar on a desired
group and press the
OK button.
•
To delete the highlighted service, select the Delete option;
then you get asked for confirmation. If you select Yes, it
will be deleted. If you want to restore it as before, you
have to perform service search again.

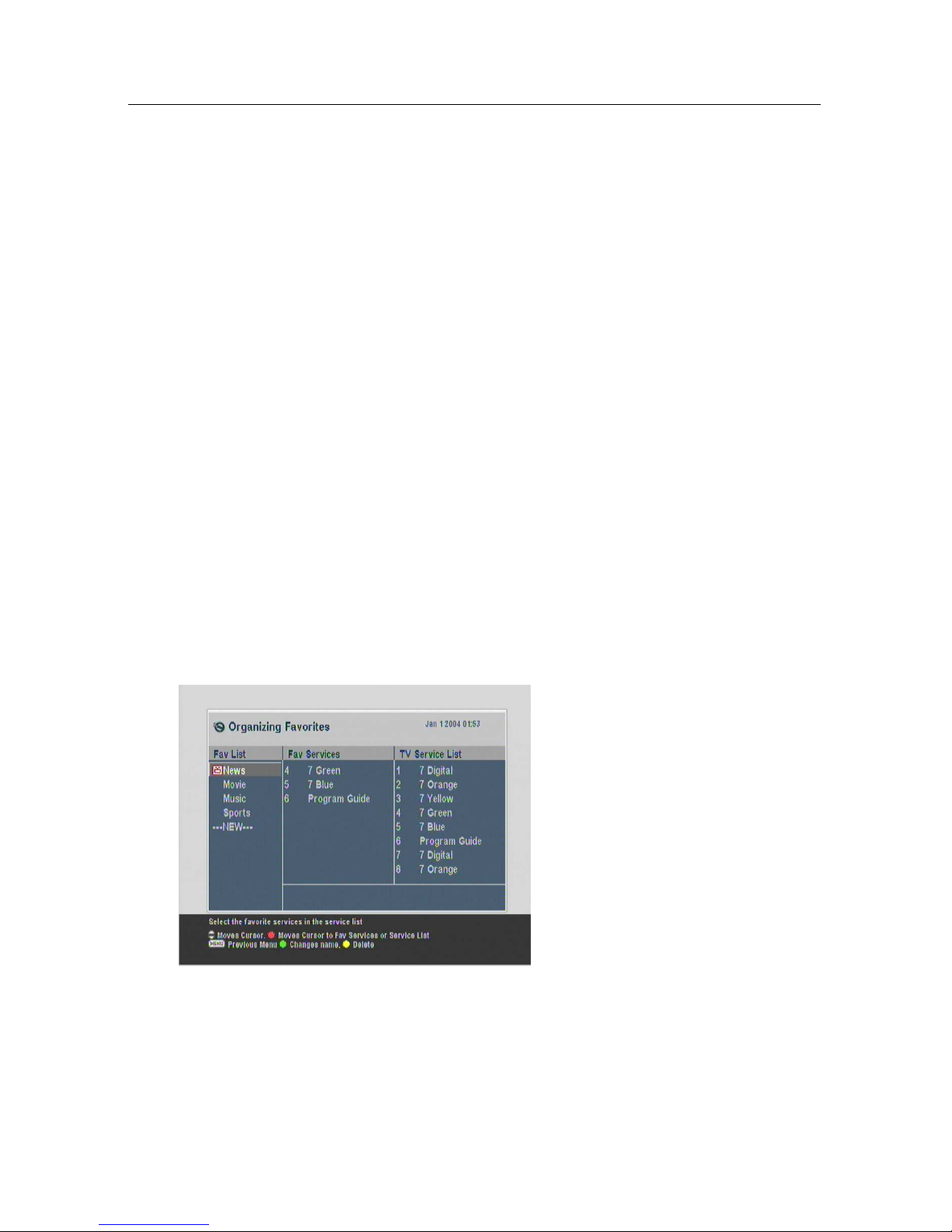

5.2.2 The favourite services list
You can select a service to watch on a favourite list as well as
on the services list.

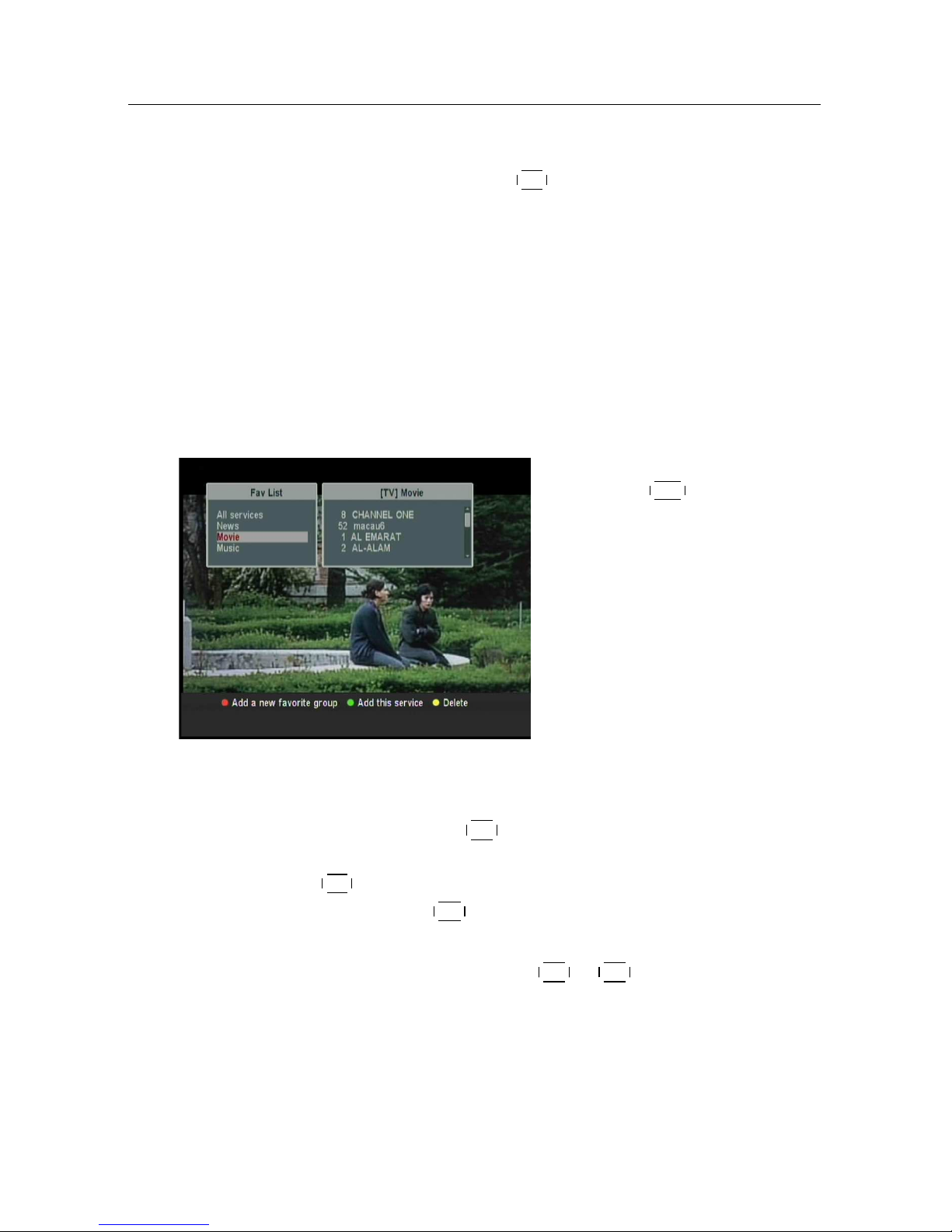

To display the favourite lists,
press the
FAV
button. You
should see a screen like the left
figure. As you move the highlight bar up or down on the
favourite group list at the left
box, favourite services belonging to the highlighted group are
listed on the right box.
For how to edit the favourite lists, refer to § 6.1.
To select a favourite service, put the hightlight bar on a desired
group and press the
V+
button; a highlight bar appears on its
favourite services list. Once you select a desired service with
the
OK
button, it will be presented. Otherwise, to select other
group, press the
V− button.
After you have selected a favourite service, if you then switch
to another service using the
P+
or
P−
button, it will be also
another favourite service of the selected group. The digital
receiver will remind you what group you have selected by
displaying its name at the top right of the screen whenever you
switch services. If you wish to get out of the current group,
select the All services group on the favourite group list.
Page 34
28 Daily Usage
Besides that, you can add or delete a favourite group or service.
To add a service you are currently watching into a favourite
group, put the highlight bar on a desired group and press the
F2
button. To create a new group, press the
F1
button; then

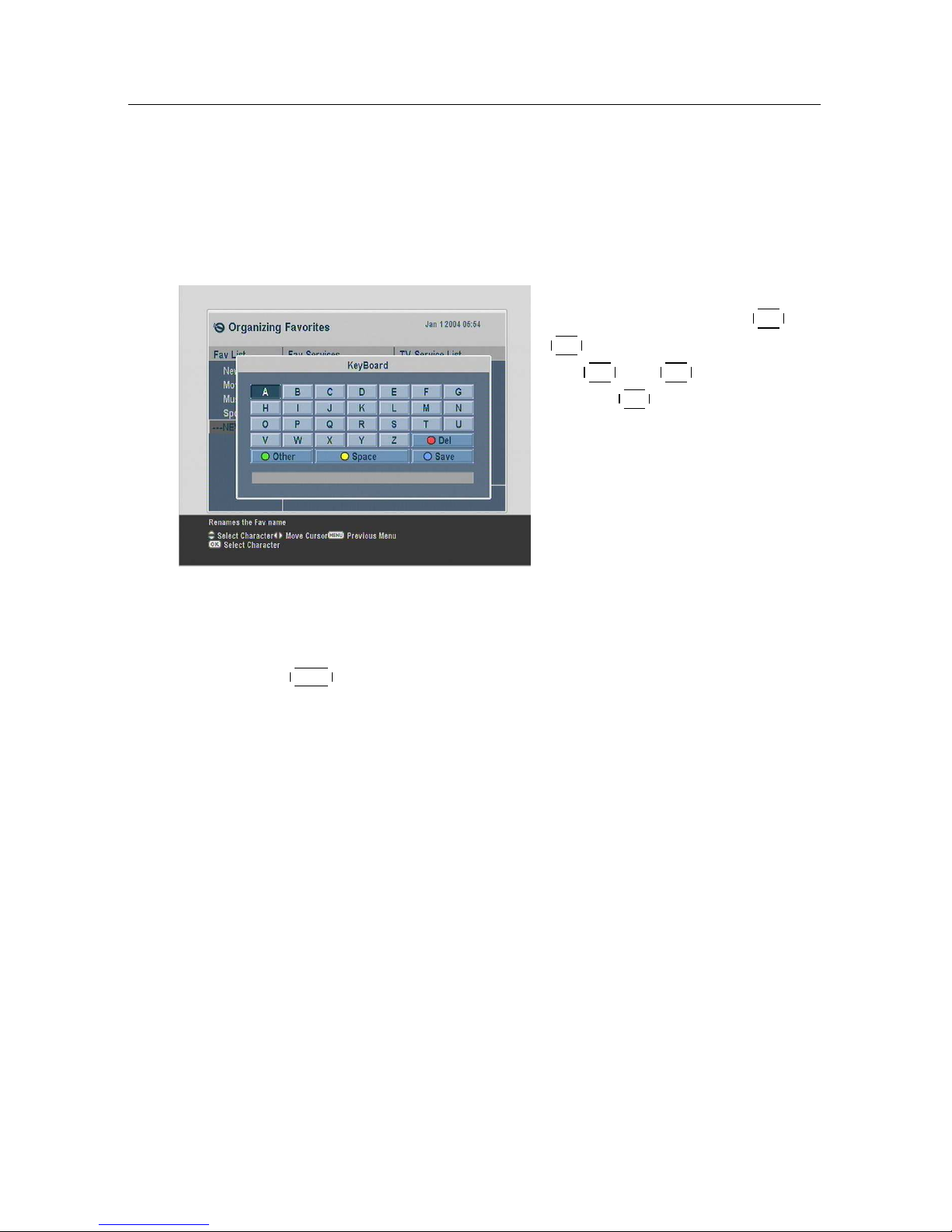

the on-screen keyboard appears. Enter your desired name and
save it. See§6.2 for how to use the on-screen keyboard. To
delete a group or a service, press the
F3
button; then you get
asked for confirmation. If you select Yes, it will be deleted.
5.2.3 Viewing programme information

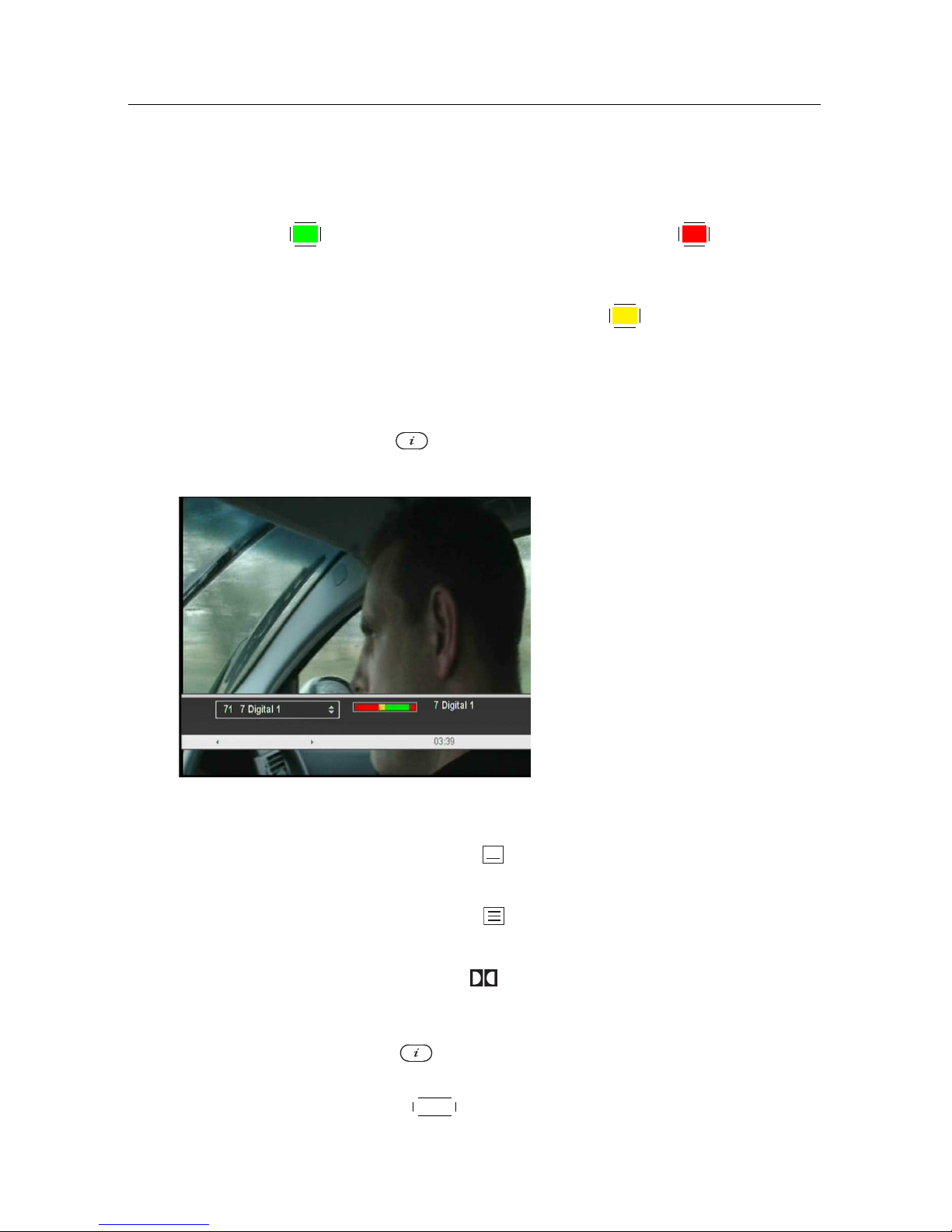

Pressing the button displays the information box, on which
you can see all of the following:
• Service number and name
• Signal level and quality
• Programme name
• Programme classification symbol
• Programme summary
• Broadcasting time
• Current time
In addition, you might see the following symbols:
•
Subtitle symbol ( ) if subtitle tracks are provided on the
current programme.
•
Teletext symbol ( ) if teletext pages are provided on the
current service.
•
Dolby symbol ( ) if a Dolby audio track is provided on
the current programme.
Pressing the button once more displays detailed information about the current programme. To hide the information
box, press the
EXIT button.
Page 35
5.3 Viewing electronic programme guide 29
5.2.4 Selecting audio tracks
Some programmes are provided with audio tracks in one or
more languages. Pressing the button displays available
audio tracks. Once you select an audio track, it will be sounded.
However, if a multifeed programme is provided at the moment,
video tracks will be displayed. In this case, you have to press
the button once more to select an audio track.
5.2.5 Selecting subtitle tracks
Some programmes are provided with subtitle tracks in one or
more languages. If the current programme provides subtitle
tracks, the subtitle symbol ( ) will be marked on the information box. Pressing the button displays available subtitle
tracks. Once you select a subtitle track, it will be displayed.
5.2.6 Viewing teletext
On some services, such information as weather reports, news
or stock quotations is provided by means of teletext. If the
current service provides teletext, the teletext symbol ( ) will
be displayed on the information box. Press the button to
view teletext pages.
Select a page to view by entering its page number with the numeric buttons. You can zoom into a teletext page with the
F3
button, and adjust its transparency level with the
F4
button.
To clear the teletext screen, press the
EXIT button.
5.3 Viewing electronic programme guide
The Electronic Programme Guide (EPG) shows the current and
scheduled programmes that are or will be available on each
service with a short summary for each programme.
Page 36
30 Daily Usage

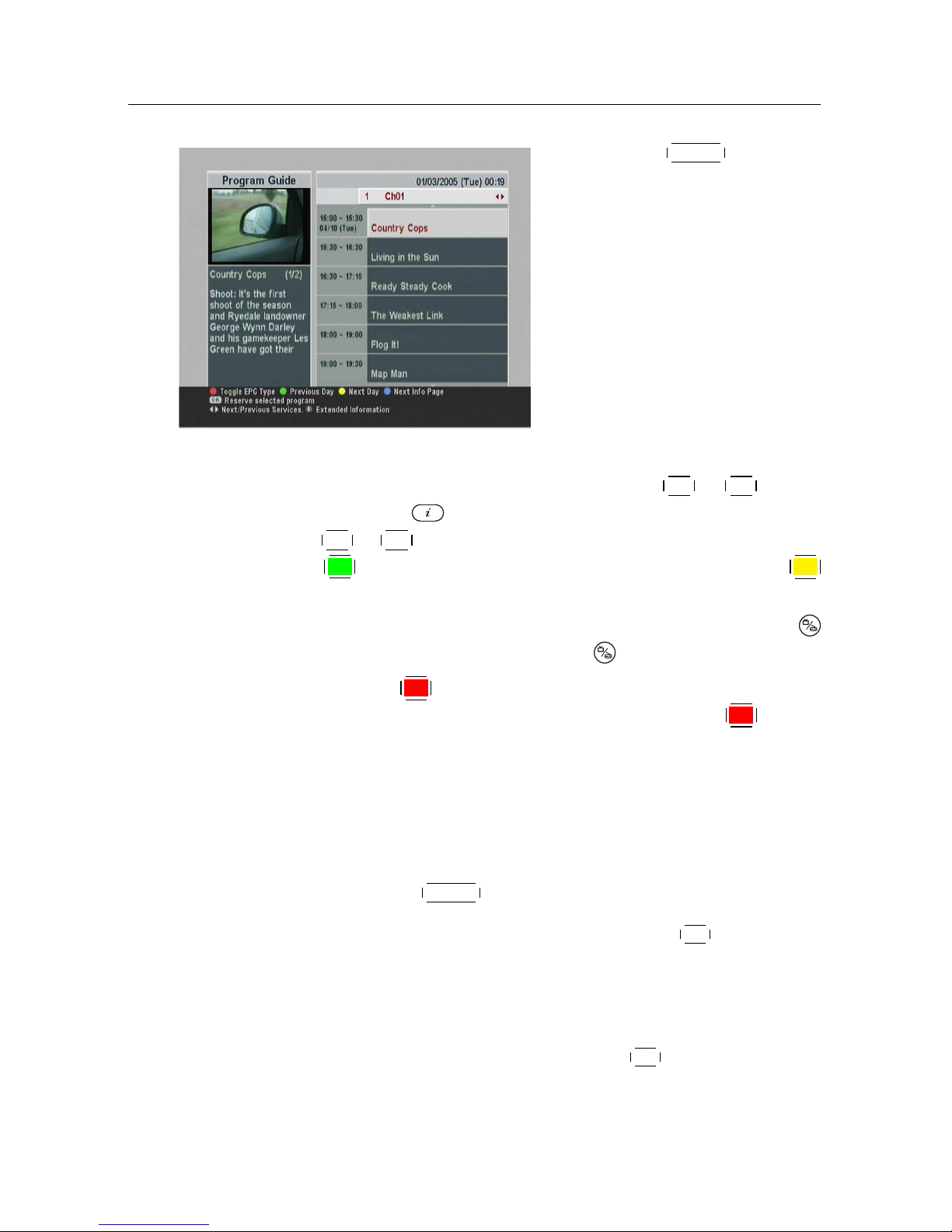

Pressing the
GUIDE
button displays the electronic programme
guide, on which you can see the
following:
• Scheduled programmes
• programme summary
• Broadcasting date
• Broadcasting time
To see detailed information of a desired programme, put the
highlight bar on the programme with the
P+
or
P−
button
and press the button. To switch to another service, press
the
V−
or
V+
button. You can travel over previous days with
the
F2
button, and can travel over next days with the
F3
button.
To see the programme guide for radio broadcasts, press the
button. To switch it back, press the button again.
Pressing the
F1
button displays the programme guide in the
form of spreadsheet. To switch it back, press the
F1
button
again.
You can make a timer event on the electronic programme guide
as follows:
1. Select a service you want.
2. Press the
GUIDE button to display its programme guide.
3.
Select a programme you want with the
OK
button, then
P
is marked up on the entry. At the same time, a timer
event with the selected programme will be made in the
timer list. Refer the timer list to § 5.4.
4.
To remove the marking, press the
OK
button once again.
Page 37
5.4 Making timer events 31
5.4 Making timer events
You can make your desired services to be presented at a specific
time. Even if the digital receiver is in standby mode, it will
switch into operation mode at a specified time. And it will
switch back into standby mode again after the specified duration. However, if you press any button on the remote control
or on the front panel even just one time, the digital receiver
will not switch into standby mode.
To input a timer recording, select
the Timer Setting menu; then the
timer list will be displayed.

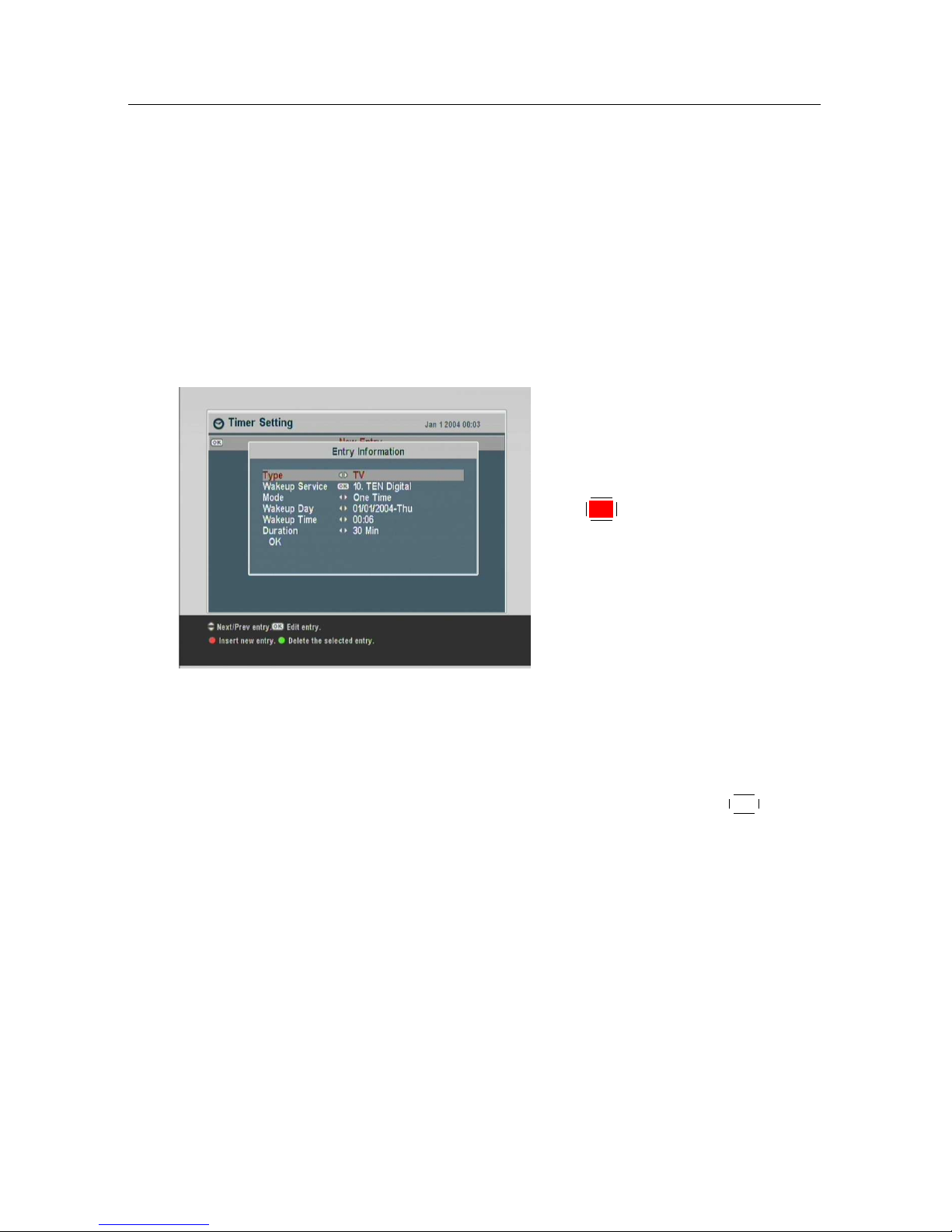

To add a new timer event, press
the
F1
button, and a box like
the left figure appears. Take the
following steps:
1.
If you want a radio programme, set the Type option to
Radio; otherwise, set it to TV.
2.
Set the Wakeup Service option to the service which pro-
vides the programme you want. Pressing the
OK
button
on this option displays a services list, from which you
can select your desired service.
3. There are five timer modes:
One Time means literally ‘one time’.
Every Day means literally ‘every day’.
Every Weekend
means ‘Saturday and Sunday every
week’.
Weekly means ‘one day every week’.
Every Weekday
means ‘from Monday to Friday every
week’.
Page 38
32 Daily Usage
If your favourite programme is broadcasted at weekends
and you wish to watch every episode of the programme,
set the Mode option to Every Weekend.
4.
Set the Wakeup Day option to a desired date, on which
the digital receiver will turn on. The date format is
day/month/year-day of the week.
Set the Wakeup Time option to a desired time, at which
the digital receiver will turn on. The time format is
hour:minute.
5.
Set the Duration option to a desired time, in which the
digital receiver will turn off.
6.
To set a timer event with the above settings, select the OK
option; otherwise, it will not be saved and will not occur.
To delete a timer event, put the highlight bar on the entry you
want to remove and press the
F2
button; then you are asked
for confirmation. If you select Yes, it will be deleted.
Page 39
33
Chapter 6
Listing Services
6.1 Editing the favourite list
You can make your own favourite services list. In fact, you can
define multiple favourite services lists, each being a ‘group’ of
chosen services.
Select the Organizing Favorites
menu. You should see a screen
like the left figure.
There are three columns:
• Group list (left)
• Favourites list (centre)
• Services list (right)
The services list contains all available services, whereas the
favourite list contains only chosen services that have been
added to the highlighted group. As you move the highlight
bar up or down on the group list, favourite services belonging
to the highlighted group get shown in the favourites list.
Page 40
34 Listing Services
You can add up to 30 groups. To add a group, select the NEW
option in the group list; then the on-screen keyboard appears.
See § 6.2 for how to use the on-screen keyboard.
To rename a group, put the highlight bar on the group entry you
want and press the
F2
button; then the on-screen keyboard
appears. See § 6.2 for how to use the on-screen keyboard.
To delete a group, put the highlight bar on the group entry you
want and press the
F3
button; then a message box appears
asking you for confirmation. If you select Yes, it will be deleted.
You can add a favourite service to a group by taking the following steps:
1.
Put the highlight bar on a desired group entry in the
group list and press the
OK
button to select it. The high-
light bar then moves to the services list.
2.
To add a service to the selected group, put the highlight
bar on a desired service entry and press the
OK
button.
The selected service entry gets added to the favourite list.
Repeat this step to add more entries.
3.
Press the
F1
button and the highlight bar gets moved to
the favourite list. You can delete a favourite entry with
the
OK button.
4.
To select another group, press the
F1
button again. By
pressing the
F1
button, the highlight bar gets moved to
each column.
Besides, you can rearrange a group’s favourites by moving a
favourite entry. To move a favourite entry, put the highlight
bar on the favourite entry you want and press the
F2
button.
Move it to a desired place and press the
OK button.
To add radio services, press the button; then radio service
entries get listed in the services list. To recall the television
services list after adding radio services, press the button
again.
Page 41
6.2 How to use on-screen keyboard 35
With your favourite services list, you can select your favourite
services more easily. Refer to § 5.2.2 for detailed description.
6.2 How to use on-screen keyboard
You can move the highlight key
horizontally with the
V−
and
V+
buttons and vertically with
the
P+
and
P−
buttons. Press-
ing the
OK
button on a key en-
ters its letter in the input line. To
type a space, select the Space
key. To type lower case letters or
numerals, select the Other key.
To delete a letter, put the cursor to the right of the desired letter
on the input line and then select the Del key. You must select
the Save key to complete naming; otherwise if you press the
EXIT button, it will not be named.
6.3 Transferring receiver data
The digital receiver retains the following data:
• Services list
• Favourite lists
• Preference settings
It is possible to transfer the receiver data from the digital receiver to another same digital receiver by connecting them with
a RS-232 cable. To have the receiver data transferred, perform
the following steps:
Page 42
36 Listing Services
1.

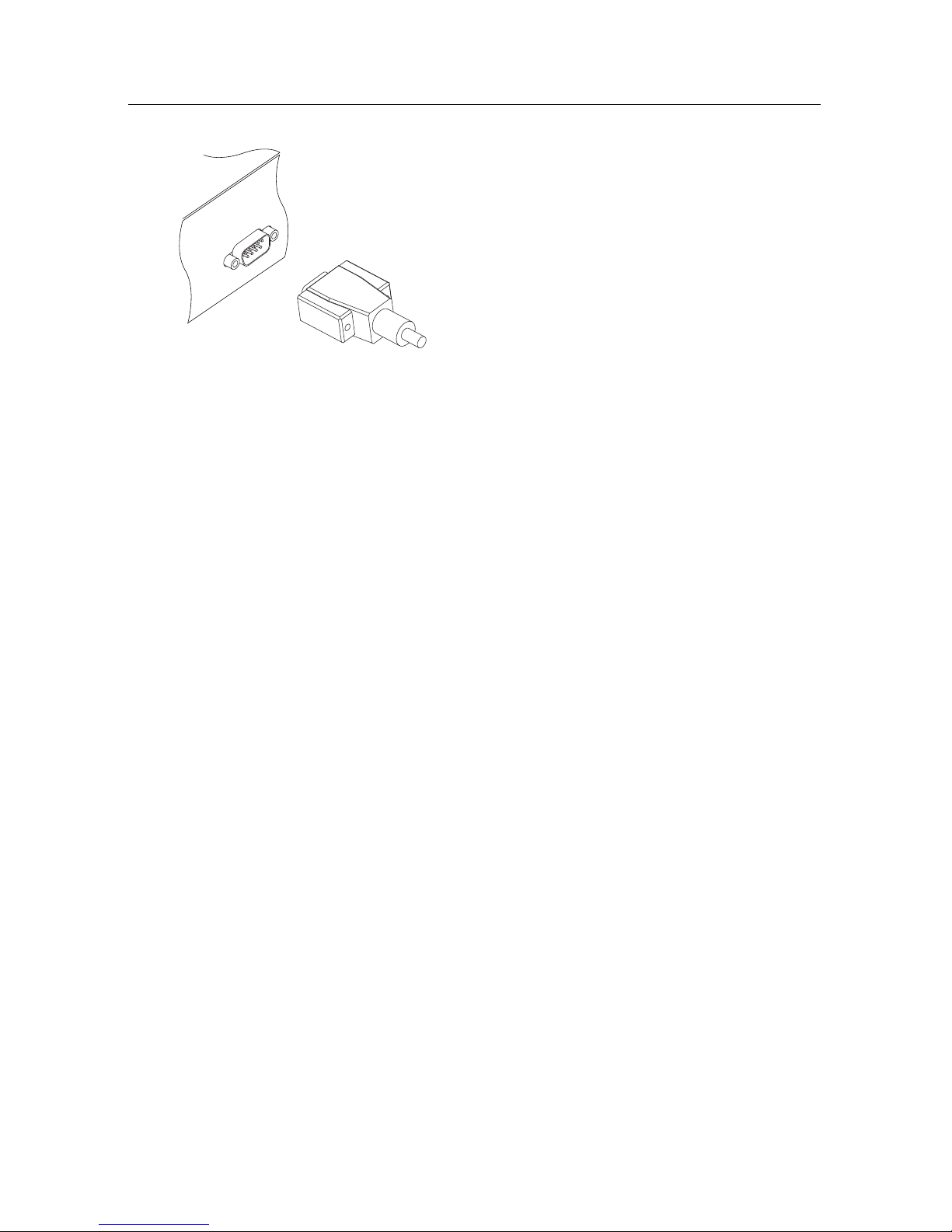

Plug one end of a RS-232 cable (9 pin Dsub cable) into the RS-232 port on the digital receiver, and the other end into the
matching port on the other digital receiver.
2. Turn on the source digital receiver.
3.
Select the Installation>Transfer Firmware
>
Transfer Data to Other IRD menu, then
you get asked for confirmation; select Yes.
4.
To start the data transfer, turn on the target
digital receiver.
5.
A progress bar appears showing the
progress of the data transfer.
6.
Restart the target digital receiver when the
data transfer is complete.
Page 43
37
Chapter 7
Firmware Update
The digital receiver has a stable and convenient firmware to
use. However, once in a while a new firmware may be released
to improve the digital receiver. You can get the latest firmware
and a firmware update tool, which runs on most versions of
Windows, from the Topfield web site,
http://www.itopfield.
com.au.
7.1 Checking the firmware information
You have to check up the
firmware information of your
digital receiver before downloading a new firmware. Select the
Information>IRD Status menu.

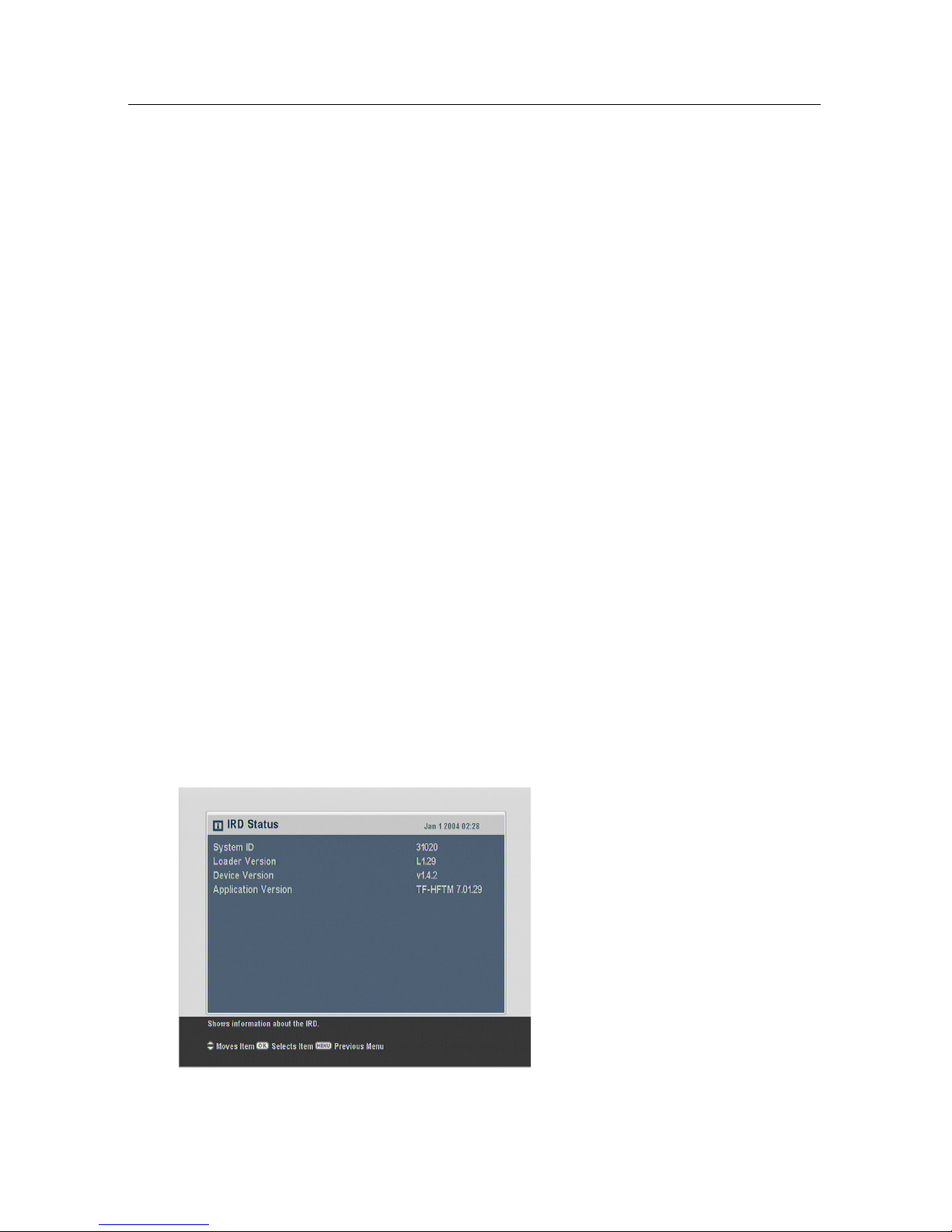

You should see a screen like the
left figure.
Remember the number of the
System ID item, and download
the latest firmware with the
same system identification.
Page 44
38 Firmware Update
NOTE
It is only allowed to update with the firmware of which system
identification is identical to that of yours. Otherwise you will
fail in firmware update.
Page 45
7.2 From your computer via RS-232 port 39

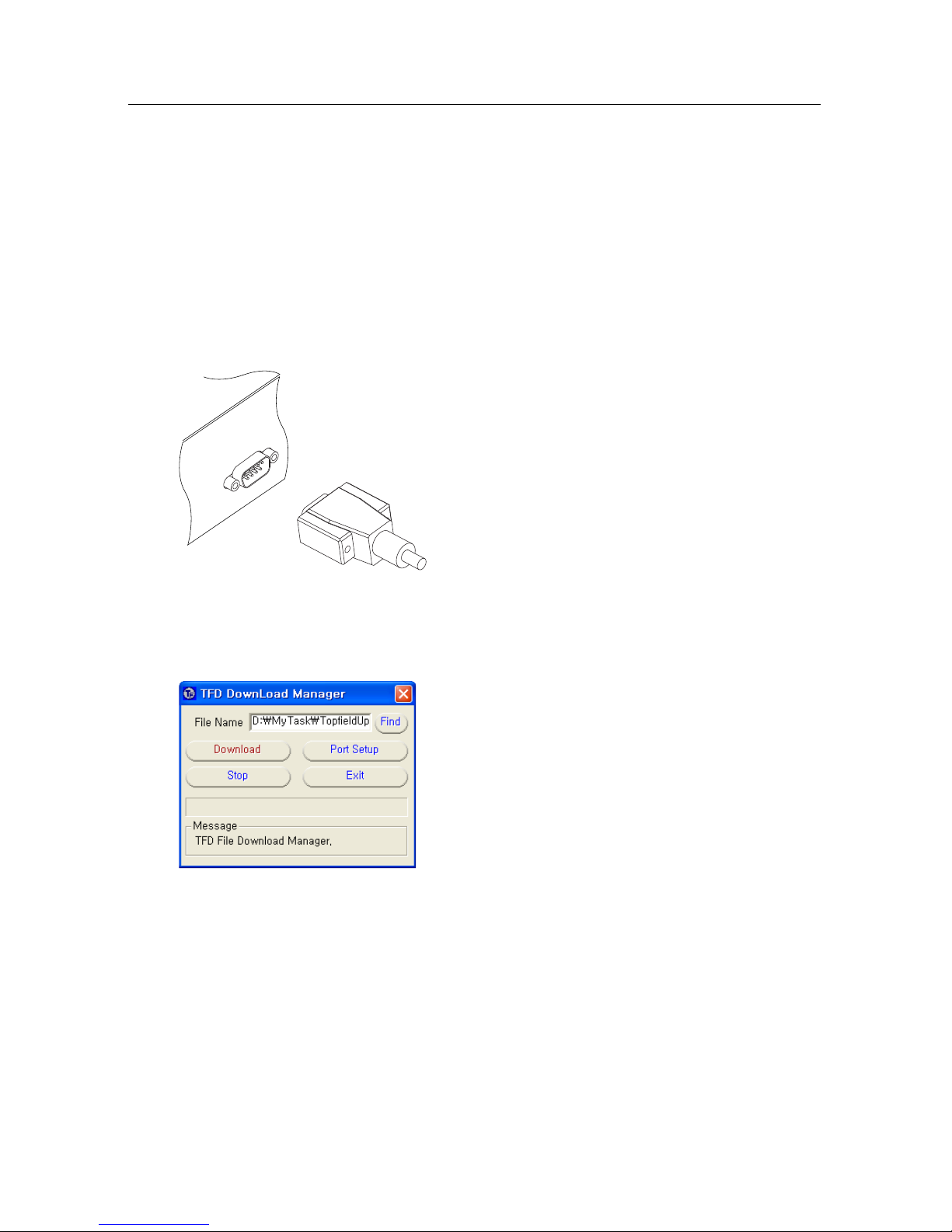

7.2 From your computer via RS-232 port
It is possible to transfer a new firmware to the digital receiver
from your computer by connecting them with a RS-232 cable.
You need TFD-Down, a firmware transfer utility for this, which
is available from the web site,
http://www.itopfield.com.au
.
To update the firmware by this method, perform the following
steps:
1.
Download a new firmware applicable to
your digital receiver from the Topfield
web site.
2. Turn off the digital receiver.
3.

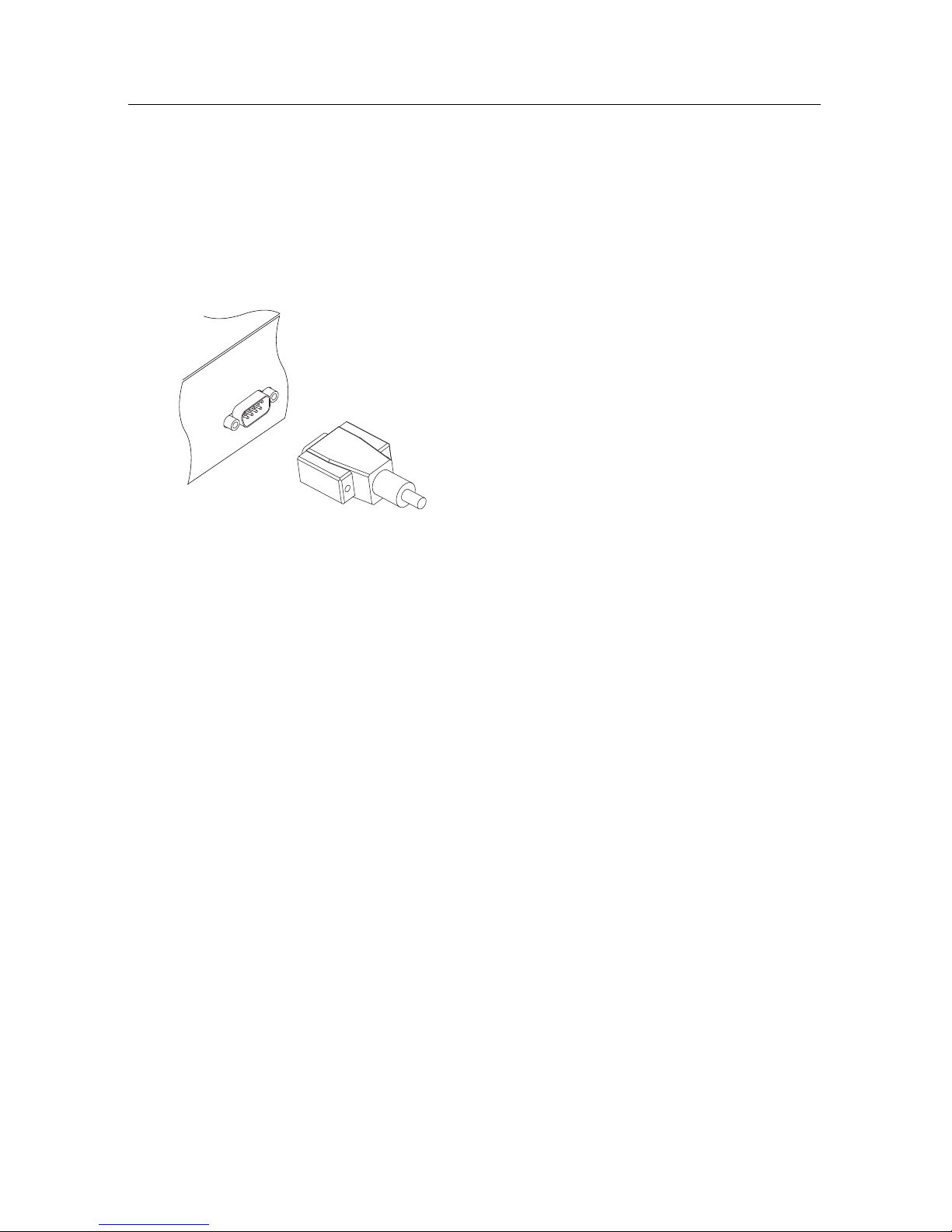

Plug one end of a RS-232 cable (9 pin Dsub cable) into the RS-232 port on the digital receiver, and the other end into the
matching port on your computer.
4. Run TFD-Down.
The instructions on how to use TFD-Down are as follows:
1.
Press the Find button to select the new
firmware file.
2.
Press the download button, and then turn
on the digital receiver to start the file transfer.
3.
A countdown will be displayed on screen
or on the front display.
4.
Restart the digital receiver when the file
transfer is complete.
Page 46
40 Firmware Update
7.3 From another digital receiver via RS-232 port
It is possible to transfer the firmware from the digital receiver
to another same digital receiver by connecting them with a RS232 cable. To update the firmware with this method, perform
the following steps:
1. Turn off the target digital receiver.
2.
Plug one end of a RS-232 cable (9 pin Dsub cable) into the RS-232 port on the digital receiver, and the other end into the
matching port on the other digital receiver.
3.
Turn on the source digital receiver if not
already on.
4.
Select the Installation>Transfer Firmware
>
Transfer Firmware to Other IRD menu,
then you get asked for confirmation; select
Yes.
5.
Turn on the target digital receiver to start
the firmware transfer.
6.
A progress bar appears showing the
progress of the firmware transfer.
7.
Restart the target digital receiver when the
firmware transfer is complete.
Page 47
INDEX 41
Index
16:9, 15
16:9 Display Format, 16
1st Audio Language, 14
1st Subtitle Language, 14
2nd Audio Language, 14
2nd Subtitle Language, 14
4:3, 15
4:3 Display Format, 15
A/V Output Setting, 15
Access Control, 21
Add to Fav, 26
ANT IN, 8, 9
ANT OUT, 8, 9
AUDIO L, 11
AUDIO L/R, 8
AUDIO R, 11
Auto, 23
AV, 20
Button, 4
Censorship, 20
Center, 15
Center extract, 16
Change PIN Code, 21
Channel, 24
Daylight Saving Time, 18
Delete, 27
Dolby Digital, 17
download, 39
Duration, 32
DVB, 1
Electronic Programme Guide, 29
Every Day, 31
Every Weekday, 31
Every Weekend, 31
Factory Setting, 24
Find, 39
Full, 15
G, 20
GMT, 18
HDMI, 8, 10
high definition, 16
Info Box Display Time, 21
Info Box Position, 22
information box, 28
IRD Status, 37
keyboard, 35
Language Setting, 13
Letter Box, 16
Local Time, 18
Lock, 26
M, 20
MA, 20
Page 48
42 INDEX
Manual, 24
Menu Language, 13
Mode, 18, 32
mono, 17
NEW, 34
No block, 20
normal-screen television, 15
One Time, 31
Organizing Favorites, 33
OSD Transparency, 21
Parental Control, 20
PG, 20
PIN, 20
R, 20
Radio, 31
Rename, 26
RS-232, 8, 36, 39, 40
S/PDIF, 17
S/PDIF, 8, 11
Search Mode, 23, 24
Service Search, 23
services list, 25
Show Provider, 26
Sound Mode, 17
specifications, 7, 9
Standby Mode, 22
Start Search, 24
stereo, 17
subtitle, 29
System ID, 37
System Setting, 21
teletext, 29
TFD-Down, 39
time format, 18
Time Offset, 18
Time Setting, 18, 21
timer list, 31
Timer Setting, 31
Total block, 20
Transfer Data to Other IRD, 36
Transfer Firmware to Other IRD, 40
transponder, 1
TV, 31
TV Aspect Ratio, 15
Type, 31
VIDEO, 8, 10, 11, 17
Video Format, 16
Wakeup Day, 32
Wakeup Service, 31
Wakeup Time, 32
Weekly, 31
wide-screen television, 15
Y/Pb/Pr, 8
Page 49
Page 50
Correct disposal of this product
This marking shown on the product or its literature indicates that it should
not be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product or their local government office for details of where and how they
can dispose this product for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Topfield continues to improve the digital receiver which this guide explains. So some
explanations and illustrations in this guide could be different from the actual digital receiver.
Copyright © 2009, Topfield Co., Ltd. All rights reserved. Australian version
http://www.itopfield.com.au 110T-B5AC4-701-0
http://www.i-topfield.com
Loading...
