Topcon SL-D4, SL-D2, SL-D4Z Instruction Manual

INSTRUCTION MANUAL

SLIT LAMP

SL-D2
SL-D4
SL-D4Z

1

INTRODUCTION

Thank you for purchasing the Slit Lamp SL-D2/SL-D4/SL-D4Z.

This slit lamp is used for enlargement in the observation of eyeballs and other parts.

This instrument has the following features:

• Smooth operation

• Eye ground observation/recording with natural, clear colours

• Function for automatic right/left eye detection, useful for digital recording

• Apochromatic optical system to realize natural colour and high resolution

• Robustness and durability

• SL-D4Z makes continuous observation by manual zoom microscope possible.

This Instruction Manual gives a summary of the basic operation, troubleshooting, checking,
maintenance and cleaning of Slit Lamps SL-D2, SL-D4 and SL-D4Z.

To ensure the best use of the instrument, read "Displays for Safe Use" and "Safety Precautions".
Keep this Instruction Manual with the instrument for future reference.

PRECAUTIONS

WORKING ENVIRONMENT

Temperature: 10°C-40°C
Humidity: 30-75% (no dewing)
Atmospheric Pressure: 700hPa-1,060hPa

STORAGE METHOD

1. Environmental Conditions
Temperature: 10°C-40°C
Humidity: 30-75% (no dewing)
Atmospheric Pressure:700hPa-1,060hPa

2. Place of Storage
(1) Protected from water splashes
(2) Protected from adverse effects caused by atmospheric pressure, temperature,

moisture,
ventilation, sunlight, dust, salt content, sulphur, etc.

(3) Stable, without slopes, and protected from vibrations, shocks (including

transportation), etc.

(4) Free of chemicals and gases

PERMISSIBLE ENVIRONMENTAL CONDITIONS FOR TRANSPORT AND STORAGE

Temperature: -20°C-50°C

2

Humidity: 10-95%

3

MAINTENANCE AND CHECKS

1. Regularly maintain and check equipment and parts.

2. When using equipment for the first time in a while, check in advance that everything is

operating as it should.

3. Keep the objective lens free of fingerprints and dust.

4. When not is use, protect the instrument with the dust cover.

5. If the objective lens is stained, clean it in accordance with the information under “Cleaning

Lenses and Prisms” in the Instruction Manual.

4

DISPLAYS FOR SAFE USE

In order to ensure the safe use of the product and to prevent danger to the operator and others, or
damage to property, important warnings are placed on the product and described in the instruction
manual.
All users are recommended to take note of the meaning of the following displays and icons before
reading the "Safety Precautions" and text.

DISPLAYS

DISPLAY MEANING

Ignoring or disregarding this notice could lead
to death or serious injury.

Ignoring or disregarding this display could
lead to personal injury or physical damage.

• Injury refers to cuts, bruises, sprains, fractures, burns, electric shocks, etc.

• Physical damage refers to damage to buildings, equipment or furniture.

ICONS

ICONS MEANING

This indicates Prohibition.
Specific content is expressed via words or icons, with
words either inserted in the icon itself or located next to
the icon.

This indicates Mandatory Action.
Specific content is expressed via words or icons, with
words either inserted in the icon itself or located next to
the icon.

This icon indicates Hazard Alert (Warning).
Specific content is expressed via words or icons, with
words either inserted in the icon itself or located next to
the icon.

WARNING

CAUTION

5

SAFETY PRECAUTIONS

Icons Prevention item Page

“To prevent units from falling during use and movement, secure
each unit.”

15

To avoid injury to the patient’s eye and nose, pay particular
attention while operating the instrument body.

29

To prevent fingers from being caught between moving parts,
beware of the moving parts while operating the main body.

29

To avoid causing the patient pain and damage to the patient’s eye,
do not make the illumination too bright.

30

To avoid electric shocks, do not attempt overhauling, rebuilding or
repairs. Contact your dealer for repairs.

39

When replacing the lamp, switch off the power supply and remove
the power cable to avoid electric shocks.

34

If you replace the lamp immediately after switching it off, beware of
high temperatures: they could cause burns.

34

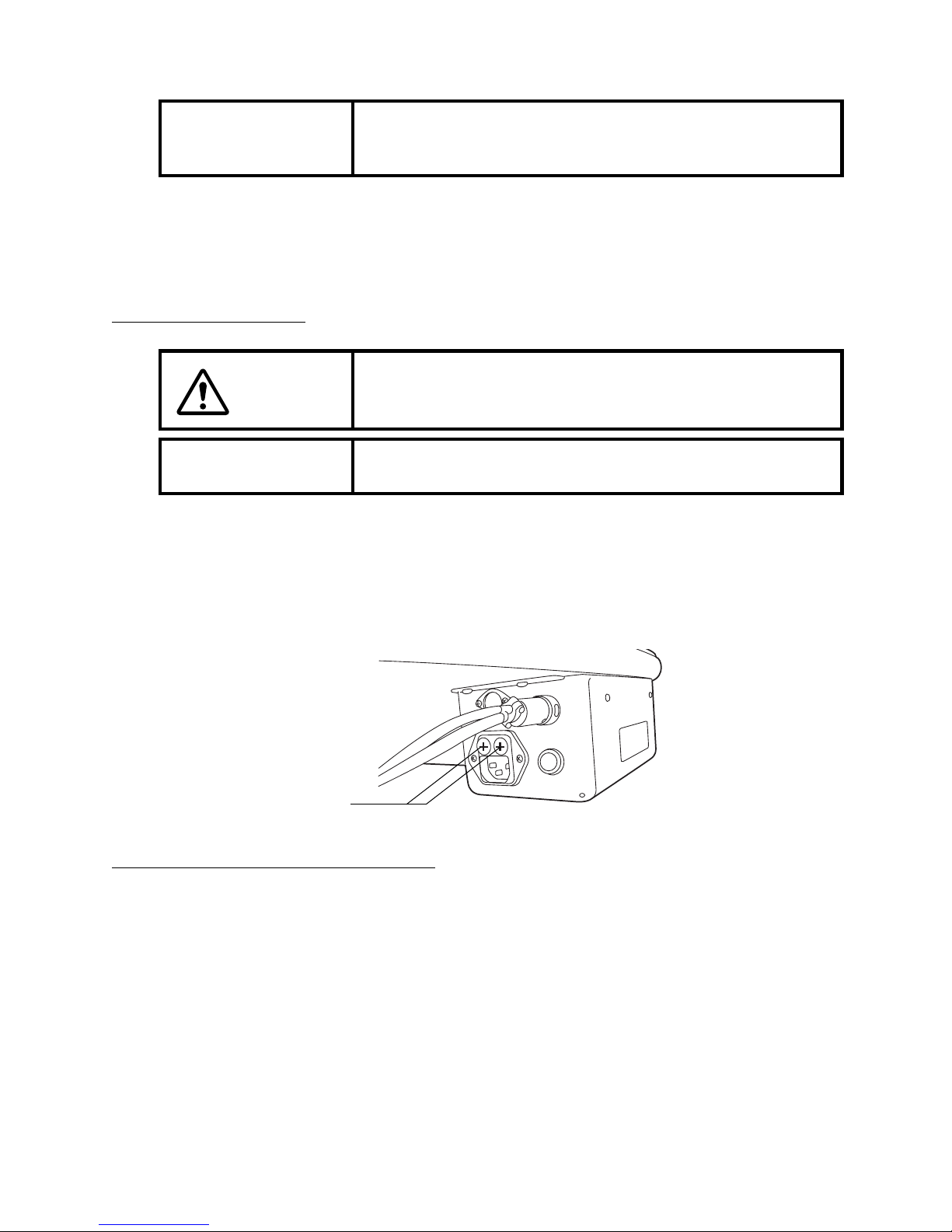

When replacing fuses, first switch off the power supply and remove
the power cable to avoid electric shocks.

36

Before carrying out daily maintenance, remove the power cable (to
avoid electric shocks) and wait until the body has cooled down (to
avoid burns).

37

To prevent burns, do not touch parts inside the lamp cover house
during operation and immediately after switching off the power
supply.

37

The base contains strong springs. Do not attempt to disassemble
or burn the base, as the springs could cause injury by shooting out
of it.

38

To prevent items from falling during use and movement, attach
optional accessories securely.

40

CAUTION

6

This instrument has been tested (with 120V/230V) and found to
comply with IEC60601-1-2: 2001.
This instrument radiates radio frequency energy within standards
and may affect other devices in the vicinity.
If you have discovered that turning the instrument on or off affects
other devices, we recommend you change its position, keep it at a
proper distance from other devices, or change the outlet.
If you have any questions, please contact the dealer who supplied
the equipment.

––

Icons Prevention item Page

CAUTION

7

MAINTENANCE

USER MAINTENANCE

To ensure the safe operation of the instrument, all maintenance should be carried out by an
authorized service engineer, unless otherwise specified in this manual.
For details about maintenance, read the description of this manual.

REPLACING THE ILLUMINATION LAMP

The illumination lamp can be replaced if necessary. For specific instructions, see page 34.

REPLACING THE FUSE

Fuses on the primary side can be replaced, if necessary. For specific instructions, see
page 36.

ESCAPE CLAUSE

• TOPCON shall take no responsibility for damage due to fire, earthquakes, actions by a third
party or other accidents, or the negligence and misuse of the user and use under unusual
conditions.

• TOPCON shall take no responsibility for damage derived from the inability to use this
equipment, such as a loss of business profit and suspension of business.

• TOPCON shall take no responsibility for damage caused by operations other than those
described in this Instruction Manual.

• Diagnoses made are the responsibility of qualified doctors and TOPCON shall take no
responsibility for the results of such diagnoses.

8

WARNING INDICATIONS AND POSITIONS

To ensure safety, warning labels are provided on the instrument body.
Abide by these warning instructions. If any of the following labels are missing, contact your
dealer or TOPCON (see the back cover).

CAUTION

• To prevent electric shocks, switch off the power supply and remove the
power cable before replacing the lamp.

• Do not replace the lamp immediately after switching it off: the high
temperatures could cause burns.

CAUTION

• To prevent electric shocks, turn off the power switch and remove the
power cable before replacing fuses.

• Use the specified fuse.

CAUTION

When operating the base unit, please
note the following:

• Beware of catching fingers in the
moving parts.

• Avoid hitting the patient’s eyes or
nose.

9

CONTENTS

INTRODUCTION .......................................................................................1

DISPLAYS FOR SAFE USE......................................................................4

SAFETY PRECAUTIONS..........................................................................5

MAINTENANCE.........................................................................................7

USER MAINTENANCE..............................................................................7

ESCAPE CLAUSE.....................................................................................7

WARNING INDICATIONS AND POSITIONS ............................................8

CONFIGURATION

NAMES OF MAIN BODY COMPONENTS ..............................................11

STANDARD ACCESSORIES ..................................................................12

COMPONENTS

COMPONENTS .......................................................................................14

ASSEMBLY PROCEDURE

SECURING THE INSTRUMENT TYPE TABLE TOP..............................15

SECURING THE UNIT TYPE TABLE TOP .............................................16

SECURING THE PATIENT GRIP PG-1 (OPTIONAL ACCESSORY) .....16

SECURING THE CHINREST BASE PLATE ...........................................17

SECURING THE BASE UNIT AND RAIL COVER ..................................17

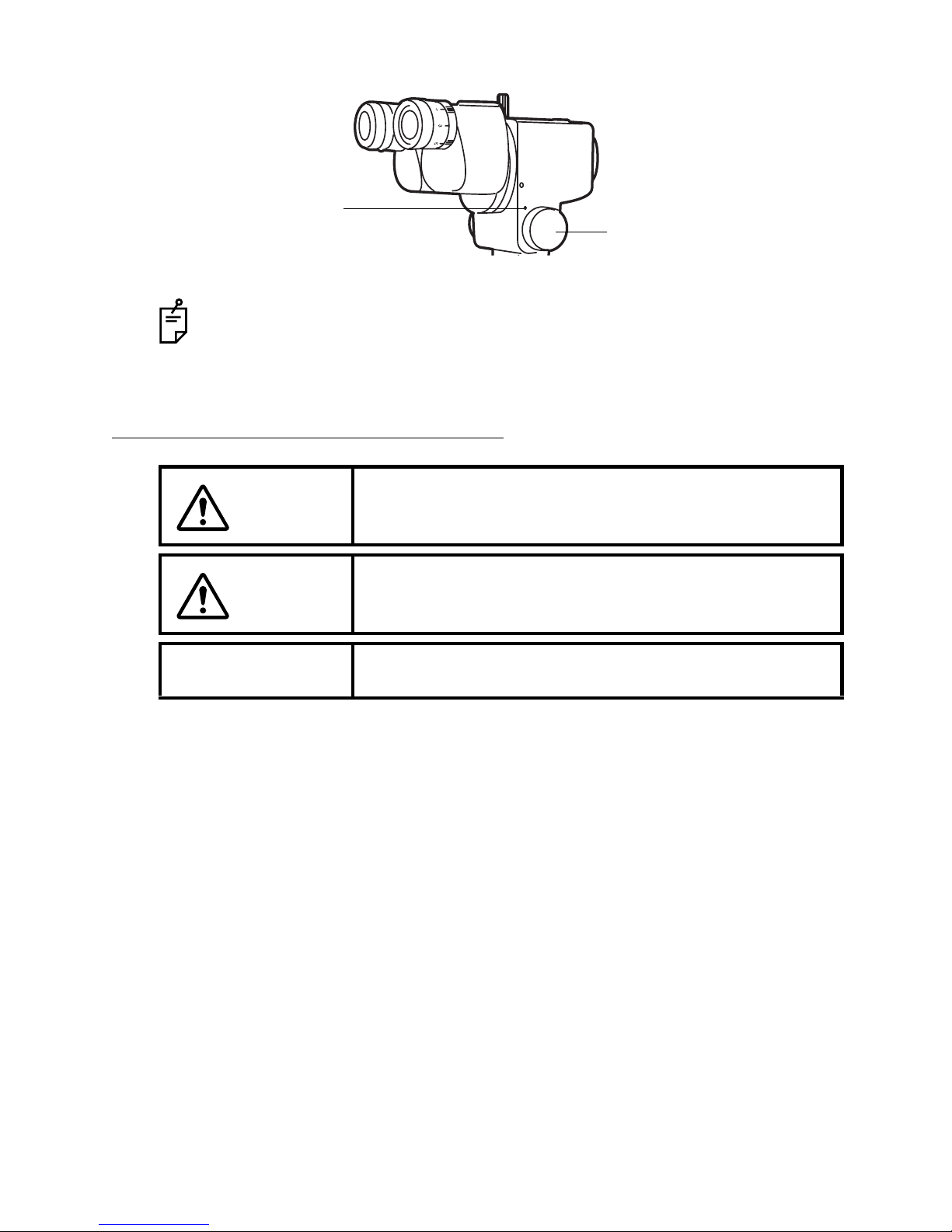

SECURING THE BINOCULAR TUBES...................................................18

SECURING THE ILLUMINATION UNIT ..................................................18

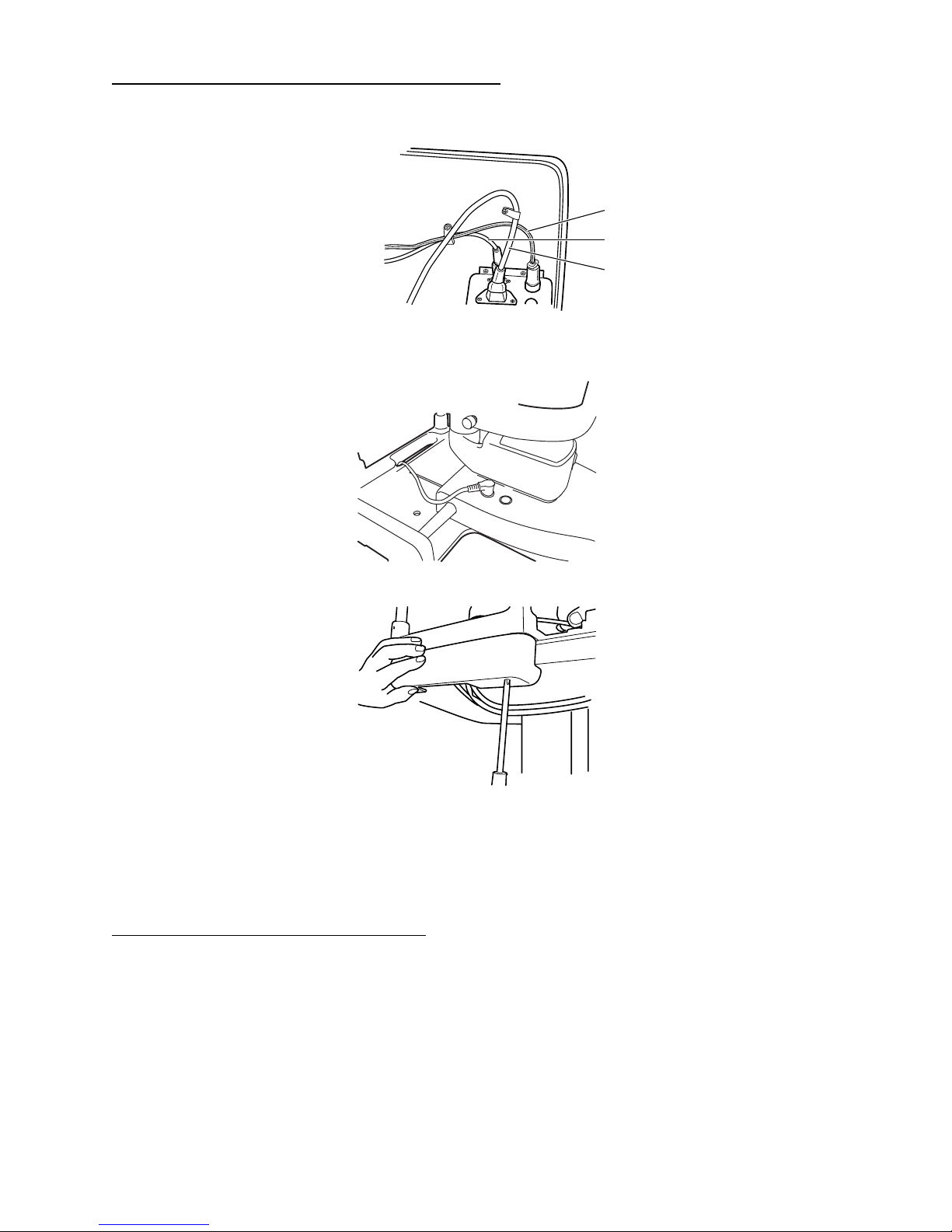

CONNECTING AND SECURING CABLES .............................................20

FITTING THE CHINREST TISSUE .........................................................20

FITTING THE CAP ..................................................................................21

SECURING THE TONOMETER MOUNT (OPTIONAL ACCESSORY) ..21

COUNTER-BALANCING THE VERTICAL MOVEMENT ........................23

PREPARATIONS

POWERING ON ......................................................................................25

ADJUSTING THE DIOPTER AND PUPILLARY DISTANCE (PD) ..........25

OPERATION PROCEDURES

FIXING THE PATIENT’S FACE AND FIXATION ....................................28

OPERATING THE MICROSCOPE UNIT ................................................28

OPERATING THE BASE AND FOCUSING ............................................29

OPERATING THE ILLUMINATION UNIT................................................30

ENDING PROCEDURE...........................................................................32

TROUBLESHOOTING

TROUBLESHOOTING GUIDE ................................................................33

SPECIFICATIONS AND PERFORMANCE

SPECIFICATION AND PERFORMANCE................................................34

ELECTROMAGNETIC COMPATIBILITY ................................................35

10

ELECTRIC RATING ................................................................................35

SYSTEM CLASSIFICATION ...................................................................35

PURPOSES OF USE ..............................................................................35

OPERATION PRINCIPLES .....................................................................35

SYSTEM CONFIGURATION...................................................................36

SHAPE OF PLUG....................................................................................37

SYMBOL..................................................................................................37

MAINTENANCE AND CHECKS

PERIODIC MAINTENANCE ....................................................................38

DAILY MAINTENANCE ...........................................................................38

ORDERING CONSUMABLES.................................................................38

REPLACING ILLUMINATION LAMPS.....................................................39

REPLACING FUSES ...............................................................................41

RESTOCKING CHINREST TISSUE........................................................41

MAINTENANCE PROCEDURE...............................................................42

CLEANING REMOVABLE PARTS ..........................................................42

CLEANING LENSES AND PRISMS........................................................42

CLEANING THE SLIDING PLATE, RAIL AND WHEEL SHAFT .............43

DISPOSING OF THE PRODUCT............................................................43

OPTIONAL ACCESSORIES

DIGITAL CAMERA UNIT DC-1................................................................44

STILL CAMERA ATTACHMENT SR-53 ..................................................44

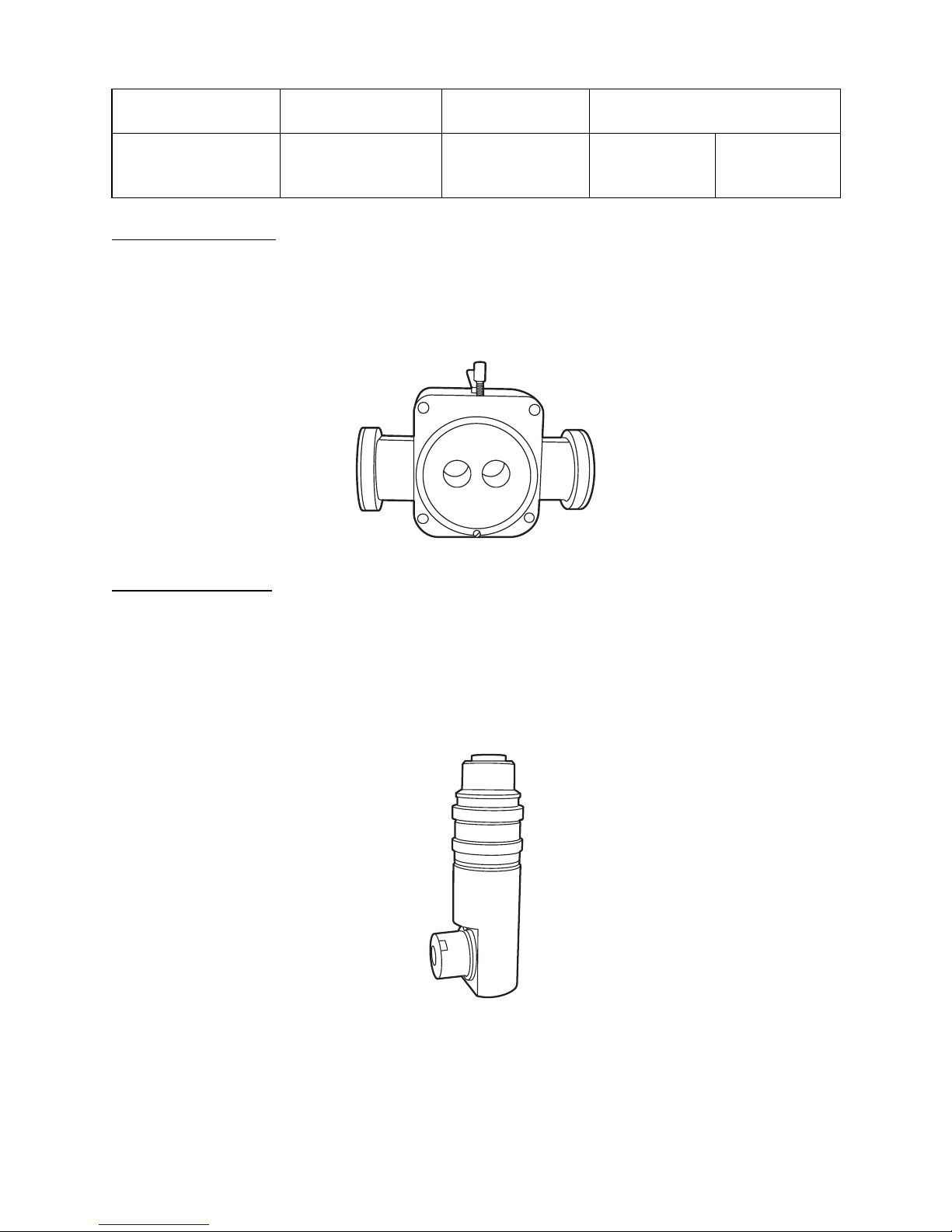

BEAM SPLITTER ....................................................................................45

TV RELAY LENS .....................................................................................45

TV RELAY LENS TL-54...........................................................................46

TV RELAY LENS TL-55...........................................................................46

TV ATTACHMENT TL-56 ........................................................................46

TV ATTACHMENT TL-57 ........................................................................47

BACKGROUND ILLUMINATION BG2-GN ..............................................47

OBSERVATION TUBE ............................................................................47

FIXATION TARGET.................................................................................47

12.5X MEASURING EYEPIECE..............................................................48

20X EYEPIECE .......................................................................................48

APPLANATION TONOMETER................................................................48

HRUBY LENS..........................................................................................48

PARALLEL BINOCULAR TUBE PB-2 .....................................................49

YELLOW FILTER UNIT ...........................................................................49

AUXILIARY SPRING SO-AS 0, 1, 2, 3 ....................................................49

PATIENT GRIP PG-1 ..............................................................................49

ADAPT COVER SO-AC3, 4, 5.................................................................49

11

CONFIGURATION

CONFIGURATION

NAMES OF MAIN BODY COMPONENTS

• A model without diffusor (2) is also available.

• A model without table unit (3) is also available.

Chinrest unit

Chinrest

Chinrest adjuster

SL-D2 Microscope unit

Objective lens

Forehead rest

Canthus marker

Magnification selector handle
Diopter adjusting ring

Eyepiece
Binocular tubes
Magnification index mark
Microscope arm

Cap
Illumination arm
Illumination arm locking knob
Microscope arm locking knob
Base relay cable

Power supply unit

Power switch

Illumination unit

Prism
Slit scanning ring
Slit rotation ring
Slit width control knob
Filter selector wheel
Aperture/slit length control knob
Lamp house cover

Base Unit

Photo switch
Control lever
Base locking knob
Brightness adjustment knob

Base

Table unit (3)

Ta bl e

Diffusor (2)

SL-D4 Microscope unit SL-D4Z Microscope unit

Magnification
index mark

Magnification
selector handle

Magnification
selector handle

Magnification
index mark

Objective lensObjective lens

12

CONFIGURATION

STANDARD ACCESSORIES

Make sure that all the following standard accessories are included.
Figures in parentheses are the quantities.

Chinrest tissue (1) Dust cover (1)

Test rod (1)
(This is not always included with the standard
specifications.)

Crosshead screwdriver (1)

Spare illumination lamp (1) Screwdriver (1)

Spare socket (1) Spare fuse (2)

(Quantity may differ, depending on the
specification, or this item may not be included
in standard accessories.)

Cap (1) Spanner (1)

(for instrument type table top only)

13

CONFIGURATION

For optional accessories, see “Optional Accessories” on page 40.

Spare chinrest tissue pin (2) Cleaning brush (1)

Instruction Manual (1) Accessory case (1)

(This is not always included with the standard
specifications.)

14

COMPONENTS

COMPONENTS

COMPONENTS

* (4) or (4)’ table top is not included, depending on the specifications.

(6) Depending on the specifications, chinrest might not be included.

(1) Illumination unit (2) Binocular tubes (3) Base unit

* The illustration shows the SL-D2 type.

(4) Instrument type table top
(w/power supply)*

(4)’ Unit type table top* (5) Rail cover

(6) Chinrest base unit* (7) Power cable (8) Setscrew

(for chinrest base unit)

(9) Cable cover (10) Cable cover fixing

screw

(11) Rail cover fixing screw

Article name Qty Article name Qty
(1) Illumination unit 1 (6) Chinrest base unit 1
(2) Binocular tubes 1 (7) Power cable 1

(3) Base unit 1

(8) Setscrew
(for chinrest base unit)

2

(4)

Instrument type table top (w/power supply)*

1(9) Cable cover 1
or (4)’ Unit type table top 1 (10) Cable cover fixing screw 2
(5) Rail cover 2 (11) Rail cover fixing screw 4

15

ASSEMBLY PROCEDURE

ASSEMBLY PROCEDURE

SECURING THE INSTRUMENT TYPE TABLE TOP

SECURING ON AUTOMATIC INSTRUMENT TABLE AIT-20/AIT-15

1 Remove the cover of the instrument table. Remove the 3 screws of the cover (AIT-20 only:

For details, refer to the instruction manual of AIT-20.)

2 Place the tabletop on the instrument table, and fasten it with the 4 bolts attached to the

instrument table. To reverse the direction of the instrument table, remove the power supply
from the bottom of the table top and fit it on the opposite side.

CAUTION

To prevent units from falling during use and movement, secure
each unit.

Connect the power cable to the table outlet and power supply of the instrument
table. Place the excess cable inside the cover, and fasten the cover.

16

ASSEMBLY PROCEDURE

SECURING THE UNIT TYPE TABLE TOP

1 Remove the plastic washer from the unit type table top; this washer is taped to the shaft

assembly.

2 Insert the plastic washer and the shaft together into the cavity for the ophthalmic unit arm.

SECURING THE PATIENT GRIP PG-1 (OPTIONAL ACCESSORY)

1 Align the patient grip with the groove in the back of the chinrest base unit.
2 Screw the patient grip on firmly.

In the unit type table top, the power supply is fitted so that the ophthalmic unit is on
the right-hand side. When attaching the ophthalmic unit on the left-hand side,
remove the power supply and reattach it to the right-hand side (with 4 screws).

Washer

Patient grip

Chinrest base plate

Grip

17

ASSEMBLY PROCEDURE

SECURING THE CHINREST BASE PLATE

1 Secure the chinrest base plate to the unit type table top with 2 screws (8).

SECURING THE BASE UNIT AND RAIL COVER

1 Align the wheel of the base unit with the rail of the chinrest base plate.
2 Fasten the rail covers with 4 screws (11): (2 screws each on the right and left sides).

Chinrest base plate

Rail cover

18

ASSEMBLY PROCEDURE

SECURING THE BINOCULAR TUBES

1 Align the pin of the microscope unit with the groove on the binocular tubes, and fasten the

fixing screw.

SECURING THE ILLUMINATION UNIT

1 Loosen the microscope arm locking knob of the base unit. Manually turn the shaft and tilt

the guide rod-shaft index 30-60°. Now refasten the microscope arm locking knob.

Make sure you do not touch the lens surfaces.

Fixing screw

Microscope unit

* The illustration shows
the SL-D2 type.

30° - 60°

19

ASSEMBLY PROCEDURE

2 Loosen the fixing screw on the outside of the fitting cavity of the illumination unit with a

screwdriver. Align indices and slowly lower the illumination unit on to the shaft of the base
unit.

3 Firmly tighten the fixing screw with a screwdriver.

While assembling the illumination unit, take care not to get your fingers caught.

To allow smooth rotation of the illumination unit, make sure you do not fasten the
screw too tightly.

Indices

20

ASSEMBLY PROCEDURE

CONNECTING AND SECURING CABLES

1 Connect the cable of the illumination unit and the power cable to the power supply.

2 Pass the 5-pin connector of the metal plug connected to the power supply through the

hole of the chinrest and connect it to the base unit.

3 Fit the cable cover with 2 screws (10).

4 Pull the base unit toward the side of the operator, then lock it. Attach the cables to the

back of the table with the cable clip.

5 Move the base unit and illumination unit, and make sure there is enough cable to allow

free movement of the base unit in all directions.

FITTING THE CHINREST TISSUE

1 Remove the chinrest tissue pins.
2 Take approximately one-fifth of the pad of chinrest tissues and secure this at each end

with the pins.

Fixation cable

Illumination cable

Power cable

21

ASSEMBLY PROCEDURE

FITTING THE CAP

1 Fit the cap to the shaft, aligning the guide rod with the groove in the cap.

SECURING THE TONOMETER MOUNT (OPTIONAL ACCESSORY)

SO-TM1 and SO-TM2 may be included in standard accessories, depending on the
specifications.

SO-TM1

1 Align the locating pins of SO-TM1 into the holes of the SL-D2/D4 microscope, and fasten

the screw.

2 The applanation tonometer R900 type can be mounted on SO-TM1.

SO-TM2

1 Align the locating pins of SO-TM2 into the holes of the SL-D2/D4 microscope, and fasten

the fixing knob.

2 The applanation tonometer 870 type can be mounted on SO-TM2.

* Illustration shows
the SL-D2 type.

Locating pins

Screw

* Illustration shows
the SL-D2 type.

Fixing knob

Locating pins

The holes

22

ASSEMBLY PROCEDURE

SO-TM3

1 Align the locating pins of SO-TM3 into the holes of the SL-D4Z microscope, and fasten the

two screws.

2 The applanation tonometer R900 type can be mounted on SO-TM3.

SO-TM4

1 Align the locating pins of SO-TM4 into the holes of the SL-D4Z microscope, and fasten the

two screws.

2 The applanation tonometer 870 type can be mounted on SO-TM4.

The holes

Screws

Locating pins

Locating pins

Screws

23

ASSEMBLY PROCEDURE

COUNTER-BALANCING THE VERTICAL MOVEMENT

When you fit accessories, including the photography unit, to the main body, you may need to
adjust the vertical counter-balance movement. To do this, auxiliary springs must be fitted.

Each auxiliary spring consists of 2 identical springs.
Do not use different springs together in one set.

COUNTER-BALANCE PROCEDURE

1 Turn the control lever clockwise and raise the base to the top position, remove the centre

screw and take off the cover.

Major Combinations of Accessories and Necessary Auxiliary Springs

Accessories

Necessary auxiliary spring

Without

tonometer

With

tonometer

TV relay lens TL-55 + SONY DXC-33 (DXC-390)

None

Auxiliary

spring

SO-AS0

TV attachment TL-56 + Nikon Microsystem
Digital camera unit DC-1

TV relay lens TL-54 + JVC KY-F70

Auxiliary

spring

SO-AS0

Auxiliary

spring

SO-AS0

Beam splitter + Observation tube

Auxiliary

spring

SO-AS1

Camera attachment SR-53 + NIKON mount + FUJI FINEPIX
S2 Pro

Beam splitter + TV relay lens (1/2C) + JVC KY-F70

Auxiliary

spring

SO-AS2

Cover

24

ASSEMBLY PROCEDURE

2 Insert the auxiliary spring unit vertically into the auxiliary spring port, with the flange face

turned upwards. (Make sure that the spring is inserted into the groove in the bottom of the
port.)

3 Open the auxiliary spring unit with the auxiliary spring port, and lightly push the spring till

it stops. (You can use a large screwdriver, a flat sheet metal tool, a coin or something
similar to do this.)

4 With the auxiliary spring unit lightly touching the stopper, turn about 90° (in either

direction), then release. The auxiliary spring locks into the positioning groove and
assembly is complete. (To remove the auxiliary spring, lightly press it down to the stopper,
rotate it 90° and remove from the port.)

Auxiliary spring port

25

PREPARATIONS

PREPARATIONS

POWERING ON

1 Connect the power cable.
2 Turn the POWER switch ON.

ADJUSTING THE DIOPTER AND PUPILLARY DISTANCE (PD)

If no test rod is provided, turn the diopter adjusting ring to set the diopter scale to your diopter.

1 Insert the test rod into the rotation shaft cavity, and set the black face square with the

microscope.

2 Turn the POWER switch ON and turn the brightness adjustment knob to an intermediate

position.

3 Adjust the illumination to φ 10mm by adjusting the slit adjustment knob and aperture/slit

length selector knob.

4 Turn the diopter adjusting ring of the eyepiece counter-clockwise to the end.
5 Turn the diopter adjusting ring clockwise and stop when you can clearly see the test rod.
6 Read the value on the diopter scale of the stop position. The value shows the diopter (D).
7 Repeat diopter adjustment for the eyepiece on the other side in the same way.
8 After adjusting the diopter, turn the slit adjustment knob until the slit width is about 1mm,

then check if you can see the slit image projected on the test rod clearly.

NOTICE

To ensure sharp observation of slit images, always carry out
the diopter and eye width adjustment.

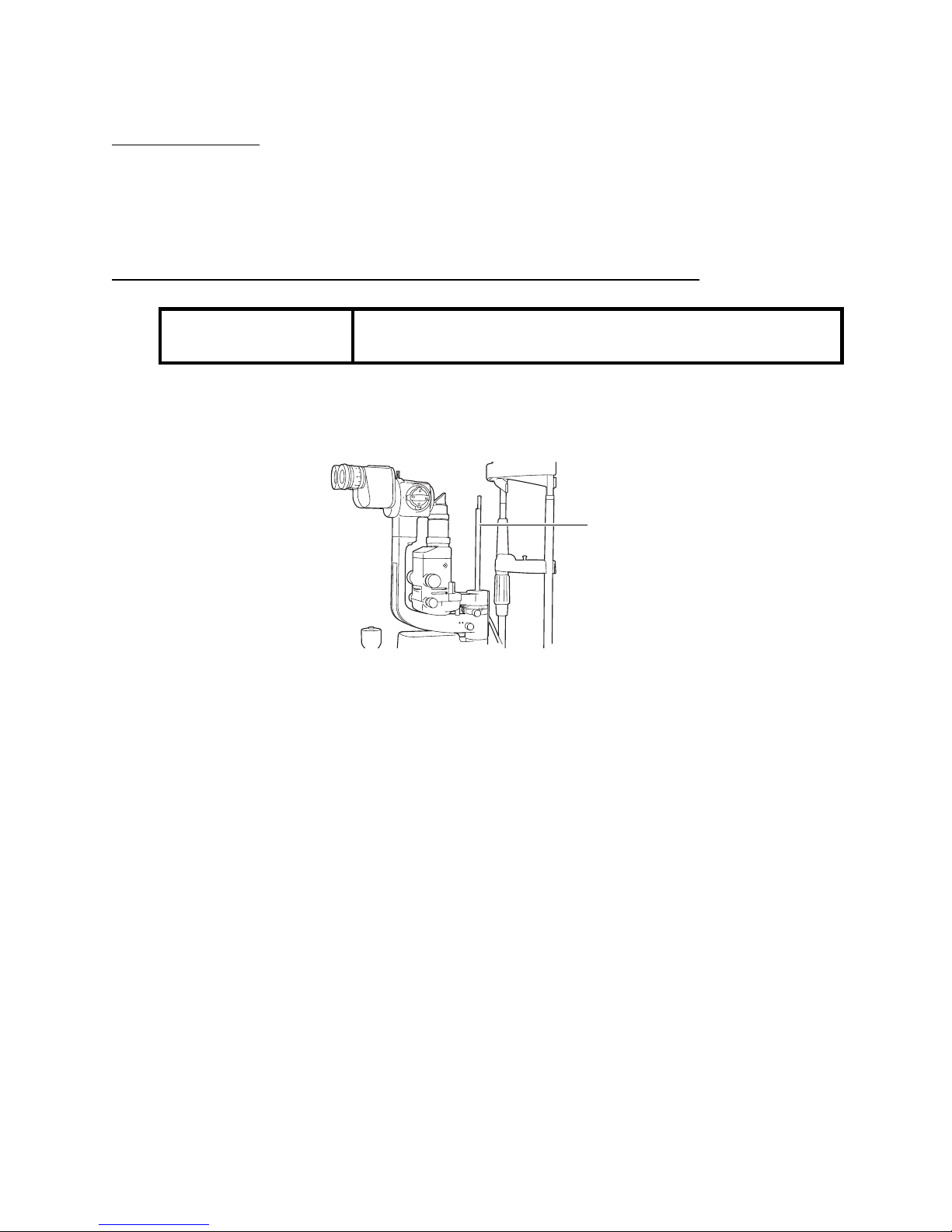

Test rod

* The illustration
shows

26

PREPARATIONS

9 While holding the prism box, look through the eyepiece with both eyes, and adjust the eye

width so that the image projected on the test rod comes together and looks three­dimensional.

The eyepiece with scale may be included in the components, depending on the specifications.

1 Insert the test rod into the rotation shaft cavity, and set the black face square with the

microscope.

2 Set the eyepiece with scale to the non-dominant eye side.
3 Turn the POWER switch ON and turn the brightness adjustment knob to an intermediate

position.

4 Adjust the illumination to φ 10mm by adjusting the slit adjustment knob and aperture/slit

length selector knob.

5 Turn the diopter adjusting ring of the eyepiece with scale ( ) fully counter-clockwise.
6 Turn the diopter adjusting ring clockwise and stop when you can clearly see both the scale

( ) and the test rod.

7 Read the value on the diopter scale of the stop position. The value shows the diopter (D).
8 Set the diopter scale of the other eyepiece to the value read.
9 Set the eyepiece with scale ( ) to the dominant eye side, and adjust the diopter scale of

the dominant eye as in steps 5 and 6.

10 After adjusting the diopter, turn the slit adjustment knob until the slit width is about 1mm,

then check if the slit image projected on the test rod can be clearly seen with both right
and left eyes.

Prism box
Diopter scale

* The illustration
shows

Diopter adjusting ring

Test rod

* The illustration
shows

27

PREPARATIONS

11 Holding the prism box, look through the eyepiece with both eyes, and adjust the pupillary

distance so that the image projected on the test rod can be seen without diplopia (double
vision), and appears to be three dimensional.

Prism box

Diopter adjusting ring

* The illustration
shows

28

OPERATION PROCEDURES

OPERATION PROCEDURES

FIXING THE PATIENT’S FACE AND FIXATION

1 Place the patient’s chin on the chinrest with his forehead against the forehead rest.
2 Rotate the chinrest adjuster to align the patient’s eye with the canthus marker on the

chinrest frame.

OPERATING THE MICROSCOPE UNIT

Turn the magnification selector handle and set a magnification mark to the magnification index
mark.

SL-D2

SL-D4

Forehead rest
Canthus marker

Chinrest

Chinrest adjuster

Magnification index mark

Magnification selector handle

Magnification selector
handle

Magnification index mark

29

OPERATION PROCEDURES

SL-D4Z

OPERATING THE BASE AND FOCUSING

1 For major horizontal movements, hold the control lever in the upright position and move

the entire base.

2 For fine adjustments, move the control lever in the required direction.
3 Turn the control lever clockwise to raise the base and turn it counter-clockwise to lower the

base.

For the overall magnification in conjunction with the magnification marks of the
magnification selector handle, see page 46.

CAUTION

To avoid injury to the patient’s eye and nose, pay particular
attention while operating the instrument body.

CAUTION

To prevent fingers from being caught between moving parts,
beware of the moving parts while operating the main body.

NOTICE

Do not loosen the base locking knob excessively, as this may
cause it to fall from the base.

Magnification index mark

Magnification selector handle

30

OPERATION PROCEDURES

4 Fasten the base locking knob to fix the base.

OPERATING THE ILLUMINATION UNIT

ADJUSTING THE BRIGHTNESS

Turn the brightness adjustment knob.
You can adjust the brightness of the illumination light to your preferred illumination setting.

• Rough focusing is carried out with major movements, following steps 1 to 3.
Fine focusing is done with the microscope, following steps 2 and 3 above.

CAUTION

To avoid causing the patient pain and damage to the patient’s
eye, do not make the illumination too bright.

NOTICE

• Adjust the slit width appropriately for the purpose of
observation.

• Use the slit width scale as a guideline.

• When using the square mirror, incline the illumination unit
at least 10°.

Base locking knob

Base

Control lever

Brightness

31

OPERATION PROCEDURES

ADJUSTING THE SLIT WIDTH

Turn the slit width control knob.
The slit width can be changed gradually between 0 and 14mm (14mm = circle).

CHANGING THE APERTURE/SLIT LENGTH

Turn the aperture/slit length selector knob.
When the slit is fully opened, 5 types of spot illumination (φ14, φ10, φ5, φ1, φ0.3mm) are
available.
The slit length can be changed gradually between 0 and 14mm.

TURNING THE SLIT

Turn the slit rotation ring.
You can change the slit image from vertical to horizontal. In this mode, you can read the slit
angle off the angle scale.

Slit width control knob

Aperture/slit length
selector knob

Slit rotation ring

Slit angle scale

32

OPERATION PROCEDURES

SWINGING THE SLIT SIDEWAYS

Turn the slit scanning ring and swing the illumination to the right and to the left.
This provides indirect illumination, displacing the slit light from the microscope centre.

CHANGING FILTERS

Turn the filter selector wheel and select the desired filter from the 4 types.

ENDING PROCEDURE

Turn the Power switch OFF.

This function is used for scanning observation and observation with indirect
illumination.

The amber filter is used to make the eye ground clearly visible.

Slit scanning ring

Filter selector wheel

No filter

No red-free filter

White

Blue

Blue filter

Amber filter

Orange

Green

33

MAINTENANCE AND CHECKS

MAINTENANCE AND CHECKS

PERIODIC MAINTENANCE

Before using, check the following:

• Adjust the diopter and eye width according to “Adjusting the Diopter and Pupillary Distance
(PD)” on page 25, turn the slit adjustment knob and make the slit width about 1mm: The slit
image projected on the test rod is seen clearly.

• Move the base backwards and forwards and from right to left: The base moves smoothly.

• Component parts, including the eyepiece unit, are fitted in place.

• The chinrest base is fitted securely to the table.

• Cables and plugs are connected firmly.

DAILY MAINTENANCE

• Dust can affect this instrument adversely. Put the dust cover over it when you are not using
it.

ORDERING CONSUMABLES

• When you order consumable items, contact your dealer or TOPCON (see the back cover)
and specify the article name, product code and quantity.

Article name Product code
Illumination lamp (D display is printed on a flange.) 447402040
Socket 408212010
Chinrest tissue 403104082
Fuse T-1A, 250V (Bel Fuse, Part No. 5TT1): 100-120V 446356003
Fuse T-0.75A, 250V (Bel Fuse, Part No. 5TT750): 220-240V 447706351

34

MAINTENANCE AND CHECKS

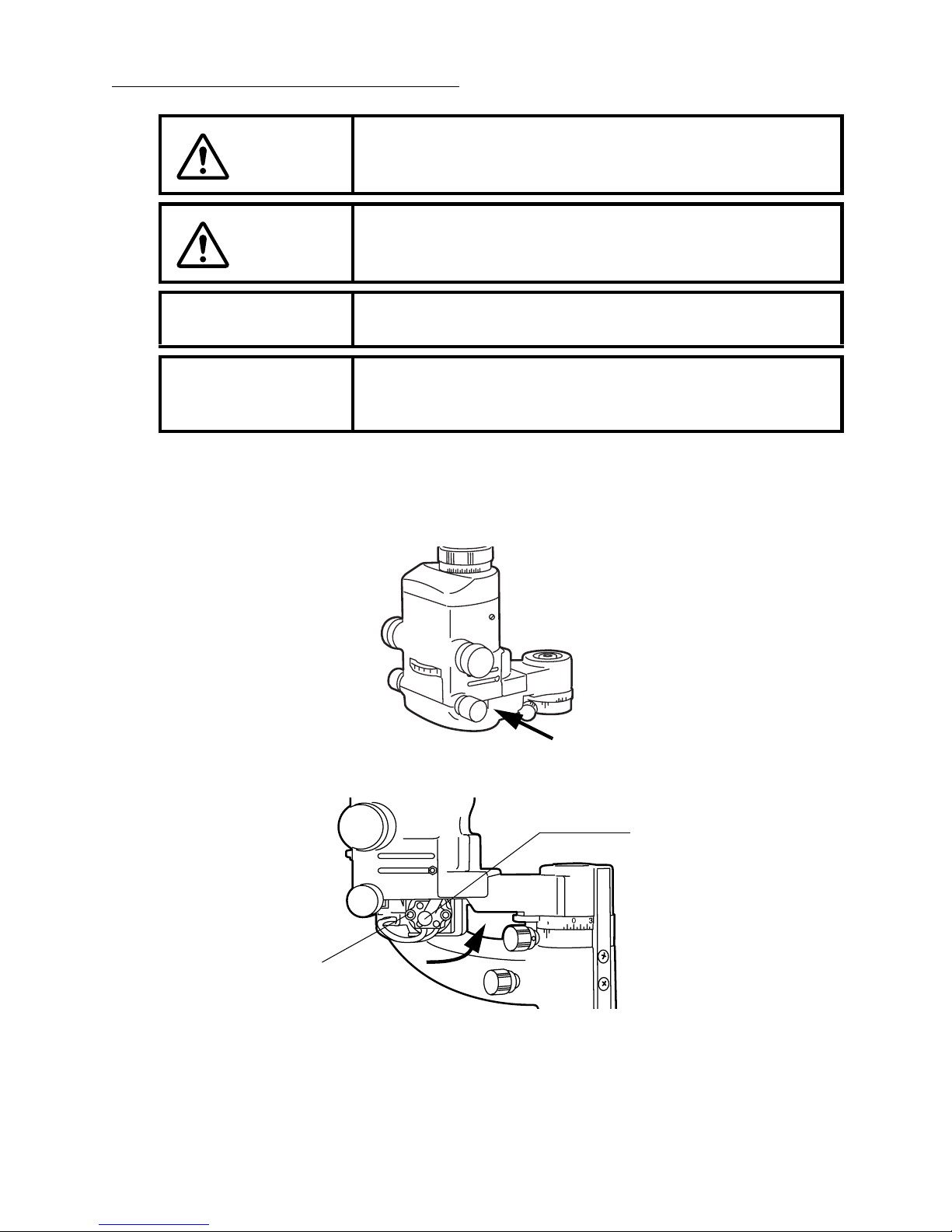

REPLACING ILLUMINATION LAMPS

1 Turn the Power switch OFF.
2 Hold the lamp housing cover at the arrow position on both sides, pull it downward and

remove.

3 Pull the socket fixing lever lightly and turn it counter-clockwise.

CAUTION

When replacing the lamp, switch off the power supply and
remove the power cable to avoid electric shocks.

CAUTION

If you replace the lamp immediately after switching it off,
beware of high temperatures: they could cause burns.

NOTICE

To ensure perfect illumination, make sure that the socket flange
and notch are fitted firmly.

NOTICE

Use a soft cloth and do not touch the illumination lamp with
bare fingers. Clinging fingerprints and stains may affect
illumination.

Socket fixing lever

Lamp unit

35

MAINTENANCE AND CHECKS

4 Pull off the socket plug.

5 Pull out the lamp unit.

6 Pull out the illumination lamp from the socket and replace a new lamp in the socket: Take

note of the socket direction.

7 Install the lamp unit and lamp house cover in reverse order.

Plug

Socket

The notch of the illumination
lamp should face the opposite
side from the cable.

36

MAINTENANCE AND CHECKS

REPLACING SOCKETS

1 Remove the lamp following steps 1 to 4 of “Replacing Illumination Lamps”.
2 Replace the socket with a new one.
3 Install the lamp unit and lamp house cover in reverse order.

REPLACING FUSES

1 Turn the Power switch OFF and remove the power cable from the AC power source.
2 Pry the fuse holder lid with a crosshead screwdriver. The fuse comes out.
3 Replace the fuse with a new factory-authorized fuse.
4 Reinstall the fuse holder in reverse order.

RESTOCKING CHINREST TISSUE

When the supply of chinrest tissue runs out, remove the chinrest tissue pins and replace the
tissue.

NOTICE

The socket may deteriorate due to the constant heat: it should
therefore be replaced after the lamps have been changed two
or three times.

CAUTION

When replacing fuses, first switch off the power supply and
remove the power cable to avoid electric shocks.

NOTICE

Use the glass tube fuse with the rating as stated on the side of
the fuse holder.

Fuse holder

37

MAINTENANCE AND CHECKS

MAINTENANCE PROCEDURE

CLEANING REMOVABLE PARTS

Wipe the forehead rest, the chinrest and the patient grip (if a pair of patient grips is used) with
a cloth moistened with a tepid solution of neutral kitchen detergent.

CLEANING LENSES AND PRISMS

REMOVING STAINS

1 Prepare a solution of ethyl alcohol 20% and ether 80%.
2 Remove dust from the lens and prism surfaces with the attached cleaning brush, or a

blower.

3 Using clean gauze, lightly draw a spiral from the lens/prism centre outward.
4 If the stain remains, repeat this 2 to 3 times.
5 If stains are persistent, call your dealer or TOPCON (see the back cover).

CAUTION

Before carrying out daily maintenance, remove the power cable
(to avoid electric shocks) and wait until the body has cooled
down (to avoid burns).

CAUTION

To prevent burns, do not touch parts inside the lamp cover
house during operation and immediately after switching off the
power supply.

NOTICE

To prevent discoloration and deterioration in the chinrest,
forehead rest and other plastic parts, do not use volatile
solvents for cleaning, such as benzine, thinner, ether or
gasoline.
Wipe parts with a cloth moistened with a tepid solution of
neutral kitchen detergent.

NOTICE

To avoid damaging lens surfaces, do not use tweezers or
similar equipment to hold the gauze.

38

MAINTENANCE AND CHECKS

CLEANING THE SLIDING PLATE, RAIL AND WHEEL SHAFT

1 Wipe the wheel shaft clean by moving the base to the right and to the left.
2 Raise the control lever and wipe the sliding plate clean.

DISPOSING OF THE PRODUCT

For disposal of the instrument and consumables, contact a waste disposer or call your dealer
or TOPCON (see the back cover).

NOTICE

When stained, the sliding plate and rail of the table top and the
wheel shaft of the base move less smoothly. Clean them with
a dry cloth.

CAUTION

The base contains strong springs. Do not attempt to
disassemble or burn the base, as the springs could cause
injury by shooting out of it.

Control lever

Rail

Wheel shaft

Sliding plate

39

TROUBLESHOOTING

TROUBLESHOOTING

TROUBLESHOOTING GUIDE

If you suspect a problem, use the check list below to check the possible cause.
If the check list below does not solve the problem, or if the problem is not included in the list,
contact your dealer or TOPCON (see the back cover).

CAUTION

To avoid electric shocks, do not attempt overhauling, rebuilding
or repairs. Contact your dealer for repairs.

Check List

Problem Typical condition Check Page

Illumination lamp
does not work

Power switch is OFF. Turn Power switch ON. 25
Cable connection is

disconnected.

Connect the cable. 20

Base relay cable is switched
off.

Connect the cable. 20

Brightness adjustment knob is
at the minimum setting.

Turn up brightness selector
knob.

30

Illumination lamp is broken.

Replace it with a new
illumination lamp.

34

Socket is off. Insert the socket. 34
Socket has deteriorated. Replace it with a new socket. 36

Illumination field is
not uniform/is
shady/is dark

Aperture/slit length selector
knob is not fastened.

Click the aperture/slit length
selector knob into a fixed
position.

31

Filter selector lever is not
clicked.

Click the filter selector lever in
place.

32

Illumination lamp is not fitted in
place.

Fit the illumination lamp in the
socket.

34

Fuse blows

Rated capacity of fuse is
incorrect.

Use an approved fuse with the
correct rating.

33, 36

Fixation target
(optional) does not
work

The plug above chinrest is off. Insert the plug. ––

Fixation cable is off Insert the cable. 20

40

OPTIONAL ACCESSORIES

OPTIONAL ACCESSORIES

TOPCON Slit Lamp SL-D2/SL-D4/SL-D4Z has the following optional accessories.
For enquiries, please contact your dealer or TOPCON (see the back cover).

• For details, please refer to the instruction manual of each product.

DIGITAL CAMERA UNIT DC-1

FEATURES

• A digital camera combined with a slit lamp.

• Cables are wired inside the arm and do not interfere with instrument operation.

• Recordable with Compact flash card.

• Connectable with the IMAGEnet

STILL CAMERA ATTACHMENT SR-53

FEATURES

• Can be connected to a marketed camera for easy photography.

• The beam splitter division ratio is TV 50%: patient 50%.

CAUTION

To prevent items from falling during use and movement, attach
optional accessories securely.

41

OPTIONAL ACCESSORIES

CONNECTABLE CAMERA

BEAM SPLITTER

FEATURES

• Used to attach the TV relay lens T-53 (w/ beam splitter type) and observation tube.

• The TV relay lens and observation tube can be attached to either side.

• The beam splitter division ratio is TV 50%: patient 50%.

TV RELAY LENS

• Three types of TV relay lens have been prepared for use with different TV camera types (C
mount 1/2 type, C mount 1/3 type and bayonet mount 1/2 type for Sony).

FEATURES

• Used with the beam splitter.

• Can connect a TV camera to carry out monitor observation and photograph still images.

Recommendation

Size of camera’s

light receiving unit

Shape of

camera mount

Attachment & TV relay lens

FUJI
FINEPIX
S-Pro Series

APS-C size NIKON F mount Still camera

attachment
SR-53

Adapter
SO-CMNF for
NIKON F

42

OPTIONAL ACCESSORIES

TV RELAY LENS TL-54

TV RELAY LENS TL-55

• The type of TV relay lens depends on the type of TV camera to be used.

For C mount 1/2 type TV camera: TL-54
For C mount 1/3 type TV camera: TL-55

FEATURES

• Incorporated with the beam splitter.

• Can connect a TV camera to carry out monitoring observation and photograph still images.

• The beam splitter can be switched IN and OUT.

• The beam splitter division ratio is TV 50%: patient 50%.

TV ATTACHMENT TL-56

FEATURES

• Used to connect the NIKON COOLPIX series (Micro System series).

• Combined with beam splitter.

• The beam splitter division ratio is TV 50%: patient 50%.

43

OPTIONAL ACCESSORIES

TV ATTACHMENT TL-57

• Used to connect PANASONIC GP-KS162.

• Combined with beam splitter.

• The beam splitter division ratio is TV 50%: patient 50%.

BACKGROUND ILLUMINATION BG2-GN

FEATURES

• Used for background illumination with LED light source.

• Power is supplied from the slit lamp power supply.

• Light intensity can be adjusted.

OBSERVATION TUBE

FEATURES

• Used in combination with beam splitter.

• Used for observation together with the inspector.

• Can be inclined to facilitate observation and can prevent the
main body from falling.

FIXATION TARGET

FEATURES

• Attached to the upper part of the chinrest to guide and
fixate the patient’s visual line easily.

44

OPTIONAL ACCESSORIES

12.5X MEASURING EYEPIECE

FEATURES

• Replaces the normal eyepiece for measuring dimensions and
angles.

20X EYEPIECE

FEATURES

• Replaces the normal eyepiece for high magnification
observation.

APPLANATION TONOMETER

FEATURES

• For measuring the intraocular pressure, models R900 type
and T900 type, Haag-Streit, are available.

* The Topcon tonometer mount is required to enable use of

the applanation tonometer, as follows:

HRUBY LENS

Normally, observation is possible only up to the anterior
vitreous body due to the refractive power of the cornea and
lens. With the Hruby lens, the posterior vitreous body and
eye ground can also be observed.

APPLANATION
TONOMETER

SLIT LAMP TONOMETER

MOUNT

R900 type SL-D2/D4 SO-TM1

SL-D4Z SO-TM3

T900 type SL-D2/D4/D4Z TONOMETER

GUIDE PLATE

870 type SL-D2/D4 SO-TM2

SL-D4Z SO-TM4

45

OPTIONAL ACCESSORIES

PARALLEL BINOCULAR TUBE PB-2

FEATURES

• Can observe a parallel view of the object.

YELLOW FILTER UNIT

FEATURES

• Combines with the blue filter prepared in the main body for
a high-contrast fluorescence observation.

• Easy filter insertion and removal.

AUXILIARY SPRING SO-AS 0, 1, 2, 3

FEATURES

• Used to counterbalance vertical movement when you attach
accessories such as a TV relay lens.

PATIENT GRIP PG-1

FEATURES

• A grip for patients to hold for comfort during diagnosis and
photographing.

• Can be attached to the chinrest base.

ADAPT COVER SO-AC3, 4, 5

FEATURES

This is used to cover gaps with the microscope arm and hide cables
when you attach accessories such as the digital camera unit DC-1 and
the still camera attachment SR-53.

SO-AC3: For SL-D4Z + DC-1/SR-53
SO-AC4: For SL-D2/D4 + DC-1/SR-53 + yellow filter unit
SO-AC5: For SL-D4Z + DC-1/SR-53 + yellow filter unit

46

SPECIFICATIONS AND PERFORMANCE

SPECIFICATIONS AND PERFORMANCE

SPECIFICATION AND PERFORMANCE

SL-D2 SL-D4 SL-D4Z

Microscope unit
Type Galileo type
Magnification Drum, 3-step

magnification

Drum, 5-step
magnification

Manual zoom

Magnification steps 10, 16, 25 6, 10, 16, 25, 40 10, 16 and 25 w/clicks
Overall magnification (actual

vision field)

10.00 (

φ22.5mm)/

15.98 (

φ14.1mm)/

25.53 (

φ8.8mm)/

6.37 (

φ35.1mm)/

9.94 (

φ22.5mm)/

15.87 (

φ14.1mm)/

25.37 (

φ8.8mm)/

39.62 (

φ5.6mm)/

6.35 - 31.75
(

φ35.2 - φ7mm)

*10x, 16x and 25x
w/click

Eyepiece lens Magnification:12.5x

Diopter adjustment range:-5D - +3D -5D - +5D
Binocular tubes PD adjustment: 55 - 78mm
Illumination unit
Illumination field Slit width:0-14mm, can be altered gradually (14mm = circle)

Slit length:1-14mm, can be altered gradually (14mm = circle)

Aperture diameter:

φ14, 10, 5, 1, 0.3

Slit direction Can be altered gradually from vertical to horizontal

Side swing
Filter Blue filter, red-free filter, colour conversion filter, UV cut filter (normal use), IR cut filter

(normal use)
Illumination lamp 6V, 20W halogen lamp
Base unit
Forward-backward

movement

90mm

Right-left movement 100mm
Vertical movement 30mm
Fine movement forward-

backward/right-left

12mm

Chinrest unit
Vertical movement 80mm
Dimensions, Weight
Dimensions: w/Table 550mm(W)x399mm(D)x558mm(H)
w/Unit table 440mm(W)x379mm(D)x558mm(H)
w/o Table and Chinrest 329mm(W)x306mm(D)x415-445mm(H)
Weight: w/Table 17kg 17.5kg
w/Unit table 16kg 16.5kg
w/o Table and Chinrest 9.5kg 10kg
Table size 550mmx370mm
Unit Table size 440mmx350mm
Height from the table top to

patient’s eye

375mm

The specification and design of the product can be altered for improvements without prior notice.

47

SPECIFICATIONS AND PERFORMANCE

ELECTROMAGNETIC COMPATIBILITY

This product conforms to the EMC standard (IEC60601-1-2:2001).

ELECTRIC RATING

Source voltage:100-120V, 220-240V AC, 50/60Hz
Power input: 160VA

SYSTEM CLASSIFICATION

• Type of protection against electric shocks: Type B applied part
Type B applied part is the applied part complying with the specified requirements of the
Standard IEC 60601-1 to provide protection against electric shock, particularly regarding
allowable LEAKAGE CURRENT.

• Type of protection against electric shocks: Class Ι equipment.

Class Ι equipment does not depend on basic insulation only for protection against electric
shocks. It can also be earthed; therefore, the metal parts with which one comes into contact
do not become conductive if the basic insulation fails.

• The mode of operation: continuous operation equipment.

• Degree of protection against ingress of water: IP x0
SL-D2, SL-D4 and SL-D4Z are the ordinary instruments (enclosed instrument without
protection against ingress of water).

• Methods of sterilization or disinfection recommended by the manufacturer: SL-D2, SL-D4

and SL-D4Z do not have any part to be sterilized or disinfected.

• Not AP or APG equipment.

PURPOSES OF USE

This slit lamp is used for enlargement in the observation of eyeballs and other parts.

OPERATION PRINCIPLES

Illuminates the observed part by the illumination light emitted from the illumination optical
system and allows enlargement observation by binocular stereoscopic microscope.

48

SPECIFICATIONS AND PERFORMANCE

SYSTEM CONFIGURATION

Video Camera

1/2 C Mount
Camera

1/3 C Mount
Camera

1/2 C Mount
Camera

1/2 Screw
Mount Camera

TV
Relay Lens

Beam Splitter

Monitor

Still Video
Recorder

Printer

IMAGEnet 2000

Still Camera
Attachment
SR-53

NIKON
COOLPIX Series

(Adapter Lens)

FUJI FINEPIX
S-Pro Series

Observation
Tube

Tonometer mount
SO-TM1(SL-D2,D4)
SO-TM3(SL-D4Z)

Tonometer mount
SO-TM2(SL-D2,D4)
SO-TM4(SL-D4Z)

12.5x eyepiece lens
with measuring scale

20x eyepiece lens

Auxiliary spring
SO-AS 0, 1, 2, 3

Parallel view eyepiece
PB-2

SL-D2/SL-D4/SL-D4Z System Chart

Digital Camera Unit DC-1

Patient grip PG-1

Mount SO-CMNF
for NIKON

Adapt Cover
SO-AC3, 4, 5

TV Relay Lens
TL-54

TV Relay Lens
TL-55

TV Attachment
TL-57

TV Attachment
TL-56

Applanation Tonometer
870 type

Fixation
Target

Applanation Tonometer
R900 type

Background Illumination
BG2-GN

Applanation Tonometer T900 type

Tonometer guide plate for T900 type

Hruby lens

Optional accessories

Marketed accessories

Z

Yellow Filter Unit

49

SPECIFICATIONS AND PERFORMANCE

SHAPE OF PLUG

SYMBOL

Country Voltage/frequency Shape of plug
Mexico 110V/50Hz Type C&E
Argentina 220V/60Hz Type A
Peru 220V/60Hz Type A
Venezuela 110V/50Hz Type C&E

Bolivia & Paraguay 220V/60Hz

Type A (Most common)

Type H (Infrequently)
Chile 220V/60Hz Type A
Colombia 110V/50Hz Type C

Brazil

220V/60Hz
127V/60Hz

Typ e A

Typ e C
Ecuador 110V/50Hz Type C&E

Symbol IEC Publication Description Description (French)

60417-5032 Alternation Current Courant alternatif

60348

Attention, consult
accompanying documents

Attention, consulter les
documents
d’accompagnement

60417-5008

Off (power: disconnection
from the mains)

Éteint (courant: coupure
avec le secteur)

60417-5007

On (power: connection of
the mains)

Allumé (courant:
raccordement sur le secteur)

60878-02-02 Type B applied part Classe B

When youcontact us, please have the following
information about your unitat hand:
¥Machine type: SL-D2, SL-D4, SL-D4Z
¥Manufacturing No. (Displayed on the rating plate on the

left of the base.)
¥Period of Usage (i,e. the purchase date).
¥Description of Problem (as detailed as possible).

SLIT LAMP SL-D2, SL-D4, SL-D4Z

INSTRUCTION MANUAL
The 2004 version (2004.03-100TH0)
Date of issue: 5th February, 2004

Published by TOPCON CORPORATION

75-1 Hasunuma-cho, Itabashi-ku, Tokyo, 174-8580 Japan.

2004 TOPCON CORPORATION

ALL RIGHTS RESERVED

37 West Century Road,Paramus,New Jersey 07652,U.S.A. Phone:[phone] Fax:[phone] www.topcon.com

TOPCON MEDICAL SYSTEMS, INC

European Representative

Essebaan 11, 2908 LJ Capelle a/d IJssel,THE NETHERLANDS Phone:[phone] Fax:[phone] www.topconeurope.com

TOPCON EUROPE B.V.

Giesserallee 31-33 D-47877 Willich GERMANY Phone:[phone] Fax:[phone] www.topcon.de [e-mail]

TOPCON DEUTSCHLAND G.m.b.H.

110 Provencher Avenue, Boisbriand, QC J7G 1N1 CANADA Phone:[phone] Fax:[phone] www.topcon.ca

TOPCON CANADA INC.

HEAD OFFICE:Frederic Mompou 5, ED. Euro 3, 08960,Sant Just Desvern Barcelona,SPAIN Phone:[phone] Fax:[phone] www.topconesp.com
MADRID OFFICE:Avenida Burgos, 16E,1°28036,Madrid,SPAIN Phone:[phone] Fax:[phone]

TOPCON ESPANA S.A.

Neongatan 2 S-43151 Molndal, SWEDEN Phone:[phone] Fax:[phone] [e-mail]

TOPCON SCANDINAVIA A.B.

Topcon House,Kennet Side,Bone Lane,Newbury,Berkshire RG14 5PX United Kingdom Phone:[phone] Fax:[phone]

TOPCON ( GREAT BRITAIN ) LTD.

Blk 192 Pandan Loop, #07-01 Pantech Industrial Complex, SINGAPORE 128381 Phone:[phone] Fax:[phone] www.topcon.com.sg

TOPCON SOUTH ASIA PTE.LTD.

Excella Business Park Block C,1st Floor,Jalan Ampang Putra,Taman Ampang Hillir, 55100 Kuala Lumpur,MALAYSIA Phone:[phone] Fax:[phone]

TOPCON INSTRUMENTS ( MALAYSIA ) SDN.BHD.

77/162 Sinn Sathorn Tower, 37th Fl.,Krungdhonburi Rd.,Klongtonsai, Klongsarn, Bangkok 10600,THAILAND Phone:[phone] Fax:[phone]

TOPCON INSTRUMENTS ( THAILAND ) CO.,LTD.

408 Victoria Road,Gladesville,NSW 2111,AUSTRALIA Phone:[phone] Fax:[phone] www.topcon.com.au

TOPCON AUSTRALIA PTY.LTD.

2F Yooseoung Bldg., 1595-3, Seocho-Dong, Seocho-Gu, Seoul, 137-876 KOREA Phone:[phone] Fax:[phone] www.topcon.co.kr

TOPCON KOREA CORPORATION

2/F.,Meeco Industrial Bldg.,No.53-55 Au Pui Wan Street,Fo Tan Road,Shatin,N.T.,Hong Kong Phone:[phone] Fax:[phone] E-mail:[e-mail]

TOPCON OPTICAL ( H.K. ) LTD.

Room No.962 Poly Plaza Building,14 Dongzhimen Nandajie Dongcheng District,Beijing,100027,CHINA Phone:[phone]~2 Fax:[phone]

TOPCON CORPORATION BEIJING OFFICE

P.O.Box 70-1002 Antelias,BEIRUT-LEBANON Phone:[phone]/523526 Fax:[phone]

TOPCON CORPORATION BEIRUT OFFICE

C/O Atlas Medical FZCO., P.O.Box 54304 C-25, Dubai Airport Free Zone, UAE Phone:[phone] Fax:[phone]

TOPCON CORPORATION DUBAI OFFICE

~

89, rue de Paris 92585 Clichy, Cedex,FRANCE Phone:[phone] Fax:[phone]

ITALY OFFICE:Via Monfalcone 39, 20092 Cinisello B. mo (MI) ITALY Phone:[phone] Fax:[phone]

TOPCON S.A.R.L.



SL-D2
SL-D4
SL-D4Z

SLIT LAMP

Printed in Japan 2004.3-10TH0 44720 95991

INTRODUCTION .......................................................................................1

DISPLAYS FOR SAFE USE......................................................................4

SAFETY PRECAUTIONS..........................................................................5

MAINTENANCE.........................................................................................7

USER MAINTENANCE..............................................................................7

ESCAPE CLAUSE.....................................................................................7

WARNING INDICATIONS AND POSITIONS ............................................8

CONFIGURATION

NAMES OF MAIN BODY COMPONENTS ..............................................11

STANDARD ACCESSORIES ..................................................................12

COMPONENTS

COMPONENTS .......................................................................................14

ASSEMBLY PROCEDURE

SECURING THE INSTRUMENT TYPE TABLE TOP..............................15

SECURING THE UNIT TYPE TABLE TOP .............................................16

SECURING THE PATIENT GRIP PG-1 (OPTIONAL ACCESSORY) .....16

SECURING THE CHINREST BASE PLATE ...........................................17

SECURING THE BASE UNIT AND RAIL COVER ..................................17

SECURING THE BINOCULAR TUBES...................................................18

SECURING THE ILLUMINATION UNIT ..................................................18

CONNECTING AND SECURING CABLES .............................................20

FITTING THE CHINREST TISSUE .........................................................20

FITTING THE CAP ..................................................................................21

SECURING THE TONOMETER MOUNT (OPTIONAL ACCESSORY) ..21

COUNTER-BALANCING THE VERTICAL MOVEMENT ........................23

PREPARATIONS

POWERING ON ......................................................................................25

ADJUSTING THE DIOPTER AND PUPILLARY DISTANCE (PD) ..........25

OPERATION PROCEDURES

FIXING THE PATIENT’S FACE AND FIXATION ....................................28

OPERATING THE MICROSCOPE UNIT ................................................28

OPERATING THE BASE AND FOCUSING ............................................29

OPERATING THE ILLUMINATION UNIT................................................30

ENDING PROCEDURE...........................................................................32

MAINTENANCE AND CHECKS

PERIODIC MAINTENANCE ....................................................................33

DAILY MAINTENANCE ...........................................................................33

ORDERING CONSUMABLES.................................................................33

REPLACING ILLUMINATION LAMPS.....................................................34

REPLACING FUSES ...............................................................................36

RESTOCKING CHINREST TISSUE........................................................36

MAINTENANCE PROCEDURE...............................................................37

CLEANING REMOVABLE PARTS ..........................................................37

CLEANING LENSES AND PRISMS........................................................37

CLEANING THE SLIDING PLATE, RAIL AND WHEEL SHAFT .............38

DISPOSING OF THE PRODUCT............................................................38

TROUBLESHOOTING

TROUBLESHOOTING GUIDE ................................................................39

OPTIONAL ACCESSORIES

DIGITAL CAMERA UNIT DC-1................................................................40

STILL CAMERA ATTACHMENT SR-53 ..................................................40

BEAM SPLITTER ....................................................................................41

TV RELAY LENS .....................................................................................41

TV RELAY LENS TL-54...........................................................................42

TV RELAY LENS TL-55...........................................................................42

TV ATTACHMENT TL-56 ........................................................................42

TV ATTACHMENT TL-57 ........................................................................43

BACKGROUND ILLUMINATION BG2-GN ..............................................43

OBSERVATION TUBE ............................................................................43

FIXATION TARGET.................................................................................43

12.5X MEASURING EYEPIECE..............................................................44

20X EYEPIECE .......................................................................................44

APPLANATION TONOMETER................................................................44

HRUBY LENS..........................................................................................44

PARALLEL BINOCULAR TUBE PB-2 .....................................................45

YELLOW FILTER UNIT ...........................................................................45

AUXILIARY SPRING SO-AS 0, 1, 2, 3 ....................................................45

PATIENT GRIP PG-1 ..............................................................................45

ADAPT COVER SO-AC3, 4, 5.................................................................45

SPECIFICATIONS AND PERFORMANCE

SPECIFICATION AND PERFORMANCE................................................46

ELECTROMAGNETIC COMPATIBILITY ................................................47

ELECTRIC RATING ................................................................................47

SYSTEM CLASSIFICATION ...................................................................47

PURPOSES OF USE ..............................................................................47

OPERATION PRINCIPLES .....................................................................47

SYSTEM CONFIGURATION...................................................................48

SHAPE OF PLUG....................................................................................49

SYMBOL..................................................................................................49
