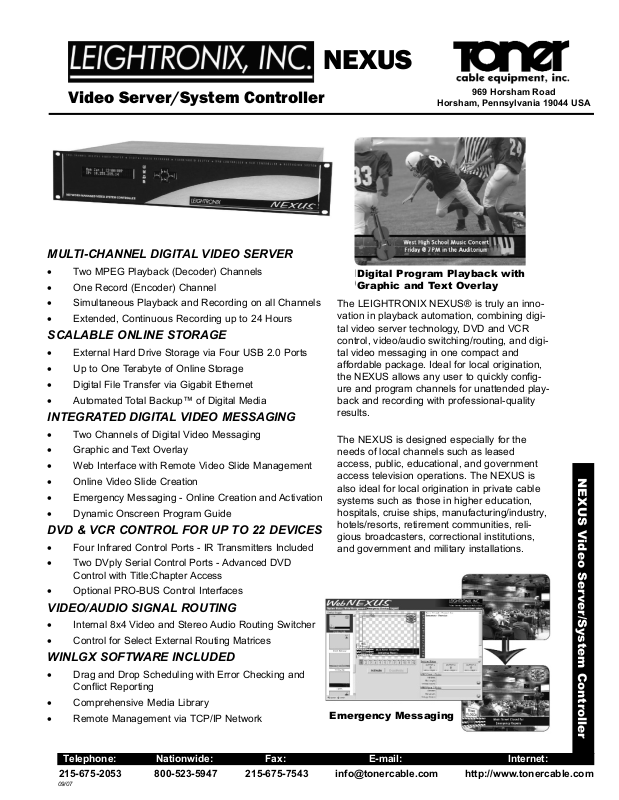

NEXUS Video Server/System Controller

215-675-2053 800-523-5947 215-675-7543 [e-mail] http://www.tonercable.com

969 Horsham Road

Horsham, Pennsylvania 19044 USA

Video Server/System Controller

The LEIGHTRONIX NEXUS® is truly an inno­vation in playback automation, combining digi­tal video server technology, DVD and VCR
control, video/audio switching/routing, and digi­tal video messaging in one compact and
affordable package. Ideal for local origination,
the NEXUS allows any user to quickly config­ure and program channels for unattended play­back and recording with professional-quality
results.

The NEXUS is designed especially for the
needs of local channels such as leased
access, public, educational, and government
access television operations. The NEXUS is
also ideal for local origination in private cable
systems such as those in higher education,
hospitals, cruise ships, manufacturing/industry,
hotels/resorts, retirement communities, reli­gious broadcasters, correctional institutions,
and government and military installations.

NEXUS

MULTI-CHANNEL DIGITAL VIDEO SERVER

• Two MPEG Playback (Decoder) Channels

• One Record (Encoder) Channel

• Simultaneous Playback and Recording on all Channels

• Extended, Continuous Recording up to 24 Hours

SCALABLE ONLINE STORAGE

• External Hard Drive Storage via Four USB 2.0 Ports

• Up to One Terabyte of Online Storage

• Digital File Transfer via Gigabit Ethernet

• Automated Total Backup™ of Digital Media

INTEGRATED DIGITAL VIDEO MESSAGING

• Two Channels of Digital Video Messaging

• Graphic and Text Overlay

• Web Interface with Remote Video Slide Management

• Online Video Slide Creation

• Emergency Messaging - Online Creation and Activation

• Dynamic Onscreen Program Guide

DVD & VCR CONTROL FOR UP TO 22 DEVICES

• Four Infrared Control Ports - IR Transmitters Included

• Two DVply Serial Control Ports - Advanced DVD

Control with Title:Chapter Access

• Optional PRO-BUS Control Interfaces

VIDEO/AUDIO SIGNAL ROUTING

• Internal 8x4 Video and Stereo Audio Routing Switcher

• Control for Select External Routing Matrices

WINLGX SOFTWARE INCLUDED

• Drag and Drop Scheduling with Error Checking and
Conflict Reporting

• Comprehensive Media Library

• Remote Management via TCP/IP Network

Emergency Messaging

Digital Program Playback with
Graphic and Text Overlay

©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.

Telephone: Nationwide: Fax: E-mail: Internet:

NEXUS Video Server/System Controller

215-675-2053 800-523-5947 215-675-7543 [e-mail] http://www.tonercable.com

NEXUS SPECIFICATIONS

• Dimensions—Two standard 19” rack units with overall dimensions of 3.50”H x 19.00”W x 15.00”D

• Weight—18 lbs.

• Network—Eight-position/eight-conductor RJ-45 modular jack, 10/100/1000BASE-T Ethernet, TCP/IP,

user-configurable IP address, subnet, and gateway

• Display—2 x 24 character vacuum fluorescent display

• Keyboard—Keypad with four push buttons, password protected front panel status and configuration

• Internal Clock—Battery-backed time and date, temperature compensated crystal oscillator for high

accuracy

• Video Standard—NTSC, standard definition, 4x3 aspect ratio

• Video Encoding—MPEG-2, full D1 and half D1 resolution, 1.5-10Mb/s variable bit rate encoding, 3-

8Mb/s constant bit rate encoding

• Video I/O—6 BNC video inputs, 3 BNC video outputs, NTSC composite video 1V P-P, active switching,
unity gain

• Audio Encoding—MPEG-1 layer II, 44.1K and 48K sampling rates, 192Kb/s and 224Kb/s audio bit
rates

• Audio I/O—6 dual RCA audio inputs, 3 dual RCA audio outputs, -10dBV unbalanced line level, unity
gain

• Video/Audio Recording Capacity—Maximum individual MPEG program length 23 hours, 59 minutes

• Digital File Storage—External hard drive, 4 USB 2.0 ports, 1 terabyte maximum total storage

• Infrared Control Ports—4 mini-jack device control ports

• PRO-BUS—Six-position/six-conductor modular jack, LEIGHTRONIX proprietary interface control bus

• DVply—2 DB9M RS-232 device control ports

• Power Input—Three-position IEC power input with removable power cord

• Power Supply—Internal, accepts 90 to 264VAC @ 47 to 63Hz

• Product Safety—Certification by ETL Semko for U.S. Standard(s) for Audio, Video & Similar Electronic

Apparatus

• (UL-60065) and Canadian Standard(s) for Safety Requirements for Audio,
Video & Similar Electronic Apparatus
(CAN/CSA-C22.2 No. 60065)

• Compliance—FCC Part 15

• Warranty—Five Years, Parts and Labor
