Digital Video Server

Until now, digital video at such a low price was unheard
of when considering a “total” playback solution. With an
internal video server, the MINI-T-NX plays industry stan­dard MPEG-2 video/audio files and allows you to real­ize the benefits of digital video playback.

Digital Video Messaging

Need video messaging? No need to look any further.
Simply upload your JPEG video slides to the MINI-T-NX
and synchronize your messages with program play­back.

Device Control and Switching

DVD, videotape, and other pass-through resources
such as satellite or studio feeds still play an important
role in any playback system and the MINI-T-NX pro­vides the necessary control and switching to handle the
whole job. The internal video/audio switcher allows
selection of external video/audio resources manually or
through pre-programmed events. The MINI-T-NX
includes two internal, infrared control interfaces (with IR
transmitters) right out of the box. The IR control ports
are user-programmable for operation with select DVD
players and VCRs. PRO-BUS

TM

interfaces allow control
of additional DVD players or VCRs (interfaces sold sep­arately).

Telephone: Nationwide: Fax: E-mail: Internet:

09/07

MINI-T-NX Video Server/System Controller

215-675-2053 800-523-5947 215-675-7543 [e-mail] http://www.tonercable.com

969 Horsham Road

Horsham, Pennsylvania 19044 USA

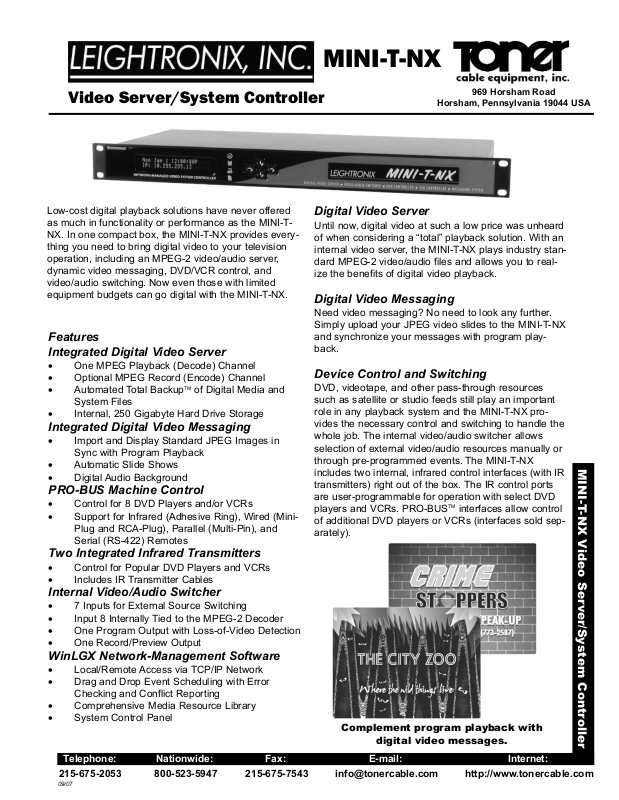

Video Server/System Controller

MINI-T-NX

Features
Integrated Digital Video Server

• One MPEG Playback (Decode) Channel

• Optional MPEG Record (Encode) Channel

• Automated Total Backup

TM

of Digital Media and

System Files

• Internal, 250 Gigabyte Hard Drive Storage

Integrated Digital Video Messaging

• Import and Display Standard JPEG Images in
Sync with Program Playback

• Automatic Slide Shows

• Digital Audio Background

PRO-BUS Machine Control

• Control for 8 DVD Players and/or VCRs

• Support for Infrared (Adhesive Ring), Wired (Mini-

Plug and RCA-Plug), Parallel (Multi-Pin), and
Serial (RS-422) Remotes

Two Integrated Infrared Transmitters

• Control for Popular DVD Players and VCRs

• Includes IR Transmitter Cables

Internal Video/Audio Switcher

• 7 Inputs for External Source Switching

• Input 8 Internally Tied to the MPEG-2 Decoder

• One Program Output with Loss-of-Video Detection

• One Record/Preview Output

WinLGX Network-Management Software

• Local/Remote Access via TCP/IP Network

• Drag and Drop Event Scheduling with Error

Checking and Conflict Reporting

• Comprehensive Media Resource Library

• System Control Panel

Low-cost digital playback solutions have never offered
as much in functionality or performance as the MINI-T­NX. In one compact box, the MINI-T-NX provides every­thing you need to bring digital video to your television
operation, including an MPEG-2 video/audio server,
dynamic video messaging, DVD/VCR control, and
video/audio switching. Now even those with limited
equipment budgets can go digital with the MINI-T-NX.

Complement program playback with

digital video messages.

©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.

Telephone: Nationwide: Fax: E-mail: Internet:

MINI-T-NX Video Server/System Controller

215-675-2053 800-523-5947 215-675-7543 [e-mail] http://www.tonercable.com

MINI-T-NX SPECIFICATIONS

• Dimensions - One standard 19” rack unit with overall dimensions of 1.75”H x 19.00”W x

8.25”D

• Weight - 8 lbs.

• Network - Eight-position/eight-conductor RJ-45 modular jack, 10/100BASE-T Ethernet,

TCP/IP, user-configurable IP address, subnet, and gateway

• Display - 2 x 24 character vacuum fluorescent display

• Keyboard - Keypad with four push buttons, password-protected front panel status and con-

figuration

• Internal Clock - Battery-backed time and date, temperature compensated crystal oscillator
for high accuracy

• Video Standard - NTSC, standard definition, 4:3 aspect ratio

• Video Encoding - MPEG-2, full D1 and half D1 resolution, 1.5-5Mb/s variable bit rate encod-

ing, 1.5-4Mb/s constant bit rate encoding

• Video I/O - 7 RCA video inputs, 2 RCA video outputs (program-preview), NTSC composite
video 1V P-P, active switching, unity gain

• Audio Encoding - MPEG-1 layer II, 44.1Khz and 48Khz sampling rates, 192Kb/s and
224Kb/s audio bit rates

• Audio I/O - 7 monaural RCA audio inputs, 2 monaural RCA audio outputs (program-pre­view), -10dBV unbalanced line level, unity gain

• Video/Audio Recording Capacity - Maximum individual MPEG program length 6 hours

• Digital File Storage - Internal 250 gigabyte hard drive

• Infrared Control Ports - 2 mini-jack device control ports

• PRO-BUS - Six-position/six-conductor modular jack, LEIGHTRONIX proprietary interface

control bus

• Power - 12VDC regulated input with locking coaxial power connector, external AC power
adapter accepts 100 to 240VAC 50-60Hz, AC power consumption 25 watts @ 120VAC

• Product Safety - Certification by ETL Semko for U.S. Standard(s) for Audio, Video & Similar
Electronic Apparatus (UL-60065) and Canadian Standard(s) for Safety Requirements for
Audio, Video & Similar Electronic Apparatus (CAN/CSA-C22.2 No. 60065)

• Compliance - FCC Part 15

• Warranty - Five Years, Parts and Labor
