Blonder Tongue Micromod Chassis & Power Supply

215-675-2053 800-523-5947 215-675-7543 [e-mail] http://www.tonercable.com

969 Horsham Road

Horsham, Pennsylvania 19044 USA

The MIRC-4CUBE is extremely well suited for
use in surveillance or security type applicatoins.
A video camera’s baseband video output can be
modulated to any cable television channel com­bined with existing TV signals to permit any out­let to monitor the camera feeds. This compact
chassis can support up to 4 fixed channel or
agile modulators and can be mounted in pratical­ly any location. The use of Blonder Tongue high
performance modulators easily permits placing
camera signals on adjacent channels.

Rack Chassis & Power Supplies

General

Power Requirements: 100 VAC to 240 VAC, ±10%
Frequency: 50 to 60 Hz
Temperature Range: 0° to +50° C
Output: +5 VDC @5.5 Amps, +12 VDC @4 Amps

Mechanical

Dimensions (WxHxD) : 4.16” x 3.5” x 7.50”
Weight: 1.10 lbs (0.50 kg)

Connectors/Impedance

AC In put: IEC
DC Output: 37 pin D

Indicators

Power 1 ON: LED, green

Accessories Supplied

AC Power Cable: 6 Ft, IEC, USA

Micromod Modular Headend System

Specifications

Ordering Information

Model Stock No. Description

MIRC-4D 7711 HE-4 Series Rack Chassis & Power Supply 19” Rack Mount
MIRC-12V 7715 HE-12 Series Vented Rack Chassis 19” Rack Mountable 2 RU Chassis for 12 Modular Units
MIPS-12C 7722C HE-12 Series Power Supply 5.5 A on 5 VDC line, 4 A on 12 VDC line
MIRC-4CUBE-CH 7703 4 Slot Vertical Chassis Supports combinations of up to 4 MICM, AMCM or MIDM units
MIRC-4CUBE-PS 7702 4 Slot Vertical Chassis Power Supply Unit

Accessories
Model Stock No. Description

MIBP-1 7787 Blank Panel Insert Single Modular Panel compatible with HE-12 / MIRC-12 Chassis
MIBP-2 7788 Blank Panel Insert Dual Modular Panel compatible with HE-12 / MIRC-12 Chassis

MIRC-4D 4 Slot Vertical Chassis

MIRC-12V 12 Slot Horizontal Chassis

MIPS-12C Power Supply

General

Power Requirements: 100 VAC to 240 VAC
Frequency: 50 to 60 Hz
Temperature Range: 0° to +50°
Output Voltage & Current Capacity:

+12 VDC @ 1.8 Amps

+5 VDC @ 1.8 Amps

MIRC-4 CUBE

Specifications

©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.

Telephone: Nationwide: Fax: E-mail: Internet:

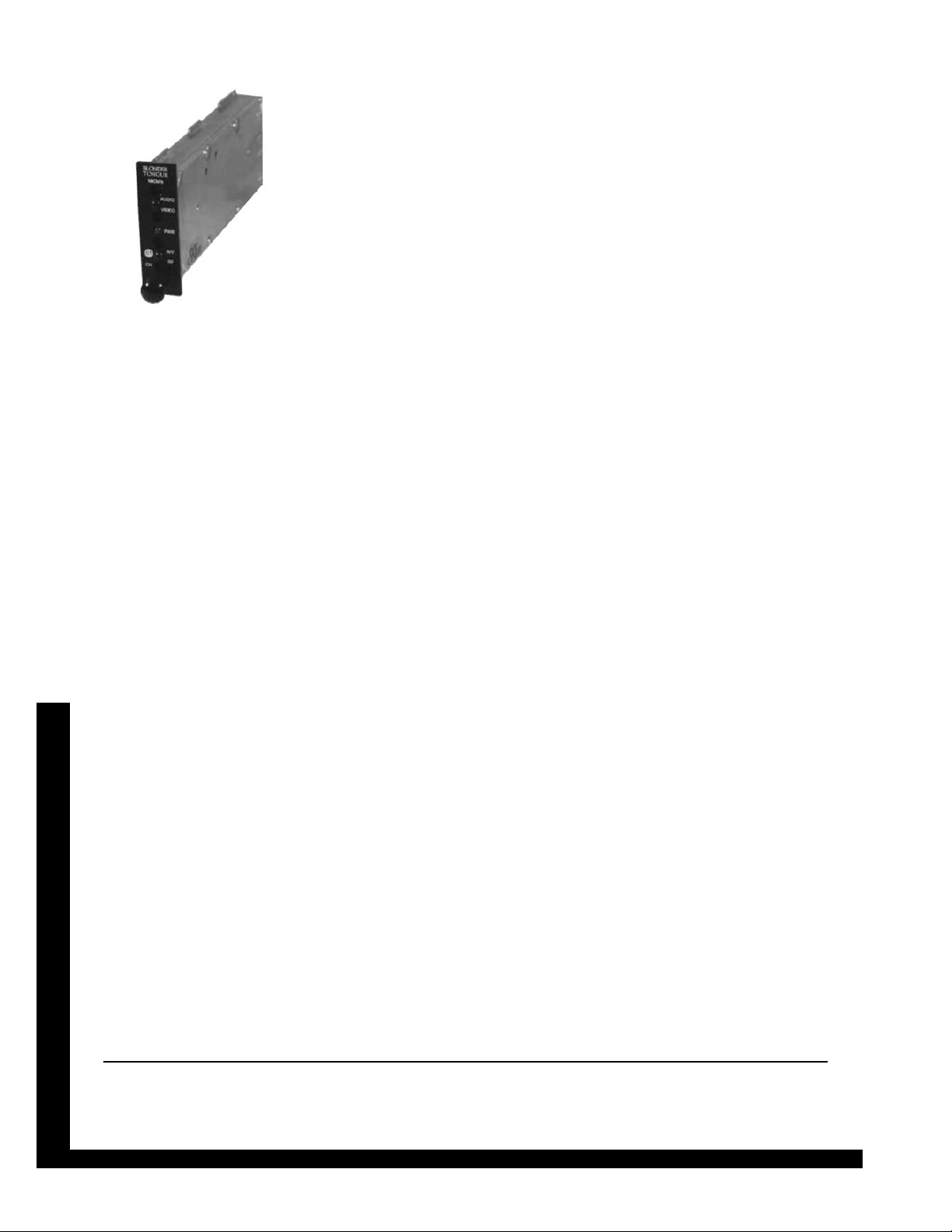

Blonder Tongue Agile Micro Demodulator

215-675-2053 800-523-5947 215-675-7543 [e-mail] http://www.tonercable.com

The MIDM is a professional quality agile
audio/video demodulator and is intended
for both CATV and VHF & UHF applica­tions. The unit is in a “single width” Die­Cast housing that allows deployment of
up to 12 demodulator units in a MIRC­12 chassis.

The MIDM demodulates standard CATV,
IRC and HRC channels and is capable
for “Cherry Picking” of CATV channels in
preparation for remodulation. The input
frequency range is agile, allowing selec­tion of any CATV channel from 54 to 806
MHz. Baseband audio and video are
provided as outputs. It is ideal for off-air
signal processing (audio/video process­ing and remodulation) applications.
Baseband audio and video are provided
as ouptuts. The MIDM features rock
solid, phase lock loop (PLL) synthesized
frequency control. Agile frequency
selection is accomplished via front panel
channel up/down buttons with a LED
channel readout for easy on-the-fly
channel changes. A channel lockout
mode is also provided to prevent acci­dental channel changes. Non-volatile
memory maintains the programmed
channel selection in case of power loss.
The MIDM is compatible with any modu­lators requiring a baseband input, and
can be used in any combination with the
MIPS-12C power supply in a MIRC-12
chassis.

Agile Demodulator HE-12/HE-4 MIDM Series

RF

Frequency Range: 54-806 MHz

VHF, UHF, CATV

(Std., IRC, HRC)

Input Level Range: -5 to +30 dBm VHF/UHF,

+2 to +12 dBmV (CATV)
Noise Figure: 8 dB
Image Rejection: VHF 60 dB
Input Impedance: 75 Ohm

Video

Output Level: 1.0 V p-p
Output Impedance: 75 Ohm

Audio

Output Level: 1 Vp-p
Output Impedance: 600 Ohm, Unbalanced

General

Power Requirements - External:

12 VDC @ 140 mA

5 VDC @ 150 mA

Temperature Range: 0° to +50° C

Mechanical

Dimensions (WxHxD): 1.0 x 3.5 x 7.50 in

29 x 89 x 191 mm

Weight: 1.2 lbs (0.56 kg)

Connectors/Impedance

Audio Output: RCA Phono, Fe male
Video Output: 75 Ohm “F” Type, Fe male
RF Input: 75 Ohm “F” Type, Female
Power: Locking Header, 3 Pin

Controls

Channel Selection: Push Buttons
ANT/CATV: Push Button
Power On/OFF: Push Button
Channel Lock: Push Button
Audio Level: Pot
Video Level: Pot

Indicators

Channel: 2 Digit, 7 Segment LED

Features & Benefits

 Die-Cast Chassis Offers Superior Protection Against

Ingress or Egress

 Demodulates Any Channel 54-806 MHz
 LED Display Makes Agile Channel Selection Easy
 Compatible with MICM-45 Modulator for Compact Off-

Channel Processor Solution

Specifications

Ordering Information

Model Stock No. Description

MIDM-806C 7740C HE-12 Series Agile Audio/Video Demodulator 54-806 MHz UHF/VHF/CATV Input

(STD, HRC, IRC)
