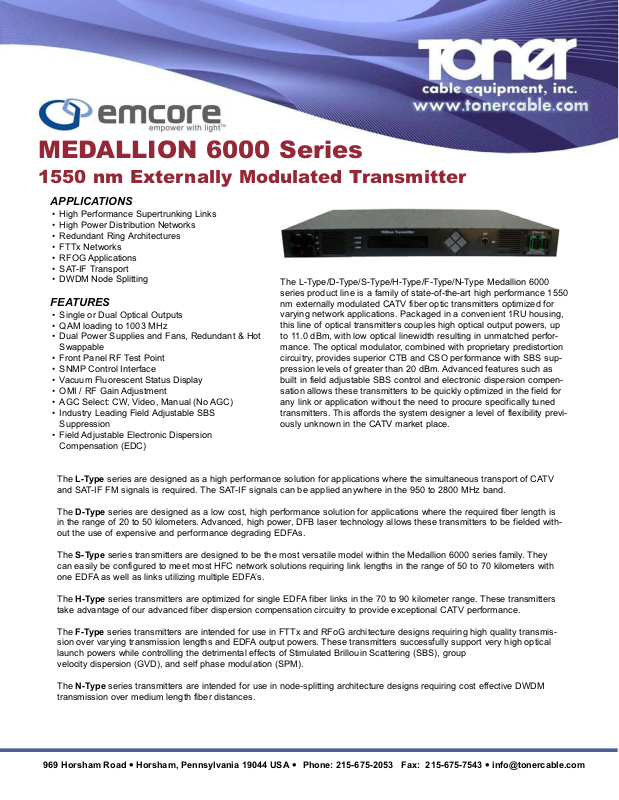

The L-Type/D-Type/S-Type/H-Type/F-Type/N-Type Medallion 6000
series product line is a family of state-of-the-art high performance 1550
nm externally modulated CATV fiber optic transmitters optimized for
varying network applications. Packaged in a convenient 1RU housing,
this line of optical transmitters couples high optical output powers, up
to 11.0 dBm, with low optical linewidth resulting in unmatched perfor­mance. The optical modulator, combined with proprietary predistortion
circuitry, provides superior CTB and CSO performance with SBS sup­pression levels of greater than 20 dBm. Advanced features such as
built in field adjustable SBS control and electronic dispersion compen­sation allows these transmitters to be quickly optimized in the field for
any link or application without the need to procure specifically tuned
transmitters. This affords the system designer a level of flexibility previ­ously unknown in the CATV market place.

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

APPLICATIONS

• High Performance Supertrunking Links

• High Power Distribution Networks

• Redundant Ring Architectures

• FTTx Networks

• RFOG Applications

• SAT-IF Transport

• DWDM Node Splitting

FEATURES

• Single or Dual Optical Outputs

• QAM loading to 1003 MHz

• Dual Power Supplies and Fans, Redundant & Hot
Swappable

• Front Panel RF Test Point

• SNMP Control Interface

• Vacuum Fluorescent Status Display

• OMI / RF Gain Adjustment

• AGC Select: CW, Video, Manual (No AGC)

• Industry Leading Field Adjustable SBS
Suppression

• Field Adjustable Electronic Dispersion
Compensation (EDC)

MEDALLION 6000 Series

1550 nm Externally Modulated Transmitter

The L-Type series are designed as a high performance solution for applications where the simultaneous transport of CATV
and SAT-IF FM signals is required. The SAT-IF signals can be applied anywhere in the 950 to 2800 MHz band.

The D-Type series are designed as a low cost, high performance solution for applications where the required fiber length is
in the range of 20 to 50 kilometers. Advanced, high power, DFB laser technology allows these transmitters to be fielded with­out the use of expensive and performance degrading EDFAs.

The S-Type series transmitters are designed to be the most versatile model within the Medallion 6000 series family. They
can easily be configured to meet most HFC network solutions requiring link lengths in the range of 50 to 70 kilometers with
one EDFA as well as links utilizing multiple EDFA’s.

The H-Type series transmitters are optimized for single EDFA fiber links in the 70 to 90 kilometer range. These transmitters
take advantage of our advanced fiber dispersion compensation circuitry to provide exceptional CATV performance.

The F-Type series transmitters are intended for use in FTTx and RFoG architecture designs requiring high quality transmis­sion over varying transmission lengths and EDFA output powers. These transmitters successfully support very high optical
launch powers while controlling the detrimental effects of Stimulated Brillouin Scattering (SBS), group
velocity dispersion (GVD), and self phase modulation (SPM).

The N-Type series transmitters are intended for use in node-splitting architecture designs requiring cost effective DWDM
transmission over medium length fiber distances.

PROPERTY REQUIREMENT COMMENTS

Wavelength 1555 ±5 nm Various options + ITU-grid available
Channel Plan Various - see specification tables Customer channel plans available
Optical Connector SC/APC Other styles available
Monitoring Interfaces 100 Base-T Ethernet (SNMP)

Rear Panel RS-232 Interface

VFD Screen Front Panel Controls VFD (Vacuum Fluorescent Display)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°
Power Consumption 65W max
Transportation Vibration GR-2853-CORE In shipping package
Transportation Shock GR-2853-CORE In shipping package
Operating Humidity 20% to 85% Non-condensing
Supply Range (VAC) 90 to 265 VAC, 50/60 Hz

(VDC) ± (36 - 72) VDC

Dimensions 19.0”W x 15.0”D x 1.72”H (width includes 19” front panel ears, depth

includes conectors, fans & front panel)

Input Power Range 17 ±1 dBmV/ch 80 NTSC channels Manual mode

15 ±1 dBmV/ch 110 NTSC channels Manual mode

18 ±1 dBmV/ch 60 PAL channels Manual mode

20 ±1 dBmV/ch 42 CENELEC channels Manual mode

16 ±1 dBmV/ch 89 PAL channels Manual mode

27 ±1 dBmV/ch SAT-IF channels Manual mode
Input Power Range 19 ±2 dBmV/ch 80 NTSC channels CW mode

17 ±2 dBmV/ch 110 NTSC channels CW mode

20 ±2 dBmV/ch 60 PAL channels CW mode

18 ±2 dBmV/ch 42 CENELEC channels CW mode

22 ±2 dBmV/ch 89 PAL channels CW mode

29 ±2 dBmV/ch SAT-IF channels CW mode
Front Panel RF Gain / OMI +2 / -4 from nominal setting CATV performance can vary slightly
Adjustment Range
CATV Frequency Range 45 MHz - 1003 MHz
CATV Flatness ±0.50 dB 45 MHz - 550 MHz

±0.75 dB 45 MHz - 1003 MHz
CATV Flatness - N-Type ±0.75 dB 45 MHz - 1003 MHz (N-Type)
CATV Input Impendance 75 Ω
CATV Input Return Loss 16 dB min 45 MHz - 1003 MHz
CATV Front Panel RF Tap -20 ±1 dB down from RF input
CATV Front Panel RF Tap Flatness ±1 dB 45 MHz - 1003 MHz
SAT-IF Frequency Range 950 - 2800 MHz
SAT-IF Flatness ±2 dB
SAT-IF Input Impedance 75 Ω
SAT-IF Input Return Loss 10 dB min 950 MHz - 2800 MHz
SAT-IF Front Panel RF Tap 7 ±2.5 dBmV/ch at 1% OMI/ch
SAT-IF Front Panel RF Tap Flatness ±1 dB 950 MHz - 2800 MHz

Specifications Subject To Change Without Notice Rev 10-11 ©Toner Cable Equipment, Inc.

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

GENERAL & MECHANICAL SPECIFICATIONS

MEDALLION 6000 Series

1550 nm Externally Modulated Transmitter
