TomTom ecoPLUS
Reference Guide
Contents
Before the installation 3
Welcome ............................................................................................................................................. 3
Components ....................................................................................................................................... 3
Requirements ..................................................................................................................................... 3
Installing your ecoPLUS 5
Configuring a Bluetooth connection with WEBFLEET ...................................................................... 5
Configuring a Bluetooth connection with the Activation Tool ......................................................... 7
Installing ecoPLUS in your vehicle .................................................................................................... 9
Diagnostics 11
Understading your ecoPLUS ........................................................................................................... 11
Resetting your ecoPLUS .................................................................................................................. 12
Technical data ................................................................................................................................... 12
2
Welcome
Before the installation
With the TomTom ecoPLUSTM you can retrieve fuel consumption data over the OBD-II connector in
your vehicle and see this in WEBFLEET in real time. TomTom ecoPLUS works together with the
TomTom LINK 5xx/4xx/3xx via Bluetooth and therefore requires minimal installation effort. This
document shows how to set up your ecoPLUS.
If you need to use your vehicle’s OBD-II connector for something else, for example, for maintenance purposes, simply remove your ecoPLUS from the connector and reconnect it afterwards.
Important: To remove the ecoPLUS from the OBD-II connector, pull on the ecoPLUS plug and not
the device itself as this may cause damage.
Components
The following figure shows the different parts of the ecoPLUS.
1. Power LED
2. Bluetooth LED
3. Reset button
4. Data cable
5. Bluetooth address
6. OBD-II plug
Requirements
Before installing your ecoPLUS make sure you fullfil the following requirements:
Your vehicle is fitted with either a TomTom LINK 300 that has a serial number that starts with
"LA ..." or a TomTom LINK 310 or a LINK 5xx/4xx.
The LINK 5xx/4xx/3xx must be activated in WEBFLEET.
The LINK 300/310 must have the firmware version 1.8501 or higher.
Download the latest firmware version from the Reseller section on
http://telematics.tomtom.com under Software download.
3
Your vehicle has an OBD-II connector.
To use the activation tool for your LINK, you need a laptop with the activation tool installed, a
serial cable and the activation code, which you can find in your WEBFLEET contract confirmation.
Download the latest version of the Activation Tool from the Reseller section on
http://telematics.tomtom.com under Software download.
4
There are two steps to setting up your ecoPLUS:
Installing your ecoPLUS
1. Configure a Bluetooth connection between your ecoPLUS and your LINK.
There are two ways to establish a Bluetooth connection between your ecoPLUS and your
LINK:
By configuring a Bluetooth connection with WEBFLEET
By configuring a Bluetooth connection with the Activation Tool
Make sure you have properly noted and entered the Bluetooth address of your ecoPLUS,
which you can find on the label on the OBD-II plug.
2. Install your ecoPLUS in your vehicle.
Important: If the ecoPLUS has been used in another vehicle before, you need to reset the device
first, otherwise the installation of the ecoPLUS may cause errors in the vehicle communication or
engine warnings to be shown in the vehicle dashboard.
Configuring a Bluetooth connection with WEBFLEET
This section describes how to pair your ecoPLUS with the LINK installed in your vehicle using
WEBFLEET. You can also configure a Bluetooth connection using the activation tool instead.
Note: Make sure your vehicle is properly fitted with a LINK according to the requirements for
the installation.
5

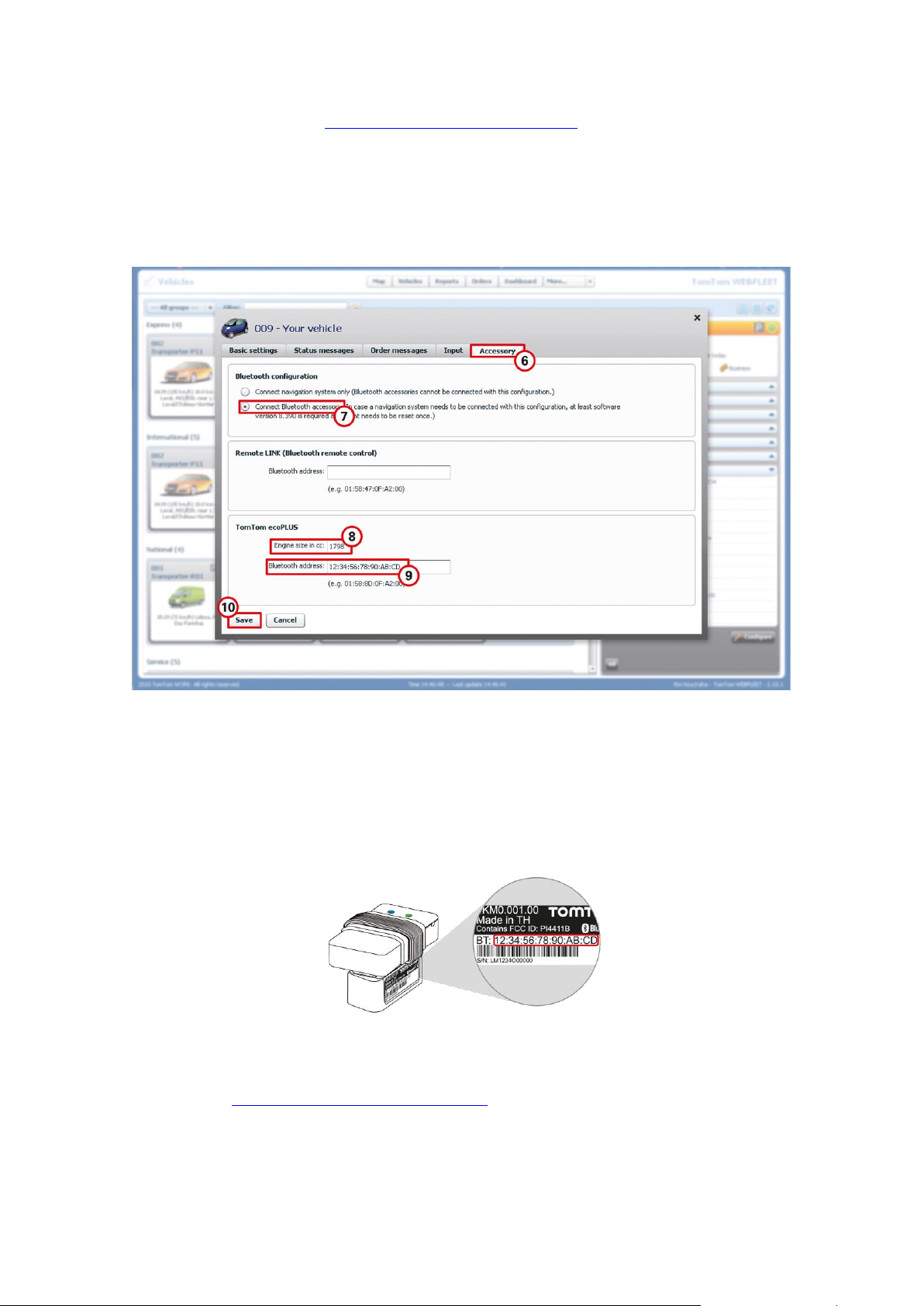

1. Log in to WEBFLEET here http://telematics.tomtom.com/login.
2. Click Vehicles.
3. Select your vehicle from the list.
4. In the details panel on the right, click Contract/Device.
5. Click Configure.
6. Select the Accessory tab.
7. Under Bluetooth configuration check the radio button for Connect Bluetooth accessory to be
set.
8. In the TomTom ecoPLUS section, enter the engine size of your vehicle in cc.
Make sure you have entered the correct engine size, as this is the basis for the calculation of
the fuel consumption of your vehicle.
9. Enter the Bluetooth address indicated on the OBD-II connector of the ecoPLUS you want to
install in that specific vehicle.
10. Click Save.
The Bluetooth address of your ecoPLUS is now assigned to the LINK in the vehicle you selected.
Now you should install your ecoPLUS in your vehicle.
6
Configuring a Bluetooth connection with the Activation Tool
This section describes how to pair your ecoPLUS with your LINK using the Activation Tool. You
can also configure a Bluetooth connection with WEBFLEET instead.
1. Install the latest version of the Activation Tool to your Microsoft Windows
Download the latest version of the Activation Tool from the Reseller section on
http://telematics.tomtom.com under Software download.
2. Use the serial cable from the LINK Service Set to connect your LINK to your computer.
3. To start the Activation Tool double click the icon.
4. Select from the pull down menu the COM port to which you have connected your LINK.
Make sure the green LED on the LINK is solid on before you continue with the next step.
©
running PC.
5. Click Ok.
6. Select the ecoPLUS tab.
7. Enter in the engine size of your vehicle in cc.
7
8. Enter the Bluetooth address indicated on the OBD-II connector of the ecoPLUS you want to
install in that specific vehicle.
9. Click Save.
You are prompted to enter the activation code for the LINK.
10. Enter the activation code.
You can find the activation code in your WEBFLEET contract confirmation.
11. Click Ok.
After a few seconds the Bluetooth address also appears in the right text field.
8
12. Carry out the steps described above for each additional ecoPLUS and LINK.
Installing ecoPLUS in your vehicle
This section describes how to connect your ecoPLUS to the vehicle and to the LINK.
1. Find the OBD-II connector in your vehicle.
You can find the OBD-II connector in the footwell area of the driver. If you are not sure where
to find it refer to the service manual of your vehicle or contact your car dealer.
2. Insert the OBD-II plug of your ecoPLUS into the OBD-II connector of your vehicle. Make sure
the plug is fully inserted so it cannot drop off.
The green Power LED starts flashing.
3. Optionally, you can slide off the ecoPLUS from the plug to place it aside, if the available space
does not allow for an assembled installation.
Important! Affix the loose ecoPLUS so that it cannot drop off and fall into the footwell area or
get damaged. Make sure the power and the Bluetooth LED stay visible for diagnostics purposes.
4. Turn on the engine.
The LINK tries to establish a connection to your ecoPLUS. This may take up to two minutes. If
successful both LEDs should be solid.
You have now completed the installation of the ecoPLUS and successfully established a Bluetooth
connection between your ecoPLUS and the LINK.
9
The ecoPLUS automatically learns from the vehicle and the engine during operation. Therefore,
the vehicle needs to be moved around for some time so the ecoPLUS can be calibrated.
10
Understading your ecoPLUS
Green LED
Blue LED
ON
ecoPLUS has
power and has
established vehicle
communication.
ON
The devices are
identified to each
other and a Bluetooth
connection is established.
Fully operational
ON/FLASHING
ecoPLUS has
power, but may not
have established
vehicle communication if the engine
is not yet running.
FLASHING
The devices are
identified to each
other and are trying
to establish a Bluetooth connection.
Establishing a Bluetooth connection
FLASHING
ecoPLUS has
power, but has not
yet established
vehicle communication. Ensure the
engine is running.
ON
The devices are
identified to each
other and a Bluetooth
connection is established.
Establishing vehicle communication
FLASHING
ecoPLUS has
power, but has not
established vehicle
communication.
OFF
Devices are not
identified to each
other and have no
Bluetooth connection.
Factory default/devices not identified
FLASHING
SLOWLY
ecoPLUS has
power and is in
standby mode.
OFF
ecoPLUS is in standby
mode and has no
Bluetooth connection.
Power save mode
Diagnostics
In the following table the different LED modes are explained showing you working stages of your
ecoPLUS.
11
OFF
ecoPLUS has no
power/is not
connected.
OFF
ecoPLUS has no
power and thus has
no Bluetooth connection.
No power
Protection class
IP33
Operating voltage
8V to 30V
Temperature
Operation: -30 °C to +70 °C
Resetting your ecoPLUS
If you have operated the ecoPLUS in another vehicle before, if you encounter errors with your
ecoPLUS or your ecoPLUS is not working as expected you need to reset the device. To reset your
ecoPLUS press the reset button for five seconds while it’s connected to the OBD-II connector and
supplied with power.
Technical data
Copyright notices
© 2014 TomTom. All rights reserved. TomTom and the "two hands" logo are registered trademarks of TomTom Telematics B.V. or one of its subsidiaries. Please see tomtom.com/legal for
limited warranty and end user licence agreements applying to this product.
