Creating today's ideal security.
Security in various environments is more essential than ever. From office
buildings to shopping malls, airports, car parks and garages to institutional
facilities such as schools and college campuses, hospitals and medical centers,
industrial and correctional facilities to hotel and high rise residential buildings to
senior citizen homes — the list grows daily while the reason stays the same —
to ensure security and time-critical communications on a 24/7 basis.
TOA technology can protect lives and property, maintain health and safety
as well as enhance organizational efficiency and productivity.
TOA uses its accumulated expertise and knowledge gained over a half century
plus in sound and public address, security and surveillance (CCTV) technologies
to offer cost-effective and totally dependable solutions that fulfill all your
communication and security requirements to always keep you "Safe & Sound."
VS-900 Exchange
MS-900 Master Station
Page 3
Meet the TOA VS-900
System features
Voice Security
Intercom System.
The VS-900 represents significant
value for any security system. Its
comprehensive audio capabilities
including an advanced voice
communications system integrate
seamlessly with existing security and
video surveillance systems to provide
a significantly higher level of security
for you.
Manage the system from on- and
off-site locations.
Through the built-in industry-standard
RS-232C port, the VS-900 can be conveniently programmed and administered from
any location, even offsite via modem. System
software can also be easily upgraded,
increasing the operational and service life of
the system and overall functionality.
Useful data logging.
The VS-900 is equipped with a second
RS-232C port that connects to a computer so
that events can be automatically logged at
each exchange.
Efficient voice recording.
At each master station, the VS-900 enables
automatic recording of calls that provide a
useful record for post-event analyses. Each
telephone line* can also be assigned for
individual recording outputs.

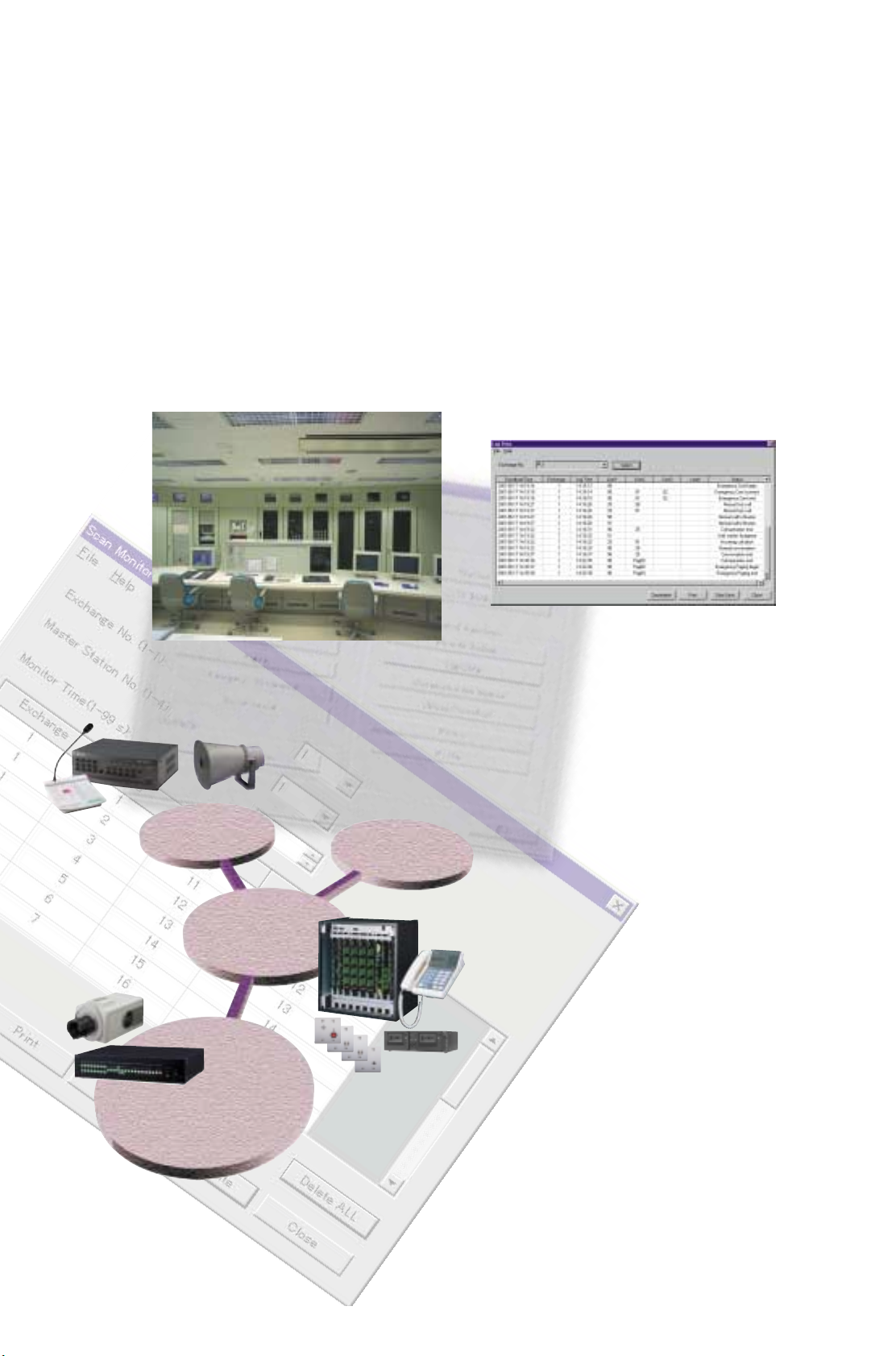

Voice Evacuation System
VS-900
Video Surveillance System
Designed to suit your particular
environment.
The VS-900 has been designed with system
flexibility in mind. The fully scalable architec-
Access Control System
Security Equipment
ture can be precisely tailored to your existing
system and expanded right along with your
environment's requirements. And because the
VS-900 mainframe employs an all-modular
construction, it simplifies installation procedures as well as routine maintenance. System
expansion options can easily be incorporated
using interface and function cards. The fully
modular configuration eliminates system
obsolescence and ensures you get always
the most from your investment. The VS-900
exchange can also be rack or wall-mounted
to minimize space requirements.
System expands as required.
Up to four master stations and up to 64
substations can be connected to each
VS-900 exchange. An exchange will also
accommodate two outside telephone lines*
as well as a dedi-cated computer interface.
To satisfy system demands for even large
institutions, a tie-line capability enables
connecting up to 16 exchanges with 64
master stations and up to 1,024 substations.
*use dependent on individual country telephone regulatory
codes.
Page 4
System Applications
Protection and security.
At any site, all controlled-access points such
as doors and parking gates benefit from twoway communication features provided by the
VS-900. And by interfacing with CCTV
systems such as TOA's, video combines with
audio to achieve total monitoring. Used
together with access control, other functions
such as opening doors and gates as well as
controlling surveillance cameras are easily
performed. For alerting personnel, the VS-900
will also transmit warnings to substations.
Versatile call handling.
The VS-900 receives environment-wide
emergency calls from any substation at a
central security control room. The VS-900 can
forward calls manually or automatically to any
master station onsite or offsite telephones.
Times can be set for the system to automatically forward calls, useful during personnel
shift changes and to maintain good communications during slack times or off-hours security.
No-Answer Call Forwarding and Busy Call
Forwarding modes are also available. Calls
can be also be transmitted to outside telephones and mobile phones as well as pagers
for notification. Many more helpful features are
offered such as group calling, autodial and
redial, call transfer/hold, call priority for normal/
emergency calls, automatic call timeout, call
queuing, and selective response.
Convenient conference calling.
The VS-900 enables master stations to easily
initiate three party conference calls even in
the middle of a two party conversation for
instance when a consultation is needed with
a person on- or offsite. An Emergency
Conference feature for up to four parties is
also provided.
Multi-functional paging.
The VS-900 system provides four paging
methods:
• Zone paging broadcasts to selected zones
• Simultaneous all-zone paging broadcasts
• Emergency paging broadcast to entire areas
• External sound source distribution to
individual zones activating a sound source
such as a chime.
Each substation's built-in speaker may be
used if driven by an external amplifier*.
Up to 19 paging zones can be established by
combining multiple substations with external
public address system even the most remote
areas of a site can be covered efficiently.
*TOA A-1031 or similar amplifier. Matching transformer such
as the TOA MT-502U needed. (Part Number 514-04-013-20)
Substations designed for any
installation.
TOA offers a range of substations for specific
installation conditions. Featuring a rugged
design for reliability, each substation provides
a speaker and call button. One design
includes a call lamp as well. For areas such
as parking lots and remote locations, there
are tough vandal-proof and weather-resistant
substation models. In an emergency, any
substation can be instantly activated by a
single button — practical as emergency or
crisis situations tend to
confuse people.
TOA's audio expertise
maintains superlative
clarity in call quality to
eliminate possible
misunderstanding.
Selective scan monitoring.
This allows any master station to selectively
scan a group of substations for realtime audio
monitoring. This feature is significantly
enhanced when used in combination with
CCTV surveillance to assure a higher level of
security as it combines audio and visual
monitoring capabilities.

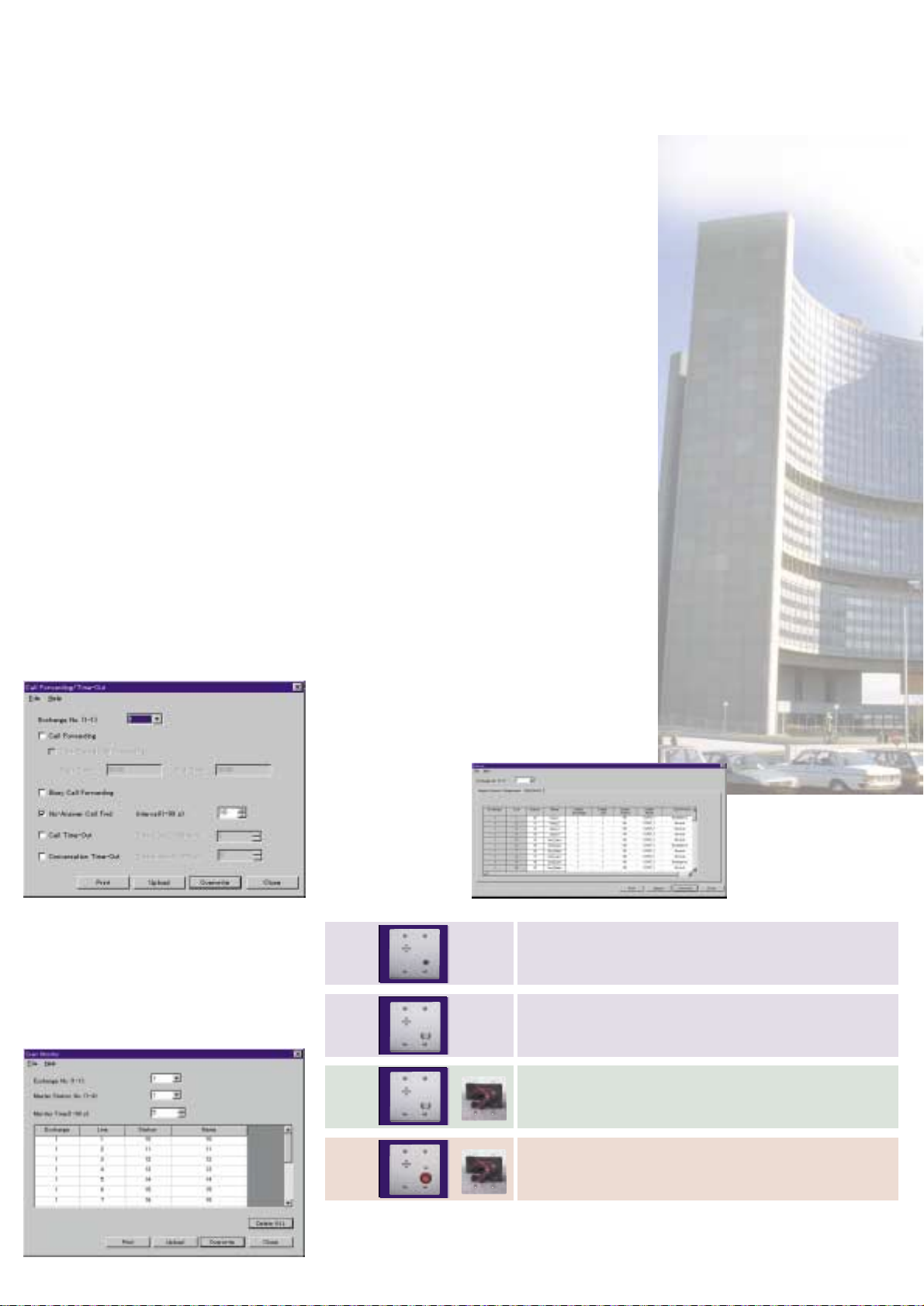

Cost-effective
RS-150
RS-160
RS-170
RS-180
*Vandal-proof versions feature a stainless front panel that is 1.5 times thicker than the RS-150's panel.
The internal speaker is protected by a metal plate.
Note: All telephonic and related communications functions use described above dependent on individual country regulatory codes.
Indoor use
Dimensions: 120 (W) × 120 (H) × 48.5 (D) mm
Vandal-proof*
Indoor use
Dimensions: 120 (W) × 120 (H) × 57.5 (D) mm
Vandal-proof* and weather-resistant
Outdoor/Indoor use
Dimensions: 120 (W) × 120 (H) × 57.5 (D) mm
Vandal-proof* and weather-resistant
Outdoor/Indoor use
Allows connecting to a remote alarm light or siren.
Call lamp Dimensions: 120 (W) × 120 (H) × 58.5 (D) mm
Page 5

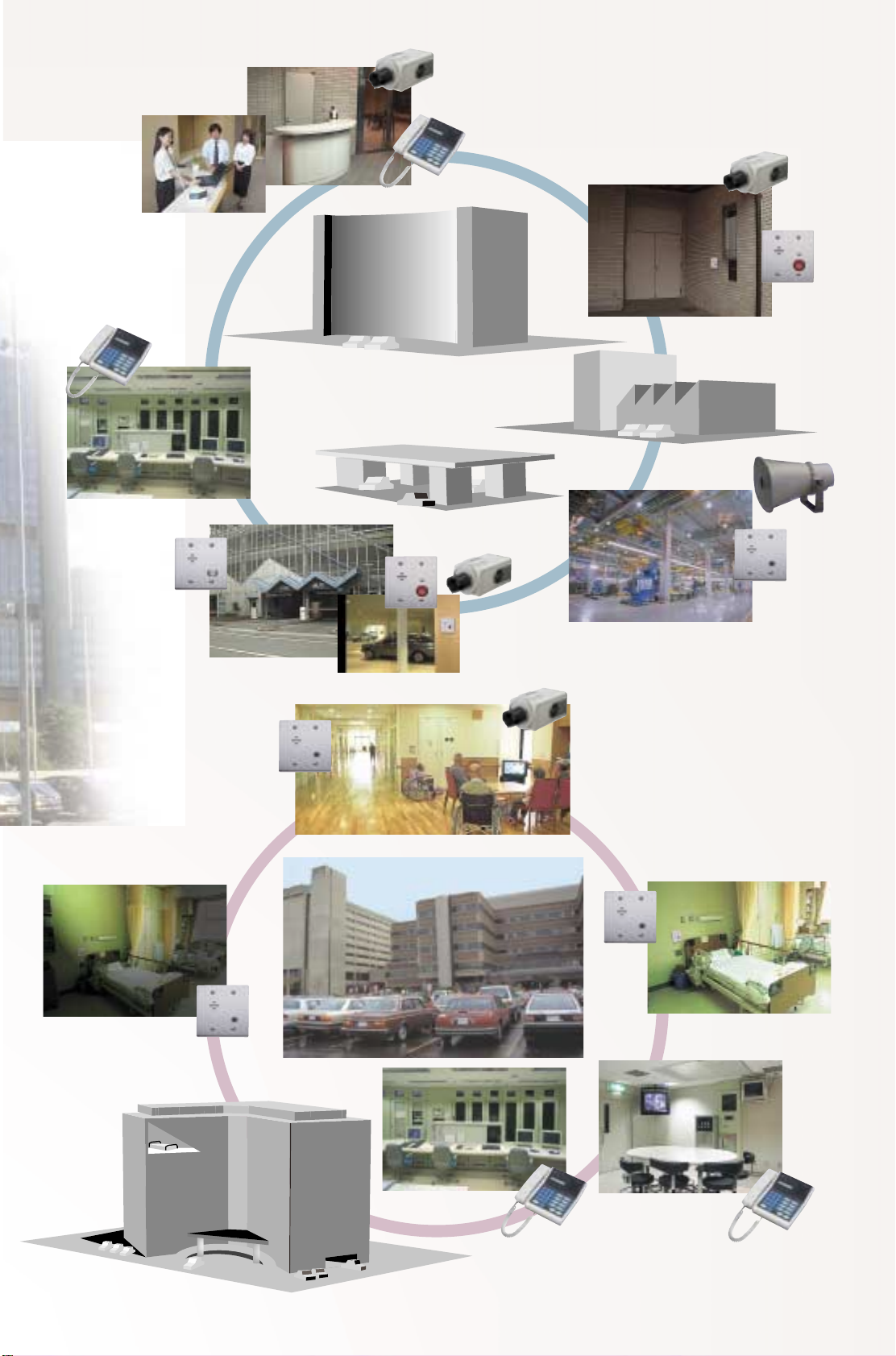

Office
Office complex and
adjoining plant
Reception
Employees exit
Factory
Control room
Parking areas
Parking
Lounge
Factory areas
Hospital
Patient's room (night)
Hospital
Control room
Patient's room (day)
Nurses station
Page 6
SYSTEM FEATURES
■
System Capacity
•Single Exchange
4 Master stations (enlargement unit: 2)
64 Substations (enlargement unit: 16)
•Up to 16 Exchanges
64 Master stations
1,024 Substations
■
Remote system management via RS-232C port
•PC programming and monitoring software
•Program and maintain multiple exchanges
offsite from one PC (via modem)
■
Audio and Data Logging
•PC archive of all system activity (RS-232C port)
•Record individual Master station and telephone audio
■
Master Station Flexibility
•TOA master with alphanumeric display and clock
•Supports single-line telephone equipment with Caller-ID*
■
Outside Line Communication
•Supports two C/O trunks
•Substation to outside telephone line communication
■
Paging Interface
•16 control outputs
•1 voice output
■
External Audio Input
•4 activation inputs and 1 audio input for external source distribution
*in compliance with FCC regulation Part 68.
SYSTEM FUNCTIONS
■ Substation to Master Station Call
•Call designated Master station
•Group Call [Master station grouping (16)]
•Emergency Call up to the priority level
■ Call Forwarding-Related Functions
•Call forwarding
•Time-Based Call forwarding
•No-Answer Call forwarding
•Busy Call forwarding
•Outside Line Call forwarding
■
Paging
•Zone paging (19)
•All-Zone paging
•Emergency paging
•External source distribution
■
Scan Monitor
■
Emergency Conference (up to four parties)
■
Auto-Dial and Redial
■
Call Transfer/Hold
■
Substation Priority (Emergency/Normal)
■
Automatic Time-Out (Call/Conversation)
■
Selective Response/Call Queuing (16)
SYSTEM SPECIFICATIONS
■
Exchange Method: PCM and space division
■
Control Method: Common stored program control
■
Maximum Cable Length
Exchange to Master station: 1,500m (22AWG)
Exchange to Substation: 800m (22AWG)
Exchange to telephone: less than 500Ω (loop impedance)
Exchange to Exchange: 1.0km (22AWG)
■
Wiring
Master station: 2 twisted pairs
Substation: 2-core shielded
Telephone: 1 twisted pair
Exchange to Exchange: 1 twisted pair, shielded for Data,
■
Frequency Response: 300 – 3,400Hz
■
Conversation Method
Substation to Master station: Voice Switch or PTT-activated talk-back
Master station to Master station: Full-duplex handset communication
■
Power Requirements
Exchange: AC mains (PU-200) or 24V DC
VS-900DI/VS-910DI: 24V DC
■
Operating Temperature
Exchange and Master station: 0 to 40°C
Substation: –10 to 60°C
2 twisted pairs for Audio

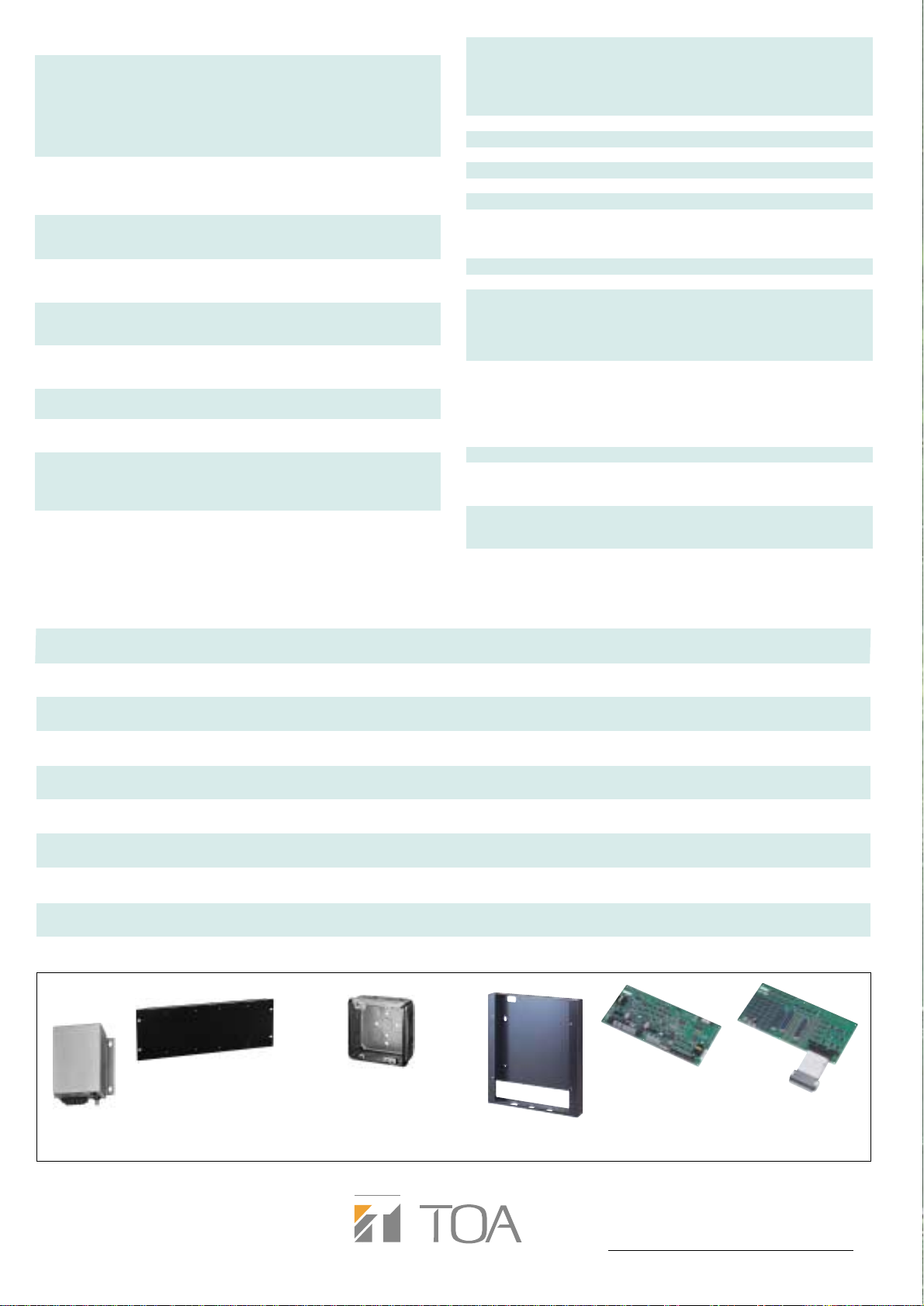

System Configuration and Equipment Functions
VS-900MF
Main Frame
VS-900MS
Master Station Interface Card
VS-900AL
Telephone Interface Card
VS-900RS
Substation Interface Card
VS-900CO
Outside Line Interface Card
VS-900AF
Audio Function Card
VS-900TI
Tie-Line Interface Card
MS-900
Master station
RS-150/160/170/180
Substation
Card modules installed here. Includes 2 RS-232C ports.
Dimensions: 420(W) × 443.7(H) × 288.3(D)mm
For connecting up to two master stations per card.
An external recording device can be connected to each line.
For connecting up to two telephones per card. An external recording device can be connected to
each line. Use the telephone which complies with the FCC regulation Part 68.
Connects up to 16 substations per card. Equipped with two speech links, one link able to be used
as a paging link with the paging input/output connected to an external amplifier.
Connects up to two outside lines per card.
An external recording device can be connected to each line.
Enables conference, external amplifier paging and external source distribution functions.
Interconnects multiple exchanges. Connects up to 4 links using one pair of data lines and two
pairs of voice lines.
MS-900 can make calls to or receive calls from the substation or the master station (telephone).
Dimensions: 216 (W) × 74.5 (H) × 213 (D) mm
(see inside center page)
Note: All telephonic and related communications functions use described above dependent on individual country regulatory codes.
Options
YC-302
PN-100B
Rack Mount Panel
for PU-200
PU-200
Power Transformer Unit
Size: 178(W) × 140(H) × 68(D)mm
Size: 483(W) × 177(H) × 10(D)mm
Back box (2-gang)
for RS-150/160/170/180
Size: 102(W) × 102(H) × 44(D)mm
YC-303
Main Frame
Wall Mounting Bracket
Size: 391.4(W) × 440(H) × 58(D)mm
VS-900DI
Direct Select
Control Card
The VS-900DI Direct Select Control Card and VS-910DI Direct
Select I/O Card are interface cards that connect to the VS-900
Exchange to enable calling-station indication output, direct select
input, and external equipment control output functions.
VS-910DI
Direct Select
I/O Card
TOA Corporation
URL: www.toa.co.jp/global/
Specifications are subject to change without notice.
Printed in Japan (0106) 833-61-472-40 u
Loading...
