TOA A-9060DHM2CU, A-9060SM2 CU, A-9120DHM2CU, A-9120SM2 CU, A-9240SHM2CU Users Manual

...
9000M2 S
M
ODULARDIGITALMATRIX
M
IXERANDMIXER/AMPLIFIERS
M
IXER/AMPLIFIERS
ERIES
A - 9 0 6 0 S M 2 A - 9 1 2 0 S M 2 A - 9 2 4 0 S H M 2 A - 9 0 6 0 D H M 2 A - 9 1 2 0 D H M 2
M
IXER
M - 9 0 0 0 M 2
H
IGHL IGHTS
TheTOA9000M2 Series Digital Matrix Mixer/Amplifiers redefine the conventional mixer/amplifier category bycombining a modular matrix mixer, digital signalprocessor (DSP) and amplifiers in a compact, two rack space package. The versatilenew series is ideal for multi-zone paging, music distribution and room-combining applications. The 9000M2 Series models include dual andsingle channel amplifiers with high or low impedance outputs plus a matrix mixer-only version.
All models allowfor easily configured,custom systems with upto eight mic/line inputs and eight outputs. Each 9000M2 Series chassis has two channels of built-in DSP with ten band parametric EQ, compressor, eight-level ducking and more. Input and output modules include additional DSP.
A new integratedoperating mode provides powerful functionality for both simple mixing and complex multi-zonepaging applications. Featuresinclude telephone zonepaging, automatic microphone mixing and ambient noise control.
Programmingthe 9000M2 is easy via the front panel or using the convenient new GUI programminginterface (Windows™ XP/Vista), which allows fast configuration and upload/download of allsettings.
Modules include the D-001T dual channel mic/line input module; D-001R dual line input module;T-001Tdual channel line output module; AN-001T AmbientNoise Control module. ZP-001T telephone access zone paging module; C-001Tcontrol expansion module; & the new RC-001T and RS-485 Controllermodule.
Accessories include the AN-9001ceiling/wall­mount microphone; ZM-9001, ZM-9002, ZM­9003 remote panels; plus the New ZM-9011, ZM-9012, ZM-9013 & ZM-9014, and RS-485 remote panels.
The 9000M2 Series products areUL and cUL Listed and backed with TOA’sfive year product warranty.
Modular digital matrix mixer/amplifiers for a multitude of applicationsincluding audio-visual, zone
paging,room combining and many more.
Enhanced GUI programming interface for PC configuration and uploading/downloadingof settings
using RS-232 connection. Includes setup wizards and firmware upgrade utility.
ExceptionalAudio Quality:
24-bit, 48 kHz sampling
Ultra-LowDistortion –0.0008% Modular Mixer – up to 8 mic/line inputsand 8 outputs Dual Channel Digital Signal Processor (DSP) on Input &Output channels:
10-Band Parametric EQ High and LowPass Filters Bass and Treble Loudness
Compressor Gate Ducker NOM (Automix)
Delay (Output channel only) 34TOA Speaker EQ Presets (Output channel only)
DSP included on 9000 Mainframe Outputs, D-001T,D-001R and T-001T modules Single or Dual Channel Power Amplifiers — 70.7V,25V wide range of powerratings FlexibleOutput Power — dualchannel models allow up to 50% of either amplifier channel to be
allocated to the other channel (A-9060DH and A-9120DH) (Ex. A-9060DH: CH1 90W, CH2:30W)
Flexible,IntegratedOperating System (Mixer + Paging Matrix):
Mixer functions along with simultaneousPriority Paging Matrix activation, each with 32 presets.
Scene memory (x32) contains all mixer (non-priority) settings
Pagingmemory (x32)contains global (static) input settings,independent Xpoint assignments,paging
trigger & paging output levels for all highpriority (1,2 & 3) inputs.
Both scene & paging memories are stored in a single template along with remote assignments, security
lock and other global functions
Mixer & Pagingfunctions are independentand mixer (scene) settings willnot affect Paging(event)
functions.
M
ODULARDIGITALMATRIXMIXER/AMPLIFIERS
A-9060SM2 A-9120SM2 A-9240SHM2 A-9060DHM2 2x 60W @ 70V A-9120DHM2 2x 120W @ 70V M-9000 2x Line Level(Mixer only)
M
ODULES
D-001T D-001R Dual Line Input T-001T ZP-001T C-001T AN-001T Ambient Noise Control RC-001T RS-485ControlModule(req.AD-246Adapter)
1x 60W @ 25/70V,4/8 ohms 1x 120W @ 25/70V,4/8 ohms 1x 240W @ 70V
Dual Mic/Line Input with DSP
Dual Line Output Expansion withDSP TelephoneDTMF ZonePaging Input/Output Control Expansion
ACCESSORIES
AN-9001 CeilingMic for Ambient Noise Control ZM-9001 RemoteSwitchPanel ZM-9002 RemoteVolume Switch Panel ZM-9003 ZoneManager ZM-9011 RemoteControlPanel ZM-9012 RemoteControlPanel ZM-9013 RemoteControlPanel ZM-9014 RemoteControlPanel
9000M2 SERIES MODULAR DIGITAL MATRIX
MIXER AND MIXER/AMPLIFIERS
F E A T U R E S
Tel: 800-733-4750
Fax:800-733-9766
www.toaelectronics.com
Features
Multiple Input Priority Modes sets priority orderwhen multiple inputs with the same priority level and output assignment are broadcast
First-In-First-Out(FIFO): input that occurs first is broadcastLast-In-First-Out (LIFO): the most recent inputis broadcast
MIX: all inputs are simultaneously mixed and broadcast VoiceOperated (VOX)paging activation with adjustable threshold/sensitivity and gate release time Stereo Link — control two inputsor outputs with one volume control Mixer Out / Power Amp In Patching Loops (A-9060DHM2,A-9120DHM2) for connection of external processor(s) Balanced Line Output(s) — two: M-9000, one: A-9060SM2, A-9120SM2, A-9240SHM2; expandable withT-001Tdual line output modules Software Utility for saving unit parameters to PC, updating unit firmware,virtual controlactivation and status indication Keylock Security sets password-protected access to prevents access toInput, Output, Utility & Powerfunctions Alphanumeric Input/Output Channel and Memory Naming Detachable IEC-type AC Cable
FlexibleRemote Control
TwoRemoteVolumeControlTerminals FourControl Inputs — programmable to activate Paging/Scene Memory, Volume Up/Down (Input or Output), Mute (Input or Output), Power On/Off,
Emergency Mute, SyncOn/Off (expandable to twelve with C-001T module). Workswith optional ZM-9003 or custom contact panel
FourControl Outputs (opencollector) programmable to activate external relays (expandable to twelve with C-001T module) synchronized with
Event/SceneMemory, Channel On/Off (Input or Output) and Power On/Off. Works with optional ZM-9003 or custom contact panel.
RS-485 Remote Controllers:
ZM-9011 Single-gang assignable 4-button controller with LED status indicators
ZM-9012 Single-gang assignable Volume Controller with LED level indicators
ZM-9013 Dual-Gang assignable 8-button Controllerwith LED status indicators
ZM-9014 Dual-gang assignable 4-button controllerwith LED status indicators, plus assignableVolumeController with LED level indicators RS-232 serial port :
Allows upload & download of programmingtemplates and firmwareupgrades as wellas real-time controlof various parameters.
Controlprotocol available
AMX and Crestroncontrol modules available
9000M2 Series Models
Model Power Amplifier Output(s) Digital Signal Processor Mic/Line Inputs Line Outputs A-9060SM2 1x60W @ 25/70V,4/8 ohms 2 Channels Up to 8 (4x D-001T) Up to 7 (1 built-in
plus 3x T-001T)
A-9120SM2 1x120W @ 25/70V,4/8 ohms 2 Channels Up to 8 (4x D-001T) Up to 7 (1 built-in
plus 3x T-001T)
A-9240SHM2 1x240 W @ 70V 2 Channels Up to 8 (4x D-001T) Up to 7 (1 built-in
plus 3x T-001T)
A-9060DHM2 2x 60W @ 70V 2 Channels Up to 8 (4x D-001T) Up to 6 (3xT-001T) A-9120DHM2 2x 120W @ 70V 2 Channels Upto 8 (4xD-001T) Upto 6 (3x T-001T) M-9000M2 2xLine Level 2 Channels Up to 8 (4x D-001T) Up to 8 (2 built-in
plus 3x T-001T)
9000M2 SERIES MODULAR DIGITAL MATRIX MIXER AND MIXER/AMPLIFIERS
Tel: 800-733-4750
Fax:800-733-9766 www.toaelectronics.com
M O D U L E S
9 0 0 0 M 2 S
E R I E S
M
O D U L E S
AN-001T Ambient Noise ControllerModule
Automaticallyadjustsoutputgain to compen-
satefor changesin ambientnoiselevel
Eachinput canbeassignedtocontrola specific
output
Twoinputswith+24VDCphantompowerfor
condensermics
14presetgainratios Accessorysensingmicrophoneavailable,modelAN-9001 Maximumtwoperchassis
C-001T Input/Output Control Module
Eight assignablecontrol inputs foractivating Event, Volume
Up/Down, Mute, Power On/Off,Emergency Mute or Sync
On/Off
Eight assignablecontrol outputs foractivating external
relays
Removable TerminalBlock Maximum one per chassis
D-001T Dual Mic/Line Input Module with DSP
TwoBalanced Mic / Line Inputs Digital Signal Processing
10-Band Parametric EQBass / TrebleLoudnessHigh and LowPass Filters
Compressor Adjustable Sensitivity (nine levels, -60 to -10 dBV) Phantom Power (24 VDC) RemovableTerminalBlock Maximum four perchassis Required for VOX function and input metering
RC-001T RS-485 Control Modules
Allows use of up to 16 RS-485 remotecontrol panels Bi-directioncal RS-485 communication provides control
and status feedbackdisplay for each remote function
Dual ports allows independent home runs for up to 8
modules each
12 VDC power adapter (optional AD-246) required for each
port used
May be used in anycontrol option slot on 9000M2 frame
and even inaddition to a C-001T when spare slots are available
T-001T Dual Line Output Expansion Module with DSP
TwoBalanced Line Outputs Digital Signal Processing
10-Band Parametric EQBass / TrebleLoudnessHigh and LowPass FiltersCompressor
TOAspeaker EQ presets RemovableTerminalBlock Maximum three per chassis
ZP-001T Telephone Zone Paging Module
TelephonePaging toup to eight zones Uses DTMF dialing to access amplifier and/or line outputs Dial up to eight outputzones in one operation Analogextensionorpageport compatible Page port operation requires contact closure activation RJ-11 TelephoneJack and RemovableTerminal Blocks Maximum one per chassis
D-001R Dual Line Input with DSP
TwoRCA phono inputs per channel provides stereo
summing
Digital Signal Processing
10-Band Parametric EQBass / TrebleLoudnessHigh and LowPass FiltersCompressor
9000M2 SERIES MODULAR DIGITAL MATRIX
MIXER AND MIXER/AMPLIFIERS
Tel: 800-733-4750
Fax: 800-733-9766
www.toaelectronics.com
9 0 0 0 M 2 S
E R I E S
A
C C E S S O R I E S
ZM-9001 Remote Panel
Six buttons to activate preset selection or volume
up/down
Wiring: shielded conductor to chassis Remote
Volume terminals
Max. loop resistance: 100 ohms (3000 ft. 22AWG) Fits one gang electrical box Maximum two ZM-9001/ZM-9002 per chassis
ZM-9002 Remote Panel
Four push buttons to activate preset selection or
volume up/down
Volume control knob Wiring: shielded conductor to chassis Remote
Volume terminals
Max. loop resistance: 100 ohms (3000 ft. 22AWG) Fits one gang electrical box Maximum two ZM-9001/ZM-9002 per chassis
AN-9001 Ambient Noise Sensing Microphone
Ceiling or wall-mount condenser microphone Fits single-gang electrical box Use with AN-001T module or DP-L2 processor
ZM-9003 Contact Closure Remote
Fits in a standard dual-gang electrical box Removable screw terminal connector block Works with contact inputs on 9000M2 mainframe
and on C-001T
Two momentary buttons and four liatching buttons May be assigned to control program change, volume
up/down, channel on/mute, emergency mute, power and paging prohibit function
Removable terminal block
ZM-9011 Assignable Remote Button Panel
Fits in standard single-gang electrical box Four assignable buttons each with LED status indicator
can control Xpoint settings (on/off, select), paging acitivation, scene and relay activation
Assignable ID rotary adjustmment on box Supplied matching decor plate
ZM-9012 Assignable Volume Controller
Fits in standard single-gang electrical box Rotary Encoder can be assigned to control any input or
output volume
Multiple input or outputs may be “ganged”for Master
volume control
Multi-segment LED indicator provides visual volume level
status
Supplied matching decor plate Removable terminal block
ZM-9013 Assignable Remote Button Panel
Fits in standard dual-gang electrical box Eight assignable buttons each with LED status indicator
can control Xpoint settings (on/off, select), paging acitivation, scene and relay activation
Assignable ID rotary adjustmment on box Supplied matching decor plate Removable terminal block
ZM-9014 Assignable Remote Button Panel with Volume Control
Fits in standard single-gang electrical box Four assignable buttons each with LED status indicator
can control Xpoint settings (on/off, select), paging acitivation, scene and relay activation
Assignable ID rotary adjustmment on box Supplied matching decor plate Removable terminal block
9000M2 SERIES MODULAR DIGITAL MATRIX MIXER AND MIXER/AMPLIFIERS
S P E C I F I C A T I O N S
Tel: 800-733-4750 Fax:800-733-9766
www.toaelectronics.com
Model No. A-9060DHM2 A-9120DHM2 A-9060SM2 Output Power 2 x 60W @ 70V 2x 120W @ 70V 1x60W@ 25/70V,4/8ohms Audio Input Max. 8 channels,modular construction (modules optional)
Audio Output Preamplifieroutput 1, 2: 0 dBV,300 Ω, unbalanced, RCA pin jack Preamplifieroutput1: 0 dBV,
PowerBandwidth 20 - 20,000 Hz, 0.008% THD Direct: 20 - 20,000 Hz,
Frequency Response Power amplifier section: 20 - 20,000 Hz, +0, -1 dB
TotalHarmonic Poweramplifier section: 0.0008%(22 kHz LPF, 1 kHz, 0.008% (22 kHz LPF,1 kHz, Distortion rated power) rated power)
S/N Ratio At input short, 20 - 20,000 Hz, ALL FLAT or OFF setting
Crosstalk Over64 dB at 20 kHz ToneControl Bass: +/-12 dB (at 100 Hz), Treble:+/-12 dB (at 10 kHz) ParametricEQ 10 bands, Freq:20 ~ 20,000Hz, 31 steps, Various range: +/- 12 dB,Q: 0.3 - 5 Speaker Equalizer 15 (presets for TOA speakers) High-pass Filter -12 dB/oct, Variable frequency range: 20 -400 Hz, 14 steps Low-passFilter -12 dB/oct,Variable frequency range: 4,000 - 20,000 Hz, 8 steps Compressor Depth:1 - 5 Delay 0 - 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2) (Mix mode only) Scene/EventMemory 32 Auxiliary Function Key lock function ControlInput/Output RS-232CC, D-sub connector (9P, female)
PowerSource 120 V AC, 60 Hz PowerConsumption 150 W 250W 100W OperatingTemperature 14˚ to 104˚ F (-10˚ to 40˚C) Operating Humidity 35% to 80% RH(no condensation) Finish Panel:aluminum, hair-line, black; Case: surface-treated steel plate,black paint Dimensions (W x H x D) 16.54” x 4.24”(3.5”w/out feet) x15.55”(420 x 107.6 x 395 mm) 16.54”x 4.24”(3.5”w/out
Weight(without modules) 19.84 lbs. (9 kg) 24.25 lbs. (11kg) 24.25 lbs. (11kg)
Poweramplifier input 1, 2: 0dBV,10k Ω, RCA pin jack
300Ω,unbalanced,RCApin jack; Preamplifier output 2: 0 dBV, 600 Ω, balanced, removableterminalblock(3pins)
Speakeroutput1,2: 60W, Speakeroutput1,2: 120W, Removableterminalblock
70.7V line, 83 Ω x 2, BTL 70.7V line, 41 Ω x 2, BTL (7pins);Direct:60W,4 Ω, output, removable terminal output, removable terminal unbalanced;Transformer: block (4 pins) block (4 pins) 60W,8Ω 25Vand70V,
balanced
0.02%THD;Transformer: 50 - 20,000 Hz, 0.5%THD
Analog input module to speaker output: 20 - 20,000 Hz +1, -3 dB
Analog input module to speaker output: 0.008% 0.008% (22 kHz LPF,1 kHz, (22 kHz LPF, 1 kHz, rated power) rated power)
Output volume min.: 90 dB (preamplifier output) Output volume max.: 61 dB (preamplifier output, input1 volume: 0 dB, other inputs: OFF) Poweramplifier section: 110dB
Controlinput: 4inputs, no-voltage make contact input,open voltage: 3.3V DC, short-circuit current: under 1 mA,
removableterminal block
Controloutput: 4 outputs, open collector output, withstand voltage: 27VDC, control current:50 mA, removable
terminal block
Remote volume: 2 channels, connect a 10k Ω/lineartaper variable resister or 0- 10 VDC,removable terminal block
feet) x 13.98” (420 x 107.6 x 355 mm)
9000M2 SERIES MODULAR DIGITAL MATRIX
S P E C I F I C A T I O N S
MIXER AND MIXER/AMPLIFIERS
Tel: 800-733-4750
Fax:800-733-9766
www.toaelectronics.com
Model No. A-9120SM2 A-9240SHM2 M-9000M2 Output Power 1 x 120W @ 25/70 V,4/8 ohms 1x 240W @70 V n/a Audio Input Max. 8 channels,modular construction (modules optional) Max. 8 channels,modular construction
Audio Output Preamplifieroutput 1: 0 dBV, 300 Ω, unbalanced, RCA pin jack Preamplifieroutput 1, 2: 0 dBV,600 Ω,
PowerBandwidth Direct: 20 - 20,000 Hz, 0.02%THD 20 - 20,000 Hz, 0.008%THD
Frequency Response Power amplifier section: 20 - 20,000 Hz, +0, -1 dB 20 - 20,000 Hz +1, -3 dB
TotalHarmonic Poweramplifier section: 0.008% Poweramplifier section: 0.0008% 0.008% (22 kHz LPF, 1 kHz, Distortion (22 kHz LPF, 1 kHz, rated power) (22kHz LPF, 1 kHz, rated power) +10dBV output)
S/N Ratio At input short, 20 - 20,000 Hz, ALL FLAT or OFF setting At Input short, 20 - 20,000 Hz, ALL FLAT
Crosstalk Over64 dB at 20 kHz ToneControl Bass: +/-12 dB (at 100 Hz), Treble:+/-12 dB (at 10 kHz) ParametricEQ 10 bands, Freq:20 ~ 20,000Hz, 31 steps, Various range: +/- 12 dB,Q: 0.3 - 5 Speaker Equalizer 15 (presets for TOA speakers) High-pass Filter -12 dB/oct, Variable frequency range: 20 -400 Hz, 14 steps Low-passFilter -12 dB/oct,Variable frequency range: 4,000 - 20,000 Hz, 8 steps Compressor Depth:1 - 5 Delay 0 - 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2) (Mix mode only) Scene/EventMemory 32 Auxiliary Function Key lock function ControlInput/Output RS-232C, D-sub connector (9P, female)
PowerSource 120 V AC, 60 Hz PowerConsumption 150 W 250W 40W OperatingTemperature 14˚ to 104˚ F (-10˚ to 40˚C) Operating Humidity 35% to 80% RH(no condensation) Finish Panel:aluminum, hair-line, black; Case: surface-treated steel plate,black paint Dimensions (W x H x D) 16.54” x 4.24”(3.5”w/out feet) x 16.54”x 4.24” (3.5”w/out feet) x 16.54”x 4.24”(3.5”w/out feet) x 13.9”
Weight(without modules) 28.66 lbs. (13 kg) 24.25 lbs. (11kg) 13.23 lbs. (6 kg)
Poweramplifier input 1, 2: 0dBV,10k Ω, RCA pin jack (modules optional)
Preamplifieroutput2: 0 dBV,600 , balanced,removableterminalblock(3 pins) balanced, removableterminalblock (3 pins) Speaker output: Removableterminal Speakeroutput: 240 W, 21 Ω, BTL
block(7 pins); Direct: 120W, 4 Ω, output,removable terminal block unbalanced;Transformer:120W,8 Ω (4 pins) 25V & 70 V, balanced
Transformer:50-20,000Hz,0.5%THD
Analog input module to speaker output: 20 - 20,000 Hz +1, -3 dB
Analoginputmoduletospeakeroutput: Analoginputmoduletospeakeroutput:
0.008%(22kHzLPF,1kHz,ratedpower) 0.008%(22kHzLPF,1kHz,ratedpower)
Output volume min.: 90 dB (preamplifier output) or OFF setting Output volume max.:61 dB (preamplifier output,input 1 volume: 0 dB, Outputvolume min.: 90 dB
other inputs: OFF) Output volume max.:61 dB (input 1 vol.:
Poweramplifier section: 110dB 0dB,otherinputs:OFF)
Controlinput: 4inputs, no-voltage make contact input,open voltage: 3.3V DC, short-circuit current: under 1 mA,
removableterminal block
Controloutput: 4 outputs, open collector output, withstand voltage: 27V DC, control current: 50 mA, removable
terminal block
Remote volume: 2 channels, connect a 10k Ω/lineartaper variable resister or 0- 10 VDC,removable terminal block
13.98”(420 x 107.6 x 355 mm) 15.55”(420 x 107.6 x 395 mm) (420 x 107.6 x 353 mm)
A-9060DHM2/A-9120DHM2
TOA 9000M2SERIES AMPLIFERA-9120DHM2
A
-9120DHM2 CU
M-9000M2CU
M-9000M2
T
OA 9000M2SERIES PRE-AMPLIFIER M-9000M2
9000M2 SERIES MODULAR DIGITAL MATRIX MIXER AND MIXER/AMPLIFIERS
Tel: 800-733-4750
Fax:800-733-9766 www.toaelectronics.com

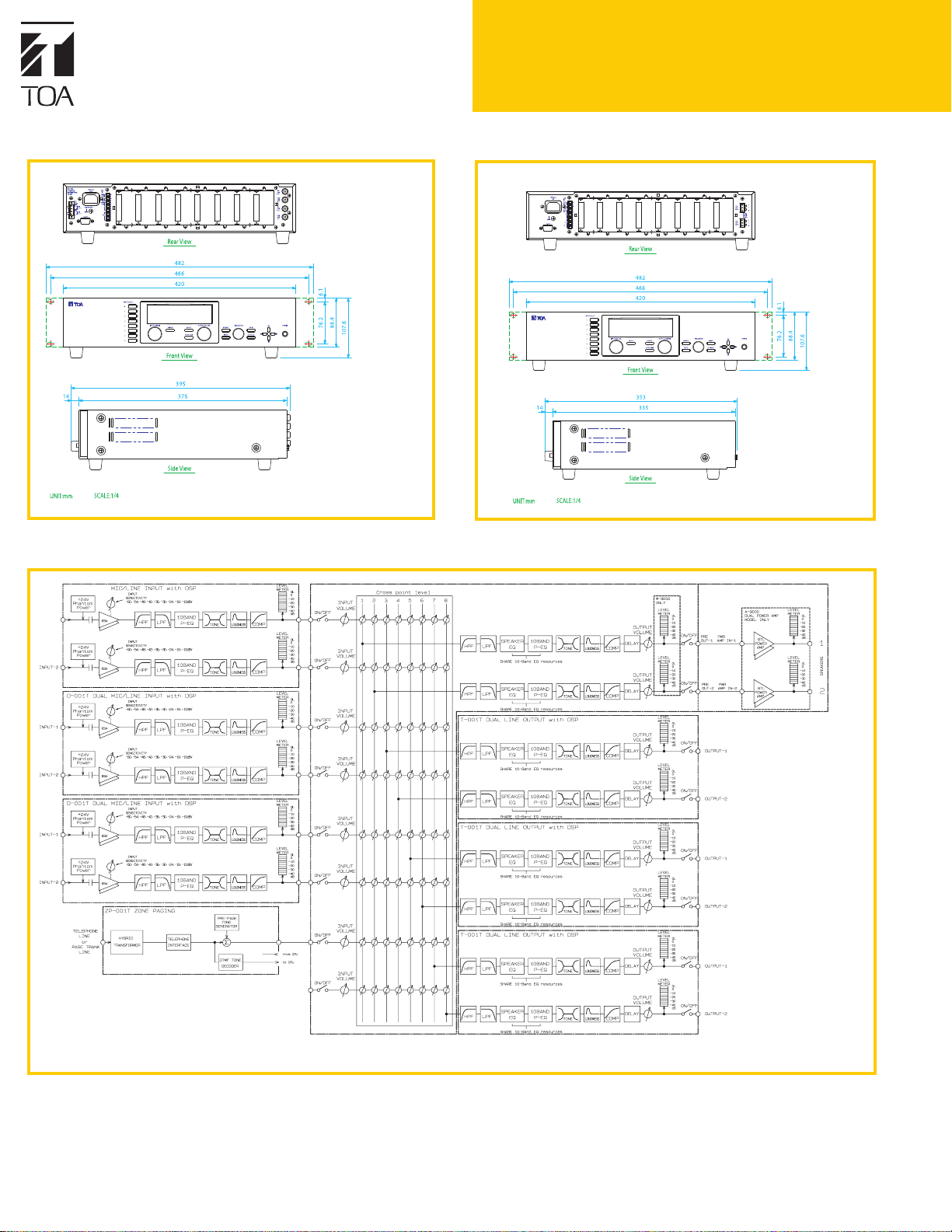

D
I M E N S I O N A L
D
R A W I N G S
D I A G R A M S
Fordimensions of
other 9000M2 Series
models, please referto
the Specifications
section.
B
L O C K
D
I A G R A M
TO A E
L E C T R O N IC S
TEL: 800-733-4750 FAX: 800-733-9766
w w w . to a e le c tr o n i c s . c o m
, I
N C
.
9000M2 S
M
ODULARDIGITAL
M
IXER AND
M
ERIES
M
ATRIX
IXER/AMPLIFIERS
P - 9 0 0 0 S P
O W E R
The TOA P-9000 Series Power Amplifiers comprised of the P-9060DH and P-9120DH provide 2-Channel power amplifiers to provide system expansion of the
70.7 volt amplifier outputs for the 9000 Series Mixer/Amplifiers using the T-001T output modules. This maintains the systems cool 9000 Series style and look.
H
I G H L I G H T S
2-Channel Power Amplifiers with 70.7V outputs:
P-9060DH - 60W
P-9120DH - 120W2-Channel Power Amplifier models feature flexible output power allowing 50% of one amplifier channel to be allocated to the second amplifier channel.Channel 1 & 2 Inputs balanced (H=Hot, C=Cold and E=Shield) with selectable input sensitivity: 0dB or -20dB.Channel 1 input to ALL selectable switch.Volume control security cover knobs included: Qty. 2 YA-9202RU Rack Mounting hardware included.Front panel LED indicators for: Protect, Peak, Signal and Power.
Model No. P-9060DH P-9120DH
Output Power 2x 60W @ 70.7V 2x 120W @ 70.7V
Input CH 1, CH 2 input: –20 dB* or 0 dB* (switchable), 10 kΩ, electronically-balanced, removable terminal block (3 pins),
Output Speaker output CH 1, CH 2: 60 W, 83 Ωx 2, BTL output (70 V line), M4 screw terminal, distance between barriers: 9 mm (0.35")
Power Bandwidth 20 – 20,000 Hz, 0.08% T.H.D.
Frequency Response 20 – 20,000 Hz (–3 dB, +1 dB)
Total Harmonic 0.008% Distortion (22 kHz LPF, 1 kHz, rated output, input level selector switch in 0 dB* position)
S/N Ratio At Input short, 20 – 20,000 Hz, Input level selector switch in 0 dB* position
Function Output disconnected for approx. 5 s after switching power on
LED Indicator Power (blue) x 1, Protect (red) x 2, Peak (red) x 2, Signal (green) x 2
Ventilation System Forced air cooling (fan speed: variable with temperature)
Power Source 120 V AC, 60 Hz
Power Consumption 225 W (rated output), 106 W (UL60065) 404 W (rated output), 208 W (UL60065)
OperatingTemperature 14˚ to 104˚ F (-10˚ to 40˚ C)
Operating Humidity 35% to 80% RH (no condensation)
Finish Panel: Aluminum, hair-line, black; Case: Surface-treated steel plate, black paint
Dimensions (W x H x D) 16.54" x 4.24" x 15.98"
Weight (without modules) 18.08 lbs (8.2 kg) 22.05 lbs (10kg)
E R I E S
A
M P L I F I E R S
CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
Output volume min.: 105 dB, Output volume max.: 97 dB
Specifications subject to change without notice.
Literature Order #: L-9000M2 © 2009 TOA Electronics, Inc.
Loading...
