Tjernlund VP-2F, VP-3F User Manual

Rev. A11/11 Copyright © 2011, Tjernlund Products, Inc. All rights reserved. P/N 8504140

NOTE:

The VP-2F and VP-3F Water Heater Vent Packages use a Linear Limit for the safety
interlock circuit. If the pilot light is extinguished, follow the steps under “IN THE EVENT
OF APILOT OUTAGE” on page 1 of these instructions to relight water heater.

OWNER’S INSTRUCTIONS

THESE INSTRUCTIONS MUST REMAIN

WITH EQUIPMENT

DO NOT DESTROY

ALWAYS FOLLOW WATER

HEATER MANUFACTURER’S
INSTRUCTIONS FOR PROPER
OPERATION OF HEATER AND

RE-LIGHTING OF PILOT

WATER HEATER VENT PACKAGE

For Natural Gas or LP

MODELS

VP-2F For Millivolt Water Heaters up
to 60,000 BTU/hr

VP-3F For Millivolt Water Heaters from
60,000 to 120,000 BTU/hr

Patented

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794
PHONE [phone] • [phone] • FAX [phone]
Visit our web site • ww w.tjernlund.com

Tjernlund Products welcomes your comments and questions. Address all correspondence to: Customer Service,
Tjernlund Products Inc., 1601 Ninth Street, White Bear Lake, MN 55110-6794 or email us at [e-mail].

TABLE OF CONTENTS

In The Event of a Pilot Outage ........................................................................................................................................1

Typical Installation...........................................................................................................................................................2

Sequence of Operation ...................................................................................................................................................2

Installation Restrictions....................................................................................................................................................3

Actuation and Safety Controls Installation ......................................................................................................................3

Gas Pressure Switch...................................................................................................................................3 - 4

Linear Limit Spillage Sensing Switch ................................................................................................................4

Thermocouple Junction Adapter.......................................................................................................................5

Vent Hood .......................................................................................................................................................................5

Code Restrictions & Termination Clearances ...................................................................................................5

Vent Hood Installation .......................................................................................................................................6

Power Venter Installation.................................................................................................................................................6

Code Requirements and Installation Restrictions............................................................................................ 6

Power Venter Installation.............................................................................................................................6 - 7

Electrical Connections.....................................................................................................................................................7

Control Cord Routing.................................................................................................................................. 7 - 8

Actuation and Safety Control Circuit Connections............................................................................................8

Operation Circuit Check..................................................................................................................................................8

Safety Interlock Test ........................................................................................................................................................8

Ladder Wiring Diagram ...................................................................................................................................................9

Combustion Air Test............................................................................................................ .............................................9

Performance Curves......................................................................................................................................................10

Troubleshooting Guide...........................................................................................................................................11 - 12

Maintenance..................................................................................................................................................................13

How to Obtain Service Assistance & Warranty.............................................................................................................13

Replacement Parts List.................................................................................................................................................13

Vent Hood Mounting Template......................................................................................................................................14

IN THE EVENT OF PILOT OUTAGE

1. Push the reset button in the center of the Linear Limit spillage sensing located on

the draft hood on the top of the water heater.

2. Turn the gas pilot knob at the top of water heater gas valve to “OFF” position.

WARNING: Gas pilot knob MUST REMAIN IN “OFF” POSITION FOR FIVE
MINUTES BEFORE PILOT IS RE-LIT. Perform steps 3 & 4 while waiting.

3. Visually verify that there is 115 volt power established to the Power Venter.

Check fuse or circuit breaker, wall plug and electrical connections.

4. Visually verify that all electrical connections of control cord circuit are intact.

5. Follow water heater manufacturer’s re-lighting instructions attached to water

heater or located in water heater owner’s manual.

USER NOTE:

Since the Power Venter cannot operate during a power outage, the safety interlock controls are designed to prohibit gas flow to the
water heater. Follow the above procedures and water heater manufacturer’s instructions for relighting the pilot when power has been
restored.

1

INSTALLER NOTES

1. The installer must read and follow these instructions carefully to assure proper installation and operation of the water
heater vent package.

2. The installer must fill in the required information on the nameplate located on the Power Venter electrical box.

3. The installer must affix the wiring diagram label included with these instructions to the water heater casing adjacent to
its rating plate.

4. The water heater may only be installed on the suction side of Power Venter.

5. The installer must notify the owner of the maintenance (Page 13) required with the use of this product.

6. The installer must verify that the pilot safety controls on water heater are in good operating condition before
installation of the water heater vent package.

7. The Power Venter must not be installed into any portion of a vent system which serves appliances other than the
one(s) vented by the VP-2F or VP-3F.

SEQUENCE OF OPERATION

1. Water heater thermostat calls for heat.

2. Simultaneously, the Power Venter is actuated by the gas pressure switch and the burner fires.

3. When the thermostat is satisfied the burner shuts down.

4. The Power Venter continues to operate for a non-adjustable time period of approximately 45 seconds to purge the
vent system of residual flue gases.

5. If, at any time, sustained flue gas spillage is detected by the Linear Limit spillage sensing switch the pilot / ECO circuit
is de-energized, disrupting the flow of gas to the burner and pilot. The reset button on the Linear Limit will need to be
pushed in and the pilot will need to be relit to establish water heater operation.

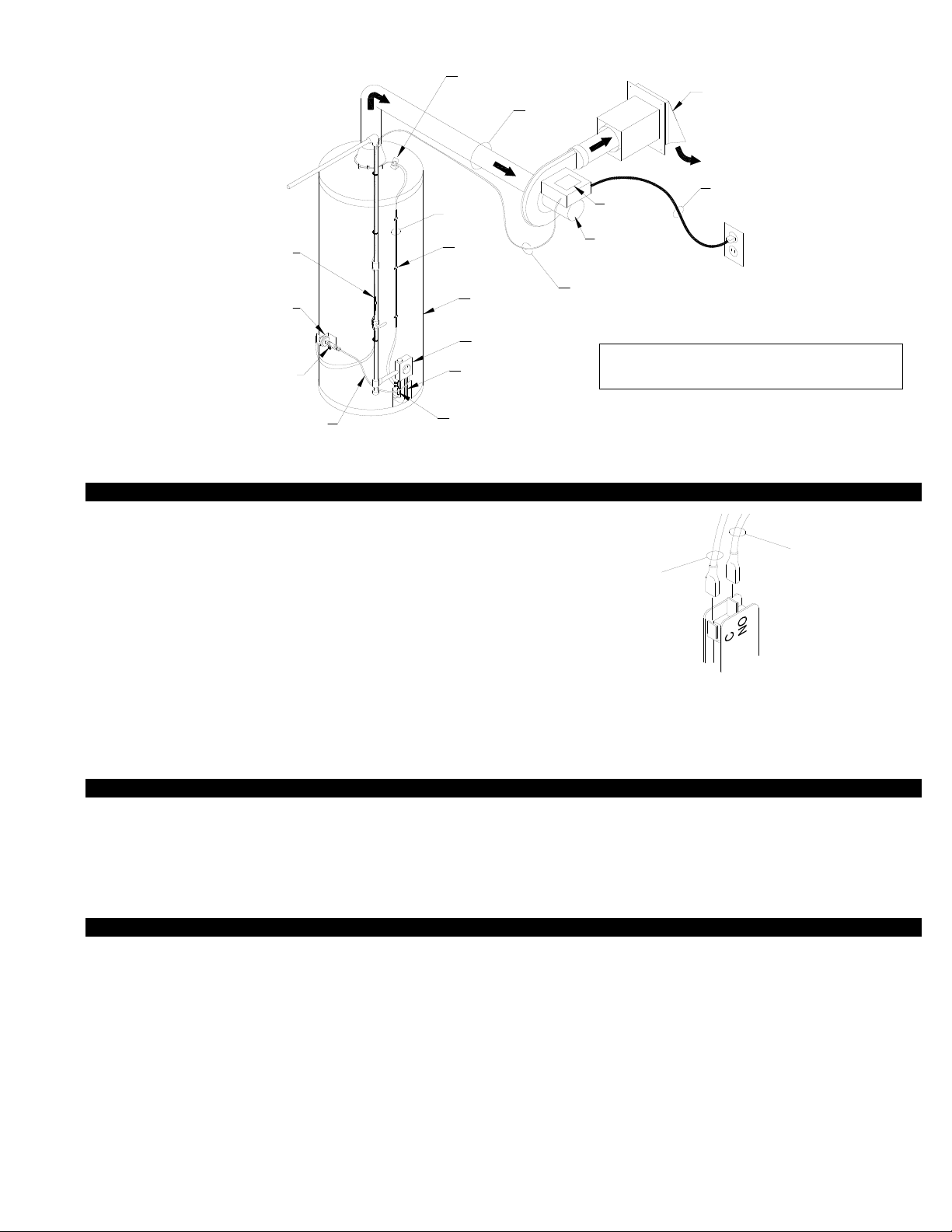

TYPICAL INSTALLATION

2

WITH THE ECO OF THE WATER HEATER.

REQUIRED. WIRE THE LINEAR LIMIT IN SER I ES

THE THERMOCOUPLE JUNCTION ADAPTER IS NOT

ON 750 MILLIVOLT (POWER PILE) HEATERS

THERMOCOUPLE JUNCTION ADAPTER

PRESSURE TAP

FROM THERMOSTAT

6' LINEAR
LIMIT LEADS

115/1/60

NAMEPLATE

MOTOR

VENTER

POWER

SWITCH

GAS PRESSURE

GAS PRESSURE SWITCH

ALUMINUM TUBING TO

24" LONG 1/4" O.D.

LINE

GAS SUPPLY

BY OTHERS

WATER HEATER

BY OTHERS

THERMOSTAT

LINE

GAS PILOT

8050013 11/30/11

CLIPS

ROUTING

CABLE

THERMOSTAT CABLE

2 WIRE JACKETED

POWER

6 FOOT

BY OTHERS

FLUE PIPE

SWITCH SET AT 185°F

SPILLAGE SENSING

LINEAR LIMIT

GAS PRESSURE

TAP PORT

NOTE:

CORD

TJERNLUND
VENT HOOD

NOTE: The installer must install the Power

Venter downstream of the draft hood.

3

INSTALLATION RESTRICTIONS

The Power Venter shall not be installed on incinerators, condensing type appliances or solid-fuel burning appliances.
The Power Venter may only be installed on appliances equipped with a draft hood, draft diverter or barometric draft control.

The Power Venter shall not be installed on an appliance with an automatic valve having a manual opener unless the manual opener
has been rendered inoperative or the automatic valve has been replaced with a valve not equipped with a manual opener.

CAUTION:

1. Failure to install, maintain and/or operate the Power Venter in accordance with manufacturer’s instructions

may result in conditions which can produce bodily injury and property damage.

2. The Power Venter must be installed by a qualified installer in accordance with these instructions and all local

codes or in their absence in accordance with the latest edition of the National Fuel Gas Code (NFPA #54), The
latest edition of the National Electric Code (NFPA #70) and The Occupational Safety and Health Act (OSHA)
when applicable. If improperly installed a hazardous condition such as an explosion or carbon monoxide poison
accumulation could result.

3. “Qualified Installer” shall mean an individual properly trained and licensed.

4. The installer must write or imprint name, phone number, date of installation and sign in the appropriate space on the Power Venter
nameplate.

5. Plan the vent system so that Code required distances are maintained from plumbing and wiring.

6. The Power Venter motor shaft must be mounted horizontally to prevent motor bearing wear.

7. Flue gas temperature must not be exceed 575

0

F at Power Venter inlet. Ambient temperature must not exceed 1040F.

8. Disconnect power supply when making wiring connections or when working around the fan blade and motor. Failure
to do so may result in severe personal injury and equipment damage.

9. Make certain the power source is adequate for the fan motor requirements. Do not add the Power Venter to a circuit
where the total load is unknown.

10. The installer must verify that the BTU/hr input of the water heater does not exceed the recommended input of the

VP-2F (60,000) or VP-3F (120,000).

11. Asafety inspection of the water heater must be performed before installation of the VP-2F or VP-3F as outlined in

ANSI Z223.1/NFPA #54, Appendix H.

ACTUATION AND SAFETY CONTROLS INSTALLATION

After opening carton, inspect thoroughly for hidden damage. Fan blade should rotate freely. If any damage is found notify freight
carrier and your distributor immediately and file a concealed damage claim. Remove the carton labeled “Actuation and Safety
Controls.”

GAS PRESSURE SWITCH INSTALLATION

The gas pressure switch is mounted on the casing of the water heater adjacent to the heater's thermostat/gas control valve. It should
be mounted close enough so that the supplied 1/4" tubing will reach from the gas pressure switch fitting to the thermostat/gas valve
pressure tap port. The two provided screws are self-tapping and drilling. The screws do not require the use of a drill and their 1/2"
length assures that the inner tank will not be penetrated.

1. Mount the gas pressure switch by securing it to the heater casing with a screw in each of the two mounting holes.

IMPORTANT: Mount gas pressure switch so that diaphragm is in a VERTICAL

position, (See Diagram A).

2. Install the supplied 1/8"-NPT pipe plug to the 90

o

port of the supplied 1/8-NPT black pipe tee, (See Diagram A).

Use thread sealant, do not over tighten.

3. Install the 1/8-NPT black pipe tee to the gas pressure switch, (See Diagram A). Use thread sealant, do not over

tighten. CAUTION: Utilize the hex nut on the gas pressure switch when attaching the black pipe tee.

4. Install the supplied Brass 1/8-NPT male x ¼" compression fitting to the 1/8-NPT black pipe tee, (See Diagram A).

Use thread sealant, do not over tighten.

5. Remove the PRESSURE TAP plug from the underside of the thermostat/gas control valve and install the supplied Brass

1/8-NPT male x ¼" compression fitting, (See Diagram A). Use thread sealant, do not over tighten.

IMPORTANT: DO NOT alter the heater's PILOT GAS LINE, (See Diagram A).

6. Using a tube cutter, cut the appropriate length of the supplied 1/4" tubing to reach from the gas pressure switch fitting to the

PRESSURE TAP PORT fitting of the thermostat/gas control valve. Make sure each end of the tubing is not pinched closed.

4

7. Use the 1/4" tubing to connect gas pressure switch fitting to the PRESSURE TAP PORT fitting on the thermostat/gas control valve.

8. Conduct a gas leakage test of all connections as outlined in the latest edition of NFPA 54, ANSI Z223.1, part 4. or local codes.
NOTE: A "gauge pressure tap port" can be accessed by removing the 1/8-NPT pipe plug that is on the 1/8-NPT black pipe tee

(attached to the gas pressure switch).

VE

NT HOOD TERMINATION CLEA

LINEAR LIMIT SPILLAGE SENSING SWITCH INSTALLATION

PURPOSE:

To provide a means for appliance shut-down in the event of flue
blockage or Power Venter failure.

OPERATION:

When concentrated spillage of the products of combustion
occurs from the draft hood, the Linear Limit sensing switch
circuit will open preventing burner operation.

1. Attach the Linear Limit sensing switch mounting bracket to the
top of the water heater using the sheet metal screws provid­ed. The Linear Limit bracket should be approximately 1/2”
from the draft hood.

2. Attach the three Linear Limit capillary mounting brackets
around the draft hood, equally spaced.

3. Insert the Linear Limit spillage sensing switch capillary into
the “U” of the Linear Limit brackets outlining the perimeter of
the draft hood. The Linear Limit capillary may be overlapped
if necessary, (See Diagram B). IMPORTANT: DO NOT CUT
THE CAPILLARY, it will be destroyed and water heater will be disabled.

4. Route the Linear Limit spillage sensing switch cable down the water heater
casing locating the end near the Thermocouple or ECO of water heater.
Secure it with the cable clamps and self drilling screws provided, (See
Diagram B1).

DIAGRAM B

DO NOT ALTER

GAS SUPPLY

INTO PRESSURE TAP PORT.

GAS PRESSURE SWITCH

GAS CONTROL VALVE

THERMOSTAT/

PILOT GAS LINE

8050011 11/30/11

INSTALL BRASS 1/8-NPT MALE
x 1/4" COMPRESSION FITTING

THERMOCOUPLE

BURNER GAS LINE

COMMON

MUST BE MOUNTED VERTICALLY.

GAS PRESSURE SWITCH DIAPHRAGM

IMPORTANT:

BRASS 1/8-NPT MALE x 1/4"
COMPRESSION FITTING

THERMOSTAT / GAS CONTROL

TO PRESSURE TAP FITTING OF

1/4" OUTSIDE DIAMETER

ALUMINUM TUBING - CONNECT

VALVE.

1/8-NPT BLACK PIPE TEE

1/8-NPT PIPE PLUG - NEW
PRESSURE TAP PORT

NORMALLY OPEN

MOUNTING HOLES

IMPORTANT:

A

R

H

O

T

W

A

M

V

C

A

T

I

O

N

GAS

VALVE

DIAGRAM A

DIAGRAM B1

THERMOCOUPLE JUNCTION ADAPTER INSTALLATION

Unscrew thermocouple from gas valve and screw in Thermocouple Junction Adapter.
Screw thermocouple into Thermocouple Junction Adapter. Connect Linear Limit cables to
spade connections on Thermocouple Junction Adapter, (See Diagram C). NOTE: On 750
Millivolt (power pile) heaters, wire Linear Limit spill switch in series with high limit (ECO) of
heater.

VENT HOOD TERMINATION CLEARANCES

CODE REQUIREMENTS

Failure to follow these installation instructions may violate applicable national and/or local codes. Terminate the vent system so that
proper minimum clearances are maintained as cited in the latest edition of the National Fuel Gas Code (NFPA # 54) and the latest edi­tion of Chimneys, Fireplaces, Vents, and Solid Fuel Burning Appliances (NFPA #211), or as follows:

• Not be less than 7 feet above grade when located adjacent to public walk ways.

• At least 3 feet above any forced air inlet located within 10 feet.

• At least 4 feet below, 4 feet horizontally from or 1 foot above any door, window or gravity air inlet into any building.

• At least 12 inches above grade.

• So that the flue gases are not directed so as to jeopardize people, overheat combustible structures or enter buildings, and

• Not less than 2 feet from an adjacent building.
The vent terminal shall also not be installed closer than 3 feet from the inside corner of an L shaped structure.

1. Check vent pipe system for leakage. All vent system leaks must be sealed prior to installation of a power venter.

2. Avent system incorporating a Tjernlund VH1 Series vent hood should not exceed 575

o

F.

3. Termination of a sidewall vent system with a device other than the Tjernlund VH1 Series vent hood could affect system
performance and result in a possible safety hazard.

4. Plan the vent system layout to avoid the possibility of accidental contact with wiring or plumbing inside of walls.

5. Installation must be done by one experienced and familiar with venting of combustion appliances.

5

T

O

H

N

O

I

T

A

C

A

V

M

R

A

W

JUNCTION ADAPTER

THERMOCOUPLE

950-0470 (JA1)

LINEAR LIMIT

SPILL SWITCH

GAS

VALVE

THERMOCOUPLE

8050010 11/30/11

DIAGRAM C

VENT HOOD INSTALLATION

1. Verify that proposed Vent Hood location will conform to “Vent Hood Termination Clearances” on page 5.

2. Use scissors to detach Vent Hood Mounting Template on page 14. Follow instructions on Vent Hood template.

POWER VENTER INSTALLATION

CODE REQUIREMENTS

Power Venter installation must be in accordance with the following requirements of the National Fuel Gas Code: (ANSI Z223.1)

• All portions of the vent system under positive pressure during operation (on the outlet side of the Power Venter) shall be designed
and installed so as to prevent leakage of flue or vent gases into a building.

• All appliances must enter the vent system on the inlet side of the Power Venter.

• Provision shall be made to interlock the appliance(s) to prevent the flow of gas to the main burners when the draft system is not
performing so as to satisfy the operating requirements of the equipment for safe performanc

e.

INSTALLATION RESTRICTIONS

1. Power Venter should be installed as close to the termination of the vent system as possible to prevent flue gas leakage.

2. Power Venter must be installed with the motor shaft horizontal to prevent motor bearing wear.

3. Power Venter housing is single wall. Six inch clearance must be maintained to combustible materials.

4. If installing the VP-2F, 3” vent pipe may be used from the water heater to the Power Venter. If the flue outlet is larger
than 3”, install a tapered reducer directly after the draft hood of the water heater.

If installing the VP-3F, 4” vent pipe may be used from the water heater to the Power Venter. If the flue outlet is larger
than 4”, install a tapered reducer directly after the draft hood of the water heater.

NOTE: All reducers and vent pipe are to be supplied by the installer and are available from your local heating wholesaler.

5. The equivalent vent pipe length of elbows and straight pipe must be calculated. The total equivalent length must not
exceed 75 feet with no more than 25 equivalent feet in elbows.

6

6” CLEARANCE

FROM VENTER HOUSING

TAPERED REDUCER

MOUNTING POWER VENTER

1. To facilitate installation and reduce vibration, we have included 2 mounting brackets, 2 rubber isolators and 2 rubber
grommets. One of the brackets may be used temporarily as a “third hand” to support the Power Venter while
positioning it for permanent installation. Install the brackets as shown below.

NOTE: The Power Venter may be mounted in any position as long as the shaft of the motor remains horizontal.

2. Connect outlet of Power Venter to inner sleeve of vent hood. Sections of vent pipe are
permitted between Power Vent and Vent Hood but all connections after the Power Venter will
be under a positive pressure during operation. These connections must be sealed with high
temperature silicone sealant or aluminum vent pipe tape supplied by installer.

3. Using the holes as a guide, attach vent pipe to inlet collar using sheet metal screws. Install
properly sized vent pipe sections from Power Venter inlet to appliance outlet avoiding elbows
wherever possible and using only tapered transitions.

4. Support vent pipe in accordance with vent manufacturer’s instructions.

ELECTRICAL

Route the 25’ control cable supplied with the Power Venter back to the water heater controls along the ceiling joists, taking care not to
come closer than 6” to the vent pipe or any other potentially hot surface. In most cases, the gas supply line may be used as a routing
path from the ceiling to the water heater controls, the supplied nylon straps may be used to secure the cable.

NOTE: If the distance between the Power Venter and the heater controls is greater than the length of the cable, splice a section of 2
conductor PVC sheathed, 105 degree C thermostat cable to the supplied cable. Make sure the color coded leads remain consistent.
An NEC approved accessible junction box must be used to contain the splice. Splices shall be made mechanically secure and insulat­ed with tape or fixture type splicing connectors may be employed. Strain relief hardware contained within the NEC approved junction
box shall be utilized.

The Power Venter operates on 110/115 VAC, therefore a grounded outlet must be within reach of the six foot power cord supplied with
Power Venter. The flexible power cord supplied with the unit may only be used where local codes permit. If local codes do not permit
the use of flexible power cord, follow steps below.

1. Remove the electrical box cover, flexible cord and strain relief from the enclosure.

2. Install suitable conduit fitting in enclosure and splice field wiring into existing wiring using code authorized method (wire nuts, etc.).

3. Replace electrical box cover.

7

VP-2F MOUNTING VP-3F MOUNTING

ACTUATING AND SAFETY CONTROL CIRCUIT CONNECTIONS

1. If not previously completed, push both leads from the Linear Limit
spill switch onto Thermocouple Junction Adapter terminal, (See
Diagram C, Page 5). NOTE: On 750 Millivolt (power pile) heaters,
wire Linear Limit spill switch in series with high limit (ECO) of heater.

2. Push the Red lead from Power Venter 25’ control cable onto the
common on the Gas Pressure Switch, (See Diagram D)

3. Push the Blue lead from the Power Venter 25’ control cable onto
the normally open terminal on the Gas Pressure Switch, (See Diag. D).

4. Plug the power cord from the Power Venter into a grounded 115
VAC outlet. Verify that the outlet is powered through a 15 amp
circuit breaker.

NOTE: The Power Venter may operate for approximately 45 seconds when power is first

established. Wait until the Power Venter shuts off before continuing.

OPERATION CIRCUIT CHECK

1. Place water heater in operation.
A. The Power Venter should operate.

2. Turn gas pilot knob to “pilot”.
B. The Power Venter should continue to operate for approximately 45 seconds to purge the vent system of any residual flue gases.

3. Repeat steps 1 and 2 twice to assure operation.

SAFETY INTERLOCK TEST

IMPORTANT:

The Linear Limit spillage sensing switch must disable the heater in the event of a venting malfunction. The following procedure is
necessary to confirm that the heater is disabled in the event of a venting malfunction.

1. Unplug Power Venter from 115 VAC outlet to disable the Power Venter.

2. Adjust the heater’s thermostat or run hot water until full burner operation occurs. Venter should not run, but burner should fire.

3. Flue gas spillage will emit from the draft hood. Linear Limit spillage sensor should open in less than 3 minutes, extinguishing pilot
light and disabling water heater. If water heater is not disabled, remove call for heat, reposition Limit and repeat steps 1-3.

4. Wait 2-3 minutes for Linear Limit sensing element to cool and push the reset button on Linear Limit spillage sensing switch.

5. Plug Power Venter power cord back into 115 VAC outlet.

6. Re-light pilot following the heater manufacturer’s instructions. Adjust the heater’s thermostat or run hot water until full burner opera­tion occurs. Power Venter should now be running while burner is firing. Turn thermostat down or hot water off so burner is no
longer firing. Power Venter should continue to run for approximately 45 seconds during the Relay/Timer post-purge cycle.

8

BLUE WIRE FROM
VP-2F / VP-3F

RED WIRE FROM

GAS PRESSURE
SWITCH

CONTROL CABLE

CONTROL CABLE

VP-2F / VP-3F

8050012 11/30/11

NOTE: The installer must ensure that

all electrical connections are tight.

WITH THE ECO OF THE WATER HEATER.

REQUIRED. WIRE THE LINEAR LIMIT IN SERIES

THE THERMOCOUPLE JUNCTION ADAPTER IS NOT

ON 750 MILLIVOLT (POWER PILE) HEATERS

THERMOCOUPLE JUNCTION ADAPTER

PRESSURE TAP

FROM THERMOSTAT

6' LINEAR
LIMIT LEADS

115/1/60

NAMEPLATE

MOTOR

VENTER

POWER

SWITCH

GAS PRESSURE

GAS PRESSURE SWITCH

ALUMINUM TUBING TO

24" LONG 1/4" O.D.

LINE

GAS SUPPLY

BY OTHERS

WATER HEATER

BY OTHERS

THERMOSTAT

LINE

GAS PILOT

8050013 11/30/11

CLIPS

ROUTING

CABLE

THERMOSTAT CABLE

2 WIRE JACKETED

POWER

6 FOOT

BY OTHERS

FLUE PIPE

SWITCH SET AT 185°F

SPILLAGE SENSING

LINEAR LIMIT

GAS PRESSURE

TAP PORT

NOTE:

CORD

TJERNLUND
VENT HOOD

TYPICAL INSTALLATION

DIAGRAM D

NOTE: The installer must install the Power

Venter downstream of the draft hood.

VP-2F / VP-3F WATER HEATER VENT PACKAGE LADDER WIRING DIAGRAM

COMBUSTION AIR TEST

WARNING:

The Linear Limit spillage sensing switch is designed to alert the user to a potentially hazardous condition. It is not designed to, and can­not replace, regular vent system inspection, appliance servicing and combustion testing. DO NOT USE IT AS ASUBSTITUTE FOR

PROFESSIONAL APPLIANCE MAINTENANCE.

1. Close all doors and windows of the building. If the appliance is installed in a utility room or closet, close the entrance door. Close fire
place dampers.

2. Turn on clothes dryer. Turn on all exhaust fans, such as range hoods, bathroom exhaust and whole house fans to maximum speeds.
Do not operate a fan used strictly for summer exhausting.

3. Following the water heater manufacturer’s instructions, place the appliance in operation, set thermostat for continuous operation.

4. Allow fans and appliance to operate for 5 minutes.

5. Tripping of the Linear Limit spillage sensing switch during the 5 minutes indicates an unsafe operating condition. Turn off fuel supply
to appliance and DO NOT OPERATE UNTIL UNSAFE VENTING CONDITION IS INVESTIGATED BY PROFESSIONAL

CONTRACTOR OR UTILITY SERVICE PERSONNEL.

6. Return all windows, doors and fans to their previous conditions of use.

7. Sign and date these instructions to verify that the Sign:
combustion air and safety interlock test have been
completed. These instructions must remain on premises. Date:

9

WHITEBLACK

WHITE

WHITEBLACK

MOTOR

TIMER RELAY

115 / 1 / 60

PLUG

YELLOWRED

45

TIMER RELAY

RED BLUE

TRANSFORMER

115V

24V

THERMOCOUPLE

PRESSURE

SWITCH

GAS

JUNCTION ADAPTER

BLACK BLACKBLACK

BLACK

LINEAR LIMIT

SPILLAGE SENSING SWITCH

(185°F MANUAL RESET)

COM N / O

OR ECO OF WATER

HEATER

12/19/11

FIGURE 8075002

GREEN

POWER VENTER

BLACK WHITE

24V LOW VOLTAGE FACTORY WIRING

115V LINE VOLTAGE FACTORY WIRING
DENOTES HEATING APPLIANCE MILLIVOLT

CIRCUIT (THERMOCOUPLE OR ECO)

LEGEND:

DENOTES A QUICK CONNECT
DENOTES A WIRE NUT

231

GREEN

PERFORMANCE CURVES

10

VP-2F PERFORMANCE CURVE

VP-3F PERFORMANCE CURVE

VP-2F / VP-3F TROUBLESHOOTING GUIDE

11

Note: For further assistance contact

Solution

Step 6

Solution

Step 5

Solution

Step 4

Solution

Step 3

Step 2

Step 1

Symptom 1

at 1-800-255-4208, 7:30 - 4:30 CST.

Technical Customer Service Department

the Tjernlund Products, Inc.

Yes

No

Yes

No Blockage

Yes, Leakage

No

Yes

No

Yes

Venter runs constantly.

Remove the Blue wire from t he
Tjernlund Relay/Tim er.

# 950-0014. Or Power Venter should

shut off within 1 to 10 minutes with the

adjustable Relay/Timer, Par t # 950- 1067.

Result: Power Venter should shut off
within approximately 45 seconds with
the non-adjustable Relay/T i m er, Part

Check for continuity across the N.O./
COM. terminals of the Gas Pr essure
Switch with the burner of f.

Result: Your meter should read infinite

Remove the 1/4" tubing from the Gas
Pressure Switch and then check for
continuity across the N.O./COM.
terminals of the Gas Pres s ure Switch.

Result: Your meter should read infinite

With the 1/4" tubing removed from the

Tjernlund Gas Pressure Switch, check

ends of the tubing for blockage or kinks.

Check the Pressure Tap Port on the
gas valve for leakage while the burner
is not operating.

Consult with water heater manufacturer

for further ass i stance.

Replace the Relay/Time r.
Part # 950-0014 non-adjustable,
or Part # 950-1067 1 to 10 minute

Replace the 25' Control Cable f rom
the electrical box to the Gas P ressure
Switch.

Replace the Tjernlund Gas Pr essure
Switch. Part # 950-2080

Repair or replace the 1/4" tubing as
necessary.

ohms.

ohms.

adjustable.

FIGURE 8079001 6-7-07

Note: For further assistance contact the Tjernlund

Products, Inc. Technical Customer Service
Department at 1-800-255-4208, 7:30 - 4:30 CST.

NOTE: If the pilot light is extinguished, follow the steps under “IN THE EVENT OF

A PILOT OUTAGE” on page 1 of these instructions before continuing.

12

Note: For further assistance contact

Step 3.2

Step 6

Step 3.1

Step 5

Solution

Step 4

Solution

Step 3

Step 2

Step 1

Symptom 2

at 1-800-255-4208, 7:30 - 4:30 CST.

Technical Customer Service Department

the Tjernlund Products, Inc.

Yes

Yes

Yes

No Blockage

No

No

YesNo

Yes

Venter will not run.

Establish that all 115 volt circuits are

complete to the Power Venter. Check

the electrical plug to the wall receptacle,

circuit breakers, and fuses.

CAUTION: Disconnect the 115 volt
power supply to the Power Venter be-

fore attempting the following procedure.

a) Remove the two Black leads from

Remove the 1/4" tubing from the
Tjernlund Gas Pressure Switch and
check ends of the tubing for blockage

Check for gas pressure at the Pressure

Tap Port on the gas valve while the
burner is operating.

Consult with water heater manufact urer

for further assistance.

Re-establish 115 volts to the Power
Venter.

Replace the Power Venter motor.
Motor Part Number
VP-2F 950-2020

Measure the voltage on terminals 4
and 5 on the Relay/Timer.

Measure the voltage on th e se c ondary

side of the 115/24 volt transformer.

the Relay/Timer and connect them

8079002 7-18-07

Solution

Part # 950-0014 non-adjustable,

Replace the Relay/Timer.

or Part # 950-1067 one to ten minute

No

VP-3F 950-1020

together.

supply to the Power Venter.

b) Re-establish the 115 volt power

Result: The Power Venter should run
constantly.

Result: At this time you should measure

approximately 24 volts.

No

Replace the 25' Control Cable from
the electrical box to the Gas Pressure

Yes

Switch.

Solution

Replace the Transformer.

No

Solution

Part # 950-2030

Result: At this time you should measure

approximately 24 volts.

Result: The Power Venter should run

the Gas Pressur e Switc h .

b) Jump the Red and Blue leads from

Step 2 to their original terminals.

a) Reinstall the two Black leads from

fore attempting the following procedure.

power supply to the Power Venter be-

CAUTION: Disconnect the 115 volt

constantly.

supply to the Power Venter.

c) Re-establish the 115 volt power

Repair or replace the 1/4" tubing as
necessary.

Solution

Replace the Tjernlund Gas Pressure

Yes,

Switch. Part # 950-2080

Solution

or kinks.

Result: Pressure is present.

Blockage

adjustable.

Note: For further assistance contact the Tjernlund

Products, Inc. Technical Customer Service
Department at 1-800-255-4208, 7:30 - 4:30 CST.

NOTE: If the pilot light is extinguished, follow the steps under “IN THE
EVENT OF A PILOT OUTAGE” on page 1 of these instructions before continuing.

MAINTENANCE

1. The VP-2F & VP-3F motors are permanently lubricated and do not need to be oiled.

2. The owner must semiannually inspect the vent hood and vent pipe for blockage, corrosion and leaks.

3. Avent system inspection must be performed annually by a qualified service agency. The inspection should include the
operation circuit check, safety interlock test, combustion air test and a visual inspection of the complete vent system for
corrosion, blockage and leaks. Any corrosion, blockage or leaks detected, must be replaced or repaired immediately.

HOW TO OBTAIN SERVICE ASSISTANCE

1. If you have any questions about your Power Venter or if it requires adjustment, repair or routine maintenance, we suggest that

you contact your installer, plumbing contractor or service agency.

2. If you require technical information contact Tjernlund Products, Inc. at 1-800-255-4208.

When contacting Tjernlund Products, Inc., please have the following information available:

1. Model number of the Power Venter

2. Name and address of installer and service agency

3. Date of original installation and dates any service work was performed

4. Details of the problem

LIMITED PARTS WARRANTY AND CLAIM PROCEDURE

Tjernlund Products, Inc. warrants the components of its products for one year from date of installation. This warranty covers defects
in material and workmanship. This warranty does not cover normal maintenance, transportation or installation charges for replace­ment parts or any other service calls or repairs. Products that are tampered with, damaged, installed improperly, wired incorrectly or
defective due to malfunctioning appliances are not covered under this warranty. This warranty DOES NOT cover the complete Power
Venter if it is operable, except for the defective part.

1.) Follow troubleshooting guide to determine defective component. If unable to determine faulty component, contact your Tjernlund

distributor or Tjernlund Products Technical Customer Service Department at 1-800-255-4208 for troubleshooting assistance.

2.) After the faulty component is determined, return it to your Tjernlund distributor for replacement. Please include Venter date code

component was taken from. The date code is located on the Electrical Box coverplate. If the date code is older than 1 year, you
will need to provide a copy of the original installation receipt to your distributor. Credit or replacement will only be issued to a
Tjernlund distributor after the defective part has been returned prepaid to Tjernlund and verified defective.

13

REPLACEMENT PARTS LIST

ITEM PART NUMBER

VP-2F Vent Hood VH1-3
VP-3F Vent Hood VH1-4
VP-2F Venter Motor 950-2020
VP-3F Venter Motor 950-1020
Gas Pressure Switch 950-2080
24V Transformer 950-2030
Post Purge Relay/Timer
(approx. 45 second non-adjustable delay) 950-0014
Post Purge Relay/Timer
(1 to 10 minute adjustable delay) 950-1067
Linear Limit Spill Switch 950-2064

TJERNLUND LIMITED ONE YEAR WARRANTY

Tjernlund Products, Inc. warrants to the original purchaser of this product that the
product will be free from defects due to faulty material or workmanship for a period
of (1) year from the date of original purchase or delivery to the original purchaser,
whichever is earlier. Remedies under this warranty are limited to repairing or replac­ing, at our option, any product which shall, within the above stated warranty period,
be returned to Tjernlund Products, Inc. at the address listed below, postage prepaid.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF, AND TJERNLUND PRODUCTS, INC. EXPRESSLY DIS­CLAIMS LIABILITY FOR INCIDENTALOR CONSEQUENTIAL DAMAGES ARISING
FROM THE USE OF THIS PRODUCT. THIS WARRANTY IS IN LIEU OF ALL
OTHER EXPRESS WARRANTIES AND NO AGENT IS AUTHORIZED TO ASSUME
FOR US ANY LIABILITY ADDITIONAL TO THOSE SET FORTH IN THIS LIMITED
WARRANTY. IMPLIED WARRANTIES ARE LIMITED TO THE STATED DURATION
OF THIS LIMITED WARRANTY. Some states do not allow limitation on how long an
implied warranty lasts, so that limitation may not apply to you. In addition, some
states do not allow the exclusion or limitation of incidental or consequential damages,
so that above limitation or exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which may vary from State to
State. Send all inquiries regarding warranty work to Tjernlund Products, Inc. 1601
9th Street, White Bear Lake, MN 55110-6794. Phone [phone] •
[phone] • Fax [phone] • Email: [e-mail]

VENT HOOD MOUNTING TEMPLATE FOR VP-2F & VP-3F

1. Use scissors to detach template. Verify “Vent Hood Installation Clearances” on page 5 are adhered to. Attach the Vent Hood
Mounting Template to the interior of the wall the vent hood will be penetrating.

2. Verify that wall penetration will not come in contact with concealed wiring or plumbing. Use VH1-3 template for the model VP-2F
and VH1-4 template for the model VP-3F. Using a 1/2” drill bit, drill two pilot holes where noted on the template. The drill bit
must be long enough to penetrate to the building exterior.

3. Attach the template to the building exterior aligning the pilot holes on the template with the pilot holes drilled in step 2.

4. Using a reciprocating saw, cut an opening through the building siding, wall board, etc., following the appropriate lines of the template.

5. Slide the Vent Hood through the opening and fasten to exterior wall using provided screws.

6. Once Power Venter is completely installed and secured, apply a bead of exterior rated caulk between Vent Hood flange and
exterior of building.

14

CUT OUT THIS SQUARE IF INSTALLING THE VP-3F (VH1-4” VENT HOOD)

CUT OUT THIS SQUARE IF INSTALLING THE VP-2F (VH1-3” VENT HOOD)

VH1-3 ROUGH-IN 6 3/4” Sq.
VH1-4 ROUGH-IN 8” Sq.
