Page 1
TITAN DK 2500 OVERLOCKER
SPARE PARTS
NV. A. DE KONINCK
Avenue Sleeckx 84-86
B-1030 BRUSSELS - BELGIUM
Phone : ++32/2 216 31 40 Fax : ++32/2 242 41 89
EMAIL : [email protected]
Page 2
INDEX SPARE PARTS
PRESSERFOOT MECHANISM..............................................................1+1A
NEEDLE BAR MECHANISM..................................................................2+2A
FEEDDOG MECHANISM.......................................................................3+3A
LOOPER MECHANISM..........................................................................4+4A
CRANKSHAFT.......................................................................................5+5A
EXTERNAL PARTS...............................................................................6+6A
DCD CUTTING MECHANISM................................................................7+7A
RPE EXTERNAL STITCH DENSITY ADJUSTER.................................8+8A
NCV NEEDLE COOLER........................................................................8+8A

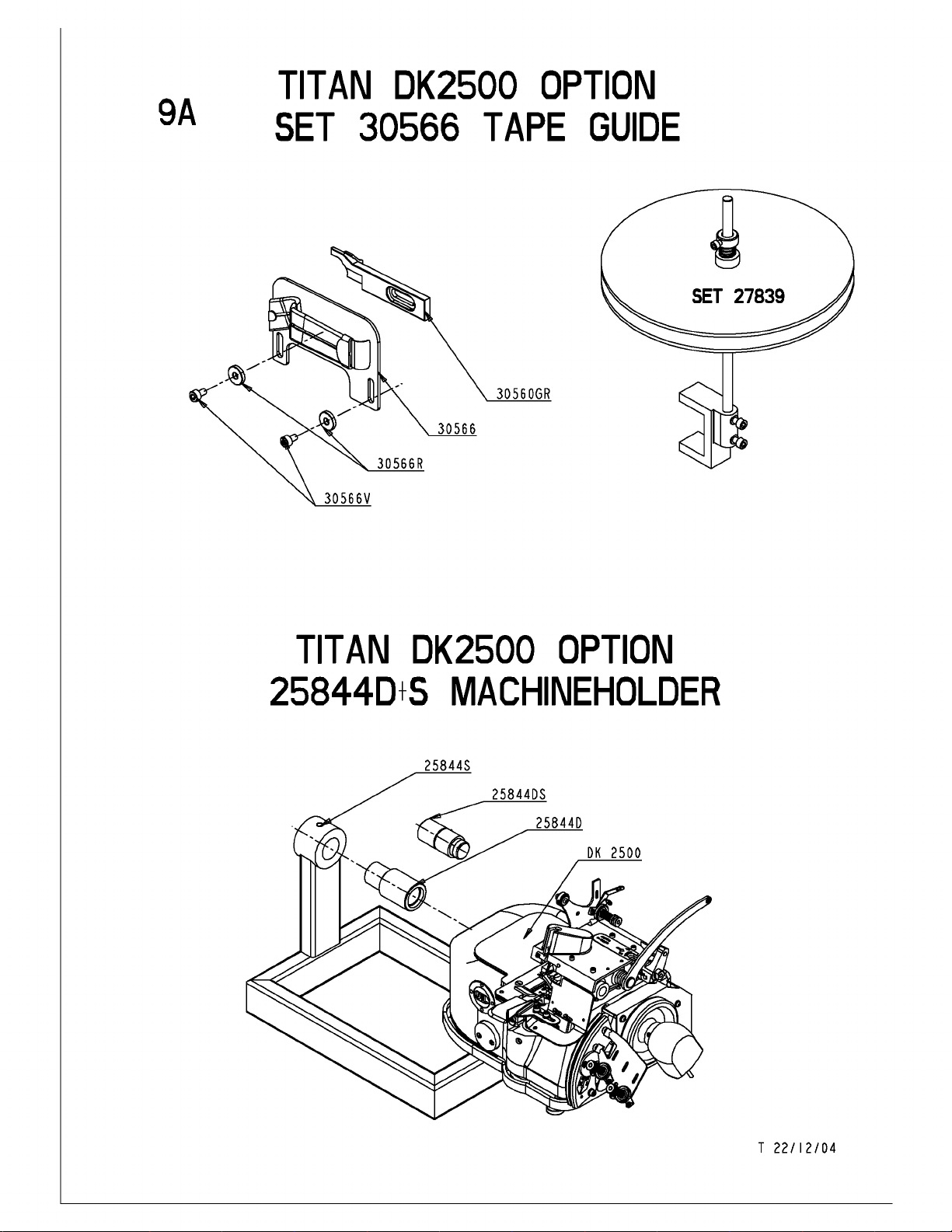

SET 30566 TAPE GUIDE.......................................................................9+9A
25844D+S MACHINE HOLDER.............................................................9+9A

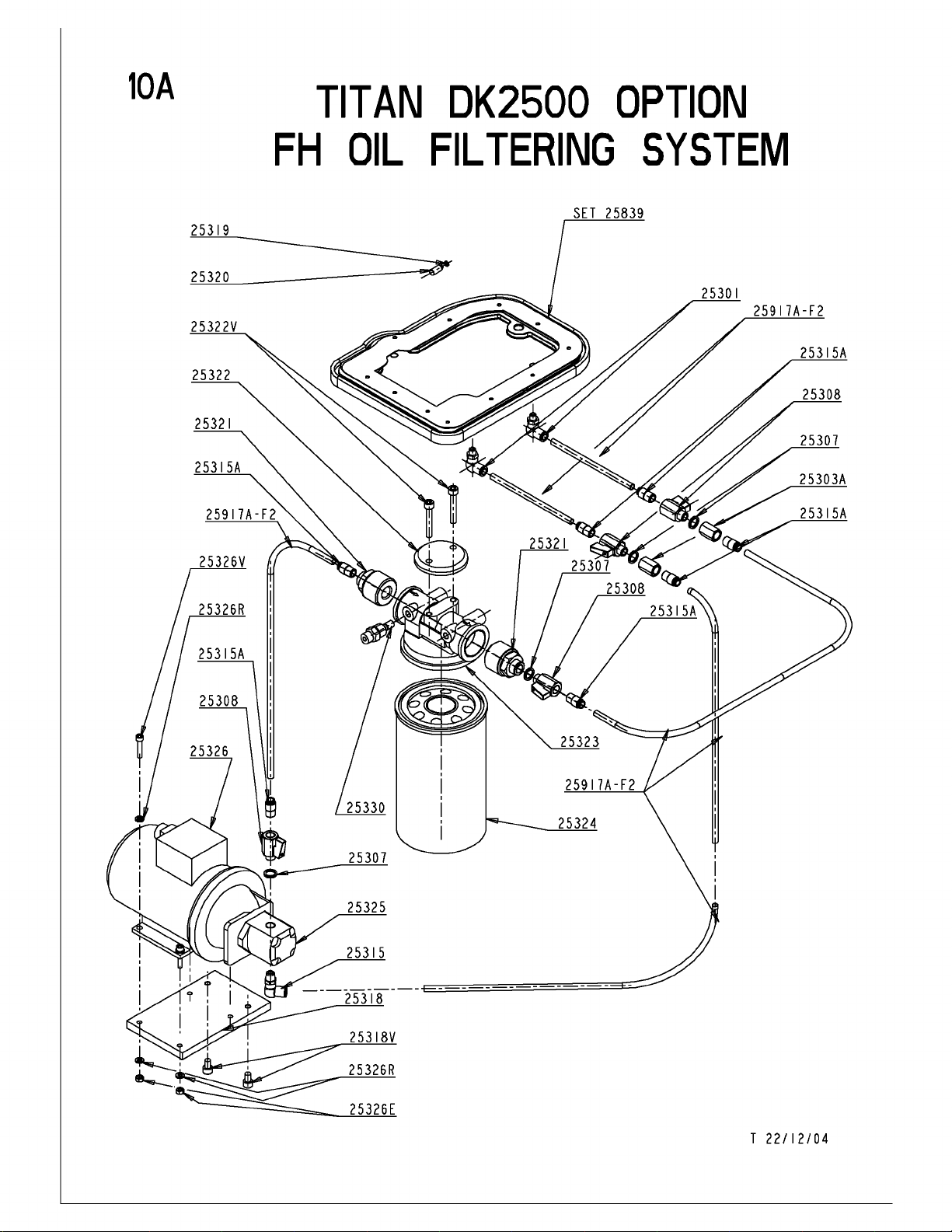

FH OIL FILTERING SYSTEM.............................................................10+10A

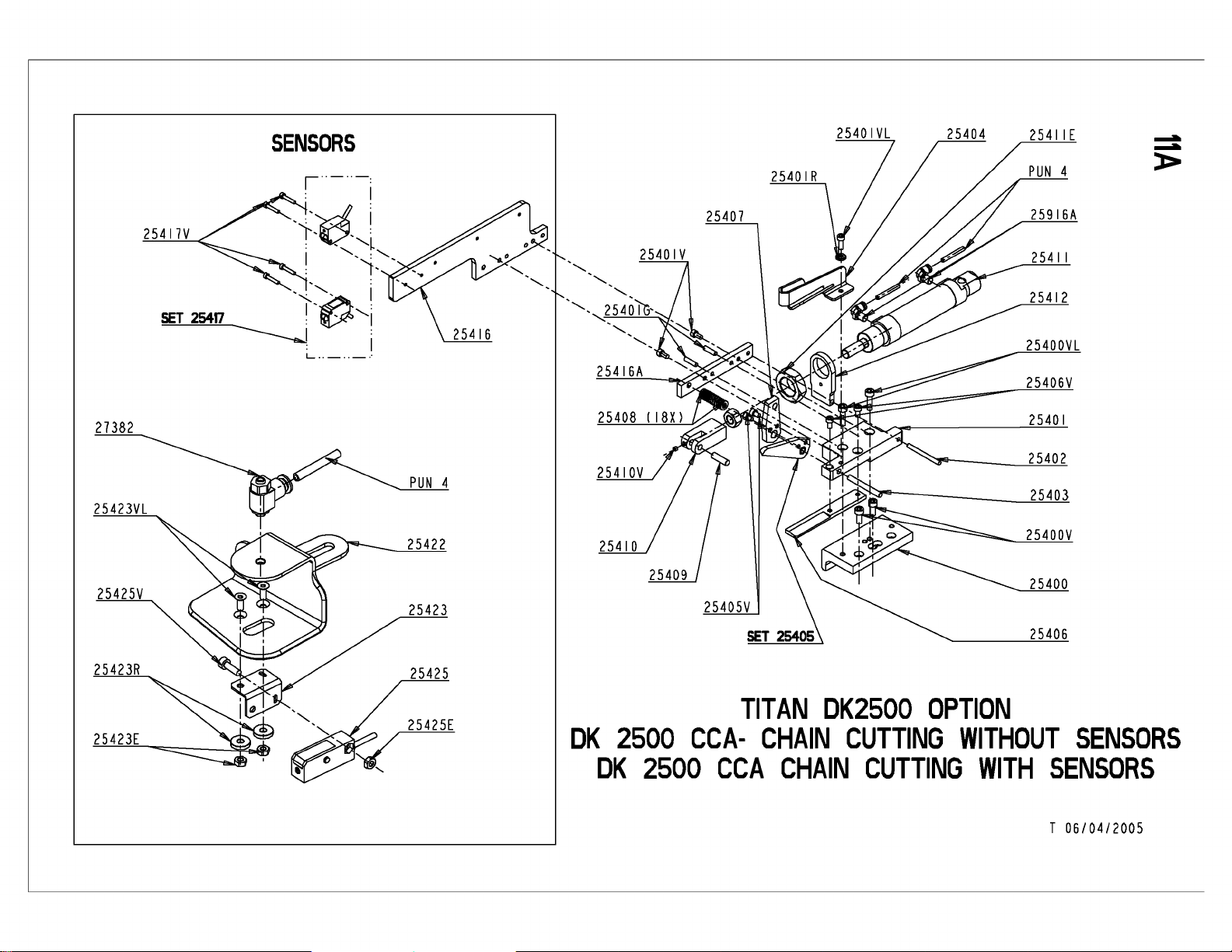

CCA CHAIN CUTTING.......................................................................11+11A

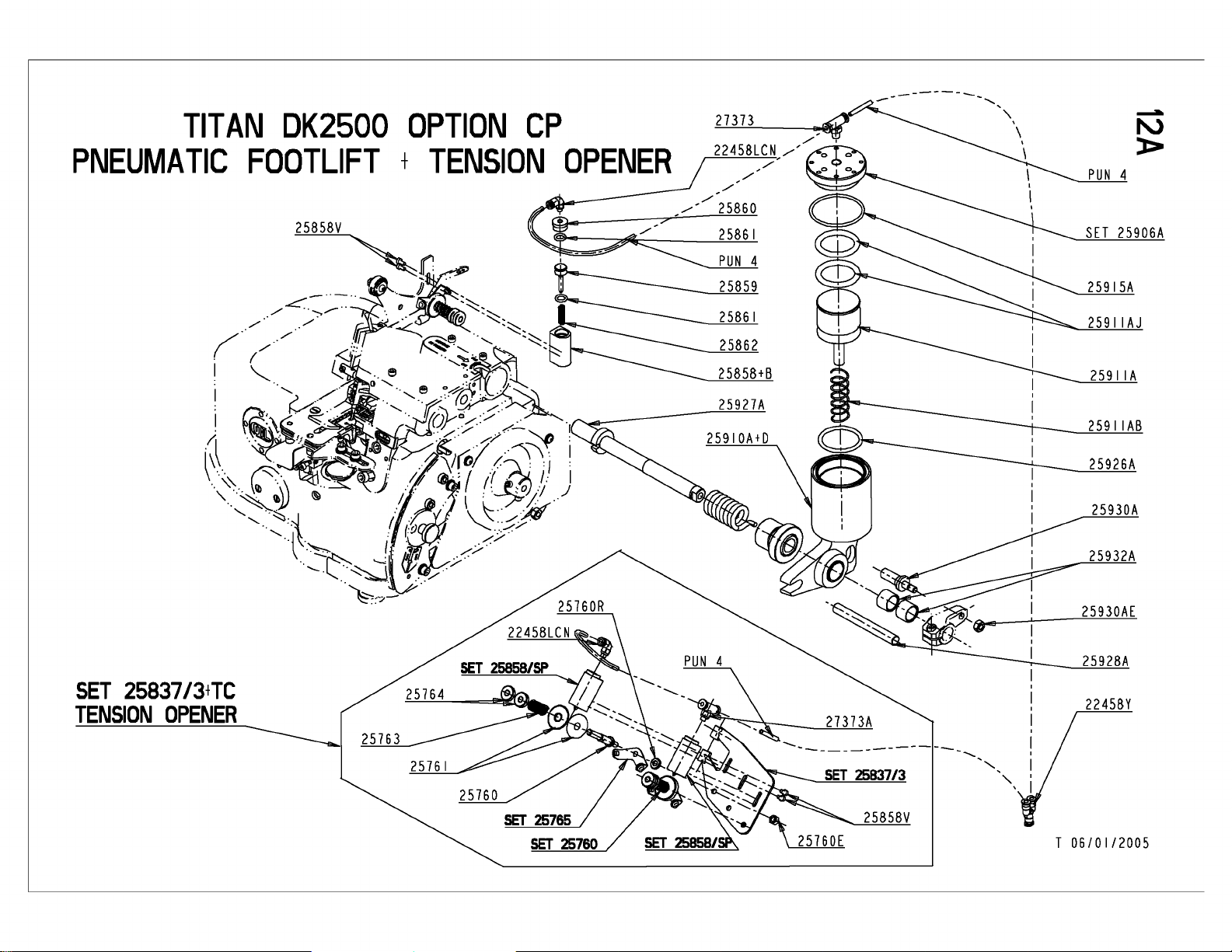

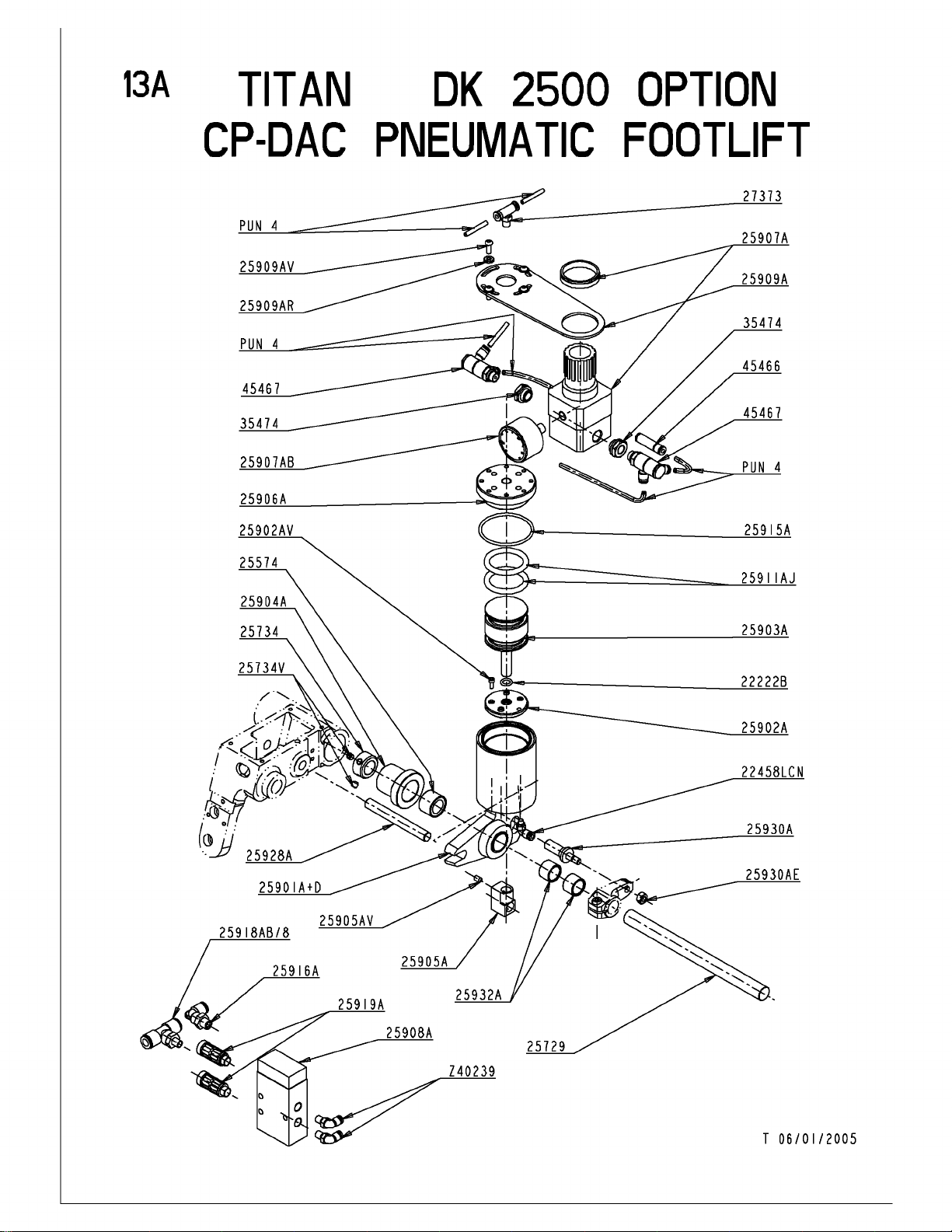

CP PNEUMATIC FOOTLIFT + TENSION OPENER..........................12+12A
CP DAC PNEUMATIC FOOTLIFT.....................................................13+13A

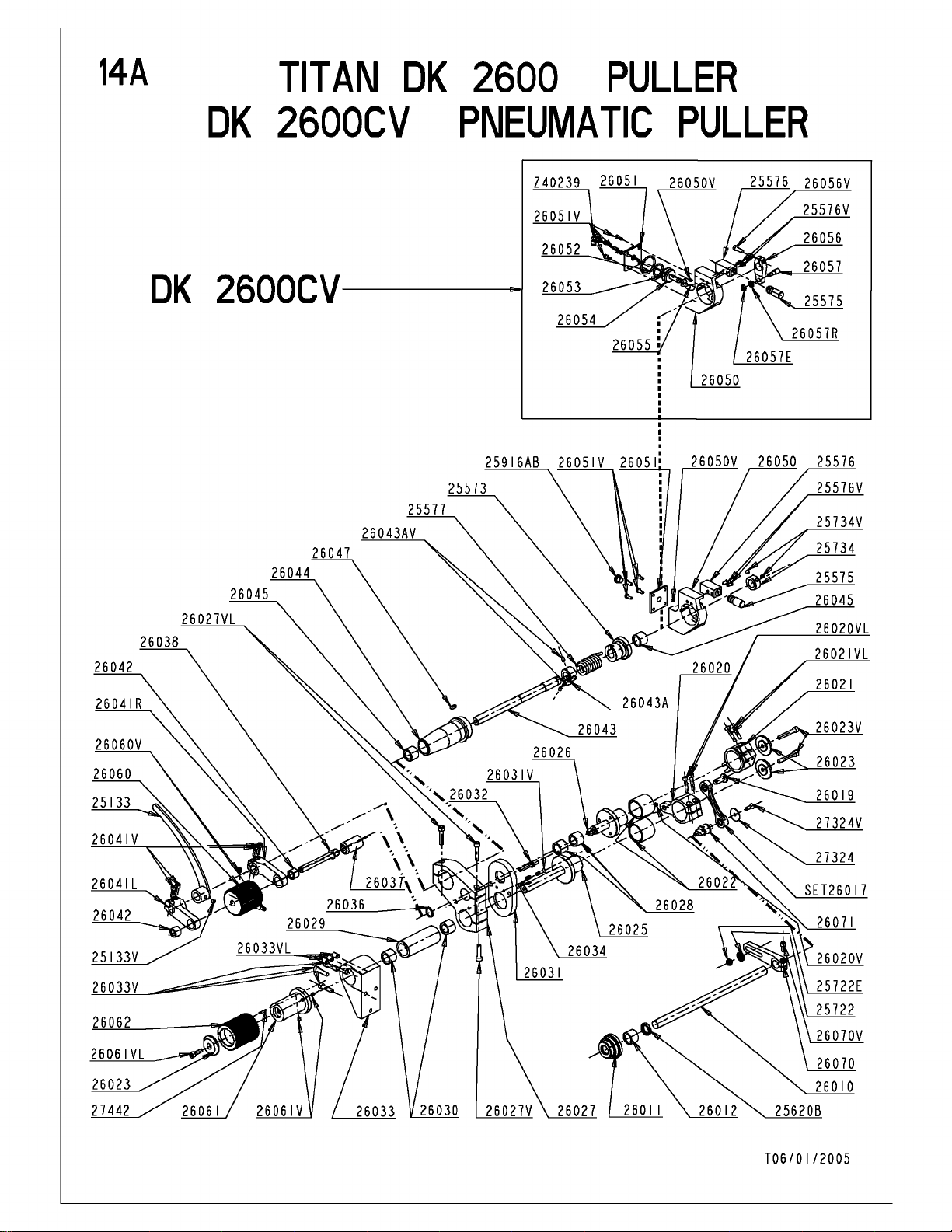

DK 2600 + DK2600CV PULLER........................................................14+14A

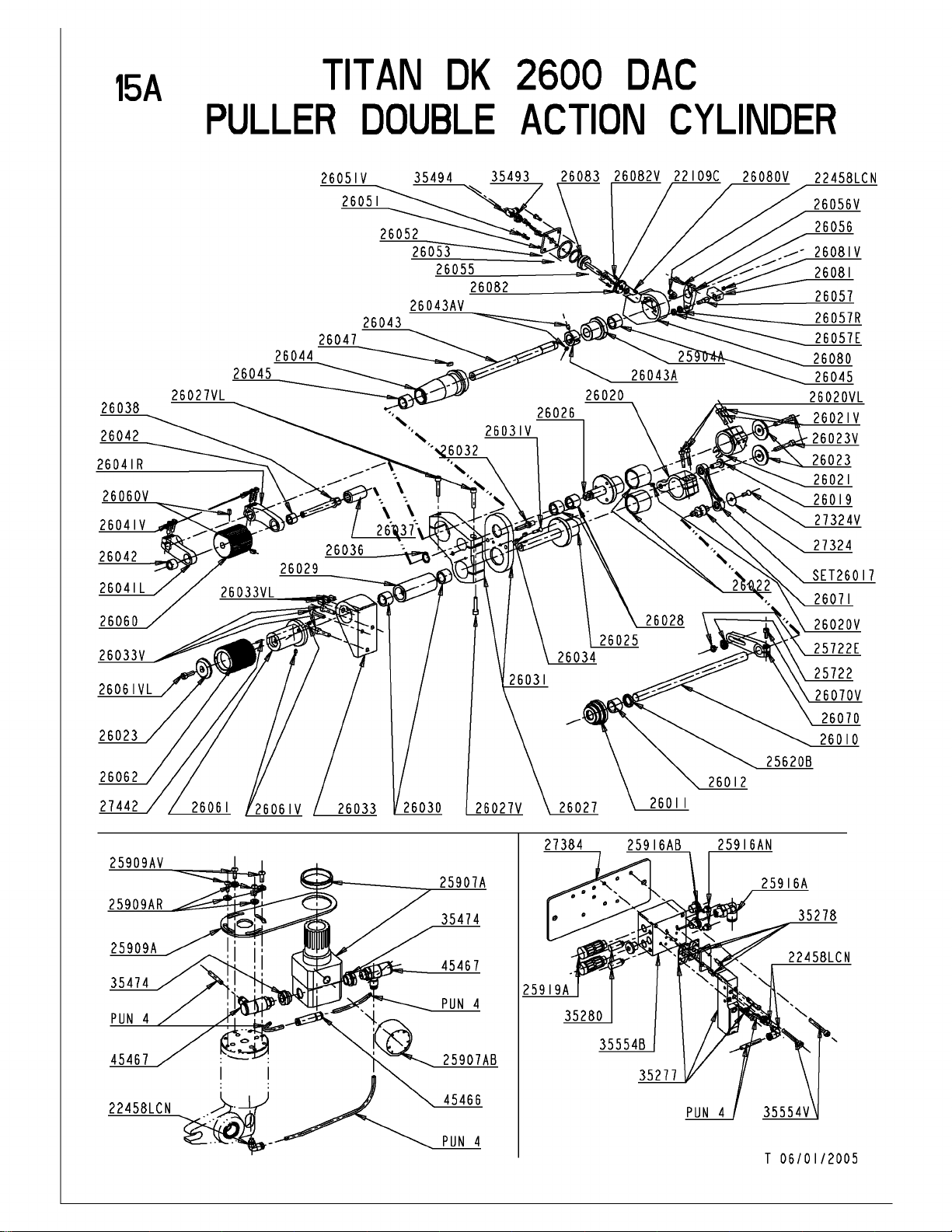

DK 2600 DAC PULLER DAC............................................................15+15A

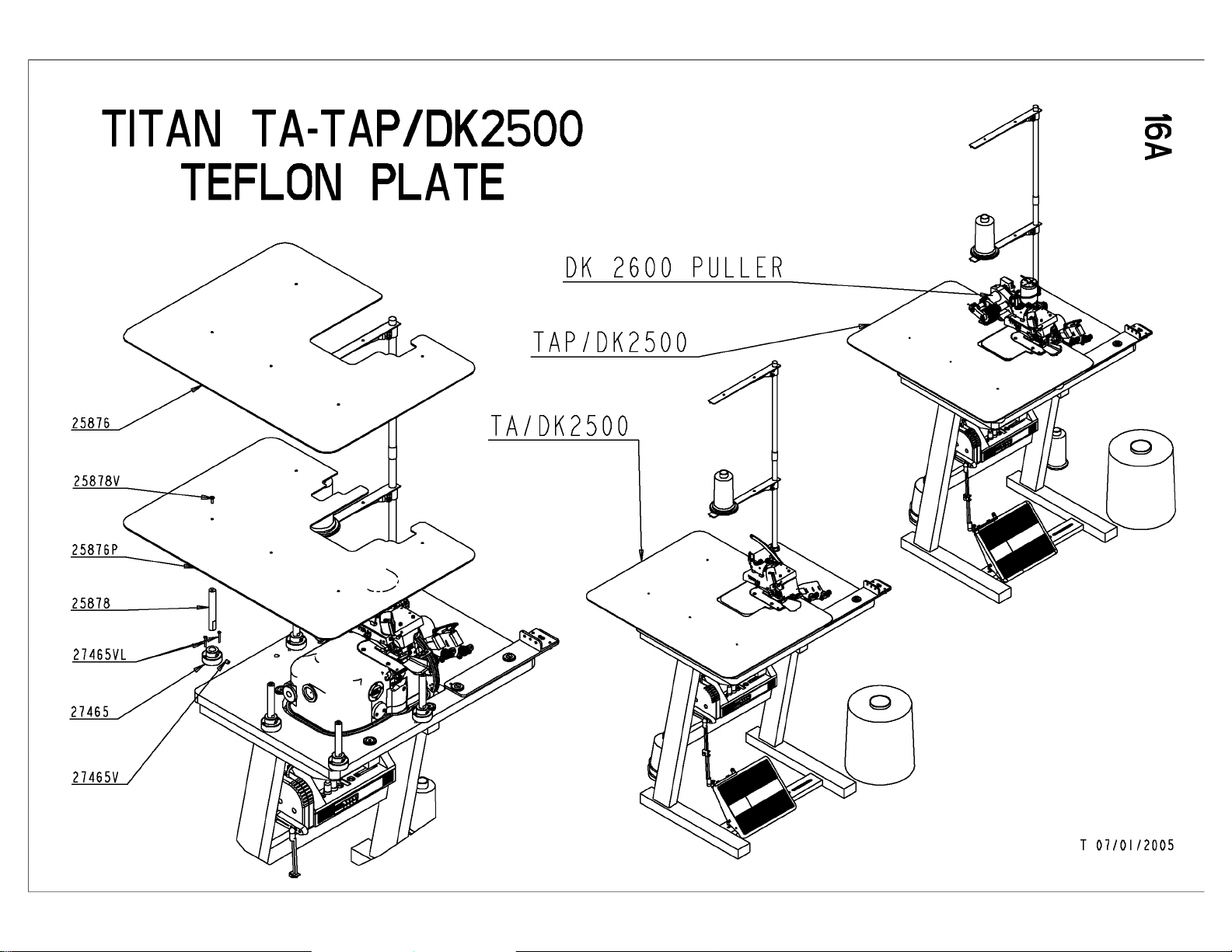

TA+TAP TEFLON PLATE.................................................................16+16A

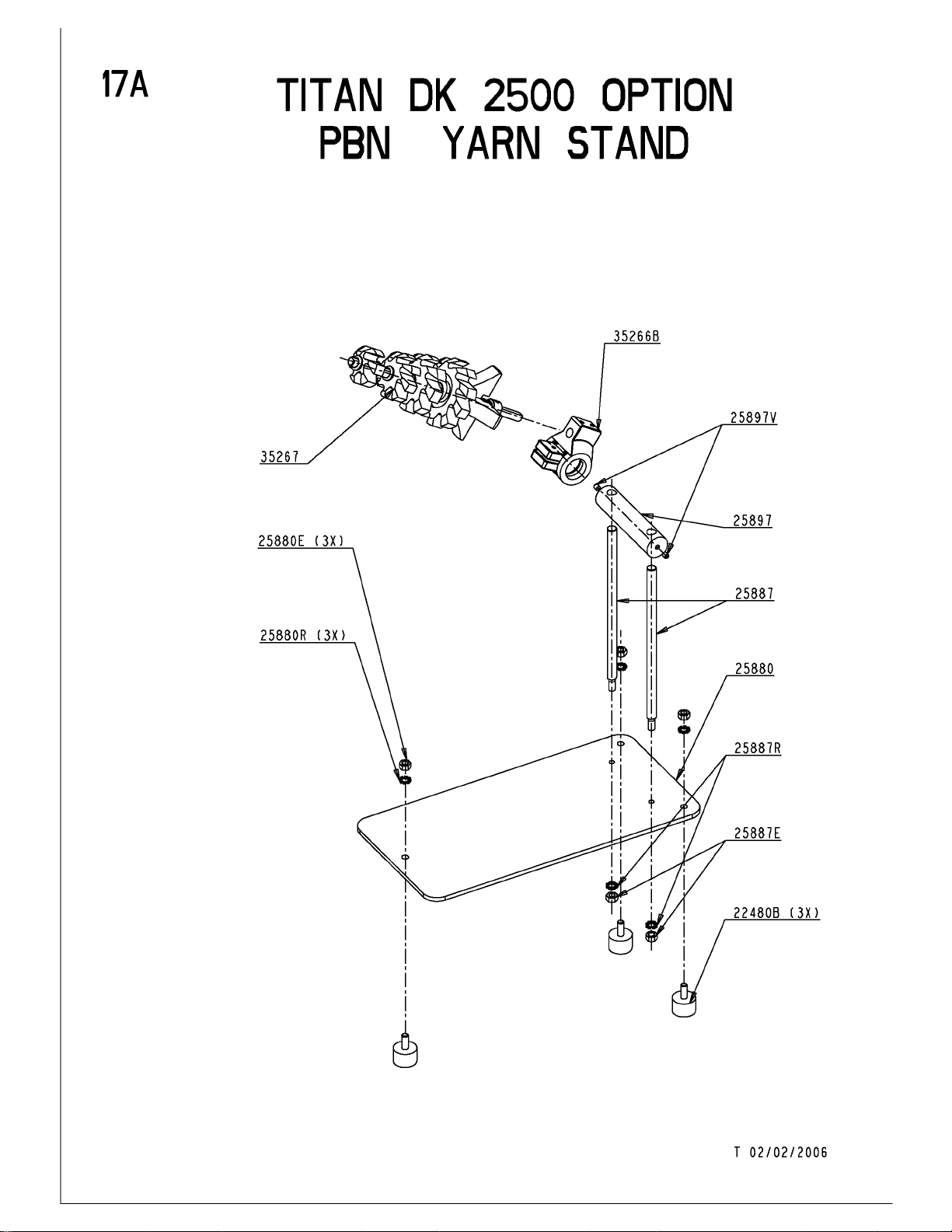

PBN YARN STAND...........................................................................17+17A

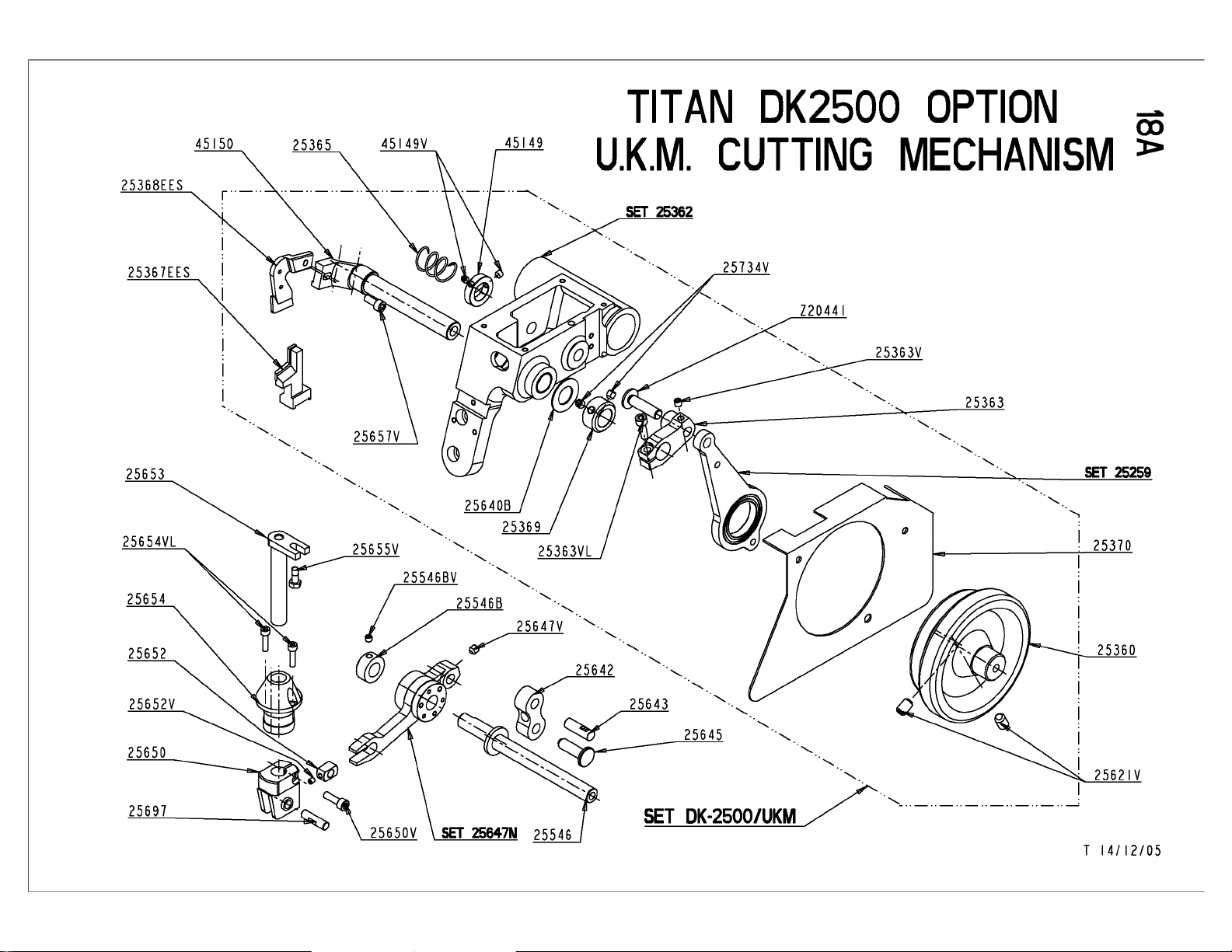

UKM CUTTING MECHANISM............................................................18+18A
INDEX...................................................................................................19- 33
WHEN ORDERING SPARE PARTS FOR LEFTHAND
OVEREDGING MACHINE DK2500L , PLEAS MENTION “ L”
AFTER EVERY REFERENCE NUMBER
Page 3

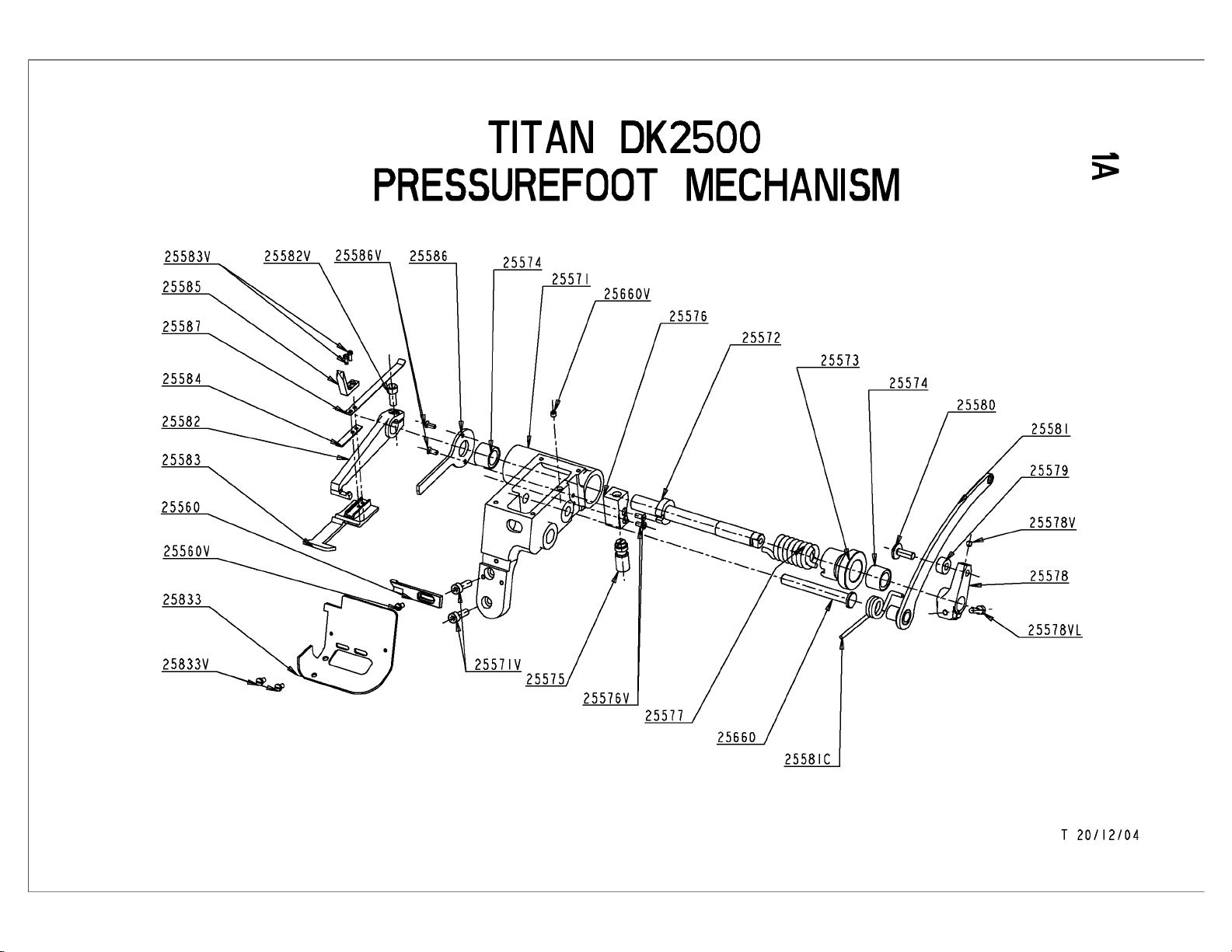

TIT
PRESSUREFOOT
AN
DK2500
MECHANISM
-
)>
25583V
25585
25587
25584
25582
25583
25560
25560V
25833
25586
25574
25571
25660V
25572
25573
25574
25581
25579
25578V
25578
25576V
25577
25581(
T 20/12/04
Page 4
TITAN DK 2500
PRESSURE FOOT MECHANISM
Code NrDescription Page
25560CHAIN GUIDE 1
25560VSCREW 1
25571FRAME 1
25571VSCREW 1
25572LEVER SHAFT 1
25573BUSHING 1
25574BEARING 1
25575REGULATING SCREW 1
25576REGULATING SCREW HOLDER 1
25576VSCREW 1
25577FOOT LIFTER SPRING 1
25578RISE LEVER 1
25578VSCREW 1
25578VLSCREW 1
25579ROLLER 1
25580ROLLER STUD 1
25581PRESSER FOOT LEVER 1
25581CRETURN SPRING 1
25582LEVER 1
25582VSCREW 1
25583PRESSURE FOOT 1
25583VSCREW 1
25584SPRING 1
25585HOLDER FOR PARALLELISM 1
25586CONNECTING ROD 1
25586VSCREW 1
25587FOLIUM 1
25660SHAFT 1
25660VSCREW 1
25833PROTECTIVE PLATE 1
25833VSCREW 1
1
10/01/2005
Page 5
2A
25549
25549J
25800VL
TIT

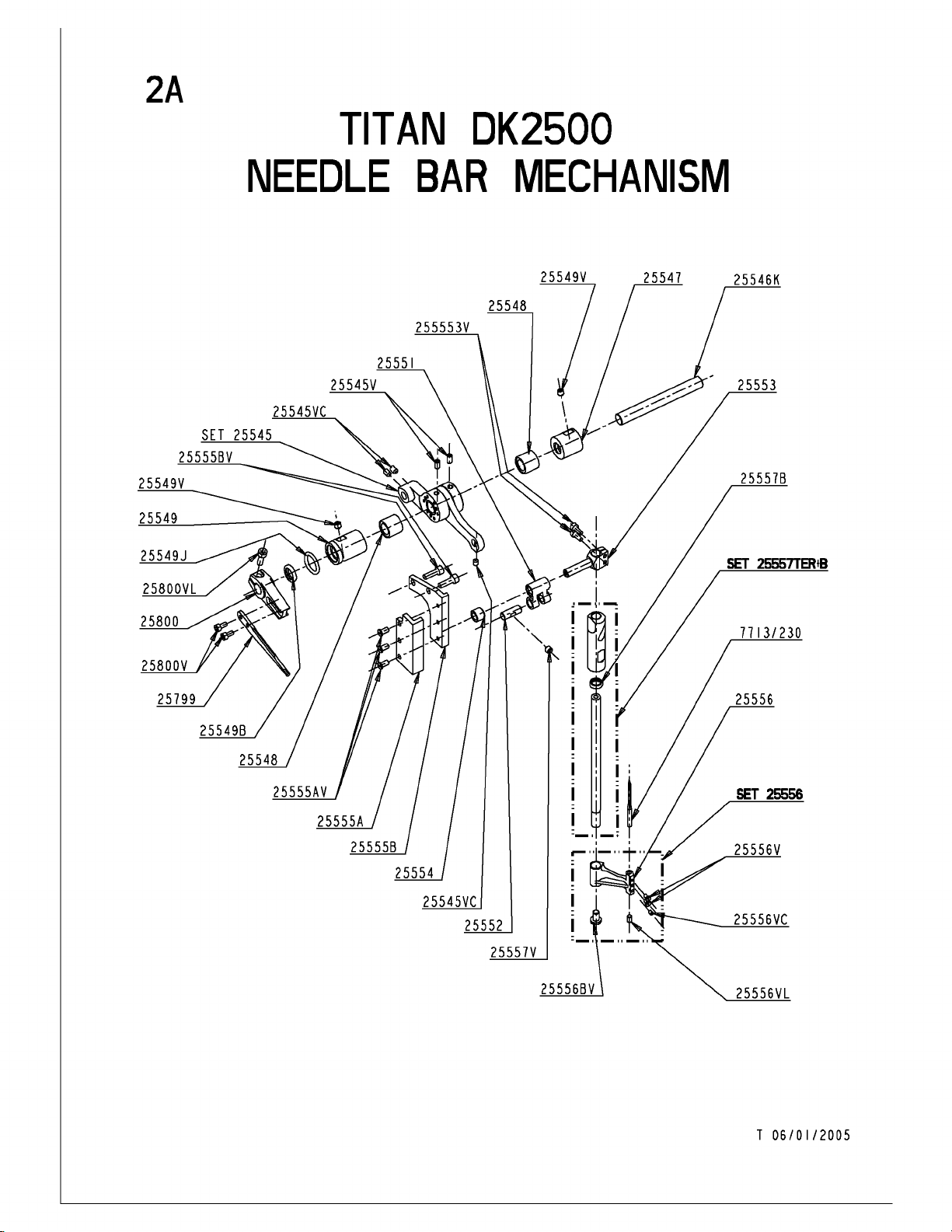

NEEDLE
AN
BAR
255553V
25551
DK2500
MECHANISM
25548
25546K
25553
255578
SET
25557TER+B
25799
25549B
25545VC
25552
25557V
25556BV
7713/230
25556
25556VC
25556VL
T 06/01/2005
Page 6
TITAN DK 2500
NEEDLE BAR MECHANISM
Code NrDescription Page
SET 25556NEEDLE CLAMP ASSEMBLY 2
25556NEEDLE CLAMP 2
25556VSCREW 2
25556VCSCREW 2
25556VLSCREW 2
25556BVSCREW 2
SET 25557TER+BNEEDLE BAR BUSHING 2
25557BSEAL 2
SET 25545NEEDLE BAR LEVER 2
25545V SCREW 2
25545VCSCREW 2
25546KECCENTRIC SHAFT 2
25547BUSHING 2
25548BEARING 2
25549BUSHING 2
25549BSEAL 2
25549JO-RING 2
25549VSCREW 2
25551CONNECTION LINK 2
25552LINK SHAFT 2
25553CONNECTION STUD 2
25553VSCREW 2
25554GUIDE ROLLER 2
25555ANEEDLE BAR GUIDE A 2
25555AVSCREW 2
25555BNEEDLE BAR GUIDE B 2
25557VSCREW 2
25558BVSCREW 2
25799THREAD TAKE UP 2
25800THREAD TAKE UP LEVER 2
25800VSCREW 2
25800VLSCREW 2
7713/230NEEDLE 2
2
10/01/2005
Page 7
25735
25730
25730V
25728VL
w
)>
25728
26012
260
I I
25734
25730
25730V
257
43VP
.:..!!...!--2.!!..!...!..._---
25742J
~-
~.,--=V"
§!;SE;IT_j2~57~4~3-----=..J·-'
("
:
-
I _
:
..
,··
..
X
if:_,
,,
,.'
_,-
.-':.~_
.,
':
i
25699
25726
25735V
25734V
25737V
25737P
25737

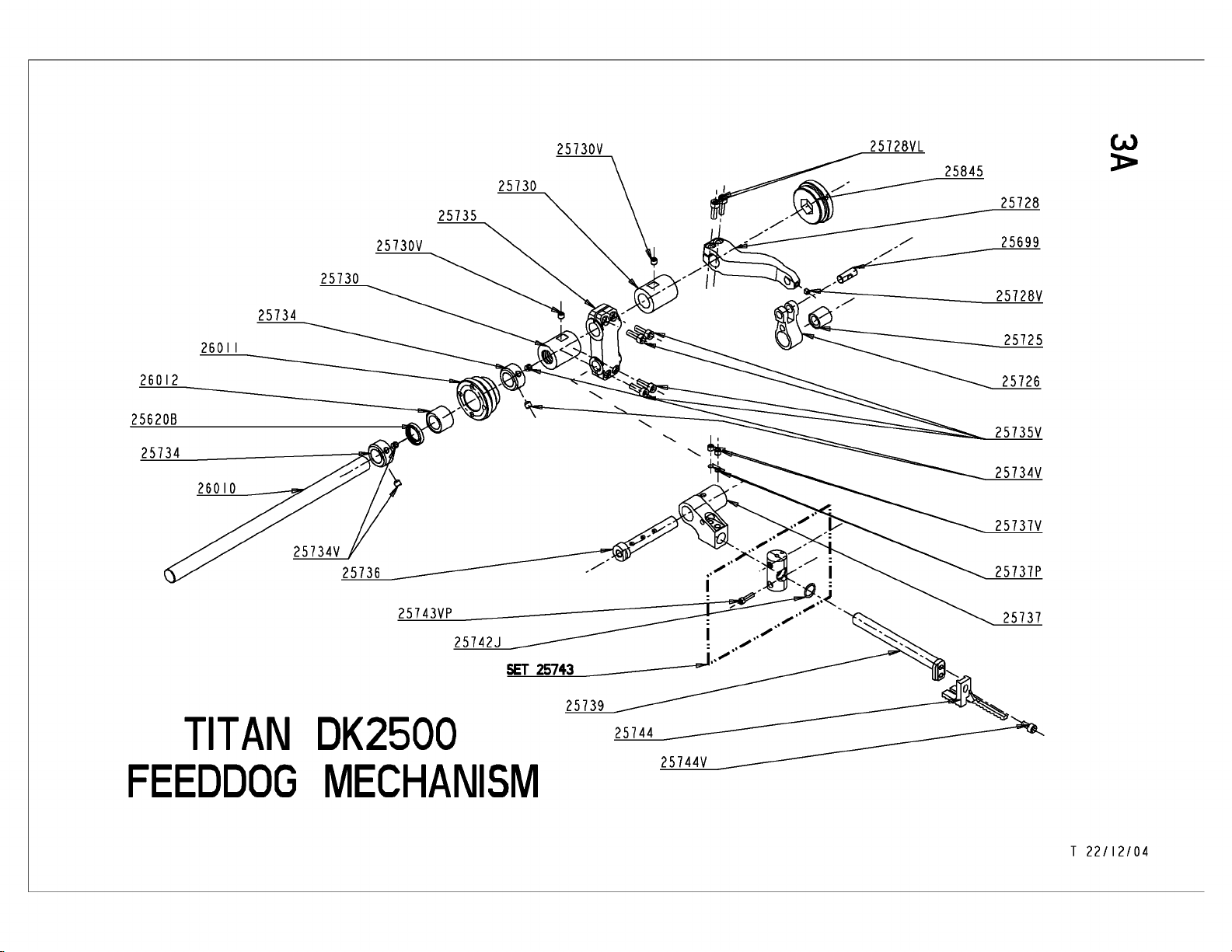

TIT
FEEDDOG
AN
DK2500
MECHANISM
25739
25744
25744V
T 22/12/04
Page 8
TITAN DK 2500
FEEDDOG MECHANISM
Code NrDescription Page
SET 25743COMPLETE FEEDDOG SHAFT GUIDE 3
25743VPSCREW 3
25742JO-RING 3
25620BSEAL-RING 3
25699PIN 3
25725BEARING 3
25726FEED DRIVING ROD 3
25728FEED DRIVING LEVER 3
25728VSCREW 3
25728VLSCREW 3
25730BUSHING 3
25730VSCREW 3
25734THRUST COLLAR 3
25734VSCREW 3
25735LEVER 3
25735VSCREW 3
25736STUD 3
25737BASE 3
25737PPROTECTION 3
25737VSCREW 3
25739FEEDDOG SHAFT 3
25744FEEDDOG 3
25744VSCREW 3
25782VLSCREW 3
25845PLUG 3
26010SHAFT 3
26011BUSHING 3
26012BEARING 3
3
10/01/2005

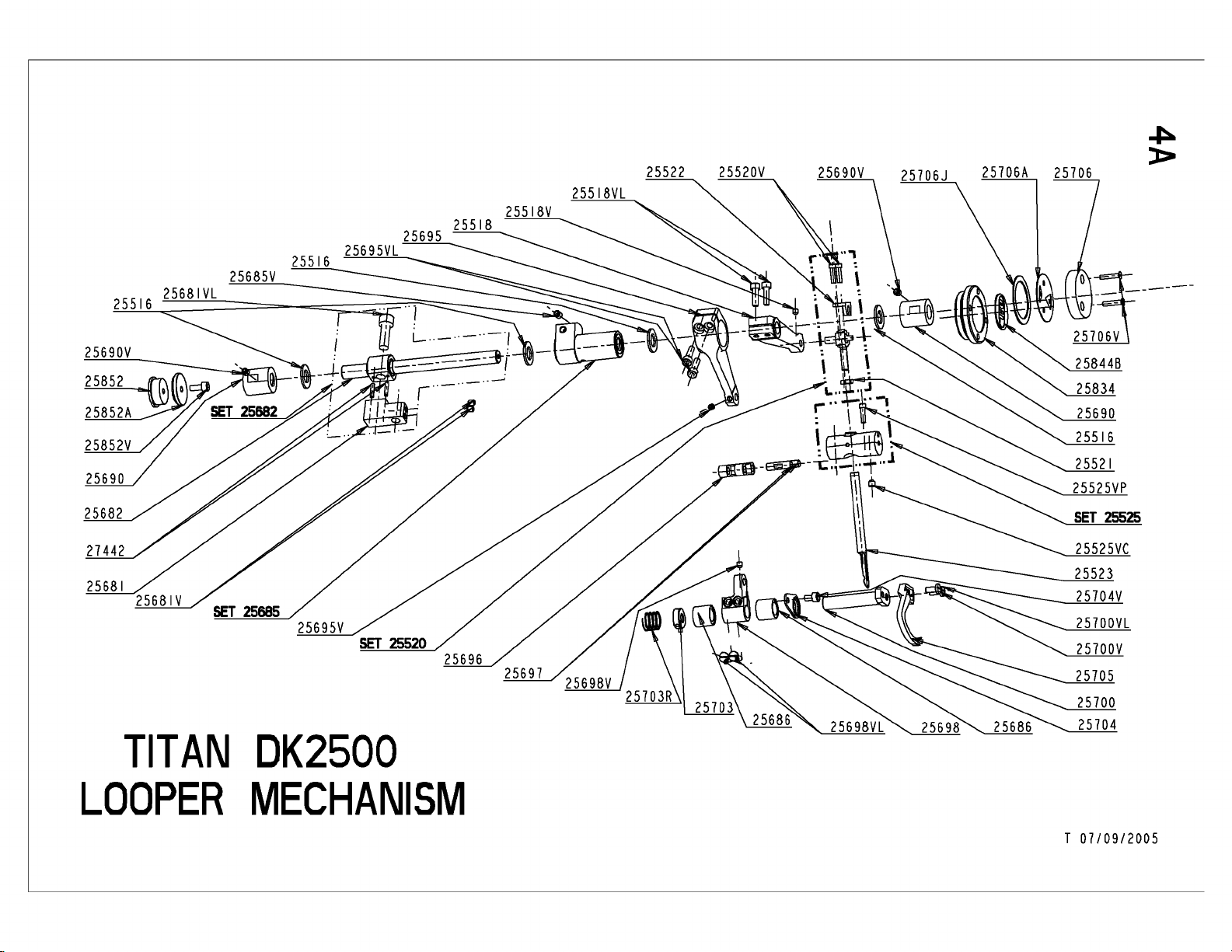

Page 9
25690V
25852V
25690
25518VL
25522
25706A
25690
25516
25521
25682
27442
25681
25695V
SET
25520
25696
TIT
LOOPER
AN
DK25OO
MECHANISM
SET
25525
25525VC
25523
25704V
25700VL
25700V
25705
25700
25704
T 07/09/2005
Page 10
TITAN DK 2500
r
Y
T
LOOPER MECHANISM
4
Code N
SET 25520 COMPLETE BALL JOINT 4
25521 NUT 4
25522 BALL JOINT GUIDE FORK 4
25520V SCREW 4
SET 25525 UNDER LOOPER GUIDE COMPL 4
25525VP SCREW 4
SET 25685 COMPLETE INTERMEDIARY ASSEMBL
SET 25682 COMPLETE LOOPER SCHAF
25681 SMALL LEVER 4
25681VL SCREW 4
25682 SHAFT 4
27442 PIN 4
25516 WASHER 4
25518 DRIVING LEVER 4
25518V SCREW 4
25518VL SCREW 4
25523 LOWER LOOPER 4
25525VC SCREW 4
25681V SCREW 4
25685V SCREW 4
25690 BUSHING 4
25690V SCREW 4
25695 BIG LEVER 4
25695V SCREW 4
25695VL SCREW 4
25696 CONNECTION 4
25697 LINK PIN 4
25698 SMALL LEVER 4
25698V SCREW 4
25698VL SCREW 4
25700 UPPER LOOPER 4
25700V SCREW 4
25700VL SCREW 4
25703 WASHER 4
25703R SPRING 4
25704 THRUST PLATE 4
25704V SCREW 4
25705 UPPER LOOPER 4
25706 OIL WINDOW 4
25706A STICKER 4
25706J GASKET 4
25706V SCREW 4
25834 PLUG 4
25844B STICKER 4
25852 PLUG 4
25852A WASHER 4
25852V SCREW 4
Description Page
4
4/05/2007
Page 11
TITAN
DK2500
25617
25615V
25620
25601A
25620V
25620B
(11
)>

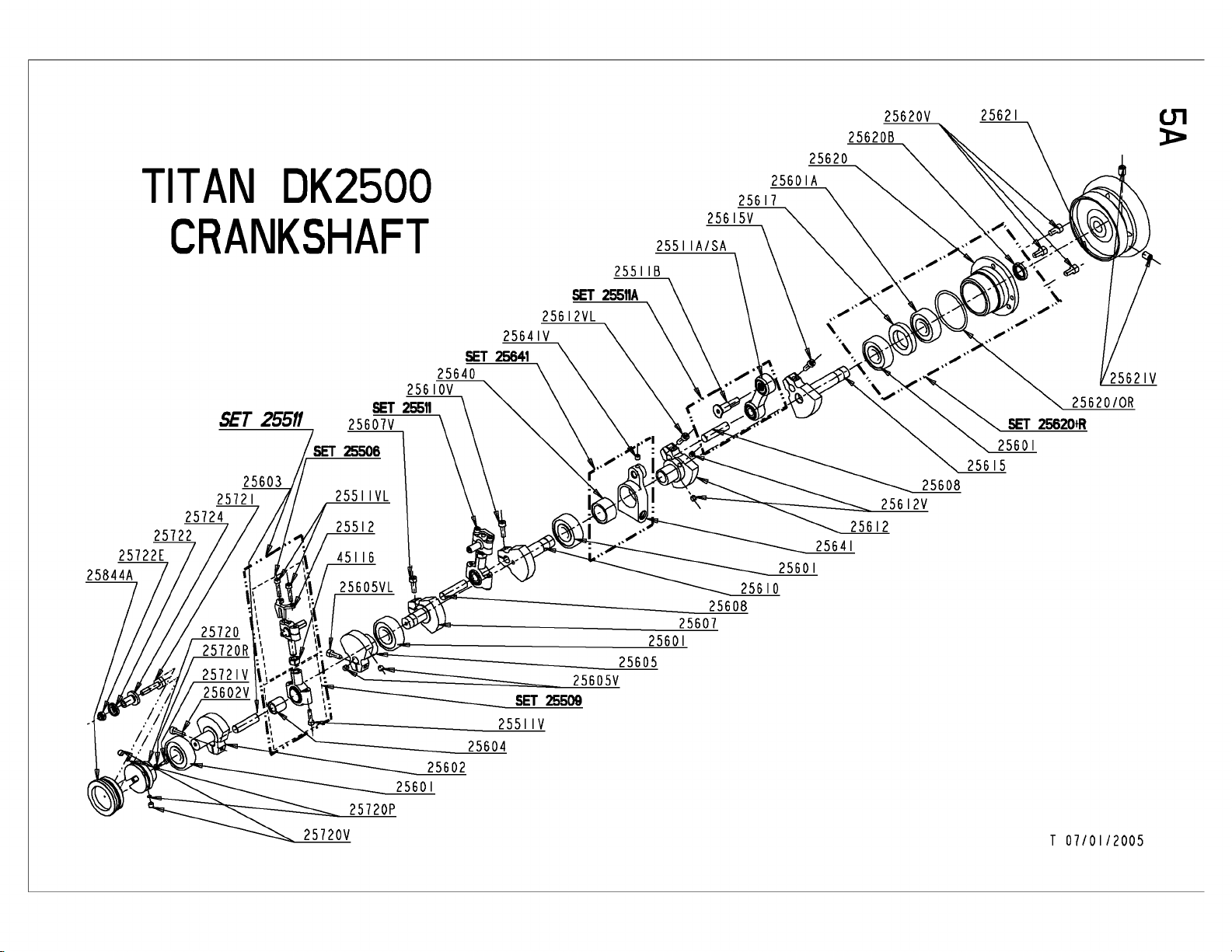

CRANKSHAFT
SET
25640
25610V
SET
SET
25511
25607V
25605VL
25511
~~---------_.12.5J56~08
25604
25602
25641V
25641
SET
2551
25511A/SA
25612VL
25601
25610
25607
25601
25605
25605V
25509
IV
T 07/01/2005
Page 12
TITAN DK 2500
CRANKSHAFT
CODE NrDESCRIPTION PAGE
SET 25511CONNECTING ROD COMPLETE 5
SET 25509CONNECTING ROD 5
25511VSCREW 5
25604BEARING 5
SET 25506ROD WITH FORK 5
25511VLSCREW 5
25512BALL JOINT GUIDE FORK 5
45116NUT 5
SET 25620+RFLANGE COMPLETE 5
25601BEARING 5
25620/ORO RING 5
25620BSEAL-RING 5
25620BEARING BUSHING 5
25601ABEARING 5
25617RING 5
SET 25641LOWER KNIFE DRIVING LINK COMPL 5
25640BEARING 5
25641* LOWER KNIFE DRIVING LINK 5
25641VSCREW 5
SET 25511ACOMPLETE ROD 5
25511BSTUD 5
25511A/SAROD 5
25608PIN 5
25601BEARING 5
25602CRANK 5
25602VSCREW 5
25603PIN 5
25605CRANK 5
25605VLSCREW 5
25607CRANK 5
25607VSCREW 5
25608PIN 5
25610CRANK 5
25610VSCREW 5
25612CRANK 5
25612V SCREW 5
25612VLSCREW 5
25615CRANK 5
25615VSCREW 5
25620VSCREW 5
25621FLYWHEEL 5
25621VSCREW 5
25720ECCENTRIC 5
25720PPROTECTION 5
25720RWASHER 5
25720VSCREW 5
25721FEED ACROSS REGULATOR 5
25721VSCREW 5
25722WASHER 5
25722ENUT 5
25724BEARING BUSHING 5
25844APLUG 5
5
10/01/2005
Page 13
SET25853
25770V
25 7 73
SET25760/1
25770R
25769
25768
25772
25787
0)
)>
25563
25559V
25563V
25835
25836V
25803V
25802
25803
25804
25804V
25804VL
25654VL
25654K
25549J
25839J
SET
25839
25839
(
3X
25624
25624V
25624R
25760[
25790
25791
25575A
25787S
SET25765
TIT
AN
l
25840
25847

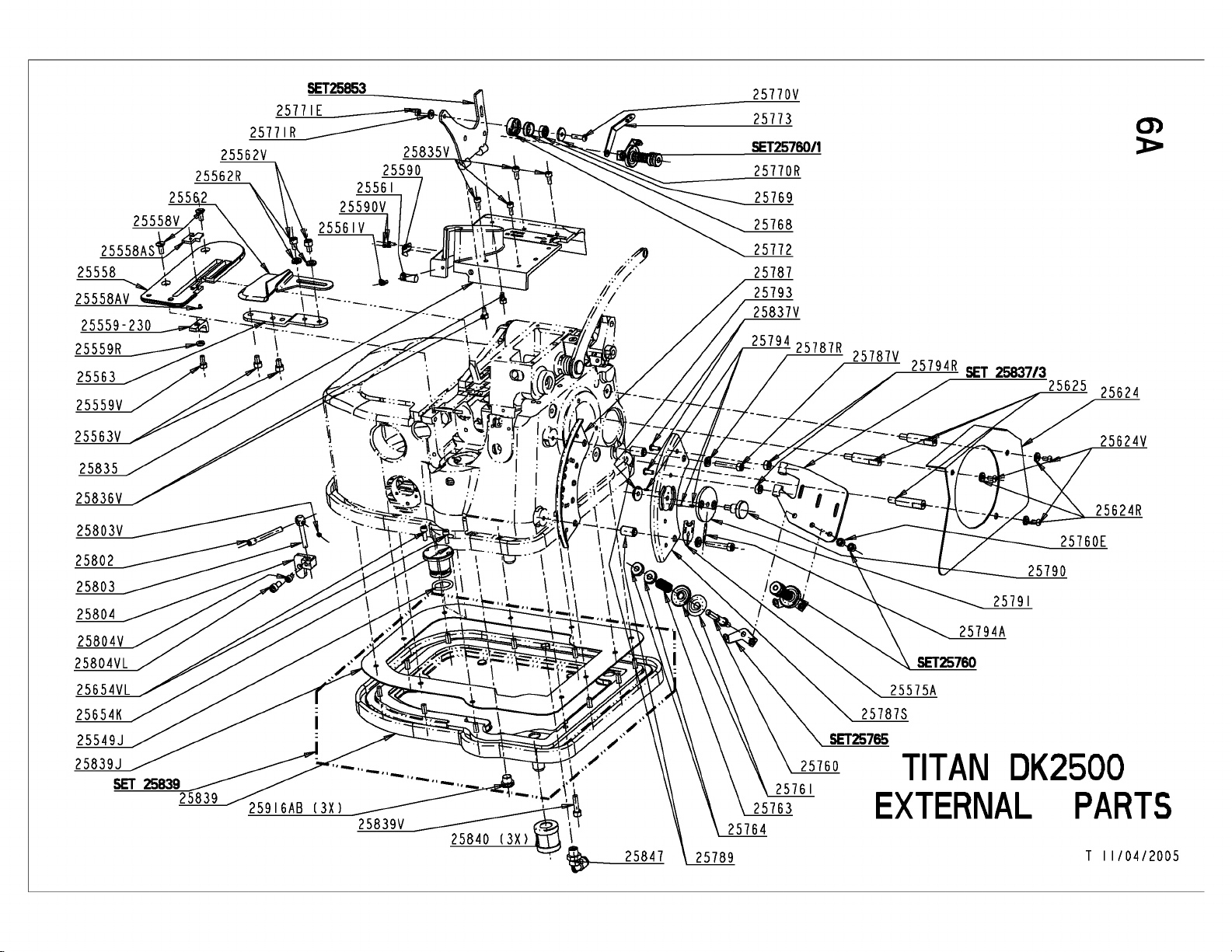

EXTERNAL
DK2500
PARTS
T 11/04/2005
Page 14
TITAN DK 2500
6
EXTERNAL PARTS
Code NrDescription Page Code NrDescription Page
SET 25853TENSION POST HOLDER COMPLETE 6 25771ENUT 6
SET 25760TENSION COMPLETE 6 25771RWASHER 6
25760TENSION POST 6 25772ROLLER HOLDER 6
25761TENSION DISC 6 25773THREAD GUIDE 6
25763TENSION SPRING 0,6 MM 6 25787THREAD GUIDE HOLDER 6
25764NUT 6 25787RWASHER 6
SET 25765THREAD GUIDE 6 25787STHREAD GUIDE HOLDER 6
SET 25837/3TENSION HOLDER ASSEMBLY 6 25787VSCREW 6
SET 25760/1TENSION COMPLETE 6 25789BUSHING 6
25760TENSION POST 6 25790BLOCK SCREW 6
25761TENSION DISC 6 25791THREAD GUIDE 6
25762TENSION SPRING 1,2 MM 6 25793NUT 6
25764NUT 6 25794PIN 6
SET 25765THREAD GUIDE 6 25794APIN 6
SET 25765THREAD GUIDE PLATE COMPLETE 6 25794RWASHER 6
SET 25839COVER COMPLETE 6 25802THREAD GUIDE 6
25839COVER 6 25803THREAD GUIDE SUPP. SHAFT 6
25916ABBLINDPLUG 6 25803VSCREW 6
25839JMACHINE GASKET 6 25804THREAD GUIDE HOLDER 6
25549JO-RING 6 25804V SCREW 6
25558NEEDLE PLATE 6 25804VLSCREW 6
25558ASFINGER 6 25835COVER 6
25558AVSCREW 6 25835VSCREW 6
25558VSCREW 6 25836VSCREW 6
25559-230NEEDLE GUIDE 6 25837VSCREW 6
25559RWASHER 6 25839VSCREW 6
25559VSCREW 6 25840SILENT BLOC 6
25561TENSION RELEASER 6 25847ELBOW 6
25561VSCREW 6
25562CARPET GUIDE 6
25562RWASHER 6
25562VSCREW 6
25563BASE 6
25563VSCREW 6
25575ALABEL 6
25590KNIFE 6
25590VSCREW 6
25624BELT GUARD 6
25624RWASHER 6
25624VSCREW 6
25625LINKING PART 6
25654KPLUG 6
25654VLSCREW 6
25760TENSION POST 6
25760ENUT 6
25768ROLLER 6
25769BEARING 6
25770RWASHER 6
25770VSCREW 6
11/04/2005

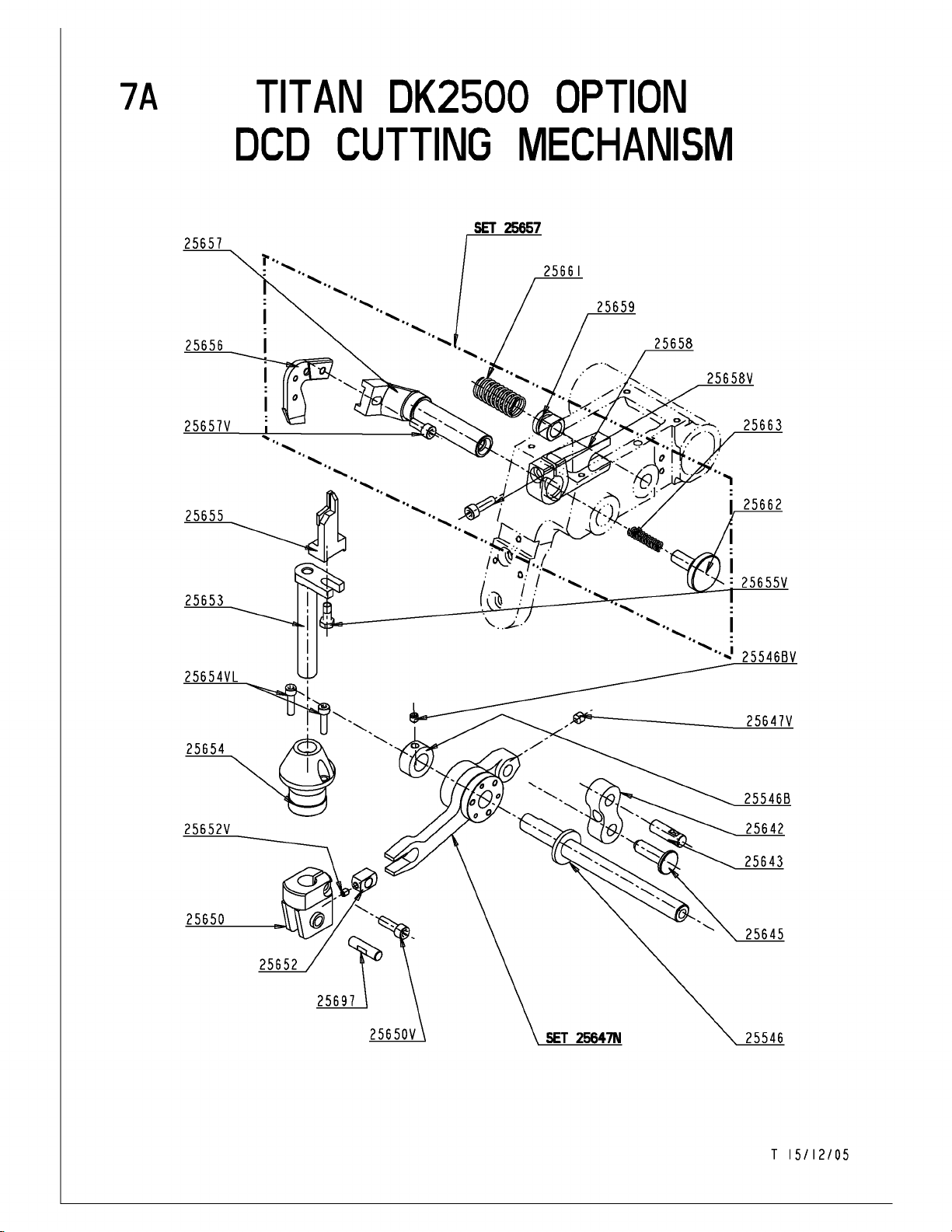

Page 15
7 A
TIT
AN
DK25OO
OPTION
25657
25656
25657V
25655
25653
DCD
t•
.
.
.....
......
··, .
CUTTING
MECHANISM
SET
25657
.....
··, .
.....
......
.....
..
\...._j
...
25661
.....
··,
..
....
25658V
..
.....
.
··.J
25663
25662
25546BV
25654
25652V
25650
25647V
25645
25652
25546
T 15/12/05
Page 16
TITAN DK 2500
DCD CUTTING MECHANISM
Code NrDescription Page
SET 25657UPPER KNIFE COMPLETE 7
25656UPPER KNIFE 7
25657UPPER KNIFE HOLDER 7
25657VSCREW 7
25658POSITION LEVER 7
25658VSCREW 7
25659SLIDE BLOCK 7
25661FEED SPRING 7
25662SCREW 7
25663SPRING 7
SET 25647NLOWER KNIFE LEVER COMPLETE 7
25546ECCENTRIC SHAFT 7
25546B COLLAR 7
25546BVSCREW 7
25642DRIVING LINK 7
25643LOWER SHAFT 7
25645STUD 7
25647VSCREW 7
25650SLIDE BLOCK GUIDE 7
25650VSCREW 7
25652SLIDE BLOCK 7
25652VSCREW 7
25653LOWER KNIFE SHAFT 7
25654LOWER KNIFE BUSHING 7
25654VLSCREW 7
25655LOWER KNIFE 7
25655VSCREW 7
25697LINK PIN 7
7
15/12/2005
Page 17

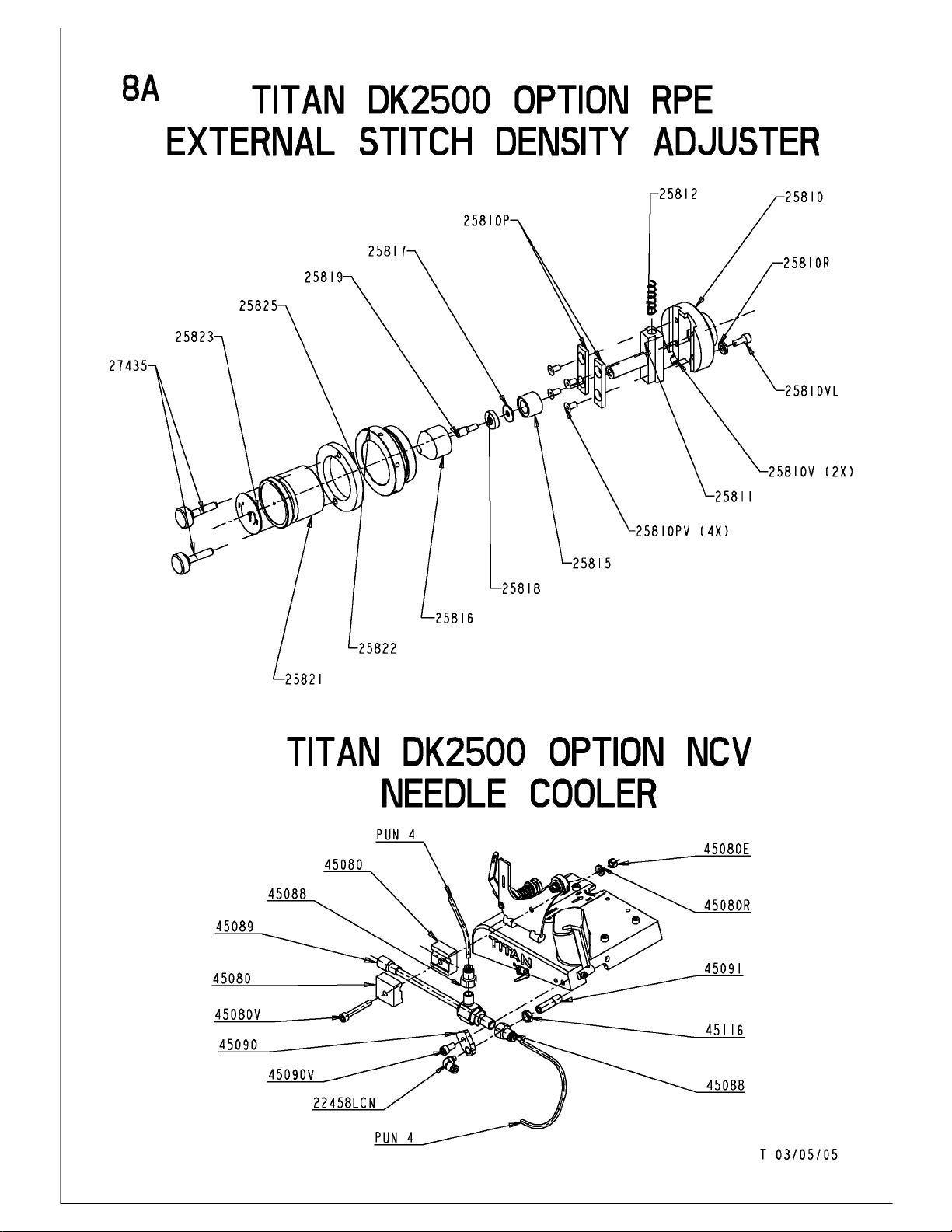

BA
TIT
AN
DK25OO
OPTION
RPE
27435
EXTERNAL
STITCH
DENSITY
ADJUSTER
25812 25810
25810R
25810VL
45089
45080
45080V
45090
TIT
45088
4 5 o 9 o
AN
45080
~-
v~
~
DK25OO
NEEDLE
PUN
4
fl'
-
PUN
4
OPTION
COOLER
NCV
45091
451
16
45088
T 03/05/05
Page 18
TITAN DK 2500
RPE-EXTERNAL STITCH DENSITY ADJUSTER
NCV- NEEDLE COOLER
RPE
Code NrDescription Page
25810SCREW 8
25810P PLATE 8
25810PVSCREW 8
25810RWASHER 8
25810VSCREW 8
25810VLSCREW 8
25811STITCH LENGTH GUIDE 8
25812SPRING 8
25815BEARING 8
25816ROLLER 8
25817WASHER 8
25818BLOCK 8
25819SCREW 8
25821SCREW 8
25822NUT 8
25823STICKER STITCH ADJUSTER 8
25825NUT 8
27435SCREW 8
8
NCV
Code NrDescription Page
22458LCNCOUPLING 8
45080GRIP NEEDLE COOLER 8
45080ENUT 8
45080RWASHER 8
45080VSCREW 8
45088COUPLING 8
45089NEEDLE COOLER 8
45090PLATE 8
45090VSCREW 8
45091BLOWER 8
45116NUT 8
PUN 4TUBE 8
11/04/2005
Page 19
9A
TIT
AN
SET
DK2500
30566
30566
OPTION
TAPE
30560GR
GUIDE
SET
27839
TIT
AN
DK2500
25844D+S
OPTION
MACHINEHOLDER
T 22/12/04
Page 20
TITAN DK 2500
SET 30566 TAPE BINDER
MACHINEHOLDER
TAPE GUIDE
Code NrDescription Page
SET 30566TAPE GUIDE COMPLETE 9
30560GRCHAINE GUIDE 9
30566TAPE GUIDE 9
30566RWASHER 9
30566VSCREW 9
SET 27839TAPE HOLDER 9
MACHINE HOLDER
Code NrDescription Page
DK2500SEWING HEAD 9
25844SMECHANIC WORKSTAND 9
25844DMACHINE HOLDER BUSHING DIA 45 MM 9
25844DSMACHINE HOLDER BUSHING DIA 28 MM 9
9
10/01/2005
Page 21
10A
TIT
AN
DK25OO
OPTION
25319
25320
~-
25322V
25322
25321
25315A
25326V
FH
OIL
FILTERING
SET
-
SYSTEM
25839
25917A-F2
25315A
25308
25307
25315A
25324
25318V
25326R
25326E
T 22/12/04
Page 22
TITAN DK 2500
OIL FILTER OPTION
Code NrDescription Page
25301CONNECTION 10
25303ACOUPLING 10
25307JOINT 10
25308VALVE 10
25315CONNECTION 10
25315ACONNECTION 10
25318SUPPORT 10
25318VSCREW 10
25319JOINT 10
25320SILENCER 10
25321REDUCTION 10
25322RING 10
25322VSCREW 10
25323FILTER BASE 10
25324FILTER 10
25325PUMP 10
25326ELECTRICAL MOTOR 10
25326ENUT 10
25326RWASHER 10
25326VSCREW 10
25330FILTER CONTROLLER 10
25917A-F2TRANSPARENCE PIPE 10
SET 25839COVER COMPLETE 10
10
10/01/2005
Page 23
25417V
SET
~
25417
SENSORS
i
.. -..
-:
: I
-~~
.
-~-----l
i
----
: 1-
----:-----
I
: I
L---··-··
- :
-t,;,I
I
----
i
:
2541
IE
-
-
PUN
4
25407
-
-----
-----
-----
--....,~~
------
254offi-
-----
25416A
------
.
....,
25916A
2
541
I
25412
25400VL
25406V
)>
27382
25423VL
25425V
25423R
25423[
PUN
25422
25423
25425
25401
4
25410V
25410
DK
DK
2500
2500
25405V
TIT
CCA-
CCA
AN
DK2500
CHAIN
CHAIN
OPTION
CUTTING
CUTTING
WITHOUT
WITH
25402
25403
25400V
25400
25406
SENSORS
SENSORS
T 06/04/2005
Page 24
TITAN DK2500
r
CCA CHAIN CUTTING
11
Code N
CCA- CHAIN CUTTING 11
25400CHAINCUTTER BASE 11
25400V SCREW 11
25400VLSCREW 11
25401SUPPORT CHAIN-CUTER 11
25401GPIN 11
25401RWASHER 11
25401VSCREW 11
25401VLSCREW 11
25402SHAFT 11
25403SHAFT 11
25404PROTECTION PLATE 11
25405VSCREW 11
25406LOWER KNIFE 11
25406VSCREW 11
25407UPPER KNIFE HOLDER 11
25408WASHER 11
25409SHAFT 11
25410CONNECTING LINK 11
25410RWASHER 11
25410VSCREW 11
25411PNEUMATIC CYLINDER 11
25411ENUT 11
25412CYLINDER SUPPORT 11
25416ACLOSING PLATE 11
25916AELBOW 11
PUN 4TUBE 11
SET 25405 UPPER KNIFE 11
Description Page
SENSORS
SET 25417SENSOR 11
25416CLOSING PLATE 11
25417VSCREW 11
25422SENSOR BASE 11
25423SUPPORT SENSOR 11
25423ENUT 11
25423RWASHER 11
25423VLSCREW 11
25425PHOTOELECTR. MODULUS 11
25425ENUT 11
25425VSCREW 11
27382VALVE FOR AIR FLOW LIMITATION 11
PUN 4TUBE 11
06/04/2005
Page 25
-------
TIT
AN
PNEUMATIC
FOOTLIFT + TENSION
DK25OO
OPTION
CP
OPENER
27373
/
.,,.-
25910A+D
25860
25861
PUN
4
25859
25861
25862
25858+B
25927A
PUN
4
SET
25906A
25915A
25911AJ
2591
I A
25911AB
25926A
25930A
25932A
-
~
)>
SET
TENSION
25837
OPENER
/3+
TC
SET
25760
27373A
----------
SET
25837/3
25858V
-
.......
25930AE
25928A
-,,
"
T 06/01/2005
Page 26
TITAN DK2500
r
CP PNEUM.LIFT+TENS. OPENER
12
Code N
PNEUMATIC FOOTLIFT
22458LCNPNEUMATIC LINK 12
22458YY PIPE-CONNECTION 12
25858+BHOUSING AND RING 12
25858VSCREW 12
25859PISTON 12
25860BUSHING 12
25861O-RING 12
25862SPRING 12
SET 25906ACOVER FOR CYLINDER + SCREW 12
25910A+DCYLINDER AND BUSHING 12
25911A PISTON 12
25911ABSPRING 12
25911AJO-RING 12
25915AGASKET 12
25926ASHOCK-BREAKER 12
25927ASHAFT 12
25928AROLLER SHAFT 12
25930A PIN 12
25930AENUT 12
25932ANEEDLE CAGE 12
27373CONNECTION 12
PUN 4TUBE 12
TENSION OPENER = SET 25837/3+TC
SET 25760 TENSION LOWER LOOPER COMPLETE 12
SET 25765 THREAD GUIDE PLATE COMPLETE 12
SET 25837/3 TENSION HOLDER ASSEMBLY 12
SET 25858/SP TENSION OPENER (W/O POTENCE) 12
22458LCNPNEUMATIC LINK 12
25760TENSION POST 12
25760ENUT 12
25760RWASHER 12
25761TENSION DISC 12
25763TENSION SPRING (0,6 mm) 12
25764TENSION REGULATING NUT 12
25858VSCREW 12
27373ACOUPLING 12
PUN 4TUBE 12
Description Page
10/01/2005
Page 27
13A
TIT
AN
DK
2500
OPTION
CP-DAC
PUN
4
~
25909AV
25909AR
PUN
4
45467
35474
25907AB
25906A
25902AV
25574
25904A
PNEUMATIC
~
FOOTLIFT
27373
4----------=--'---=--'---=-
25907
25909A
35474
45466
45467
PUN
25915A
25911AJ
A
4
25734
25734V
25928A
25901A+D
25918AB/8
25903A
22222B
25902A
22458LCN
25930A
25905AV
25919A
25729
Z40239
T 06/01/2005
Page 28
TITAN DK2500
r
CP-DAC PNEUM. FOOTLIFT
13
Code N
PUN 4TUBE 13
22222BO-RING 13
22458LCNPNEUMATIC LINK 13
25574BEARING 13
25729SHAFT 13
25734THRUST COLLAR 13
25734VSCREW 13
25901A+DCYLINDER + BUSHING FOR DAC 13
25902ABOTTEM PLATE FOR DAC 13
25902AVSCREW 13
25903APISTON 13
25904ABUSHING 13
25905A BLOCK 13
25905AVSCREW 13
25906ACOVER FOR CYLINDER 13
25907A PRESSURE REDUCTION 13
25907ABMANOMETER 13
25908APNEUMATIC VALVE 13
25909ASUPPORT MANO-RELEASER 13
25909ARWASHER 13
25909AVSCREW 13
25911AJO-RING 13
25915AGASKET 13
25916AELBOW 13
25918AB/8T-CONNECTION 13
25919ASILENCER 13
25928AROLLER SHAFT 13
25930APIN 13
25930AENUT 13
25932ANEEDLE CAGE 13
27373CONNECTION 13
35474LINK 13
45466VALVE 13
45467MULT. DISTRIBUTOR 13
Z40239CONNECTION 13
Description Page
10/01/2005
Page 29
14A
TIT
AN
DK
2600
PULLER
DK
DK
2600CV
2600CV---
PNEUMATIC
Z40239
26051V
26052
26053
25916AB
25573
26051V
26051
26051
PULLER
26050
26050V
25576
26050
26056V
25576V
26056
26057
25576
25576V
25734V
25734
26042
26041R
26060V
26060
25133
26041V
26041L
26042
25133V
26033V
26062
26023
27442
26038
26027VL
26020VL
26021VL
26021
26043A
26023V
26023
27324
26071
26020V
25722[
25722
26070V
26070
26010
25620B
T06/0l/2005
Page 30
TITAN DK2500
14
DK2600 PULLER + CV
Code NrDescription Page Code NrDescription Page
PULLER DK2600
25133PRESSER FOOT LEVER 14 26061VSCREW 14
25133VSCREW 14 26061VLSCREW 14
25573BUSHING 14 26062LOWER FEED DOG (new model) 14
25575REGULATING SCREW 14 26070LEVER 14
25576REGULATING SCREW HOLDER 14 26070VSCREW 14
25576VSCREW 14 26071STUD 14
25577FOOT LIFTER SPRING 14 27324WASHER 14
25620BSEAL-RING 14 27324VSCREW 14
25722WASHER 14 27442SHAFT 14
25722ENUT 14 SET 26017LEVER WITH BEARINGS 14
25734THRUST COLLAR 14 PNEUM PULLER DK2600cv
25734VSCREW 14 25575REGULATING SCREW 14
25916ABBLIND PLUG 14 25576REGULATING SCREW HOLDER 14
26010BIG SHAFT 14 25576VSCREW 14
26011BUSHING 14 26050FRAME FOR PISTON 14
26012BEARING 14 26050VSCREW 14
26019PIN 14 26051COVER 14
26020LEVER 14 26051VSCREW 14
26020VSCREW 14 26052O-RING 14
26021LEVER 14 26053O-RING 14
26021VSCREW 14 26054PISTON 14
26021VLSCREW 14 26055O-RING 14
26022WHEEL 14 26056LEVER 14
26023WASHER 14 26056VSCREW 14
26023VSCREW 14 26057PIN 14
26025LOWER SHAFT 14 26057ENUT 14
26026UPPER SHAFT 14 26057RWASHER 14
26027FRAME 14 Z40239CONNECTION 14
26027VSCREW 14
26027VLSCREW 14
26028BEARING 14
26029BUSHING 14
26030BEARING 14
26031GEAR COVER 14
26031VSCREW 14
26032PIN 14
26033FIXATION SUPPORT 14
26033VLSCREW 14
26034BLOCK 14
26036SNAP RING 14
26037BUSHING 14
26038CARDAN 14
26041LLEVER LEST 14
26041RWASHER 14
26041VSCREW 14
26042BEARING 14
26043SHAFT FOR LEVERS 14
26043ABLOCK COLLAR 14
26043AVSCREW 14
26044BUSHING 14
26045BEARING 14
26047BLOCK 14
26050FRAME FOR PISTON - LEFT 14
26050VSCREW 14
26051COVER 14
26051VSCREW 14
26060FEED WHEEL 14
26060VSCREW 14
26061BASE LOWER FEED DOG 14
10/01/2005
Page 31
15A
TIT
AN
DK
2600
DAC
26038
26042
26041R
26060V
26041V
26042
26041L
26060
PULLER
26027VL
DOUBLE
ACTION
CYLINDER
22458LCN
26056V
26056
26057E
26080
26045
26020VL
26021V
26023V
26023
26021
26019
27324V
27324
SET26017
26071
26033V
26061VL
26023
26062
27442
25909AV
25909AR
25909A
35474
PUN
4
45467
22458LCN
26027V
25907A
35474
45467
45466
27384
35280
35554B
26
26070V
26070
26010
0 I I
25916AN
25916A
35278
22458LCN
'
PUN
4
T 06/01/2005
Page 32
TITAN DK2500
PULLER DAC
Code NrDescription Page Code NrDescription Page
22109CO-RING 15 26057PIN 15
22458LCNPNEUMATIC LINK 15 26057ENUT 15
25620BSEAL RING 15 26057RWASHER 15
25722WASHER 15 26060FEED WHEEL 15
25722ENUT 15 26060VSCREW 15
25904ABUSHING 15 26061BASE LOWER FEED DOG 15
25907APRESSURE REDUCTION 15 26061VSCREW 15
25907ABMANOMETER 15 26061VLSCREW 15
25909ASUPPORT MANO-RELEASER 15 26062LOWER FEED DOG (new mod) 15
25909ARWASHER 15 26070LEVER 15
25909AVSCREW 15 26070VSCREW 15
25916AELBOW 15 26071STUD 15
25916ABBLINDPLUG 15 26080PISTON FRAME 15
25916ANBLINDPLUG 15 26080VSCREW 15
25919ASILENCER 15 26081BLOCK LIFTER 15
26010BIG SHAFT 15 26081VSCREW 15
26011BUSHING 15 26082CLOSING PLATE 15
26012BEARING 15 26082VSCREW 15
26019PIN 15 26083PISTON 15
26020LEVER 15 27324WASHER 15
26020V SCREW 15 27324VSCREW 15
26020VLSCREW 15 27384MOUNTING PLATE 15
26021LEVER 15 27442SHAFT 15
26021VSCREW 15 35277SOLENOID 2 WAYS 15
26022WHEEL 15 35278PLATE D'OBT. 15
26023WASHER 15 35280SILENCER 15
26023VSCREW 15 35474LINK 15
26025LOWER SHAFT 15 35493REDUCTION 15
26026UPPER SHAFT 15 35494PNEUMATIC VALVE 15
26027FRAME 15 35554BBLOCK 15
26027VSCREW 15 35554VSCREW 15
26027VLSCREW 15 45466VALVE 15
26028BEARING 15 45467MULT. DISTRIBUTOR 15
26029BUSHING 15 PUN 4TUBE 15
26030BEARING 15 SET 26017LEVER WITH BEARINGS 15
26031GEAR COVER 15
26031VSCREW 15
26032PIN 15
26033FIXATION SUPPORT 15
26033VSCREW 15
26033VLSCREW 15
26034BLOCK 15
26036SNAP RING 15
26037BUSHING 15
26038CARDAN 15
26041LLEVER LEFT 15
26041RLEVER 15
26041VSCREW 15
26042BEARING 15
26043SHAFT FOR LEVERS 15
26043ABLOCK COLLAR 15
26043AVSCREW 15
26044BUSHING 15
26045BEARING 15
26047BLOCK 15
26051COVER 15
26051VSCREW 15
26052O-RING 15
26053O-RING 15
26055O-RING 15
26056LEVER 15
26056VSCREW 15
15
10/01/2005
Page 33
TIT
AN
TA-TAP
/DK2500
0)
-
)>
25876
25878V
25876P
25878
TEFLON
PLATE
TA/DK2500
DK
2600
PULLER
TAP/DK2500
27465VL
27465
27465V
T 07/01/2005
Page 34
TITAN DK2500
TA-TAP TEFLON PLATE
Code NrDescription Page
25876TEFLON TABLE 16
25878VSCREW 16
25876PTEFLON TABLE FOR PULLER 16
25878ROD 16
27465VLSCREW 16
27465SUPPORT 16
27465VSCREW 16
16
10/01/2005
Page 35
17A
TIT
AN
DK
2500
OPTION
35267
25880E
PBN
(3Xl
YARN
STAND
35266B
25897V
25897
25887
25880R ( 3X
l
25880
25887R
25887E
'
I
'
I
'
I
'
I
'
I
'
22480B
(3Xl
~
T 02/02/2006
Page 36
TITAN DK2500
r
PBN YARNSTAND
17
Code N
22480BRUBBER STOP 17
25880BASE 17
25880ENUT 17
25880RWASHER 17
25887SHAFT 17
25887ENUT 17
25887RWASHER 17
25897BASE SHAFT 17
25897VSCREW 17
35266BSPOOL HOLDER BASE 17
35267SPOOL HOLDER 17
Description Page
08/02/2005
Page 37
25368EES
2536
7EES
45150
25365
45149
TIT
U.K.M.
SET
AN
CUTTING
25362
DK25OO
OPTION
MECHANISM
Z20441
25363V
25363
(X)
-
)>
25653
25654VL
25654
25652
25652V
25650
25697
SET
DK-2500/UKM
'··-··-··-··-··-··-··-
'·
SET
25259
25370
25360
25621V
T 14/12/05
Page 38
TITAN DK2500
r
U.K.M. CUTTING MECH.
18
Code N
25546 ECCENTRIC SHAFT 18
25546BV SCREW 18
25642 LOWER KNIFE DRIVING LINK 18
25643 LOWER SHAFT 18
25645 STUD 18
25647V SCREW 18
25650 SLIDE BLOCK GUIDE 18
25650V SCREW 18
25652 SLIDE BLOCK 18
25652V SCREW 18
25653 LOWER KNIFE SHAFT 18
25654 LOWER KNIFE BUSHING 18
25654VL SCREW 18
25655V SCREW 18
25697 LINK PIN 18
SET 25647N LOWER KNIFE LEVER COMPLETE 18
SET DK-2500/UKM TRANSFORMATION DCD ==>UKM 18
25360 PULLEY 18
25363 POSITIONING LEVER 18
25363V SCREW 18
25363VL SCREW 18
25365 FEED SPRING 18
25367EES LOWER KNIFE 18
25368EES UPPER KNIFE 18
25369 THRUST COLLAR 18
25370 BELT GUARD 18
25621V SCREW 18
25640B WASHER 18
25657V SCREW 18
25734V SCREW 18
45149 THRUST COLLAR 18
45149V SCREW 18
45150 UPPER KNIFE HOLDER 18
SET 25259 LEVER + BEARING 18
SET 25362 FRAME PRESSURE FOOT 18
Z20441 STUD 18
Description PAGE
12/15/2005
Page 39
TITAN DK 2500
INDEX
Code NrDescriptionPage
22109CO-RING15
22222BO-RING13
22458LCNCOUPLING8
22458LCNPNEUMATIC LINK12
22458LCNPNEUMATIC LINK 12
22458LCNPNEUMATIC LINK13
22458LCNPNEUMATIC LINK15
22458YY PIPE-CONNECTION12
22480BRUBBER STOP17
25133PRESSER FOOT LEVER14
25133VSCREW14
25301CONNECTION10
25303ACOUPLING10
25307JOINT10
25308VALVE10
25315CONNECTION10
25315ACONNECTION10
25318SUPPORT10
25318VSCREW10
25319JOINT10
25320SILENCER10
25321REDUCTION10
25322RING10
25322VSCREW10
25323FILTER BASE10
25324FILTER 10
25325PUMP10
25326ELECTRICAL MOTOR10
25326ENUT10
25326RWASHER10
25326VSCREW10
25330FILTER CONTROLLER10
25360PULLEY18
25363POSITIONING LEVER 18
25363VSCREW18
25363VLSCREW18
25365FEED SPRING18
25367EESLOWER KNIFE18
25368EESUPPER KNIFE 18
25370BELT GUARD18
25400CHAINCUTTER BASE11
25400V SCREW11
25400VLSCREW11
25401SUPPORT CHAIN-CUTER11
25401GPIN11
25401RWASHER11
4/05/2007
Page 40
TITAN DK 2500
INDEX
Code NrDescriptionPage
25401VSCREW11
25401VLSCREW11
25402SHAFT11
25403SHAFT11
25404PROTECTION PLATE 11
25405VSCREW11
25406LOWER KNIFE11
25406VSCREW11
25407UPPER KNIFE HOLDER 11
25408WASHER11
25409SHAFT11
25410CONNECTING LINK11
25410RWASHER11
25410VSCREW11
25411PNEUMATIC CYLINDER 11
25411ENUT11
25412CYLINDER SUPPORT11
25416CLOSING PLATE11
25416ACLOSING PLATE11
25417VSCREW11
25422SENSOR BASE11
25423SUPPORT SENSOR11
25423ENUT11
25423RWASHER11
25423VLSCREW11
25425PHOTOELECTR. MODULUS11
25425ENUT11
25425VSCREW11
25511A/SAROD5
25511BSTUD5
25511VCONNECTING ROD5
25511VLSCREW5
25512BALL JOINT GUIDE FORK5
25516WASHER4
25518DRIVING LEVER4
25518V SCREW4
25518VLSCREW4
25520VSCREW4
25521NUT4
25522BALL JOINT GUIDE FORK4
25523LOWER LOOPER4
25525VCSCREW4
25525VPSCREW4
25545V SCREW2
25545VCSCREW2
25546ECCENTRIC SHAFT7
4/05/2007
Page 41
TITAN DK 2500
INDEX
Code NrDescriptionPage
25546ECCENTRIC SHAFT18
25546B COLLAR7
25546BVSCREW7
25546BVSCREW18
25546KECCENTRIC SHAFT2
25547BUSHING2
25548BEARING2
25549BUSHING2
25549BSEAL2
25549JO-RING6
25549VSCREW2
25551CONNECTION LINK2
25552LINK SHAFT2
25553CONNECTION STUD2
25553VSCREW2
25554GUIDE ROLLER2
25555ANEEDLE BAR GUIDE A2
25555AVSCREW2
25555BNEEDLE BAR GUIDE B2
25556NEEDLE CLAMP 2
25556BVSCREW2
25556VSCREW2
25556VCSCREW2
25556VLSCREW2
25557BSEAL2
25557VSCREW2
25558NEEDLE PLATE6
25558ASFINGER6
25558AVSCREW6
25558BVSCREW2
25558VSCREW6
25559-230NEEDLE GUIDE6
25559RWASHER6
25559VSCREW6
25560CHAIN GUIDE1
25560VSCREW1
25561TENSION RELEASER6
25561VSCREW6
25562CARPET GUIDE6
25562RWASHER6
25562VSCREW6
25563BASE6
25563VSCREW6
25571FRAME1
25571VSCREW1
25572LEVER SHAFT1
4/05/2007
Page 42
TITAN DK 2500
INDEX
Code NrDescriptionPage
25573BUSHING1
25573BUSHING14
25574BEARING1
25574BEARING13
25575REGULATING SCREW1
25575REGULATING SCREW 14
25575REGULATING SCREW14
25575ALABEL6
25576REGULATING SCREW HOLDER1
25576REGULATING SCREW HOLDER14
25576REGULATING SCREW HOLDER14
25576VSCREW1
25576VSCREW14
25576VSCREW14
25577FOOT LIFTER SPRING1
25577FOOT LIFTER SPRING 14
25578RISE LEVER1
25578VSCREW1
25578VLSCREW1
25579ROLLER1
25580ROLLER STUD1
25581PRESSER FOOT LEVER1
25581CRETURN SPRING1
25582LEVER 1
25582VSCREW1
25583PRESSURE FOOT1
25583VSCREW1
25584SPRING1
25585HOLDER FOR PARALLELISM1
25586CONNECTING ROD1
25586VSCREW1
25587FOLIUM1
25590KNIFE6
25590VSCREW6
25601BEARING5
25601BEARING5
25601ABEARING5
25602CRANK5
25602VSCREW5
25603PIN5
25604BEARING5
25605CRANK5
25605VLSCREW5
25607CRANK5
25607VSCREW5
25608PIN5
4/05/2007
Page 43
TITAN DK 2500
INDEX
Code NrDescriptionPage
25608PIN5
25610CRANK5
25610VSCREW5
25612CRANK5
25612V SCREW5
25612VLSCREW5
25615CRANK5
25615VSCREW5
25617RING5
25620BEARING BUSHING5
25620/ORO RING5
25620BSEAL-RING 14
25620BSEAL RING15
25620BSEAL-RING3
25620BSEAL-RING5
25620VSCREW5
25621FLYWHEEL5
25621VSCREW5
25621VSCREW18
25624BELT GUARD6
25624RWASHER6
25624VSCREW6
25625LINKING PART6
25640BEARING5
25640BWASHER18
25641* LOWER KNIFE DRIVING LINK 5
25641VSCREW5
25642DRIVING LINK7
25642LOWER KNIFE DRIVING LINK18
25643LOWER SHAFT7
25643LOWER SHAFT18
25645STUD7
25645STUD18
25647VSCREW7
25647VSCREW18
25650SLIDE BLOCK GUIDE7
25650SLIDE BLOCK GUIDE18
25650VSCREW7
25650VSCREW18
25652SLIDE BLOCK7
25652SLIDE BLOCK 18
25652VSCREW7
25652VSCREW18
25653LOWER KNIFE SHAFT7
25653LOWER KNIFE SHAFT18
25654LOWER KNIFE BUSHING7
4/05/2007
Page 44
TITAN DK 2500
INDEX
Code NrDescriptionPage
25654LOWER KNIFE BUSHING 18
25654KPLUG6
25654VLSCREW6
25654VLSCREW7
25654VLSCREW18
25655LOWER KNIFE7
25655VSCREW7
25655VSCREW18
25656UPPER KNIFE7
25657UPPER KNIFE HOLDER7
25657VSCREW7
25657VSCREW18
25658POSITION LEVER7
25658VSCREW7
25659SLIDE BLOCK7
25660SHAFT1
25660VSCREW1
25661FEED SPRING7
25662SCREW7
25663SPRING7
25681SMALL LEVER4
25681VSCREW4
25681VLSCREW4
25682SHAFT4
25685VSCREW4
25690BUSHING4
25690VSCREW4
25695BIG LEVER4
25695VSCREW4
25695VLSCREW4
25696CONNECTION4
25697LINK PIN4
25697LINK PIN7
25697LINK PIN18
25698SMALL LEVER4
25698V SCREW4
25698VLSCREW4
25699PIN3
25700UPPER LOOPER4
25700V SCREW4
25700VLSCREW4
25703WASHER4
25703RSPRING4
25704THRUST PLATE4
25704VSCREW4
25705UPPER LOOPER4
4/05/2007
Page 45
TITAN DK 2500
INDEX
Code NrDescriptionPage
25706OIL WINDOW4
25706ASTICKER4
25706JGASKET4
25706VSCREW4
25720ECCENTRIC5
25720PPROTECTION5
25720RWASHER5
25720VSCREW5
25721FEED ACROSS REGULATOR5
25721VSCREW5
25722WASHER14
25722WASHER15
25722WASHER5
25722ENUT14
25722ENUT15
25722ENUT5
25724BEARING BUSHING5
25725BEARING3
25726FEED DRIVING ROD3
25728FEED DRIVING LEVER3
25728VSCREW3
25729SHAFT13
25730BUSHING3
25730VSCREW3
25734THRUST COLLAR13
25734THRUST COLLAR 14
25734THRUST COLLAR3
25734VSCREW13
25734VSCREW14
25734VSCREW3
25734VSCREW18
25735LEVER3
25735VSCREW3
25736STUD3
25737BASE3
25737PPROTECTION3
25737VSCREW3
25739FEEDDOG SHAFT3
25742JO-RING3
25743VPSCREW3
25744FEEDDOG 3
25744VSCREW3
25760TENSION POST12
25760TENSION POST6
25760TENSION POST6
25760TENSION POST 6
4/05/2007
Page 46
TITAN DK 2500
INDEX
Code NrDescriptionPage
25760ENUT12
25760ENUT6
25760RWASHER12
25761TENSION DISC 12
25761TENSION DISC6
25761TENSION DISC6
25762TENSION SPRING 1,2 MM6
25763TENSION SPRING (0,6 mm)12
25763TENSION SPRING 0,6 MM6
25764TENSION REGULATING NUT 12
25764NUT6
25764NUT6
25768ROLLER6
25769BEARING6
25770RWASHER6
25770VSCREW6
25771ENUT6
25771RWASHER6
25772ROLLER HOLDER6
25773THREAD GUIDE 6
25782VLSCREW3
25787THREAD GUIDE HOLDER6
25787RWASHER6
25787STHREAD GUIDE HOLDER6
25787VSCREW6
25789BUSHING6
25790BLOCK SCREW6
25791THREAD GUIDE6
25793NUT6
25794PIN6
25794APIN6
25794RWASHER6
25799SCREW2
25800THREAD TAKE UP LEVER2
25800VSCREW2
25800VLSCREW2
25802THREAD GUIDE6
25803THREAD GUIDE SUPP. SHAFT6
25803VSCREW6
25804THREAD GUIDE HOLDER6
25804V SCREW6
25804VLSCREW6
25810SCREW8
25810P PLATE8
25810PVSCREW8
25810RWASHER8
4/05/2007
Page 47
TITAN DK 2500
INDEX
Code NrDescriptionPage
25810VSCREW8
25810VLSCREW8
25811STITCH LENGTH GUIDE8
25812SPRING8
25815BEARING8
25816ROLLER8
25817WASHER8
25818BLOCK8
25819SCREW8
25821SCREW8
25822NUT8
25823STICKER STITCH ADJUSTER8
25825NUT8
25833PROTECTIVE PLATE 1
25833VSCREW1
25834PLUG4
25835COVER6
25835VSCREW6
25836VSCREW6
25837VSCREW6
25839COVER6
25839JMACHINE GASKET6
25840SILENT BLOC6
25844APLUG5
25844BSTICKER4
25844DMACHINE HOLDER BUSHING DIA 45 MM9
25844DSMACHINE HOLDER BUSHING DIA 28 MM9
25844SMECHANIC WORKSTAND9
25845PLUG3
25847 ELBOW6
25852PLUG4
25852AWASHER4
25852VSCREW4
25858+BHOUSING AND RING12
25858VSCREW12
25858VSCREW12
25859PISTON12
25860BUSHING12
25861O-RING12
25862SPRING12
25876TEFLON TABLE16
25876PTEFLON TABLE FOR PULLER16
25878ROD16
25878VSCREW16
25880BASE17
25880ENUT17
4/05/2007
Page 48
TITAN DK 2500
INDEX
Code NrDescriptionPage
25880RWASHER17
25887SHAFT17
25887ENUT17
25887RWASHER17
25897BASE SHAFT17
25897VSCREW17
25901A+DCYLINDER + BUSHING FOR DAC13
25902ABOTTEM PLATE FOR DAC13
25902AVSCREW13
25903APISTON13
25904ABUSHING13
25904ABUSHING15
25905A BLOCK13
25905AVSCREW13
25906ACOVER FOR CYLINDER13
25907APRESSURE REDUCTION15
25907A PRESSURE REDUCTION13
25907ABMANOMETER13
25907ABMANOMETER15
25908APNEUMATIC VALVE13
25909ASUPPORT MANO-RELEASER13
25909ASUPPORT MANO-RELEASER15
25909ARWASHER13
25909ARWASHER15
25909AVSCREW13
25909AVSCREW15
25910A+DCYLINDER AND BUSHING 12
25911A PISTON12
25911ABSPRING12
25911AJO-RING12
25911AJO-RING13
25915AGASKET12
25915AGASKET13
25916AELBOW11
25916AELBOW13
25916AELBOW15
25916ABBLIND PLUG14
25916ABBLINDPLUG15
25916ABBLINDPLUG6
25916ANBLINDPLUG15
25917A-F2TRANSPARENCE PIPE10
25918AB/8T-CONNECTION13
25919ASILENCER13
25919ASILENCER15
25926ASHOCK-BREAKER 12
25927ASHAFT12
4/05/2007
Page 49
TITAN DK 2500
INDEX
Code NrDescriptionPage
25928AROLLER SHAFT12
25928AROLLER SHAFT13
25930APIN13
25930A PIN12
25930AENUT12
25930AENUT13
25932ANEEDLE CAGE12
25932ANEEDLE CAGE13
26010BIG SHAFT14
26010BIG SHAFT15
26010SHAFT3
26011BUSHING14
26011BUSHING15
26011BUSHING3
26012BEARING14
26012BEARING15
26012BEARING3
26019PIN14
26019PIN15
26020LEVER14
26020LEVER15
26020VSCREW14
26020V SCREW15
26020VLSCREW15
26021LEVER14
26021LEVER15
26021VSCREW14
26021VSCREW15
26021VLSCREW14
26022WHEEL14
26022WHEEL15
26023WASHER14
26023WASHER15
26023VSCREW14
26023VSCREW15
26025LOWER SHAFT14
26025LOWER SHAFT15
26026UPPER SHAFT14
26026UPPER SHAFT15
26027FRAME14
26027FRAME15
26027VSCREW14
26027VSCREW15
26027VLSCREW14
26027VLSCREW15
26028BEARING14
4/05/2007
Page 50
TITAN DK 2500
INDEX
Code NrDescriptionPage
26028BEARING15
26029BUSHING14
26029BUSHING15
26030BEARING14
26030BEARING15
26031GEAR COVER14
26031GEAR COVER15
26031VSCREW14
26031VSCREW15
26032PIN14
26032PIN15
26033FIXATION SUPPORT14
26033FIXATION SUPPORT15
26033VSCREW15
26033VLSCREW14
26033VLSCREW15
26034BLOCK14
26034BLOCK15
26036SNAP RING14
26036SNAP RING15
26037BUSHING14
26037BUSHING15
26038CARDAN14
26038CARDAN15
26041LLEVER LEST14
26041LLEVER LEFT15
26041RWASHER14
26041RLEVER15
26041VSCREW14
26041VSCREW15
26042BEARING14
26042BEARING15
26043SHAFT FOR LEVERS14
26043SHAFT FOR LEVERS15
26043ABLOCK COLLAR14
26043ABLOCK COLLAR15
26043AVSCREW14
26043AVSCREW15
26044BUSHING14
26044BUSHING15
26045BEARING14
26045BEARING15
26047BLOCK14
26047BLOCK15
26050FRAME FOR PISTON - LEFT14
26050FRAME FOR PISTON 14
4/05/2007
Page 51
TITAN DK 2500
INDEX
Code NrDescriptionPage
26050VSCREW14
26051COVER14
26051COVER14
26051COVER15
26051VSCREW14
26051VSCREW14
26051VSCREW15
26052O-RING14
26052O-RING15
26053O-RING14
26053O-RING15
26054PISTON14
26055O-RING14
26055O-RING15
26056LEVER14
26056LEVER15
26056VSCREW14
26056VSCREW15
26057PIN14
26057PIN15
26057ENUT14
26057ENUT15
26057RWASHER14
26057RWASHER15
26060FEED WHEEL14
26060FEED WHEEL15
26060VSCREW14
26060VSCREW15
26061BASE LOWER FEED DOG 14
26061BASE LOWER FEED DOG15
26061VSCREW14
26061VSCREW15
26061VLSCREW14
26061VLSCREW15
26062LOWER FEED DOG (new model)14
26062LOWER FEED DOG (new mod)15
26070LEVER14
26070LEVER15
26070VSCREW14
26070VSCREW15
26071STUD14
26071STUD15
26080PISTON FRAME15
26080VSCREW15
26081BLOCK LIFTER15
26081VSCREW15
4/05/2007
Page 52
TITAN DK 2500
INDEX
Code NrDescriptionPage
26082CLOSING PLATE15
26082VSCREW15
26083PISTON 15
27324WASHER14
27324WASHER15
27324VSCREW14
27324VSCREW15
27373CONNECTION12
27373CONNECTION13
27373ACOUPLING12
27382VALVE FOR AIR FLOW LIMITATION11
27384MOUNTING PLATE15
27435SCREW8
27442SHAFT 14
27442SHAFT 15
27442PIN4
27465SUPPORT16
27465VSCREW16
27465VLSCREW16
30560GRCHAINE GUIDE9
30566TAPE GUIDE9
30566RWASHER9
30566VSCREW9
35266BSPOOL HOLDER BASE17
35267SPOOL HOLDER17
35277SOLENOID 2 WAYS 15
35278PLATE D'OBT. 15
35280SILENCER15
35474LINK13
35474LINK15
35493REDUCTION15
35494PNEUMATIC VALVE15
35554BBLOCK 15
35554VSCREW15
45080GRIP NEEDLE COOLER8
45080ENUT8
45080RWASHER8
45080VSCREW8
45088COUPLING8
45089NEEDLE COOLER8
45090PLATE8
45090VSCREW8
45091BLOWER8
45116NUT8
45116NUT5
45149THRUST COLLAR18
4/05/2007
Page 53
TITAN DK 2500
INDEX
Code NrDescriptionPage
45149VSCREW18
45150UPPER KNIFE HOLDER 18
45466VALVE13
45466VALVE15
45467MULT. DISTRIBUTOR13
45467MULT. DISTRIBUTOR 15
7713/230NEEDLE2
DK2500SEWING HEAD9
PUN 4TUBE8
PUN 4TUBE11
PUN 4TUBE11
PUN 4TUBE12
PUN 4TUBE12
PUN 4TUBE13
PUN 4TUBE15
SET 25259LEVER + BEARING18
SET 25362FRAME PRESSURE FOOT 18
SET 25405UPPER KNIFE11
SET 25417SENSOR11
SET 25506ROD WITH FORK5
SET 25509CONNECTING ROD5
SET 25511CONNECTING ROD COMPLETE5
SET 25511ACOMPLETE ROD5
SET 25520COMPLETE BALL JOINT4
SET 25525UNDER LOOPER GUIDE COMPL4
SET 25545NEEDLE BAR LEVER2
SET 25556NEEDLE CLAMP ASSEMBLY2
SET 25557TER+BNEEDLE BAR BUSHING2
SET 25620+RFLANGE COMPLETE5
SET 25641LOWER KNIFE DRIVING LINK COMPL5
SET 25647NLOWER KNIFE LEVER COMPLETE7
SET 25647NLOWER KNIFE LEVER COMPLETE18
SET 25657UPPER KNIFE COMPLETE7
SET 25682COMPLETE LOOPER SCHAFT4
SET 25685COMPLETE INTERMEDIARY ASSEMBLY4
SET 25743COMPLETE FEEDDOG SHAFT GUIDE3
SET 25760TENSION LOWER LOOPER COMPLETE12
SET 25760TENSION COMPLETE 6
SET 25760/1TENSION COMPLETE6
SET 25765THREAD GUIDE PLATE COMPLETE 12
SET 25765THREAD GUIDE6
SET 25765THREAD GUIDE6
SET 25765THREAD GUIDE PLATE COMPLETE 6
SET 25837/3TENSION HOLDER ASSEMBLY 12
SET 25837/3TENSION HOLDER ASSEMBLY 6
SET 25839COVER COMPLETE10
4/05/2007
Page 54
TITAN DK 2500
INDEX
Code NrDescriptionPage
SET 25839COVER COMPLETE6
SET 25853TENSION POST HOLDER COMPLETE6
SET 25858/SPTENSION OPENER (W/O POTENCE)12
SET 25906ACOVER FOR CYLINDER + SCREW12
SET 26017LEVER WITH BEARINGS 14
SET 26017LEVER WITH BEARINGS 15
SET 27839TAPE HOLDER9
SET 30566TAPE GUIDE COMPLETE9
SET DK-2500/UKMTRANSFORMATION DCD ==>UKM18
Z20441STUD18
Z40239CONNECTION13
Z40239CONNECTION14
4/05/2007
Page 55
-
=
,,..
....

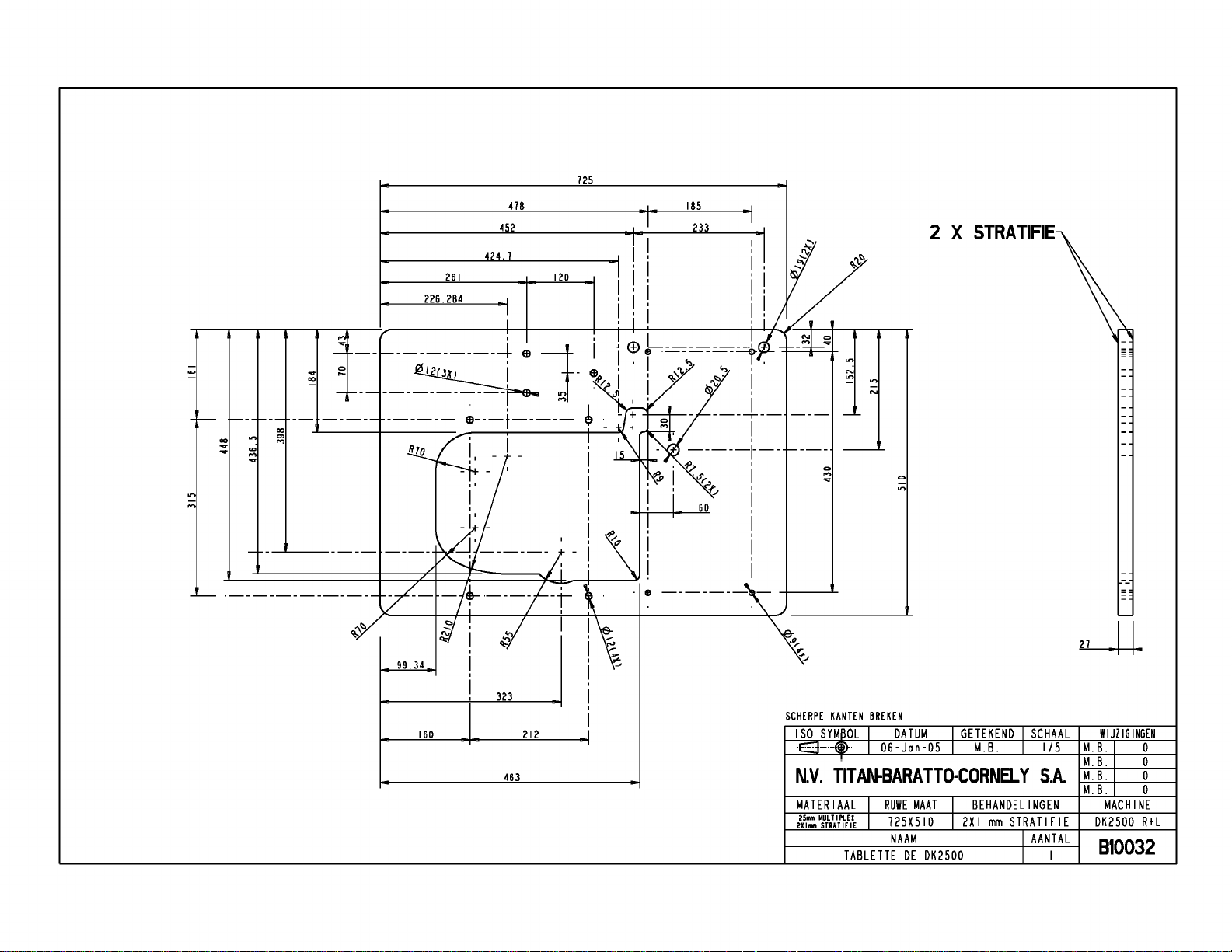

co
....
"'
424.
261
226.
284
----------+
---~
------
. , I
e---t-----
478
452
l
120
' '
e
11
~
725
-e.P/
e
I !
, I
I I ,
, i I
! ' i
185
233
60
2 X
STRATIFIE
,,..
,,..
"'
-
,,..
"'
0
....
('
~./
...
0
,,..
99.34
323
160
212
463
SCHERPE
KANTEN
N.V.
MATER
25mm
MULTIPLEX
2XIIMI
STRATIFIE
BREKEN
06-Jan-05
TITAN-BARATTO-CORNELY
IAAL
RUWE
725XSIO
NAAM
TABLETTE
DE
MAA
DK2500
M.B.
T
BEHANDELINGEN
2XI
mm
1/5
S.A.
STRATI
FIE
AANTAL
M.
M.
M.
M.
WIJZIGINGEN
B.
B.
B.
B.
0
0
0
0
MACH I NE
DK2500
R+L
B10032
Page 56

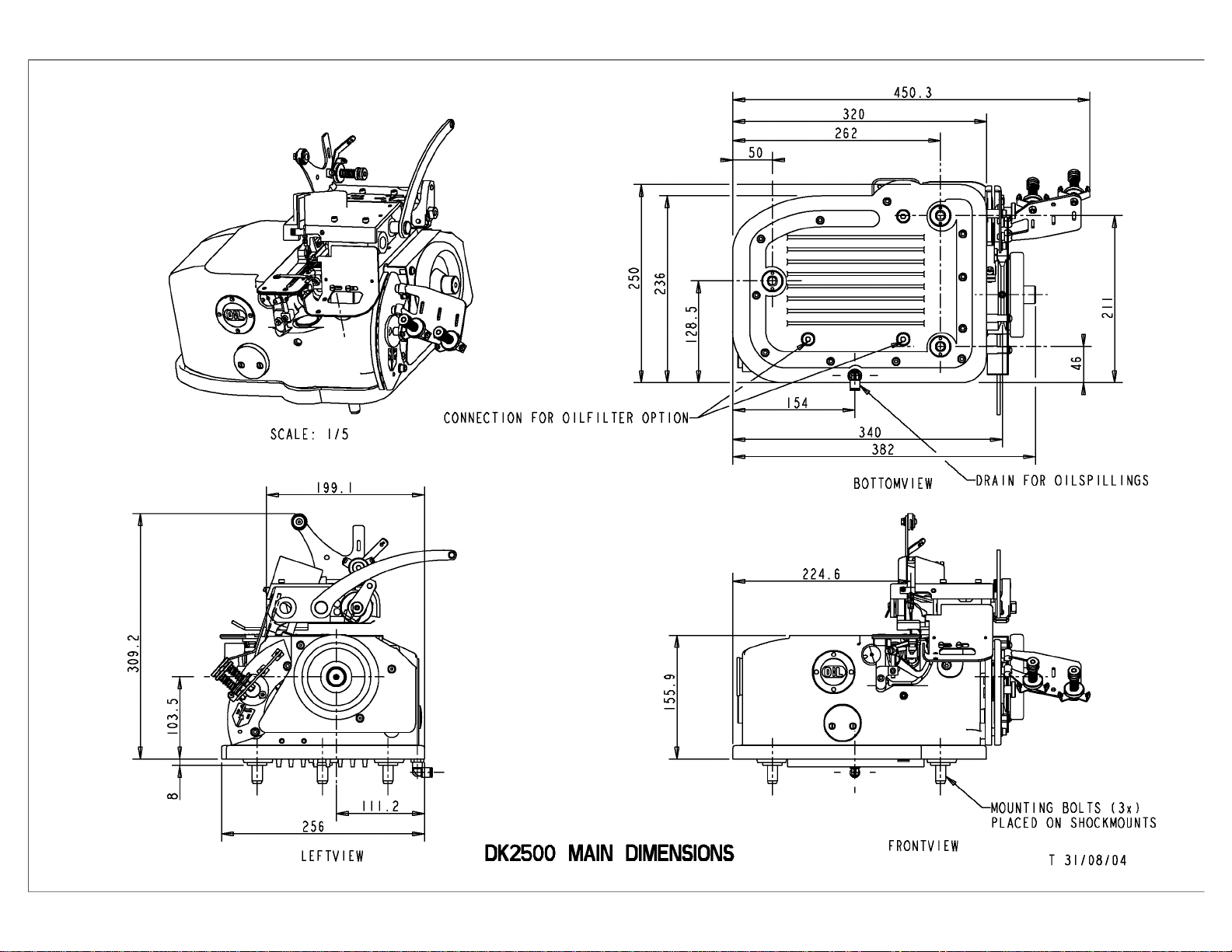

450.3
320
262
0
Lt")
c.o
"-'
M
"'
00
-
"'
"'
c.o
....
/
"'
er,
0
M
SCALE:
CONNECTION
1/5
FOR
OILFILTER
OPTIONfi-------'-"--'-----,~
340
382
199.
I
er,
Lt")
M
0
00
LEFTVIEW
DK2500
MAIN
DIMENSIONS
BOTTOMVIEW
FRONTVIEW
""--DRAIN
MOUNTING
PLACED
FOR
OILSPILLINGS
BOLTS
ON
SHOCKMOUNTS
T 31/08/04
(3xl
Loading...
