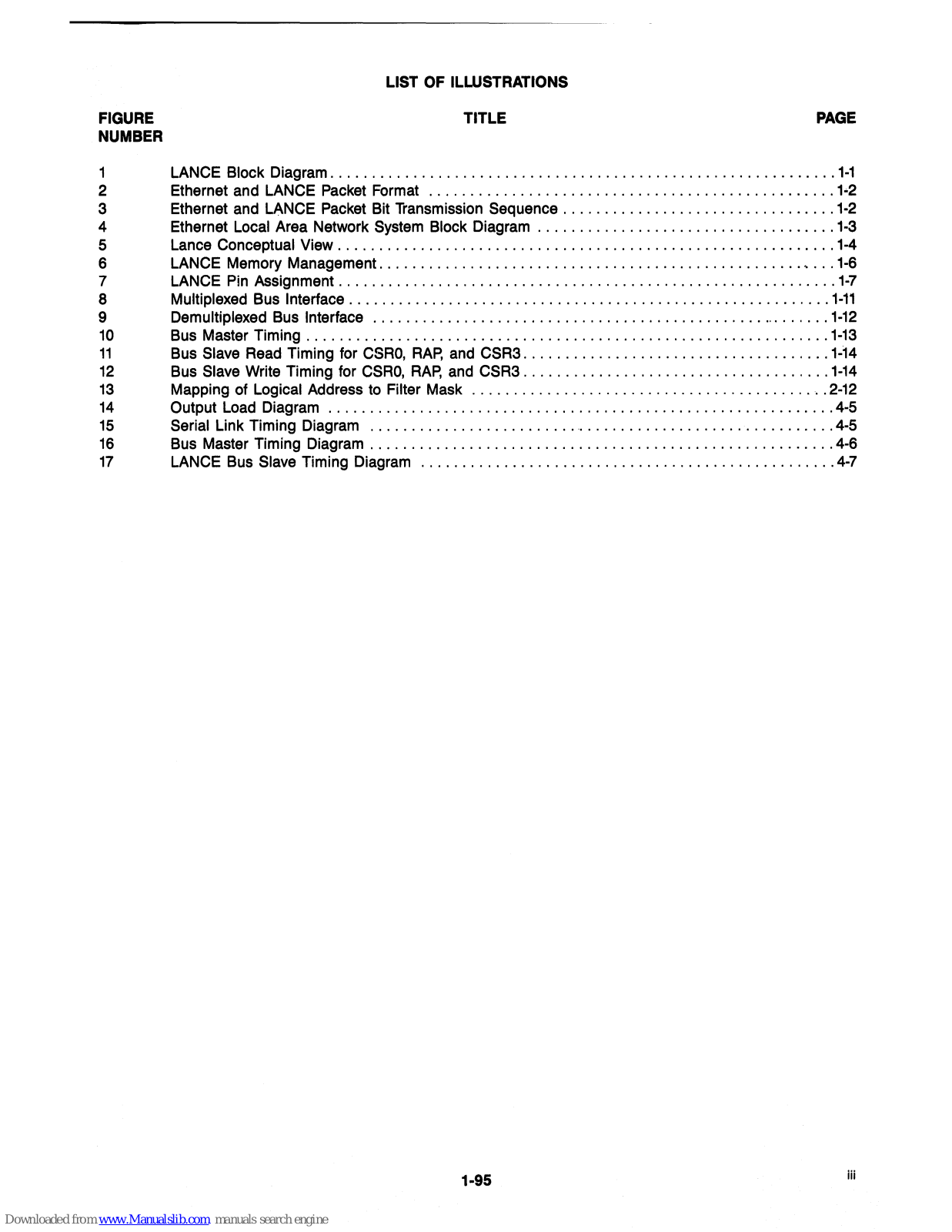

FIGURE
NUMBER
LIST
OF ILWSTRATIONS
TITLE
PAGE
1 LANCE Block Diagram
.............................................................
1-1
2 Ethernet and LANCE
Packet
Format
.................................................
1-2
3 Ethernet and LANCE Packet Bit Transmission Sequence
.................................
1-2
4 Ethernet Local Area Network System Block Diagram
....................................
1-3
5 Lance Conceptual View
............................................................
1-4
6 LANCE Memory Management
...................................................
,
...
1-6
7 LANCE
Pin
Assignment
............................................................
1-7
8 Multiplexed Bus Interface
..........................................................
1-11
9 Demultiplexed
Bus
Interface
........................................................
1-12
10
Bus Master Timing
...............................................................
1-13
11
Bus
Slave
Read
Timing for
CSRO,
RAp,
and
CSR3
.....................................
1-14
12
Bus
Slave Write Timing for
CSRO,
RAP,
and
CSR3
.....................................
1-14
13
Mapping of Logical Address
to
Filter Mask
...........................................
2-12
14
Output
Load
Diagram
.............................................................
4-5
15
Serial Link Timing Diagram
........................................................
4-5
16
Bus Master Timing Diagram
........................................................
4-6
17
LANCE
Bus
Slave Timing Diagram
..................................................
4-7
1-95
iii
Page 6
1-96
Page 7
1.0 INTRODUCTION
1.1
OVERVIEW
CHAPTER 1
GENERAL
DESCRIPTION
The MK68590 LANCE (Local Area Network Controller for Ethernet)
is
a 48-pin VLSI device designed
to
simplify greatly the interfacing of a microcomputer or a minicomputer to an Ethernet Local Area Net-
work. This chip is intended to operate
in
a local environment that includes a closely coupled memory
and microprocessor. The LANCE uses
scaled N-channel MOS technology and
is
compatible with several
microprocessors. A block diagram of the chip is shown
in
Figure
1.
LANCE
is
a
trademark
of
Mostek
Corporation.

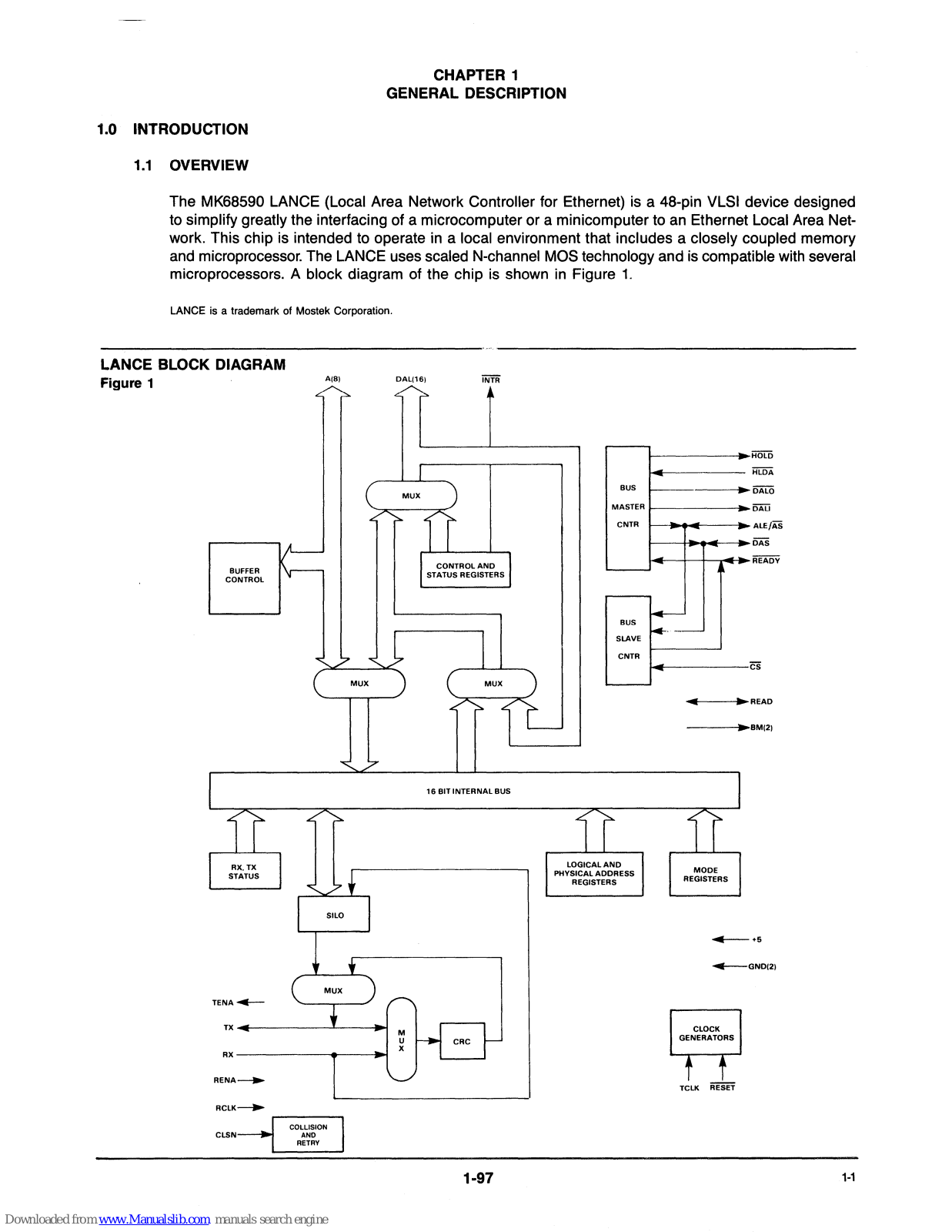

LANCE BLOCK DIAGRAM
Figure 1
BUFFER
CONTROL
TENA.-
A(B)
AX------------.---~~
CLSN
DAln6)
M
U
x
16
BIT INTERNAL BUS
1-97
f-----------~~H0I5
~---------
HLDA
---------.-
DALci
MASTER
f-------------I~
i3AiJ
CNTR
BUS
f---~~~----I~A~/As
f-----+-
...
__
--I~
i5As
~--+-~_r~~~
~---------Cs
~READ
~BM(21
_.5
...-GNO(2)
1·1
Page 8
1.2 FUNCTIONAL CAPABILITIES
The Local Area Network Controller for Ethernet (LANCE) interfaces to a microprocessor bus characterized
by time
multiplexed address and data lines. Typically, data transfers are
16
bits wide, but byte transfers
occur if the buffer memory address boundaries are odd. The address bus is
24
bits wide.
The Ethernet packet format consists
of
a 64·bit preamble, a 48·bit destination address, a 48·bit source
address, a 16·bit type
field, and a 46 to 1500 byte data field terminated with a 32·bit CRC as shown
in Figure 2 and Figure
3.
The variable widths of the packets accommodate both short status, command
and
terminal traffic packets, and long data packets to printers and disks (1024 byte disk sectors for ex·
ample).
Packets are spaced a minimum of
9.6
p.Sec
apart to allow one node time enough to receive back·
to·back packets.

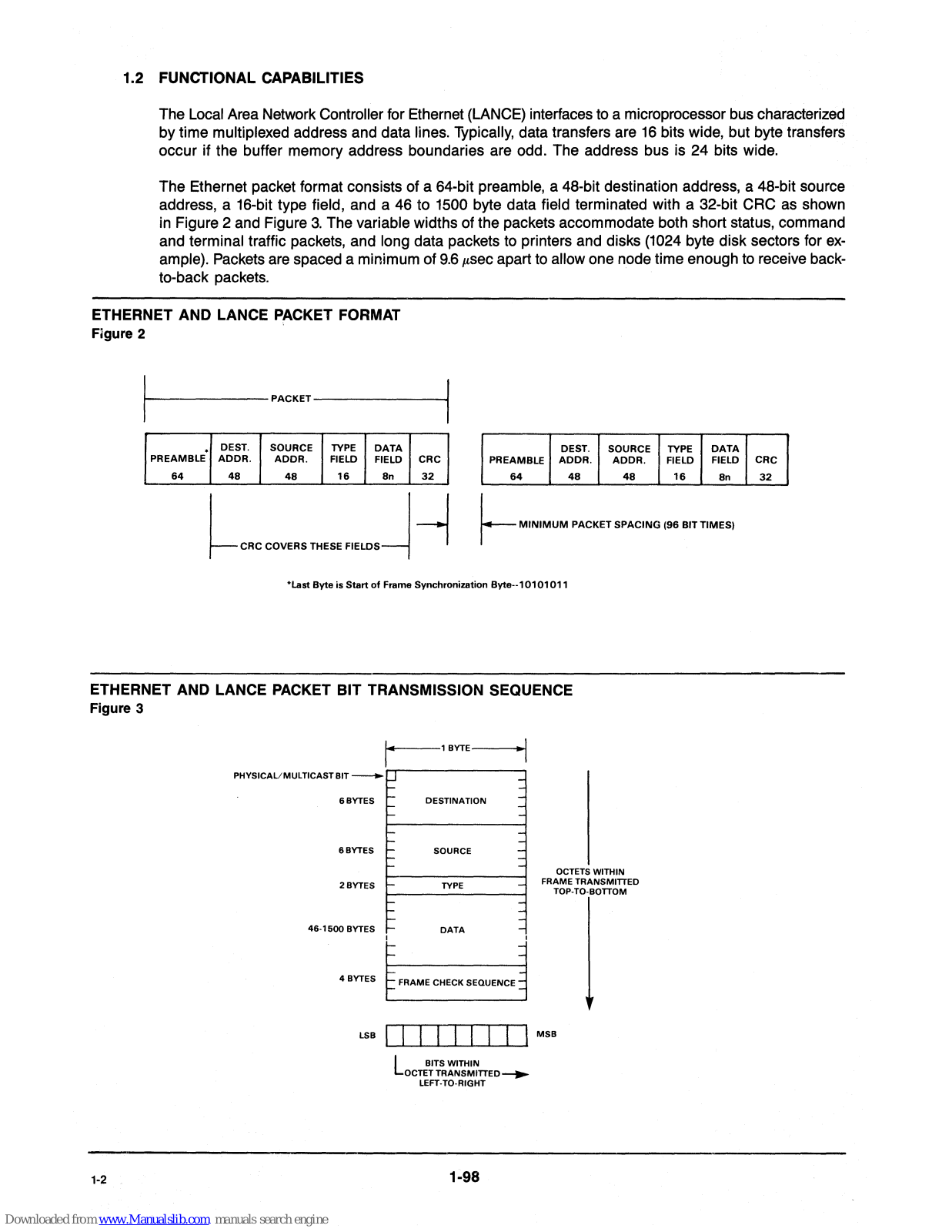

ETHERNET AND
LANCE PACKET FORMAT
FIgure 2
r-------PACKET--------j
I---
MINIMUM
PACKET SPACING (96 BIT TIMES,
*last
Byte
is
Start
of
Frame Synchronization Byte--1 01 01 011
ETHERNET AND LANCE PACKET
BIT
TRANSMISSION SEQUENCE
Figure 3
1·2
r-'
BYTE---1
PHYSICAl/MULTICAST
BIT
-....
.J
SBYrES
BBYrES
2 BYTES
46·1600
BYTES
4 BYTES
DESTINATION
SOURCE
TVPE
DATA
fRAME
CHECK
SEQUENCE
OCTETS
WITHIN
FRAME
TRANSMITTED
m'r"
LSBIIIIIIIIIMSB
L
BITS
WITHIN
OCTET TRANSMITTED
.......
LEFT-TO-RIGHT
1-98
Page 9
The LANCE
is
intended to operate
in
a minimal configuration that requires close coupling between local
memory and a processor. Figure 5 shows the relationship between the chip and local memory. The local
memory provides packet buffering for the chip and serves as a communication link between the chip
and the processor. During initialization, the control processor loads into LANCE the starting address
of the initialization block plus the operating mode of the chip via two control registers.
It is only during
this initial phase that the host processor talks directly to LANCE. All further communications are handled
via a DMA machine under microword control contained within the LANCE. Figure 4
is
a block diagram
of the LANCE and
SIA device used to create an Ethernet interface for a computer system.

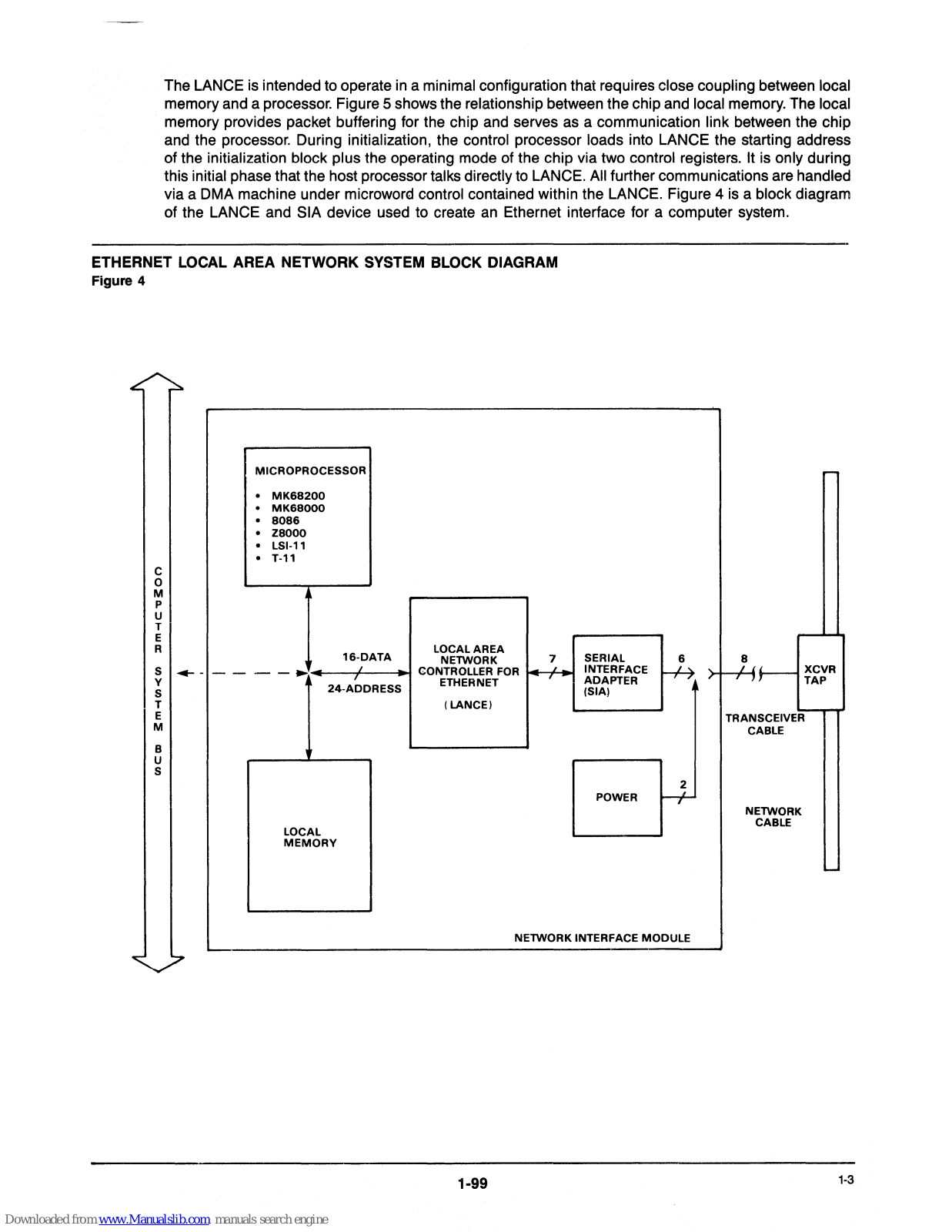

ETHERNET LOCAL AREA
NETWORK
SYSTEM BLOCK DIAGRAM
Figure 4
c
o
M
P
U
T
E
R
S
... -__
Y
S
T
E
M
B
U
S
MICROPROCESSOR
·
MK68200
·
MK68000
·
8086
·
28000
·
LSI·11
·
T·11
16·0ATA
--.
24·ADDRESS
LOCAL
MEMORY
LOCAL
AREA
NETWORK
7
SERIAL
f-h
CONTROLLER FOR
+--f--
INTERFACE
ETHERNET
ADAPTER
(SIA)
( LANCE I
POWER
---f-
NETWORK
INTERFACE
MODULE
1-99
8
TRANSCEIVER
CABLE
NETWORK
CABLE
1-3
Page 10

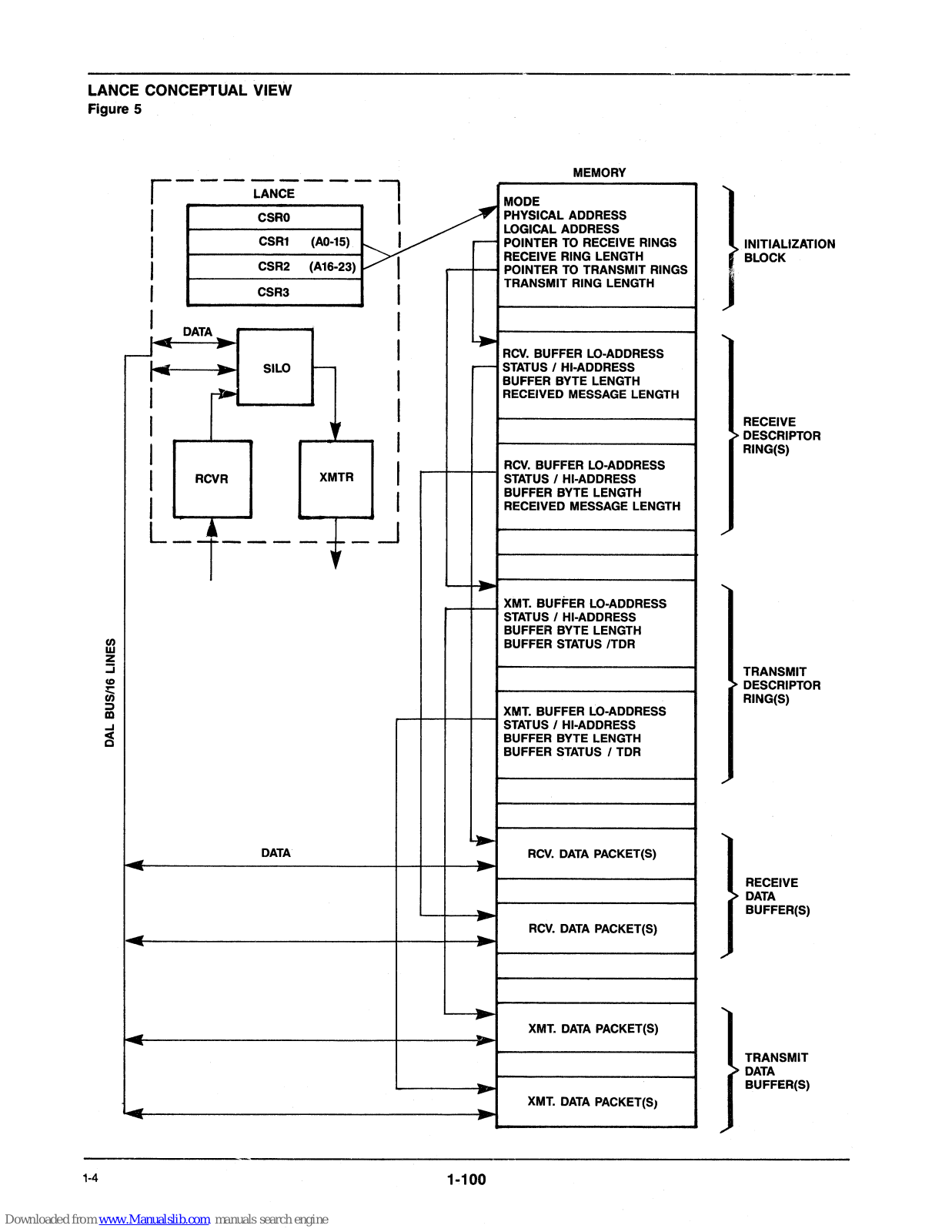

LANCE CONCEPTUAL VIEW
Figure 5
r---wC"E---
--,
I
"'"
~
I
CSR1
(AO-15)
I
r-
I CSR2 (A16-23) I
r--
~
I
CSR3
I
I
DATA
I
.
~
~
I
SILO
I-
r-
I
r
I
I
I
I
I
I
I
I
RCVR
XMTR
I
I
L_~
----t-..J
'--
~
r---
-
~
DATA
~
..
~
1-4
1-100
MEMORY
MODE
PHYSICAL ADDRESS
LOGICAL ADDRESS
POINTER
10
RECEIVE RINGS
RECEIVE RING
LENGTH
POINTER
10
TRANSMIT RINGS
TRANSMIT RING
LENGTH
RCV_
BUFFER LO-ADDRESS
STATUS'
HI-ADDRESS
BUFFER BYTE LENGTH
RECEIVED MESSAGE LENGTH
RCV.
BUFFER LO-ADDRESS
STATUS'
HI-ADDRESS
BUFFER BYTE LENGTH
RECEIVED MESSAGE LENGTH
XMT. BUFFER
LO-ADDRESS
STATUS'
HI-ADDRESS
BUFFER BYTE LENGTH
BUFFER
STATUS
'TDR
XMT. BUFFER LO-ADDRESS
STATUS'
HI-ADDRESS
BUFFER BYTE LENGTH
BUFFER
STATUS'
TDR
RCV.
DATA
PACKET(S)
RCV.
DATA
PACKET(S)
XMT.
DATA
PACKET(S)
XMT. DATA
PACKET(S)
}
INITIALIZATION
BLOCK
RECEIVE
DESCRIPTOR
RING(S)
TRANSMIT
DESCRIPTOR
RING(S)
}
RECEIVE
DATA
BUFFER(S)
TRANSMIT
DATA
BUFFER(S)
Page 11

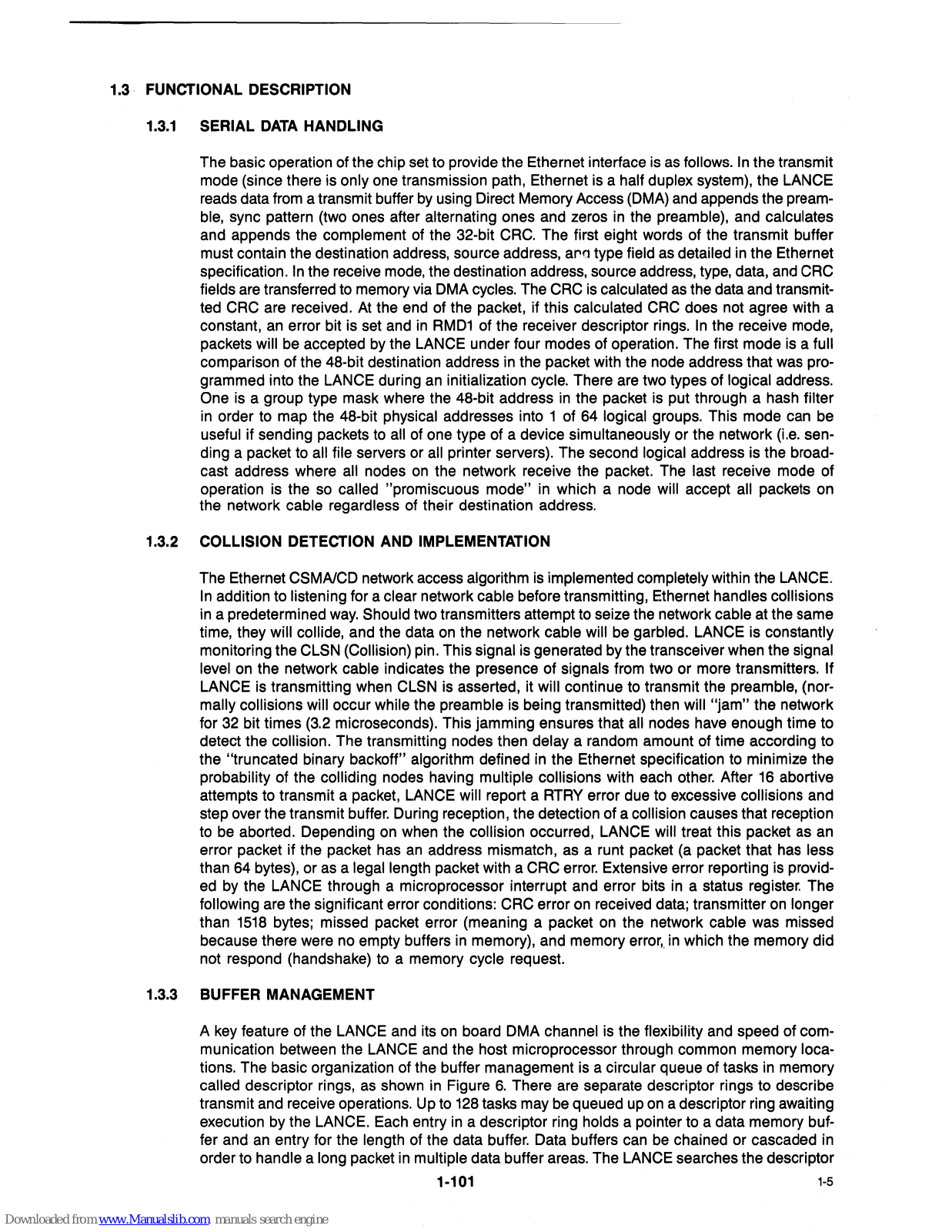

1.3 FUNCTIONAL DESCRIPTION
1.3.1
SERIAL
DATA
HANDLING
The basic operation of the chip set to provide the Ethernet interface
is
as
follows.
In
the transmit
mode (since there is
only one transmission path, Ethernet is a half duplex system), the LANCE
reads data from a transmit buffer
by
using Direct Memory Access (DMA) and appends the pream-
ble,
sync pattern (two ones after alternating ones and zeros
in
the preamble), and calculates
and appends the complement of the 32-bit
CRC.
The first eight words of the transmit buffer
must contain the destination address, source address,
ar<1
type field as detailed
in
the Ethernet
specification.
In
the receive mode, the destination address, source address, type, data, and
eRe
fields are transferred to memory via DMA cycles. The
eRC
is
calculated as the data and transmit-
ted CRC are received.
At
the end of the packet, if this calculated CRC does not agree with a
constant,
an
error bit is set and
in
RMD1
of the receiver descriptor rings.
In
the receive mode,
packets will
be
accepted by the LANCE under four modes of operation. The first mode
is
a full
comparison of the 48·bit destination address
in
the packet with the node address that
was
programmed into the LANCE during an initialization cycle. There are two types of logical address.
One
is
a group type mask where the 48-bit address
in
the packet is put through a hash filter
in
order to map the 48-bit physical addresses into 1 of 64 logical groups. This mode can be
useful if sending packets to all of one type of a device simultaneously or the network
(i.e.
sending a packet to all file servers or all printer servers). The second logical address is the broadcast address where all nodes
on
the network receive the packet. The last receive mode of
operation is the
so
called "promiscuous mode"
in
which a node will accept all packets on
the network cable regardless of their destination address.
1.3.2 COLLISION DETECTION AND IMPLEMENTATION
The Ethernet CSMAlCD network access algorithm
is
implemented completely within the LANCE.
In
addition to listening for a clear network cable before transmitting, Ethernet handles collisions
in
a predetermined
way.
Should two transmitters attempt to seize the network cable at the same
time, they
will collide, and the data on the network cable will be garbled. LANCE is constantly
monitoring the
CLSN (Collision) pin. This signal
is
generated by the transceiver when the signal
level
on
the network cable indicates the presence of signals from two or more transmitters. If
LANCE
is
transmitting when CLSN
is
asserted, it will continue to transmit the preamble, (nor·
mally collisions will
occur while the preamble is being transmitted) then will
"jam"
the network
for 32 bit times (3.2 microseconds). This jamming ensures that
all nodes have enough time to
detect the
collision. The transmitting nodes then delay a random amount of time according to
the
"truncated binary backoff" algorithm defined
in
the Ethernet specification to minimize the
probability of the
colliding nodes having multiple collisions with each other. After
16
abortive
attempts to transmit a packet,
LANCE will report a RTRY error due to excessive collisions and
step over the transmit buffer. During reception, the detection of a collision causes that reception
to be aborted. Depending on when the
collision occurred, LANCE will treat this packet
as
an
error packet if the packet has
an
address mismatch, as a runt packet (a packet that has less
than 64 bytes), or as a legal length packet with a CRC error. Extensive error reporting is provided by the LANCE through a microprocessor interrupt and error bits
in
a status register. The
following are the significant error conditions: CRC error on received data; transmitter on longer
than
1518
bytes; missed packet error (meaning a packet on the network cable was missed
because there were no empty buffers
in
memory), and memory error,
in
which the memory did
not respond (handshake)
to
a memory cycle request.
1.3.3
BUFFER MANAGEMENT
A key feature of the LANCE and its
on
board DMA channel is the flexibility and speed of communication between the LANCE and the host microprocessor through common memory loca·
tions. The basic organization of the buffer management is a circular queue of tasks
in
memory
called descriptor rings, as shown
in
Figure
6.
There are separate descriptor rings to describe
transmit and receive operations. Up to
128
tasks may be queued up on a descriptor ring awaiting
execution by the LANCE. Each entry
in
a descriptor ring holds a pointer to a data memory buf·
fer and
an
entry for the length of the data buffer. Data buffers can be chained or cascaded in
order to handle a long packet
in
multiple data buffer areas. The LANCE searches the descriptor
1·101
1-5
Page 12
rings in a
"look
ahead manner" to determine the next empty buffer
in
order to chain buffers
together or to
handle back to back packets.
As
each buffer is filled, an "own" bit is reset, signal-
ing the host processor to empty this buffer. The minimum buffer size is
64
bytes for receive
buffers and
100 bytes for transmit buffers.
1.3.4
MICROPROCESSOR INTERFACE
The parallel interface of the LANCE has been designed to be "friendly" or easy to interface
to a variety of popular 16-bit microprocessors. These microprocessors include the following:
MK68000,
Z8000,
8086,
LSI-11,
T-11,
and
MK68200. (The MK68200
is
a 16-bit single chip microcom-
puter being
sampled by Mostek with
an
architecture modeled after the MK68000). The LANCE
has a wide 24-bit
linear address space when it is in the Bus Master Mode, allowing it to DMA
directly into the entire address space of the above microprocessors. No segmentation or paging
methods are used within the LANCE, and as such the addressing is
closest to that used by
the
MK68000 but is compatible with the others. When the LANCE is a bus master, a program-
mable
mode of operation allows byte addressing either by employing a ByteiWord control signal,
much like that used on the 8086 or the Z8000, or by using an Upper Data Strobe/Lower Data
strobe much like that used
on
the MK68000,
LSI-11,
and MK68200 microprocessors. A program-

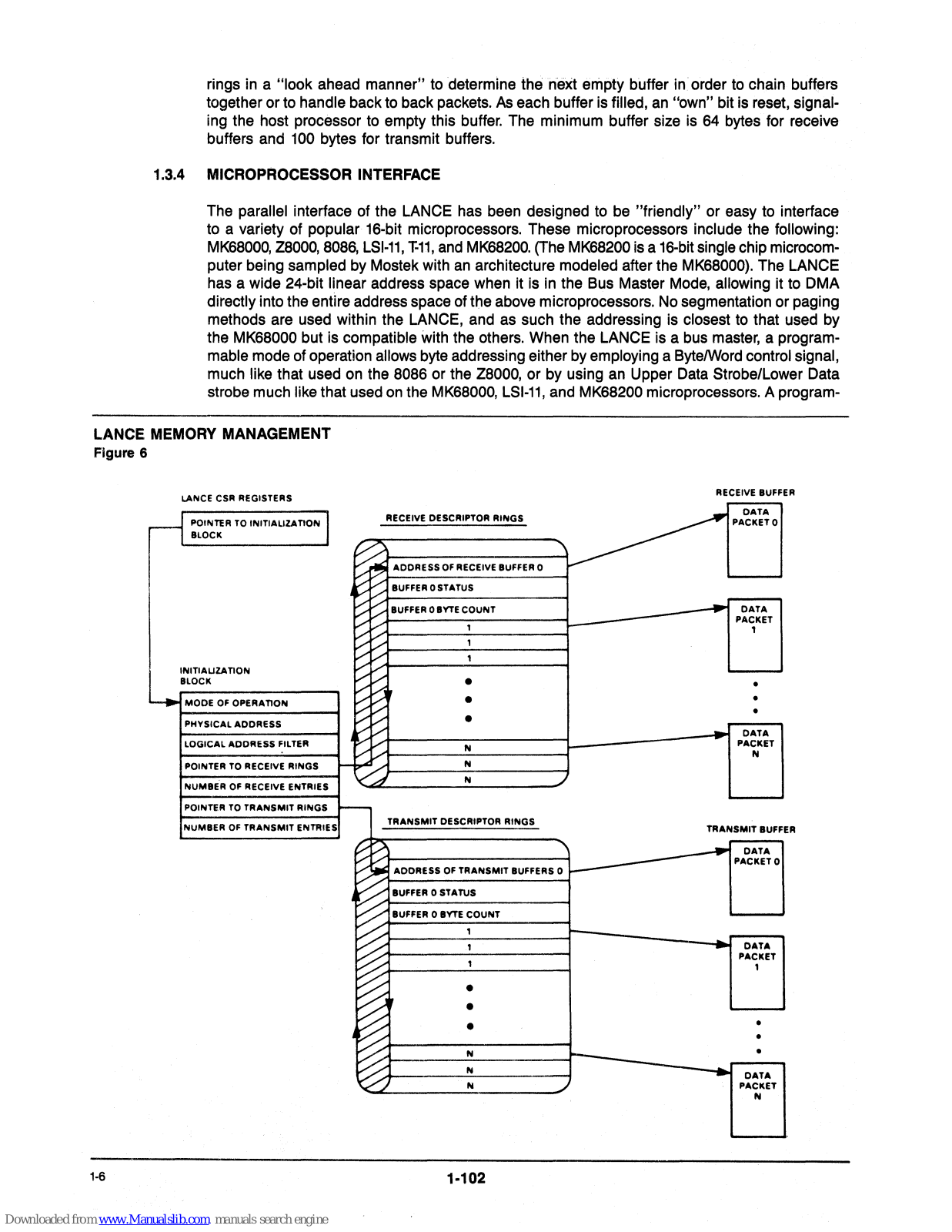

LANCE MEMORY MANAGEMENT
Figure 6
1·6
LANCE
eSA
REGISTERS
~
POINTER
TO
INITIAUZAnON
I
. I BLOCK
tNtTiAUZAnON
BLOCK
~
MODE
OF
OPERATlON
PHYSICAL
ADDRESS
LOGICAL
ADDRESS
FILTER
RECEIVE BUFFER
r--oA"TA
,,-:~A_EC_E_'V_E_D_ES_C_A'_PT_O_A_A_'N_G_S_-....
~
PACKET 0
~
AODAESSOFAECE,vEBUFFEAO
~
~
~.-/
BUFFEAOSTATUS
...
::>::::
BUFFEAOBYTECOUNT _
~
~~
,
f----------
PA~KET
n;:
:
•
•
•
----
.
__
r-;;;r;-
~v
~~
r:~
~v
f-P-OIN-T-EA-TO-A-EC-E-'VE'-A-'N-GS----If-~
N
~~------N~------~
N
PACKET
N
NUMBER
OF
RECEIVE
ENTRIES
POINTER
TO
TRANSMIT
RINGS
NUMBER
OF
TRANSMIT
ENTRIES
TRANSMIT
DESCRIPTOR
RINGS
TRANSMIT
BUFFE
v.~
~~
V PACKET 0
V~
ADORESS
OF
TRANSMIT
BUFFERS 0
~
BUFFER 0 STATUS
~
BUFFER 0
BYTE
COUNT
~
:
::::-::::
'
~
--
PACKET
,
~
@§
• .
~A-----N----~_
:
•
•
~
v
/:::::::..t.-=--=--:::...~;;-_-_-_-_-
_-
-j-l---_.......Jr---
..........
/7
N - OATA
N
PACKET
N
1-102
Page 13
mabie polarity on the Address Strobe signal eliminates the need for external logic. The LANCE
interfaces with both
multiplexed and demultiplexed data buses and features control signals for
address/data bus transceivers.
Interrupts to the microprocessor are generated by the LANCE upon completion of its initializa-
tion routine, the reception
of
a packet, the transmission of a packet, transmitter timeout error,
a missed packet, or a memory error.
The cause of the interrupt is ascertained by reading the
control status register
(CSRO).
Bit (06)
of
CSRO,
INEA, enables
or
disables interrupts to the microprocessor.
In
a polling mode, BIT
(07)
of
CSRO
is sampled to determine when
an
interrupt causing condition occurred.
LANCE

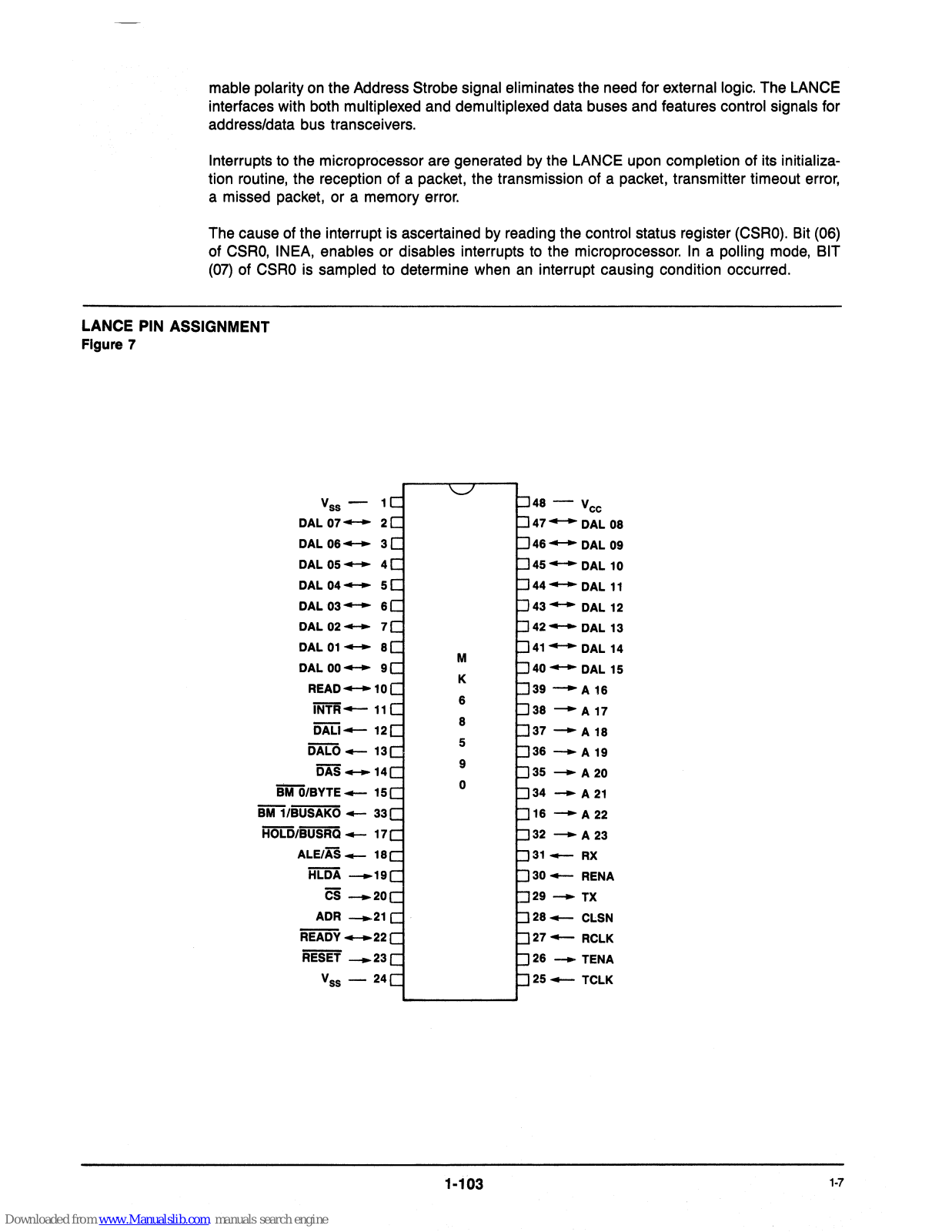

PIN ASSIGNMENT
Figure 7
v
••
-
1
DAL07-
2
DAL08-
3
DALOS-
4
DAL04-
5
DAL03-
8
DAL02-
7
DAL01-
8
DALOO-
9
READ-10
iiii'i'lf-11
DALi-
12
DA'CO
_
13
DAS_14
'Biili/BYTE _ 15
iiii1/iiiiSAK6
-
33
HOLD/BUSRQ _ 17
ALE/AS_
18
HiJ5i
_19
Cs
_20
ADR
_21
READY_22
RESET
_23
Vas
- 24
48
-
vee
47-DAL08
48-DAL09
45-DAL
10
44-DAL
11
43-
DAL12
4Z-DAL
13
41-DAL
14
40-DAL
15
39
-A
18
38
-A
17
37
-A
18
38
-A
19
35
-A20
34
-A21
18
-A22
32
-A23
31_
RX
30_
RENA
29
_
TX
28_
CLSN
27-
RCLK
28
_ TENA
25_
TCLK
1-103
1-7
Page 14
1-8

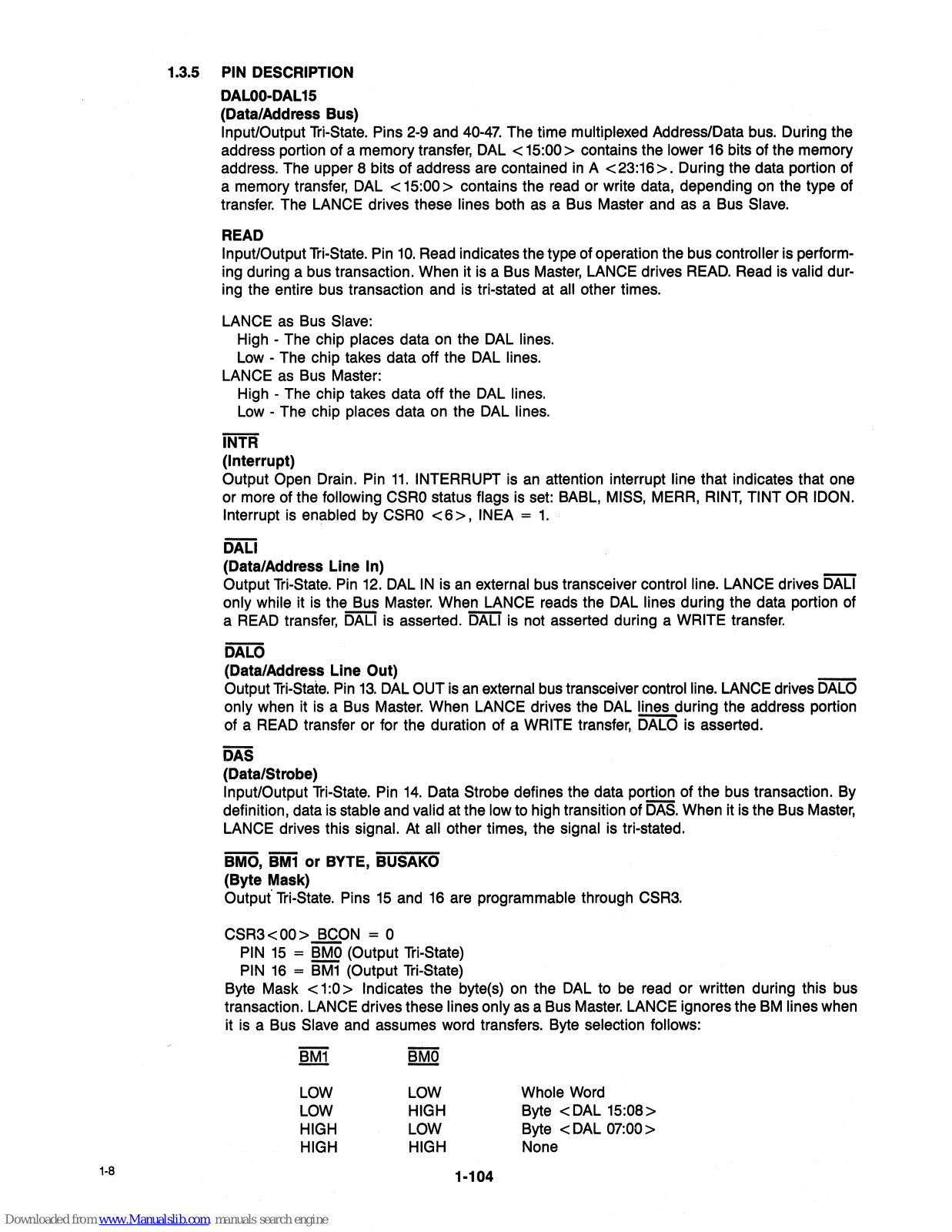

1.3.5 PIN DESCRIPTION
DALOO-DAL15
(Data/Address Bus)
Input/Output Tri-State. Pins 2-9 and
40-47.
The time multiplexed Address/Data bus. During the
address portion of a memory transfer, DAL <
15:00> contains the lower
16
bits of the memory
address. The upper 8 bits of address are contained
in
A < 23:16
>.
During the data portion of
a memory transfer, DAL <
15:00 > contains the read or write data, depending on the type of
transfer. The LANCE drives these lines both as a Bus Master and as a Bus
Slave.
READ
Input/Output Tri-State. Pin
10.
Read indicates the type of operation the bus controller is performing during a bus transaction. When it is a Bus Master, LANCE drives READ. Read is valid during the entire bus transaction and is tri-stated
at
all other times.
LANCE as Bus
Slave:
High - The chip places data on the DAL lines.
Low
- The chip takes data off the DAL lines.
LANCE as Bus Master:
High - The chip takes data off the DAL lines.
Low
- The chip places data on the DAL lines.
INTR
(Interrupt)
Output Open
Drain. Pin
11.
INTERRUPT is an attention interrupt line that indicates that one
or more of the following
CSRO
status flags
is
set: BABL, MISS, MERR,
RINT,
TINT OR IDON.
Interrupt is enabled by
CSRO
< 6
>,
INEA =
1.
i5A[j
(Data/Address Line In)
Output
Tri-State. Pin
12.
DAL
IN
is
an
external bus transceiver control line. LANCE drives
5A[j
only while it
is
the Bus Master. When LANCE reads the
DAL
lines during the data portion of
a READ transfer, DALI is asserted.
i5AiJ
is not asserted during a WRITE transfer.
i5ACO
(Data/Address
Line
Out)
Output Tri-Staie.
Pin
13.
DAL
OUT
is
an
external bus transceiver control line. LANCE drives 5A[(5
only when it is a Bus Master. When LANCE drives the DAL lines during the address portion
of a READ transfer or for the duration of a
WRITE transfer,
i5ALO
is asserted.
DAS
(Data/Strobe)
Input/Output Tri-State. Pin
14.
Data Strobe defines the data portion of the bus transaction. By
definition, data
is
stable and valid at the low to high transition of
iSAS.
When it is the Bus Master,
LANCE drives this signal.
At
all other times, the signal is tri-stated.
BMO,
BM1
or
BYTE, BUSAKO
(Byte Mask)
Output' Tri-State. Pins
15
and
16
are programmable through CSR3.
CSR3<00>
BCON = 0
PIN
15 = BMO
(Output Tri-State)
PIN
16 = BM1
(Output Tri-State)
Byte Mask <
1:0>
Indicates the byte(s) on the DAL to
be
read or written during this bus
transaction. LANCE drives these lines only as a Bus Master. LANCE ignores the BM lines when
it
is
a Bus Slave and assumes word transfers. Byte selection follows:
BM1
LOW
LOW
HIGH
HIGH
LOW
HIGH
LOW
HIGH
1-104
Whole Word
Byte < DAL 15:08 >
Byte < DAL
07:00 >
None
Page 15
CSR3<00>

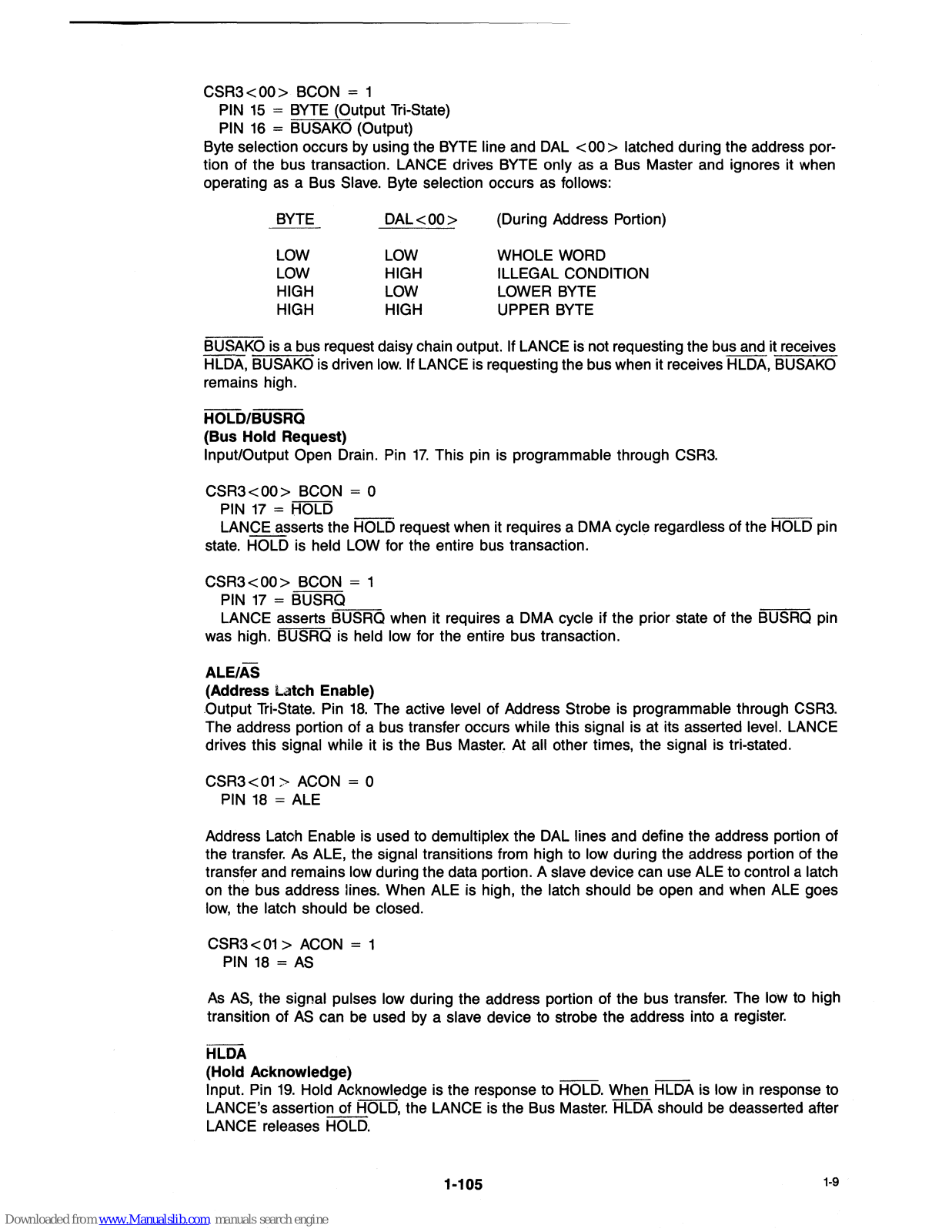

BCON = 1
PIN
15
= BYTE (Output Tri-State)
PIN
16
= BUSAKO (Output)
Byte selection occurs
by
using the BYTE line and DAL
<00>
latched during the address por-
tion of the bus transaction. LANCE drives BYTE only
as
a Bus Master and ignores it when
operating
as
a Bus Slave. Byte selection occurs as follows:
BYTE
DAL<OO>
(During Address Portion)
LOW LOW
WHOLE WORD
LOW
HIGH ILLEGAL CONDITION
HIGH
LOW
LOWER BYTE
HIGH HIGH UPPER BYTE
BUSAKO is a bus request daisy chain output. If LANCE is not requesting the bus and it receives
HLDA, BUSAKO is driven
low.
If LANCE is requesting the bus when it receives HLDA, BUSAKO
remains high.
HOLD/BUSRQ
(Bus Hold Request)
Input/Output Open Drain. Pin
17.
This pin is programmable through
CSR3.
CSR3<00>
BCON = 0
PIN
17
= HOLD
LANCE
asserts the HOLD request when it requires a DMA cycle regardless of the HOLD pin
state.
HOLD is held
LOW
for the entire bus transaction.
CSR3<00>
BCON = 1
PIN
17
= BUSRQ
LANCE
asserts BUSRQ when it requires a DMA cycle if the prior state of the BUSRQ pin
was high.
BUSRQ is held low for the entire bus transaction.
ALE/AS
(Address
Latch Enable)
Output
Tri-State. Pin
18.
The active level of Address Strobe is programmable through CSR3.
The address portion of a bus transfer occurs while this signal is at its asserted level. LANCE
drives this signal while it is the Bus Master.
At
all other times, the signal is tri-stated.
CSR3<01>
ACON = 0
PIN
18
= ALE
Address Latch
Enable is used
to
demultiplex the DAL lines and define the address portion of
the transfer.
As
ALE, the signal transitions from high
to
low during the address portion of the
transfer and remains
low during the data portion. A slave device can use
ALE
to control a latch
on
the bus address lines. When ALE is high, the latch should be open and when
ALE
goes
low,
the latch should be closed.
CSR3<01>
ACON = 1
PIN
18 = AS
As
AS,
the signal pulses low during the address portion of the bus transfer. The low
to
high
transition of
AS
can be used
by
a slave device to strobe the address into a register.
HLDA
(Hold Acknowledge)
Input.
Pin
19.
Hold Acknowledge is the response
to
HOLD. When HLDA is low
in
response to
LANCE's assertion of
HOLD,
the LANCE is the Bus Master. HLDA should be deasserted after
LANCE releases HOLD.
1-105
1-9
Page 16
1-10

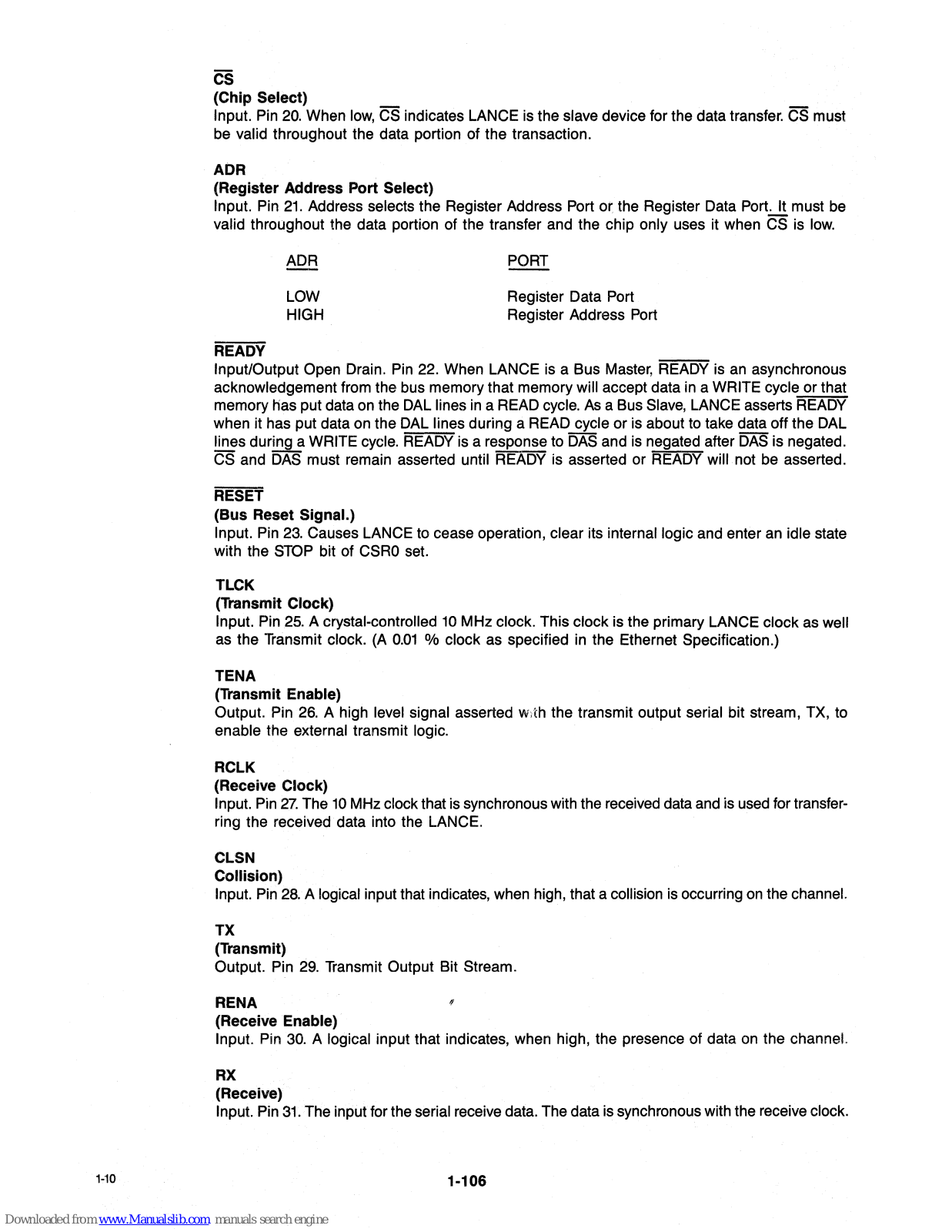

CS
(Chip Select)
Input. Pin 20. When
low,
CS indicates LANCE is the slave device for the data transfer. CS must
be
valid throughout the data portion of the transaction.
ADR
(Register Address Port
Select)
Input. Pin
21.
Address selects the Register Address Port or the Register Data Port. It must
be
valid throughout the data portion of the transfer and the chip only uses it when CS is
low.
READY
ADR
LOW
HIGH
PORT
Register Data Port
Register Address Port
Input/Output Open
Drain.
Pin
22. When LANCE is a Bus Master, READY
is
an
asynchronous
acknowledgement from the bus memory that memory will accept data
in
a WRITE cycle or that
memory has put data on the
DAL
lines
in
a READ cycle.
As
a Bus Slave, LANCE asserts READY
when it has put data on the DAL lines during a READ cycle or is about
to
take data off the DAL
lines during a WRITE cycle. READY
is
a response to
DAS
and
is
negated after
DAS
is negated.
CS and
DAS
must remain asserted until READY
is
asserted or READY will not be asserted.
RESET
(Bus Reset Signal.)
Input. Pin
23.
Causes LANCE to cease operation, clear its internal logic and enter an idle state
with the
STOP
bit of
CSRO
set.
TLCK
(Transmit
Clock)
Input. Pin
25. A crystal-controlled
10
MHz clock. This clock is the primary LANCE clock as well
as the Transmit clock.
(A
0.01
% clock as specified
in
the Ethernet Specification.)
TENA
(Transmit
Enable)
Output. Pin
26. A high level signal asserted w:th the transmit output serial bit stream, TX, to
enable the external transmit logic.
RCLK
(Receive
Clock)
Input.
Pin
27.
The
10
MHz clock that
is
synchronous with the received data and is used for transfer-
ring the received data into the LANCE.
CLSN
Collision)
Input.
Pin
28. A logical input that indicates, when high, that a collision
is
occurring on the channel.
TX
(Transmit)
Output. Pin 29. Transmit Output Bit Stream.
RENA
(Receive Enable)
Input. Pin 30. A logical input that indicates, when high, the presence of data
on
the channeL
RX
(Receive)
Input. Pin
31.
The input for the serial receive data. The data
is
synchronous with the receive clock.
1-106
Page 17
A16-A23
(High-Order Address Bus)
Output, Three
State pins 32 thru
39.
Address bits
<23:16>
used
in
conjunction with DAL
< 15:00 > to produce a 24-bit address. LANCE drives these lines only as a Bus Master.
Vcc
Power supply pin
48.
+5
VDC
±5%.
It is recommended that a power supply filter be used be-
tween
Vee
(Pin
48)
and V ss (Pins 1 and
24).
This filter should consist of two capacitors
in
parallel
having the values of
1O",F
and
.047",F
respectively.
Vss
Ground pins 1 and
24.
0 VDC
1.3.6 LANCE INTERFACE DESCRIPTION--BUS MASTER MODE
All data transfers from the LANCE
in
the Bus Master mode are timed by ALE,
DAS,
and
READY.
The automatic adjustment of the LANCE cycle
by
the
READY
Signal allows synchronization with
variable cycle time memory due either to memory refresh or to dual port access. Bus cycles
are a minimum of 600 nsec
in
length and can
be
increased
in
100
nsec increments. Figure 8
and Figure 9 show
generalized interfaces to both multiplexed and demultiplexed bus
microprocessors, and Figure
10,
the Bus Master Timing modes.

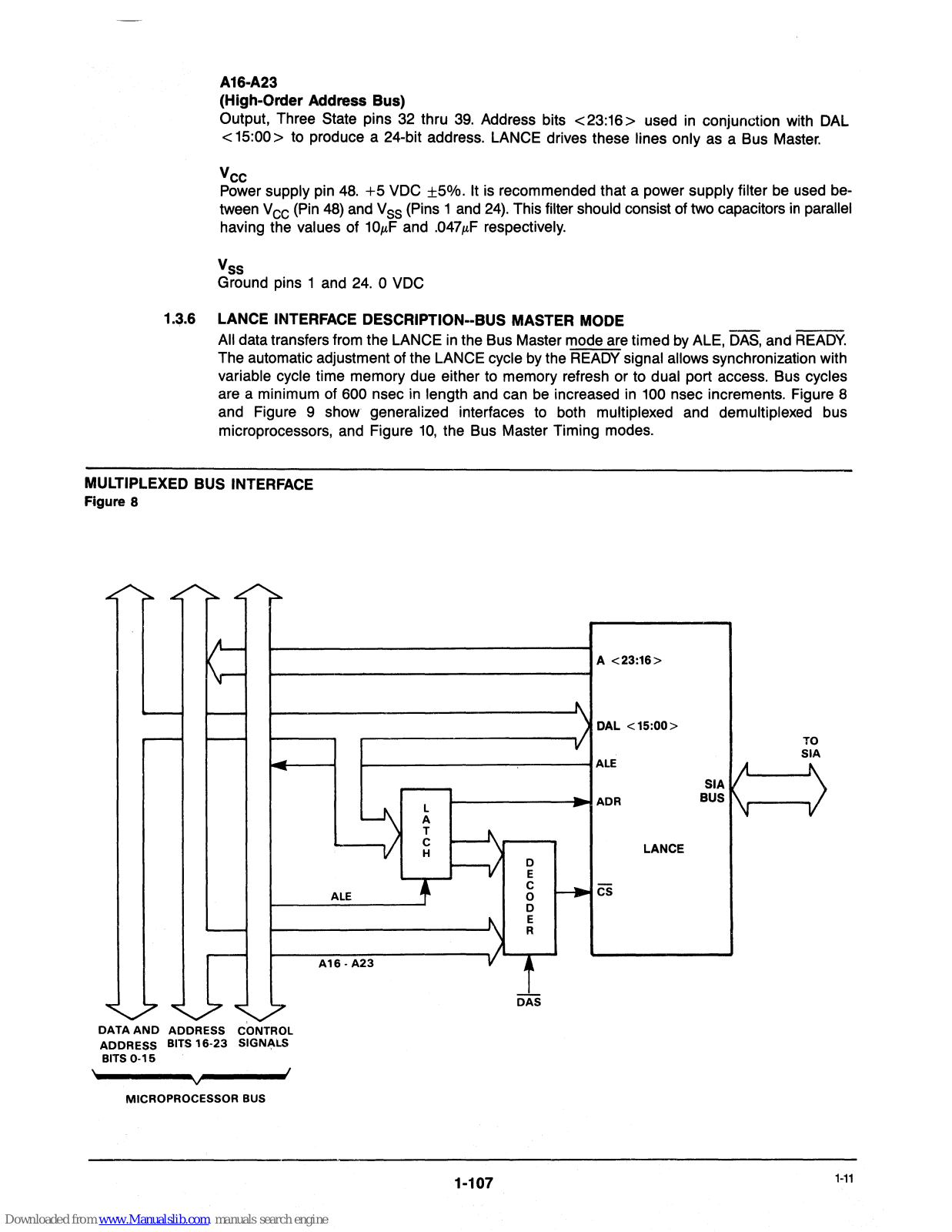

MULTIPLEXED BUS INTERFACE
Figure 8
DATA
AND
ADDRESS CONTROL
ADDRESS
BITS
16·23
SIGNALS
BITS
0·15
---,v,-----'
MICROPROCESSOR BUS
A16·
A23
A
<23:16>
~----------~~ADR
LANCE
1-107
TO
SIA
1-11
Page 18

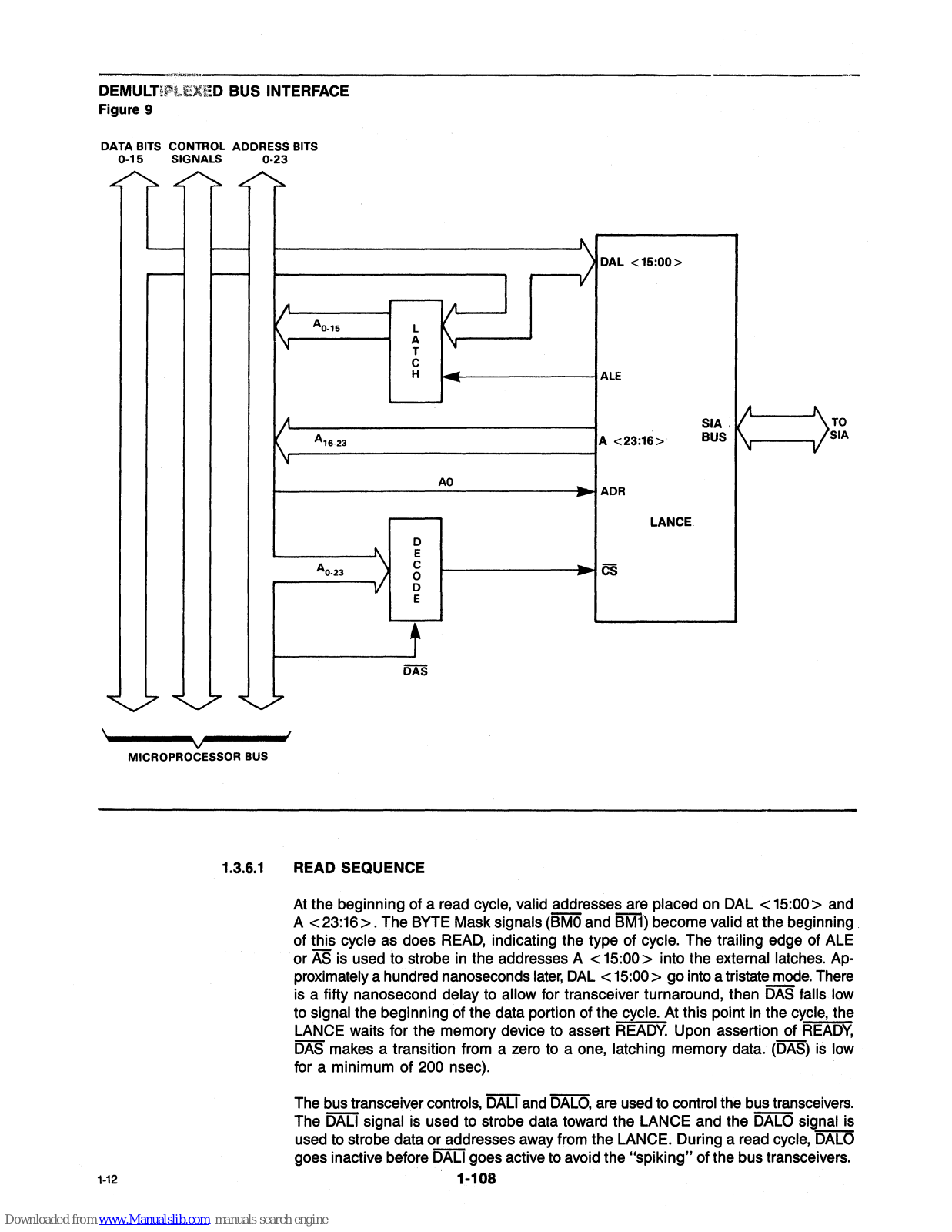

DEMULT!!l'tEXED BUS INTERFACE
Figure 9
DATA
BITS CONTROL ADDRESS BITS
0-15
SIGNALS
0-23
""
~
'"
;::..
./':,.
'--
I---
~
I---
1
'I
A
'I
....
?
...
7
------~v~------~
MICROPROCESSOR BUS
1.3.6.1
1-12
r-~
AO.
15
L
A
'I
T
C
H
'---
A'6_23
AO
r-
0
.J\
E
A
O
_
23
C
0
V
0
E
T
5AS
READ SEQUENCE
"
\
DAL
<15:00>
~
ALE
A
<23:16>
AOR
LANCE
CS
SIA
.1
BUS
\
"
V
TO
SIA
At
the beginning of a read cycle, valid addresses are placed on DAL < 15:00 > and
A
< 23:16 >. The BYTE Mask signals
(BMO
and
i3"M1)
become valid
at
the beginning
of this
cycle as does READ, indicating the type of cycle. The trailing edge of ALE
or
AS is used to strobe in the addresses A < 15:00> into the external latches. Ap-
proximately a hundred nanoseconds
later,
DAL
< 15:00> go into a tristate mode. There
is a fifty nanosecond delay to allow for transceiver turnaround, then
BAS
falls low
to signal the beginning of the data portion of the cycle. At this point in the cycle, the
LANCE waits for the memory device to assert
READY.
Upon assertion of
READY,
DAS
makes a transition from a zero to a one, latching memory data.
(DAS)
is low
for a minimum of 200 nsec).
The bus transceiver
controls,
DALI
and
DALO,
are used to control the bus transceivers.
The DALI
signal is used to strobe data toward the LANCE and the DALO signal is
used to strobe data or addresses away from the LANCE. During a read
cycle, DALO
goes inactive before DALI goes active to avoid the
"spiking"
of the bus transceivers.
1-108
Page 19

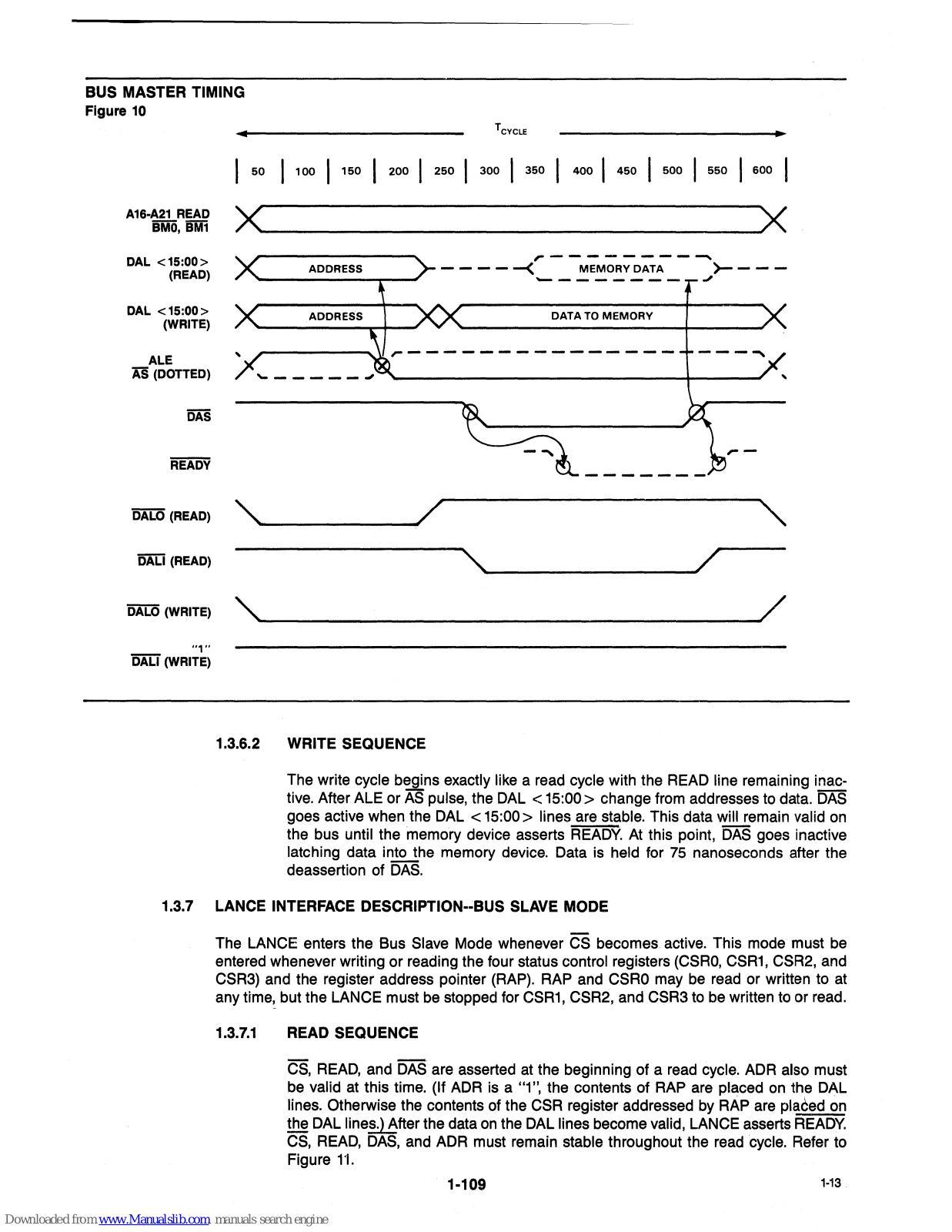

BUS MASTER TIMING
Figure
10
A16-A21 READ
iiMD,
BM1
DAL
<15:00>
(READ)
DAL
<15:00>
(WRITE)
ALE
AS
(DOTTED)
DAS
REAi:iY
DALO (READ)
DAD
(READ)
DAi:O
(WRITE)
"'"
i5ALi
(WRITE)
..
TCYCLE
I
50 I '00 I '50 I 200 I 250 I 300 I 350 I 400 I 450 I 500 I 550 I 600
I
X
__________________________
x
r--------~
ADDRESS
- - - -
--<
MEMORY
DATA >- -
--
________
J
ADDRESS
DATA
TO
MEMORY
---"'"
"
'---
___
--J/
,,~-------/
"
~------------------------~/
1,3.6.2
WRITE SEQUENCE
The write
cycle begins exactly like a read cycle with the READ line remaining inac-
tive. After ALE or
AS
pulse, the DAL < 15:00> change from addresses to data.
DAS
goes active when the DAL < 15:00> lines are stable. This data will remain valid on
the bus
until the memory device asserts
READY.
At this
pOint,
DAS
goes inactive
latching data into the memory device. Data is held for 75 nanoseconds after the
deassertion of
DAS.
1.3.7 LANCE INTERFACE DESCRIPTION··BUS SLAVE MODE
The LANCE enters the Bus Slave Mode whenever CS becomes active. This mode must be
entered whenever writing or reading the four status
control registers
(CSRO,
CSR1,
CSR2, and
CSR3) and the register address painter (RAP). RAP and
CSRO
may
be
read or written to at
any time, but the
LANCE must be stopped for CSR1, CSR2, and CSR3 to be written to or read.
1.3.7.1
READ SEQUENCE
CS,
READ,
and
DAS
are asserted
at
the beginning of a read cycle. ADR also must
be valid
at
this time. (If ADR is a "1", the contents of RAP are placed
on
the DAL
lines. Otherwise the contents of the
CSR register addressed by RAP are placed on
the DAL
line~fter
the data
on
the DAL lines become valid, LANCE asserts
READY.
CS,
READ,
DAS,
and ADR must remain stable throughout the read cycle. Refer to
Figure l1.
1·109
1-13
Page 20

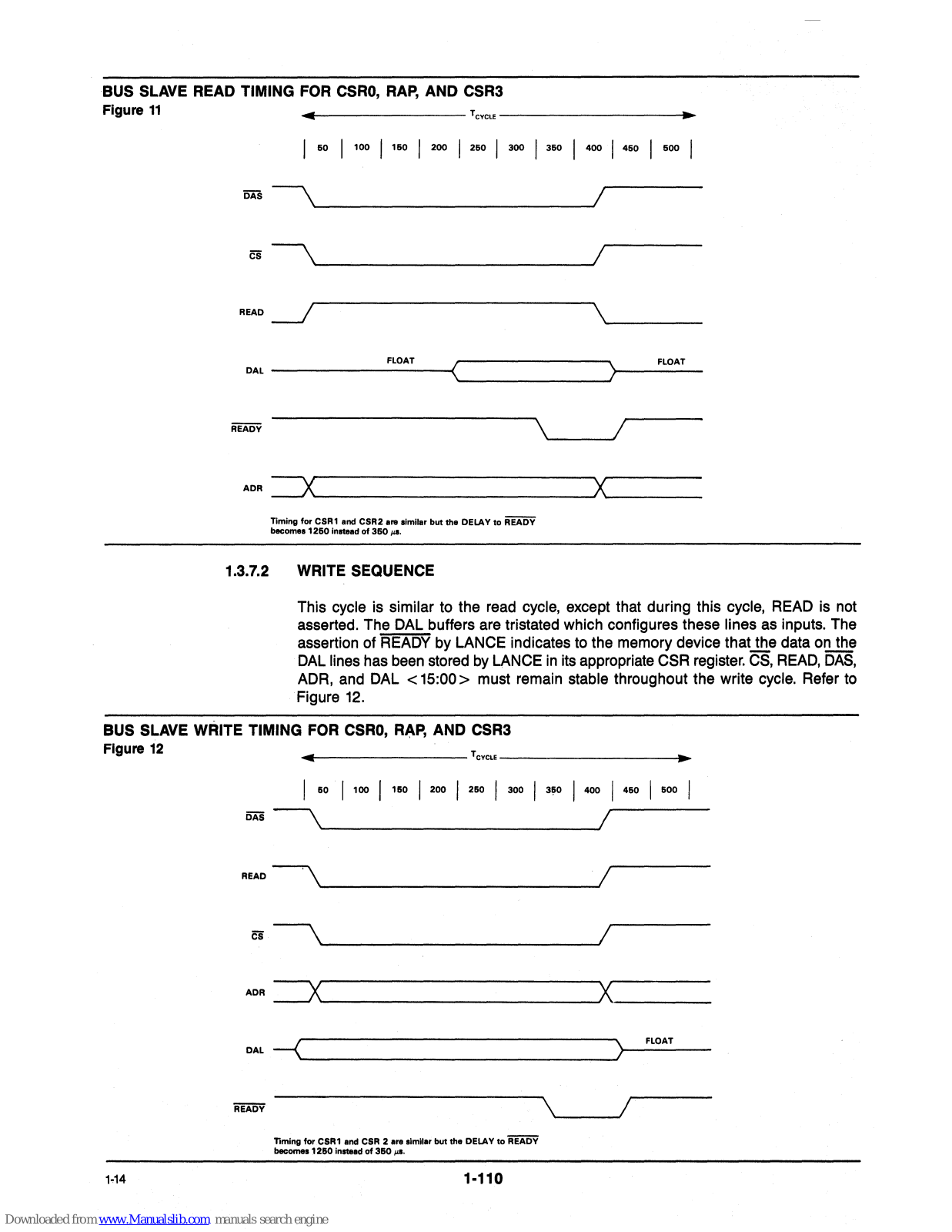

BUS SLAVE READ TIMING FOR
CSRO,
RAP,
AND CSR3
Figure
11
.....
f--------TCYCLE-------------i
..
~
I
50 I 100 I 150 I 200 I 250 I 300 I 350 I 400 I 450 I 500
I
DAS
~~
______________
_'
~
~~----------------------~
READ
---.J
DAL
_______
~F~LO~AT~_~(================)--~~~
\1.-_---1
AD"
==x~
_____________
--...J
'--
___
_
1.3.7.2
Timing
for
CSR1 and CSR2 8,.. similar
but
the DELAY
to
fiEAi5Y
becomes
1260
Instead
of
360
~.
WRITE SEQUENCE
This cycle is similar to the read cycle, except that during this cycle, READ is not
asserted. The DAL buffers are tristated which configures these
lines as inputs. The
assertion of
REAi5Y
by LANCE indicates to the memory device that the data on the
DAL
lines has been stored
by
LANCE
in
its appropriate CSR register.
CS,
READ,
DAS,
ADR, and DAL < 15:00 > must remain stable throughout the write cycle. Refer to
Figure
12.
BUS SLAVE WRITE TIMING FOR
CSRO,
RAP,
AND CSR3
Figure
12
1-14
.....
f--------TCyCLE
____________
..
I
50 I 100 I 160 I 200 I 260 I 300 I 350 I 400 I 450 I 600
I
DAs~
1
READ
~'-
________________________
--'I
AD"
==x
___________
~x
___ _
---.!
)
FLOAT
DAL
------'-
___________________
J
..
----
Timing
tor
CSR1 and CSR 2 are similar but the DELAY to
iiEA6Y
become.
1250 instead
of
360
1-'1.
1·110
\1.-_---11
Page 21

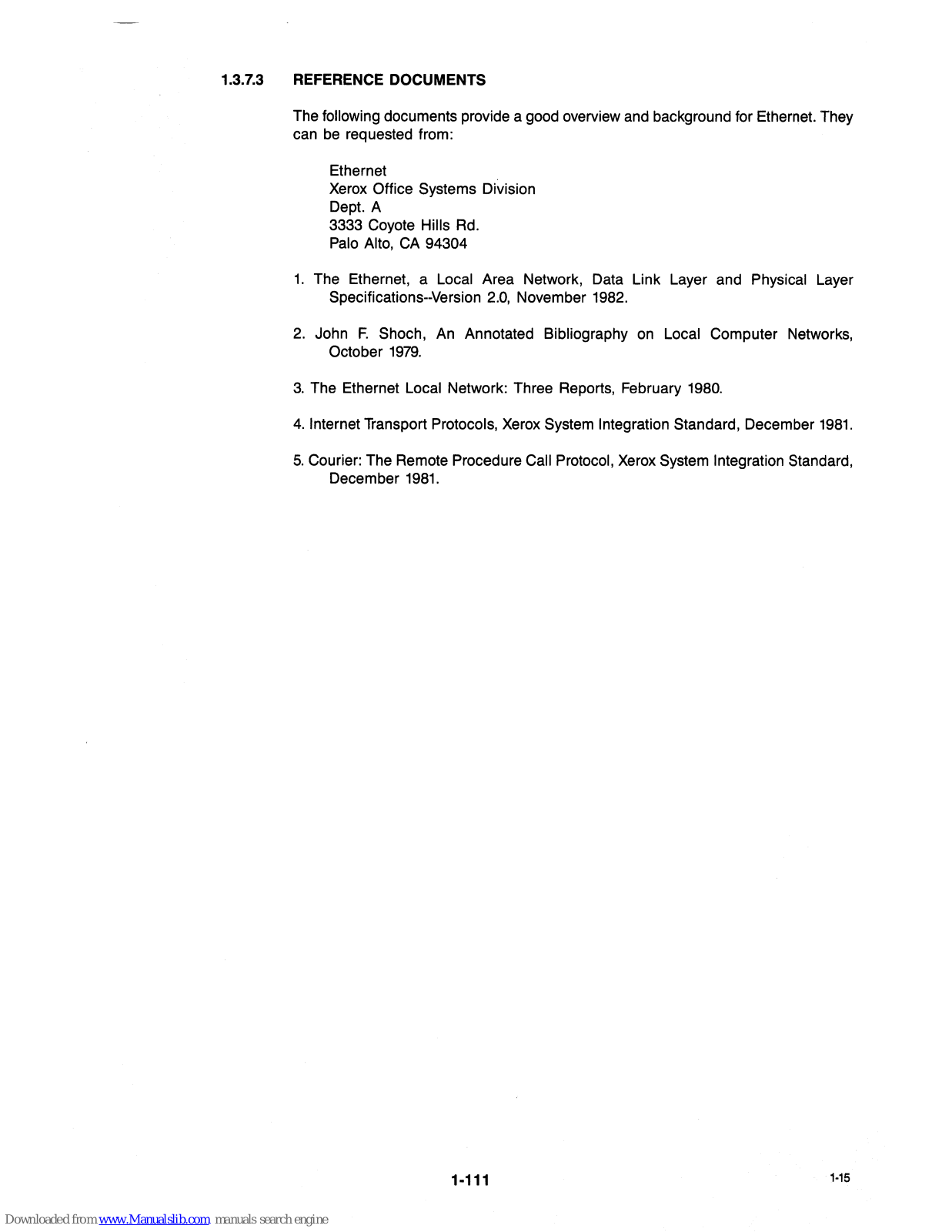

1.3.7.3 REFERENCE DOCUMENTS
The following documents provide a good overview and background for Ethernet. They
can be requested from:
Ethernet
Xerox Office
Systems Division
Dept. A
3333 Coyote
Hills Rd.
Palo Alto, CA 94304
1.
The Ethernet, a Local Area Network, Data Link Layer and Physical Layer
Specifications··Version
2.0,
November 1982.
2.
John
F.
Shoch, An Annotated Bibliography on Local Computer Networks,
October
1979.
3.
The Ethernet Local Network: Three Reports, February
1980.
4.
Internet Transport Protocols, Xerox System Integration Standard, December
1981.
5.
Courier: The Remote Procedure Call Protocol, Xerox System Integration Standard,
December
1981.
1·111
1·15
Page 22
1-16
1-112
Page 23

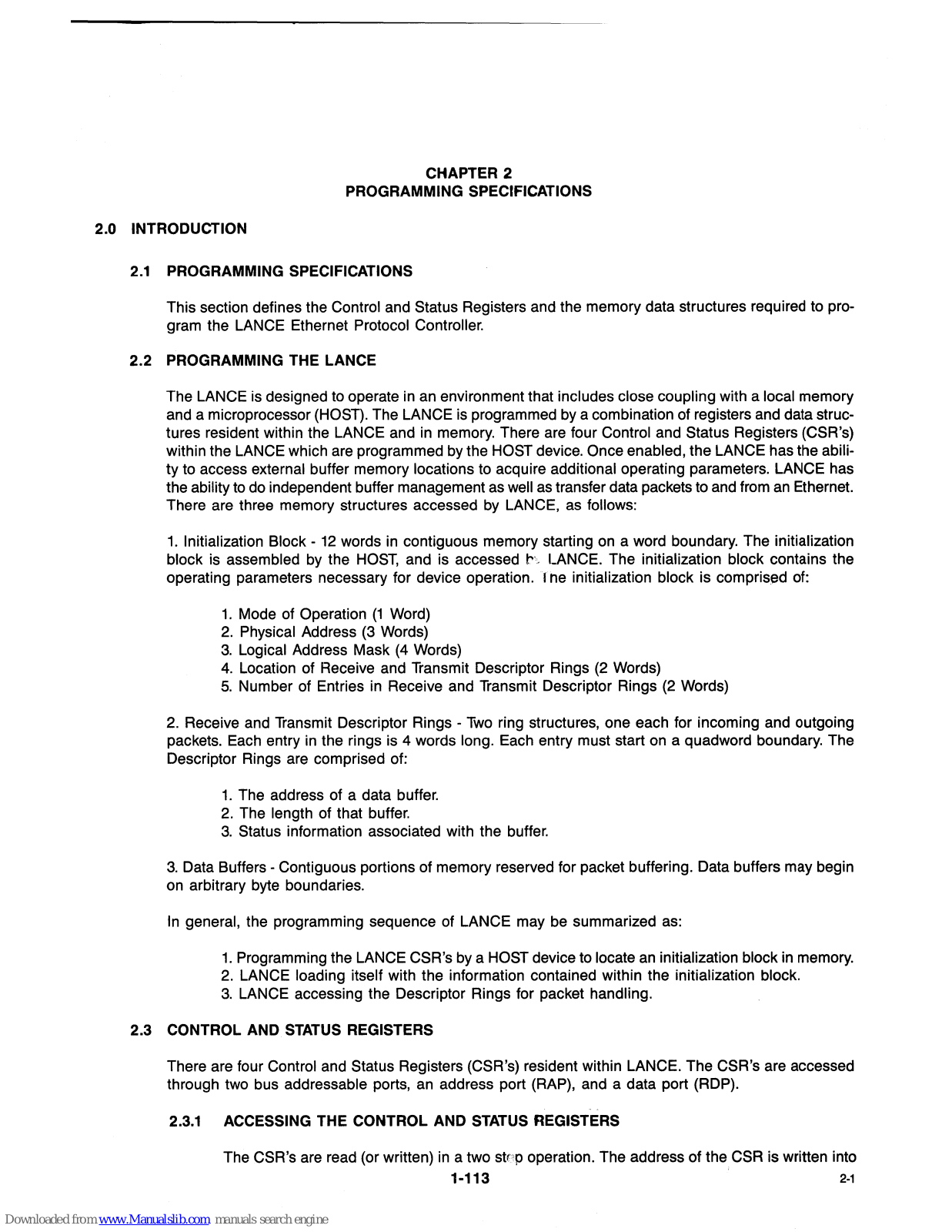

CHAPTER 2
PROGRAMMING SPECIFICATIONS
2.0 INTRODUCTION
2.1
PROGRAMMING SPECIFICATIONS
This section defines the Control and Status Registers and the memory data structures required to program the LANCE Ethernet Protocol Controller.
2.2
PROGRAMMING THE LANCE
The LANCE is designed to operate
in
an environment that includes close coupling with a local memory
and a microprocessor
(HOST). The LANCE is programmed by a combination of registers and data struc-
tures resident within the LANCE and
in
memory. There are four Control and Status Registers (CSR's)
within the LANCE which are programmed by the HOST device. Once enabled, the LANCE has the abili-
ty
to access external buffer memory locations to acquire additional operating parameters. LANCE has
the ability
to
do independent buffer management as well
as
transfer data packets to and from
an
Ethernet.
There are three memory structures accessed by LANCE, as follows:
1.
Initialization Block -
12
words
in
contiguous memory starting on a word boundary. The initialization
block is assembled by the
HOST,
and is accessed r. LANCE. The initialization block contains the
operating parameters necessary for device operation.
I ne initialization block is comprised of:
1.
Mode of Operation
(1
Word)
2.
Physical Address
(3
Words)
3.
Logical Address Mask
(4
Words)
4.
Location of Receive and Transmit Descriptor Rings (2 Words)
5.
Number of Entries
in
Receive and Transmit Descriptor Rings
(2
Words)
2.

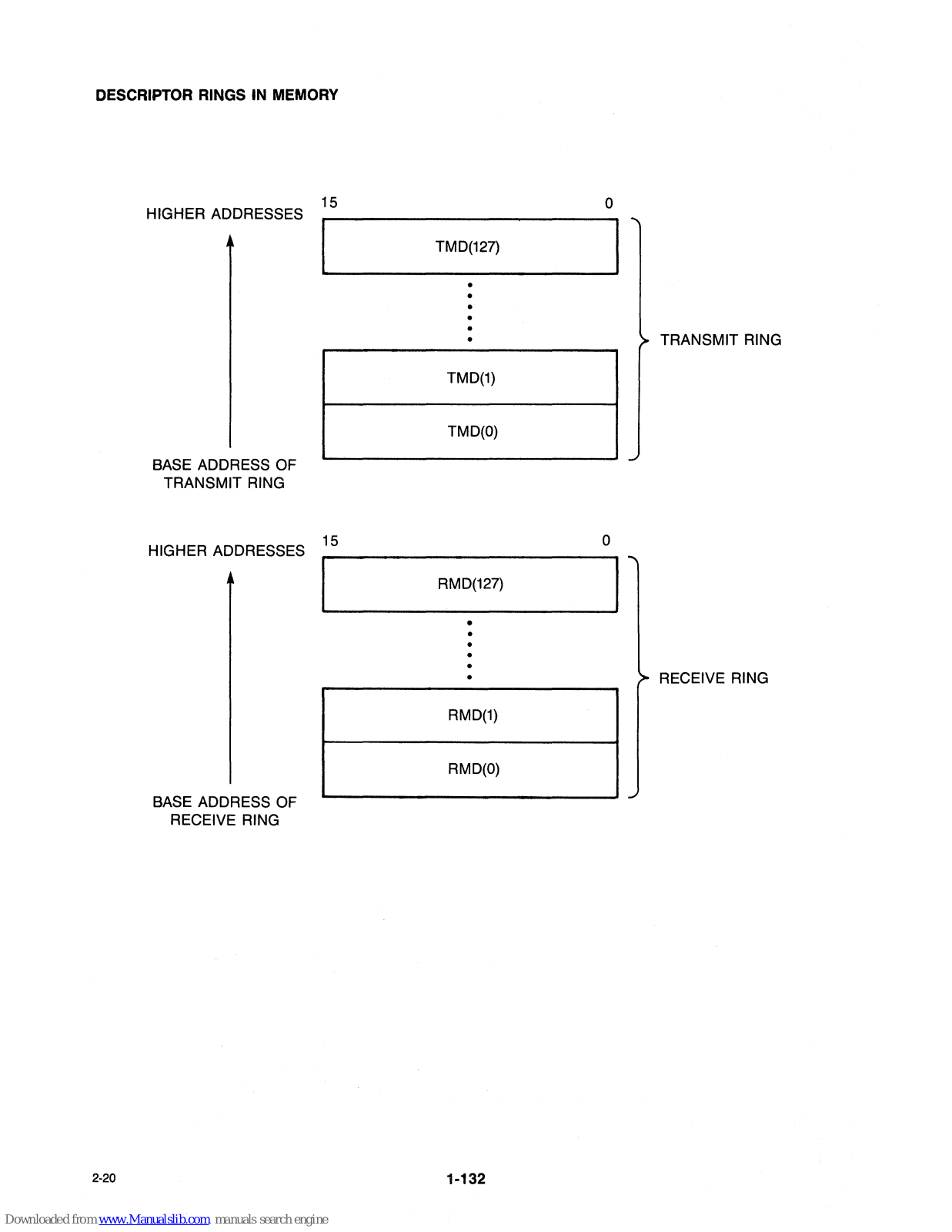

Receive and Transmit Descriptor Rings -
Two
ring structures, one each for incoming and outgoing
packets. Each entry
in
the rings is 4 words long. Each entry must start on a quadword boundary. The
Descriptor Rings are comprised of:
1.
The address of a data buffer.
2.
The length of that buffer.
3.
Status information associated with the buffer.
3.
Data Buffers - Contiguous portions of memory reserved for packet buffering. Data buffers may begin
on arbitrary byte boundaries.
In
general, the programming sequence of LANCE may be summarized as:
1.
Programming the LANCE CSR's by a HOST device to locate
an
initialization block
in
memory.
2.
LANCE loading itself with the information contained within the initialization block.
3.
LANCE accessing the Descriptor Rings for packet handling.
2.3
CONTROL AND
STATUS
REGISTERS
There are four Control and Status Registers (CSR's) resident within LANCE. The CSR's are accessed
through two bus addressable ports,
an
address port (RAP), and a data port (RDP).
2.3.1
ACCESSING THE CONTROL AND
STATUS
REGISTERS

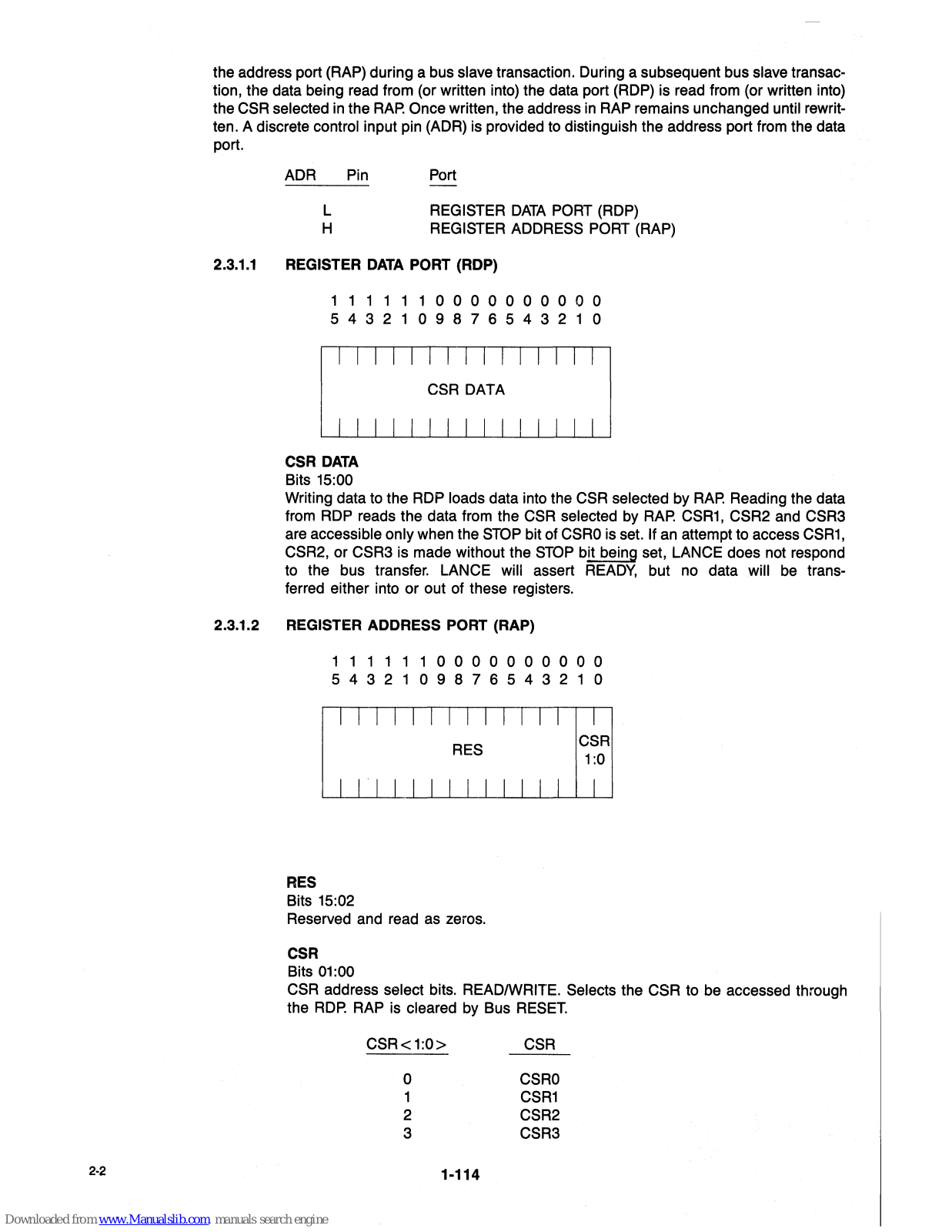

The CSR's are read (or written)
in
a two step operation. The address of the CSR is written into
1-113 .
2·1
Page 24
2·2
the address port (RAP) during a bus slave transaction. During a subsequent bus slave transaction, the data being read from (or written into) the data port (RDP) is read from (or written into)
the
CSR selected in the
RAP.
Once written, the address in RAP remains unchanged until rewrit-
ten. A discrete control input pin (ADR) is provided to distinguish the address port from the data
port.
2.3.1.1
ADR
L
H
Pin Port
REGISTER
DATA
PORT (RDP)
REGISTER ADDRESS PORT (RAP)
REGISTER
DATA
PORT (RDP)
1111
10000000000
5 4 3 2 0 9 8 7 6 5
432
1 0
I : : : : :
~~R
~~T~
: : : : : I
CSR
DATA
Bits 15:00
Writing data to the RDP loads data into the CSR selected by
RAP.
Reading the data
from RDP reads the data from the
CSR selected by
RAP.
CSR1, CSR2 and CSR3
are accessible only when the
STOP
bit of
CSRO
is set. If an attempt to access
CSR1,
CSR2, or CSR3 is made without the
STOP
bit being set, LANCE does not respond
to the bus transfer. LANCE will assert
READY,
but no data will be trans-
ferred either into or out of these registers.
2.3.1.2
REGISTER ADDRESS PORT (RAP)
111
1 1 1
000
0 0
000
0 0
5
432
1 0 9 8 7 6 5
432
1 0
RES
Bits 15:02
Reserved and read as zeros.
CSR
Bits 01:00
CSR
address select bits. READ/WRITE. Selects the CSR to be accessed through
the
RDP.
RAP is cleared by Bus RESET.
CSR<1:0>
CSR
o
CSRO
1
CSR1
2 CSR2
3 CSR3
1-114
Page 25

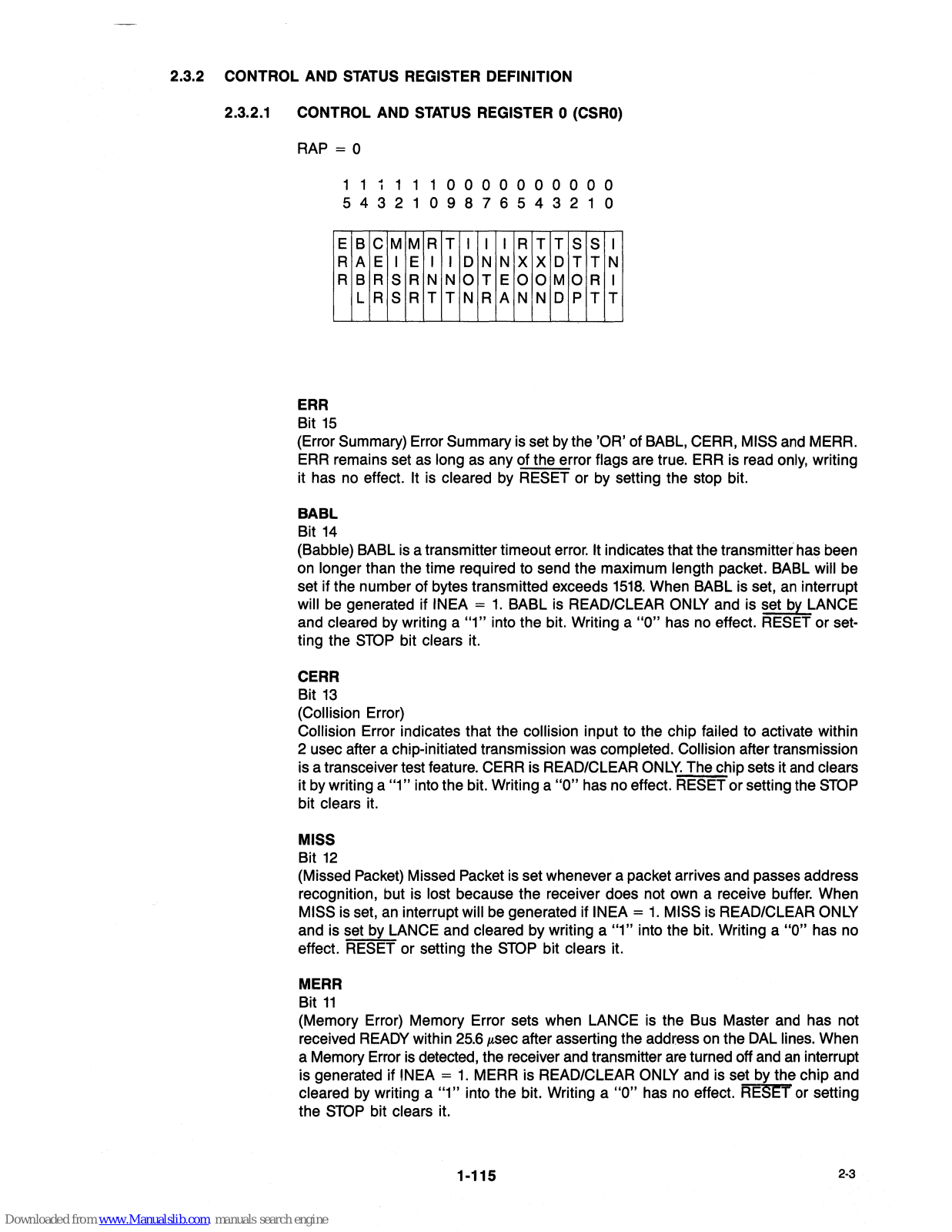

2.3.2 CONTROL AND
STATUS
REGISTER DEFINITION
2.3.2.1 CONTROL AND
STATUS
REGISTER 0
(CSRO)
RAP = 0
ERR
Bit 15
1 1
10000000000
5 4 3 2 0 9 8 7 6 5
432
1 0
E B
CM
MR
T I I I R T T S S I
R A E I E I
10
N N
XX
o T
TN
R B R S R N
NO
T E
00
MO
R I
l R S R T T N R
AN
NO
PTT
(Error Summary) Error Summary is set by the 'OR' of
BABl,
CERR, MISS
and
MERR.
ERR remains set as
long as any of the error flags are true. ERR is read only, writing
it has
no
effect. It
is
cleared by RESET or by setting the stop bit.
BABl
Bit
14
(Babble)
BABl
is a transmitter timeout error. It indicates that the transmitter has been
on
longer than the time required to send the maximum length packet.
BABl
will be
set if the number of bytes transmitted exceeds 1518. When
BABl
is
set,
an
interrupt
will be generated if INEA =
1.
BABl
is READ/CLEAR ONLY and is set
by
lANCE
and cleared by writing a
"1"
into the bit. Writing a
"0"
has no effect. RESET or set·
ti
ng
the
STOP
bit clears it.
CERR
Bit
13
(Collision Error)
Collision Error indicates that the collision input to the chip failed to activate within
2 usec after a chip-initiated transmission was completed.
Collision after transmission
is a transceiver test feature. CERR is READ/CLEAR
ONLY.
The chip sets it
and
clears
it by writing a "1" into the bit. Writing a
"0"
has no effect.
'RES'ET
or setting the
STOP
bit clears it.
MISS
Bit
12
(Missed Packet) Missed Packet is set whenever a packet arrives and passes address
recognition, but is
lost because the receiver does not own a receive buffer. When
MISS
is
set, an interrupt will be generated if INEA =
1.
MISS
is
READ/CLEAR ONLY
and is set by
lANCE
and cleared by writing a "1" into the bit. Writing a
"0"
has
no
effect. RESET or setting the
STOP
bit clears it.
MERR
Bit
11
(Memory Error) Memory Error sets when
lANCE
is the Bus Master and has not
received READY within
25.6
!,sec after asserting the address
on
the
DAl
lines. When
a Memory Error
is
detected, the receiver and transmitter
are
turned off
and
an
interrupt
is generated if
INEA =
1.
MERR is READ/CLEAR ONLY and is set by the chip and
cleared by writing a
"1"
into the bit. Writing a
"0"
has
no
effect.
RESET
or setting
the
STOP
bit clears it.
1-115
2·3
Page 26
2-4

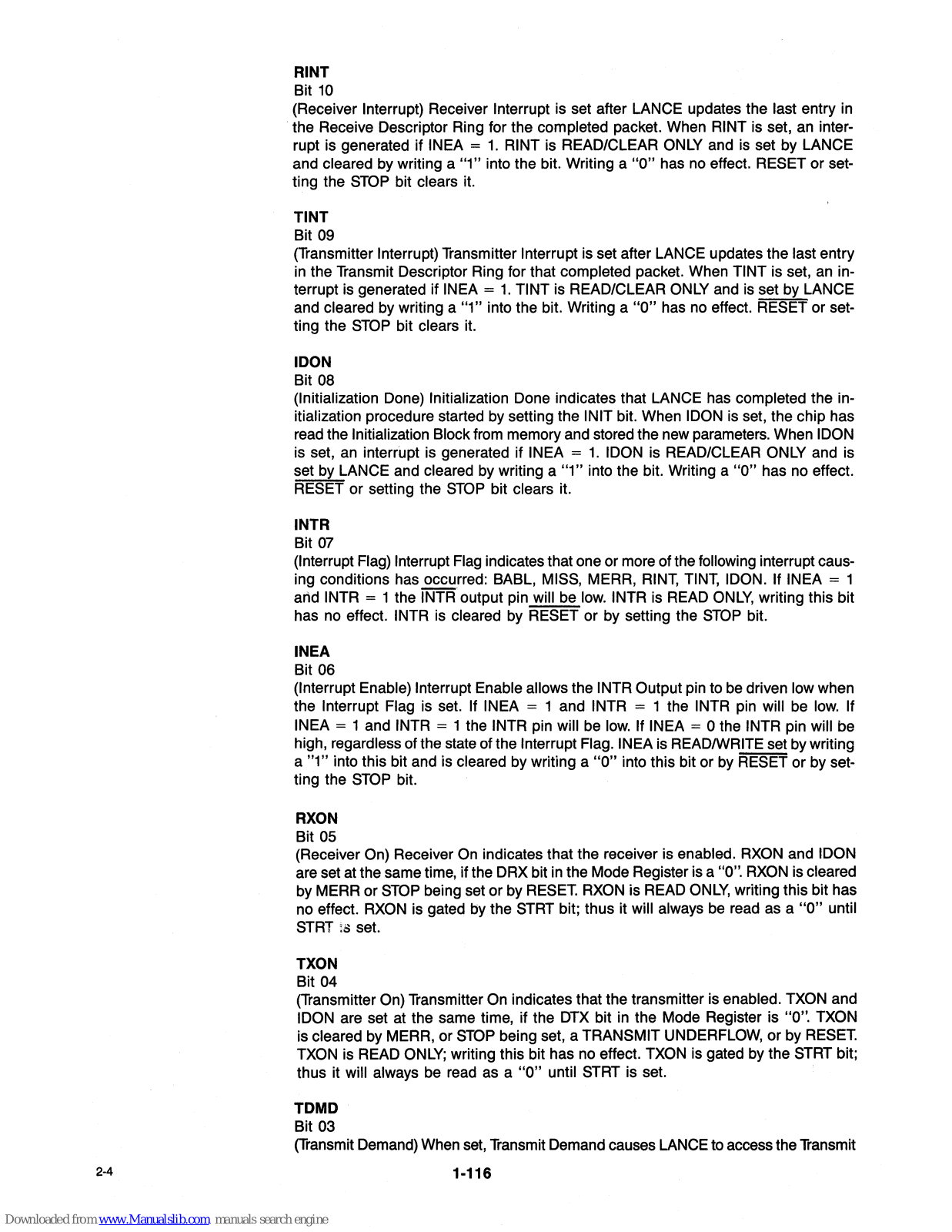

RINT
Bit
10
(Receiver Interrupt) Receiver Interrupt is set after LANCE updates the last entry
in
the Receive Descriptor Ring for the completed packet. When RINT is set, an inter-
rupt is generated if INEA =
1.
RINT is READ/CLEAR ONLY and
is
set by LANCE
and
cleared by writing a "1" into the bit. Writing a
"0"
has
no
effect. RESET or set-
ting the
STOP
bit clears it.
TINT
Bit 09
(Transmitter Interrupt) Transmitter Interrupt is set after LANCE updates the last entry
in
the Transmit Descriptor Ring for that completed packet. When TINT is set,
an
in-
terrupt is generated if INEA =
1.
TINT is READ/CLEAR ONLY and
is
set by LANCE
and
cleared by writing a "1" into the bit. Writing a
"0"
has
no
effect. RESET or set-
ting the
STOP
bit clears it.
lOON
Bit 08
(Initialization
Done) Initialization Done indicates that LANCE has completed the in-
itialization
procedure started by setting the INIT bit. When IDON is set, the chip has
read the
Initialization Block from memory and stored the new parameters. When IDON
is set, an interrupt is generated if INEA =
1.
IDON is READ/CLEAR ONLY and is
set by LANCE and
cleared by writing a
"1"
into the bit. Writing a
"0"
has no effect.
RESET or setting the
STOP
bit clears it.
INTR
Bit
07
(Interrupt Flag) Interrupt Flag indicates that one or more of the following interrupt causing conditions has occurred: BABL, MISS, MERR,
RINT,
TINT,
IDON. If INEA = 1
and INTR = 1 the INTR output pin will be
low.
INTR is READ
ONLY,
writing this bit
has
no
effect. INTR is cleared by RESET or by setting the
STOP
bit.
INEA
Bit 06
(Interrupt Enable) Interrupt Enable allows
the INTR Output pin to be driven low when
the
Interrupt Flag
is
set. If INEA = 1 and INTR = 1 the INTR pin will be
low.
If
INEA
= 1 and INTR = 1 the INTR pin will be
low.
If INEA = 0 the INTR pin will be
high, regardless of the state of the Interrupt Flag. INEA is READIWRITE set by writing
a
"1" into this bit and is cleared by writing a
"0"
into this bit or by
RESEi'
or by set-
ting the
STOP
bit.
RXON
Bit 05
(Receiver On) Receiver
On
indicates that the receiver is enabled. RXON and IDON
are set at the same time, if the DRX bit
in
the Mode Register is a "0".
RXON
is cleared
by MERR or
STOP
being set or by
RESET.
RXON is READ
ONLY,
writing this bit has
no effect.
RXON is gated by the STRT bit; thus it will always be read as a
"0"
until
STRT
is
set.
TXON
Bit 04
(Transmitter On) Transmitter On indicates that the transmitter is enabled. TXON and
IDON are set
at
the same time, if the DTX bit
in
the Mode Register is "0". TXON
is cleared by MERR, or
STOP
being set, a TRANSMIT UNDERFLOW, or by
RESET.
TXON is READ
ONLY;
writing this bit has no effect. TXON is gated by the STRT bit;
thus it
will always
be
read as a
"0"
until STRT is set.
TDMD
Bit 03
(Transmit Demand) When set, Transmit Demand causes LANCE to access the Transmit
1-116
Page 27

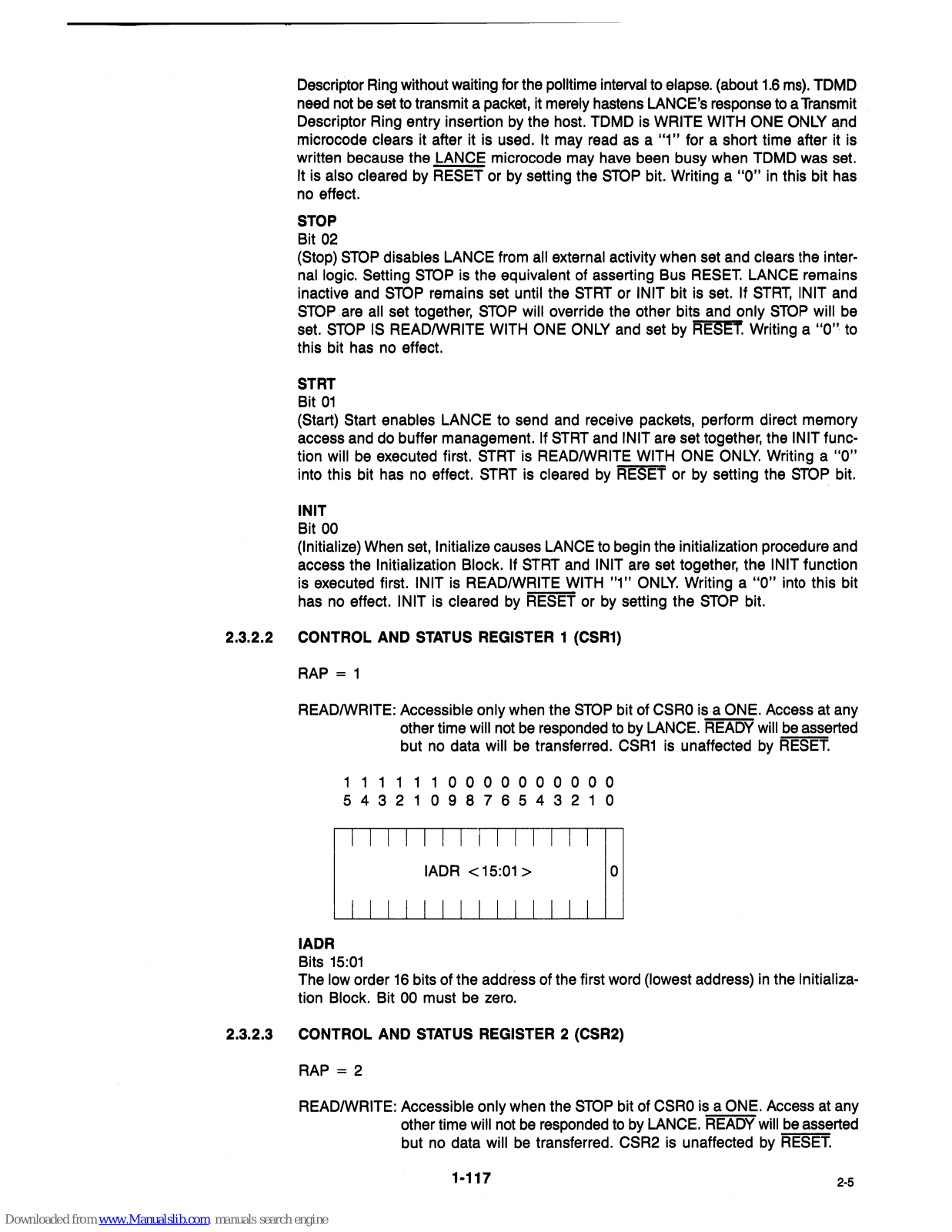

Descriptor Ring without waiting for the polltime interval
to
elapse. (about
1.6
ms).
TDMD
need not
be
set
to
transmit a packet, it merely hastens LANCE's response to a Transmit
Descriptor Ring entry insertion by the host. TDMD is
WRITE WITH ONE ONLY l!nd
microcode clears it after it is used. It may read as a
"1"
for a short time after it is
written because the LANCE microcode may have been busy when TDMD was set.
It is also cleared by RESET or by setting the
STOP
bit. Writing a
"0"
in
this bit has
no effect.
STOP
Bit 02
(Stop)
STOP
disables LANCE from all external activity when set and clears the inter-
nal logic. Setting
STOP
is the equivalent of asserting Bus
RESET.
LANCE remains
inactive and
STOP
remains set until the
STRT
or INIT bit is set. If
STRT,
INIT and
STOP
are all set together,
STOP
will override the other bits and only
SlOP
will be
set.
STOP
IS READIWRITE WITH ONE ONLY and set by
~
Writing a
"0"
to
this bit has no effect.
STRT
Bit
01
(Start) Start enables LANCE to send and receive packets, perform direct memory
access and do buffer management.
If
STRT
and INIT are set together, the INIT func-
tion will be executed first. STRT is READIWRITE WITH ONE
ONLY.
Writing a
"0"
into this bit has no effect.
STRT
is cleared by RESET or by setting the
STOP
bit.
INIT
Bit 00
(Initialize)
When set, Initialize causes LANCE to begin the initialization procedure and
access the
Initialization Block. If STRT and INIT are set together, the INIT function
is executed first.
INIT is READIWRITE WITH "1"
ONLY.
Writing a
"0"
into this bit
has no effect.
INIT is cleared by RESET or by setting the
STOP
bit.
2.3.2.2
CONTROL AND STATUS REGISTER 1 (CSR1)
RAP = 1
READIWRITE: Accessible only when the
STOP
bit of
CSRO
is a ONE. Access at any
other time will not
be
responded
to
by LANCE.
READY
will be asserted
but no data will be transferred.
CSR1
is unaffected by
RESET.
1 1 1 1 1 1 0 0 0
000
0 0 0 0
5 4 3 2 1
098
765
4 3 2 1 0
IADR
Bits
15:01
The low order
16
bits of the address of the first word (lowest address)
in
the Initializa-
tion Block. Bit 00 must be zero.
2.3.2.3
CONTROL AND STATUS REGISTER 2 (CSR2)
RAP = 2
READIWRITE: Accessible only when the
STOP
bit of
CSRO
is a ONE. Access at any
other time will not be responded
to
by LANCE.
READY
will be asserted
but no data will be transferred.
CSR2 is unaffected by
RESET.
1-117
2-5
Page 28
2-6

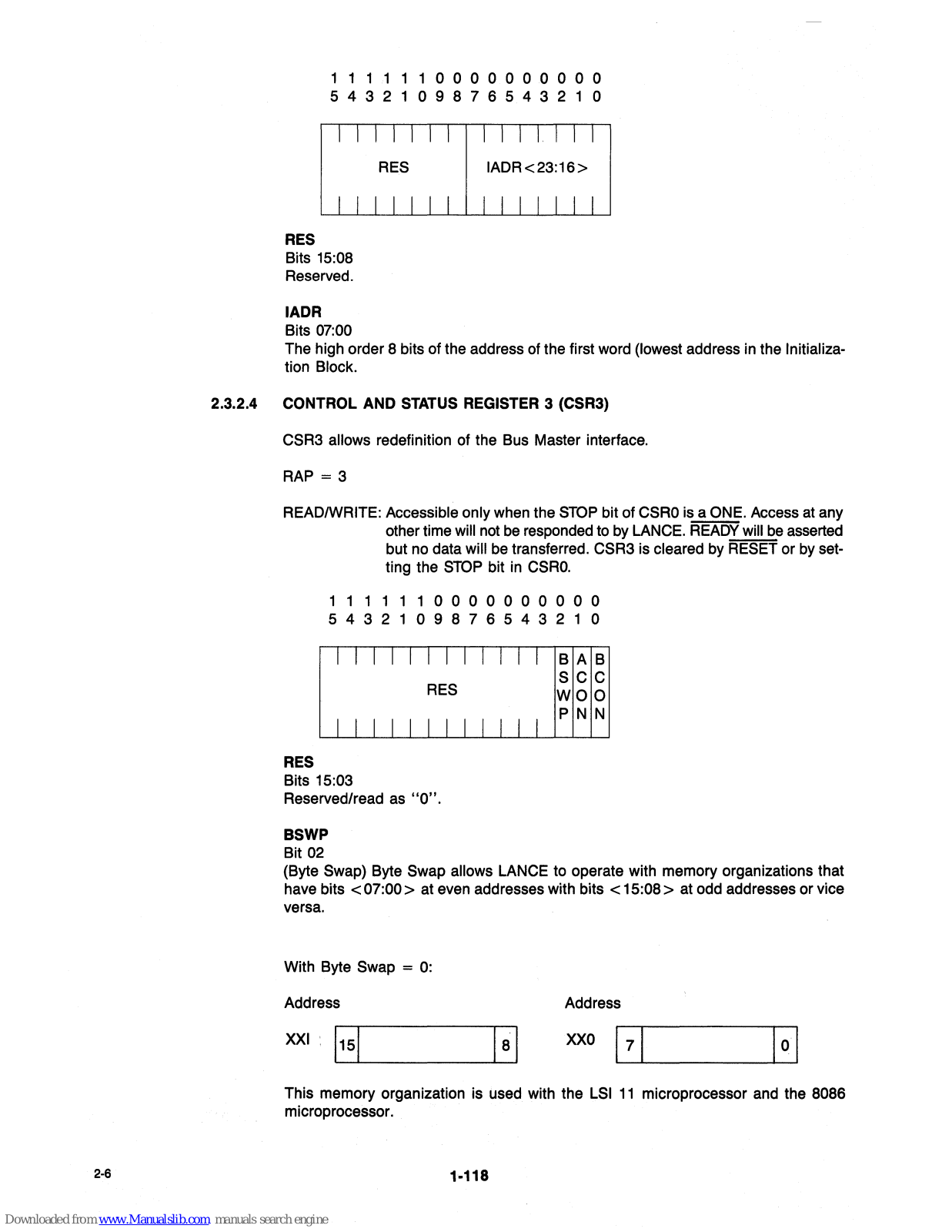

111110000000000
5 4 3 2 0 9
876
5 4 3 2 1 0
RES
Bits 15:08
Reserved.
IADR
Bits 07:00
The high order 8 bits of the address of the first word (lowest address in the Initialization Block.
2.3.2.4 CONTROL AND
STATUS
REGISTER 3 (CSR3)
CSR3 allows
redefinition of the Bus Master interface.
RAP
= 3
READIWRITE: Accessible only when the
STOP
bit of
CSRO
is a ONE. Access
at
any
other time
will not
be
responded
to
by
LANCE.
READY
will
be
asserted
but no data
will
be
transferred. CSR3 is cleared
by
RESET or
by
set-
ting the
STOP
bit
in
CSRO.
1 1
111
1 0 0 0 0 0 0 0
000
5 4 3 2 1 0 9 8 7 6 5
432
1 0
RES
Bits 15:03
Reserved/read
as
"0".
BSWP
Bit 02
B A B
SCC
WOO
P N N
(Byte Swap) Byte Swap allows LANCE to operate with memory organizations that
have bits
< 07:00 > at even addresses with bits < 15:08 > at odd addresses or vice
versa.
With Byte
Swap =
0:
Address
Address
XXI
1L--15.L...1
__
----'1---'81
This memory organization is used with the
LSI
11
microprocessor and the 8086
microprocessor.
1·118
Page 29

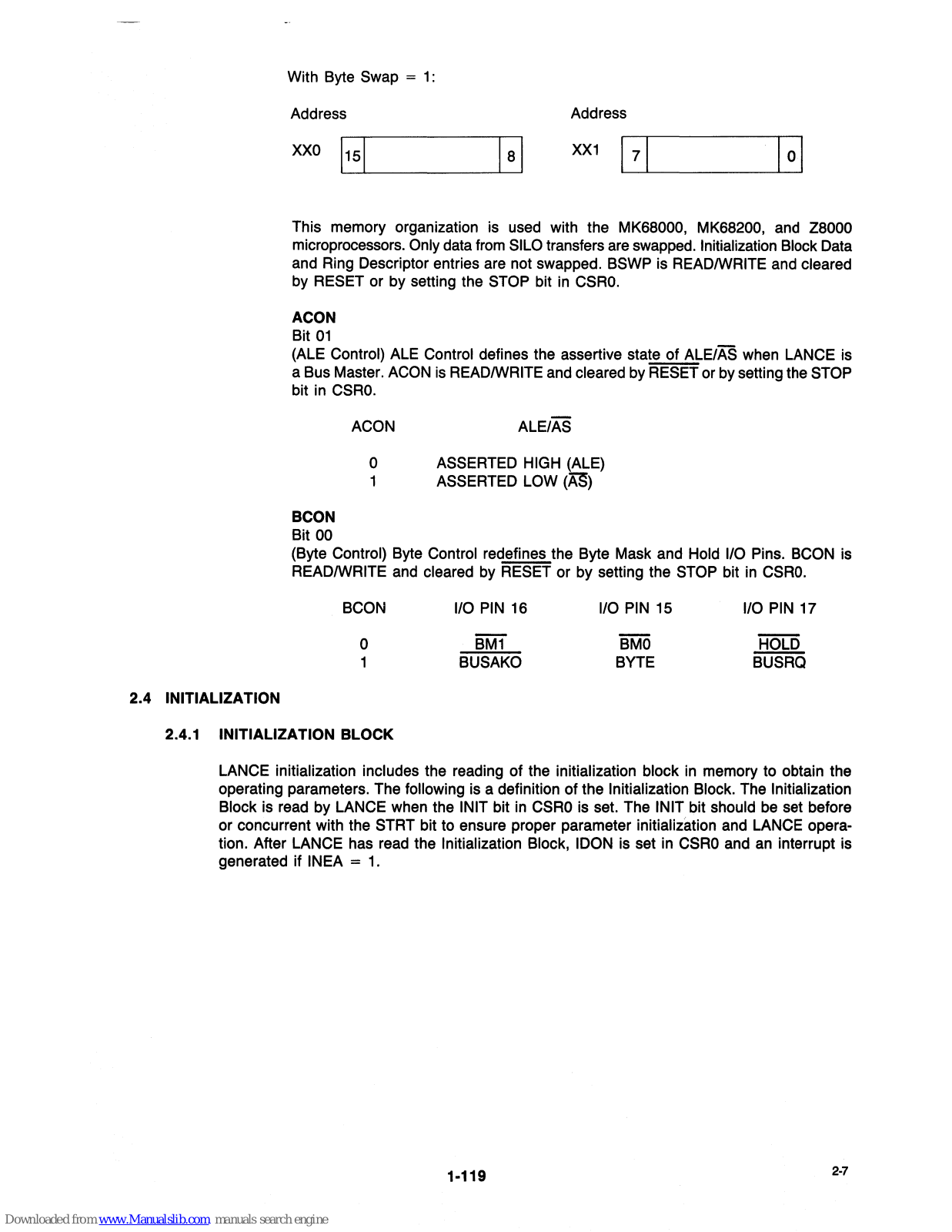

2.4 INITIALIZATION
With Byte Swap =
1:
Address
Address
XXO
L-115-,----1
__
---'I-----'SI
XX1
,-----I
7-,---1
__
-----'1'--'0
I
This memory organization is used with the MK6S000, MK6S200, and
ZSOOO
microprocessors. Only data from SILO transfers are swapped. Initialization Block Data
and Ring Descriptor entries are not swapped.
BSWP is READIWRITE and cleared
by
RESET or by setting the STOP bit
in
CSRO.
ACON
Bit
01
(ALE Control) ALE Control defines the assertive state of ALEIAS when LANCE is
a Bus Master.
ACON
is
READIWRITE and cleared
by
RESET or
by
setting the STOP
bit in
CSRO.
BCON
Bit 00
ACON
o
1
ALEIAS
ASSERTED HIGH
(ALE)
ASSERTED LOW ()is)
(Byte Control) Byte Control redefines the Byte Mask and Hold
1/0
Pins. BCON is
READIWRITE and cleared
by
RESET or by setting the STOP bit
in
CSRO.
BCON
o
1
1/0
PIN
16
BiVi1
BUSAKO
1/0
PIN
15
BMO
BYTE
1/0
PIN
17
HOLD
BUSRQ
2.4.1 INITIALIZATION BLOCK
LANCE initialization includes the reading of the initialization block
in
memory to obtain the
operating parameters. The following is a definition of the Initialization Block. The Initialization
Block is read by LANCE when the
INIT bit
in
CSRO
is set. The INIT bit should be set before
or concurrent with the
STRT bit to ensure proper parameter initialization and LANCE opera-
tion. After LANCE has read the Initialization Block, IDON is set in
CSRO
and
an
interrupt is
generated if
INEA =
1.
1-119
2-7
Page 30
2-8

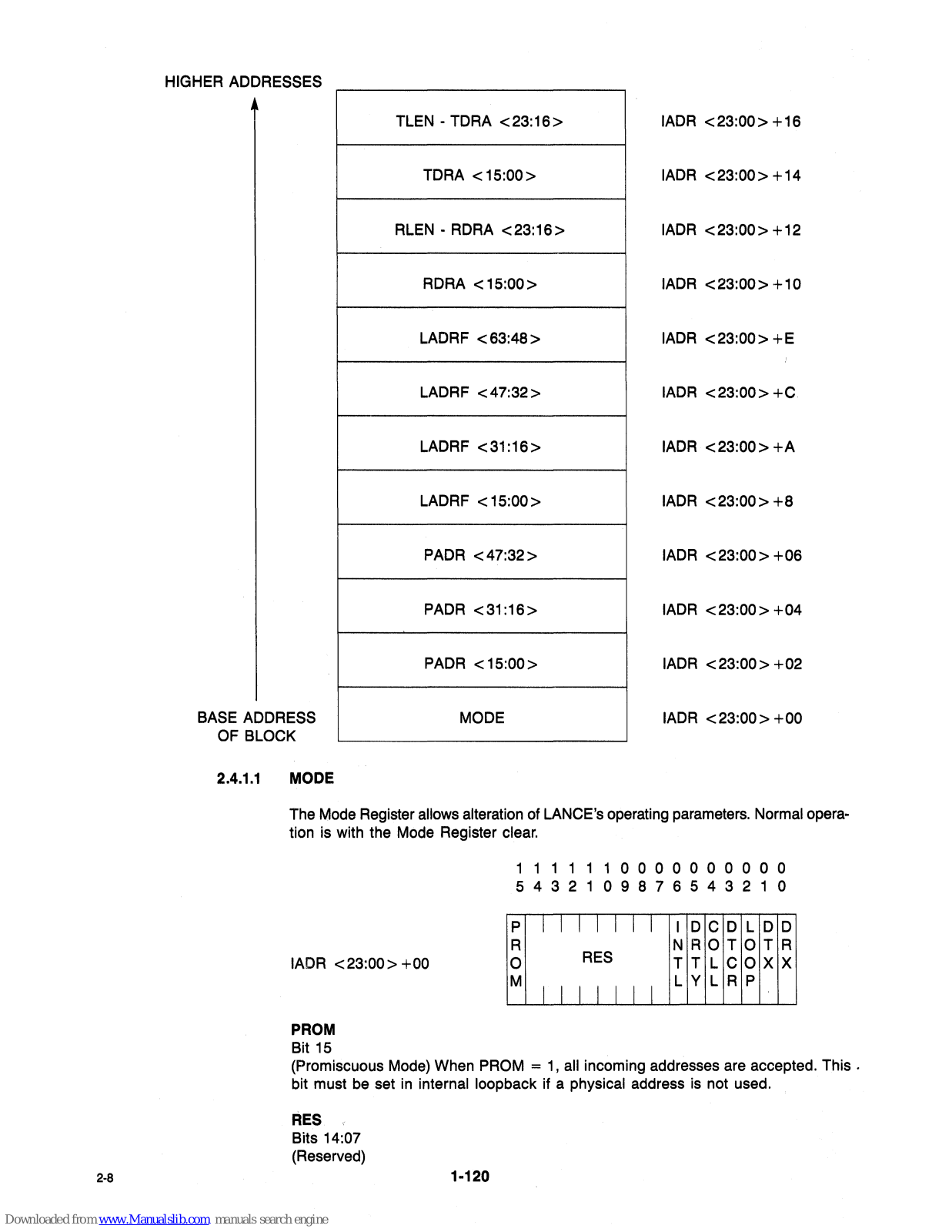

HIGHER ADDRESSES
BASE
ADDRESS
OF
BLOCK
2.4.1.1
MODE
TLEN
- TDRA
<23:16>
TDRA
<15:00>
RLEN -RDRA
<23:16>
RDRA
< 15:00 >
LADRF < 63:48 >
LADRF
<47:32>
LADRF
<31:16>
LADRF < 15:00 >
PADR
<47:32>
PADR
<31:16>
PADR
<15:00>
MODE
IADR
<23:00>
+16
IADR
<23:00>
+14
IADR
<23:00>
+12
IADR
<23:00>
+10
IADR
<23:00>
+E
IADR
<23:00>
+C
IADR
<23:00>
+A
IADR
<23:00>
+8
IADR
<23:00>
+06
IADR
<23:00>
+04
IADR
<23:00>
+02
IADR
<23:00>
+00
The
Mode
Register allows alteration of LANCE's operating
parameters.
Normal
opera-
tion
is
with the
Mode
Register
clear.
IADR
<23:00>
+00
PROM
Bit 15
1111
10000000000
5 4 3 2 0 9 8 7 6 5 4
321
0
P
I I I I I I I I D
CD
L D D
R
N R
aT
OTR
a
RES
T T L C
OXX
M
I I I I I I I
L Y L R P
(Promiscuous
Mode)
When
PROM = 1,
all
incoming addresses
are
accepted.
This.
bit must
be
set
in
internal loopback if a physical address
is
not used.
RES
Bits 14:07
(Reserved)
1-120
Page 31

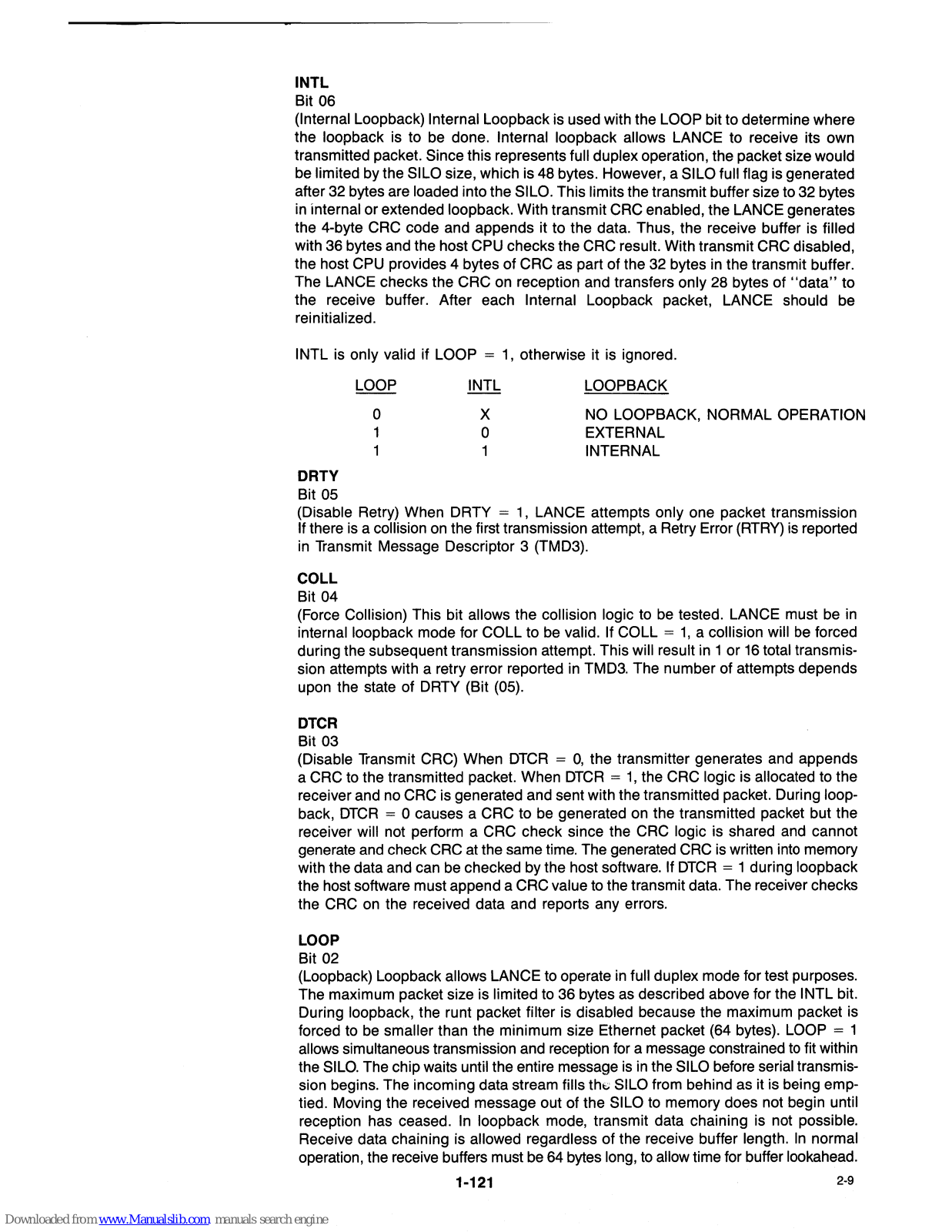

INTL
Bit 06
(Internal
Loopback) Internal
loopback
is used with the
lOOP
bit to determine where
the loopback is to be done.
Internal loopback allows
lANCE
to receive its own
transmitted packet. Since this represents full duplex operation, the packet size would
be limited by the
SilO
size, which is 48 bytes. However, a
SilO
full flag is generated
after 32 bytes are loaded into the
SILO. This limits the transmit buffer size to 32 bytes
in
internal or extended loop back. With transmit CRC enabled, the LANCE generates
the 4-byte
CRC code and appends it to the data. Thus, the receive buffer
is
filled
with 36 bytes and the host CPU checks the
CRC result. With transmit CRC disabled,
the host CPU provides 4 bytes of
CRC as part of the 32 bytes
in
the transmit buffer.
The LANCE checks the
CRG on reception and transfers only 28 bytes of
"data"
to
the receive buffer. After each
Internal
loopback
packet,
lANCE
should be
reinitialized.
INTl
is only valid if
lOOP = 1,
otherwise it is ignored.
ORTY
Bit 05
lOOP
o
INTL
X
o
1
lOOPBACK
NO lOOPBACK, NORMAL OPERATION
EXTERNAL
INTERNAL
(Disable Retry) When DRTY =
1,
LANGE attempts only one packet transmission
If there
is
a collision
on
the first transmission attempt, a Retry Error
(RTRY)
is
reported
in
Transmit Message Descriptor 3 (TMD3).
COLL
Bit 04
(Force Collision) This bit allows the collision logic to
be
tested.
lANCE
must
be
in
internalloopback mode for
COLl
to
be
valid. If
COll = 1,
a collision will
be
forced
during the subsequent transmission attempt. This will result
in
1 or
16
total transmis-
sion attempts with a retry error reported
in
TMD3. The number of attempts depends
upon the state of
DRTY (Bit (05).
OTCR
Bit 03
(Disable Transmit
CRG)
When
DTCR = 0,
the transmitter generates and appends
a
CRC to the transmitted packet. When
DTCR = 1,
the CRC logic is allocated to the
receiver and
no
CRC is generated and sent with the transmitted packet. During loop-
back,
DTCR
= 0 causes a CRC to
be
generated on the transmitted packet but the
receiver will not perform a
CRC check since the CRC logic is shared and cannot
generate and check
CRG
at
the same time. The generated CRC
is
written into memory
with the data and can be checked by the host software. If
DTCR
= 1 during loopback
the host software must append a
CRC value to the transmit data. The receiver checks
the
CRG
on
the received data and reports any errors.
LOOP
Bit 02
(loopback) loopback allows LANCE to operate
in
full duplex mode for test purposes.
The maximum packet size is limited to 36 bytes as described above for the
INTl
bit.
During loopback, the runt packet filter is disabled because the maximum packet
is
forced to
be
smaller than the minimum size Ethernet packet (64 bytes).
lOOP
= 1
allows simultaneous transmission and reception
for
a message constrained
to
fit within
the
SILO.
The chip waits until the entire message
is
in
the
SilO
before serial transmis-
sion begins. The incoming data stream fills
th"
SILO from behind as it is being emp-
tied. Moving the received message out of the
SilO
to memory does not begin until
reception has ceased.
In
loopback mode, transmit data chaining is not possible.
Receive data chaining
is
allowed regardless of the receive buffer length.
In
normal
operation, the receive buffers must be 64 bytes long,
to
allow time for buffer lookahead.
1-121 2-9

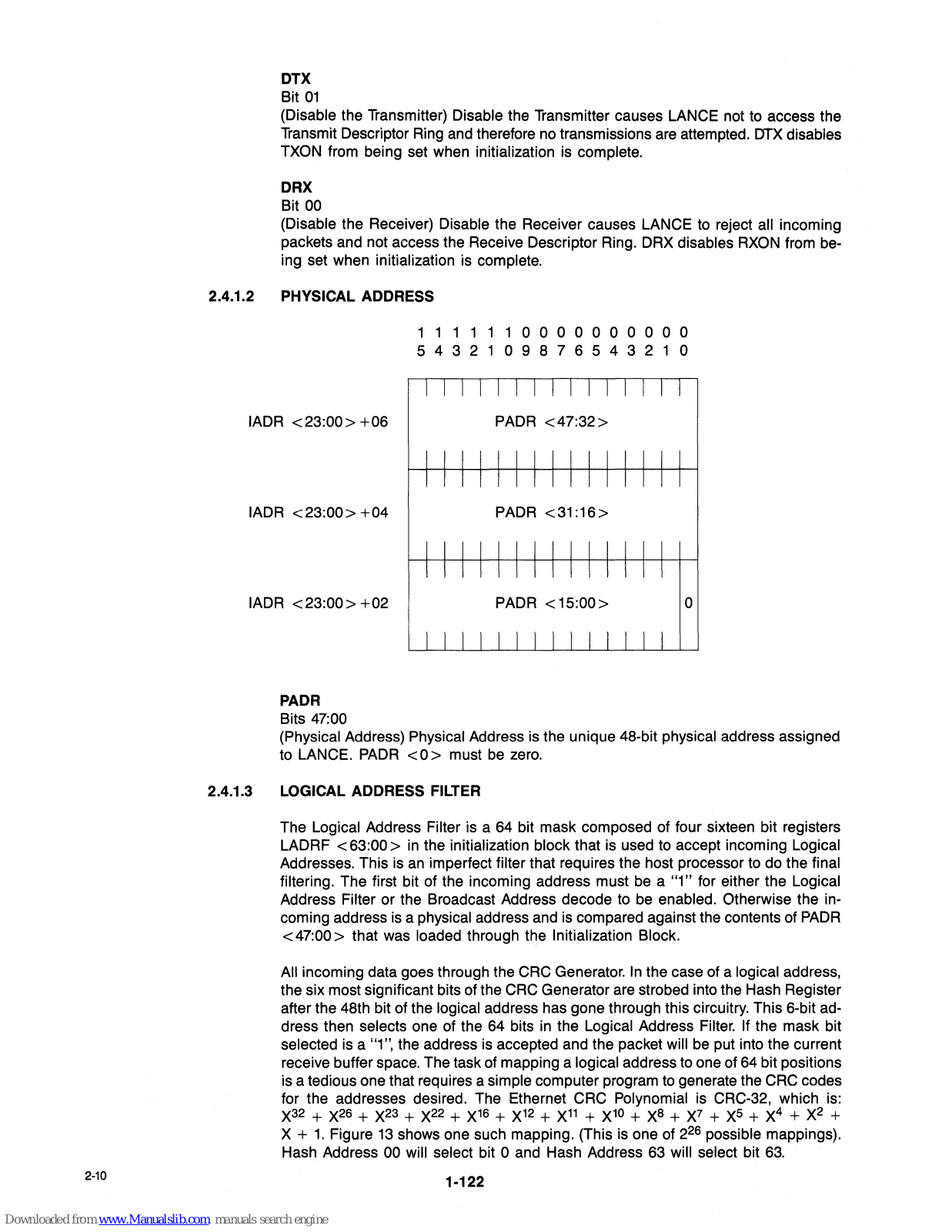

Page 32
2·10
2.4.1.2
DTX
Bit
01
(Disable the Transmitter) Disable the Transmitter causes LANCE not
to
access the
Transmit Descriptor Ring and therefore no transmissions
are
attempted.
DTX
disables
TXON
from being set when initialization
is
complete.
DRX
Bit
00
(Disable the Receiver) Disable the Receiver causes LANCE
to
reject all incoming
packets and not access the Receive Descriptor Ring. DRX
disables
RXON
from be-
ing set when initialization is complete.
PHYSICAL ADDRESS
1 1 1
5 4 3 2
1
000
0 0 0 0
000
098
765
4
321
0
IADR
<23:00>
+06
IADR
<23:00>
+04
IADR
<23:00>
+02
2.4.1.3
PADR
Bits
47:00
(Physical Address) Physical Address is the unique 48-bit physical address assigned
to
LANCE.
PADR
< 0 > must
be
zero.
LOGICAL ADDRESS FILTER
The Logical Address Filter is a 64 bit mask composed of four sixteen bit registers
LADRF <
63:00 >
in
the initialization block that is used
to
accept incoming Logical
Addresses. This
is
an
imperfect filter that requires the host processor
to
do the final
filtering.
The first bit of the incoming address must
be
a "1" for either the Logical
Address Filter or the Broadcast Address decode
to
be
enabled. Otherwise the in-
coming address
is
a physical address and
is
compared against the contents of
PADR
<47:00>
that was loaded through the Initialization Block.
All
incoming data goes through the CRC Generator.
In
the case of a logical address,
the six most significant bits of the
CRC Generator
are
strobed into the Hash Register
after the 48th bit of the
logical address has gone through this circuitry. This 6-bit ad-
dress then selects one of the 64 bits
in
the Logical Address Filter. If the mask bit
selected
is a "1
",
the address is accepted and the packet will be put into the current
receive buffer space. The task of mapping a
logical address
to
one of 64 bit positions
is a tedious one that requires a
simple computer program
to
generate the CRC codes
for the addresses desired. The Ethernet
CRC Polynomial
is
CRC-32, which
is:
X32 + X26 + X23 + X22 + X16 + X12 + X11 + X10 + XB + X7 + XS + X4 + X2
+
X +
1.
Figure
13
shows one such mapping. (This is one of 2
26
possible mappings).
Hash Address
00 will select bit 0 and Hash Address 63 will select bit
63.
1-122
Page 33

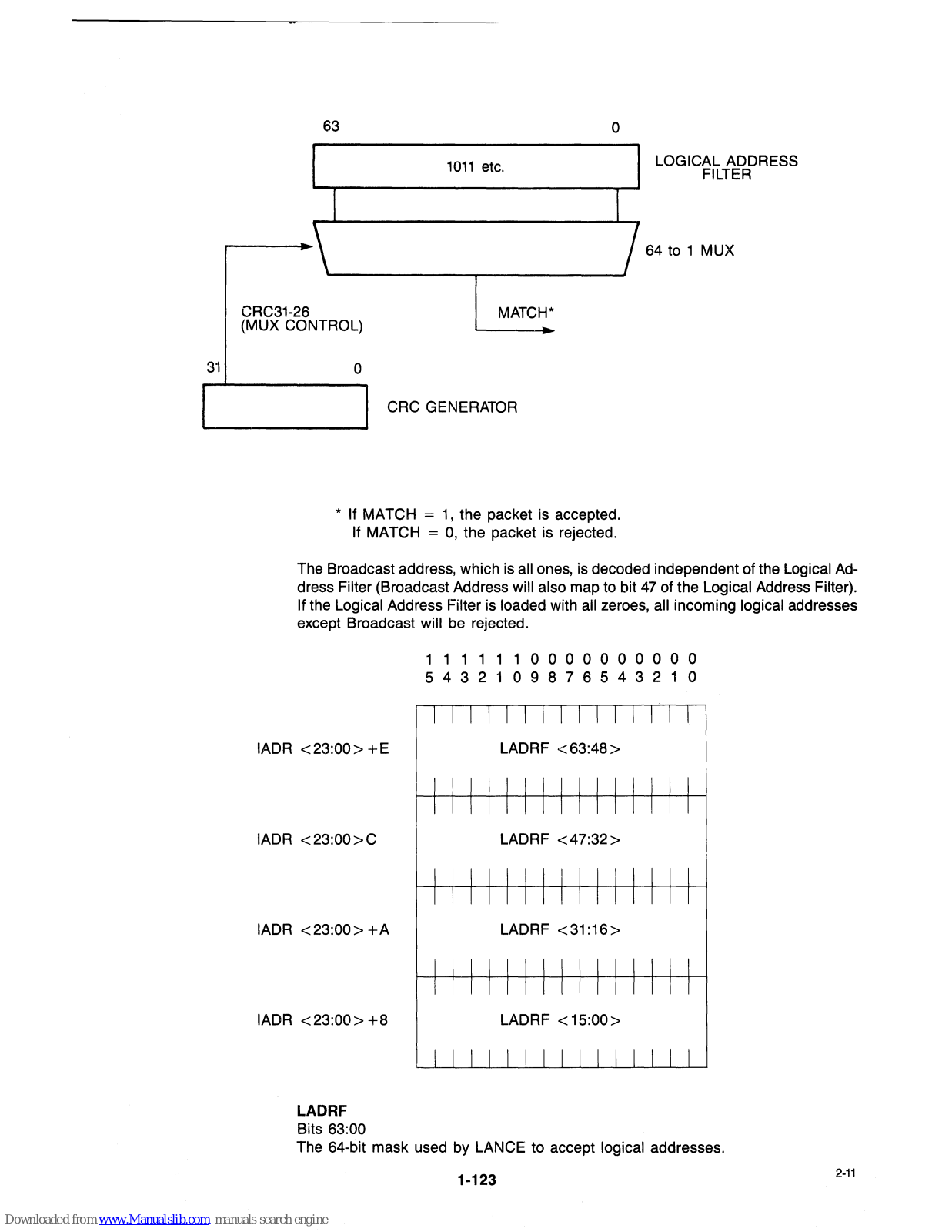

31
63
o
1011
etc.
CRC31-26
(MUX
CONTROL)
o
CRC GENERATOR
*
If
MATCH =
1,
the packet
is
accepted.
If
MATCH =
0,
the packet
is
rejected.
LOGICAL ADDRESS
FILTER
64
to
1 MUX
The Broadcast address, which is
all ones,
is
decoded independent of the Logical
Ad-
dress Filter (Broadcast Address will also map
to
bit
47
of the Logical Address Filter).
If
the Logical Address Filter is loaded with all zeroes, all incoming logical addresses
except Broadcast
will be rejected.
IADR
<23:00>
+E
IADR
<23:00>C
IADR
<23:00>
+A
IADR
<23:00>
+8
LADRF
Bits 63:00
1 1 1 1 1 1 0 0 0 0 0 0 0
000
54321
0 9 8 7 6 5 4 3 2 1 0
The 64-bit mask used by LANCE to accept logical addresses.
1-123
2-11
Page 34

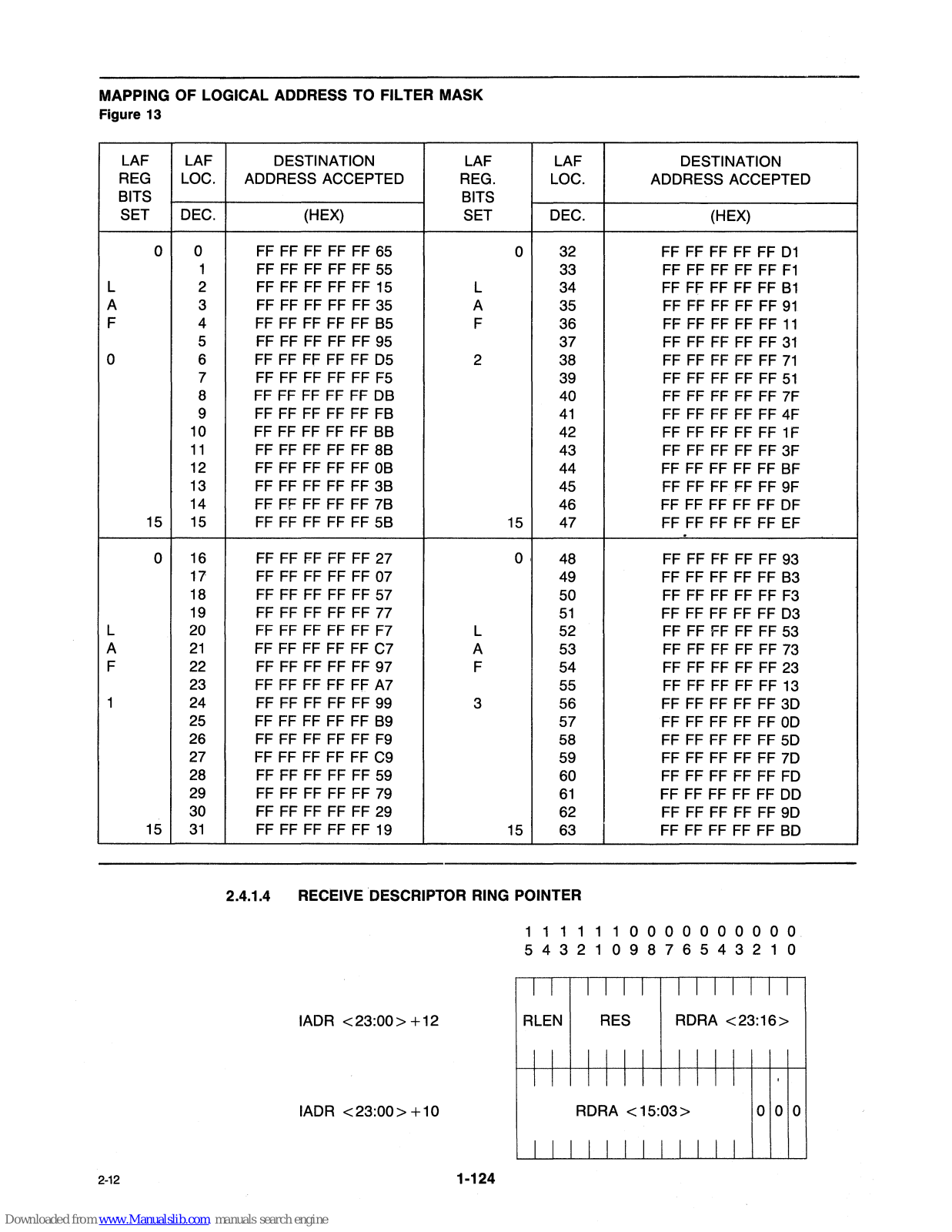

MAPPING OF LOGICAL ADDRESS TO FILTER MASK
Figure
13
LAF LAF DESTINATION
LAF
REG
LOC,
ADDRESS
ACCEPTED
REG,
BITS
BITS
SET
DEC,
(HEX) SET
0 0
FF FF
FF FF FF
65
1
FF FF FF
FF FF
55
L 2
FF FF
FF FF FF
15
L
A
3
FF FF FF
FF FF 35
A
F 4
FF FF
FF FF FF
B5
F
5 FF
FF
FF FF FF
95
0 6
FF FF
FF FF FF
D5
2
7
FF FF
FF FF FF
F5
8
FF
FF
FF FF FF
DB
9
FF FF FF
FF FF
FB
10
FF
FF
FF
FF FF
BB
11
FF
FF
FF
FF
FF
8B
12
FF
FF FF
FF
FF
OB
13
FF
FF
FF FF
FF 3B
14
FF
FF
FF
FF FF
7B
15 15
FF FF
FF FF FF
5B
0
16
FF
FF
FF FF
FF 27
17
FF FF FF FF
FF 07
18
FF
FF
FF FF
FF 57
19
FF FF FF
FF FF 77
L
20
FF FF FF
FF FF
F7
L
A
21
FF
FF
FF FF FF C7
A
F
22
FF
FF
FF
FF FF 97
F
23
FF FF
FF FF FF
A7
1
24
FF
FF
FF
FF FF 99
3
25
FF FF FF
FF FF B9
26
FF FF FF
FF FF
F9
27
FF
FF
FF FF FF
C9
28
FF
FF
FF FF
FF
59
29
FF
FF
FF
FF FF
79
30
FF
FF
FF
FF FF
29
15
31
FF
FF
FF
FF FF
19
LAF DESTINATION
LOC,
ADDRESS
ACCEPTED
DEC,
(HEX)
0 32 FF
FF FF
FF FF
D1
33 FF FF
FF FF
FF
F1
34 FF
FF
FF FF FF B 1
35 FF
FF FF
FF FF
91
36 FF
FF FF
FF
FF
11
37
FF FF
FF FF
FF
31
38
FF FF FF FF FF
71
39
FF FF
FF FF
FF
51
40 FF
FF FF FF
FF 7F
41
FF FF FF
FF FF 4F
42
FF FF
FF FF
FF
1 F
43 FF
FF FF
FF FF 3F
44
FF FF
FF FF
FF
BF
45
FF FF
FF FF
FF
9F
46 FF
FF
FF FF FF
DF
15
47 FF FF FF
FF
FF
EF
O·
48
FF FF FF FF FF
93
49
FF
FF FF
FF FF
B3
50
FF
FF FF
FF FF
F3
51
FF FF
FF
FF FF
D3
52
FF FF
FF
FF FF
53
53
FF FF FF
FF FF
73
54
FF FF
FF FF
FF
23
55
FF FF FF
FF FF
13
56 FF FF
FF FF FF
3D
57 FF FF
FF
FF FF
OD
58
FF
FF
FF FF FF
5D
59
FF FF
FF FF
FF
7D
60
FF FF
FF FF FF
FD
61
FF
FF
FF FF FF
DD
62
FF FF
FF FF FF
9D
15
63 FF FF
FF FF
FF
BD
2.4.1.4 RECEIVE DESCRIPTOR RING POINTER
IADR
<23:00>
+12
IADR
<23:00>
+10
2-12 1-124
1111
10000000000
5 4 3 2 1
098
765
432
1 0
Page 35

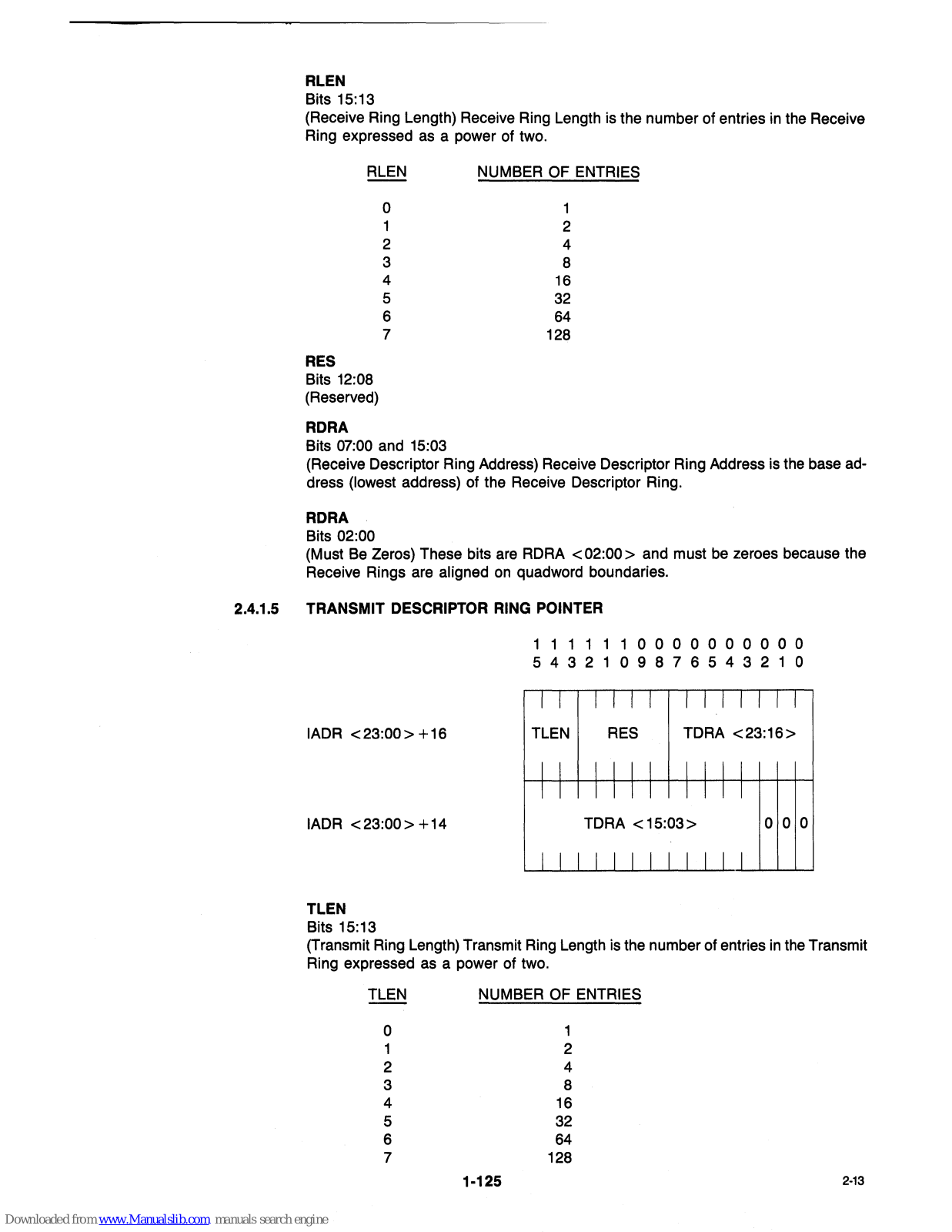

RLEN
Bits 15:13
(Receive Ring Length) Receive Ring Length is the number of entries
in
the Receive
Ring expressed
as
a power of two.
RLEN
RES
Bits
12:08
(Reserved)
RDRA
o
1
2
3
4
5
6
7
Bits
07:00
and 15:03
NUMBER
OF ENTRIES
1
2
4
8
16
32
64
128
(Receive Descriptor Ring Address) Receive Descriptor Ring Address is the base
ad-
dress (lowest address) of the Receive Descriptor Ring.
RDRA
Bits 02:00
(Must
Be
Zeros) These bits
are
RDRA
<02:00>
and must
be
zeroes because the
Receive Rings are
aligned
on
quadword boundaries.
2.4.1.5
TRANSMIT DESCRIPTOR RING POINTER
1111
10000000000
5 4 3 2 0 9 8 7 6 5 4 3 2 1 0
IADR
<23:00>
+16
IADR
<23:00>+14
TLEN
Bits 15:13
(Transmit Ring Length) Transmit Ring Length is the number of entries
in
the
Transmit
Ring expressed as a power of two.
TLEN NUMBER
OF ENTRIES
o 1
1 2
2 4
3 8
4
16
5
32
6
64
7 128
1-125
2·13
Page 36
2·14

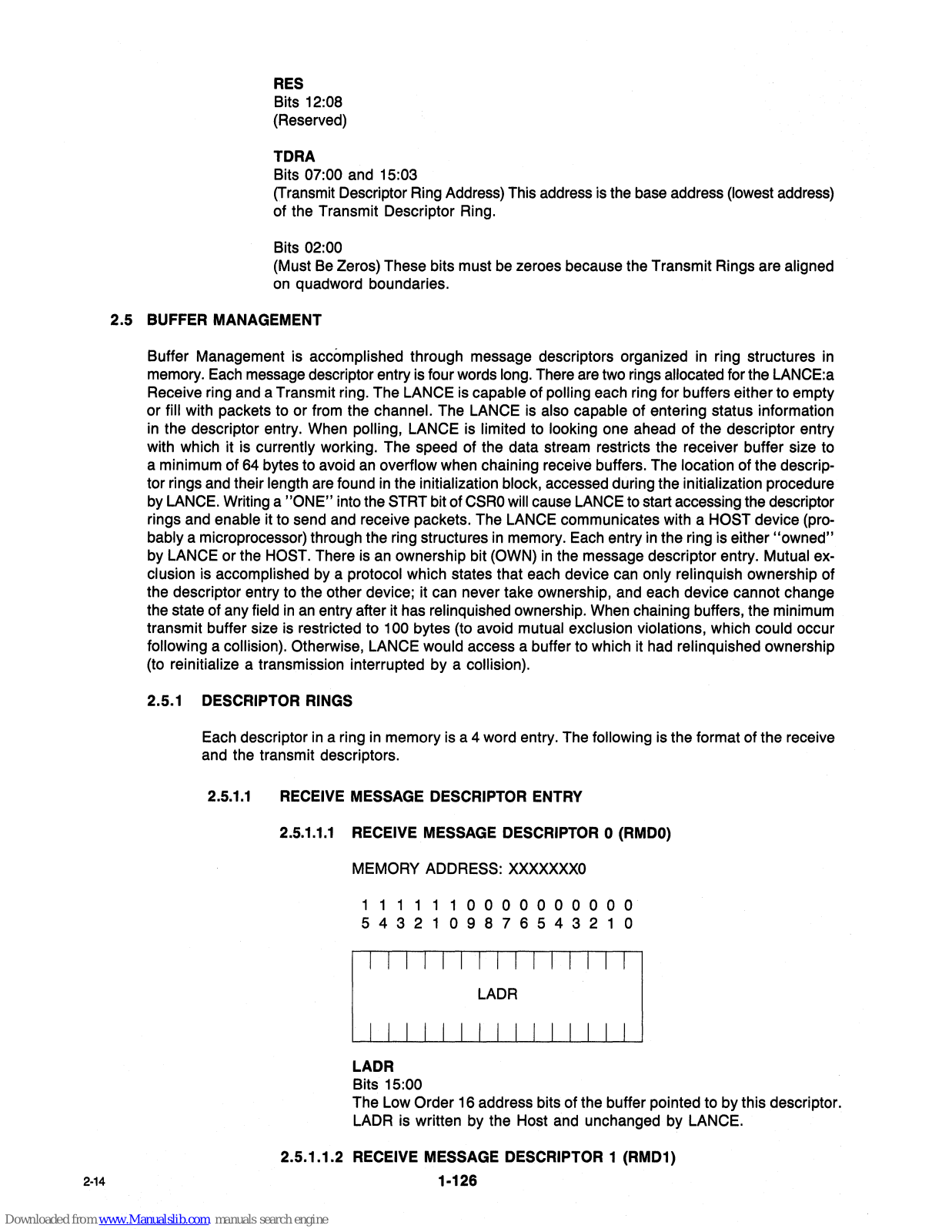

RES
Bits 12:08
(Reserved)
TDRA
Bits 07:00 and 15:03
(Transmit Descriptor Ring Address) This address
is
the base address (lowest address)
of the Transmit Descriptor Ring.
Bits
02:00
(Must
Be
Zeros) These bits must
be
zeroes because the Transmit Rings are aligned
on quadword boundaries.
2.5
BUFFER MANAGEMENT
Buffer Management is accomplished through message descriptors organized
in
ring structures
in
memory. Each message descriptor entry is four words long. There are two rings allocated for the LANCE:a
Receive ring and a Transmit ring. The LANCE
is
capable of polling each ring for buffers either to empty
or
fill with packets to or from the channel. The LANCE is also capable of entering status information
in
the descriptor entry. When polling, LANCE is limited to looking one ahead of the descriptor entry
with which it is currently working. The speed of the data stream restricts the
receiver buffer size to
a minimum of
64
bytes to
avoid
an
overflow when chaining
receive
buffers. The location of the descrip-
tor rings and their length are found
in
the initialization block, accessed during the initialization procedure
by LANCE. Writing a
"ONE"
into the STRT bit of
CSRO
will cause LANCE to start accessing the descriptor
rings and
enable it to send and
receive
packets. The LANCE communicates with a HOST device (pro-
bablya
microprocessor) through the ring structures
in
memory. Each entry
in
the ring is either
"owned"
by LANCE or the HOST. There is an ownership bit (OWN)
in
the message descriptor entry. Mutual ex-
clusion
is accomplished by a protocol which states that each device can only relinquish ownership of
the descriptor entry to the other
device; it can never take ownership, and each device cannot change
the state of any
field
in
an
entry after it has relinquished ownership. When chaining buffers, the minimum
transmit buffer size
is
restricted to 100 bytes (to
avoid
mutual exclusion violations, which could occur
following a collision). Otherwise, LANCE would access a buffer to which it had relinquished ownership
(to reinitialize a transmission interrupted by a
collision).
2.5.1 DESCRIPTOR RINGS
Each descriptor
in
a ring
in
memory
is
a 4 word entry. The following is the format of the
receive
and the transmit descriptors.
2.5.1.1
RECEIVE MESSAGE DESCRIPTOR ENTRY
2.5.1.1.1 RECEIVE MESSAGE DESCRIPTOR 0 (RMDO)
MEMORY ADDRESS: XXXXXXXO
1111
10000000000
5 4 3 2 0 9 8 7 6 5 4 3 2 1 0
LADR
Bits 15:00
The Low Order 16 address bits of the buffer pOinted to by this descriptor.
LADR is written by the Host and unchanged by LANCE.
2.5.1.1.2 RECEIVE MESSAGE DESCRIPTOR 1 (RMD1)
1-126
Page 37

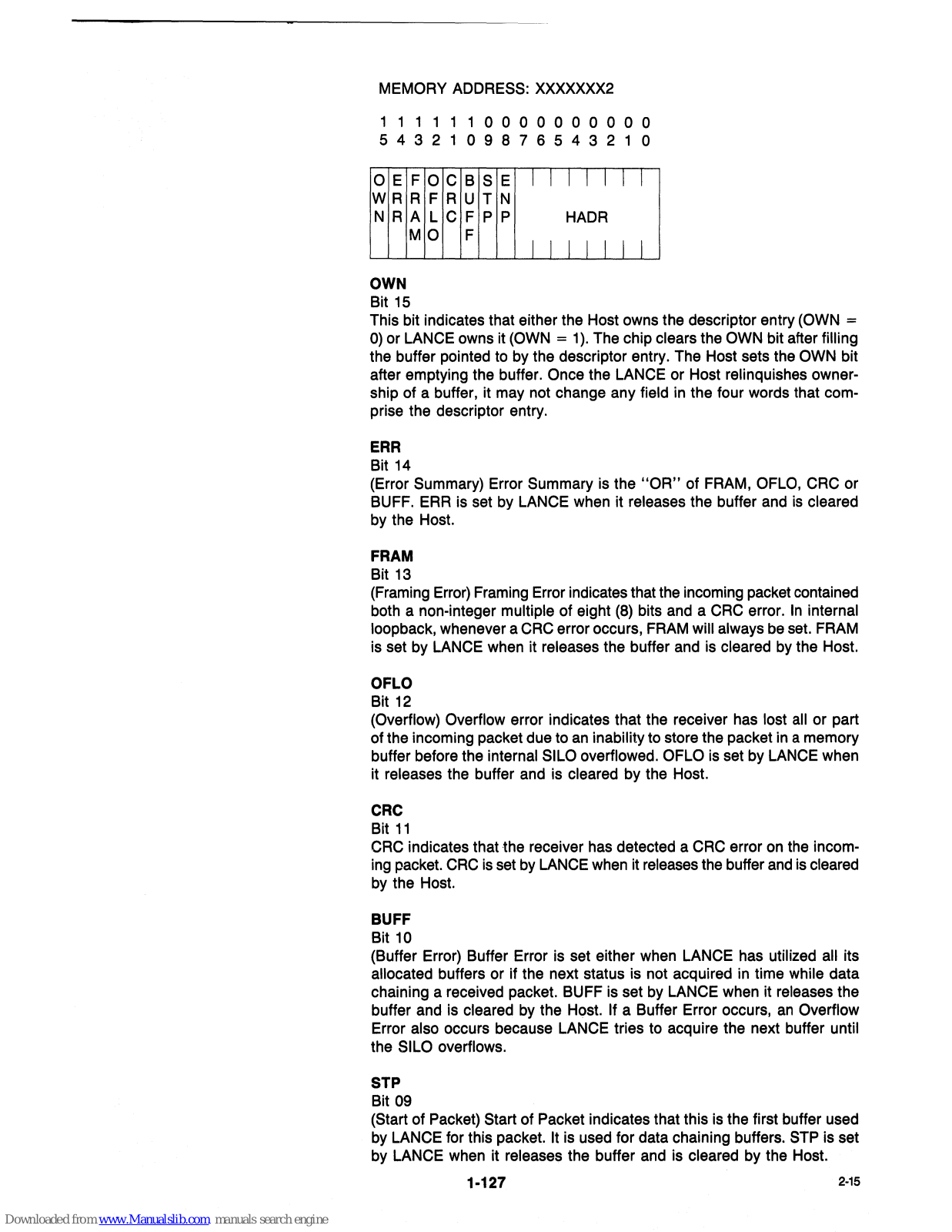

MEMORY ADDRESS: XXXXXXX2
1111
10000000000
5 4 3 2
098
765
432
1 0
OE
FO
WR
R F
N R A L
MO
OWN
Bit
15
C B
S E
I I I I I I I
R U
TN
C F P P HADR
F
I I I I I I I
This bit indicates that either the Host owns the descriptor entry (OWN =
0)
or LANCE owns it (OWN =
1).
The chip clears the OWN bit after filling
the buffer
pOinted
to
by the descriptor entry. The Host sets the OWN bit
after emptying the buffer.
Once the LANCE or Host relinquishes owner-
ship of a buffer, it may not change any field
in
the four words that com-
prise the descriptor entry.
ERR
Bit 14
(Error Summary) Error
Summary is the
"OR"
of FRAM, OFLO, CRC or
BUFF. ERR is set
by
LANCE when it releases the buffer and
is
cleared
by the Host.
FRAM
Bit
13
(Framing Error) Framing Error indicates that the incoming packet contained
both a non-integer
multiple of eight
(8)
bits and a CRC error.
In
internal
loopback,
whenever a CRC error occurs, FRAM will always be set. FRAM
is set by LANCE when it
releases the buffer and
is
cleared
by
the Host.
OFLO
Bit
12
(Overflow) Overflow error indicates that the receiver has lost all or part
of the incoming packet due
to
an
inability to store the packet
in
a memory
buffer before the
internal SILO overflowed. OFLO
is
set by LANCE when
it
releases the buffer and is cleared by the Host.
CRC
Bit
11
CRC indicates that the receiver has detected a CRC error
on
the incom-
ing packet. CRC
is
set
by
LANCE when it releases the buffer and is cleared
by
the Host.
BUFF
Bit
10
(Buffer Error) Buffer Error is set either when LANCE has utilized all its
allocated buffers or if the next status is not acquired
in
time while data
chaining a received packet. BUFF is set by LANCE when it
releases the
buffer and is
cleared
by
the Host. If a Buffer Error occurs,
an
Overflow
Error
also occurs because LANCE tries to acquire the next buffer until
the SILO overflows.
STP
Bit 09
(Start
of Packet) Start of Packet indicates that this is the first buffer used
by
LANCE for this packet.
It
is used for data chaining buffers. STP is set
by LANCE when it
releases the buffer and is cleared by the Host.
1.127 2·15
Page 38
2-16

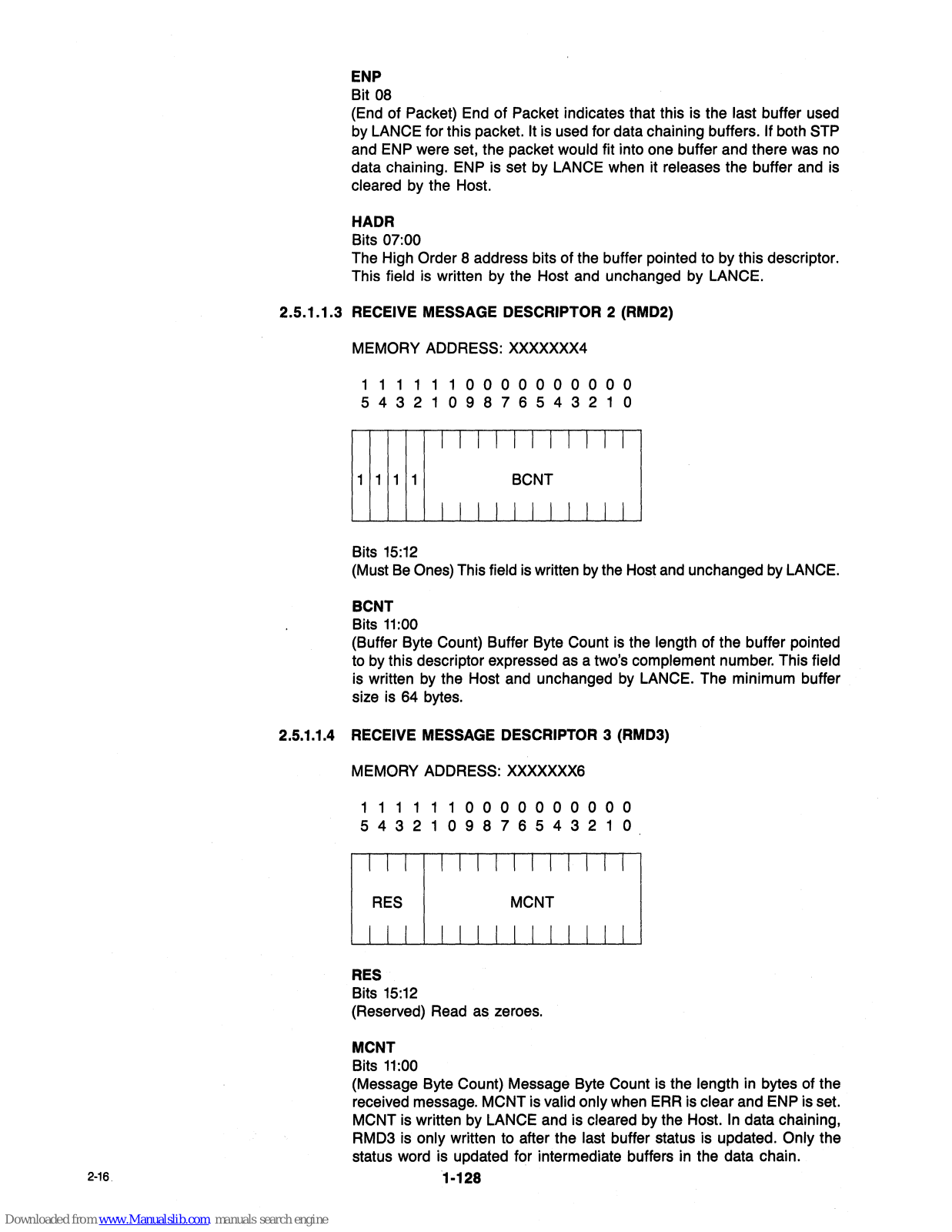

ENP
Bit
08
(End
of
Packet) End
of
Packet indicates that this is the last buffer used
by
LANCE for this packet. It is used for data chaining buffers. If both STP
and ENP were set, the packet would fit into one buffer and there was no
data chaining. ENP is set by
LANCE when it releases the buffer and is
cleared by the Host.
HADR
Bits
07:00
The High Order 8 address bits
of
the buffer pOinted to by this descriptor.
This field is written by the Host and unchanged by LANCE.
2.5.1.1.3 RECEIVE
MESSAGE DESCRIPTOR 2 (RMD2)
MEMORY
ADDRESS: XXXXXXX4
11111
1 0 0 0 0 0 0 0 0 0 0
54321
0 9 8 7 6 5 4
321
0
Bits
15:12
(Must
Be
Ones) This field is written by the Host and unchanged by LANCE.
BCNT
Bits
11:00
(Buffer Byte Count) Buffer Byte Count is the length
of
the buffer pOinted
to by this descriptor expressed as a two's complement number. This field
is written by the Host and unchanged by LANCE. The minimum buffer
size is 64 bytes.
2.5.1.1.4 RECEIVE
MESSAGE DESCRIPTOR 3 (RMD3)
MEMORY
ADDRESS: XXXXXXX6
1 1 1 1 1 1
000
0 0 0 0 0 0 0
5 4
321
098
7 6 5 4
321
0 .
RES
Bits
15:12
(Reserved) Read as zeroes.
MCNT
Bits
11:00
(Message Byte Count) Message Byte Count is the length in bytes of the
received message.
MCNT is valid only when ERR is clear and ENP is set.
MCNT is written by LANCE and is cleared by the Host. In data chaining,
RMD3 is
only written to after the last buffer status is updated. Only the
status word is updated for intermediate buffers in the data chain.
1-128
Page 39

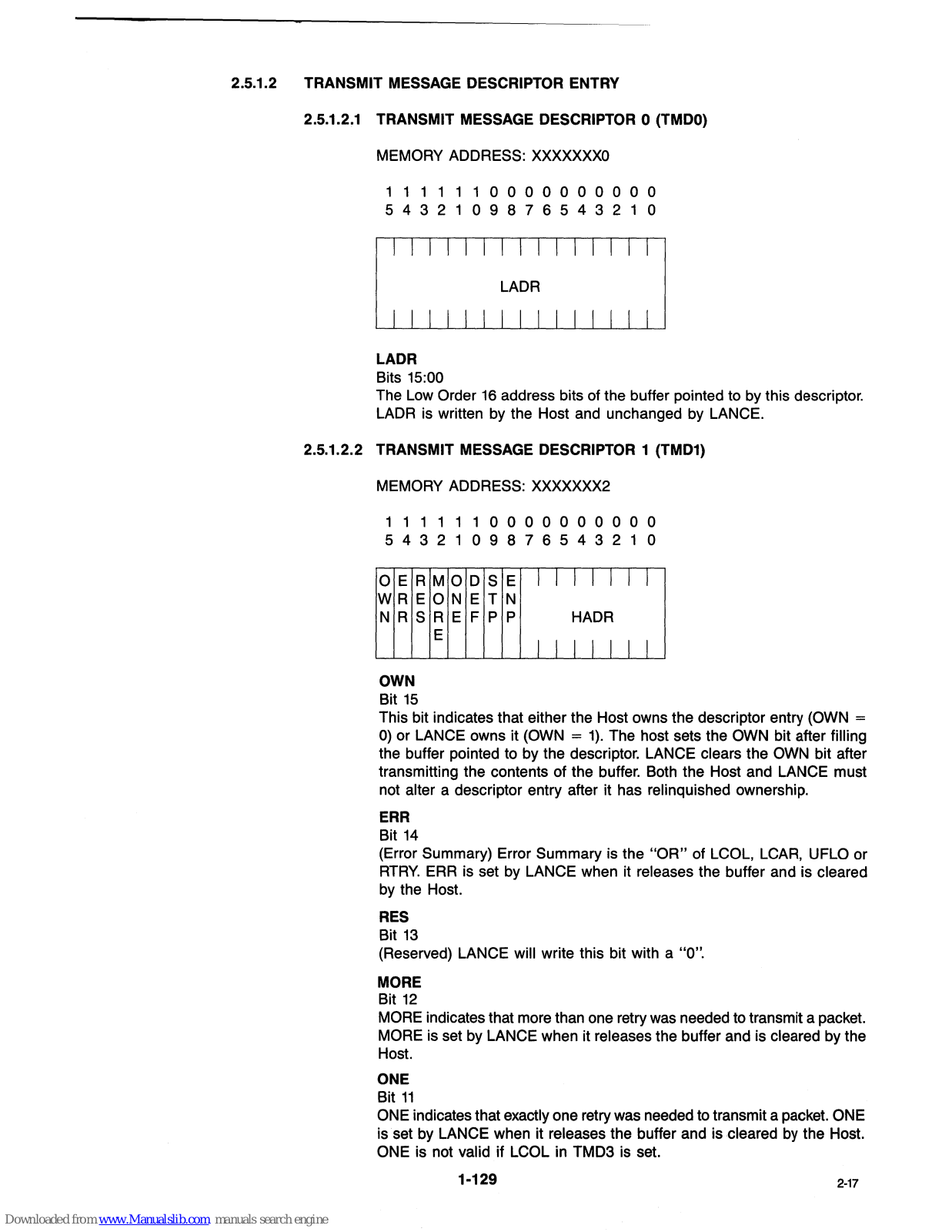

2.5.1.2 TRANSMIT MESSAGE DESCRIPTOR ENTRY
2.5.1.2.1 TRANSMIT MESSAGE DESCRIPTOR 0 (TMDO)
MEMORY ADDRESS:
XXXXXXXO
1
111
1 1 0 0 0 0 0 0 0 0 0 0
5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
I::::::
~~::::::
I
lADR
Bits 15:00
The Low Order
16
address bits of the buffer
pOinted
to by this descriptor.
LADR is written by the Host and unchanged by LANCE.
2.5.1.2.2 TRANSMIT MESSAGE DESCRIPTOR 1 (TMD1)
MEMORY ADDRESS: XXXXXXX2
111
1 1 1 0 0 0 0 0 0 0 0 0 0
5 4 3 2 1 0 9 8 7 6 5
432
1 0
OE
RM
WR
EO
N R S R
E
OWN
Bit
15
00
S E
I I I I I I I
N E
TN
E F P P HADR
I I I I I I I
This bit indicates that either the Host owns the descriptor entry (OWN =
0)
or LANCE owns it (OWN =
1).
The host sets the OWN bit after filling
the buffer pointed to by the descriptor. LANCE clears the
OWN
bit after
transmitting the contents of the buffer. Both the Host and LANCE must
not alter a descriptor entry after it has relinquished ownerShip.
ERR
Bit
14
(Error Summary) Error Summary is the
"OR"
of LCOL,
LCAR,
UFLO or
RTRY.
ERR is set by LANCE when it releases the buffer and is cleared
by
the Host.
RES
Bit
13
(Reserved) LANCE will write this bit with a "0".
MORE
Bit
12
MORE indicates that more than one retry was needed
to
transmit a packet.
MORE is set by LANCE when it releases the buffer and is cleared by the
Host.
ONE
Bit
11
ONE indicates that exactly one retry was needed to transmit a packet. ONE
is set by LANCE when it releases the buffer and is cleared
by
the Host.
ONE is not valid if
LCOl
in TMD3 is set.
1-129
2·17
Page 40
2·18

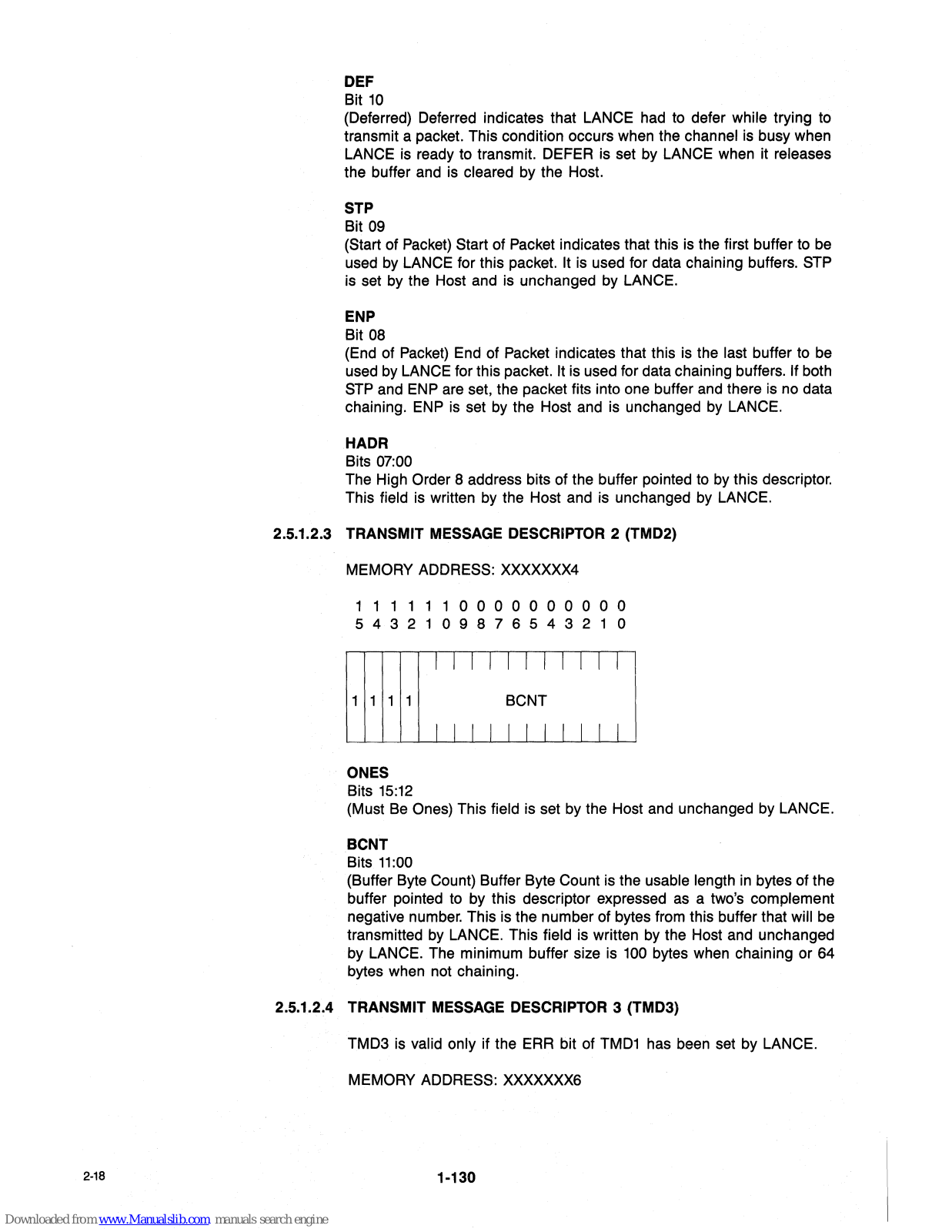

DEF
Bit
10
(Deferred) Deferred indicates that LANCE had
to
defer while trying to
transmit a packet. This condition occurs when the
channel is busy when
LANCE is ready to transmit. DEFER is set by LANCE when it
releases
the buffer and is cleared by the Host.
STP
Bit 09
(Start
of Packet) Start of Packet indicates that this is the first buffer
to
be
used by LANCE for this packet.
It
is used for data chaining buffers. STP
is set by the Host and is unchanged by LANCE.
ENP
Bit
08
(End of Packet) End of Packet indicates that this is the last buffer to be
used by LANCE for this packet.
It is used for data chaining buffers. If both
STP
and
ENP
are set. the packet fits into one buffer and there is no data
chaining.
ENP
is set
by
the Host and is unchanged
by
LANCE.
HADR
Bits
07:00
The High Order 8 address bits of the buffer
pOinted
to
by
this descriptor.
This
field is written
by
the Host and is unchanged
by
LANCE.
2.5.1.2.3
TRANSMIT MESSAGE DESCRIPTOR 2 (TMD2)
MEMORY
ADDRESS: XXXXXXX4
111
1 1 1 0 0 0 0 0
000
0 0
5432109
8
765
432
1 0
ONES
Bits
15:12
(Must Be Ones) This field is set
by
the Host and unchanged by LANCE.
BCNT
Bits
11:00
(Buffer Byte Count) Buffer Byte Count is the usable length
in
bytes of the
buffer
pOinted
to
by this descriptor expressed
as
a two's complement
negative number. This is the number of bytes from this buffer that
will be
transmitted by LANCE. This
field is written
by
the Host and unchanged
by LANCE. The minimum buffer size is
100
bytes when chaining or 64
bytes when not chaining.
2.5.1.2.4
TRANSMIT MESSAGE DESCRIPTOR 3 (TMD3)
TMD3 is
valid only if the ERR bit of
TMD1
has been set by LANCE.
MEMORY
ADDRESS: XXXXXXX6
1-130
Page 41

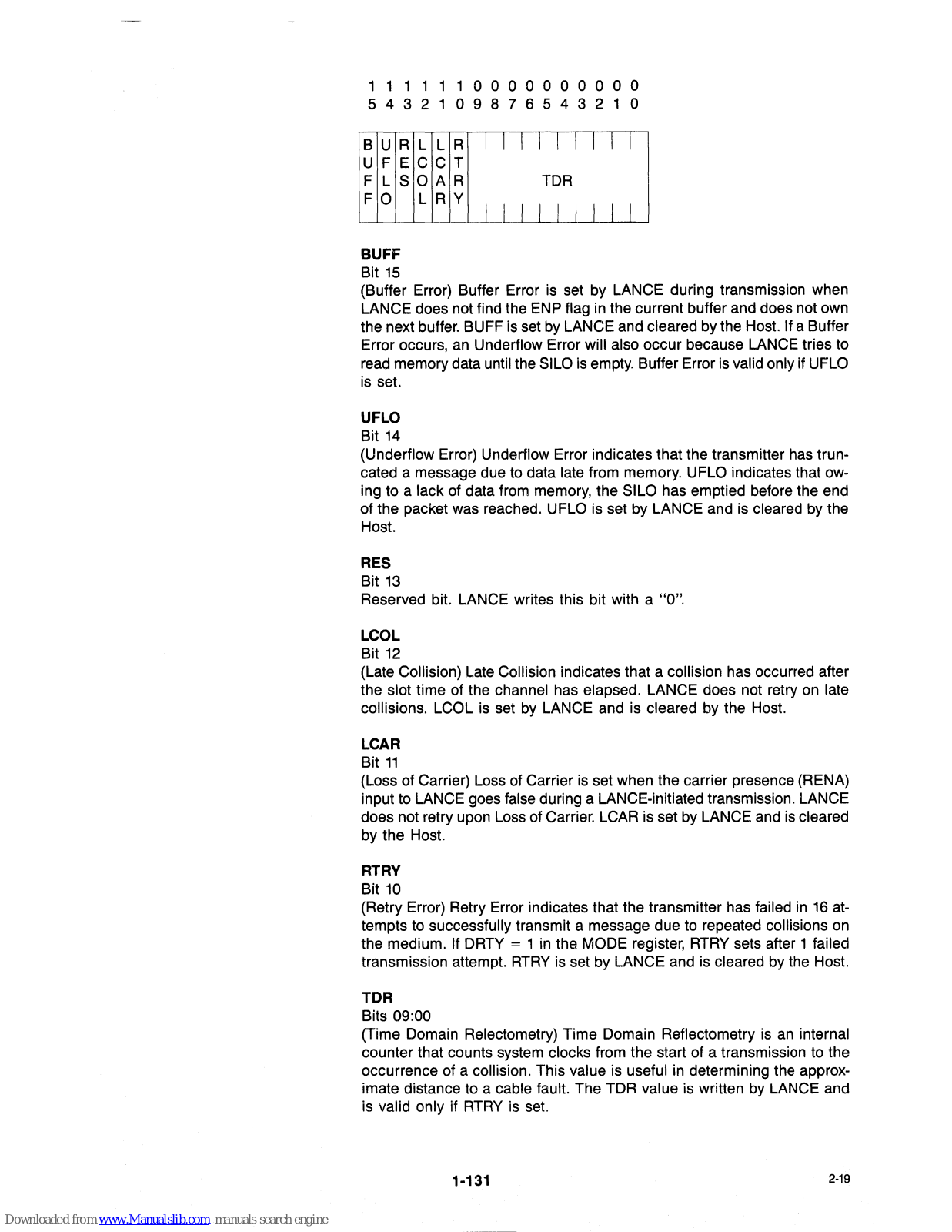

1 1 1 1
5 4 3 2
1 0 0 0 0 0 0 0 0 0 0
098
7 6 5 4 3 2 1 0
BURLLR
U F E C C T
F L S 0 A R
F 0 L R Y
BUFF
Bit
15
(Buffer Error) Buffer Error is set
by
LANCE during transmission when
LANCE does not find the ENP flag
in
the current buffer and does not own
the next buffer. BUFF is set
by
LANCE and cleared
by
the Host. If a Buffer
Error occurs,
an
Underflow Error will also occur because LANCE tries
to
read
memory data until the SILO
is
empty.
Buffer Error
is
valid only if UFLO
is
set.
UFLO
Bit
14
(Underflow Error) Underflow Error indicates that the transmitter
has
trun-
cated a message due
to
data late from memory. UFLO indicates that
ow-
ing
to
a lack of data from memory, the SILO has emptied before the end
of the packet was reached.
UFLO
is
set
by
LANCE and
is
cleared
by
the
Host.
RES
Bit
13
Reserved bit. LANCE writes this bit with a "0".
lCOl
Bit
12
(Late Collision)
late
Collision indicates that a collision has occurred after
the slot time of the channel has elapsed.
lANCE
does not retry
on
late
collisions. LCOL
is
set
by
LANCE and is cleared
by
the Host.
lCAR
Bit
11
(loss
of Carrier)
loss
of Carrier
is
set when the carrier presence (RENA)
input
to
lANCE
goes false during a LANCE-initiated transmission. LANCE
does not retry upon Loss of Carrier.
LCAR
is set
by
lANCE
and
is
cleared
by
the Host.
RTRY
Bit
10
(Retry Error) Retry Error indicates that the transmitter has failed
in
16
at-
tempts
to
successfully transmit a message due
to
repeated collisions
on
the medium.
If
DRTY = 1
in
the MODE register,
RTRY
sets after 1 failed
transmission attempt.
RTRY
is set
by
LANCE and
is
cleared
by
the Host.
TOR
Bits 09:00
(Time Domain Relectometry) Time Domain Reflectometry
is
an
internal
counter that counts system clocks from the start of a transmission
to
the
occurrence of a
collision. This value is useful
in
determining the approx-
imate distance
to
a cable fault. The TDR value is written
by
LANCE and
is valid only if
RTRY
is set.
1-131
2-19
Page 42
DESCRIPTOR RINGS IN MEMORY
15
HIGHER ADDRESSES
BASE ADDRESS OF
TRANSMIT RING
°
TMD(127)
TMD(1)
TMD(O)
HIGHER ADDRESSES
,..15
____________
0...,
2-20
BASE ADDRESS OF
RECEIVE RING
RMD(127)
RMD(1)
RMD(O)
1-132
TRANSMIT RING
RECEIVE RING
Page 43

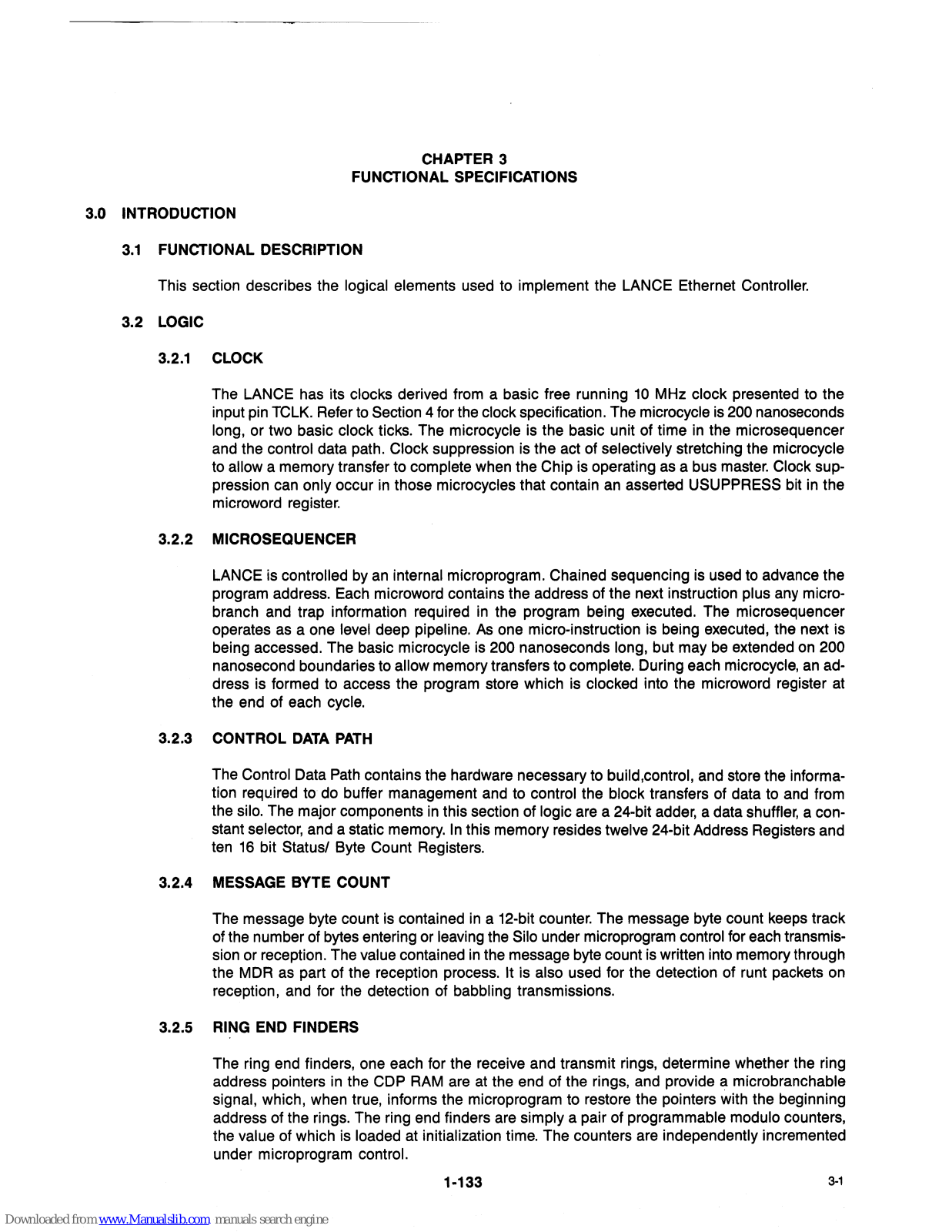

CHAPTER 3
FUNCTIONAL SPECIFICATIONS
3.0 INTRODUCTION
3.1
FUNCTIONAL DESCRIPTION
This section describes the logical elements used to implement the LANCE Ethernet Controller.
3.2
LOGIC
3.2.1 CLOCK
The LANCE has its clocks derived from a basic free running
10
MHz clock presented to the
input pin TCLK. Refer to Section 4 for the
clock specification. The microcycle
is
200 nanoseconds
long, or two basic clock ticks. The microcycle is the basic unit of time
in
the microsequencer
and the
control data path. Clock suppression is the act of selectively stretching the microcycle
to allow a memory transfer to complete when the Chip is operating as a bus master. Clock sup-
pression can only occur
in
those microcycles that contain
an
asserted USUPPRESS bit
in
the
microword register.
3.2.2 MICROSEQUENCER
LANCE is controlled by an internal microprogram. Chained sequencing is used to advance the
program address. Each microword contains the address of the next instruction
plus any micro-
branch and trap information required
in
the program being executed. The microsequencer
operates as a one
level deep pipeline.
As
one micro-instruction is being executed, the next is
being accessed. The basic
microcycle is 200 nanoseconds long, but may be extended on 200
nanosecond boundaries to allow memory transfers to complete. During each microcycle,
an
ad-
dress is formed to access the program store which
is
clocked into the microword register
at
the end of each cycle.
3.2.3 CONTROL
DATA
PATH
The Control Data Path contains the hardware necessary to bUild,control, and store the information required to do buffer management and to control the block transfers of data to and from
the silo. The major components
in
this section of logic are a 24-bit adder, a data shuffler, a con-
stant selector, and a static memory.
In
this memo.ry resides twelve 24-bit Address Registers and
ten
16
bit Statusl Byte Count Registers.
3.2.4 MESSAGE BYTE COUNT
The message byte count is contained
in
a 12-bit counter. The message byte count keeps track
of the number of bytes entering or
leaving the Silo under microprogram control for each transmis-
sion or reception. The value contained
in
the message byte count is written into memory through
the MDR as part of the reception process. It is also used for the detection of runt packets on
reception, and for the detection of
babbling transmissions.
3.2.5 RING END FINDERS
The ring end finders, one each for the receive and transmit rings, determine whether the ring
address pointers
in
the CDP
RAM
are
at
the end of the rings, and provide a microbranchable
signal, which, when true, informs the microprogram to restore the pOinters with the beginning
address of the rings. The ring end finders are
simply a pair of programmable modulo counters,
the
value of which is loaded
at
initialization time. The counters are independently incremented
under microprogram
control.
1-133
3-1
Page 44

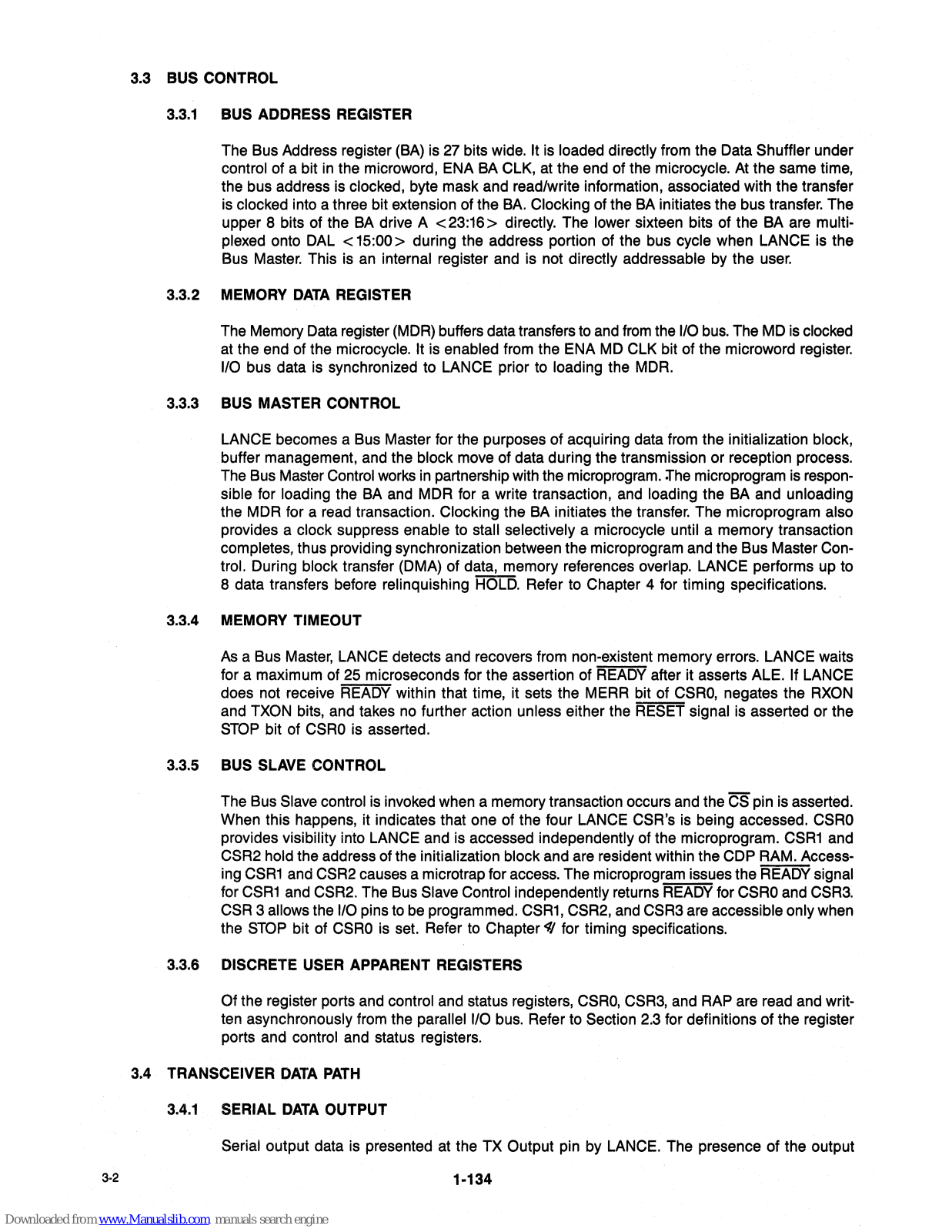

3.3 BUS CONTROL
3.3.1
BUS ADDRESS REGISTER
The Bus Address register (BA) is 27 bits wide. It is loaded directly from the Data Shuffler under
control of a bit
in
the microword, ENA BA CLK, at the end of the microcycle. At the same time,
the bus address is
clocked, byte mask and readlwrite information, associated with the transfer
is clocked into a three bit extension of the
BA.
Clocking of the BA initiates the bus transfer. The
upper 8 bits of the BA drive A
<23:16>
directly. The lower sixteen bits of the BA are multi·
plexed
onto DAL < 15:00> during the address portion
of
the bus cycle when LANCE is the
Bus Master. This is an
internal register and is not directly addressable by the user.
3.3.2
MEMORY
DATA
REGISTER
The Memory Data register (MDR) buffers data transfers to and
from
the
1/0
bus. The MD is clocked
at the end of the microcycle. It is enabled from the ENA MD CLK bit of the microword register.
1/0
bus data is synchronized to LANCE prior to loading the MDR.
3.3.3
BUS MASTER CONTROL
LANCE becomes a Bus Master for the purposes
of
acquiring data from the initialization block,
buffer management, and the block move of data during the transmission or reception process.
The Bus Master
Control works in partnership with the microprogram. :rhe microprogram is responsible for loading the BA and MDR for a write transaction, and loading the BA and unloading
the MDR for a read transaction. Clocking the BA initiates the transfer. The microprogram also
provides a clock suppress enable to stall selectively a microcycle until a memory transaction
completes, thus providing synchronization between the microprogram and the Bus Master Control.
During block transfer (DMA) of data, memory references overlap. LANCE performs up to
8 data transfers before relinquishing HOLD. Refer to Chapter 4 for timing specifications.
3.3.4
MEMORY TIMEOUT
As
a Bus Master, LANCE detects and recovers from non-existent memory errors. LANCE waits
for a maximum of 25 microseconds for the assertion of READY after it asserts ALE.
If LANCE
does not receive READY within that time, it sets the MERR bit of
CSRO,
negates the
RXON
and TXON bits, and takes
no
further action unless either the RESET signal is asserted or the
STOP
bit of
CSRO
is asserted.
3.3.5
BUS SLAVE CONTROL
The Bus Slave control is invoked when a memory transaction occurs and the CS pin is asserted.
When this happens, it indicates that one of the four LANCE
CSR's is being accessed.
CSRO
provides visibility into LANCE and is accessed independently of the microprogram.
CSR1
and
CSR2 hold the address of the initialization block and are resident within the CDP RAM. Accessing
CSR1
and CSR2 causes a microtrap for access. The microprogram issues the READY signal
for
CSR1
and CSR2. The Bus Slave Control independently returns READY for
CSRO
and CSR3.
CSR
3 allows the I/O pins to be programmed.
CSR1,
CSR2, and CSR3 are accessible only when
the
STOP
bit of
CSRO
is set. Refer to Chapter
<1/
for timing specifications.
3.3.6
DISCRETE USER APPARENT REGISTERS
Of
the register ports and control and status registers,
CSRO,
CSR3, and RAP are read and writ-
ten asynchronously from the parallel I/O bus. Refer to Section 2.3 for definitions
of
the register
ports and control and status registers.
3.4
TRANSCEIVER
DATA
PATH
3.4.1
SERIAL
DATA
OUTPUT
Serial output data is presented at the TX Output pin by LANCE. The presence of the output
1-134
Page 45

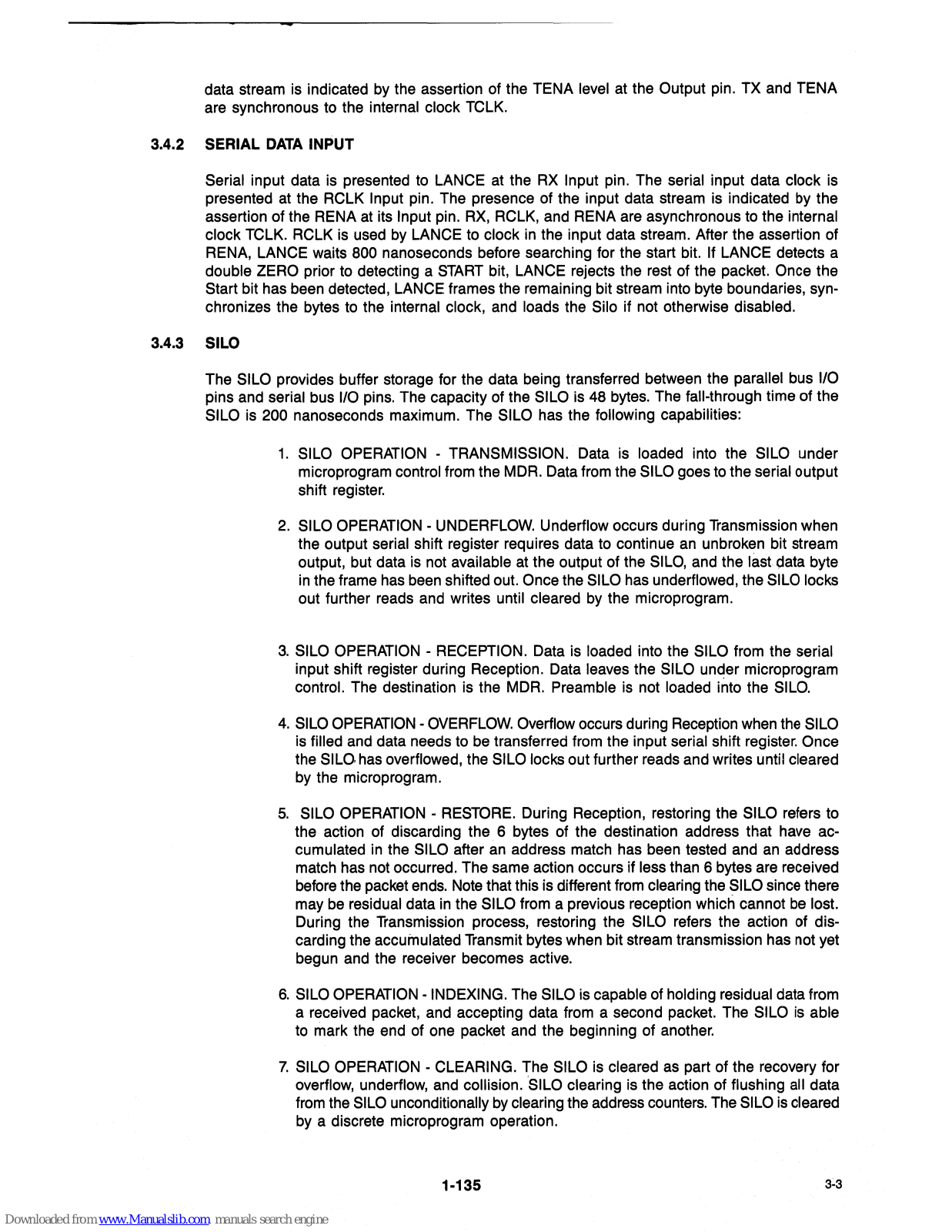

data stream is indicated by the assertion of the TENA level at the Output pin. TX and TENA
are synchronous to the
internal clock TCLK.
3.4.2 SERIAL
DATA
INPUT
Serial input data is presented to LANCE
at
the
RX
Input pin. The serial input data clock
is
presented
at
the RCLK Input pin. The presence of the input data stream
is
indicated
by
the
assertion of the RENA
at
its Input pin.
RX,
RCLK, and RENA are asynchronous to the internal
clock
TCLK. RCLK
is
used by LANCE to clock
in
the input data stream. After the assertion of
RENA, LANCE waits
800 nanoseconds before searching for the start bit. If LANCE detects a
double ZERO prior to detecting a
START
bit, LANCE rejects the rest of the packet. Once the
Start bit has been detected, LANCE frames the remaining bit stream into byte boundaries,
syn-
chronizes the bytes to the internal clock, and loads the Silo if not otherwise disabled.
3.4.3 SILO
The SILO provides buffer storage for the data being transferred between the parallel bus
1/0
pins and serial bus
1/0
pins. The capacity of the SILO is 48 bytes. The fall-through time of the
SILO is 200 nanoseconds maximum. The SILO has the following capabilities:
1.
SILO OPERATION - TRANSMISSION. Data
is
loaded into the SILO under
microprogram
control from the MDR. Data from the SILO goes to the serial output
shift register.
2.
SILO OPERATION - UNDERFLOW. Underflow occurs during Transmission when
the output serial shift register requires data to continue
an
unbroken bit stream
output, but data is not
available
at
the output of the
SILO,
and the last data byte
in
the frame has been shifted out. Once the SILO has underflowed, the SILO locks
out further reads and writes until cleared by the microprogram.
3.
SILO OPERATION - RECEPTION. Data is loaded into the SILO from the serial
input shift register during Reception. Data leaves the SILO under microprogram
control. The destination is the MDR. Preamble is not loaded into the
SILO.
4.
SILO OPERATION -OVERFLOW. Overflow occurs during Reception when the SILO
is filled and data needs to be transferred from the input serial shift register. Once
the SILO has overflowed, the SILO locks out further reads and writes until cleared
by the microprogram.
5.
SILO OPERATION - RESTORE. During Reception, restoring the SILO refers to
the action of discarding the 6 bytes of the destination address that have
ac-
cumulated
in
the SILO after an address match has been tested and
an
address
match has not occurred. The same action occurs if less than 6 bytes are received
before the packet ends. Note that this is different from
clearing the SILO since there
may
be
residual data
in
the SILO from a previous reception which cannot
be
lost.
During the Transmission process, restoring the SILO refers the action of discarding the accumulated Transmit bytes when bit stream transmission has not yet
begun and the receiver becomes active.
6.
SILO OPERATION -INDEXING. The SILO is capable of holding residual data from
a received packet, and accepting data from a second packet. The
SILO
is
able
to mark the end of one packet and the beginning of another.
7.
SILO OPERATION - CLEARING. The SILO
is
cleared as part of the recovery for
overflow, underflow, and collision. SILO clearing
is
the action of flushing
all
data
from the
SILO unconditionally by clearing the address counters. The SILO
is
cleared
by a discrete microprogram operation.
1-135
3-3
Page 46
3·4

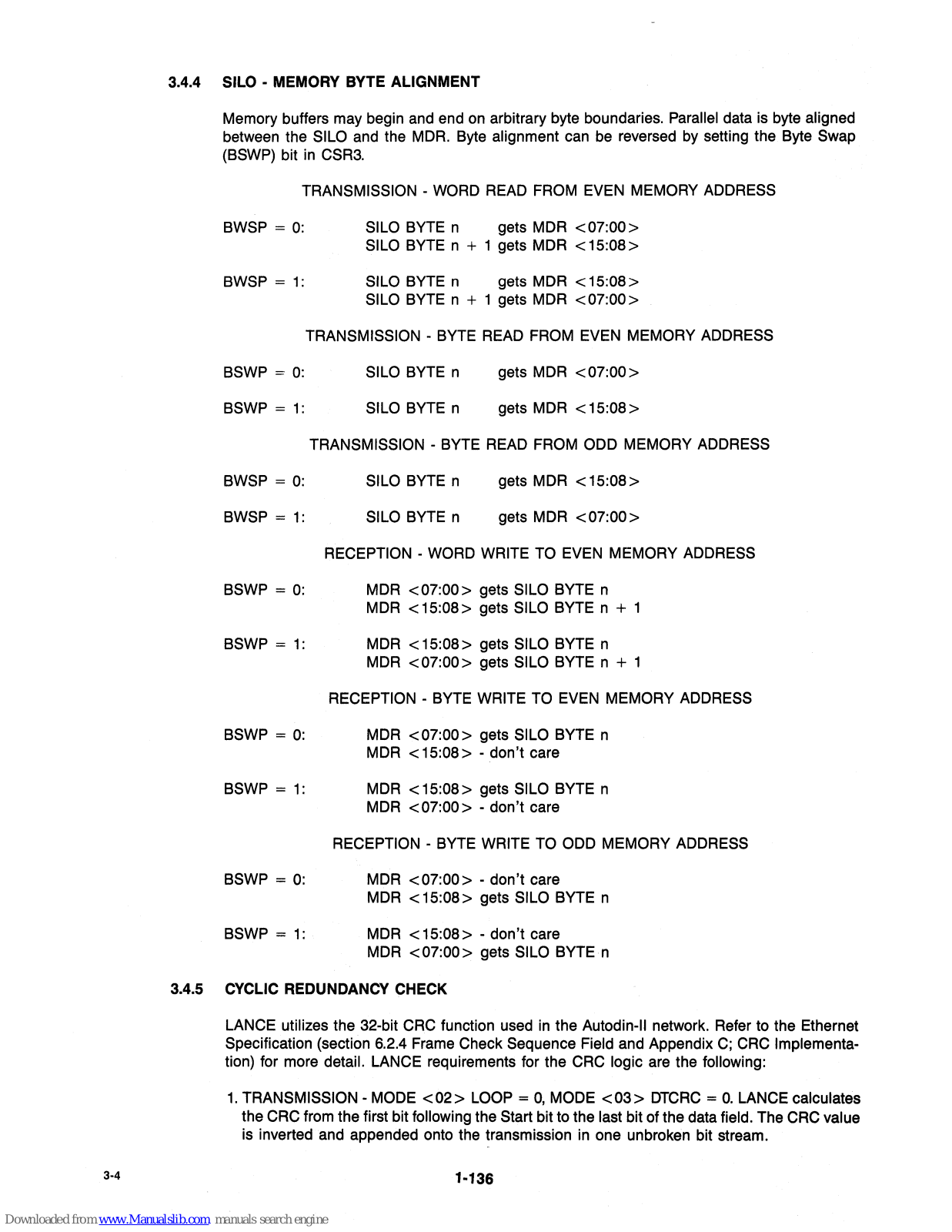

3.4.4 SILO - MEMORY BYTE ALIGNMENT
Memory buffers may begin
and
end
on
arbitrary byte boundaries. Parallel data is
byte
aligned
between the SILO and the
MDR.
Byte alignment
can
be
reversed
by
setting the Byte Swap
(BSWP) bit
in
CSR3.
TRANSMISSION -
WORD
READ
FROM
EVEN MEMORY ADDRESS
BWSP
=
0:
BWSP =
1:
BSWP = 0:
BSWP = 1:
BWSP =
0:
BWSP =
1:
BSWP =
0:
BSWP =
1:
BSWP =
0:
BSWP = 1:
BSWP =
0:
BSWP =
1:
SILO BYTE n gets MDR
<07:00>
SILO BYTE n + 1 gets MDR < 15:08 >
SILO BYTE n gets MDR
<15:08>
SILO BYTE n + 1 gets MDR
<07:00>
TRANSMISSION - BYTE
READ
FROM
EVEN
MEMORY ADDRESS
SILO
BYTE n gets MDR
<07:00>
SILO
BYTE
n gets MDR < 15:08 >
TRANSMISSION - BYTE
READ
FROM ODD MEMORY ADDRESS
SILO
BYTE n gets MDR
<15:08>
SILO BYTE n gets MDR
<07:00>
RECEPTION -
WORD
WRITE
TO
EVEN
MEMORY ADDRESS
MDR
<07:00>
gets SILO BYTE n
MDR
<15:08>
gets SILO BYTE n + 1
MDR <
15:08> gets SILO BYTE n
MDR
<07:00>
gets SILO BYTE n + 1
RECEPTION - BYTE WRITE
TO
EVEN
MEMORY ADDRESS
MDR
<07:00>
gets SILO BYTE n
MDR <
15:08 > - don't care
MDR
<15:08>
gets SILO BYTE n
MDR
<07:00>
- don't care
RECEPTION - BYTE WRITE
TO
ODD MEMORY ADDRESS
MDR
<07:00>
- don't care
MDR <
15:08> gets SILO BYTE n
MDR
< 15:08> - don't care
MDR
<07:00>
gets SILO BYTE n
3.4.5
CYCLIC REDUNDANCY CHECK
LANCE utilizes the 32-bit CRC function used
in
the Autodin-II network. Refer to the Ethernet
Specification (section
6.2.4
Frame Check Sequence Field and Appendix
C;
CRC Implementa-
tion) for more detail. LANCE requirements for the CRC logic are the following:
1.
TRANSMISSION - MODE
<02>
LOOP =
0,
MODE
<03>
DTCRC
=
O.
LANCE calculates
the CRC from the first bit following the Start bit to the last bit of the data field. The CRC value
is inverted and appended onto the transmission
in
one unbroken bit stream.
1-136
Page 47

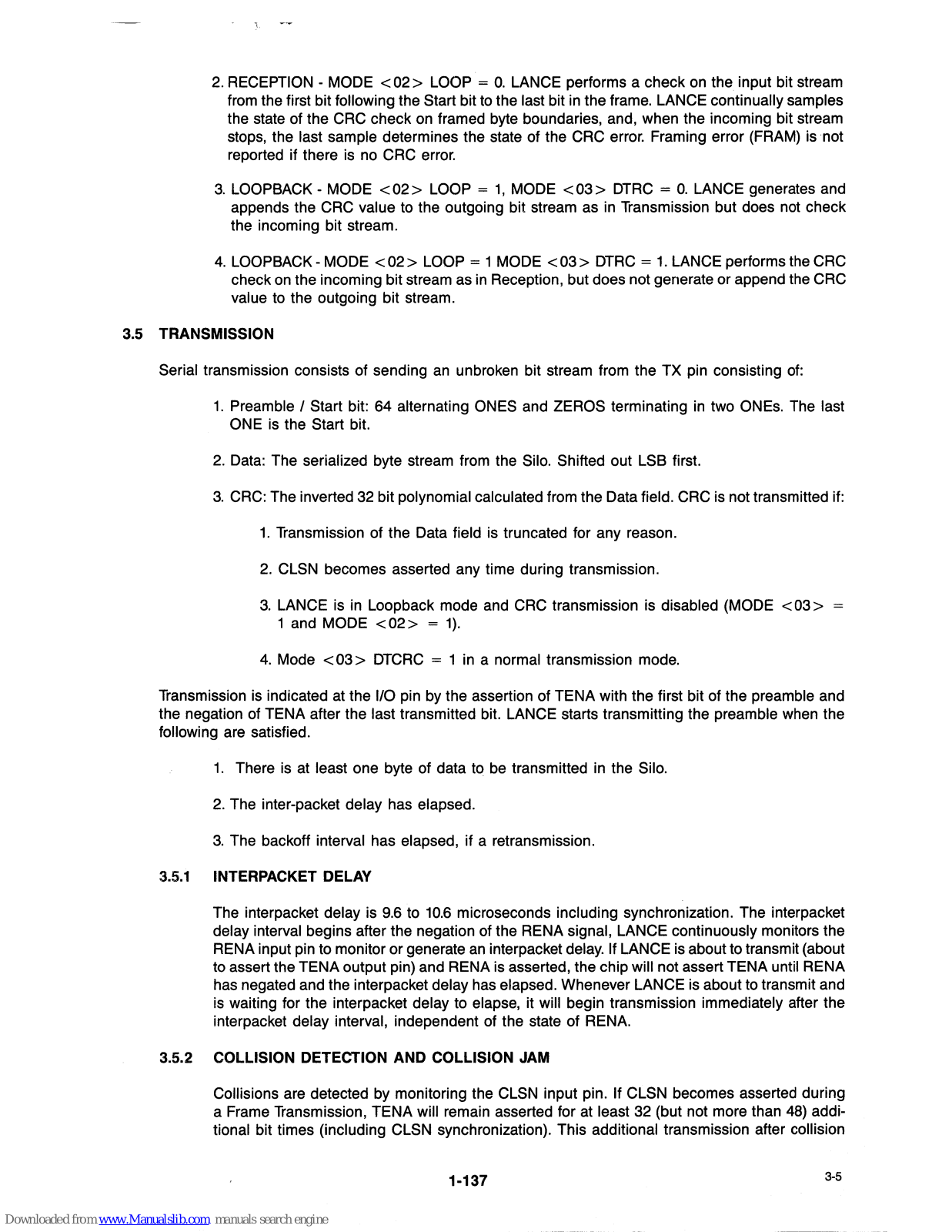

2.
RECEPTION - MODE < 02 > LOOP =
O.
LANCE performs a check on the input bit stream
from the first bit following the Start bit to the last bit
in
the frame. LANCE continually samples
the state of the
CRC check on framed byte boundaries, and, when the incoming bit stream
stops, the last sample determines the state of the
CRC error. Framing error (FRAM) is not
reported if there is no
CRC error.
3.
LOOPBACK - MODE < 02 > LOOP =
1,
MODE < 03 > DTRC =
O.
LANCE generates and
appends the
CRC value to the outgoing bit stream as
in
Transmission but does not check
the incoming bit stream.
4.
LOOPBACK - MODE < 02 > LOOP = 1 MODE < 03 > DTRC =
1.
LANCE performs the CRC
check on the incoming bit stream as
in
Reception, but does not generate or append the CRC
value to the outgoing bit stream.
3.5
TRANSMISSION
Serial transmission consists of sending
an
unbroken bit stream from the TX pin consisting
of:
1.
Preamble I Start bit: 64 alternating ONES and ZEROS terminating
in
two ONEs. The last
ONE is the Start bit.
2.
Data: The serialized byte stream from the Silo. Shifted out LSB first.
3.
CRC: The inverted 32 bit polynomial calculated from the Data field. CRC is not transmitted if:
1.
Transmission of the Data field is truncated for any reason.
2.
CLSN becomes asserted any time during transmission.
3.
LANCE is
in
Loopback mode and CRC transmission is disabled (MODE
<03>
1 and MODE
<02> = 1).
4.
Mode
<03>
DTCRC = 1 in a normal transmission mode.
Transmission is indicated at the
I/O pin by the assertion of TENA with the first bit of the preamble and
the negation of TENA after the last transmitted bit. LANCE starts transmitting the preamble when the
following are satisfied.
1.
There is at least one byte of data to be transmitted in the Silo.
2.
The inter-packet delay has elapsed.
3.
The backoff interval has elapsed, if a retransmission.
3.5.1
INTERPACKET DELAY
The interpacket delay is
9.6
to
10.6
microseconds including synchronization. The interpacket
delay interval begins after the negation of the RENA signal, LANCE continuously monitors the
RENA input pin to monitor or generate
an
interpacket delay. If LANCE is about to transmit (about
to assert the TENA output pin) and RENA is asserted, the chip will not assert TENA until RENA
has negated and the interpacket delay has elapsed. Whenever LANCE is about to transmit and
is waiting for the interpacket delay to elapse, it will begin transmission immediately after the
interpacket delay interval, independent of the state of RENA.
3.5.2
COLLISION DETECTION AND COLLISION JAM
Collisions are detected by monitoring the CLSN input pin. If CLSN becomes asserted during
a Frame Transmission, TENA will remain asserted for at least 32 (but not more than 48)
addi-
tional bit times (including CLSN synchronization). This additional transmission after collision
1·137
3-5
Page 48
3-6

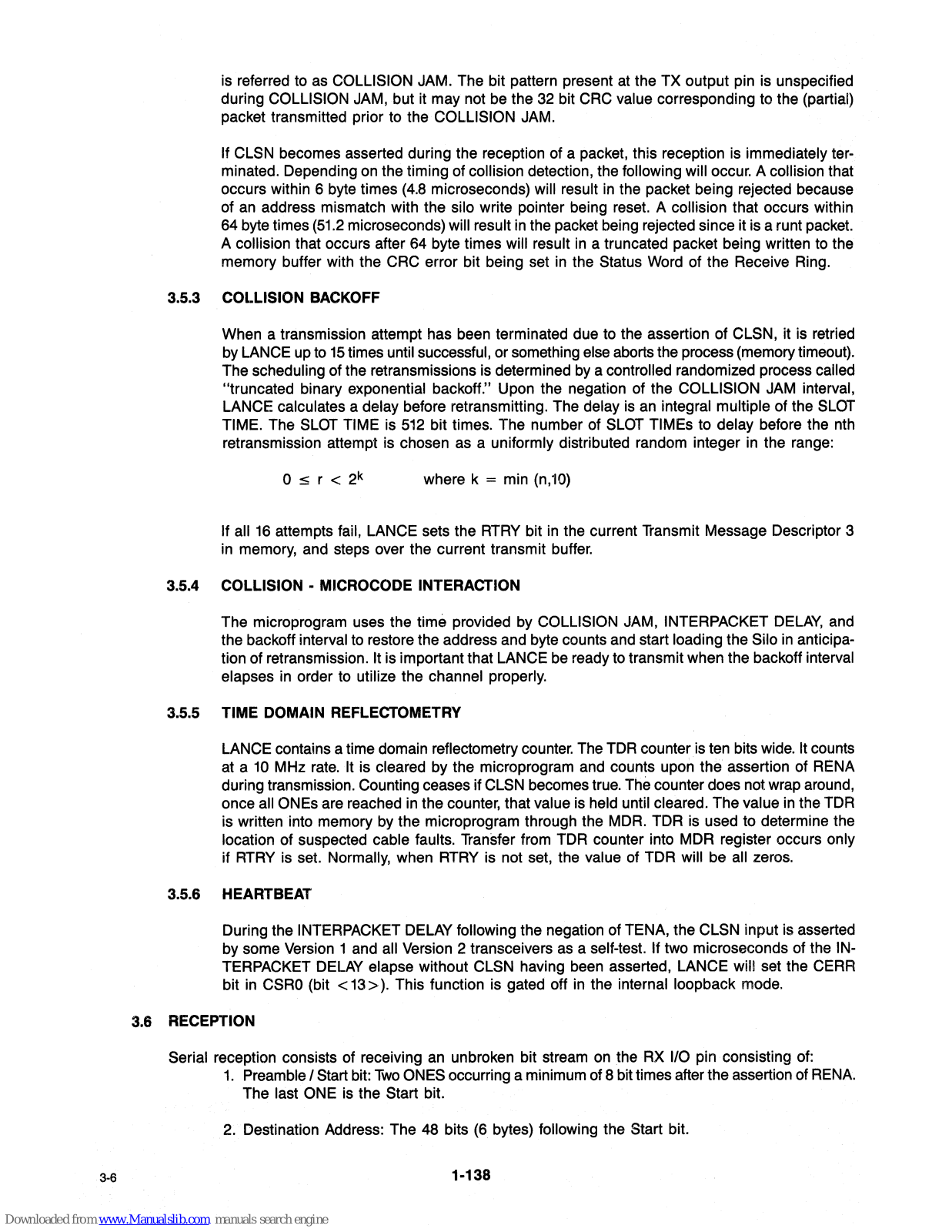

is
referred
to
as
COLLISION JAM. The bit pattern present
at
the TX output pin is unspecified
during
COLLISION
JAM,
but
it
may
not
be
the
32
bit
CRC
value corresponding
to
the (partial)
packet transmitted prior
to
the COLLISION
JAM.
If
CLSN
becomes asserted during the reception of a packet, this reception
is
immediately ter·
minated. Depending
on
the timing of collision detection, the following will occur. A collision that
occurs within 6
byte
times
(4.8
microseconds) will result
in
the packet being rejected because
of
an
address mismatch with the silo write pointer being
reset.
A collision that occurs within
64
byte
times
(51.2
microseconds) will result
in
the packet
being
rejected since it is a runt
packet.
A collision that occurs after
64
byte times will result
in
a truncated packet being written
to
the
memory buffer with the
CRC
error bit being
set
in
the Status
Word
of the Receive
Ring.
3.5.3 COLLISION
BACKOFF
When
a transmission attempt has
been
terminated due
to
the assertion of CLSN, it is retried
by
LANCE
up
to
15
times until successful,
or
something
else
aborts the process (memory timeout).
The
scheduling of the retransmissions
is
determined
by
a controlled randomized process called
"truncated binary exponential backoff." Upon the negation of the COLLISION
JAM
interval,
LANCE
calculates a delay before retransmitting. The delay
is
an
integral multiple of the
SLOT
TIME. The
SLOT
TIME
is
512
bit times. The number of
SLOT
TIMEs
to
delay before the
nth
retransmission attempt is chosen
as
a uniformly distributed random integer
in
the range:
where k
= min
(n,10)
If all
16
attempts fail,
LANCE
sets
the
RTRY
bit
in
the current Transmit Message Descriptor 3
in
memory,
and steps over the current transmit
buffer.
3.5.4
COLLISION·
MICROCODE
INTERACTION
The microprogram uses the time provided
by
COLLISION JAM, INTERPACKET
DELAY,
and
the backoff interval
to
restore the address
and
byte
counts
and
start loading the Silo
in
anticipa·
tion of retransmission.
It
is
important that LANCE
be
ready
to
transmit when the backoff interval
elapses
in
order
to
utilize the channel properly.
3.5.5
TIME DOMAIN
REFLECTOMETRY
LANCE
contains a time domain reflectometry
counter.
The
TDR
counter
is
ten
bits
wide.
It
counts
at a
10
MHz
rate.
It is cleared
by
the microprogram
and
counts upon the assertion of
RENA
during transmission. Counting ceases if
CLSN
becomes
true.
The
counter does not
wrap
around,
once
all
ONEs
are
reached
in
the
counter,
that value
is
held until cleared. The value
in
the
TDR
is written into memory
by
the microprogram through the
MDR.
TDR
is
used
to
determine the
location of suspected
cable faults. Transfer
from
TDR
counter into
MDR
register occurs only
if
RTRY
is
set.
Normally, when
RTRY
is
not
set,
the value
of
TDR
will
be
all
zeros.
3.5.6 HEARTBEAT
During the
INTERPACKET
DELAY
following the negation of
TENA,
the
CLSN
input
is
asserted
by
some
Version
1 and all
Version
2 transceivers
as
a self·test. If two microseconds of the IN·
TERPACKET
DELAY
elapse without
CLSN
having
been
asserted, LANCE will
set
the
CERR
bit
in
CSRO
(bit <
13
».
This function is gated off
in
the internal loopback
mode.
3.6
RECEPTION
Serial reception consists of receiving
an
unbroken bit
stream
on
the
RX
I/O
pin
consisting
of:
1.
Preamble
I Start bit:
Two
ONES
occurring a minimum
of
8 bit times
after
the assertion
of
RENA.
The last
ONE
is
the Start bit.
2.
Destination Address: The 48 bits
(6
bytes) following the Start bit.
1·138
Page 49

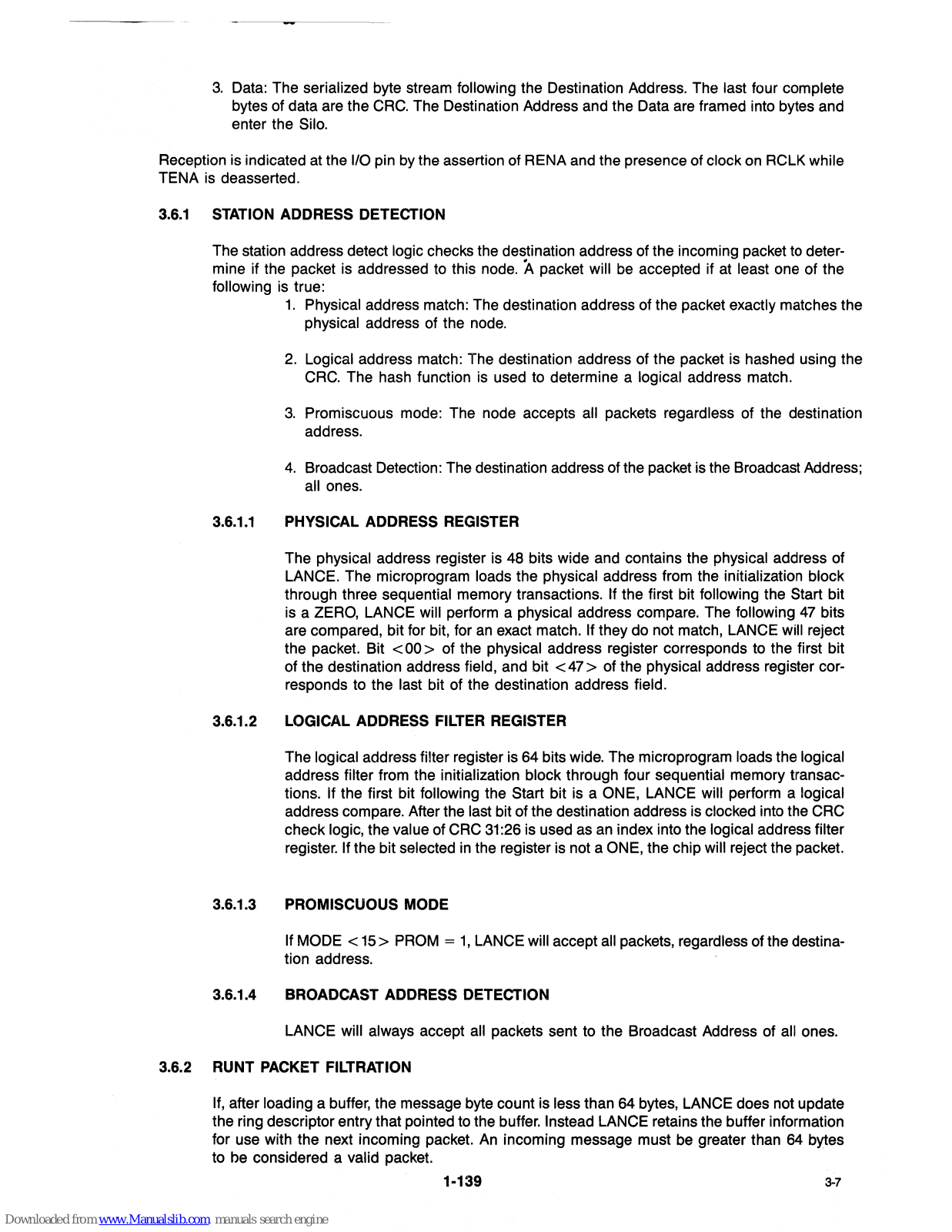

3.
Data: The serialized byte stream following the Destination Address. The last four complete
bytes of data are the CRC. The Destination Address and the Data are framed into bytes and
enter the Silo.
Reception is indicated at the
I/O pin by the assertion of RENA and the presence of clock on RCLK while
TENA
is
deasserted.
3.6.1
STATION ADDRESS DETECTION
The station address detect logic checks the destination address of the incoming packet
to
deter-
mine if the packet
is
addressed to this node. A packet will be accepted if at least one of the
following is true:
3.6.1-1
3.6.1.2
3.6.1.3
3.6.1.4
1.
Physical address match: The destination address of the packet exactly matches the
physical address of the node.
2. Logical address match: The destination address of the packet is hashed using the
CRC. The hash function is used to determine a logical address match.
3.
Promiscuous mode: The node accepts all packets regardless of the destination
address.
4.
Broadcast Detection: The destination address of the packet is the Broadcast Address;
all ones.
PHYSICAL ADDRESS REGISTER
The physical address register is 48 bits wide and contains the physical address of
LANCE. The microprogram loads the physical address from the initialization block
through three sequential memory transactions.
If the first bit following the Start bit
is
a ZERO, LANCE will perform a physical address compare. The following
47
bits
are compared, bit for bit, for
an
exact match. If they do not match, LANCE will reject
the packet. Bit
< 00 > of the physical address register corresponds to the first bit
of the destination address field, and bit
<
47
> of the physical address register cor-
responds to the last bit of the destination address field.
LOGICAL ADDRESS FILTER REGISTER
The logical address filter register
is
64 bits wide. The microprogram loads the logical
address filter from the initialization block through four sequential memory
transac-
tions. If the first bit following the Start bit
is
a ONE, LANCE will perform a logical
address compare. After the last bit of the destination address is clocked into the CRC
check logic, the value of CRC 31:26 is used as
an
index into the logical address filter
register.
If the bit selected in the register is not a ONE, the chip will reject the packet.
PROMISCUOUS MODE
If MODE
<
15
> PROM =
1,
LANCE will accept all packets, regardless of the destina-
tion address.
BROADCAST ADDRESS DETECTION
LANCE will always accept all packets sent to the Broadcast Address of all ones.
3.6.2 RUNT PACKET
FILTRATION
If,
after loading a buffer, the message byte count is less than 64 bytes, LANCE does not update
the ring descriptor entry that pointed to the buffer.
Instead LANCE retains the buffer information
for use with the next incoming packet.
An
incoming message must be greater than
64
bytes
to
be considered a valid packet.
1-139
3-7
Page 50
3·8

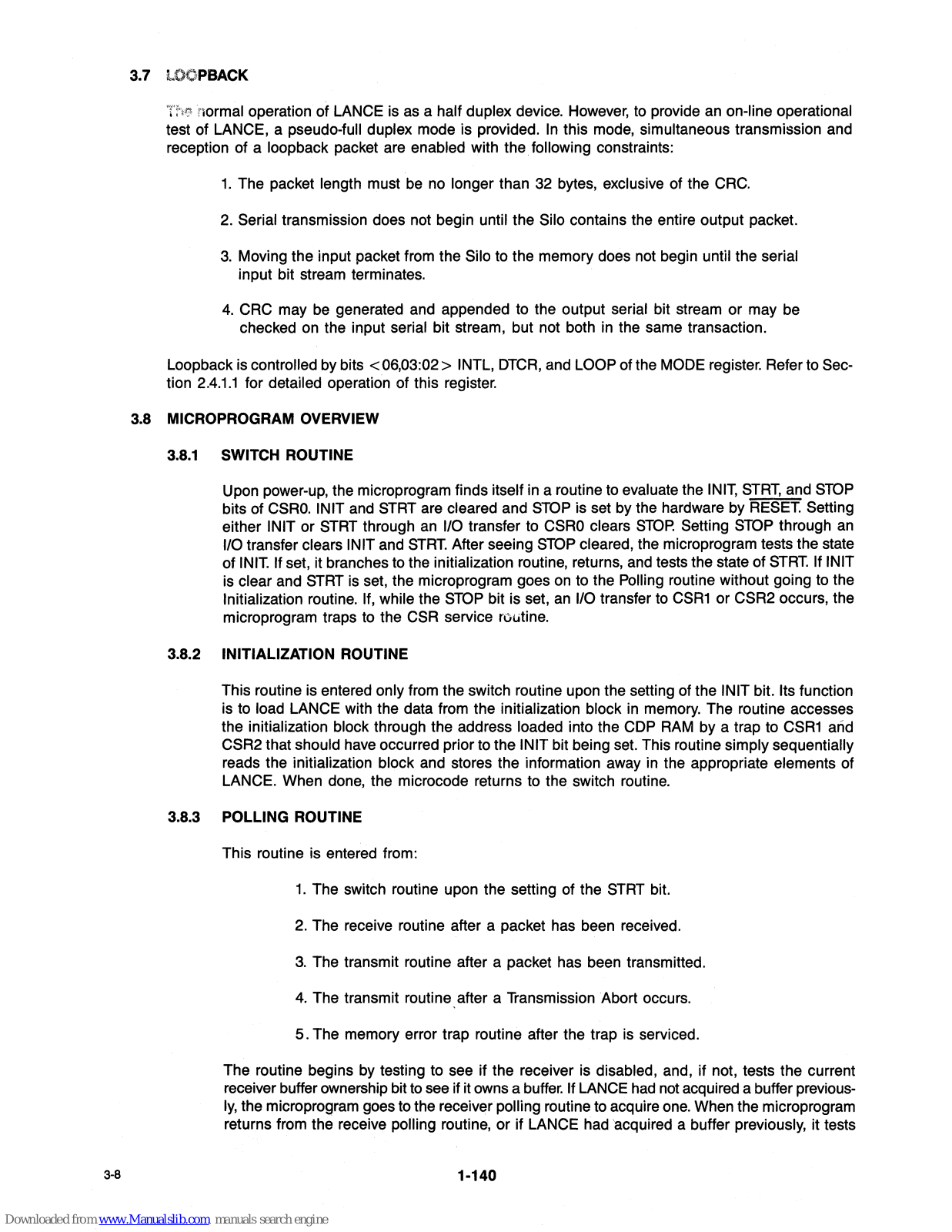

3.7 LOOPBACK
normal
operation of LANCE is as a half duplex device. However, to provide an on-line operational
test of LANCE, a pseudo-full duplex mode is provided.
In
this mode, simultaneous transmission and
reception of a
loopback packet are enabled with the following constraints:
1.
The packet length must be no longer than 32 bytes, exclusive of the CRC.
2.
Serial transmission does not begin until the Silo contains the entire output packet.
3.
Moving the input packet from the Silo to the memory does not begin until the serial
input bit stream terminates.
4.
CRC may be generated and appended to the output serial bit stream or may be
checked on the input
serial bit stream, but not both in the same transaction.
Loopback is
controlled by bits < 06,03:02 > INTL,
DTCR,
and LOOP of the MODE register. Refer to Sec-
tion
2.4.1.1
for detailed operation of this register.
3.8
MICROPROGRAM OVERVIEW
3.8.1
SWITCH ROUTINE
Upon power-up, the microprogram finds itself in a routine to evaluate the
INIT,
STRT,
and
STOP
bits of
CSRO.
INIT and STRT are cleared and
STOP
is set by the hardware by RESET. Setting
either
INIT or STRT through
an
1/0
transfer to
CSRO
clears
STOP.
Setting STOP through
an
1/0
transfer clears INIT and
STRT.
After seeing
STOP
cleared, the microprogram tests the state
of
INIT.
If set, it branches to the initialization routine, returns, and tests the state of
STRT.
If INIT
is
clear and STAT is set, the microprogram goes
on
to the Polling routine without going to the
Initialization routine. If, while the
STOP
bit is set, an
1/0
transfer to
CSR1
or CSR2 occurs, the
microprogram traps to the
CSR service 10titine.
3.8.2 INITIALIZATION ROUTINE
This routine is entered only from the switch routine upon the setting of the INIT bit. Its function
is to
load LANCE with the data from the initialization block in memory. The routine accesses
the initialization
block through the address loaded into the
COP
RAM by a trap to
CSR1
and
CSR2
that should have occurred prior to the INIT bit being set. This routine simply sequentially
reads the initialization block and stores the information away in the appropriate elements of
LANCE. When done, the microcode returns to the switch routine.
3.8.3
POLLING ROUTINE
This routine is entered from:
1.
The switch routine upon the setting of the STRT bit.
2. The receive routine after a packet has been received.
3.
The transmit routine after a packet has been transmitted.
4.
The transmit routine after a Transmission Abort occurs.
5.
The memory error trap routine after the trap
is
serviced.
The routine begins by testing to see if the receiver
is
disabled, and, if not, tests the current
receiver buffer ownership bit to see if it owns a buffer.
If LANCE had not acquired a buffer previous-
ly,
the microprogram goes to the receiver polling routine to acquire one. When the microprogram
returns from the receive
polling routine, or if LANCE had acquired a buffer previously, it tests
1-140
Page 51

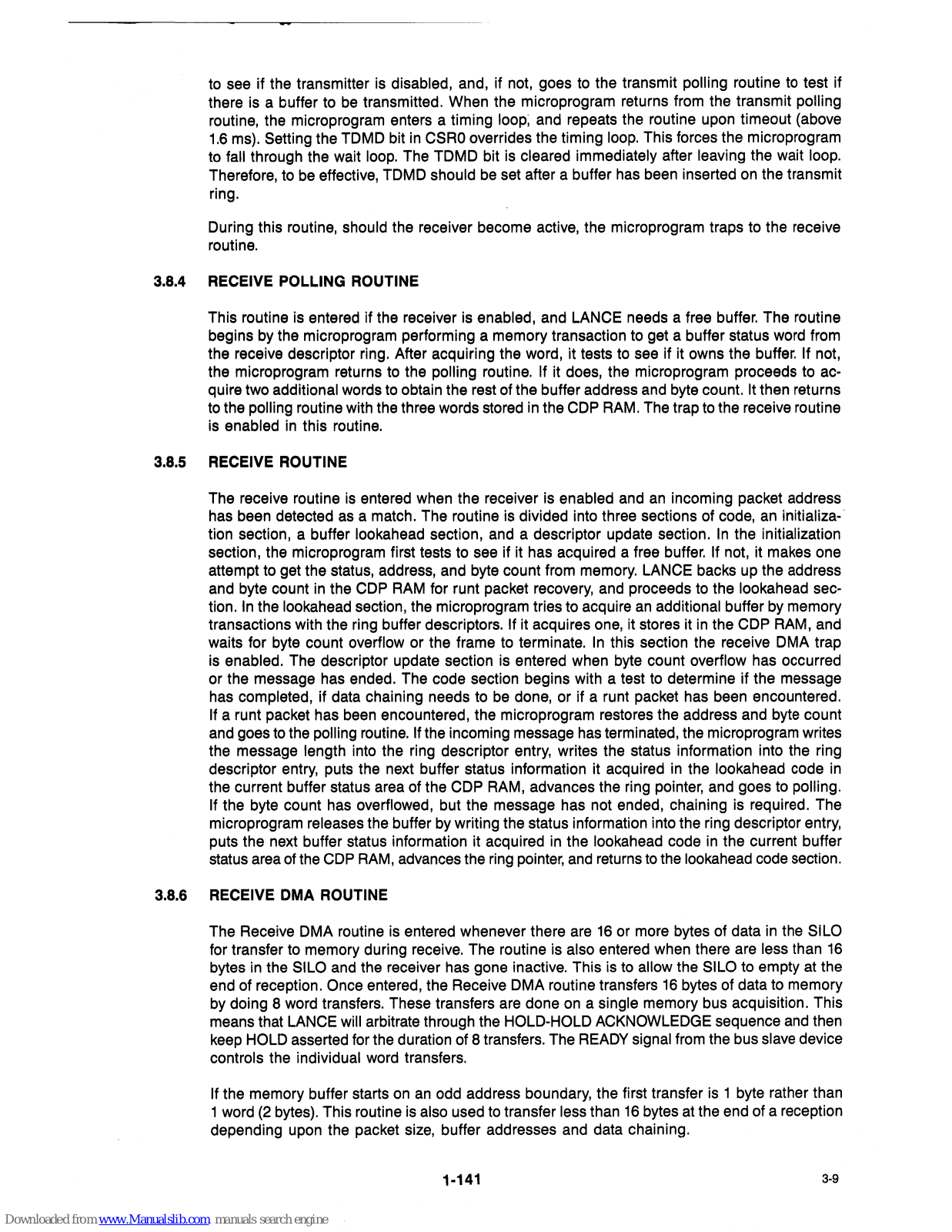

to see if the transmitter
is
disabled, and, if not, goes to the transmit polling routine
to
test if
there is a buffer to
be
transmitted. When the microprogram returns from the transmit polling
routine, the microprogram enters a timing loop; and repeats the routine upon timeout (above
1.6
ms). Setting the TDMD bit
in
CSRO
overrides the timing loop. This forces the microprogram
to
fall through the wait loop. The TDMD bit is cleared immediately after leaving the wait loop.
Therefore, to be effective, TDMD should
be
set after a buffer has been inserted
on
the transmit
ring.
During this routine,
should the receiver become active, the microprogram traps to the receive
routine.
3.8.4
RECEIVE POLLING ROUTINE
This routine
is
entered if the receiver
is
enabled, and LANCE needs a free buffer. The routine
begins by the microprogram performing a memory transaction to get a buffer status word from
the receive descriptor ring. After acquiring the word, it tests to see if it owns the buffer.
If not,
the microprogram returns to the
polling routine. If it does, the microprogram proceeds to ac-
quire two additional words
to
obtain the rest of the buffer address and byte count. It then returns
to
the polling routine with the three words stored
in
the CDP RAM. The trap
to
the receive routine
is
enabled
in
this routine.
3.8.5 RECEIVE ROUTINE
The receive routine
is
entered when the receiver is enabled and
an
incoming packet address
has been detected as a match. The routine is divided into three sections of code,
an
initializa-
tion section, a buffer lookahead section, and a descriptor update section.
In
the initialization
section, the microprogram first tests to see if it has acquired a free buffer. If not, it makes one
attempt to get the status, address, and byte count from memory. LANCE backs up the address
and byte count
in
the CDP RAM for runt packet recovery, and proceeds to the lookahead sec-
tion.
In
the lookahead section, the microprogram tries to acquire
an
additional buffer by memory
transactions with the ring buffer descriptors. If it acquires one, it stores it
in
the CDP RAM, and
waits for byte count
overflow or the frame to terminate.
In
this section the receive DMA trap
is
enabled. The descriptor update section is entered when byte count overflow has occurred
or the message has ended. The code section begins with a test to determine if the message
has
completed, if data chaining needs to
be
done, or if a runt packet has been encountered.
If a runt packet has been encountered, the microprogram restores the address and byte count
and goes to the polling routine. If the incoming message
has
terminated, the microprogram writes
the message
length into the ring descriptor entry, writes the status information into the ring
descriptor entry, puts the next buffer status information it acquired
in
the lookahead code
in
the current buffer status area of the CDP RAM, advances the ring
pOinter,
and goes to polling.
If
the byte count has overflowed, but the message has not ended, chaining is required. The
microprogram releases the buffer by writing the status information into the ring descriptor entry,
puts the next buffer status information it acquired
in
the lookahead code
in
the current buffer
status area of the
CDP
RAM, advances the ring pointer, and returns to the lookahead code section.
3.8.6 RECEIVE
DMA
ROUTINE
The Receive DMA routine is entered whenever there are
16
or more bytes of data
in
the SILO
for transfer to memory during receive. The routine is also entered when there are less than
16
bytes
in
the SILO and the receiver has gone inactive. This
is
to allow the SILO to empty at the
end of reception.
Once entered, the Receive DMA routine transfers
16
bytes of data to memory
by doing 8 word transfers. These transfers are done
on
a single memory bus acquisition. This
means that LANCE
will arbitrate through the HOLD-HOLD ACKNOWLEDGE sequence and then
keep HOLD asserted for the duration of 8 transfers. The
READY
signal from the bus slave device
controls the individual word transfers.
If the memory buffer starts on
an
odd address boundary, the first transfer
is
1 byte rather than
1 word
(2
bytes). This routine is also used
to
transfer less than
16
bytes at the end of a reception
depending upon the packet size, buffer addresses and data chaining.
1-141
3-9
Page 52
3-10

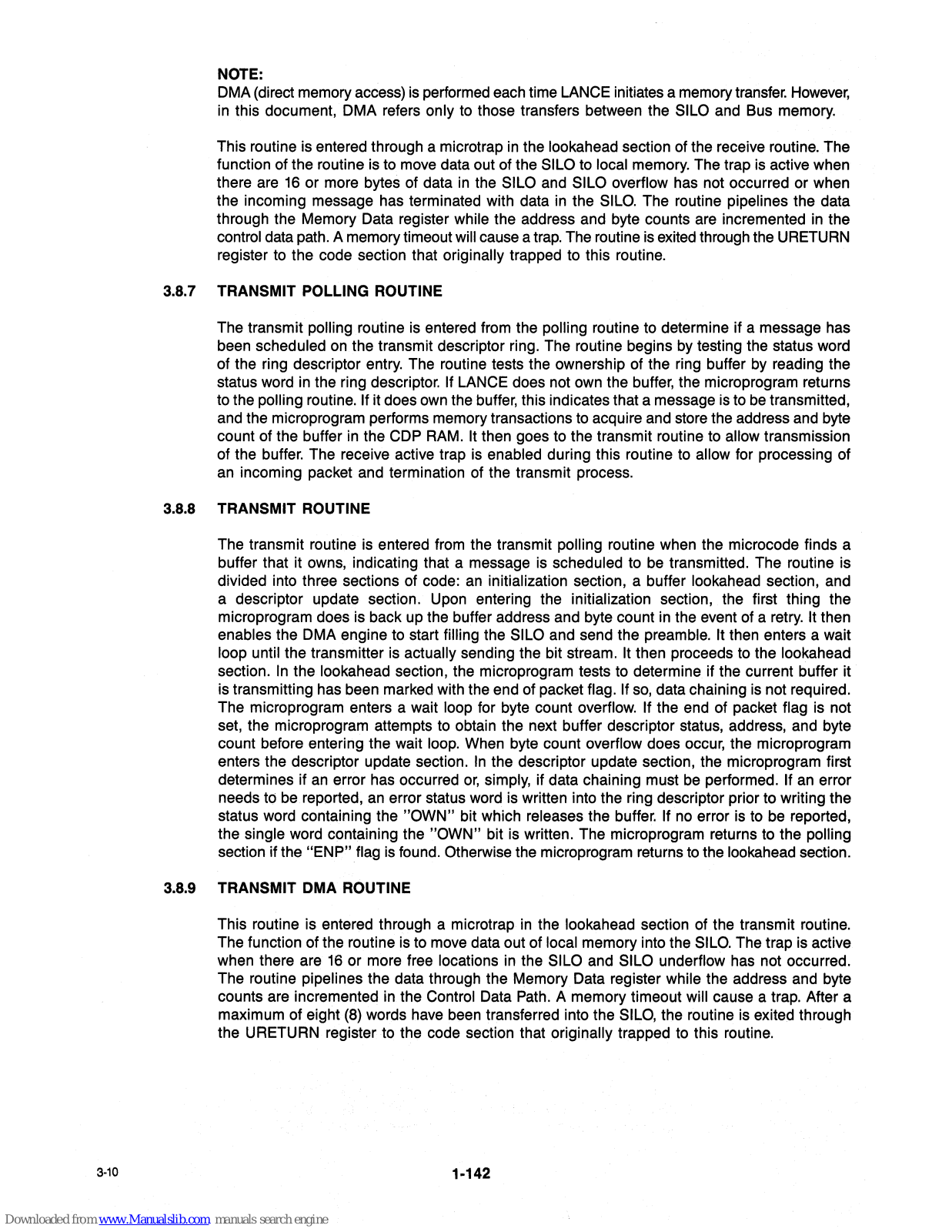

NOTE:
DMA (direct memory access)
is
performed each time LANCE initiates a memory transfer.
However,
in
this document, DMA refers only to those transfers between the SILO and Bus memory.
This routine is entered through a microtrap
in
the lookahead section of the receive routine. The
function of the routine is to move data out of the
SILO to local memory. The trap is active when
there are
16
or more bytes of data
in
the SILO and SILO overflow has not occurred or when
the incoming message has terminated with data in the
SILO.
The routine pipelines the data
through the Memory Data register while the address and byte counts are incremented in the
control data path. A memory timeout will cause a
trap.
The routine is exited through the URETURN
register to the code section that originally trapped to this routine.
3.8.7
TRANSMIT POLLING ROUTINE
The transmit polling routine is entered from the polling routine to determine if a message has
been scheduled on the transmit descriptor ring. The routine begins by testing the status word
of the ring descriptor entry. The routine tests the ownership of the ring buffer
by
reading the
status word in the ring descriptor.
If LANCE does not own the buffer, the microprogram returns
to the polling routine.
If it does
own
the buffer, this indicates that a message is to
be
transmitted,
and the microprogram performs memory transactions
to
acquire and store the address and byte
count of the buffer in the
CDP RAM. It then goes to the transmit routine to allow transmission
of the buffer. The receive active trap is enabled during this routine to
allow for processing of
an incoming packet and termination of the transmit process.
3.8.8
TRANSMIT ROUTINE
The transmit routine is entered from the transmit polling routine when the microcode finds a
buffer that it owns, indicating that a message is scheduled to be transmitted. The routine is
divided into three sections of code:
an
initialization section, a buffer lookahead section, and
a descriptor update section. Upon entering the initialization section, the first thing the
microprogram does is back up the buffer address and byte count
in
the event of a
retry.
It then
enables the DMA engine to start
filling the SILO and send the preamble. It then enters a wait
loop until the transmitter is
actually sending the bit stream.
It
then proceeds
to
the lookahead
section.
In
the lookahead section, the microprogram tests to determine if the current buffer it
is transmitting has been marked with the end of packet flag.
If
so,
data chaining is not required.
The microprogram enters a wait loop for byte count overflow.
If the end of packet flag is not
set, the microprogram attempts to obtain the next buffer descriptor status, address, and byte
count before entering the wait loop. When byte count overflow does occur, the microprogram
enters the descriptor update section.
In
the descriptor update section, the microprogram first
determines if
an
error has occurred
or,
simply, if data chaining must be performed. If
an
error
needs
to
be reported,
an
error status word is written into the ring descriptor prior to writing the
status word containing the
"OWN" bit which releases the buffer. If
no
error is to be reported,
the single word containing the
"OWN" bit is written. The microprogram returns to the polling
section if the
"ENP"
flag
is
found. Otherwise the microprogram returns to the lookahead section.
3.8.9
TRANSMIT DMA ROUTINE
This routine is entered through a microtrap
in
the lookahead section of the transmit routine.
The function of the routine is to move data out of
local memory into the
SILO.
The trap is active
when there are
16
or more free locations in the SILO and SILO underflow has not occurred.
The routine pipelines the data through the Memory Data register while the address and byte
counts are incremented
in
the Control Data Path. A memory timeout will cause a trap. After a
maximum of eight
(8)
words have been transferred into the SILO, the routine is exited through
the URETURN register to the code section that originally trapped to this routine.
1·142
Page 53

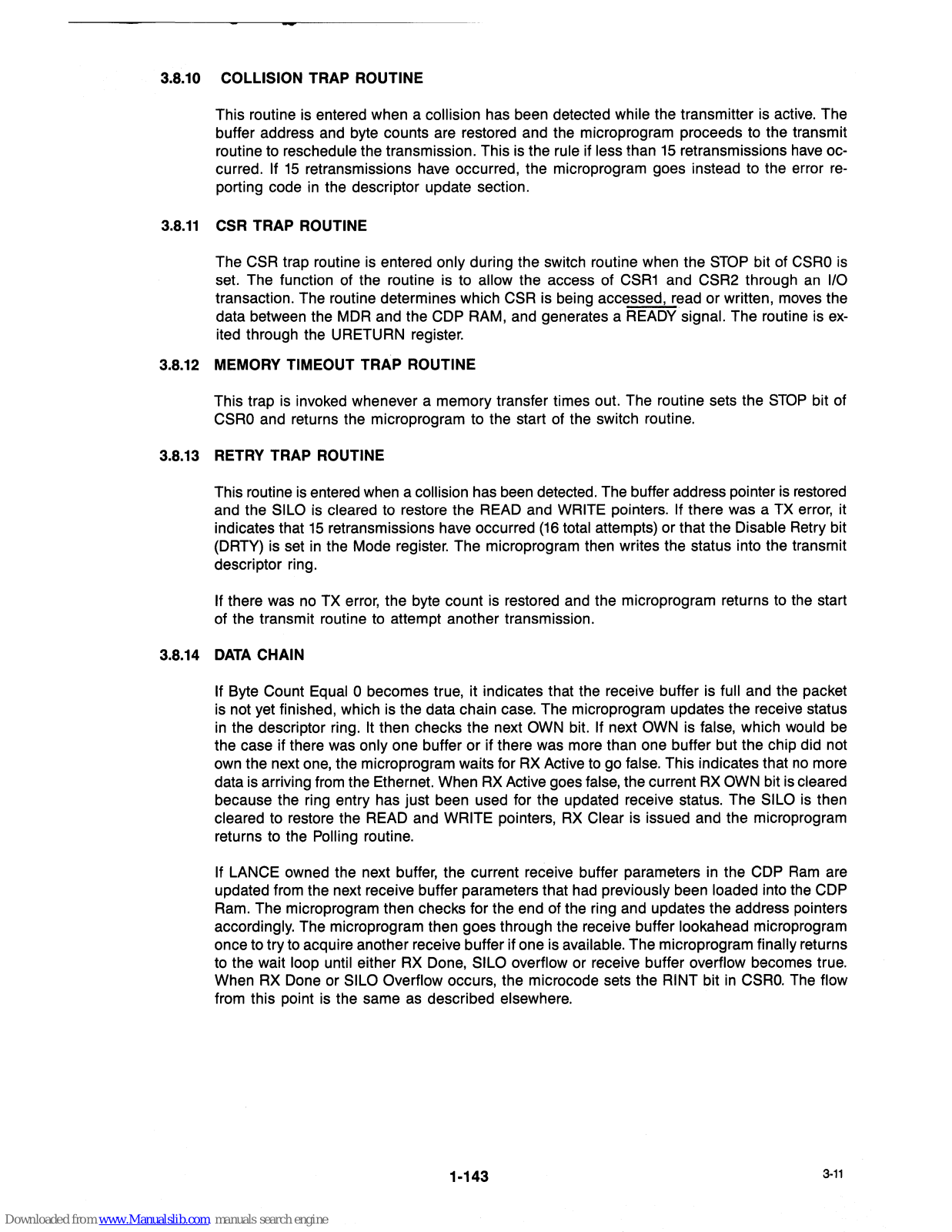

3.8.10 COLLISION TRAP ROUTINE
This routine
is
entered when a collision has been detected while the transmitter
is
active. The
buffer address and byte counts are restored and the microprogram proceeds
to
the transmit
routine
to
reschedule the transmission. This is the rule if less than
15
retransmissions
have
oc-
curred.
If
15
retransmissions have occurred, the microprogram goes instead
to
the error
re-
porting code
in
the descriptor update section.
3.8.11
CSR
TRAP ROUTINE
The CSR trap routine
is
entered only during the switch routine when the
STOP
bit of
CSRO
is
set. The function of the routine is
to
allow the access of
CSR1
and CSR2 through
an
1/0
transaction. The routine determines which CSR is being accessed, read or written, moves the
data between the MDR and the
CDP RAM, and generates a READY signal. The routine is
ex-
ited through the URETURN register.
3.8.12 MEMORY
TIMEOUT TRAP ROUTINE
This trap
is
invoked whenever a memory transfer times out. The routine sets the
STOP
bit of
CSRO
and returns the microprogram
to
the start of the switch routine.
3.8.13 RETRY TRAP
ROUTINE
This routine
is
entered when a collision has been detected. The buffer address pointer
is
restored
and the
SILO
is
cleared
to
restore the READ and WRITE pointers.
If
there was a TX error, it
indicates that
15
retransmissions have occurred
(16
total attempts) or that the Disable Retry bit
(DRTY) is set
in
the Mode register. The microprogram then writes the status into the transmit
descriptor ring.
If
there was
no
TX
error, the byte count is restored and the microprogram returns
to
the start
of the transmit routine
to
attempt another transmission.
3.8.14
DATA
CHAIN
If
Byte Count Equal 0 becomes true, it indicates that the receive buffer is full and the packet
is not yet finished, which
is
the data chain case. The microprogram updates the receive status
in
the descriptor ring.
It
then checks the next
OWN
bit. If next
OWN
is false, which would
be
the case if there was only one buffer or if there was more than one buffer but the chip did not
own
the next one, the microprogram waits for
RX
Active
to
go false. This indicates that
no
more
data is arriving from the Ethernet. When
RX
Active goes false, the current
RX
OWN
bit
is
cleared
because the ring entry has just been used for the updated receive status. The SILO
is
then
cleared to restore the READ and WRITE pOinters,
RX
Clear is issued and the microprogram
returns
to
the Polling routine.
If LANCE owned the next buffer, the current receive buffer parameters
in
the CDP
Ram
are
updated from the next receive buffer parameters that had previously been loaded into the CDP
Ram. The microprogram then checks for the end of the ring and updates the address pointers
accordingly. The microprogram then goes through the receive buffer lookahead microprogram
once
to
try
to
acquire another receive buffer if one is available. The microprogram finally returns
to
the wait loop until either
RX
Done, SILO overflow or receive buffer overflow becomes true.
When
RX
Done or SILO Overflow occurs, the microcode sets the RINT bit
in
CSRO.
The flow
from this
pOint
is
the same
as
described elsewhere.
1-143
3-11
Page 54
1·144
Page 55

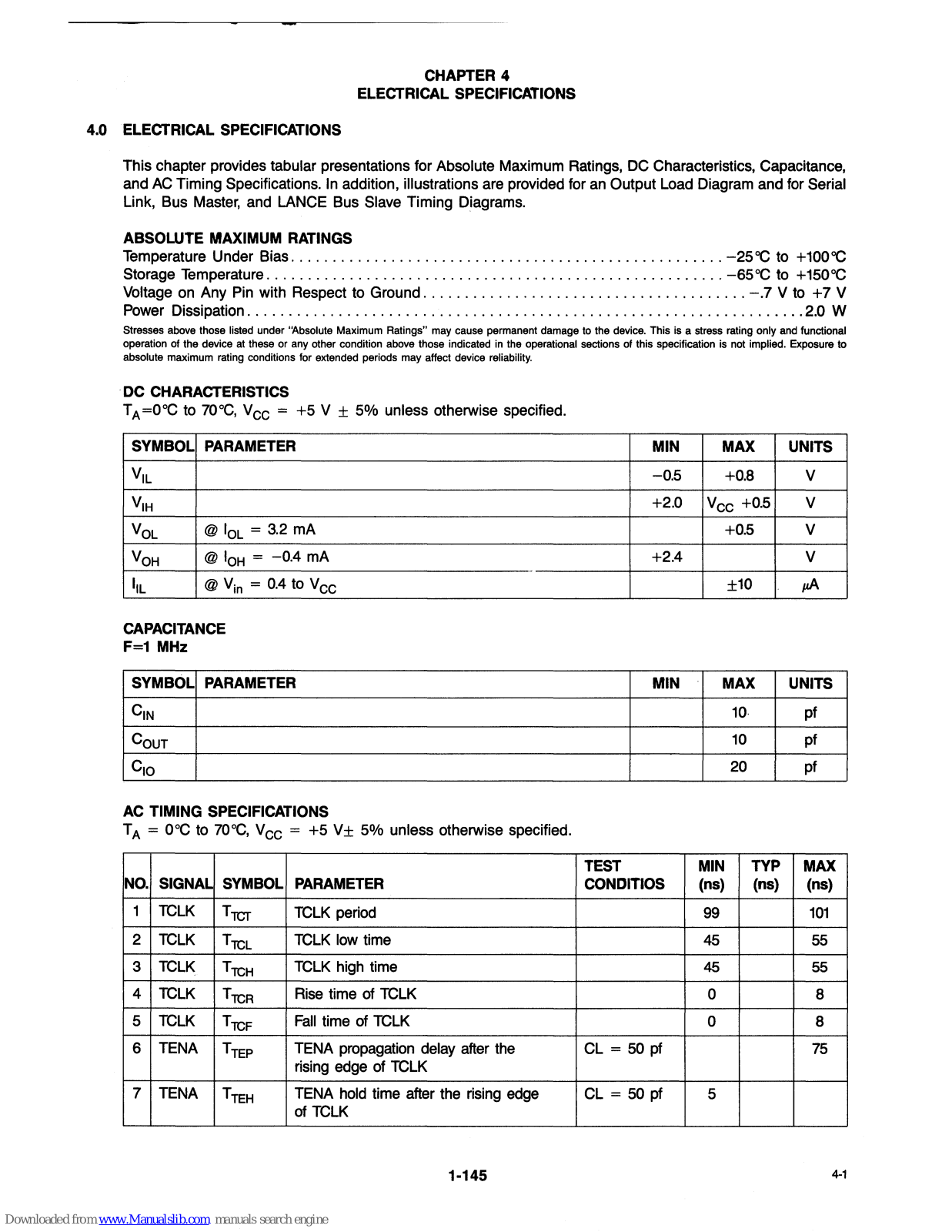

4.0 ELECTRICAL SPECIFICATIONS
CHAPTER 4
ELECTRICAL SPECIFICATIONS
This chapter provides tabular presentations for Absolute Maximum Ratings, DC Characteristics, Capacitance,
and
AC Timing Specifications. In addition, illustrations are provided for an Output Load Diagram and for Serial
Link, Bus Master, and LANCE Bus Slave Timing Diagrams.
ABSOLUTE MAXIMUM RATINGS
Temperature Under Bias
....................................................
-25OC to
+100OC
Storage Temperature
.......................................................
-65°C
to
+150OC
Voltage on Any Pin with Respect to Ground
.......................................
-.7 V to
+7
V
Power Dissipation
...................................................................
2.0 W
Stresses above those listed under ''Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional
operation
of
the device
at
these or any other condition above those indicated
in
the operational sections of this specification is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
DC CHARACTERISTICS
TA=OOC
to
7Q°C,
Vee =
+5
V ±
5%
unless otherwise specified.
SYMBOL PARAMETER
V
IL
V
IH
VOL
@
IOL
= 3.2 mA
V
OH
@
IOH = -0.4
mA
IlL
@ V
in
=
0.4
to Vee
CAPACITANCE
F=1 MHz
SYMBOL PARAMETER
C
IN
C
OUT
CIO
AC TIMING SPECIFICATIONS
T A =
O°C
to
70OC,
Vee =
+5
V±
5%
unless otherwise specified.
NO.
SIGNAL
SYMBOL
PARAMETER
1 TCLK
TTCT
TCLK period
2
TCLK
TTCL
TCLK low time
3 TCLK
TTCH
TCLK high time
4
TCLK
TTCR
Rise time of TCLK
5 TCLK
TTCF
Fall
time of TCLK
6
TENA
TTEP
TENA propagation delay after the
rising edge of TCLK
7 TENA
TTEH
TENA hold time after the rising edge
of
TCLK
1-145
MIN
MAX
UNITS
-0.5
+0.8 V
+2.0
Vee +0.5
V
+0.5 V
+2.4
V
±10
pA
MIN
MAX
UNITS
10
pf
10
pf
20 pf
TEST
MIN TYP
MAX
CONDITIOS
(ns)
(ns)
(ns)
99
101
45
55
45 55
0 8
0
8
CL=50pf
75
CL=50pf
5
4·1
Page 56

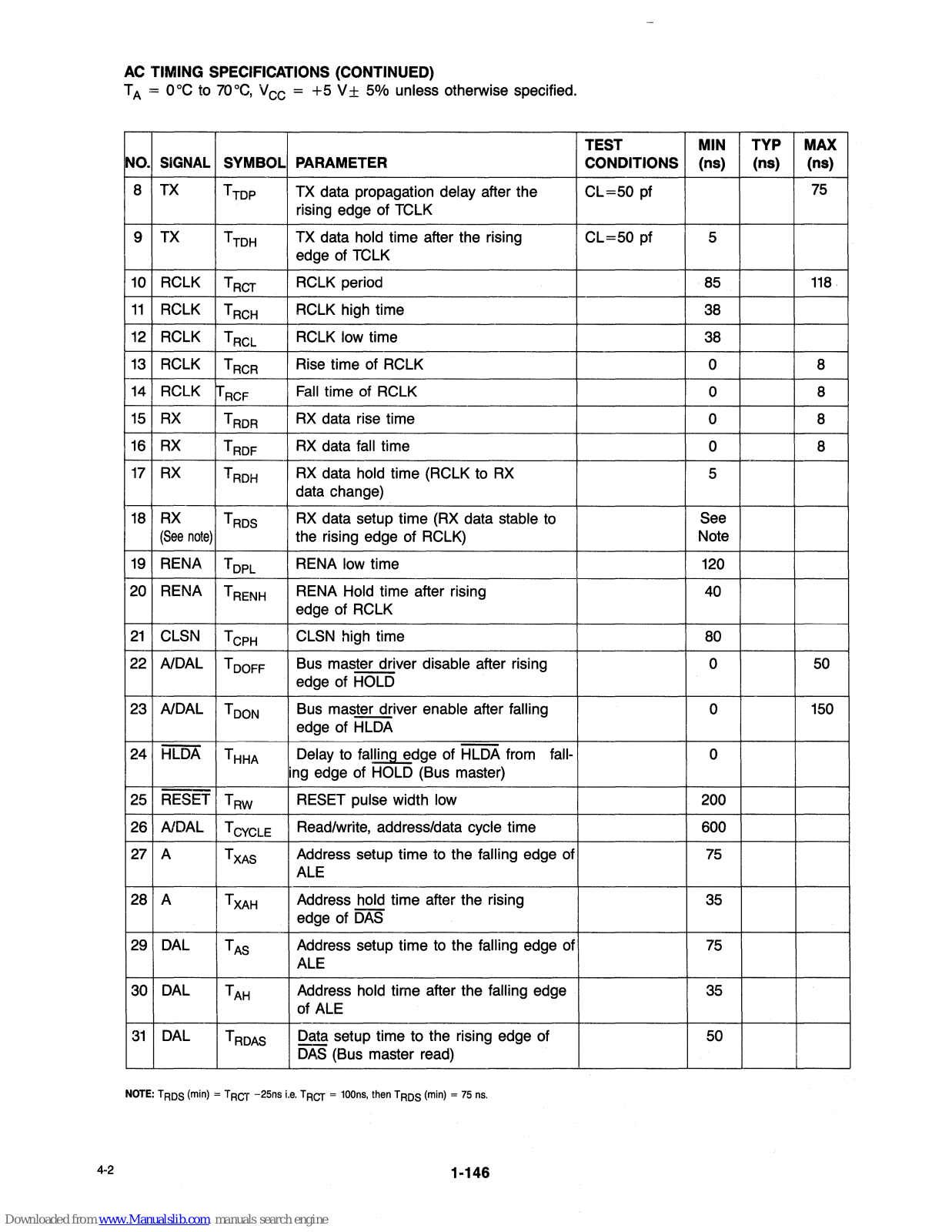

AC TIMING SPECIFICATIONS (CONTINUED)
TA = O°C
to
70°C,
VCC = +5
V±
5%
unless otherwise specified.
TEST MIN
TYP
MAX
NO.
SIGNAL
SYMBOL PARAMETER CONDITIONS (ns) (ns) (ns)
8
TX
TTDP
TX data propagation delay after the
CL=50
pf
75
rising edge of TCLK
9
TX
TTDH
TX data hold time after the rising
CL=50
pf
5
edge of TCLK
10
RCLK T
RCT
RCLK period
85
118
11
RCLK T
RCH
RCLK high time
38
12
RCLK
T
RCL
RCLK low time
38
13
RCLK T
RCR
Rise time of RCLK
0 8
14
RCLK
ReF
Fall
time of RCLK
0 8
15
RX
T
ROR
RX
data rise time
0 8
16
RX
T
ROF
RX
data fall time
0 8
17
RX
TRDH
RX
data hold time (RCLK to
RX
5
data change)
18
RX
T
ROS
RX
data setup time (RX data stable
to
See
(See
note)
the rising edge of RCLK)
Note
19
RENA
T
OPL
RENA low time 120
20
RENA
TRENH
RENA Hold time after rising
40
edge of RCLK
21
CLSN
T
CPH
CLSN high time
80
22 AlDAL
TOOFF
Bus master driver disable after rising
0
50
edge of HOLD
23
AlDAL
TOON
Bus master driver enable after falling
0
150
edge of HLDA
24 HLDA
THHA
Delay to falling edge of HLDA from
fall· 0
ing edge of HOLD (Bus master)
25
RESET
TRW
RESET pulse width low 200
26 AlDAL
TCYCLE
Read/write, address/data cycle time
600
27
A T
XAS
Address setup time
to
the falling edge of
75
ALE
28 A
TXAH
Address hold time after the rising
35
edge of
DAS
29 DAL T
AS
Address setup time to the falling edge of
75
ALE
30
DAL
TAH
Address hold time after the falling edge 35
of ALE
31
DAL T
ROAS
Data setup time to the rising edge of 50
DAS
(Bus master read)
NOTE:
TADS
(min) ~ TACT
-25ns
i.e.
TACT ~ 1oons,
then
TADS
(min) ~ 75
ns.
4-2
1·146
Page 57

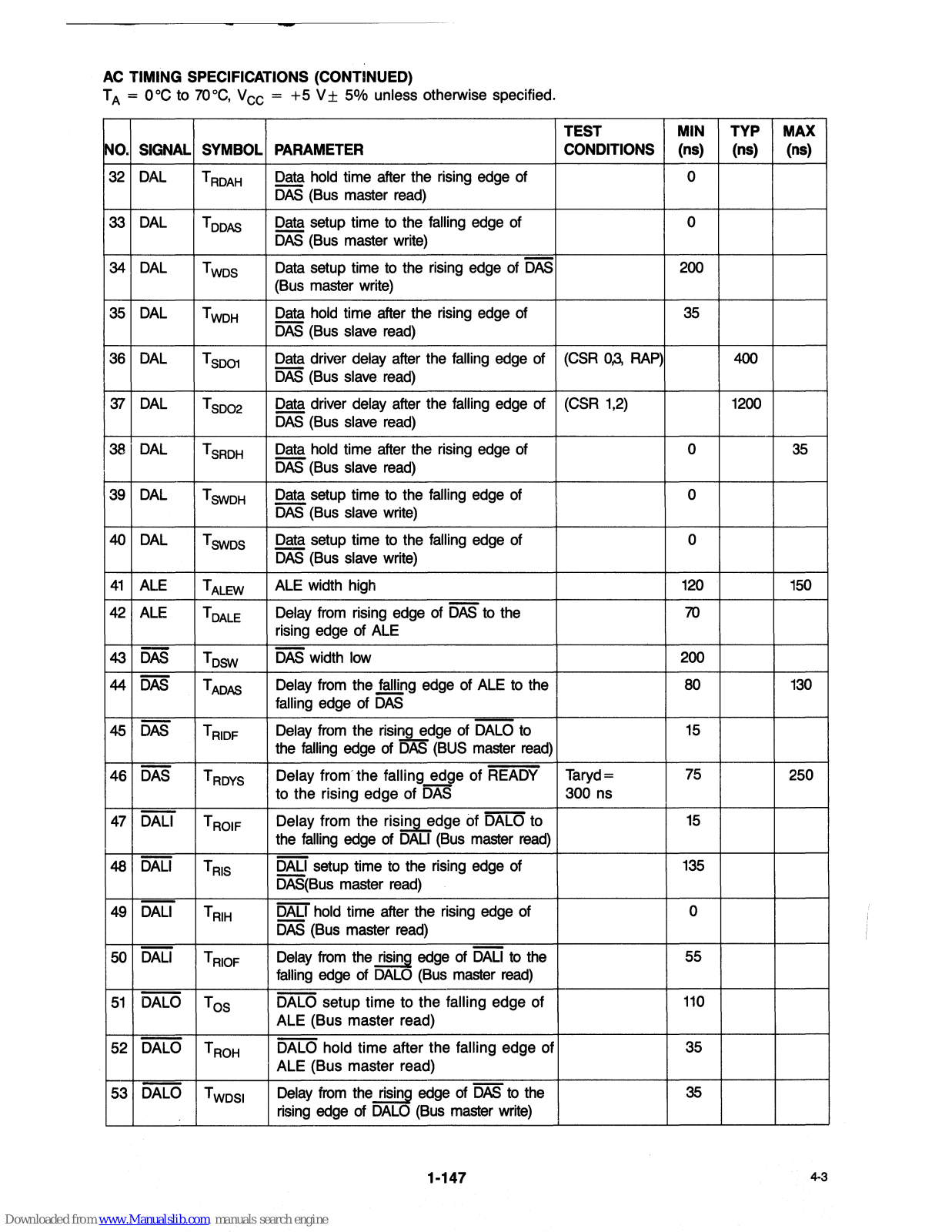

AC
TIMING
SPECIFICATIONS
(CONTINUED)
TA = ooe
to
70
o
e,
Vee =
+5
V±
5%
unless otherwise specified.
TEST
MIN
TYP
MAX
NO.
SIGNAL
SYMBOL
PARAMETER
CONDITIONS
(ns)
(ns) (ns)
32
DAL T
ROAH
Data hold time after the rising edge of 0
DAS (Bus master read)
33 DAL
TOOAS
Data setup time to the falling edge of 0
DAS (Bus master write)
34 DAL
Twos
Data setup time to the rising edge of
DAS
200
(Bus master write)
35
DAL
TWOH
Data hold time after the rising edge of
35
DAS
(Bus slave read)
36
DAL
TSD01
Data driver delay after the falling edge of
(eSR
0,3,
RAP)
400
DAS
(Bus slave read)
'37
DAL
TSOO2
Data driver delay after the falling edge of (eSR
1,2)
1200
DAS
(Bus slave read)
38 DAL T
SROH
Data hold time after the rising edge of 0
35
DAS (Bus slave read)
39
DAL
TSWOH
~
setup time to the falling edge of 0
DAS (Bus slave write)
40 DAL
Tswos
Data setup time to the falling edge of 0
DAS (Bus slave write)
41
ALE
TALEW
ALE width high
120
150
42
ALE
TOALE
Delay from rising edge of
DAS
to the 70
rising edge of ALE
43
DAS
Tosw
DAS
width low
200
44
DAS
T
AOAS
Delay from the.!2!!J!lg edge of ALE to the 80
130
falling edge of
DAS
45
DAS T
RIOF
Delay from the rising edge of DALO to
15
the falling edge of
DAS
(BUS master read)
46 DAS
T
ROYS
Delay from the falling edge of READY
Taryd=
75
250
to the rising
edge
of
DAS
300 ns
47
DALI T
ROIF
Delay from the
ris~dge
of
DALO to
15
the falling edge
of
DALI (Bus master read)
48
DALI T
RIS
~
setup time to the rising edge of
135
DAS(Bus master read)
49
DALI
TRIH
~I
hold time after the rising edge of
0
DAS
(Bus master read)
50
DALI T
RIOF
Delay from the rising edge of
DALI
to the
55
falling edge
of
DALO (Bus master
read)
51
DALO
Tos
DALO setup time to
the
falling edge of
110
ALE (Bus master read)
52
DALO T
ROH
DALO hold time after the falling edge
of
35
ALE (Bus master read)
53
DALO
TWOSI
Delay from the rising edge
of
DAS
to the
35
rising edge of DALO (Bus master write)
1·147
4·3
Page 58

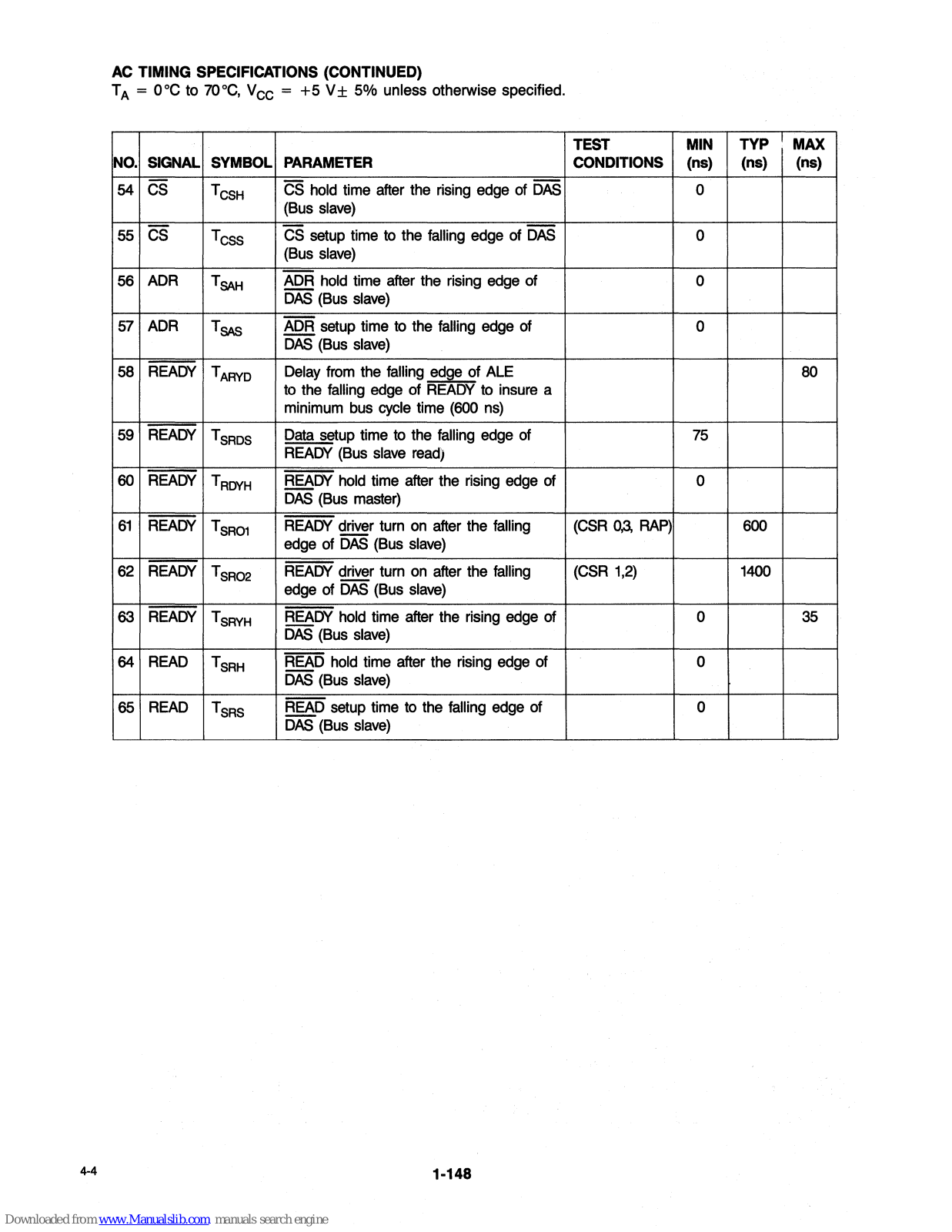

AC
TIMING
SPECIFICATIONS
(CONTINUED)
TA = O°C
to
7Q°C,
Vee = +5
V±
5%
unless otherwise specified.
TEST MIN
TYP I MAX
NO. SIGNAL
SYMBOL
PARAMETER CONDITIONS (ns) (ns) (ns)
54
CS
TeSH
CS
hold time after the rising edge of DAS 0
(Bus slave)
55
CS
Tess
CS
setup time
to
the falling edge of DAS
0
(Bus slave)
56
ADR
TSAH
ADR hold time after the rising edge of 0
DAS (Bus slave)
57 ADR
TSAS
ADR setup time to the falling edge of
0
DAS (Bus slave)
58 READY
TARYD
Delay from the falling edge of ALE 80
to the falling edge of READY to insure a
minimum bus
cycle time (600 ns)
59
READY T
SRDS
Data setup time to the falling edge of
75
READY (Bus
slave read)
60
READY
TRDYH
READY hold time after the riSing edge
of
0
DAS (Bus master)
61
READY
T
SR01
READY driver turn on after the falling (CSR
0,3,
RAP)
600
edge of DAS (Bus slave)
62 READY T
SR02
READY driver turn on after the falling (CSR 1,2) 1400
edge of DAS (Bus slave)
63
READY
TSRYH
READY hold time after the rising edge
of
0 35
DAS (Bus
slave)
64
READ
TSRH
READ hold time after the rising edge of
0
DAS (Bus slave)
65
READ T
SRS
READ setup time
to
the falling edge of 0
DAS (Bus slave)
4-4
1-148
Page 59

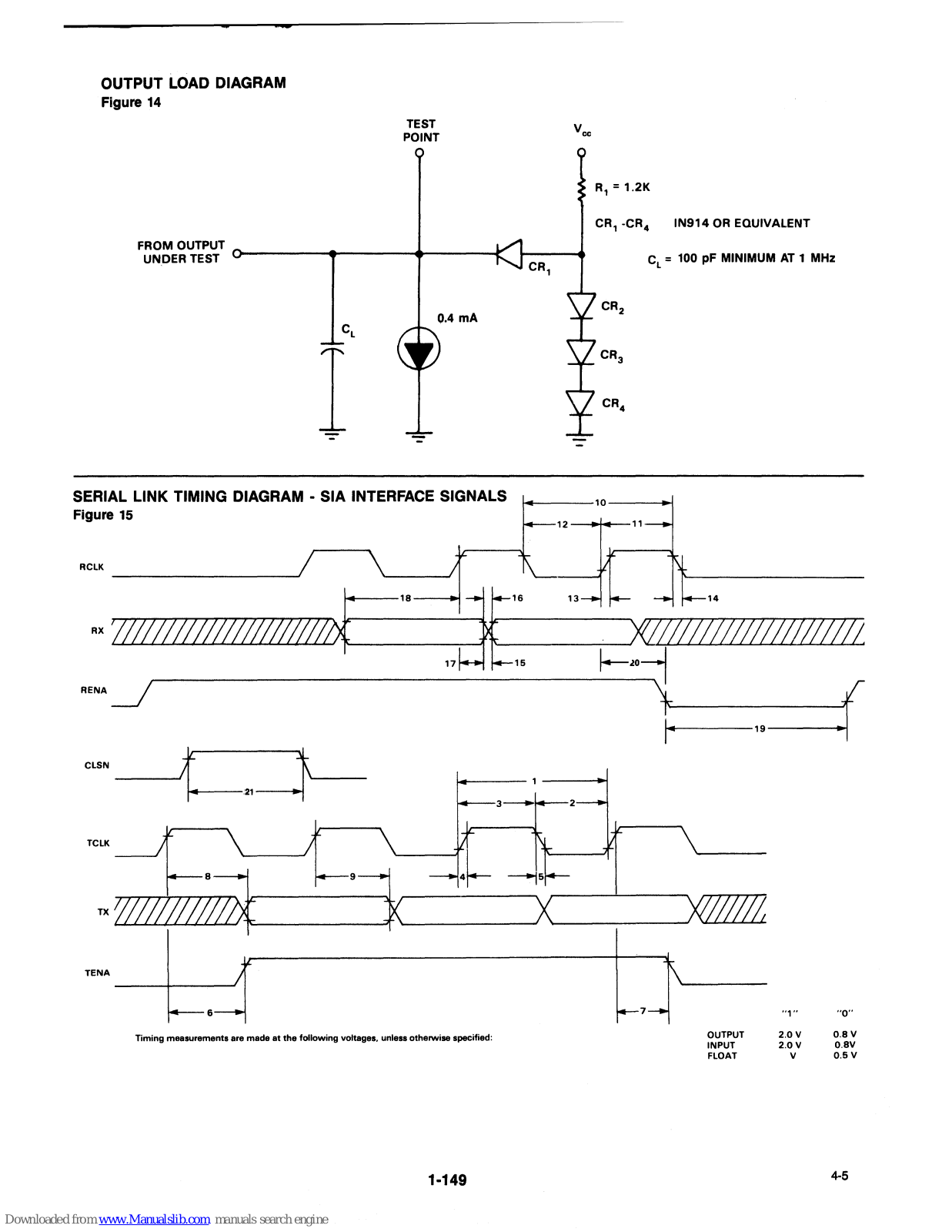

OUTPUT LOAD DIAGRAM
Figure
14
TEST
POINT
v""
R, = 1.2K
CR,
-CR.
IN914
OR
EQUIVALENT
CR,
C
L
= 100 pF MINIMUM
AT
1 MHz
0.4 rnA
I
Figure
15
'2
"
S_ERIAL
LINK TIMING DIAGRAM -
SIA
INTERFA?CE
SIGNALS B
O
RCLK
I\.
______
_
_
1=='8
aff'6
'3
,.
RX
!l////JI!IJ!/
II
//////~
XL~/;~7/~I!/~M~I2~72~7/~7
jj,~//~!
'7
15
I-lO~
RENA~
CLSN -t=.,=l'-
TCLK
TX
lENA
Timing measurements are made
at
t"'e following voltages, unless otherwise specified:
1-149
~I+---.
'9-----.1{
OUTPUT
INPUT
FLOAT
"1"
2,0
V
2.0V
V
"0"
Q.SV
O.SV
O.SV
4-5
Page 60

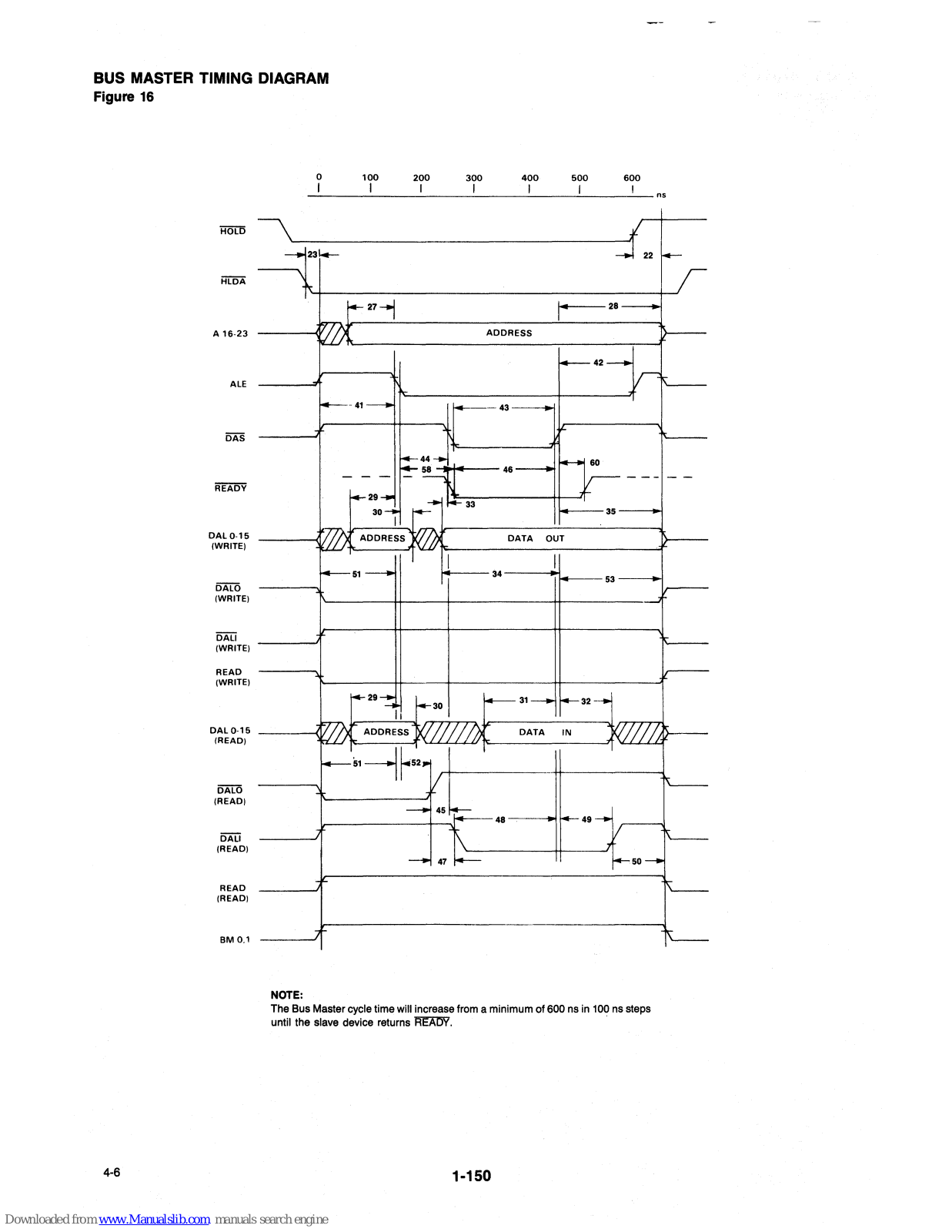

BUS MASTER TIMING DIAGRAM
Figure
16
4-6
ALE
DALO-15
(WRITE)
DALO
(WRITE)
OALI
(WAITE)
READ
(WRITE)
CAL
0-15
(READ)
DALO
(READ)
DAU
(READ)
READ
(READ)
BMO.1
NOTE:
100
I
200
I
300
I
400
I
500
I
600
I
The
Bus
Master cycle
time
will increase from a
minimum
of
600
ns in 100 ns steps
until the slave device returns
REAnV.
1-150
Page 61

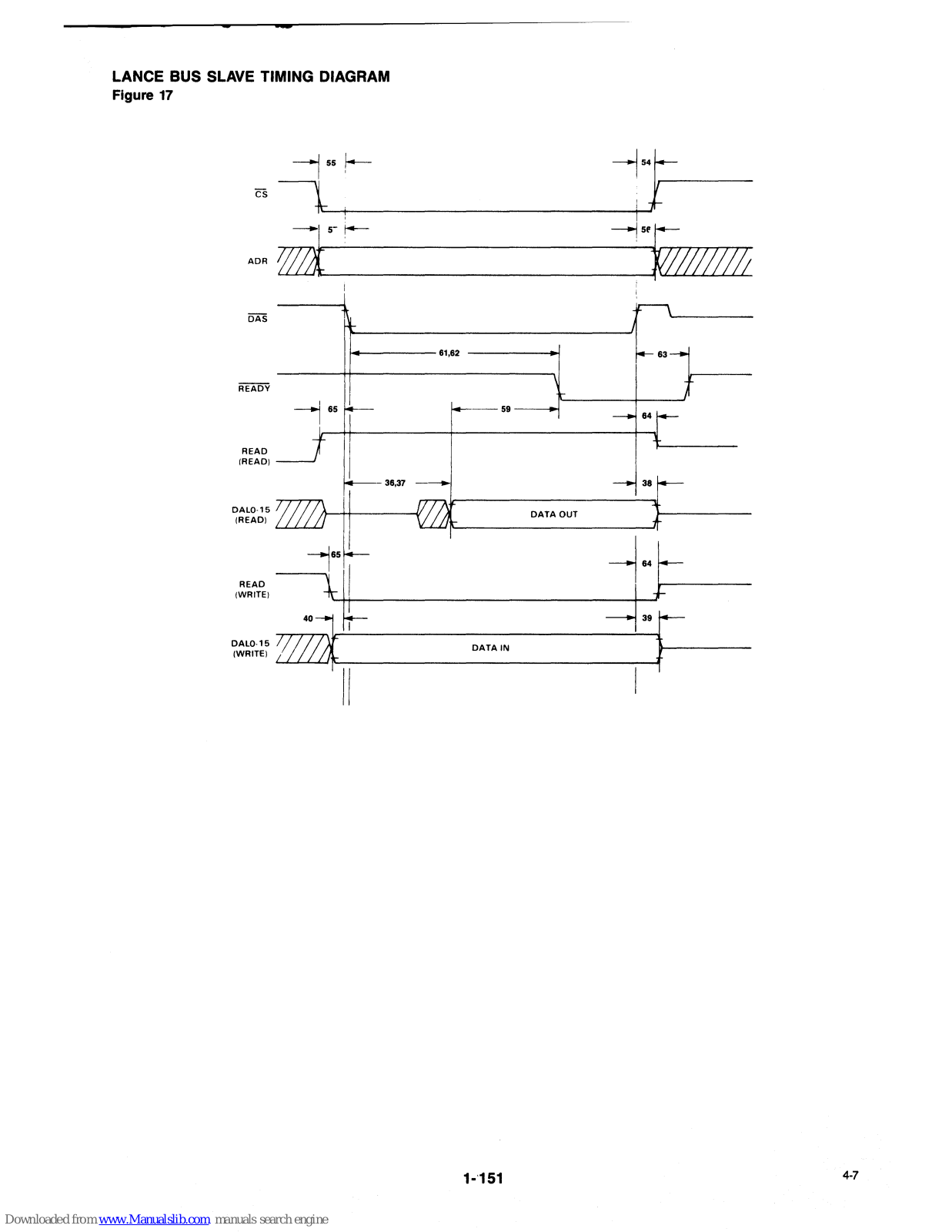

LANCE BUS SLAVE TIMING DIAGRAM
Figure
17
-1
55
~
-1,
..
t
__
B~~!
____________
-rlr
-.21'·
~
~5ft:
ADA
wa
,
~rTT7/!;"TTT1/!;"TTrm
1-----
81
,62
----I
READ
(READI
OAlO·15
lREADI
--16'~
~'I
READ
(WAIT"~
~
DALQ.'5
I
(WRITE)
II
-59
DATA OUT
DATA
IN
1-151
+J=r-----
~r-
I
4-7
Loading...
