Thomson DVD Player -TV Set User Manual

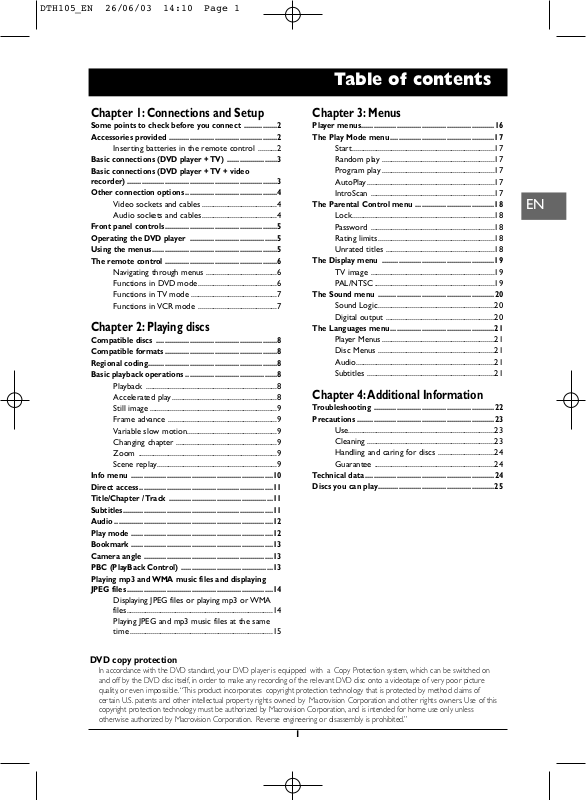

Table of contents
Chapter 1: Connections and Setup
Some points to check before you connect ................2
Accessories provided ....................................................2
Inserting batteries in the remote control ..........2
Basic connections (DVD player + TV) ........................3
Basic connections (DVD player + TV + video
recorder) ........................................................................3
Other connection options ............................................4
Video sockets and cables ........................................4
Audio sockets and cables........................................4
Front panel controls......................................................5
Operating the DVD player ..........................................5
Using the menus............................................................5
The remote control ......................................................6
Navigating through menus ......................................6
Functions in DVD mode ..........................................6
Functions in TV mode ..............................................7
Functions in VCR mode ..........................................7
Chapter 2: Playing discs
Compatible discs ..........................................................8
Compatible formats......................................................8
Regional coding..............................................................8
Basic playback operations ............................................8
Playback ......................................................................8
Accelerated play ........................................................8
Still image ....................................................................9
Frame advance ..........................................................9
Variable slow motion................................................9
Changing chapter ......................................................9
Zoom ..........................................................................9
Scene replay................................................................9
Info menu ....................................................................10
Direct access................................................................11
Title/Chapter / Track ..................................................11
Subtitles........................................................................11
Audio ............................................................................12
Play mode ....................................................................12
Bookmark ....................................................................13
Camera angle ..............................................................13
PBC (PlayBack Control) ............................................13
Playing mp3 and WMA music files and displaying
JPEG files ......................................................................14
Displaying JPEG files or playing mp3 or WMA
files..............................................................................14
Playing JPEG and mp3 music files at the same
time ............................................................................15
Chapter 3: Menus
Player menus................................................................16
The Play Mode menu..................................................17
Start............................................................................17
Random play ............................................................17
Program play ............................................................17
AutoPlay....................................................................17
IntroScan ..................................................................17
The Parental Control menu ......................................18
Lock............................................................................18
Password ..................................................................18
Rating limits..............................................................18
Unrated titles ..........................................................18
The Display menu ......................................................19
TV image ..................................................................19
PAL/NTSC ................................................................19
The Sound menu ........................................................20
Sound Logic ..............................................................20
Digital output ..........................................................20
The Languages menu..................................................21
Player Menus............................................................21
Disc Menus ..............................................................21
Audio..........................................................................21
Subtitles ....................................................................21
Chapter 4:Additional Information
Tr oubleshooting ..........................................................22
Precautions ..................................................................23
Use..............................................................................23
Cleaning ....................................................................23
Handling and caring for discs ..............................24
Guarantee ................................................................24
Technical data..............................................................24
Discs you can play........................................................25
EN
DVD copy protection
In accordance with the DVD standard, your DVD player is equipped with a Copy Protection system, which can be switched on
and off by the DVD disc itself, in order to make any recording of the relevant DVD disc onto a videotape of very poor picture
quality, or even impossible.“This product incorporates copyright protection technology that is protected by method claims of
certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home use only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.”
1
EN
Chapter 1 Connections and Setup
Some points to check before you connect
• Ensure that the mains supply in your house complies with that indicated on the identification
sticker located on the back of your appliance.
• Install your appliance horizontally, away from any source of heat (fireplace) or appliances
creating strong magnetic or electric fields.The components of this appliance are sensitive to
heat.The maximum ambient temperature should not exceed 35° Celsius.
• Leave sufficient space around the appliance to allow adequate ventilation: 10 cm on either side
and at the rear, as well as 7 cm above the top are ideal.
• The humidity of the room should not exceed 75%. If you have to use the appliance outdoors,
do not expose it to rain or splashing water.The apparatus should not be exposed to dripping
or splashing and no objects filled with liquids, such as vases, should be placed on the apparatus.
•Moving it from a cold environment to a warm one is likely to cause condensation on some
components inside the appliance. Let the condensation disappear of its own accord before
turning the appliance on again.
• Before moving the player, make sure the disc tray is empty.
Other important use and cleaning information at the end of the booklet.
Accessories provided
Audio/video cable
Remote control 2 non-
+
-
-
+
rechargeable
batteries, type
AAA
Inserting batteries in the remote control
1
• Do not mix different types of batteries or new and old batteries. Do not use rechargeable
batteries.
• In order to avoid any risk of explosion, observe the polarities indicated inside the battery
compartment. Replace only with the type of batteries specified above. Do not dispose of them in a
fire or recharge them.
• If you are not using the remote control for a long period of time, remove the batteries.
• Please respect the environment and prevailing regulations. Before you dispose of
batteries or accumulators, ask your dealer whether they are subject to special
recycling and if they will accept them for disposal.
2
3
Out of consideration for the environment, we have printed this document on unbleached
recycled paper.
2
Connections and Setup
Television
Scart leads not
provided
DVD player
Basic connections (DVD player + TV)
1. Connect the DVD player’s Scart socket (TV AUDIO VIDEO OUT) to the television set’s
Scart socket (AV1 , EXT1, AUX1, according to the make) using a Scart lead (not provided).
2. Connect the DVD player to the mains socket using the mains lead.
Basic connections (DVD player + TV + video recorder)
1. Connect the DVD player to the television set:
1a. Connect the DVD player Scart socket (TV AUDIO VIDEO OUT) to the television
set’s Scart socket (AV1, EXT1, AUX1) using a Scart lead (not provided).
1b. If your television set does not have two Scart sockets, connect the DVD player to the
video recorder’s AV2 socket using a Scart lead (not provided). If you have a satellite or
cable receiver you can also connect the DVD player to the receiver’s second Scart
socket.
Notes:
Depending on the video recorder or satellite or cable receiver, this type of connection may affect the quality
of the pictures produced by the DVD player.
If your video recorder only has one Scart socket, but has a modulator, use the aerial cable to connect the
video recorder to the television set, adjust the video recorder’s modulator, then connect the DVD player to the
video recorder’s Scart socket.
2. Connect the video recorder (or satellite receiver) to the television set as shown in the user
guide.
3. Connect the DVD player to the mains socket using the mains lead.
4. Switch on the devices.
Note: If one of the devices is not working, check that all the cables have been inserted properly into the
sockets which they should be connected to.
set
United Kingdom,
Ireland
3
Video recorder
Continental
Europe
2
1a
1b
- OR -
EN
3
Connections and Setup
Back of DVD
player
EN
Other connection options
The basic connections (described on page 3) are for standard-quality sound and high-quality
picture reproduction. There are other connection options available, which can produce pictures
and sound of better or poorer quality:
Video sockets and cables
VIDEO OUT socket
This socket (yellow) is also known as a composite video
socket.The video cable (provided) usually comes with
two audio cables (white and black).The picture quality
obtained using a video connection is poorer compared
to that obtained using a Scart connection.
Audio sockets and cables
AUDIO L (left) and AUDIO R (right) sockets
These are analogue audio output sockets.The AUDIO L
socket and cable are white, while the AUDIO R socket
and cable are red. Connect the DVD player’s AUDIO L
and R sockets to the television set’s AUDIO L and R
sockets using audio cables (provided).
Note: If your television set only has one audio socket connect
it to the DVD player’s left socket (white).
Coaxial digital audio output (DIGITAL OUT COAXIAL)
This socket offers a higher level of sound quality
compared to that provided using an analogue audio
connection.The coaxial cable is not supplied with the
device.
Audio cables (red
and white)
Coaxial cable
VIDEO OUT socketVideo cable (yellow)
AUDIO R and L
sockets
Coaxial digital
audio output
4
Connections and Setup
Front panel controls (buttons appear left to right below)
EN
STANDBY/ON - Switch the appliance on
and off.
OPEN/CLOSE - Open and close the DVD
player's disc tray.
STOP - Stop disc playback.
- Start a reverse search for a chapter or
a track.
- Start a fast forward search for a
chapter or a track.
PLAY - Start playing a disc.
Operating the DVD player
1. Switch on your television set.
2. Press the DVD button on the remote control. Press the button on the remote control or
STANDBY/ON button located on the DVD player’s front panel.
the
English
Français
Español
Deutsch
Italiano
Svenska
Select a menu language
Sélect. langue de menu
Seleccione idioma menu
Menusprache auswählen
Selez. lingua dal menu
Välj ett menyspråk
3. When the player first comes on a menu appears
asking you to select the player menu language. Select
the language you want using the or button,
then press
ok.
Using the menus
• Disc menu – The appearance and contents of this menu vary according to the type of disc
you have inserted and are independent of the player’s menus.When the disc is playing press
MENU button to display and hide this menu.
the
• Info menu – The player’s Info menu appears as a bar at the top of the screen while the disc
is playing. During this time, press the
the Info menu.
• Player menu – If no disc has been inserted the player menu appears automatically. If a disc is
being played press the
STOP button to access this menu.
Note: A function is only available if it features on the disc you have inserted. For instance, if you select the
Subtitles function from the Info menu subtitles will only appear if subtitles have actually been provided on
the disc. If a menu or icon appears greyed out this means that this menu or the associated function is not
available.
INFO button on the remote control to display and hide
5
EN
Connections and Setup
The remote control
Navigating through menus
Use the direction buttons to navigate through the menus. Press the ok button
on the remote control to confirm any selection you make.
Functions in DVD mode
DVD Select the DVD player.
(mute) Mute and restore the sound of the television set.
GO BACK Return to the previous menu.
CLEAR Hide the
MENU Access the disc menu during play (if there is one)
(red) Access the audio function of the
(green) Access the subtitle function of the
INFO (yellow) Access the
TITLE (blue) Access the disc menu.
(purple) Access the camera angle function of the
0-9 Number entry.
PLAY MODE Access the Play mode function of the
REV Start fast reverse, reverse accelerated play or
PLAY Start playing a disc.
FWD Start fast forward, forward accelerated play or
STOP Stop play, accelerated search or slow motion and
PAUSE Freeze frame, frame advance or slow motion (see
AGAIN Move backwards approximately 10 seconds
ZOOM Access the Zoom function (see page 9).
OPEN.CLOSE Open and close the disc tray.
Switch the appliance on and off.
Adjust the sound volume of the television set.
Directly access the next or previous chapter
(DVD) or track (CD).
Info
menu.
or resume play.
Info
menu (see
page 12).
Info
menu
(see page 11).
Info
menu (see page 10).
Info
menu (see page 13).
Info
menu
(see page 12).
reverse slow motion (see pages 8 and 9).
forward slow motion (see pages 8 and 9).
access the main menu.
pages 8 and 9).
during disc playback (DVD).
6
Connections and Setup
This remote control can be used with some recent models of televisions and video recorders of
the following brands:Thomson, Saba, Brandt, Ferguson,Telefunken and Nordmende.
Note:The buttons described below operate as specified, provided that the relevant function is available on
the television or video recorder.
Functions in TV mode
TV Select the television.
Adjust the sound volume.
(mute) Mute and restore the sound.
PR+ / PR- Change channel.
GO BACK Return to the channel watched before last.
CLEAR Exit a menu.
MENU Access the television's main menu.
Use the Zoom function (with a 16/9 television only).
INFO (yellow)
GUIDE (blue) Display the programme guide.
Note: the coloured buttons can also be used to access the Teletext topics indicated in colour (if your
television has the Teletext function available).
0-9 Select a channel. For 2-digit channels, first press
Functions in VCR mode
VCR Select the video recorder.
(mute) Mute and restore the sound.
RETURN Exit a menu.
PR + / PR- Change channel.
CLEAR Set the counter to zero, cancel a programme or return to the standard set-up.
MENU Access the VCR main menu.
LOCK (red) Lock the video recorder.
TIMER (green) Display the
INFO (yellow) Access the
GUIDE (blue) Access the
0-9 Select a channel, enter numbers.
AV Select the devices connected to the Audio/Video sockets (AV1,AV2, ...).
REV Start fast reverse, reverse accelerated play or reverse slow motion.
PLAY Start playing a tape.
FWD Start fast forward, forward accelerated play or forward slow motion.
STOP Stop play, accelerated search, slow motion or recording and access the VCR main menu.
PAUSE Freeze frame, frame advance or slow motion.
RECORD Start recording.
SP/LP Double the recording time of a tape with the LP function.
INDEX MARK Add an index.
OPEN.CLOSE Eject the tape.
Obtain information about the channel.
Adjust the sound volume.
Record timer
Status
NAVICLICK
menu.
menu.
page.
0
.
EN
7
Chapter 2 Playing discs
Compatible discs
•DVD
•DVD-R, DVD-RW, DVD+R, DVD+RW
•CD
• CD-R, CD-RW
EN
Compatible formats
•DVD,VCD (Video Compact Disc), SVCD (Super Video Compact Disc), JPEG
•CD, mp3, WMA.
More information about discs and compatible formats at the end of the booklet.
Regional coding
Your DVD player has been designed to process regional management information that is stored
on DVD discs. DVD discs that have different regional codes to that of your player cannot be
played.The regional code for your player is 2 (Europe, the Middle East, South Africa, Japan).ALL
means all regions.When you buy a disc check that it bears the correct logo.
Basic playback operations
Playback
Switch the DVD player and the TV set on.
1. Press the OPEN/CLOSE button on the front of the appliance or the OPEN
on the remote control to open the disc tray.
2. Put the disc in with the printed side upwards (in the case of a single-sided disc).
3. Press OPEN
• Play starts automatically, or
• The disc menu appears. One of its options can be selected to start playing the disc. Select it
and press
•The player’s main menu appears. Select the option Play and press
.
CLOSE again to close the disc tray.
ok, or else
ok.
4. Press STOP to stop playback.
Notes:
The player stores the point where playback was interrupted. If you press
from this point.To stop playback completely or to start again from the beginning, press
If the player is left in STOP mode for more than two minutes without any user interaction, a screen saver is
activated.Then, at the end of 30 minutes without any user interaction, the player switches off automatically.
PLAY again, playback resumes
.
CLOSE button
STOP twice.
Accelerated play
While the disc is playing, press the REV or FWD button one or more times to vary the speed
and direction of the accelerated play.
8
Loading...
