THOMSON DR-2038A Instruction Manual

INSTRUCTION MANUAL

STEAM IRON

MODEL: DR-2038A

Thank you for purchasing our product. Before attempting to connect, operate or adjust this product,
please read the instructions completely for safe and proper use of this product. Please save this
operating manual for future reference.

Technical Data

Model: DR-2038A
Power supply: 230~ 60Hz
Power input: 1100W Class I

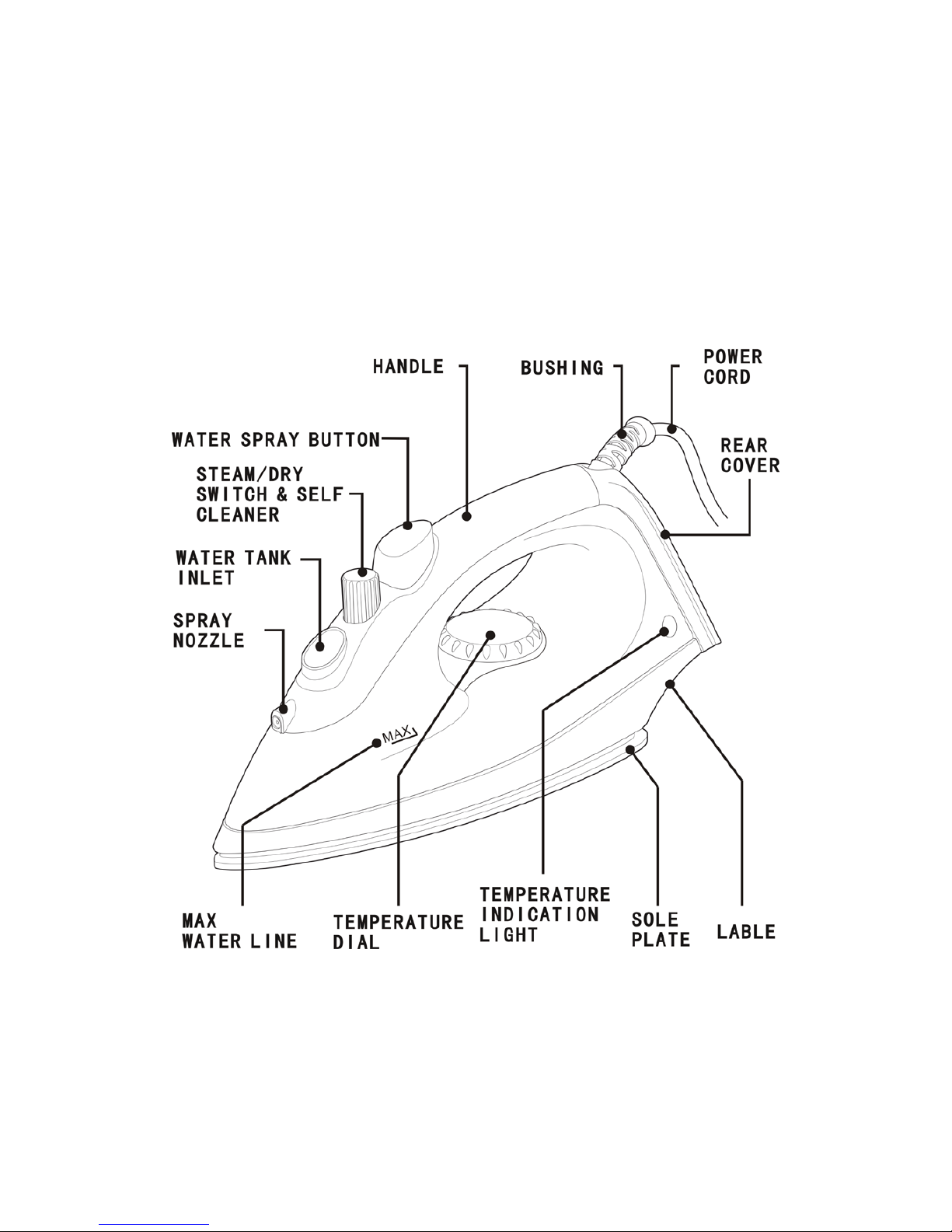

Know your iron

Important Instructions

Please read the instructions carefully before operation and retain for future reference.

1. Make sure that the voltage of your steam iron is in accordance with the voltage of your
power system (230V~60Hz).

2. Keep away from children when using the steam iron.

3. Do not immerse the iron into water.

4. Keep the cord away from the soleplate.

5. Before storing the iron, please try to let the iron cool down completely .

6. Always keep the instruction manual. In case the iron is passed to a third person, please
hand over the manual together.

7. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.

8. Note: For the new steam iron during first use, some parts have been slightly greased, thus
smoke will rise. This will stop after a new minutes.

9.

This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety

10. Children should be supervised to ensure that they do not play with the appliance.

11. The user must not leave the iron unattended while connected to the supply

12. The plug of the supply cord must be removed from the socket-outlet before the water
reservoir is filled with water

13. The iron shall be used on a stable ironing board

14. The iron must be used and rested on a stable surface.

15. When placing the iron on its stand, ensure that the surface on which the stand is placed is
stable.

16. The iron is not to used if it has been dropped, if there are visible signs of damage or if it is
leaking.

17. The iron shall not be used if the iron has been dropped at any time, or if there are visible
signs of damage or if the iron is leaking. The iron shall be sent to the manufacturer or his
qualified service agent before further use

Use

Remove the protection film from the soleplate before first use.
You can use your iron with usual tap-water. To increase the steam iron’s life span, it is advised to select
the hard water with more than 17° dH, distilled water or demineralized water.

Fill in water tank

Unplug the appliance and screw the temperature control to position “0”(min.)
Fill water to the MAX level on the tank.

Temperature control

Put the steam iron upright and sele ct the d es ired t e mper atur e with the temperature control. Pay at tenti o n
to the symbols on the knob for the different textiles:

• chemical fibres/synthetic

•• nature fibres/silk/wool

••• nature fibres/cotton/linen

Functions

Water spray

To dampen laundry: press the button of “water spray”.

Dry/ Steam

You can fix the steam intensity by turning the steam function.

Keeping/Cleaning/Care

Switch the steam iron off (Put the knob to the minimum position) and unplug. Put the steam iron upright
and let it completely cool down, empty the water tank.

Remove the residues from the soleplate with a vinegar-water solution. Rub the cabinet with a moist cloth
and finally rub it dry.

Automatic electricity interruption for security

In case the installed thermostat gets out of order, the power supply will stop automatically to avoid the
steam iron overheating. I.

Self Cleaning

The self clean feature cleans the inside of the iron and removes impurities. This is recommended every
10 to 15 days.

How to store

Correct Disposal of this pr oduct

This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recyc ling .
