DPL930VD
user
manual
It is important to read this instruction book prior to using your new product for the first time.
DPL2930
Downloaded From TheatreSystem-Manual.com Manuals
Safety Information
Thomson Information
CAUTION!
Invisible laser radiation when open. Avoid exposure to
beam. Class 1 laser product. This system must be opened
only by qualified technicians to prevent accidents caused
by the laser beam.
LASER h = 780 nm, P max = 5 mW
Rating Information: At bottom of the unit
this unit comply with the existing requirements
In accordance with the rating plate of the
unit, this unit complies with current
standards concerning electrical safety and
electromagnetic compatibility.
Please respect the environment Before
throwing any batteries away, consult your
distributor who may be able to take them
back for specific recycling.
Have a Blast- Just Not in Your Eardrums
Make sure you turn down the volume on
the unit before you put on headphones.
Increase the volume to the desired level
only after headphone are in place.
ADVARSEL!
USYNLIG LASERSTRÅLNING VED ÅBNING NAR
SIKKERHEDSAFBR
YDERE ER UDE AF FUNKTION.
UNGDÅ UDSAETTELSE FOR STRÅLNING.
VORSICHT!
UNSICHTBARE LASERSTRALUNG
WENN ABDECKUNG GEÖFFNET UND SICHERHEITS–
VERRIEGELUNG ÜBERBRÜCKT.
NICHT DEM LASERSTRAHL AUSSETZEN!
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APP
AREIL
A LASER DE CLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION – INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS FAILED OR
DEFEATED. AVOID EXPOSURE TO BEAM.
ATTENTION –
RAYONNEMENT LASER INVISIBLE
DANGEREUX EN CAS D'OUVERTURE ET LORSQUE
LA SECURITE EST NEUTRALISEE.
EXPOSITION DANGEREUSE AU FAISCEAU.
VARNING–
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD OCH SPÄRRAN ÄR URKOPPLADE.
BETRAKTA EJ STRÅLEN.
VARO!
AVATTAESSA JA SOUJALUKITUS OHITETT
AESSA
OLET AL
TTIINA NÄKYMÄTTÖMÄLLE.
LASERSÄTEILYLLE ÄLÄ KATSO SÄTEESEEN.
For UK Only
CONNECT THE MAIN LEAD INTO AC MAINS POWER
SOCKET
POWER SUPPLY 230V. It must not be connected to D.C.
mains.
Note; The mains lead of the set is fitted with a molded
plug. If the mains socket are not compatible or if for any
reason the plug is removed please follow the directions
below. The molded plug cannot be rewired and if
removed must be disposed of safely.
DO NOT under any circumstances plug the severed plug
into any mains socket as this could result in electric shock.
Important: If the plug is removed, rewire the new plug
as follow:
The wires in the mains plug are coloured in accordance
to the following code:
BLUE = NEUTRAL/BROWN = LIVE
If the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
BLUE wire to the terminal coded N (Neutral) or coloured
black.
BROWN wire to the terminal coded L (Live) or coloured
red.
DO NOT
make any connection to the
terminal in the plug which is marked by
the letter E or by the earth symbol or
coloured green or green and yellow.
A fused plug must be fitted with a 13A fuse approved by
ASTA or BS1362 and fuse covers must be always be
securely replaced. If you set does not work, the fuse may
be blown.
WARNING:TO PREVENT FIRE
OR ELECTRICAL
SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
THE LIGHTNING
FLASH AND ARROWHEAD WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
"DANGEROUS
VOLTAGE" INSIDE
THE PRODUCT.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
13A
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents
and other international property rights
owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home
use only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.
Downloaded From TheatreSystem-Manual.com Manuals
EN
1
Safety Information
Getting Started
Unpacking the DVD Receiver . . . . . . . . .2
Unpacking the Speakers . . . . . . . . . . . . .2
Inserting Batteries into Remote Control .3
Set Up and Maintenance of the
Receiver . . . . . . . . . . . . . . . . . . . . . . . . . .3
Protect your Components from
Overheating . . . . . . . . . . . . . . . . . . . . . . .3
Disc Information . . . . . . . . . . . . . . . . . . .3
Connecting to Audio-Visual
Components . . . . . . . . . . . . . . . . . . . . . .4
Connecting Antennas . . . . . . . . . . . . . . .4
Connecting the Speakers . . . . . . . . . . . . .5

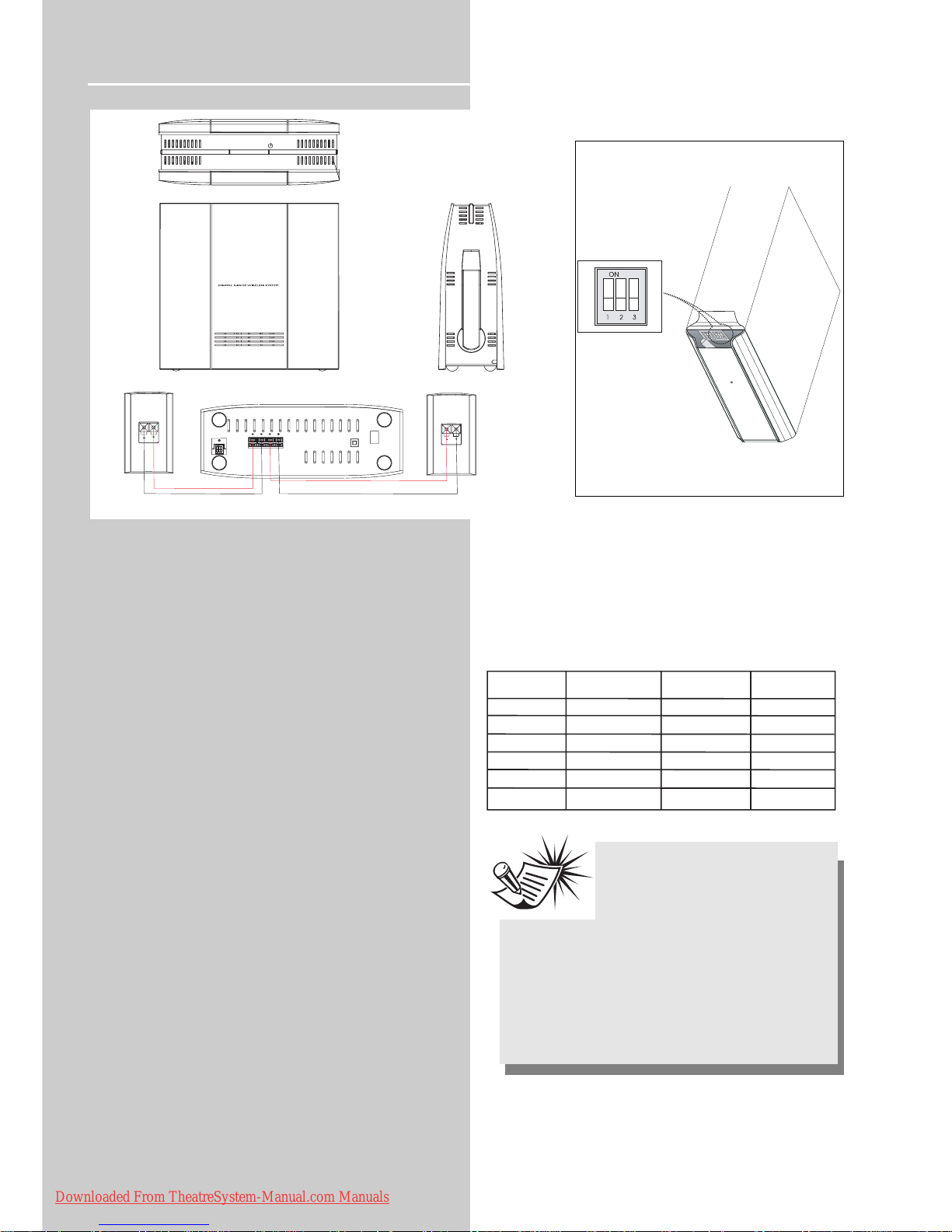

Wireless Speaker Connection . . . . . . . . .6
Wireless Signal Transmitter . . . . . . . . . . .6
Wireless Signal Receiver . . . . . . . . . . . . .6
Connecting Procedures . . . . . . . . . . . . . .6
Changing the Channel Frenquency . . . . .6

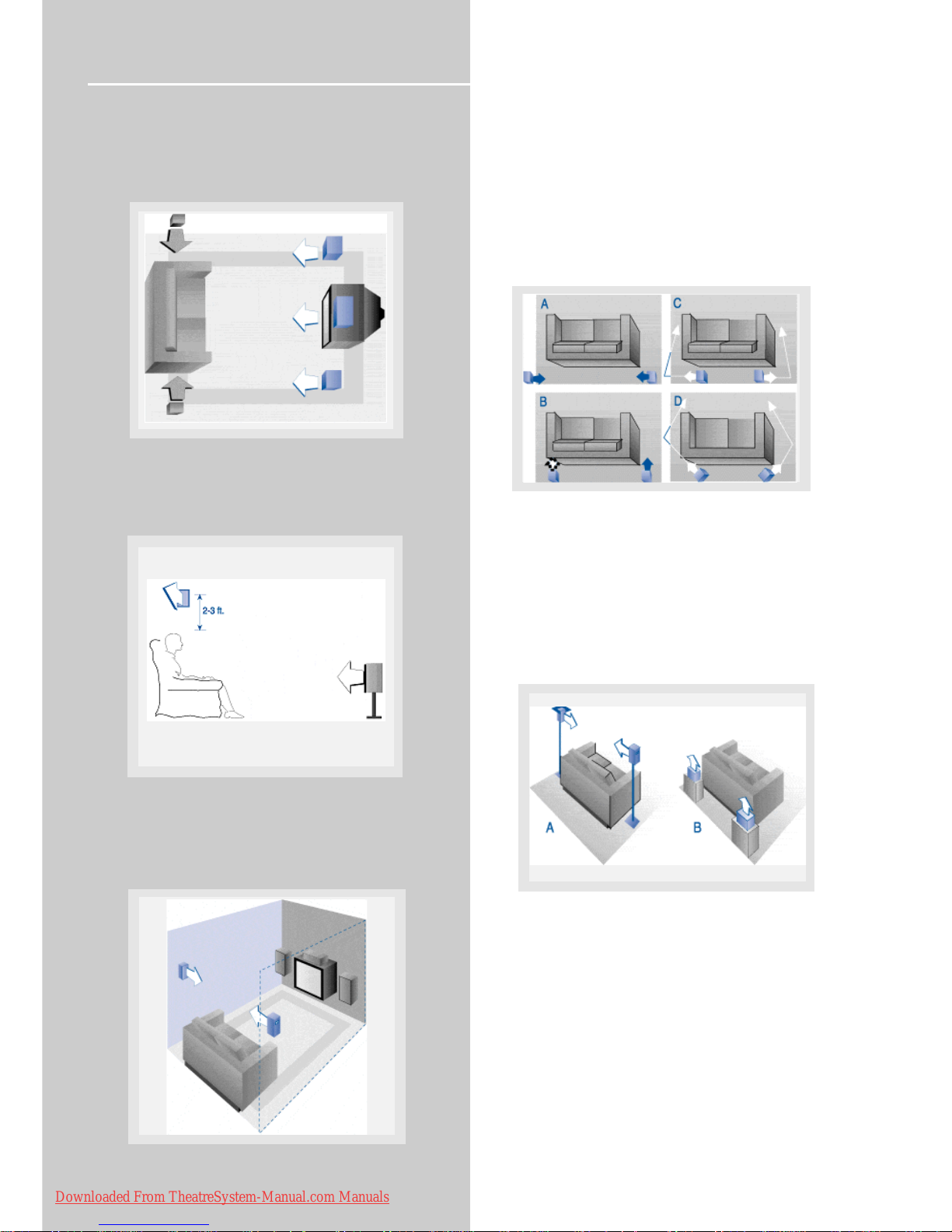

Positioning your Speaker . . . . . . . . . . . . .7
Front Speaker Placement . . . . . . . . . . . . .7
Advanced Setting . . . . . . . . . . . . . . . . . .7
Preferred Surround Placement . . . . . . . .8
Advanced Setting . . . . . . . . . . . . . . . . . .8
Test Tone / Channel Balance . . . . . . . . . .9
Factory Setting . . . . . . . . . . . . . . . . . . . . .9
Operating your Receiver
Receiver Controls . . . . . . . . . . . . . . . . . .10
Remote Control . . . . . . . . . . . . . . . . . . .11
Display . . . . . . . . . . . . . . . . . . . . . . . . . .12
Switching On/Off . . . . . . . . . . . . . . . . . .13
Selection of Audio Source . . . . . . . . . . .13
Connection of Audio Source . . . . . . . . .14
Advanced Sound Control
Sound Enhancement Systems . . . . . . . .15
Fine Setting of Components . . . . . . . . .16
Fine Setting of the Speakers . . . . . . . . .17
Speaker icons . . . . . . . . . . . . . . . . . . . . .18
DVD Player
Basic Playback Features . . . . . . . . . . . . .19
Quick Search . . . . . . . . . . . . . . . . . . . . .19
Time Search . . . . . . . . . . . . . . . . . . . . . .19
Freeze Frame and Frame Advance . . . .19
Slow Motion Playback (DVD only) . . . . .20
On-Screen Banner Display . . . . . . . .20-24
Setup Menu . . . . . . . . . . . . . . . . . . . . . .25
CD / mp3 Player
mp3 Recommendations . . . . . . . . . . . . .30
Loading and Playing an Audio CD . . . .30
Quick Scan . . . . . . . . . . . . . . . . . . . . . .31
On-Screen Banner Display for CD
Playback . . . . . . . . . . . . . . . . . . . . . .32-34
On-Screen Display for mp3 playback
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .35-36
JPEG CD
On-Screen Display for JPEG CD . . . . . . .37
DivX
On-Screen Display for DivX . . . . . . . . . .38
To rent (purchase) DivX VOD files . . . . . .39
Radio
Operating the Radio . . . . . . . . . . . . .40-41
Troubleshooting Tips . . . . . . . .42-43
Care and Maintenance . . . . . . . . .44
Table of Content
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
Unpacking the DVD Receiver
You should receive the following items:
2
PHONES
+ -
+ -
One DVD receiver unit
One pair of “AAA”
batteries
One Pig-Tail
antenna wire
one video cable (single wire)
with yellow connectors
PR
AV
SUBWOOFER
EQ. LEVEL
SURROUND
REC
• one instruction book;
• one safety leaflet;
• one Quick Connection Guide
One Remote Control
(RCT311AC1)
Unpacking The Speakers
• one set of speakers including 1 set of left and right front
speakers, 1 centre speaker, 1 subwoofer, 1 wireless signal
receiver and 1 set of left and right rear speakers.
1 X green/grey stripped wire for center speaker
1 X red/grey stripped wire for front right speaker
1 X white/grey stripped wire for front left speaker
1 X purple/grey stripped wire for subwoofer
1 X blue/grey stripped wire for rear left speaker
1 X grey/grey stripped wire for rear right speaker
STANDBY
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
Inserting Batteries into Remote Control
Insert two “AAA” batteries according to the + and - signs
on the battery compartment. To use the remote control,
point it directly at your receiver.
Set up and Maintenance of the Receiver
IMPORTANT NOTE
• Provide spaces for sufficient ventilation as indicated
below. If the space is insufficient, the unit may overheat
resulting in malfunction and shorter life time.
• Do not connect to the AC power cords until all connections are completed.
• Do not use your set immediately after transferring it from
a cold place to a warm place: there is risk of condensation.
• Do not expose your set to water and excessively high
temperatures.
• After having disconnected your set, clean the case with a
soft cloth, or with a slightly damp leather chamois. Never
use strong solvents.
Disc handling precaution:
• Do not touch the recorded surface.
• Do not use record cleaning sprays, solvent or anti-static
liquid.
• If the disc is dirty, clean it with a damp cloth and wipe
from the center out. Wipe in straight line and not in circular motion.
• Do not attach stickers, label on the disc.
• Store the disc in its case after playing.
Regional coding
Your DVD player has been designed to process regional
management information that is stored on DVD. DVD that
have different regional codes to that of your player cannot
be played. The regional code for your player is 2. All means
all regions. When you buy a disc, check that it bears the
correct logo.
Protect your Components from
Overheating
• Do not block ventilation holes in any component.
Arrange the components so that air can circulate freely.
• Do not stack components directly on top of each other.
• Allow adequate ventilation when placing your components in a stand.
• Place the receiver near the top shelf of the stand so
heated air rising from it will not affect other components.
Disc you can play
While advances have been made to ensure that your player
is compatible with the largest number of discs possible, it
cannot be guaranteed that you will be able to play discs
which might not be compatible with audio CD, VCD and
SVCD standards. In the case of writable and rewritable
discs, compatibility with this player depends on the DVD
writer, the write software and the disc used.
DVD video - Digital video discs - 12 cm and 8 cm, single or doubled sided, single or dual layer. DVDs are high-density optical discs
on which high quality picture and audio are recorded by means of
digital signals.
DVD-R, DVD-RW, DVD+R, DVD+RW - Most DVD-R and DVD+R
(one recording only), DVD-RW and DVD+RW discs (rewritable).
Depending on the DVD writer and discs used. Recordings using
DVD-R and DVD+RW discs must be made in Video DVD mode.
Recordings using DVD+RW discs must be made in accordance with
the specifications for DVD+RW discs with a 4.7 GB capacity.
VCD, Video Compact Disc - CD on which you can record up to 74
minutes of VHS-quality video associated with still images, audio
tracks and interactive menu.
SVCD, Super Video Compact Disc - Most SVCDs comply with the
IEC62107 standards. SVCDs can be used to record up to 70 minutes of digital sound and images in accordance with MPEG-2 standards for video and MPEG-1 standards for audio.
Audio CDs - Audio CDs (8 and 12cm)
CD-R, CD-RW - Most CD-R (one recording only) and CD-RW
discs (rewritable). This player can play most CD-R discs. CD-Rs
written during a multisession recording can also be played, provided that the session had ended before the disc is played (depending on the write software). However, depending on the condition of
the CD writer, computer and the disc used, you may find that not
all discs will play successfully. When playing a CD-R disc, it is completely normal for the unit to take up to 30 seconds to recognize
the disc before starting to play. If the disc is not recognized
after a period of 30 seconds, remove the disc and then insert it
again.
• Irrespective of the actual recording capacity of the CD-R, do
not use its full capacity.
• CD-Rs should be preferably used instead of CD-RWs (rewritable
CDs) as, in certain cases, CD-RW playback may be faulty.
• Use reliable, good-quality CD write software.
• Close all other applications on the computer to ensure reliable
CD-R disc recording.
Disc you cannot play
DVD-ROM, DVD RAM, CDV, SACD, DVD Audio (High resolution tracks). Data
part of CD Extra, disc with non standard shape (e.g. heart), disc with region
code different from the one specified on the back of the unit.
EN
3
PHONES
10cm/4”
5cm/2”
10cm/4”
10cm/4”
10cm/4”
Front
Rear
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
Connecting to Audio-Visual Components
Connecting the Antennas
The FM antennas connect to the FM terminals on the system’s back panel.
They must be hooked up in order to have clear reception.
4
TV
SAT
AUDIO OUT (VCR)
AUDIO OUT (SAT)
VCR
S-video
S-video provides a better connection for the video portion of the signal than composite video (yellow color terminal). When
connecting S-video cable, a Composite video cable (yellow RCA connector) must also be used.
VIDEO IN (TV)
S-VIDEO IN (TV)
SCART IN (TV)
SCART video output (SCART cable is not supplied with this unit)
SCART video terminal provides the best quality for video signal. If there is no SCART socket is available on your TV
set, check whether your TV has another Video socket (Composite, S-video) that you can use to connect your player.
The unit does not have audio signal from the SCART output.
1
Setup video output
You can select either S-video or SCART as your video output (default is SCART). Try power off the unit and turn it on
again if you see any picture distortion on the TV.
When S-VIDEO output is selected, SCART will only provide composite video signal.
When SCART output is selected, S-video ouput will be disabled.
Composite video signal is always available.
It is recommended that you should only use one kind of video connection method listed
below.
S-VIDEO
VIDEO OUT
SCART
OPTICAL
IN
CD/SAT
OPTICAL OUT (CD/SAT)
Digital output
Connect components
capable of outputting
Dolby Digital (e.g. SAT)
or standard PCM (CD)
format digital signals.
WIRELESS
S-VIDEO
VIDEO OUT
SCART
OPTICAL
IN
Tip:
• For FM reception, extend antenna to its
full length and arrange the antenna at different parts of the room until the reception is optimized.
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
EN
5
Connecting the Speakers
Speakers
There are 6 speakers equipped with the unit (2 front, 1 center, 2 rear, 1 subwoofer). In order to enjoy good surround
effects, You need to connect the front speakers, center
speakers and subwoofer to the main unit; and connect the
rear speakers to the wireless receiver.
Speaker Polarity
When connecting the speakers, make sure the polarities
(“+” speaker wire to “+” on the receiver) of speaker wires
and terminals are matched. If the cords are reversed, the
sound will be distorted and lack bass (“out of phase”
effect).
Do not ground the output line, it will cause damage to the
speaker.
WIRELESS
Rear Speakers (Surround)
Subwoofer
(Wireless transmitter)
Purple / Grey striped
Green /
Grey striped
Center Speaker
Front Speakers
White /
Grey striped
Red / Grey striped
POWER
ON
OFF
SR SL
Wireless receiver
Grey / Grey
striped
Blue / Grey
striped
LeftRight
Antenna and Speaker
Wire Connection
Push Speaker terminal tab
down to insert wire.
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation
is completely removed from the
ends of the Antenna and
speaker wires at all connection
points.
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
Wireless speaker connection
Wireless signal transmitter
The subwoofer comes with the unit is, at the same time,
the wireless signal transmitter. It converts the audio signal
from the unit into 5.8GHz radio frequency and transmit it
to the receiver. Connect the RJ45 connector at the back of
the subwoofer to the back of the main unit, whenever the
main unit is on, the subwoofer will transmit audio signal to
the rear speakers through the wireless signal receiver.
Wireless signal receiver
The wireless signal receiver will pick up the best audio signal from wither one of its antennas and convert the signal
back to its original form, and pass it to the rear speakers.
Connecting procedures
1. Connect the subwoofer (transmitter) to the main unit
using RJ45 connector and speaker wires.
2. Connect the rear speakers to the wireless receiver and
plug the AC power cord into the power outlet.
3. Make sure the transmitter is in STANDBY mode before
pressing the POWER button to turn the receiver on.
4. The LED on the receiver will flash when searching for a
signal, they will turn green after the signal has been found.
5. Adjust the antenna on both the transmitter and receiver
to get the best signal reception.
Changing the channel frequency
To minimize interference from other 5.8 GHz systems (Cell
phone, wireless LAN), you may select a different transmission channel if you should experience interference. The
channel selector is located on the front panel of the subwoofer (transmitter). You may change the transmission
channel according to the table below:
6
SIGNAL
POWER
ON
OFF
SR SL
Channel Position 1 Position 2 Position 3
1 Off On On
2 OnOnOff
3 Off On Off
4 On Off On
5 Off Off On
6 On Off Off
Note:
1. You need to restart the main unit whenever a different transmission signal is
selected.
2. People walking between the transmitter
and receiver may cause interference.
3. The maximum transmission range is 30 meters, walls and
obstacle blocking between may affect the efficient transmission range.
4. It is advised that you should place the receiver as high
as possible.
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
Positioning your speaker
1 Left, Right (Front Speakers)
They carry primarily music and sound effects.
2 Center
In surround mode, the center speaker carries much of the
dialogue as well as music and effects. It should be set
between the left and right speakers.
3 Surround (Rear Speakers)
Their overall sound balance should be as close as possible
to the front speakers. Proper placement is vital to establish
an evenly distributed sound field.
Subwoofer
A subwoofer is designed to reproduce powerful low bass
effects (explosions, the rumble of spaceships, etc.) which
dramatically heightens involvement with the action on the
screen.
Magnetic shielding
Speakers placed less than two feet from the TV set must be
magnetically shielded in order to prevent picture distortion. Front and center speakers provided with this unit are
magnetically shielded to protect your TV set.
It is not recommended to place the rear speakers and subwoofer near the TV set.
Front Speaker Placement
Even if you can't duplicate this ideal home theater setup
exactly, the following suggestions for speaker placement
will help you to get better results.
Alignment
Align the center speaker evenly with (A), or slightly behind
(B), the left and right speakers, but not ahead of them.
Advanced Setting
Angle
Placing the left and right speakers to form a 45-degree
angle with your favorite viewing position will duplicate the
soundtrack mixer's perspective.
Height
The mid- and high-frequency drivers of the three front
speakers should be as close as possible to the same height.
This often requires placing the center speaker directly atop
(A) or beneath (B) the TV set.
EN
7
1
1
2
3
3
A
B
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
Preferred surround placement
Location
If possible, place surround speakers to either side of the listening area, not behind it.
Height
If space permits, install surround speakers 2-3 feet above
viewers. This helps to minimize localization effects.
Aiming
Aiming surround speakers straight across the room, not
down at viewers, helps create a more open, spacious surround sound field.
Advanced Setting
Alternative Surround Placement
Rear wall
If rear wall mounting is the only choice, aim the speakers at
each other (A), towards the front (B) or even towards the
sidewalls (C, D). Experiment with placement until surround
sounds seem to envelop you, rather than coming from
behind you.
No adjacent walls
Surround speakers can go on stands facing each other to
approximate the preferred sidewall mounting (A), or to the
sides or rear of the viewing area aimed upwards. In the latter case, they can go right on the floor, or preferably, a few
feet off the floor such as on end tables (B).
8
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Downloaded From TheatreSystem-Manual.com Manuals
Getting Started
EN
9
Test Tone / Channel balance
Channel balance
Your receiver is equipped with a test signal generator for
balancing the channels. As the signal "travels" from channel to channel, adjust the level controls until each channel
plays at the same loudness level.
Please refer to “Fine setting your speaker” section for more
details.
Level adjustment & surround channel level
expectation
Even though you adjust the surround channel to be as loud
as the others on the test signal, you'll find that on actual
program material the surround channel is usually much
lower than the front. Don't be tempted to re-adjust the
surround level; program producers use surround mostly for
subtle atmosphereics and ambience, and only rarely for
special effects. A good surround mix doesn't call attention
to itself; if it did, it would soon become distracting.
Factory Setting
The unit is preset to the following setting when you first
turn on the power.
Function = DVD/CD
Volume setting = 16
Bass & Treble = 0 dB
Channel level = 0 dB
Subwoofer = STRONG
Restore to default settings
When the receiver is on and the disc tray is opened, press
SUBWOOFER for 5 seconds until the screen goes black,
then the initial language selection menu will appear.
All system settings will be restored to default, the parental
password will also be reset.
Dolby Digital
Manufactured under license
from Dolby Laboratories.
“Dolby”, “Pro Logic” and
the double-D symbol are
trademarks of Dolby
Laboratories. Copyright
1992-1997 Dolby
Laboratories, Inc. All Rights
Reserved.
Courtesy Dolby Laboratories
Manufactured under license from
Digital Theater Systems, Inc. U.S. Pat.
No. 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535 and
other U.S. and world-wide patents issued and pending.
"DTS" and "DTS Digital Surround" are registered
trademarks of Digital Theater Systems, Inc. Copyright
1996, 2003 Digital Theater Systems, Inc. All Rights
Reserved.
4
5
6
Note:
All preset radio stations and surround
sound setting will be lost after the factory setting is restored.
Downloaded From TheatreSystem-Manual.com Manuals
Operating Your Receiver
Receiver Controls
1. ON / ECO
• To turn on or off the receiver.
2. OPEN / CLOSE
• Press to open / close the CD compartment door.
3. SOURCE
• To select input source. For example, DVD/CD, VCR, etc.
4. SUBWOOFER
• Press to toggle among different subwoofer mode.
5. STOP
To stop DVD/CD playback.
6. PRESET - / PREV
• To move back to the beginning/previous preset memory
location in tuner mode.
• To skip to the beginning/previous track in CD mode and the
beginning/previous chapter in DVD mode (only during
playback).
7. PRESET + / NEXT
• To go to the next preset memory location in tuner mode.
• To skip to the next track in CD mode and the next chapter in
DVD mode (only during playback).
8. PLAY / PAUSE
To start and pause DVD/CD playback.
9. VOLUME
Turn the knob to adjust volume level.
1
6
2
4
9
7
5
10
3
8
STANDBY/ON
Downloaded From TheatreSystem-Manual.com Manuals
Operating Your Receiver
EN
Remote Control
Please be sure you have inserted the batteries into the remote
control. You can test it by pressing any button.
1. ON•OFF
• To turn on or off the receiver.
2. Source Buttons
• To turn on and select various audio/video sources. (The button functions will
be re-arranged when in AUX 1 and AUX 2 mode, the function may vary depending on the components used)
3. PR+, PR-
• To select programmed stations in TUNER mode.
• To skip to the next or previous chapter, track or image in DVD, CD, mp3
and JPEG mode.
4. VOL+, VOL- (Volume Buttons)
• To adjust the volume.
5. MUTE
• To mute / unmute all audio outputs.
6. SUBWOOFER
• Selects among subwoofer output level (SOFT SUBWOOFER, BALANCED
SUBWOOFER, STRONG SUBWOOFER, POWERFUL SUBWOOFER).
7. Adjustment Buttons
• In TUNER mode, press the arrow buttons to tune up or down the radio frequencies.
- press OK will enter function setting mode.
- press OK again for dimmer and sleep function, then press LEFT and RIGHT
to make changes.
- When the display shows the setup you want to change (dimmer, sleep, etc),
press UP and DOWN to make changes.
• In DVD/CD/JPEG mode, press the arrow buttons to navigate OSD menu,
and press OK to validate selection.
8. Number Buttons
• In Tuner mode, to select a preset station.
• In DVD/CD mode, enable pull down menu by INFO, then press the arrow
buttons to select field to be adjusted. Press the Number buttons to direct
input the settings (e.g. CD track)
9. MENU
• In Tuner mode:
- Press to store desired frequency in memory. The flashing icon “PRESET” will
appear in display. Input your desired channel number while the word is still
flashing and the frequency will be stored.
• In DVD mode, press for menu setup for DVD title.
10. Operation Buttons
• Press DVD/CD on the remote to enter DVD/CD mode. In DVD/CD mode,
you can press the operation buttons to perform actions such as play, stop,
pause, etc.
11. CLEAR
• When in OSD menu, press to return to the root menu.
12. AUDIO
• In Tuner mode, press this button to switch from ST to MONO mode and
vice-versa.
• In DVD mode, press to select different audio channel (if available).
13. ANGLE (DVD only)
• Press to select different screen display angles.
14. ZOOM (DVD / JPEG only)
• Press to select the zoom ratio.
15. INFO
• Press to display playback information.
16.TITLE•GUIDE
• Press to go to the title menu at DVD mode.
17. SURROUND
• Press to change the surround sound settings.
18. PLAYMODE
• Press to toggle between different playmodes. (Repeat chapter, etc.)
19. EQ. LEVEL
• Press to toggle between equalizer setting, BASS/TRE setting and channel
setting.
- In equalizer setting mode, use LEFT/RIGHT to change the setting.
- In BASS/TRE setting mode, use UP/DOWN to adjust level setting.
- In channel setting mode, use LEFT/RIGHT to select channel, and use
UP/DOWN to adjust level setting.
20. TV
• Press to select the television.
Functions in TV mode
(available when using a THOMSON TV)
3. PR+, PR-
• Press to change channel.
7. LEFT / RIGHT
• Press to use the zoom function (with a 16:9 television only)
9. MENU
• Press to exit a menu.
15. INFO (Yellow)
• Press to obtained information about the channel.
16. TITLE.GUIDE (Blue)
• Press to display the programmed guide.
21. GO BACK
• Press to return to the channel watched before last.
PR
AV
SUBWOOFER
EQ. LEVEL
SURROUND
REC
1
4
2
3
10
14
13
12
7
8
9
11
11
17
5
6
16
15
18
2
19
20
21
Note:
The coloured buttons can also be used to access the
Teletext topics indicated in colour (if your television
has the Teletext function available.)
Downloaded From TheatreSystem-Manual.com Manuals
Operating Your Receiver
DVD / VCD / CD / mp3
• Unit in DVD, VCD, CD or mp3 mode.
DIGITAL
• Audio output is in Dolby Digital mode. (For DVD only)
PL
• Audio output is in Dolby PL II Movie, Dolby PL II Music
or Dolby Prologic Emulation mode.
DTS
• Audio output is in DTS mode. (For DVD input only)
RND
• Random playback mode activated.
• Currently in playback mode.
• Currently in pause mode.
TITLE
• Title number for DVD playback.
TRK
• Track number being played.
CHP
• Chapter number for DVD playback.
PROG.
• Program mode is activated.
STEREO
• Tuner stereo signal detected.
KHz / MHz
• Tuner frequency unit.
• Speaker Icons.
SLP
• Sleep mode is activated.
12
Display
Downloaded From TheatreSystem-Manual.com Manuals
Operating Your Receiver
EN
13
Switching on /off
• To switch on the receiver, press ON/ECO on the receiver
once to wake up from standby mode. Press one of the
source buttons or ON/OFF on the remote control to turn on
the receiver.
• When the receiver is on, press ON/OFF on the remote or
ON/ECO on the receiver to return to the standby mode.
When you turn up the unit for the first time:
1. A startup menu will show on the screen when you turn
on the unit for the first time.
2. Use UP/DOWN to highlight the language you want, then
press OK.
3. The chosen language will be your default menu language.
Selection of Audio source
When one of the audio source is selected, the audio input
corresponding to the name will be activated.
The receiver acts as a switching device between all the
sources that are plugged into it.
Example 1:
If you connect a MD player to the AUX 1 input on the
receiver and press SOURCE until “AUX 1” shows on the
display. You will be able to have the signal from the MD
player.
PR
AUX 2
VCR
AUX 1
SAT - CABLE
REV
FWD
PR
English
Select a Menu Language
Select langue de menu
Seleccione Idioma Menu
Menusprache auswahlen
Selez lingua dal menu
Francais
Espanol
Deutsch
Italiano
Note:
When the startup menu shows on the
display, the OPEN/CLOSE button is
disabled.
Downloaded From TheatreSystem-Manual.com Manuals
Loading...
