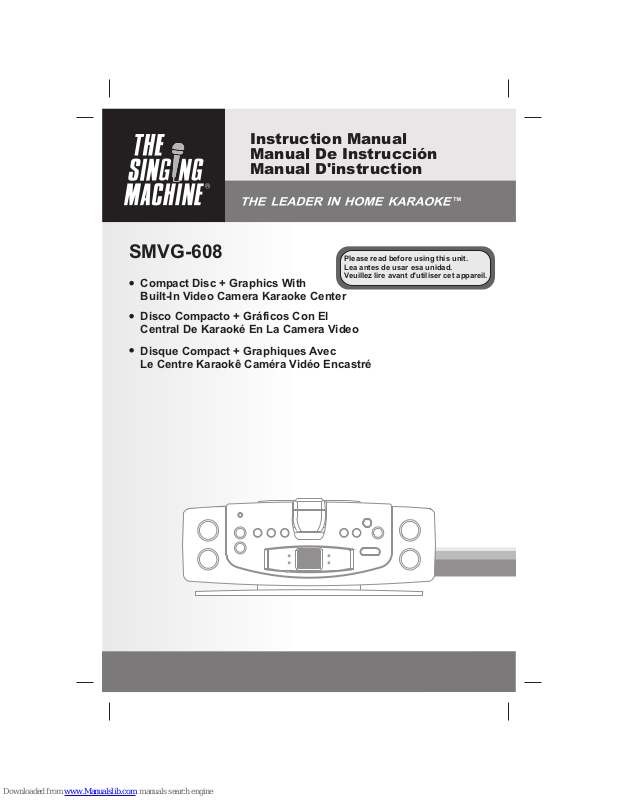

The Singing Machine SMVG-608 Instruction Manual
Compact Disc + Graphics With
Built-In Video Camera Karaoke Center
SMVG-608
Instruction Manual
Manual De Instrucción
Manual D'instruction
Please read before using this unit.
Lea antes de usar esa unidad.
Veuillez lire avant d'utiliser cet appareil.
Disco Compacto + Gráficos Con El
Central De Karaoké En La Camera Video
Disque Compact + Graphiques Avec
Le Centre Karaokê Caméra Vidéo Encastré
WARNINGS
WARNING: TO REDUCE THE RISK OF
FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
OR BACK. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol is intended to alert you
to the presence of uninsulated
dangerous voltage within the
product's enclosure thatmightbe of
sufficient magnitude to constitute a
risk of electric shock. Do not open
the product's case.
This symbol is intended to inform
you that important operating and
maintenance instructions are
included in the literature
accompanying thisproduct.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLYINSERT.
DRIPPING WARNING
VENTILATION WARNING
The product shall not be exposed to dripping
or splashing and that no objects filled with
liquids, such as vases, shall be placed on the
product.
The normal ventilation of theproductshallnot
be impeded forintended use.
This CD player is made and tested to meet
exacting safety standards. It meets FCC
requirements and complies with safety
performance standards of the U.S.
Department of Healthand Human Services.
This CD player employs a laser light beam.
Only a qualified service person should
remove the cover or attempt to service this
device, due topossible eye injury.
The use of controls, adjustments, or
procedures other than those specified
herein might result in hazardous radiation
exposure.
This compact disc player is classified as a
CLASS 1 LASERproduct.
The CLASS 1 LASER PRODUCT label is
located on therear panel.
Invisible laser radiation when open and inter
locks defeated. Avoid exposureto beam.
Warnings:
CAUTION!
!
!
!
CAUTION
The apparatus shall be used in an open
area.
E1
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions
2. Retain Instructions
3. Heed Warnings
4 Follow instructions
5. Cleaning
6. Attachments
7. Water and Moisture
8. Accessories
9.
10. Ventilation
11. Power Sources
-All the safetyand operatinginstructions should beread before theproduct isoperated.
- The safetyand operatinginstructions should beretainedfor future reference.
-All warnings onthe productand in theoperating instructions shouldbe adheredto.
. -All operating anduse instructionsshould be followed.
- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use adampcloth for cleaningthe exterior only. Do NOTattempt toclean the inside.
- Do not use attachments not recommended by the product manufacturer as they may cause
hazards.
- Do not use this product near water - for example, near a bath tub, wash bowl, kitchen
sink, or laundrytub;in a wetbasement, or near aswimming pool, andthe like.
- Do not place this product on an unstable cart, stand tripod, bracket, or table. The product may
fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand,
tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the
product should followthe manufacturer's instructions,and should usea mounting accessory recommendedby
the manufacturer.
Aproduct and cartcombination should be moved withcare. Quick stops, excessiveforce, and unevensurfaces
may cause theapplianceand cart combinationto overturn.
- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of
the product and to protect it from overheating, and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided.
- This productshould beoperated only fromthe type ofpower sourceindicated on themarking
label. If you are not sure of the type of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other sources, refer to the operating
instruction.
12. Grounding or Polarization
Alternate Warnings
13. Power-Cord Protection
14. Protective Attachment Plug
- This product may be equipped with a polarized alternating current line plug (a
plug havingone blade wider than the other). Thisplug will fit into the power outletonly oneway.This is asafety
feature. If youare unable toinsert the plugfully into theoutlet, try reversingthe plug. Ifthe plug shouldstill fail to
fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug.
- This product may be equipped with a three-wire grounding-type plug, a plug having a
third (grounding)pin. This plug willonly fitinto a grounding-typepower outlet. Thisis asafety feature. Ifyou are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat
the safety purposeofthe grounding-type plug.
- Power supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and thepoint wherethey exit fromthe product.
- The product is equipped with an attachment plug having overload protection.
This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If
replacement of the plug is required, be sure the service technician has used a replacement plug specified by
the manufacturer thathasthe same overloadprotection as theoriginal plug.
E2
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NECART 250. PART H)
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC-NATIONALELECTRICAL CODE
S2898A
15. Outdoor Antenna Grounding-If an outsideantennais connected tothe receiver, be sure theantenna system
is groundedso asto providesome protection against voltagesurges andbuilt-up staticcharges. Article 810 of
the NationalElectrical Code,ANSI/NFPA 70, providesinformation withregard toproper groundingof themast
and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection togrounding electrodes, and requirements for the
grounding electrode. Seefigure:
16. Lightning
17. Power Lines
18. Overloading
19. Object and Liquid Entry
20. Servicing
21. Damage Requiring Service
22. Replacement Parts
23. Safety Check
24. Wall or Ceiling Mounting
25. Heat
- For added protection for this product during a lightning storm, or when it is left unattended and
unused forlong periods oftime, unplug itfrom the walloutlet and disconnectthe antenna orcable system. This
will prevent damagetothe product dueto lightning andpower-line surges.
-An outside antennasystem should notbe located inthe vicinity ofoverhead power lines orother
electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact
with them mightbefatal.
- Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in ariskof fire orelectric shock.
- Never push objects of any kind into this product through openings as they may
touch dangerous voltagepoints or short-outparts that couldresult in afire or electricshock. Neverspill liquid of
any kind ontheproduct.
- Do not attempt to service this product yourself as opening or removing covers may expose youto
dangerous voltage orother hazards. Refer all servicingto qualified servicepersonnel.
- Unplug this product from the wall outlet and refer servicing to qualified service
personnel under thefollowingconditions:
a) When the power-supplycordor plug isdamaged,
b) If liquid hasbeenspilled, or objectshave fallen into theproduct,
c) If theproduct has beenexposed torain or water,
d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other controls may
result in damage and willoften require extensive work by a qualified technician to restore the product to
its normal operation.
e) If the producthasbeen dropped ordamaged in anyway, and
f ) When the productexhibitsa distinct changein performance - thisindicates aneed for service.
- When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions mayresultin fire, electricshock, or otherhazards.
- Upon completionof anyservice or repairs tothis product, askthe service technicianto perform
safety checks todeterminethat the productis in proper operatingcondition.
- The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
- The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (includingamplifiers) that produce heat.
E3
ENGLISH
INTRODUCTION
E4
Your Compact Disc + Graphics with will provideyou with many years of funand
entertainment. It can let you be the “star” as you sing along with your favorite recordings and
hear your voicewith the musicthrough the system’s speaker.
This Karaoke Center is easy to use, yet full of features with a compact design. After just a few
simple instructions, youwill becomean expert.Before you use your unit, please glance through
this manual to familiarize yourself with all the features available and the sections of the manual
that describe their operation. Next, go to the section for the specific operation you wish to
perform.
For your easyreference, listed hereare some of themain features ofthis Karaoke Center:
- displays thelyrics with thetempo of music whenplaying CD+G discs.
- lets you replace the original singer's voice with your own voice
when any prerecorded,multiplex karaokedisc is played. To activate, just rotate Mic Volume to a
comfortable listening level, and Auto Voice Control for the best balance between playback and
microphone levels.
- lets you adjust the balance between the prerecorded original singer's voice
and the musicif you usea multiplex karaoke disc.
- lets youadd an echoto enrich yourvoice for a concerthall effect.
- lets youshare the musicwith your familyor friends.
- lets you connect another audio output component, such as an
equalizer/booster or aPAsystem.
Lyricson TV screen
Auto Voice Control (A.V.C.)
Balance Control
Echo Control
Built-In Speaker
Auxiliary Output Jacks
Master Volume Control - lets you turn the volume control clockwise or counter-clockwise until
desired volume levelis obtained.
- lift upcamera lens todisplay your imageon TV.
ENGLISH
CONTROL LOCATIONS
E5
ENGLISH
FRONT VIEW
1. ON/OFF LED
2. PROGRAM Button
3. REPEAT Button
4. INTRO Button
7. SKIP Button
8. SKIP Button
9. STOP Button
11.
12.
14. ECHO ON/OFF Button
15. MASTER VOLUME Control
16. MIC VOLUME Control
17. PROGRAM LED
18. REPEAT LED
19. LED Display
21. PLAY/PAUSE LED
22. VIDEO OUT Selector
5. VIDEO CAMERA
6. CD Door
10. PLAY/PAUSE Button
ON/OFF Button
BALANCE Control
13. AUTO VOICE Control
20. CDG LED
3
4
5
678 10
11
12
13
14
15
16
17 18 19 20
21
9
21
22
CONTROL LOCATIONS
E6
ENGLISH
REAR VIEW
SIDE VIEW
23. AUX OUT Jack (L)
24. VIDEO OUT Jack
25. AUX OUT Jack (R)
26. OUT Jack
27. DC Jack
28. AC Power Cord
29. MIC 1 Jack
30. MIC 2 Jack
31. VIDEO
32.
CAMERA CONTRAST Button
HEADPHONE Jack
23 24
25 26 27 28
29
30 3231
MAKING THE CONNECTIONS
ENGLISH
E7
REAR VIEW OF
SINGING MACHINE
REAR VIEW
OF TV
VIDEO IN
(Yellow Jack)
VIDEO OUT
(Yellow Jack)
VIDEO IN
VIDEO
OUT
AUX
OUT
R
L
CAMERA
OUT
CONNECTING POWER
VIDEO CONNECTION (FORTV)
You can power thesystem from a standardAC outletby using thesupplied power cord.
lyrics
DC JACK
CONNECTING TO YOUR TV
DC jack isprovided forexternal DC powerfor use in acar, boat orRV. Please be sure thatinside of
the jack is connected to 12V positiveside and the outside of jackis connected to , negative side
battery.
The Singing Machine provides a patch cord to give you the option of connecting your unit to an
external audio/soundsystem andvideo device.The patchcord has three RCAjacks ateach end.
White and Redare for leftand right audioconnections and theYellow isfor connecting thevideo.
Make sure that you have a CDG disc in the Singing Machine and playing when you are making
this connection. You will knowyou have theproper settings on yourTV or VCRas soonas you see
the Singing Machinelogo or lyricson the screen!
Please follow thesteps below todisplay on theTV screen:
(1) Locate the multicolored patchcords.
(2) Connect video cable (yellow)to the VIDEOOUT of theback of theSinging Machine.
(3) Connect the other endof the videocable (yellow) to theVideo Input onyour TV.
For UK only
CAUTION: The unitis designed tooperate from a mainsupply of 230V AC~50Hz. Theunit is
fitted with a 13 amp (BS 1363) main plug. Should the fuse in the mains plug require
replacing a 3 amp (BS 1363) fuse must be fitted.Ensure the voltage of your electrical power
supply matches thisindicated on therating label located onthe rear orbase of the unit.
If the socket outlets in your home are not suitable for the plug supplied with the unit, the plug
should be removedand an appropriateon fitted.
VIDEO
OUT
AUX
OUT
R
L
CAMERA
OUT
REAR VIEW OF TV
VIDEO INPUT
(Yellow Jack)
AUDIO INPUT
L
(White Jack)
TV
SCARTINPUT
0000000000
0000000000
IN
ScartAdapter
(Provided)
AUDIO INPUT
R
(Red Jack)
VIDEO OUTPUT
(Yellow Jack)
REAR VIEW OF
SINGING MACHINE
AUX OUTPUT
R
(Red Jack)
SCART ADAPTER CONNECTION
(FOR TV WITH SCART INPUT)
AUX OUTPUT
L
(White Jack)
MAKING THE CONNECTIONS
E8
ENGLISHENGLISH
VIDEO OUT Selector
NOTE:
!
!
Set the VIDEOOUT Selector tothe desired typeof display.
Please follow thesteps below torecord camera imageon your recording unit(eg. VCR):
(1) Locate the multicolored patchcords.
(2) Connect video cable (yellow)to the CAMERAOUT jackof the backof the SingingMachine.
(3) Connect the other end of the video cable (yellow) to the Video Input on your
recording unit.
To display the lyrics, the camera image or both the lyrics + the camera image on the TV,
connect the VIDEO OUT jack to the VIDEO IN of the TV. Set the VIDEO OUT Selector to the
desired type ofdisplay.
When the VIDEO OUT selector is set to the “Lyrics + Image” position, the camera image
is combined with the lyrics. Therefore, the camera background image may not be the
same as theimage from theCAMERAOUT jack. Thelyrics may flicker.
VIDEO CONNECTION (FORRECORDING)
NOTE:
COMMON WAYS TO CONFIGURE YOUR TVOR VCR
If your televisionor VCRdoes nothave the required VideoInput, you will need an RF Modulator
(Radio Frequency Modulator), which connects through your TV Antenna or cable line and
serves as VideoInput.
An RF Modulator can be purchased at almost any consumer electronics retailer. If you are
connecting the video from the Singing Machine to either a television or a VCR video input jack,
you mustspecify thesource theTV or VCR is to display. Your TV or VCR user guide can tell you
how to displaythe video signalfrom the ‘Video In’jack.
If you don’t have the manual for your TV or VCR, we suggest calling the TV or VCR,
manufacturer’s customerservice department. Only the manufacturerwill beable to tell you very
quickly how to configure your TV or VCR to display the video signal coming from the ‘Video
Input’jack.
Some projection TV sets do not properly display the standard blue background when
using most CDGs. If the background color is inconsistent or flashing, please try
connecting your SingingMachine to astandard tube television.
Your Singing Machine is designed to connect to your TV the same way you would connect a
video camera, VCR or video game. The Singing Machine is constantly sending the video and
audio signals to the 'VideoOut' and 'AUX OUT' jacks wheneveryou playa CDG. So, loada CDG
into your Singing Machine before you start making these connections. You will see lyrics onthe
TV screen assoon as youget the setup completedcorrectly.
REAR VIEW OF
SINGING MACHINE
VIDEO
OUT
AUX
OUT
R
L
CAMERA
OUT
REAR VIEW OF
RECORDING UNIT
R
L
VIDEO IN
AUDIO IN
VIDEO IN
(Yellow Jack)
AUX OUT
L
(White Jack)
AUDIO IN
R
(Red Jack)
AUX OUT
R
(Red Jack)
VIDEO OUT
(Yellow Jack)
AUDIO IN
L
(White Jack)
We refer to TV/VCR because manufacturers use very similar ways to connect TVs and VCRs
and you can connect your Singing Machine to a TV, VCR or satellite system (contact your
satellite company for instructions).The setup ofyour TV/VCR isthe mostdifficult part of making
the connection for displaying your Singing Machine lyrics. In most homes, the TV has either a
cable connected or antennae in use. Once you connect your Singing Machine to the TV/VCR,
you must 'tell' your TV/VCR to display the input from the Singing Machine instead of the usual
input from thecable or antennae.
Check your TV/VCR user manual for the easiest way to setup your particular entertainment
system. If you don't have your manual you can always call your TV/VCR manufacturer for that
information or try hitting their website for online assistance. We've listed below the most
common ways ofsetting up aTV/VCR:
In the setup menu for configuring the TV/VCR there may be an option on 'Input Selection'
where you maychoose between 'Cable/Ant.','Video 1', or'Video 2' etc.as the inputsource.
Try looking for a 'Video' channel between the highest channel and the lowest channel on
your TV orVCR. (i.e. Between99 and 2may be 'VIDEO'or 'INPUT' or 'GAME')
(3) Look for a button on the remote control for the TV/VCR you are connecting to that says
'VIDEO', 'VIDEO 1', 'Game', 'AUX', 'EXT', 'LINE1', 'LINE-IN' or occasionally the 'VCR'
button will displaythe Video inputsource.
(1)
(2)
AUDIO CONNECTION
Connect the unit to your TV or home stereo system using the White and Red connections on the
supplied patch cord. Plug thewhite end of the patch cordinto the white AUXOUT jack onthe unit.
Plug thered end of the patch cord into the redAUX OUTjack on unit. Now connect the other end
of the cable’s white (left channel) and red (right channel) plugs to your TV or home stereo
system’s ‘AUDIO IN’or ‘AUXIN’ jacks.
MAKING THE CONNECTIONS
E9
ENGLISH
R
L
AUDIO IN
REAR VIEW OF
SINGING MACHINE
REAR VIEW OF TV
AUDIO IN
L
(White Jack)
AUDIO IN
R
(Red Jack)
AUX OUT
R
(Red Jack)
VIDEO
OUT
AUX
OUT
R
L
CAMERA
OUT
AUX OUT
L
(White Jack)
E10
ENGLISHENGLISH
CD OR CD+G OPERATIONS
PREPARATION
TURNING POWER ON/OFF
!
!
!
!
!
!
!
!
!
!
This unit is designed to play CD’s bearing the identification logo . If CD’s do not
conform to theCD standard, theymay not playproperly.
Fingerprints and dust should be carefully wiped off with a soft cloth. Wipe in a straight motion
from the centerof the discto the outside edge.
Never use chemicals,such asrecord cleaningsprays, antistaticsprays orfluids, benzene or
thinner to clean compact discs. These chemicals will permanently damage the plastic
surface of thedisc.
Always place the compact disc on the disc tray with the label facing upward. Compact discs
can be playedon only oneside.
To remove a disc from its storage case, pressdown on the center of thecase and lift the disc
out, holding itcarefully by theedges.
Discs should bereturned to theircases after use toprotect them fromdust and scratches.
To prevent warping the disc, do not expose it to direct sunlight, high humidity or high
temperatures for extendedperiods of time.
Do not apply paper or write anything on either side of the disc. Theinks usedin somefelt-tips
pens may damagethe surfaces ofthe disc.
To turn off the system, press the button again. The LED Indicator will turn
off.
""
" ".)
PLAYING CD OR CD+GDISC
LOADINGA DISC
NOTE:
Reminders:
Adjust MASTER VOLUMEcontrol on yourunit, TV oraudio system toa comfortable level.
Adjust MIC/BALANCEcontrols or press ECHO button as needed toachieve the desired mix
of music andvocals through yourTV or soundsystem.
Never place anything except a compact disc on the disc tray. Foreign objects can damage
the unit.
Only place onedisc on thedisc tray at atime.
To turn on the Karaoke center, press the ON/OFF button. The ON/OFF LED Indicator will
light up.
ON/OFF ON/OFF
Lift up CDdoor to openCD/CDG compartment door. Place a discin the compartmentwith the
printed side facingtoward you.
Gently close the CD door to the CD compartment.After a few seconds, the LED will display
the total numberof tracks. (Ifno disc isloaded, it will display
Do not lift up the CD door when the Singing Machine is playing the CD/CDG. After
loading a disc, if the image or lyrics is distorted, turn off the Singing Machine and then
turn it onto reset theSinging Machine.
!
!
!
!
!
!
(Refer to the Trouble Shooting Guide on page E14 if a disc is loaded but the total tracks
do not appear.)
E11
ENGLISH
PLAY/PAUSEMODE
NOTE:
NOTE:
!
!
!
!
!
!
To start playing, press the PLAY/PAUSE button. The first track [ ] and the PLAY/PAUSE
LED will be lit.
To temporarily stop playing, press the PLAY/PAUSE button. The PLAY/PAUSE LED will
flash.
To resume play, press thisbutton again.
Pressing pause when a CDG is playing may cause distorted lyrics on the monitor. Any
distortion willremain until the whole screen is refreshed duringan instrumental break or
you stop thesong and startit from thebeginning.
The first fewseconds of mosttracks is silence.
STOPMODE
SKIP (FOR BOTHCDAND CDG DISCS)
SEARCH (FOR AUDIO CD DISCONLY)
REPEAT
PROGRAM
INTRO
If the STOP button is pressed in the course of playing, the disc will cease to play. (The total
number of trackswill be shownon the LED window.)
During STOP mode,you can skip up or downto yourdesired track number by pressingthe SKIP
button ( - SKIP - ).
To resume playingthe selected song, pressPLAY/PAUSE button.
When playing any audio CD, press and hold the SKIP button ( -SKIP- ). The CD will
search at high speed in the forward or backward direction. Normal play will continue when you
release the button.
Press the INTRO button once, of
each track asan introduction.
Press the INTRObutton again tostop intro scan play.
!
!
!
!
To repeat the track currently playing, press the REPEAT button once. The REPEAT LED will
start to flash.
To repeat all tracks, pressthe REPEAT button twice. The REPEAT LED will light up and stay
lit.
To clear the REPEAT function, press the REPEAT button again. The REPEAT LED will turn
off.
Use this buttonto program andplay back songs ina preselected order.
Step 1: Programming should be done in the stop mode only. Press the PROGRAM key
until the PROGRAM LED flashes, the track will read [ ].
Step 2: Press the double arrow keys ( -SKIP- ) to select a desired track.
Step 3: Press PROGRAM key to confirm entry. You can repeat the same steps up to a
maximum of 20 tracks.
Step 4: Press PLAY to activate PROGRAM.
Press the STOPbutton to clearall the programmedentries.
then press PLAY. The CD player will play up to 10 seconds
CD OR CD+G OPERATIONS
ENGLISHENGLISH
CAMERA OPERATIONS
CAMERASET UP
NOTE:
VIDEO CONTRAST (ONLYFOR VIDEO OUT CONNECTION)
!
!
!
!
Lift up thecamera up toan upright position.
Adjust the camera position by moving it slightly up and down until the camera is pointing at a
desired angle.
If the singing machine is connected using the VIDEO OUT. Make sure the VIDEO OUT
selector is set to the “IMAGE” or “LYRICS + IMAGE”. It may take a minute for the
machine to adjustthe colours ofthe image.
Due to the variation of CDGs, the colour of the lyrics sometimes blends with the camera
background image. To intensify the contrast between the lyrics and the camera image, press
the VIDEO CONTRASTbutton down.
When theVIDEO CONTRAST button is down, press itagain to reduce the contrast between
the lyrics andthe camera image.
E12
MICROPHONE OPERATIONS
!
!
!
!
Only use dynamicmicrophones with thespecifications on page E16.
Tapping or dropping the microphone while it is on can permanently damage your
microphone. Resist theurge to swingthe microphone around bythe cord.
Turnoff the microphonewhen it isnot in use toavoid noise.
When using the microphone, it is recommended to keep the microphone away from the
speaker to avoidfeedback.
CARE AND MAINTENANCE
CLEANING DISC
NOTE: Do not use detergent
or abrasive cleaning agents,
for they can damage the
disc.
CD PLAYER
Cleaning will not normally be necessary.
However, should fingerprints, dust or
dirt appear, you can wipe them off with a
soft, lint - free cloth. Wipe the disc in a
straight line from center to edge. You
can moisten the disc first with ordinary
tap water if necessary.
The player mechanism is fitted with selflubricating bearings and must not be
oiled or greased.
POWER SWITCH
CLEANING THE UNIT
CLEANING THE CDLASER LENS
For Best Results: Use a CD - lens cleaning
disc according to the cleaning disc
manufacturer instructions.
To prevent fire or shock hazard,
disconnect your stereo system
from the AC power plug when
cleaning.
After using the unit, turn off the power by
pressing the ON/OFFbutton.
To clean the exterior of the unit, simply wipe
with a soft clean cloth moistened with plain
lukewarm water.
Although the music tracks in the disc are
covered with a protective layer, it is still
advisable to treat the disc carefully.
Ensure that you always pick up discs by
the edge, and put them back in their
holders immediately after use.
COMPACT DISC
Handling Disc
E13
ENGLISH
TROUBLE SHOOTING GUIDE
If you have followed the instructions and are having difficulty operating the unit, locate the
PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE column to
locate and remedythe problem.
SOLUTION
Plug in the AC Power Cord.
Turn up the volume.
Turn up the volume at TV/PA
system.
Turn on the power at TV/PA
system.
Follow directions on page E9 for
‘Audio Connection’.
PROBLEM
No power when the unit
is on.
No sound.
POSSIBLE CAUSE
The AC Power Cord is not
plugged in properly.
Volume control is set to
minimum.
Volume control on TV set/PA
system is set to minimum.
TV set/PA system power is
OFF.
AUX OUT jacks not
connected.
Check the outlet with a working
lamp or other electrical appliance.
No power when plugged
in.
The AC outlet may not have
power.
Insert disc correctly.
Wipe clean with soft cloth.
Use a new disc.
Use a new disc.
Only use discs bearing standard
logo as described on page E10.
Disc is inserted upside
down.
Disc is dirty.
Disc is scratched.
Disc is warped.
A nonstandard disc is
inserted.
Moisture has formed inside
the CD deck.
Wait about 20 to 30 minutes to let
it dry out.
CD PLAYER
cannot work normally or
“”,“”
displayed.
,or“ ”areaai aa aaa
Singing Machine needs to
be reset.
Disconnect the machine from
power source for 30 seconds.
Insert the DC jack into the DC
socket on back of cabinet.
No DC jack connection at
the AC adapter.
Turn off the Singing Machine and
then turn it back on to reset the
Singing Machine.
Lyrics and camera image
are distorted.
The Singing Machine did not
load the lyrics and camera
image properly.
E14
ENGLISHENGLISH
TROUBLE SHOOTING GUIDE
No lyrics display
on TV.
Connect the VIDEO OUT to VIDEO IN
of the TV.
Using your TV Remote to select
VIDEO input.
Connect from VIDEO OUT of the
system to the VIDEO IN of your VCR
or Connect to an RF Modulator and
then to the TV cable input. Refer to
“”on
page E8. Check the disc to be sure it
is a CDG. (See Page E17 for details.)
MAKING THE CONNECTIONS
CAMERA OUT Jack is
connected to the VIDEO IN
of the TV.
Source selector on TV is not
set to VIDEO.
Check disc to be sure it is clean. (See
page E13 for cleaning instructions.)
A CDG is loaded but the
CDG indicator is not lit.
TV does not have video line
input.
SOLUTIONPROBLEM
POSSIBLE CAUSE
Set the VIDEO OUT Selector to
“LYRICS” or “LYRICS + IMAGE”
Position.
VIDEO OUT Selector is in
“IMAGE” position.
Mic volume is set to min.
Adjust mic volume to max. Then back it
off to a comfortable level.
No sound from mic.
Mic is off.
Turn on mic with the ON/OFF switch
located on the microphone.
Image is blurry.
The Camera is facing down.
Lift up the Camera.
No image display
on TV.
VIDEO OUT Selector is in
“LYRICS” position.
Set the VIDEO OUT Selector to
“IMAGE” or “LYRICS + IMAGE”position.
Camera has not warmed up.
Waita minute for thecamera to warmup.
Camera Lens is out of focus.
Adjust the lens of the camera by slightly
rotating either left or right until the
display is clear. Do not overturnthe lens.
Camera Lens is dirty.
Clean the camera lens.
E15
ENGLISH
E16
ENGLISHENGLISH
SPECIFICATIONS
Specifications are typical, individual units might vary. They are subject to continuous
improvement without noticeand without incurringany obligation.
AUDIO SECTION:
OUTPUT POWER
OUTPUT IMPEDANCE
0.5 WATTS (RMS)
8 OHMS
CD PLAYER SECTION:
FREQUENCY RESPONSE
SIGNAL - TO - NOISE RATIO
D - A CONVERSION
NUMBER OF PROGRAMS
SAMPLING SYSTEM
POWER SECTION
(WHERE APPLICABLE)
AC 230V-240V~50Hz OR
DC 12V 700mA AC TO DC ADAPTER
MICROPHONE
-74 dB 600 OHMS IMPEDANCE WITH
6.3mm DYNAMIC MICROPHONEÆ
DIMENSIONS (HxWxD) 4.0x10.4 x 9.6 Inches / 10.1 x 26.4 x 24.4 cm
WEIGHT 3.3 lbs / 1.5 kgs
ACCESSORIES
1. PRE-RECORDED KARAOKE CD+G DISC
2. AV CABLE
3. DYNAMIC MICROPHONE
100 Hz - 20 kHz (+/-3 dB)
50 dB
1 BIT D/A CONVERTER
20 TRACKS PROGRAM MEMORY
8 TIME OVER SAMPLING
Loading...
