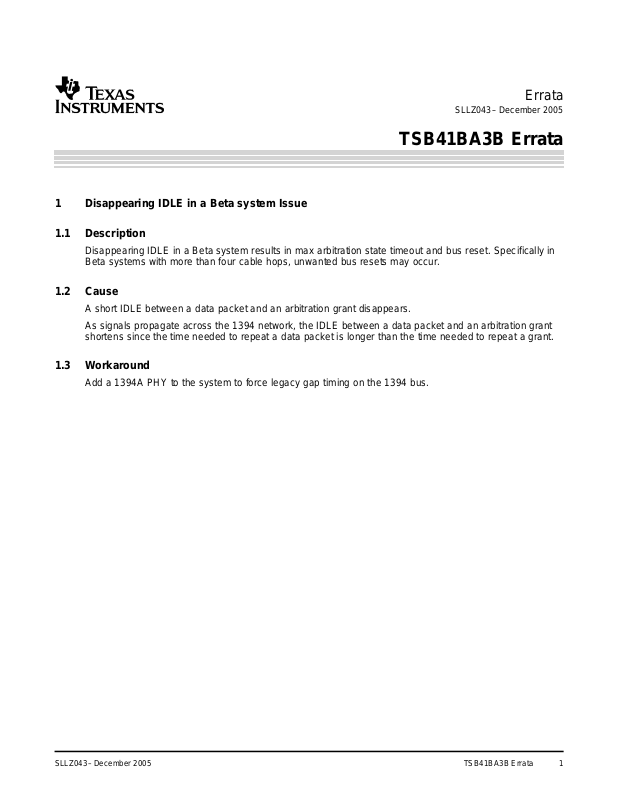

1 Disappearing IDLE in a Beta system Issue

1.1 Description

Disappearing IDLE in a Beta system results in max arbitration state timeout and bus reset. Specifically in Beta systems with more than four cable hops, unwanted bus resets may occur.

1.2 Cause

A short IDLE between a data packet and an arbitration grant disappears. As signals propagate across the 1394 network, the IDLE between a data packet and an arbitration grant

shortens since the time needed to repeat a data packet is longer than the time needed to repeat a grant.

1.3 Workaround

Add a 1394A PHY to the system to force legacy gap timing on the 1394 bus.

Errata

SLLZ043 – December 2005

TSB41BA3B Errata

SLLZ043 – December 2005 TSB41BA3B Errata 1
