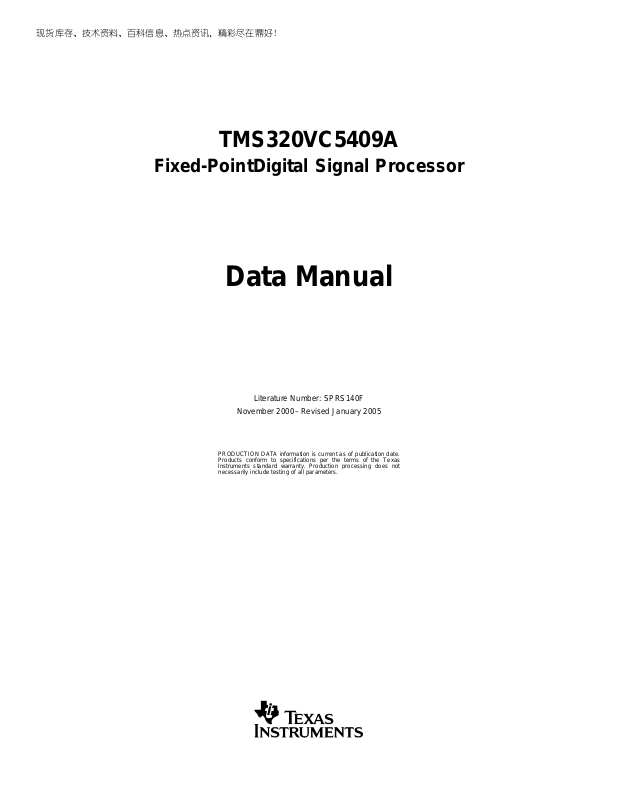

TMS320VC5409A

Fixed-PointDigital Signal Processor

Data Manual

Literature Number: SPRS140F

November 2000 – Revised January 2005

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

This data sheet revision history highlights the technical changes made to the SPRS140E device-specific data sheet to make it an SPRS140F revision.

Scope: This document has been reviewed for technical accuracy; the technical content is up-to-date as of the specified release date with the following corrections.

SECTION ADDITIONS/CHANGES/DELETIONS

Table 2-2 Added Note 6.

Section 5.2 Changed IOHfrom -2 to -8 mA and IOLfrom 2 to 8 mA. Changed Note 2 to read "These output current limits

are used for the test conditions on V

Section 5.3 Changed test conditions for V

IOH= – 2 mA".

Table 5-1 In Note 1, changed symbol for Infinity from " ω " to " ∞ ". Figure 5-29 Updated figure to reduce confusion caused by unnecessary information. Section 6.1 Moved the Package Thermal Resistance Characteristics to this section.

Global A font substitution caused some symbols to display incorrectly in the E revisions of this document. This error

has been corrected and validated in the F revision including the Electrical Specifications.

Revision History

and VOH, except where noted otherwise."

from "DV

= 2.7 V to 3.0 V, IOH= MAX" to "DV

= 2.7 V to 3.0 V,

Revision History2

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Contents

Revision History ........................................................................................................................... 2

1 TMS320VC5409A Features .................................................................................................... 9

2 Introduction ....................................................................................................................... 10

2.1 Description .................................................................................................................. 10

2.2 Pin Assignments ............................................................................................................ 10

2.2.1 Terminal Assignments for the GGU Package ............................................................... 10

2.2.2 Pin Assignments for the PGE Package ...................................................................... 12

2.3 Signal Descriptions ......................................................................................................... 13

3 Functional Overview ........................................................................................................... 17

3.1 Memory ...................................................................................................................... 17

3.1.1 Data Memory .................................................................................................... 17

3.1.2 Program Memory ............................................................................................... 18

3.1.3 Extended Program Memory ................................................................................... 18

3.2 On-Chip ROM With Bootloader ........................................................................................... 18

3.3 On-Chip RAM ............................................................................................................... 19

3.4 On-Chip Memory Security ................................................................................................. 19

3.5 Memory Map ................................................................................................................ 20

3.5.1 Relocatable Interrupt Vector Table ........................................................................... 20

3.6 On-Chip Peripherals ....................................................................................................... 22

3.6.1 Software-Programmable Wait-State Generator ............................................................. 22

3.6.2 Programmable Bank-Switching ............................................................................... 23

3.6.3 Bus Holders ..................................................................................................... 25

3.7 Parallel I/O Ports ........................................................................................................... 25

3.7.1 Enhanced 8-/16-Bit Host-Port Interface (HPI8/16) ......................................................... 25

3.7.2 HPI Nonmultiplexed Mode ..................................................................................... 26

3.8 Multichannel Buffered Serial Ports (McBSPs) .......................................................................... 27

3.9 Hardware Timer ............................................................................................................ 30

3.10 Clock Generator ............................................................................................................ 30

3.11 Enhanced External Parallel Interface (XIO2) ........................................................................... 32

3.12 DMA Controller ............................................................................................................. 35

3.12.1 Features .......................................................................................................... 35

3.12.2 DMA External Access .......................................................................................... 35

3.12.3 DMPREC Issue ................................................................................................. 36

3.12.4 DMA Memory Map .............................................................................................. 38

3.12.5 DMA Priority Level .............................................................................................. 39

3.12.6 DMA Source/Destination Address Modification ............................................................. 39

3.12.7 DMA in Autoinitialization Mode ............................................................................... 40

3.12.8 DMA Transfer Counting ........................................................................................ 40

3.12.9 DMA Transfer in Doubleword Mode .......................................................................... 41

3.12.10 DMA Channel Index Registers .............................................................................. 41

3.12.11 DMA Interrupts ................................................................................................ 41

3.12.12 DMA Controller Synchronization Events ................................................................... 42

3.13 General-Purpose I/O Pins ................................................................................................. 43

3.13.1 McBSP Pins as General-Purpose I/O ........................................................................ 43

3.13.2 HPI Data Pins as General-Purpose I/O ...................................................................... 43

3.14 Device ID Register ......................................................................................................... 44

3.15 Memory-Mapped Registers ............................................................................................... 45

3.16 McBSP Control Registers and Subaddresses .......................................................................... 47

3.17 DMA Subbank Addressed Registers .................................................................................... 48

Contents 3

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.18 Interrupts .................................................................................................................... 50

4 Support ............................................................................................................................. 51

4.1 Documentation Support ................................................................................................... 51

4.2 Device and Development-Support Tool Nomenclature ................................................................ 52

5 Electrical Specifications ...................................................................................................... 53

5.1 Absolute Maximum Ratings ............................................................................................... 53

5.2 Recommended Operating Conditions ................................................................................... 53

5.3 Electrical Characteristics Over Recommended Operating Case Temperature

Range (Unless Otherwise Noted) ........................................................................................ 54

5.4 Test Load Circuit ........................................................................................................... 55

5.5 Timing Parameter Symbology ............................................................................................ 55

5.6 Internal Oscillator With External Crystal ................................................................................. 55

5.7 Clock Options ............................................................................................................... 57

5.7.1 Divide-By-Two and Divide-By-Four Clock Options .......................................................... 57

5.7.2 Multiply-By-N Clock Option (PLL Enabled) ................................................................... 59

5.8 Memory and Parallel I/O Interface Timing .............................................................................. 60

5.8.1 Memory Read ................................................................................................... 60

5.8.2 Memory Write ................................................................................................... 63

5.8.3 I/O Read ......................................................................................................... 65

5.8.4 I/O Write ......................................................................................................... 67

5.9 Ready Timing for Externally Generated Wait States .................................................................. 68

5.10 HOLD and HOLDA Timings ............................................................................................... 71

5.11 Reset, BIO, Interrupt, and MP/ MC Timings ............................................................................. 73

5.12 Instruction Acquisition ( IAQ) and Interrupt Acknowledge ( IACK) Timings .......................................... 75

5.13 External Flag (XF) and TOUT Timings .................................................................................. 76

5.14 Multichannel Buffered Serial Port (McBSP) Timing .................................................................... 77

5.14.1 McBSP Transmit and Receive Timings ...................................................................... 77

5.14.2 McBSP General-Purpose I/O Timing ......................................................................... 80

5.14.3 McBSP as SPI Master or Slave Timing ...................................................................... 81

5.15 Host-Port Interface Timing ................................................................................................ 85

5.15.1 HPI8 Mode ....................................................................................................... 85

5.15.2 HPI16 Mode ..................................................................................................... 89

6 Mechanical Data ................................................................................................................. 93

6.1 Package Thermal Resistance Characteristics .......................................................................... 93

4 Contents

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

List of Figures

2-1 144-Ball GGU MicroStar BGA™ (Bottom View) .............................................................................. 10

2-2 144-Pin PGE Low-Profile Quad Flatpack (Top View) ........................................................................ 12

3-1 TMS320VC5409A Functional Block Diagram ................................................................................. 17

3-2 Program and Data Memory Map ................................................................................................ 20

3-3 Extended Program Memory Map ............................................................................................... 20

3-4 Processor Mode Status Register (PMST) ..................................................................................... 21

3-5 Software Wait-State Register (SWWSR) [Memory-Mapped Register (MMR) Address 0028h] ......................... 22

3-6 Software Wait-State Control Register (SWCR) [MMR Address 002Bh] ................................................... 23

3-7 Bank-Switching Control Register (BSCR) [MMR Address 0029h] .......................................................... 24

3-8 Host-Port Interface — Nonmultiplexed Mode ................................................................................. 26

3-9 HPI Memory Map ................................................................................................................. 27

3-10 Pin Control Register (PCR) ...................................................................................................... 28

3-11 Multichannel Control Register 2x (MCR2x) .................................................................................... 29

3-12 Multichannel Control Register 1x (MCR1x) .................................................................................... 29

3-13 Receive Channel Enable Registers Bit Layout for Partitions A to H ....................................................... 29

3-14 Transmit Channel Enable Registers Bit Layout for Partitions A to H ....................................................... 30

3-15 Nonconsecutive Memory Read and I/O Read Bus Sequence .............................................................. 32

3-16 Consecutive Memory Read Bus Sequence (n = 3 reads) ................................................................... 33

3-17 Memory Write and I/O Write Bus Sequence ................................................................................... 34

3-18 DMA Transfer Mode Control Register (DMMCRn) ........................................................................... 35

3-19 DMA Channel Enable Control Register (DMCECTL) ......................................................................... 37

3-20 On-Chip DMA Memory Map for Program Space (DLAXS = 0 and SLAXS = 0) .......................................... 38

3-21 On-Chip DMA Memory Map for Data and IO Space (DLAXS = 0 and SLAXS = 0) ...................................... 39

3-22 DMPREC Register ................................................................................................................ 40

3-23 General-Purpose I/O Control Register (GPIOCR) [MMR Address 003Ch] ................................................ 43

3-24 General-Purpose I/O Status Register (GPIOSR) [MMR Address 003Dh] ................................................. 43

3-25 Device ID Register (CSIDR) [MMR Address 003Eh] ......................................................................... 44

3-26 IFR and IMR ....................................................................................................................... 50

5-1 Tester Pin Electronics ............................................................................................................ 55

5-2 Internal Divide-By-Two Clock Option With External Crystal ................................................................. 56

5-3 External Divide-By-Two Clock Timing .......................................................................................... 58

5-4 Multiply-By-One Clock Timing ................................................................................................... 60

5-5 Nonconsecutive Mode Memory Reads ......................................................................................... 61

5-6 Consecutive Mode Memory Reads ............................................................................................. 62

5-7 Memory Write ( MSTRB = 0) ..................................................................................................... 64

5-8 Parallel I/O Port Read ( IOSTRB = 0) ........................................................................................... 66

5-9 Parallel I/O Port Write ( IOSTRB = 0) ........................................................................................... 67

5-10 Memory Read With Externally Generated Wait States ....................................................................... 69

5-11 Memory Write With Externally Generated Wait States ....................................................................... 69

List of Figures 5

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5-12 I/O Read With Externally Generated Wait States ............................................................................. 70

5-13 I/O Write With Externally Generated Wait States ............................................................................. 70

5-14 HOLD and HOLDA Timings (HM = 1) .......................................................................................... 72

5-15 Reset and BIO Timings ........................................................................................................... 73

5-16 Interrupt Timing .................................................................................................................... 74

5-17 MP/ MC Timing ..................................................................................................................... 74

5-18 Instruction Acquisition ( IAQ) and Interrupt Acknowledge ( IACK) Timings ................................................. 75

5-19 External Flag (XF) Timing ........................................................................................................ 76

5-20 TOUT Timing ...................................................................................................................... 76

5-21 McBSP Receive Timings ......................................................................................................... 78

5-22 McBSP Transmit Timings ........................................................................................................ 79

5-23 McBSP General-Purpose I/O Timings .......................................................................................... 80

5-24 McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 0 ..................................................... 81

5-25 McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 0 ..................................................... 82

5-26 McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 1 ..................................................... 83

5-27 McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 1 ..................................................... 84

5-28 HPI-8 Mode Timing, Using HDS to Control Accesses ( HCS Always Low) ................................................ 87

5-29 HPI-8 Mode Timing, Using HCS to Control Accesses ....................................................................... 88

5-30 HPI-8 Mode, HINT Timing ....................................................................................................... 88

5-31 GPIOx

5-32 HPI-16 Mode, Nonmultiplexed Read Timings ................................................................................. 91

5-33 HPI-16 Mode, Nonmultiplexed Write Timings ................................................................................. 91

5-34 HPI-16 Mode, HRDY Relative to CLKOUT .................................................................................... 92

(A)

Timings .................................................................................................................. 88

6 List of Figures

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

List of Tables

2-1 Terminal Assignments ........................................................................................................... 11

2-2 Signal Descriptions ............................................................................................................... 13

3-1 Standard On-Chip ROM Layout ................................................................................................ 19

3-2 Processor Mode Status Register (PMST) Field Descriptions ............................................................... 21

3-3 Software Wait-State Register (SWWSR) Field Descriptions ................................................................ 22

3-4 Software Wait-State Control Register (SWCR) Field Descriptions ......................................................... 23

3-5 Bank-Switching Control Register (BSCR) Field Descriptions ............................................................... 24

3-6 Bus Holder Control Bits .......................................................................................................... 25

3-7 Sample Rate Generator Clock Source Selection ............................................................................. 28

3-8 Receive Channel Enable Registers for Partitions A to H Field Descriptions .............................................. 30

3-9 Transmit Channel Enable Registers for Partitions A to H Field Descriptions ............................................. 30

3-10 Clock Mode Settings at Reset ................................................................................................... 31

3-11 DMD Section of the DMMCRn Register ........................................................................................ 36

3-12 DMA Channel Enable Control Register (DMCECTL) Field Description .................................................... 37

3-13 DMA Reload Register Selection ................................................................................................ 40

3-14 DMA Interrupts .................................................................................................................... 41

3-15 DMA Synchronization Events .................................................................................................... 42

3-16 DMA Channel Interrupt Selection ............................................................................................... 42

3-17 CPU Memory-Mapped Registers ................................................................................................ 45

3-18 Peripheral Memory-Mapped Registers for Each DSP Subsystem ......................................................... 45

3-19 McBSP Control Registers and Subaddresses ................................................................................. 47

3-20 DMA Subbank Addressed Registers ........................................................................................... 48

3-21 Interrupt Locations and Priorities ................................................................................................ 50

5-1 Input Clock Frequency Characteristics ......................................................................................... 56

5-2 Clock Mode Pin Settings for the Divide-By-2 and By Divide-By-4 Clock Options ........................................ 57

5-3 Divide-By-2 and Divide-By-4 Clock Options Timing Requirements ........................................................ 57

5-4 Divide-By-2 and Divide-By-4 Clock Options Switching Characteristics .................................................... 57

5-5 Multiply-By-N Clock Option Timing Requirements ............................................................................ 59

5-6 Multiply-By-N Clock Option Switching Characteristics ....................................................................... 59

5-7 Memory Read Timing Requirements ........................................................................................... 60

5-8 Memory Read Switching Characteristics ....................................................................................... 60

5-9 Memory Write Switching Characteristics ....................................................................................... 63

5-10 I/O Read Timing Requirements ................................................................................................. 65

5-11 I/O Read Switching Characteristics ............................................................................................. 65

5-12 I/O Write Switching Characteristics ............................................................................................. 67

5-13 Ready Timing Requirements for Externally Generated Wait States ....................................................... 68

5-14 Ready Switching Characteristics for Externally Generated Wait States ................................................... 68

5-15 HOLD and HOLDA Timing Requirements ..................................................................................... 71

5-16 HOLD and HOLDA Switching Characteristics ................................................................................. 71

List of Tables 7

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5-17 Reset, BIO, Interrupt, and MP/ MC Timing Requirements ................................................................... 73

5-18 Instruction Acquisition ( IAQ) and Interrupt Acknowledge ( IACK) Switching Characteristics ............................ 75

5-19 External Flag (XF) and TOUT Switching Characteristics .................................................................... 76

5-20 McBSP Transmit and Receive Timing Requirements ........................................................................ 77

5-21 McBSP Transmit and Receive Switching Characteristics ................................................................... 78

5-22 McBSP General-Purpose I/O Timing Requirements ......................................................................... 80

5-23 McBSP General-Purpose I/O Switching Characteristics ..................................................................... 80

5-24 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 10b, CLKXP = 0) ................................... 81

5-25 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 0) .............................. 81

5-26 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 11b, CLKXP = 0) ................................... 82

5-27 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 11b, CLKXP = 0) .............................. 82

5-28 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 10b, CLKXP = 1) ................................... 83

5-29 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 1) .............................. 83

5-30 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 11b, CLKXP = 1) ................................... 84

5-31 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 11b, CLKXP = 1) .............................. 84

5-32 HPI8 Mode Timing Requirements ............................................................................................... 85

5-33 HPI8 Mode Switching Characteristics .......................................................................................... 86

5-34 HPI16 Mode Timing Requirements ............................................................................................. 89

5-35 HPI16 Mode Switching Characteristics ......................................................................................... 90

6-1 Thermal Resistance Characteristics ............................................................................................ 93

8 List of Tables

www.ti.com

1 TMS320VC5409A Features

• Advanced Multibus Architecture With Three

Separate 16-Bit Data Memory Buses and One Program Memory Bus

• 40-Bit Arithmetic Logic Unit (ALU) Including a

40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators

• 17- × 17-Bit Parallel Multiplier Coupled to a

40-Bit Dedicated Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operation

• Compare, Select, and Store Unit (CSSU) for the

Add/Compare Selection of the Viterbi Operator

• Exponent Encoder to Compute an Exponent

Value of a 40-Bit Accumulator Value in a Single Cycle

• Two Address Generators With Eight Auxiliary

Registers and Two Auxiliary Register Arithmetic Units (ARAUs)

• Data Bus With a Bus Holder Feature

• Extended Addressing Mode for 8M × 16-Bit

Maximum Addressable External Program Space

• 32K x 16-Bit On-Chip RAM Composed of: – Four Blocks of 8K × 16-Bit On-Chip

Dual-Access Program/Data RAM

• 16K × 16-Bit On-Chip ROM Configured for Program Memory

• Enhanced External Parallel Interface (XIO2)

• Single-Instruction-Repeat and Block-Repeat

Operations for Program Code

• Block-Memory-Move Instructions for Better Program and Data Management

• Instructions With a 32-Bit Long Word Operand

• Instructions With Two- or Three-Operand

Reads

• Arithmetic Instructions With Parallel Store and Parallel Load

• Conditional Store Instructions Boundary Scan Architecture.

• Fast Return From Interrupt

• On-Chip Peripherals

– Software-Programmable Wait-State

– On-Chip Programmable Phase-Locked

– One 16-Bit Timer – Six-Channel Direct Memory Access (DMA)

– Three Multichannel Buffered Serial Ports

– 8/16-Bit Enhanced Parallel Host-Port

• Power Consumption Control With IDLE1,

IDLE2, and IDLE3 Instructions With Power-Down Modes

• CLKOUT Off Control to Disable CLKOUT

• On-Chip Scan-Based Emulation Logic, IEEE

Std 1149.1 (JTAG) Boundary Scan Logic

• 144-Pin Ball Grid Array (BGA) (GGU Suffix)

• 144-Pin Low-Profile Quad Flatpack (LQFP)

(PGE Suffix)

• 6.25-ns Single-Cycle Fixed-Point Instruction

Execution Time (160 MIPS)

• 8.33-ns Single-Cycle Fixed-Point Instruction

Execution Time (120 MIPS)

• 3.3-V I/O Supply Voltage (160 and 120 MIPS)

• 1.6-V Core Supply Voltage (160 MIPS)

• 1.5-V Core Supply Voltage (120 MIPS)

(1) The on-chip oscillator is not available on all 5409A devices.

For applicable devices, see the TMS320VC5409A Digital Signal Processor Silicon Errata (literature number SPRZ186).

(2) IEEE Standard 1149.1-1990 Standard-Test-Access Port and

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Generator and Programmable Bank-Switching

Loop (PLL) Clock Generator With Internal Oscillator or External Clock Source

Controller

(McBSPs)

Interface (HPI8/16)

(1)

(2)

TMS320C54x, MicroStar BGA, C54x, TMS320C5000, C5000, TMS320 are trademarks of Texas Instruments. All trademarks are the property of their respective owners.

www.ti.com

A B

E F

H J

L M

3456781012 1113 9

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

2 Introduction

This section lists the pin assignments and describes the function of each pin. This data manual also provides a detailed description section, electrical specifications, parameter measurement information, and mechanical data about the available packaging.

This data manual is designed to be used in conjunction with the TMS320C54x™ DSP Functional Overview (literature number SPRU307).

2.1 Description

The TMS320VC5409A fixed-point, digital signal processor (DSP) (hereafter referred to as the 5409A unless otherwise specified) is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses. This processor provides an arithmetic logic unit (ALU) with a high degree of parallelism, application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The basis of the operational flexibility and speed of this DSP is a highly specialized instruction set.

Separate program and data spaces allow simultaneous access to program instructions and data, providing a high degree of parallelism. Two read operations and one write operation can be performed in a single cycle. Instructions with parallel store and application-specific instructions can fully utilize this architecture. In addition, data can be transferred between data and program spaces. Such parallelism supports a powerful set of arithmetic, logic, and bit-manipulation operations that can all be performed in a single machine cycle. The 5409A also includes the control mechanisms to manage interrupts, repeated operations, and function calls.

NOTE

2.2 Pin Assignments

Figure 2-1 illustrates the ball locations for the 144-pin ball grid array (BGA) package and is used in conjunction with Table 2-1 to locate signal names and ball grid numbers. Figure 2-2 provides the pin assignments for the 144-pin low-profile quad flatpack (LQFP) package.

2.2.1 Terminal Assignments for the GGU Package

Figure 2-1. 144-Ball GGU MicroStar BGA™ (Bottom View)

10 Introduction

www.ti.com

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 2-1 lists each signal name and BGA ball number for the 144-pin TMS320VC5409AGGU package. Table 2-2 lists each terminal name, terminal function, and operating modes for the TMS320VC5409A.

Table 2-1. Terminal Assignments

TMS320VC5409A

SIGNAL SIGNAL SIGNAL SIGNAL

QUADRANT 1 QUADRANT 2 QUADRANT 3 QUADRANT 4

BGA BALL # BGA BALL # BGA BALL # BGA BALL #

A1 BFSX1 N13 CV

N1 A19 A13

A22 B1 BDX1 M13 BCLKR1 N2 A20 A12

C2 DV C1 DV

DD SS

L12 HCNTL0 M3 CV L13 DV

N3 DV

SS DD

A10 D4 CLKMD1 K10 BCLKR0 K4 D6 D10

HD7 D3 CLKMD2 K11 BCLKR2 L4 D7 C10

A11 D2 CLKMD3 K12 BFSR0 M4 D8 B10 A12 D1 HPI16 K13 BFSR2 N4 D9 A10 A13 E4 HD2 J10 BDR0 K5 D10 D9 A14 E3 TOUT J11 HCNTL1 L5 D11 C9 A15 E2 EMU0 J12 BDR2 M5 D12 B9

E1 EMU1/ OFF J13 BCLKX0 N5 HD4 A9

HAS F4 TDO H10 BCLKX2 K6 D13 D8

HCS G2 TMS G12 BFSX0 M7 CV

HR/ W G1 CV

READY G3 CV

PS G4 HPIENA G10 DV DS H1 DV

IS H2 CLKOUT F12 HD0 M8 DV

F3 TDI H11 CV

L6 D14 C8 F2 TRST H12 HINT M6 D15 B8 F1 TCK H13 CV

SS DD

G13 BFSX2 N7 CV G11 HRDY L7 HDS1 C7

F13 DV

DD SS

N6 HD5 A8

DD SS

K7 DV

N8 HDS2 A6

R/ W H3 HD3 F11 BDX0 L8 A0 C6

MSTRB H4 X1 F10 BDX2 K8 A1 D6

IOSTRB J1 X2/CLKIN E13 IACK N9 A2 A5

MSC J2 RS E12 HBIL M9 A3 B5

XF J3 D0 E11 NMI L9 HD6 C5

HOLDA J4 D1 E10 INT0 K9 A4 D5

IAQ K1 D2 D13 INT1 N10 A5 A4

HOLD K2 D3 D12 INT2 M10 A6 B4

BIO K3 D4 D11 INT3 L10 A7 C4

MP/ MC L1 D5 C13 CV

L2 A16 C12 HD1 M11 A9 B3 L3 DV

C11 CV

N11 A8 A3

L11 CV

BDR1 M1 A17 B13 BCLKX1 N12 A21 A2

BFSR1 M2 A18 B12 DV

M12 DV

B11 A11

B7 A7

Introduction 11

www.ti.com

HDS1

A18 A17 DV

A16 D5 D4 D3 D2 D1 D0 RS X2/CLKIN X1 HD3 CLKOUT DV

HPIENA CV

TMS TCK TRST TDI TDO EMU1/OFF EMU0 TOUT HD2 HPI16 CLKMD3 CLKMD2 CLKMD1 DV

BDX1 BFSX1

A22

A10

HD7

A11 A12 A13 A14 A15

HAS

HCS

HR/W

READY

PS DS

R/W

MSTRB

IOSTRB

MSC

HOLDA

IAQ

HOLD

BIO

MP/MC

BDR1

BFSR1

144

A21

143

142

141

140A7139

A6138

137

A4136

HD6

135

A3134

A2133

132

A0131

130

129

128

127CV126

125

HD5124

D15123

D14

122

D13121

HD4120

D12119

D11118

117

D9116

115D7114

D6113

112

515253

555657585960616263646566676869

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

108 107 106 105 104 103 102 101 100

99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73

HCNTL0

BCLKR0

BCLKR2

BFSR0

BFSR2

BDR0

HCNTL1

BDR2

BCLKX0

BCLKX2

HD0

BDX0

BDX2

IACK

HBIL

NMI

INT0

INT1

INT2

INT3

HD1

HRDY

HINT

111

110

A19

109

707172

D10

BFSX2

A20

CV HDS2

BFSX0

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

2.2.2 Pin Assignments for the PGE Package

The TMS320VC5409APGE 144-pin low-profile quad flatpack (LQFP) pin assignments are shown in Figure 2-2 .

12 Introduction

A. DV

is the power supply for the I/O pins while CV

the I/O pins while CV ground plane in a system.

Figure 2-2. 144-Pin PGE Low-Profile Quad Flatpack (Top View)

is the ground for the core CPU. The DV

is the power supply for the core CPU. DV

and CV

pins can be connected to a common

is the ground for

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

2.3 Signal Descriptions

Table 2-2 lists each signal, function, and operating mode(s) grouped by function. See Section Section 2.2 for exact pin locations based on package type.

Table 2-2. Signal Descriptions

TERMINAL

NAME

A22 (MSB) A21 A20 A19 A18 A17 A16 A15 Parallel address bus A22 [most significant bit (MSB)] through A0 [least significant bit (LSB)]. The sixteen A14 LSB lines, A0 to A15, are multiplexed to address external memory (program, data) or I/O. The seven MSB A13 lines, A16 to A22, address external program space memory. A22-A0 is placed in the high-impedance state A12 in the hold mode. A22-A0 also goes into the high-impedance state when OFF is low. A11 I/O/Z A10 interface (HPI) when the HPI16 pin is high. These pins also have Schmitt trigger inputs. A9 The address bus has a bus holder feature that eliminates passive components and the power dissipation A8 associated with them. The bus holder keeps the address bus at the previous logic level when the bus goes A7 into a high-impedance state. A6 A5 A4 A3 A2 A1 A0 (LSB)

D15 (MSB) D14 D13 D12 D11 Parallel data bus D15 (MSB) through D0 (LSB). D15-D0 is multiplexed to transfer data between the core D10 CPU and external data/program memory or I/O devices or HPI in HPI16 mode (when HPI16 pin is high). D9 D15-D0 is placed in the high-impedance state when not outputting data or when RS or HOLD is asserted. D8 D15-D0 also goes into the high-impedance state when OFF is low. These pins also have Schmitt trigger D7 inputs. The data bus has a bus holder feature that eliminates passive components and the power D6 dissipation associated with them. The bus holder keeps the data bus at the previous logic level when the D5 bus goes into the high-impedance state. The bus holders on the data bus can be enabled/disabled under D4 software control. D3 D2 D1 D0 (LSB)

IACK O/Z fetching the interrupt vector location designated by A15-A0. IACK also goes into the high-impedance state

(2)

INT0

(2)

INT1

(2)

INT2

(2)

INT3

(2)

NMI

(2)

(1)

I/O

DATA SIGNALS

(2) (3)

A15-A0 are inputs in HPI16 mode. These pins can be used to address internal memory via the host-port

(2) (3)

I/O/Z

INITIALIZATION, INTERRUPT AND RESET OPERATIONS

Interrupt acknowledge signal. IACK indicates receipt of an interrupt and that the program counter is when OFF is low. External user interrupt inputs. INT0- INT3 are maskable and are prioritized by the interrupt mask register

I (IMR) and the interrupt mode bit. INT0 - INT3 can be polled and reset by way of the interrupt flag register

(IFR). Nonmaskable interrupt. NMI is an external interrupt that cannot be masked by way of the INTM or the IMR.

When NMI is activated, the processor traps to the appropriate vector location. Reset. RS causes the digital signal processor (DSP) to terminate execution and forces the program

I counter to 0FF80h. When RS is brought to a high level, execution begins at location 0FF80h of program

memory. RS affects various registers and status bits.

DESCRIPTION

(1) I = Input, O = Output, Z = High-impedance, S = Supply (2) These pins have Schmitt trigger inputs. (3) This pin has an internal bus holder controlled by way of the BSCR register.

Introduction 13

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 2-2. Signal Descriptions (continued)

TERMINAL

NAME

MP/ MC I driven high during reset, microprocessor mode is selected, and the on-chip ROM is removed from program

(2)

BIO

XF O/Z

DS PS O/Z IS

MSTRB O/Z to data or program memory. MSTRB is placed in the high-impedance state in the hold mode; it also goes

READY I

R/ W O/Z

IOSTRB O/Z I/O device. IOSTRB is placed in the high-impedance state in the hold mode; it also goes into the

HOLD I

HOLDA O/Z the address, data, and control lines are in the high-impedance state, allowing them to be available to the

MSC O/Z inactive high at the beginning of the last software wait state. If connected to the READY input, MSC forces

IAQ O/Z

CLKOUT O/Z configured in the bank-switching control register (BSCR). Following reset, CLKOUT represents the

CLKMD1 CLKMD2 CLKMD3

X2/CLKIN

X1 O unconnected. X1 does not go into the high-impedance state when OFF is low. (This is revision depended,

TOUT O/Z

(2) (2) (2)

(2)

(1)

I/O

Microprocessor/microcomputer mode select. If active low at reset, microcomputer mode is selected, and the internal program ROM is mapped into the upper 16K words of program memory space. If the pin is

space. This pin is only sampled at reset, and the MP/ MC bit of the processor mode status (PMST) register can override the mode that is selected at reset.

MULTIPROCESSING SIGNALS

Branch control. A branch can be conditionally executed when BIO is active. If low, the processor executes

I the conditional instruction. The BIO condition is sampled during the decode phase of the pipeline for the

XC instruction, and all other instructions sample BIO during the read phase of the pipeline. External flag output (latched software-programmable signal). XF is set high by the SSBX XF instruction, set

low by RSBX XF instruction or by loading ST1. XF is used for signaling other processors in multiprocessor configurations or used as a general-purpose output pin. XF goes into the high-impedance state when OFF is low, and is set high at reset.

MEMORY CONTROL SIGNALS

Data, program, and I/O space select signals. DS, PS, and IS are always high unless driven low for communicating to a particular external space. Active period corresponds to valid address information. DS, PS, and IS are placed into the high-impedance state in the hold mode; these signals also go into the high-impedance state when OFF is low.

Memory strobe signal. MSTRB is always high unless low-level asserted to indicate an external bus access into the high-impedance state when OFF is low.

Data ready. READY indicates that an external device is prepared for a bus transaction to be completed. If the device is not ready (READY is low), the processor waits one cycle and checks READY again. Note that the processor performs ready detection if at least two software wait states are programmed. The READY signal is not sampled until the completion of the software wait states.

Read/write signal. R/ W indicates transfer direction during communication to an external device. R/ W is normally in the read mode (high), unless it is asserted low when the DSP performs a write operation. R/ W is placed in the high-impedance state in the hold mode; and it also goes into the high-impedance state when OFF is low.

I/O strobe signal. IOSTRB is always high unless low-level asserted to indicate an external bus access to an high-impedance state when OFF is low.

Hold input. HOLD is asserted to request control of the address, data, and control lines. When acknowledged by the 5409A, these lines go into the high-impedance state.

Hold acknowledge. HOLDA indicates to the external circuitry that the processor is in a hold state and that external circuitry. HOLDA also goes into the high-impedance state when OFF is low.

Microstate complete. MSC indicates completion of all software wait states. When two or more software wait states are enabled, the MSC pin goes active at the beginning of the first software wait state and goes

one external wait state after the last internal wait state is completed. MSC also goes into the high-impedance state when OFF is low.

Instruction acquisition signal. IAQ is asserted (active low) when there is an instruction address on the address bus and goes into the high-impedance state when OFF is low.

OSCILLATOR/TIMER SIGNALS

Clock output signal. CLKOUT can represent the machine-cycle rate of the CPU divided by 1, 2, 3, or 4 as machine-cycle rate divided by 4.

Clock mode select signals. CLKMD1-CLKMD3 allow the selection and configuration of different clock modes such as crystal, external clock, and PLL mode. The external CLKMD1-CLKMD3 pins are sampled

to determine the desired clock generation mode while RS is low. Following reset, the clock generation mode can be reconfigured by writing to the internal clock mode register in software.

Clock/oscillator input. If the internal oscillator is not being used, X2/CLKIN functions as the clock input.

(This is revision depended, see Section Section 3.10 for additional information.) Output pin from the internal oscillator for the crystal. If the internal oscillator is not used, X1 should be left

see Section Section 3.10 for additional information.) Timer output. TOUT signals a pulse when the on-chip timer counts down past zero. The pulse is one

CLKOUT cycle wide. TOUT also goes into the high-impedance state when OFF is low.

DESCRIPTION

14 Introduction

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 2-2. Signal Descriptions (continued)

TERMINAL

NAME

MULTICHANNEL BUFFERED SERIAL PORT 0 (McBSP #0), MULTICHANNEL BUFFERED SERIAL PORT 1 (McBSP #1),

BCLKR0 BCLKR1 BCLKR2

(2) (2) (2)

BDR0 BDR1 I Serial data receive input BDR2

BFSR0 BFSR1 I/O/Z BFSR2

BCLKX0 BCLKX1 BCLKX2

(2) (2) (2)

BDX0 BDX1 O/Z BDX2

BFSX0 Frame synchronization pulse for transmit input/output. The BFSX pulse initiates the data transmit process BFSX1 I/O/Z over BDX. BFSX can be configured as an input or an output, and is configured as an input following reset. BFSX2 BFSX goes into the high-impedance state when OFF is low.

HD0-HD7

HCNTL0 HCNTL1

HBIL

HCS HDS1

HDS2 HAS

HR/ W

(2) (3)

(4) (4)

(4)

(2) (4)

(2) (4) (2) (4)

(2) (4)

(4)

HRDY O/Z

HINT O/Z

HPIENA

HPI16

CV CV DV

(5)

SS DD SS

(1)

I/O

DESCRIPTION

AND MULTICHANNEL BUFFERED SERIAL PORT 2 (McBSP #2) SIGNALS

I/O/Z

Receive clock input. BCLKR can be configured as an input or an output; it is configured as an input following reset. BCLKR serves as the serial shift clock for the buffered serial port receiver.

Frame synchronization pulse for receive input. BFSR can be configured as an input or an output; it is configured as an input following reset. The BFSR pulse initiates the receive data process over BDR.

Transmit clock. BCLKX serves as the serial shift clock for the McBSP transmitter. BCLKX can be

I/O/Z configured as an input or an output, and is configured as an input following reset. BCLKX enters the

high-impedance state when OFF goes low. Serial data transmit output. BDX is placed in the high-impedance state when not transmitting, when RS is

asserted, or when OFF is low.

HOST-PORT INTERFACE SIGNALS

Parallel bidirectional data bus. The HPI data bus is used by a host device bus to exchange information with the HPI registers. These pins can also be used as general-purpose I/O pins. HD0-HD7 is placed in the high-impedance state when not outputting data or when OFF is low. The HPI data bus includes bus

I/O/Z holders to reduce the static power dissipation caused by floating, unused pins. When the HPI data bus is

not being driven by the 5409A, the bus holders keep the pins at the previous logic level. The HPI data bus holders are disabled at reset and can be enabled/disabled via the HBH bit of the BSCR. These pins also have Schmitt trigger inputs.

Control inputs. HCNTL0 and HCNTL1 select a host access to one of the three HPI registers. The control

I inputs have internal pullups that are only enabled when HPIENA = 0. These pins are not used when HPI16

= 1. Byte identification. HBIL identifies the first or second byte of transfer. The HPIL input has an internal pullup

resistor that is only enabled when HPIENA = 0. This pin is not used when HPI16 = 1. Chip select. HCS is the select input for the HPI and must be driven low during accesses. The chip select

input has an internal pullup resistor that is only enabled when HPIENA = 0. Data strobe. HDS1 and HDS2 are driven by the host read and write strobes to control the transfer. The

strobe inputs have internal pullup resistors that are only enabled when HPIENA = 0. Address strobe. Host with multiplexed address and data pins requires HAS to latch the address in the

HPIA register. HAS input has an internal pullup resistor that is only enabled when HPIENA = 0. Read/write. HR/ W controls the direction of the HPI transfer. HR/ W has an internal pullup resistor that is

only enabled when HPIENA = 0. Ready output. HRDY goes into the high-impedance state when OFF is low. The ready output informs the

host when the HPI is ready for the next transfer. Interrupt output. This output is used to interrupt the host. When the DSP is in reset, HINT is driven high.

HINT goes into the high-impedance state when OFF is low. This pin is not used when HPI16 = 1. HPI module select. HPIENA must be tied to DV

connected to ground, the HPI module is not selected, internal pullup for the HPI input pins are enabled,

and the HPI data bus has holders set. HPIENA is provided with an internal pulldown resistor that is always

to have HPI selected. If HPIENA is left open or

active. HPIENA is sampled when RS goes high and is ignored until RS goes low again. HPI16 mode selection. This pin must be tied to DV

pulldown resistor which is always active. If HPI16 is left open or driven low, the HPI16 mode is disabled.

to enable HPI16 mode. The pin has an internal

SUPPLY PINS

S Ground. Dedicated ground for the core CPU S +V

. Dedicated power supply for the core CPU

S Ground. Dedicated ground for I/O pins

(4) This pin has an internal pullup resistor. (5) This pin has an internal pulldown resistor.

Introduction 15

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 2-2. Signal Descriptions (continued)

TERMINAL

NAME

(2) (4)

TCK

(4)

TDI

TDO O/Z shifted out of TDO on the falling edge of TCK. TDO is in the high-impedance state except when the

(4)

TMS

(5)

TRST

(6)

EMU0

EMU1/ OFF

(6)

(1)

I/O

S +V

. Dedicated power supply for I/O pins

DESCRIPTION

TEST PINS

IEEE standard 1149.1 test clock. TCK is normally a free-running clock signal with a 50% duty cycle. The changes on test access port (TAP) of input signals TMS and TDI are clocked into the TAP controller,

instruction register, or selected test data register on the rising edge of TCK. Changes at the TAP output signal (TDO) occur on the falling edge of TCK.

IEEE standard 1149.1 test data input. Pin with internal pullup device. TDI is clocked into the selected

register (instruction or data) on a rising edge of TCK. IEEE standard 1149.1 test data output. The contents of the selected register (instruction or data) are

scanning of data is in progress. TDO also goes into the high-impedance state when OFF is low. IEEE standard 1149.1 test mode select. Pin with internal pullup device. This serial control input is clocked

into the TAP controller on the rising edge of TCK. IEEE standard 1149.1 test reset. TRST, when high, gives the IEEE standard 1149.1 scan system control of

I the operations of the device. If TRST is not connected or driven low, the device operates in its functional

mode, and the IEEE standard 1149.1 signals are ignored. Pin with internal pulldown device. Emulator 0 pin. When TRST is driven low, EMU0 must be high for activation of the OFF condition. When

I/O/Z TRST is driven high, EMU0 is used as an interrupt to or from the emulator system and is defined as

input/output by way of the IEEE standard 1149.1 scan system. Emulator 1 pin/disable all outputs. When TRST is driven high, EMU1/ OFF is used as an interrupt to or from

the emulator system and is defined as input/output by way of IEEE standard 1149.1 scan system. When TRST is driven low, EMU1/ OFF is configured as OFF. The EMU1/ OFF signal, when active low, puts all output drivers into the high-impedance state. Note that OFF is used exclusively for testing and emulation

I/O/Z

purposes (not for multiprocessing applications). Therefore, for the OFF condition, the following apply:

• TRST= low,

• EMU0 = high

• EMU1/ OFF = low

(6) This pin must be pulled up with a 4.7-k Ω resistor to ensure the device is operable in functional mode or emulation mode.

16 Introduction

www.ti.com

3 Functional Overview

GPIO

MBus

32K RAM

Dual Access

Program/Data

McBSP1

McBSP2

McBSP3

RHEA Bus

APLL

TIMER

JTAG

Clocks

RHEAbus

RHEA Bridge

TI BUS

xDMA

logic

16K Program

ROM

Pbus

Cbus

Dbus

Ebus

RHEA bus

MBus

Pbus

Cbus

Dbus

Ebus

Pbus

Enhanced XIO

P, C, D, E Buses and Control Signals

XIO

HPI

54X cLEAD

HPI

The following functional overview is based on the block diagram in Figure 3-1 .

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.1 Memory

3.1.1 Data Memory

Figure 3-1. TMS320VC5409A Functional Block Diagram

The 5409A device provides both on-chip ROM and RAM memories to aid in system performance and integration.

The data memory space addresses up to 64K of 16-bit words. The device automatically accesses the on-chip RAM when addressing within its bounds. When an address is generated outside the RAM bounds, the device automatically generates an external access.

The advantages of operating from on-chip memory are as follows:

• Higher performance because no wait states are required

• Higher performance because of better flow within the pipeline of the central arithmetic logic unit

(CALU)

• Lower cost than external memory

• Lower power than external memory

The advantage of operating from off-chip memory is the ability to access a larger address space.

Functional Overview 17

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.1.2 Program Memory

Software can configure their memory cells to reside inside or outside of the program address map. When the cells are mapped into program space, the device automatically accesses them when their addresses are within bounds. When the program-address generation (PAGEN) logic generates an address outside its bounds, the device automatically generates an external access. The advantages of operating from on-chip memory are as follows:

• Higher performance because no wait states are required

• Lower cost than external memory

• Lower power than external memory

The advantage of operating from off-chip memory is the ability to access a larger address space.

3.1.3 Extended Program Memory

The 5409A uses a paged extended memory scheme in program space to allow access of up to 8192K of program memory. In order to implement this scheme, the 5409A includes several features which are also present on C548/549/5410:

• Twenty-three address lines, instead of sixteen

• An extra memory-mapped register, the XPC

• Six extra instructions for addressing extended program space

Program memory in the 5409A is organized into 128 pages that are each 64K in length. The value of the XPC register defines the page selection. This register is memory-mapped into data space

to address 001Eh. At a hardware reset, the XPC is initialized to 0.

3.2 On-Chip ROM With Bootloader

The 5409A features a 16K-word × 16-bit on-chip maskable ROM that can only be mapped into program memory space.

Customers can arrange to have the ROM of the 5409A programmed with contents unique to any particular application.

A bootloader is available in the standard 5409A on-chip ROM. This bootloader can be used to automatically transfer user code from an external source to anywhere in the program memory at power up. If MP/ MC of the device is sampled low during a hardware reset, execution begins at location FF80h of the on-chip ROM. This location contains a branch instruction to the start of the bootloader program.

The standard 5409A devices provide different ways to download the code to accommodate various system requirements:

• Parallel from 8-bit or 16-bit-wide EPROM

• Parallel from I/O space, 8-bit or 16-bit mode

• Serial boot from serial ports, 8-bit or 16-bit mode

• Host-port interface boot

• Serial EEPROM mode

• Warm boot

18 Functional Overview

www.ti.com

The standard on-chip ROM layout is shown in Table 3-1 .

3.3 On-Chip RAM

The 5409A device contains 32K-word × 16-bit of on-chip dual-access RAM (DARAM).

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 3-1. Standard On-Chip ROM Layout

ADDRESS RANGE DESCRIPTION

C000h-D4FFh ROM tables for the GSM EFR speech codec D500h-F7FFh Reserved F800h-FBFFh Bootloader FC00h-FCFFh µ-Law expansion table FD00h-FDFFh A-Law expansion table FE00h-FEFFh Sine look-up table FF00h-FF7Fh Reserved FF80h-FFFFh Interrupt vector table

(1) In the 5409A ROM, 128 words are reserved for factory device-testing purposes. Application code to

be implemented in on-chip ROM must reserve these 128 words at addresses FF00h-FF7Fh in program space.

(1)

The DARAM is composed of four blocks of 8K words each. Each block in the DARAM can support two reads in one cycle, or a read and a write in one cycle. Four blocks of DARAM are located in the address range 0080h-7FFFh in data space, and can be mapped into program/data space by setting the OVLY bit to one.

3.4 On-Chip Memory Security

The 5409A device has a maskable option to protect the contents of on-chip memories. When the ROM protect bit is set, no externally originating instruction can access the on-chip memory spaces; HPI writes have no restriction, but HPI reads are restricted to 4000h - 5FFFh.

Functional Overview 19

www.ti.com

Reserved

(OVLY = 1)

External

(OVLY = 0)

Page 0 Program

Hex

Data

On-Chip

DARAM0-3

(OVLY = 1)

External

(OVLY = 0)

MP/MC= 0

(Microcomputer Mode)

MP/MC= 1

(Microprocessor Mode)

0000

007F

0080

FFFF

Interrupts (External)

FF80

Memory-Mapped

Registers

On-Chip

DARAM0-3

(32K x 16-bit)

0080

FFFF

FF7F

0060 007F

0000

Hex

External

Scratch-Pad

RAM

005F

On-Chip ROM

(4K x 16-bit)

Interrupts (On-Chip)

7FFF

8000

Page 0 Program

Hex

0000

007F

0080

FFFF

Reserved

(OVLY = 1)

External

(OVLY = 0)

FF80

FF7F

External

7FFF

8000

Reserved

FF00

FEFF

C000

BFFF

8000

7FFF

On-Chip DARAM0-3 (OVLY = 1)

External

(OVLY = 0)

External

Hex

010000

01FFFF

Program

Page 1 XPC=1

On-Chip

DARAM0-3

(OVLY=1)

External

(OVLY=0)

External

Hex

Program On-Chip

DARAM0-3

(OVLY=1)

External

(OVLY=0)

7F0000

7FFFFF

Page 127

XPC=7Fh

External

7F7FFF 7F8000

017FFF

018000

......

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.5 Memory Map

Figure 3-2. Program and Data Memory Map

3.5.1 Relocatable Interrupt Vector Table

Address ranges for on-chip DARAM in data memory are: DARAM0: 0080h-1FFFh; DARAM1: 2000h-3FFFh DARAM2: 4000h-5FFFh; DARAM3: 6000h-7FFFh

Figure 3-3. Extended Program Memory Map

The reset, interrupt, and trap vectors are addressed in program space. These vectors are soft — meaning that the processor, when taking the trap, loads the program counter (PC) with the trap address and executes the code at the vector location. Four words, either two 1-word instructions or one 2-word instruction, are reserved at each vector location to accommodate a delayed branch instruction which allows branching to the appropriate interrupt service routine without the overhead.

At device reset, the reset, interrupt, and trap vectors are mapped to address FF80h in program space. However, these vectors can be remapped to the beginning of any 128-word page in program space after device reset. This is done by loading the interrupt vector pointer (IPTR) bits in the PMST register with the appropriate 128-word page boundary address. After loading IPTR, any user interrupt or trap vector is mapped to the new 128-word page.

NOTE: The hardware reset ( RS) vector cannot be remapped because the hardware reset loads the IPTR with 1s. Therefore, the reset vector is always fetched at location FF80h in program space.

Functional Overview20

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

15 8

IPTR

R/W-1FF

7 6 5 4 3 2 1 0

IPTR MP/ MC OVLY AVIS Reserved SMUL SST

R/W-1FF R/W - MP/ MC R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-4. Processor Mode Status Register (PMST)

Table 3-2. Processor Mode Status Register (PMST) Field Descriptions

BIT FIELD VALUE DESCRIPTION

Interrupt vector pointer. The 9-bit IPTR field points to the 128-word program page where the interrupt

15-7 IPTR 1FFh

MP/ MC Microprocessor/microcomputer mode. MP/ MC enables/disables the on-chip ROM to be addressable in

6 MP/ MC

5 OVLY 0 The on-chip RAM is addressable in data space but not in program space.

4 AVIS not affected and the address bus is driven with the last address on the bus.

3 Reserved 2 CLKOFF 0

1 SMUL N/A performing the accumulation in a MAC of MAS instruction. The SMUL bit applies only when OVM = 1

0 SST N/A

vectors reside. The interrupt vectors can be remapped to RAM for boot-loaded operations. At reset, these bits are all set to 1; the reset vector always resides at address FF80h in program memory space. The RESET instruction does not affect this field.

pin program memory space.

0 The on-chip ROM is enabled and addressable. 1 The on-chip ROM is not available.

MP/ MC is set to the value corresponding to the logic level on the MP/ MC pin when sampled at reset. This pin is not sampled again until the next reset. The RESET instruction does not affect this bit. This bit can also be set or cleared by software.

RAM overlay. OVLY enables on-chip dual-access data RAM blocks to be mapped into program space. The values for the OVLY bit are:

The on-chip RAM is mapped into program space and data space. Data page 0 (addresses 0h to 7Fh),

however, is not mapped into program space. Address visibility mode. AVIS enables/disables the internal program address to be visible at the

address pins. The external address lines do not change with the internal program address. Control and data lines are

This mode allows the internal program address to appear at the pins of the 5409A so that the internal

1 program address can be traced. Also, it allows the interrupt vector to be decoded in conjunction with

IACK when the interrupt vectors reside on on-chip memory.

CLOCKOUT off. When the CLKOFF bit is 1, the output of CLKOUT is disabled and remains at a high level.

Saturation on multiplication. When SMUL = 1, saturation of a multiplication result occurs before and FRCT = 1.

Saturation on store. When SST = 1, saturation of the data from the accumulator is enabled before storing in memory. The saturation is performed after the shift operation.

CLK OFF

Functional Overview 21

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.6 On-Chip Peripherals

The 5409A device has the following peripherals:

• Software-programmable wait-state generator

• Programmable bank-switching

• A host-port interface (HPI8/16)

• Three multichannel buffered serial ports (McBSPs)

• A hardware timer

• A clock generator with a multiple phase-locked loop (PLL)

• Enhanced external parallel interface (XIO2)

• A DMA controller (DMA)

3.6.1 Software-Programmable Wait-State Generator

The software wait-state generator of the 5409A can extend external bus cycles by up to fourteen machine cycles. Devices that require more than fourteen wait states can be interfaced using the hardware READY line. When all external accesses are configured for zero wait states, the internal clocks to the wait-state generator are automatically disabled. Disabling the wait-state generator clocks reduces the power consumption of the 5409A.

The software wait-state register (SWWSR) controls the operation of the wait-state generator. The 14 LSBs of the SWWSR specify the number of wait states (0 to 7) to be inserted for external memory accesses to five separate address ranges. This allows a different number of wait states for each of the five address ranges. Additionally, the software wait-state multiplier (SWSM) bit of the software wait-state control register (SWCR) defines a multiplication factor of 1 or 2 for the number of wait states. At reset, the wait-state generator is initialized to provide seven wait states on all external memory accesses. The SWWSR bit fields are shown in Figure 3-5 and described in Table 3-3 .

15 14 12 11 9 8

XPA I/O Data Data

R/W-0 R/W-111 R/W-111 R/W-111

7 6 5 3 2 0

Data Program Program

R/W-111 R/W-111 R/W-111

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-5. Software Wait-State Register (SWWSR) [Memory-Mapped Register (MMR) Address

0028h]

Table 3-3. Software Wait-State Register (SWWSR) Field Descriptions

BIT FIELD VALUE DESCRIPTION

15 XPA 0

14-12 I/O 111 within addresses 0000-FFFFh. The SWSM bit of the SWCR defines a multiplication factor of 1 or 2 for

11-9 Data 111 data space accesses within addresses 8000-FFFFh. The SWSM bit of the SWCR defines a

Extended program address control bit. XPA is used in conjunction with the program space fields (bits 0 through 5) to select the address range for program space wait states.

I/O space. The field value (0-7) corresponds to the base number of wait states for I/O space accesses the base number of wait states.

Upper data space. The field value (0-7) corresponds to the base number of wait states for external multiplication factor of 1 or 2 for the base number of wait states.

22 Functional Overview

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 3-3. Software Wait-State Register (SWWSR) Field Descriptions (continued)

BIT FIELD VALUE DESCRIPTION

8-6 Data 111 data space accesses within addresses 0000-7FFFh. The SWSM bit of the SWCR defines a

5-3 Program 111

2-0 Program 111

The software wait-state multiplier bit of the software wait-state control register (SWCR) is used to extend the base number of wait states selected by the SWWSR. The SWCR bit fields are shown in Figure 3-6 and described in Table 3-4 .

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

LEGEND: R = Read, W = Write, n = value at reset

Lower data space. The field value (0-7) corresponds to the base number of wait states for external multiplication factor of 1 or 2 for the base number of wait states.

Upper program space. The field value (0-7) corresponds to the base number of wait states for external program space accesses within the following addresses:XPA = 0: xx8000 - xxFFFFhXPA = 1: 400000h

- 7FFFFFhThe SWSM bit of the SWCR defines a multiplication factor of 1 or 2 for the base number of wait states.

Program space. The field value (0-7) corresponds to the base number of wait states for external program space accesses within the following addresses:XPA = 0: xx0000 - xx7FFFhXPA = 1: 000000 3FFFFFhThe SWSM bit of the SWCR defines a multiplication factor of 1 or 2 for the base number of wait states.

Reserved

Reserved SWSM

R/W-0

Figure 3-6. Software Wait-State Control Register (SWCR) [MMR Address 002Bh]

Table 3-4. Software Wait-State Control Register (SWCR) Field Descriptions

BIT FIELD VALUE DESCRIPTION

15-1 Reserved These bits are reserved and are unaffected by writes.

Software wait-state multiplier. Used to multiply the number of wait states defined in the SWWSR by a

0 SWSM

factor of 1 or 2. 0 Wait-state base values are unchanged (multiplied by 1). 1 Wait-state base values are multiplied by 2 for a maximum of 14 wait states.

3.6.2 Programmable Bank-Switching

Programmable bank-switching logic allows the 5409A to switch between external memory banks without requiring external wait states for memories that need additional time to turn off. The bank-switching logic automatically inserts one cycle when accesses cross a 32K-word memory-bank boundary inside program or data space.

Bank-switching is defined by the bank-switching control register (BSCR), which is memory-mapped at address 0029h. The bit fields of the BSCR are shown in Figure 3-7 and are described in Table 3-5 .

15 14 13 12 11 8

CONSEC DIVFCT IACK OFF Reserved

R/W-1 R/W-11 R/W-1 R

7 3 2 1 0

Functional Overview 23

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Reserved HBH BH Reserved

R R/W-0 R/W-0 R

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-7. Bank-Switching Control Register (BSCR) [MMR Address 0029h]

Table 3-5. Bank-Switching Control Register (BSCR) Field Descriptions

BIT FIELD VALUE DESCRIPTION

Consecutive bank-switching .Specifies the bank-switching mode. Bank-switching on 32K bank boundaries only. This bit is cleared if fast access is desired for continuous

15 CONSEC

13-14 DIVFCT

12 IACKOFF 0 The IACK signal output off function is disabled.

11-3 Reserved Reserved

2 HBH

1 BH 0 The bus holder is disabled.

0 Reserved Reserved

(1)

memory reads (i.e., no starting and trailing cycles between read cycles). Consecutive bank switches on external memory reads. Each read cycle consists of 3 cycles: starting

cycle, read cycle, and trailing cycle. CLKOUT output divide factor . The CLKOUT output is driven by an on-chip source having a frequency

equal to 1/(DIVFCT+1) of the DSP clock. 00 CLKOUT is not divided. 01 CLKOUT is divided by 2 from the DSP clock. 10 CLKOUT is divided by 3 from the DSP clock. 11 CLKOUT is divided by 4 from the DSP clock (default value following reset).

IACK signal output off . Controls the output of the IACK signal. IACKOFF is set to 1 at reset.

1 The IACK signal output off function is enabled.

HPI bus holder. Controls the HPI bus holder. HBH is cleared to 0 at reset.

0 The bus holder is disabled except when HPI16=1.

The bus holder is enabled. When not driven, the HPI data bus, HD[7:0] is held in the previous logic

level.

Bus holder. Controls the bus holder. BH is cleared to 0 at reset.

1 The bus holder is enabled. When not driven, the data bus, D[15:0] is held in the previous logic level.

(1) For additional information, see Section Section 3.11 of this document.

The 5409A has an internal register that holds the MSB of the last address used for a read or write operation in program or data space. In the non-consecutive bank switches ( CONSEC = 0), if the MSB of the address used for the current read does not match that contained in this internal register, the MSTRB (memory strobe) signal is not asserted for one CLKOUT cycle. During this extra cycle, the address bus switches to the new address. The contents of the internal register are replaced with the MSB for the read of the current address. If the MSB of the address used for the current read matches the bits in the register, a normal read cycle occurs.

In non-consecutive bank switches ( CONSEC = 0), if repeated reads are performed from the same memory bank, no extra cycles are inserted. When a read is performed from a different memory bank, memory conflicts are avoided by inserting an extra cycle. For more information, see Section Section 3.11 of this document.

The bank-switching mechanism automatically inserts one extra cycle in the following cases:

• A memory read followed by another memory read from a different memory bank.

• A program-memory read followed by a data-memory read.

• A data-memory read followed by a program-memory read.

• A program-memory read followed by another program-memory read from a different page.

Functional Overview24

www.ti.com

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.6.3 Bus Holders

The 5409A has two bus holder control bits, BH (BSCR[1]) and HBH (BSCR[2]), to control the bus keepers of the address bus (A[15-0]), data bus (D[15-0]), and the HPI data bus (HD[7-0]). Bus keeper enabling/disabling is described in Table 3-5 .

Table 3-6. Bus Holder Control Bits

HPI16 PIN BH HBH D[15-0] A[15-0] HD[7-0]

0 0 0 OFF OFF OFF 0 0 1 OFF OFF ON 0 1 0 ON OFF OFF 0 1 1 ON OFF ON 1 0 0 OFF OFF ON 1 0 1 OFF ON ON 1 1 0 ON OFF ON 1 1 1 ON ON ON

TMS320VC5409A

3.7 Parallel I/O Ports

The 5409A has a total of 64K I/O ports. These ports can be addressed by the PORTR instruction or the PORTW instruction. The IS signal indicates a read/write operation through an I/O port. The 5409A can interface easily with external devices through the I/O ports while requiring minimal off-chip address-decoding circuits.

3.7.1 Enhanced 8-/16-Bit Host-Port Interface (HPI8/16)

The 5409A host-port interface, also referred to as the HPI8/16, is an enhanced version of the standard 8-bit HPI found on earlier TMS320C54x™ DSPs (542, 545, 548, and 549). The 5409A HPI can be used to interface to an 8-bit or 16-bit host. When the address and data buses for external I/O is not used (to interface to external devices in program/data/IO spaces), the 5409A HPI can be configured as an HPI16 to interface to a 16-bit host. This configuration can be accomplished by connecting the HPI16 pin to logic "1".

When the HPI16 pin is connected to a logic "0", the 5409A HPI is configured as an HPI8. The HPI8 is an 8-bit parallel port for interprocessor communication. The features of the HPI8 include:

Standard features:

• Sequential transfers (with autoincrement) or random-access transfers

• Host interrupt and C54x™ interrupt capability

• Multiple data strobes and control pins for interface flexibility

The HPI8 interface consists of an 8-bit bidirectional data bus and various control signals. Sixteen-bit transfers are accomplished in two parts with the HBIL input designating high or low byte. The host communicates with the HPI8 through three dedicated registers — the HPI address register (HPIA), the HPI data register (HPID), and the HPI control register (HPIC). The HPIA and HPID registers are only accessible by the host, and the HPIC register is accessible by both the host and the 5409A.

Enhanced features:

• Access to entire on-chip RAM through DMA bus

• Capability to continue transferring during emulation stop

Functional Overview 25

www.ti.com

HPID[15:0]

HAS

HDS1, HDS2, HCS

DMA

Internal

Memory

PPD[15:0]

DATA[15:0]

Address[15:0]

R/W

Data Strobes

READY

HPI16

HRDY

54xx CPU

HCNTL0 HCNTL1

HR/W

HINT

HBIL

HOST

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

The HPI16 is an enhanced 16-bit version of the TMS320C54x™ DSP 8-bit host-port interface (HPI8). The HPI16 is designed to allow a 16-bit host to access the DSP on-chip memory, with the host acting as the master of the interface. Some of the features of the HPI16 include:

• 16-bit bidirectional data bus

• Multiple data strobes and control signals to allow glueless interfacing to a variety of hosts

• Only nonmultiplexed address/data modes are supported

• 16-bit address bus used in nonmultiplexed mode to allow access to all internal memory (including

internal extended address pages)

• HRDY signal to hold off host accesses due to DMA latency

• The HPI16 acts as a slave to a 16-bit host processor and allows access to the on-chip memory of the

DSP.

Only the nonmultiplexed mode is supported when the 5409A HPI is configured as a HPI16 (see Figure 3-8 ).

The 5409A HPI functions as a slave and enables the host processor to access the on-chip memory. A major enhancement to the 5409A HPI over previous versions is that it allows host access to the entire on-chip memory range of the DSP. The host and the DSP both have access to the on-chip RAM at all times and host accesses are always synchronized to the DSP clock. If the host and the DSP contend for access to the same location, the host has priority, and the DSP waits for one cycle. Note that since host accesses are always synchronized to the 5409A clock, an active input clock (CLKIN) is required for HPI accesses during IDLE states, and host accesses are not allowed while the 5409A reset pin is asserted.

NOTE

3.7.2 HPI Nonmultiplexed Mode

26 Functional Overview

In nonmultiplexed mode, a host with separate address/data buses can access the HPI16 data register (HPID) via the HD 16-bit bidirectional data bus, and the address register (HPIA) via the 16-bit HA address bus. The host initiates the access with the strobe signals ( HDS1, HDS2, HCS) and controls the direction of the access with the HR/ W signal. The HPI16 can stall host accesses via the HRDY signal. Note that the HPIC register is not available in nonmultiplexed mode since there are no HCNTL signals available. All host accesses initiate a DMA read or write access. Figure 3-8 shows a block diagram of the HPI16 in nonmultiplexed mode.

Figure 3-8. Host-Port Interface — Nonmultiplexed Mode

www.ti.com

Address (Hex)

Reserved

Scratch-Pad

RAM

DARAM0 -

DARAM3

000 7FFF

000 8000

000 007F 000 0080

000 005F 000 0060

000 0000

Reserved

07F FFFF

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.8 Multichannel Buffered Serial Ports (McBSPs)

The 5409A device provides high-speed, full-duplex serial ports that allow direct interface to other C54x/LC54x devices, codecs, and other devices in a system. There are three multichannel buffered serial ports (McBSPs) on-chip.

The McBSP provides:

• Full-duplex communication

• Double-buffer data registers, which allow a continuous data stream

• Independent framing and clocking for receive and transmit

In addition, the McBSP has the following capabilities:

• Direct interface to: – T1/E1 framers – MVIP switching-compatible and ST-BUS compliant devices – IOM-2 compliant device – AC97-compliant device – Serial peripheral interface (SPI)

• Multichannel transmit and receive of up to 128 channels

• A wide selection of data sizes, including: 8, 12, 16, 20, 24, or 32 bits

• µ-law and A-law companding

• Programmable polarity for both frame synchronization and data clocks

• Programmable internal clock and frame generation

Figure 3-9. HPI Memory Map

Functional Overview 27

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

The 5409A McBSPs have been enhanced to provide more flexibility in the choice of the sample rate generator input clock source. On previous TMS320C5000™ DSP platform devices, the McBSP sample rate input clock can be driven from one of two possible choices: the internal CPU clock, or the external CLKS pin. However, most C5000™ DSP devices have only the internal CPU clock as a possible source because the CLKS pin is not implemented on most device packages.

To accommodate applications that require an external reference clock for the sample rate generator, the 5409A McBSPs allow either the receive clock pin (BCLKR) or the transmit clock pin (BCLKX) to be configured as the input clock to the sample rate generator. This enhancement is enabled through two register bits: pin control register (PCR) bit 7 - enhanced sample clock mode (SCLKME), and sample rate generator register 2 (SRGR2) bit 13 - McBSP sample rate generator clock mode (CLKSM). SCLKME is an addition to the PCR contained in the McBSPs on previous C5000 devices. The new bit layout of the PCR is shown in Figure 3-10 . For a description of the remaining bits, see TMS320C54x DSP Reference Set, Volume 5: Enhanced Peripherals (literature number SPRU302).

15 14 13 12 11 10 9 8

Reserved XIOEN RIOEN FSXM FSRM CLKXM CLKRM

R,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0

7 6 5 4 3 2 1 0

SCLKME CLKS_STAT DX_STAT DR_STAT FSXP FSRP CLKXP CLKRP

RW,+0 R,+0 R,+0 R,+0 RW,+0 RW,+0 RW,+0 RW,+0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-10. Pin Control Register (PCR)

The selection of the sample rate generator (SRG) clock input source is made by the combination of the CLKSM and SCLKME bit values as shown in Table 3-7 .

Table 3-7. Sample Rate Generator Clock Source Selection

SCLKME CLKSM SRG CLOCK SOURCE

0 0 CLKS (not available as a pin on 5409A) 0 1 CPU clock 1 0 BCLKR pin 1 1 BCLKX pin

When either of the bidirectional pins, BCLKR or BCLKX, is configured as the clock input, its output buffer is automatically disabled. For example, with SCLKME = 1 and CLKSM = 0, the BCLKR pin is configured as the SRG input. In this case, both the transmitter and receiver circuits can be synchronized to the SRG output by setting the PCR bits (9:8) for CLKXM = 1 and CLKRM = 1. However, the SRG output is only driven onto the BCLKX pin because the BCLKR output is automatically disabled.

The McBSP supports independent selection of multiple channels for the transmitter and receiver. When multiple channels are selected, each frame represents a time-division multiplexed (TDM) data stream. In using time-division multiplexed data streams, the CPU may only need to process a few of them. Thus, to save memory and bus bandwidth, multichannel selection allows independent enabling of particular channels for transmission and reception. Up to a maximum of 128 channels in a bit stream can be enabled or disabled.

The 5409A McBSPs have two working modes that are selected by setting the RMCME and XMCME bits in the multichannel control registers (MCR1x and MCR2x, respectively). See Figure 3-11 and Figure 3-12 . For a description of the remaining bits, see TMS320C54x DSP Reference Set, Volume 5: Enhanced Peripherals (literature number SPRU302).

28 Functional Overview

www.ti.com

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

• In the first mode, when RMCME = 0 and XMCME = 0, there are two partitions (A and B), with each containing 16 channels as shown in Figure 3-11 and Figure 3-12 . This is compatible with the McBSPs used in some earlier TMS320C54x devices, where only 32-channel selection is enabled (default).

15 14 13 12 11 10 9 8

Reserved XMCME XPBBLK

R,+0 RW,+0 RW,+0

7 6 5 4 2 1 0

XPBBLK XPABLK XCBLK XMCM

RW,+0 RW,+0 R,+0 RW,+0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-11. Multichannel Control Register 2x (MCR2x)

15 14 13 12 11 10 9 8

Reserved RMCME RPBBLK

R,+0 RW,+0 RW,+0

7 6 5 4 2 1 0

RPBBLK RPABLK RCBLK RMCM

RW,+0 RW,+0 R,+0 RW,+0

LEGEND: R = Read, W = Write, n = value at reset

TMS320VC5409A

Figure 3-12. Multichannel Control Register 1x (MCR1x)

• In the second mode, with RMCME = 1 and XMCME = 1, the McBSPs have 128 channel selection capability. Twelve new registers (RCERCx-RCERHx and XCERCx-XCERHx) are used to enable the 128 channel selection. The subaddresses of the new registers are shown in Table 3-19 . These new registers, functionally equivalent to the RCERA0-RCERB1 and XCERA0-XCERB1 registers in the 5420, are used to enable/disable the transmit and receive of additional channel partitions (C,D,E,F,G, and H) in the128 channel stream. For example, XCERH1 is the transmit enable for channel partition H (channels 112 to 127) of MCBSP1 for each DSP subsystem. See Figure 3-13 , Table 3-8 , Figure 3-14 , and Table 3-9 for bit layout and function of the receive and transmit registers .

15 14 13 12 11 10 9 8

RCERyz15 RCERyz14 RCERyz13 RCERyz12 RCERyz11 RCERyz10 RCERyz9 RCERyz8

RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0

7 6 5 4 3 2 1 0

RCERyz7 RCERyz6 RCERyz5 RCERy4 RCERyz3 RCERyz2 RCERyz1 RCERyz0

RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-13. Receive Channel Enable Registers Bit Layout for Partitions A to H

Functional Overview 29

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 3-8. Receive Channel Enable Registers for Partitions A to H Field Descriptions

BIT FIELD VALUE DESCRIPTION

Receive Channel Enable Register

15-0 RCERyz(15:0) 0 Disables reception of nth channel in partition y.

1 Enables reception of nth channel in partition y.

15 14 13 12 11 10 9 8

XCERyz15 XCERyz14 XCERyz13 XCERyz12 XCERyz11 XCERyz10 XCERyz9 XCERyz8

RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0

7 6 5 4 3 2 1 0

XCERyz7 XCERyz6 XCERyz5 XCERy4 XCERyz3 XCERyz2 XCERyz1 XCERyz0

RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0 RW,+0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-14. Transmit Channel Enable Registers Bit Layout for Partitions A to H

Table 3-9. Transmit Channel Enable Registers for Partitions A to H Field Descriptions

Bit FIELD VALUE DESCRIPTION

Transmit Channel Enable Register

15-0 XCERyz(15:0) 0 Disables transmit of nth channel in partition y.

1 Enables transmit of nth channel in partition y.

The clock stop mode (CLKSTP) in the McBSP provides compatibility with the serial port interface (SPI) protocol. Clock stop mode works with only single-phase frames and one word per frame. The word sizes supported by the McBSP are programmable for 8-, 12-, 16-, 20-, 24-, or 32-bit operation. When the McBSP is configured to operate in SPI mode, both the transmitter and the receiver operate together as a master or as a slave.

The McBSP is fully static and operates at arbitrarily low clock frequencies. The maximum McBSP multichannel operating frequency on the 5409A is 9 MBps. Nonmultichannel operation is limited to 38 MBps.

3.9 Hardware Timer

The 5409A device features a 16-bit timing circuit with a 4-bit prescaler. The timer counter is decremented by one every CLKOUT cycle. Each time the counter decrements to 0, a timer interrupt is generated. The timer can be stopped, restarted, reset, or disabled by specific status bits.

3.10 Clock Generator

The clock generator provides clocks to the 5409A device, and consists of a phase-locked loop (PLL) circuit. The clock generator requires a reference clock input, which can be provided from an external clock source. The reference clock input is then divided by two (DIV mode) to generate clocks for the 5409A device, or the PLL circuit can be used (PLL mode) to generate the device clock by multiplying the reference clock frequency by a scale factor, allowing use of a clock source with a lower frequency than that of the CPU. The PLL is an adaptive circuit that, once synchronized, locks onto and tracks an input clock signal.

30 Functional Overview

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

When the PLL is initially started, it enters a transitional mode during which the PLL acquires lock with the input signal. Once the PLL is locked, it continues to track and maintain synchronization with the input signal. Then, other internal clock circuitry allows the synthesis of new clock frequencies for use as master clock for the 5409A device.

This clock generator allows system designers to select the clock source. The sources that drive the clock generator are:

• A crystal resonator circuit. The crystal resonator circuit is connected across the X1 and X2/CLKIN pins of the 5409A to enable the internal oscillator.

• An external clock. The external clock source is directly connected to the X2/CLKIN pin, and X1 is left unconnected.

NOTE

The crystal oscillator function is not supported by all die revisions of the 5409A device. See the TMS320VC5409A Silicon Errata (literature number SPRZ186) to verify which die revisions support this functionality.

The software-programmable PLL features a high level of flexibility, and includes a clock scaler that provides various clock multiplier ratios, capability to directly enable and disable the PLL, and a PLL lock timer that can be used to delay switching to PLL clocking mode of the device until lock is achieved. Devices that have a built-in software-programmable PLL can be configured in one of two clock modes:

• PLL mode. The input clock (X2/CLKIN) is multiplied by 1 of 31 possible ratios.

• DIV (divider) mode. The input clock is divided by 2 or 4. Note that when DIV mode is used, the PLL

can be completely disabled in order to minimize power dissipation.

The software-programmable PLL is controlled using the 16-bit memory-mapped (address 0058h) clock mode register (CLKMD). The CLKMD register is used to define the clock configuration of the PLL clock module. Note that upon reset, the CLKMD register is initialized with a predetermined value dependent only upon the state of the CLKMD1 - CLKMD3 pins. For more programming information, see the TMS320C54x DSP Reference Set, Volume 1: CPU and Peripherals (literature number SPRU131). The CLKMD pin configured clock options are shown in Table 3-10 .

Table 3-10. Clock Mode Settings at Reset

CLKMD1 CLKMD2 CLKMD3 CLKMD RESET VALUE CLOCK MODE

0 0 0 0000h 1/2 (PLL and Oscillator disabled) 0 0 1 9007h PLL x 10 (Oscillator enabled) 0 1 0 4007h PLL x 5 (Oscillator enabled) 1 0 0 1007h PLL x 2(Oscillator enabled) 1 1 0 F007h PLL x 1 (Oscillator enabled) 1 1 1 0000h 1/2 (PLL disabled, Oscillator enabled) 1 0 1 F000h 1/4 (PLL disabled, Oscillator enabled) 0 1 1 — Reserved (Bypass mode)

(1) The external CLKMD1-CLKMD3 pins are sampled to determine the desired clock generation mode while RS is low. Following reset, the

clock generation mode can be reconfigured by writing to the internal clock mode register in software. However, the oscillator enable/disable selection is performed independently of the state of RS; therefore, if CLKMD1-CLKMD3 are changed following reset, the oscillator enable/disable selection may change, but other aspects of the clock generation mode will not.

(1)

Functional Overview 31

www.ti.com

READ

A[22:0]

D[15:0]

CLKOUT

R/W

MSTRB or IOSTRB

PS/DS/IS

Leading

Cycle

Read

Cycle

Trailing

Cycle

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.11 Enhanced External Parallel Interface (XIO2)

The 5409A external interface has been redesigned to include several improvements, including: simplification of the bus sequence, more immunity to bus contention when transitioning between read and write operations, the ability for external memory access to the DMA controller, and optimization of the power-down modes.

The bus sequence on the 5409A still maintains all of the same interface signals as on previous 54x devices, but the signal sequence has been simplified. Most external accesses now require 3 cycles composed of a leading cycle, an active (read or write) cycle, and a trailing cycle. The leading and trailing cycles provide additional immunity against bus contention when switching between read operations and write operations. To maintain high-speed read access, a consecutive read mode that performs single-cycle reads as on previous 54x devices is available.

Figure 3-15 shows the bus sequence for three cases: all I/O reads, memory reads in nonconsecutive mode, or single memory reads in consecutive mode. The accesses shown in Figure 3-15 always require 3 CLKOUT cycles to complete.

32 Functional Overview

Figure 3-15. Nonconsecutive Memory Read and I/O Read Bus Sequence

www.ti.com

READ

CLKOUT

READ

A[22:0]

D[15:0]

R/W

MSTRB

PS/DS

READ

Read

Cycle

Trailing

Cycle

Read

Cycle

Leading

Cycle

Read

Cycle

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 3-16 shows the bus sequence for repeated memory reads in consecutive mode. The accesses shown in Figure 3-16 require (2+n) CLKOUT cycles to complete, where n is the number of consecutive reads performed.

TMS320VC5409A

Figure 3-16. Consecutive Memory Read Bus Sequence (n = 3 reads)

Functional Overview 33

www.ti.com

WRITE

CLKOUT

A[22:0]

D[15:0]

R/W

PS/DS/IS

Leading

Cycle

Write

Cycle

MSTRB or IOSTRB

Trailing

Cycle

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 3-17 shows the bus sequence for all memory writes and I/O writes. The accesses shown in Figure 3-17 always require 3 CLKOUT cycles to complete.

Figure 3-17. Memory Write and I/O Write Bus Sequence

The enhanced interface also provides the ability for DMA transfers to extend to external memory. For more information on DMA capability, see the DMA sections that follow.

The enhanced interface improves the low-power performance already present on the TMS320C5000™ DSP platform by switching off the internal clocks to the interface when it is not being used. This power-saving feature is automatic, requires no software setup, and causes no latency in the operation of the interface.

Additional features integrated in the enhanced interface are the ability to automatically insert bank-switching cycles when crossing 32K memory boundaries (see Section Section 3.6.2 ), the ability to program up to 14 wait states through software (see Section Section 3.6.1 ), and the ability to divide down CLKOUT by a factor of 1, 2, 3, or 4. Dividing down CLKOUT provides an alternative to wait states when interfacing to slower external memory or peripheral devices. While inserting wait states extends the bus sequence during read or write accesses, it does not slow down the bus signal sequences at the beginning and the end of the access. Dividing down CLKOUT provides a method of slowing the entire bus sequence when necessary. The CLKOUT divide-down factor is controlled through the DIVFCT field in the bank-switching control register (BSCR) (see Table 3-5 ).

34 Functional Overview

www.ti.com

3.12 DMA Controller

3.12.1 Features

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

The 5409A direct memory access (DMA) controller transfers data between points in the memory map without intervention by the CPU. The DMA allows movements of data to and from internal program/data memory, internal peripherals (such as the McBSPs), or external memory devices to occur in the background of CPU operation. The DMA has six independent programmable channels, allowing six different contexts for DMA operation.

The DMA has the following features:

• The DMA operates independently of the CPU.

• The DMA has six channels. The DMA can keep track of the contexts of six independent block

transfers.

• The DMA has higher priority than the CPU for both internal and external accesses.

• Each channel has independently programmable priorities.

• Each channel's source and destination address registers can have configurable indexes through

memory on each read and write transfer, respectively. The address may remain constant, be post-incremented, be post-decremented, or be adjusted by a programmable value.

• Each read or write internal transfer may be initialized by selected events.

• On completion of a half- or entire-block transfer, each DMA channel may send an interrupt to the CPU.

• The DMA can perform double-word internal transfers (a 32-bit transfer of two 16-bit words).

3.12.2 DMA External Access

The 5409A DMA supports external accesses to extended program, extended data, and extended I/O memory. These overlay pages are only visible to the DMA controller. A maximum of two DMA channels can be used for external memory accesses. The DMA external accesses require a minimum of 8 cycles for external writes and a minimum of 9 cycles for external reads assuming the XIO02 is in consecutive mode ( CONSEC = 1), wait state is set to two, and CLKOUT is not divided (DIVFCT = 00).

The control of the bus is arbitrated between the CPU and the DMA. While the DMA or CPU is in control of the external bus, the other will be held-off via wait states until the current transfer is complete. The DMA takes precedence over XIO requests.

• Only two channels are available for external accesses. (One for external reads and one for external writes.)

• Single-word (16-bit) transfers are supported for external accesses.

• The DMA does not support transfers from the peripherals to external memory.

• The DMA does not support transfers from external memory to the peripherals.

• The DMA does not support external-to-external transfers.

• The DMA does not support synchronized external transfers.

To allow the DMA access to extended data pages, the SLAXS and DLAXS bits are added to the DMMCRn register (see Figure 3-18 ).

15 14 13 12 11 10 8

AUTOINIT DINM IMOD CT SLAXS SIND

MOD

7 6 5 4 3 2 1 0

DMS DLAXS DIND DMD

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-18. DMA Transfer Mode Control Register (DMMCRn)

Functional Overview 35

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

These new bit fields were created to allow the user to define the space-select for the DMA (internal/external). The functions of the DLAXS and SLAXS bits are as follows:

DLAXS(DMMCRn[5]) Destination 0 = No external access (default internal)

SLAXS(DMMCRn[11]) Source 0 = No external access (default internal)

Table 3-11 lists the DMD bit values and their corresponding destination space.

For the CPU external access, software can configure the memory cells to reside inside or outside the program address map. When the cells are mapped into program space, the device automatically accesses them when their addresses are within bounds. When the address generation logic generates an address outside its bounds, the device automatically generates an external access.

1 = External access

Table 3-11. DMD Section of the DMMCRn Register

DMD DESTINATION SPACE

00 PS 01 DS 10 I/O 11 Reserved

3.12.3 DMPREC Issue

When updating the DE bits of the DMPREC register while one or more DMA channel transfers are in progress, it is possible for the write to the DMPREC to cause an additional transfer on one of the active channels.

The problem occurs when an active channel completes a transfer at the same time that the user updates the DMPREC register. When the transfer completes, the DMA logic attempts to clear the DE bit corresponding to the complete channel transfer, but the register is instead updated with the CPU write (usually an ORM instruction) which can set the bit and cause an additional transfer on the channel. See the TMS320VC5409A Digital Signal Processor Silicon Errata (literature number SPRZ186) for further clarification.

A hardware workaround has been implemented in revision A of the 5409A device. This solution consists of an additional memory mapped register, DMCECTL (DMA Channel Enable Control), at address 0x003E, with the following characteristics:

36 Functional Overview

www.ti.com

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

15 14 13 12 11 10 9 8

Set/Reset Reserved

W-0 W-0

7 6 5 4 3 2 1 0

Reserved CH5 CH4 CH3 CH2 CH1 CH0

W-0 W-0 W-0 W-0 W-0 W-0 W-0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-19. DMA Channel Enable Control Register (DMCECTL)

Table 3-12. DMA Channel Enable Control Register (DMCECTL) Field Description

BIT FIELD VALUE DESCRIPTION

Sets or clears individual DE bits of the DMPREC register according to the values of CH0-CH5.

15 Set/Reset 0 Clears the DE bits of the DMPREC register as specified by CH0-CH5.

1 Sets the DE bits of the DMPREC register as specified by CH0-CH5.

14-6 Reserved Reserved

These bits are used in conjunction with the set/reset bit to write to the individual DE bits of the

5-0 CH0-CH5

DMPREC register. 0 Corresponding DE bit in the DMPREC register is unaffected by the Set/Reset bit. 1 Corresponding bit in the DMPREC register is set or cleared depending on the state of Set/Reset.

TMS320VC5409A

Use this register to enable or disable DMA channels instead of writing to the DMPREC register. For example, to enable channels zero and five, write a value of 0x8021 to address 0x03E. In this case only DE0 and DE5 of the DMPREC are set to 1. Or for another example, to disable channel one, write a value of 0x02 to address 0x03E. In this case only DE1 is cleared. Note that this is a write-only register

Functional Overview 37

www.ti.com

Program

Hex

SLAXS = 0

DLAXS = 0

0000

005F

0060

3FFF

4000

FFFF

7FFF

8000

On-Chip

DARAM3

8K Words

Page 0

5FFF

6000

On-Chip

DARAM2

8K Words

On-Chip

DARAM1

8K Words

On-Chip

DARAM0

8K Words

1FFF

2000

Hex

xx0000

xxFFFF

Page 1 - 127

Program

Reserved

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.12.4 DMA Memory Map

The DMA memory map, shown in Figure 3-20 , allows the DMA transfer to be unaffected by the status of the MP/ MC, DROM, and OVLY bits.

Figure 3-20. On-Chip DMA Memory Map for Program Space (DLAXS = 0 and SLAXS = 0)

38 Functional Overview

www.ti.com

Hex

0000

0030 0031

003F

Reserved

7FFF

8000

0000

FFFF

0032 0033

Hex

0000

FFFF

Reserved

DRR22 DRR12 DXR22 DXR12

RCERA2 XCERA2

RECRA0 XECRA0

0034 0035

0036 0037

0038

0039 003A 003B 003C

0040

0041

0042

0043

DRR21 DRR11

DXR21

DXR11

RCERA1 XCERA1

0044

0049 004A

004B 004C

0020

0021

005F

0022

0023

DRR20

DRR10

DXR20 DXR10

0024

002F

001F

005F

0060

0080

On-Chip

DARAM3

8K Words

1FFF

2000

3FFF

4000

5FFF

6000

Scratch-Pad

RAM

007F

On-Chip

DARAM2

8K Words

On-Chip

DARAM1

8K Words

On-Chip

DARAM0

8K Words

Data Space

(See Breakout)

I/O SpaceData Space

Data Space (0000 - 005F)

Reserved

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.12.5 DMA Priority Level

3.12.6 DMA Source/Destination Address Modification

Figure 3-21. On-Chip DMA Memory Map for Data and IO Space (DLAXS = 0 and SLAXS = 0)

Each DMA channel can be independently assigned high- or low-priority relative to each other. Multiple DMA channels that are assigned to the same priority level are handled in a round-robin manner.

The DMA provides flexible address-indexing modes for easy implementation of data management schemes such as autobuffering and circular buffers. Source and destination addresses can be indexed separately and can be post-incremented, post-decremented, or post-incremented with a specified index offset.

Functional Overview 39

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.12.7 DMA in Autoinitialization Mode

The DMA can automatically reinitialize itself after completion of a block transfer. Some of the DMA registers can be preloaded for the next block transfer through the DMA reload registers (DMGSA, DMGDA, DMGCR, and DMGFR). Autoinitialization allows:

• Continuous operation:Normally, the CPU would have to reinitialize the DMA immediately after the completion of the current block transfers, but with the reload registers, it can reinitialize these values for the next block transfer any time after the current block transfer begins.

• Repetitive operation:The CPU does not preload the reload register with new values for each block transfer but only loads them on the first block transfer.

The 5409A DMA has been enhanced to expand the DMA reload register sets. Each DMA channel now has its own DMA reload register set. For example, the DMA reload register set for channel 0 has DMGSA0, DMGDA0, DMGCR0, and DMGFR0 while DMA channel 1 has DMGSA1, DMGDA1, DMGCR1, and DMGFR1, etc.

To utilize the additional DMA reload registers, the AUTOIX bit is added to the DMPREC register as shown in Figure 3-22 .

15 14 13 8

FREE AUTOIX DPRC[5:0]

7 6 5 0

INTOSEL DE[5:0]

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-22. DMPREC Register

Table 3-13. DMA Reload Register Selection

AUTOIX DMA RELOAD REGISTER USAGE IN AUTO INIT MODE

0 (default) All DMA channels use DMGSA0, DMGDA0, DMGCR0 and DMGFR0

1 Each DMA channel uses its own set of reload registers

3.12.8 DMA Transfer Counting

The DMA channel element count register (DMCTRx) and the frame count register (DMFRCx) contain bit fields that represent the number of frames and the number of elements per frame to be transferred.

• Frame count. This 8-bit value defines the total number of frames in the block transfer. The maximum number of frames per block transfer is 128 (FRAME COUNT= 0FFh). The counter is decremented upon the last read transfer in a frame transfer. Once the last frame is transferred, the selected 8-bit counter is reloaded with the DMA global frame reload register (DMGFR) if the AUTOINIT bit is set to 1. A frame count of 0 (default value) means the block transfer contains a single frame.

• Element count. This 16-bit value defines the number of elements per frame. This counter is decremented after the read transfer of each element. The maximum number of elements per frame is 65536(DMCTRn = 0FFFFh). In autoinitialization mode, once the last frame is transferred, the counter is reloaded with the DMA global count reload register (DMGCR).

40 Functional Overview

www.ti.com

3.12.9 DMA Transfer in Doubleword Mode

Doubleword mode allows the DMA to transfer 32-bit words in any index mode. In doubleword mode, two consecutive 16-bit transfers are initiated and the source and destination addresses are automatically updated following each transfer. In this mode, each 32-bit word is considered to be one element.

3.12.10 DMA Channel Index Registers

The particular DMA channel index register is selected by way of the SIND and DIND fields in the DMA transfer mode control register (DMMCRn). Unlike basic address adjustment, in conjunction with the frame index DMFRI0 and DMFRI1, the DMA allows different adjustment amounts depending on whether or not the element transfer is the last in the current frame. The normal adjustment value (element index) is contained in the element index registers DMIDX0 and DMIDX1. The adjustment value (frame index) for the end of the frame, is determined by the selected DMA frame index register, either DMFRI0 or DMFRI1.

The element index and the frame index affect address adjustment as follows:

• Element index: For all except the last transfer in the frame, the element index determines the amount to be added to the DMA channel for the source/destination address register (DMSRCx/DMDSTx) as selected by the SIND/DIND bits.

• Frame index: If the transfer is the last in a frame, frame index is used for address adjustment as selected by the SIND/DIND bits. This occurs in both single-frame and multiframe transfers.

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.12.11 DMA Interrupts

The ability of the DMA to interrupt the CPU based on the status of the data transfer is configurable and is determined by the IMOD and DINM bits in the DMA transfer mode control register (DMMCRn). The available modes are shown in Table 3-14 .

Table 3-14. DMA Interrupts

MODE DINM IMOD INTERRUPT

ABU (non-decrement) 1 0 At full buffer only ABU (non-decrement) 1 1 At half buffer and full buffer Multiframe 1 0 At block transfer complete (DMCTRn = DMSEFCn[7:0] = 0) Multiframe 1 1 At end of frame and end of block (DMCTRn = 0) Either 0 X No interrupt generated Either 0 X No interrupt generated

Functional Overview 41

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.12.12 DMA Controller Synchronization Events

The transfers associated with each DMA channel can be synchronized to one of several events. The DSYN bit field of the DMSEFCn register selects the synchronization event for a channel. The list of possible events and the DSYN values are shown in Table 3-15 .

Table 3-15. DMA Synchronization Events

DSYN VALUE DMA SYNCHRONIZATION EVENT

0000b No synchronization used 0001b McBSP0 receive event 0010b McBSP0 transmit event 0011b McBSP2 receive event 0100b McBSP2 transmit event 0101b McBSP1 receive event 0110b McBSP1 transmit event 0111b McBSP0 receive event - ABIS mode 1000b McBSP0 transmit event - ABIS mode 1001b McBSP2 receive event - ABIS mode 1010b McBSP2 transmit event - ABIS mode 1011b McBSP1 receive event - ABIS mode 1100b McBSP1 transmit event - ABIS mode 1101b Timer interrupt event 1110b External interrupt 3 1111b Reserved

The DMA controller can generate a CPU interrupt for each of the six channels. However, due to a limit on the number of internal CPU interrupt inputs, channels 0, 1, 2, and 3 are multiplexed with other interrupt sources. DMA channels 0, 1, 2, and 3 share an interrupt line with the receive and transmit portions of the McBSP. When the 5409A is reset, the interrupts from these three DMA channels are deselected. The INTOSEL bit field in the DMPREC register can be used to select these interrupts, as shown in Table 3-16 .

Table 3-16. DMA Channel Interrupt Selection

INTOSEL Value IMR/IFR[6] IMR/IFR[7] IMR/IFR[10] IMR/IFR[11]

00b (reset) BRINT2 BXINT2 BRINT1 BXINT1

01b BRINT2 BXINT2 DMAC2 DMAC3 10b DMAC0 DMAC1 DMAC2 DMAC3 11b Reserved

42 Functional Overview

www.ti.com

3.13 General-Purpose I/O Pins

In addition to the standard BIO and XF pins, the 5409A has pins that can be configured for general-purpose I/O. These pins are:

• 18 McBSP pins — BCLKX0/1/2, BCLKR0/1/2, BDR0/1/2, BFSX0/1/2, BFSR0/1/2, BDX0/1/2

• 8 HPI data pins—HD0-HD7

The general-purpose I/O function of these pins is only available when the primary pin function is not required.

3.13.1 McBSP Pins as General-Purpose I/O

When the receive or transmit portion of a McBSP is in reset, its pins can be configured as general-purpose inputs or outputs. For more details on this feature, see Section Section 3.8 .

3.13.2 HPI Data Pins as General-Purpose I/O

The 8-bit bidirectional data bus of the HPI can be used as general-purpose input/output (GPIO) pins when the HPI is disabled (HPIENA = 0) or when the HPI is used in HPI16 mode (HPI16 = 1). Two memory-mapped registers are used to control the GPIO function of the HPI data pins—the general-purpose I/O control register (GPIOCR) and the general-purpose I/O status register (GPIOSR). The GPIOCR is shown in Figure 3-24 .

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

15 8

Reserved

7 6 5 4 3 2 1 0

DIR7 DIR6 DIR5 DIR4 DIR3 DIR2 DIR1 DIR0

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-23. General-Purpose I/O Control Register (GPIOCR) [MMR Address 003Ch]

The direction bits (DIRx) are used to configure HD0-HD7 as inputs or outputs. The status of the GPIO pins can be monitored using the bits of the GPIOSR. The GPIOSR is shown in

Figure 3-23 .

15 8

Reserved

7 6 5 4 3 2 1 0

IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-24. General-Purpose I/O Status Register (GPIOSR) [MMR Address 003Dh]

Functional Overview 43

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.14 Device ID Register

A read-only memory-mapped register has been added to the 5409A to allow user application software to identify on which device the program is being executed.

15 8

Chip ID

7 4 3 0

Chip Revision SUBSYSID

R R

LEGEND: R = Read, W = Write, n = value at reset

#IMPLIED. NOTE: Bits 15-8 Chip_ID (hex code of 09) Bits 7:4 Chip_Revision ID Bits 3:0 Sybsystem_ID (0000b

for single core device)

Figure 3-25. Device ID Register (CSIDR) [MMR Address 003Eh]

44 Functional Overview

www.ti.com

3.15 Memory-Mapped Registers

The 5409A has 27 memory-mapped CPU registers, which are mapped in data memory space address 0h to 1Fh. Each 5409A device also has a set of memory-mapped registers associated with peripherals. Table 3-17 gives a list of CPU memory-mapped registers (MMRs) available on 5409A. Table 3-18 shows additional peripheral MMRs associated with the 5409A.

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 3-17. CPU Memory-Mapped Registers

NAME DESCRIPTION

IMR 0 0 Interrupt mask register IFR 1 1 Interrupt flag register — 2-5 2-5 Reserved for testing ST0 6 6 Status register 0 ST1 7 7 Status register 1 AL 8 8 Accumulator A low word (15-0) AH 9 9 Accumulator A high word (31-16) AG 10 A Accumulator A guard bits (39-32) BL 11 B Accumulator B low word (15-0) BH 12 C Accumulator B high word (31-16) BG 13 D Accumulator B guard bits (39-32) TREG 14 E Temporary register TRN 15 F Transition register AR0 16 10 Auxiliary register 0 AR1 17 11 Auxiliary register 1 AR2 18 12 Auxiliary register 2 AR3 19 13 Auxiliary register 3 AR4 20 14 Auxiliary register 4 AR5 21 15 Auxiliary register 5 AR6 22 16 Auxiliary register 6 AR7 23 17 Auxiliary register 7 SP 24 18 Stack pointer register BK 25 19 Circular buffer size register BRC 26 1A Block repeat counter RSA 27 1B Block repeat start address REA 28 1C Block repeat end address PMST 29 1D Processor mode status (PMST) register XPC 30 1E Extended program page register — 31 1F Reserved

ADDRESS

DEC HEX

Table 3-18. Peripheral Memory-Mapped Registers for Each DSP Subsystem

NAME DESCRIPTION

DRR20 32 20 McBSP 0 Data Receive Register 2 DRR10 33 21 McBSP 0 Data Receive Register 1 DXR20 34 22 McBSP 0 Data Transmit Register 2

ADDRESS

DEC HEX

Functional Overview 45

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 3-18. Peripheral Memory-Mapped Registers for Each DSP Subsystem (continued)

NAME DESCRIPTION

DXR10 35 23 McBSP 0 Data Transmit Register 1 TIM 36 24 Timer Register PRD 37 25 Timer Period Register TCR 38 26 Timer Control Register — 39 27 Reserved SWWSR 40 28 Software Wait-State Register BSCR 41 29 Bank-Switching Control Register — 42 2A Reserved SWCR 43 2B Software Wait-State Control Register HPIC 44 2C HPI Control Register (HMODE = 0 only) — 45-47 2D-2F Reserved DRR22 48 30 McBSP 2 Data Receive Register 2 DRR12 49 31 McBSP 2 Data Receive Register 1 DXR22 50 32 McBSP 2 Data Transmit Register 2 DXR12 51 33 McBSP 2 Data Transmit Register 1 SPSA2 52 34 McBSP 2 Subbank Address Register SPSD2 53 35 McBSP 2 Subbank Data Register — 54-55 36-37 Reserved SPSA0 56 38 McBSP 0 Subbank Address Register SPSD0 57 39 McBSP 0 Subbank Data Register — 58-59 3A-3B Reserved GPIOCR 60 3C General-Purpose I/O Control Register GPIOSR 61 3D General-Purpose I/O Status Register CSIDR 62 3E Device ID Register — 63 3F Reserved DRR21 64 40 McBSP 1 Data Receive Register 2 DRR11 65 41 McBSP 1 Data Receive Register 1 DXR21 66 42 McBSP 1 Data Transmit Register 2 DXR11 67 43 McBSP 1 Data Transmit Register 1 — 68-71 44-47 Reserved SPSA1 72 48 McBSP 1 Subbank Address Register SPSD1 73 49 McBSP 1 Subbank Data Register — 74-83 4A-53 Reserved DMPREC 84 54 DMA Priority and Enable Control Register DMSA 85 55 DMA Subbank Address Register DMSDI 86 56 DMA Subbank Data Register with Autoincrement DMSDN 87 57 DMA Subbank Data Register CLKMD 88 58 Clock Mode Register (CLKMD) — 89-95 59-5F Reserved

ADDRESS

DEC HEX

(1)

(2)

(1) See Table 3-19 for a detailed description of the McBSP control registers and their subaddresses. (2) See Table 3-20 for a detailed description of the DMA subbank addressed registers.

46 Functional Overview

www.ti.com

3.16 McBSP Control Registers and Subaddresses

The control registers for the multichannel buffered serial port (McBSP) are accessed using the subbank addressing scheme. This allows a set or subbank of registers to be accessed through a single memory location. The McBSP subbank address register (SPSA) is used as a pointer to select a particular register within the subbank. The McBSP data register (SPSDx) is used to access (read or write) the selected register. Table 3-19 shows the McBSP control registers and their corresponding subaddresses.

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 3-19. McBSP Control Registers and Subaddresses

McBSP0 McBSP1 McBSP2

NAME ADDRESS NAME ADDRESS NAME ADDRESS

SPCR10 39h SPCR11 49h SPCR12 35h 00h Serial port control register 1 SPCR20 39h SPCR21 49h SPCR22 35h 01h Serial port control register 2

RCR10 39h RCR11 49h RCR12 35h 02h Receive control register 1 RCR20 39h RCR21 49h RCR22 35h 03h Receive control register 2 XCR10 39h XCR11 49h XCR12 35h 04h Transmit control register 1

XCR20 39h XCR21 49h XCR22 35h 05h Transmit control register 2 SRGR10 39h SRGR11 49h SRGR12 35h 06h Sample rate generator register 1 SRGR20 39h SRGR21 49h SRGR22 35h 07h Sample rate generator register 2

MCR10 39h MCR11 49h MCR12 35h 08h Multichannel register 1

MCR20 39h MCR21 49h MCR22 35h 09h Multichannel register 2 RCERA0 39h RCERA1 49h RCERA2 35h 0Ah Receive channel enable register partition A RCERB0 39h RCERB1 49h RCERA2 35h 0Bh Receive channel enable register partition B XCERA0 39h XCERA1 49h XCERA2 35h 0Ch Transmit channel enable register partition A XCERB0 39h XCERB1 49h XCERA2 35h 0Dh Transmit channel enable register partition B

PCR0 39h PCR1 49h PCR2 35h 0Eh Pin control register

RCERC0 39h RCERC1 49h RCERC2 35h 010h

RCERD0 39h RCERD1 49h RCERD2 35h 011h

XCERC0 39h XCERC1 49h XCERC2 35h 012h

XCERD0 39h XCERD1 49h XCERD2 35h 013h

RCERE0 39h RCERE1 49h RCERE2 35h 014h

RCERF0 39h RCERF1 49h RCERF2 35h 015h

XCERE0 39h XCERE1 49h XCERE2 35h 016h

XCERF0 39h XCERF1 49h XCERF2 35h 017h

RCERG0 39h RCERG1 49h RCERG2 35h 018h

RCERH0 39h RCERH1 49h RCERH2 35h 019h

XCERG0 39h XCERG1 49h XCERG2 35h 01Ah

XCERH0 39h XCERH1 49h XCERH2 35h 01Bh

SUB-

ADDRESS

Additional channel enable register for 128-channel selection

DESCRIPTION

Functional Overview 47

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.17 DMA Subbank Addressed Registers

The direct memory access (DMA) controller has several control registers associated with it. The main control register (DMPREC) is a standard memory-mapped register. However, the other registers are accessed using the subbank addressing scheme. This allows a set or subbank of registers to be accessed through a single memory location. The DMA subbank address (DMSA) register is used as a pointer to select a particular register within the subbank, while the DMA subbank data (DMSD) register or the DMA subbank data register with autoincrement (DMSDI) is used to access (read or write) the selected register.

When the DMSDI register is used to access the subbank, the subbank address is automatically postincremented so that a subsequent access affects the next register within the subbank. This autoincrement feature is intended for efficient, successive accesses to several control registers. If the autoincrement feature is not required, the DMSDN register should be used to access the subbank. Table 3-20 shows the DMA controller subbank addressed registers and their corresponding subaddresses.

Table 3-20. DMA Subbank Addressed Registers

NAME ADDRESS DESCRIPTION

DMSRC0 56h/57h 00h DMA channel 0 source address register DMDST0 56h/57h 01h DMA channel 0 destination address register DMCTR0 56h/57h 02h DMA channel 0 element count register DMSFC0 56h/57h 03h DMA channel 0 sync select and frame count register DMMCR0 56h/57h 04h DMA channel 0 transfer mode control register DMSRC1 56h/57h 05h DMA channel 1 source address register DMDST1 56h/57h 06h DMA channel 1 destination address register DMCTR1 56h/57h 07h DMA channel 1 element count register DMSFC1 56h/57h 08h DMA channel 1 sync select and frame count register DMMCR1 56h/57h 09h DMA channel 1 transfer mode control register DMSRC2 56h/57h 0Ah DMA channel 2 source address register DMDST2 56h/57h 0Bh DMA channel 2 destination address register DMCTR2 56h/57h 0Ch DMA channel 2 element count register DMSFC2 56h/57h 0Dh DMA channel 2 sync select and frame count register DMMCR2 56h/57h 0Eh DMA channel 2 transfer mode control register DMSRC3 56h/57h 0Fh DMA channel 3 source address register DMDST3 56h/57h 10h DMA channel 3 destination address register DMCTR3 56h/57h 11h DMA channel 3 element count register DMSFC3 56h/57h 12h DMA channel 3 sync select and frame count register DMMCR3 56h/57h 13h DMA channel 3 transfer mode control register DMSRC4 56h/57h 14h DMA channel 4 source address register DMDST4 56h/57h 15h DMA channel 4 destination address register DMCTR4 56h/57h 16h DMA channel 4 element count register DMSFC4 56h/57h 17h DMA channel 4 sync select and frame count register DMMCR4 56h/57h 18h DMA channel 4 transfer mode control register DMSRC5 56h/57h 19h DMA channel 5 source address register DMDST5 56h/57h 1Ah DMA channel 5 destination address register DMCTR5 56h/57h 1Bh DMA channel 5 element count register DMSFC5 56h/57h 1Ch DMA channel 5 sync select and frame count register DMMCR5 56h/57h 1Dh DMA channel 5 transfer mode control register DMSRCP 56h/57h 1Eh DMA source program page address (common channel)

SUB-

ADDRESS

48 Functional Overview

www.ti.com

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 3-20. DMA Subbank Addressed Registers (continued)

NAME ADDRESS DESCRIPTION

DMDSTP 56h/57h 1Fh DMA destination program page address (common channel) DMIDX0 56h/57h 20h DMA element index address register 0 DMIDX1 56h/57h 21h DMA element index address register 1 DMFRI0 56h/57h 22h DMA frame index register 0 DMFRI1 56h/57h 23h DMA frame index register 1 DMGSA0 56h/57h 24h DMA global source address reload register, channel 0 DMGDA0 56h/57h 25h DMA global destination address reload register, channel 0 DMGCR0 56h/57h 26h DMA global count reload register, channel 0 DMGFR0 56h/57h 27h DMA global frame count reload register, channel 0

- 56h/57h 28h Reserved

- 56h/57h 29h Reserved DMGSA1 56h/57h 2Ah DMA global source address reload register, channel 1 DMGDA1 56h/57h 2Bh DMA global destination address reload register, channel 1 DMGCR1 56h/57h 2Ch DMA global count reload register, channel 1 DMGFR1 56h/57h 2Dh DMA global frame count reload register, channel 1 DMGSA2 56h/57h 2Eh DMA global source address reload register, channel 2 DMGDA2 56h/57h 2Fh DMA global destination address reload register, channel 2 DMGCR2 56h/57h 30h DMA global count reload register, channel 2 DMGFR2 56h/57h 31h DMA global frame count reload register, channel 2 DMGSA3 56h/57h 32h DMA global source address reload register, channel 3 DMGDA3 56h/57h 33h DMA global destination address reload register, channel 3 DMGCR3 56h/57h 34h DMA global count reload register, channel 3 DMGFR3 56h/57h 35h DMA global frame count reload register, channel 3 DMGSA4 56h/57h 36h DMA global source address reload register, channel 4 DMGDA4 56h/57h 37h DMA global destination address reload register, channel 4 DMGCR4 56h/57h 38h DMA global count reload register, channel 4 DMGFR4 56h/57h 39h DMA global frame count reload register, channel 4 DMGSA5 56h/57h 3Ah DMA global source address reload register, channel 5 DMGDA5 56h/57h 3Bh DMA global destination address reload register, channel 5 DMGCR5 56h/57h 3Ch DMA global count reload register, channel 5 DMGFR5 56h/57h 3Dh DMA global frame count reload register, channel 5 DMCECTL 56h/57h 3Eh DMA channel enable control register

SUB-

ADDRESS

TMS320VC5409A

Functional Overview 49

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

3.18 Interrupts

Vector-relative locations and priorities for all internal and external interrupts are shown in Table 3-21 .

Table 3-21. Interrupt Locations and Priorities

NAME PRIORITY FUNCTION

RS, SINTR 0 00 1 Reset (hardware and software reset) NMI, SINT16 4 04 2 Nonmaskable interrupt SINT17 8 08 — Software interrupt #17 SINT18 12 0C — Software interrupt #18 SINT19 16 10 — Software interrupt #19 SINT20 20 14 — Software interrupt #20 SINT21 24 18 — Software interrupt #21 SINT22 28 1C — Software interrupt #22 SINT23 32 20 — Software interrupt #23 SINT24 36 24 — Software interrupt #24 SINT25 40 28 — Software interrupt #25 SINT26 44 2C — Software interrupt #26 SINT27 48 30 — Software interrupt #27 SINT28 52 34 — Software interrupt #28 SINT29 56 38 — Software interrupt #29 SINT30 60 3C — Software interrupt #30 INT0, SINT0 64 40 3 External user interrupt #0 INT1, SINT1 68 44 4 External user interrupt #1 INT2, SINT2 72 48 5 External user interrupt #2 TINT, SINT3 76 4C 6 Timer interrupt RINT0, SINT4 80 50 7 McBSP #0 receive interrupt (default) XINT0, SINT5 84 54 8 McBSP #0 transmit interrupt (default) RINT2, SINT6 88 58 9 McBSP #2 receive interrupt (default) XINT2, SINT7 92 5C 10 McBSP #2 transmit interrupt (default) INT3, SINT8 96 60 11 External user interrupt #3 HINT, SINT9 100 64 12 HPI interrupt RINT1, SINT10 104 68 13 McBSP #1 receive interrupt (default) XINT1, SINT11 108 6C 14 McBSP #1 transmit interrupt (default) DMAC4,SINT12 112 70 15 DMA channel 4 (default) DMAC5,SINT13 116 74 16 DMA channel 5 (default) Reserved 120-127 78-7F — Reserved

LOCATION

DECIMAL HEX

The bit layout of the interrupt flag register (IFR) and the interrupt mask register (IMR) is shown in Figure 3-26 .

15 14 13 12 11 10 9 8

Reserved DMAC5 DMAC4 XINT1 RINT1 HINT INT3

7 6 5 4 3 2 1 0

XINT2 RINT2 XINT0 RINT0 TINT INT2 INT1 INT0

LEGEND: R = Read, W = Write, n = value at reset

Figure 3-26. IFR and IMR

50 Functional Overview

www.ti.com

4 Support

4.1 Documentation Support

Extensive documentation supports all TMS320™ DSP family of devices from product announcement through applications development. The following types of documentation are available to support the design and use of the C5000™ platform of DSPs:

SPRU307: TMS320C54x DSP Family Functional Overview

SPRA164: Calculation of TMS320LC54x Power Dissipation

The five-volume TMS320C54x DSP Reference Set consists of:

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Provides a functional overview of the devices included in the TMS320C54xE DSP generation of digital signal processors. Included are descriptions of the CPU architecture, bus structure, memory structure, on-chip peripherals, and instruction set.

Describes the power-saving features of the TMS320LC54x and presents techniques for analyzing systems and device conditions to determine operating current levels and power dissipaton. From this information, informed decisions can be made regarding power supply requirements and thermal management considerations.

SPRU131: TMS320C54x DSP Reference Set, Volume 1: CPU

Describes the TMS320C54x 16-bit fixed-point general-purpose digital signal processors. Covered are its architecture, internal register structure, data and program addressing, and the instruction pipeline. Also includes development support information, parts lists, and design considerations for using the XDS510 emulator.

SPRU172: TMS320C54x DSP Reference Set, Volume 2: Mnemonic Instruction Set

Describes the TMS320C54x digital signal processor mnemonic instructions individually. Also includes a summary of instruction set classes and cycles.

SPRU179: TMS320C54x DSP Reference Set, Volume 3: Algebraic Instruction Set

Describes the TMS320C54x digital signal processor algebraic instructions individually. Also includes a summary of instruction set classes and cycles.

SPRU173: TMS320C54x DSP Reference Set, Volume 4: Applications Guide

Describes software and hardware applications for the TMS320C54x digital signal processor. Also includes development support information, parts lists, and design considerations for using the XDS510 emulator.

SPRU302: TMS320C54x DSP Reference Set, Volume 5: Enhanced Peripherals

Describes the enhanced peripherals available on the TMS320C54x digital signal processors. Includes the multichannel buffered serial ports (McBSPs), direct memory access (DMA) controller, interprocessor communications, and the HPI-8 and HPI-16 host port interfaces.

The reference set describes in detail the TMS320C54x™ DSP products currently available and the hardware and software applications, including algorithms, for fixed-point TMS320™ DSP family of devices.

A series of DSP textbooks is published by Prentice-Hall and John Wiley & Sons to support digital signal processing research and education. The TMS320 DSP newsletter, Details on Signal Processing, is published quarterly and distributed to update TMS320 DSP customers on product information.

Information regarding TI DSP porducts is also available on the web at www.ti.com.

Support 51

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

4.2 Device and Development-Support Tool Nomenclature

To designate the stages in the product development cycle, TI assigns prefixes to the part numbers of all TMS320 DSP devices and support tools. Each TMS320 DSP commercial family member has one of three prefixes: TMX, TMP, or TMS (e.g., TMS320C6412GDK600). Texas Instruments recommends two of three possible prefix designators for its support tools: TMDX and TMDS. These prefixes represent evolutionary stages of product development from engineering prototypes (TMX/TMDX) through fully qualified production devices/tools (TMS/TMDS).

Device development evolutionary flow: TMX Experimental device that is not necessarily representative of the final device's electrical

specifications

TMP Final silicon die that conforms to the device's electrical specifications but has not completed

quality and reliability verification TMS Fully qualified production device Support tool development evolutionary flow: TMDX Development-support product that has not yet completed Texas Instruments internal

qualification testing. TMDS Fully qualified development-support product TMX and TMP devices and TMDX development-support tools are shipped with appropriate disclaimers

describing their limitations and intended uses. "Developmental product is intended for internal evaluation purposes." TMS devices and TMDS development-support tools have been characterized fully, and the quality and

reliability of the device have been demonstrated fully. TI's standard warranty applies. Predictions show that prototype devices (TMX or TMP) have a greater failure rate than the standard

production devices. Texas Instruments recommends that these devices not be used in any production system because their expected end-use failure rate still is undefined. Only qualified production devices are to be used.

52 Support

www.ti.com

5 Electrical Specifications

This section provides the absolute maximum ratings and the recommended operating conditions for the TMS320VC5409A DSP.

5.1 Absolute Maximum Ratings

The list of absolute maximum ratings are specified over operating case temperature. Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Section Section 5.2 is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage values are with respect to DV provides the test load circuit values.

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

. Figure 5-1

stg

Supply voltage I/O range – 0.3 V to 4.0 V Supply voltage core range – 0.3 V to 2.0 V Input voltage range – 0.3 V to 4.5 V Output voltage range – 0.3 V to 4.5 V Operating case temperature range – 40 ° C to 100 ° C Storage temperature range – 55 ° C to 150 ° C

5.2 Recommended Operating Conditions

DV CV CV DV

V I

Device supply voltage, I/O 2.7 3.3 3.6 V

Device supply voltage, core (VC5409A-160) 1.55 1.6 1.65 V

Device supply voltage, core (VC5409A-120) 1.42 1.5 1.65 V

Supply voltage, GND 0 V

High-level input voltage, I/O V

Low-level input voltage – 0.3 0.8 V

High-level output current Low-level output current Operating case temperature – 40 100 ° C

MIN NOM MAX UNIT

RS, INTn, NMI, X2/CLKIN, CLKMDn, BCLKRn, BCLKXn, HCS, HDS1, HDS2, HAS, 2.4 DV TRST, TCK, BIO, Dn, An, HDn (DV

= 2.7 V to 3.6 V)

All other inputs 2 DV

(1) (2)

+ 0.3

– 8 mA

8 mA

(1) These output current limits are used for the test conditions on V (2) The maximum output currents are DC values only. Transient currents may exceed these values.

and VOH, except where noted otherwise.

Electrical Specifications 53

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5.3 Electrical Characteristics Over Recommended Operating Case Temperature Range (Unless Otherwise Noted)

PARAMETER TEST CONDITIONS MIN TYP

(DV

= 2.7 V to 3.0 V), IOH= – 2 mA 2.2

V I

High-level output voltage

Low-level output voltage Input current in high

impedance

(2)

A[15:0] DV

(DV

= 3.0 V to 3.6 V), IOH= MAX 2.4

IOL= MAX 0.4 V

= MAX, VO= DV

to DV

– 275 275 µA

(1)

MAX UNIT

X2/CLKIN – 40 40 µA TRST, HPI16 With internal pulldown – 10 800

Input current (VI= DV

to DV

HPIENA With internal pulldown, RS = 0 – 10 400

)

TMS, TCK, TDI, HPI D[15:0], HD[7:0] Bus holders enabled, DV

(3)

With internal pullups – 400 10 µA

(4)

= MAX

– 275 275

All other input-only pins – 5 5

DDC

DDP

Supply current, core CPU CV Supply current, pins DV

= 1.6 V, fx= 160 MHz,

= 3.0 V, fx= 160 MHz,

(5)

TC= 25 ° C 60

(5)

TC= 25 ° C 40

(6) (7)

IDLE2 PLL × 1 mode, 20 MHz input 2 mA

C C

Supply current, standby

Input capacitance 5 pF

Output capacitance 5 pF

IDLE3 divide-by-two mode, CLKIN stopped

TC= 25 ° C 1 TC= 100 ° C 30

(8)

(1) All values are typical unless otherwise specified. (2) All input and output voltage levels except RS, INT0– INT3, NMI, X2/CLKIN, CLKMD1–CLKMD3, BCLKR0 – BCLKR2, BCLKX0 –

BCLKX2, HCS, HAS, HDS1, HDS2, BIO, TCK, TRST, D0 – D15, HD0 – HD7, A0 – A16 are LVTTL-compatible. (3) HPI input signals except for HPIENA and HPI16, when HPIENA = 0. (4) V (5) Clock mode: PLL × 1 with external source

≤ VI≤ V

IL(MIN)

or V

IL(MAX)

≤ VI≤ V

IH(MIN)

IH(MAX)

(6) This value was obtained with 50% usage of MAC and 50% usage of NOP instructions. Actual operating current varies with program

being executed. (7) This value was obtained with single-cycle external writes, CLKOFF = 0 and load = 15 pF. For more details on how this calculation is

performed, refer to the Calculation of TMS320LC54x Power Dissipation application report (literature number SPRA164). (8) Material with high IDDhas been observed with a typical IDDvalue of 5 to 10 mA during high temperature testing.

mA mA

54 Electrical Specifications

www.ti.com

5.4 Test Load Circuit

Transmission Line

4.0 pF 1.85 pF

Z0 = 50  (see note)

Tester Pin Electronics

Data Sheet Timing Reference Point

Output Under Test

NOTE: The data sheet provides timing at the device pin. For output timing analysis, the tester pin electronics and its transmission line effects must

taken into account. A transmission line with a delay of 2 ns or longer can be used to produce the desired transmission line effect. The transmission line is intended as a load only. It is not necessary to add or subtract the transmission line delay (2 ns or longer) from the data sheet timings.

42  3.5 nH

Device Pin (see note)

Input requirements in this data sheet are tested with an input slew rate of < 4 Volts per nanosecond (4 V/ns) at the device pin.

This test load circuit is used to measure all switching characteristics provided in this data manual.

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-1. Tester Pin Electronics

5.5 Timing Parameter Symbology

Timing parameter symbols used in the timing requirements and switching characteristics tables are created in accordance with JEDEC Standard 100. To shorten the symbols, some of the pin names and other related terminology have been abbreviated as follows:

Lowercase subscripts and their meanings: Letters and symbols and their meanings: a access time H High c cycle time (period) L Low d delay time V Valid dis disable time Z High impedance en enable time f fall time h hold time r rise time su setup time t transition time v valid time w pulse duration (width) X Unknown, changing, or don't care level

5.6 Internal Oscillator With External Crystal

The internal oscillator is enabled by selecting the appropriate clock mode at reset (this is device-dependent; see Section Section 3.10 ) and connecting a crystal or ceramic resonator across X1 and X2/CLKIN. The CPU clock frequency is one-half, one-fourth, or a multiple of the oscillator frequency. The multiply ratio is determined by the bit settings in the CLKMD register.

Electrical Specifications 55

www.ti.com



1C2

(C1 C2)

X1 X2/CLKIN

C1 C2

Crystal

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

The crystal should be in fundamental-mode operation, and parallel resonant, with an effective series resistance of 30 Ω maximum and power dissipation of 1 mW. The connection of the required circuit, consisting of the crystal and two load capacitors, is shown in Figure 5-2 . The load capacitors, C should be chosen such that the equation below is satisfied. C equation is the load specified for the crystal.

Table 5-1. Input Clock Frequency Characteristics

Input clock frequency 10

(recommended value of 10 pF) in the

MIN MAX UNIT

(1)

(2)

and C2,

MHz

(1) This device utilizes a fully static design and therefore can operate with t

approaching 0 Hz (2) It is recommended that the PLL multiply by N clocking option be used for maximum frequency operation.

approaching ∞ . The device is characterized at frequencies

c(CI)

Figure 5-2. Internal Divide-By-Two Clock Option With External Crystal

56 Electrical Specifications

www.ti.com

5.7 Clock Options

The frequency of the reference clock provided at the CLKIN pin can be divided by a factor of two or four or multiplied by one of several values to generate the internal machine cycle.

5.7.1 Divide-By-Two and Divide-By-Four Clock Options

The frequency of the reference clock provided at the X2/CLKIN pin can be divided by a factor of two or four to generate the internal machine cycle. The selection of the clock mode is described in Section Section 3.10 .

When an external clock source is used, the frequency injected must conform to specifications listed in Table 5-3 .

An external frequency source can be used by applying an input clock to X2/CLKIN with X1 left unconnected.

Table 5-2 shows the configuration options for the CLKMD pins that generate the external divide-by-2 or divide-by-4 clock option.

Table 5-2. Clock Mode Pin Settings for the Divide-By-2 and By Divide-By-4 Clock Options

CLKMD1 CLKMD2 CLKMD3 CLOCK MODE

0 0 0 1/2, PLL disabled 1 0 1 1/4, PLL disabled 1 1 1 1/2, PLL disabled

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-3 and Table 5-4 assume testing over recommended operating conditions and H = 0.5t Figure 5-3 ).

Table 5-3. Divide-By-2 and Divide-By-4 Clock Options Timing Requirements

c(CI)

f(CI)

r(CI)

w(CIL)

w(CIH)

Cycle time, X2/CLKIN 20 ns Fall time, X2/CLKIN 4 ns Rise time, X2/CLKIN 4 ns Pulse duration, X2/CLKIN low 4 ns Pulse duration, X2/CLKIN high 4 ns

Table 5-4. Divide-By-2 and Divide-By-4 Clock Options Switching Characteristics

PARAMETER UNIT

c(CO)

d(CIH-CO)

f(CO)

r(CO)

w(COL)

(1) It is recommended that the PLL clocking option be used for maximum frequency operation. (2) This device utilizes a fully static design and therefore can operate with t

approaching 0 Hz.

Cycle time, CLKOUT 8.33 Delay time, X2/CLKIN high to CLKOUT high/low 4 7 11 4 7 11 ns Fall time, CLKOUT 1 1 ns Rise time, CLKOUT 1 1 ns Pulse duration, CLKOUT low H – 3 H H + 3 H – 3 H H + 3 ns

5409A-120 5409A-160

MIN TYP MAX MIN TYP MAX

(1) (2)

approaching ∞ . The device is characterized at frequencies

c(CI)

(1) (2)

6.25

120VC5409A-

MIN MAX

(see

c(CO)

VC5409A-

Unit

160

Electrical Specifications 57

www.ti.com

r(CO)

f(CO)

CLKOUT

(A)

X2/CLKIN

w(COL)

d(CIH-CO)

f(CI)

r(CI)

c(CO)

c(CI)

w(COH)

w(CIH)

w(CIL)

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-4. Divide-By-2 and Divide-By-4 Clock Options Switching Characteristics (continued)

PARAMETER UNIT

w(COH)

Pulse duration, CLKOUT high H – 3 H H + 3 H – 3 H H + 3 ns

A. The CLKOUT timing in this diagram assumes the CLKOUT divide factor (DIVFCT field in the BSCR) is configured as

00 (CLKOUT not divided). DIVFCT is configured as CLKOUT divided-by-4 mode following reset.

Figure 5-3. External Divide-By-Two Clock Timing

5409A-120 5409A-160

MIN TYP MAX MIN TYP MAX

58 Electrical Specifications

www.ti.com

5.7.2 Multiply-By-N Clock Option (PLL Enabled)

The frequency of the reference clock provided at the X2/CLKIN pin can be multiplied by a factor of N to generate the internal machine cycle. The selection of the clock mode and the value of N is described in Section Section 3.10 . Following reset, the software PLL can be programmed for the desired multiplication factor. Refer to the TMS320C54x DSP Reference Set, Volume 1: CPU and Peripherals (literature number SPRU131) for detailed information on programming the PLL.

When an external clock source is used, the external frequency injected must conform to specifications listed in Table 5-5 .

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-5 and Table 5-6 assume testing over recommended operating conditions and H = 0.5t Figure 5-4 ).

c(CI)

f(CI)

r(CI)

w(CIL)

w(CIH)

(1) N is the multiplication factor.

c(CO)

d(CI-CO)

f(CO)

r(CO)

w(COL)

w(COH)

Cycle time, X2/CLKIN ns

Fall time, X2/CLKIN 4 ns Rise time, X2/CLKIN 4 ns Pulse duration, X2/CLKIN low 4 ns Pulse duration, X2/CLKIN high 4 ns

Cycle time, CLKOUT 8.33 6.25 ns Delay time, X2/CLKIN high/low to CLKOUT high/low 4 7 11 4 7 11 ns Fall time, CLKOUT 2 2 ns Rise time, CLKOUT 2 2 ns Pulse duration, CLKOUT low H H ns Pulse duration, CLKOUT high H H ns Transitory phase, PLL lock-up time 30 30 ms

Table 5-5. Multiply-By-N Clock Option Timing Requirements

Integer PLL multiplier N (N =

(1)

1–15) PLL multiplier N = x.5 PLL multiplier N = x.25, x.75

(1)

Table 5-6. Multiply-By-N Clock Option Switching Characteristics

PARAMETER UNIT

5409A-120 5409A-160

MIN TYP MAX MIN TYP MAX

5409A-120 5409A-160

MIN MAX

20 200 20 100

20 50

(see

c(CO)

UNIT

59Electrical Specifications

www.ti.com

c(CO)

c(CI)

w(COH)

f(CO)

r(CO)

f(CI)

X2/CLKIN

CLKOUT

(A)

d(CI-CO)

w(COL)

r(CI)

Unstable

w(CIH)

w(CIL)

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

A. The CLKOUT timing in this diagram assumes the CLKOUT divide factor (DIVFCT field in the BSCR) is configured as

00 (CLKOUT not divided). DIVFCT is configured as CLKOUT divided-by-4 mode following reset.

Figure 5-4. Multiply-By-One Clock Timing

5.8 Memory and Parallel I/O Interface Timing

Address delay times are longer for cycles immediatly following a HOLD operation. All timings related to the address bus have been seperated in to two cases; one showing normal operation and the other showing the delays related to the HOLD operation.

5.8.1 Memory Read

External memory reads can be performed in consecutive or nonconsecutive mode under control of the CONSEC bit in the BSCR. Table 5-7 and Table 5-8 assume testing over recommended operating conditions with MSTRB = 0 and H = 0.5t

c(CO)

Table 5-7. Memory Read Timing Requirements

a(A)M1

a(A)M2

su(D)R

h(D)R

(1) Address,R/ W, PS, DS, and IS timings are all included in timings referenced as address.

Access time, read data access from address valid, first read access

(1)

Access time, read data access from address valid, consecutive read accesses Setup time, read data valid before CLKOUT low 7 ns Hold time, read data valid after CLKOUT low 0 ns

Table 5-8. Memory Read Switching Characteristics

PARAMETER UNIT

d(CLKL-A)

d(CLKL-MSL)

d(CLKL-MSH)

(1) Address,R/ W, PS, DS, and IS timings are all included in timings referenced as address.

Electrical Specifications60

Delay time, CLKOUT low to address valid

Delay time, CLKOUT low to MSTRB low – 1 4 ns Delay time, CLKOUT low to MSTRB high – 1 4 ns

(1)

(see Figure 5-5 and Figure 5-6 ).

For accesses not immediately following a HOLD operation

For a read accesses immediately following a HOLD operation

(1)

For accesses not immediately following a HOLD operation

For a read accesses immediately following a HOLD operation

5409A-120 5409A-160

MIN MAX

4H–9 ns

4H–11 ns

2H–9 ns

5409A-120 5409A-160

MIN MAX

– 1 4 ns

– 1 6 ns

UNIT

www.ti.com

d(CLKL-MSH)

h(D)R

d(CLKL-A)

CLKOUT

A[22:0]

(A)

D[15:0]

R/W

(A)

MSTRB

PS/DS

(A)

su(D)R

a(A)M1

d(CLKL-MSL)

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

A. Address,R/ W, PS, DS, and IS timings are all included in timings referenced as address.

Figure 5-5. Nonconsecutive Mode Memory Reads

Electrical Specifications 61

www.ti.com

d(CLKL-MSH)

h(D)R

d(CLKL-A)

A[22:0]

(A)

d(CLKL-MSL)

D[15:0]

R/W

(A)

MSTRB

CLKOUT

/DS

(A)

h(D)R

a(A)M1

a(A)M2

su(D)R

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

A. Address,R/ W, PS, DS, and IS timings are all included in timings referenced as address.

Figure 5-6. Consecutive Mode Memory Reads

62 Electrical Specifications

www.ti.com

5.8.2 Memory Write

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-9 assumes testing over recommended operating conditions with MSTRB = 0 and H = 0.5t (see Figure 5-7 ).

Table 5-9. Memory Write Switching Characteristics

PARAMETER UNIT

For accesses not immediately following a HOLD operation

d(CLKL-A)

su(A)MSL

d(CLKL-D)W

su(D)MSH

h(D)MSH

d(CLKL-MSL)

w(SL)MS

d(CLKL-MSH)

Delay time, CLKOUT low to address valid

Setup time, address valid before MSTRB

(1)

low

Delay time, CLKOUT low to data valid – 1 4 ns Setup time, data valid before MSTRB high 2H – 5 2H + 6 ns Hold time, data valid after MSTRB high 2H – 5 2H + 6 ns Delay time, CLKOUT low to MSTRB low – 1 4 ns Pulse duration, MSTRB low 2H – 2 ns Delay time, CLKOUT low to MSTRB high – 1 4 ns

(1) Address, R/ W, PS, DS, and IS timings are all included in timings referenced as address.

(1)

For a read accesses immediately following a HOLD operation

For accesses not immediately following a HOLD operation

For a read accesses immediately following a HOLD operation

c(CO)

5409A-120 5409A-160

MIN MAX

– 1 4 ns

– 1 6 ns

2H – 3 ns

2H – 5 ns

63Electrical Specifications

www.ti.com

su(D)MSH

d(CLKL-MSH)

d(CLKL-A)

CLKOUT

A[22:0]

(A)

D[15:0]

MSTRB

R/W

(A)

PS/DS

(A)

d(CLKL-D)W

d(CLKL-MSL)

su(A)MSL

h(D)MSH

w(SL)MS

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

A. Address, R/ W, PS, DS, and IS timings are all included in timings referenced as address.

Figure 5-7. Memory Write ( MSTRB = 0)

64 Electrical Specifications

www.ti.com

5.8.3 I/O Read

Table 5-10 and Table 5-11 assume testing over recommended operating conditions, IOSTRB = 0, and H = 0.5t

a(A)M1

su(D)R

h(D)R

(1) Address R/ W, PS, DS, and IS timings are included in timings referenced as address.

(see Figure 5-8 ).

c(CO)

Table 5-10. I/O Read Timing Requirements

For accesses not immediately following a

Access time, read data access from address valid, first read access

Setup time, read data valid before CLKOUT low 7 ns Hold time, read data valid after CLKOUT low 0 ns

(1)

HOLD operation For a read accesses immediately following a

HOLD operation

Table 5-11. I/O Read Switching Characteristics

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5409A-120 5409A-160

MIN MAX

4H – 9 ns

4H – 11 ns

UNIT

PARAMETER UNIT

For accesses not immediately following a HOLD operation

d(CLKL-A)

d(CLKL-IOSL)

d(CLKL-IOSH)

(1) Address R/ W,PS, DS, and IS timings are included in timings referenced as address.

Delay time, CLKOUT low to address valid

Delay time, CLKOUT low to IOSTRB low – 1 4 ns Delay time, CLKOUT low to IOSTRB high – 1 4 ns

(1)

For a read accesses immediately following a HOLD operation

5409A-120 5409A-160

MIN MAX

– 1 4 ns

– 1 6 ns

65Electrical Specifications

www.ti.com

d(CLKL-IOSH)

h(D)R

d(CLKL-A)

CLKOUT

A[22:0]

(A)

D[15:0]

IOSTRB

R/W

(A)

d(CLKL-IOSL)

su(D)R

a(A)M1

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

A. Address, R/ W, PS, DS, and IS timings are all included in timings referenced as address.

Figure 5-8. Parallel I/O Port Read ( IOSTRB = 0)

66 Electrical Specifications

www.ti.com

5.8.4 I/O Write

d(CLKL-D)W

CLKOUT

A[22:0]

(A)

D[15:0]

IOSTRB

R/W

(A)

d(CLKL-D)W

su(D)IOSH

h(D)IOSH

su(A)IOSL

w(SL)IOS

d(CLKL-IOSL)

d(CLKL-IOSH)

d(CLKL-A)

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-12 assumes testing over recommended operating conditions, IOSTRB = 0, and H = 0.5t Figure 5-9 ).

Table 5-12. I/O Write Switching Characteristics

PARAMETER UNIT

For accesses not immediately following a HOLD operation

d(CLKL-A)

su(A)IOSL

d(CLKL-D)W

su(D)IOSH

h(D)IOSH

d(CLKL-IOSL)

w(SL)IOS

d(CLKL-IOSH)

Delay time, CLKOUT low to address valid

Setup time, address valid before IOSTRB

(1)

low

Delay time, CLKOUT low to write data valid – 1 4 ns Setup time, data valid before IOSTRB high 2H – 5 2H + 6 ns Hold time, data valid after IOSTRB high 2H – 5 2H + 6 ns Delay time, CLKOUT low to IOSTRB low – 1 4 ns Pulse duration, IOSTRB low 2H – 2 ns Delay time, CLKOUT low to IOSTRB high – 1 4 ns

(1) Address R/ W, PS, DS, and IS timings are included in timings referenced as address.

(1)

For a read accesses immediately following a HOLD operation

For accesses not immediately following a HOLD operation

For a read accesses immediately following a HOLD operation

5409A-120 5409A-160

MIN MAX

– 1 4 ns

– 1 6 ns

2H – 3 ns

2H – 5 ns

(see

c(CO)

A. Address, R/ W, PS, DS, and IS timings are all included in timings referenced as address.

Figure 5-9. Parallel I/O Port Write ( IOSTRB = 0)

Electrical Specifications 67

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5.9 Ready Timing for Externally Generated Wait States

Table 5-13 and Table 5-14 assume testing over recommended operating conditions and H = 0.5t Figure 5-10 , Figure 5-11 , Figure 5-12 , and Figure 5-13 ).

Table 5-13. Ready Timing Requirements for Externally Generated Wait States

su(RDY)

h(RDY)

v(RDY)MSTRB

h(RDY)MSTRB

v(RDY)IOSTRB

h(RDY)IOSTRB

(1) The hardware wait states can be used only in conjunction with the software wait states to extend the bus cycles. To generate wait states

by READY, at least two software wait states must be programmed. READY is not sampled until the completion of the internal software

wait states. (2) These timings are included for reference only. The critical timings for READY are those referenced to CLKOUT.

Setup time, READY before CLKOUT low 7 ns Hold time, READY after CLKOUT low 0 ns Valid time, READY after MSTRB low Hold time, READY after MSTRB low Valid time, READY after IOSTRB low Hold time, READY after IOSTRB low

(2)

Table 5-14. Ready Switching Characteristics for Externally Generated Wait States

PARAMETER UNIT

d(MSCL)

d(MSCH)

(1) The hardware wait states can be used only in conjunction with the software wait states to extend the bus cycles. To generate wait states

by READY, at least two software wait states must be programmed. READY is not sampled until the completion of the internal software

wait states.

Delay time, CLKOUT low to MSC low – 1 4 ns Delay time, CLKOUT low to MSC high – 1 4 ns

(1)

5409A-120 5409A-160

MIN MAX

4H – 4 ns

4H ns

4H – 4 ns

4H ns

(1)

5409A-120 5409A-160

MIN MAX

(see

c(CO)

UNIT

Electrical Specifications68

www.ti.com

su(RDY)

d(MCSH)

CLKOUT

A[22:0]

READY

MSC

MSTRB

Wait States

Generated

Internally

Trailing

Cycle

Wait

States Generated by READY

Leading

Cycle

v(RDY)MSTRB

h(RDY)

h(RDY)MSTRB

d(MCSL)

su(RDY)

d(MSCL)

CLKOUT

A[22:0]

D[15:0]

READY

MSC

MSTRB

d(MSCH)

v(RDY)MSTRB

h(RDY)MSTRB

h(RDY)

Trailing

Cycle

Wait

States

Generated

by READY

Wait

States

Generated

Internally

Leading

Cycle

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-10. Memory Read With Externally Generated Wait States

Figure 5-11. Memory Write With Externally Generated Wait States

Electrical Specifications 69

www.ti.com

su(RDY)

d(MSCH)

d(MSCL)

CLKOUT

A[22:0]

READY

MSC

IOSTRB

Wait States

Generated

Internally

Trailing

Cycle

Wait

States Generated by READY

Leading

Cycle

v(RDY)IOSTRB

h(RDY)

h(RDY)IOSTRB

su(RDY)

d(MSCL)

CLKOUT

A[22:0]

D[15:0]

READY

MSC

IOSTRB

d(MSCH)

v(RDY)IOSTRB

h(RDY)IOSTRB

h(RDY)

Trailing

CycleWait

States Generated by READY

Wait

States

Generated

Internally

Leading

Cycle

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

70 Electrical Specifications

Figure 5-12. I/O Read With Externally Generated Wait States

Figure 5-13. I/O Write With Externally Generated Wait States

www.ti.com

5.10 HOLD and HOLDA Timings

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-15 and Table 5-16 assume testing over recommended operating conditions and H = 0.5t Figure 5-14 ).

Table 5-15. HOLD and HOLDA Timing Requirements

w(HOLD)

su(HOLD)

Pulse duration, HOLD low duration 4H+8 ns Setup time, HOLD before CLKOUT low 7 ns

Table 5-16. HOLD and HOLDA Switching Characteristics

PARAMETER UNIT

dis(CLKL-A)

dis(CLKL-RW)

dis(CLKL-S)

en(CLKL-A)

en(CLKL-RW)

en(CLKL-S)

v(HOLDA)

w(HOLDA)

Disable time, Address, PS, DS, IS high impedance from CLKOUT low 3 ns Disable time, R/ W high impedance from CLKOUT low 3 ns Disable time, MSTRB, IOSTRB high impedance from CLKOUT low 3 ns Enable time, Address, PS, DS, IS valid from CLKOUT low 2H+6 ns Enable time, R/ W enabled from CLKOUT low 2H+3 ns Enable time, MSTRB, IOSTRB enabled from CLKOUT low 2 2H+3 ns Valid time, HOLDA low after CLKOUT low – 1 4 ns Valid time, HOLDA high after CLKOUT low – 1 4 ns Pulse duration, HOLDA low duration 2H–3 ns

5409A-120 5409A-160

MIN MAX

5409A-120 5409A-160

MIN MAX

(see

c(CO)

UNIT

71Electrical Specifications

www.ti.com

IOSTRB

MSTRB

R/W

D[15:0]

PS, DS, IS

A[22:0]

HOLDA

HOLD

CLKOUT

en(CLKL-S)

en(CLKL-RW)

dis(CLKL-S)

dis(CLKL-RW)

dis(CLKL-A)

v(HOLDA)

w(HOLDA)

w(HOLD)

su(HOLD)

en(CLKL-A)

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-14. HOLD and HOLDA Timings (HM = 1)

72 Electrical Specifications

www.ti.com

5.11 Reset, BIO, Interrupt, and MP/ MC Timings

BIO

CLKOUT

RS, INTn, NMI

X2/CLKIN

h(BIO)

h(RS)

su(INT)

w(BIO)S

su(BIO)

w(RSL)

su(RS)

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-17 assumes testing over recommended operating conditions and H = 0.5t

(see Figure 5-15 ,

c(CO)

Figure 5-16 , and Figure 5-17 ).

Table 5-17. Reset, BIO, Interrupt, and MP/ MC Timing Requirements

5409A-120 5409A-160

MIN MAX

h(RS)

h(BIO)

h(INT)

h(MPMC)

w(RSL)

w(BIO)S

w(BIO)A

w(INTH)S

w(INTH)A

w(INTL)S

w(INTL)A

w(INTL)WKP

su(RS)

su(BIO)

su(INT)

su(MPMC)

(1) The external interrupts ( INT0– INT3, NMI) are synchronized to the core CPU by way of a two-flip-flop synchronizer that samples these

inputs with consecutive falling edges of CLKOUT. The input to the interrupt pins is required to represent a 1-0-0 sequence at the timing that is corresponding to three CLKOUTs sampling sequence.

(2) If the PLL mode is selected, then at power-on sequence, or at wakeup from IDLE3, RS must be held low for at least 50 µs to ensure

synchronization and lock-in of the PLL. (3) Note that RS may cause a change in clock frequency, therefore changing the value of H. (4) The diagram assumes clock mode is divide-by-2 and the CLKOUT divide factor is set to no-divide mode (DIVFCT=00 field in the BSCR).

Hold time, RS after CLKOUT low 2 ns Hold time, BIO after CLKOUT low 4 ns Hold time, INTn, NMI, after CLKOUT low

(1)

1 ns Hold time, MP/ MC after CLKOUT low 4 ns Pulse duration, RS low

(2) (3)

4H+3 ns Pulse duration, BIO low, synchronous 2H+3 ns Pulse duration, BIO low, asynchronous 4H ns Pulse duration, INTn, NMI high (synchronous) 2H+2 ns Pulse duration, INTn, NMI high (asynchronous) 4H ns

Pulse duration, INTn, NMI low (synchronous) 2H+2 ns Pulse duration, INTn, NMI low (asynchronous) 4H ns Pulse duration, INTn, NMI low for IDLE2/IDLE3 wakeup 7 ns Setup time, RS before X2/CLKIN low

(4)

3 ns Setup time, BIO before CLKOUT low 7 ns Setup time, INTn, NMI, RS before CLKOUT low 7 ns Setup time, MP/ MC before CLKOUT low 5 ns

UNIT

Figure 5-15. Reset and BIO Timings

Electrical Specifications 73

www.ti.com

INTn, NMI

CLKOUT

h(INT)

su(INT)

w(INTL)A

w(INTH)A

MP/MC

CLKOUT

su(MPMC)

h(MPMC)

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-16. Interrupt Timing

Figure 5-17. MP/ MC Timing

74 Electrical Specifications

www.ti.com

IACK

IAQ

A[22:0]

CLKOUT

d(A)IACK

d(A)IAQ

w(IACKL)

h(A)IACK

d(CLKL-IACKL)

w(IAQL)

h(A)IAQ

d(CLKL-IAQL)

d(CLKL-IACKH)

d(CLKL-IAQH)

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5.12 Instruction Acquisition ( IAQ) and Interrupt Acknowledge ( IACK) Timings

TMS320VC5409A

Fixed-PointDigital Signal Processor

Table 5-18 assumes testing over recommended operating conditions and H = 0.5t

Table 5-18. Instruction Acquisition ( IAQ) and Interrupt Acknowledge ( IACK) Switching Characteristics

PARAMETER UNIT

d(CLKL-IAQL)

d(CLKL-IAQH)

d(A)IAQ

d(CLKL-IACKL)

d(CLKL-IACKH)

d(A)IACK

h(A)IAQ

h(A)IACK

w(IAQL)

w(IACKL)

Delay time, CLKOUT low to IAQ low – 1 4 ns Delay time, CLKOUT low to IAQ high – 1 4 ns Delay time, IAQ low to address valid 2 ns Delay time, CLKOUT low to IACK low – 1 4 ns Delay time, CLKOUT low to IACK high – 1 4 ns Delay time, IACK low to address valid 2 ns Hold time, address valid after IAQ high – 2 ns Hold time, address valid after IACK high – 2 ns Pulse duration, IAQ low 2H – 2 ns Pulse duration, IACK low 2H – 2 ns

(see Figure 5-18 ).

c(CO)

5409A-120 5409A-160

MIN MAX

Figure 5-18. Instruction Acquisition ( IAQ) and Interrupt Acknowledge ( IACK) Timings

Electrical Specifications 75

www.ti.com

CLKOUT

d(XF)

TOUT

CLKOUT

w(TOUT)

d(TOUTL)

d(TOUTH)

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5.13 External Flag (XF) and TOUT Timings

Table 5-19 assumes testing over recommended operating conditions and H = 0.5t and Figure 5-20 ).

Table 5-19. External Flag (XF) and TOUT Switching Characteristics

PARAMETER UNIT

d(XF)

d(TOUTH)

d(TOUTL)

w(TOUT)

Delay time, CLKOUT low to XF high – 1 4 Delay time, CLKOUT low to XF low – 1 4 Delay time, CLKOUT low to TOUT high – 1 4 ns Delay time, CLKOUT low to TOUT low – 1 4 ns Pulse duration, TOUT 2H – 4 ns

Figure 5-19. External Flag (XF) Timing

c(CO)

(see Figure 5-19

5409A-120 5409A-160

MIN MAX

76 Electrical Specifications

Figure 5-20. TOUT Timing

www.ti.com

5.14 Multichannel Buffered Serial Port (McBSP) Timing

5.14.1 McBSP Transmit and Receive Timings

Table 5-20 and Table 5-21 assume testing over recommended operating conditions (see Figure 5-21 and Figure 5-22 ).

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-20. McBSP Transmit and Receive Timing Requirements

(1)

5409A-120 5409A-160

MIN MAX

c(BCKRX)

w(BCKRX)

su(BFRH-BCKRL)

h(BCKRL-BFRH)

su(BDRV-BCKRL)

h(BCKRL-BDRV)

su(BFXH-BCKXL)

h(BCKXL-BFXH)

r(BCKRX)

f(BCKRX)

Cycle time, BCLKR/X BCLKR/X ext 4P Pulse duration, BCLKR/X high or BCLKR/X low BCLKR/X ext 2P–1

Setup time, external BFSR high before BCLKR low ns

Hold time, external BFSR high after BCLKR low ns

Setup time, BDR valid before BCLKR low ns

Hold time, BDR valid after BCLKR low ns

Setup time, external BFSX high before BCLKX low ns

Hold time, external BFSX high after BCLKX low ns

BCLKR int 8 BCLKR ext 1 BCLKR int 1 BCLKR ext 2 BCLKR int 7 BCLKR ext 1 BCLKR int 2 BCLKR ext 3 BCLKX int 8 BCLKX ext 1 BCLKX int 0 BCLKX ext 2

Rise time, BCKR/X BCLKR/X ext 6 ns

Fall time, BCKR/X BCLKR/X ext 6 ns

(2)

(1) CLKRP = CLKXP = FSRP = FSXP = 0. If the polarity of any of the signals is inverted, then the timing references of that signal are also

inverted.

(2) P = 0.5 * processor clock

UNIT

ns ns

77Electrical Specifications

www.ti.com

(n-2)Bit (n-1)

(n-3)(n-2)Bit (n-1)

(n-4)(n-3)(n-2)Bit (n-1)

h(BCKRL-BDRV)

su(BDRV-BCKRL)

h(BCKRL-BDRV)

su(BDRV-BCKRL)

h(BCKRL-BDRV)

h(BCKRL-BFRH)

tsu(BFRH-BCKRL)

d(BCKRH-BFRV)

r(BCKRX)

w(BCKRXL)

c(BCKRX)

w(BCKRXH)

(RDATDLY=10b)

BDR

(RDATDLY=01b)

BDR

(RDATDLY=00b)

BDR

BFSR (ext)

BFSR (int)

BCLKR

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-21. McBSP Transmit and Receive Switching Characteristics

PARAMETER UNIT

c(BCKRX)

w(BCKRXH)

w(BCKRXL)

d(BCKRH-BFRV)

d(BCKXH-BFXV)

dis(BCKXH-BDXHZ)

d(BCKXH-BDXV)

d(BFXH-BDXV)

(1) CLKRP = CLKXP = FSRP = FSXP = 0. If the polarity of any of the signals is inverted, then the timing references of that signal are also

inverted. (2) P = 0.5 * processor clock (3) T = BCLKRX period = (1 + CLKGDV) * 2P

C = BCLKRX low pulse width = T/2 when CLKGDV is odd or zero and = (CLKGDV/2) * 2P when CLKGDV is even

D = BCLKRX high pulse width = T/2 when CLKGDV is odd or zero and = (CLKGDV/2 + 1) * 2P when CLKGDV is even (4) The transmit delay enable (DXENA) feature of the McBSP is not implemented on the TMS320VC5409A. (5) Minimum delay times also represent minimum output hold times.

Cycle time, BCLKR/X BCLKR/X int 4P Pulse duration, BCLKR/X high BCLKR/X int D – 1 Pulse duration, BCLKR/X low BCLKR/X int C – 1

Delay time, BCLKR high to internal BFSR valid

Delay time, BCLKX high to internal BFSX valid ns

Disable time, BCLKX high to BDX high impedance following last data bit of transfer

Delay time, BCLKX high to BDX valid DXENA = 0

Delay time, BFSX high to BDX valid ONLY applies when in data delay 0 (XDATDLY = 00b) mode

BCLKR int – 3 3 ns BCLKR ext 0 11 ns BCLKX int – 1 5 BCLKX ext 2 10 BCLKX int 6 BCLKX ext 10 BCLKX int – 1

(4)

BCLKX ext 2 20 BFSX int – 1 BFSX ext 2 11

(1)

5409A-120 5409A-160

MIN MAX

(2)

(3) (3)

(5)

D + 1 C + 1

(3) (3)

ns ns ns

78 Electrical Specifications

Figure 5-21. McBSP Receive Timings

www.ti.com

d(BCKXH-BDXV)

dis(BCKXH-BDXHZ)

d(BCKXH-BDXV)

d(BDFXH-BDXV)

(XDATDLY=10b)

BDX

(XDATDLY=01b)

BDX

(XDATDLY=00b)

BDX

(n-2)Bit (n-1)Bit 0

(n-4)Bit (n-1) (n-3)(n-2)Bit 0

(n-3)(n-2)Bit (n-1)

Bit 0

h(BCKXL-BFXH)

f(BCKRX)

r(BCKRX)

w(BCKRXL)

c(BCKRX)

w(BCKRXH)

BFSX (ext)

BFSX (int)

BCLKX

d(BCKXH-BFXV)

su(BFXH-BCKXL)

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-22. McBSP Transmit Timings

Electrical Specifications 79

www.ti.com

su(BGPIO-COH)

h(COH-BGPIO)

d(COH-BGPIO)

CLKOUT

BGPIOx Input

Mode

(A)

BGPIOx Output

Mode

(B)

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5.14.2 McBSP General-Purpose I/O Timing

Table 5-22 and Table 5-23 assume testing over recommended operating conditions (see Figure 5-23 ).

Table 5-22. McBSP General-Purpose I/O Timing Requirements

su(BGPIO-COH)

h(COH-BGPIO)

(1) BGPIOx refers to BCLKRx, BFSRx, BDRx, BCLKXx, or BFSXx when configured as a general-purpose input.

Setup time, BGPIOx input mode before CLKOUT high Hold time, BGPIOx input mode after CLKOUT high

Table 5-23. McBSP General-Purpose I/O Switching Characteristics

PARAMETER UNIT

d(COH-BGPIO)

(1) BGPIOx refers to BCLKRx, BFSRx, BCLKXx, BFSXx, or BDXx when configured as a general-purpose output.

Delay time, CLKOUT high to BGPIOx output mode

(1)

5409A-120 5409A-160

MIN MAX

7 ns 0 ns

5409A-120 5409A-160

MIN MAX

– 2 4 ns

UNIT

A. BGPIOx refers to BCLKRx, BFSRx, BDRx, BCLKXx, or BFSXx when configured as a general-purpose input. B. BGPIOx refers to BCLKRx, BFSRx, BCLKXx, BFSXx, or BDXx when configured as a general-purpose output.

Figure 5-23. McBSP General-Purpose I/O Timings

80 Electrical Specifications

www.ti.com

5.14.3 McBSP as SPI Master or Slave Timing

Bit 0 Bit(n-1) (n-2) (n-3) (n-4)

BCLKX

BFSX

BDX

BDR

su(BDRV-BCLXL)

d(BCKXH-BDXV)

h(BCKXL-BDRV)

dis(BFXH-BDXHZ)

dis(BCKXL-BDXHZ)

h(BCKXL-BFXL)

d(BFXL-BDXV)

d(BFXL-BCKXH)

LSB

MSB

Table 5-24 to Table 5-31 assume testing over recommended operating conditions (see Figure 5-24 , Figure 5-25 , Figure 5-26 , and Figure 5-27 ).

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-24. McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 10b, CLKXP = 0)

5409A-120 5409A-160

MASTER SLAVE

MIN MAX MIN MAX

su(BDRV-BCKXL)

h(BCKXL-BDRV)

Setup time, BDR valid before BCLKX low 12 2 – 6P Hold time, BDR valid after BCLKX low 4 5 + 12P

(2)

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) P = 0.5 * processor clock

Table 5-25. McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 0)

5409A-120

PARAMETER UNIT

MASTER

MIN MAX MIN MAX

h(BCKXL-BFXL)

d(BFXL-BCKXH)

d(BCKXH-BDXV)

dis(BCKXL-BDXHZ)

dis(BFXH-BDXHZ)

d(BFXL-BDXV)

Hold time, BFSX low after BCLKX low Delay time, BFSX low to BCLKX high Delay time, BCLKX high to BDX valid – 4 5 6P + 2 Disable time, BDX high impedance following last data bit from

BCLKX low Disable time, BDX high impedance following last data bit from

BFSX high Delay time, BFSX low to BDX valid 4P+ 2

(3)

(4)

T – 3 T + 4 ns

C – 4 C + 3 ns

C – 2 C + 3 ns

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) T = BCLKX period = (1 + CLKGDV) * 2P

C = BCLKX low pulse width = T/2 when CLKGDV is odd or zero and = (CLKGDV/2) * 2P when CLKGDV is even (3) FSRP = FSXP = 1. As a SPI master, BFSX is inverted to provide active-low slave-enable output. As a slave, the active-low signal input

on BFSX and BFSR is inverted before being used internally.

CLKXM = FSXM = 1, CLKRM = FSRM = 0 for master McBSP CLKXM = CLKRM = FSXM = FSRM = 0 for slave McBSP (4) BFSX should be low before the rising edge of clock to enable slave devices and then begin a SPI transfer at the rising edge of the

master clock (BCLKX). (5) P = 0.5 * processor clock

5409A-160

(2)

2P– 4

SLAVE

(5)

10P + 17

(5)

6P + 17

(5)

8P + 17

(1)

UNIT

ns ns

(1)

(5)

Figure 5-24. McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 0

Electrical Specifications 81

www.ti.com

Bit 0 Bit(n-1) (n-2) (n-3) (n-4)

BCLKX

BFSX

BDX

BDR

d(BFXL-BCKXH)

dis(BCKXL-BDXHZ)

d(BCKXL-BDXV)

h(BCKXH-BDRV)

su(BDRV-BCKXL)

d(BFXL-BDXV)

h(BCKXL-BFXL)

LSB

MSB

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-26. McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 11b, CLKXP = 0)

5409A-120 5409A-160

MASTER SLAVE

MIN MAX MIN MAX

su(BDRV-BCKXL)

h(BCKXH-BDRV)

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) P = 0.5 * processor clock

Setup time, BDR valid before BCLKX low 12 2 – 6P Hold time, BDR valid after BCLKX high 4 5 + 12P

(1)

UNIT

(2) (2)

ns ns

Table 5-27. McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 11b, CLKXP = 0)

5409A-120

PARAMETER UNIT

MASTER

MIN MAX MIN MAX

h(BCKXL-BFXL)

d(BFXL-BCKXH)

d(BCKXL-BDXV)

dis(BCKXL-BDXHZ)

d(BFXL-BDXV)

Hold time, BFSX low after BCLKX low Delay time, BFSX low to BCLKX high Delay time, BCLKX low to BDX valid – 4 5 6P + 2 Disable time, BDX high impedance following last data bit from

BCLKX low Delay time, BFSX low to BDX valid D – 2 D + 4 4P + 2

(3)

(4)

C – 3 C + 4 ns T – 4 T + 3 ns

– 2 4 6P – 4

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) T = BCLKX period = (1 + CLKGDV) * 2P

C = BCLKX low pulse width = T/2 when CLKGDV is odd or zero and = (CLKGDV/2) * 2P when CLKGDV is even

D = BCLKX high pulse width = T/2 when CLKGDV is odd or zero and = (CLKGDV/2 + 1) * 2P when CLKGDV is even (3) FSRP = FSXP = 1. As a SPI master, BFSX is inverted to provide active-low slave-enable output. As a slave, the active-low signal input

on BFSX and BFSR is inverted before being used internally.

master clock (BCLKX). (5) P = 0.5 * processor clock

5409A-160

(2)

SLAVE

(5)

10P + 17

(5)

10P + 17

(5)

8P + 17

(1)

(5)

Figure 5-25. McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 0

82 Electrical Specifications

www.ti.com

h(BCKXH-BDRV)

dis(BFXH-BDXHZ)

dis(BCKXH-BDXHZ)

Bit 0 Bit(n-1) (n-2) (n-3) (n-4)

BCLKX

BFSX

BDX

BDR

d(BFXL-BCKXL)

d(BFXL-BDXV)

d(BCKXL-BDXV)

su(BDRV-BCKXH)

h(BCKXH-BFXL)

LSB

MSB

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-28. McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 10b, CLKXP = 1)

5409A-120 5409A-160

MASTER SLAVE

MIN MAX MIN MAX

su(BDRV-BCKXH)

h(BCKXH-BDRV)

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) P = 0.5 * processor clock

Setup time, BDR valid before BCLKX high 12 2 – 6P Hold time, BDR valid after BCLKX high 4 5 + 12P

TMS320VC5409A

(1)

UNIT

(2) (2)

ns ns

Table 5-29. McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 1)

5409A-120

PARAMETER UNIT

MASTER

MIN MAX MIN MAX

h(BCKXH-BFXL)

d(BFXL-BCKXL)

d(BCKXL-BDXV)

dis(BCKXH-BDXHZ)

dis(BFXH-BDXHZ)

d(BFXL-BDXV)

Hold time, BFSX low after BCLKX high Delay time, BFSX low to BCLKX low Delay time, BCLKX low to BDX valid – 4 5 6P + 2 Disable time, BDX high impedance following last data bit from

BCLKX high Disable time, BDX high impedance following last data bit from

BFSX high Delay time, BFSX low to BDX valid 4P + 2

(3)

(4)

T – 3 T + 4 ns D – 4 D + 3 ns

D – 2 D + 3 ns

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) T = BCLKX period = (1 + CLKGDV) * 2P

on BFSX and BFSR is inverted before being used internally.

master clock (BCLKX). (5) P = 0.5 * processor clock

5409A-160

(2)

2P – 4

SLAVE

(5)

10P + 17

(5)

6P + 17

(5)

8P + 17

(1)

(5)

Figure 5-26. McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 1

Electrical Specifications 83

www.ti.com

Bit 0 Bit(n-1) (n-2) (n-3) (n-4)

BCLKX

BFSX

BDX

BDR

d(BFXL-BCKXL)

su(BDRV-BCKXL)

dis(BCKXH-BDXHZ)

h(BCKXH-BFXL)

d(BCKXH-BDXV)

h(BCKXL-BDRV)

d(BFXL-BDXV)

LSB

MSB

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-30. McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 11b, CLKXP = 1)

5409A-120 5409A-160

MASTER SLAVE

MIN MAX MIN MAX

su(BDRV-BCKXL)

h(BCKXL-BDRV)

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) P = 0.5 * processor clock

Setup time, BDR valid before BCLKX low 12 2 – 6P Hold time, BDR valid after BCLKX low 4 5 + 12P

(1)

UNIT

(2)

ns ns

Table 5-31. McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 11b, CLKXP = 1)

5409A-120

PARAMETER UNIT

MASTER

MIN MAX MIN MAX

h(BCKXH-BFXL)

d(BFXL-BCKXL)

d(BCKXH-BDXV)

dis(BCKXH-BDXHZ)

d(BFXL-BDXV)

Hold time, BFSX low after BCLKX high Delay time, BFSX low to BCLKX low Delay time, BCLKX high to BDX valid – 4 5 6P + 2 Disable time, BDX high impedance following last data bit from

BCLKX high Delay time, BFSX low to BDX valid C – 2 C + 4 4P + 2

(3)

(4)

D – 3 D + 4 ns T – 4 T + 3 ns

– 2 4 6P – 4

(1) For all SPI slave modes, CLKG is programmed as 1/2 of the CPU clock by setting CLKSM = CLKGDV = 1. (2) T = BCLKX period = (1 + CLKGDV) * 2P

C = BCLKX low pulse width = T/2 when CLKGDV is odd or zero and = (CLKGDV/2) * 2P when CLKGDV is even

on BFSX and BFSR is inverted before being used internally.

master clock (BCLKX). (5) P = 0.5 * processor clock

5409A-160

(2)

SLAVE

(5)

10P + 17

(5)

10P + 17

(5)

8P + 17

(1)

(5)

Figure 5-27. McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 1

84 Electrical Specifications

www.ti.com

5.15 Host-Port Interface Timing

5.15.1 HPI8 Mode

Table 5-32 and Table 5-33 assume testing over recommended operating conditions and P = 0.5 * processor clock (see Figure 5-28 through Figure 5-31 ). In the following tables, DS refers to the logical OR of HCS, HDS1, and HDS2. HD refers to any of the HPI data bus pins (HD0, HD1, HD2, etc.). HAD stands for HCNTL0, HCNTL1, and HR/ W.

su(HBV-DSL)

h(DSL-HBV)

su(HSL-DSL)

w(DSL)

w(DSH)

su(HDV-DSH)

h(DSH-HDV)W

su(GPIO-COH)

h(GPIO-COH)

Setup time, HBIL valid before DS low (when HAS is not used), or HBIL valid before HAS low 6 ns Hold time, HBIL valid after DS low (when HAS is not used), or HBIL valid after HAS low 3 ns Setup time, HAS low before DS low 8 ns Pulse duration, DS low 13 ns Pulse duration, DS high 7 ns Setup time, HD valid before DS high, HPI write 3 ns Hold time, HD valid after DS high, HPI write 2 ns Setup time, HDx input valid before CLKOUT high, HDx configured as general-purpose input 3 ns Hold time, HDx input valid before CLKOUT high, HDx configured as general-purpose input 0 ns

Table 5-32. HPI8 Mode Timing Requirements

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5409A-120 5409A-160

MIN MAX

UNIT

85Electrical Specifications

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-33. HPI8 Mode Switching Characteristics

5409A-120

PARAMETER UNIT

en(DSL-HD)

d(DSL-HDV1)

Enable time, HD driven from DS low 0 10 ns

Case 1a: Memory accesses when DMAC is active and t

w(DSH)

Case 1b: Memory accesses when DMAC is active

and t Delay time, DS low to HD valid for first byte of an HPI read 10P+10–t

w(DSH)

Case 2a: Memory accesses when DMAC is inactive ns

and t

w(DSH)

Case 2b: Memory accesses when DMAC is inactive

and t

w(DSH)

(1)

< I8H

(1)

≥ I8H

(1)

< 10H

(1)

≥ 10H

Case 3: Register accesses 10

d(DSL-HDV2)

h(DSH-HDV)R

v(HYH-HDV)

d(DSH-HYL)

d(DSH-HYH)

d(HCS-HRDY)

d(COH-HYH)

d(COH-HTX)

d(COH-GPIO)

Delay time, DS low to HD valid for second byte of an HPI read 10 ns Hold time, HD valid after DS high, for a HPI read 0 ns Valid time, HD valid after HRDY high 2 ns Delay time, DS high to HRDY low

Delay time, DS high to HRDY Case 2: Memory accesses when DMAC is

(2)

high

(2)

Case 1: Memory accesses when DMAC is active

(1)

inactive

Case 3: Write accesses to HPIC register

(1)

(3)

Delay time, HCS low/high to HRDY low/high 6 ns Delay time, CLKOUT high to HRDY high 9 ns Delay time, CLKOUT high to HINT change 6 ns Delay time, CLKOUT high to HDx output change. HDx is configured as a

general-purpose output

(1) DMAC stands for direct memory access controller (DMAC). The HPI8 shares the internal DMA bus with the DMAC, thus HPI8 access

times are affected by DMAC activity. (2) The HRDY output is always high when the HCS input is high, regardless of DS timings. (3) This timing applies when writing a one to the DSPINT bit or HINT bit of the HPIC register. All other writes to the HPIC occur

asynchronously, and do not cause HRDY to be deasserted.

5409A-160

MIN MAX

18P+10–t

18P+6 10P+6 ns

6P+6

w(DSH)

8 ns

5 ns

Electrical Specifications86

www.ti.com

Valid

su(HSL-DSL)

Valid

su(HBV-DSL)

(B)

HAS

HAD

(A)

HBIL

h(DSL-HBV)

(B)

d(DSL-HDV1)

v(HYH-HDV)

Valid Valid

Valid

d(COH-HYH)

Valid

d(DSH-HYL)

h(DSH-HDV)W

Valid

su(HDV-DSH)

d(DSL-HDV2)

en(DSL-HD)

HCS

HDS

HRDY

HD READ

ValidHD WRITE

Processor

CLK

Second Byte First Byte Second Byte

d(DSH-HYH)

h(DSH-HDV)R

w(DSL)

w(DSH)

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

A. HAD refers to HCNTL0, HCNTL1, and HR/ W. B. When HAS is not used ( HAS always high)

Figure 5-28. HPI-8 Mode Timing, Using HDS to Control Accesses ( HCS Always Low)

Electrical Specifications 87

www.ti.com

d(HCS-HRDY)

HCS

HDS

HRDY

HINT

CLKOUT

d(COH-HTX)

GPIOx Input Mode

(A)

CLKOUT

h(GPIO-COH)

GPIOx Output Mode

(A)

su(GPIO-COH)

d(COH-GPIO)

CLKOUT

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-29. HPI-8 Mode Timing, Using HCS to Control Accesses

Figure 5-30. HPI-8 Mode, HINT Timing

A. GPIOx refers to HD0, HD1, HD2, ...HD7, when the HD bus is configured for general-purpose input/output (I/O).

Figure 5-31. GPIOx

(A)

Timings

88 Electrical Specifications

www.ti.com

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

5.15.2 HPI16 Mode

Table 5-34 and Table 5-35 assume testing over recommended operating conditions and P = 0.5 * processor clock (see Figure 5-32 through Figure 5-34 ). In the following tables, DS refers to the logical OR of HCS, HDS1, and HDS2, and HD refers to any of the HPI data bus pins (HD0, HD1, HD2, etc.). These timings are shown assuming that HDS is the signal controlling the transfer. See the TMS320C54x DSP Reference Set,Volume 5: Enhanced Peripherals (literature number SPRU302) for addition information.

Table 5-34. HPI16 Mode Timing Requirements

5409A-120 5409A-160

MIN MAX

su(HBV-DSL)

h(DSL-HBV)

su(HAV-DSH)

su(HAV-DSL)

h(DSH-HAV)

tw(DSL) Pulse duration, DS low 30 ns t

w(DSH)

c(DSH-DSH)

su(HDV-DSH)W

h(DSH-HDV)W

Setup time, HR/ W valid before DS falling edge 6 ns Hold time, HR/ W valid after DS falling edge 5 ns Setup time, address valid before DS rising edge (write) 5 ns Setup time, address valid before DS falling edge (read) –(4P – 6) ns Hold time, address valid after DS rising edge 1 ns

Pulse duration, DS high 10 ns

Memory accesses with no DMA activity.

Cycle time, DS rising edge to next DS rising edge

Setup time, HD valid before DS rising edge 8 ns Hold time, HD valid after DS rising edge, write 2 ns

Memory accesses with 16-bit DMA activity. ns

Memory accesses with 32-bit DMA activity.

Reads 10P + 30 Writes 10P + 10 Reads 16P + 30 Writes 16P + 10 Reads 24P + 30 Writes 24P + 10

UNIT

89Electrical Specifications

www.ti.com

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Table 5-35. HPI16 Mode Switching Characteristics

d(DSL-HDD)

d(DSL-HDV1)

d(DSH-HYH)

v(HYH-HDV)

h(DSH-HDV)R

d(COH-HYH)

d(DSL-HYL)

d(DSH-HYL)

Delay time, DS low to HD driven 0 10 ns

Case 1a: Memory accesses initiated immediately following a write when DMAC is active in 16-bit mode and t 18H

Case 1b: Memory accesses not immediately following a write when DMAC is active in 16-bit mode

Delay time, DS low to HD valid for first word ns of an HPI read

Case 1c: Memory accesses initiated immediately following a write when DMAC is active in 32-bit mode and t 26H

Case 1d: Memory access not immediately following a write when DMAC is active in 32-bit mode

Case 2a: Memory accesses initiated immediately following a write when DMAC is inactive and t

Case 2b: Memory accesses not immediately following a write when DMAC is inactive

Memory writes when no DMA is active 10P + 5 Delay time, DS high to HRDY high

Memory writes with one or more 16-bit DMA channels active 16P + 5 ns

Memory writes with one or more 32-bit DMA channels active 24P + 5 Valid time, HD valid after HRDY high 7 ns Hold time, HD valid after DS rising edge, read 1 6 ns Delay time, CLKOUT rising edge to HRDY high 5 ns Delay time, DS low to HRDY low 12 ns Delay time, DS high to HRDY low 12 ns

5409A-120

PARAMETER UNIT

5409A-160

MIN MAX

was < 32P + 20 – t

w(DSH)

16P + 20

was < 48P + 20 – t

w(DSH)

24P + 20

was < 10H

w(DSH)

20P + 20 – t

w(DSH)

10P + 20

Electrical Specifications90

www.ti.com

c(DSH-DSH)

w(DSH)

su(HBV-DSL)

w(DSL)

h(DSL-HBV)

su(HAV-DSL)

h(DSH-HDV)R

v(HYH-HDV)

d(DSL-HYL)

HCS

HDS

HR/W

HA[15:0]

HD[15:0]

HRDY

Valid Address

Data

Valid Address

su(HBV-DSL)

h(DSL-HBV)

d(DSL-HDV1)

Data

d(DSL-HDV1)

v(HYH-HDV)

h(DSH-HDV)R

d(DSL-HYL)

h(DSH-HAV)

d(DSL-HDD)

HRDY

HD[15:0]

HA[15:0]

HR/W

HDS

HCS

Data ValidData Valid

h(DSH-HDV)W

su(HDV-DSH)W

Valid AddressValid Address

h(DSH-HAV)

h(DSL-HBV)

w(DSL)

su(HBV-DSL)

w(DSH)

c(DSH-DSH)

d(DSH-HYH)

d(DSH-HYL)

su(HAV-DSH)

h(DSL-HBV)

su(HBV-DSL)

h(DSH-HDV)W

su(HDV-DSH)W

TMS320VC5409A

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-32. HPI-16 Mode, Nonmultiplexed Read Timings

Figure 5-33. HPI-16 Mode, Nonmultiplexed Write Timings

Electrical Specifications 91

www.ti.com

CLKOUT

HRDY

d(COH-HYH)

TMS320VC5409A Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

Figure 5-34. HPI-16 Mode, HRDY Relative to CLKOUT

92 Electrical Specifications

www.ti.com

Fixed-PointDigital Signal Processor

SPRS140F – NOVEMBER 2000 – REVISED JANUARY 2005

6 Mechanical Data

The following mechanical package diagram(s) reflect the most current released mechanical data available for the designated device(s).

6.1 Package Thermal Resistance Characteristics

Table 6-1 provides the estimated thermal resistance characteristics for the recommended package types used on the device.

Table 6-1. Thermal Resistance Characteristics

PARAMETER GGU PACKAGE PGE PACKAGE UNIT

θ JA

θ JC

38 56 ° C/W

5 5 ° C/W

TMS320VC5409A

Mechanical Data 93

PACKAGE OPTION ADDENDUM

www.ti.com

20-Sep-2005

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package

Drawing

Pins Package

Qty

Eco Plan

TMS320VC5409AGGU12 ACTIVE BGA GGU 144 160 TBD SNPB Level-3-220C-168HR TMS320VC5409AGGU16 ACTIVE BGA GGU 144 160 TBD SNPB Level-3-220C-168HR TMS320VC5409APGE12 ACTIVE LQFP PGE 144 60 Green (RoHS &

no Sb/Br)

TMS320VC5409APGE16 ACTIVE LQFP PGE 144 60 Green (RoHS &

no Sb/Br)

TMS320VC5409AZGU12 ACTIVE BGA ZGU 144 160 Green (RoHS &

no Sb/Br)

TMS320VC5409AZGU16 ACTIVE BGA ZGU 144 160 Green (RoHS &

no Sb/Br)

TMSDVC5409APGE16G4 ACTIVE LQFP PGE 144 60 Green (RoHS &

no Sb/Br)

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device.

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

SNAGCU Level-3-260C-168HR

CU NIPDAU Level-1-260C-UNLIM

(3)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS) or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

Addendum-Page 1

MECHANICAL DATA

MPBG021C – DECEMBER 1996 – REVISED MA Y 2002

GGU (S–PBGA–N144) PLASTIC BALL GRID ARRAY

12,10

11,90

A1 Corner

N M L K J H G F E D C B A

9,60 TYP

0,80

0,95

0,85

0,55 0,45

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice C. MicroStar BGAt configuration

0,08

1,40 MAX

0,45 0,35

2 4

Seating Plane

0,10

76 98 1110 1312

Bottom View

4073221-2/C 12/01

MicroStar BGA is a trademark of Texas Instruments Incorporated.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

MTQF017A – OCTOBER 1994 – REVISED DECEMBER 1996

PGE (S-PQFP-G144) PLASTIC QUAD FLATPACK

109

144

1,45 1,35

108

0,27 0,17

0,50

17,50 TYP

20,20

19,80 22,20

21,80

0,05 MIN

0,08

0,25

0,75 0,45

0,13 NOM

Gage Plane

0°–7°

1,60 MAX

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice. C. Falls within JEDEC MS-026

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Seating Plane

0,08

4040147/C 10/96

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty . Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive

DSP dsp.ti.com Broadband www.ti.com/broadband Interface interface.ti.com Digital Control www.ti.com/digitalcontrol Logic logic.ti.com Military www.ti.com/military Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork Microcontrollers microcontroller.ti.com Security www.ti.com/security

Telephony www.ti.com/telephony Video & Imaging www.ti.com/video Wireless www.ti.com/wireless

Mailing Address: Texas Instruments

Post Office Box 655303 Dallas, Texas 75265

TEXAS INSTRUMENTS TMS320VC5409A Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
