TMS320C645x Serial Rapid IO (SRIO)
User's Guide
Literature Number: SPRU976
March 2006
2 SPRU976 – March 2006
Submit Documentation Feedback
Contents
Preface .............................................................................................................................. 13
1 Overview .................................................................................................................. 14
1.1 General RapidIO System ......................................................................................... 14
1.2 RapidIO Feature Support in SRIO .............................................................................. 17
1.3 Standards .......................................................................................................... 18
1.4 External Devices Requirements ................................................................................. 18
2 SRIO Functional Description ....................................................................................... 19
2.1 Overview ............................................................................................................ 19
2.2 SRIO Pins .......................................................................................................... 24
2.3 Functional Operation .............................................................................................. 24
3 Logical/Transport Error Handling and Logging ............................................................. 73
4 Interrupt Conditions ................................................................................................... 74
4.1 CPU Interrupts ..................................................................................................... 74
4.2 General Description ............................................................................................... 74
4.3 Interrupt Condition Control Registers ........................................................................... 75
4.4 Interrupt Status Decode Registers .............................................................................. 83
4.5 Interrupt Generation ............................................................................................... 85
4.6 Interrupt Pacing .................................................................................................... 85
4.7 Interrupt Handling ................................................................................................. 86
5 SRIO Registers .......................................................................................................... 88
5.1 Introduction ......................................................................................................... 88
5.2 Peripheral Identification Register (PID) ......................................................................... 99
5.3 Peripheral Control Register (PCR) ............................................................................ 100
5.4 Peripheral Settings Control Register (PER_SET_CNTL) ................................................... 101
5.5 Peripheral Global Enable Register (GBL_EN) ............................................................... 104
5.6 Peripheral Global Enable Status Register (GBL_EN_STAT) .............................................. 105
5.7 Block n Enable Register (BLK n_EN) .......................................................................... 106
5.8 Block n Enable Status Register (BLK n_EN_STAT) ......................................................... 107
5.9 RapidIO DEVICEID1 Register (DEVICEID_REG1) ......................................................... 108
5.10 RapidIO DEVICEID2 Register (DEVICEID_REG2) ......................................................... 109
5.11 Packet Forwarding Register n for 16b DeviceIDs (PF_16B_CNTL n) ..................................... 110
5.12 Packet Forwarding Register n for 8b DeviceIDs (PF_8B_CNTL n) ........................................ 111
5.13 SERDES Receive Channel Configuration Registers n (SERDES_CFGRX n_CNTL) ................... 112
5.14 SERDES Transmit Channel Configuration Registers n (SERDES_CFGTX n_CNTL) .................. 114
5.15 SERDES Macro Configuration Register n (SERDES_CFG n_CNTL) ..................................... 116
5.16 DOORBELL n Interrupt Status Register (DOORBELL n_ICSR) ............................................ 117
5.17 DOORBELL n Interrupt Clear Register (DOORBELL n_ICCR) ............................................. 118
5.18 RX CPPI Interrupt Status Register (RX_CPPI_ICSR) ...................................................... 119
5.19 RX CPPI Interrupt Clear Register (RX_CPPI_ICCR) ....................................................... 120
5.20 TX CPPI Interrupt Status Register (TX_CPPI_ICSR) ....................................................... 121
5.21 TX CPPI Interrupt Clear Register (TX_CPPI_ICCR) ........................................................ 122
5.22 LSU Status Interrupt Register (LSU_ICSR) .................................................................. 123
5.23 LSU Clear Interrupt Register (LSU _ICCR) .................................................................. 124
5.24 Error, Reset, and Special Event Status Interrupt Register (ERR_RST_EVNT_ICSR) ................. 125
SPRU976 – March 2006 Table of Contents 3
Submit Documentation Feedback
5.25 Error, Reset, and Special Event Clear Interrupt Register (ERR_RST_EVNT_ICCR) .................. 126
5.26 DOORBELL n Interrupt Condition Routing Register (DOORBELL n_ICRR) .............................. 127
5.27 DOORBELL n Interrupt Condition Routing Register 2 (DOORBELL n_ICRR2) .......................... 128
5.28 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR) ....................................... 129
5.29 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR2) ...................................... 130
5.30 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR) ........................................ 131
5.31 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR2) ...................................... 132
5.32 LSU Module Interrupt Condition Routing Register 0 (LSU_ICRR0) ....................................... 133
5.33 LSU Module Interrupt Condition Routing Register 1 (LSU_ICRR1) ....................................... 134
5.34 LSU Module Interrupt Condition Routing Register 2 (LSU_ICRR2) ....................................... 135
5.35 LSU Module Interrupt Condition Routing Register 3 (LSU_ICRR3) ....................................... 136
5.36 Error, Reset, and Special Event Interrupt Condition Routing Register
(ERR_RST_EVNT_ICRR) ...................................................................................... 137
5.37 Error, Reset, and Special Event Interrupt Condition Routing Register 2
(ERR_RST_EVNT_ICRR2) ..................................................................................... 138
5.38 Error, Reset, and Special Event Interrupt Condition Routing Register 3
(ERR_RST_EVNT_ICRR3) ..................................................................................... 139
5.39 INTDST n Interrupt Status Decode Registers (INTDST n_DECODE)...................................... 140
5.40 INTDST n Interrupt Rate Control Registers (INTDST n_RATE_CNTL) .................................... 141
5.41 LSU n Control Register 0 (LSU n_REG0) ...................................................................... 142
5.42 LSU n Control Register 1 (LSU n_REG1) ...................................................................... 143
5.43 LSU n Control Register 2 (LSU n_REG2) ...................................................................... 144
5.44 LSU n Control Register 3 (LSU n_REG3) ...................................................................... 145
5.45 LSU n Control Register 4 (LSU n_REG4) ...................................................................... 146
5.46 LSU n Control Register 5 (LSU n_REG5) ...................................................................... 147
5.47 LSU n Control Register 6 (LSU n_REG6) ...................................................................... 148
5.48 LSU Congestion Control Flow Mask n (LSU_FLOW_MASKS n) .......................................... 149
5.49 Queue Transmit DMA Head Descriptor Pointer Registers (QUEUE n_TXDMA_HDP) ................. 150
5.50 Queue Transmit DMA Completion Pointer Registers (QUEUE n_TXDMA_CP) ......................... 151
5.51 Queue Receive DMA Head Descriptor Pointer Registers (QUEUE n_RXDMA_HDP) .................. 152
5.52 Queue Receive DMA Completion Pointer Registers (QUEUE n_RXDMA_CP) .......................... 153
5.53 Transmit Queue Teardown Register (TX_QUEUE_TEAR_DOWN) ...................................... 154
5.54 Transmit CPPI Supported Flow Mask Registers n (TX_CPPI_FLOW_MASKS n) ....................... 155
5.55 Receive Queue Teardown Register (RX_QUEUE_TEAR_DOWN) ....................................... 157
5.56 Receive CPPI Control Register (RX_CPPI_CNTL) ......................................................... 158
5.57 Transmit CPPI Weighted Round Robin Control Register 0 (TX_QUEUE_CNTL0) ..................... 159
5.58 Transmit CPPI Weighted Round Robin Control Register 1 (TX_QUEUE_CNTL1) ..................... 160
5.59 Transmit CPPI Weighted Round Robin Control Register 2 (TX_QUEUE_CNTL2) ..................... 161
5.60 Transmit CPPI Weighted Round Robin Control Register 3 (TX_QUEUE_CNTL3) ..................... 162
5.61 Mailbox-to-Queue Mapping Register L n (RXU_MAP_L n) .................................................. 163
5.62 Mailbox-to-Queue Mapping Register H n (RXU_MAP_H n) ................................................. 164
5.63 Flow Control Table Entry Registers (FLOW_CNTL n) ....................................................... 165
5.64 Device Identity CAR (DEV_ID) ................................................................................. 166
5.65 Device Information CAR (DEV_INFO) ........................................................................ 167
5.66 Assembly Identity CAR (ASBLY_ID) .......................................................................... 168
5.67 Assembly Information CAR (ASBLY_INFO).................................................................. 169
5.68 Processing Element Features CAR (PE_FEAT) ............................................................. 170
5.69 Source Operations CAR (SRC_OP)........................................................................... 171
5.70 Destination Operations CAR (DEST_OP) .................................................................... 172
5.71 Processing Element Logical Layer Control CSR (PE_LL_CTL) ........................................... 173
4 Contents SPRU976 – March 2006
Submit Documentation Feedback
5.72 Local Configuration Space Base Address 0 CSR (LCL_CFG_HBAR) ................................... 174
5.73 Local Configuration Space Base Address 1 CSR (LCL_CFG_BAR) ..................................... 175
5.74 Base Device ID CSR (BASE_ID) .............................................................................. 176
5.75 Host Base Device ID Lock CSR (HOST_BASE_ID_LOCK) ............................................... 177
5.76 Component Tag CSR (COMP_TAG) .......................................................................... 178
5.77 1x/4x LP_Serial Port Maintenance Block Header Register (SP_MB_HEAD) ............................ 179
5.78 Port Link Time-Out Control CSR (SP_LT_CTL) ............................................................. 180
5.79 Port Response Time-Out Control CSR (SP_RT_CTL) ..................................................... 181
5.80 Port General Control CSR (SP_GEN_CTL) .................................................................. 182
5.81 Port Link Maintenance Request CSR n (SP n_LM_REQ) .................................................. 183
5.82 Port Link Maintenance Response CSR n (SP n_LM_RESP) ............................................... 184
5.83 Port Local AckID Status CSR n (SP n_ACKID_STAT) ...................................................... 185
5.84 Port Error and Status CSR n (SP n_ERR_STAT) ............................................................ 186
5.85 Port Control CSR n (SP n_CTL) ................................................................................ 188
5.86 Error Reporting Block Header (ERR_RPT_BH) ............................................................. 190
5.87 Logical/Transport Layer Error Detect CSR (ERR_DET) .................................................... 191
5.88 Logical/Transport Layer Error Enable CSR (ERR_EN) ..................................................... 192
5.89 Logical/Transport Layer High Address Capture CSR (H_ADDR_CAPT)................................. 193
5.90 Logical/Transport Layer Address Capture CSR (ADDR_CAPT) .......................................... 194
5.91 Logical/Transport Layer Device ID Capture CSR (ID_CAPT) ............................................. 195
5.92 Logical/Transport Layer Control Capture CSR (CTRL_CAPT) ............................................ 196
5.93 Port-Write Target Device ID CSR (PW_TGT_ID) ........................................................... 197
5.94 Port Error Detect CSR n (SP n_ERR_DET) .................................................................. 198
5.95 Port Error Rate Enable CSR n (SP n_RATE_EN) ........................................................... 199
5.96 Port n Attributes Error Capture CSR 0 (SP n_ERR_ATTR_CAPT_DBG0) ............................... 200
5.97 Port n Packet/Control Symbol Error Capture CSR 1 (SP n_ERR_CAPT_DBG1) ....................... 201
5.98 Port n Packet/Control Symbol Error Capture CSR 2 (SP n_ERR_CAPT_DBG2) ....................... 202
5.99 Port n Packet/Control Symbol Error Capture CSR 3 (SP n_ERR_CAPT_DBG3) ....................... 203
5.100 Port n Packet/Control Symbol Error Capture CSR 4 (SP n_ERR_CAPT_DBG4) ...................... 204
5.101 Port Error Rate CSR n (SP n_ERR_RATE) .................................................................. 205
5.102 Port Error Rate Threshold CSR n (SP n_ERR_THRESH) ................................................. 206
5.103 Port IP Discovery Timer in 4x mode (SP_IP_DISCOVERY_TIMER) .................................... 207
5.104 Port IP Mode CSR (SP_IP_MODE) .......................................................................... 208
5.105 Serial Port IP Prescalar (IP_PRESCAL) ..................................................................... 210
5.106 Port-Write-In Capture CSR n (SP_IP_PW_IN_CAPT n) ................................................... 211
5.107 Port Reset Option CSR n (SP n_RST_OPT) ................................................................ 212
5.108 Port Control Independent Register n (SP n_CTL_INDEP) ................................................. 213
5.109 Port Silence Timer n (SP n_SILENCE_TIMER) ............................................................. 215
5.110 Port Multicast-Event Control Symbol Request Register n (SP n_MULT_EVNT_CS) .................. 216
5.111 Port Control Symbol Transmit n (SP n_CS_TX) ............................................................. 217
SPRU976 – March 2006 Contents 5
Submit Documentation Feedback
List of Figures
1 RapidIO Architectural Hierarchy .......................................................................................... 15
2 RapidIO Interconnect Architecture ....................................................................................... 16
3 Serial RapidIO Device to Device Interface Diagrams ................................................................. 17
4 SRIO Peripheral Block Diagram .......................................................................................... 20
5 Operation Sequence ....................................................................................................... 21
6 1x/4x RapidIO Packet Data Stream (Streaming-Write Class) ........................................................ 22
7 Serial RapidIO Control Symbol Format.................................................................................. 22
8 SRIO Conceptual Block Diagram ........................................................................................ 25
9 Load/Store Data Transfer Diagram ...................................................................................... 32
10 Load/Store Registers for RapidIO (Address Offset: LSU1 0x400-0x418, LSU2 0x420-0x438, LSU3
0x440-0x458, LSU4 0x460-0x478) ....................................................................................... 33
11 LSU Registers Timing ..................................................................................................... 35
12 Example Burst NWRITE_R ............................................................................................... 36
13 Load/Store Module Data Flow ............................................................................................ 37
14 CPPI RX Scheme for RapidIO ............................................................................................ 41
15 Message Request Packet ................................................................................................. 41
16 Queue Mapping Table (Address Offset: 0x0800 - 0x08FC) .......................................................... 42
17 Queue Mapping Register RXU_MAP_L n ............................................................................... 43
18 Queue Mapping Register RXU_MAP_H n ............................................................................... 43
19 RX Buffer Descriptor Fields ............................................................................................... 44
20 RX CPPI Mode Explanation .............................................................................................. 47
21 CPPI Boundary Diagram .................................................................................................. 48
22 TX Buffer Descriptor Fields ............................................................................................... 49
23 Weighted Round Robin Programming Registers (Address Offset 0x7E0 – 0x7EC) .............................. 52
24 RX Buffer Descriptor ....................................................................................................... 57
25 TX Buffer Descriptor ....................................................................................................... 58
26 Doorbell Operation ......................................................................................................... 59
27 Flow Control Table Entry Registers (Address Offset 0x0900 - 0x093C) ............................................ 61
28 Transmit Source Flow Control Masks ................................................................................... 62
29 Configuration Bus Example ............................................................................................... 63
30 DMA Example .............................................................................................................. 64
31 GBL_EN (Address 0x0030) ............................................................................................... 65
32 GBL_EN_STAT (Address 0x0034) ....................................................................................... 65
33 BLK0_EN (Address 0x0038) .............................................................................................. 65
34 BLK0_EN_STAT (Address 0x003C) ..................................................................................... 66
35 BLK1_EN (Address 0x0040) .............................................................................................. 66
36 BLK1_EN_STAT (Address 0x0044) ..................................................................................... 66
37 BLK8_EN (Address 0x0078) .............................................................................................. 66
38 BLK8_EN_STAT (Address 0x007C) ..................................................................................... 66
39 Emulation Control (Peripheral Control Register PCR 0x0004) ....................................................... 68
40 Bootload Operation ........................................................................................................ 72
41 Detectable Errors ........................................................................................................... 73
42 RapidIO DOORBELL Packet for Interrupt Use ......................................................................... 74
43 DOORBELL0 Interrupt Registers for Direct I/O Transfers ............................................................ 76
44 DOORBELL1 Interrupt Registers for Direct I/O Transfers ............................................................ 76
45 DOORBELL2 Interrupt Registers for Direct I/O Transfers ............................................................ 77
46 DOORBELL3 Interrupt Registers for Direct I/O Transfers ............................................................ 77
47 RX_CPPI Interrupts Using Messaging Mode Data Transfers ........................................................ 78
48 TX _CPPI Interrupts Using Messaging Mode Data Transfers ........................................................ 78
49 LSU Load/Store Module Interrupts ....................................................................................... 79
50 ERR_RST_EVNT Error, Reset, and Special Event Interrupt ......................................................... 80
51 Doorbell 0 Interrupt Condition Routing Registers ...................................................................... 81
6 List of Figures SPRU976 – March 2006
Submit Documentation Feedback
52 Load/Store Module Interrupt Condition Routing Registers ............................................................ 82
53 Error, Reset, and Special Event Interrupt Condition Routing Registers ............................................ 83
54 Sharing of ISDR Bits ....................................................................................................... 84
55 Example Diagram of Interrupt Status Decode Register Mapping .................................................... 84
56 INTDST n_Decode Interrupt Status Decode Register ................................................................. 85
57 INTDST n_RATE_CNTL Interrupt Rate Control Register .............................................................. 86
58 Peripheral ID Register (PID) .............................................................................................. 99
59 Peripheral Control Register (PCR) ..................................................................................... 100
60 Peripheral Settings Control Register (PER_SET_CNTL) ............................................................ 101
61 Peripheral Global Enable Register (GBL_EN) ........................................................................ 104
62 Peripheral Global Enable Status Register (GBL_EN_STAT) ....................................................... 105
63 Block n Enable Register (BLK n_EN) ................................................................................... 106
64 Block n Enable Status Register (BLK n_EN_STAT) .................................................................. 107
65 RapidIO DEVICEID1 Register (DEVICEID_REG1) .................................................................. 108
66 RapidIO DEVICEID2 Register (DEVICEID_REG2) .................................................................. 109
67 Packet Forwarding Register n for 16b DeviceIDs (PF_16B_CNTL n) .............................................. 110
68 Packet Forwarding Register n for 8b DeviceIDs (PF_8B_CNTL n) ................................................. 111
69 SERDES Receive Channel Configuration Registers n (SERDES_CFGRX n_CNTL) ............................ 112
70 SERDES Transmit Channel Configuration Registers n (SERDES_CFGTX n_CNTL) ........................... 114
71 SERDES Macros CFG (0-3) Registers (SERDES_CFG n_CNTL) ................................................. 116
72 DOORBELL n Interrupt Status Register (DOORBELL n_ICSR) ..................................................... 117
73 DOORBELL n Interrupt Clear Register (DOORBELL n_ICCR) ...................................................... 118
74 RX CPPI Interrupt Status Register (RX_CPPI_ICSR) ............................................................... 119
75 RX CPPI Interrupt Clear Register (RX_CPPI_ICCR) ................................................................ 120
76 TX CPPI Interrupt Status Register (TX_CPPI_ICSR) ................................................................ 121
77 TX CPPI Interrupt Clear Register (TX_CPPI_ICCR) ................................................................. 122
78 LSU Status Interrupt Register (LSU_ICSR) ........................................................................... 123
79 LSU Clear Interrupt Register (LSU _ICCR) ........................................................................... 124
80 Error, Reset, and Special Event Status Interrupt Register (ERR_RST_EVNT_ICSR) .......................... 125
81 Error, Reset, and Special Event Clear Interrupt Register (ERR_RST_EVNT_ICCR) ........................... 126
82 DOORBELL n Interrupt Condition Routing Register (DOORBELL n_ICRR) ....................................... 127
83 DOORBELL n Interrupt Condition Routing Register 2 (DOORBELL n_ICRR2) ................................... 128
84 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR) ................................................ 129
85 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR2) ............................................... 130
86 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR) ................................................. 131
87 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR2) ............................................... 132
88 LSU Module Interrupt Condition Routing Register 0 (LSU_ICRR0) ................................................ 133
89 LSU Module Interrupt Condition Routing Register 1 (LSU_ICRR1) ................................................ 134
90 LSU Module Interrupt Condition Routing Register 2 (LSU_ICRR2) ................................................ 135
91 LSU Module Interrupt Condition Routing Register 3 (LSU_ICRR3) ................................................ 136
92 Error, Reset, and Special Event Interrupt Condition Routing Register (ERR_RST_EVNT_ICRR) ............ 137
93 Error, Reset, and Special Event Interrupt Condition Routing Register 2 (ERR_RST_EVNT_ICRR2) ........ 138
94 Error, Reset, and Special Event Interrupt Condition Routing Register 3 (ERR_RST_EVNT_ICRR3) ........ 139
95 INTDST n Interrupt Status Decode Registers (INTDST n_DECODE)............................................... 140
96 INTDST n Interrupt Rate Control Registers (INTDST n_RATE_CNTL) ............................................. 141
97 LSU n Control Register 0 (LSU n_REG0) ............................................................................... 142
98 LSU n Control Register 1 (LSU n_REG1) ............................................................................... 143
99 LSU n Control Register 2 (LSU n_REG2) ............................................................................... 144
100 LSU n Control Register 3 (LSU n_REG3) ............................................................................... 145
101 LSU n Control Register 4 (LSU n_REG4) ............................................................................... 146
102 LSU n Control Register 5 (LSU n_REG5) ............................................................................... 147
103 LSU n Control Register 6 (LSU n_REG6) ............................................................................... 148
104 LSU Congestion Control Flow Mask n (LSU_FLOW_MASKS n) ................................................... 149
SPRU976 – March 2006 List of Figures 7
Submit Documentation Feedback
105 Queue Transmit DMA Head Descriptor Pointer Registers (QUEUE n_TXDMA_HDP) .......................... 150
106 Queue Transmit DMA Completion Pointer Registers (QUEUE n_TXDMA_CP) .................................. 151
107 Queue Receive DMA Head Descriptor Pointer Registers (QUEUE n_RXDMA_HDP) ........................... 152
108 Queue Receive DMA Completion Pointer Registers (QUEUE n_RXDMA_CP) ................................... 153
109 Transmit Queue Teardown Register (TX_QUEUE_TEAR_DOWN) ............................................... 154
110 Transmit CPPI Supported Flow Mask Registers n (TX_CPPI_FLOW_MASKS n) ................................ 155
111 Receive Queue Teardown Register (RX_QUEUE_TEAR_DOWN) ................................................ 157
112 Receive CPPI Control Register (RX_CPPI_CNTL) .................................................................. 158
113 Transmit CPPI Weighted Round Robin Control Register 0 (TX_QUEUE_CNTL0) .............................. 159
114 Transmit CPPI Weighted Round Robin Control Register 1 (TX_QUEUE_CNTL1) .............................. 160
115 Transmit CPPI Weighted Round Robin Control Register 2 (TX_QUEUE_CNTL2) .............................. 161
116 Transmit CPPI Weighted Round Robin Control Register 3 (TX_QUEUE_CNTL3) .............................. 162
117 Mailbox-to-Queue Mapping Register L n (RXU_MAP_L n) ........................................................... 163
118 Mailbox-to-Queue Mapping Register H n (RXU_MAP_H n) .......................................................... 164
119 Flow Control Table Entry Registers (FLOW_CNTL n) ................................................................ 165
120 Device Identity CAR (DEV_ID) .......................................................................................... 166
121 Device Information CAR (DEV_INFO) ................................................................................. 167
122 Assembly Identity CAR (ASBLY_ID) ................................................................................... 168
123 Assembly Information CAR (ASBLY_INFO)........................................................................... 169
124 Processing Element Features CAR (PE_FEAT) ...................................................................... 170
125 Source Operations CAR (SRC_OP).................................................................................... 171
126 Destination Operations CAR (DEST_OP) ............................................................................. 172
127 Processing Element Logical Layer Control CSR (PE_LL_CTL) .................................................... 173
128 Local Configuration Space Base Address 0 CSR (LCL_CFG_HBAR) ............................................ 174
129 Local Configuration Space Base Address 1 CSR (LCL_CFG_BAR) .............................................. 175
130 Base Device ID CSR (BASE_ID) ....................................................................................... 176
131 Host Base Device ID Lock CSR (HOST_BASE_ID_LOCK) ........................................................ 177
132 Component Tag CSR (COMP_TAG) ................................................................................... 178
133 1x/4x LP_Serial Port Maintenance Block Header Register (SP_MB_HEAD) ..................................... 179
134 Port Link Time-Out Control CSR (SP_LT_CTL) ...................................................................... 180
135 Port Response Time-Out Control CSR (SP_RT_CTL) .............................................................. 181
136 Port General Control CSR (SP_GEN_CTL) ........................................................................... 182
137 Port Link Maintenance Request CSR n (SP n_LM_REQ) ........................................................... 183
138 Port Link Maintenance Response CSR n (SP n_LM_RESP) ........................................................ 184
139 Port Local AckID Status CSR n (SP n_ACKID_STAT) ............................................................... 185
140 Port Error and Status CSR n (SP n_ERR_STAT) ..................................................................... 186
141 Port Control CSR n (SP n_CTL) ......................................................................................... 188
142 Error Reporting Block Header (ERR_RPT_BH) ...................................................................... 190
143 Logical/Transport Layer Error Detect CSR (ERR_DET) ............................................................. 191
144 Logical/Transport Layer Error Enable CSR (ERR_EN) .............................................................. 192
145 Logical/Transport Layer High Address Capture CSR (H_ADDR_CAPT).......................................... 193
146 Logical/Transport Layer Address Capture CSR (ADDR_CAPT) ................................................... 194
147 Logical/Transport Layer Device ID Capture CSR (ID_CAPT) ...................................................... 195
148 Logical/Transport Layer Control Capture CSR (CTRL_CAPT) ..................................................... 196
149 Port-Write Target Device ID CSR (PW_TGT_ID) .................................................................... 197
150 Port Error Detect CSR n (SP n_ERR_DET) ........................................................................... 198
151 Port Error Rate Enable CSR n (SP n_RATE_EN) .................................................................... 199
152 Port n Attributes Error Capture CSR 0 (SP n_ERR_ATTR_CAPT_DBG0) ........................................ 200
153 Port n Packet/Control Symbol Error Capture CSR 1 (SP n_ERR_CAPT_DBG1) ................................ 201
154 Port n Packet/Control Symbol Error Capture CSR 2 (SP n_ERR_CAPT_DBG2) ................................ 202
155 Port n Packet/Control Symbol Error Capture CSR 3 (SP n_ERR_CAPT_DBG3) ................................ 203
156 Port n Packet/Control Symbol Error Capture CSR 4 (SP n_ERR_CAPT_DBG4) ................................ 204
157 Port Error Rate CSR n (SP n_ERR_RATE) ............................................................................ 205
8 List of Figures SPRU976 – March 2006
Submit Documentation Feedback
158 Port Error Rate Threshold CSR n (SP n_ERR_THRESH) ........................................................... 206
159 Port IP Discovery Timer in 4x mode (SP_IP_DISCOVERY_TIMER) .............................................. 207
160 Port IP Mode CSR (SP_IP_MODE) .................................................................................... 208
161 Serial Port IP Prescalar (IP_PRESCAL) ............................................................................... 210
162 Port-Write-In Capture CSR n (SP_IP_PW_IN_CAPT n) ............................................................. 211
163 Port Reset Option CSR n (SP n_RST_OPT) .......................................................................... 212
164 Port Control Independent Register n (SP n_CTL_INDEP) ........................................................... 213
165 Port Silence Timer n (SP n_SILENCE_TIMER) ....................................................................... 215
166 Port Multicast-Event Control Symbol Request Register n (SP n_MULT_EVNT_CS) ............................ 216
167 Port Control Symbol Transmit n (SP n_CS_TX) ...................................................................... 217
SPRU976 – March 2006 List of Figures 9
Submit Documentation Feedback
List of Tables
1 RapidIO Documents and Links ........................................................................................... 18
2 Packet Type ................................................................................................................. 23
3 Pin Description .............................................................................................................. 24
4 Bits of SERDES_CFG n_CNTL Register (0x120 - 0x12c) ............................................................. 26
5 Line Rate versus PLL Output Clock Frequency ........................................................................ 27
6 RATE Bit Effects ............................................................................................................ 27
7 Frequency Range versus MPY ........................................................................................... 28
8 Bits of SERDES_CFGRX n_CNTL Registers ........................................................................... 28
9 EQ Bits ....................................................................................................................... 30
10 Bits of SERDES_CFGTX n_CNTL Registers ........................................................................... 30
11 SWING Bits ................................................................................................................. 31
12 DE Bits ....................................................................................................................... 31
13 Control/Command Register Field Mapping ............................................................................. 33
14 Status Fields ................................................................................................................ 34
15 RX DMA State Head Descriptor Pointer (HDP) (Address Offset 0x600-0x63C) ................................... 43
16 RX DMA State Completion Pointer (CP) (Address Offset 0x600-0x63C) ........................................... 43
17 RX Buffer Descriptor Field Descriptions ................................................................................. 45
18 TX DMA State Head Descriptor Pointer (HDP) (Address Offset 0x500 – 0x53C) ................................. 49
19 TX DMA State Completion Pointer (CP) (Address Offset 0x580 – 0x5BC) ........................................ 49
20 TX Buffer Descriptor Field Definitions ................................................................................... 49
21 Weighted Round Robin Programming Registers (Address Offset 0x7E0 – 0x7EC) .............................. 52
22 Flow Control Table Entry Registers (Address Offset 0x0900 - 0x093C) ............................................ 61
23 Transmit Source Flow Control Masks ................................................................................... 62
24 Enable and Enable Status Bit Field Descriptions ...................................................................... 66
25 Emulation Control Signals ................................................................................................. 69
26 Interrupt Source Configuration Options ................................................................................. 76
27 Interrupt Condition Routing Options ..................................................................................... 81
28 Serial Rapid IO (SRIO) Registers ........................................................................................ 88
29 Peripheral ID Register (PID) Field Descriptions ........................................................................ 99
30 Peripheral Control Register (PCR) Field Descriptions ............................................................... 100
31 Peripheral Settings Control Register (PER_SET_CNTL) Field Descriptions ..................................... 101
32 Peripheral Global Enable Register (GBL_EN) Field Descriptions .................................................. 104
33 Peripheral Global Enable Status Register (GBL_EN_STAT) Field Descriptions ................................. 105
34 Block n Enable Register (BLK n_EN) Field Descriptions ............................................................. 106
35 Block n Enable Status Register (BLK n_EN_STAT) Field Descriptions ............................................ 107
36 RapidIO DEVICEID1 Register (DEVICEID_REG1) Field Descriptions ............................................ 108
37 RapidIO DEVICEID2 Register (DEVICEID_REG2) Field Descriptions ............................................ 109
38 Packet Forwarding Register n for 16b DeviceIDs (PF_16B_CNTL n) Field Descriptions ....................... 110
39 Packet Forwarding Register n for 8b DeviceIDs (PF_8B_CNTL n) Field Descriptions .......................... 111
40 SERDES Receive Channel Configuration Registers n (SERDES_CFGRX n_CNTL) Field Descriptions ..... 112
41 EQ Bits ..................................................................................................................... 113
42 SERDES Transmit Channel Configuration Registers n (SERDES_CFGTX n_CNTL) Field Descriptions ..... 114
43 SWING Bits ................................................................................................................ 115
44 DE Bits ..................................................................................................................... 115
45 SERDES Macros CFG (0-3) Registers (SERDES_CFG n_CNTL) Field Descriptions ........................... 116
46 DOORBELL n Interrupt Status Register (DOORBELL n_ICSR) Field Descriptions ............................... 117
47 DOORBELL n Interrupt Clear Register (DOORBELL n_ICCR) Field Descriptions ................................ 118
48 RX CPPI Interrupt Status Register (RX_CPPI_ICSR) Field Descriptions ......................................... 119
49 RX CPPI Interrupt Clear Register (RX_CPPI_ICCR) Field Descriptions .......................................... 120
10 List of Tables SPRU976 – March 2006
Submit Documentation Feedback
50 TX CPPI Interrupt Status Register (TX_CPPI_ICSR) Field Descriptions ......................................... 121
51 TX CPPI Interrupt Clear Register (TX_CPPI_ICCR) Field Descriptions .......................................... 122
52 LSU Status Interrupt Register (LSU_ICSR) Field Descriptions ..................................................... 123
53 LSU Clear Interrupt Register (LSU _ICCR) Field Descriptions ..................................................... 124
54 Error, Reset, and Special Event Status Interrupt Register (ERR_RST_EVNT_ICSR) Field Descriptions .... 125
55 Error, Reset, and Special Event Clear Interrupt Register (ERR_RST_EVNT_ICCR) Field Descriptions ..... 126
56 DOORBELL n Interrupt Condition Routing Register (DOORBELL n_ICRR) Field Descriptions ................. 127
57 DOORBELL n Interrupt Condition Routing Register 2 (DOORBELL n_ICRR2) Field Descriptions ............. 128
58 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR) Field Descriptions .......................... 129
59 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR2) Field Descriptions ......................... 130
60 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR) Field Descriptions ........................... 131
61 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR2) Field Descriptions ......................... 132
62 LSU Module Interrupt Condition Routing Register 0 (LSU_ICRR0) Field Descriptions ......................... 133
63 LSU Module Interrupt Condition Routing Register 1 (LSU_ICRR1) Field Descriptions ......................... 134
64 LSU Module Interrupt Condition Routing Register 2 (LSU_ICRR2) Field Descriptions ......................... 135
65 LSU Module Interrupt Condition Routing Register 3 (LSU_ICRR3) Field Descriptions ......................... 136
66 Error, Reset, and Special Event Interrupt Condition Routing Register (ERR_RST_EVNT_ICRR) Field
Descriptions ............................................................................................................... 137
67 Error, Reset, and Special Event Interrupt Condition Routing Register 2 (ERR_RST_EVNT_ICRR2) Field
Descriptions ............................................................................................................... 138
68 Error, Reset, and Special Event Interrupt Condition Routing Register 3 (ERR_RST_EVNT_ICRR3) Field
Descriptions ............................................................................................................... 139
69 INTDST n Interrupt Status Decode Registers (INTDST n_DECODE) Field Descriptions ........................ 140
70 INTDST n Interrupt Rate Control Registers (INTDST n_RATE_CNTL) Field Descriptions ....................... 141
71 LSU n Control Register 0 (LSU n_REG0) Field Descriptions ........................................................ 142
72 LSU n Control Register 1 (LSU n_REG1) Field Descriptions ........................................................ 143
73 LSU n Control Register 2 (LSU n_REG2) Field Descriptions ........................................................ 144
74 LSU n Control Register 3 (LSU n_REG3) Field Descriptions ........................................................ 145
75 LSU n Control Register 4 (LSU n_REG4) Field Descriptions ........................................................ 146
76 LSU n Control Register 5 (LSU n_REG5) Field Descriptions ........................................................ 147
77 LSU n Control Register 6 (LSU n_REG6) Field Descriptions ........................................................ 148
78 LSU Congestion Control Flow Mask n (LSU_FLOW_MASKS n) Field Descriptions ............................ 149
79 Queue Transmit DMA Head Descriptor Pointer Registers (QUEUE n_TXDMA_HDP) Field Descriptions .... 150
80 Queue Transmit DMA Completion Pointer Registers (QUEUE n_TXDMA_CP) Field Descriptions ............ 151
81 Queue Receive DMA Head Descriptor Pointer Registers (QUEUE n_RXDMA_HDP) Field Descriptions .... 152
82 Queue Receive DMA Completion Pointer Registers (QUEUE n_RXDMA_CP) Field Descriptions ............ 153
83 Transmit Queue Teardown Register (TX_QUEUE_TEAR_DOWN) Field Descriptions ......................... 154
84 Transmit CPPI Supported Flow Mask Registers n (TX_CPPI_FLOW_MASKS n) Field Descriptions ......... 156
85 Receive Queue Teardown Register (RX_QUEUE_TEAR_DOWN) Field Descriptions ......................... 157
86 Receive CPPI Control Register (RX_CPPI_CNTL) Field Descriptions ............................................ 158
87 Transmit CPPI Weighted Round Robin Control Register 0 (TX_QUEUE_CNTL0) Field Descriptions ........ 159
88 Transmit CPPI Weighted Round Robin Control Register 1 (TX_QUEUE_CNTL1) Field Descriptions ........ 160
89 Transmit CPPI Weighted Round Robin Control Register 2 (TX_QUEUE_CNTL2) Field Descriptions ........ 161
90 Transmit CPPI Weighted Round Robin Control Register 3 (TX_QUEUE_CNTL3) Field Descriptions ........ 162
91 Mailbox-to-Queue Mapping Register L n (RXU_MAP_L n) Field Descriptions ..................................... 163
92 Mailbox-to-Queue Mapping Register H n (RXU_MAP_H n) Field Descriptions .................................... 164
93 Flow Control Table Entry Registers (FLOW_CNTL n) Field Descriptions ......................................... 165
94 Device Identity CAR (DEV_ID) Field Descriptions ................................................................... 166
95 Device Information CAR (DEV_INFO) Field Descriptions ........................................................... 167
96 Assembly Identity CAR (ASBLY_ID) Field Descriptions ............................................................. 168
97 Assembly Information CAR (ASBLY_INFO) Field Descriptions .................................................... 169
98 Processing Element Features CAR (PE_FEAT) Field Descriptions ............................................... 170
SPRU976 – March 2006 List of Tables 11
Submit Documentation Feedback
99 Source Operations CAR (SRC_OP) Field Descriptions ............................................................. 171
100 Destination Operations CAR (DEST_OP) Field Descriptions ....................................................... 172
101 Processing Element Logical Layer Control CSR (PE_LL_CTL) Field Descriptions .............................. 173
102 Local Configuration Space Base Address 0 CSR (LCL_CFG_HBAR) Field Descriptions ...................... 174
103 Local Configuration Space Base Address 1 CSR (LCL_CFG_BAR) Field Descriptions ........................ 175
104 Base Device ID CSR (BASE_ID) Field Descriptions ................................................................. 176
105 Host Base Device ID Lock CSR (HOST_BASE_ID_LOCK) Field Descriptions .................................. 177
106 Component Tag CSR (COMP_TAG) Field Descriptions ............................................................ 178
107 1x/4x LP_Serial Port Maintenance Block Header Register (SP_MB_HEAD) Field Descriptions .............. 179
108 Port Link Timeout Control CSR (SP_LT_CTL) Field Descriptions ................................................. 180
109 Port Response Time-Out Control CSR (SP_RT_CTL) Field Descriptions ........................................ 181
110 Port General Control CSR (SP_GEN_CTL) Field Descriptions .................................................... 182
111 Port Link Maintenance Request CSR n (SP n_LM_REQ) Field Descriptions ..................................... 183
112 Port Link Maintenance Response CSR n (SP n_LM_RESP) Field Descriptions ................................. 184
113 Port Local AckID Status CSR n (SP n_ACKID_STAT) Field Descriptions ......................................... 185
114 Port Error and Status CSR n (SP n_ERR_STAT) Field Descriptions .............................................. 186
115 Port Control CSR n (SP n_CTL) Field Descriptions .................................................................. 188
116 Error Reporting Block Header (ERR_RPT_BH) Field Descriptions ................................................ 190
117 Logical/Transport Layer Error Detect CSR (ERR_DET) Field Descriptions ...................................... 191
118 Logical/Transport Layer Error Enable CSR (ERR_EN) Field Descriptions ....................................... 192
119 Logical/Transport Layer High Address Capture CSR (H_ADDR_CAPT) Field Descriptions ................... 193
120 Logical/Transport Layer Address Capture CSR (ADDR_CAPT) Field Descriptions ............................. 194
121 Logical/Transport Layer Device ID Capture CSR (ID_CAPT) Field Descriptions ................................ 195
122 Logical/Transport Layer Control Capture CSR (CTRL_CAPT) Field Descriptions ............................... 196
123 Port-Write Target Device ID CSR (PW_TGT_ID) Field Descriptions .............................................. 197
124 Port Error Detect CSR n (SP n_ERR_DET) Field Descriptions ..................................................... 198
125 Port Error Rate Enable CSR n (SP n_RATE_EN) Field Descriptions .............................................. 199
126 Port n Attributes Error Capture CSR 0 (SP n_ERR_ATTR_CAPT_DBG0) Field Descriptions ................. 200
127 Port n Packet/Control Symbol Error Capture CSR 1 (SP n_ERR_CAPT_DBG1) Field Descriptions .......... 201
128 Port n Packet/Control Symbol Error Capture CSR 2 (SP n_ERR_CAPT_DBG2) Field Descriptions .......... 202
129 Port n Packet/Control Symbol Error Capture CSR 3 (SP n_ERR_CAPT_DBG3) Field Descriptions .......... 203
130 Port n Packet/Control Symbol Error Capture CSR 4 (SP n_ERR_CAPT_DBG4) Field Descriptions .......... 204
131 Port Error Rate CSR n (SP n_ERR_RATE) Field Descriptions ..................................................... 205
132 Port Error Rate Threshold CSR n (SP n_ERR_THRESH) Field Descriptions ..................................... 206
133 Port IP Discovery Timer in 4x mode (SP_IP_DISCOVERY_TIMER) Field Descriptions ........................ 207
134 Port IP Mode CSR (SP_IP_MODE) Field Descriptions .............................................................. 208
135 Serial Port IP Prescalar (IP_PRESCAL) Field Descriptions ........................................................ 210
136 Port-Write-In Capture CSR n (SP_IP_PW_IN_CAPT n) Field Descriptions ....................................... 211
137 Port Reset Option CSR n (SP n_RST_OPT) Field Descriptions .................................................... 212
138 Port Control Independent Register n (SP n_CTL_INDEP) Field Descriptions .................................... 213
139 Port Silence Timer n (SP n_SILENCE_TIMER) Field Descriptions ................................................. 215
140 Port Multicast-Event Control Symbol Request Register n (SP n_MULT_EVNT_CS) Field Descriptions ...... 216
141 Port Control Symbol Transmit n (SP n_CS_TX) Field Descriptions ................................................ 217
12 List of Tables SPRU976 – March 2006
Submit Documentation Feedback
About This Manual
This document describes the Serial Rapid IO (SRIO) on the TMS320C645x devices.
Notational Conventions
This document uses the following conventions.
• Hexadecimal numbers are shown with the suffix h. For example, the following number is 40
hexadecimal (decimal 64): 40h.
• Registers in this document are shown in figures and described in tables.
– Each register figure shows a rectangle divided into fields that represent the fields of the register.
Each field is labeled with its bit name, its beginning and ending bit numbers above, and its
read/write properties below. A legend explains the notation used for the properties.
– Reserved bits in a register figure designate a bit that is used for future device expansion.
• The term "word" describes a 32-bit value. The term "halfword" describes a 16-bit value.
Related Documentation From Texas Instruments
The following documents describe the C6000™ devices and related support tools. Copies of these
documents are available on the Internet at www.ti.com. Tip: Enter the literature number in the search box
provided at www.ti.com .
TMS320C6000 CPU and Instruction Set Reference Guide (literature number SPRU189 ) gives an
introduction to the TMS320C62x™ and TMS320C67x™ DSPs, development tools, and third-party support.
TMS320C6455 Technical Reference (literature number SPRU965 ) gives an introduction to the
TMS320C6455™ DSP and discusses the application areas that are enhanced.
TMS320C6000 Programmer's Guide (literature number SPRU198 ) describes ways to optimize C and
assembly code for the TMS320C6000™ DSPs and includes application program examples.
TMS320C6000 Code Composer Studio Tutorial (literature number SPRU301 ) introduces the Code
Composer Studio™ integrated development environment and software tools.
Code Composer Studio Application Programming Interface Reference Guide (literature number
SPRU321 ) describes the Code Composer Studio™ application programming interface (API), which allows
you to program custom plug-ins for Code Composer.
TMS320C64x+ Megamodule Reference Guide (literature number SPRU871 ) describes the
TMS320C64x+ digital signal processor (DSP) megamodule. Included is a discussion on the internal direct
memory access (IDMA) controller, the interrupt controller, the power-down controller, memory protection,
bandwidth management, and the memory and cache.
TMS320C645x DSP Peripherals Overview Reference Guide (literature number SPRUE52 ) provides a
brief description of the peripherals available on the TMS320C645x digital signal processors (DSPs).
TMS320C6455 Chip Support Libraries (CSL) (literature number SPRC234 ) is a download with the latest
chip support libraries.
Trademarks
C6000, TMS320C62x, TMS320C67x, TMS320C6455, TMS320C6000, Code Composer Studio, RapidIO
are trademarks of Texas Instruments.
Preface
SPRU976 – March 2006
Read This First
InfiniBand is a trademark of the InfiniBand Trade Association.
SPRU976 – March 2006 Preface 13
Submit Documentation Feedback
1 Overview
The RapidIO peripheral used in the TMS320C645x is called a serial RapidIO (SRIO). This chapter
describes the general operation of a RapidIO system, how this module is connected to the outside world,
the definitions of terms used within this document, and the features supported and not supported for
SRIO.
1.1 General RapidIO System
RapidIO™ is a non-proprietary high-bandwidth system level interconnect. It is a packet-switched
interconnect intended primarily as an intra-system interface for chip-to-chip and board-to-board
communications at Gigabyte-per-second performance levels. Uses for the architecture can be found in
connected microprocessors, memory, and memory mapped I/O devices that operate in networking
equipment, memory subsystems, and general purpose computing. Principle features of RapidIO include:
• Flexible system architecture allowing peer-to-peer communication
• Robust communication with error detection features
• Frequency and port width scalability
• Operation that is not software intensive
• High bandwidth interconnect with low overhead
• Low pin count
• Low power
• Low latency
User's Guide
SPRU976 – March 2006
Serial RapidIO (SRIO)
1.1.1 RapidIO Architectural Hierarchy
RapidIO is defined as a 3-layer architectural hierarchy.
• Logical layer: Specifies the protocols, including packet formats, which are needed by endpoints to
process transactions
• Transport layer: Defines addressing schemes to correctly route information packets within a system
• Physical layer: Contains the device level interface information such as the electrical characteristics,
error management data, and basic flow control data
In the RapidIO architecture, a single specification for the transport layer is compatible with differing
specifications for the logical and physical layers (see Figure 1 ).
14 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Globally
shared
memory spec
logical
Future
Message
passingsystem
I/O
Logical specification
Information necessary for the end point
to process the transaction (i.e., transaction
type, size, physical address)
to end in the system (i.e., routing address)
Information to transport packet from end
Transport specification
spec
transport
Common
between two physical devices (i.e., electrical
Information necessary to move packet
interface, flow control)
Physical specification
1x/4x
LP serialLP-LVDS
8/16
Future
spec
physical
checklist
Compliance
Inter-
operability
specification
Figure 1. RapidIO Architectural Hierarchy
Overview
SPRU976 – March 2006 Serial RapidIO (SRIO) 15
Submit Documentation Feedback
www.ti.com
Host Subsystem
I/O Control Subsystem
DSP Farm
TDM,GMII, Utopia
Communications Subsystem PCI Subsystem
InfiniBand HCA™
To SystemArea
Network
Memory
Memory
Memory
Memory
RapidIO
RapidIO RapidIO
RapidIO
RapidIO
Backplane
PCI
RapidIO
RapidIO
RapidIO
RapidIO
Switch
Control
Processor
IO
Processor
RapidIO to
InfiniBand
RapidIO
Switch
RapidIO
Switch
Legacy
Comm
Processor
RapidIO
Switch
RapidIO to
PCI Bridge
ASIC/FPGA
Memory
Memory
Host
Processor
Host
Processor
DSP DSP DSP DSP
Comm
Processor
Overview
1.1.2 RapidIO Interconnect Architecture
The interconnect architecture is defined as a packet switched protocol independent of a physical layer
implementation. Figure 2 illustrates the interconnection system.
Figure 2. RapidIO Interconnect Architecture
1.1.3 1x/4x LP-Serial
(1) InfiniBand™ is a trademark of the InfiniBand Trade Association.
Currently, there are two physical layer specifications recognized by the RapidIO Trade Association: 8/16
LP-LVDS and 1X/4X LP-Serial. The 8/16 LP-LVDS specification is a point-to-point synchronous clock
sourcing DDR interface. The 1X/4X LP-Serial specification is a point-to-point, AC coupled, clock recovery
interface. The two physical layer specifications are not compatible.
SRIO complies with the 1X/4X LP-Serial specification. The serializer/deserializer (SERDES) technology in
SRIO also aligns with that specification.
The 1X/4X LP-Serial specification currently covers three frequency points: 1.25, 2.5, and 3.125 Gbps. This
defines the total bandwidth of each differential pair of I/O signals. An 8b/10b encoding scheme ensures
ample data transitions for the clock recovery circuits. Due to the 8b/10b encoding overhead, the effective
data bandwidth per differential pair is 1.0, 2.0, and 2.5 Gbps respectively. Serial RapidIO only specifies
these rates for both the 1X and 4X ports. A 1X port is defined as 1 TX and 1 RX differential pair. A 4X port
is a combination of four of these pairs. This document describes a 4X RapidIO port that can also be
configured as four 1X ports, thus providing a scalable interface capable of supporting a data bandwidth of
1 to 10 Gbps.
16 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Serial RapidIO 1x Device to 1x Device Interface Diagram
Serial RapidIO 4x Device to 4x Device Interface Diagram
1x Device
TD[0]
TD[0]
RD[0]
RD[0]
TD[0]
TD[0]
1x Device
RD[0]
RD[0]
RD[0-3]
RD[0-3]
4x Device
TD[0-3]
RD[0-3]
RD[0-3]
TD[0-3]
4x Device
TD[0-3]
TD[0-3]
Figure 3. Serial RapidIO Device to Device Interface Diagrams
1.2 RapidIO Feature Support in SRIO
Features Supported in SRIO:
• RapidIO Interconnect Specification V1.2 compliance, Errata 1.2
• LP-Serial Specification V1.2 compliance
• 4X Serial RapidIO with auto-negotiation to 1X port, optional operation for four 1X ports
• Integrated clock recovery with TI SERDES
• Hardware error handling including Cyclic Redundancy Code (CRC)
• Differential CML signaling supporting AC and DC coupling
• Support for 1.25, 2.5, and 3.125 Gbps rates
• Power-down option for unused ports
• Read, write, write with response, streaming write, outgoing Atomic, and maintenance operations
• Generates interrupts to the CPU (Doorbell packets and internal scheduling)
• Support for 8b and 16b device ID
• Support for receiving 34b addresses
• Support for generating 34b, 50b, and 66b addresses
• Support for the following data sizes: byte, half-word, word, double-word
• Big endian data transfers
• Direct IO transfers
• Message passing transfers
• Data payloads of up to 256B
• Single messages consisting of up to 16 packets
• Elastic storage FIFOs for clock domain handoff
• Short run and long run compliance
• Support for Error Management Extensions
• Support for Congestion Control Extensions
• Support for one multi-cast ID
Overview
SPRU976 – March 2006 Serial RapidIO (SRIO) 17
Submit Documentation Feedback
www.ti.com
Overview
Features Not Supported:
• Compliance with the Global Shared Memory specification (GSM)
• 8/16 LP-LVDS compatible
• Destination support of RapidIO Atomic Operations
• Simultaneous mixing of frequencies between 1X ports (all ports must be the same frequency)
• Target atomic operations (including increment, decrement, test-and-swap, set, and clear) for internal
1.3 Standards
The SRIO peripheral is compliant to V1.2 of the RapidIO Interconnect Specification and V1.2 of the
LP-Serial specification.
Document Link Description
Official RapidIO Web Site http://www.RapidIO.org Various associated docs
1.4 External Devices Requirements
SRIO provides a seamless interface to all devices which are compliant to V1.2 of the LP-Serial RapidIO
specification. This includes ASIC, microprocessor, DSP, and switch fabric devices from multiple vendors.
Compliance to the specification can be verified with bus-functional models available through the RapidIO
Trade Association, as well as test suites currently available for licensing.
L2 memory and registers
Table 1. RapidIO Documents and Links
Serial RapidIO (SRIO)18 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
2 SRIO Functional Description
2.1 Overview
2.1.1 Peripheral Data Flow
This peripheral is designed to be an external slave module that is capable of mastering the internal DMA.
This means that an external device can push (burst write) data to the DSP as needed, without having to
generate an interrupt to the CPU. This has two benefits. It cuts down on the total number of interrupts, and
it reduces handshaking (latency) associated with read-only peripherals.
SRIO specifies data packets with payloads up to 256 bytes. Many times, transactions will span across
multiple packets. RapidIO specifies a maximum of 16 transactions per message. Although a request is
generated for each packet transaction so that the DMA can transfer the data to L2 memory, an interrupt is
only generated after the final packet of the message. This interrupt notifies the CPU that data is available
in L2 Memory for processing.
As an endpoint device, the peripheral accepts packets based on the destination ID. Two options exist for
packet acceptance and are mode selectable. The first option is to only accept packets whose DestIDs
match the local deviceID in 0x0080. This provides a level of security. The second option is to accept
incoming packets matching the deviceID in either 0x0080 or 0x0084. This allows for system multicast
operations.
Data flow through the peripheral can be explained using the high-level block diagram shown in Figure 4 .
High-speed data enters from the device pins into the RX block of the SERDES macro. The RX block is a
differential receiver expecting a minimum of 175mV peak-to-peak differential input voltage (Vid). Level
shifting is performed in the RX block, such that the output is single ended CMOS. The serial data is then
fed to the SERDES clock recovery block. The sole purpose of this block is to extract a clock signal from
the data stream. To do this, a low-frequency reference clock is required, 1/10
example, for 3.125 Gbps data, a reference clock of 312.5Mhz or 156.25Mhz is needed. Typically, this
clock comes from an off-chip stable crystal oscillator and is a LVDS device input separate to the SERDES.
This clock is distributed to the SERDES PLL block which multiplies that frequency up to that of the data
rate. Eight phases of this high-speed clock are created and routed to the clock recovery blocks. The clock
recovery block further interpolates eight times between these clock phases. This provides clock edge
resolution of 1/96
monitors the relative positions of the data edges. With this information, it can provide the data and a
center-aligned clock to the S2P block. The S2P block uses the newly recovered clock to demux the data
into 10-bit words. At this point, the data leaves the SERDES macro at 1/10th the pin data rate,
accompanied by an aligned byte clock.
SRIO Functional Description
th
or ½0ththe data rate. For
th
the Unit Interval (UI). The clock recovery block samples the incoming data and
SPRU976 – March 2006 Serial RapidIO (SRIO) 19
Submit Documentation Feedback
www.ti.com
1.25-3.125 Gbps
differential data
Rx
Clock
recovery
S2P
10b
Clk
8b/10b
decode
8b
Clock
recovery
Rx
8b8b/10b
decode
10b
ClkS2P
Clock
recovery
Rx
8b8b/10b
decode
10b
ClkS2P
Clock
recovery
Rx
8b8b/10b
decode
10b
ClkS2P
PLL
Tx
Tx
Tx
Tx
P2S
P2S
P2S
P2S
8b
8b
8b
8b
10b
8b/10b
coding
Clk
8b/10b
coding
8b/10b
coding
8b/10b
coding
10b
Clk
10b
Clk
10b
Clk
FIFO
FIFO
FIFO
FIFO
System
clock
Capability
registers
Control
Command
and status
registers
SERDES
Clock domain 2
Clock domain 3
Clock domain 1
DMA
bus
Packet Generation
Lane striping
Lane de-skew
CRC error detection
CRC generation
Buffering address and data handoff
FIFO
FIFO
FIFO
FIFO
SRIO Functional Description
Figure 4. SRIO Peripheral Block Diagram
Within the physical layer, the data next goes to the 8b/10b decode block. 8b/10b encoding is used by
RapidIO to ensure adequate data transitions for the clock recovery circuits. Here the 20% encoding
overhead is removed as the 10-bit data is decoded to the raw 8-bit data. At this point, the recovered byte
clock is still being used.
The next step is clock synchronization and data alignment. These functions are handled by the FIFO and
lane de-skewing blocks. The FIFO provides an elastic store mechanism used to hand off between the
recovered clock domains and a common system clock. After the FIFO, the four lanes are synchronized in
frequency and phase, whether 1X or 4X mode is being used. The FIFO is 8 words deep. The lane
de-skew is only meaningful in the 4X mode, where it aligns each channel’s word boundaries, such that the
resulting 32-bit word is correctly aligned.
The CRC error detection block keeps a running tally of the incoming data and computes the expected
CRC value for the 1X or 4X mode. The expected value is compared against the CRC value at the end of
the received packet.
After the packet reaches the logical layer, the packet fields are decoded and the payload is buffered.
Depending on the type of received packet, the packet routing is handled by functional blocks which control
the DMA access.
2.1.2 SRIO Packets
2.1.2.1 Operation Sequence
20 Serial RapidIO (SRIO) SPRU976 – March 2006
The SRIO data stream consists of data fields pertaining to the logical layer, the transport layer, and the
physical layer.
• The logical layer consists of the header (defining the type of access) and the payload (if present).
• The transport layer is partially dependent on the physical topology in the system, and consists of
• The physical layer is dependent on the physical interface (i.e., serial versus parallel RapidIO) and
SRIO transactions are based on request and response packets. Packets are the communication element
between endpoint devices in the system. A master or initiator generates a request packet which is
transmitted to a target. The target then generates a response packet back to the initiator to complete the
transaction.
source and destination IDs for the sending and receiving devices.
includes priority, acknowledgment, and error checking fields.
Submit Documentation Feedback
www.ti.com
Initiator
Request
Packet Issued
Operation
Completed for
Master
Acknowledge
Symbol
Acknowledge
Symbol
Response
Packet
Forwarded
Request Packet
Forwarded
Acknowledge
Symbol
Acknowledge
Symbol
Response Packet
Issued
Fabric
Target
Target
Completes
Operation
Operation
Issued By
Master
SRIO Functional Description
SRIO endpoints are typically not connected directly to each other but instead have intervening connection
fabric devices. Control symbols are used to manage the flow of transactions in the SRIO physical
interconnect. Control symbols are used for packet acknowledgment, flow control information, and
maintenance functions. Figure 5 shows how a packet progresses through the system.
Figure 5. Operation Sequence
2.1.2.2 Example Packet – Streaming Write
An example packet is shown as two data streams in Figure 6 . The first is for payload sizes of 80 bytes or
less, while the second applies to payload sizes of 80 to 256 bytes. SRIO packets must have a length that
is an even integer of 32 bits. If the combination of physical, logical and transport layers has a length that is
an integer of 16 bits, a 16-bit pad of value 0x0000 is added to the end of the packet, after the CRC (not
shown). Bit fields that are defined as reserved are assigned to logic 0s when generated and ignored when
received. All request and response packet formats are described in the I/O and Message Passing Logical
Specifications.
SPRU976 – March 2006 Serial RapidIO (SRIO) 21
Submit Documentation Feedback
www.ti.com
double-word n-1
acklD rsv
prio
tt ftype
destID
sourcelD
address
rsrv
xamsbs double-word 0
double-word 1
...
double-word n-2
CRC
PHY
LOG
TRA
LOG
TRA
PHY
5
3
2
2
4
8
8
29
1
2
64 64
(n-4)*64
64
64
16
16
n*64+32
16
4
2
10
LOG
PHY10TRA
2 4
9 * 6 4 + 32
LOG
TRA
16
PHY
16
double-word 0
5
acklD sourcelDrsv
3
prio
2
ftype
tt
2 4
destiD
8
1
rsrv
address
8 29
xamsbs
2
64
double-word 8
double-word 1
64
5*64
...
64
double-word 9
64
CRC
16
LOG
(n-9)*64
16
PHY
double-word 10
64
double-word n-2double-word 11
64
(n-13)*64
...
double-word n-1
6464
16
CRC
n*64+96
n*64+80
PHY = Physical layer
TRA = Transport layer
LOG = Logical layer
SC or PD parameter1stype0 stype1Parameter0 cmd CRC
533553
Delimiter 1st Byte 2nd Byte 3rd Byte
8
SRIO Functional Description
Figure 6. 1x/4x RapidIO Packet Data Stream (Streaming-Write Class)
Note: Figure 6 assumes that addresses are 32-bit and device IDs are 8-bit.
The device ID, being an 8-bit field, will address up to 256 nodes in the system. If 16-bit addresses were
used, the system could accommodate up to 64k nodes.
The data stream includes a Cyclic Redundancy Code (CRC) field to ensure the data was correctly
received. The CRC value protects the entire packet except the ackID and one bit of the reserved PHY
field. The peripheral checks the CRC automatically in hardware. If the CRC is correct, a Packet-Accepted
control symbol is sent by the receiving device. If the CRC is incorrect, a Packet-Not-Accepted control
symbol is sent so that transmission may be retried.
2.1.2.3 Control Symbols
Control symbols are physical layer message elements used to manage link maintenance, packet
delimiting, packet acknowledgment, error reporting, and error recovery. All transmitted data packets are
delimited by start-of-packet and end-of-packet delimiters. SRIO control symbols are 24 bits long and are
protected by their own CRC. Control symbols provide two functions: stype0 symbols convey the status of
the port transmitting the symbol, and stype1 symbols are requests to the receiving port or transmission
delimiters. They have the following format, which is detailed in section 3 of the RapidIO LP-Serial
specification.
Figure 7. Serial RapidIO Control Symbol Format
Control symbols are delimited by special characters at the beginning of the symbol. If the control symbol
If the control symbol does not contain a packet delimiter, the special character SC (K28.0) is used. This
use of special characters provides an early warning of the contents of the control symbol. The CRC does
contains a packet delimiter(start-of-packet, end-of-packet, etc.), the special character PD (K28.3) is used.
not protect the special characters, but an illegal or invalid character is recognized and flagged as
Packet-Not-Accepted. Since control symbols are known length, they do not need end delimiters.
22 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
The type of received packet determines how the packet routing is handled. Reserved or undefined packet
types are destroyed before being processed by the logical layer functional blocks. This prevents erroneous
allocation of resources to them. Unsupported packet types are responded to with an error response
packet. Section 2.1.2.4 details the handling of such packets.
2.1.2.4 SRIO Packet Ftype/Ttype
The type of SRIO packet is determined by the combination of Ftype and Ttype fields in the packet. Table 2
lists all supported combinations of Ftype/Ttype and the corresponding decoded actions on the packets.
Ftype Ttype Packet Type
Ftype=0, Ttype=don't care
Ftype=2, Ttype=0100b, NREAD
Ftype=5, Ttype=0100b, NWRITE
Ftype=6, Ttype=don't care, SWRITE
Ftype=7, Ttype=don't care, Congestion
Ftype=8, Ttype=0000b, Mtn Rd
Ftype=10, Ttype=don't care, Doorbell
Ftype=11, Ttype=don't care, Message
Ftype=13, Ttype=0000b, Resp(+Dbll Resp)
Undefined Ftype (1,3,4,9,12,14,15):
SRIO Functional Description
Table 2. Packet Type
Ttype=1100b, Atomic inc
Ttype=1101b, Atomic dec
Ttype=1110b, Atomic set
Ttype=1111b, Atomic clr
Ttype=others,
Ttype=0101b, NWRITE_R
Ttype=1110b, Atomic t&s
Ttype=others,
Ttype=0001b, Mtn Wr
Ttype=0010b, Mtn Rd Resp
Ttype=0011b, Mtn Wr Resp
Ttype=0100b, Mtn Pt-Wr
Ttype=others,
Ttype=0001b, Message Resp
Ttype=1000b, Resp w/payload
Ttype=other,
Packet type definition:
#define REQ_MAINT_RD 0x80 //0b10000000 // ftype=8
#define REQ_MAINT_WR 0x81 //0b10000001 // ftype=8
#define REQ_MAINT_PW 0x84 //0b10000100 // ftype=8
#define REQ_ATOMIC_INC 0x2C //0b00101100 // ftype=2
#define REQ_ATOMIC_DEC 0x2D //0b00101101 // ftype=2
#define REQ_ATOMIC_SET 0x2E //0b00101110 // ftype=2
#define REQ_ATOMIC_CLR 0x2F //0b00101111 // ftype=2
#define REQ_ATOMIC_TNS 0x5E //0b01011110 // ftype=5
#define REQ_NREAD 0x24 //0b00100100 // ftype=2
#define REQ_NWRITE 0x54 //0b01010100 // ftype=5
#define REQ_NWRITE_R 0x55 //0b01010101 // ftype=5
#define REQ_SWRITE 0x60 //0b01100000 // ftype=6
#define REQ_DOORBELL 0xA0 //0b10100000 // ftype=10
SPRU976 – March 2006 Serial RapidIO (SRIO) 23
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
2.2 SRIO Pins
The SRIO device pins are high-speed differential signals based on Current-Mode Logic (CML) switching
levels. The transmit and receive buffers are self-contained within the clock recovery blocks. The reference
clock input is not incorporated into the SERDES macro. It uses a common LVDS input buffer that aligns
interfaces with crystal oscillator manufacturers. None of the peripheral pins may be used as GPIO pins.
Table 3 provides more detail.
Table 3. Pin Description
Pin Name Pin Signal Description
Count Direction
RIOTX3/ RIOTX3 2 Output Transmit Data – Differential point-to-point unidirectional bus. Transmits
packet data to a receiving device’s RX pins. Most significant bit of a 4X
device.
RIOTX2/ RIOTX2 2 Output Transmit Data – Differential point-to-point unidirectional bus. Transmits
packet data to a receiving device’s RX pins.
RIOTX1/ RIOTX1 2 Output Transmit Data – Differential point-to-point unidirectional bus. Transmits
packet data to a receiving device’s RX pins.
RIOTX0/ RIOTX0 2 Output Transmit Data – Differential point-to-point unidirectional bus. Transmits
packet data to a receiving device’s RX pins. Bit used for 1X mode.
RIORX3/ RIORX3 2 Input Receive Data – Differential point-to-point unidirectional bus. Receives
packet data for a transmitting device’s TX pins. Most significant bits in
4X mode.
RIORX2/ RIORX2 2 Input Receive Data – Differential point-to-point unidirectional bus. Receives
packet data for a transmitting device’s TX pins.
RIORX1/ RIORX1 2 Input Receive Data – Differential point-to-point unidirectional bus. Receives
packet data for a transmitting device’s TX pins.
RIORX0/ RIORX0 2 Input Receive Data – Differential point-to-point unidirectional bus. Receives
packet data for a transmitting device’s TX pins. Bit used for 1X mode
RIOCLK/ RIOCLK 2 Input Reference Clock Input Buffer for peripheral clock recovery circuitry.
2.3 Functional Operation
2.3.1 Block Diagram
Figure 8 shows a conceptual block diagram of the SRIO peripheral. The load/store unit (LSU) controls the
transmission of Direct I/O packets, and the memory access unit (MAU) controls the reception of Direct I/O
packets. The LSU also controls the transmission of maintenance packets. Message packets are
transmitted by the TXU and received by the RXU. These four units use the internal DMA to communicate
with internal memory, and they use buffers and receive/transmit ports to communicate with external
devices. Serializer/deserializer (SERDES) macros support the ports by performing the parallel-to-serial
coding for transmission and serial-to-parallel decoding for reception.
24 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Port 0
8 x 276 TX
8 x 276 RX
8 x 276 RX
8 x 276 TX
Port 1
8 x 276 TX
8 x 276 RX
Port 2
8 x 276 RX
8 x 276 TX
Port 3
Physical
layer
buffers
SERDES 0 SERDES 1 SERDES 2 SERDES 3
SERDES
differential
signals
4x mode
data path
TX buffering
32 x 276B
8 buffers per 1X port - all priorities
32 buffers per 4X port - 8 per priority
Transaction
mapping
layer
buffers
Logical
Load/store
unit (LSU)
Tx direct I/O
Maintenance
Messaging
TXU
Rx direct I/O
(MAU)
Memory
access unit
RXU
Messaging
buffer
4.5 KB Tx
shared
buffer
shared
4.5 KB Tx
handle
Queue
128-bit
DMA bus 128-bit
SRIO Functional Description
Figure 8. SRIO Conceptual Block Diagram
SPRU976 – March 2006 Serial RapidIO (SRIO) 25
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
2.3.2 SERDES and its Configurations
SRIO offers many benefits to customers by allowing a scalable non-proprietary interface. With the use of
TI’s SERDES macros, the peripheral is very adaptable and bandwidth scalable. The same peripheral can
be used for all three frequency nodes specified in V1.2 of the RapidIO specification (1.25, 2.5, and 3.125
Gbps). This allows you to design to only one protocol throughout the system and selectively choose the
bandwidth, thus eliminating the need for user’s proprietary protocols in many instances, and providing a
faster design turn and production ramp. Since this interface is serial, the application space is not limited to
a single board. It will propagate into backplane applications as well. Integration of these macros on an
ASIC or DSP allows you to reduce the number of discrete components on the board and eliminates the
need for bus driver chips.
Additionally, there are some valuable features built into TI SERDES. System optimization can be uniquely
managed to meet individual customer applications. For example, control registers within the SERDES
allow you to adjust the TX differential output voltage (Vod) on a per driver basis. This allows power
savings on short trace links (on the same board) by reducing the TX swing. Similarly, data edge rates can
be adjusted through the control registers to help reduce any EMI affects. Unused links can be individually
powered down without affecting the working links.
Because the high-speed analog nature of the SERDES is often the most critical portion of the RapidIO
peripheral, good test access is important.
The SERDES is a self-contained macro which includes transmitter (TX), receiver (RX), phase-locked-loop
(PLL), clock recovery, serial-to-parallel (S2P), and parallel-to-serial (P2S) blocks. The internal PLL
multiplies a user-supplied reference clock. All loop filter components of the PLL are onchip. Likewise, the
differential TX and RX buffers contain on-chip termination resistors. The only off-chip component
requirement is for DC blocking capacitors. These capacitors are needed only to ensure interoperability
between vendors and can be removed in cases where TI devices talk to other TI devices at the same
voltage node. The SERDES are designed for 1.2V ± 5% operation. This provides for excellent power
efficiency.
2.3.2.1 Enabling the PLL
The Physical layer SERDES has a built-in PLL, which is used for the clock recovery circuitry. The PLL is
responsible for clock multiplication of a slow speed reference clock. This reference clock has no timing
relationship to the serial data and is asynchronous to any CPU system clock. The multiplied high-speed
clock is only routed within the SERDES block, it is not distributed to the remaining blocks of the peripheral,
nor is it a boundary signal to the core of the device. It is extremely important to have a good quality
reference clock, and to isolate it and the PLL from all noise sources. A unique Reference Clock
Distribution (RCD) macro is used for this purpose. Since RapidIO requires 8b/10b encoded data, the 8-bit
mode of the SERDES PLL will not be used.
SERDES_CFG n_CNTL, SERDES_CFGRX n_CNTL, and SERDES_CFGTX n_CNTL registers are used to
configure SERDES. To enable the internal PLL, the ENPLL bit of SERDES_CFG n_CNTL must be set
high. After setting this bit, it is necessary to allow 1µs for the regulator to stabilize. Thereafter, the PLL will
take no longer than 200 reference clock cycles to lock to the required frequency, provided RIOCLK and
RIOCLK are stable.
Table 4. Bits of SERDES_CFG n_CNTL Register (0x120 - 0x12c)
Bit Name Value Description
31:10 Reserved Reserved.
9:8 LB Loop bandwidth. Specify loop bandwidth settings.
00 Frequency dependent bandwidth. The PLL bandwidth is set to a twelfth of the frequency of RIOCLK
and RIOCLK.
01 Reserved
10 Low bandwidth. The PLL bandwidth is set to a twentieth of the frequency of RIOCLK and RIOCLK,
or 3MHz (whichever is larger).
11 High bandwidth. The PLL bandwidth is set to an eighth of the frequency of RIOCLK and RIOCLK.
7:6 Reserved Reserved.
26 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 4. Bits of SERDES_CFG n_CNTL Register (0x120 - 0x12c) (continued)
Bit Name Value Description
5:1 MPY PLL multiply. Select PLL multiply factors between 4 and 60. Multiply modes shown below.
0000 4x
0001 5x
0010 6x
0011 Reserved
0100 8x
0101 10x
0110 12x
0111 12.5x
1000 15x
1001 20x
1010 25x
1011 Reserved
1100 Reserved
1101 50x
1110 60x
1111 Reserved
0 ENPLL Enable PLL. Enables the PLL.
Based on the MPY value, the following line rate versus PLL output clock frequency can be estimated:
Table 5. Line Rate versus PLL Output Clock Frequency
Rate Line Rate PLL Output Frequency RATESCALE
Full x Gbps 0.5x GHz 0.5
Half x Gbps x GHz 1
Quarter x Gbps 2x GHz 2
RIOCLK and RIOCLK
FREQ
= LINERATE × RATESCALE
MPY
The rate is defined by the RATE bits of the SERDES_CFGRX n_CNTL register and the
SERDES_CFGTX n_CNTL register, respectively.
The primary operating frequency of the SERDES macro is determined by the reference clock frequency
and PLL multiplication factor. However, to support lower frequency applications, each receiver and
transmitter can also be configured to operate at a half or quarter of this rate via the RATE bits of the
SERDES_CFGRX n_CNTL and SERDES_CFGTX n_CNTL registers as described in Table 6 .
Table 6. RATE Bit Effects
Value Description
0 0 Full rate. Two data samples taken per PLL output clock cycle.
0 1 Half rate. One data sample taken per PLL output clock cycle.
1 0 Quarter rate. One data sample taken every two PLL output clock cycles.
1 1 Reserved.
SPRU976 – March 2006 Serial RapidIO (SRIO) 27
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Here is the frequency range versus MPY:
MPY RIOCLK and RIOCLK Line Rate Range (Gbps)
4x 250 - 425 2 - 3.4 1 - 1.7 0.5 - 0.85
5x 200 - 425 2 - 4.25 1 - 2.125 0.5 - 1.0625
6x 167 - 354.167 2 - 4.25 1 - 2.125 0.5 - 1.0625
8x 125 - 265.625 2 - 4.25 1 - 2.125 0.5 - 1.0625
10x 100 - 212.5 2 - 4.25 1 - 2.125 0.5 - 1.0625
12x 83.33 - 177.08 2 - 4.25 1 - 2.125 0.5 - 1.0625
12.5x 80 - 170 2 - 4.25 1 - 2.125 0.5 - 1.0625
15x 66.67 - 141.67 2 - 4.25 1 - 2.125 0.5 - 1.0625
20x 50 - 106.25 2 - 4.25 1 - 2.125 0.5 - 1.0625
25x 40 - 85 2 - 4.25 1 - 2.125 0.5 - 1.0625
50x 25 - 42.5 2.5 - 4.25 1.25 - 2.125 0.625 - 1.0625
60x 25 - 35.42 3 - 4.25 1.5 - 2.125 0.75 - 1.0625
2.3.2.2 Enabling the Receiver
To enable a receiver for deserialization, the ENRX bit of the associated SERDES_CFGRX n_CNTL
registers (0x100-0x10c) must be set high.
When ENRX is low, all digital circuitry within the receiver will be disabled, and clocks will be gated off. All
current sources within the receiver will be fully powered down, with the exception of those associated with
the loss of signal detector and IEEE1149.6 boundary scan comparators. Loss of signal power down is
independently controlled via the LOS bits of SERDES_CFGRX n_CNTL.
Table 7. Frequency Range versus MPY
Range (MHz) Full Half Quarter
Table 8. Bits of SERDES_CFGRX n_CNTL Registers
Bit Field Value Description
31:26 Reserved Reserved.
25 Reserved Reserved, keep as zero during writes to this register.
24 Reserved Reserved, keep as zero during writes to this register.
23 Reserved Reserved.
22:19 EQ Equalizer. Enables and configures the adaptive equalizer to compensate for loss in the
18:16 CDR Clock/data recovery. Configures the clock/data recovery algorithm.
000 First order. Phase offset tracking up to ± 488 ppm.
001 Second order. Highest precision frequency offset matching but poorest response to changes in
010 Second order. Medium precision frequency offset matching, frequency offset change response
011 Second order. Best response to changes in frequency offset and fastest lock time, but lowest
100 First order with fast lock. Phase offset tracking up to ± 1953 ppm in the presence of ..10101010..
101 Second order with fast lock. As per setting 001, but with improved response to changes in
110 Second order with fast lock. As per setting 010, but with improved response to changes in
111 Second order with fast lock. As per setting 011, but with improved response to changes in
transmission media. For values, see Table 9 .
frequency offset, and longest lock time. Suitable for use in systems with fixed frequency offset.
and lock time.
precision frequency offset matching. Suitable for use in systems with spread spectrum clocking.
training pattern, and ± 448 ppm otherwise.
frequency offset when not close to lock.
frequency offset when not close to lock.
frequency offset when not close to lock.
28 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 8. Bits of SERDES_CFGRX n_CNTL Registers (continued)
Bit Field Value Description
15:14 LOS Loss of signal. Enables loss of signal detection with 2 selectable thresholds.
00 Disabled. Loss of signal detection disabled.
01 High threshold. Loss of signal detection threshold in the range 85 to 195mV
suitable for Infiniband.
10 Low threshold. Loss of signal detection threshold in the range 65-175mV
suitable for PCI-E and S-ATA.
11 Reserved
13:12 ALIGN Symbol alignment. Enables internal or external symbol alignment.
00 Alignment disabled. No symbol alignment will be performed while this setting is selected, or
when switching to this selection from another.
01 Comma alignment enabled. Symbol alignment will be performed whenever a misaligned comma
symbol is received.
10 Alignment jog. The symbol alignment will be adjusted by one bit position when this mode is
selected (i.e., CFGRX[13:12] changes from 0x to 1x).
11 Reserved
11 Reserved Reserved.
10:8 TERM Termination. Selects input termination options suitable for a variety of AC or DC coupled
scenarios.
000 Common point connected to VDDT. This configuration is for DC coupled systems using CML
transmitters. The common mode voltage is determined jointly by both the receiver and the
transmitter. Common mode termination is via a 50 pF capacitor to VSSA.
001 Common point set to 0.8 VDDT. This configuration is for AC coupled systems using CML
transmitters. The transmitter has no effect on the receiver common mode, which is set to
optimize the input sensitivity of the receiver. Common mode termination is via a 50 pF capacitor
to VSSA.
010 Reserved
011 Common point floating. This configuration is for DC coupled systems that require the common
mode voltage to be determined by the transmitter only. These are typically not CML. Common
mode termination is via a 50 pF capacitor to VSSA.
1xx Reserved
7 INVPAIR Invert polarity. Inverts polarity of RXP n and RXN n.
0 Normal polarity. RXP n considered to be positive data and RXN n negative.
1 Inverted polarity. RXP n considered to be negative data and RXN n positive.
6:5 RATE Operating rate. Selects full, half or quarter rate operation.
00 Full rate. Two data samples taken per PLL output clock cycle.
01 Half rate. One data sample taken per PLL output clock cycle.
10 Quarter rate. One data sample taken every two PLL output clock cycles.
11 Reserved
4:2 BUS- Bus width. Selects the width of the parallel interface (10 or 8 bit).
WIDTH
000 10-bit operation. Data is output on RD n[9:0]. RXBCLK[ n] period is 10 bit periods (4 high, 6 low).
001 8-bit operation. Data is output on RD n[7:0]. RXBCLK[ n] period is 8 bit periods (4 high, 4 low).
RD n[9:8] will replicate bits [1:0] from the previous byte.
01x Reserved
1xx Reserved
1 Reserved Reserved, keep as zero during writes to this register.
0 ENRX Enable receiver. Enables this receiver when high.
0 Disable
1 Enable
. This setting is
dfpp
. This setting is
dfpp
SPRU976 – March 2006 Serial RapidIO (SRIO) 29
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
2.3.2.3 Enabling the Transmitter
To enable a transmitter for serialization, the ENTX bit of the associated SERDES_CFGTX n_CNTL
registers (0x110 – 0x10c) must be set high. When ENTX is low, all digital circuitry within the transmitter
will be disabled, and clocks will be gated off, with the exception of the transmit clock (TXBCLK[ n]) output,
which will continue to operate normally. All current sources within the transmitter will be fully powered
down, with the exception of the CML driver, which will remain powered up if boundary scan is selected.
Table 9. EQ Bits
CFGRX[22:19] Low Freq Gain Zero Freq (at e28(min))
0000 Maximum 0001 Adaptive Adaptive
001x Reserved
01xx Reserved
1000 Adaptive 1084MHz
1001 805MHz
1010 573MHz
1011 402MHz
1100 304MHz
1101 216MHz
1110 156MHz
1111 135MHz
Table 10. Bits of SERDES_CFGTX n_CNTL Registers
Bit Field Value Description
31:17 Reserved Reserved.
16 ENFTP Enable fixed TXBCLKIN n phase. Enables fixed phase relationship of TXBCLKIN n with respect to
0 Arbitrary phase. No required phase relationship between TXBCLKIN n and TXBCLK n.
1 Fixed phase. Requires direct connection of TXBCLK n to TXBCLKIN n using a minimum length
15:12 DE De-emphasis. Selects one of 15 output de-emphasis settings from 4.76 to 71.42%. See
11:9 SWING Output swing. Selects one of 8 output amplitude settings between 125 and 1250mV
8 CM Common mode. Adjusts the common mode to suit the termination at the attached receiver.
0 Normal common mode. Common mode not adjusted.
1 Raised common mode. Common mode raised by 5% of e54.
7 INVPAIR Invert polarity. Inverts polarity of TXP n and TXNn.
0 Normal polarity. TXP n considered to be positive data and TXN n negative.
1 Inverted polarity. TXP n considered to be negative data and TXN n positive.
6:5 RATE Operating rate. Selects full, half or quarter rate operation.
00 Full rate. Two data samples taken per PLL output clock cycle.
01 Half rate. One data sample taken per PLL output clock cycle.
10 Quarter rate. One data sample taken every two PLL output clock cycles.
11 Reserved
TXBCLK n.
net without buffers.
Table 12 .
Table 11 .
. See
dfpp
30 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Table 10. Bits of SERDES_CFGTX n_CNTL Registers (continued)
Bit Field Value Description
4:2 BUS- Bus width. Selects the width of the parallel interface (10 or 8 bit).
1 Reserved Reserved
0 ENTX Enable transmitter. Enables this transmitter when high.
WIDTH
000 10-bit operation. Data is input on TD n[9:0]. TXBCLK n period is 10 bit periods (4 high, 6 low).
001 8-bit operation. Data is input on TD n[9:2]. TXBCLK n period is 8 bit periods (4 high, 4 low).
TD n[1:0] are ignored.
01x Reserved
1xx Reserved
Table 11. SWING Bits
CFGTX[11:9] Amplitude (mV
000 125
001 250
010 500
011 625
100 750
101 1000
110 1125
111 1250
)
dfpp
SRIO Functional Description
Table 12. DE Bits
CFGTX[15:12] Amplitude Reduction
% dB
0000 0 0
0001 4.76 -0.42
0010 9.52 -0.87
0011 14.28 -1.34
0100 19.04 -1.83
0101 23.8 -2.36
0110 28.56 -2.92
0111 33.32 -3.52
1000 38.08 -4.16
1001 42.85 -4.86
1010 47.61 -5.61
1011 52.38 -6.44
1100 57.14 -7.35
1101 61.9 -8.38
1110 66.66 -9.54
1111 71.42 -10.87
SPRU976 – March 2006 Serial RapidIO (SRIO) 31
Submit Documentation Feedback
www.ti.com
Configuration/Status
Register and Tables
(32-bit)
Output Buffers
(64-bit)
RapidIO Endpoint
IT Generator
ASIC
Device
RapidIO Endpoint
L2
CPU
Step 2. IT to CPU
for end transfer
completion
Step 1. ASIC
writes through
RapidIO to L2
SRIO Functional Description
2.3.2.4 SERDES Configuration Example
rdata = SRIO_REGS->SERDES_CFG0_CNTL;
wdata = 0x00000001;
mask = 0x00000FFF;
mdata = (wdata & mask) | (rdata & ~mask);
SRIO_REGS->SERDES_CFG0_CNTL = mdata ; // 3.125 Gbps
SRIO_REGS->SERDES_CFG1_CNTL = mdata ; // 3.125 Gbps
SRIO_REGS->SERDES_CFG2_CNTL = mdata ; // 3.125 Gbps
SRIO_REGS->SERDES_CFG3_CNTL = mdata ; // 3.125 Gbps
SRIO_REGS->SERDES_CFGRX0_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGRX1_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGRX2_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGRX3_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGTX0_CNTL = 0x00010801 ; // enable tx, rate 1
SRIO_REGS->SERDES_CFGTX1_CNTL = 0x00010801 ; // enable tx, rate 1
SRIO_REGS->SERDES_CFGTX2_CNTL = 0x00010801 ; // enable tx, rate 1
SRIO_REGS->SERDES_CFGTX3_CNTL = 0x00010801 ; // enable tx, rate 1
2.3.3 DirectIO
The DirectIO (Load/Store) module serves as the source of all outgoing direct I/O packets. With Direct I/O,
the RapidIO packet contains the specific address where the data should be stored or read in the
destination device. Direct I/O requires that a RapidIO source device, must keep a local table of addresses
for memory within the destination device. If a CR ASIC is talking with DSP, the ASIC will have destination
circular buffer description tables that contain DSP addresses, buffer sizes, and write pointer information.
These tables are initialized by the DSP upon system boot after the initialization/discovery phase. Updates
to the table could be managed completely by the DSP through RapidIO master writes. Once these tables
are established, the ASIC RapidIO controller uses this data to compute the destination address and insert
it into the packet header. The DSP RapidIO peripheral extracts the destination address from the packet
header and transfers the payload to L2 memory via the DMA.
When a CPU wants to send data from memory to an external processing element (PE) or read data from
an external PE, it must provide the RIO peripheral vital information about the transfer such as DSP
memory address, target deviceID, target destination address, packet priority, etc. Essentially, a means
must exist to fill all the header fields of the RapidIO packet. The Load/Store module provides a mechanism
to handle this information exchange via a set of MMRs acting as transfer descriptors. These registers are
addressable by the CPU through the configuration bus. Upon completion of a write to LSU_Reg5, a data
transfer is initiated for either an NREAD, NWRITE, NWRITE_R, SWRITE, ATOMIC, or MAINTENANCE
RapidIO transaction. Some fields, such as the RapidIO srcTID/targetTID field, are assigned by hardware
and do not have a corresponding command register field.
32 Serial RapidIO (SRIO) SPRU976 – March 2006
Figure 9. Load/Store Data Transfer Diagram
Submit Documentation Feedback
www.ti.com
LSU_Reg0 RapidIO Address MSB Control
31
RapidIO Address LSB/Config_offset Control
31 0
LSU_Reg1
DSP Address Control
31 0
LSU_Reg2
RSV Control
31 0
LSU_Reg3
12 11
Byte_count
OutPortID Control
31 0
LSU_Reg4
1
7
Interrupt Req
30
Priority
29 28
xambs
27 26
ID Size
25 24
DestID
23 8
RSV
Drbll Info Command
31 0
LSU_Reg5
8 7
Packet Type
16
Hop Count
15
RSV
31
LSU_Reg6
1
Bsy
5
Completion Code
4
Status
0
0
Figure 10. Load/Store Registers for RapidIO (Address Offset: LSU1 0x400-0x418, LSU2 0x420-0x438,
LSU3 0x440-0x458, LSU4 0x460-0x478)
SRIO Functional Description
Mapping of command register fields to RapidIO packet header fields is as follows:
Table 13. Control/Command Register Field Mapping
Control/Command Register RapidIO Packet Header Field
Field
RapidIO Address MSB 32b Ext Address Fields – Packet Types 2,5, and 6
RapidIO Address
LSB/Config_offset
DSP Address 32b DSP byte address. Not available in RapidIO Header.
Byte_Count Number of data bytes to Read/Write - up to 4KB. (Used in conjunction with RapidIO address to
ID Size RapidIO tt field specifying 8- or 16-bit DeviceIDs.
Priority RapidIO prio field specifying packet priority (0 = lowest, 3 = highest). Request packets should not
Xambs RapidIO xambs field specifying extended address MSB.
DestID RapidIO destinationID field specifying target device.
1. 32b Address– Packet Types 2,5, and 6 (Will be used in conjunction with BYTE_COUNT to
create 64b aligned RapidIO packet header address)
2. 24b Config_offset Field – Maintenance Packets Type 8 (Will be used in conjunction with
BYTE_COUNT to create 64b aligned RapidIO packet header Config_offset). The 2 LSB of
this field must be zero since the smallest configuration access is 4B.
create WRSIZE/RDSIZE and WDPTR in RapidIO packet header.)
000000000000b – 4KB
000000000001b – 1B
000000000010b – 2B
. . .
111111111111b – 4095B
(Maintenance requests are limited to 4B)
00b – 8b deviceIDs
01b – 16b deviceIDs
10b - reserved
11b - reserved
be sent at a priority level of 3 to avoid system deadlock. It is the responsibility of the software to
assign the appropriate outgoing priority.
SPRU976 – March 2006 Serial RapidIO (SRIO) 33
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 13. Control/Command Register Field Mapping (continued)
Control/Command Register RapidIO Packet Header Field
Field
Packet Type 4 msb = 4b ftype field for all packets and
4 lsb = 4b trans field for packet types 2,5,8.
OutPortID Not available in RapidIO header.
Indicates the output port number for the packet to be transmitted from. Specified by the CPU
along with NodeID.
Drbll Info RapidIO doorbell info field for type 10 packets.
Hop Count RapidIO hop_count field specified for Type 8 Maintenance packets.
Interrupt Req Not available in RapidIO header.
CPU controlled request bit used for interrupt generation. Typically used in conjunction with
non-posted commands to alert the CPU when the requested data/status is present.
0b - An interrupt is not requested upon completion of command
1b- An interrupt is requested upon completion of command
Table 14. Status Fields
Status Field Function
BSY Indicates status of the command registers.
0b - Command registers are available (writable) for next set of transfer descriptors
1b - Command registers are busy with current transfer
Completion Code Indicates the status of the pending command.
000b – Transaction complete, no errors (Posted/Non-posted)
001b – Transaction timeout occurred on Non-posted transaction
010b – Transaction complete, packet not sent due to flow control blockade (Xoff)
011b – Transaction complete, non-posted response packet (type 8 and 13) contained ERROR status, or
response payload length was in error
100b – Transaction complete, packet not sent due to unsupported transaction type or invalid programming
encoding for one or more LSU register fields
101b – DMA data transfer error
110b – Retry DOORBELL response received, or Atomic Test-and-swap was not allowed (semaphore in
use)
111b – Transaction complete, packet not sent due to unavailable outbound credit at given priority
(1)
Status available only when Bsy signal = 0.
(1)
Four LSU register sets exist. This allows four outstanding requests for all transaction types that require a
response (i.e., non-posted). For multi-core devices, software manages the usage of the registers. A
shared configuration bus accesses all register sets. A single core device can utilize all four LSU blocks.
Figure 11 shows the timing diagram for accessing the LSU registers. Bsy signal is deasserted. LSU_Reg1
is written on configuration bus clock cycle T0, LSU_Reg2 is written on cycle T1, LSU_Reg3 is written on
cycle T2, LSU_Reg4 is written on cycle T3. The command register LSU_Reg5 is written on cycle T4. The
extended address field in LSU_Reg0 is assumed to be constant in this example. Upon completion of the
write to the command register (next clock cycle T5), the Bsy signal is asserted, at which point the
preceding completion code is invalid and accesses to the LSU registers are not allowed. Once the
transaction completes (either as a successful transmission, or unsuccessfully, such as flow control
prevention or response timeout) and any required interrupt service routine is completed, the Bsy signal is
deasserted and the completion code becomes valid and the registers are accessible again.
34 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
LSU_Reg1
T0
T1 T2 T3 T4 T5
Tn
Valid
LSU_Reg2
Valid
LSU_Reg3
Valid
LSU_Reg4
Valid
LSU_Reg5
Valid
Rdy/BSY
Completion
Valid Valid
After Transaction Completes
Figure 11. LSU Registers Timing
SRIO Functional Description
The following code illustrates an LSU registers programming example.
SRIO_REGS->;LSU1_Reg0 = CSL_FMK( SRIO_LSU1_REG0_RAPIDIO_ADDRESS_MSB,0 );
//poll mode, extended address type 2,5,6
SRIO_REGS->;LSU1_Reg1 = CSL_FMK( SRIO_LSU1_REG1_ADDRESS_LSB_CONFIG_OFFSET,(int);rcvBuff1[0] );
//32bit = type 2,5,6. 24bit = type 8
SRIO_REGS->;LSU1_Reg2 = CSL_FMK( SRIO_LSU1_REG2_DSP_ADDRESS, (int);xmtBuff1[0]);
SRIO_REGS->;LSU1_Reg3 = CSL_FMK( SRIO_LSU1_REG3_BYTE_COUNT,byte_count );
SRIO_REGS->;LSU1_Reg4 = CSL_FMK( SRIO_LSU1_REG4_OUTPORTID,0 )|
CSL_FMK( SRIO_LSU1_REG4_PRIORITY,0 )|
CSL_FMK( SRIO_LSU1_REG4_XAMBS,0 )|
//no extended address
CSL_FMK( SRIO_LSU1_REG4_ID_SIZE,1 )|
//tt = 0b01
SRIO_REGS->;LSU1_Reg5 = CSL_FMK( SRIO_LSU1_REG5_DRBLL_INFO,0x0000 )|
CSL_FMK( SRIO_LSU1_REG4_DESTID,0xBEEF )|
CSL_FMK( SRIO_LSU1_REG4_INTERRUPT_REQ,1 );
//0 = event-driven, 1 = poll
CSL_FMK( SRIO_LSU1_REG5_HOP_COUNT,0x00 )|
CSL_FMK( SRIO_LSU1_REG5_PACKET_TYPE,type );
//REQ_NWRITE
Figure 12 illustrates an example of the data flow and field mappings for a burst NWRITE_R transaction:
SPRU976 – March 2006 Serial RapidIO (SRIO) 35
Submit Documentation Feedback
www.ti.com
Source Address
DMA Read
Destination Address
Count
Byte Count
DSP Address
RSV
Interrupt Req
001723
8
DestID
25 24
ID Size
27 26
xambs
29 28
Priority
OutPortID
31 30
Hop Count
Drbll
31 16 15
Packet
8 7 0
RapioIO Address/Config_offset
NodeID
CRC
16
Count*8
payload
2
xamsbs
1
wr ptr
29
address
32
ext addr
8
srcTID
4
wrsize
4
trans
8
sourceID
8
destID
4
ftype
2
tt
2
prio
3
rsv
5
ackID
TX Shared Buffer Pool
rdsize/
wsize
rdptr/
wptr
Count
translator
LSUn_REG4
LSUn_REG2
LSUn_REG3
LSUn_REG0
LSUn_REG1
LSUn_REG5
SRIO Functional Description
Figure 12. Example Burst NWRITE_R
For WRITE commands, the payload is combined with the header information from the control/command
registers and buffered in the shared TX buffer resource pool. Finally, it is forwarded to the TX FIFO for
transmission. READ commands have no payload. In this case, only the control/command register fields
are buffered and used to create a RapidIO NREAD packet, which is forwarded to the TX FIFO.
Corresponding response packet payloads from READ transactions are buffered in the shared RX buffer
resource pool when forwarded from the receive ports. Both posted and non-posted operations rely on the
OutPortID command register field to specify the appropriate output port/FIFO.
The data is burst internally to the Load/Store module at the DMA clock rate.
2.3.3.1 Detailed Data Path Description
The Load/Store module is for generating all outgoing RapidIO Direct I/O packets. Any read or write
transaction, other than the messaging protocol, uses this interface. In addition, outgoing DOORBELL
packets are generated through this interface.
The data path for this module uses DMA bus as the DMA interface. The configuration bus is used by the
CPU to access the control/command registers. The registers contain transfer descriptors that are needed
to initiate READ and WRITE packet generation. After the transfer descriptors are written, flow control
status is queried. The unit examines the DESTID and PRIORITY fields of LSU n_REG4 to determine if that
flow has been Xoffd. Additionally, the free buffer status of the TX FIFO is checked (based on the
OutPortID register field). Only after the flow control access is granted, and a TX FIFO buffer has been
allocated, can a DMA bus read command be issued for payload data to be moved into the shared TX
buffer pool. Data is moved from the shared buffer pool to the appropriate output TX FIFO in simple
sequential order based on completion of the DMA bus transaction. However, if fabric congestion occurs,
priority can affect the order in which the data leaves the TX FIFOs.
Here a reordering mechanism exists, which transmits the highest priority packets first if RETRY
acknowledges. Once in the FIFO, the data is guaranteed to be transmitted through the pins. Alternatively,
if an intended flow has been shut down, the peripheral signals the CPU with an interrupt to notify that the
packet was not sent and sets the completion code to 010b in the status register. The registers must be
held until the interrupt service routine is complete before the BSY signal is released (BSY=0 in
LSU n_REG6) and the CPU can then rewrite or overwrite the transfer descriptors with new data. Figure 13
illustrates the data path and buffering that is required to support the Load/Store Module.
36 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
LSU2
LSU4
LSU3
LSU1
MMR command
UDI interface
Load/store module
RapidIO transport
and physical layers
Port x transmission
FIFO queues
TX
FIFO
RX
FIFO
Peripheral boundary
Config bus
access
Write transfer
descriptors
CPU
I/O
pins
L2 memory
= Shared resource for CPPI and MAU
Shared
TX
data
Shared
RX
data
Response
timer
Control
and
arbitrator
DMA
request
DMA
response
Figure 13. Load/Store Module Data Flow
SRIO Functional Description
2.3.3.2 TX Operation
WRITE Transactions:
The TX buffers are implemented in a single SRAM and shared between multiple cores. A state machine
arbitrates and assigns available buffers between the LSUs. When the DMA bus read request is
transmitted, the appropriate TX buffer address is specified within it. The data payload is written to that
buffer through the DMA bus response transaction. Depending on the architecture of the device,
interleaving of multi-segmented DMA bus responses from the DMA is possible. Upon receipt of a DMA
bus read response segment, the unit checks the completion status of the payload. Note that only one
payload can be completed in any single DMA bus cycle. The Load/Store module can only forward the
packet to the TX FIFO after the final payload byte from the DMA bus response has been written into the
shared memory buffer. Once the packet is forwarded to the TX FIFO, the shared buffer can be released
and made available for a new transaction.
The TX buffer space is dynamically shared among all outgoing sources, including the Load/Store Unit
(LSU) and the TX CPPI, as well as the response packets from RX CPPI and the Memory Access Unit
(MAU). Thus, the buffer space memory must be partitioned to handle packets with and without payloads.
A 4.5KB buffer space is configured to support 16 packets with payloads up to 256B, in addition to 16
packets without payloads. The SRAM is configured as a 128-bit wide two port, which matches the UDI
width of the TX FIFOs.
Data leaves the shared buffer pool sequentially in order of receipt, not based on the packet priority.
However, if fabric congestion occurs, priority can affect the order in which the data leaves the TX FIFOs. A
reordering mechanism exists here, which transmits the highest priority packets first if RETRY
acknowledges.
SPRU976 – March 2006 Serial RapidIO (SRIO) 37
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
For posted WRITE operations, which do not require a RapidIO response packet, a core may submit
multiple outstanding requests. For instance, a single core may have many streaming write packets
buffered at any given time, given outgoing resources. In this application, the control/command registers
can be released (BSY = 0) to the CPU as soon as the header info is written into the shared TX buffer
pool. If the request has been flow controlled, the peripheral will set the completion code status register and
appropriate interrupt bit of the ICSR. The control/command registers can be released after the interrupt
service routine completes.
For non-posted WRITE operations, which do require a RapidIO response packet, there can be only one
outstanding request per core at any given time. The payload data and header information is written to the
shared TX buffer pool as described above; however, the command registers cannot be released (BSY =
1) until the response packet is routed back to the module and the appropriate completion code is set in the
status register. One special case exists for outgoing test-and-swap packets (Ftype 5, Transaction 1110b).
This is the only WRITE class packet that expects a response with payload. This response payload is
routed to the LSU, it is examined to verify whether the semaphore was accepted, and then the appropriate
completion code is set. The payload is not transferred out of the peripheral via the DMA bus.
So the general flow is as follows:
• LSU registers are written using the configuration bus
• Flow control is determined
• TX FIFO free buffer availability is determined
• DMA bus read request for data payload
• DMA bus response writes data to specified module buffer in the shared TX buffer space
• DMA bus read response is monitored for last byte of payload
• Header data in the LSU registers is written to the shared TX buffer space
• Payload and header are transferred to the TX FIFO
• The LSU registers are released if no RapidIO response is needed
• Transfer from the TX FIFO to external device based on priority
READ Transactions:
The flow for generating READ transactions is similar to non-posted WRITE with response transactions.
There are two main differences: READ packets contain no data payload, and READ responses have a
payload. So READ commands simply require a non-payload TX buffer within the shared pool. In addition,
they require a shared RX data buffer. This buffer is not pre-allocated before transmitting the READ
request packet, since doing so could cause traffic congestion of other in-bound packets destined to other
functional blocks.
Again, the control/command registers cannot be released (BSY = 1) until the response packet is routed
back to the module and appropriate completion code is set in the status register.
So the general flow would be:
• LSU registers are written using the configuration bus
• Flow control is determined
• TX FIFO buffer is allocated
• Header data in the LSU registers is written to the shared TX buffer
• Payload and header are transferred to the TX FIFO
• The LSU registers are released if no RapidIO response is needed
• Transfer from the TX FIFO to external device based on priority
For all transactions, the shared TX buffers are released as soon as the packet is forwarded to the TX
FIFOs. If an ERROR or RETRY response is received for a non-posted transaction, the CPU must either
reinitiate the process by writing to the LSU register, or initiate a new transaction altogether.
38 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
2.3.3.3 RX Operation
SRIO Functional Description
Segmentation:
The LSU handles two types of segmentation of outbound requests. The first type is when the Byte_Count
of Read/Write requests exceeds 256 bytes (up to 4KB). The second type is when Read/Write request
RapidIO address is non-64b aligned. In both cases, the outgoing request must be broken up into multiple
RapidIO request packets. For example, assume that the CPU wants to perform a 1KB store operation to
an external RapidIO device. After setting up the LSU registers, the CPU performs one write to the
LSU_Reg5 register. The peripheral hardware then segments the store operation into four RapidIO write
packets of 256B each, and calculates the 64b-aligned RapidIO address, WRSIZE, and WDPTR as
required for each packet. This example requires four outbound handles to be assigned and four DMA
transmit requests. The LSU registers cannot be released until all posted request packets are passed to
the TX FIFOs. Alternatively, for non-posted operations, such as CPU loads, all packet responses must be
received before the LSU registers are released.
Response packets are always type 13 RapidIO packets. All response packets with transaction types not
equal to 0001b are routed to the LSU block sequentially in order of reception. These packets may have a
payload, depending on the type of corresponding request packet that was originally sent. Due to the
nature of RapidIO switch fabric systems, response packets can arrive in any order. The data payload, if
any, and header data is moved from the RX FIFO to the shared RX buffer. The DestID field of the packet
is examined to determine which core and corresponding set of registers are waiting for the response.
Remember, there can be only one outstanding request per core. Any payload data is moved from the
shared RX buffer pool into memory through normal DMA bus operations.
Registers for all non-posted operations should only be held for a finite amount of time to avoid blocking
resources when a request or response packet is somehow lost in the switch fabric. This time correlates to
the 24-bit Port Response Time-out Control CSR value discussed in sections 5.10.1 and 6.1.2.4 of the
serial specification. If the time expires, control/command register resources should be released, and an
error is logged in the ERROR MANAGEMENT RapidIO registers. The RapidIO specification states that the
maximum time interval (all 1s) is between 3 and 6 seconds. A logical layer timeout occurs if the response
packet is not received before a countdown timer (initialized to this CSR value) reaches zero.
Each outstanding packet response timer requires a 4-bit register. The register is loaded with the current
timecode when the transaction is sent. Each time the timecode changes, a 4-bit compare is done to the
register. If the register becomes equal to the timecode again, without a response being seen, then the
transaction has timed out. Essentially, instead of the 24-bit value representing the period of the response
timer, the period is now defined as P = (2^24 x 16)/F. This means the countdown timer frequency needs to
be 44.7 – 89.5Mhz for a 6 – 3 second response timeout. Because the needed timer frequency is derived
from the DMA bus clock (which is device dependent), the hardware supports a programmable
configuration register field to properly scale the clock frequency. This configuration register field is
described in the Peripheral Setting Control register (Address offset 0x0020).
If a response packet indicates ERROR status, the Load/Store module notifies the CPU by generating an
error interrupt for the pending non-posted transaction. If the response has completed successfully, and the
Interrupt Req bit is set in the control register, the module generates a CPU servicing interrupt to notify the
CPU that the response is available. The control/command registers can be released as soon as the
response packet is received by the logical layer. The hardware is not responsible for attempting a
retransmission of the non-posted transaction.
If a Doorbell response packet indicates Retry status, the Load/Store module notifies the CPU by
generating an interrupt. The control/command registers can be released as soon as the response packet
is received by the logical layer. The hardware is not responsible for attempting retransmission of the
Doorbell transaction.
SPRU976 – March 2006 Serial RapidIO (SRIO) 39
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
So the general flow is as follows:
• Previously, the control/command registers were written and the request packet was sent
• Response Packet Type13, Trans != 0001b arrives at module interface, and is handled sequentially (not
based on priority)
• targetTID is examined to determine routing of a response to the appropriate core
• The status field of the response packet is checked for ERROR, RETRY or DONE
• If the field is DONE, it submits DMA bus request and transmits the payload (if any) to DSP address. If
the field is ERROR/RETRY, it sets an interrupt
• Command registers are released (BSY = 0)
• Optional Interrupt to CPU notifying packet reception
2.3.3.4 Reset and Power Down State
Upon reset, the Load/Store module must clear the command register fields and wait for a write by the
CPU.
The Load/Store module can be powered down if the direct I/O protocol is not being supported in the
application. For example, if the messaging protocol is being used for data transfers, powering down the
Load/Store module will save power. In this situation, the command registers should be powered down and
inaccessible. Clocks should be gated to these blocks while in the power down state.
2.3.4 Message Passing
With message passing, a destination address is not specified. Instead, a mailbox identifier is used within
the RapidIO packet. The mailbox is controlled and mapped to memory by the local (destination) device.
The message passing within RapidIO specifies 4 mailbox locations. Each mailbox can contain 4 separate
transactions (or letters), effectively providing 16 messages. Single packet messages provide 64 mailboxes
with 4 letters, effectively providing 256 messages. Mailboxes can be defined for different data types or
priorities. The advantage of message passing is that the source device does not require any knowledge of
the destination device’s memory map. The DSP contains Buffer Descriptions Tables for each mailbox.
These tables define a memory map and pointers for each mailbox. Messages are transferred to the
appropriate memory locations via the DMA.
The CPPI (Communications Port Programming Interface) module serves as the incoming and outgoing
message passing protocol engine.
The following rules exist for all CPPI traffic:
• One buffer descriptor per message (each buffer descriptor consists of 4 words or 16 bytes)
• Requires contiguous memory space for multi-segment Read/Write operations
– Fixed buffer sizes (configured to handle application's max message size)
• An ERROR response is sent if the RX message is too big for the allotted buffer sizes
– Subsequent ERROR responses will be sent for all segments of that message
• An ERROR response is sent if the mailbox is not mapped, or mapped to a non-existent queue
• An ERROR response is sent if the mailbox is mapped, but the queue is not initialized (RX DMA State
HDP not written), or the queue is disabled (Teardown)
• An ERROR response is sent if the RX buffer descriptor queue has no empty buffers (overflow)
• Out-of-order responses are allowed
• RETRY response will be issued to the first received segment of a multi-segment message when the
RX queue is busy servicing another request
– Subsequent RETRY responses may have to be sent for received pipeline segments or additional
pipelined messages to the same queue
• Inorder message reception for dedicated flows is mode programmable
• A queue is needed for each supported simultaneous multi-segment RX message
• Supports a minimum of 1.25KB SRAM (64 buffer descriptors)
• Transmit must be able to RETRY any given segment of a transmitted message
• A Dest_id is equal to port for TX operations, the same Dest_Id is not accessible from multiple ports
40 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Mailbox 1...64
from RapidIO Packet
Header - Received on any
input port
Mailbox Mapper
Q15
Q2 Q1
Q0
Queue assignable to any core
Packet Sequence
Message
n A
Packet
Manager
n+1 B
n+2 B
n+ 3 C
n+4 D
n+5 B
n+6
E
Buffer Descriptor
Queues:
Descriptor per Message
All Priorities
Dedicated Single Segment
Message Descriptor Queue
A
C
E
D
null
null
B
Multi-Segment Message
Descriptor Queue
Multi-Segment Message
Descriptor Queue N
L2 Memory
Data Buffer up to 256B
n Data Packet
n+3 Data Packet
n+4 Data Packet
n+6 Data Packet
256B Free Buffer
L2 Memory
Data Buffer up to 4K
n+5 Data Packet
n+2 Data Packet
n+1 Data Packet
4KB Free Buffer
acklD rsv prio tt ftype
ftype = 1011
destID
sourcelD msglen ssize msgseg/xmbox double-word 0 double-word 1 ...
double-word n-2 double-word n-1 CRC
PHY
LOG
TRA
LOG
TRAPHY
5 3 2 2 4 8 8 4 4 4 64 64
(n-4)*64
64 64 16
16n*64+16164210
n*64+64
letter
2
mbox
2
2.3.4.1 RX Operation
SRIO Functional Description
As message packets are received by the RapidIO ports, the data must be written into memory while
maintaining accurate state information that is needed for future processing. For instance, if a message
spans multiple packets, information must be saved that allows re-assembly of those packets by the CPU.
The CPPI module provides a scheme for tracking single and multi-packet messages, linking messages in
queues, and generating interrupts. Figure 14 illustrates the scheme.
Figure 14. CPPI RX Scheme for RapidIO
Messages addressed to any of the 64 mailbox locations can be received on any of the RapidIO ports
simultaneously. Packets are handled sequentially in order of receipt. The function of the mailbox mapper
block is to direct the inbound messages to the appropriate queue and finally to the correct core. The
queue mapping is programmable and must be configured after device reset. RapidIO originally supported
only 4 mailboxes with 4 letters/mailbox. Letters allow concurrent message traffic between sender and
receiver. However, for messages that consist of only single packets, the unused 4-bit packet field normally
indicating the message segment extends the available number of mailboxes. Figure 15 shows the packet
header fields for message requests.
Figure 15. Message Request Packet
SPRU976 – March 2006 Serial RapidIO (SRIO) 41
Submit Documentation Feedback
www.ti.com
msglen
msgseg/
xmbox
mbox letter
4 4 2 2
Single Segment
Mailbox 0 ... 63
Multi-Segment
Mailbox 0 ... 4
SOURCEID = SourceID allowed access if secure queue
Mailbox = Allowed mailbox for this mapping register
(Mask-able)
0b000000 - Mailbox 0
0b000001 - Mailbox 1
0b000010 - Mailbox 2
...
0b111111 - Mailbox 63
Letter = Allowed letter for this mapping register (Mask-able)
Segment Mapping = 0b0 - Single Segment (all six bits of Mailbox valid)
= 0b1 - Multi-segment (only 2 lsbs of Mailbox valid)
Promiscuous = 1, Full Access to the Queue for any SourceID
Queue ID = 0000 - 1111, corresponding Queue0 - Queue15
tt (Transport type) - 0b0 = matches the 8 lsb of the SOURCEID
0b1 = matches the full 16 bits of the SOURCEID
SRIO Functional Description
This allows the letter and mailbox fields to instead allow four concurrent single-segment messages to
sixty-four possible mailboxes (256 total locations) for a source and destination pair. The mailbox mapper
directs the inbound messages to the appropriate queue based on a pre-programmed routing table. It
bases the decision on the SOURCEID, MSGLEN, MBOX, LETTER, and XMBOX fields of the RapidIO
packet.
Figure 16 illustrates the look-up tables required for programmable mapping of the mailbox to queue. There
are 32 programmable mapping entries. Each mapping entry consists of two registers, RXU_MAP_L n and
RXU_MAP_H n. Each entry stores the queue number associated with the message’s intended
mailbox/letter. If a mailbox/letter is not supported or does not have a mapping table entry, the message is
discarded and an ERROR response sent. The mapping entries can explicitly call out a mailbox and letter
combination, or alternatively, the mask fields can be used to grant multiple mailbox/letter combinations
access to a queue using the same table entry. A masking value of 0 in the mailbox or letter mask fields
indicates that the corresponding bit in the mailbox or letter field will not be used to match for this queue
mapping entry. For example, a mailbox mask of all zeros would allow a mapping entry to be used for all
incoming mailboxes.
The mapping table entry also provides a security feature to enable or disable access from specific external
devices to local mailboxes. The SOURCEID field indicates which external device has access to the
mapping entry and corresponding queue. A compare is performed between the sourceID of the incoming
message packet and each relevant mailbox/letter table mapping entry SOURCEID field. If they do not
match, an ERROR response is sent back to the sender, and the transaction is logged in the Logical Layer
Error Management capture registers, which sets an interrupt, as discussed in Section 4.3 . A Promiscuous
bit allows this security feature to be disabled. When the PROMISCUOUS bit is set, full access to the
mapping entry from any SOURCEID is allowed. Note that when the PROMISCUOUS bit is set, the
mailbox/letter and corresponding mask bits are still in effect. When the PROMISCUOUS bit is cleared, it
equals a mask value of 0xFFFF, and only the matching SOURCEID is allowed access to the mailbox.
Each table entry also indicates if it used for single or multi-segment message mapping. Single segment
message mapping entries utilize all six bits of the mailbox and corresponding mask fields. Multi-segment
uses only the 2 LSBS. The number of simultaneous supported multi-segment messages is determined by
the number of dedicated RX queues as discussed further below. It is recommended to dedicate a
multi-segment mapping entry for each supported simultaneous letter. Essentially, letter masks should be
avoided for multi-segment mapping to reduce excessive retries. Note that it is possible to configure the
table entries such that incoming single segment and multi-segment messages are directed to the same
queue. To avoid this condition, properly program the mapping table entries.
42 Serial RapidIO (SRIO) SPRU976 – March 2006
Figure 16. Queue Mapping Table (Address Offset: 0x0800 - 0x08FC)
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Figure 17. Queue Mapping Register RXU_MAP_L n
31 30 29 24 23 22 21 16
Letter Mask Mailbox Mask Letter Mailbox
R/W-11 R/W-111111 R/W-0 R/W-000000
15 0
SOURCEID
R/W-0x0000
LEGEND: R = Read, W = Write, n = value at reset
Figure 18. Queue Mapping Register RXU_MAP_H n
31 16
Reserved
R-0
15 10 9 8 7 6 5 2 1 0
Reserved tt Reserved QueueID Promis Segme
cuous nt
R-0 R/W-01 R-00 R/W-0000 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
The packet manager maintains the RX DMA state of free and used data buffers within the memory space.
It directs the data to specific addresses within the memory and maintains and updates the buffer
descriptor queues. There is a single buffer descriptor per RapidIO message. For example, single segment
messages have one buffer descriptor, as do multi-segment messages with up to 4KB payloads.
There can be multiple RX buffer descriptor queues per core. It is suggested that one queue be dedicated
to single segment messages and additional queues be dedicated to multi-segment messages. Each
multi-segment message queue can support only one incoming message at a time. Depending on the
application, it may be necessary to support multiple simultaneous SAR operations per core. In this case, a
buffer descriptor queue is allocated for each desired simultaneous message. The peripheral supports a
total of 16 assignable RX queues and their associated RX DMA state registers. Each of the queues can
be assigned to single or multi-segment messages.
Table 15 and Table 16 show the RX DMA State Registers.
Mappi
ng
Table 15. RX DMA State Head Descriptor Pointer (HDP) (Address Offset 0x600-0x63C)
Bit Name Description
31:0 RX Queue Head Rx Queue Head Descriptor Pointer: This field is the host memory address for the first buffer
Descriptor Pointer descriptor in the channel receive queue. This field is written by the host to initiate queue receive
operations and is zeroed by the port when all free buffers have been used. An error condition
results if the host writes this field when the current field value is nonzero. The address must be
32-bit word aligned.
Table 16. RX DMA State Completion Pointer (CP) (Address Offset 0x600-0x63C)
Bit Name Description
31:0 RX Queue Rx Queue Completion Pointer: This field is the host memory address for the receive queue
SPRU976 – March 2006 Serial RapidIO (SRIO) 43
Submit Documentation Feedback
Completion Pointer completion pointer. This register is written by the host with the buffer descriptor address for the last
buffer processed by the host during interrupt processing. The port uses the value written to
determine if the interrupt should be deasserted.
www.ti.com
31
0
1
2
1523
7
27 11
19
3
29
O
W
N
E
R
S
H
I
P
T
E
A
R
D
O
W
N
E
O
P
E
O
Q
S
O
P
3
RESERVED
cc
Message Length
13
21
5
25
9
17 1
30
1422
626 10
18
2
28
12
20
424
8
16 0
Bit Fields
Next Descriptor Pointer
Buffer Pointer
SRC_ID PRI tt RESERVED Mailbox
Word
Offset
SRIO Functional Description
If a multi-segment buffer descriptor queue is not currently free, and an Rx port receives another
multi-segment message that is destined for that queue, the RX CPPI must send a RETRY RESPONSE
packet (Type 13) to the sender, indicating that an internal buffering problem exists. If a multi-segment
buffer descriptor queue is busy and there is another incoming multi-segment message with the same
SOURCEID, MAILBOX, and LETTER, an ERROR response is sent. This usually indicates that a TX
programming error has occurred, where duplicate segments or segments outside the MSGLEN were sent.
Upon successful reception of any message segment, the RX CPPI is responsible for sending a DONE
response to the sender.
If a RX message’s length is greater than that of the targeted buffer descriptor, an ERROR response is
sent back to the source device. In addition, the DSP is notified with the use of the CC field of the RX CPPI
buffer descriptor, described as follows. This situation can result from a DSP software error (misallocating a
buffer for the queue), or as a result of sender error (sending to a wrong mailbox).
An Rx transaction timeout is used by all multi-segment queues, in order to not hang receive mailbox
resources in the event that a message segment is lost in the fabric. This response-to-request timer
controls the time-out for sending a response packet and receiving the next request packet of a given
multi-segment message. It has the same value and is analogous to the request-to-response timer
discussed in the TX CPPI and LSU sections, which is defined by the 24-bit value in the port response
time-out CSR. The RapidIO specification states that the maximum time interval (all 1s) is between 3 and 6
seconds. Each multi-segment receive timer requires a 4-bit register. The register is loaded with the current
timecode when the response is sent. Each time the timecode changes, a 4-bit compare is done to the
register. If the register becomes equal to the timecode again, without the next message segment being
seen, then the transaction has timed out. If this happens, the RX buffer resources can be released.
The buffer descriptor points to the corresponding data buffer in memory and also points to the next buffer
descriptor in the queue. As segments of a received message arrive, the msgseg field of each segment is
monitored to detect the completion of the received message. Once a full message is received, the
OWNERSHIP bit is cleared in the packet’s buffer descriptor to give control to the host. At this point, a host
interrupt is issued. This interface works with programmable interrupt rate control, as discussed in
Figure 57 . There is an ICSR bit for each supported queue, as shown in Figure 47 . On interrupt, the CPU
processes the RX buffer queue, detecting received packets by the status of the OWNERSHIP bit in each
buffer descriptor. The host processes the RX queue until it reaches a buffer descriptor with a set
OWNERSHIP bit, or set EOQ bit. Once processing is complete, the host updates the RX DMA State
Completion Pointer, allowing the peripheral to reuse the buffer.
Figure 19 shows the RX buffer descriptor fields. A RX buffer descriptor is a contiguous block of four 32-bit
data words aligned on a 32-bit boundary. Accesses to these registers are restricted to 32-bit boundaries.
Serial RapidIO (SRIO)44 SPRU976 – March 2006
Figure 19. RX Buffer Descriptor Fields
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 17. RX Buffer Descriptor Field Descriptions
Field Description
next_descriptor_pointer Next Descriptor Pointer: The 32-bit word aligned memory address of the next buffer
buffer_pointer Buffer Pointer: The byte aligned memory address of the buffer associated with the
Sop = 1 Start of Message: Indicates that the descriptor buffer is the first buffer in the message.
Eop = 1 End of Message: Indicates that the descriptor buffer is the last buffer in the message.
ownership Ownership: Indicates ownership of the message and is valid only on sop. This bit is set
eoq End Of Queue: Set by the port to indicate that the RX queue empty condition exists.
Teardown_Complete Teardown Complete: Set by the port to indicate that the host commanded teardown
message_length Message Length: Initially written by the CPU to specify the maximum number of
Src_id Source Node ID: Unique node identifier of the source of the message.
tt RapidIO tt field specifying 8- or 16-bit DeviceIDs
pri Message Priority: Specifies the SRIO priority at which the message was sent.
cc Completion Code:
descriptor in the RX queue. This references the next buffer descriptor from the current
buffer descriptor. If the value of this pointer is zero, then the current buffer is the last
buffer in the queue. The host sets the next_descriptor_pointer.
buffer descriptor. The host sets the buffer_pointer.
• This bit will always be set, as this device only supports one buffer per message.
• This bit will always be set, as this device only supports one buffer per message.
by the host and cleared by the port when the message has been transmitted. The host
uses this bit to reclaim buffers.
0: The message is owned by the host
1: The message is owned by the port
This bit is valid only on eop. The port determines the end of queue condition by a zero
next_descriptor_pointer.
0: The RX queue has more buffers available for reception.
1: The Descriptor buffer is the last buffer in the last message in the queue.
process is complete, and the channel buffers may be reclaimed by the host.
0: The port has not completed the teardown process.
1: The port has completed the commanded teardown process.
double-words the buffer can receive. Updated by the peripheral (after receiving a
message) to indicate the actual number of double-words in the entire message.
Message payloads are limited to a maximum size of 512 double-words (4096bytes).
000000000b: 512 double words
000000001b: 1 double word
000000010b: 2 double words
. . .
111111111b: 511 double words
00: 8b deviceIDs
01: 16b deviceIDs
10: reserved
11: reserved
000: Good completion. Message received.
001: Error, RX message length greater than supported buffer descriptor
message_length
010: Error, TimeOut on receiving one of the segments
011: DMA transfer error on one or more segments
100: Queue teardown completed, data invalid
101: 111 Reserved
SPRU976 – March 2006 Serial RapidIO (SRIO) 45
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 17. RX Buffer Descriptor Field Descriptions (continued)
Field Description
mailbox Destination Mailbox: Specifies the mailbox to which the message was sent.
000000b: Mailbox 0
000001b: Mailbox 1
. . .
000100b: Mailbox 4
. . .
111111b: Mailbox 63
For multi-segment messages, only the two LSBs of this mailbox are valid. Hardware
ignores the four MSBs if the incoming message has multiple segments.
Although the switch fabric must deliver the segments of multi-packet messages in the order they were
sent, buffer resources at the receiving endpoint may only become available after the initial segment(s) of a
message have had to be retried. The peripheral can accept out-of-order segments and track completion of
the overall message. Scenario A in Figure 20 shows this concept.
For applications that are set up for specific message flows between a single source and destination, it may
require in-order delivery of messages. This is described in scenario B of Figure 20 . This scenario is similar
to scenario A, although one message may be retried due to a lack of receiver resources, subsequent
pipelined messages may arrive just as resources are freed up. This is a problem for systems requiring
in-order message delivery. In this case, the peripheral needs to record the Src_id/mailbox/letter of the first
retried message and retry all subsequent new requests until resources are available and a segment for
that Src_id/mailbox/letter is received. As long as all messages are from the same source and that source
sends (and retries) packets in order, then all messages will be received in order. Note that this solution is
less effective when multiple sources share an RxQ. The RX CPPI Control register (Address offset 0x0744)
sets this mode of operation on all receive queues. Once this mode is set and a retry is issued, the queue
will continue to wait for an incoming message that matches the Src_id/mailbox/letter combination. If no
such packet arrives, the RX queue is unusable in a locked state. To reenable the queue, the in-order bit in
the RX CPPI Control register must be disabled by software for that queue, after which it may be enabled
again if desired. The in-order mode of operation is only valid on multi-segment queues because
single-segment messages will never generate RETRY responses.
46 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Switch
Switch
Endpoint
Endpoint
C0
C0
B0
B0
B2
B2
A1
A1
B1
B1
A0
A0
Open
Open
Open
Open
Open
Open
Open
Full
Open
Open
Full
Full
Retry
Retry
Retry
Retry
Retry
Retry
Accept
Retry
Retry
Retry
Action
Action
Retry
Retry
Scenario A - Default
Scenario B - In order mode
Data flow destined for the
same Rx Queue
Rx Queue Status when
packet arrives
Rx Queue Status when
packet arrives
Records SourceID/letter of
first retry packet
Figure 20. RX CPPI Mode Explanation
SRIO Functional Description
In addition, multiple messages can be interleaved at the receive port due to ordering within a connected
switch’s output queue. This can occur when using a single or multiple priorities. The RX CPPI block must
handle simultaneous interleaved multi-segment messages. This implies that state information (write
pointers and srcID) must be maintained on each simultaneous message to properly store the segments in
memory. The number of simultaneous transactions supported directly impacts the number of states to be
stored, and the size of the buffer descriptor memory outside the peripheral. With this in mind, the
peripheral’s supported buffer descriptor SRAM is parameterizable. A minimum size of 1.25KB is
recommended, which will allow up to 64 buffer descriptors to be stored at any given time for one core.
These buffer descriptors can be configured to support any combination of single and multi-segment
messages. For example, if the application only handles single-segment messages, all 64 buffers can be
allotted to that queue. Note that a given RX queue can contain packets of all priorities which have been
directed from any of the receive ports.
A CPU may wish to stop receiving messages and reclaim buffers belonging to a specific queue. This is
called queue teardown. The CPU initiates a RX queue teardown by writing to the RX Queue Teardown
command register.
SPRU976 – March 2006 Serial RapidIO (SRIO) 47
Submit Documentation Feedback
www.ti.com
CPPI block
CPU
DMA
Config bus access
L2 memory
Buffer
descriptor
dual-port
SRAM
(Nx20B)
Data buffer
Peripheral boundary
32
32
32
128
CPPI control
re gis ter s
SRIO Functional Description
Teardown of an Rx queue causes the following actions:
• If teardown is issued by software during the time when the RX state machine is idle, then the state
machine will immediately start the teardown procedure:
– If the queue to be torn down is in-message (waiting for one or more segments), then the queue will
be torn down and reported with the current buffer descriptor (teardown bit set, ownership bit
cleared, CC = 100b). All other fields of the buffer descriptor are invalid. The peripheral completes
the teardown procedure by clearing the HDP register, setting the CP register to 0xFFFFFFFC, and
issuing an interrupt for the given queue. The teardown command register bit is automatically
cleared by the peripheral.
– If the queue is not in-message, and active (next descriptor available), then the next descriptor will
be fetched and updated to report teardown (teardown bit set, ownership bit cleared, CC = 100b). All
other fields of the buffer descriptor are invalid. The peripheral completes the teardown procedure by
clearing the HDP register, setting the CP register to 0xfffffffC, and issuing an interrupt for the given
queue. The teardown command register bit is automatically cleared by the peripheral.
– If the queue is not in-message, but inactive (next descriptor unavailable), then no additional buffer
descriptor will be written. The HDP register and the CP register remain unchanged. An interrupt is
not issued. The teardown command register bit is automatically cleared by the peripheral.
• If teardown is issued by software during the time when the RXU state machine is busy, the teardown
procedure will be postponed until the state machine is idle.
After the teardown process is complete and the interrupt is serviced by the CPU, the software must
re-initialize the RX queue to restart normal operation.
The buffer descriptor queues are maintained in local SRAM just outside of the peripheral. This allows the
quickest access time, while maintaining a level of configurability for device implementation. The SRAM is
accessible by the CPU through the configuration bus. Alternatively, the buffer descriptors could use L2
memory as well.

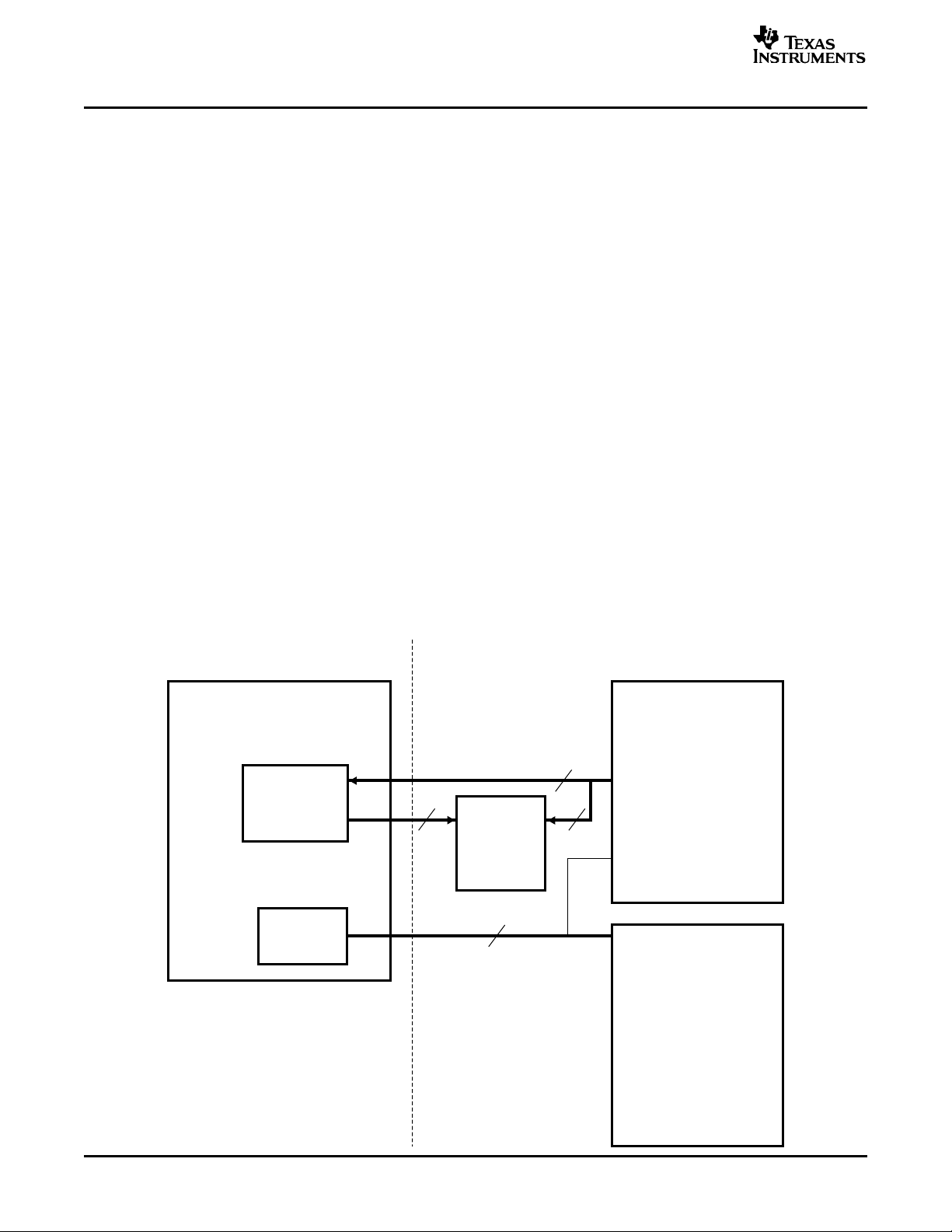

Figure 21. CPPI Boundary Diagram
48 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
31
0
1
2
1523
7
27 11
19
3
29
O
W
N
E
R
S
H
I
P
T
E
A
R
D
O
W
N
E
O
P
E
O
Q
S
O
P
3
Reserved
Retry_count
cc
Message Length
13
21
5
25
9
17 1
30
1422
626 10
18
2
28
12
20
424
8
16 0
Bit Fields
Next Descriptor Pointer
Buffer Pointer
Dest_ID PRI tt SSIZE Mailbox
Port_ID
Word
Offset
2.3.4.2 TX Operation
SRIO Functional Description
Outgoing messages are handled similarly, with buffer descriptor queues that are assigned by the CPUs.
The queues are configured and initialized upon reset. When a CPU wants to send a message to an
external RapidIO device, it writes the buffer descriptor information via the configuration bus into the
SRAM. Again, there is a single buffer descriptor per RapidIO message. Upon completion of writing the
buffer descriptor, the OWNERSHIP bit is set to give control to the peripheral. The CPU then writes the TX
DMA State HDP register to initiate the queue transmit. For TX operation, PortID is specified to direct the
outgoing packet to the appropriate port. Table 18 and Table 19 show the TX DMA state registers.
Figure 22 shows the TX buffer descriptor fields. A TX buffer descriptor is a contiguous block of four 32-bit
data words aligned on a 32-bit boundary.
Table 18. TX DMA State Head Descriptor Pointer (HDP) (Address Offset 0x500 – 0x53C)
Bit Name Description
31:0 TX Queue Head Tx Queue Head Descriptor Pointer: This field is the host memory address for the first buffer
Descriptor Pointer descriptor in the transmit queue. This field is written by the host to initiate queue transmit
operations and is zeroed by the port when all packets in the queue have been transmitted. An error
condition results if the host writes this field when the current field value is nonzero. The address
must be 32-bit word aligned.
Table 19. TX DMA State Completion Pointer (CP) (Address Offset 0x580 – 0x5BC)
Bit Name Description
31:0 TX Queue Tx Queue Completion Pointer: This field is the host memory address for the transmit queue
Completion Pointer completion pointer. This register is written by the host with the buffer descriptor address for the last
buffer processed by the host during interrupt processing. The port uses the value written to
determine if the interrupt should be deasserted.
Figure 22. TX Buffer Descriptor Fields
Table 20. TX Buffer Descriptor Field Definitions
Field Description
next_descriptor_pointer Next Descriptor Pointer: The 32-bit word aligned memory address of the next buffer
buffer_pointer Buffer Pointer: The byte aligned memory address of the buffer associated with the
sop = 1 Start of Message: Indicates that the descriptor buffer is the first buffer in the message.
SPRU976 – March 2006 Serial RapidIO (SRIO) 49
Submit Documentation Feedback
eop = 1 End of Message: Indicates that the descriptor buffer is the last buffer in the message.
descriptor in the TX queue. This is the mechanism used to reference the next buffer
descriptor from the current buffer descriptor. If the value of this pointer is zero then the
current buffer is the last buffer in the queue. The host sets the next_descriptor_pointer.
buffer descriptor. The host sets the buffer_pointer.
• This bit will always be set as this device only supports one buffer per message.
• This bit will always be set as this device only supports one buffer per message.
www.ti.com
SRIO Functional Description
Table 20. TX Buffer Descriptor Field Definitions (continued)
Field Description
ownership Ownership: Indicates ownership of the message and is valid only on sop. This bit is set
by the host and cleared by the port when the message has been transmitted. The host
uses this bit to reclaim buffers.
0: The message is owned by the host
1: The message is owned by the port
eoq End Of Queue: Set by the port to indicate that all messages in the queue have been
transmitted and the TX queue is empty. End of queue is determined by the port when
the next_descriptor_pointer is zero on an eop buffer. This bit is valid only on eop.
0: The Tx queue has more messages to transfer.
1: The Descriptor buffer is the last buffer in the last message in the queue.
Teardown_Complete Teardown Complete: Set by the port to indicate that the host commanded teardown
process is complete, and the channel buffers may be reclaimed by the host.
0: The port has not completed the teardown process.
1: The port has completed the commanded teardown process.
retry_count Message Retry Count: Set by the CPU to indicate the total number of retries allowed
for this message, including all segments. Decremented by the port each time a
message is retried.
000000b: Infinite Retries
000001b: Retry Message 1 time
000002b: Retry Message 2 times
. . .
111111b: Retry Message 63 times
cc Completion Code:
000: Good Completion. Message received a done response.
001: Transaction error. Message received an error response. *
010: Excessive Retries. Message received more than retry_count retry responses.
011: Transaction timeout. Transaction timer elapsed without any message response
being received.
100: DMA data transfer error
101: Descriptor Programming error
110: TX Queue Teardown Complete
111: Outbound Credit not available.
* An ERROR transfer completion code indicates an error in one or more segments of a
transmitted multi-segment message.
message_length Message Length: Message Length – Written by the CPU to specify the number of
double-words to transmit. Message payloads are limited to a maximum size of 512
double-words (4096bytes).
000000000b: 512 double words
000000001b: 1 double word
000000010b: 2 double words
. . .
111111111b: 511 double words
Dest_id Destination Node Id: Unique Node identifier for the Destination of the message.
pri Message Priority: Specifies the SRIO priority at which the message will be sent.
Messages should not be sent at a priority level of 3 because the message response is
required to promote the priority to avoid system deadlock. It is the responsibility of the
software to assign the appropriate outgoing priority.
50 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 20. TX Buffer Descriptor Field Definitions (continued)
Field Description
tt RapidIO tt field specifying 8- or 16-bit DeviceIDs
00: 8b deviceIDs
01: 16b deviceIDs
10: reserved
11: reserved
PortID Port number for routing outgoing packet.
SSIZE RIO standard message payload size. Indicates how the hardware should segment the
mailbox Destination Mailbox: Specifies the mailbox to which the message will be sent.
outgoing message by specifying the maximum number of double-words per packet. If
the message is a multi-segment message, this field remains the same for all outgoing
segments. All segments of the message, except for the last segment, have payloads
equal to this size. The last message segment may be equal or less than this size.
Maximum message size for a 16 segment message is shown below.
Message_length/16 must be less than or equal to Ssize, if not, the message is not sent
and CC 101b is set.
0000b - 1000b: Reserved
1001b: 1 Double-word payload (Supports up to a 128B message)
1010b: 2 Double-word payload (Supports up to a 256B message)
1011b: 4 Double-word payload (Supports up to a 512B message)
1100b: 8 Double-word payload (Supports up to a 1024B message)
1101b: 16 Double-word payload (Supports up to a 2048B message)
1110b: 32 Double-word payload (Supports up to a 4096B message)
1111b: Reserved
000000b: Mailbox 0
000001b: Mailbox 1
. . .
000100b: Mailbox 4
. . .
111111b: Mailbox 63
For multi-segment messages, only the 2 LSBs of this mailbox field are valid. Hardware
will ignore the 4 MSBs of this field if the outgoing message is multi-segment.
Once the port controls the buffer descriptor, the DEST_ID field can be queried to determine flow control. If
the transaction has been flow controlled, the DMA bus READ request is postponed so that the TX buffer
space is not wasted. Because buffer descriptors cannot be reordered in the link list, if the transaction at
the head of the buffer descriptor queue is flow controlled, HOL blocking will occur on that queue. When
this occurs, all transactions located in that queue are stalled. To counter the affects and reduce back-up of
more TX packets, multiple queues are available. The peripheral supports a total of 16 assignable TX
queues and their associated TX DMA state registers. The transmission order between queues is based on
programmable weighted round-robin at the message level. The programmable registers are shown in
Figure 23 . This scheme allows configurability of the queue transmission order, as well as the weight of
each queue within the round robin. Upon enabling the peripheral with the Peripheral Control Register
(0x0004), the TX state machine begins by processing the TX_Queue_Map0. It will attempt to process the
queue and number of buffer descriptors from that queue programmed in this mapper. Then it will move to
TX_Queue_Map1, followed by TX_Queue_Map2 and so forth. It is important to note that this mapping
order is fixed in a circular pattern. Each mapper can point to any queue and multiple mappers can point to
a single queue. If a mapper points to an in-active queue, the peripheral recognizes this and moves to the
next mapper. In order for an active queue to transmit packets, at least one mapper must be pointing to
that queue. The default settings dictate an equally weighted round robin that starts on queue0 and
increments by one until reaching queue15. If the application requires precise control over the order of data
sent out of the device after power up or reset, you should program the map control registers, set up the
TX queues and initialize the HDP, and finally enable the peripheral with the Peripheral Control Register.
SPRU976 – March 2006 Serial RapidIO (SRIO) 51
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Figure 23. Weighted Round Robin Programming Registers (Address Offset 0x7E0 – 0x7EC)
TX_QUEUE_CNTL0- Address Offset (0x7E0)
31 24 23 16
TX_Queue_Map3 TX_Queue_Map2
15 8 7 0
TX_Queue_Map1 TX_Queue_Map0
TX_QUEUE_CNTL1- Address Offset (0x7E4)
31 24 23 16
TX_Queue_Map7 TX_Queue_Map6
15 8 7 0
TX_Queue_Map5 TX_Queue_Map4
TX_QUEUE_CNTL2- Address Offset (0x7E8)
31 24 23 16
TX_Queue_Map11 TX_Queue_Map10
15 8 7 0
TX_Queue_Map9 TX_Queue_Map8
TX_QUEUE_CNTL3- Address Offset (0x7EC)
31 24 23 16
TX_Queue_Map15 TX_Queue_Map14
15 8 7 0
TX_Queue_Map13 TX_Queue_Map12
Table 21. Weighted Round Robin Programming Registers (Address Offset 0x7E0 – 0x7EC)
Name Bit Access Reset Value Description
TX_Queue_Map0 [7:0] R/W 0x00 [7:4] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map1 [15:8] R/W 0x01 15:12] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map2 [23:16] R/W 0x02 [23:20] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map3 [31:24] R/W 0x03 [31:28] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map4 [7:0] R/W 0x04 [7:4] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map5 [15:8] R/W 0x05 [15:12] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map6 [23:16] R/W 0x06 [23:20] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map7 [31:24] R/W 0x07 [31:28] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map8 [7:0] R/W 0x08 [7:4] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map9 [15:8] R/W 0x09 [15:12] = Number of contiguous messages (descriptors) to process before
moving to TX_Queue_Map1
[3:0] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map2
[11:8] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map3
[19:16] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map4
[27:24] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map5
[3:0] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map6
[11:8] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map7
[19:16] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map8
[27:24] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map9
[3:0] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map10
[11:8] = Pointer to a Queue, programmable to any of the 16 TX queues
52 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 21. Weighted Round Robin Programming Registers (Address Offset 0x7E0 – 0x7EC)
(continued)
Name Bit Access Reset Value Description
TX_Queue_Map10 [23:16] R/W 0x0A [23:20] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map11 [31:24] R/W 0x0B [31:28] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map12 [7:0] R/W 0x0C [7:4] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map13 [15:8] R/W 0x0D [15:12] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map14 [23:16] R/W 0x0E [23:20] = Number of contiguous messages (descriptors) to process before
TX_Queue_Map15 [31:24] R/W 0x0F [31:28] = Number of contiguous messages (descriptors) to process before
moving to TX_Queue_Map11
[19:16] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map12
[27:24] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map13
[3:0] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map14
[11:8] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map15
[19:16] = Pointer to a Queue, programmable to any of the 16 TX queues
moving to TX_Queue_Map0
[27:24] = Pointer to a Queue, programmable to any of the 16 TX queues
The TX queues are treated differently than the RX queues. A TX queue can mix single and multi-segment
message buffer descriptors. The software manages the queue usage.
All outgoing message segments have responses that indicate the status of the transaction. Responses
may indicate DONE, ERROR or RETRY. A buffer descriptor may be released back to CPU control
(OWNERSHIP = 0), only after all segment responses are received, or alternatively if a response timeout
occurs. Timeouts and response evaluation have high priority in the state-machine since they are the only
means to release TX packet resources. The CC is set in the buffer descriptor to indicate the response
status to the CPU. If there is a RETRY response, the TX CPPI module will immediately retry the packet
before continuing to the next queue in the round-robin, as long as the RETRY_COUNT is not exceeded.
Once this limit is exceeded, the buffer can be released back to CPU control with the appropriate CC set.
Retry of a message segment does not imply retrying a whole message. Only segments for which a
RETRY response is received should be re-transmitted. This will involve calculating the correct starting
point within the TX data buffer based on the failed segment number and message length. To achieve
respectable performance, the peripheral must not wait for a message/segment response before sending
out the next packet.
Since RapidIO allows for out-of-order responses, the TX CPPI hardware must support this functionality. As
responses are received, the hardware updates the corresponding TX buffer descriptor to reflect the status.
However, if the response is out-of-order, the hardware does not update the CP or set the corresponding
interrupt. Only after all preceding outstanding message responses are received, will the CP and interrupt
be updated. This ensures that a contiguous block of buffer descriptors, starting at the oldest outstanding
descriptor, has been processed by the hardware and is ready for the CPU to reclaim the buffers.
A transaction timeout is used by all outgoing message and directIO packets. It is defined by the 24-bit
value in the Port Response Time-out CSR. The RapidIO specification states that the maximum time
interval (all 1s) is between 3 and 6 seconds. A logical layer timeout occurs if the response packet is not
received before a countdown timer (initialized to this CSR value) reaches zero. Since transaction
responses can be acknowledged out-of-order, a timer is needed for each supported outstanding packet in
the TX queue. Each outstanding packet response timer requires a 4-bit register. The register is loaded
with the current timecode when the transaction is sent. Each time the timecode changes, a 4-bit compare
is done to the 16 outstanding packet registers. If the register becomes equal to the timecode again,
without a response being seen, then the transaction has timed out and the buffer descriptor is written.
SPRU976 – March 2006 Serial RapidIO (SRIO) 53
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Essentially, instead of the 24-bit value representing the period of the response timer, the period is now
defined as P = (2^24 x 16)/F. This means the countdown timer frequency needs to be 44.7 – 89.5Mhz for
a 6 – 3 second response timeout. Since the needed timer frequency is derived from the DMA bus clock
(which is device dependent), the hardware supports a programmable configuration register field to
properly scale the clock frequency. This configuration register field is described in the Peripheral Control
Register (Address offset 0x0004).
The CPU initiates a TX queue teardown by writing to the TX Queue Teardown command register.
Teardown of a TX queue will cause the following actions:
• No new messages will be sent
• All messages (single and multi-segment) already started will be completed
– Failing to complete the message TX would leave an active receiver blocked waiting for the final
segments until the transaction eventually times-out.
– Note that normal Tx SM operation is to not send any more segments once an error response has
been received on any segment. So if the receiver has been torn-down (and is receiving error
responses) multi-segment transmit will complete as soon as all in-transit segments have been
responded to.
• When all in-transit messages/segments have been responded to, teardown will be completed as
follows:
– If the queue is active, the teardown bit will be set in the next buffer descriptor in the queue. The
peripheral completes the teardown procedure by clearing the HDP register, setting the CP register
to 0xfffffffC, and issuing an interrupt for the given queue. The teardown command register bit is
automatically cleared by the peripheral.
– If the queue is in-active (no additional buffer descriptors available), or becomes inactive after a
message in transmission is completed, no buffer descriptor fields are written. The HDP register and
the CP register remain unchanged. An interrupt is not issued. The teardown command register bit
is automatically cleared by the peripheral.
– Because of topology differences between flow's response, packets may arrive in a different order to
the order of requests.
After the teardown process is complete and the interrupt is serviced by the CPU, software must
re-initialize the TX queue to restart normal operation.
2.3.4.3 Detailed Data Path Description
The CPPI module is the message passing protocol engine of the RapidIO peripheral. Messages contain
application specific data that is pushed to the receiving device comparable to a streaming write. Messages
do not contain read operations, but do have response packets.
The data path for this module uses the DMA bus as the DMA interface. The ftype header field of the
received RapidIO message packets are decoded by the logical layer of the peripheral. Only Type 11 and
Type 13 (transaction type1) packets are routed to this module. Data is routed from the priority based RX
FIFOs to the CPPI module’s data buffer within the shared buffer pool. The mbox header fields are
examined by the MailBox Mapper block of the CPPI module. Based on the mailbox, and message length,
the data is assigned memory addresses within memory. Data is transferred via DMA bus commands to
memory from the buffer space of the peripheral. The maximum buffer space should accommodate 256B of
data, as that is the maximum payload size of a RapidIO packet. Each message in memory will be
represented by a buffer descriptor in the queue.
2.3.4.4 Reset and Power Down State
Upon reset, the CPPI module must be configured by the CPU. The CPU sets up the receive and transmit
queues in memory. Then the CPU updates the CPPI module with the appropriate Rx/TX DMA state head
descriptor pointer, so the peripheral knows with which buffer descriptor address to start. Additionally, the
CPU must provide the CPPI module with initial buffer descriptor values for each data buffer. This step is
described more extensively in Section 2.3.6 of the CPPI specification.
54 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
The CPPI module can be powered down if the message passing protocol is not being supported in the
application. For example, if the direct I/O protocol is being used for data transfers, powering down the
CPPI module will save power. In this situation, the buffer descriptor queue SRAMs and mailbox mapper
logic should be powered down. Clocks should be gated to these blocks while in the power down state.
Section 2.3.9 describes this in detail.
2.3.4.5 Message Passing Software Requirements
Software performs the following functions for messaging:
RX Operation
• Assigns Mailbox-to-queue mapping and allowable SourceIDs/mailbox- Queue Mapping
• Sets up associated buffer descriptor memory – CPPI RAM or L2 RAM
• Link-lists the buffer descriptors, next_descriptor_pointer
• Assigns single segment (256B payload) and multi-segment (4KB payload) buffers to queues
buffer_length
• Assigns buffer descriptor to data buffer, buffer_pointer
• Gives control of the buffer to the peripheral, ownership = 1
Configures and initiates RX queues
• Assigns Head Descriptor Pointer, HDP, for up to 16 queues: RX DMA State HDP
• Port begins to consume buffers beginning with HDP descriptor and sets ownership = 0 for each buffer
descriptor used. Writes Completion Pointer, CP, RX DMA State CP and moves to next buffer.
• Port hardware generates pending interrupt when CP is written. Physical interrupt generated when
Interrupt Pacing Count down timer = 0.
Processes interrupt
• Determines ICSR bit and process corresponding queue until ownership = 1 or eoq = 1
• Sets processed buffer descriptor ownership = 1
• Writes CP value of last buffer descriptor processed
• Port hardware clears ICSR bit only if the CP value written by CPU equals port written value in the RX
DMA State CP register
• Resets interrupt pacing value
TX Operation
Sets up associated buffer descriptor memory – CPPI RAM or L2 RAM
• Link-lists the buffer descriptors, next_descriptor_pointer
• Assigns buffer descriptor to data buffer, buffer_pointer
• Gives control of the buffer to the CPU, ownership = 0
• CPU writes buffer descriptors beginning with HDP descriptor and sets ownership = 1 for each used
• Specifies RIO fields: Dest_id, Pri, tt, Mailbox
• Sets parameters: PortID, Message_length
• Port starts queue transmit on CPU write to HDP for up to 16 queues - TX DMA State HDP
• Port processes corresponding queues until ownership = 0 or next_descriptor_pointer = all 0s. Port sets
eoq = 1 and writes all 0s to the HDP.
• When each packet transmission is complete, the port sets ownership = 0 and issues an interrupt to the
CPU by writing the last processed buffer descriptor address to the CP, TX DMA State CP
Processes interrupt
• The CPU processes the buffer queue to reclaim buffers. If ownership = 0, the packet has been
transmitted and the buffer is reclaimed.
• CPU processes the queue until eoq = 1 or ownership = 1
• CPU determines all packets have been transmitted if ownership = 0, eoq = 1, and
next_descriptor_pointer = all 0s in last processed buffer descriptor
• CPU acknowledges the interrupt after re-claiming all available buffer descriptors.
• CPU acknowledges the interrupt by writing the CP value
SRIO Functional Description
SPRU976 – March 2006 Serial RapidIO (SRIO) 55
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
• This value is compared against the port written value in the TX DMA State CP register, if equal, the
interrupt is deasserted.
Initialization Example
SRIO_REGS->Queue0_RXDMA_HDP = 0 ;
SRIO_REGS->Queue1_RXDMA_HDP = 0 ;
SRIO_REGS->Queue2_RXDMA_HDP = 0 ;
SRIO_REGS->Queue3_RXDMA_HDP = 0 ;
SRIO_REGS->Queue4_RXDMA_HDP = 0 ;
SRIO_REGS->Queue5_RXDMA_HDP = 0 ;
SRIO_REGS->Queue6_RXDMA_HDP = 0 ;
SRIO_REGS->Queue7_RXDMA_HDP = 0 ;
SRIO_REGS->Queue8_RXDMA_HDP = 0 ;
SRIO_REGS->Queue9_RXDMA_HDP = 0 ;
SRIO_REGS->Queue10_RXDMA_HDP = 0 ;
SRIO_REGS->Queue11_RXDMA_HDP = 0 ;
SRIO_REGS->Queue12_RXDMA_HDP = 0 ;
SRIO_REGS->Queue13_RXDMA_HDP = 0 ;
SRIO_REGS->Queue14_RXDMA_HDP = 0 ;
SRIO_REGS->Queue15_RXDMA_HDP = 0 ;
Queue Mapping
SRIO_REGS->RXU_MAP01_L = CSL_FMK( SRIO_RXU_MAP01_L_LETTER_MASK, 3)|
CSL_FMK( SRIO_RXU_MAP01_L_MAILBOX_MASK, 0x3F)|
CSL_FMK( SRIO_RXU_MAP01_L_LETTER, 0)|
CSL_FMK( SRIO_RXU_MAP01_L_MAILBOX, 1)|
CSL_FMK( SRIO_RXU_MAP01_L_SOURCEID, 0xBEEF);
SRIO_REGS->RXU_MAP01_H = CSL_FMK( SRIO_RXU_MAP01_H_TT, 1)|
CSL_FMK( SRIO_RXU_MAP01_H_QUEUE_ID, 0)|
CSL_FMK( SRIO_RXU_MAP01_H_PROMISCUOUS, 1)|
CSL_FMK( SRIO_RXU_MAP01_H_SEGMENT_MAPPING, 1);
RX Buffer Descriptor
RX_DESCP0_0->RXDESC0 = CSL_FMK( SRIO_RXDESC0_N_POINTER,(int )RX_DESCP0_1 );
//link to RX_DESCP0_1
//poll mode, extended address type 2,5,6
RX_DESCP0_0->RXDESC1 = CSL_FMK( SRIO_RXDESC1_B_POINTER,(int )&rcvBuff1[0] );
//32bit = type 2,5,6. 24bit = type 8
RX_DESCP0_0->RXDESC2 = CSL_FMK( SRIO_RXDESC2_SRC_ID, 0xBEEF)|
CSL_FMK( SRIO_RXDESC2_PRI, 1)|
CSL_FMK( SRIO_RXDESC2_TT, 1)|
CSL_FMK( SRIO_RXDESC2_MAILBOX, 0);
RX_DESCP0_0->RXDESC3 = CSL_FMK( SRIO_RXDESC3_SOP,1 )|
CSL_FMK( SRIO_RXDESC3_EOP,1 )|
CSL_FMK( SRIO_RXDESC3_OWNERSHIP,1 )|
CSL_FMK( SRIO_RXDESC3_EOQ,1 )|
CSL_FMK( SRIO_RXDESC3_TEARDOWN,0 )|
CSL_FMK( SRIO_RXDESC3_CC,0 )|
CSL_FMK(SRIO_RXDESC3_MESSAGE_LENGTH,MLEN_512DW);
RX_DESCP0_1->RXDESC0 = CSL_FMK( SRIO_RXDESC0_N_POINTER, 0);
//end of message
//poll mode, extended address type 2,5,6
RX_DESCP0_1->RXDESC1 = CSL_FMK( SRIO_RXDESC1_B_POINTER,(int )&rcvBuff2[0] );
//32bit = type 2,5,6. 24bit = type 8
RX_DESCP0_1->RXDESC2 = CSL_FMK( SRIO_RXDESC2_SRC_ID, 0xBEEF)|
CSL_FMK( SRIO_RXDESC2_PRI, 1)|
CSL_FMK( SRIO_RXDESC2_TT, 1)|
CSL_FMK( SRIO_RXDESC2_MAILBOX, 1);
RX_DESCP0_1->RXDESC3 = CSL_FMK( SRIO_RXDESC3_SOP,1 )|
CSL_FMK( SRIO_RXDESC3_EOP,1 )|
CSL_FMK( SRIO_RXDESC3_OWNERSHIP,1 )|
CSL_FMK( SRIO_RXDESC3_EOQ,1 )|
CSL_FMK( SRIO_RXDESC3_TEARDOWN,0 )|
CSL_FMK( SRIO_RXDESC3_CC,0 )|
CSL_FMK( SRIO_RXDESC3_MESSAGE_LENGTH,MLEN_512DW );
56 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Descriptor
Descriptor
Buffer
Buffer
Port Rx DMA
State
Rx Queue Head Descriptor
Pointer
Figure 24. RX Buffer Descriptor
TX Buffer Descriptor
TX_DESCP0_0->TXDESC0 = CSL_FMK( SRIO_TXDESC0_N_POINTER,(int )TX_DESCP0_1 );
//link to TX_DESCP0_1
//NDP
TX_DESCP0_0->TXDESC1 = CSL_FMK( SRIO_TXDESC1_B_POINTER,(int )&xmtBuff1[0] );
//Buffer Pointer
TX_DESCP0_0->TXDESC2 = CSL_FMK( SRIO_TXDESC2_DESTID, 0xBEEF)|
CSL_FMK( SRIO_TXDESC2_PRI, 1)|
CSL_FMK( SRIO_TXDESC2_TT, 1)|
CSL_FMK( SRIO_TXDESC2_PORTID, 3)|
CSL_FMK( SRIO_TXDESC2_SSIZE, SSIZE_256B)|
CSL_FMK( SRIO_TXDESC2_MAILBOX, 0);
TX_DESCP0_0->TXDESC3 = CSL_FMK( SRIO_TXDESC3_SOP,1 )|
CSL_FMK( SRIO_TXDESC3_EOP,1 )|
CSL_FMK( SRIO_TXDESC3_OWNERSHIP,1 )|
CSL_FMK( SRIO_TXDESC3_EOQ,1 )|
CSL_FMK( SRIO_TXDESC3_TEARDOWN,0 )|
CSL_FMK( SRIO_TXDESC3_RETRY_COUNT,0 )|
CSL_FMK( SRIO_TXDESC3_CC,0 )|
CSL_FMK( SRIO_TXDESC3_MESSAGE_LENGTH,MLEN_512DW );
TX_DESCP0_1->TXDESC0 = CSL_FMK( SRIO_TXDESC0_N_POINTER, 0);
//end of message
//poll mode, extended address type 2,5,6
TX_DESCP0_1->TXDESC1 = CSL_FMK( SRIO_TXDESC1_B_POINTER,(int )&xmtBuff2[0] );
//32bit = type 2,5,6. 24bit = type 8
TX_DESCP0_1->TXDESC2 = CSL_FMK( SRIO_TXDESC2_DESTID, 0xBEEF)|
CSL_FMK( SRIO_TXDESC2_PRI, 1)|
CSL_FMK( SRIO_TXDESC2_TT, 1)|
CSL_FMK( SRIO_TXDESC2_PORTID, 3)|
CSL_FMK( SRIO_TXDESC2_SSIZE, SSIZE_256B)|
CSL_FMK( SRIO_TXDESC2_MAILBOX, 1);
TX_DESCP0_1->TXDESC3 = CSL_FMK( SRIO_TXDESC3_SOP,1 )|
CSL_FMK( SRIO_TXDESC3_EOP,1 )|
CSL_FMK( SRIO_TXDESC3_OWNERSHIP,1 )|
CSL_FMK( SRIO_TXDESC3_EOQ,1 )|
CSL_FMK( SRIO_TXDESC3_TEARDOWN,0 )|
CSL_FMK( SRIO_TXDESC3_RETRY_COUNT,0 )|
CSL_FMK( SRIO_TXDESC3_CC,0 )|
CSL_FMK( SRIO_TXDESC3_MESSAGE_LENGTH,MLEN_512DW );
SRIO Functional Description
SPRU976 – March 2006 Serial RapidIO (SRIO) 57
Submit Documentation Feedback
www.ti.com
Descriptor
Descriptor
Buffer
Buffer
Port Tx DMA
State
Tx Queue Head Descriptor
Pointer
SRIO Functional Description
2.3.5 Maintenance
Figure 25. TX Buffer Descriptor
Start Message Passing
SRIO_REGS->Queue0_RXDMA_HDP = (int )RX_DESCP0_0 ;
SRIO_REGS->Queue0_TxDMA_HDP = (int )TX_DESCP0_0 ;
The type 8 MAINTENANCE packet format accesses the RapidIO capability registers (CARs), command
and status registers (CSRs), and data structures. Unlike other request formats, the type 8 packet format
serves as both the request and the response format for maintenance operations. Type 8 packets contain
no addresses and only contain data payloads for write requests and read responses. All configuration
register read accesses are word (4-byte) accesses. All configuration register write accesses are also word
(4-byte) accesses.
The wrsize field specifies the maximum size of the data payload for multiple double-word transactions.
The data payload may not exceed that size but may be smaller if desired. Both the maintenance read and
the maintenance write request generate the appropriate maintenance response.
The maintenance port-write operation is a write operation that does not have guaranteed delivery and
does not have an associated response. This maintenance operation is useful for sending messages such
as error indicators or status information from a device that does not contain an endpoint, such as a switch.
The data payload is typically placed in a queue in the targeted endpoint and an interrupt is typically
generated to a local processor. A port-write request to a queue that is full or busy servicing another
request may be discarded.
SRIO_REGS->LSU1_Reg0 = CSL_FMK( SRIO_LSU1_REG0_RAPIDIO_ADDRESS_MSB,0 );
SRIO_REGS->LSU1_Reg1 = CSL_FMK( SRIO_LSU1_REG1_ADDRESS_LSB_CONFIG_OFFSET, (int )car_csr );
SRIO_REGS->LSU1_Reg2 = CSL_FMK( SRIO_LSU1_REG2_DSP_ADDRESS, (int )&xmtBuff[0]);
SRIO_REGS->LSU1_Reg3 = CSL_FMK( SRIO_LSU1_REG3_BYTE_COUNT,byte_count );
//=4
SRIO_REGS->LSU1_Reg4 = CSL_FMK( SRIO_LSU1_REG4_OUTPORTID,0 )|
//0b00
CSL_FMK( SRIO_LSU1_REG4_PRIORITY,0 )|
//0b00
CSL_FMK( SRIO_LSU1_REG4_XAMBS,0 )|
//no extended address
CSL_FMK( SRIO_LSU1_REG4_ID_SIZE,1 )|
//tt = 0b01
CSL_FMK( SRIO_LSU1_REG4_DESTID,0xBEEF )|
SRIO_REGS->LSU1_Reg5 = CSL_FMK( SRIO_LSU1_REG5_DRBLL_INFO,0x0000 )|
//0xBEEF
CSL_FMK( SRIO_LSU1_REG4_INTERRUPT_REQ,0 );
//0 = event-driven, 1 = poll
CSL_FMK( SRIO_LSU1_REG5_HOP_COUNT,0x03 )|
//hop = 0x03
CSL_FMK( SRIO_LSU1_REG5_PACKET_TYPE,type );
//type = REQ_MAINT_RD
Serial RapidIO (SRIO)58 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
acklD rsv prio tt 1010 destID sourcelD Reserved srcTID
Reserved Doorbell Reg # rsv
Doorbell bit
CRC
PHYLOGTRALOGTRAPHY
5 3 2 2 4 8 8 8 8
9 2
1
4
16
1632
16
4
2
10
info (msb)
8
info (lsb)
8
SRIO Functional Description
2.3.6 Doorbell
The doorbell operation, consisting of the DOORBELL and RESPONSE transactions (typically a DONE
response), as shown in Figure 26 , is used by a processing element to send a very short message to
another processing element through the interconnect fabric. The DOORBELL transaction contains the info
field to hold information and does not have a data payload. This field is software-defined and can be used
for any desired purpose; see Section 3.1.4, Type 10 Packet Formats (Doorbell Class), for information
about the info field. A processing element that receives a doorbell transaction takes the packet and puts it
in a doorbell message queue within the processing element. This queue may be implemented in hardware
or in local memory. This behavior is similar to that of typical message passing mailbox hardware. The local
processor is expected to read the queue to determine the sending processing element and the info field,
and determine what action to take.
The DOORBELL functionality is user-defined, but this packet type is commonly used to initiate CPU
interrupts. A DOORBELL packet is not associated with a particular data packet that was previously
transferred, so the info field of the packet must be configured to reflect the DOORBELL bit to be serviced
for the correct TID info to be processed.
Figure 26. Doorbell Operation
The DOORBELL packet’s 16-bit INFO field indicates which DOORBELL register interrupt bit to set. There
are four DOORBELL registers, each currently with 16 bits, allowing 64 interrupt sources or circular buffers.
Each bit can be assigned to any core as described below by the Interrupt Condition Routing Registers.
Additionally, each status bit is user-defined for the application. For instance, it may be desirable to support
multiple priorities with multiple TID circular buffers per core if control data uses a high priority (i.e., priority
= 2), while data packets are sent on priority 0 or 1. This allows the control packets to have preference in
the switch fabric and arrive as quickly as possible. Since it may be required to interrupt the CPU for both
data and control packet processing separately, separate circular buffers are used, and DOORBELL
packets need to distinguish between them for interrupt servicing. If any reserved bit in the DOORBELL
info field is set, an error response is sent.
SRIO_REGS->LSU1_Reg0 = CSL_FMK( SRIO_LSU1_REG0_RAPIDIO_ADDRESS_MSB,0 );
SRIO_REGS->LSU1_Reg1 = CSL_FMK( SRIO_LSU1_REG1_ADDRESS_LSB_CONFIG_OFFSET, 0);
SRIO_REGS->LSU1_Reg2 = CSL_FMK( SRIO_LSU1_REG2_DSP_ADDRESS, 0);
SRIO_REGS->LSU1_Reg3 = CSL_FMK( SRIO_LSU1_REG3_BYTE_COUNT, 0 );
SRIO_REGS->LSU1_Reg4 = CSL_FMK( SRIO_LSU1_REG4_OUTPORTID,1 )|
SRIO_REGS->LSU1_Reg5 = CSL_FMK( SRIO_LSU1_REG5_DRBLL_INFO,0x0000 )|
CSL_FMK( SRIO_LSU1_REG4_PRIORITY,0 )|
CSL_FMK( SRIO_LSU1_REG4_XAMBS,0 )|
//no extended address
CSL_FMK( SRIO_LSU1_REG4_ID_SIZE,1 )|
//tt = 0b01
CSL_FMK( SRIO_LSU1_REG4_DESTID,0xBEEF )|
CSL_FMK( SRIO_LSU1_REG4_INTERRUPT_REQ,0 );
//0 = event-driven, 1 = poll
CSL_FMK( SRIO_LSU1_REG5_HOP_COUNT,0x03 )|
//hop = 0x03
CSL_FMK( SRIO_LSU1_REG5_PACKET_TYPE,type );
//type = REQ_DOORBELL
SPRU976 – March 2006 Serial RapidIO (SRIO) 59
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
2.3.7 Congestion Control
The RapidIO Flow Control specification is referenced in Table 1 . This section describes the requirements
and implementation of congestion control within the peripheral.
The peripheral is notified of switch fabric congestion through type 7 RapidIO packets. The packets are
referred to as Congestion Control Packets (CCPs). The purpose of these packets is to turn off (Xoff), or
turn on (Xon) specific flows defined by DESTID and PRIORITY of outgoing packets. CCPs are sent at the
highest priority in an attempt to address fabric congestion as quickly as possible. CCPs do not have a
response packet and they do not have guaranteed delivery.
When the peripheral receives an Xoff CCP, the peripheral must block outgoing LSU and CPPI packets
that are destined for that flow. When the peripheral receives an Xon, the flow may be enabled. Since
CCPs may arrive from different switches within the fabric, it is possible to receive multiple Xoff CCPs for
the same flow. For this reason, the peripheral must maintain a table and count of Xoff CCPs for each flow.
For example, if two Xoff CCPs are received for a given flow, two Xon CCPs must be received before the
flow is enabled.
Since CCPs do not have guaranteed delivery and can be dropped by the fabric, an implicit method of
enabling an Xoff’d flow must exist. A simple timeout method is used. Additionally, flow control checks can
be enabled or disabled through the Transmit Source Flow Control Masks. Received CCPs are not passed
through the DMA bus interface.
2.3.7.1 Detailed Description
To avoid large and complex table management, a basic scheme is implemented for RIO congestion
management. The primary goal is to avoid large parallel searches of a centralized congested route table
for each outgoing packet request. The congested route table requirements and subsequent searches
would be overwhelming if each possible DESTID and PRIORITY combination had its own entry. To
implement a more basic scheme, the following assumptions have been made:
• A small number of flows constitute the majority of traffic, and these flows are most likely to cause
congestion
• HOL blocking is undesired, but allowable for TX CPPI queues
• Flow control will be based on DESTID only, regardless of PRIORITY
The congested route table is therefore more static in nature. Instead of dynamically updating a table with
each CCP’s flow information as it arrives, a small finite-entry table is set up and configured by software to
reflect the more critical flows it is using. Only these flows have a discrete table entry. A 16 entry table
reflects 15 critical flows, leaving the sixteenth entry for general other flows, which are categorized
together. Figure 27 shows the MMR table entries that are programmable by the CPU through the
configuration bus. A 3-bit hardware counter is implemented for table entries 0 through 14, to maintain a
count of Xoff CCPs for that flow. The other flows table entry counts Xoff CCPs for all flows other than the
discrete entries. The counter for this table entry is 5-bit. All outgoing flows with non-zero Xoff counts are
disabled. The counter value is decremented for each corresponding Xon CCP that is received, but it
should not decrement below zero. Additionally, a hardware timer is needed for each table entry to turn on
flows that may have been abandoned by lost Xon CCPs. The timer value needs to be an order of
magnitude larger than the 32b Port Response Time-out CSR value. For this reason, each transmission
source will add 2 bits to its 4-bit response time-out counter described in Section 2.3.3.3 and
Section 2.3.4.2 . The additional 2 bits count three timecode revolutions and provide an implicit Xon timer
equal to 3X the Response time-out counter value.
60 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
ReservedRIO_FLOW_CNTL0
31
R, all zeros
tt
17
R/W, 0b01
Flow_Cntl_ID0
15
R/W, 0x0000
ReservedRIO_FLOW_CNTL1
31
R, all zeros
tt
17
R/W, 0b01
Flow_Cntl_ID1
15
R/W, 0x0000
ReservedRIO_FLOW_CNTL2
31
R, all zeros
tt
17
R/W, 0b01
Flow_Cntl_ID2
15
R/W, 0x0000
ReservedRIO_FLOW_CNTL15
31
R, all zeros
tt
17
R/W, 0b01
Flow_Cntl_ID15
15
R/W, 0x0000
SRIO Functional Description
Figure 27. Flow Control Table Entry Registers (Address Offset 0x0900 - 0x093C)
Table 22. Flow Control Table Entry Registers (Address Offset 0x0900 - 0x093C)
Name Bit Access Reset Value Description
tt [17:16] R/W 01b Selects Flow_Cntl_ID length.
00b – 8b IDs
01b – 16b IDs
10b – 11b - reserved
Flow_Cntl_ID0 [15:0] R/W 0x0000 DestID of Flow 0
Flow_Cntl_ID1 [15:0] R/W 0x0000 DestID of Flow 1
Flow_Cntl_ID2 [15:0] R/W 0x0000 DestID of Flow 2
Flow_Cntl_ID3 [15:0] R/W 0x0000 DestID of Flow 3
Flow_Cntl_ID4 [15:0] R/W 0x0000 DestID of Flow 4
Flow_Cntl_ID5 [15:0] R/W 0x0000 DestID of Flow 5
Flow_Cntl_ID6 [15:0] R/W 0x0000 DestID of Flow 6
Flow_Cntl_ID7 [15:0] R/W 0x0000 DestID of Flow 7
Flow_Cntl_ID8 [15:0] R/W 0x0000 DestID of Flow 8
Flow_Cntl_ID9 [15:0] R/W 0x0000 DestID of Flow 9
Flow_Cntl_ID10 [15:0] R/W 0x0000 DestID of Flow 10
Flow_Cntl_ID11 [15:0] R/W 0x0000 DestID of Flow 11
Flow_Cntl_ID12 [15:0] R/W 0x0000 DestID of Flow 12
Flow_Cntl_ID13 [15:0] R/W 0x0000 DestID of Flow 13
Flow_Cntl_ID14 [15:0] R/W 0x0000 DestID of Flow 14
Flow_Cntl_ID15 [15:0] R/W 0x0000 DestID of Flow 15, if all 0s this table entry represents all flows other than
Each transmit source, including LSU or Tx CPPI queues, indicates which of the 16 flows it uses by having
a mask register. Figure 28 illustrates the required 16-bit registers with bit masks. The CPU must configure
flows 0 - 14
these registers upon reset. The default setting is all 1s, indicating that the transmit source supports all
flows. If the register is set to all 0s, the transmit source communicates that it does not support any flow,
and consequently, that source is never flow-controlled. If any of the table entry counters that a transmit
source supports have a corresponding non-zero Xoff count, the transmit source is flow-controlled. A
simple 16-bit bus indicates the Xoff state of all 16 flows and is compared to the transmit source mask
register. Each source interprets this result and performs flow control accordingly. For example, an LSU
module that is flow-controlled can reload its registers and attempt to send a packet to another flow, while a
TX CPPI queue that is flow-controlled may create HOL blocking issues on that queue.
SPRU976 – March 2006 Serial RapidIO (SRIO) 61
Submit Documentation Feedback
www.ti.com
Reserved
RIO_LSUn_FLOW_MASKS
(Address Offsets: 0x041C,
0x043C, 0x045C, 0x047C)
31-16
R, 0x0000
LSU n Flow Mask
15-0
R/W, 0xFFFF
TX Queue1
Flow Mask
RIO_TX_CPPI_FLOW_MASKS0
(Address Offsets: 0x0704)
31-16
R/W, 0xFFFF
TX Queue0
Flow Mask
15-0
R/W, 0xFFFF
TX Queue3
Flow Mask
RIO_TX_CPPI_FLOW_MASKS1
(Address Offsets: 0x0708)
31-16
R/W, 0xFFFF
TX Queue2
Flow Mask
15-0
R/W, 0xFFFF
TX Queue5
Flow Mask
RIO_TX_CPPI_FLOW_MASKS2
(Address Offsets: 0x070C)
31-16
R/W, 0xFFFF
TX Queue4
Flow Mask
15-0
R/W, 0xFFFF
TX Queue7
Flow Mask
RIO_TX_CPPI_FLOW_MASKS3
(Address Offsets: 0x0710)
31-16
R/W, 0xFFFF
TX Queue6
Flow Mask
15-0
R/W, 0xFFFF
TX Queue9
Flow Mask
RIO_TX_CPPI_FLOW_MASKS4
(Address Offsets: 0x0714)
31-16
R/W, 0xFFFF
TX Queue8
Flow Mask
15-0
R/W, 0xFFFF
TX Queue11
Flow Mask
RIO_TX_CPPI_FLOW_MASKS5
(Address Offsets: 0x0718)
31-16
R/W, 0xFFFF
TX Queue10
Flow Mask
15-0
R/W, 0xFFFF
TX Queue13
Flow Mask
RIO_TX_CPPI_FLOW_MASKS6
(Address Offsets: 0x071C)
31-16
R/W, 0xFFFF
TX Queue12
Flow Mask
15-0
R/W, 0xFFFF
TX Queue15
Flow Mask
RIO_TX_CPPI_FLOW_MASKS7
(Address Offsets: 0x0720)
31-16
R/W, 0xFFFF
TX Queue14
Flow Mask
15-0
R/W, 0xFFFF
SRIO Functional Description
Figure 28. Transmit Source Flow Control Masks
Table 23. Transmit Source Flow Control Masks
Name Bit Access Reset Value Description
Flow Mask 0 R/W 1b 0b – TX source doesn’t support Flow0 from table entry
Flow Mask 1 R/W 1b 0b – TX source doesn’t support Flow1 from table entry
Flow Mask 2 R/W 1b 0b – TX source doesn’t support Flow2 from table entry
Flow Mask 3 R/W 1b 0b – TX source doesn’t support Flow3 from table entry
Flow Mask 4 R/W 1b 0b – TX source doesn’t support Flow4 from table entry
Flow Mask 5 R/W 1b 0b – TX source doesn’t support Flow5 from table entry
Flow Mask 6 R/W 1b 0b – TX source doesn’t support Flow6 from table entry
Flow Mask 7 R/W 1b 0b – TX source doesn’t support Flow7 from table entry
Flow Mask 8 R/W 1b 0b – TX source doesn’t support Flow8 from table entry
Flow Mask 9 R/W 1b 0b – TX source doesn’t support Flow9 from table entry
Flow Mask 10 R/W 1b 0b – TX source doesn’t support Flow10 from table entry
Flow Mask 11 R/W 1b 0b – TX source doesn’t support Flow11 from table entry
Flow Mask 12 R/W 1b 0b – TX source doesn’t support Flow12 from table entry
Flow Mask 13 R/W 1b 0b – TX source doesn’t support Flow13 from table entry
Flow Mask 14 R/W 1b 0b – TX source doesn’t support Flow14 from table entry
Flow Mask 15 R/W 1b 0b – TX source doesn’t support Flow15 from table entry
1b – TX source does support Flow0 from table entry
1b – TX source does support Flow1 from table entry
1b – TX source does support Flow2 from table entry
1b – TX source does support Flow3 from table entry
1b – TX source does support Flow4 from table entry
1b – TX source does support Flow5 from table entry
1b – TX source does support Flow6 from table entry
1b – TX source does support Flow7 from table entry
1b – TX source does support Flow8 from table entry
1b – TX source does support Flow9 from table entry
1b – TX source does support Flow10 from table entry
1b – TX source does support Flow11 from table entry
1b – TX source does support Flow12 from table entry
1b – TX source does support Flow13 from table entry
1b – TX source does support Flow14 from table entry
1b – TX source does support Flow15 from table entry
Serial RapidIO (SRIO)62 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
A0A0A2
A2
A1A1A3
A3
L2 offset 0x0
DSP defined MMR
offset 0x1000
Byte
lane 0
31
Byte
lane 3
DMA 32b
0
SRIO Functional Description
2.3.8 Endianness
RapidIO is based on big endian. This is discussed in detail in section 2.4 of the RapidIO Interconnect
specification. Essentially, big endian specifies the address ordering as the most significant bit/byte first.
For example, in the 29-bit address field of a RapidIO packet (shown in Figure 6 ) the left-most bit that is
transmitted first in the serial bit stream is the MSB of the address. Likewise, the data payload of the packet
is double-word aligned big-endian, which means the MSB is transmitted first. Bit 0 of all the
RapidIO-defined MMR registers is the MSB.
All endian specific conversion is handled within the peripheral. For double-word aligned payloads, the data
should be written contiguously into memory beginning at the specified address. Any unaligned payloads
will be padded and properly aligned within the 8-byte boundary. In this case, WDPTR, RDSIZE, and
WRSIZE RapidIO header fields indicate the byte position of the data within the double-word boundary. An
example of an unaligned transfer is shown in section 2.4 of the RapidIO Interconnect Specification.
There are no endian translation requirements for accessing the local MMR space. Regardless of the
device memory endian configuration, all configuration bus accesses are performed on 32-bit values at a
fixed address position. The bit positions in the 32-bit word are defined by this specification. This means
that a memory image which will be copied to a MMR is identical between little endian and big endian
configurations. Configuration bus reads are performed in the same manner. Figure 29 illustrates the
concept. The desired operation is to locally update a serial RapidIO MMR (offset 0x1000) with a value of
0xA0A1A2A3, using the configuration bus.
Figure 29. Configuration Bus Example
When accessing RapidIO defined MMR within an external device, RapidIO allows 4B, 8B, or any multiple
of a double word access (up to 64B) for Type 8 Maintenance packets. The peripheral only supports 4B
accesses as the target, but can generate all sizes of request packets. RapidIO is defined as big endian
only, and has double-word aligned big endian packet payloads. The DMA, however, supports byte wide
accesses. The peripheral performs endian conversion on the payload if little endian is used on the device.
This conversion is not only applicable for Type 8 packets, but is also relevant for all outgoing payloads of
NWRITE, NWRITE_R, SWRITE, NREAD, and Message packets. This means that the memory image is
different between little endian and big endian configurations, as shown in Figure 30 .
SPRU976 – March 2006 Serial RapidIO (SRIO) 63
Submit Documentation Feedback
www.ti.com
DMA Example
The desired operation is to send a Type 8 maintenance request
to an external device. The goal is to read 16B of RapidIO MMR
from an external device, starting offset 0x0000. This operation
involves the LSU block and utilizes the DMA for transferring the
response packet payload.
RapidIO defined bit positions
A0 A1 A2 A3
310
MMR offset 0x0000
B0
B1 B2 B3
MMR offset 0x0004
C0
C1 C2 C3
MMR offset 0x0008
D0
D1 D2 D3
MMR offset 0x000C
RapidIO
defined
MMR
offsets
A0A1A2A3B0B1B2B3 C0C1C2C3D0D1D2D3
Header fields
Type 8
Response
A0
A1 A2 A3
Byte
lane 3
Byte
Byte
lane 0
L2 offset 0x0
B0
B1 B2 B3
L2 offset 0x4
C0 C1 C2 C3
L2 offset 0x8
D0
D1 D2 D3
L2 offset 0xC
Big Endian
Little Endian
A3
A2 A1 A0
Byte
lane 3lane 0
L2 offset 0x0
B3
B2 B1 B0
L2 offset 0x4
C3 C2 C1 C0
L2 offset 0x8
D3
D2 D1 D0
L2 offset 0xC
Double-word0 Double-word1
SRIO Functional Description
Figure 30. DMA Example
2.3.9 Reset
The RapidIO peripheral allows independent software controlled shutdown for the following blocks:
SERDES TX and RX individual ports and PLL, channelized datapath logic (8b/10b, rate handoff FIFO,
CRC logic, lane striping/de-skew logic), CPPI module, LSU module, MAU module, and MMR registers.
With the exception of BLK_EN0 for the MMR registers, when the BLK n_EN signals are deasserted, the
clocks are gated to these blocks, effectively providing a shutdown function.
Reset of the SERDES macros is handled independently of the registers discussed in this section. The
SERDES can be configured to shutdown unused links or fully shutdown. SERDES TX and RX channels
may be enabled/disabled by writing to bit 0 of the SERDES_CFGTX n_CNTL and
SERDES_CFGRX n_CNTL registers. The PLL and remaining SERDES functional blocks can be controlled
by writing to the ENPLL signals in the PER_SET_CNTL or SERDES_CFG n_CNTL register, depending on
device implementation. These registers will drive the SERDES signal inputs, which will gate the reference
clock to these blocks internally. This reference clock is sourced from a device pin specifically for the
SERDES and is not derived from the CPU clock, thus it resets asynchronously. ENPLL will disable all
SERDES high-speed output clocks. Since these clocks are distributed to all the links, ENPLL should only
be used to completely shutdown the peripheral. It should be noted that shutdown of SERDES links in
between normal packet transmissions is not permissible for two reasons. First, the serial RapidIO sends
idle packets between data packets to maintain synchronization and lane alignment. Without this
mechanism, the RapidIO RX logic can be mis-aligned for both 1X and 4X ports. Second, the lock time of
the SERDES PLL would need to reoccur, which would slow down the operation.
All chip-IO signals must be reset asynchronously to a known state. When the SERDES ENTX signal is
held low, the corresponding transmitter is powered down. In this state, both outputs, TXP and TXN, will be
pulled high to VDDT.
64 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
2.3.9.1 Reset Summary
SRIO Functional Description
After reset, the state of the peripheral depends on the default register values and the BLK n_EN_INIT tieoff
values.
You can also perform a hard reset using the software of each logical block within the peripheral via the
GBL_EN and BLK n_EN bits. The GBL_EN bits reset the peripheral, while the rest of the device is not
reset. The BLK n_EN bits shut down unused portions of the peripheral. The *EN functionality will minimize
power by resetting the appropriate logical block(s), and gating off the clock to the appropriate logical
block(s). This should be considered an abrupt reset independent of the state of the peripheral, and should
be capable of resetting the peripheral to its original state.
Upon reset of the peripheral, the device must reestablish communication with its link partner. Depending
on the system, this may include a discovery phase in which a host processor reads the peripheral’s
CAR/CSR registers to determine its capabilities. In its simplest form, it involves retraining the SERDES
and going through the initialization phase to synchronize on bit and word boundaries by using idle and
control symbols, as described in section 5.5.2 of the Part VI of the RapidIO specification. Until the
peripheral and its partner are fully initialized and ready for normal operation, the peripheral will not send
any data packets or non-status control symbols.
• GBL_EN_INIT and BLK_EN_INIT[n:0]: These module boundary signals are static tieoffs which control
the default state of the GBL_EN and BLK_EN[n:0] MMRs.
• GBL_EN: Resets all MMRs, excluding Reset Ctl Values (0x0000 – 0x1FC). Resets all logical blocks
except MMR configuration bus i/f. While asserted, the slave configuration bus is operational.
• BLK_EN0: Resets all MMRs, excluding Reset Ctl Values (0x0000 – 0x1FC). Other logical blocks are
unaffected, including MMR configuration bus i/f.
• BLK_EN[n:1]: Single enable/reset per logical block.
2.3.9.2 Enable and Enable Status Registers
Figure 31 through Figure 38 are the register diagrams for the enable and enable status registers.
Figure 31. GBL_EN (Address 0x0030)
31 1 0
Reserved EN
R-0 R/W-1
LEGEND: R = Read, W = Write, n = value at reset
Figure 32. GBL_EN_STAT (Address 0x0034)
15 10 9 8
Reserved BLK8_EN_STA BLK7_EN_STA
R-0 R-1 R-1
7 6 5 4 3 2 1 0
BLK6_EN_STA BLK5_EN_STA BLK4_EN_STA BLK3_EN_STA BLK2_EN_STA BLK1_EN_STA BLK0_EN_STA GBL_EN_STAT
T T T T T T T
R-1 R-1 R-1 R-1 R-1 R-1 R-1 R-1
LEGEND: R = Read, W = Write, n = value at reset
Figure 33. BLK0_EN (Address 0x0038)
31 1 0
Reserved EN
R-0 R/W-1
LEGEND: R = Read, W = Write, n = value at reset
T T
SPRU976 – March 2006 Serial RapidIO (SRIO) 65
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Figure 34. BLK0_EN_STAT (Address 0x003C)
31 1 0
Reserved EN_STAT
R-0 R-1
LEGEND: R = Read, W = Write, n = value at reset
Figure 35. BLK1_EN (Address 0x0040)
31 1 0
Reserved EN
R-0 R/W-1
LEGEND: R = Read, W = Write, n = value at reset
Figure 36. BLK1_EN_STAT (Address 0x0044)
31 1 0
Reserved EN_STAT
R-0 R-1
LEGEND: R = Read, W = Write, n = value at reset
•
•
•
Figure 37. BLK8_EN (Address 0x0078)
31 1 0
Reserved EN
R-0 R/W-1
LEGEND: R = Read, W = Write, n = value at reset
Figure 38. BLK8_EN_STAT (Address 0x007C)
31 1 0
Reserved EN_STAT
R-0 R-1
LEGEND: R = Read, W = Write, n = value at reset
Table 24. Enable and Enable Status Bit Field Descriptions
Name Bit Access Description
GBL_EN 0 R/W Controls reset to all clock domains within the peripheral.
0 = Peripheral to be disabled (held in reset, clocks disabled)
1 = Peripheral to be enabled
GBL_EN_STAT 0-9 R Indicates state of GBL_EN reset signal.
0 = Peripheral in reset and all clocks are off
1 = Peripheral enabled and clocking
BLK0_EN 0 R/W Controls reset to 0th clock/logical domain. By convention, BLK0 should always be
BLK0_EN_STAT 0 R Indicates state of BLK0_EN reset signal.
the MMR Peripheral control registers.
0 = Logical block 0 to be disabled
1 = Logical block 0 to be enabled
0 = Logical block 0 disabled
1 = Logical block 0 enabled
66 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Table 24. Enable and Enable Status Bit Field Descriptions (continued)
Name Bit Access Description
BLK1_EN 0 R/W Controls reset to logical block 1, which is the LSU.
0 = Logical block 1 disabled (held in reset, clocks disabled)
1 = Logical block 1 enabled
BLK1_EN_STAT 0 R Indicates state of BLK1_EN reset signal.
0 = Logical block 1 in reset and clock is off
1 = Logical block 1 enabled and clocking
BLK2_EN 0 R/W Controls reset logical block 2, which is the MAU.
0 = Logical block 2 disabled (held in reset, clocks disabled)
1 = Logical block 2 enabled
BLK2_EN_STAT 0 R Indicates state of BLK2_EN reset signal.
0 = Logical block 2 reset and clock is off
1 = Logical block 2 enabled and clocking
BLK3_EN 0 R/W Controls reset logical block 3, which is the TXU.
0 = Logical block 3 disabled (held in reset, clocks disabled)
1 = Logical block 3 enabled
BLK3_EN_STAT 0 R Indicates state of BLK3_EN reset signal.
0 = Logical block 3 reset and clock is off
1 = Logical block 3 enabled and clocking
BLK4_EN 0 R/W Controls reset logical block 4, which is the RXU.
0 = Logical block 4 disabled (held in reset, clocks disabled)
1 = Logical block 4 enabled
BLK4_EN_STAT 0 R Indicates state of BLK4_EN reset signal.
0 = Logical block 4 reset and clock is off
1 = Logical block 4 enabled and clocking
BLK5_EN 0 R/W Controls reset logical block 5, which is port 0.
0 = Logical block 5 disabled (held in reset, clocks disabled)
1 = Logical block 5 enabled
BLK5_EN_STAT 0 R Indicates state of BLK5_EN reset signal.
0 = Logical block 5 reset and clock is off
1 = Logical block 5 enabled and clocking
BLK6_EN 0 R/W Controls reset to logical block 6, which is port 1.
0 = Logical block 6 disabled (held in reset, clocks disabled)
1 = Logical block 6 enabled
BLK6_EN_STAT 0 R Indicates state of BLK6_EN reset signal.
0 = Logical block 6 in reset and clock is off
1 = Logical block 6 enabled and clocking
BLK7_EN 0 R/W Controls reset to logical block 7, which is port 2.
0 = Logical block 7 disabled (held in reset, clocks disabled)
1 = Logical block 7 enabled
BLK7_EN_STAT 0 R Indicates state of BLK7_EN reset signal.
0 = Logical block 7 in reset and clock is off
1 = Logical block 7 enabled and clocking
BLK8_EN 0 R/W Controls reset to logical block 8, which is port 3.
0 = Logical block 8 disabled (held in reset, clocks disabled)
1 = Logical block 8 enabled
SRIO Functional Description
SPRU976 – March 2006 Serial RapidIO (SRIO) 67
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 24. Enable and Enable Status Bit Field Descriptions (continued)
Name Bit Access Description
BLK8_EN_STAT 0 R Indicates state of BLK8_EN reset signal.
The GBL_EN register is implemented with a single ENABLE bit. This bit is logically ORd with the reset
input to the module and is fanned out to all logical blocks within the peripheral.
2.3.9.3 Software Shutdown Details
Power consumption must be minimized for all logical blocks that are in shutdown. In addition to simply
asserting the appropriate reset signal to each logical block within the peripheral, clocks are gated off to the
corresponding logical block as well. Clocks are allowed to run for 32 clock cycles, which is necessary to
fully reset each logical block. When the appropriate logical block is fully reset, the clock input to that
subblock is gated off.
When a block is disabled, the reset control block turns off the peripheral with the following sequence:
1. Deassert GBL_EN signal or appropriate BLK n_EN signal, which effectively resets all subblocks or the
given subblock.
2. Wait 32 clock cycles to guarantee full reset.
3. Gate the input clock to the logical block(s). When the full shutdown procedure is complete, the
BLK n_EN_STAT bits and/or the GBL_EN_STAT bit contain 0.
The opposite is done for software controlled enabling of a logical block:
1. Assert the BLK_EN signal to release the logical block from reset.
2. Turn on the logical block. When the full start-up procedure is complete, the BLK n_EN_STAT bits
and/or the GBL_EN_STAT bit contain 1.
When using the GBL_EN to shutdown/reset the peripheral, it is important to first stop all master-initiated
commands on the DMA bus interface. For example, if the GBL_EN is asserted in the middle of a DMA
transfer from the peripheral, the bus could hang. The procedure is as follows:
1. Stop all RapidIO source transactions, including LSU and TXU operations. This essentially means
waiting for the LSU or TXU CC field to be set, or, alternatively, teardown of the active TXU queues.
2. Disable the PEREN bit of the PCR register to stop all new logical layer transactions.
3. Wait the number of clock cycles required to finish any current DMA transfer.
4. Deassert GBL_EN.
0 = Logical block 8 in reset and clock is off
1 = Logical block 8 enabled and clocking
2.3.10 Emulation
Expected behavior during emulation halt is controlled within the peripheral by the Peripheral Control
register (PCR). This is a single global register that controls emulation for the whole peripheral.
Figure 39. Emulation Control (Peripheral Control Register PCR 0x0004)
31 3 2 1 0
Reserved PEREN SOFT FREE
R-0 R/W-0 R/W-0 R/W-1
LEGEND: R = Read, W = Write, n = value at reset
68 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
Table 25. Emulation Control Signals
Name Bit Access Reset Value Description
Free 0 R/W 1b FREE = 0, SOFT Bit takes effect
FREE = 1, Free run mode (default mode) - Peripheral ignores the
EMUSUSP signal and functions normally.
Soft 1 R/W 0b SOFT = 0 -> Soft Stop (default mode)
SOFT = 1 -> Hard stop – All status registers are frozen in default state.
(Mode not supported)
PEREN 2 R/W 0b Peripheral Enable.
0b – Disabled
1b – Enabled
Reserved 31:3 0b Reserved
Free Run Mode: (default mode) Peripheral does not respond to EMUSUSP assertion. Module functions
normally, irrespective of CPU emulation state.
Soft Stop Mode: Peripheral gracefully halts operations. The peripheral halts operation at a point that
makes sense both to the internal DMA/data access operation and to the pin interface as described below,
after finishing packet reception or transmission in progress:
• DMA bus DMA master: DMA bus requests in progress are allowed to complete (DMA bus has no
means to throttle command in progress from the Master) DMA bus requests that correspond to the
same network packet are allowed to complete. No new DMA bus requests will be generated on the
next new packet.
• Configuration bus MMR interface: All MMR configuration bus requests are serviced as normal.
• Events/interrupts: New events/interrupts are not generated to the CPU for newly arriving packets.
Current transactions are allowed to finish and may cause an interrupt upon completion.
• Slave pin interface: The pin interface functions as normal. If buffering is available in the peripheral,
the peripheral services externally generated requests as long as possible. When the internal buffers
are consumed, the peripheral will retry incoming network packets in the physical layer.
• Master pin interface: No new master requests are generated. Master requests in progress are
allowed to complete, including all packets located in the physical layer transmit buffers.
Hard Stop Mode: Peripheral should halt immediately. This mode is not supported in the RapidIO
peripheral.
2.3.11 Initialization Example
2.3.11.1 Enabling the SRIO Peripherals
When the device is powered on, the SRIO peripheral is in a disabled state. Before any SRIO specific
initialization can take place, the peripheral needs to be enabled; otherwise, its registers cannot be written,
and the reads will all return a value of zero.
/* Glb enable srio */
SRIO_REGS->GBL_EN = 0x00000001 ;
SRIO_REGS->BLK0_EN = 0x00000001 ; //MMR_EN
SRIO_REGS->BLK5_EN = 0x00000001 ; //PORT0_EN
SRIO_REGS->BLK1_EN = 0x00000001 ; //LSU_EN
SRIO_REGS->BLK2_EN = 0x00000001 ; //MAU_EN
SRIO_REGS->BLK3_EN = 0x00000001 ; //TXU_EN
SRIO_REGS->BLK4_EN = 0x00000001 ; //RXU_EN
SRIO_REGS->BLK6_EN = 0x00000001 ; //PORT1_EN
SRIO_REGS->BLK7_EN = 0x00000001 ; //PORT2_EN
SRIO_REGS->BLK8_EN = 0x00000001 ; //PORT3_EN
SPRU976 – March 2006 Serial RapidIO (SRIO) 69
Submit Documentation Feedback
www.ti.com
SRIO Functional Description
2.3.11.2 PLL, Ports, Device ID and Data Rate Initializations
For example, Enable pll, 333MHz, 4p1x, x20. 3.125 Gbps, full rate, ½ rate, ¼ rate:
if (srio4p1x_mode){
rdata = SRIO_REGS->PER_SET_CNTL;
wdata = 0x0000014F; 4p1x
mask = 0x000001FF;
mdata = (wdata & mask) | (rdata & ~mask);
SRIO_REGS->PER_SET_CNTL = mdata ; // enable pll
}
else{
wdata = 0x0000004F; // enable pll, 1p4x
rdata = SRIO_REGS->PER_SET_CNTL;
mask = 0x000001FF;
mdata = (wdata & mask) | (rdata & ~mask);
SRIO_REGS->PER_SET_CNTL = mdata ; // enable pll, 1p1x/4x
}
rdata = SRIO_REGS->SERDES_CFG0_CNTL;
wdata = 0x0000000D;
mask = 0x00000FFF;
mdata = (wdata & mask) | (rdata & ~mask);
SRIO_REGS->SERDES_CFG0_CNTL = mdata ; // JADIS 3.125 Gbps
SRIO_REGS->SERDES_CFG1_CNTL = mdata ; // JADIS 3.125 Gbps
SRIO_REGS->SERDES_CFG2_CNTL = mdata ; // JADIS 3.125 Gbps
SRIO_REGS->SERDES_CFG4_CNTL = mdata ; // JADIS 3.125 Gbps
SRIO_REGS->SERDES_CFGRX0_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGRX1_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGRX2_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGRX3_CNTL = 0x00081101 ; // enable rx, rate 1
SRIO_REGS->SERDES_CFGTX0_CNTL = 0x00010801 ; // enable tx, rate 1
SRIO_REGS->SERDES_CFGTX1_CNTL = 0x00010801 ; // enable tx, rate 1
SRIO_REGS->SERDES_CFGTX2_CNTL = 0x00010801 ; // enable tx, rate 1
SRIO_REGS->SERDES_CFGTX3_CNTL = 0x00010801 ; // enable tx, rate 1
2.3.11.3 Peripheral Initializations
Set Device ID Registers
rdata = SRIO_REGS->DEVICEID_REG1;
wdata = 0x00ABBEEF;
mask = 0x00FFFFFF;
mdata = (wdata & mask) | (rdata & ~mask);
SRIO_REGS->DEVICEID_REG1 = mdata ; // id-16b=BEEF, id-08b=AB
rdata = SRIO_REGS->DEVICEID_REG2;
wdata = 0x00ABBEEF;
mask = 0x00FFFFFF;
mdata = (wdata & mask) | (rdata & ~mask);
SRIO_REGS->DEVICEID_REG2 = mdata ; // id-16b=BEEF, id-08b=AB
SRIO_REGS->PER_SET_CNTL = 0x00000000; // bootcmpl=0
SRIO_REGS->DEV_ID = 0xBEEF0030 ; // id=BEEF, ti=0x0030
SRIO_REGS->DEV_INFO = 0x00000000 ; // 0
SRIO_REGS->ASBLY_ID = 0x00000030 ; // ti=0x0030
SRIO_REGS->ASBLY_INFO = 0x00000000; // 0x0000, next ext=0x0100
SRIO_REGS->PE_FEAT = 0x20000019 ; // proc, bu ext, 16-bit ID, 34-bit addr
SRIO_REGS->SW_PORT = 0x00000400; // 4 ports
SRIO_REGS->SRC_OP = 0x0000FDF4; // all
SRIO_REGS->DEST_OP = 0x0000FC04; // all except atomic
SRIO_REGS->PE_LL_CTL = 0x00000001; // 34-bit addr
SRIO_REGS->LCL_CFG_HBAR = 0x00000000 ; // 0
SRIO_REGS->LCL_CFG_BAR = 0x00000000; // 0
SRIO_REGS->BASE_ID = 0x00ABBEEF; // 16b-id=BEEF, 08b-id=AB
SRIO_REGS->HOST_BASE_ID_LOCK = 0x0000BEEF; // id=BEEF, lock
SRIO_REGS->COMP_TAG = 0x00000000; // not touched
SRIO_REGS->SP_IP_DISCOVERY_TIMER = 0x90000000;// 0, short cycles for sim
//INIT_MAC0
if (srio4p1x_mode){
SRIO_REGS->SP_IP_MODE = 0x44000000; // Jadis mltc/rst/pw enable, clear
70 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
}
else{
SRIO_REGS->SP_IP_MODE = 0x04000000; // Jadis mltc/rst/pw enable, clear
}
SRIO_REGS->IP_PRESCAL = 0x00000021; // srv_clk prescalar=0x21 (333MHz)
SRIO_REGS->SP0_SILENCE_TIMER = 0x20000000; // 0, short cycles for sim
SRIO_REGS->SP1_SILENCE_TIMER = 0x20000000; // 0, short cycles for sim
SRIO_REGS->SP2_SILENCE_TIMER = 0x20000000; // 0, short cycles for sim
SRIO_REGS->SP3_SILENCE_TIMER = 0x20000000; // 0, short cycles for sim
SRIO_REGS->PER_SET_CNTL = 0x01000000; // bootcmpl=1
SRIO_REGS->SP_LT_CTL = 0xFFFFFF00; // long
SRIO_REGS->SP_RT_CTL = 0xFFFFFF00; // long
SRIO_REGS->SP_GEN_CTL = 0x40000000; // agent, master, undiscovered
SRIO_REGS->SP0_CTL = 0x00600000; // enable i/o
SRIO_REGS->SP1_CTL = 0x00600000; // enable i/o
SRIO_REGS->SP2_CTL = 0x00600000; // enable i/o
SRIO_REGS->SP3_CTL = 0x00600000; // enable i/o
SRIO_REGS->ERR_RPT_BH = 0x00000000; // next ext=0x0000(last)
SRIO_REGS->ERR_DET = 0x00000000 ; // clear
SRIO_REGS->ERR_EN = 0x00000000 ; // disable
SRIO_REGS->H_ADDR_CAPT = 0x00000000 ; // clear
SRIO_REGS->ADDR_CAPT = 0x00000000 ; // clear
SRIO_REGS->ID_CAPT = 0x00000000 ; // clear
SRIO_REGS->CTRL_CAPT = 0x00000000 ; // clear
SRIO Functional Description
SRIO_REGS->SP_IP_MODE = 0x0000003F; // mltc/rst/pw enable, clear
SRIO_REGS->SP_IP_PW_IN_CAPT0 = 0x00000000 ; // clear
SRIO_REGS->SP_IP_PW_IN_CAPT1 = 0x00000000 ; // clear
SRIO_REGS->SP_IP_PW_IN_CAPT2 = 0x00000000 ; // clear
SRIO_REGS->SP_IP_PW_IN_CAPT3 = 0x00000000 ; // clear
//INIT_WAIT wait for lane initialization
Read register to check portx(1-4) OK bit
// polling SRIO_MAC's port_ok bit
rdata = SRIO_REGS->P0_ERR_STAT ;
while ((rdata & 0x00000002) != 0x00000002)
{
rdata = SRIO_REGS->P0_ERR_STAT ;
}
if (srio4p1x_mode){
rdata = SRIO_REGS->P1_ERR_STAT;
while ((rdata & 0x00000002) != 0x00000002)
{
rdata = SRIO_REGS->P1_ERR_STAT;
}
rdata = SRIO_REGS->P2_ERR_STAT;
while ((rdata & 0x00000002) != 0x00000002)
{
rdata = SRIO_REGS->P2_ERR_STAT;
}
rdata = SRIO_REGS->P3_ERR_STAT;
while ((rdata & 0x00000002) != 0x00000002)
{
rdata = SRIO_REGS->P3_ERR_STAT;
}
}
Assert the PEREN bit to enable logical layer data flow
SRIO_REGS->PCR = 0x00000004; // peren
SPRU976 – March 2006 Serial RapidIO (SRIO) 71
Submit Documentation Feedback
www.ti.com
Boot
Program
Host
Controller
Optional
I2C
EEPROM
DSP
ROM
1x RapidIO
SRIO Functional Description
2.3.12 Bootload Capability
2.3.12.1 Configuration
It is assumed that an external device will initiate the bootload data transfer and master the DMA interface.
Upon reset, the following sequence of events must occur:
1. DSP is placed in SRIO boot mode by HW mode pins.
2. Host takes DSP out of reset ( POR or RST). The peripheral’s state machines and registers are reset.
3. Internal boot-strap ROM configures device registers, including SERDES, and DMA. DSP executes
4. DSP executes idle instruction.
5. RapidIO ports send Idle control symbols to train PHYs.
6. Host enabled to explore system with RapidIO Maintenance packets.
7. Host identifies, enumerates and initializes the RapidIO device.
8. Host controller configures DSP peripherals through maintenance packets.
9. Boot Code sent from host controller to DSP L2 memory base address via NWRITE.
10. DSP CPU is awakened by an interrupt such as a RapidIO DOORBELL packet.
11. Boot Code is executed and normal operation follows.
internal ROM code to initialize SRIO.
– Choice of 4 pin selectable configurations
– Optionally, I2C boot can be used to configure SRIO
– SRIO Device IDs are set for DSPs (either by pin strapping or by host manipulation)
2.3.12.2 Bootload Data Movement
The system host is responsible for writing the bootload data into the DSP’s L2 memory. As such, bootload
is only supported using the Direct I/O model, and not the message passing model. Bootload data must be
sent in packets with explicit L2 memory addresses indicating proper destination within the DSP. As part of
the peripheral’s configuration, it should be set up to transfer the desired bootload program to the DSP's
memory through normal DMA bus commands.
2.3.12.3 Device Wakeup
Upon completion of the bootload data transfer, the system host issues a DOORBELL interrupt to the DSP.
The RapidIO peripheral processes this interrupt in a manner similar to that described in Section 4 ,
monitoring the DMA bus write-with-response commands to ensure that the data has been completely
transferred through the DMA. This interrupt wakes up the CPUs by pulling them out of their reset state.
The 16-bit data field of the DOORBELL packet should be configured to interrupt Core 0 by setting a
corresponding ICSR bit as described in Figure 43 .
Figure 40. Bootload Operation
Serial RapidIO (SRIO)72 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Logical/Transport Error Handling and Logging
3 Logical/Transport Error Handling and Logging
Error management registers allow detection and logging of logical/transport layer errors. Figure 41
illustrates the detectable errors.
Figure 41. Detectable Errors
31 30 29 28 27 26 25
IO ERR Rspns Msg ERR Rspns GSM ERR Rspns ERR MSG Format ILL Trans Decode ILL Trans Trgt MSG REQ
R/W0c, 0b R/W0c, 0b R, 0b R/W0c, 0b R/W0c, 0b R, 0b R/W0c, 0b
24 23 22 21 7 6 5
PKT Rspns Unsolicited Rspns Unsupported Rsv RX_CPPI Security RX IO Access Rsv
Timeout Trans
R/W0c, 0b R/W0c, 0b R/W0c, 0b R, All 0s R/W0c, 0b R/W0c, 0b R, All 0s
The peripheral supports all detectable errors, except bits 29 and 26. The functional blocks involved for
each detectable error condition are listed below, along with a brief description of the capture register
contents.
Logical Layer Error Detect CSR:
bit 31: LSU (request packet is logged)
bit 30: TXU (request packet is logged)
bit 29: Not supported
bit 28: RXU (request packet is logged)
bit 27: LSU and TXU (response packet is logged), MAU and RXU (request packet is logged)
bit 26: Not supported
bit 25: RXU (request packet is logged)
bit 24: LSU and TXU (request packet is logged)
bit 23: LSU and TXU (response packet is logged
bit 22: MAU (request packet is logged)
...
bit 7: RXU (request packet is logged)
bit 6: MAU (request packet is logged)
ERR Timeout
SPRU976 – March 2006 Serial RapidIO (SRIO) 73
Submit Documentation Feedback
www.ti.com
acklD rsv prio tt 1010 destID sourcelD Reserved srcTID
Reserved Doorbell Reg # rsv
Doorbell bit
CRC
PHYLOGTRALOGTRAPHY
5 3 2 2 4 8 8 8 8
9 2
1
4
16
1632
16
4
2
10
info (msb)
8
info (lsb)
8
Interrupt Conditions
4 Interrupt Conditions
4.1 CPU Interrupts
4.2 General Description
This section defines the CPU interrupt capabilities and requirements of the peripheral.
The following interrupts are supported by the RIO peripheral.
• Error Status: Event indicating that a run-time error was reached. The CPU should reset/resynchronize
the peripheral.
• Critical Error: Event indicating that a critical error state was reached. The CPU should reset the
system.
• CPU servicing: Event indicating that the CPU should service the peripheral.
The RIO peripheral is capable of generating various types of CPU interrupts. The interrupts serve two
general purposes: error indication and servicing requests.
Since RapidIO is a packet oriented interface, the peripheral must recognize and respond to inbound
signals from the serial interface. There are no GPIO or external pins used to indicate an interrupt request.
Thus, the interrupt requests are signaled either by an external RapidIO device through the packet
protocols discussed as follows, or are generated internally by the RIO peripheral.
CPU servicing interrupts lag behind the corresponding data, which was generally transferred from an
external processing element into local L2 memory. This transfer can use a messaging or direct I/O
protocol. When the single or multi-packet data transfer is complete, the external PE, or the peripheral
itself, must notify the local processor that the data is available for processing. To avoid erroneous data
being processed by the local CPU, the data transfer must complete through the DMA before the CPU
interrupt is serviced. This condition could occur since the data and interrupt queues are independent of
each other, and DMA transfers can stall. To avoid this condition, all data transfers from the peripheral
through the DMA use write-with-response DMA bus commands, allowing the peripheral to always be
aware that outstanding transfers have completed. Interrupts are generated only after all DMA bus
responses are received. Since all RapidIO packets are handled sequentially, and submitted on the same
DMA priority queue, the peripheral must keep track of the number of DMA requests submitted and the
number of responses received. Thus, a simple counter within the peripheral ensures that data packets
have arrived in memory before submitting an interrupt.
The sending device initiates the interrupt by using the RapidIO defined DOORBELL message. The
DOORBELL packet format is shown in Figure 42 . The DOORBELL functionality is user-defined. This
packet type is commonly used to initiate CPU interrupts. A DOORBELL packet is not associated with a
particular data packet that was previously transferred, so the INFO field of the packet must be configured
to reflect the DOORBELL bit to be serviced for the correct TID info to be processed.
Figure 42. RapidIO DOORBELL Packet for Interrupt Use
74 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
The DOORBELL packet’s 16-bit INFO field indicates which DOORBELL register interrupt bit to set. There
are four DOORBELL registers, each currently with 16 bits, allowing 64 interrupt sources or circular buffers.
Each bit can be assigned to any core as described by the Interrupt Condition Routing Registers.
Additionally, each status bit is user-defined for the application. For instance, it may be desirable to support
multiple priorities with multiple TID circular buffers per core if control data uses a high priority (i.e., priority
= 2), while data packets are sent on priority 0 or 1. This allows the control packets to have preference in
the switch fabric and arrive as quickly as possible. Since it may be required to interrupt the CPU for both
data and control packet processing separately, separate circular buffers are used, and DOORBELL
packets must distinguish between them for interrupt servicing. If any reserved bit in the DOORBELL info
field is set, an error response is sent.
The interrupt approach to the messaging protocol is somewhat different. Since the source device is
unaware of the data's physical location in the destination device, and since each messaging packet
contains size and segment information, the peripheral can automatically generate the interrupt after it has
successfully received all packet segments comprising the complete message. This DMA interface uses
the Communications Port Programming Interface (CPPI). This interface is a link-listed approach versus a
circular buffer approach. Data buffer descriptors which contain information such as start of Packet (SOP),
end of packet (EOP), end of queue (EOQ), and packet length are built from the RapidIO header fields.
The data buffer descriptors also contain the address of the corresponding data buffer as assigned by the
receive device. The data buffer descriptors are then link-listed together as multiple packets are received.
Interrupts are generated by the peripheral after all segments of the messages are received and
successfully transferred through the DMA bus with the write-with-response commands. Interrupt pacing is
also implemented at the peripheral level to manage the interrupt rate, as described in Section 4.6 .
Error handling on the RapidIO link is handled by the peripheral, and as such, does not require the
intervention of software for recovery. This includes CRC errors due to bit rate errors that may cause
erroneous or invalid operations. The exception to this statement is the use of the RapidIO error
management extended features. This specification monitors and tabulates the errors that occur on a per
port basis. If the number of errors exceeds a pre-determined configurable amount, the peripheral should
interrupt the CPU software and notify that an error condition exits. Alternatively, if a system host is used,
the peripheral may issue a port-write operation to notify the system software of a bad link.
A system reset, or Critical Error interrupt, can be initialized through the RapidIO link. This procedure
allows an external device to reset the local device, causing all state machine and configuration registers to
reset to their original values. This is executed with the Reset-Device command described in Part VI,
Section 3.4.5 of the Serial specification. Four sequential Reset-Device control symbols are needed to
avoid inadvertent resetting of a device.
4.3 Interrupt Condition Control Registers
Interrupt condition control registers configure which CPU interrupts are to be generated and how, based
on the peripheral activity. All peripheral conditions that result in a CPU interrupt are grouped so that the
interrupt can be accessed in the minimum number of register reads possible.
For each of the three types of interrupts (CPU servicing, error status, and critical error), there are two sets
of registers:
• Interrupt Condition Status Register (ICSR): Status register that reflects the state of each condition that
can trigger the interrupt.
• Interrupt Condition Clear Register (ICCR): Command register that allows each condition to be cleared.
This is typically required prior to enabling a condition, such that spurious interrupts are not generated.
These registers are accessible in the memory map of the CPU. The CPU controls the clear register. The
status register is readable by the CPU to determine the peripheral condition.
SPRU976 – March 2006 Serial RapidIO (SRIO) 75
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
Table 26. Interrupt Source Configuration Options
Field Access Reset Value Value Function
ICSx R 0 0b Condition not present
1b Condition present
ICCx W 0 0b No effect
1b Condition status cleared
Figure 43. DOORBELL0 Interrupt Registers for Direct I/O Transfers
DOORBELL0 Interrupt Condition Status Registers (ICSR) (Address Offset 0x0200)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICS15 ICS14 ICS13 ICS12 ICS11 ICS10 ICS9 ICS8 ICS7 ICS6 ICS5 ICS4 ICS3 ICS2 ICS1 ICS0
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
DOORBELL0 Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0208)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICC15 ICC14 ICC13 ICC12 ICC11 ICC10 ICC9 ICC8 ICC7 ICC6 ICC5 ICC4 ICC3 ICC2 ICC1 ICC0
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Where ICS0 - Doorbell0, bit 0 through ICS15 - Doorbell0, bit 15.
Figure 44. DOORBELL1 Interrupt Registers for Direct I/O Transfers
DOORBELL1 Interrupt Condition Status Registers (ICSR) (Address Offset 0x0210)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICS15 ICS14 ICS13 ICS12 ICS11 ICS10 ICS9 ICS8 ICS7 ICS6 ICS5 ICS4 ICS3 ICS2 ICS1 ICS0
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
DOORBELL1 Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0218)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICC15 ICC14 ICC13 ICC12 ICC11 ICC10 ICC9 ICC8 ICC7 ICC6 ICC5 ICC4 ICC3 ICC2 ICC1 ICC0
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Serial RapidIO (SRIO)76 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
Where ICS0 - Doorbell1, bit 0, through ICS15 - Doorbell1, bit 15.
Figure 45. DOORBELL2 Interrupt Registers for Direct I/O Transfers
DOORBELL2 Interrupt Condition Status Registers (ICSR) (Address Offset 0x0220)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICS15 ICS14 ICS13 ICS12 ICS11 ICS10 ICS9 ICS8 ICS7 ICS6 ICS5 ICS4 ICS3 ICS2 ICS1 ICS0
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
DOORBELL2 Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0228)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICC15 ICC14 ICC13 ICC12 ICC11 ICC10 ICC9 ICC8 ICC7 ICC6 ICC5 ICC4 ICC3 ICC2 ICC1 ICC0
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Where ICS0 - Doorbell2, bit 0, through ICS15 - Doorbell2, bit 15.
Figure 46. DOORBELL3 Interrupt Registers for Direct I/O Transfers
DOORBELL3 Interrupt Condition Status Registers (ICSR) (Address Offset 0x0230)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICS15 ICS14 ICS13 ICS12 ICS11 ICS10 ICS9 ICS8 ICS7 ICS6 ICS5 ICS4 ICS3 ICS2 ICS1 ICS0
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
DOORBELL3 Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0238)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICC15 ICC14 ICC13 ICC12 ICC11 ICC10 ICC9 ICC8 ICC7 ICC6 ICC5 ICC4 ICC3 ICC2 ICC1 ICC0
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Where ICS0 - Doorbell3, bit 0, through ICS15 - Doorbell3, bit 15.
SPRU976 – March 2006 Serial RapidIO (SRIO) 77
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
Figure 47. RX_CPPI Interrupts Using Messaging Mode Data Transfers
RX_CPPI Interrupt Condition Status Registers (ICSR) (Address Offset 0x0240)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICS15 ICS14 ICS13 ICS12 ICS11 ICS10 ICS9 ICS8 ICS7 ICS6 ICS5 ICS4 ICS3 ICS2 ICS1 ICS0
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
RX_CPPI Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0248)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICC15 ICC14 ICC13 ICC12 ICC11 ICC10 ICC9 ICC8 ICC7 ICC6 ICC5 ICC4 ICC3 ICC2 ICC1 ICC0
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Where ICS0 - RX CPPI interrupt, buffer descriptor queue 0, through ICS15 - RX CPPI interrupt, buffer
descriptor queue 15.
Clearing of any ICSR bit depends on the CPU writing the value of last buffer descriptor processed to the
RX DMA State CP. Port hardware clears the ICSR bit only if the CP value written by the CPU equals the
port written value in the RX DMA State CP register.
Figure 48. TX _CPPI Interrupts Using Messaging Mode Data Transfers
TX_CPPI Interrupt Condition Status Registers (ICSR) (Address Offset 0x0250)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICS15 ICS14 ICS13 ICS12 ICS11 ICS10 ICS9 ICS8 ICS7 ICS6 ICS5 ICS4 ICS3 ICS2 ICS1 ICS0
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
TX_CPPI Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0258)
31 16
Reserved
R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICC15 ICC14 ICC13 ICC12 ICC11 ICC10 ICC9 ICC8 ICC7 ICC6 ICC5 ICC4 ICC3 ICC2 ICC1 ICC0
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Serial RapidIO (SRIO)78 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
Where ICS0 - TX CPPI interrupt, buffer descriptor queue 0, through ICS15 - TX CPPI interrupt, buffer
descriptor queue 15.
Clearing of any ICSR bit is dependent on the CPU writing to the TX DMA State CP. The CPU
acknowledges the interrupt after reclaiming all available buffer descriptors by writing the CP value. This
value is compared against the port written value in the TX DMA State CP register. If equal, the interrupt is
deasserted.
Figure 49. LSU Load/Store Module Interrupts
LSU Interrupt Condition Status Registers (ICSR) (Address Offset 0x0260)
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
ICS31 ICS30 ICS29 ICS28 ICS27 ICS26 ICS25 ICS24 ICS23 ICS22 ICS21 ICS20 ICS19 ICS18 ICS17 ICS16
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICS15 ICS14 ICS13 ICS12 ICS11 ICS10 ICS9 ICS8 ICS7 ICS6 ICS5 ICS4 ICS3 ICS2 ICS1 ICS0
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
LSU Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0268)
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
ICC31 ICC30 ICC29 ICC28 ICC27 ICC26 ICC25 ICC24 ICC23 ICC22 ICC21 ICC20 ICC19 ICC18 ICC17 ICC16
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ICC15 ICC14 ICC13 ICC12 ICC11 ICC10 ICC9 ICC8 ICC7 ICC6 ICC5 ICC4 ICC3 ICC2 ICC1 ICC0
W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Where:
• Bit 0- Transaction complete, No Errors (Posted/Non-posted), LSU1 – see note
• Bit 1- Non-posted transaction received ERROR response, or error in response payload, LSU1
• Bit 2- Transaction was not sent due to Xoff condition, LSU1
• Bit 3- Transaction was not sent due to unsupported transaction type or invalid field encoding LSU1
• Bit 4- Transaction Timeout Occurred, LSU1
• Bit 5- Transaction was not sent due to DMA data transfer error, LSU1
• Bit 6- Retry Doorbell response received or Atomic Test-and-swap was not allowed (semaphore in use),
LSU1
• Bit 7- Packet not sent due to unavailable outbound credit at given priority, LSU1
• Bit 8- Transaction complete, No Errors (Posted/Non-posted), LSU2 – see note
• Bit 9- Non-posted transaction received ERROR response, or error in response payload, LSU2
• Bit 10- Transaction was not sent due to Xoff condition, LSU2
• Bit 11- Transaction was not sent due to unsupported transaction type or invalid field encoding LSU2
• Bit 12- Transaction Timeout Occurred, LSU2
• Bit 13- Transaction was not sent due to DMA data transfer error, LSU2
• Bit 14- Retry Doorbell response received or Atomic Test-and-swap was not allowed (semaphore in
use), LSU2
• Bit 15- Packet not sent due to unavailable outbound credit at given priority, LSU2
• Bit 16- Transaction complete, No Errors (Posted/Non-posted), LSU3 – see note
• Bit 17- Non-posted transaction received ERROR response, or error in response payload, LSU3
• Bit 18- Transaction was not sent due to Xoff condition, LSU3
• Bit 19- Transaction was not sent due to unsupported transaction type or invalid field encoding LSU3
• Bit 20- Transaction Timeout Occurred, LSU3
SPRU976 – March 2006 Serial RapidIO (SRIO) 79
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
• Bit 21- Transaction was not sent due to DMA data transfer error, LSU3
• Bit 22- Retry Doorbell response received or Atomic Test-and-swap was not allowed (semaphore in
use), LSU3
• Bit 23- Packet not sent due to unavailable outbound credit at given priority, LSU3
• Bit 24- Transaction complete, No Errors (Posted/Non-posted), LSU4 – see note
• Bit 25- Non-posted transaction received ERROR response, or error in response payload, LSU4
• Bit 26- Transaction was not sent due to Xoff condition, LSU4
• Bit 27- Transaction was not sent due to unsupported transaction type or invalid field encoding LSU4
• Bit 28- Transaction Timeout Occurred, LSU4
• Bit 29- Transaction was not sent due to DMA data transfer error, LSU4
• Bit 30- Retry Doorbell response received or Atomic Test-and-swap was not allowed (semaphore in
use), LSU4
• Bit 31- Packet not sent due to unavailable outbound credit at given priority, LSU4
Note: Enable for this interrupt is ultimately controlled by the Interrupt Req register bit of the
Load/Store command registers. This allows enabling/disabling on a per request basis. For
optimum LSU performance, interrupt pacing should not be used on the LSU interrupts.
Section 4.6 describes interrupt pacing.
Figure 50. ERR_RST_EVNT Error, Reset, and Special Event Interrupt
ERR_RST_EVNT Interrupt Condition Status Registers (ICSR) (Address Offset 0x0270)
31 17 16
Reserved ICS16
R-0 R/W-0
15 12 11 10 9 8 7 3 2 1 0
Reserved ICS11 ICS10 ICS9 ICS8 Reserved ICS2 ICS1 ICS0
R-0 R/W-0 R/W-0 R/W-0 R/W-0 R-0 R/W-0 R/W-0 R/W-0
LEGEND: R = Read, W = Write, n = value at reset
ERR_RST_EVNT Interrupt Condition Clear Registers (ICCR) (Address Offset 0x0278)
31 17 16
Reserved ICC16
R-0 W-0
15 12 11 10 9 8 7 3 2 1 0
Reserved ICC11 ICC10 ICC9 ICC8 Reserved ICC2 ICC1 ICC0
R-0 W-0 W-0 W-0 W-0 R-0 W-0 W-0 W-0
LEGEND: R = Read, W = Write, n = value at reset
Where:
• Bit 0 - Multi-cast event control symbol interrupt received on any port
• Bit 1 - Port-write-In request received on any port
• Bit 2 - Logical Layer Error Management Event Capture
• Bit 8 - Port0 Error
• Bit 9 - Port1 Error
• Bit 10 - Port2 Error
• Bit 11 - Port3 Error
• Bit 16 - Device Reset Interrupt from any port
80 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
The interrupt conditions are programmable to select the interrupt output that will be driven. Each condition
is independently programmable to use any of the interrupt destinations supported by the device. For
example, a quad core device may support four CPU servicing interrupt destinations, one per core
(INTDST0 for Core0, INTDST1 for Core1, INTDST2 for Core2, and INTDST3 for Core3). In addition,
INTDST4 may be globally routed to all cores and provide notification of a change in the Error Status
interrupt ICSR. INTDST5 may be globally routed to all cores and provide notification of a change in the
Device Reset interrupt ICSR. The routing defaults are shown below.
Table 27. Interrupt Condition Routing Options
Field Access Reset Value Value Function
ICRx R 0000b 0000b Routed to INTDST0
0001b Routed to INTDST1
0010b Routed to INTDST2
0011b Routed to INTDST3
0100b Routed to INTDST4
0101b Routed to INTDST5
0110b Routed to INTDST6
0111b Routed to INTDST7
1111b No interrupt destination, interrupt source disabled
other Reserved
Figure 51. Doorbell 0 Interrupt Condition Routing Registers
DOORBELL0_ICRR (Address Offset 0x280)
31 28 27 24 23 20 19 16
ICR7 ICR6 ICR5 ICR4
R/W-0000 R/W-0000 R/W-0000 R/W-0000
15 12 11 8 7 4 3 0
ICR3 ICR2 ICR1 ICR0
R/W-0000 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
DOORBELL0_ICRR2 (Address Offset 0x284)
31 28 27 24 23 20 19 16
ICR15 ICR14 ICR13 ICR12
R/W-0000 R/W-0000 R/W-0000 R/W-0000
15 12 11 8 7 4 3 0
ICR11 ICR10 ICR9 ICR8
R/W-0000 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
Other ICRRs have the same bit field map, with the following addresses:
• DOORBELL1_ICRR and DOORBELL1_ICCR2 (Address Offset 0x0290 and 0x0294)
• DOORBELL2_ICRR and DOORBELL2_ICRR2 (Address Offset 0x02A0 and 0x02A4)
• DOORBELL3_ICRR and DOORBELL3_ICRR2 (Address Offset 0x02B0 and 0x02B4)
• RX CPPI_ICRR and RX CPPI_ICRR2 (Address Offset 0x02C0 and 0x02C4)
• TX CPPI_ICRR and TX CPPI_ICRR2 (Address Offset 0x02D0 and 0x02D4)
SPRU976 – March 2006 Serial RapidIO (SRIO) 81
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
Figure 52. Load/Store Module Interrupt Condition Routing Registers
LSU_ICRR0 (Address Offset 0x02E0)
31 28 27 24 23 20 19 16
ICR7 ICR6 ICR5 ICR4
R/W-0000 R/W-0000 R/W-0000 R/W-0000
15 12 11 8 7 4 3 0
ICR3 ICR2 ICR1 ICR0
R/W-0000 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
LSU_ICRR1 (Address Offset 0x02E4)
31 28 27 24 23 20 19 16
ICR15 ICR14 ICR13 ICR12
R/W-0000 R/W-0000 R/W-0000 R/W-0000
15 12 11 8 7 4 3 0
ICR11 ICR10 ICR9 ICR8
R/W-0000 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
LSU_ICRR2 (Address Offset 0x02E8)
31 28 27 24 23 20 19 16
ICR23 ICR22 ICR21 ICR20
R/W-0000 R/W-0000 R/W-0000 R/W-0000
15 12 11 8 7 4 3 0
ICR19 ICR18 ICR17 ICR16
R/W-0000 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
LSU_ICRR3 (Address Offset 0x02EC)
31 28 27 24 23 20 19 16
ICR31 ICR30 ICR29 ICR28
R/W-0000 R/W-0000 R/W-0000 R/W-0000
15 12 11 8 7 4 3 0
ICR27 ICR26 ICR25 ICR24
R/W-0000 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
Serial RapidIO (SRIO)82 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Figure 53. Error, Reset, and Special Event Interrupt Condition Routing Registers
ERR_RST_EVNT_ICRR (Address Offset 0x02F0)
31 12 11 8 7 4 3 0
Reserved ICR2 ICR1 ICR0
R-0 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
ERR_RST_EVNT_ICRR2 (Address Offset 0x02F4)
31 16
Reserved
R-0
15 12 11 8 7 4 3 0
ICR11 ICR10 ICR9 ICR8
R/W-0000 R/W-0000 R/W-0000 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
ERR_RST_EVNT_ICRR3 (Address Offset 0x02F8)
Interrupt Conditions
31 4 3 0
Reserved ICR16
R-0 R/W-0000
LEGEND: R = Read, W = Write, n = value at reset
4.4 Interrupt Status Decode Registers
There are 8 blocks of the ICSRs to indicate the source of a pending interrupt.
0x0200: Doorbell0 interrupts
0x0210: Doorbell1 interrupts
0x0220: Doorbell2 interrupts
0x0230: Doorbell3 interrupts
0x0240: Rx CPPI interrupts
0x0250: Tx CPPI interrupts
0x0260: LSU interrupts
0x0270: Error, Reset, and Special Event interrupts
To reduce the number of reads (up to 5 reads) required to find the source bit, an Interrupt Status Decode
Register (ISDR) is implemented for each supported physical interrupt (INTDST0 – INTDST7). These
registers are shown in Figure 56 . Interrupt sources that select a particular physical interrupt destination
are mapped to specific bits in the decode register. The interrupt sources are only mapped to an interrupt
decode register if the ICRR routes the interrupt source to the corresponding physical interrupt. The status
decode bit is a logical OR of multiple interrupt sources that are mapped to the same bit. The mapping of
interrupt source bits to decode bits is fixed and non-programmable, as follows:
SPRU976 – March 2006 Serial RapidIO (SRIO) 83
Submit Documentation Feedback
www.ti.com
31 30 29 28 27 26 25 24 23 22 21 20 19 1618 17
LSU
Error, reset and special event
Tx CPPI [15:0]
Rx CPPI [15:0]
ISDR bits:
15ISDR bits: 14 13 12 11 6810 9 7 5 4 3 2 01
Doorbell 0 [15:0]
Doorbell 1 [15:0]
Doorbell 3 [15:0]
Doorbell 2 [15:0]
29
29
29
29
29
29
29
29
Interrupt Status
Decode Registers
INTDST0
INTDST1
INTDST2
INTDST3
INTDST4
INTDST5
INTDST6
INTDST7
TX CPPI ICRR
TX CPPI ICRR
TX CPPI ICSR
RX CPPI ICSR
2
2
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
Interrupt Conditions
Figure 54. Sharing of ISDR Bits
As an example, if bit 29 of the ISDR is set, this indicates that there is a pending interrupt on either the TX
CPPI queue 2 or RX CPPI queue 2. Figure 55 illustrates the decode routing.
Figure 55. Example Diagram of Interrupt Status Decode Register Mapping
84 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
LSU bits within the ICSR are logically grouped for a given core and ORd together into a single bit of the
decode register. Similarly, the Error/Reset/Special event bits within the ICSR are ORd together into a
single bit of the decode register. When either of these bits are set in the decode register, the CPU must
make additional reads to the corresponding ICSRs to determine that exact interrupt source. It is
recommended to arrange the Doorbell ICSRs per core, so that the CPU can determine the Doorbell
interrupt source from a single read of the decode register. If the RX and TX CPPI queues are assigned
orthogonally to different cores, the CPU can determine the CPPI interrupt source from a single read of the
decode registers as well. The only exception to this is bit 31 and 30 of the decode register (TX and RX
CPPI Queues 19 and 18) which are ORd with the LSU and Error bit, respectively.
Figure 56. INTDST n_Decode Interrupt Status Decode Register
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
ISDR3 ISDR3 ISDR2 ISDR2 ISDR2 ISDR2 ISDR2 ISDR2 ISDR2 ISDR2 ISDR2 ISDR2 ISDR1 ISDR1 ISDR1 ISDR1
1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6
R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ISDR1 ISDR1 ISDR1 ISDR1 ISDR1 ISDR1 ISDR9 ISDR8 ISDR7 ISDR6 ISDR5 ISDR4 ISDR3 ISDR2 ISDR1 ISDR0
5 4 3 2 1 0
R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0
LEGEND: R = Read, W = Write, n = value at reset
Offsets:
• INTDST0 – 0x0300
• INTDST1 – 0x0304
• INTDST2 – 0x0308
• INTDST3 – 0x030C
• INTDST4 – 0x0310
• INTDST5 – 0x0314
• INTDST6 – 0x0318
• INTDST7 – 0x031C
4.5 Interrupt Generation
Interrupts are triggered on a 0-to-1 logic-signal transition. Regardless of the interrupt sources, the physical
interrupts are set only when the total number of set ICSR bits transitions from none to one or more. The
peripheral is responsible for setting the correct bit within the ICSR. The ICRR register maps the pending
interrupt request to the appropriate physical interrupt line. The corresponding CPU is interrupted and
reads the ISDR and ICSR registers to determine the interrupt source and appropriate action. Interrupt
generation is governed by the interrupt pacing discussed Section 4.6 .
4.6 Interrupt Pacing
The rate at which an interrupt can be generated is controllable for each physical interrupt destination. Rate
control is implemented with a programmable down-counter. The load value of the counter is written by the
CPU into the appropriate interrupt rate control register (see Figure 57 ). The counter reloads and
immediately starts down-counting each time the CPU writes these registers. When the rate control counter
register is written, and the counter value reaches zero (note that the CPU may write zero immediately for
a zero count), the interrupt pulse generation logic is allowed to fire a single pulse if any bits in the
corresponding ICSR register bits are set (or become set after the zero count is reached). The counter
remains at zero. When the single pulse is generated, the logic will not generate another pulse, regardless
of interrupt status changes, until the rate control counter register is written again. If interrupt pacing is not
desired for a particular INTDST, the CPU must still write 0x00000000 into the INTDST n_RATE_CNTL
register after clearing the corresponding ICSR bits to acknowledge the physical interrupt. If an ICSR is not
mapped to an interrupt destination, pending interrupt bits within the ICSR maintain current status. Once
enabled, the interrupt logic re-evaluates all pending interrupts and re-pulses the interrupt signal if any
interrupt conditions are pending. The down-counter is based on the DMA clock cycle.
SPRU976 – March 2006 Serial RapidIO (SRIO) 85
Submit Documentation Feedback
www.ti.com
Interrupt Conditions
Figure 57. INTDST n_RATE_CNTL Interrupt Rate Control Register
31 0
32-bit Count Down Value
R/W-0
LEGEND: R = Read, W = Write, n = value at reset
Offsets:
• INTDST0 – 0x0320
• INTDST1 – 0x0324
• INTDST2 – 0x0328
• INTDST3 – 0x032C
• INTDST4 – 0x0330
• INTDST5 – 0x0334
• INTDST6 – 0x0338
• INTDST7 – 0x033C
4.7 Interrupt Handling
Interrupts are either signaled externally through RapidIO packets, or internally by state machines in the
peripheral. CPU servicing interrupts are signaled externally by the DOORBELL RapidIO packet in Direct
I/O mode, or internally by the CPPI module (described in section 8) in the message passing mode. Error
Status interrupts are signaled when error counting logic within the peripheral have reached their
thresholds. In either case, it is the peripheral that signals the interrupt and sets the corresponding status
bits.
When the CPU is interrupted, it reads the ICSR registers to determine the source of the interrupt and
appropriate action to take. For example, if it is a DOORBELL interrupt, the CPU will read from an L2
address that is specified by its circular buffer read pointer that is managed by software. There may be
more than one circular buffer for each core. The correct circular buffer to read from and increment
depends on the bit set in the ICSR register. The CPU then clears the status bit.
For Error Status interrupts, the peripheral must indicate to all the CPUs that one of the link ports has
reached the error threshold. In this case, the peripheral sets the status bit indicating degraded or failed
limits have been reached, and an interrupt is generated to each core through the ICRR mapping. The
cores can then scan the ICSR registers to determine the port with the error problems. Further action can
then be taken as determined by the application.
Interrupt Handler
temp1 = SRIO_REGS->TX_CPPI_ICSR;
if ((temp1 & 0x00000001) == 0x00000001)
{
SRIO_REGS->Queue0_TxDMA_CP = (int )TX_DESCP0_0;
}
temp2 = SRIO_REGS->RX_CPPI_ICSR;
if ((temp2 & 0x00000001) == 0x00000001)
{
SRIO_REGS->Queue0_RXDMA_CP = (int )RX_DESCP0_0;
}
interruptStatus[0] = SRIO_REGS->DOORBELL3_ICSR;
interruptStatus[1] = SRIO_REGS->DOORBELL3_ICCR;
interruptStatus[2] = SRIO_REGS->LSU_ICSR;
interruptStatus[3] = SRIO_REGS->LSU_ICCR;
interruptStatus[4] = SRIO_REGS->DOORBELL3_ICRR;
interruptStatus[5] = SRIO_REGS->DOORBELL3_ICRR2;
interruptStatus[6] = SRIO_REGS->LSU_ICRR;
interruptStatus[7] = SRIO_REGS->LSU_ICRR2;
interruptStatus[8] = SRIO_REGS->INTDST0_Decode;
interruptStatus[9] = SRIO_REGS->ERR_RST_EVNT_ICRR;
interruptStatus[10] = SRIO_REGS->INTDST0_Rate_CNTL;
86 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
interruptStatus[11] = SRIO_REGS->ERR_RST_EVNT_ICSR;
interruptStatus[12] = SRIO_REGS->ERR_RST_EVNT_ICCR;
SRIO_REGS->DOORBELL0_ICCR=0xFFFFFFFF;
SRIO_REGS->DOORBELL1_ICCR=0xFFFFFFFF;
SRIO_REGS->DOORBELL2_ICCR=0xFFFFFFFF;
SRIO_REGS->DOORBELL3_ICCR=0xFFFFFFFF;
SRIO_REGS->INTDST0_Rate_CNTL=1;
SRIO_REGS->LSU_ICCR = 0xFFFF;
SRIO_REGS->INTDST1_Rate_CNTL = 1;
Interrupt Conditions
SPRU976 – March 2006 Serial RapidIO (SRIO) 87
Submit Documentation Feedback
www.ti.com
SRIO Registers
5 SRIO Registers
5.1 Introduction
Table 28 lists the memory-mapped registers for the Serial Rapid IO (SRIO). See the device-specific data
manual for the memory address of these registers.
Table 28. Serial Rapid IO (SRIO) Registers
Offset Acronym Register Description Section
0x0000 PID Peripheral Identification Register Section 5.2
0x0004 PCR Peripheral Control Register Section 5.3
0x0020 PER_SET_CNTL Peripheral Settings Control Register Section 5.4
0x0030 GBL_EN Peripheral Global Enable Register Section 5.5
0x0034 GBL_EN_STAT Peripheral Global Enable Status Section 5.6
0x0038 BLK0_EN Block Enable 0 Section 5.7
0x003C BLK0_EN_STAT Block Enable Status 0 Section 5.8
0x0040 BLK1_EN Block Enable 1 Section 5.7
0x0044 BLK1_EN_STAT Block Enable Status 1 Section 5.8
0x0048 BLK2_EN Block Enable 2 Section 5.7
0x004C BLK2_EN_STAT Block Enable Status 2 Section 5.8
0x0050 BLK3_EN Block Enable 3 Section 5.7
0x0054 BLK3_EN_STAT Block Enable Status 3 Section 5.8
0x0058 BLK4_EN Block Enable 4 Section 5.7
0x005C BLK4_EN_STAT Block Enable Status 4 Section 5.8
0x0060 BLK5_EN Block Enable 5 Section 5.7
0x0064 BLK5_EN_STAT Block Enable Status 5 Section 5.8
0x0068 BLK6_EN Block Enable 6 Section 5.7
0x006C BLK6_EN_STAT Block Enable Status 6 Section 5.8
0x0070 BLK7_EN Block Enable 7 Section 5.7
0x0074 BLK7_EN_STAT Block Enable Status 7 Section 5.8
0x0078 BLK8_EN Block Enable 8 Section 5.7
0x007C BLK8_EN_STAT Block Enable Status 8 Section 5.8
0x0080 DEVICEID_REG1 RapidIO DEVICEID1 Register Section 5.9
0x0084 DEVICEID_REG2 RapidIO DEVICEID2 Register Section 5.10
0x0090 PF_16B_CNTL0 Packet Forwarding Register 0 for 16b DeviceIDs Section 5.11
0x0094 PF_8B_CNTL0 Packet Forwarding Register 0 for 8b DeviceIDs Section 5.12
0x0098 PF_16B_CNTL1 Packet Forwarding Register 1 for 16b DeviceIDs Section 5.11
0x009C PF_8B_CNTL1 Packet Forwarding Register 1 for 8b DeviceIDs Section 5.12
0x00A0 PF_16B_CNTL2 Packet Forwarding Register 2 for 16b DeviceIDs Section 5.11
0x00A4 PF_8B_CNTL2 Packet Forwarding Register 2 for 8b DeviceIDs Section 5.12
0x00A8 PF_16B_CNTL3 Packet Forwarding Register 3 for 16b DeviceIDs Section 5.11
0x00AC PF_8B_CNTL3 Packet Forwarding Register 3 for 8b DeviceIDs Section 5.12
0x0100 SERDES_CFGRX0_ SERDES Receive Channel Configuration Register 0 Section 5.13
CNTL
0x0104 SERDES_CFGRX1_ SERDES Receive Channel Configuration Register 1 Section 5.13
CNTL
0x0108 SERDES_CFGRX2_ SERDES Receive Channel Configuration Register 2 Section 5.13
CNTL
0x010C SERDES_CFGRX3_ SERDES Receive Channel Configuration Register 3 Section 5.13
CNTL
88 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x0110 SERDES_CFGTX0_ SERDES Transmit Channel Configuration Register 0 Section 5.14
0x0114 SERDES_CFGTX1_ SERDES Transmit Channel Configuration Register 1 Section 5.14
0x0118 SERDES_CFGTX2_ SERDES Transmit Channel Configuration Register 2 Section 5.14
0x011C SERDES_CFGTX3_ SERDES Transmit Channel Configuration Register 3 Section 5.14
0x0120 SERDES_CFG0_CN SERDES Macro Configuration Register 0 Section 5.15
0x0124 SERDES_CFG1_CN SERDES Macro Configuration Register 1 Section 5.15
0x0128 SERDES_CFG2_CN SERDES Macro Configuration Register 2 Section 5.15
0x012C SERDES_CFG3_CN SERDES Macro Configuration Register 3 Section 5.15
0x0200 DOORBELL0_ICSR DOORBELL Interrupt Status Register 0 Section 5.16
0x0208 DOORBELL0_ICCR DOORBELL Interrupt Clear Register 0 Section 5.17
0x0210 DOORBELL1_ICSR DOORBELL Interrupt Status Register 1 Section 5.16
0x0218 DOORBELL1_ICCR DOORBELL Interrupt Clear Register 1 Section 5.17
0x0220 DOORBELL2_ICSR DOORBELL Interrupt Status Register 2 Section 5.16
0x0228 DOORBELL2_ICCR DOORBELL Interrupt Clear Register 2 Section 5.17
0x0230 DOORBELL3_ICSR DOORBELL Interrupt Status Register 3 Section 5.16
0x0238 DOORBELL3_ICCR DOORBELL Interrupt Clear Register 3 Section 5.17
0x0240 RX_CPPI_ICSR RX CPPI Interrupt Status Register Section 5.18
0x0248 RX_CPPI_ICCR RX CPPI Interrupt Clear Register Section 5.19
0x0250 TX_CPPI_ICSR TX CPPI Interrupt Status Register Section 5.20
0x0258 TX_CPPI_ICCR TX CPPI Interrupt Clear Register Section 5.21
0x0260 LSU_ICSR LSU Interrupt Status Register Section 5.22
0x0268 LSU _ICCR LSU Interrupt Clear Register Section 5.23
0x0270 ERR_RST_EVNT_IC Error, Reset, and Special Event Interrupt Status Register Section 5.24
0x0278 ERR_RST_EVNT_IC Error, Reset, and Special Event Interrupt Clear Register Section 5.25
0x0280 DOORBELL0_ICRR DOORBELL0 Interrupt Condition Routing Register (bits 0 to 7) Section 5.26
0x0284 DOORBELL0_ICRR2 DOORBELL 0 Interrupt Condition Routing Register 2 (bits 8 to 15) Section 5.27
0x0290 DOORBELL1_ICRR DOORBELL1 Interrupt Condition Routing Register (bits 0 to 7) Section 5.26
0x0294 DOORBELL1_ICRR2 DOORBELL 1 Interrupt Condition Routing Register 2 (bits 8 to 15) Section 5.27
0x02A0 DOORBELL2_ICRR DOORBELL2 Interrupt Condition Routing Register (bits 0 to 7) Section 5.26
0x02A4 DOORBELL2_ICRR2 DOORBELL 2 Interrupt Condition Routing Register 2 (bits 8 to 15) Section 5.27
0x02B0 DOORBELL3_ICRR DOORBELL3 Interrupt Condition Routing Register (bits 0 to 7) Section 5.26
0x02B4 DOORBELL3_ICRR2 DOORBELL 3 Interrupt Condition Routing Register 2 (bits 8 to 15) Section 5.27
0x02C0 RX_CPPI _ICRR Receive CPPI Interrupt Condition Routing Register (0 to 7) Section 5.28
0x02C4 RX_CPPI _ICRR2 Receive CPPI Interrupt Condition Routing Register (8 to 15) Section 5.29
0x02D0 TX_CPPI _ICRR Transmit CPPI Interrupt Condition Routing Register (0 to 7) Section 5.30
0x02D4 TX_CPPI _ICRR2 Transmit CPPI Interrupt Condition Routing Register (8 to 15) Section 5.31
0x02E0 LSU_ICRR0 LSU Interrupt Condition Routing Register 0 Section 5.32
0x02E4 LSU_ICRR1 LSU Interrupt Condition Routing Register 1 Section 5.33
0x02E8 LSU_ICRR2 LSU Interrupt Condition Routing Register 2 Section 5.34
CNTL
CNTL
CNTL
CNTL
TL
TL
TL
TL
SR
CR
SPRU976 – March 2006 Serial RapidIO (SRIO) 89
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x02EC LSU_ICRR3 LSU Interrupt Condition Routing Register 3 Section 5.35
0x02F0 ERR_RST_EVNT_IC Error, Reset, and Special Event Interrupt Condition Routing Register Section 5.36
0x02F4 ERR_RST_EVNT_IC Error, Reset, and Special Event Interrupt Condition Routing Register 2 Section 5.37
0x02F8 ERR_RST_EVNT_IC Error, Reset, and Special Event Interrupt Condition Routing Register 3 Section 5.38
0x0300 INTDST0_DECODE INTDST Interrupt Status Decode Register 0 Section 5.39
0x0304 INTDST1_DECODE INTDST Interrupt Status Decode Register 1 Section 5.39
0x0308 INTDST2_DECODE INTDST Interrupt Status Decode Register 2 Section 5.39
0x030C INTDST3_DECODE INTDST Interrupt Status Decode Register 3 Section 5.39
0x0310 INTDST4_DECODE INTDST Interrupt Status Decode Register 4 Section 5.39
0x0314 INTDST5_DECODE INTDST Interrupt Status Decode Register 5 Section 5.39
0x0318 INTDST6_DECODE INTDST Interrupt Status Decode Register 6 Section 5.39
0x031C INTDST7_DECODE INTDST Interrupt Status Decode Register 7 Section 5.39
0x0320 INTDST0_RATE_CN INTDST Interrupt Rate Control Register 0 Section 5.40
0x0324 INTDST1_RATE_CN INTDST Interrupt Rate Control Register 1 Section 5.40
0x0328 INTDST2_RATE_CN INTDST Interrupt Rate Control Register 2 Section 5.40
0x032C INTDST3_RATE_CN INTDST Interrupt Rate Control Register 3 Section 5.40
0x0330 INTDST4_RATE_CN INTDST Interrupt Rate Control Register 4 Section 5.40
0x0334 INTDST5_RATE_CN INTDST Interrupt Rate Control Register 5 Section 5.40
0x0338 INTDST6_RATE_CN INTDST Interrupt Rate Control Register 6 Section 5.40
0x033C INTDST7_RATE_CN INTDST Interrupt Rate Control Register 7 Section 5.40
0x040 LSU1_REG0 LSU1 Control Register 0 Section 5.41
0x0404 LSU1_REG1 LSU1 Control Register 1 Section 5.42
0x0408 LSU1_REG2 LSU1 Control Register 2 Section 5.43
0x040C LSU1_REG3 LSU1 Control Register 3 Section 5.44
0x0410 LSU1_REG4 LSU1 Control Register 4 Section 5.45
0x0414 LSU1_REG5 LSU1 Control Register 5 Section 5.46
0x0418 LSU1_REG6 LSU1 Control Register 6 Section 5.47
0x041C LSU1_FLOW_MASK Core 0 LSU Congestion Control Flow Mask Register Section 5.48
0x0420 LSU2_REG0 LSU2 Control Register 0 Section 5.41
0x0424 LSU2_REG1 LSU2 Control Register 1 Section 5.42
0x0428 LSU2_REG2 LSU2 Control Register 2 Section 5.43
0x042C LSU2_REG3 LSU2 Control Register 3 Section 5.44
0x0430 LSU2_REG4 LSU2 Control Register 4 Section 5.45
0x0434 LSU2_REG5 LSU2 Control Register 5 Section 5.46
0x0438 LSU2_REG6 LSU2 Control Register 6 Section 5.47
0x043C LSU2_FLOW_MASK Core 1 LSU Congestion Control Flow Mask Register Section 5.48
0x0440 LSU3_REG0 LSU3 Control Register 0 Section 5.41
RR
RR2
RR3
TL
TL
TL
TL
TL
TL
TL
TL
S
S1
90 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x0444 LSU3_REG1 LSU3 Control Register 1 Section 5.42
0x0448 LSU3_REG2 LSU3 Control Register 2 Section 5.43
0x044C LSU3_REG3 LSU3 Control Register 3 Section 5.44
0x0450 LSU3_REG4 LSU3 Control Register 4 Section 5.45
0x0454 LSU3_REG5 LSU3 Control Register 5 Section 5.46
0x0458 LSU3_REG6 LSU3 Control Register 6 Section 5.47
0x045C LSU3_FLOW_MASK Core 2 LSU Congestion Control Flow Mask Register Section 5.48
0x0460 LSU4_REG0 LSU4 Control Register 0 Section 5.41
0x0464 LSU4_REG1 LSU4 Control Register 1 Section 5.42
0x0468 LSU4_REG2 LSU4 Control Register 2 Section 5.43
0x046C LSU4_REG3 LSU4 Control Register 3 Section 5.44
0x0470 LSU4_REG4 LSU4 Control Register 4 Section 5.45
0x0474 LSU4_REG5 LSU4 Control Register 5 Section 5.46
0x0478 LSU4_REG6 LSU4 Control Register 6 Section 5.47
0x047C LSU4_FLOW_MASK Core 3 LSU Congestion Control Flow Mask Register Section 5.48
0x0500 QUEUE0_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 0 Section 5.49
0x0504 QUEUE1_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 1 Section 5.49
0x0508 QUEUE2_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 2 Section 5.49
0x050C QUEUE3_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 3 Section 5.49
0x0510 QUEUE4_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 4 Section 5.49
0x0514 QUEUE5_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 5 Section 5.49
0x0518 QUEUE6_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 6 Section 5.49
0x051C QUEUE7_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 7 Section 5.49
0x0520 QUEUE8_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 8 Section 5.49
0x0524 QUEUE9_TXDMA_H Queue Transmit DMA Head Descriptor Pointer Register 9 Section 5.49
0x0528 QUEUE10_TXDMA_ Queue Transmit DMA Head Descriptor Pointer Register 10 Section 5.49
0x052C QUEUE11_TXDMA_ Queue Transmit DMA Head Descriptor Pointer Register 11 Section 5.49
0x0530 QUEUE12_TXDMA_ Queue Transmit DMA Head Descriptor Pointer Register 12 Section 5.49
0x0534 QUEUE13_TXDMA_ Queue Transmit DMA Head Descriptor Pointer Register 13 Section 5.49
0x0538 QUEUE14_TXDMA_ Queue Transmit DMA Head Descriptor Pointer Register 14 Section 5.49
0x053C QUEUE15_TXDMA_ Queue Transmit DMA Head Descriptor Pointer Register 15 Section 5.49
0x0580 QUEUE0_TXDMA_C Queue Transmit DMA Completion Pointer Register 0 Section 5.50
S2
S3
DP
DP
DP
DP
DP
DP
DP
DP
DP
DP
HDP
HDP
HDP
HDP
HDP
HDP
P
SPRU976 – March 2006 Serial RapidIO (SRIO) 91
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x0584 QUEUE1_TXDMA_C Queue Transmit DMA Completion Pointer Register 1 Section 5.50
0x0588 QUEUE2_TXDMA_C Queue Transmit DMA Completion Pointer Register 2 Section 5.50
0x058C QUEUE3_TXDMA_C Queue Transmit DMA Completion Pointer Register 3 Section 5.50
0x0590 QUEUE4_TXDMA_C Queue Transmit DMA Completion Pointer Register 4 Section 5.50
0x0594 QUEUE5_TXDMA_C Queue Transmit DMA Completion Pointer Register 5 Section 5.50
0x0598 QUEUE6_TXDMA_C Queue Transmit DMA Completion Pointer Register 6 Section 5.50
0x059C QUEUE7_TXDMA_C Queue Transmit DMA Completion Pointer Register 7 Section 5.50
0x05A0 QUEUE8_TXDMA_C Queue Transmit DMA Completion Pointer Register 8 Section 5.50
0x05A4 QUEUE9_TXDMA_C Queue Transmit DMA Completion Pointer Register 9 Section 5.50
0x05A8 QUEUE10_TXDMA_ Queue Transmit DMA Completion Pointer Register 10 Section 5.50
0x05AC QUEUE11_TXDMA_ Queue Transmit DMA Completion Pointer Register 11 Section 5.50
0x05B0 QUEUE12_TXDMA_ Queue Transmit DMA Completion Pointer Register 12 Section 5.50
0x05B4 QUEUE13_TXDMA_ Queue Transmit DMA Completion Pointer Register 13 Section 5.50
0x05B8 QUEUE14_TXDMA_ Queue Transmit DMA Completion Pointer Register 14 Section 5.50
0x05BC QUEUE15_TXDMA_ Queue Transmit DMA Completion Pointer Register 15 Section 5.50
0x0600 QUEUE0_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 0 Section 5.51
0x0604 QUEUE1_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 1 Section 5.51
0x0608 QUEUE2_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 2 Section 5.51
0x060C QUEUE3_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 3 Section 5.51
0x0610 QUEUE4_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 4 Section 5.51
0x0614 QUEUE5_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 5 Section 5.51
0x0618 QUEUE6_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 6 Section 5.51
0x061C QUEUE7_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 7 Section 5.51
0x0620 QUEUE8_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 8 Section 5.51
0x0624 QUEUE9_RXDMA_H Queue Receive DMA Head Descriptor Pointer Register 9 Section 5.51
0x0628 QUEUE10_RXDMA_ Queue Receive DMA Head Descriptor Pointer Register 10 Section 5.51
0x062C QUEUE11_RXDMA_ Queue Receive DMA Head Descriptor Pointer Register 11 Section 5.51
P
P
P
P
P
P
P
P
P
CP
CP
CP
CP
CP
CP
DP
DP
DP
DP
DP
DP
DP
DP
DP
DP
HDP
HDP
92 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x0630 QUEUE12_RXDMA_ Queue Receive DMA Head Descriptor Pointer Register 12 Section 5.51
0x0634 QUEUE13_RXDMA_ Queue Receive DMA Head Descriptor Pointer Register 13 Section 5.51
0x0638 QUEUE14_RXDMA_ Queue Receive DMA Head Descriptor Pointer Register 14 Section 5.51
0x063C QUEUE15_RXDMA_ Queue Receive DMA Head Descriptor Pointer Register 15 Section 5.51
0x0680 QUEUE0_RXDMA_C Queue Receive DMA Completion Pointer Register 0 Section 5.52
0x0684 QUEUE1_RXDMA_C Queue Receive DMA Completion Pointer Register 1 Section 5.52
0x0688 QUEUE2_RXDMA_C Queue Receive DMA Completion Pointer Register 2 Section 5.52
0x068C QUEUE3_RXDMA_C Queue Receive DMA Completion Pointer Register 3 Section 5.52
0x0690 QUEUE4_RXDMA_C Queue Receive DMA Completion Pointer Register 4 Section 5.52
0x0694 QUEUE5_RXDMA_C Queue Receive DMA Completion Pointer Register 5 Section 5.52
0x0698 QUEUE6_RXDMA_C Queue Receive DMA Completion Pointer Register 6 Section 5.52
0x069C QUEUE7_RXDMA_C Queue Receive DMA Completion Pointer Register 7 Section 5.52
0x06A0 QUEUE8_RXDMA_C Queue Receive DMA Completion Pointer Register 8 Section 5.52
0x06A4 QUEUE9_RXDMA_C Queue Receive DMA Completion Pointer Register 9 Section 5.52
0x06A8 QUEUE10_RXDMA_ Queue Receive DMA Completion Pointer Register 10 Section 5.52
0x06AC QUEUE11_RXDMA_ Queue Receive DMA Completion Pointer Register 11 Section 5.52
0x06B0 QUEUE12_RXDMA_ Queue Receive DMA Completion Pointer Register 12 Section 5.52
0x06B4 QUEUE13_RXDMA_ Queue Receive DMA Completion Pointer Register 13 Section 5.52
0x06B8 QUEUE14_RXDMA_ Queue Receive DMA Completion Pointer Register 14 Section 5.52
0x06BC QUEUE15_RXDMA_ Queue Receive DMA Completion Pointer Register 15 Section 5.52
0x0700 TX_QUEUE_TEAR_ Transmit Queue Teardown Register Section 5.53
0x0704 TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 0 Section 5.54
0x0708 TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 1 Section 5.54
0x070C TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 2 Section 5.54
0x0710 TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 3 Section 5.54
0x0714 TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 4 Section 5.54
0x0718 TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 5 Section 5.54
HDP
HDP
HDP
HDP
P
P
P
P
P
P
P
P
P
P
CP
CP
CP
CP
CP
CP
DOWN
SKS0
SKS1
SKS2
SKS3
SKS4
SKS5
SPRU976 – March 2006 Serial RapidIO (SRIO) 93
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x071C TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 6 Section 5.54
0x0720 TX_CPPI_FLOW_MA Transmit CPPI Supported Flow Mask Register 7 Section 5.54
0x0740 RX_QUEUE_TEAR_ Receive Queue Teardown Register Section 5.55
0x0744 RX_CPPI_CNTL Receive CPPI Control Register Section 5.56
0x07E0 TX_QUEUE_CNTL0 Transmit CPPI Weighted Round Robin Control Register 0 Section 5.57
0x07E4 TX_QUEUE_CNTL1 Transmit CPPI Weighted Round Robin Control Register 1 Section 5.58
0x07E8 TX_QUEUE_CNTL2 Transmit CPPI Weighted Round Robin Control Register 2 Section 5.59
0x07EC TX_QUEUE_CNTL3 Transmit CPPI Weighted Round Robin Control Register 3 Section 5.60
0x0800 RXU_MAP_L0 MailBox-to-Queue Mapping Register L0 Section 5.61
0x0804 RXU_MAP_H0 MailBox-to-Queue Mapping Register H0 Section 5.62
0x0808 RXU_MAP_L1 MailBox-to-Queue Mapping Register L1 Section 5.61
0x080C RXU_MAP_H1 MailBox-to-Queue Mapping Register H1 Section 5.62
0x0810 RXU_MAP_L2 MailBox-to-Queue Mapping Register L2 Section 5.61
0x0814 RXU_MAP_H2 MailBox-to-Queue Mapping Register H2 Section 5.62
0x0818 RXU_MAP_L3 MailBox-to-Queue Mapping Register L3 Section 5.61
0x081C RXU_MAP_H3 MailBox-to-Queue Mapping Register H3 Section 5.62
0x0820 RXU_MAP_L4 MailBox-to-Queue Mapping Register L4 Section 5.61
0x0824 RXU_MAP_H4 MailBox-to-Queue Mapping Register H4 Section 5.62
0x0828 RXU_MAP_L5 MailBox-to-Queue Mapping Register L5 Section 5.61
0x082C RXU_MAP_H5 MailBox-to-Queue Mapping Register H5 Section 5.62
0x0830 RXU_MAP_L6 MailBox-to-Queue Mapping Register L6 Section 5.61
0x0834 RXU_MAP_H6 MailBox-to-Queue Mapping Register H6 Section 5.62
0x0838 RXU_MAP_L7 MailBox-to-Queue Mapping Register L7 Section 5.61
0x083C RXU_MAP_H7 MailBox-to-Queue Mapping Register H7 Section 5.62
0x0840 RXU_MAP_L8 MailBox-to-Queue Mapping Register L8 Section 5.61
0x0844 RXU_MAP_H8 MailBox-to-Queue Mapping Register H8 Section 5.62
0x0848 RXU_MAP_L9 MailBox-to-Queue Mapping Register L9 Section 5.61
0x084C RXU_MAP_H9 MailBox-to-Queue Mapping Register H9 Section 5.62
0x0850 RXU_MAP_L10 MailBox-to-Queue Mapping Register L10 Section 5.61
0x0854 RXU_MAP_H10 MailBox-to-Queue Mapping Register H10 Section 5.62
0x0858 RXU_MAP_L11 MailBox-to-Queue Mapping Register L11 Section 5.61
0x085C RXU_MAP_H11 MailBox-to-Queue Mapping Register H11 Section 5.62
0x0860 RXU_MAP_L12 MailBox-to-Queue Mapping Register L12 Section 5.61
0x0864 RXU_MAP_H12 MailBox-to-Queue Mapping Register H12 Section 5.62
0x0868 RXU_MAP_L13 MailBox-to-Queue Mapping Register L13 Section 5.61
0x086C RXU_MAP_H13 MailBox-to-Queue Mapping Register H13 Section 5.62
0x0870 RXU_MAP_L14 MailBox-to-Queue Mapping Register L14 Section 5.61
0x0874 RXU_MAP_H14 MailBox-to-Queue Mapping Register H14 Section 5.62
0x0878 RXU_MAP_L15 MailBox-to-Queue Mapping Register L15 Section 5.61
0x087C RXU_MAP_H15 MailBox-to-Queue Mapping Register H15 Section 5.62
0x0880 RXU_MAP_L16 MailBox-to-Queue Mapping Register L16 Section 5.61
0x0884 RXU_MAP_H16 MailBox-to-Queue Mapping Register H16 Section 5.62
0x0888 RXU_MAP_L17 MailBox-to-Queue Mapping Register L17 Section 5.61
0x088C RXU_MAP_H17 MailBox-to-Queue Mapping Register H17 Section 5.62
SKS6
SKS7
DOWN
94 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x0890 RXU_MAP_L18 MailBox-to-Queue Mapping Register L18 Section 5.61
0x0894 RXU_MAP_H18 MailBox-to-Queue Mapping Register H18 Section 5.62
0x0898 RXU_MAP_L19 MailBox-to-Queue Mapping Register L19 Section 5.61
0x089C RXU_MAP_H19 MailBox-to-Queue Mapping Register H19 Section 5.62
0x08A0 RXU_MAP_L20 MailBox-to-Queue Mapping Register L20 Section 5.61
0x08A4 RXU_MAP_H20 MailBox-to-Queue Mapping Register H20 Section 5.62
0x08A8 RXU_MAP_L21 MailBox-to-Queue Mapping Register L21 Section 5.61
0x08AC RXU_MAP_H21 MailBox-to-Queue Mapping Register H21 Section 5.62
0x08B0 RXU_MAP_L22 MailBox-to-Queue Mapping Register L22 Section 5.61
0x08B4 RXU_MAP_H22 MailBox-to-Queue Mapping Register H22 Section 5.62
0x08B8 RXU_MAP_L23 MailBox-to-Queue Mapping Register L23 Section 5.61
0x08BC RXU_MAP_H23 MailBox-to-Queue Mapping Register H23 Section 5.62
0x08C0 RXU_MAP_L24 MailBox-to-Queue Mapping Register L24 Section 5.61
0x08C4 RXU_MAP_H24 MailBox-to-Queue Mapping Register H24 Section 5.62
0x08C8 RXU_MAP_L25 MailBox-to-Queue Mapping Register L25 Section 5.61
0x08CC RXU_MAP_H25 MailBox-to-Queue Mapping Register H25 Section 5.62
0x08D0 RXU_MAP_L26 MailBox-to-Queue Mapping Register L26 Section 5.61
0x08D4 RXU_MAP_H26 MailBox-to-Queue Mapping Register H26 Section 5.62
0x08D8 RXU_MAP_L27 MailBox-to-Queue Mapping Register L27 Section 5.61
0x08DC RXU_MAP_H27 MailBox-to-Queue Mapping Register H27 Section 5.62
0x08E0 RXU_MAP_L28 MailBox-to-Queue Mapping Register L28 Section 5.61
0x08E4 RXU_MAP_H28 MailBox-to-Queue Mapping Register H28 Section 5.62
0x08E8 RXU_MAP_L29 MailBox-to-Queue Mapping Register L29 Section 5.61
0x08EC RXU_MAP_H29 MailBox-to-Queue Mapping Register H29 Section 5.62
0x08F0 RXU_MAP_L30 MailBox-to-Queue Mapping Register L30 Section 5.61
0x08F4 RXU_MAP_H30 MailBox-to-Queue Mapping Register H30 Section 5.62
0x08F8 RXU_MAP_L31 MailBox-to-Queue Mapping Register L31 Section 5.61
0x08FC RXU_MAP_H31 MailBox-to-Queue Mapping Register H31 Section 5.62
0x0900 FLOW_CNTL0 Flow Control Table Entry Register 0 Section 5.63
0x0904 FLOW_CNTL1 Flow Control Table Entry Register 1 Section 5.63
0x0908 FLOW_CNTL2 Flow Control Table Entry Register 2 Section 5.63
0x090C FLOW_CNTL3 Flow Control Table Entry Register 3 Section 5.63
0x0910 FLOW_CNTL4 Flow Control Table Entry Register 4 Section 5.63
0x0914 FLOW_CNTL5 Flow Control Table Entry Register 5 Section 5.63
0x0918 FLOW_CNTL6 Flow Control Table Entry Register 6 Section 5.63
0x091C FLOW_CNTL7 Flow Control Table Entry Register 7 Section 5.63
0x0920 FLOW_CNTL8 Flow Control Table Entry Register 8 Section 5.63
0x0924 FLOW_CNTL9 Flow Control Table Entry Register 9 Section 5.63
0x0928 FLOW_CNTL10 Flow Control Table Entry Register 10 Section 5.63
0x092C FLOW_CNTL11 Flow Control Table Entry Register 11 Section 5.63
0x0930 FLOW_CNTL12 Flow Control Table Entry Register 12 Section 5.63
0x0934 FLOW_CNTL13 Flow Control Table Entry Register 13 Section 5.63
0x0938 FLOW_CNTL14 Flow Control Table Entry Register 14 Section 5.63
0x093C FLOW_CNTL15 Flow Control Table Entry Register 15 Section 5.63
0x1000 DEV_ID Device Identity CAR Section 5.64
0x1004 DEV_INFO Device Information CAR Section 5.65
SPRU976 – March 2006 Serial RapidIO (SRIO) 95
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x1008 ASBLY_ID Assembly Identity CAR Section 5.66
0x100C ASBLY_INFO Assembly Information CAR Section 5.67
0x1010 PE_FEAT Processing Element Features CAR Section 5.68
0x1018 SRC_OP Source Operations CAR Section 5.69
0x101C DEST_OP Destination Operations CAR Section 5.70
0x104C PE_LL_CTL Processing Element Logical Layer Control CSR Section 5.71
0x1058 LCL_CFG_HBAR Local Configuration Space Base Address 0 CSR Section 5.72
0x105C LCL_CFG_BAR Local Configuration Space Base Address 1 CSR Section 5.73
0x1060 BASE_ID Base Device ID CSR Section 5.74
0x1068 HOST_BASE_ID_LO Host Base Device ID Lock CSR Section 5.75
0x106C COMP_TAG Component Tag CSR Section 5.76
0x1100 SP_MB_HEAD 1x/4x LP_Serial Port Maintenance Block Header Section 5.77
0x1120 SP_LT_CTL Port Link Time-Out Control CSR Section 5.78
0x1124 SP_RT_CTL Port Response Time-Out Control CSR Section 5.79
0x113C SP_GEN_CTL Port General Control CSR Section 5.80
0x1140 SP0_LM_REQ Port 0 Link Maintenance Request CSR Section 5.81
0x1144 SP0_LM_RESP Port 0 Link Maintenance Response CSR Section 5.82
0x1148 SP0_ACKID_STAT Port 0 Local AckID Status CSR Section 5.83
0x1158 SP0_ERR_STAT Port 0 Error and Status CSR Section 5.84
0x115C SP0_CTL Port 0 Control CSR Section 5.85
0x1160 SP1_LM_REQ Port 1 Link Maintenance Request CSR Section 5.81
0x1164 SP1_LM_RESP Port 1 Link Maintenance Response CSR Section 5.82
0x1168 SP1_ACKID_STAT Port 1 Local AckID Status CSR Section 5.83
0x1178 SP1_ERR_STAT Port 1 Error and Status CSR Section 5.84
0x117C SP1_CTL Port 1 Control CSR Section 5.85
0x1180 SP2_LM_REQ Port 2 Link Maintenance Request CSR Section 5.81
0x1184 SP2_LM_RESP Port 2 Link Maintenance Response CSR Section 5.82
0x1188 SP2_ACKID_STAT Port 2 Local AckID Status CSR Section 5.83
0x1198 SP2_ERR_STAT Port 2 Error and Status CSR Section 5.84
0x119C SP2_CTL Port 2 Control CSR Section 5.85
0x11A0 SP3_LM_REQ Port 3 Link Maintenance Request CSR Section 5.81
0x11A4 SP3_LM_RESP Port 3 Link Maintenance Response CSR Section 5.82
0x11A8 SP3_ACKID_STAT Port 3 Local AckID Status CSR Section 5.83
0x11B8 SP3_ERR_STAT Port 3 Error and Status CSR Section 5.84
0x11BC SP3_CTL Port 3 Control CSR Section 5.85
0x2000 ERR_RPT_BH Error Reporting Block Header Section 5.86
0x2008 ERR_DET Logical/Transport Layer Error Detect CSR Section 5.87
0x200C ERR_EN Logical/Transport Layer Error Enable CSR Section 5.88
0x2010 H_ADDR_CAPT Logical/Transport Layer High Address Capture CSR Section 5.89
0x2014 ADDR_CAPT Logical/Transport Layer Address Capture CSR Section 5.90
0x2018 ID_CAPT Logical/Transport Layer Device ID Capture CSR Section 5.91
0x201C CTRL_CAPT Logical/Transport Layer Control Capture CSR Section 5.92
0x2028 PW_TGT_ID Port-Write Target Device ID CSR Section 5.93
0x2040 SP0_ERR_DET Port 0 Error Detect CSR Section 5.94
0x2044 SP0_RATE_EN Port 0 Error Enable CSR Section 5.95
CK
96 Serial RapidIO (SRIO) SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x2048 SP0_ERR_ATTR_CA Port 0 Attributes Error Capture CSR 0 Section 5.96
0x204C SP0_ERR_CAPT_DB Port 0 Packet/Control Symbol Error Capture CSR 1 Section 5.97
0x2050 SP0_ERR_CAPT_DB Port 0 Packet/Control Symbol Error Capture CSR 2 Section 5.98
0x2054 SP0_ERR_CAPT_DB Port 0 Packet/Control Symbol Error Capture CSR 3 Section 5.99
0x2058 SP0_ERR_CAPT_DB Port 0 Packet/Control Symbol Error Capture CSR 4 Section 5.100
0x2068 SP0_ERR_RATE Port 0 Error Rate CSR 0 Section 5.101
0x206C SP0_ERR_THRESH Port 0 Error Rate Threshold CSR Section 5.102
0x2080 SP1_ERR_DET Port 1 Error Detect CSR Section 5.94
0x2084 SP1_RATE_EN Port 1 Error Enable CSR Section 5.95
0x2088 SP1_ERR_ATTR_CA Port 1 Attributes Error Capture CSR 0 Section 5.96
0x208C SP1_ERR_CAPT_DB Port 1 Packet/Control Symbol Error Capture CSR 1 Section 5.97
0x2090 SP1_ERR_CAPT_DB Port 1 Packet/Control Symbol Error Capture CSR 2 Section 5.98
0x2094 SP1_ERR_CAPT_DB Port 1 Packet/Control Symbol Error Capture CSR 3 Section 5.99
0x2098 SP1_ERR_CAPT_DB Port 1 Packet/Control Symbol Error Capture CSR 4 Section 5.100
0x20A8 SP1_ERR_RATE Port 1 Error Rate CSR Section 5.101
0x20AC SP1_ERR_THRESH Port 1 Error Rate Threshold CSR Section 5.102
0x20C0 SP2_ERR_DET Port 2 Error Detect CSR Section 5.94
0x20C4 SP2_RATE_EN Port 2 Error Enable CSR Section 5.95
0x20C8 SP2_ERR_ATTR_CA Port 2 Attributes Error Capture CSR 0 Section 5.96
0x20CC SP2_ERR_CAPT_DB Port 2 Packet/Control Symbol Error Capture CSR 1 Section 5.97
0x20D0 SP2_ERR_CAPT_DB Port 2 Packet/Control Symbol Error Capture CSR 2 Section 5.98
0x20D4 SP2_ERR_CAPT_DB Port 2 Packet/Control Symbol Error Capture CSR 3 Section 5.99
0x20D8 SP2_ERR_CAPT_DB Port 2 Packet/Control Symbol Error Capture CSR 4 Section 5.100
0x20E8 SP2_ERR_RATE Port 2 Error Rate CSR Section 5.101
0x20EC SP2_ERR_THRESH Port 2 Error Rate Threshold CSR Section 5.102
0x2100 SP3_ERR_DET Port 3 Error Detect CSR Section 5.94
0x2104 SP3_RATE_EN Port 3 Error Enable CSR Section 5.95
0x2108 SP3_ERR_ATTR_CA Port 3 Attributes Error Capture CSR 0 Section 5.96
0x210C SP3_ERR_CAPT_DB Port 3 Packet/Control Symbol Error Capture CSR 1 Section 5.97
0x2110 SP3_ERR_CAPT_DB Port 3 Packet/Control Symbol Error Capture CSR 2 Section 5.98
0x2114 SP3_ERR_CAPT_DB Port 3 Packet/Control Symbol Error Capture CSR 3 Section 5.99
0x2118 SP3_ERR_CAPT_DB Port 3 Packet/Control Symbol Error Capture CSR 4 Section 5.100
PT_DBG0
G1
G2
G3
G4
PT_DBG0
G1
G2
G3
G4
PT_DBG0
G1
G2
G3
G4
PT_DBG0
G1
G2
G3
G4
SPRU976 – March 2006 Serial RapidIO (SRIO) 97
Submit Documentation Feedback
www.ti.com
SRIO Registers
Table 28. Serial Rapid IO (SRIO) Registers (continued)
Offset Acronym Register Description Section
0x2128 SP3_ERR_RATE Port 3 Error Rate CSR Section 5.101
0x212C SP3_ERR_THRESH Port 3 Error Rate Threshold CSR Section 5.102
0x12000 SP_IP_DISCOVERY Port IP Discovery Timer in 4x mode Section 5.103
0x12004 SP_IP_MODE Port IP Mode CSR Section 5.104
0x12008 IP_PRESCAL Serial Port IP Prescalar Section 5.105
0x12010 SP_IP_PW_IN_CAPT Port-Write-In Capture CSR Register 0 Section 5.106
0x12014 SP_IP_PW_IN_CAPT Port-Write-In Capture CSR Register 1 Section 5.106
0x12018 SP_IP_PW_IN_CAPT Port-Write-In Capture CSR Register 2 Section 5.106
0x1201C SP_IP_PW_IN_CAPT Port-Write-In Capture CSR Register 3 Section 5.106
0x14000 SP0_RST_OPT Port 0 Reset Option CSR Section 5.107
0x14004 SP0_CTL_INDEP Port 0 Control Independent Register Section 5.108
0x14008 SP0_SILENCE_TIME Port 0 Silence Timer Register Section 5.109
0x1400C SP0_MULT_EVNT_C Port 0 Multicast-Event Control Symbol Request Register Section 5.110
0x14014 SP0_CS_TX Port 0 Control Symbol Transmit Register Section 5.111
0x14100 SP1_RST_OPT Port 1 Reset Option CSR Section 5.107
0x14104 SP1_CTL_INDEP Port 1 Control Independent Register Section 5.108
0x14108 SP1_SILENCE_TIME Port 1 Silence Timer Register Section 5.109
0x1410C SP1_MULT_EVNT_C Port 1 Multicast-Event Control Symbol Request Register Section 5.110
0x14114 SP1_CS_TX Port 1 Control Symbol Transmit Register Section 5.111
0x14200 SP2_RST_OPT Port 2 Reset Option CSR Section 5.107
0x14204 SP2_CTL_INDEP Port 2 Control Independent Register Section 5.108
0x14208 SP2_SILENCE_TIME Port 2 Silence Timer Register Section 5.109
0x1420C SP2_MULT_EVNT_C Port 2 Multicast-Event Control Symbol Request Register Section 5.110
0x14214 SP2_CS_TX Port 2 Control Symbol Transmit Register Section 5.111
0x14300 SP3_RST_OPT Port 3 Reset Option CSR Section 5.107
0x14304 SP3_CTL_INDEP Port 3 Control Independent Register Section 5.108
0x14308 SP3_SILENCE_TIME Port 3 Silence Timer Register Section 5.109
0x1430C SP3_MULT_EVNT_C Port 3 Multicast-Event Control Symbol Request Register Section 5.110
0x14314 SP3_CS_TX Port 3 Control Symbol Transmit Register Section 5.111
_TIMER
0
1
2
3
R
S
R
S
R
S
R
S
Serial RapidIO (SRIO)98 SPRU976 – March 2006
Submit Documentation Feedback
www.ti.com
SRIO Registers
5.2 Peripheral Identification Register (PID)
The peripheral identification register (PID) is a constant register that contains the ID and ID revision
number for that peripheral. The PID stores version information used to identify the peripheral. All bits
within this register are read-only (writes have no effect) meaning that the values within this register should
be hard-coded with the appropriate values and must not change from their reset state.
Figure 58. Peripheral ID Register (PID)
31-24 23-16
Reserved TYPE
R-0x00 R-0x01
LEGEND: R = Read only; - n = value after reset
15-8 7-0
CLASS REV
R-0x0A R-0x01
LEGEND: R = Read only; - n = value after reset
Table 29. Peripheral ID Register (PID) Field Descriptions
Bit Field Value Description
31-24 Reserved Reserved
23-16 TYPE Peripheral type: Identifies the type of the peripheral RIO
15-8 CLASS Peripheral class: Identifies the class Switch Fabric
7-0 REV Peripheral revision: Identifies the revision of the peripheral. This value should begin at 0x01 and be
incremented each time the design is revised .
SPRU976 – March 2006 Serial RapidIO (SRIO) 99
Submit Documentation Feedback
www.ti.com
SRIO Registers
5.3 Peripheral Control Register (PCR)
The peripheral control register (PCR) contains a bit that enables or disables the entire peripheral and one
bit for every module within the peripheral where this level of control is desired. The module control bits can
only be written when the peripheral itself is enabled. In addition, the PCR has emulation control bits free
and soft, which control the peripheral behavior during emulation halts.
Figure 59. Peripheral Control Register (PCR)
31-16
Reserved
R-0x00
LEGEND: R = Read only; - n = value after reset
15-3 2 1 0
Reserved PERE SOFT FREE
R-0x00 RW- RW- RW-
LEGEND: R = Read only; - n = value after reset
Table 30. Peripheral Control Register (PCR) Field Descriptions
Bit Field Value Description
31-3 Reserved Reserved
2 PEREN Peripheral Enable. Controls the flow of data in the logical layer of the peripheral. As an initiator, it
will prevent TX transaction generation and as a target, it will disable incoming requests. This should
be the last enable bit to toggle when bringing the device out of reset to begin normal operation.
0b Disables data flow control
1b Enables data flow control
1 SOFT Emulation Control - SOFT bit
0 FREE Emulation Control - FREE bit
N
0x00 0x00 0x01
Serial RapidIO (SRIO)100 SPRU976 – March 2006
