Texas Instruments TLV320AIC32EVM, TLV320AIC32EVM-PDK User Manual

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's

This user's guide describes the characteristics, operation, and use of the TLV320AIC32EVM, both by itself and as part of the TLV320AIC32EVM-PDK. This evaluation module (EVM) is a complete stereo audio codec with several inputs and outputs, extensive audio routing, mixing and effects capabilities. A complete circuit description, schematic diagram and bill of materials are also included.

The following related documents are available through the Texas Instruments web site at www.ti.com .

EVM-Compatible Device Data Sheets

Device Literature Number

TLV320AIC32 SLAS479 TAS1020B SLES025 REG1117-3.3 SBVS001 TPS767D318 SLVS209 SN74LVC125A SCAS290 SN74LVC1G125 SCES223 SN74LVC1G07 SCES296

User's Guide

SBAU113 – November 2005

Guide

Contents

1 EVM Overview ............................................................................................................... 2

2 Analog Interface .............................................................................................................. 3

3 Digital Interface .............................................................................................................. 4

4 Power Supplies .............................................................................................................. 5

5 EVM Operation ............................................................................................................... 6

6 Kit Operation ................................................................................................................. 7

7 EVM Bill of Materials ....................................................................................................... 36

Appendix A TLV320AIC32EVM Schematic .................................................................................. 40

Appendix B USB-MODEVM Schematic ...................................................................................... 41

List of Figures

1 TLV320AIC32EVM-PDK Block Diagram ................................................................................. 8

2 Default Software Screen .................................................................................................. 10

3 Audio Generator Screen .................................................................................................. 12

4 Audio Analyzer Screen ................................................................................................... 13

5 Audio Input Tab ............................................................................................................ 14

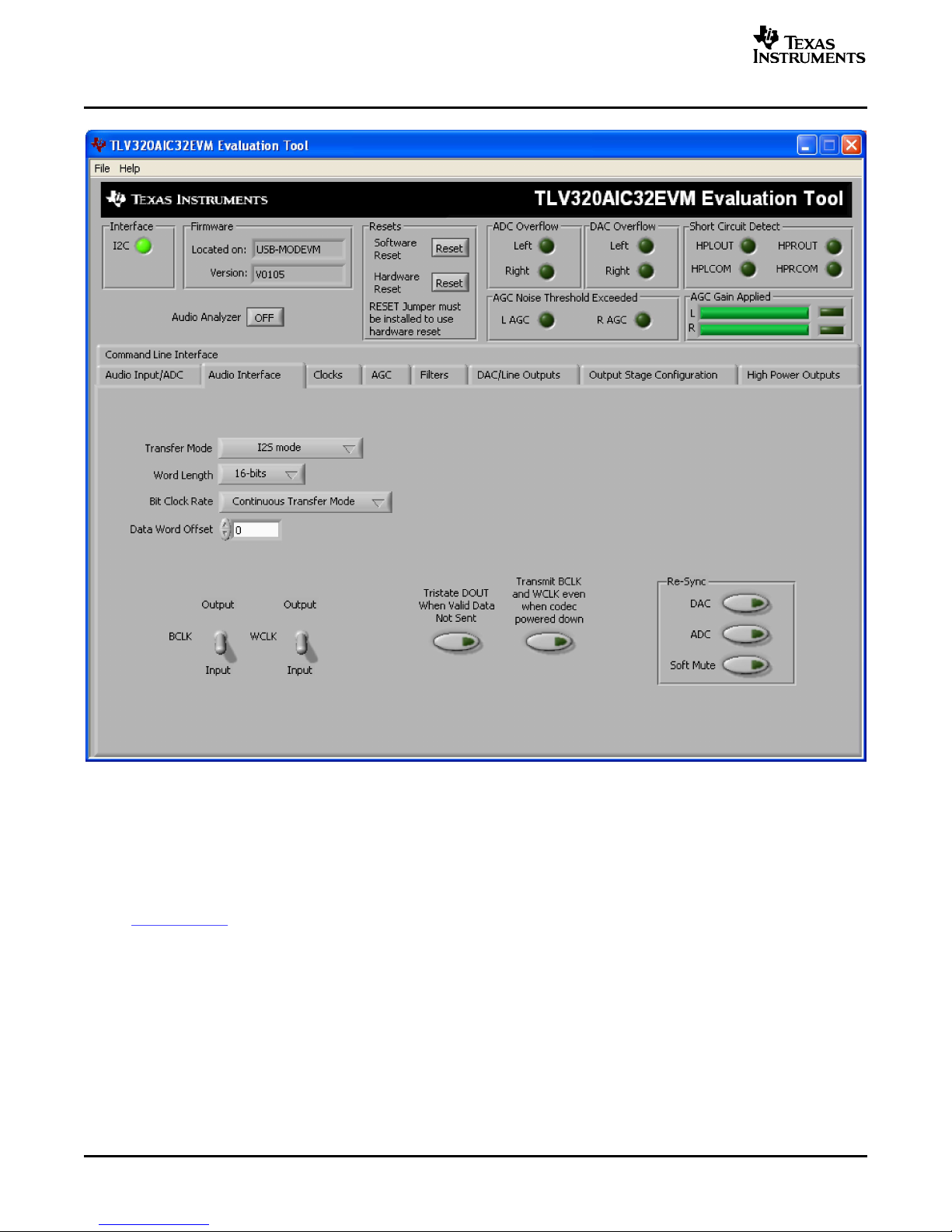

6 Audio Interface Tab ....................................................................................................... 16

7 Clocks Tab ................................................................................................................. 17

I2S, I2C are trademarks of Koninklijke Philips Electronics N.V. Windows is a trademark of Microsoft Corporation. SPI is a trademark of Motorola, Inc. LabView is a trademark of National Instruments. All trademarks are the property of their respective owners.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 1

www.ti.com

EVM Overview

8 AGC Tab .................................................................................................................... 19

9 Filters Tab .................................................................................................................. 20

10 ADC Highpass Filter Settings ............................................................................................ 21

11 Enabling Filters ............................................................................................................ 21

12 Shelf Filters ................................................................................................................. 22

13 EQ Filters ................................................................................................................... 22

14 Analog Simulation Filters ................................................................................................. 23

15 Preset Filters ............................................................................................................... 23

16 De-emphasis Filters ....................................................................................................... 24

17 User Filters ................................................................................................................. 25

18 3D Effect Settings ......................................................................................................... 25

19 DAC/Line Outputs Tab .................................................................................................... 26

20 Output Stage Configuration Tab ......................................................................................... 28

21 High Power Outputs Tab ................................................................................................. 29

22 Command Line Interface Tab ............................................................................................ 30

23 File Menu ................................................................................................................... 31

List of Tables

1 Analog Interface Pinout ..................................................................................................... 3

2 Alternate Analog Connectors ............................................................................................... 4

3 Digital Interface Pinout ...................................................................................................... 4

4 Power Supply Pin Out ....................................................................................................... 5

5 List of Jumpers ............................................................................................................... 7

6 USB-MODEVM SW2 Settings ............................................................................................. 9

7 USB Control Endpoint HIDSETREPORT Request .................................................................... 31

8 Data Packet Configuration ................................................................................................ 32

9 GPIO Pin Assignments .................................................................................................... 34

10 TLV320AIC32EVM Bill of Materials ...................................................................................... 37

11 USB-MODEVM Bill of Materials .......................................................................................... 38

1 EVM Overview

1.1 Features

1.2 Introduction

• Full-featured evaluation board for the TLV320AIC32 stereo audio codec.

• Modular design for use with a variety of digital signal processor (DSP) and microcontroller interface

boards.

The TLV320AIC32EVM-PDK is a complete evaluation kit, which includes a universal serial bus (USB)-based motherboard and evaluation software for use with a personal computer running Microsoft Windows™ operating systems (Win2000 or XP).

The TLV320AIC32EVM is in Texas Instruments' modular EVM form factor, which allows direct evaluation of the device performance and operating characteristics, and eases software development and system prototyping. This EVM is compatible with the 5-6K Interface Evaluation Module (SLAU104 ) and the HPA-MCUINTERFACE (SLAU106 ) from Texas Instruments and additional third-party boards that support the TI Modular EVM format.

The TLV320AIC32EVM-PDK is a complete evaluation/demonstration kit, which includes a USB-based motherboard called the USB-MODEVM Interface board and evaluation software for use with a personal computer running Microsoft Windows operating systems.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide2 SBAU113 – November 2005

www.ti.com

2 Analog Interface

Analog Interface

For maximum flexibility, the TLV320AIC32EVM is designed for easy interfacing to multiple analog sources. Samtec part numbers SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient 10-pin dual row header/socket combination at J1 and J2. These headers/sockets provide access to the analog input and output pins of the device. Consult Samtec at www.samtec.com or call 1-800-SAMTEC-9 for a variety of mating connector options. Table 1 summarizes the analog interface pinout for the TLV320AIC32EVM.

Table 1. Analog Interface Pinout

PIN NUMBER SIGNAL DESCRIPTION

J1.1 HPLCOM High Power Output Driver (Left Minus or Multifunctional) J1.2 HPLOUT High Power Output Driver (Left Plus) J1.3 HPRCOM High Power Output Driver (Right Minus or Multifunctional) J1.4 HPROUT High Power Output Driver (Right Plus) J1.5 LINE1L Left Input 1 J1.6 LINE1R Right Input 1 J1.7 LINE2L Left Input 2 J1.8 LINE2R Right Input 2 J1.9 AGND Analog Ground J1.10 MIC3L Left Input 3 J1.11 AGND Analog Ground J1.12 MIC3R Right Input 3 J1.13 AGND Analog Ground J1.14 MICBIAS Microphone Bias Voltage Output J1.15 NC Not Connected J1.16 NC Not Connected J1.17 AGND Analog Ground J1.18 NC Not Connected J1.19 AGND Analog Ground J1.20 NC Not Connected J2.1 NC Not Connected J2.2 NC Not Connected J2.3 NC Not Connected J2.4 NC Not Connected J2.5 NC Not Connected J2.6 NC Not Connected J2.7 LEFT_LOP Left Line Output (Plus) J2.8 LEFT_LOM Left Line Output (Minus) J2.9 AGND Analog Ground J2.10 RIGHT_LOP Right Line Output (Plus) J2.11 AGND Analog Ground J2.12 RIGHT_LOM Right Line Output (Minus) J2.13 AGND Analog Ground J2.14 NC Not Connected J2.15 NC Not Connected J2.16 NC Not Connected J2.17 AGND Analog Ground J2.18 NC Not Connected J2.19 AGND Analog Ground J2.20 NC Not Connected

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 3

www.ti.com

Digital Interface

3 Digital Interface

In addition to the analog headers, the analog inputs and outputs may also be accessed through alternate connectors, either screw terminals or audio jacks. The stereo microphone input is also tied to J8 and the stereo headphone output (the HP set of outputs) is available at J9.

Table 2 summarizes the screw terminals available on the TLV320AIC32EVM.

Table 2. Alternate Analog Connectors

DESIGNATOR PIN 1 PIN 2 PIN3

J6 AGND LINE1R LINE1L J7 MIC3L MIC3R AGND J10 (+) LEFT_LOP (-) LEFT_LOM J11 (+) RIGHT_LOP (-) RIGHT_LOM J12 (+) HPLOUT (-) HPLCOM AGND J13 (+) HPROUT (-) HPRCOM AGND J14 AGND LINE2R LINE2L

The TLV320AIC32EVM is designed to easily interface with multiple control platforms. Samtec part numbers SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient 10-pin dual row header/socket combination at J4 and J5. These headers/sockets provide access to the digital control and serial data pins of the device. Consult Samtec at www.samtec.com or call 1-800- SAMTEC-9 for a variety of mating connector options. Table 3 summarizes the digital interface pinout for the TLV320AIC32EVM.

Table 3. Digital Interface Pinout

PIN NUMBER SIGNAL DESCRIPTION

J4.1 NC Not Connected J4.2 NC Not Connected J4.3 NC Not Connected J4.4 DGND Digital Ground J4.5 NC Not Connected J4.6 NC Not Connected J4.7 NC Not Connected J4.8 RESET INPUT Reset signal input to AIC32EVM J4.9 NC Not Connected J4.10 DGND Digital Ground J4.11 NC Not Connected J4.12 NC Not Connected J4.13 NC Not Connected J4.14 AIC32 /RESET Reset J4.15 NC Not Connected J4.16 SCL I2C Serial Clock J4.17 NC Not Connected J4.18 DGND Digital Ground J4.19 NC Not Connected J4.20 SDA I2C Serial Data Input/Output J5.1 NC Not Connected J5.2 NC Not Connected J5.3 BCLK Audio Serial Data Bus Bit Clock (Input/Output) J5.4 DGND Digital Ground

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide4 SBAU113 – November 2005

www.ti.com

Table 3. Digital Interface Pinout (continued)

PIN NUMBER SIGNAL DESCRIPTION

J5.5 NC Not Connected J5.6 NC Not Connected J5.7 WCLK Audio Serial Data Bus Word Clock (Input/Output) J5.8 NC Not Connected J5.9 NC Not Connected J5.10 DGND Digital Ground J5.11 DIN Audio Serial Data Bus Data Input (Input) J5.12 NC Not Connected J5.13 DOUT Audio Serial Data Bus Data Output (Output) J5.14 NC Not Connected J5.15 NC Not Connected J5.16 SCL I2C Serial Clock J5.17 MCLK Master Clock Input J5.18 DGND Digital Ground J5.19 NC Not Connected J5.20 SDA I2C Serial Data Input/Output

Note that J5 comprises the signals needed for an I2S™ serial digital audio interface; the control interface ( I2C™ and RESET) signals are routed to J4. I2C is actually routed to both connectors; however, the device is connected only to J4.

Power Supplies

4 Power Supplies

J3 provides connection to the common power bus for the TLV320AIC32EVM. Power is supplied on the pins listed in Table 4 .

The TLV320AIC32EVM-PDK motherboard (the USB-MODEVM Interface board) supplies power to J3 of the TLV320AIC32EVM. Power for the motherboard is supplied either through its USB connection or via terminal blocks on that board.

4.1 Stand-Alone Operation

When used as a stand-alone EVM, power can be applied to J3 directly. The user must be sure to reference the supplies to the appropriate grounds on that connector.

Table 4. Power Supply Pin Out

SIGNAL PIN NUMBER SIGNAL

NC J3.1 J3.2 NC

+5VA J3.3 J3.4 NC

DGND J3.5 J3.6 AGND

DVDD (1.8V) J3.7 J3.8 NC

IOVDD (3.3V) J3.9 J3.10 NC

CAUTION

Verify that all power supplies are within the safe operating limits shown on the TLV320AIC32 data sheet before applying power to the EVM.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 5

www.ti.com

EVM Operation

4.2 USB-MODEVM Interface Power

The USB-MODEVM Interface board can be powered from several different sources:

• USB

• 6VDC-10VDC AC/DC external wall supply (not included)

• Lab power supply

When powered from the USB connection, JMP6 should have a shunt from pins 1–2 (this is the default factory configuration). When powered from 6V-10VDC, either through the J8 terminal block or the J9 barrel jack, JMP6 should have a shunt installed on pins 2-3. If power is applied in any of these ways, onboard regulators generate the required supply voltages and no further power supplies are necessary.

If lab supplies are used to provide the individual voltages required by the USB-MODEVM Interface, JMP6 should have no shunt installed. Voltages are then applied to J2 (+5VA), J3 (+5VD), J4 (+1.8VD), and J5 (+3.3VD). The +1.8VD and +3.3VD can also be generated on the board by the onboard regulators from the +5VD supply; to enable this configuration, the switches on SW1 need to be set to enable the regulators by placing them in the ON position (lower position, looking at the board with text reading right-side up). If +1.8VD and +3.3VD are supplied externally, disable the onboard regulators by placing SW1 switches in the OFF position.

Each power supply voltage has an LED (D1-D7) that lights when the power supplies are active.

5 EVM Operation

This section provides information on the analog input and output, digital control, and general operating conditions for the TLV320AIC32EVM.

5.1 Analog Input

The analog input sources can be applied directly to J1 (top or bottom side) or through signal conditioning modules available for the modular EVM system.

The analog inputs may also be accessed through J8 and and screw terminals J6, J7, and J14.

5.2 Analog Output

The analog outputs from the TLV320AIC32 are available on J1 and J2 (top or bottom). They also may be accessed through J9, J10, J11, J12, and J13.

5.3 Digital Control

The digital control signals can be applied directly to J4 and J5 (top or bottom side). The modular TLV320AIC32EVM can also be connected directly to a DSP interface board, such as the 5-6KINTERFACE or HPA-MCUINTERFACE, or to the USB-MODEVM Interface board if purchased as part of the TLV320AIC32EVM-PDK. See the product folder for this EVM or the TLV320AIC32 for a current list of compatible interface and/or accessory boards.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide6 SBAU113 – November 2005

www.ti.com

5.4 Default Jumper Locations

Table 5 lists the jumpers found on the EVM and their respective factory default conditions.

JUMPER POSITION JUMPER DESCRIPTION

JMP1 Installed Connects analog and digital grounds JMP2 Open Selects on-board EEPROM as firmware source JMP3 Installed Connects on-board Mic to Left Microphone Input JMP4 Installed Connects on-board Mic to Right Microphone Input JMP5 Installed Provides a means of measuring IOVDD current JMP6 Installed Provides a means of measuring DVDD current JMP7 Installed Provides a means of measuring DRVDD current JMP8 Installed Provides a means of measuring AVDD_DAC current JMP9 Open When installed, allows the USB-MODEVM to hardware reset the device under user

JMP10 2-3 When connecting 2-3, mic bias comes from the MICBIAS pin on the device; when

JMP11 Installed When installed, shorts across the output capacitor on HPLOUT; remove this jumper if

JMP12 Installed When installed, shorts HPLCOM and HPRCOM. Use only if these signals are set to

JMP13 Installed When installed, shorts across the output capacitor on HPLCOM; remove this jumper if

JMP14 Installed When installed, shorts across the output capacitor on HPROUT; remove this jumper if

JMP15 Installed When installed, shorts across the output capacitor on HPRCOM; remove this jumper if

Kit Operation

Table 5. List of Jumpers

DEFAULT

control

connecting 1-2, mic bias is supplied from the power supply through a resistor, which the user must install.

using AC-coupled output drive

constant VCM.

using AC-coupled output drive

6 Kit Operation

This section provides information on using the TLV320AIC32EVM-PDK, including set up, program installation, and program usage.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 7

www.ti.com

EVM Position 2

EVM Position 1

TLV320AIC32EVM

Control Interface

TLV320AIC32

TAS1020B

USB 8051

Microcontroller

USB

SPI, I C

I S, AC97

Audio Interface

Kit Operation

6.1 TLV320AIC32EVM-PDK Block Diagram

A block diagram of the TLV320AIC32EVM-PDK is shown in Figure 1 . The evaluation kit consists of two circuit boards connected together. The motherboard is designated as the USB-MODEVM Interface board, while the daughtercard is the TLV320AIC32EVM described previously in this manual.

Figure 1. TLV320AIC32EVM-PDK Block Diagram

The USB-MODEVM Interface board is intended to be used in USB mode, where control of the installed EVM is accomplished using the onboard USB controller device. Provision is made, however, for driving all the data buses (I2C, SPI™, I2S/AC97) externally. The source of these signals is controlled by SW2 on the USB-MODEVM. Refer to Table 6 for details on the switch settings.

8 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide SBAU113 – November 2005

www.ti.com

Table 6. USB-MODEVM SW2 Settings

SW-2 SWITCH NUMBER LABEL SWITCH DESCRIPTION

1 A0 USB-MODEVM EEPROM I2C Address A0

ON: A0 = 0 OFF: A0 = 1

2 A1 USB-MODEVM EEPROM I2C Address A1

ON: A1 = 0 OFF: A1 = 1

3 A2 USB-MODEVM EEPROM I2C Address A2

ON: A2 = 0 OFF: A2 = 1

4 USB I2S I2S Bus Source Selection

ON: I2S Bus connects to TAS1020 OFF: I2S Bus connects to USB-MODEVM J14

5 USB MCK I2S Bus MCLK Source Selection

ON: MCLK connects to TAS1020 OFF: MCLK connects to USB-MODEVM J14

6 USB SPI SPI Bus Source Selection

ON: SPI Bus connects to TAS1020 OFF: SPI Bus connects to USB-MODEVM J15

7 USB RST RST Source Selection

ON: EVM Reset Signal comes from TAS1020 OFF: EVM Reset Signal comes from USB-MODEVM J15

8 EXT MCK External MCLK Selection

ON: MCLK Signal is provided from USB-MODEVM J10 OFF: MCLK Signal comes from either selection of SW2-5

Kit Operation

For use with the TLV320AIC32EVM, SW-2 positions 1 through 7 should be set to ON, while SW-2.8 should be set to OFF.

6.2 Installation

Ensure that the TLV320AIC32EVM is installed on the USB-MODEVM Interface board, aligning J1, J2, J3, J4, J5 with the corresponding connectors on the USB-MODEVM.

Place the CD-ROM into your PC CD-ROM drive. Locate the Setup program on the disk, and start it. The Setup program will install the TLV320AIC32 Evaluation software on your PC.

After the main program is installed, the NI-VISA Runtime installer will automatically run. This software allows the program to communicate with the USB-MODEVM.

When the installation completes, click Finish on the TLV320AIC32EVM installer window. You may be prompted to restart your computer.

When installation is complete, attach a USB cable from your PC to the USB-MODEVM Interface board. As configured at the factory, the board will be powered from the USB interface, so the power indicator LEDs on the USB-MODEVM should light. Once this connection is established, launch the TLV320AIC32 Evaluation software on your PC.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 9

Kit Operation

The software should automatically find the TLV320AIC32EVM, and a screen similar to the one in Figure 2 should appear.

www.ti.com

6.3 USB-MODEVM Interface Board

The simple diagram shown in Figure 1 shows only the basic features of the USB-MODEVM Interface board. The board is built around a TAS1020B streaming audio USB controller with an 8051-based core. The board features two positions for modular EVMs, or one double-wide serial modular EVM may be installed.

Since the TLV320AIC32EVM is a double-wide modular EVM, it is installed with connections to both EVM positions, which connects the TLV320AIC32 digital control interface to the I2C port realized using the TAS1020B, as well as the TAS1020B digital audio interface.

In the factory configuration, the board is ready to use with the TLV320AIC32EVM. To view all the functions and configuration options available on the USB-MODEVM board, see the USB-MODEVM Interface Board schematic in Appendix B.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide10 SBAU113– November 2005

Figure 2. Default Software Screen

www.ti.com

6.4 Program Description

After the TLV320AIC32EVM-PDK software installation (described in Section 6.2 ) is complete, evaluation and development with the TLV320AIC32 can begin.

6.5 Indicators and Main Screen Controls

Figure 2 illustrates the indicators and controls near the top of the software screen display, and a large

tabbed interface below. This section discusses the controls above this tabbed section. At the top left of the screen is an Interface indicator. The TLV320AIC32 has an I2C interface. The

indicator is lit after the program begins. To the right of the Interface indicator is a group box called Firmware. This box indicates where the

firmware being used is operating from—in this release, the firmware is on the USB-MODEVM, so you should see USB-MODEVM in the box labeled Located On:. The version of the firmware appears in the Version box below this.

To the right, the next group box contains controls for resetting the TLV320AIC32. A software reset can be done by writing to a register in the TLV320AIC32; the writing is accomplished by pushing the button labeled Software Reset. The TLV320AIC32 also may be reset by toggling a pin on the TLV320AIC32, which is done by pushing the Hardware Reset button.

In order to perform a hardware reset, the RESET jumper (JMP9) must be installed and SW2-7 on the USB-MODEVM must be turned OFF. Failure to do either of these steps results in not generating a hardware reset or causing unstable operation of the EVM, which may require cycling power to the USB-MODEVM.

Kit Operation

CAUTION

6.5.1 Audio Analyzer

The ADC Overflow and DAC Overflow indicators light when the overflow flags are set in the TLV320AIC32. These indicators, as well as the other indicators on this panel, update only when the software's front panel is inactive, once every 20ms. Below these indicators are other indicators that show when the AGC noise threshold is exceeded. To the far right on this screen, the short-circuit indicators show when a short-circuit condition is detected, if this feature has been enabled. Below the short-circuit indicators is a bar graph that shows the amount of gain which has been applied by the AGC, and indicators that light when the AGC is saturated.

Near the left side of the screen is a button labeled Audio Analyzer; this button can be set to ON or OFF. Pressing the button to turn it ON opens another window (see Figure 3 ). This feature provides the ability to generate signals to be sent to the TLV320AIC32 DACs, as well as viewing and analyzing signals read by the TLV320AIC32 ADCs. This ability to view and process the real-time streaming USB audio is a demanding task. Use of the Audio Analyzer feature requires a PC with at least 512MB of memory and reasonable processor speed (> 1GHz); computers with inadequate resources could still use the Audio Analyzer to generate signals for the DACs, but will be unable to process signals from the ADCs because the FFT, distortion analysis, and signal-to-noise ratio analysis will not be able to keep up with the data processing requirements.

The Audio Analyzer features two tabs. The front tab, shown in Figure 3 and titled Generator, creates digital waveforms to send to the DACs. When first started, the function will be set to SNR (Output Zeros) which feeds only zero codes to the DAC. This function is commonly performed to test for the noise floor of the DAC.

The second function available is THD (-1dB sinewave). This function sends a sinewave at a coherent frequency to the 44.1kHz sample rate to the DACs; this function is commonly used for testing THD+N.

These first two functions do not require any further settings; therefore, the frequency and amplitude knobs below the function selector are not used. Selecting a function of Function Generator allows the choice of waveform shape by using the pull-down menu next to the function selector, and the frequency and amplitude of that signal can be varied using the knobs below.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 11

www.ti.com

Kit Operation

The output waveforms for both left and right channels are displayed in the graph at the bottom of the screen in Figure 3 .

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide12 SBAU113 – November 2005

Figure 3. Audio Generator Screen

www.ti.com

The second tab, titled Analyzer (Figure 4 ), handles the display and analysis of data from the ADCs.

Kit Operation

The analyzer screen features a graph of the input signals, both left and right channels, in a time domain display at the top of the screen, and in the frequency domain (FFT) at the bottom of the screen.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 13

Figure 4. Audio Analyzer Screen

www.ti.com

Kit Operation

Next to the time domain plots, calculated values of SINAD, SNR, and THD are shown. These values are all expressed in dB relative to the full-scale of the TLV320AIC32. Note that the SNR number shown is A-weighted.

In Figure 4 , a sine wave generated by the TLV320AIC32 DACs is fed through the high power drivers and back into the ADC; then the resulting FFTs can be seen. Note that this sequence is a full analog loopback test case, so the measured numbers show the combined performance of the DAC, drivers, and ADC. There is also no post-DAC filtering; as noted in the data sheet, this may degrade measurements even though there is no audible noise.

6.6 Audio Input/ADC Tab

The Audio Input/ADC Tab is laid out like an audio mixing console. Each input channel has a vertical strip that corresponds to that channel. LINE1L and LINE1R input strips have controls to route that input to either the left or right ADC input; by default, all inputs are muted when the TLV320AIC32 is powered up. To route an input to the ADC, first click on the MUTE button in the input channel strip which corresponds to the ADC input channel you want that input to go to—the caption on the button will change to ACTIVE. The level of the input channel routed to that particular ADC channel can then be adjusted using the Level knob below the MUTE/ACTIVE button. See Figure 5 .

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide14 SBAU113 – November 2005

Figure 5. Audio Input Tab

www.ti.com

Similarly, the LINE2L and LINE2R inputs can be routed to the ADC. However, note that these inputs do not have the choice to route to either ADC channel, they can only be configured to connect to the corresponding ADC input.

The MIC3L and MIC3R inputs are similar to the LINE1L and LINE1R inputs in that they can be routed to either ADC input channel. Control of the mic bias is accomplished by using the pull-down menu at the top of these channel strips. The mic bias can either be powered down or set to 2.0V, 2.5V, or the power supply voltage of the ADC (AVDD_ADC).

To use the on-board microphone, JMP3 and JMP4 must be installed and nothing should be plugged into J8. In order for the mic bias settings in the software to take effect, JMP10 should be set to connect positions 2 and 3, so that mic bias is controlled by the TLV320AIC32.

In the upper right of this tab are controls for Weak Common Mode Bias. Enabling these controls will result in unselected inputs to the ADC channels to be weakly biased to the ADC common mode voltage.

Below these controls are the controls for the ADC PGA—the master volume controls for the ADC inputs. Each channel of the ADC can be powered up or down as needed using the Powered Up buttons. PGA soft-stepping for each channel is selected using the control below this. The large knobs set the actual ADC PGA Gain; at the extreme counterclockwise rotation, the channel is muted. Rotating the knob clockwise increases the PGA gain.

6.7 Audio Interface Tab

The Audio Interface tab (Figure 6 ) sets up the audio data interface to the TLV320AIC32. For use with the PC software and the USB-MODEVM, the default settings should be used. If using an external I2S source, or other data source, the interface mode may be selected using the Transfer Mode control—selecting either I2S mode, DSP mode, or Right- or Left-Justified modes. Word length can be selected using the

Word Length control, and the bit clock rate can also be selected using the Bit Clock rate control. The Data Word Offset, used in TDM mode (see the product datasheet ) can also be selected on this tab.

Kit Operation

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 15

www.ti.com

Kit Operation

Along the bottom of this tab are controls for choosing the BLCK and WCLK as being either inputs or outputs, as well as options for tristating the DOUT line when there is not valid data and transmitting BLCK and WCLK when the codec is powered down.

Re-sync of the audio bus is enabled using the controls in the lower right corner of this screen. Re-sync is done if the group delay changes by more than ±FS/4 for the ADC or DAC sample rates (see the

TLV320AIC32 datasheet). The channels can be soft muted when doing the re-sync if the Soft Mute button

is enabled.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide16 SBAU113 – November 2005

Figure 6. Audio Interface Tab

www.ti.com

6.8 Clocks Tab

The TLV320AIC32 has a very flexible scheme for generating the clock sources for ADC and DAC sample rates. The Clocks tab allows access to set the different options for setting up these clocks. Refer to the Audio Clock Generation Processing figure ( Figure 24) in the TLV320AIC32 datasheet.

For use with the PC software and the USB-MODEVM, the clock settings must be set a certain way. These settings are not the default settings of the TLV320AIC32. The EVM-required settings can be loaded automatically by pushing the Load EVM Clock Settings button at the bottom of this tab. Note that changing any of the clock settings from the values loaded when this button is pushed may result in the EVM not working properly with the PC software or USB interface. If an external audio bus is used (audio not driven over the USB bus), then settings may be changed to any valid combination. See Figure 7 .

Kit Operation

The codec clock source is chosen by the CODEC_CLK Source control. When this control is set to CLKDIV_OUT, the PLL is not used; when set to PLLDIV_OUT, the PLL is used to generate the clocks.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 17

Figure 7. Clocks Tab

www.ti.com

Kit Operation

6.8.1 Use Without PLL

Setting up the TLV320AIC32 for clocking without using the PLL is straightforward. The CLKDIV_IN source can be selected as either MCLK or BCLK; the default is MCLK. The CLKDIV_IN frequency is then entered into the CLKDIV_IN box, in megahertz (MHz). The default value shown, 11.2896MHz, is the frequency used on the USB-MODEVM board. This value is then divided by the value of Q, which can be set from 2 to 17; the resulting CLKDIV_OUT frequency is shown in the indicator next to the Q control.

This frequency will then be used to calculate the actual Fsref frequency, and the ADC and DAC sample rates, after the NADC and NDAC factors are applied to the Fsref. If dual rate mode is desired, this option can be enabled for either the ADC or DAC by pressing the corresponding Dual Rate Mode button.

6.8.2 Use With The PLL

When PLLDIV_OUT is selected as the codec clock source, the PLL is used. The PLL clock source is chosen using the PLLCLK_IN control, and may be set to either MCLK or BCLK. The PLLCLK_IN frequency is then entered into the PLLCLK_IN Source box.

The PLL_OUT and PLLDIV_OUT indicators show the resulting PLL output frequencies with the values set for the P, K, and R parameters of the PLL. Refer to the TLV320AIC32 datasheet for an explanation of these parameters. The parameters can be set by clicking on the up/down arrows of the P, K, and R combo boxes, or they can be typed into these boxes. The values can also be calculated by the PC software.

To use the PC software to find the ideal values of P, K, and R for a given PLL input frequency and desired Fsref, the desired Fsref must be set using the switch on this tab; it can be set to either 44.1kHz or 48kHz. Once the desired Fsref and PLLCLK_IN values are correctly set, pushing the Search for Ideal Settings button starts the software searching for ideal combinations of P, K, and R which achieve the desired Fsref. The possible settings for these parameters are displayed in the spreadsheet-like table labeled Possible Settings. Clicking on a row in this table sets the P, K, and R values in the software and updates the PLL_OUT and PLLDIV_OUT readings, as well as the Actual Fsref and Error displays. This process does not actually load the values into the TLV320AIC32, however; it only updates the displays in the software. This allows for different possible solutions to be selected and the error evaluated before loading into the device.

When a suitable combination of P,K, and R have been chosen, pressing the Load Settings into Device? button will download these values into the appropriate registers on the TLV320AIC32.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide18 SBAU113 – November 2005

www.ti.com

6.9 AGC Tab

The AGC tab (see Figure 8 ) consists of two identical sets of controls, one for the left channel and the other for the right channel. The AGC function is described in the TLV320AIC32 datasheet.

Kit Operation

The AGC can be enabled for each channel using the Enable AGC button. Target gain, Attack time in milliseconds, Decay time in milliseconds, and the Maximum PGA Gain Allowed can all be set, respectively, using the four corresponding knobs in each channel.

Noise gate functions, such as Hysteresis, Clip stepping, Threshold, and Signal and Noise Detect debouncing are set using the corresponding controls in the Noise Gate groupbox for each channel.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 19

Figure 8. AGC Tab

www.ti.com

Kit Operation

6.10 Filters Tab

The TLV320AIC32 has a very rich feature set for applying digital filtering to audio signals. This tab controls all of the filter features of the TLV320AIC32. In order to use this tab and plot filter responses correctly, the DAC sample rate must be set properly. Therefore, the clocks must be set up correctly in the software following the discussion in Section 6.8 . See Figure 9 .

The right-hand side of this tab shows a display which plots the magnitude and phase response of each biquad section, plus the combined responses of the two biquad sections. The coefficients used for the plotted responses are shown below the graph for both Biquad 1 and Biquad 2. Note that the plot shows only the responses of the effect filters, not the combined response of those filters along with the de-emphasis and ADC high-pass filters.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide20 SBAU113 – November 2005

Figure 9. Filters Tab

www.ti.com

6.10.1 ADC Highpass Filters

The ADC of the TLV320AIC32 can have a high-pass filter enabled, which helps to reduce the effects of DC offsets in the system. This function is enabled as shown in Figure 10 . The four options for this setting are disabled, or three different corner frequencies which are based on the ADC sample rate.

6.10.2 Enabling Filters

The de-emphasis and effect filters (the biquad filters) of the TLV320AIC32 are selected using the checkboxes shown in Figure 11 . The De-emphasis filters are described in the TLV320AIC32 datasheet, and their coefficients may be changed (see Section 6.10.7 ).

Kit Operation

Figure 10. ADC Highpass Filter Settings

When designing filters for use with TLV320AIC32, the software allows for several different filter types to be used. These options are shown on a tab control in the lower left corner of the screen. When a filter type is selected, and suitable input parameters defined, the response will be shown in the Effect Filter Response graph. Regardless of the setting for enabling the Effect Filter, the filter coefficients are not loaded into the TLV320AIC32 until the Download Coefficients button is pressed. To avoid noise during the update of coefficients, it is recommended that you uncheck the Effect Filter enable checkboxes before downloading coefficients. Once the desired coefficients are in the TLV320AIC32, enable the Effect Filters by checking the boxes again.

6.10.3 Shelf Filters

A shelf filter is a simple filter that applies a gain (positive or negative) to frequencies above or below a certain corner frequency. As shown in Figure 12 , in Bass mode, a shelf filter applies a gain to frequencies below the corner frequency; in Treble mode, the gain is applied to frequencies above the corner frequency.

Figure 11. Enabling Filters

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 21

www.ti.com

Kit Operation

Figure 12. Shelf Filters

6.10.4 EQ Filters

To use these filters, enter the gain desired and the corner frequency. Choose the mode to use ( Bass or Treble); the response will be plotted on the Effect Filter Response graph.

EQ, or parametric, filters can be designed on this tab. Enter a gain, bandwidth, and a center frequency (Fc). Either bandpass (positive gain) or band-reject (negative gain) filters can be created.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide22 SBAU113 – November 2005

Figure 13. EQ Filters

www.ti.com

6.10.5 Analog Simulation Filters

Biquads are quite good at simulating analog filter designs. For each biquad section on this tab, enter the desired analog filter type to simulate (Butterworth, Chebyshev, Inverse Chebyshev, Elliptic or Bessel). Parameter entry boxes appropriate to the filter type will be shown (ripple, for example, with Chebyshev filters, etc.). Enter the desired design parameters and the response will be shown.

Kit Operation

6.10.6 Preset Filters

Many applications are designed to provide preset filters common for certain types of program material. This tab allows selection of one of four preset filter responses - Rock, Jazz, Classical, or Pop.

Figure 14. Analog Simulation Filters

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 23

Figure 15. Preset Filters

www.ti.com

Kit Operation

6.10.7 De-emphasis Filters

The de-emphasis filters used in the TLV320AIC32 can be programmed as described in the TLV320AIC32 datasheet, using this tab. Enter the coefficients for the de-emphasis filter response desired. While on this tab, the de-emphasis response will be shown on the Effect Filter Response graph; however, note that this response is not included in graphs of other effect responses when on the other filter design tabs.

Figure 16. De-emphasis Filters

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide24 SBAU113 – November 2005

www.ti.com

6.10.8 User Filters

Kit Operation

If filter coefficients are known, they can be entered directly on this tab (see Figure 17 ) for both biquads for both left and right channels. The filter response will not be shown on the Effect Filter Response graph for user filters.

6.10.9 3D Effect

Figure 17. User Filters

The 3D effect is described in the TLV320AIC32 datasheet. It uses the two biquad sections differently than most other effect filter settings. To use this effect properly, make sure the appropriate coefficients are already loaded into the two biquad sections. The User Filters tab may be used to load the coefficients. See Figure 18 .

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 25

Figure 18. 3D Effect Settings

www.ti.com

Kit Operation

To enable the 3D effect, check the 3D Effect On box. The Depth knob controls the value of the 3D Attenuation Coefficient.

6.11 DAC/Line Outputs Tab

The DAC/Line Outputs tab controls the DAC power and volume, as well as routing of digital data to the DACs and the analog output from the DACs. (See Figure 19 .)

6.11.1 DAC Controls

On the left side of this tab are controls for the left and right DACs. In a similar fashion as the ADC, the DAC controls are set up to allow powering of each DAC individually,

and setting the output level. Each channel level can be set independently using the corresponding Volume knob. Alternately, by checking the Slave to Right box, the left channel Volume can be made to track the right channel Volume knob setting; checking the Slave to Left box causes the right channel Volume knob to track the left Volume knob setting.

Data going to the DACs is selected using the drop-down boxes under the Left and Right Datapath. Each DAC channel can be selected to be off, use left channel data, use right channel data, or use a mono mix of the left and right data.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide26 SBAU113 – November 2005

Figure 19. DAC/Line Outputs Tab

www.ti.com

Analog audio coming from the DACs is routed to outputs using the Output Path controls in each DAC control panel. The DAC output can be mixed with the analog inputs (LINE2L, LINE2R, PGA_L, PGA_R) and routed to the Line or High Power outputs using the mixer controls for these outputs on this tab (for the line outputs) or on the High Power Outputs tab (for the high power outputs). If the DAC is to be routed directly to either the Line or HP outputs, these routes can be selected as choices in the Output Path control. Note that if the Line or HP outputs are selected as the Output Path, the mixer controls on this tab and the High Power Output tabs have no effect.

6.11.2 Line Output Mixers

On the right side of this tab are horizontal panels that house the mixing functions for the line outputs. Each line output master volume is controlled by the knob at the far right of these panels. The output can

be muted, or gain up to 9dB can be applied. Power for the line output can also be controlled using the button below this master output knob.

If the DAC output path is set to Mix with Analog Inputs, the six knobs in each panel can be used to set the individual level of signals routed and mixed to the line output. LINE2L, LINE2R, PGA_L, PGA_R, and DAC_L and DAC_R levels can each be set to create a custom mix of signals presented to that particular line output. Note: if the DAC output path is set to anything other than Mix with Analog Inputs, these controls have no effect.

6.12 Output Stage Configuration Tab

The Output Stage Configuration tab (Figure 20 ) allows for setting several features of the output drivers. The Configuration may be set as either Fully-Differential or Pseudo-Differential. The output coupling can be chosen as either capless or AC-coupled. This setting should correspond to the setting of the hardware switch (SW1) on the TLV320AIC32EVM.

Kit Operation

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 27

www.ti.com

Kit Operation

Figure 20. Output Stage Configuration Tab

The Common Mode Voltage of the outputs may be set to 1.35V, 1.5V, 1.65V, or 1.8V using the Common Mode Voltage control. The Power-On Delay of the output drivers can be set using the corresponding

control from 0µs up to 4 seconds. Ramp-Up Step Timing can also be adjusted from 0ms to 4ms. The high power outputs of the TLV320AIC32 can be configured to go to a weak common-mode voltage

when powered down. The source of this weak common-mode voltage can be set on this tab with the Weak Output CM Voltage Source drop-down. Choices for the source are either a resistor divider off the AVDD_DAC supply, or a bandgap reference. See the TLV320AIC32 datasheet for more details on this option.

The outputs can be set to soft-step their volume changes, using the Output Volume Soft Stepping control, and set to step once per Fs period, once per two Fs periods, or soft stepping can be disabled altogether.

Output short-circuit protection can be enabled in the Short Circuit Protection groupbox. Short Circuit Protection can use a current-limit mode, where the drivers will limit current output if a short-circuit condition is detected, or in a mode where the drivers power down when such a condition exists.

The LINE2 Bypass Path groupbox has controls that allow disabling or routing the LINE2 input to the output stage directly.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide28 SBAU113 – November 2005

www.ti.com

6.13 High Power Outputs Tab

This tab contains four horizontal groupings of controls, one for each of the high power outputs. Each output has a mixer to mix the LINE2L, LINE2R, PGA_L, PGA_R, DAC_L and DAC_R signals, assuming that the DACs are not routed directly to the high power outputs (see Figure 21 ).

Kit Operation

At the left of each output strip is a power button that controls whether the corresponding output is powered up or not. When powered down, the outputs can be tri-stated or driven weakly to the output common mode voltage; this option is selected using the button located below the power button.

The COM outputs ( HPLCOM and HPRCOM) can be used as independent output channels or can be used as complementary signals to the HPL and HPR outputs. In these complementary configurations, the COM outputs can be selected as differential signals to the corresponding outputs or may be set to be a common mode voltage. When used in these configurations, the power button for the COM output is disabled, as the power mode for that output will track the power status of the HPL or HPR output that the COM output is tracking.

At the right side of the output strip is a master volume knob for that output, which allows muting the output or applying gain up to 9dB.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 29

Figure 21. High Power Outputs Tab

www.ti.com

Kit Operation

6.14 Command Line Interface Tab

A simple scripting language controls the TAS1020 on the USB-MODEVM from the LabView™-based PC software. The main program controls, described previously, do nothing more than write a script which is then handed off to an interpreter that sends the appropriate data to the correct USB endpoint. Because this system is script-based, provision is made in this tab for the user to view the scripting commands that are created as the controls are manipulated, as well as load and execute other scripts that have been written and saved (see Figure 22 ). This design allows the software to be used as a quick test tool or to help provide troubleshooting information in the rare event that the user encounters a problem with this EVM.

A script is loaded into the command buffer, either by operating the controls on the other tabs or by loading a script file. When executed, the return packets of data which result from each command will be displayed in the Read Data array control. When executing several commands, the Read Data control shows only the results of the last command. If you want to see the results after every executed command, use the logging function described below.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide30 SBAU113 – November 2005

Figure 22. Command Line Interface Tab

www.ti.com

Kit Operation

The File menu (Figure 23 ) provides some options for working with scripts. The first option, Open Command File..., loads a command file script into the command buffer. This script can then be executed

by pressing the Execute Command Buffer button. The second option is Log Script and Results..., which opens a file save dialog box. Choose a location for a

log file to be written using this file save dialog. When the Execute Command Buffer button is pressed, the script will run and the script, along with resulting data read back during the script, will be saved to the file specified. The log file is a standard text file which can be opened with any text editor, and looks much like the source script file, but with the additional information of the result of each script command executed.

The third menu item is a submenu of Recently Opened Files. This list is simply a list of script files that have previously been opened, allowing fast access to commonly-used script files. The final menu item is Exit, which terminates the TLV320AIC32EVM software.

Under the Help menu is an About... menu item which displays information about the TLV320AIC32EVM software.

The actual USB protocol used as well as instructions on writing scripts are detailed in the following subsections. While it is not necessary to understand or use either the protocol or the scripts directly, understanding them may be helpful to some users.

6.14.1 USB-MODEVM Protocol

The USB-MODEVM is defined to be a Vendor-Specific class, and is identified on the PC system as an NI-VISA device. Because the TAS1020 has several routines in its ROM which are designed for use with HID-class devices, HID-like structures are used, even though the USB-MODEVM is not an HID-class device. Data passes from the PC to the TAS1020 using the control endpoint.

Data is sent in an HIDSETREPORT (see Table 7 ):

Figure 23. File Menu

Table 7. USB Control Endpoint

HIDSETREPORT Request

PART VALUE DESCRIPTION

bmRequestType 0x21 00100001 bRequest 0x09 SET_REPORT wValue 0x00 don't care wIndex 0x03 HID interface is index 3 wLength calculated by host Data Data packet as described

below

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 31

www.ti.com

Kit Operation

The data packet consists of the following bytes, shown in Table 8 :

Table 8. Data Packet Configuration

BYTE NUMBER TYPE DESCRIPTION

0 Interface Specifies serial interface and operation. The two values are logically OR'd.

1 I2C Slave Address Slave address of I2C device or MSB of 16-bit reg addr for SPI 2 Length Length of data to write/read (number of bytes) 3 Register address Address of register for I2C or 8-bit SPI; LSB of 16-bit address for SPI

4..64 Data Up to 60 data bytes could be written at a time. EP0 maximum length is 64. The

Operation:

READ 0x00 WRITE 0x10

Interface:

GPIO 0x08 SPI_16 0x04 I2C_FAST 0x02 I2C_STD 0x01 SPI_8 0x00

return packet is limited to 42 bytes, so advise only sending 32 bytes at any one time.

Example usage: Write two bytes (AA, 55) to device starting at register 5 of an I2C device with address A0:

[0] 0x11 [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55

Do the same with a fast mode I2C device:

[0] 0x12 [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55

Now with an SPI device which uses an 8-bit register address:

[0] 0x10 [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55

Now let's do a 16-bit register address, as found on parts like the TSC2101. Assume the register address (command word) is 0x10E0:

[0] 0x14 [1] 0x10 --> Note: the I [2] 0x02 [3] 0xE0 [4] 0xAA [5] 0x55

C address now serves as MSB of reg addr.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide32 SBAU113 – November 2005

www.ti.com

In each case, the TAS1020 will return, in an HID interrupt packet, the following:

[0] interface byte | status

status:

REQ_ERROR 0x80 INTF_ERROR 0x40 REQ_DONE 0x20

[1] for I2C interfaces, the I2C address as sent

for SPI interfaces, the read back data from SPI line for transmission of the corresponding byte [2] length as sent [3] for I2C interfaces, the reg address as sent

for SPI interfaces, the read back data from SPI line for transmission of the corresponding byte [4..60] echo of data packet sent

If the command is sent with no problem, the returning byte [0] should be the same as the sent one logically or'd with 0x20 - in our first example above, the returning packet should be:

[0] 0x31 [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55

If for some reason the interface fails (for example, the I2C device does not acknowledge), it would come back as:

[0] 0x51 --> interface | INTF_ERROR [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55

If the request is malformed, that is, the interface byte (byte [0]) takes on a value which is not described above, the return packet would be:

[0] 0x93 --> you sent 0x13, which is not valid, so 0x93 returned [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55

Examples above used writes. Reading is similar: Read two bytes from device starting at register 5 of an I2C device with address A0:

[0] 0x01 [1] 0xA0 [2] 0x02 [3] 0x05

Kit Operation

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 33

www.ti.com

Kit Operation

The return packet should be

[0] 0x21 [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55

assuming that the values we wrote above starting at Register 5 were actually written to the device.

6.14.1.1 GPIO Capability

The USB-MODEVM has seven GPIO lines. You can access them by specifying the interface to be 0x08, and then using the standard format for packets—but addresses are unnecessary. The GPIO lines are mapped into one byte (see Table 9 ):

Table 9. GPIO Pin Assignments

7 6 5 4 3 2 1 0 x P3.5 P3.4 P3.3 P1.3 P1.2 P1.1 P1.0

Example: write P3.5 to a 1, set all others to 0:

[0] 0x18 --> write, GPIO [1] 0x00 --> this value is ignored [2] 0x01 --> length - ALWAYS a 1 [3] 0x00 --> this value is ignored [4] 0x40 --> 01000000

You may also read back from the GPIO to see the state of the pins. Let's say we just wrote the previous example to the port pins.

Example: read the GPIO

[0] 0x08 --> read, GPIO [1] 0x00 --> this value is ignored [2] 0x01 --> length - ALWAYS a 1 [3] 0x00 --> this value is ignored

The return packet should be:

[0] 0x28 [1] 0x00 [2] 0x01 [3] 0x00 [4] 0x40

6.14.2 Writing Scripts

A script is simply a text file that contains data to send to the serial control buses. The scripting language is quite simple, as is the parser for the language. Therefore, the program is not very forgiving about mistakes made in the source script file, but the formatting of the file is simple. Consequently, mistakes should be rare.

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide34 SBAU113 – November 2005

www.ti.com

Kit Operation

Each line in a script file is one command. There is no provision for extending lines beyond one line. A line is terminated by a carriage return.

The first character of a line is the command. Commands are:

i Set interface bus to use r Read from the serial control bus w Write to the serial control bus # Comment b Break d Delay

The first command, i, sets the interface to use for the commands to follow. This command must be followed by one of the following parameters:

i2cstd Standard mode I2C Bus i2cfast Fast mode I2C bus spi8 SPI bus with 8-bit register addressing spi16 SPI bus with 16-bit register addressing gpio Use the USB-MODEVM GPIO capability

For example, if a fast mode I2C bus is to be used, the script would begin with:

i i2cfast

No data follows the break command. Anything following a comment command is ignored by the parser, provided that it is on the same line. The delay command allows the user to specify a time, in milliseconds, that the script will pause before proceeding.

Note: UNLIKE ALL OTHER NUMBERS USED IN THE SCRIPT COMMANDS, THE DELAY

TIME IS ENTERED IN A DECIMAL FORMAT. Also, note that because of latency in the USB bus as well as the time it takes the processor on the USB-MODEVM to handle requests, the delay time may not be precise.

A series of byte values follows either a read or write command. Each byte value is expressed in hexadecimal, and each byte must be separated by a space. Commands are interpreted and sent to the TAS1020 by the program using the protocol described in Section 6.14.1 .

The first byte following a read or write command is the I2C slave address of the device (if I2C is used) or the first data byte to write (if SPI is used—note that SPI interfaces are not standardized on protocols, so the meaning of this byte will vary with the device being addressed on the SPI bus). The second byte is the starting register address that data will be written to (again, with I2C; SPI varies—see Section 6.14.1 for additional information about what variations may be necessary for a particular SPI mode). Following these two bytes are data, if writing; if reading, the third byte value is the number of bytes to read, (expressed in hexadecimal).

For example, to write the values 0xAA 0x55 to an I2C device with a slave address of 0x90, starting at a register address of 0x03, one would write:

#example script i i2cfast w 90 03 AA 55 r 90 03 2

This script begins with a comment, specifies that a fast I2C bus will be used, then writes 0xAA 0x55 to the I2C slave device at address 0x90, writing the values into registers 0x03 and 0x04. The script then reads back two bytes from the same device starting at register address 0x03. Note that the slave device value does not change. It is not necessary to set the R/ W bit for I2C devices in the script; the read or write commands will do that for you.

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 35

www.ti.com

EVM Bill of Materials

Here is an example of using an SPI device that requires 16-bit register addresses:

# setup TSC2101 for input and output # uses SPI16 interface # this script sets up DAC and ADC at full volume, input from onboard mic # # Page 2: Audio control registers w 10 00 00 00 80 00 00 00 45 31 44 FD 40 00 31 C4 w 13 60 11 20 00 00 00 80 7F 00 C5 FE 31 40 7C 00 02 00 C4 00 00 00 23 10 FE 00 FE 00

Note that blank lines are allowed. However, be sure that your script does not end with a blank line. While ending with a blank line will not cause the script to fail, the program will execute that line, and therefore may prevent you from seeing data that was written or read back on the previous command.

In this example, the first two bytes of each command are the command word to send to the TSC2101 (0x1000, 0x1360); these are followed by data to write to the device starting at the address specified in the command word. The second line may wrap in the viewer you are using to look like more than one line; careful examination will show, however, that there is only one carriage return on that line, following the last

00. Any text editor may be used to write these scripts; Jedit is an editor that is highly recommended for

general usage. For more information, go to: http://www.jedit.org . Once the script is written, it can be used in the command window by running the program, and then

selecting Open Command File... from the File menu. Locate your script and open it. The script will then be displayed in the command buffer. You may also edit the script once it is in the buffer, but saving of the command buffer is not possible at this time (this feature may be added at a later date).

Once the script is in the command buffer, it may be executed by pressing the Execute Command Buffer button. If you have placed breakpoints in your script, the script will execute to that point, and you will be presented with a dialog box with a button to press to continue executing the script. When you are ready to proceed, push that button and the script will continue.

Here an example of a (partial) script with breakpoints:

# setup AIC33 for input and output # uses I2C interface i i2cfast # reg 07 - codec datapath

w 30 07 8A

r 30 07 1 d 1000 # regs 15/16 - ADC volume, unmute and set to 0dB w 30 0F 00 00 r 30 0F 2 b

This script writes the value 8A at register 7, then reads it back to verify that the write was good. A delay of 1000ms (one second) is placed after the read to pause the script operation. When the script continues, the values 00 00 will be written starting at register 0F. This output is verified by reading two bytes, and pausing the script again, this time with a break. The script would not continue until the user allows it to by pressing OK in the dialog box that will be displayed due to the break.

7 EVM Bill of Materials

Table 10 and Table 11 contain a complete bill of materials for the modular TLV320AIC32EVM and the

USB-MODEVM Interface Board (included only in the TLV320AIC32EVM-PDK).

36 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide SBAU113 – November 2005

www.ti.com

Table 10. TLV320AIC32EVM Bill of Materials

REFERENCE DESIGNATOR DESCRIPTION MANUFACTURER MFG PART NUMBER

R7, R8 0 Ω 1/4W 5% chip resistor Panasonic ERJ-8GEY0R00V R5, R6 2.2k Ω 1/4W 5% chip resistor Panasonic ERJ-8GEYJ222V R1, R2, R3 2.7k Ω 1/10W 5% chip resistor Panasonic ERJ-3GEYJ272V R9 100k Ω 1/10W 5% chip resistor Panasonic ERJ-3GEYJ104V R4 Chip resistor Not installed C5, C6, C9–C12 0.1µF 16V ceramic chip TDK C1608X7R1C104K

capacitor, ± 10%, X7R

C7–C8, C18–C19, C27–C28 0.1µF 100V ceramic chip TDK C3216X7R2A104K

capacitor, ± 10%, X7R

C1–C4, C13, C14, C20 10µF 6.3V ceramic chip TDK C3216X5R0J106K

capacitor, ± 10%, X5R

C21–C26 47µF 6.3V ceramic chip TDK C3225X5R0J476M

capacitor, ± 20%, X5R C16, C17 Ceramic chip capacitor Not installed C15 Ceramic chip capacitor Not installed U3 Audio codec Texas Instruments TLV320AIC32IRHB U1 3.3V LDO voltage regulator Texas Instruments REG1117-3.3 U2 64K I2C EEPROM MicroChip 24LC64-I/SN J10, J11 Screw terminal block, On Shore Technology ED555/2DS

2-position J6–J7, J12–J14 Screw terminal block, On Shore Technology ED555/3DS

3-position J8, J9 3.5mm audio jack, T-R-S, SMD CUI Inc. SJ1-3515-SMT or alternate KobiConn 161-3335 J1A, J2A, J4A, J5A 20-pin SMT plug Samtec TSM-110-01-L-DV-P J1B, J2B, J4B, J5B 20-pin SMT socket Samtec SSW-110-22-F-D-VS-K J3A 10-pin SMT plug Samtec TSM-105-01-L-DV-P J3B 10-pin SMT socket Samtec SSW-105-22-F-D-VS-K N/A TLV320AIC32EVM PWB Texas Instruments 6465230 JMP1–JMP4, JMP9, 2-position jumper, 0.1" spacing Samtec TSW-102-07-L-S

JMP11–JMP15 JMP5-JMP8 Bus wire JMP10 3-position jumper, 0.1" spacing Samtec TSW-103-07-L-S MK1 Omnidirectional microphone Knowles Acoustics MD9745APZ-F

cartridge SW1 4PDT right angle switch E-Switch EG4208 TP3–TP5, TP7–TP17, Miniature test point terminal Keystone Electronics 5000

TP19–TP29 TP1, TP2 Multipurpose test point terminal Keystone Electronics 5011 N/A Header shorting block Samtec SNT-100-BK-T

EVM Bill of Materials

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 37

www.ti.com

EVM Bill of Materials

Table 11. USB-MODEVM Bill of Materials

Designators Description Manufacturer Mfg. Part Number

R4 10 Ω 1/10W 5% chip resistor Panasonic ERJ-3GEYJ100V R10, R11 27.4 Ω 1/16W 1% chip resistor Panasonic ERJ-3EKF27R4V R20 75 Ω 1/4W 1% chip resistor Panasonic ERJ-14NF75R0U R19 220 Ω 1/10W 5% chip resistor Panasonic ERJ-3GEYJ221V R14, R21, R22 390 Ω 1/10W 5% chip resistor Panasonic ERJ-3GEYJ391V R13 649 Ω 1/16W 1% chip resistor Panasonic ERJ-3EKF6490V R9 1.5k Ω 1/10W 5% Panasonic ERJ-3GEYJ152V

chip resistor R1, R2, R3, R5, R6, R7, R8 2.7k Ω 1/10W 5% Panasonic ERJ-3GEYJ272V

chip resistor R12 3.09k Ω 1/16W 1% Panasonic ERJ-3EKF3091V

chip resistor R15, R16 10k Ω 1/10W 5% Panasonic ERJ-3GEYJ103V

chip resistor R17, R18 100k Ω 1/10W 5% Panasonic ERJ-3GEYJ104V

chip resistor RA1 10k Ω 1/8W Octal isolated CTS Corporation 742C163103JTR

resistor array C18, C19 33pF 50V ceramic TDK C1608C0G1H330J

chip capacitor, ±5%, NPO C13, C14 47pF 50V ceramic TDK C1608C0G1H470J

chip capacitor, ±5%, NPO C20 100pF 50V ceramic TDK C1608C0G1H101J

chip capacitor, ±5%, NPO C21 1000pF 50V ceramic TDK C1608C0G1H102J

chip capacitor, ±5%, NPO C15 0.1µF 16V ceramic TDK C1608X7R1C104K

chip capacitor, ±10%,X7R C16, C17 0.33µF 16V ceramic TDK C1608X5R1C334K

chip capacitor, ± 20%,Y5V C9, C10, C11, C12, C22, C23, 1µF 6.3V ceramic TDK C1608X5R0J105K

C24, C25, C26, C27, C28 chip capacitor, ±10%, X5R C1, C2, C3, C4, C5, C6, C7, 10µF 6.3V ceramic TDK C3216X5R0J106K

C8 chip capacitor, ±10%, X5R D1 50V, 1A, Diode MELF SMD Micro Commercial Components DL4001 D2 Yellow Light Emitting Diode Lumex SML-LX0603YW-TR D3, D4, D6, D7 Green Light Emitting Diode Lumex SML-LX0603GW-TR D5 Red Light Emitting Diode Lumex SML-LX0603IW-TR Q1, Q2 N-Channel MOSFET Zetex ZXMN6A07F X1 6MHz Crystal SMD Epson MA-505 6.000M-C0 U8 USB streaming controller Texas Instruments TAS1020BPFB U2 5V LDO regulator Texas Instruments REG1117-5 U9 3.3V/1.8V dual output Texas Instruments TPS767D318PWP

LDO regulator U3, U4 Quad, tri-state buffers Texas Instruments SN74LVC125APW U5, U6, U7 Single IC buffer driver with Texas Instruments SN74LVC1G07DBVR

open drain o/p U10 Single tri-state buffer Texas Instruments SN74LVC1G125DBVR U1 64K 2-Wire serial EEPROM Microchip 24LC64I/SN

I2C

USB-MODEVM PCB Texas Instruments 6463995

TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide38 SBAU113 – November 2005

www.ti.com

Table 11. USB-MODEVM Bill of Materials (continued)

Designators Description Manufacturer Mfg. Part Number

TP1, TP2, TP3, TP4, TP5, Miniature test point terminal Keystone Electronics 5000 TP6, TP9, TP10, TP11

TP7, TP8 Multipurpose test point Keystone Electronics 5011

terminal J7 USB type B slave connector Mill-Max 897-30-004-90-000000

thru-hole J1, J2, J3, J4, J5, J8 2-position terminal block On Shore Technology ED555/2DS J9 2.5mm power connector CUI Stack PJ-102B J10 BNC connector, female, AMP/Tyco 414305-1

PC mount J11A, J12A, J21A, J22A 20-pin SMT plug Samtec TSM-110-01-L-DV-P J11B, J12B, J21B, J22B 20-pin SMT socket Samtec SSW-110-22-F-D-VS-K J13A, J23A 10-pin SMT plug Samtec TSM-105-01-L-DV-P J13B, J23B 10-pin SMT socket Samtec SSW-105-22-F-D-VS-K J6 4-pin double row header (2x2) Samtec TSW-102-07-L-D

0.1"

J14, J15 12-pin double row header (2x6) Samtec TSW-106-07-L-D

0.1"

JMP1–JMP4 2-position jumper, Samtec TSW-102-07-L-S

0.1" spacing

JMP8–JMP14 2-position jumper, Samtec TSW-102-07-L-S

0.1" spacing

JMP5, JMP6 3-position jumper, Samtec TSW-103-07-L-S

0.1" spacing

JMP7 3-position dual row jumper, Samtec TSW-103-07-L-D

0.1" spacing

SW1 SMT, half-pitch C&K Division, ITT TDA02H0SK1

2-position switch SW2 SMT, half-pitch C&K Division, ITT TDA08H0SK1

8-position switch

Jumper plug Samtec SNT-100-BK-T

EVM Bill of Materials

SBAU113 – November 2005 TLV320AIC32EVM and TLV320AIC32EVM-PDK User's Guide 39

www.ti.com

Appendix A

Appendix A TLV320AIC32EVM Schematic

The schematic diagram is provided as a reference.

TLV320AIC32EVM Schematic40 SBAU113 – November 2005

1 2 3 4 5 6

54321

Revision History

REV ECN Number Approved

6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA

TITLE

SHEET OF FILE

SIZE

DATE REV21-Mar-2005

DRAWN BY

ENGINEER

DATA ACQUISITION PRODUCTS

HIGH PERFORMANCE ANALOG DIVISION

SEMICONDUCTOR GROUP

BOB BENJAMIN

RICK DOWNS

C:\Work\AIC32\TLV320AIC32EVM.Ddb - SCH\AIC32

TLV320AIC32EVM

DVDD

2.7K

2.2K

SJ-3515-SMT-1

C18

0.1uF

C13

10uF

R4 NI

1 2 3

JMP10

MIC BIAS SEL

+3.3VA

TP14

AVSS

TP5 MICBIAS

C14 10uF

DOCUMENT CONTROL NO.

DOUT

DIN

WCLK

BCLK

MCLK

IOVDD

C22

47uF

C21

47uF

MK1

MD9745APZ-F

EXT MIC IN

MICROPHONE

6465231

C20

10uF

IOVDD

SW1

ESW_EG4208

0.1uF

C11

0.1uF

C10

0.1uF

J10

LEFT OUT

J11

RIGHT OUT

PLUS

MINUS

PLUS

MINUS

TP15

RESET

TP10 DIN

TP11 WCLK

TP9 DOUT

TP12 BCLK

TP13 MCLK

TP8

IN3R

TP20

HPLOUT

TP19 HPROUT

TP26 HPRCOM

TP23

RIGHT+

TP22

LEFT-

TP24

RIGHT-

TP27

LEFT+

TP16 SCL

TP17 SDA

TP21

DRVSS

TP25 HPLCOM

2.7K

HEADSET OUTPUT

C17

C15

SDA

C12

0.1uF C4

10uF

1 2

JMP8

1 2

JMP7

1 2

JMP5

1 2

JMP6

SCL

100K

RESET

AVDD_DAC

DRVDD

IN2L

IN2R

TP28 IN2L

TP29 IN2R

C19

0.1uF

2.2K

TP7

IN3L

C16

SJ-3515-SMT-1

PLUS

MINUS

PLUS

MINUS

1 2

JMP12

HPCOM

IN3L

IN3R

HPLOUT

HPROUT

HPLCOM

HPRCOM

1 2

JMP4

1 2

JMP3

C15, C16, and C17 are not installed, but can be used to filter noise.

C27

0.1uF

C28

0.1uF

MICBIAS

IN2L

IN2R

LEFT_LOM

RIGHT_LOM

LEFT_LOP

RIGHT_LOP

IN3L

IN3R

J13

HPR OUT

J12

HPL OUT

C23

47uF

C24

47uF

C25

47uF

C26

47uF

1 2

JMP11

HPLOUT

1 2

JMP13

HPLCOM

1 2

JMP14

HPROUT

1 2

JMP15

HPRCOM

LINE 3 IN

IN1L

IN1R

IN3L

SCL8SDA

DIN

DOUT5WCLK

MCLK

BCLK

RESET

IOVDD

DVDD

IO/DVSS

DRVDD

AVDD_DAC

AVSS_DAC26DRVSS

AVSS_ADC

IN2L

IN2R

MICBIAS

HPLOUT

HPLCOM

HPROUT

HPRCOM

LEFT_LOP

LEFT_LOM

RIGHT_LOP

RIGHT_LOM

DRVDD

IN3R

TLV320AIC32IRHB

IN1L

IN1R

TP3 IN1L

TP4 IN1R

0.1uF

IN1L

IN1R

LINE 1 IN

J14

LINE 2 IN

1 2 3 4 5 6

54321

6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA

TITLE

SHEET OF FILE

SIZE

DATE REV21-Mar-2005

DRAWN BY

ENGINEER

REVISION HISTORY

REV ENGINEERING CHANGE NUMBER APPROVED

DATA ACQUISITION PRODUCTS

HIGH-PERFORMANCE ANALOG DIVISION

SEMICONDUCTOR GROUP

RICK DOWNS

BOB BENJAMIN

C:\Work\AIC32\TLV320AIC32EVM.Ddb - SCH\Daughtercard Interface

TLV320AIC32EVM INTERFACE

DOCUMENT CONTROL NO. 6465231

GPIO0

DGND

GPIO1

GPIO2

DGND

GPIO3

GPIO4

SCL

DGND

SDA

CNTL

CLKX

CLKR

FSX

FSR

INT

TOUT

GPIO5

DAUGHTER-SERIAL

1 2

JMP1

A0(+)

A1(+)

A2(+)

A3(+)

REF-

REF+

A0(-)

A1(-)

A2(-)

A3(-)

AGND

VCOM

AGND

DAUGHTER-ANALOG

GPIO0

DGND

GPIO1

GPIO2

DGND

GPIO3

GPIO4

SCL

DGND

SDA

CNTL

CLKX

CLKR

FSX

FSR

INT

TOUT

GPIO5

DAUGHTER-SERIAL

A0(+)

A1(+)

A2(+)

A3(+)

REF-

REF+

A0(-)

A1(-)

A2(-)

A3(-)

AGND

VCOM

AGND

DAUGHTER-ANALOG

MCLK

BCLK

WCLK

DIN

DOUT

RESET

SDA

SCL

TP1 AGND

TP2 DGND

J1A (TOP) = SAM_TSM-110-01-L-DV-P J1B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J4A (TOP) = SAM_TSM-110-01-L-DV-P J4B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J2A (TOP) = SAM_TSM-110-01-L-DV-P J2B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J5A (TOP) = SAM_TSM-110-01-L-DV-P J5B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J3A (TOP) = SAM_TSM-105-01-L-DV-P J3B (BOTTOM) = SAM_SSW-105-22-F-D-VS-K

IN3L

IN3R

HPLOUT

HPROUT

HPLCOM

HPRCOM

DRVDD

AVDD_DAC

DVDD

IOVDD

MICBIAS

IN2R

IN1R

IN1L

LEFT_LOP

RIGHT_LOP

LEFT_LOM

RIGHT_LOM

+5VA

VIN3VOUT

GND

U1 REG1117-3.3

+5VA

C1 10uFC50.1uF

C2 10uF

+3.3VA

VCC

VSS

SDA

SCL

A01A12A23WP

24LC64I/SN

0.1uF

IOVDD

2.7K

1 2

JMP2

1 2

JMP9

RESET

-VA

-5VA

AGND

VD1

+5VD

+VA

+5VA

DGND

+1.8VD

+3.3VD

DAUGHTER-POWER

IN2L

www.ti.com

Appendix B USB-MODEVM Schematic

The schematic diagram is provided as a reference.

Appendix B

SBAU113 – November 2005 USB-MODEVM Schematic 41

1 2 3 4 5 6

54321

6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA

TITLE

SHEET OF FILE

SIZE

DATE REV28-Oct-2004

DRAWN BY

ENGINEER

REVISION HISTORY

REV ENGINEERING CHANGE NUMBER APPROVED

DATA ACQUISITION PRODUCTS

HIGH PERFORMANCE ANALOG DIVISION

SEMICONDUCTOR GROUP

RICK DOWNS

ROBERT BENJAMIN

D:\USB-MODEVM\USB Motherboard - ModEvm.ddb - Documents\USB Interface

USB-MODEVM INTERFACE

CUI-STACK PJ102-B

YELLOW

2.5 MM

6VDC-10VDC IN

C15

0.1uF

DOCUMENT CONTROL NO.

CSCHNE

CRESET

CSYNC

CDATI

CSCLK

MCLKO139MCLKO2

RESET

VREN

SDA

SCL

XTALO

XTALI

PLLFILI

PLLFILO

MCLKI

PUR

MRESET

DVSS

AVSS

TEST10EXTEN

CDATO

RSTO12NC20NC

P3.013P3.114P3.2/XINT15P3.317P3.418P3.5

AVDD

DVDD

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

U8 TAS1020BPFB

VCC

D-

D+

GND

897-30-004-90-000000

1.5K

R10

27.4

R11

27.4

C13 47pF

C14 47pF

123

JMP6

PWR SELECT

C20

100pF

C21

.001uF

R12

3.09K

MA-505 6.000M-C0

C18

33pF

C19

33pF

+3.3VD

VCC

VSS

SDA

SCL

A01A12A23WP

24LC64I/SN

+3.3VD

C9 1uF

TP9

TP10

2.7KR52.7K

+3.3VD

MCLK

BCLK

LRCLK

I2SDIN

I2SDOUT

INT

MISO

MOSI

SCLK

R13

649

+3.3VD

R4 10

C10 1uF

C11 1uF

C12 1uF

USB SLAVE CONN

EXT PWR IN

6.00 MHZ

6463996

RED

1OE

2OE

GND

3OE

4OE

VCC

SN74LVC125APW

1OE

2OE

GND

3OE

4OE

VCC

SN74LVC125APW

SN74LVC1G07DBV

IOVDD

C23

1uF

2.7K

C22

1uF

IOVDD

C27

1uF

+3.3VD

SN74LVC1G07DBV

C26

1uF

2.7K

+3.3VD

IOVDD

+1.8VD

+3.3VD

IOVDD

2.7K

+3.3VD

SN74LVC1G07DBV

IOVDD

C25

1uF

TP11

MRESET

3.3VD ENABLE

1.8VD ENABLE

C17

0.33uF

10uF

1GND

1EN

1IN

2GND

2EN

2IN

2OUT

2RESET

1OUT

1RESET

TPS767D318PWP

R18

100K

R17

100K

+3.3VD

C8 10uF

D5 SML-LX0603IW-TR

SML-LX0603YW-TR

D4 SML-LX0603GW-TR

R19 220

GREEN

USB I2S USB MCK USB SPI

USB SPI

USB I2S

USB MCK

+1.8VD

RESET

C24 1uF

USB ACTIVE

USB RST

2 4 6

1 3 5 7 8 9 10 11 12

J15

EXTERNAL SPI

2 4 6

1 3 5 7 8 9 10 11 12

J14

EXTERNAL AUDIO DATA

PWR_DWN

J10

EXT MCLK

R20 75

IOVDD

1 2 3 4 5 6 7 8

16 15 14 13 12 11 10

SW2

SW DIP-8

EXT MCK

241

EXTERNAL I2C

IOVDD

Q1 ZXMN6A07F

Q2 ZXMN6A07F

1 2 3 4 5 6

JMP7

IOVDD SELECT

+5VD

SDA

SCL

+5VD

R15 10K

R16 10K

1 4 2 3

SW1

REGULATOR ENABLE

VIN3VOUT

GND

U2 REG1117-5

DL4001

C16

0.33uF

C6 10uF

P3.3

P3.4

P3.5

P1.0

P1.1

P1.2

P1.3

ED555/2DS

TP6

D3 SML-LX0603GW-TR

R14

390

GREEN

A0 A1 A2

1 2

JMP8

1 2

JMP9

1 2

JMP10

1 2

JMP11

1 2

JMP12

1 2

JMP13

1 2

JMP14

U10

SN74LVC1G125DBV

C28

1uF

RA1 10K

1 2 3 4 5 6

54321

6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA

TITLE

SHEET OF FILE

SIZE

DATE REV28-Oct-2004

DRAWN BY

ENGINEER

REVISION HISTORY

REV ENGINEERING CHANGE NUMBER APPROVED

DATA ACQUISITION PRODUCTS

HIGH-PERFORMANCE ANALOG DIVISION

SEMICONDUCTOR GROUP

RICK DOWNS

ROBERT BENJAMIN

D:\USB-MODEVM\USB Motherboard - ModEvm.ddb - Documents\Daughtercard Interface

USB-MODEVM INTERFACE

DOCUMENT CONTROL NO. 6463996

GPIO0

DGND

GPIO1

GPIO2

DGND

GPIO3

GPIO4

SCL

DGND

SDA

CNTL

CLKX

CLKR

FSX

FSR

INT

TOUT

GPIO5

J12

DAUGHTER-SERIAL

+5VD

+5VA

1 2

JMP2

1 2

JMP1

JPR-2X1

+5VA +5VD

J2 +5VA

J3 +5VD

+5VA +5VD

10uF

J4 +1.8VD

J5 +3.3VD

10uF

-5VA

10uF

A0(+)

A1(+)

A2(+)

A3(+)

REF-

REF+

A0(-)

A1(-)

A2(-)

A3(-)

AGND

VCOM

AGND

J11

DAUGHTER-ANALOG

GPIO0

DGND

GPIO1

GPIO2

DGND

GPIO3

GPIO4

SCL

DGND

SDA

CNTL

CLKX

CLKR

FSX

FSR

INT

TOUT

GPIO5

J22

DAUGHTER-SERIAL

+5VD

+5VA

A0(+)

A1(+)

A2(+)

A3(+)

REF-

REF+

A0(-)

A1(-)

A2(-)

A3(-)

AGND

VCOM

AGND

J21

DAUGHTER-ANALOG

+1.8VD

+3.3VD

+1.8VD

+3.3VD

123

JMP5

1 2

JMP3

1 2

JMP4

2.7K

IOVDD

-5VA

MCLK

BCLK

LRCLK

I2SDIN

I2SDOUT

MISO

MOSI

SCLK

RESET

INT

PWR_DWN

P3.3

P3.4

P3.5

P1.0

SDA

SCL

P1.1

P1.2

P1.3

TP1 TP2 TP3

TP5

TP4

TP7 AGND

TP8 DGND

R21 390

R22 390

D7 SML-LX0603GW-TR

GREEN

D6 SML-LX0603GW-TR

GREEN

J11A (TOP) = SAM_TSM-110-01-L-DV-P J11B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J12A (TOP) = SAM_TSM-110-01-L-DV-P J12B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J13A (TOP) = SAM_TSM-105-01-L-DV-P J13B (BOTTOM) = SAM_SSW-105-22-F-D-VS-K

J21A (TOP) = SAM_TSM-110-01-L-DV-P J21B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J22A (TOP) = SAM_TSM-110-01-L-DV-P J22B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K

J23A (TOP) = SAM_TSM-105-01-L-DV-P J23B (BOTTOM) = SAM_SSW-105-22-F-D-VS-K

-VA

-5VA

AGND

VD1

+5VD

+VA

+5VA

DGND

+1.8VD

+3.3VD

J13

DAUGHTER-POWER

-VA

-5VA

AGND

VD1

+5VD

+VA

+5VA

DGND

+1.8VD

+3.3VD

J23

DAUGHTER-POWER

www.ti.com

Appendix B

FCC Warnings

This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment in other environments may cause interference with radio communications, in which case the user at his own expense will be required to take whatever measures may be required to correct this interference.

EVM TERMS AND CONDITIONS

Texas Instruments (TI) provides the enclosed Evaluation Module and related material (EVM) to you, the user, (you or user) SUBJECT TO the terms and conditions set forth below. By accepting and using the EVM, you are indicating that you have read, understand and agree to be bound by these terms and conditions. IF YOU DO NOT AGREE TO BE BOUND BY THESE TERMS AND CONDITIONS, YOU MUST RETURN THE EVM AND NOT USE IT.

This EVM is provided to you by TI and is intended for your INTERNAL ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided “AS IS” and “WITH ALL FAULTS.” It is not considered by TI to be fit for commercial use. As such, the EVM may be incomplete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product. As a prototype, the EVM does not fall within the scope of the European Union directive on electromagnetic compatibility and therefore may not meet the technical requirements of the directive.

Should this EVM not meet the specifications indicated in the EVM User’s Guide, it may be returned within 30 days from the date of delivery for a full refund of any amount paid by user for the EVM, which user agrees shall be user’s sole and exclusive remedy. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY TI TO USER, AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR NON-INFRINGEMENT.

TI shall have no obligation to defend any claim arising from the EVM, including but not limited to claims that the EVM infringes third party intellectual property. Further, TI shall have no liability to user for any costs, losses or damages resulting from any such claims. User shall indemnify and hold TI harmless against any damages, liabilities or costs resulting from any claim, suit or proceeding arising from user’s handling or use of the EVM, including but not limited to, (i) claims that the EVM infringes a third party’s intellectual property, and (ii) claims arising from the user’s use or handling of the EVM. TI shall have no responsibility to defend any such claim, suit or proceeding.

User assumes all responsibility and liability for proper and safe handling and use of the EVM and the evaluation of the EVM. TI shall have no liability for any costs, losses or damages resulting from the use or handling of the EVM. User acknowledges that the EVM may not be regulatory compliant or agency certified (FCC, UL, CE, etc.). Due to the open construction of the EVM it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic discharge.

EXCEPT TO THE EXTENT OF THE USER’S INDEMNITY OBLIGATIONS SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES WHETHER TI IS NOTIFIED OF THE POSSIBILITY OR NOT.

TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design, software performance, or infringement of

patents or services described herein.

User agrees to read the EVM User’s Guide and, specifically, the EVM warnings and Restrictions notice in the EVM User’s Guide prior to handling the EVM and the product. This notice contains important safety information about temperatures and voltages.

It is user’s responsibility to ensure that persons handling the EVM and the product have electronics training and observe good laboratory practice standards.

By providing user with this EVM, product and services, TI is NOT granting user any license in any patent or other intellectual property right.

It is important to operate this EVM within the input voltage range of 3.3 V to 5 V and the output voltage range of 0 V to 5 V. Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are

questions concerning the input range, please contact a TI field representative prior to connecting the input power. Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the

EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.

During normal operation, some circuit components may have case temperatures greater than 30°C. The EVM is designed to operate properly with certain components above 85°C as long as the input and output ranges are maintained. These components include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

USB-MODEVM Schematic42 SBAU113 – November 2005

EVM WARNINGS AND RESTRICTIONS

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty . Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive

DSP dsp.ti.com Broadband www.ti.com/broadband Interface interface.ti.com Digital Control www.ti.com/digitalcontrol Logic logic.ti.com Military www.ti.com/military Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork Microcontrollers microcontroller.ti.com Security www.ti.com/security

Telephony www.ti.com/telephony Video & Imaging www.ti.com/video Wireless www.ti.com/wireless

Mailing Address: Texas Instruments

Post Office Box 655303 Dallas, Texas 75265

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Texas Instruments: TLV320AIC32EVM-PDK TLV320AIC32EVM

Texas Instruments TLV320AIC32EVM, TLV320AIC32EVM-PDK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
