TEXAS INSTRUMENTS MSP430C33x Technical data

D

40°C to 85°C

MSP430C337IPJM

25°C

PMS430E337AHFD

Low Supply Voltage Range 2.5 V – 5.5 V

D

Low Operation Current, 400 mA at 1 MHz,
3V

D

Ultralow-Power Consumption:
– Standby Mode: 2 µA
– RAM Retention Off Mode: 0.1 µA

D

Five Power-Saving Modes

D

Wake-Up From Standby Mode in 6 µs

D

16-Bit RISC Architecture, 300 ns Instruction
Cycle Time

D

Single Common 32 kHz Crystal, Internal
System Clock up to 3.8 MHz

D

Integrated LCD Driver for up to 120
Segments

D

Integrated Hardware Multiplier Performs
Signed, Unsigned on Multiply, and MAC
Operations for Operands up to 16 × 16 Bits

D

Serial Communication Interface (USART),
Select Asynchronous UART or
Synchronous SPI by Software

description

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

D

Slope A/D Converter Using External
Components

D

16-Bit Timer With Five Capture/Compare
Registers

D

Serial Onboard Programming

D

Programmable Code Protection by Security
Fuse

D

Family Members Include:
– MSP430C336 – 24 KB ROM, 1 KB RAM
– MSP430C337 – 32 KB ROM, 1 KB RAM
– MSP430P337A – 32 KB OTP, 1 KB RAM

D

EPROM Version Available for Prototyping:
– PMS430E337A

D

Available in the Following Packages:
– 100 Pin Quad Flat-Pack (QFP)
– 100 Pin Ceramic Quad Flat-Pack (CFP)

(EPROM Version)

The Texas Instruments MSP430 is an ultralow-power mixed signal microcontroller family consisting of several
devices featuring different sets of modules targeted to various applications. The controller is designed to be
battery-operated for an extended application lifetime. With the 16-bit RISC architecture, 16 integrated registers
on the CPU, and a constant generator, the MSP430 achieves maximum code ef ficiency. The digital-controlled
oscillator, together with the frequency lock loop (FLL), provides a wake-up from a low-power mode to an active
mode in less than 6 ms. The MSP430x33x series microcontrollers have built-in hardware multiplication and
communication capability using asynchronous (UART) and synchronous protocols.

Typical applications of the MSP430 family include electronic gas, water, and electric meters and other sensor
systems that capture analog signals, convert them to digital values, process, displays, or transmits data to a
host system.

AVAILABLE OPTIONS

PACKAGED DEVICES

T

A

°

–

°

°

PLASTIC QFP

(PJM)

MSP430C336IPJM

MSP430P337AIPJM

—

CERAMIC QFP

(HFD)

—

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Copyright  2000, Texas Instruments Incorporated

1

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

PJM or HFD PACKAGE

(TOP VIEW)

V

CC1

CIN
TP0.0
TP0.1
TP0.2
TP0.3
TP0.4
TP0.5

P0.0

P0.1/RXD

P0.2/TXD

P0.3
P0.4
P0.5
P0.6
P0.7
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
P2.0
P2.1
P2.2

V

SS2

V

CC2

NC

SS1

Xin

Xout/TCLK

RST/NMI

TCK

TMS

TDI/VPP

XBUF

V

96

97

98

99

100

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

35

34

33

32

31

TDO/TDI

92

93

94

95

39

38

37

36

R33

91

40

R23

90

41

R13

89

42

R03

S27/O27

S29/O29/CMPI

S28/O28

85

86

87

88

46

45

43

44

S26/O26

S25/O25

S24/O24

82

83

84

49

48

47

S23/O23

81

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

50

NC
S22/O22
S21/O21
S20/O20
S19/O19
S18/O18
S17/O17
S16/O16
S15/O15
S14/O14
S13/O13
S12/O12
S11/O11
S10/O10
S9/O9
S8/O8
S7/07

S6/O6
S5/O5
S4/O4
S3/O3
S2/O2
S1
S0
COM0

COM1
COM2

COM3
V

SS3

P4.7/URXD

P2.3

P2.4

P2.5

P2.6

P2.7

P3.0

NC – No internal connection

P3.1

P3.3/TA0

P3.2/TACLK

P3.4/TA1

P3.5/TA2

P3.6/TA3

P3.7/TA4

P4.0

P4.1

P4.2/STE

P4.4/SOMI

P4.3/SIMO

P4.5/UCLK

P4.6/UTXD

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

functional block diagram

I/O Port

8 I/O’s, All With

I/O Port

1x8 Digital

Interr. Cap.

I/O’s

3 Int. Vectors

TXD

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

Com0–3

S0–28/O2–28

S29/O29/CMPI

R33

LCD

120 Segments

Basic

Timer1

1, 2, 3, 4 MUX

LCD

f

CMPI

R23

R13

R03

V

V

V

V

V

SS3

SS2

SS1

CC2

CC1

XIN Xout/TCLK XBUF RST/NMI P4.0 P4.7 P2.x P1.x P3.0 P3.7 P0.0 P0.7

I/O Port

8 8

I/O Port

Power-on-

1024B

32 kB OPT or

24/32 kB ROM

ACLK

Oscillator

Interr. Cap.

2x8 I/O’s All

I/O’s

1x8 Digital

Reset

RAM

SRAM

EPROM

C: ROM

P: OTP

MCLK

FLL

System Clock

2 Int. Vectors

E: EPROM

USART TimerA RXD,

MAB, 4 Bit

MAB, 16 Bit

MCB

Test

MDB, 8 Bit

MDB, 16 Bit

JTAG

Bus

Conv

Applications

8 Bit Timer/Port

Timer/Counter

USART

Timer

Watchdog TimerA

MPY

Multiplier

A/D Conv.

Timer, O/P

UART or

SPI Function

UTXD

URXD

PWM

16 Bit

15/16 Bit

MPYS

MACS

TXD RXD

STE

UCLK

TACLK

8x8 Bit

16x16 Bit

CIN

6

TP0.0–0.5

SOMI

SIMO

TA0–4

CPU

Incl. 16 Reg.

TDI/VPP

TDO/TDI

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TMS

TCK

3

MSP430C33x, MSP430P337A

I/O

DESCRIPTION

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

Terminal Functions

TERMINAL

NAME NO.

CIN 2 I Input port. CIN is used as an enable for counter TPCNT1 – (Timer/Port).
COM0–3 56–53 O Common outputs. COM0-3 are used for LCD backplanes – LCD
P0.0 9 I/O General-purpose digital I/O
P0.1/RXD 10 I/O General-purpose digital I/O, receive digital Input port – 8-Bit Timer/Counter
P0.2/TXD 11 I/O General-purpose digital I/O, transmit data output port – 8-Bit Timer/Counter
P0.3–P0.7 12–16 I/O Five general-purpose digital I/Os, bit 3-7
P1.0–P1.7 17–24 I/O Eight general-purpose digital I/Os, bit 0-7
P2.0–P2.7 25–27,

31–35
P3.0, P3.1 36,37 I/O Two general-purpose digital I/Os, bit 0 and bit 1
P3.2/TACLK 38 I/O General-purpose digital I/O, clock input – Timer_A
P3.3/TA0 39 I/O General-purpose digital I/O, capture I/O, or PWM output port – Timer_A CCR0
P3.4/TA1 40 I/O General-purpose digital I/O, capture I/O, or PWM output port – Timer_A CCR1
P3.5/TA2 41 I/O General-purpose digital I/O, capture I/O, or PWM output port – Timer_A CCR2
P3.6/TA3 42 I/O General-purpose digital I/O, capture I/O, or PWM output port – Timer_A CCR3
P3.7/TA4 43 I/O General-purpose digital I/O, capture I/O, or PWM output port – Timer_A CCR4
P4.0 44 I/O General-purpose digital I/O, bit 0
P4.1 45 I/O General-purpose digital I/O, bit 1
P4.2/STE 46 I/O General-purpose digital I/O, slave transmit enable – USART/SPI mode
P4.3/SIMO 47 I/O General-purpose digital I/O, slave in/master out – USART/SPI mode
P4.4/SOMI 48 I/O General-purpose digital I/O, master in/slave out – USART/SPI mode
P4.5/UCLK 49 I/O General-purpose digital I/O, external clock input – USART
P4.6/UTXD 50 I/O General-purpose digital I/O, transmit data out – USART/UART mode
P4.7/URXD 51 I/O General-purpose digital I/O, receive data in – USART/UART mode
R03 88 I Input port of fourth positive (lowest) analog LCD level (V5) – LCD
R13 89 I Input port of third most positive analog LCD level (V3 of V4) – LCD
R23 90 I Input port of second most positive analog LCD level (V2) – LCD
R33 91 O Output of most positive analog LCD level (V1) – LCD
RST/NMI 96 I Reset input or non-maskable interrupt input port
S0 57 O Segment line S0 – LCD
S1 58 O Segment line S1 – LCD
S2/O2–S5/O5 59–62 O Segment lines S2 to S5 or digital output ports, O2-O5, group 1 – LCD
S6/O6–S9/O9 63–66 O Segment lines S6 to S9 or digital output ports O6-O9, group 2 – LCD
S10/O10–S13/O13 67–70 O Segment lines S10 to S13 or digital output ports O10-O13, group 3 – LCD
S14/O14–S17/O17 71–74 O Segment lines S14 to S17 or digital output ports O14-O17, group 4 – LCD
S18/O18–S21/O21 75–78 O Segment lines S18 to S21 or digital output ports O18-O21, group 5 – LCD
S22/O22–S25/O25 79, 81–83 O Segment line S22 to S25 or digital output ports O22-O25, group 6 – LCD
S26/O26–S29/O29/CMPI 84–87 O Segment line S26 to S29 or digital output ports O26-O29, group 7 – LCD. Segment line S29

TCK 95 I Test clock. TCK is the clock input port for device programming and test.
TDI/VPP 93 I Test data input. TDI/VPP is used as a data input port or input for programming voltage.

I/O Eight general-purpose digital I/Os, bit 0-7

can be used as comparator input port CMPI – Timer/Port

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

I/O

DESCRIPTION

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

Terminal Functions (Continued)

TERMINAL

NAME NO.

TMS 94 I Test mode select. TMS is used as an input port for device programming and test.
TDO/TDI 92 I/O Test data output port. TDO/TDI data output or programming data input terminal

TP0.0 3 O General-purpose 3-state digital output port, bit 0 – Timer/Port
TP0.1 4 O General-purpose 3-state digital output port, bit 1 – Timer/Port
TP0.2 5 O General-purpose 3-state digital output port, bit 2 – Timer/Port
TP0.3 6 O General-purpose 3-state digital output port, bit 3 – Timer/Port
TP0.4 7 O General-purpose 3-state digital output port, bit 4 – Timer/Port
TP0.5 8 I/O General-purpose 3-state digital input/output port, bit 5 – Timer/Port
V

CC1

V

CC2

V

SS1

V

SS2

V

SS3

XBUF 97 O System clock (MCLK) or crystal clock (ACLK) output
Xin 99 I Input port for crystal oscillator

Xout/TCLK 98 I/O Output terminal of crystal oscillator or test clock input

1 Positive supply voltage

29 Positive supply voltage

100 Ground reference

28 Ground reference
52 Ground reference

detailed description

processing unit

The processing unit is based on a consistent and orthogonal designed CPU and instruction set. This design
structure results in a RISC-like architecture, highly transparent to the application development, which is
distinguished by ease of programming. All operations other than program-flow instructions consequently are
performed as register operations in conjunction with seven addressing modes for source and four modes for
destination operand.

CPU registers

The CPU has sixteen registers that provide
reduced instruction execution time. This reduces
the register-to-register operation execution time
to one cycle of the processor frequency.

Four of the registers are reserved for special use
as a program counter, a stack pointer, a status
register, and a constant generator . The remaining
registers are available as general-purpose regis­ters.

Peripherals are connected to the CPU using a
data address and control bus and can be handled
easily with all instructions for memory manipula­tion.

Program Counter

Stack Pointer

Status Register

Constant Generator

General-Purpose Register

General-Purpose Register

General-Purpose Register R14

PC/R0

SP/R1

SR/CG1/R2

CG2/R3

R4

R5

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

General-Purpose Register

R15

5

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

detailed description (continued)

instruction set

The instruction set for this register-register architecture provides a powerful and easy-to-use assembly
language. The instruction set consists of 51 instructions with three formats and seven addressing modes.
Table 1 provides a summation and example of the three types of instruction formats; the address modes are
listed in Table 2.

Table 1. Instruction Word Formats

Dual operands, source-destination e.g. ADD R4,R5 R4 + R5 → R5
Single operands, destination only e.g. CALL R8 PC → (TOS), R8→ PC
Relative jump, un-/conditional e.g. JNE Jump-on equal bit = 0

Instructions that can operate on both word and byte data are differentiated by the suffix .B when a byte operation
is required.

Examples: Instructions for word operation: Instructions for byte operation:

MOV EDE,TONI MOV.B EDE,TONI
ADD #235h,&MEM ADD.B #35h,&MEM
PUSH R5 PUSH.B R5
SWPB R5 –––

Table 2. Address Mode Descriptions

ADDRESS MODE S D SYNTAX EXAMPLE OPERATION

Register √ √ MOV Rs,Rd MOV R10,R11 R10 → R11
Indexed √ √ MOV X(Rn),Y(Rm) MOV 2(R5),6(R6) M(2+R5) → M(6+R6)
Symbolic (PC relative) √ √ MOV EDE,TONI M(EDE) → M(TONI)
Absolute √ √ MOV &MEM,&TCDA T M(MEM) → M(TCDAT)
Indirect √ MOV @Rn,Y(Rm) MOV @R10,Tab(R6) M(R10) → M(T ab+R6)
Indirect autoincrement √ MOV @Rn+,Rm MOV @R10+,R11 M(R10) → R11

Immediate √ MOV #X,TONI MOV #45,TONI #45 → M(TONI)

NOTE 1: S = source, D = destination.

R10 + 2

→ R10

Computed branches (BR) and subroutine calls (CALL) instructions use the same address modes as the other
instructions. These addressing modes provide

indirect

addressing, ideally suited for computed branches and
calls. The full use of this programming capability permits a program structure different from conventional 8- and
16-bit controllers. For example, numerous routines can easily be designed to deal with pointers and stacks
instead of using flag type programs for flow control.

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

operation modes and interrupts

The MSP430 operating modes support various advanced requirements for ultralow-power and ultralow-energy
consumption. This is achieved by the intelligent management of the operations during the different module
operation modes and CPU states. The requirements are fully supported during interrupt event handling. An
interrupt event awakens the system from each of the various operating modes and returns with the RETI
instruction to the mode that was selected before the interrupt event. The clocks used are ACLK and MCLK.
ACLK is the crystal frequency and MCLK, a multiple of ACLK, is used as the system clock.

The following five operating modes are supported:

D

Active mode (AM). The CPU is enabled with different combinations of active peripheral modules.

D

Low-power mode 0 (LPM0). The CPU is disabled, peripheral operation continues, ACLK and MCLK signals
are active, and loop control for MCLK is active.

D

Low-power mode 1 (LPM1). The CPU is disabled, peripheral operation continues, ACLK and MCLK signals
are active, and loop control for MCLK is inactive.

D

Low-power mode 2 (LPM2). The CPU is disabled, peripheral operation continues, ACLK signal is active,
and MCLK and loop control for MCLK are inactive.

D

Low-power mode 3 (LPM3). The CPU is disabled, peripheral operation continues, ACLK signal is active,
MCLK and loop control for MCLK are inactive, and the dc generator for the digital controlled oscillator (DCO)
(³MCLK generator) is switched off.

D

Low-power mode 4 (LPM4). The CPU is disabled, peripheral operation continues, ACLK signal is inactive
(crystal oscillator stopped), MCLK and loop control for MCLK are inactive, and the dc generator for the DCO
is switched off.

The special function registers (SFR) include module-enable bits that stop or enable the operation of the specific
peripheral module. All registers of the peripherals may be accessed if the operational function is stopped or
enabled, however, some peripheral current-saving functions are accessed through the state of local register
bits. An example is the enable/disable of the analog voltage generator in the LCD peripheral, which is turned
on or off using one register bit.

The most general bits that influence current consumption and support fast turnon from low power operating
modes are located in the status register (SR). Four of these bits control the CPU and the system clock generator:
SCG1, SCG0, OscOff, and CPUOff.

15 9 8 7 0

Reserved For Future

Enhancements

interrupts

Software determines the activation of interrupts through the monitoring of hardware set interrupt flag status bits,
the control of specific interrupt enable bits in SRs, the establishment of interrupt vectors, and the programming
of interrupt handlers. The interrupt vectors and the power-up starting address are located in ROM address
locations 0FFFFh through 0FFE0h. Each vector contains the 16-bit address of the appropriate interrupt handler
instruction sequence. Table 3 provides a summation of interrupt functions and addresses.

V SCG1 SCG0 OscOff CPUOff GIE N Z C

rw-0

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

7

MSP430C33x, MSP430P337A

Timer/Port

,,

Maskable

0FFE8h

4

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

operation modes and interrupts (continued)

Table 3. Interrupt Functions and Addresses

INTERRUPT SOURCE INTERRUPT FLAG SYSTEM INTERRUPT WORD ADDRESS PRIORITY

Power up, external reset, watchdog WDTIFG Reset 0FFFEh 15, highest
NMI,

Oscillator fault
Dedicated I/O P0.0 P0IFG.0 Maskable 0FFFAh 13
Dedicated I/O P0.1 or 8-Bit Timer/Counter P0IFG.1 Maskable 0FFF8h 12

Watchdog Timer WDTIFG Maskable 0FFF4h 10
Timer_A CCIFG0 (see Note 3) Maskable 0FFF2h 9
Timer_A TAIFG (see Note 3) Maskable 0FFF0h 8
UART receive URXIFG Maskable 0FFEEh 7
UART transmit UTXIFG Maskable 0FFECh 6

I/O port P2 P2IFG.07 (see Note 2) Maskable 0FFE6h 3
I/O port P1 P1IFG.07 (see Note 2) Maskable 0FFE4h 2
Basic Timer1 BTIFG Maskable 0FFE2h 1
I/O port P0.2 – P0.7 P0IFG.27 (see Note 2) Maskable 0FFE0h 0, lowest

NOTES: 2. Multiple source flags

3. Interrupt flags are located in the individual module registers.

4. Non-maskable : neither the individual or the general interrupt enable bit will disable an interrupt event.

5. (Non)-maskable: the individual interrupt enable bit can disable an interrupt event, but the general interrupt enable bit cannot.

NMIIFG (see Notes 2 and 4)
OFIFG (see Notes 2 and 5)

RC1FG, RC2FG, EN1FG
(see Note 3)

Non-maskable

(Non)-maskable

Maskable 0FFF6h 11

0FFFCh 14

0FFEAh 5

special function registers

Most interrupt and module enable bits are collected into the lowest address space. Special function register bits
that are not allocated to a functional purpose are not physically present in the device. Simple software access
is provided with this arrangement.

interrupt enable 1 and 2

Address
0h

7654 0

321

P0IE.1 OFIE WDTIE

rw-0 rw-0 rw-0 rw-0

P0IE.0

WDTIE: Watchdog Timer interrupt enable signal
OFIE: Oscillator fault interrupt enable signal
P0IE.0: Dedicated I/O P0.0 interrupt enable signal
P0IE.1: P0.1 or 8-Bit Timer/Counter, RXD interrupt enable signal

Address
01h BTIE

7654 0

rw-0

321

TPIE UTXIE URXIE

rw-0 rw-0 rw-0

URXIE: USART receive interrupt enable signal
UTXIE: USART transmit interrupt enable signal
TPIE: Timer/Port interrupt enable signal
BTIE: Basic Timer1 interrupt enable signal

8

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MIXED SIGNAL MICROCONTROLLERS

operation modes and interrupts (continued)

interrupt flag registers 1 and 2

Address
02h NMIIFG P0IFG.0

7654 0

321

P0IFG.1 OFIFG WDTIFG

MSP430C33x, MSP430P337A

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

WDTIFG: Set on overflow or security key violation

or

Reset on VCC1 power-on or reset condition at RST
OFIFG: Flag set on oscillator fault
P0IFG.0: Dedicated I/O P0.0
P0IFG.1: P0.1 or 8-Bit Timer/Counter, RXD
NMIIFG: Signal at RST/NMI-pin

Address
03h BTIFG

7654 0

rw

URXIFG: USART receive flag
UTXIFG: USART transmit flag
BTIFG: Basic Timer1 flag

module enable registers 1 and 2

Address
04h

Address
05h

7654 0321

7654 0

rw-0 rw-1 rw-0

rw-0 rw-0

/NMI-pin

321

UTXIFG URXIFG

rw-1 rw-0

321

UTXE

URXE/USPIE

Bit 0: USART mode: USART receive enable, URXE
SPI mode: SPI enable, USPIE

Bit 1: USART mode: USART transmit enable, UTXE
SPI mode: not applicable

Legend rw:

rw-0:

Bit can be read and written
Bit can be read and written. It is reset by PUC.
SFR bit not present in device

rw-0 rw-0

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

9

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

ROM memory organization

FFFFh
FFE0h

FFDFh

A000h

05FFh

0200h

01FFh

0100h

00FFh

0010h

000Fh

0000h

MSP430C336

Int. Vector

24 kB ROM

1024B RAM

16b Per.

8b Per.

SFR

FFFFh
FFE0h

FFDFh

8000h

05FFh

0200h

01FFh

0100h

00FFh

0010h
000Fh
0000h

MSP430C337

Int. Vector

32 kB ROM

1024B RAM

16b Per.

8b Per.

SFR

FFFFh
FFE0h

FFDFh

05FFh

01FFh
00FFh
000Fh

8000h

0200h

0100h
0010h
0000h

MSP430P337A
PMS430E337A

Int. Vector

32 kB OTP

or

EPROM

1024B RAM

16b Per.

8b Per.

SFR

peripherals

Peripherals that are connected to the CPU through a data, address, and controls bus can be handled easily with
instructions for memory manipulation.

oscillator and system clock

Two clocks are used in the system: the system (master) clock (MCLK) and the auxiliary clock (ACLK). The MCLK
is a multiple of the ACLK. The ACLK runs with the crystal oscillator frequency . The special design of the oscillator
supports the feature of low current consumption and the use of a 32 768 Hz crystal. The crystal is connected
across two terminals without any other external components required.

The oscillator starts after applying VCC, due to a reset of the control bit (OscOff) in the status register (SR). It
can be stopped by setting the OscOff bit to a 1. The enabled clock signals ACLK, ACLK/2, ACLK/4, or MCLK
are accessible for use by external devices at output terminal XBUF.

The controller system clocks have to deal with different requirements according to the application and system
condition. Requirements include:

D

High frequency in order to react quickly to system hardware requests or events

D

Low frequency in order to minimize current consumption, EMI, etc.

D

Stable frequency for timer applications e.g., real-time clock (RTC)

D

Enable start-stop operation with minimum delay to operation function

These requirements cannot all be met with fast frequency high-Q crystals or with RC-type low-Q oscillators. This
compromise and selected for the MSP430, uses a low-crystal frequency, which is multiplied to achieve the
desired nominal operating range:

f

(system)

+(N)1)

f

(crystal)

10

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

oscillator and system clock (continued)

The crystal frequency multiplication is achieved with a frequency locked loop (FLL) technique. The factor N is
set to 31 after a power-up clear condition. The FLL technique, in combination with a digital controlled oscillator
(DCO), provides immediate start-up capability together with long term crystal stability . The frequency variation
of the DCO with the FLL inactive is typically 330 ppm, which means that with a cycle time of 1 µs the maximum
possible variation is 0.33 ns. For more precise timing, the FLL can be used, which forces longer cycle times if
the previous cycle time was shorter than the selected one. This switching of cycle times makes it possible to
meet the chosen system frequency over a long period of time.

The start-up operation of the system clock depends on the previous machine state. During a PUC, the DCO
is reset to its lowest possible frequency . The control logic starts operation immediately after recognition of PUC.

multiplication

The multiplication operation is supported by a dedicated peripheral module. The module performs 16x16, 16x8,
8x16, and 8x8 bit operations. The module is capable of supporting signed and unsigned multiplication as well
as signed and unsigned multiply and accumulate operations. The result of an operation can be accessed
immediately after the operands have been loaded into the peripheral registers. No additional clock cycles are
required.

digital I/O

Five eight-bit I/O ports (P0 thru P4) are implemented. Port P0 has six control registers, P1 and P2 have seven
control registers, and P3 and P4 modules have four control registers to give maximum flexibility of digital
input/output to the application:

D

Individual I/O bits are independently programmable.

D

Any combination of input, output, and interrupt conditions is possible.

D

Interrupt processing of external events is fully implemented for all eight bits of the P0, P1, and P2 ports.

D

Read/write access is available to all registers by all instructions.

The seven registers are:

D

Input register contains information at the pins

D

Output register contains output information

D

Direction register controls direction

D

Interrupt edge select contains input signal change necessary for interrupt

D

Interrupt flags indicates if interrupt(s) are pending

D

Interrupt enable contains interrupt enable pins

D

Function select determines if pin(s) used by module or port

These registers contain eight bits each with the exception of the interrupt flag register and the interrupt enable
register which are 6 bits each. The two least significant bit (LSBs) of the interrupt flag and enable registers are
located in the special function register (SFR). Five interrupt vectors are implemented, one for Port P0.0, one
for Port P0.1, one commonly used for any interrupt event on Port P0.2 to Port P0.7, one commonly used for any
interrupt event on Port P1.0 to Port P1.7, and one commonly used for any interrupt event on Port P2.0 to Port
P2.7.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

11

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

LCD drive

The liquid crystal displays (LCDs) for static, 2-, 3-, and 4-MUX operation can be driven directly . The operation
of the controller LCD logic is defined by software through memory-bit manipulation. The LCD memory is part
of the LCD module, not part of data memory. Eight mode and control bits define the operation and current
consumption of the LCD drive. The information for the individual digits can be easily obtained using table
programming techniques combined with the proper addressing mode. The segment information is stored into
LCD memory using instructions for memory manipulation.

The drive capability is defined by the external resistor divider that supports analog levels for 2-, 3-, and 4-MUX
operation. Groups of the LCD segment lines can be selected for digital output signals. The MSP430x33x
configuration has four common lines, 30 segment lines, and four terminals for adjusting the analog levels.

Basic Timer1

The Basic Timer1 (BT1) divides the frequency of MCLK or ACLK, as selected with the SSEL bit, to provide
low-frequency control signals. This is done within the system by one central divider, the Basic T imer1, to support
low current applications. The BTCTL control register contains the flags which control or select the different
operational functions. When the supply voltage is applied or when a reset of the device (RST
watchdog overflow, or a watchdog security key violation occurs, all bits in the register hold undefined or
unchanged status. The user software usually configures the operational conditions on the BT during
initialization.

/NMI pin), a

The Basic Timer1 has two eight bit timers which can be cascaded to a sixteen bit timer . Both timers can be read
and written by software. Two bits in the SFR address range handle the system control interaction according to
the function implemented in the Basic Timer1. These two bits are the Basic T imer1 interrupt flag (BTIFG) and
the Basic Timer1 interrupt enable (BTIE) bit.

Watchdog Timer

The primary function of the Watchdog Timer (WDT) module is to perform a controlled system restart after a
software upset has occurred. If the selected time interval expires, a system reset is generated. If this watchdog
function is not needed in an application, the module can work as an interval timer, which generates an interrupt
after the selected time interval.

The Watchdog T imer counter (WDTCNT) is a 15/16-bit upcounter which is not directly accessible by software.
The WDTCNT is controlled using the Watchdog T imer control register (WDTCTL), which is an 8-bit read/write
register. W riting to WDTCTL, in both operating modes (watchdog or timer) is only possible by using the correct
password in the high-byte. The low-byte stores data written to the WDTCTL. The high-byte password is 05Ah.
If any value other than 05Ah is written to the high-byte of the WDTCTL, a system reset PUC is generated.
the password is read its value is 069h. This minimizes accidental write operations to the WDTCTL register. In
addition to the Watchdog T imer control bits, there are two bits included in the WDTCTL that configure the NMI
pin.

USART

The universal synchronous/asynchronous interface is a dedicated peripheral module which provides serial
communications. The USART supports synchronous SPI (3 or 4 pin) and asynchronous UART communications
protocols, using double buffered transmit and receive channels. Data streams of 7 or 8 bits in length can be
transferred at a rate determined by the program, or by a rate defined by an external clock. Low-power
applications are optimized by UART mode options which allow for the receipt of only the first byte of a complete
frame. The applications software then decides if the succeeding data is to be processed. This option reduces
power consumption.

When

Two dedicated interrupt vectors are assigned to the USAR T module, one for the receive and one for the transmit
channel.

12

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

Timer/Port

The Timer/Port module has two 8-Bit T imer/Counters, an input that triggers one counter , and six digital outputs
with 3-state capability . Both counters have an independent clock selector for selecting an external signal or one
of the internal clocks (ACLK or MCLK). One of the counters has an extended control capability to halt, count
continuously , or gate the counter by selecting one of two external signals. This gate signal sets the interrupt flag
if an external signal is selected and the gate stops the counter.

Both timers can be read to and written from by software. The two 8-Bit Timer/Counters can be cascaded to form
a 16-bit counter. A common interrupt vector is implemented. The interrupt flag can be set by three events in the
8-Bit Timer/Counter mode (gate signal or overflow from the counters) or by two events in the 16-bit counter mode
(gate signal or overflow from the MSB of the cascaded counter).

slope A/D conversion

Slope A/D conversion is accomplished with the Timer/Port module using external resistor(s) for reference (R
using external resistor(s) to the measured (R

), and an external capacitor. The external components are

meas

driven by software in such a way that the internal counter measures the time that is needed to charge or
discharge the capacitor. The reference resistor’s (R
The unknown resistors (R
resistor’s value R

is the value of R

meas

) charge or discharge time is represented by N

meas

multiplied by the relative number of counts (N

ref

) charge or discharge time is represented by N

ref

counts. The unknown

meas

meas/Nref

determines resistive sensor values that correspond to the physical data, for example temperature, when an NTC
or PTC resistor is used.

Timer_A

The Timer_A module (see Figure1) offers one sixteen bit counter and five capture/compare registers. The timer
clock source can be selected to come from an external source TACLK (SSEL=0), the ACLK (SSEL=1), or
MCLK (SSEL=2 or SSEL=3). The clock source can be divided by one, two, four, or eight. The timer can be fully
controlled (in word mode) since it can be halted, read, and written. It can be stopped or run continuously . It can
count up or count up/down using one compare block to determine the period. The five capture/compare blocks
are configured by the application software to run in either capture or compare mode.

The capture mode is primarily used to measure external or internal events with any combination of positive,
negative, or both edges of the clock. The clock can also be stopped in capture mode by software. One external
event (CCISx=0) per capture block can be selected. If CCISx=1, the ACLK is the capture signal; and if CCISx=2
or CCISx=3, software capture is chosen.

The compare mode is primarily used to generate timing for the software or application hardware or to generate
pulse-width modulated output signals for various purposes like D/A conversion functions or motor control. An
individual output module, which can run independently of the compare function or is triggered in several ways,
is assigned to each of the five capture/compare registers.

ref

counts.

ref

). This value

),

Two interrupt vectors are used by the Timer_A module. One individual vector is assigned to capture/compare
block CCR0 and one common interrupt vector is assigned to the timer and the other four capture/compare
blocks. The five interrupt events using the common vector are identified by an individual interrupt vector word.
The interrupt vector word is used to add an offset to the program counter to continue the interrupt handler
software at the correct location. This simplifies the interrupt handler and gives each interrupt event the same
interrupt handler overhead of 5 cycles.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

13

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

Timer_A (continued)

P3.2

MCLK

P3.3

ACLK

P3.4

ACLK

P3.5

ACLK

P3.6

ACLK

P3.7

ACLK

TACLK

ACLK

MCLK

INCLK

CCI0A
CCI0B

GND

V

CC

CCI1A
CCI1B

GND

V

CC

CCI2A
CCI2B

GND

V

CC

CCI3A
CCI3B

GND

V

CC

CCI4A
CCI4B

GND

V

CC

SSEL0SSEL1

0

1

2

3

ID1

CCIS00CCIS01

0

1

2

3

CCI0 CCM00

CCIS10CCIS11

0

1

2

3

CCI1 CCM10

CCIS20CCIS21

0

1

2

3

CCI2 CCM20

CCIS30CCIS31

0

1

2

3

CCI3 CCM30

CCIS40CCIS41

0

1

2

3

CCI4 CCM40

32 kHz to 8 MHz

Timer Clock

Input

Divider

ID0

Capture

Mode

CCM01

Capture

Mode

CCM11

Capture

Mode

CCM21

Capture

Mode

CCM31

Capture

Mode

CCM41

15

CLK

POR/CLR

Capture

Capture

Capture

Capture

Capture

Data

16-Bit Timer

Carry/Zero

0

RC

15

Capture/Compare

Register CCR0

15

Comparator 0

15

Capture/Compare

Register CCR1

15

Comparator 1

15

Capture/Compare

Register CCR2

15

Comparator 2

15

Capture/Compare

Register CCR3

15

Comparator 3

15

Capture/Compare

Register CCR4

15

Comparator 4

Mode

Control

MC1 MC0

16-Bit Timer

Equ0

Set_TAIFG

Capture/Compare Register CCR0Timer Bus

0

0

0

0

0

0

0

0

0

0

OM02 OM00OM01

Output Unit 0

EQU0

Capture/Compare Register CCR1

OM12 OM10OM11

Output Unit 1

EQU1

Capture/Compare Register CCR2

OM22 OM20OM21

Output Unit 2

EQU2

Capture/Compare Register CCR3

OM32 OM30OM31

Output Unit 3

EQU3

Capture/Compare Register CCR4

OM42 OM40OM41

Output Unit 4

EQU4

Out 0

P3.3

Out 1

P3.4

Out 2

P3.5

Out 3

P3.6

Out 4

P3.7

14

Figure 1. Timer_A, MSP430x337 Configuration

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

8-Bit Timer/Counter

The 8-bit interval timer supports three major functions for applications:

D

Serial communication or data exchange

D

Plus counting or plus accumulation

D

Timer

The 8-Bit Timer/Counter peripheral includes the following major blocks: an 8-bit up-counter with preload
register, an 8-bit control register, an input clock selector, an edge detection (e.g. start bit detection for
asynchronous protocols), and an input and output data latch, triggered by the carry-out-signal from the 8-Bit
Timer/Counter.

The 8-Bit Timer/Counter counts up with an input clock, which is selected by two control bits from the control
register. The four possible clock sources are MCLK, ACLK, the external signal from terminal P0.1, and the signal
from the logical AND of MCLK and terminal P0.1.

Two counter inputs (load, enable) control the counter operation. The load input controls load operations. A
write-access to the counter results in loading the content of the preload register into the counter. The software
writes or reads the preload register with all instructions. The preload register acts as a buffer and can be written
immediately after the load of the counter is completed. The enable input enables the count operation. When
the enable signal is set to high, the counter will count-up each time a positive clock edge is applied to the clock
input of the counter.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

15

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

peripheral file map

PERIPHERALS WITH BYTE ACCESS

UART T ransmit buf fer, UTXBUF 077h Port P3 Port P3 selection, P3SEL 01Bh

Receive buffer, URXBUF 076h Port P3 direction, P3DIR 01Ah
Baud rate, UBR1 075h Port P3 output, P3OUT 019h
Baud rate, UBR0 074h Port P3 input, P3IN 018h
Modulation control, UMCTL 073h Port P0 Port P0 interrupt enable, P0IE 015h
Receive control, URCTL 072h Port P0 interrupt edge select, P0IES 014h
Transmit control, UTCTL 071h Port P0 interrupt flag, P0IFG 013h

UART control, UCTL 070h Port P0 direction, P0DIR 012h
EPROM EPROM control, EPCTL 054h Port P0 output, P0OUT 011h
Crystal Buffer Crystal buffer control, CBCTL 053h Port P0 input, P0IN 010h
System clock SCG frequency control, SCFQCTL 052h Special SFR interrupt flag2, IFG2 003h

SCG frequency integrator, SCFI1 051h Function SFR interrupt flag1, IFG1 002h

SCG frequency integrator, SCFI0 050h SFR interrupt enable2, IE2 001h
Timer/Port Timer/Port enable, TPE 04Fh SFR interrupt enable1, IE1 000h

Timer/Port data, TPD 04Eh PERIPHERALS WITH WORD ACCESS

Timer/Port counter2, TPCNT2 04Dh Multiply Sum extend, SumExt 013Eh

Timer/Port counter1, TPCNT1 04Ch Result high word, ResHi 013Ch

Timer/Port control, TPCTL 04Bh Result low word, ResLo 013Ah
Basic Timer1 Basic timer counter2, BTCNT2 047h Second operand, OP2 0138h

Basic timer counter1, BTCNT1 046h Multiply+accumulate/operand1, MACS 0136h

Basic timer control, BTCTL 040h Multiply+accumulate/operand1, MAC 0134h
8-bit T/C 8-Bit Timer/Counter data, TCDAT 044h Multiply signed/operand1, MPYS 0132h

8-Bit Timer/Counter preload, TCPLD 043h Multiply unsigned/operand1, MPY 0130h

8-Bit Timer/Counter control, TCCTL 042h Watchdog Watchdog Timer control, WDTCTL 0120h
LCD LCD memory 15, LCDM15 03Fh Timer_A Timer_A interrupt vector, T AIV 012Eh

: Timer_A control, TACTL 0160h

LCD memory 1, LCDM1 031h Cap/Com control, CCTL0 0162h

LCD control & mode, LCDCTL 030h Cap/Com control, CCTL1 0164h
Port P2 Port P2 selection, P2SEL 02Eh Cap/Com control, CCTL2 0166h

Port P2 interrupt enable, P2IE 02Dh Cap/Com control, CCTL3 0168h

Port P2 interrupt edge select, P2IES 02Ch Cap/Com control, CCTL4 016Ah

Port P2 interrupt flag, P2IFG 02Bh Reserved 016Ch

Port P2 direction, P2DIR 02Ah Reserved 016Eh

Port P2 output, P2OUT 029h Timer_A register , TAR 0170h

Port P2 input, P2IN 028h Cap/Com register, CCR0 0172h
Port P1 Port P1 selection, P1SEL 026h Cap/Com register, CCR1 0174h

Port P1 interrupt enable, P1IE 025h Cap/Com register, CCR2 0176h

Port P1 interrupt edge select, P1IES 024h Cap/Com register, CCR3 0178h

Port P1 interrupt flag, P1IFG 023h Cap/Com register, CCR4 017Ah

Port P1 direction, P1DIR 022h Reserved 017Ch

Port P1 output, P1OUT 021h Reserved 017Eh
Port P1 input, P1IN 020h
Port P4 Port P4 selection, P4SEL 01Fh

Port P4 direction, P4DIR 01Eh

Port P4 output, P4OUT 01D

Port P4 input, P4IN 01Ch

16

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

absolute maximum ratings

†

Supply voltage range, between: VCC terminals –0.3 V to 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

VSS terminals –0.3 V to 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input voltage range to any VSS terminal: V

–0.3 V to 6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC1

V

–0.3 V to 6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC2

Input voltage range to any terminal (referenced to VSS) –0.3 V to VCC + 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . .

Diode current at any device terminal ±2 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

: Unprogrammed device –55°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

stg

Programmed device –40°C to 85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE: All voltages referenced to VSS.

V

V

V

V

CC1

SS1

CC1

SS1

J/X
T/B
A/U
G/F

Common Lines COM0 to COM3, Segment Lines S0 to S29 Output Drivers O2 to O29

Core Logic With

Core CPU, System, JTAG/Test,

All Peripheral Modules

V

CC2

V

SS2

V

CC1

V

SS1

V

SS3

V

SS2

V

SS1

NOTES: A. Ground potential for all port output drivers and input terminals, excluding first inverter/buffer

B. Ground potential for entire device core logic and peripheral modules

Terminal of Timer/Port

(see Note A)

Input Buffers and Output Drivers of Port P0–P4

Substrate and Ground Potential For Input Inverters/Buffers

(see Note B)

Figure 2. Supply Voltage Interconnection

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

17

MSP430C33x, MSP430P337A

Operating free-air temperature range T

°C

Processor frequency (signal MCLK), f

V

V

V/5 V

V

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

recommended operating conditions

MIN NOM MAX UNIT

Supply voltage, VCC, (MSP430C33x) 2.5 5.5 V
Supply voltage, VCC, (MSP430E/P33xA) 2.5 5.5 V
Supply voltage, during programming,

VCC(V
Supply voltage, VSS 0 V

p

XTAL frequency f

Low-level input voltage, V
High-level input voltage, V
Low-level input voltage, V
High-level input voltage, V

†

A serial resistor of 1 kΩ to the RST/NMI pin is recommended to enhance latch-up immunity.

CC1

= V

) OTP/EPROM

CC2

p

(XTAL)

A

(signal ACLK) 32768 HZ

system

†

(excluding Xin, Xout)

IL

†

(excluding Xin, Xout)

IH

IL(Xin, Xout)

IH(Xin, Xout)

MSP430P337A, PMS430E337A 4.5 5 5.5 V

MSP430C33x, MSP430P33xA –40 85
PMS430E33xA 25

VCC = 3 V DC 1.65 MHz
VCC = 5 V DC 3.8 MHz

CC

= 3

0.7×V

0.8×V

V

SS

CC

V

SS

CC1

VSS+0.8

V

CC

0.2×VCC1
V

CC1

°

5

4

3

2

1.1 MHz at

1

– Maximum Processor Frequency – MHz

(system)

f

0

01 23

2.5 V

4567

VCC – Supply Voltage – V

Figure 3. Processor Frequency vs Supply Voltage

18

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

C336/7

I

Active mode

A

P337A

C336/7

I

Low power mode, (LPM0,1)

A

P337A

I

Low power mode, (LPM2)

A

I

Low power mode, (LPM3)

A

()

V

Positive-going input threshold voltage

V

V

Negative-going input threshold voltage

V

V

Input hysteresis (V

V

)

V

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)

supply current (into VCC) excluding external current (f

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

(AM)

(CPUOff)

(LPM2)

(LPM3)

I

(LPM4)

NOTE 6: All inputs are tied to 0 V or VCC2. Outputs do not source or sink any current. The current consumption in LPM2 and LPM3 are measured

p

p

p

Low power mode, (LPM4)

with active Basic Timer1 module (ACLK selected), LCD Module (f
selected)

(system)

TA= –40°C +85°C, VCC = 3 V
TA= –40°C +85°C, VCC = 5 V
TA= –40°C +85°C, VCC = 3 V
TA= –40°C +85°C, VCC = 5 V
TA= –40°C +85°C, VCC = 3 V
TA= –40°C +85°C, VCC = 5 V
TA= –40°C +85°C, VCC = 3 V
TA= –40°C +85°C, VCC = 5 V
TA= –40°C +85°C, VCC = 3 V
TA= –40°C +85°C, VCC = 5 V
TA= –40°C
TA= 25°C
TA= 85°C
TA= –40°C
TA= 25°C
TA= 85°C
TA= –40°C
TA= 25°C
TA= 85°C

LCD

= 1 MHz) (see Note 6)

400 500
800 900
570 700

1170 1250

50 70

100 130

50 70

100 130

7 12

18 25

2.0 3.5

VCC = 3 V

VCC = 5 V

VCC = 3 V/5 V

=1024 Hz, 4MUX) and USART module (UART , ACLK, 2400 Baud

2.0 3.5

1.6 3.5

5.2 10

4.2 10

4.0 10

0.1 0.8

0.1 0.8

0.4 1.5

µ

µ

µ

µ

µA

Current consumption of active mode versus system frequency,

IAM = I

AM[1MHz]

× f

system

[MHz]

Current consumption of active mode versus supply voltage,

I

AM

= I

+ 200µA/V × (VCC–3)

AM[3V]

schmitt-trigger inputs Port 0 to P4: P0.x to P4.x, Timer/Port: CIN, TP0.5

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

IT+

IT–

hys

p

p

p

IT+

–

IT–

VCC = 3 V 1.2 2.1
VCC = 5 V 2.3 3.4
VCC = 3 V 0.7 1.5
VCC = 5 V 1.4 2.3
VCC = 3 V 0.3 1
VCC = 5 V 0.6 1.4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

19

MSP430C33x, MSP430P337A

V

V

VOHHigh-level output voltage

V

V

V

V

V

VOLLow-level output voltage

V

V

V

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted) (continued)

outputs Port 0 to P4: P0.x to P4.x, Timer/Port: TP0.0 to TP0.5, LCD: S2/O2 to S29/O29, XBUF: XBUF , JT AG:TDO

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

IOH = – 1.2 mA, See Note 7

p

p

NOTES: 7. The maximum total current for all outputs combined should not exceed ±9.6 mA to hold the maximum voltage drop specified.

8. The maximum total current for all outputs combined should not exceed ±28 mA to hold the maximum voltage drop specified.

IOH = – 3.5 mA, See Note 8
IOH = – 1.5 mA, See Note 7
IOH = – 4.5 mA, See Note 8
IOL = 1.2 mA, See Note 7
IOL = 3.5 mA, See Note 8
IOL = 1.5 mA, See Note 7
IOL = 4.5 mA, See Note 8

CC

CC

CC

CC

= 3

= 5

= 3

= 5

leakage current (see Note 9)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

I

lkg(TP)

I

lkg(S27)

I

lkg(P0x)

NOTES: 9. The leakage current is measured with VSS or VCC applied to the corresponding pins(s) – unless otherwise noted.

High-impedance leakage current, Timer/Port
High-impedance leakage current, S27 V

Leakage current, port 0

10. All Timer/Port pins (TP0.0 to TP0.5) are Hi-Z. Pins CIN and TP0.0 to TP0.5 are connected together during leakage current
measurement. In the leakage measurement mode, the input CIN is included. The input voltage is VSS or VCC.

11. The leakages of the digital port terminals are measured individually. The port terminal must be selected for input and there must
be no optional pullup or pulldown resistor.

Timer/Port:V
VCC = 3 V/5 V,

S27

Port P0: P0.x, 0 ≤×≤ 7,
(see Note 11)

TP0.x,

= VSS to VCC, VCC = 3 V/5 V ± 50 nA

CIN = VSS, VCC,
(see Note 10)

VCC = 3 V/5 V,

VCC–0.4 V
VCC–1.0 V
VCC–0.4 V
VCC–1.0 V

V

SS

V

SS

V

SS

V

SS

VSS+0.4

VSS+1

VSS+0.4

VSS+1

CC
CC
CC
CC

± 50 nA

± 50 nA

optional resistors (see Note 12)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

R

(opt1)

R

(opt2)

R

(opt3)

R

(opt4)

R

(opt5)

R

(opt6)

R

(opt7)

R

(opt8)

R

(opt9)

R

(opt10)

NOTE 12: Optional resistors R

Resistors, individually programmable with ROM code, all port pins,
values applicable for pulldown and pullup

for pulldown or pullup are not programmed in standard OTP/EPROM devices P/E 337.

(optx)

VCC = 3 V/5 V 1.4 4.1 6.8 kΩ
VCC = 3 V/5 V 2.1 6.2 11 kΩ
VCC = 3 V/5 V 4.2 12 20 kΩ
VCC = 3 V/5 V 6.6 19 32 kΩ
VCC = 3 V/5 V 12 37 62 kΩ
VCC = 3 V/5 V 26 75 124 kΩ
VCC = 3 V/5 V 39 112 185 kΩ
VCC = 3 V/5 V 65 187 309 kΩ
VCC = 3 V/5 V 91 261 431 kΩ

VCC = 3 V/5 V 117 337 557 kΩ

20

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

TACLK, TA0-TA4

ns

Analog voltage

V

V/5 V

V

V

V/5 V

V

common lines

g

I

V

V/5 V

V

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted) (continued)

inputs and outputs

PARAMETER TEST CONDITIONS VCC MIN NOM MAX UNIT

Port P0, P1 to P2:

t

(int)

t

(cap)

f

(IN)

t

or t

(H)

(L)

t

or t

(H)

(L)

f

(XBUF)

f

(TAx)

f

(UCLK)

t

(Xdc)

∆t

(TA)

∆t

(UC)

t

(τ)

NOTES: 13. The external signal sets the interrupt flag every time t

14. The external interrupt signal cannot exceed the maximum input frequency (f

15. The external capture signal triggers the capture event every time t

16. The signal applied to the USART receive signal/terminal (URXD) should meet the timing requirements of t

External interrupt timing

Timer_A, capture timing

Input frequency

Output frequency

Duty cycle of output

USART: Deglitch time See Note16

conditions to set the flag must be met independently from this timing constraint. T

than t

flip-flop is set. The URXS flip-flop is set with negative pulses meeting the minimum timing condition of t
to set the flag must be met independently from this timing constraint. The deglitch circuitry is active only on negative transitions on
the URXD line.

. The conditions to set the flag must be met independently from this timing constraint.

(cap)

External trigger signal for the interrupt
flag (see Notes 13 and 14)

TA0-TA4
External capture signal (see Note 15)

P0.1, CIN, TP 0.5, UCLK, SIMO, SOMI,

XBUF, CL = 20 pF 3 V/5 V f
TA0-4, CL = 20 pF 3 V/5 V DC f
UCLK, CL = 20 pF 3 V/5 V DC f
XBUF, CL = 20 pF

TA0..4, CL = 20 pF

UCLK, C

-

f

(MCLK)

f

(XBUF)

f

(XBUF)

t

(TAH)

= 15pF

(L)

t

(UCH)

= 1.1 MHz

= f

(ACLK)

= f

(ACLK/n)

= t

(TAL)

= t

(UCL)

is met. It may be set even with trigger signals shorter than t

(int)

(cap)

3 V/5 V 1.5 cycle

3 V/5 V 250 ns
3 V/5 V DC f

3 V 300 f
5 V 300 f

3 V/5 V
3 V/5 V
3 V/5 V

3 V/5 V 0 ±100

3 V/5 V 0 ±100

3 V
5 V

(int)

)

(in)

is met. It may be triggered even with capture signals shorter

40%
35%

0.6

0.3

is defined in MCLK cycles.

50

to ensure that the URXS

(τ)

. The operating conditions

(τ)

(system)
(system)
(system)
(system)

(system)

(system)

60%
65%

2.6

1.4

MHz

MHz

/2

ns

ns

µs

. The

(int)

LCD

V

(33)

V

(23)

V

(13)

V

(03)

V

O(HLCD)

V

O(LLCD)

I

(R03)

I

(R13)

I

(R23)

V

(Sxx0)

V

(Sxx1)

V

(Sxx2)

V

(Sxx3)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

Voltage at R33 2.5 VCC+0.2

Output 1 I
Output 0 I

Input leakage

Segment line
voltage

Voltage at R23
Voltage at R13
Voltage at R03 V

)<= 10 nA

(HLCD

<= 10 nA

(LLCD)

R03 = V

SS

R13 = VCC/3
R23 = 2 × VCC/3

= – 3 µA,

(Sxx)

= 3

CC

V

= 3

CC

No load at all
segment and

VCC = 3 V/5 V

= 3

CC

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

,

(R33)

(33)

– 0.125 V

V

SS

V

(03)

V

(13)

V

(23)

V

(33)

(V33–V03) × 2/3 + V

(V

(33)–V(03)

– 2.5 VCC+0.2

) × 1/3 + V

03

(03)

VSS + 0.125

V
V
V
V

(03)
(13)
(23)
(33)

CC

±20
±20
±20

– 0.1
– 0.1
– 0.1
+ 0.1

nA

21

MSP430C33x, MSP430P337A

POR

()

V

V/5 V

V

3V/5V

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted) (continued)

PUC/POR

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

t

delay 150 250 µs

(POR)

TA = –40°C 1.5 2.4 V

V

(POR)

V

(min)

t

(reset)

V

(POR)

V

(min)

PUC/POR Reset is accepted internally 2 µs

V

POR

TA = 25°C
TA = 85°C

No POR

VCC

CC

= 3

1.2 2.1 V

0.9 1.8 V
0 0.4 V

POR

3

2.4

2.5

2

1.5

V POR [V]

1.5

1

0.5

0

–40 –20 0 20 40 60 80

crystal oscillator: Xin, Xout

C

(Xin)

C

(Xout)

Integrated capacitance at input
Integrated capacitance at output

t

Figure 4. Power-On Reset (POR) vs Supply Voltage

2.1
max

min

1.2

25°C

Temperature [°C]

Figure 5. V

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

vs Temperature

(POR)

CC

=

1.8

0.9

12 pF
12 pF

22

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

f

(DCO)

MH

f

f

(DCO)

MH

f

(DCO)

MH

2xf

f

(DCO)

MH

f

(DCO)

MH

3xf

f

(DCO)

MH

f

(DCO)

MH

4xf

f

(DCO)

MH

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted) (continued)

DCO

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

N

= 1 A0h

f

(NOM)

(NOM)

(NOM)

(NOM)

(NOM)

N

(DCO)

S f

DCO

(DCO3)

(DCO26)

(DCO3)

(DCO26)

(DCO3)

(DCO26)

(DCO3)

(DCO26)

(DCO)

FN_4=FN_3=FN_2 = 0
N

= 00 0110 0000

FN_4=FN_3=FN_2 = 0
N

= 11 0100 0000

FN_4=FN_3=FN_2 = 0
N

= 00 0110 0000

FN_4=FN_3=0, FN_2 = 1
N

= 11 0100 0000

FN_4=FN_3=0, FN_2 = 1
N

= 00 0110 0000

FN_4=0, FN_3=1, FN_2=X
N

= 11 0100 0000

FN_4=0,FN_3 =1, FN_2=X
N

= 00 0110 0000

FN_4=1, FN_3 = FN_2=X
N

= 11 0100 0000

FN_4=1, FN_3 = FN_2=X
f

FN_4=FN_3=FN_2 = 0

= f

(MCLK)

(NDCO)+1

(NOM)

= S x f

(NDCO)

VCC = 3 V/5 V 1 MHz
VCC = 3 V 0.15 0.6

VCC = 5 V 0.18 0.62
VCC = 3 V 1.25 4.7
VCC = 5 V 1.45 5.5
VCC = 3 V 0.36 1.05
VCC = 5 V 0.39 1.2
VCC = 3 V 2.5 8.1
VCC = 5 V 3 9.9
VCC = 3 V 0.5 1.5
VCC = 5 V 0.6 1.8
VCC = 3 V 3.7 11
VCC = 5 V 4.5 13.8
VCC = 3 V 0.7 1.85
VCC = 5 V 0.8 2.4
VCC = 3 V 4.8 13.3
VCC = 5 V 6 17.7

VCC = 3 V/5 V A0h 1A0h 340h
VCC = 3 V/5 V 1.07 1.13

z

z

z

z

z

z

z

z

4xf

3xf

2xf

NOM

NOM

NOM

f

NOM

f

(DCO26)

f

(DCO3)

FN_2 = 0
FN_3 = 0
FN_4 = 0

f

(DCO26)

f

(DCO3)

FN_2 = 1
FN_3 = 0
FN_4 = 0

f

(DCO26)

f

(DCO3)

FN_2 = X
FN_3 = 1
FN_4 = 0

f

(DCO26)

f

(DCO3)

Legend

Tolerance at Tap 26

DCO Frequency
Adjusted by Bits
2∧9–2∧5 in SCFI1

Tolerance at Tap 3

FN_2 = X
FN_3 = X
FN_4 = 1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

23

MSP430C33x, MSP430P337A

I

Comparator (Timer/Port)

CPON

1

A

CPON

1

V

Input hysteresis (comparator)

f

JTAG/test

TCK frequenc

MH

V

()

(erase)

() y

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

electrical characteristics over recommended and operating free-air temperature range (unless
otherwise noted) (continued)

RAM

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

V

(RAMh)

NOTE 17: This parameter defines the minimum supply voltage when the data in the program memory RAM remains unchanged. No program

execution should happen during this supply voltage condition.

Timer/Port comparator

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

(com)

V

ref(COM)

hys(COM)

p

Internal reference voltage at (–) terminal

p

p

CPON = 1 VCC = 5 V 10 42 mV

JT AG, program memory

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

(TCK)

R

(test)

(FB)

I

(FB)

t

(FB)

V

(PP)

I

(PP)

t

(pps)

t

(ppf)

P

n

t

NOTES: 18. The TMS and TCK pullup resistors are implemented in all ROM(C), OTP(P) and EPROM(E) versions. The pullup resistor on TDI

JTAG/fuse
(see Note 19)

EPROM(E) and
OTP(P) versions only

EPROM(E) version only

is implemented in C versions only.

19. Once the fuse is blown no further access to the MSP430 JTAG/test feature is possible.

20. The voltage supply to blow the fuse is applied to TDI/VPP pin during the fuse blowing procedure.

Pullup resistors on TMS, TCK, TDI
(see Note 18)

Fuse blow voltage, C versions (see Note 20) VCC = 3 V/5 V 5.5 6
Fuse blow voltage, E/P versions (see Note 20) VCC = 3 V/5 V 11 12
Supply current on TDI/VPP to blow fuse 100 mA
Time to blow the fuse 1 ms
Programming voltage, applied to TDI/VPP 12.0 12.5 13.0 V
Current from programming voltage source 70 mA
Programming time, single pulse 5 ms
Programming time, fast algorithm 100 µs
Number of pulses for successful programming 4 100 Pulse
Data retention TJ <55°C 10 Year

Erase time wave length 2537 Å at
15 Ws/cm2 (UV lamp of 12 mW/ cm2)

Write/erase cycles 1000

y

CPU halted (see Note 17) 1.8 V

VCC = 3 V 175 350

=

VCC = 5 V 600
VCC = 3 V/5 V 0.230 × V

=

VCC = 3 V 5 37 mV

VCC = 3 V DC 5
VCC = 5 V DC 10

VCC = 3 V/5 V 25 60 90 kΩ

CC1

0.260 × V

30 min

CC1

µ

V

z

24

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

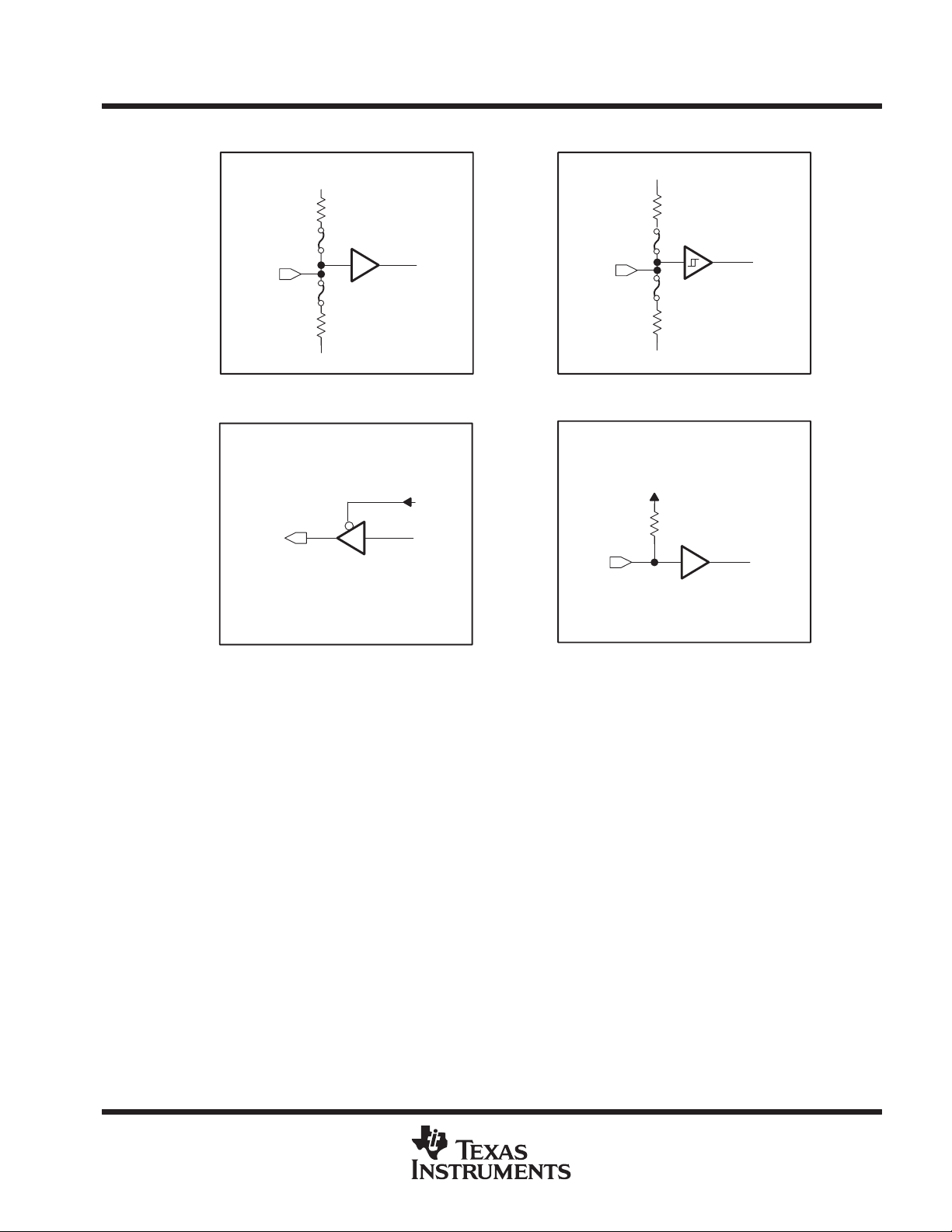

typical input/output schematics

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

(see Note B)

(see Note B)

CMOS INPUT

V

CC

(see Note A)

(see Note A)

GND

V

CC

(see Note A)

(see Note B)

(see Note B)

(see Note A)

GND

CMOS SCHMITT-TRIGGER INPUT

V

CC

60 k TYP

CMOS 3-STATE OUTPUT

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

MSP430C336/337: TMS, TCK, TDI
MSP430P/E337A: TMS, TCK

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

25

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

typical input/output schematics (continued)

VC
VD

Control COM0–3

VA

VB

Segment control

VA

VB

Segment control

LCDCTL (LCDM5,6,7)

Data (LCD RAM bits 0–3

or bits 4–7)

LCD OUTPUT (COM0–4, Sn, Sn/On)

NOTE A: The signals V A, VB, VC, and VD come from the LCD module analog voltage generator.

COM 0–3

S0, S1

S2/O2–Sn/On

Noninverting

26

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TDO

Controlled by JTAG

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

Controlled by JTAG

JTAG

Test

&

Emulation

Module

Controlled
by JTAG

TDI

TMS

TCK

(see Note D)

Burn & Test

see Note 1

DV

Fuse

DV

DV

TDO/TDI

CC

TDI

CC

TMS

CC

TCK

During Programming Activity and
During Blowing of the Fuse, Pin
TDO/TDI Is Used to Apply the Test
Input Data for JTAG Circuitry

NOTES: A. During programming activity and when blowing the JTAG enable fuse, the TDI/VPP terminal is used to apply the correct voltage

source. The TDO/TDI terminal is used to apply the test input data for JTAG circuitry.

B. The TDI/VPP terminal of the ’P337A and ’E337A does not have an internal pullup resistor. An external pulldown resistor is

recommended to avoid a floating node, which could increase the current consumption of the device.

Remove the external pulldown

resistors when switching from P/E337A to C337 devices. Otherwise system power consumption will increase.

C. The TDO/TDI terminal is in a high-impedance state after POR. The ’P337A and ’E337A need a pullup or a pulldown resistor to

avoid floating a node, which could increase the current consumption of the device.

D. The pullup resister is only implemented in C-version

Figure 6. MSP430P/E337A: TDI/VPP, TDO/TDI

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

27

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

typical input/output schematics (continued)

P0DIR.0

P0OUT.0

0: Input
1: Output

Pad Logic

V

CC2

(see Note A)

(see Note B)

P0.0

(see Note B)

P0IN.0

Request

Interrupt

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

P0IRQ.0

P0.0

P0IE.0

P0IFG.0

Interrupt
Flag

SetQ

Reset

IRQA

Interrupt

Edge

Select

P0IES.0

Figure 7. Port P0, P0.0, Input/Output With Schmitt-Trigger

0: Input
1: Output

Pad Logic

Interrupt

Edge

Select

Interrupt

Source

Select

P0.1D
Carry

11

ISCTL

From 8-Bit T/C

Request

Interrupt

P0DIR.1

P0OUT.1

P0IN.1

P0IRQ.1

P0.1

P0IE.1

P0IFG.1

P0IES.1

Interrupt
Flag

Set

Q

Reset

V

V

CC2

V

SS3

(see Note A)

(see Note A)

(see Note B)

P0.1/RXD

(see Note B)

(see Note A)

SS3

IRQA

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

Figure 8. Port P0, P0.1, Input/Output With Schmitt-Trigger

28

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

typical input/output schematics (continued)

TXE

P0DIR.2

P0OUT.2

TXD

0

1

0: Input
1: Output

Pad Logic

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

V

CC2

(see Note A)

(see Note B)

P0.2/TXD

(see Note B)

P0IN.2

P0IRQ.2

Request

Interrupt

P0.27

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

P0IRQ.3

P0IRQ.7

P0IE.2

P0IFG.2

SetQ

Interrupt
Flag

Interrupt

Edge

Select

P0IES.2

Figure 9. Port P0, P0.2, Input/Output With Schmitt-Trigger

0: Input

P0DIR.3–7

P0OUT.3–7

P0IN.3–7

Request

Interrupt

P0.27

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

P0IRQ.3–7

P0IRQ.2

P0IE.3–7

P0IFG.3–7

SetQ

Interrupt
Flag

1: Output

Pad Logic

Interrupt

Edge

Select

P0IES.3–7

V

V

SS3

CC2

(see Note A)

V

SS3

(see Note A)

(see Note B)

P0.3–P0.7

(see Note B)

(see Note A)

Figure 10. Port P0, P0.3 to P0.7, Input/Output With Schmitt-Trigger

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

29

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

typical input/output schematics (continued)

P1SEL.x

P1DIR.x

Direction Control

From Module

P1OUT.x

Module X OUT

P1IN.x

EN

Module X IN

P1IRQ.x

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

D

P1IE.x

P1IFG.x

0

1
0

1

EN

Q

Set

Interrupt
Flag

0: Input
1: Output

Pad Logic

Interrupt

Edge

Select

P1IES.x

P1SEL.x

V

CC2

V

(see Note A)

(see Note B)

P1.0–P1.7

(see Note B)

(see Note A)

SS3

PnSel.x

P1Sel.0 P1DIR.0 VSS1 P1OUT.0 VSS1 P1IN.0 Unused P1IE.0 P1IFG.0 P1IES.0
P1Sel.1 P1DIR.1 VSS1 P1OUT.1 VSS1 P1IN.1 Unused P1IE.1 P1IFG.1 P1IES.1
P1Sel.2 P1DIR.2 VSS1 P1OUT.2 VSS1 P1IN.2 Unused P1IE.2 P1IFG.2 P1IES.2
P1Sel.3 P1DIR.3 VSS1 P1OUT.3 VSS1 P1IN.3 Unused P1IE.3 P1IFG.3 P1IES.3

P1Sel.4 P1DIR.4 VSS1 P1OUT.4 VSS1 P1IN.4 Unused P1IE.4 P1IFG.4 P1IES.4
P1Sel.5 P1DIR.5 VSS1 P1OUT.5 VSS1 P1IN.5 Unused P1IE.5 P1IFG.5 P1IES.5
P1Sel.6 P1DIR.6 VSS1 P1OUT.6 VSS1 P1IN.6 Unused P1IE.6 P1IFG.6 P1IES.6
P1Sel.7 P1DIR.7 VSS1 P1OUT.7 VSS1 P1IN.7 Unused P1IE.7 P1IFG.7 P1IES.7

PnDIR.x

Dir. Control

From Module

PnOUT.x

Module X

OUT

PnIN.x

Module X

IN

PnIE.x PnIFG.x PnIES.x

Figure 11. Port P1, P1.0 to P1.7, Input/Output With Schmitt-Trigger

30

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

typical input/output schematics (continued)

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

P2SEL.x

P2DIR.x

Direction Control

From Module

P2OUT.x

Module X OUT

P2IN.x

EN

Module X IN

P2IRQ.x

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

D

P2IE.x

P2IFG.x

0

1
0

1

EN

Q

Set

Interrupt
Flag

0: Input
1: Output

Pad Logic

Interrupt

Edge

Select

P2IES.x

P2SEL.x

V

CC2

V

(see Note A)

(see Note B)

P2.0–P2.7

(see Note B)

(see Note A)

SS3

PnSel.x

P2Sel.0 P2DIR.0 VSS1 P2OUT.0 VSS1 P2IN.0 Unused P2IE.0 P2IFG.0 P2IES.0
P2Sel.1 P2DIR.1 VSS1 P2OUT.1 VSS1 P2IN.1 Unused P2IE.1 P2IFG.1 P2IES.1
P2Sel.2 P2DIR.2 VSS1 P2OUT.2 VSS1 P2IN.2 Unused P2IE.2 P2IFG.2 P2IES.2
P2Sel.3 P2DIR.3 VSS1 P2OUT.3 VSS1 P2IN.3 Unused P2IE.3 P2IFG.3 P2IES.3

P2Sel.4 P2DIR.4 VSS1 P2OUT.4 VSS1 P2IN.4 Unused P2IE.4 P2IFG.4 P2IES.4
P2Sel.5 P2DIR.5 VSS1 P2OUT.5 VSS1 P2IN.5 Unused P2IE.5 P2IFG.5 P2IES.5
P2Sel.6 P2DIR.6 VSS1 P2OUT.6 VSS1 P2IN.6 Unused P2IE.6 P2IFG.6 P2IES.6
P2Sel.7 P2DIR.7 VSS1 P2OUT.7 VSS1 P2IN.7 Unused P2IE.7 P2IFG.7 P2IES.7

PnDIR.x

Dir. Control

From Module

PnOUT.x

Module X

OUT

PnIN.x

Module X

IN

PnIE.x PnIFG.x PnIES.x

Figure 12. Port P2, P2.0 to P2.7, Input/Output With Schmitt-Trigger

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

31

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

typical input/output schematics (continued)

P3SEL.x

P3DIR.x

Direction Control

From Module

P3OUT.x

Module X OUT

P3IN.x

EN

Module X IN

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

PnSel.x

P3Sel.0 P3DIR.0 P3DIR.0 P3OUT.0 VSS1 P3IN.0 Unused
P3Sel.1 P3DIR.1 P3DIR.1 P3OUT.1 VSS1 P3IN.1 Unused
P3Sel.2 P3DIR.2 P3DIR.2 P3OUT.2 VSS1 P3IN.2 TACLK
P3Sel.3 P3DIR.3 P3DIR.3 P3OUT.3 Out0sig

P3Sel.4 P3DIR.4 P3DIR.4 P3OUT.4 Out1sig
P3Sel.5 P3DIR.5 P3DIR.5 P3OUT.5 Out2sig
P3Sel.6 P3DIR.6 P3DIR.6 P3OUT.6 Out3sig
P3Sel.7 P3DIR.7 P3DIR.7 P3OUT.7 Out4sig

NOTE: All CCIB-signals in T imer_A are connected to ACLK
†

Signal from Timer_A

‡

Signal to Timer_A

D

PnDIR.x

0

1
0

1

Dir. Control

From Module

0: Input
1: Output

Pad Logic

PnOUT.x

Module X

OUT

†
†

†
†
†

V

PnIN.x

P3IN.3 CCI0A
P3IN.4 CCI1A

P3IN.5 CCI2A
P3IN.6 CCI3A
P3IN.7 CCI4A

CC2

V

(see Note A)

(see Note B)

(see Note B)

(see Note A)

SS3

Module X

P3.0
P3.1

P3.2/TACLK ..

P3.3/TA0 ..

P3.7/TA4

IN

‡
‡

‡
‡
‡
‡

32

Figure 13. Port P3, P3.0 to P3.7, Input/Output With Schmitt-Trigger

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

typical input/output schematics (continued)

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

P4SEL.x

P4DIR.x

Direction Control

From Module

P4OUT.x

Module X OUT

P4IN.x

EN

Module X IN

x: Bit Identifier, 0, 1, 2, 6 and 7 For Port P4

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

PnSel.x

P4Sel.0 P4DIR.0 VSS1 P4OUT.0 VSS1 P4IN.0 Unused
P4Sel.1 P4DIR.1 VSS1 P4OUT.1 VSS1 P4IN.1 Unused
P4Sel.2 P4DIR.2 VSS1 P4OUT.2 VSS1 P4IN.2 STE
P4Sel.6 P4DIR.6 VCC1 P4OUT.6 UTXD
P4Sel.7 P4DIR.7 VSS1 P4OUT.7 VSS1 P4IN.7 URXD

†

Output from USART module

‡

Input to USART module

D

PnDIR.x

0

1
0

1

Dir. Control

From Module

0: Input
1: Output

Pad Logic

PnOUT.x

Module X

OUT

†

V

CC2

PnIN.x

P4IN.6 Unused

V

SS3

(see Note A)

(see Note B)

(see Note B)

(see Note A)

Module X

IN

‡

P4.0
P4.1

P4.2/STE

P4.6/UTXD

P4.7/URXD

Figure 14. Port P4, P4.0, P4.1, P4.2, P4.6 and P4.7, Input/Output With Schmitt-T rigger

P4SEL.3

P4DIR.3

SYNC

MM

STC

STE

(SI) MO From USART

P4IN.3

SI (MO) To USART

NOTES: A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

DCM_SIMO

P4OUT.3

EN

D

0

1
0

1

0: Input
1: Output

Pad Logic

V

CC2

Figure 15. Port P4, P4.3, Input/Output With Schmitt-Trigger

V

SS3

(see Note A)

(see Note B)

P4.3/SIMO

(see Note B)

(see Note A)

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

33

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

typical input/output schematics (continued)

P4SEL.4

P4DIR.4

SYNC

MM

STC

STE

(SO) MI From USART

P4IN.4

(SO) MI To USART

A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.
B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

DCM_SIMO

P4OUT.4

EN

D

0

1
0

1

0: Input
1: Output

Pad Logic

Figure 16. Port P4, P4.4, Input/Output With Schmitt-Trigger

SYNC

MM

STC

STE

P4SEL.5

P4DIR.5

DCM_UCLK

P4OUT.5

UCLK From USART

0

1
0

1

0: Input
1: Output

Pad Logic

V

DV

CC2

V

CC

(see Note A)

(see Note B)

P4.4/SOMI

(see Note A)

(see Note B)

SS3

(see Note D)

(see Note E)

P4.5/UCLK

(see Note E)

P4IN.5

UCLK To USART

EN

D

DV

SS

(see Note D)

Figure 17. Port P4, P4.5, Input/Output With Schmitt-Trigger

NOTES: A. UART mode: The clock can only be input if UART mode and UART function is selected, the direction of P4.5/UCLK is always input.

B. SPI, slave mode: The clock to UCLK is used to shift data in and out.
C. SPI, master mode: The clock shift data in and out is supplied on pin P4.5/UCLK for connected devices (in slave mode)
D. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.

E. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.

34

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

typical input/output schematics (continued)

TPx.0

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

TPD.0

TPx.1

TPx.2

TPx.3

TPx.4

TPIN.5

TPx.5

TPE.0

TPD.1
TPE.1

TPD.2
TPE.2

TPD.3
TPE.3

TPD.4
TPE.4

TPD.5
TPE.5

Figure 18. Timer/Port TP0.0 to TP0.5

CPON

CIN

S20/O29/CMPI

V

CC/4

ENB ENA

0

+
_

1

CMP

TPIN.5

Enable

Control

TPSSEL0

Set_EN1FG

EN1

8-Bit Counter TPCNT1

Figure 19. S29/O29/CMPI Pin Schematic

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

35

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

typical input/output schematics (continued)

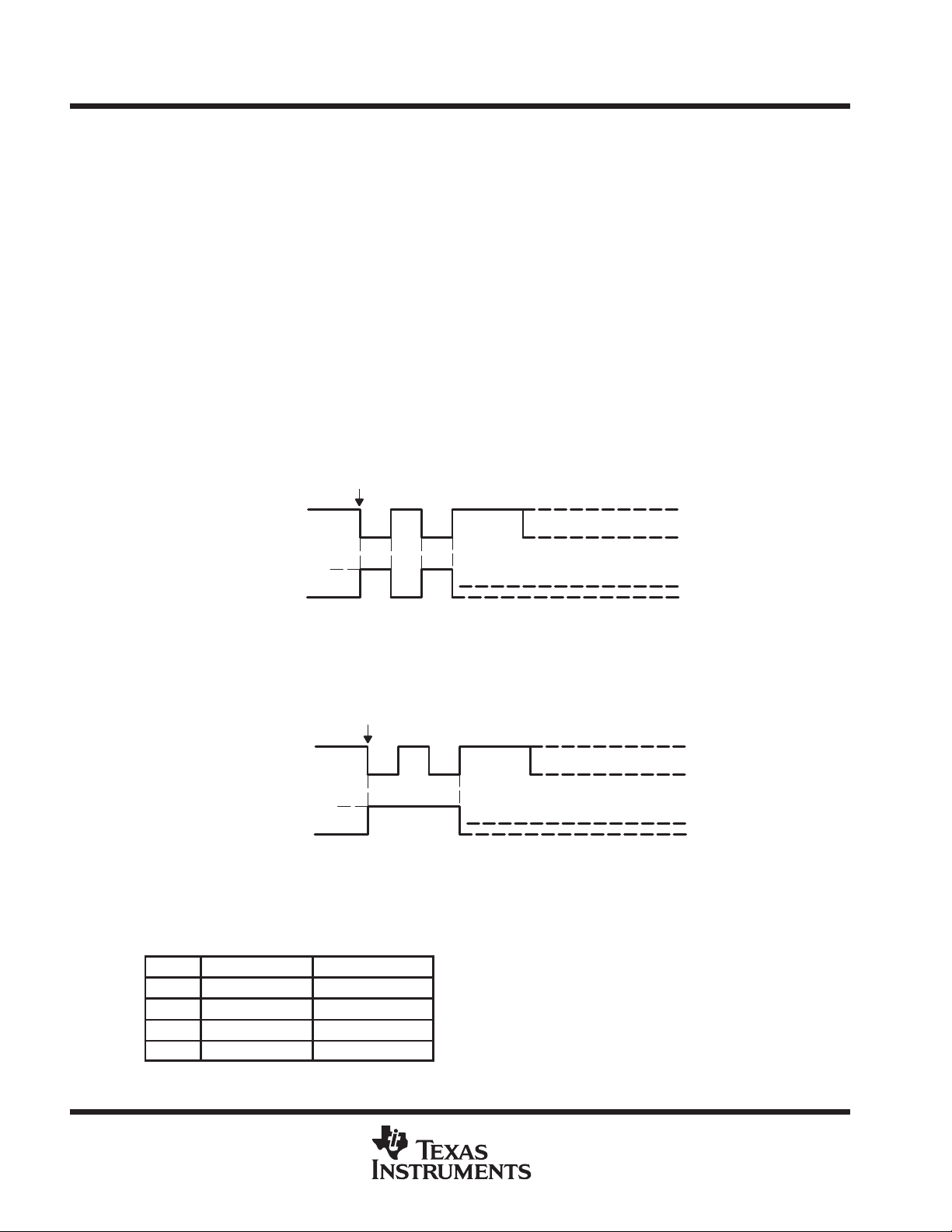

JTAG fuse check mode

MSP430 devices that have the fuse on the TDI/VPP terminal have a fuse check mode that tests the continuity
of the fuse the first time the JT AG port is accessed after a power-on reset (POR). When activated, a fuse check
current, ITF, of 1 mA at 3 V, 2.5 mA at 5 V can flow from the TDI/VPP pin to ground if the fuse is not burned.
Care must be taken to avoid accidentally activating the fuse check mode and increasing overall system power
consumption.

Activation of the fuse check mode occurs with the first negative edge on the TMS pin after power up or if the
TMS is being held low during power up. The second positive edge on the TMS pin deactivates the fuse check
mode. After deactivation, the fuse check mode remains inactive until another POR occurs. After each POR the
fuse check mode has the potential to be activated.

Fuse check current may or may not flow continuously while the fuse check mode is active, depending on which
type of device is in use and the state of the TMS pin.

For the mask ROM or C versions, the fuse check current will only flow when the fuse check mode is active and
the TMS pin is in a low state (see Figure 20). Therefore, the additional current flow can be prevented by holding
the TMS pin high (default condition).

Time TMS Goes Low After POR

TMS

I

TF

I

TDI

Figure 20. Fuse Check Mode Current, MSP430C33x

For the OTP or P versions, the fuse check current will flow continuously when fuse check mode is active,
regardless of the state of the TMS pin, until the fuse check mode is deactivated with the second positive edge
at the TMS pin (see Figure 21).

Time TMS Goes Low After POR

TMS

I

TF

I

TDI

Figure 21. Fuse Check Mode Current, MSP430P337A

Care must be taken to avoid accidentally activating the fuse check mode, including guarding against EMI/ESD
spikes that could cause signal edges on the TMS pin.

Configuration of TMS, TCK, TDI/VPP and TDO/TDI pins in applications.

C3xx P/E3xx

TDI Open 68k, pulldown
TDO Open 68k, pulldown
TMS Open Open
TCK Open Open

36

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C33x, MSP430P337A

MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

MECHANICAL DATA

PJM (R-PQFP-G100) PLASTIC QUAD FLATPACK

81

100

80

1

0,65

18,85 TYP

20,20
19,80
23,45
22,95

0,38
0,22

51

30

0,13

M

50

12,35 TYP

31

14,20 17,45
13,80 16,95

0,16 NOM

Gage Plane

2,90
2,50

3,40 MAX

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Falls within JEDEC MS-022

0,25 MIN

Seating Plane

0,25

0°–7°

1,03
0,73

0,10

4040022/B 03/95

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

37

MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS

SLAS227A – OCTOBER 1999 – REVISED JUNE 2000

MECHANICAL DATA

HFD (S-GQFP-G100) CERAMIC QUAD FLATPACK

81

100

80

0,65

1

18,85 TYP

20,20
19,20

23,45
22,95

0,30 TYP

30

51

50

12,35 TYP

31

14,20 17,45
13,80 16,95

0,15 TYP

3,70 TYP

4,25 MAX

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.

0,10 MIN

Seating Plane

0,10

0°–8°

1,00
0,60

4081530/A 09/95

38

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those
pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty . Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.

Customers are responsible for their applications using TI components.
In order to minimize risks associated with the customer’s applications, adequate design and operating

safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent

that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Copyright  2000, Texas Instruments Incorporated
