Texas Instruments ADS8861EVM-PDK User Manual

ADS8861EVM-PDK

User's Guide

SBAU214–October 2013

ADS8861EVM-PDK

This user's guide describes the operation and use of the ADS8861 evaluation module (EVM). The ADS8861 is an 16-bit, true-differential, unipolar, successive approximation register (SAR), analog-to-digital converter (ADC) with a maximum throughput of 1 MSPS. This ADC is very low power with excellent noise and distortion performance for ac or dc signals. The performance demonstration kit (PDK) eases EVM evaluation with additional hardware and software for computer connectivity through universal serial bus (USB). The ADS8861EVM-PDK includes the ADS8861EVM as a daughter card, MMB0 motherboard, A-to-B USB cable, and 6-V wall-adapter power supply. This user's guide covers the circuit description, schematic diagram, and bill of materials for the ADS8861EVM daughter card.

The related documents shown in Related Documentation are available for download at www.ti.com.

1 ADS8861EVM-PDK Overview

The ADS8861EVM is an evaluation module built to the TI modular EVM system specifications. The EVM by itself does not have a microprocessor and cannot run software. Thus, the EVM is available as part of the ADS8861EVM-PDK kit that combines the ADS8861EVM as a daughter board with the DSP-based MMB0 motherboard using ADCPro™ software as a graphical user interface (GUI).

ADCPro software collects, records, and analyzes data from ADC evaluation boards. ADCPro runs different plug-in programs to easily expand testing and data collection capabilities. In combination with the ADS8861EVM plug-in program, ADCPro offers a comprehensive evaluation environment for the ADS8861. For more details on ADCPro, see the ADCPro Analog-to-Digital Converter Evaluation Software User's Guide (SBAU128), available for download from www.ti.com.

ADS8861EVM Daughter Board Features:

• Includes support circuitry as a design example to match ADC performance

• 3.3-V slave serial peripheral interface (SPI)

• Serial interface header for easy connection to TI DSP-based communication systems

• Compatible with the TI modular EVM system

• Designed for 5-V analog supply

• Onboard 4.5-V voltage reference

• Bipolar (–4.3 V to 4.3 V) or unipolar (0 V to 8.6 V) input range

• Allows single-ended or differential input signals

ADS8861EVM-PDK Overview

ADS8861EVM-PDK Kit Additional Features:

• USB port for computer interfacing

• Regulated 5-V and 3.3-V supplies for powering the EVM daughter board

• Easy-to-use evaluation software for Windows®operating systems

• Data collection to text files

• Built-in analysis tools including scope, FFT, and histogram displays

• Easily expandable with new analysis plug-in tools from Texas Instruments

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

AINP

AINN

10000pF

10

1k

THS4521

Vocm =+2.25V

-2.15V

+2.15V

1k

-2.15V

+2.15V

0.1V

4.4V

2.25V

0.1V

4.4V

2.25V

-4.3V

+4.3V

A0(-)

A0(+)

EVM Analog Interface

2 EVM Analog Interface

The ADS8861EVM is designed for easy interfacing to multiple analog sources. SMA connectors allow the EVM to have input signals connected through coaxial cables. In addition, the Samtec™ connector provides a convenient 10-pin, dual-row, header and socket combination at J1. Consult Samtec at

www.samtec.com or call 1-800-SAMTEC-9 for a variety of mating connector options. All analog inputs are

buffered by the THS4521 high-speed, fully-differential amplifier in order to properly drive the ADS8861 ADC inputs.

Use appropriate caution when handling these pins. Table 1 summarizes the pinout for the analog interface J1.

Pin Number Signal Description

J1.10 A0(–) J1.12 A0(+) Channel 0 positive differential input or input for single-ended signals.

Table 2 lists the SMA analog inputs.

Pin Number Signal Description

J4 A0(–) J5 A0(+) Channel 0 positive differential input or input for single-ended signals.

www.ti.com

Table 1. J1: Analog Interface Pinout (Samtec 10 x 2)

Channel 0 negative differential input. This pin can be grounded for singleended signals.

Table 2. SMA Analog Inputs

Channel 0 negative differential input. This pin can be grounded for singleended signals.

2.1 Differential Input Signal Configuration

Although the ADS8861 can only convert unipolar differential signals, bipolar differential signals can be applied at the EVM inputs because the EVM inputs are conditioned by the THS4521 fully-differential amplifier. This EVM sets the THS4521 output common-mode voltage to 2.25 V, corresponding to V Thus, a bipolar differential signal with a common-mode voltage of 0 V can be applied at the EVM inputs A0(–) and A0(+). Then, the THS4521 shifts the common-mode voltage to 2.25 V. Even though the input common-mode voltage can be corrected, the input signals must limit the differential range from –4.3 V to

4.3 V to avoid saturating the amplifier output because the THS4521 is powered by a 5-V supply. Figure 1 shows an input signal with a 0-V common-mode voltage and an 8.6-V differential voltage, where the common-mode voltage is changed from 0 V to 2.25 V.

ADS8861EVM-PDK SBAU214–October 2013

Figure 1. Differential Input Example

/ 2.

REF

Submit Documentation Feedback

0.22

1k

1µF

OPA333

THS4281

10µF

1µF

20k

1k

1µF

Vref

4.5V from REF5045

AINP

AINN

10000pF

10

1k

THS4521

Vocm =+2.25V

1k

-4.3V

+4.3V

0.1V

4.4V

2.25V

0.1V

4.4V

2.25V

-4.3V

+4.3V

A0(+)

A0(-)

+8.6V

www.ti.com

2.2 Single-Ended Signal Configuration

The ADS8861 can only convert single-ended signals between 0 V and V single-ended signal to a differential signal, thus allowing a larger input voltage range for the EVM input A0(+). The single-ended signal range can be 0 V to 8.6 V or –4.3 V to 4.3 V to avoid saturating the amplifier output. The EVM A0(–) input should be grounded for single-ended signals, as shown in Figure 2.

Figure 2. Single-Ended Signal Example

2.3 Voltage Reference

The reference voltage should be below 5 V because the EVM is powered by a 5-V analog supply. This EVM uses a 4.5 V value created by the onboard REF5045. This value is then filtered by an RC filter with a 160-Hz cutoff frequency to minimize noise contribution. Finally, the filtered reference value is buffered by the THS4281 that functions as the driver for the ADC reference input pin. To meet performance specifications, a 10-μF capacitor with a small ESR is also present at the ADC reference input pin. This large capacitive load reduces the THS4281 effective bandwidth to 2 MHz, making the THS4281 total noise contribution approximately 22 μ complement the THS4281 by minimizing offset and drift.

. The OPA333 and the additional feedback are optional, but do

VRMS

EVM Analog Interface

. The THS4521 can condition a

REF

Figure 3. THS4281 Reference Driver with Complementary OPA333 for Drift and Offset Correction

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

EVM Digital Interface

3 EVM Digital Interface

Samtec part numbers SSW-110-22-F-D-VS-K and TSM-110-01-L-DV-P provide convenient 10-pin, dualrow, header and socket combinations at P1. The header and socket provides access to the ADC digital control pins. Consult Samtec at www.samtec.com or call 1-800-SAMTEC-9 for a variety of mating connector options.

Table 3 summarizes the pinouts for the digital interface J2.

Pin Number Signal Description

J2.1 CS or CONVST Chip-select input that can be used as a convert start J2.3 SCLK Serial clock input

J2.7 CS or CONVST J2:13 SDO or MISO SDO or MISO output J2.15 INT J2.17 CONVST Directly connects to the convert start pin if JP3 is installed

J2.4, J2.10, and J2.18 GND Digital ground connections

J2.16, J2.20 I2C™ bus

J2.2, J2.5-6, J2.8-9, J2.11-12,

J2.14, and J2:19

www.ti.com

Table 3. J2: Serial Interface Header

Chip-select input that can be used as a convert start intended for the MMB0 motherboard

20-kΩ pull-up resistor for detecting falling edges at the end of conversions

I2C bus; used only used to program the U4 EEPROM on the EVM board

Unused Unused

3.1 Serial Interface (SPI)

The ADS8861 ADC uses SPI serial communication in mode 1 (CPOL = 0, CPHA = 1) with high-speed clocks greater than 30 MHz or uses mode 0 (CPOL = 0, CPHA = 0) for slower clocks. Because the serial clock (SCLK) frequency can be as fast as 80 MHz, the ADS8861EVM offers 47-Ω resistors between the SPI signals and J2 to aid with signal integrity. Typically, in high-speed SPI communication, fast signal edges can cause overshoot; these 47-Ω resistors slow down the signal edges in order to minimize signal overshoot.

3.2 I2C Bus for Onboard EEPROM

The ADS8861EVM has an I2C bus that records the board name and assembly date to communicate with the onboard EEPROM. This bus is not used in any form by the ADS8861 converter.

ADS8861EVM-PDK SBAU214–October 2013

Submit Documentation Feedback

www.ti.com

4 EVM Power-Supply Inputs

J3 is the power-supply input connector. Table 4 lists the configuration details for J3.

Pin Number Pin Name Function Required

J3.3 +5VA 5-V analog supply Yes J3.5 GND Digital ground input Yes J3.6 GND Analog ground input Yes J3.7 1.8 VD 1.8-V digital supply Optional J3.9 3.3 VD 3.3-V digital supply Yes

J3.10 5 VD 5-V digital supply No

P3.1-2, P3.4, and P3.7-8 Unused Unused No

4.1 Analog Power Options

The ADS8861EVM board is designed to function with a 5-V analog power supply connected to J3.3. The ADS8861 is limited to 3.6 V as an analog supply. Therefore, the board regulates down the 5-V analog supply with an onboard 3.3-V LDO (TPS78833).

4.2 Digital Power Options

The ADS8861EVM connects the digital power supply of the ADS8861 to 3.3 VD (J3.10) with a 0-Ω resistor. This 3.3-V supply matches the 3.3-V logic level of the MMB0 motherboard.

EVM Power-Supply Inputs

Table 4. J3: Power-Supply Interface Header

4.3 Analog and Digital Grounds

The EVM only has one ground plane for analog and digital supplies; thus, pins J3.5 and J3.6 are tied together to this ground plane. Therefore, both supply grounds should be connected to pins J3.5–6 in order to share the same ground.

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

SDI

SCLK

SDO

CONVST

JP2

JP3

(CLOSED)

DVDD

20k

/CS

CONVST

J2:1 or J2:7

J2:17

ADS8861

/CS

CONVST

SDI

SCLK

SDO

CONVST

JP2

JP3

(OPEN)

DVDD

20k

/CS

J2:1 or J2:7

J2:17

ADS8861

EVM Digital Configuration

5 EVM Digital Configuration

The EVM offers two jumpers (JP2 and JP3) to configure the EVM in either 3-wire or 4-wire SPI mode. By default, the EVM jumper settings are 3-wire. JP1 only establishes the pin that carries the chip-select signal from the J2 header.

5.1 SPI 3-Wire Mode (JP2:2–3 and JP3:OPEN)

The chip-select signal is used to bring the ADS8861 digital output out of 3-state and initialize conversions. The rising edge of the chip-select signal starts a conversion, then after the conversion time the falling edge of chip-select brings the digital output out of 3-state. Figure 4 shows this configuration.

www.ti.com

Figure 4. Serial 3-Wire Configuration

5.2 SPI 4-Wire Mode (JP2:1–2 and JP3:CLOSED)

The chip-select signal is used to bring the ADS8861 digital output out of 3-state. However, conversion is initialized from J3:17 as an independent signal. The rising edge of J3:17 (CONVST) starts a conversion, then after the conversion time the falling edge of the chip-select brings the digital output out of 3-state.

Figure 5 shows this configuration.

Figure 5. Serial 4-Wire Configuration

ADS8861EVM-PDK SBAU214–October 2013

Submit Documentation Feedback

www.ti.com

6 PDK Kit Setup

NOTE: Do not connect the ADS8861EVM-PDK to a computer before completing Section 6. Failure

to observe this caution may cause Microsoft Windows to disregard the ADS8861EVM-PDK as a connected device.

This section presents the steps required to setup the ADS8861EVM-PDK kit before operation.

Section 7 explains how to operate the kit to acquire and analyze data.

The steps to setup the kit are as follows and must be completed before attempting to capture data:

Step 1. Download and install the ADCPro software (if not already installed) to a computer. Step 2. Download and install the ADS8861EVM-PDK EVM plug-in software. Step 3. Configure the ADS8861EVM-PDK hardware. Step 4. Power-up the ADS8861EVM-PDK.

Each task is described in the subsequent sections of this document.

6.1 Installing the ADCPro Software

ADCPro is the primary program used to evaluate the ADS8861. ADCPro is available for download at

www.ti.com/tool/adcpro. Refer to the ADCPro User's Guide (SBAU128) for detailed installing instructions.

6.2 Installing the ADS8861EVM-PDK Plug-In Software

PDK Kit Setup

NOTE: ADCPro should be installed before attempting to install the ADS8861EVM-PDK plug-in

software.

The installation file link for the PDK plug-in can be found in the ADS8861EVM-PDK product folder at

www.ti.com/tool/ads8861evm-pdk. In the software section, look for a link with a file named ads886x-

adcproplugin-<version #>.exe (<version #> refers to the installation file version number, and increments with software version releases). Download and double-click the file to run it; then follow the instructions as shown.

Figure 6 shows the initial and completed installer screen shots, respectively.

Figure 6. Plug-In Installer

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

PDK Kit Setup

6.3 Configuring the ADS8861EVM-PDK Hardware

The ADS8861EVM-PDK contains both the ADS8861EVM and the MMB0 motherboard; however, the devices may be shipped unconnected or configured incorrectly. Follow these steps to verify that the ADS8861EVM-PDK kit is properly configured and connected.

Step 1. Unpack the ADS8861EVM-PDK kit. Step 2. Set J12 to closed, J13A to open, and J13B to closed on the MMB0, as shown in Figure 7.

www.ti.com

Figure 7. MMB0 Motherboard Jumper Configuration

• J12 must be closed. This setting allows the wall supply to power-up the MMB0 and the ADS8861EVM through J2 (6-VDC input), and regulate down to 5 V, 3.3 V.

• J13B must be closed. This setting connects the 5-V analog power supply with the 5-V digital power supply.

• J13A must be opened. This setting allows the 5-V analog power supply to be regulated onboard.

ADS8861EVM-PDK SBAU214–October 2013

Submit Documentation Feedback

www.ti.com

3. Set JP1:2–3, JP2:2–3, and JP3:open on the ADS8861EVM, as shown in Figure 8.

PDK Kit Operation

Figure 8. ADS8861EVM Jumper Configuration

Step 3. Plug the ADS8861EVM into the MMB0.

To avoid bending the connector pins and damaging the EVM, do not misalign the pins when plugging the ADS8861EVM into the MMB0. Check the pin alignment carefully before applying power to the PDK.

6.4 Powering up the ADS8861EVM-PDK

When the ADS8861EVM-PDK kit is configured, power can be applied to the MMB0. This power comes from a wall supply that delivers 6 VDC to the MMB0 through J2 on the MMB0 motherboard. This wall power supply is included with the PDK.

After the power supply is connected, four green light-emitting diodes (LEDs) in the bottom right-hand corner of the MMB0 motherboard should light up. If these LEDs do not light up, disconnect the power and verify that J12 is closed on the MMB0 motherboard.

7 PDK Kit Operation

The evaluation software is based on ADCPro. This program operates using a variety of plug-ins. To use ADCPro, load an EVM plug-in and a test plug-in (select them from the EVM and Test menus, respectively). To unload a plug-in, select the Unload option from the corresponding menu.

The following sections describe how to use ADCPro and the ADS8861EVM plug-in to acquire data.

7.1 About MMB0

The MMB0 provides the USB interface between the computer and the ADS8861EVM. The MMB0 is a modular EVM system motherboard designed around the TMS320VC5509, a DSP with an onboard USB interface from Texas Instruments. The MMB0 also has 16 MB of SDRAM installed.

The MMB0 is not sold as a DSP development board, and is not available separately. TI cannot offer support for the MMB0 except as part of an EVM kit. For schematics or other information about the MMB0, contact Texas Instruments.

CAUTION

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

PDK Kit Operation

7.2 Loading the ADS8861EVM-PDK Plug-in

Step 1. Make sure the PDK kit is configured and powered up as explained in Section 6. Then, press

the Reset button on the MMB0 (in the top right-hand corner) one time to clear board memory. Step 2. Connect the MMB0 to a computer using the USB cable provided with the kit. Step 3. Start ADCPro from the Windows Start menu. Step 4. Load the ADS886XEVM plug-in from the ADCPro drop-down EVM menu, as shown in

Figure 9. Note that only one EVM plug-in can be loaded at a time. If a different plug-in is

selected, the previous plug-in is unloaded.

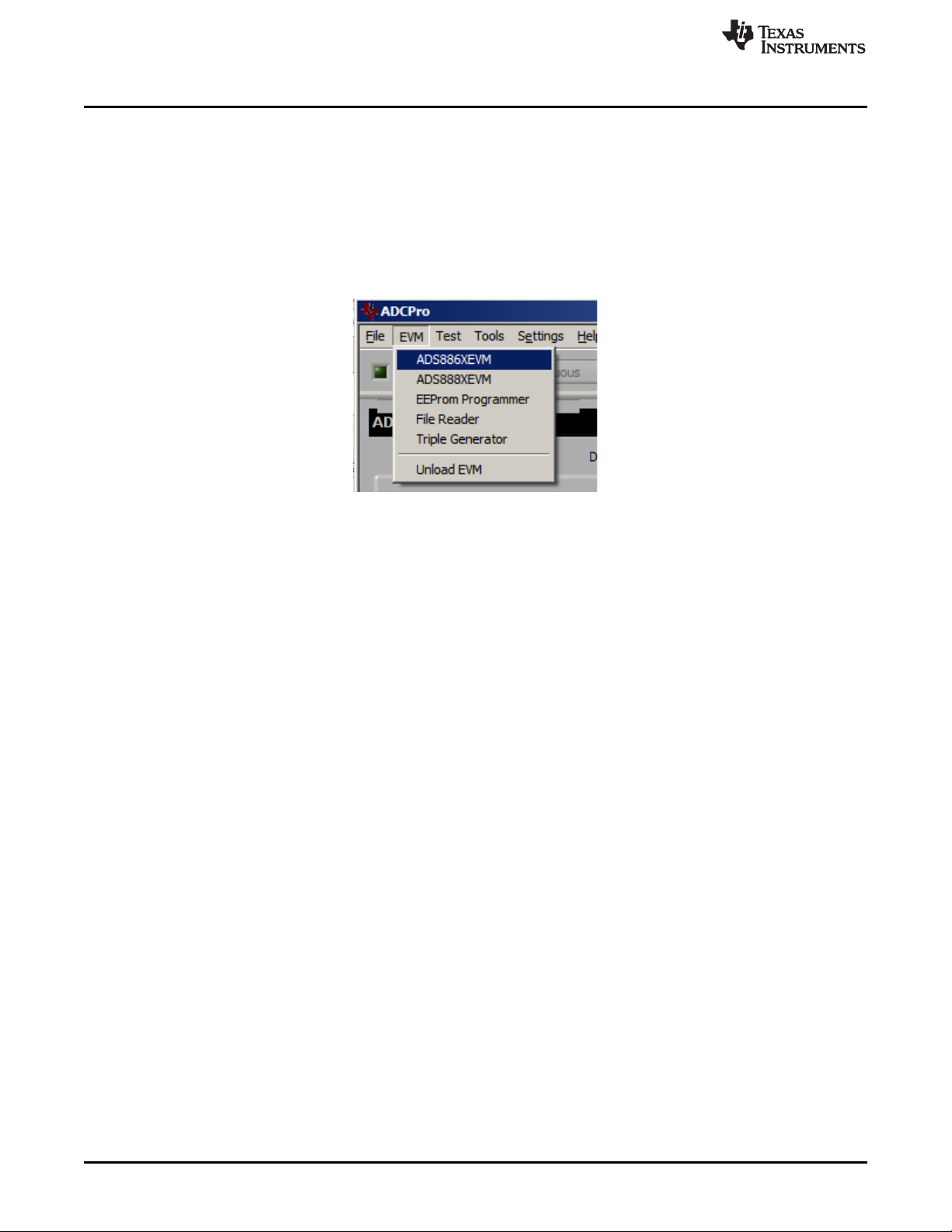

Figure 9. Loading EVM Plug-in

Step 5. When the plug-in is loaded, the plug-in searches for the board. A series of messages in the

status area indicates this action, eventually showing Connected to EVM.

The plug-in is now loaded and ready to function with the ADS8861EVM.

www.ti.com

ADS8861EVM-PDK SBAU214–October 2013

Submit Documentation Feedback

www.ti.com

7.3 Using the ADS8861EVM Plug-in

The ADS8861EVM allows the user to evaluate the ADS8861 ADC. Figure 10 shows the device configuration tab of the ADS8861EVM plug-in that is used to change acquisition parameters such as sample rate and voltage reference.

PDK Kit Operation

Figure 10. ADS8861EVM Plug-In: Device Configuration Tab

The device configuration tab contains the following controls:

• Data rate: By default, data rate is 1 MSPS. This control shows the data rate or sampling frequency used by the ADC to acquire data. With an SCLK frequency of 80 MHz, data rate can be set from

19.536 kSPS to 1 MSPS. With an SCLK frequency of 10 MHz, data rate can be set from 4 kSPS to

344.827 kSPS.

• SCLK: By default, SCLK is 80 MHz. SCLK sets the clock frequency used by the SPI interface to capture data. SCLK should be between 70 MHz to 80 MHz for 1 MSPS. For slow sampling rates, use 10 MHz. Do not use SCLK frequencies between 30 MHz and 50 MHz.

• Reference: 4.5 V is the default reference value, which matches the onboard reference of the EVM. The value of this control should always match the reference used by the ADC to read accurate voltages.

• Device selection: The ADS8861 is selected by default.

• About: This control shows the motherboard name, plug-in version, firmware version, assembly date, and board revision information. Note that the device name displayed is ADS8881 instead of ADS8861 because the main software is based on the ADS8881 device.

• Collection bar: This feature shows the percentage of data collected during an acquisition session.

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

Bill of Materials, Schematics, and Layout

7.4 Loading the Test Plug-in

When the ADS8861EVM plug-in is configured, one of the four test plug-ins must be loaded to acquire data using the drop-down Test menu, as shown in Figure 11. Note that only one Test plug-in can be loaded at a time. If a different plug-in is selected, the previous plug-in is unloaded.

There are four different test options available for the ADS8861EVM:

• Data monitor: This test option acquires and exports data in table format as hexadecimal data.

• MultiFFT: This test option allows the user to acquire data and create an FFT graph of power versus frequency to display data.

• MultiHistogram: This test option acquires data and creates a histogram of code values.

• MultiScope: This feature acquires and displays data in a graph of voltage versus time.

For further details regarding how to set up and use the various test plug-ins, refer to the ADCPro User's Guide (SBAU128).

www.ti.com

Figure 11. ADCPro Test Plug-ins

7.5 Acquiring Data

When the ADS8861EVM is configured for the desired test scenario, press the Acquire button to start the data collection process; the software collects the number of data points specified in the Test plug-in Block Size control. While acquiring data, the ADS8861EVM plug-in disables all front panel controls, and the collection process bar displays the completion progress.

7.6 Troubleshooting

If the ADS8861EVM plug-in cannot find the ADS8861EVM-PDK, press the RESET button on the MMB0 and try again.

If ADCPro stops responding while the ADS8861EVM-PDK is connected, shut down and restart the ADCPro software. Also, try unplugging the USB cable from the PDK.

8 Bill of Materials, Schematics, and Layout

The bill of materials is provided in Table 5. Section 8.2 illustrates the PCB layouts for the ADS8861EVM. The schematic is illustrated in Figure 16.

8.1 Bill of Materials

NOTE: All components should be compliant with the European Union Restriction on Use of

Hazardous Substances (RoHS) directive. Some part numbers may be either leaded or RoHS. Verify that purchased components are RoHS-compliant. (For more information about TI's position on RoHS compliance, refer to www.ti.com.)

ADS8861EVM-PDK SBAU214–October 2013

Submit Documentation Feedback

www.ti.com

Bill of Materials, Schematics, and Layout

Table 5. ADS8861EVM Bill of Materials

Item No. Qty Value Ref Des Description Manufacturer Part Number

1 1 — Printed Circuit Board, 3.2 in x 1.7 In. x 0.062 in. Texas Instruments 6548606 2 1 — C1 Not Installed — — 3 5 0.1 µF C2, C10, C11, C14, C23 Capacitor, X7R Ceramic ±10%, 25WV, 0603 Murata GRM188R71E104KA01D 4 1 10000 pF C3 Capacitor, NP0 Ceramic ±5%, 50WV, 0603 TDK C1608C0G1H103J 5 9 1 µF C4, C5, C7-C9, C12, C13, C21, C24 Capacitor, X7R Ceramic ±10%, 25WV, 0603 Murata GRM188R71E105KA12D 6 3 10 µF C6, C15, C22 Capacitor, X7R Ceramic ±10%, 10WV, 0805 Murata GRM21BR71A106KE51L 7 3 1000 pF C16, C18, C20 Capacitor, C0G Ceramic ±5%, 50WV, 0603 Murata GRM1885C1H102JA01D 8 2 10 µF C17, C19 Capacitor, X7R Ceramic ±10%, 16WV, 1206 TDK C3216X7R1C106K

9 2 — J1, J2 (Top) Header 20 Pin SMT Plug, .100" Gold (2x10) Samtec TSM-110-01-L-DV-P 10 2 — J1, J2 (Bottom) Header 20 Pin SMT Socket, .100" Gold (2x10) Samtec SSW-110-22-F-D-VS-K 11 1 — J3 (Top) Header 10 Pin SMT Plug, .100" Gold (2x5) Samtec TSM-105-01-L-DV-P 12 1 — J3 (Bottom) Header 10 Pin SMT Socket, .100" Gold (2x5) Samtec SSW-105-22-F-D-VS-K 13 2 — J4, J5 CONN SMA JACK STRAIGHT PCB Amphenol 132134 14 2 — JP1, JP2 Header Strip, 3 pin .100" Gold (1x3) Samtec TSW-103-07-L-S 15 1 — JP3 Header Strip, 2 pin .100" Gold (1x2) Samtec TSW-102-07-L-S 16 7 — R1, R2, R20, R24, R26, R34, R36 Not Installed — — 17 4 1k R3, R4, R5, R6 Resistor, Thin Film Chip, 0.1%, 1/10W, 0603 Panasonic ERA-3AEB102V 18 5 10 R7-R10, R22 Resistor, Thick Film Chip, 1%, 1/10W, 0603 Vishay/Dale CRCW060310R0FKEA 19 3 0.22 R11, R16, R21 Resistor, Thin Film Chip, 1%, 1/5W, 0603 Susumu RL0816S-R22-F 20 3 1k R12, R13, R37 Resistor, Thick Film Chip, 1%, 1/10W, 0603 Panasonic ERJ-3EKF1001V 21 5 0 R14, R19, R23, R25, R30 Resistor, Thick Film Chip, 1/10W, 0603 Panasonic ERJ-3GEY0R00V 22 5 20k R15, R17, R18, R27, R31 Resistor, Thick Film Chip, 1%, 1/10W, 0603 Panasonic ERJ-3EKF2002V 23 5 47 R28, R29, R32, R33, R35 Resistor, Thick Film Chip, 1%, 1/10W, 0603 Panasonic ERJ-3EKF47R0V 24 1 — U1 IC ADC 16-bit 1MSPS Fully Diff 10-MSOP Texas Instruments ADS8861IDGS 25 1 — U2 IC VREF SERIES PREC 4.5V 8-MSOP Texas Instruments REF5045IDGK 26 1 — U3 IC OPAMP CHOP R-R 350KHZ SOT23-5 Texas Instruments OPA333AIDBV 27 1 — U4 IC OPAMP VFB R-R 95MHZ SOT23-5 Texas Instruments THS4281DBV 28 1 — U5 IC OPAMP GP R-R CMOS SOT23-5 Texas Instruments OPA330AIDBV 29 1 — U6 IC REG LDO 3.3V .15A SOT-23-5 Texas Instruments TPS78833DBV 30 1 — U7 IC OPAMP DIFF R-R 145MHZ 8MSOP Texas Instruments THS4521IDGK 31 1 — U8 IC EEPROM 256KBIT 400KHZ 8TSSOP Microchip 24LC256-I/ST 32 2 — — 0.100 Shunt - Black Shunts 3M 969102-0000-DA

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

Bill of Materials, Schematics, and Layout

8.2 Board Layouts

Figure 12 through Figure 15 show the PCB layouts for the ADS8861EVM.

NOTE: Board layouts are not to scale. These figures are intended to show how the board is laid out;

these figures are not intended to be used for manufacturing ADS8861EVM PCBs.

www.ti.com

Figure 12. ADS8861EVM PCB: Top Layer

Figure 13. ADS8861EVM PCB: Ground Layer

ADS8861EVM-PDK SBAU214–October 2013

Submit Documentation Feedback

www.ti.com

Bill of Materials, Schematics, and Layout

Figure 14. ADS8861EVM PCB: Power Layer

Figure 15. ADS8861EVM PCB: Bottom Layer

SBAU214–October 2013 ADS8861EVM-PDK

Submit Documentation Feedback

Bill of Materials, Schematics, and Layout

8.3 Schematic

www.ti.com

Figure 16. ADS8861EVM Schematic

ADS8861EVM-PDK SBAU214–October 2013

Submit Documentation Feedback

Evaluation Board/Kit Important Notice

Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES

ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety and environmental measures typically found in end products that incorporate such semiconductor components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the technical requirements of these directives or other related directives.

Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic discharge.

EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or

services described herein.

Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.

No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or combination in which such TI products or services might be or are used.

FCC Warning

This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and can radiate radio

frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment in other environments may cause interference with radio communications, in which case the user at his own expense will be required to take whatever measures may be required to correct this interference.

EVM Warnings and Restrictions

It is important to operate this EVM within the input voltage range of and the output voltage range of . Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are questions

concerning the input range, please contact a TI field representative prior to connecting the input power. Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the EVM.

Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.

During normal operation, some circuit components may have case temperatures greater than . The EVM is designed to operate properly with certain components above as long as the input and output ranges are maintained. These components include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products Applications

Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Applications Processors www.ti.com/omap TI E2E Community e2e.ti.com Wireless Connectivity www.ti.com/wirelessconnectivity

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Texas Instruments: ADS8861EVM-PDK

Texas Instruments ADS8861EVM-PDK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ADS8861EVM-PDK

1 ADS8861EVM-PDK Overview

2 EVM Analog Interface

2.1 Differential Input Signal Configuration

2.2 Single-Ended Signal Configuration

2.3 Voltage Reference

3 EVM Digital Interface

3.1 Serial Interface (SPI)

3.2 I2C Bus for Onboard EEPROM

4 EVM Power-Supply Inputs

4.1 Analog Power Options

4.2 Digital Power Options

4.3 Analog and Digital Grounds

5 EVM Digital Configuration

5.1 SPI 3-Wire Mode (JP2:2–3 and JP3:OPEN)

5.2 SPI 4-Wire Mode (JP2:1–2 and JP3:CLOSED)

6 PDK Kit Setup

6.1 Installing the ADCPro Software

6.2 Installing the ADS8861EVM-PDK Plug-In Software

6.3 Configuring the ADS8861EVM-PDK Hardware

6.4 Powering up the ADS8861EVM-PDK

7 PDK Kit Operation

7.1 About MMB0

7.2 Loading the ADS8861EVM-PDK Plug-in

7.3 Using the ADS8861EVM Plug-in

7.4 Loading the Test Plug-in

7.5 Acquiring Data

7.6 Troubleshooting

8 Bill of Materials, Schematics, and Layout

8.1 Bill of Materials

8.2 Board Layouts

8.3 Schematic
