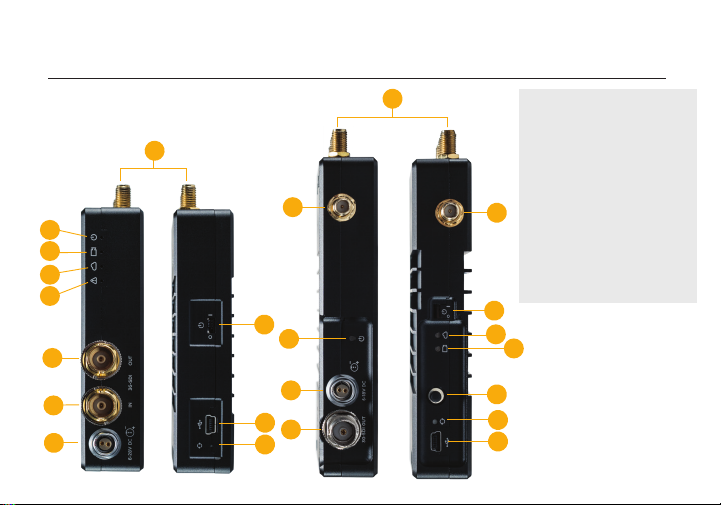

Connect the output from your video source to the SDI input (G) on the Bolt transmitter. Connect the
SDI or HDMI output (F) from the Bolt receiver to the video input on your monitor.
NOTE: If mounted upright on a stand above the monitor, use a right-angle SDI adapter to
relieve any strain caused by the weight of the cable, and to avoid damaging the SDI output’s
internal connectors.
2
Power the Bolt transmitter and receiver with the included A/C adapter, or if Bolt is equipped with a
battery plate accessory, connect a compatible battery (L series or LP-E6).
3
Move the power switches on both the transmitter and receiver (J) to the ON position. Video appears
within a few seconds.
DEVICE OPERATION
• Keep the transmitter and receiver at close range for 60 seconds after powering on the devices. This
allows them to scan for and select the best wireless channel.
• For best results when using multiple Bolt systems in the same area, place the transmitters and
receivers a few feet apart from each other.
• Operation of other wireless equipment may interfere with the Bolt. Try to separate other wireless
transmitters and receivers as much as possible.
2
Page 5
BOLT CONNECTOR/PIN-OUT

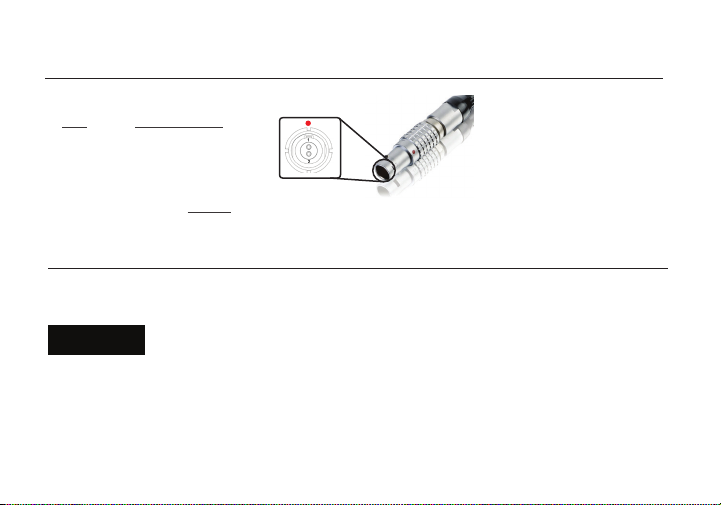

Bolt uses a 2−pin power connector
PinDescription
1*GND
2+DC
* Pin 1 is closest to the red dot on the connector
CUSTOM/THIRD PARTY CABLES
• Test the power cable polarity with ONLY the power cable connected to Bolt. Do not connect video cables.
• Check the power cable for shorts and proper grounding.
CAUTION:
Using a reverse polarity or improperly−constructed power cable can damage the
product and is not covered under warranty.
3
Page 6
MOUNTING
Bolt has a 1/4”-20 threaded hole on the bottom for mounting the included light stand adapter or any
other mounting accessory.
• Mount the Bolt transmitter vertically, keeping the
antennas clear of any obstructions.
• Orient the transmitter and receiver antennas so
they are parallel to each other.
• For best results, orient the transmitter antennas
so each one has clear line−of−sight to the
receiver.
• DO NOT OVERTIGHTEN
CAUTION:
SCREWS INSERTED INTO
THE TRANSMITTER’S 1/4”-20 THREADED
HOLE. Doing so can damage the transmitter’s
chassis and internal components, voiding the
warranty.
4

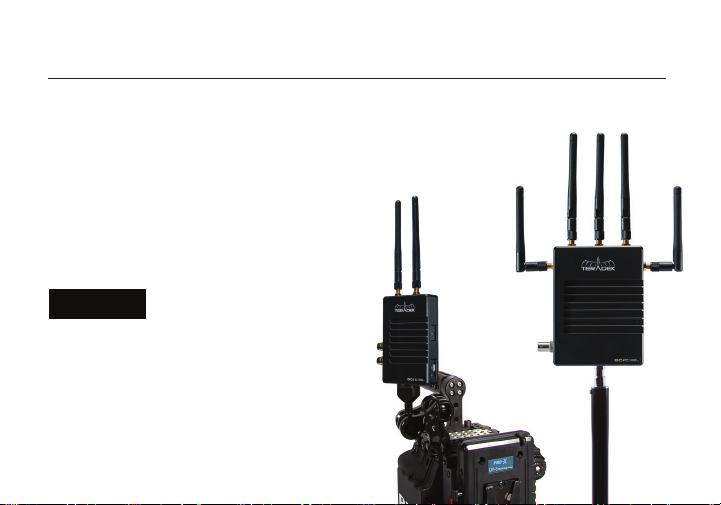

Bolt LT receivers
can be mounted
vertically on a light
stand or monitor.
Bolt LT transmitters
can be mounted
vertically on a
camera
Page 7
ON-SCREEN DISPLAY (OSD) OPERATION
Receiver Status Screens - Connect your receiver to a monitor and activate the OSD (On-screen
display) by depressing the Menu joystick button(L), then cycle through screens by pressing the button
up or down. Hide the status screen by pressing left.
• Main Status Screen - This screen displays the status of the wireless receiver, along with the current
video resolution, frequency, link quality (if connected).
• Time Code Screen - Displays the current time code if received from the transmitter.
• Temperature Status Screen - Displays the current internal temperature of the unit.
Menu Operation - Launch the menu by pressing right on the joystick while the OSD is active. Exit
from the menu by pressing left.
• SDI Out Format - Select the video output format. You can choose to match the video source
resolution by selecting Same as Input, or choose from the resolutions listed.
• Test Pattern - Select a video output format from this menu to output a test pattern over SDI.
Return to the previous video by pressing left on the Menu joystick.
• Pairing - Link your receiver with another transmitter. Once pairing is activated on the receiver, turn
on the transmitter and use a paper clip to hold the reset button (K) for one second and release. The red
warning LED and link LEDs will blink to indicate that pairing is active.
• OSD Settings - Choose when to display the OSD. By default, the OSD is displayed when the link
is down. Hidden by default hides the OSD until it is activated by the joystick. If Always show OSD
is selected, the OSD will be displayed unless deactivated by the joystick.
• Reset All Settings - Reset all congurable options to their factory defaults.
• Device Info - Displays the model and serial number.
5
Page 8
BOLT MANAGER
Bolt Manager allows you to congure, pair, and upgrade the Bolt system. Bolt Manager is available as
software for Mac and Windows at www.teradek.com/pages/downloads, or for purchase as a standalone
device.
The following conguration settings are available:
• SELECT REGION - Congure Bolt to comply with your region’s regulations governing use of the
5GHz spectrum.
• SELECT TX NAME - Bolt transmitter’s name can be modied or changed, making it easier to
identify among other Bolt systems that are present.
• SELECT QUALITY - Select a High Quality mode setting to modify or balance the range and
reliability of your signal. In situations where other sources of interference might be present, select
Maximum Range. For complex, high contrast situations where artifacts are visible, select Maximum Quality.
Teradek regularly releases new rmware versions to improve performance, add new features, or to x vulnerabilities.
Visit teradek.com to update your device with the latest rmware.
NEED MORE HELP?
SUPPORT: http://support.teradek.com → Contains tips, information and all the latest rmware & software updates.
TERADEK SUPPORT STAFF:[email protected] or call 888-941-2111 ext. 2 (Mon-Fri 6am to 6pm PST)
