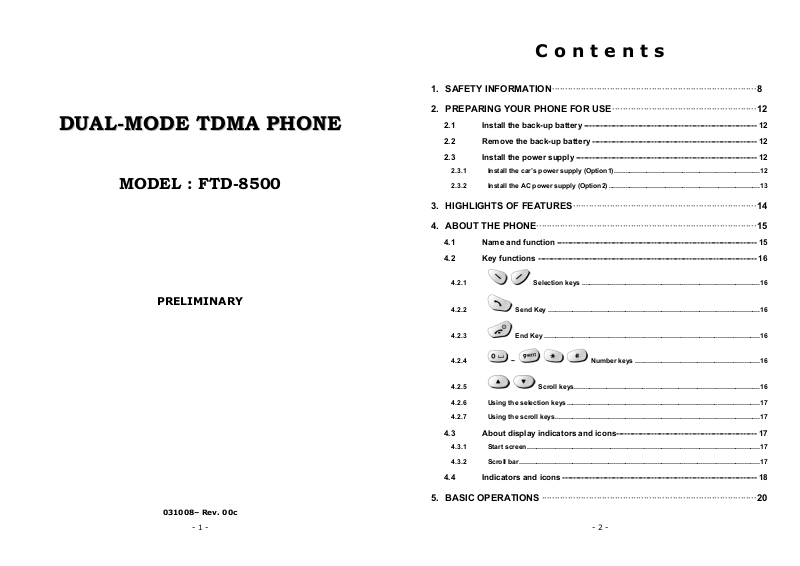

DDUUAALL--MMOODDEE TTDDMMAA PPHHOONNEE
MODEL : FTD-8500
1. SAFETY INFORMATION··············································································8
2. PREPARING YOUR PHONE FOR USE·······················································12
2.1
2.2 Remove the back-up battery ------------------------------------------------------------- 12
2.3 Install the power supply ------------------------------------------------------------------- 12
2.3.1 Install the car’s power supply (Option1).............................................................................12
2.3.2 Install the AC power supply (Option2)................................................................................13
Install the back-up battery ---------------------------------------------------------------- 12
C o n t e n t s
3. HIGHLIGHTS OF FEATURES······································································14
4. ABOUT THE PHONE····················································································15
4.1 Name and function -------------------------------------------------------------------------- 15
4.2
4.2.1
Key functions --------------------------------------------------------------------------------- 16
Selection keys ..............................................................................................16
PRELIMINARY
031008– Rev. 00c
- 1 -
4.2.2
4.2.3
4.2.4
4.2.5
4.2.6 Using the selection keys......................................................................................................17
4.2.7 Using the scroll keys............................................................................................................17
4.3
4.3.1 Start screen...........................................................................................................................17
4.3.2 Scroll bar...............................................................................................................................17
4.4 Indicators and icons ------------------------------------------------------------------------ 18
About display indicators and icons---------------------------------------------------- 17
5. BASIC OPERATIONS ··················································································20
Send Key ................................................................................................................16
End Key ..................................................................................................................16
~ Number keys ..................................................................16
Scroll keys..................................................................................................16
- 2 -

5.1 Switch the phone ON or OFF ------------------------------------------------------------ 20
5.2 Make a call ------------------------------------------------------------------------------------- 20
5.3
Last call time ---------------------------------------------------------------------------------- 20
5.4 Answering a call------------------------------------------------------------------------------ 21
5.5 Adjusting the earpiece volume---------------------------------------------------------- 21
5.6
Redial the last-dialed number ----------------------------------------------------------- 21
5.7 Use Caller ID----------------------------------------------------------------------------------- 22
6. USE PHONE MENUS ···················································································23
6.1 Navigate menus ------------------------------------------------------------------------------ 23
6.1.1 Scroll through menus...........................................................................................................23
6.1.2 Use a shortcut.......................................................................................................................23
6.1.3 Exit menu levels....................................................................................................................23
6.2 List of shortcuts------------------------------------------------------------------------------ 24
7. ENTER LETTERS AND NUMBERS·····························································27
7.1 Enter letters------------------------------------------------------------------------------------ 27
7.1.1 Edit name ..............................................................................................................................27
7.1.2 Change from capital (uppercase) letters.............................................................................28
7.1.3 Use punctuation and special characters ............................................................................28
7.2
7.2.1 List of special characters.....................................................................................................29
Enter number---------------------------------------------------------------------------------- 28
8. USE THE PHONE BOOK ·············································································30
8.1 About the phone book --------------------------------------------------------------------- 30
8.2
Use phone book menus ------------------------------------------------------------------- 30
8.3 Add names and numbers ----------------------------------------------------------------- 30
8.4 Change a stored telephone number --------------------------------------------------- 31
8.5
Recall and dial stored numbers --------------------------------------------------------- 32
8.6 Erase stored names and numbers ----------------------------------------------------- 32
8.7 Erase the entire phone book ------------------------------------------------------------- 32
9. WORK WITH THE CALL LOG ·····································································34
- 3 -
9.1 Call the call log ------------------------------------------------------------------------------- 34
9.1.1 Check missed calls...............................................................................................................34
9.1.2 Check received calls ............................................................................................................35
9.1.3 Check previously dialed calls..............................................................................................35
9.2 Check call timers----------------------------------------------------------------------------- 36
10. SEND AND RECEIVE TEXT MESSAGES ···················································37
10.1 About the Messages ------------------------------------------------------------------------ 37
10.2
Use Messages menus ---------------------------------------------------------------------- 37
10.3 Write with standard text input ----------------------------------------------------------- 38
10.4 Write and send a new text message--------------------------------------------------- 38
10.4.1 Save a message in the saved folder....................................................................................39
10.4.2 Message prioritization setting .............................................................................................39
10.4.3 Send Options for a message ...............................................................................................39
10.4.4 Delivery report ......................................................................................................................40
10.5 Receive a text message-------------------------------------------------------------------- 40
10.5.1 Read a text message ............................................................................................................40
10.5.2 Choose options for a message............................................................................................41
10.5.3 Read options for a message................................................................................................41
10.5.4 Call Number ..........................................................................................................................42
10.6 When your phone’s memory is full ---------------------------------------------------- 42
10.7
Delete a message ---------------------------------------------------------------------------- 42
10.8 Use voice mail -------------------------------------------------------------------------------- 42
10.8.1 When you have a message ..................................................................................................42
10.8.2 Set up your voice mailbox ...................................................................................................43
10.8.3 Listen to your voice messages............................................................................................43
11. SEND AND RECEIVE E-mail MESSAGES··················································44
11.1 Send an e-mail address-------------------------------------------------------------------- 44
11.1.1 Save an e-mail address for an existing name.....................................................................44
11.1.2 Add a new e-mail address....................................................................................................44
11.1.3 Edit a new e-mail address....................................................................................................45
11.2 Send an e-mail message ------------------------------------------------------------------ 45
11.2.1 Other options for a completed message: ...........................................................................46
- 4 -

12. USE ADVANCED CALLING FEATURE·······················································47
12.1 Set in-call options --------------------------------------------------------------------------- 47
12.2
12.2.1 Store the call waiting feature code......................................................................................47
12.2.2 Activate call waiting .............................................................................................................48
12.2.3 Manage calls .........................................................................................................................48
12.3 Use call forwarding-------------------------------------------------------------------------- 48
12.3.1 Store the call forwarding feature code................................................................................48
12.3.2 Activate call forwarding .......................................................................................................49
12.4
12.5 Use a calling card---------------------------------------------------------------------------- 50
12.5.1 Save calling card information..............................................................................................50
12.5.2 Choose a calling card to use ...............................................................................................51
12.5.3 Make a calling card call........................................................................................................51
12.6 Send your own number in caller ID ---------------------------------------------------- 52
12.6.1 Store the Send Own Number feature code .........................................................................52
12.6.2 Set whether or not your number will appear ......................................................................53
Use call waiting------------------------------------------------------------------------------- 47
Redial automatically ------------------------------------------------------------------------ 50
13.7 Add a welcome note ------------------------------------------------------------------------ 60
13.8 Set the answer -------------------------------------------------------------------------------- 60
13.8.1 Set your phone to answer automatically ............................................................................60
13.8.2 Set your phone to answer by pressing any key.................................................................61
13.9 Emergency calls------------------------------------------------------------------------------ 61
13.10 Use emergency key ---------------------------------------------------------------- 62
13.10.1 Activate the emergency key
13.10.2 Make an emergency call.......................................................................................................63
....................................................................................62
14. SECURITY ····································································································64
14.1
Change your security code --------------------------------------------------------------- 64
14.2 Protect your phone with the lock code ----------------------------------------------- 65
14.2.1 Turn on the phone lock ........................................................................................................65
14.2.2 Store an unlocked phone number.......................................................................................65
14.2.3 Change your lock code ........................................................................................................66
14.2.4 Turn off the lock code ..........................................................................................................66
13. CUSTOMIZE YOUR PHONE ········································································54
13.1
13.2 Customize a profile-------------------------------------------------------------------------- 54
13.2.1 Set the ringer volume ...........................................................................................................55
13.2.2 Set the ring tone ...................................................................................................................55
13.2.3 Set the message alert tone ..................................................................................................56
13.2.4 Set ring style .........................................................................................................................56
13.2.5 Set warning and game tones ...............................................................................................57
13.2.6 Set keypad volume ...............................................................................................................57
13.3 Rename profiles------------------------------------------------------------------------------ 58
13.4
13.5 Set the display language ------------------------------------------------------------------ 58
13.6 Set and display the clock ----------------------------------------------------------------- 59
13.6.1 Set the clock .........................................................................................................................59
13.6.2 Set the clock to be updated by the network.......................................................................59
What is a profile? ---------------------------------------------------------------------------- 54
Restore defaults settings ----------------------------------------------------------------- 58
- 5 -
14.3 Lock the keypad------------------------------------------------------------------------------ 66
14.3.1 Activate keyguard.................................................................................................................67
14.3.2 Deactivate keyguard.............................................................................................................67
14.3.3 Answer a call while keyguard is active ...............................................................................67
14.4 Restrict calls----------------------------------------------------------------------------------- 67
14.4.1 Restrict incoming calls.........................................................................................................68
14.4.2 Restrict outgoing calls .........................................................................................................68
15. SET NETWORK SERVICES FEATURES ····················································69
15.1
Roaming ---------------------------------------------------------------------------------------- 69
15.2 NAM selection--------------------------------------------------------------------------------- 69
15.2.1 Selecting the NAM for your phone ......................................................................................70
16. USE YOUR PERSONAL ASSISTANT ·························································71
16.1
16.1.1 View the calendar .................................................................................................................71
16.1.2 Move from day to day...........................................................................................................71
Use the calendar ----------------------------------------------------------------------------- 71
- 6 -

16.1.3 Add a calendar note .............................................................................................................72
16.1.4 View the day’s notes ............................................................................................................72
16.2 Alarm clock ------------------------------------------------------------------------------------ 73
16.2.1 Set the alarm clock...............................................................................................................73
16.2.2 Turn off the alarm clock when it rings ................................................................................74
16.2.3 Turn off the alarm clock altogether.....................................................................................74
16.3 Calculator--------------------------------------------------------------------------------------- 74
16.3.1 Use the calculator.................................................................................................................74
17. GAMES·········································································································76
17.1 Breakout ---------------------------------------------------------------------------------------- 76
17.2 Snake -------------------------------------------------------------------------------------------- 76
18. REFERENCE INFORMATION······································································77
18.1 Emergency Calls ----------------------------------------------------------------------------- 77
18.1.1 Make an emergency call.......................................................................................................77
18.2 Troubleshooting------------------------------------------------------------------------------ 78
18.2.1 No service .............................................................................................................................78
18.2.2 What if the call doesn’t go through?...................................................................................78
1. SAFETY INFORMATION
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
WARNING! Please do not use your FTD-8500 wireless telephone if you may be
distracted from another activity (such as driving a motor vehicle or walking
across the street) and create a safety hazard to yourself and others. Use your
wireless telephone responsibly. Be alert to your surroundings whenever you
operate your wireless telephone.
For the safe and efficient operation of your phone, observe the following
guidelines:
EXPOSURE TO RADIO FREQUENCY SIGNALS
Your wireless handheld portable telephone is a low power radio transmitter and
receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC) adopted RF
exposure guidelines with safety levels for handheld wireless phones. Those
guidelines are consistent with the safety standards previously set by both U.S. and
international standards bodies:
19. TECHNICAL INFORMATION ·······································································79
- 7 -
* American National Standards Institute; National Council on Radiation Protection
Those standards were based on comprehensive and periodic evaluations of the
relevant scientific literature. For example, over 120 scientists, engineers, and
physicians from universities, government health agencies, and industry reviewed
the available body of research to develop the ANSI Standard (C95.1)
The design of your phone complies with the FCC guidelines (and those standards).
ANSI C95.1 (1992)*
NCRP Report 86 (1986)*
ICNIRP (1996)*
and Measurements; International Commission on Non-Ionizing Radiation
Protection
ANTENNA CARE
Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the phone and may violate
FCC regulations.
- 8 -

PHONE OPERATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that
may cause undesired operation.
NORMAL POSITION: Hold the phone as you would any other telephone with
the antenna pointed up and over your shoulder.
separation of six inches (6”) be maintained between a handheld wireless phone
and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research.
Persons with pacemakers:
• Should ALWAYS keep the phone more than six inches (6”) from their
pacemaker when the phone is turned ON
• Should not carry the phone in a breast pocket
• Should use the ear opposite the pacemaker to minimize the potential for
interference
TIPS ON EFFICIENT OPERATION
For your phone to operate most efficiently:
• Do not touch the antenna unnecessarily when the phone is in use. Contact with
the antenna affects call quality and may cause the phone to operate at a higher
power level than otherwise needed.
DRIVING
Check the laws and regulations on the use of wireless telephones in the areas
where you drive. Always obey them. Also, if using your phone while driving,
please:
• Give full attention to driving - driving safely is your first responsibility;
• Use hands-free operation, if available;
• Pull off the road and park before making or answering a call if driving
ELECTRONIC DEVICES
Most modern electronic equipment is shielded from RF signals. However, certain
electronic equipment may not be shielded against the RF signals from your
wireless phone.
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum
conditions so require.
- 9 -
• If you have any reason to suspect that interference is taking place, turn your
phone OFF immediately.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if they are adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information.
Turn your phone OFF in health care facilities when any regulations posted in these
areas instruct you to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF energy.
Vehicles
RF signals can affect improperly installed or inadequately shielded electronic
systems in motor vehicles. Check with the manufacturer or its representative
regarding your vehicle. You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
AIRCRAFT
FCC regulations prohibit using your phone while in the air.
Switch OFF your phone before boarding an aircraft.
- 10 -

BLASTING AREAS
To avoid interfering with blasting operations, turn your phone OFF when in a
“blasting area” or in areas posted: “Turn off two-way radio.” Obey all signs and
instructions.
2. PREPARING YOUR PHONE FOR USE
2.1 Install the back-up battery
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Sparks in such areas could cause an explosion
or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often but not always clearly
marked. They include fueling areas such as gasoline stations; below deck on
boats; fuel or chemical transfer or storage facilities; vehicles using liquefied
petroleum gas (such as propane or butane); areas where the air contains
chemicals or particles, such as grain, dust, or metal powders; and any other area
where you would normally be advised to turn off your vehicle engine.
FOR VEHICLES EQUIPPED WITH AN AIR BAG
An air bag inflates with great force. DO NOT place objects, including both installed
or portable wireless equipment, in the area over the air bag or in the air bag
deployment area. If in-vehicle wireless equipment is improperly installed and the
air bag inflates, serious injury could result.
• Remove the modular plug of curl cord from bottom of the base.
• Open the door of the battery compartment, which is located to bottom of the
base.
•
Insert alkaline or dry cell battery (4 x AA Size)
• Close the door of the battery compartment.
•
Insert the modular plug of curl cord to the base.
• The phone turns on automatically.
• You can use the phone by the back-up battery without power supply.
CAUTION! Do not use rechargeable battery.
2.2 Remove the back-up battery
•
Remove the modular plug of curl cord from bottom of the base.
•
Open the door of the battery compartment, which is located to bottom of the
base.
• Close the door of the battery compartment.
•
Insert the modular plug of curl cord to the base.
- 11 -
2.3 Install the power supply
2.3.1 Install the car’s power supply (Option1)
① Connect the plug of car’s power supply to the bottom of the phone.
② Connect the cigar plug of car’s power supply to the car jack.
③ The phone turns on automatically.
- 12 -

2.3.2 Install the AC power supply (Option2)
3. HIGHLIGHTS OF FEATURES
① Connect the plug of AC power supply to the AC outlet.
② The phone turns on automatically.
• Easy to read graphical display
• Phone book (up to 100 names and numbers)
• Easy to use keypad layout
• 20 Ring tones and 5 Ring style selections
• Adjustable ring volume
• Quick access to the last 10 numbers dialed
• Caller ID
• Games
• Auto redial
• Calculator
• Clock with Alarm
• Dialed, received, missed calls
• Call restriction
• Keypad lock
• Call timer
• Profile settings
• Short message service
• Voice mail capability
• 2 different NAM
• Multi-Languages (English, Spanish and Portuguese)
• Earphone / microphone jack
- 13 -
- 14 -

4. ABOUT THE PHONE
4.2 Key functions
This phone operates in digital mode within the 800 MHz frequency band and operates
in analog mode within the 800 MHz range.
4.1 Name and function
Graphic Display
Scroll key
Scrolls throuth
menus. Submenus,
and phone book.
Press and hold for
continuous scrolling.
Send key
Dials the number
on the display.
KEYPAD
System Connector
Antenna
Selection keys
Their current function is
displayed above the key.
(for example, here their
functions are “Menu”
and “Names”).
End key
Press this key to end a
phone call or press
and hold to turn the
phone on or off.
Headset Jack
4.2.1 Selection keys
• Press to perform the function indicated by the text on the screen above the
key.
4.2.2 Send Key
• Press to make a call to time and name / number shown on the screen.
• Press to answer a call.
• Press once to enter the list of last dialed numbers.
4.2.3 End Key
• Press and hold the key to switch the phone on or off.
• Press to end a call.
• Press once to exit a function and to return to the start screen.
4.2.4 ~ Number keys
• Used for entering numbers and letters.
• Press and hold to call the voice mailbox.
• Press to view the last call time and to toggle between upper case,
lower case and numeric modes.
- 15 -
4.2.5 Scroll keys
• Press to increase the earpiece volume.
• Press to decrease the earpiece volume.
- 16 -

4.2.6 Using the selection keys
4.4 Indicators and icons
The functions of the selection keys depend on the guiding texts shown above
the keys.
For example, when there is the text
pressing this key enters the menu functions.
Similarly, pressing the right selection key under text
access to phone book functions.
MENU
above the left selection key,
NAMES
4.2.7 Using the scroll keys
The phone has two scroll keys, and , located just below the
screen. The scroll keys have up and down arrows on them, press these to
move through the phone’s menus.
4.3 About display indicators and icons
The display indicators and icons inform about the operation of the phone.
4.3.1 Start screen
The start screen displays when the phone is turned on.
Several features can be used only when the phone is at
the Start Screen.
4.3.2 Scroll bar
When you access the phone’s menu, there is a scroll bar at the far right
of the screen. This bar indicates user’s location in the menu: each “tab”
on the bar represents a different menu item.
has
On your phone, you have two types of identifiers: indicators and icons. Icons are
graphical representations of a specific item or situation. For example, an icon
appears when you have a voice message waiting to be heard.
Indicators show the status of something. The phone uses three types of
indicators:
• Signal strength indicator: This indicator shows the
signal strength of the wireless network at your current
location. The higher bar, the stronger signal.
• Handset volume indicator: This indicator appears only
when you press the scroll keys in the Profiles menu. It
shows how loud (or not) the volume is during the phone
call.
- 17 -
- 18 -

The list below shows what each icon means.
You have an active call.
5. BASIC OPERATIONS
You have an missed call.
The Keyguard has been activated to prevent any accidental key
presses.
You have one or more new voice messages waiting.
You have one or more unread text messages waiting.
Any alpha characters you enter will be uppercase (capital letters).
Press
Any alpha characters you enter will be lowercase.
Press
You are in numbers mode. After switching to this numbers mode, you
cannot enter any alpha characters. You can enter only numbers.
This appears when you press
special character mode. You can select a special character by pressing
SELECT
The alarm clock is set.
You have selected Silent as the current profile.
to switch to uppercase.
to switch to uppercase.
while storing names. You are in
.
5.1 Switch the phone ON or OFF
•
To turn the phone on, Press and hold until the phone display
“Welcome” on the screen.
•
To turn the phone off, press and hold until the phone display is
changed. Then press
.
5.2 Make a call
① Deactivate the keyguard, if it is on.
② Enter the phone number-including the area code-and press
③ Press
Note 1: The display back-light turns on during conversation continuously for
notice.
Note 2: It is normal for the phone to become hot during use. If the phone
becomes too hot, it automatically drops the current call and returns to the
“start screen”. Until the phone cools, user will be unable to receive or make
calls.
to end the call or to cancel the call attempt.
.
- 19 -
5.3 Last call time
① When you press to end the call, the phone
terminates the call and displays last call time on the
screen for 30 seconds.
- 20 -

When the last call time is displayed on the screen, if you press
②
, the phone displays standby status on the screen.
③ In standby mode, if you want to see the last call time again, press and hold
for 2 seconds. Then, the phone displays standby the last call time on the
screen for 30 seconds again.
Repeat from ②.
④
BACK
5.4 Answering a call
To answer a phone call:
or
① If not there, return to the Start screen by pressing
to step ②.
② Press
two times.
. Otherwise proceed
5.7 Use Caller ID
Caller ID is a network service that identifies incoming calls. Contact your service
provider to find out how to get this feature.
When Caller ID is active, your phone shows the caller’s phone number during an
incoming call, as long as this number is a part of your service provider’s wireless
network.
① Press any key to answer the call.
② Press
to end the call.
to answer the call.
5.5 Adjusting the earpiece volume
You can adjust the earpiece volume (while in a call or at any time) by pressing the
scroll keys on the phone.
•
Press to increase the volume.
•
Press to decrease the volume.
5.6 Redial the last-dialed number
To redial the last-dialed number on your phone:
Stored numbers may be up to 10 recently dialed numbers. Stored numbers may
be up to 28 digits long.
The wireless network lets you know if it doesn’t recognize the calling number. The
wireless network will also let you know if the calling party has blocked the Caller
ID feature.
If you have stored the name and number of the calling party in your phone book
and that number has supported by the wireless network, the caller’s name can
also appear.
- 21 -
- 22 -

6. USE PHONE MENUS
6.1 Navigate menus
A menu is a list of choices you can make. Your phone has 9 main menus. Each
main menu contains numerous submenus that allow you to use the phone book,
change the ringing tone, and so on. You can use menus and submenus two ways:
by scrolling or by using shortcuts.
6.1.1 Scroll through menus
From the Start screen, press
①
using the
② Press
③ Use the scroll and selection keys to navigate the submenus and to return to
OPTIONS, SELECT, ENTER
option you want.
the Start screen.
and .
, and then scroll through the menus
Menu
, or OK, using , at the
6.2 List of shortcuts
Your phone’s menu may differ from the following list, depending on the network
services to which you have subscribed and the accessories you are using. If you
have any questions, call your service provider.
1. Phone book
1. Details
2. New
3. Delete
4. Speed Dial
5. Delete All
2. Call Log
1. Missed
2. Received
3. Dialed
4. Timers
1. Last Call
2. Received
3. Dialed
4. Reset All Timers
5. All Calls
6. Lifetime
6.1.2 Use a shortcut
To get to options directly, without scrolling through lists, you can use a
shortcut.
6.1.3 Exit menu levels
• To return the previous menu level, press
•
To return to the Start screen, press .
No menu setting changes are saved.
- 23 -
BACK
or
EXIT
.
3. Messages
1. Inbox
2. Outbox
3. New Text Msg
4. Use Template
5. Write E-mail
6. Voice Mail
1. Call Voicemail
2. Voicemail Num
4. Settings
1. Call Settings
1. Emergency Key 9
2. Calling Card
- 24 -

3. One-Touch Dial
4. Auto Redial
2. Phone Settings
1. Date and Time
2. Set Alarm Clock
3. AutoDate & Time
4. Languages
5. Welcome
6. OwnNum Display
7. Backlight
8. Restore Defaults
9. Minute Reminder
3. Outdoor
4. Silent
5. Custom
6. Car
6. Calendar
7. Calculator
8. Games
1. Breakout
2. Snake
3. Answer Settings
1. Auto Answer
2. Any Key Answer
4. Network Services
1. Call Forwarding
2. Call Waiting
3. Send Own Num
4. Feature Code Set
5. NAM Selection
5. Security Settings
1. Call Restriction
2. Access Codes
5. Profiles
1. General (the following submenus appear in all profiles)
1. Select
2. Customize
1. Volume
2. Ring Tone
3. Message Tone
4. Ring Style
5. Warn&GameTon
6. Keypad Volume
3. Rename
9. Keyguard
2. Meeting
- 25 -
- 26 -

7. ENTER LETTERS AND NUMBERS
7.1.2 Change from capital (uppercase) letters
You can enter letters, as well as numbers, when storing information into your phone
by using your phone’s keypad. To enter letters, press the key associated with the
letter you wish to enter until it appears on the screen (numbers also appear).
7.1 Enter letters
When you want to add new names in the phone book, your
phone automatically switches to the ABC mode and displays
the
• Press a key once or several times to enter the letter(s) you want.
icon.
ABC
For example, press
Key Characters Key Characters
1 , . ’ @ * #
A B C 2
D E F 3
G H I 4
J K L 5
M N O 6
three times to enter the letter C.
Enters an empty space, 0
Symbols and special characters
P Q R S 7
T U V 8
W X Y Z 9
Change letter case
To switch between uppercase and lowercase letters:
• Press .
• The
ABC
icon switches to
abc
, indicating that you are using lowercase.
• To switch back to uppercase, press again.
7.1.3 Use punctuation and special characters
When in ABC mode, you can enter special characters.
To do so, press
. The following special characters appear:
@$_!.#%&‘()*+,-“/:;<=>?
•
Press or to move to the character that you want to use and
press
SELECT
Tip: If you want to access a special character that appears toward the end of
this list, press
.
for quicker access.
7.2 Enter number
7.1.1 Edit name
To edit a name in the phone book:
You use the 123 mode to enter numbers. When you’re in 123 mode, the screen
shows the
123
icon.
Note: You cannot enter special characters in 123 mode from the special
• Use to move the cursor to the left.
• Use to move the cursor to the right.
• Press
CLEAR
to correct any mistakes.
- 27 -
characters list.
• If you are in
The
icon appears, enabling you to enter only numbers.
123
mode, press and hold for about 2 seconds.
ABC
- 28 -

• To return to
mode, press again for a couple of seconds.
ABC
8. USE THE PHONE BOOK
7.2.1 List of special characters
* Use as bypass key.
, Use to create a pause when a number is dialed.
The numbers you enter after this special character are automatically sent as
touch tones after a 2.5-second pause.
8.1 About the phone book
Your phone includes a phone book that can store up to 100
names and associated phone numbers and E-mail Address.
Stored numbers can be up to 20 digits long. Stored names
and E-mail Address can be up to 20 characters long.
8.2 Use phone book menus
The phone book has several menus from which you can choose. These menus
appear when you press Names. Use
to use.
Details
New
Delete
Speed Dial
Delete All
Allows you to view details name and numbers.
Allows you to enter new name and numbers.
Allows you to erase only one name and number at a time.
Allows you to assign up to seven one-touch dial locations.
Allows you to erase all name and number in the phone book.
to move to the menu you want
- 29 -
8.3 Add names and numbers
New
.
.
and press
SELECT
- 30 -
.
Press
①
②
③
④ Using the keypad, enter the name. Use
NAMES
Press
OPTIONS
Scroll to
lowercase letters.
to switch between upper and

⑤ Using the keypad, enter the numbers. Press and hold
capital letters and numbers.
to switch between
8.5 Recall and dial stored numbers
You can recall and dial numbers using one of two methods.
Press
⑥
⑦
⑧
Shortcut:
You can also enter numbers by using a shortcut from the Start screen.
①
②
③
④
ENTER
Enter the phone number and press
Enter the E-mail Address and press
Enter a phone number and press
Enter a name at
Press
ENTER
Enter the E-mail Address and press
.
NAME
.
and Press
ENTER
ENTER
SAVE
ENTER
ENTER
.
.
.
.
.
8.4 Change a stored telephone number
You can change a number without changing its associated name.
Press
①
②
③
④
⑤
⑥
⑦ he associated number appears.
⑧
NAMES
Scroll to the name you want and press
Scroll to
Press
OPTIONS
is not highlighted, scroll to it and press
If
Edit
Press
SELECT
Press
CLEAR
erase all the numbers on the screen.
.
OPTIONS
Details
, then press
.
.
to erase one number at a time, or press and hold
SELECT
to view the number.
SELECT
.
.
CLEAR
to
To recall and dial a number:
① At the Start screen, press
to display the names that is stored in your phone book.
② Scroll to the appropriate name and press
OR
① At the Start screen, press
② Begin entering the first letter of the name you want to call.
For example, to find “
user will see all the listed name in phonebook with Alphabet sequence. Then
the arrow indicates the name starting from B alphabet. Use has to scroll down
to find “
③ When the appropriate name/number appears on the screen, press
dial this number.
JOHN
”.
MENU
NAMES
JOHN
and
SELECT.
.
” in phonebook, and inputting Alphabet “J”, then
Then press or
to dial the associated number.
8.6 Erase stored names and numbers
Note: You cannot undo Erase functions, so be careful!
① Recall the stored name.
② Press
③ Scroll to
④ Press OK to erase this name and associated number.
The
OPTIONS
Delete
CONFIRM
.
, then press
message appears.
SELECT
.
to
⑨ Enter the new number
Press
⑩
ENTER
to save the new number.
- 31 -
8.7 Erase the entire phone book
You can erase the contents of your phone book. Note that this action cannot be
reversed! Once you have performed this procedure, all the stored information in
your phone book is erased.
- 32 -

To erase all the contents of your phone book:
① Recall the stored name.
Press
②
Scroll to
③
The
Enter your security code and press
④
OPTIONS
Delete All
Security Code
.
, then press
field appears.
SELECT
ENTER
.
.
9. WORK WITH THE CALL LOG
The call log keeps track of:
• Missed calls
• Numbers from which you’ve received calls
• Numbers you’ve dialed
• The amount of time you’ve spent on calls
9.1 Call the call log
Press
MENU 2
The following submenus are available:
Missed
Received
Dialed
Timers
To select any of these options, press the
displayed on the screen. The
include the following options (available when you press the
•
Call Number
appears on the screen.
•
Save Number
phone book.
•
Delete
call log.
to access
Allows you to delete the displayed number from the
Call Log
Missed, Dialed
Allows you to call a number when an associated name
Allows you to save the displayed number into your
, then press
SELECT
SELECT
key while the option is
, and
.
Received
OPTIONS
menu
key):
Note: Your phone can store up to 30 call numbers include missed, receiving and
dialed calls.
9.1.1 Check missed calls
- 33 -
When you miss a call(s), the message Missed calls appears on your phone’s
screen, along with the number of calls missed.
- 34 -

You are notified of missed calls only when your phone is turned on in the
service area from which the missed call originated.
To check missed calls:
① When you reach the number you want to dial, press
.
Press
①
② Either scroll through the list using the
If you prefer, you can press
scroll through the list of numbers.
SELECT
The phone shows the numbers of the calls you missed.
number that you want to dial and press , or press
the Start screen.
Note: If you chose the
Forwarding
calls.
You can also access previously dialed numbers by pressing
quickly pressing
.
or until you reach a
MENU 2
If not answered
, then your phone treats these forwarded calls as missed
or to scroll through the list.
> 1 (
Call Log
option in
9.1.2 Check received calls
When you want to check received calls;
① Press
② Use
MENU 2
> 2 (
Call log
or to scroll through the list of received numbers.
>
Received
).
BACK
>
Missed
Call
to return to
), then
and then
9.2 Check call timers
Your phone tracks the amount of time you spend on each call.
To obtain information about time spent on phone calls:
① Press
② Use
•
•
•
•
•
•
MENU 2
list:
Last call
Received
reset the timers.
Dialed
reset the timers.
Reset All Timers
every all timers.
All Calls
made and received since you reset the timers.
Lifetime
phone. This option cannot be reset.
> 4 (
Call log
or to scroll through the options described in the following
Shows the call duration of the last made call.
Shows the duration of all incoming calls since you
Shows the duration of all outgoing calls since you
Shows the duration of all calls for the life of your
>
Timers
The Reset all times submenu allows you to erase
Shows the call duration of all calls that have been
).
③ When you reach the number you want to dial, press
9.1.3 Check previously dialed calls
When you want to check dialed calls;
① Press
② Use
MENU 2
or to scroll through the dialed
numbers list.
> 3 (
Call log
- 35 -
>
Dialed
).
.
- 36 -

10. SEND AND RECEIVE TEXT MESSAGES
10.1 About the Messages
With the text message network service, you can send and
receive short text messages. You can also send and receive
messages that contain a person’s name and/or number (a
“business card”).
To get your messages, other phones must have text message capability. Or, you
can ask the service provider to convert the message to other formats, such as e-
mail.
The maximum length of a received text message is 160 characters long. Your
phone has space for up to 20 text messages, depending on the length of each
message.
•
Write E-mail
•
Voice Mail
Enter your e-mail message.
Enter your voice mail numbers.
10.3 Write with standard text input
Standard text input is the default mode for text entry. The ABC icon
appears as visual confirmation.
Press and hold to enter a number.
hold again to write text letters.
① Find the key that is below the letter you want to enter.
② Press it as many times as needed for letter to appear on the screen.
For example, to enter the name John:
indicate 123 mode. Press and
123
ABC
Note: The maximum length of a text message differs, depending on the
capabilities of the network from which it originated. Also, text messages may
appear different at different times because messages can originate in
networks other than your own.
Contact your service provider for more information about this feature.
10.2 Use Messages menus
The Message has several menus from which you can choose. These menus appear
when you press
to use.
•
Inbox
stored. All new, unread messages are kept here.
•
Outbox
All outgoing message are kept here.
•
New Text Msg
•
Use Template
predefined list of messages, such as “Meeting cancelled”
or “Call me please”.
SELECT
Inbox is where incoming messages are received and
Outbox is where outgoing messages are send and stored.
Key. Use to move to the menu you want
Enter your new messages.
Allows the user to create a new SMS message based on a
- 37 -
Press
Press
Press
Press
J
O
H
N
10.4 Write and send a new text message
① Press
② Enter a message of up to 160 characters.
③ When you’ve finished writing, press
④ Enter or recall the recipient’s phone number, then
⑤ Scroll to
⑥ Scroll to
MENU 3
The message screen appears.
SELECT
> 3 (
Messages
Set Urgency
Very Urgent, Urgent
to select the priority.
and press
- 38 -
>
New Text Msg
ENTER
SELECT
, or
Normal
).
.
ENTER
.
. And then press
.

Scroll to
⑦
SELECT
When the message is successfully sent,
sent and saved
If you need to exit while writing the message, press
Send and Discard
.
appears.
or
Send and Save
Message sent
, then press
or
Message
at any time.
10.4.1 Save a message in the saved folder
When writing a text message, it’s a good idea to save it in the saved folder.
Then if there is a message delivery problem, you can easily resend the
message.
While writing the message, press
①
Scroll to
②
, and then press
SAVE
ENTER
SELECT
.
.
10.4.2 Message prioritization setting
The message urgency indication will notify recipient that your message is
important. When you receive an
marked with an exclamation point in front of it. The following is a list of
message prioritization:
•
•
Normal
Urgent
Urgent
message, the message will be
•
Send and Discard
•
Send and Save
•
Save
•
Set Urgency
•
Delivery Report
10.4.4 Delivery report
If you want to know your message was delivered, you can turn on the
Delivery Report
① Scroll to
② Press ON.
If you do not want to use
switching to
Delivery Report
OFF
.
options.
.
Delivery Report
, you can turn them off by
10.5 Receive a text message
When you receive a text message, the phone sounds a message alert tone and the
text message icon appears, along with one of the following messages:
•
New Message
If you have more than one message or page, the
appropriate number is listed before this message.
: Indicates that you have an unread message or page.
•
Very Urgent
Messages not specifying a priority shall be assumed to be normal.
10.4.3 Send Options for a message
The Outbox Details menu has several sub menus from which you can choose.
These menus appear when you press
move to the menu you want to use.
- 39 -
SELECT
Key. Use to
10.5.1 Read a text message
① Press
② Scroll to the message, then press
③ Scroll to the Details, and press
④ Press
⑤ Press
READ
.
OPTIONS
SELECT
for a list of choices you have while reading the message.
when the option you want is highlighted.
- 40 -
OPTIONS
SELECT
.
.

10.5.2 Choose options for a message
10.5.4 Call Number
When you press
are available.
•
Details
message.
•
New Message
message.
•
New From Template
message based on a predefined list of
messages, such as “Meeting cancelled” or
“Call me please”.
•
Delete
will be asked to confirm the deletion.
•
Delete All
will be asked to confirm the deletion.
OPTIONS
Takes the user to the detailed view for the
Allows the user to create a new SMS
Delete the message being viewed. The user
Deletes all received SMS messages. The user
while reading a message, the following choices
Allows the user to create a new SMS
10.5.3 Read options for a message
The Inbox Details menu has several sub menus from which you can choose.
These menus appear when you press
move to the menu you want to use.
SELECT
Key. Use to
Calls the person who sent you the text message, if their phone number is
included in the message.
You can also press
If more than one number is on the screen, the numbers appear in a list. Scroll
to the phone number you want to call and press
while the message is displayed to dial the number.
.
10.6 When your phone’s memory is full
When your phone’s message memory is full, one or more messages of the
lowest priority are automatically deleted. These messages are usually deleted
from your phone’s outbox.
If after deleting messages the memory is still full, your phone shows the
message error “No space: Message waiting” appear.
10.7 Delete a message
① While reading a message, press
② Scroll
Delete
Your phone asks you to confirm that you want to delete the message.
, then press
OPTIONS
SELECT
.
.
•
Reply
•
Forward
have the appropriate message service.
•
Delete
asked to confirm the deletion.
•
Lock
•
Call Number
their phone number is included in the message.
Provides a screen where you can write a reply.
Forwards the call to another person. That person must
Delete the message being viewed. The user will be
Lets you lock your received messages to phone.
Calls the person who sent you the text message, if
- 41 -
③ Press OK.
10.8 Use voice mail
Voice mail is a network services feature. Colleagues who miss you when they call
can leave a voice message, which you can retrieve later.
10.8.1 When you have a message
• Your phone beeps when you receive a voice message. Also, the message
- 42 -

New voice message
icon.
appears on your phone’s screen, along with the
11. SEND AND RECEIVE E-mail
Note: To use voice mail, you need to learn the voice mail system’s various
greetings, passwords, and prompts. Your service provider can provide
instructions.
10.8.2 Set up your voice mailbox
As part of your network’s voice mail feature, your service provider gives you a
voice mailbox phone number. Save this number in your phone to make getting
your voice messages quick and convenient.
① Press
② Enter your mailbox phone number.
③
Your voice mailbox number can be up to 20 digits long and is used until it’s
changed. Therefore, if your phone number changes, you may need to change
your voice mailbox number along with it.
Press
MENU 3
ENTER
> 6 > 2 (
.
Messages
>
Voice Mail
>
Voice mail Num
10.8.3 Listen to your voice messages
Note: The way you listen to your voice messages may vary depending upon
your service provider. Call your service provider if you have any questions.
When your phone alerts you to new voice messages, press
①
follow the instructions given on the phone.
If you’d rather listen to your messages later, press
②
EXIT
LISTEN
.
and
).
MESSAGES
You can use your phone to send and receive e-mail messages. This means you no
longer need to be at your computer to send or receive messages.
11.1 Send an e-mail address
You can add an e-mail address to a name you’ve already saved in the phone book.
Or, you can add a name and address as a new entry.
11.1.1 Save an e-mail address for an existing name
At the Start screen, press
①
② Enter the first one letters of the name or scroll to the name you want and
press
OPTIONS
Scroll to
③
Press
④
If
⑤
The associated name appears.
Press
Press
Enter the address, and then press
⑥
Details
OPTIONS
is not highlighted, scroll to it and press
Edit
SELECT
SELECT
.
.
. The associated number appears.
. The E-mail address entry screen appears.
NAMES
, then press
or press
SELECT
ENTER
MENU
to view the number.
to save the new e-mail address.
> 1 (
SELECT
Phonebook
.
).
③ To Listen to your voice messages at a later time:
Press and hold
OR
Press
MENU 3
Voicemail
.
> 6 > 1 (
).
Messages
- 43 -
>
Voice Mail
>
Call
11.1.2 Add a new e-mail address
At the Start screen, press
①
press
SELECT
Enter the name and press
②
The Number entry screen appears.
.
NAMES
ENTER
- 44 -
, press
.
OPTIONS
, scroll to
New
and

Enter the phone number and press
③
The E-mail address entry screen appears.
④ Enter the address, using the special characters screen to insert the “dot(.)”
and @ signs.
ENTER
.
④ When the message contents screen appears, enter your message.
When you’ve finished the message, press
⑤
Discard
status message tells you the mail is being sent.
or
Send and Save
, and press
ENTER
, select
SELECT
Send and
. A
Press
⑤
The message
ENTER
.
Entry written
appears briefly, confirming your action.
11.1.3 Edit a new e-mail address
Follow steps ① through ⑤ in “Save an e-mail address for an existing
①
name” (earlier in this section) to find the name whose e-mail address you
want to edit.
② Enter any changes, using
backward and forward in the address.
When the address is the way you want it, press
③
The message
Entry written
to move the insertion point
appears briefly, confirming your action.
11.2 Send an e-mail message
At the Start screen, press
①
Scroll to
② Enter the e-mail address.
Write E-mail
and then, at
MENU
, and press
SELECT
ENTER
Messages
.
.
, press
SELECT
.
11.2.1 Other options for a completed message:
•
Save
Save the message in the saved folder until you send it.
•
Quit
Erase the message and returns you to the Recipient address
box.
• If you press
and press
Recipient address box. Press
SEARCH
ENTER
, enter the first few letters of the name you want
when you find the name. The address appears in the
ENTER
.
• The phone finds only names with e-mail address and lets you know if it
doesn’t find any. If no names with e-mail address are found, you are
returned to the Recipient address box.
• If you enter the e-mail address, press
The
Subject:
Enter a subject and press
③
opens.
ENTER
- 45 -
ENTER
.
when you’ve finished.
- 46 -

12. USE ADVANCED CALLING FEATURE
② Enter the feature code your service provider gave to you and press
ENTER
.
12.1 Set in-call options
Your phone allows you to use a number of features during a
call. These features are known as in-call options.
Note: Many in-call options are network services features.
To use these options, you must contact your service provider.
You cannot use all these options at all times. This section tells you when you can
use a certain option.
To access an option during a call, press
①
② Choose from some or all of the following options:
•
Drop
Allows you to end the call.
•
Main Menu
Allows you to access the
OPTIONS
.
MENU
.
12.2 Use call waiting
If you have call waiting, your phone beeps during a call to let you know that
someone else is calling you.
Depending on your caller ID setup, the phone can also display the number of the
incoming call.
Scroll to
③
Make sure that
④
Call Waiting
Activate
and press
is highlighted and press
SELECT
.
SELECT
12.2.2 Activate call waiting
① Press
② Use or to scroll to
Your phone calls the network to confirm the feature code you entered. After
the network confirms the feature code, call waiting is activated.
MENU 4
Waiting
).
> 4 > 2 (
Settings
Activate
>
Network services
and press
>
Call
SELECT
12.2.3 Manage calls
Call waiting works with both local and long distance calls.
• To answer an incoming call, press .
• To switch from one call to another, press .
•
To end both calls, press .
.
.
Note: Call waiting may not be available in all wireless systems. Contact your
service provider for details and availability.
Before you can use call waiting, you must first store its feature code. Then you
must activate the call waiting feature.
12.2.1 Store the call waiting feature code
① Press
MENU 4
Code Set
The
).
Feature code
> 4 > 4 (
field appears.
Settings
- 47 -
>
Network services
>
Feature
12.3 Use call forwarding
While call forwarding, you can forward incoming calls to another number. This way,
if you are unable to receive calls on your phone, all calls going to that phone can
be forwarded to another phone. You never have to miss an important call.
Note: The call forwarding feature might not be available in all wireless systems.
12.3.1 Store the call forwarding feature code
- 48 -

① Press
②
MENU 4
Code Set
The Feature code field appears.
Enter the feature code your service provider gave you and press
> 4 > 4 (
).
Settings
>
Network services
>
Feature
ENTER
12.4 Redial automatically
Automatic redial enables your phone to continue trying to call a number that was
.
busy due to wireless network problems.
③ Use or to scroll to
SELECT
.
Call Forwarding
and press
12.3.2 Activate call forwarding
① Press
② Scroll to the desired call forwarding option, as described in the following
•
•
•
•
•
③ Highlight
④ Scroll to
MENU 4
Forwarding
table, and press
All Calls
If Busy
phone and do not have voice mail.
If Not Answered
is handy if you want to give your phone to
someone for a short period of time, but you
don’t want this person to answer the phone.
If Out Of Reach
wireless network, or if your phone is turned off.
Cancel All Fwd
currently active.
number to which you want your calls forwarded.
> 4 > 1 (
).
SELECT
Forwards all incoming calls.
Forwards calls only when you’re one your
Activate
Other Number
Settings
.
Forwards calls if you don’t answer. This option
Forwards calls if you are out of the home
Cancels all forwarding options that are
and press
and press
>
Network services
SELECT
.
SELECT
>
, and then enter the
Call
When you call a number and get a busy signal because of network problems, your
phone redials this number up to 3 times. If you want to stop this process prior to
the last attempt, press
Before you can use the Automatic Redial feature, you must activate it.
① Press
②
Press
MENU 4
.
ON
> 1 > 4 > (
. This stops the automatic redialing.
Settings
>
Call Settings
>
Auto Redial
12.5 Use a calling card
You can use a calling card when you dial long distance calls. First you must store
your calling card information in the phone. Your phone can store information
about a maximum of four calling cards.
12.5.1 Save calling card information
① Press
②
③
④
⑤
MENU 4
Scroll to the
press
OPTIONS
Scroll to
Enter your
Scroll to
Edit
Dialing Sequence
> 1 > 2 (
Card A, Card B, Card C
.
and press
Security code
Settings
SELECT
and press
>
.
and press
Call Settings
, or
None
ENTER
SELECT
>
Calling card
calling card and
.
.
).
).
⑤ Press
Your phone calls the network to confirm the feature code that you entered in
MENU 4
forwarding is activated.
ENTER
> 4 > 4. After the network confirms the feature code, call
.
- 49 -
⑥ Use
described in the following table.
or to scroll through the list of dialing sequences, as
- 50 -

Dialing
sequence
Accs
+ phone
+ card no
Accs
+ card
+ phone
Pref
+ phone
+ card
Calling cards shown here are frequently used with the dialing sequences listed
in the first column. However, this information could vary and it is subject to
change by the phone companies’.
⑦ Press
SELECT
Use for cards that require you to
Dial 1-800 access number, then phone number,
then card number (+ PIN if required).
Dial 1-800 access number, then card number (+
PIN if required), then phone number
Dial the prefix (any numbers that must precede
the phone number) and phone number you want
to dial, then card number (+ PIN, if required).
.
Associated
cards
MCI,
Sprit Canada,
Unitel
Network MCI,
WorldPhone
MCI, AT&T
GTE, PacBell,
AT&T, Stentor
12.5.2 Choose a calling card to use
If you have more than one calling card, you’ll need to choose one before
making a call.
① Press
② Scroll to the desired card and press
③
MENU 4
card
).
Press
The
Security code
> 1 > 2 (
or to highlight
Settings
field appears.
>
Call Settings
OPTIONS
Select
and press
>
Calling
.
SELECT
.
① Enter the phone number, including any prefix (such as 0 or 1) your calling
card might require when you make a calling card call. See your calling card
for instructions.
② Press and hold until your phone displays the message
then
Wait for tone and press OK
and press OK
When you hear the tone from your calling card service, press
③
again.
, and then
Card call
Wait for tone
.
OK
Note: This procedure might not apply to all the calling card options that are
programmed into your phone. Check the back of your calling card for
more information, or contact your long distance company.
12.6 Send your own number in caller ID
You can determine, for each call you make, whether your telephone number
appears on another phone’s caller ID.
In most service areas, when you call others, your name is presented to their caller
ID (if they subscribe). With Send Own Number, you can block (or not) the display
of your number to others’ caller ID when you call them.
Note: Send Own Number might not be available in all wireless systems. Contact
your service provider for details and availability. Also note that this feature is
effective only when you call a number that is equipped with caller ID.
Before you can use Send Own Number, you must first store its feature code.
Otherwise, this feature will not appear on your phone’s menu.
,
④ Enter your security code and press
The message
Card Ready for use
12.5.3 Make a calling card call
To make a calling card call:
- 51 -
ENTER
appears.
.
12.6.1 Store the Send Own Number feature code
① Press
②
MENU 4
Code Set
Then
Feature Code Set
Enter the feature code your service provider gave you and press
> 4 > 4 (
).
Settings
field appears
- 52 -
>
Network services
>
Feature
ENTER
.

③ Use or to scroll to
SELECT
.
Send Own Number
and press
13. CUSTOMIZE YOUR PHONE
Scroll to
④
Press
⑤
Your phone calls the network to confirm the feature code that you entered in
MENU 4
Number is activated.
SELECT
or NO.
YES
.
> 4 > 4. After the network confirms the feature code, Send Own
12.6.2 Set whether or not your number will appear
① Press
②
③
④
MENU 4
Number
Scroll to
Press
SELECT
Enter the number you wish to call, and press
).
YES
> 4 > 3 (
or NO.
.
Settings
>
Network services
ENTER
>
Send Own
.
13.1 What is a profile?
A profile is a “set of settings” you can use to customize the
way your phone works. You can set your own preferences for
these items:
Volume
Ring Tone
Message Tone
Ring Style
Warning & Game-Tone
Keypad Volume
Your phone comes with six profiles:
General
Meeting
Outdoor
Silent
Custom
- 53 -
Car
You can customize any of the profiles. If at any time you want to return to the
original settings, you can do so.
13.2 Customize a profile
① Press
② Scroll to the desired profile in the list.
③ Press
④ Select one of the following options, and then press OK.
MENU 5 (Profiles
SELECT
to view the options for the selected profile.
).
- 54 -

Select
Customize
Rename
Activates the currently highlighted profile.
Enables you to customize a profile by changing the current
settings.
Press
SELECT
Enables you to rename the profile.
to choose from several lists.
13.2.1 Set the ringer volume
You can set the default ringing volume for incoming voice
calls and message alert tones.
① Press
② Use
③ Highlight
④ Scroll to
MENU 5 (Profiles
or to scroll to the profile for which you want to set the
Volume
, and press
Customize
Volume
).
SELECT
and press
and press
.
SELECT
SELECT
.
⑥ Scroll through the options, and, when you hear the tone you want to use,
press
SELECT
.
13.2.3 Set the message alert tone
You can set your phone to use a certain tone to indicate
an incoming text message.
① Press
② Use
③
④
.
⑤ Use
⑥
MENU 5 (Profiles
or to scroll to the profile for which you want to set the
message alert tone, and press
Highlight
Scroll to
The phone plays samples of each choice as you scroll to it.
When you find the tone you want, press
Customize
Message Tone
or to scroll through your choices.
).
SELECT
and press
, then press
.
SELECT
SELECT
SELECT
.
.
.
13.2.2 Set the ring tone
You can set your phone’s ring tone to a specific sound-or
tune- for incoming voice calls.
Note: If you have already chosen a ringing option of
either Silent or Beep once, the ring tones are already
turned off.
① Press
② Use
③ Press
④ Highlight
⑤ Scroll to
MENU 5 (Profiles
or to scroll to the profile for which you want to set the
ringing tones.
SELECT
Customize
Ring Tone
.
).
and press
and press
- 55 -
SELECT
SELECT
13.2.4 Set ring style
You can choose the tone that your phone uses to notify you of an incoming
call. This setting does not affect any incoming text message alert tones.
① Press
② Use
③ Highlight
④ Scroll to
⑤ Scroll to one of the
.
.
MENU 5 (Profiles
Your phone lists each profile.
or to scroll to the desired profile in the list for which you
want to set the
SELECT
Ring Style
Customize
Ring Style
.
).
and press
and press
Ring Style
, and press
, as described below, and press
- 56 -
SELECT
SELECT
SELECT
.
.
.

Ring
Ring Ascending
One Ring
One Beep
Silent
The phone rings until it is answered.
Ringing volume increases (gets louder) if the
phone is not answered.
The phone rings once to indicate an incoming call.
The phone beeps once to indicate an incoming call.
The phone makes no sound.
13.2.5 Set warning and game tones
You can set warning tones and the tones used for the games in your phone.
Warning tones include the sounds your phone makes during error conditions,
during confirmations, when a battery is low, and when you need to recharge
the battery.
Highlight
③
Scroll to
④
⑤ Use or to scroll to one of the levels and press
If you chose the
Customize
Keypad Volume
Silent
and press
profile in step ⑤, the keypad volume is turned off.
SELECT
and press
.
SELECT
13.3 Rename profiles
① Press
② Use or to scroll to the desired profile and press
③
MENU 5 (Profiles
Scroll to
Rename
).
and press
SELECT
.
.
SELECT
SELECT
.
.
① Press
② Use
③ Highlight
④ Scroll to
⑤
If you do not want to use warning or game tones, you can turn them off by
switching to
MENU 5 (Profiles
or to scroll to the profile for which you want to set the
warning tone, and press
Customize
Warn&GameTon
Press
to switch the ON or
OFF
.
).
SELECT
and press
.
OFF
.
SELECT
.
.
13.2.6 Set keypad volume
Keypad volume set the volume of the tone you hear when you press your
phone’s keys.
① Press
② Use
MENU 5 (Profiles
or to scroll to the profile for which you want to set the
keypad volume, and press
).
SELECT
- 57 -
.
Enter the new name and press
④
OK
again.
13.4 Restore defaults settings
You can change the default settings for your phone. Later, you can return them to
the original settings when needed.
Note: The memory, timers, language selection, security code, and lock code are
not reset. However, any profiles you have modified are reset when you
restore the default settings.
① Press
②
MENU 4
Defaults
Press
OK
).
.
> 2 > 8 (
Settings
>
Phone Settings
>
Restore
13.5 Set the display language
You can set your phone to display a certain language.
① Press
MENU 4
>
Languages
> 2 > 4 (
).
Settings
- 58 -
>
Phone Settings

② Use
SELECT
or to scroll to the language you want to use and press
.
If you choose
date and time?
accept the update or
Confirm
, you will receive the message
Before the phone’s clock is updated. Select OK to
CANCEL
to reject it.
Really Update
You can choose from
English, Spanish
and
Portuguese
.
13.6 Set and display the clock
Your phone has an internal clock that you can set to appear on the phone’s screen.
The clock is connected to an alarm clock.
13.6.1 Set the clock
To set the clock to the appropriate time:
① Press
② Use or to scroll to
③
④ Use or to scroll to AM or PM and press
MENU 4
Settings
The Time field appears.
Enter the time using a
For example, to set your clock to 9:30, enter 09:30.
> 2 > 1 (
>
Date and Time
Settings
xx:xx
>
Phone
).
Set Time
format and press OK.
and press
SELECT
SELECT
.
.
• Turn off the network date and time update
① Press
②
MENU 4
Time
), and then press
Scroll to
OFF
> 2 > 3 (
, and then press
Settings
SELECT
>
.
SELECT
Phone Settings
.
>
AutoDate &
13.7 Add a welcome note
You can set your phone to display a welcome note each time
you switch on your phone.
This note could say, for example: Hello. It could include your
name, a reminder, or more. The maximum lengths of this
note 20 characters.
① Press
② Enter the text of the welcome note.
③
MENU 4
As you enter characters, they appear to the left of the cursor. Press
to delete characters to the left of the cursor. Press
the cursor right or left.
Press
ENTER
> 2 > 5 (
.
Settings
>
Phone Settings
>
Welcome
or to move
).
CLEAR
13.6.2 Set the clock to be updated by the network
You can set your phone’s clock to be updated by the network, if available.
• Turn on the network date and time update
① Press
②
MENU 4
Time
), and then press
Scroll to
ON
> 2 > 3 (
or
Confirm
Settings
SELECT
.
, and then press
- 59 -
>
Phone Settings
SELECT
.
>
AutoDate &
13.8 Set the answer
13.8.1 Set your phone to answer automatically
You can set your phone to answer incoming voice calls after one ring. This
feature can be used only when your phone is connected to a headset or to an
approved handsfree car kit that is equipped with the ignition sense option,
with the ignition on.
- 60 -

① Press
Answer
MENU 4
).
> 3 > 1 (
Settings
>
Answer Settings
>
Auto
guarantee connection in all conditions. Therefore, you should never rely solely
upon any cellular phone for essential communications (e.g., medical emergencies).
② Use
set your phone to answer automatically, and press
or to scroll to the phone setting for which you want to
SELECT
.
13.8.2 Set your phone to answer by pressing any key
This feature allows you to answer an incoming call by pressing any key except
. The default setting for this feature is OFF.
To enable Any Key answer:
① Press
②
Repeat the steps above except, in step ②, press
MENU 4
Answer
Press
ON
).
.
> 3 > 2 (
Settings
>
Answer Settings
OFF
>
Any Key
.
13.9 Emergency calls
Before attempting any emergency calls, see “18.1 Emergency Calls” for important
safety information.
① If the phone is not on, switch it on.
② Press
(Press it twice if there are still digits on the display.)
to ready the phone for calls.
Remember, to make or receive any calls, the phone must be switched on and in a
service area with adequate cellular signal strength.
Emergency calls may not be possible on all cellular phone networks or when
certain network services and/or phone features are in use. Check with local
cellular service providers.
If certain features are in use (keyguard, restrict calls, etc.), you may first need to
turn those features off before you can make an emergency call. Consult this
document and your local cellular service provider.
When making an emergency call, remember to give all the necessary information
as accurately as possible. Remember that your cellular phone may be the only
means of communication at the scene of an accident - do not cut off the call until
given permission to do so.
13.10 Use emergency key
When the emergency key feature is turned on, the phone attempts to make an
emergency call when you press
emergency number preprogrammed into your phone.
Note: If you have activated the emergency feature, you can also dial an
emergency call by pressing and holding 9 until the phone indicates it is
attempting to make an emergency call. This method does not work, however,
when Keyguard is active.
and . The phone dials the
③ Key in the emergency number for your present location (e.g. 911 or other
official emergency number). Emergency numbers vary by location.
④ Press
.
IMPORTANT!
This phone, like any cellular phone, operates using radio signals, cellular and
landline networks, as well as user-programmed functions, which can not
- 61 -
13.10.1 Activate the emergency key
Before you can use the emergency key feature, you must first activate it.
① Press
②
Key 9
Press
MENU 4
).
.
ON
> 1 > 1 (
Settings
- 62 -
>
Call Settings
>
Emergency

Repeat the steps above except, in step ②, press
Warning: Official emergency numbers vary by location. Only one emergency
number is programmed into your phone, and this is the number that is dialed
when you press
circumstances.
. However, this might not be the proper number in all
OFF
.
13.10.2 Make an emergency call
① Press and .
14. SECURITY
Your phone is equipped with a versatile security system that prevents the
unauthorized use of the phone.
You cannot activate or use certain phone features without having first successfully
entered your phone’s security code.
When entering the security code, a * appears on the screen each time you press a
number key. This prevents others from seeing your code.
If you incorrectly enter a security code five times in a row, your phone won’t accept
any entries for the next 30 seconds. However, if you realize that you’ve entered the
code incorrectly before pressing OK, you can use
digit, beginning with the last digit.
When this guide describes an action that requires the entry of your security code,
each step necessary to this action is provided.
CLEAR
14.1 Change your security code
to erase the code, digit by
- 63 -
① Press
②
③
④
If you have changed your security code and don’t remember the new code,
contact your service provider. Once you have changed your security code, the
default setting is no longer valid
MENU 4
Codes
>
The Security code field appears.
Enter the default security code and press
At the message
ENTER
At the message
and press
The message
> 5 > 2 > 4 (
Change Sec Code
New Secu Code
.
Verify Secu Code
ENTER
.
Security Code has been changed
Settings
).
, enter your new security code and press
>
Security Settings
ENTER
, enter your new security code again
.
>
Access
appears.
• The default lock code is 12345.
- 64 -

14.2 Protect your phone with the lock code
Enter the lock code and press
②
The
Enter Unlock Num
ENTER
field appears.
.
The lock code enables you to activate and deactivate your phone. When the lock
code is on, you cannot access most of your phone’s memory or menu features.
Also, you cannot make phone calls without first entering the lock code.
Note: If you save the unlocked phone number, you can make calls without
entering the lock code. Refer to “Store an unlocked phone number”.
With the lock code on, your phone locks when you switch it off. The next time you
switch your phone on, it asks you for a lock code when you press either
or
MENU
.
NAMES
Note: If you enter an incorrect lock code five times in a row, your phone
prompts you for the security code.
• The default lock code is 12345.
• FTD-8500 recommends that you change this code immediately.
14.2.1 Turn on the phone lock
① Press
②
When your phone is locked, it will be possible to place a call to the emergency
number programmed into your phone, such as 911 or any other official
emergency number. You can either dial this emergency number or press the
emergency
MENU 4
Access Codes
Enter the lock code and press
> 5 > 2 > 1 (
>
Phone Lock
(if you have activated to act as an emergency key).
Settings
).
ENTER
>
Security Settings
.
>
Enter the unlock code and press
③
④
Press
OK
.
ENTER
.
14.2.3 Change your lock code
① Press
②
③
④
When you change your lock code, make sure you store it in a safe place, away
form your phone. Avoid entering access codes similar to emergency number to
prevent accidental emergency calls.
MENU 4
Access Codes
Enter the lock code and press
Only numeric characters are accepted.
Enter the new lock code and press
Verify the new lock code, and press
> 5 > 2 > 3 (
>
Change Lock Code
ENTER
Settings
ENTER
ENTER
>
Security Settings
).
.
.
.
>
14.2.4 Turn off the lock code
① Press
②
With the lock code feature turned off, you can use your phone without having
to enter the lock code each time you turn your phone on.
MENU 4
Access Codes
Enter the lock code and press
> 5 > 2 > 1 (
>
Phone Lock
Settings
).
ENTER
>
Security Settings
.
>
You can also store a number in the Unlocked phone number location. This
allows you to call the number even though your phone is locked.
14.2.2 Store an unlocked phone number
① Press
MENU 4
Access Codes
> 5 > 2 > 2 (
>
Unlock Phone No.
- 65 -
Settings
>
Security Settings
).
>
14.3 Lock the keypad
When you lock the keypad, you prevent accidental key
presses - for example, when your phone is in a pocket or
purse. This feature is called keyguard.
- 66 -

14.3.1 Activate keyguard
When calls are restricted, you will be able to make calls to the emergency number
that is programmed into your phone. For example, you could dial 911 and press
At the Start screen:
• Press
MENU 9 (Keyguard
).
14.3.2 Deactivate keyguard
Press
①
② Press
UNLOCK
.
.
14.3.3 Answer a call while keyguard is active
During an incoming call, the keypad automatically unlocks.
• Press any key to answer the call.
After you end the call, keyguard automatically becomes active again.
14.4 Restrict calls
You can restrict incoming and outgoing calls. To restrict outgoing calls, you create
a list of restrictions and apply the appropriate restriction.
Before you define restrictions for outgoing calls, only one restriction option is
available:
. However, emergency might not work, depending on the type of
restriction you choose.
14.4.1 Restrict incoming calls
To restrict incoming calls:
① Press
② Use or to scroll to
③
④
MENU 4
Restriction
Enter your security code and press
Scroll to
Press
OFF
> 5 > 1 (
).
Restrict All
to remove an already-set restriction.
Settings
Incoming
and press ON.
>
Security Settings
ENTER
.
and press
14.4.2 Restrict outgoing calls
① Press
② Use or to scroll to
③
MENU 4
Restriction
Enter your security code and press
> 5 > 1 (
).
Settings
Outgoing
>
Security Settings
ENTER
.
and press
>
Call
SELECT
>
Call
SELECT
.
.
•
Add restriction
call restrictions. The maximum number of call
restrictions you can define is ten.
•
Delete
•
Delete All
•
Edit
•
Restrict All
Delete any existing outgoing call restriction.
Delete all existing outgoing call restriction.
Allows you to edit an existing outgoing call restriction.
Which enables you to create your own list of outgoing
Allows you to activate all outgoing call restrictions.
- 67 -
Press
④
⑤
⑥
OPTIONS
Scroll to
Enter the number you want to restrict and press
Add Restriction
.
and press
- 68 -
SELECT
.
ENTER
.

15. SET NETWORK SERVICES FEATURES
The following network services can be obtained from your service provider:
• Call Forwarding
• Call Waiting
For example, your phone can be activated in up to 2 different service areas (e.g.
one in Chicago or New York, and maybe one more in New York), each giving your
phone a different phone number or account.
Only one number can be active at a time. When you select a phone number,
you’re also selecting which system you’re using as your home system. The first
phone number displayed with this menu is the currently selected number.
• Send Own Number
• Feature Code Set
• NAM Selection
When you subscribe to any of these services, your service provider gives you a feature
code that activates each service. Deactivation codes are used to deactivate each
service.
After you store the appropriate code in your phone, the code is sent to the network to
verify that you’re using the correct feature code. After you store a feature code, the
respective service appears as a menu option on your phone’s screen. You can use
these menus to activate and deactivate the network services.
15.1 Roaming
The term roaming is used to indicate when your phone is not in its home area.
Calls made or received while you are roaming are usually more expensive than
calls made in your home area.
While roaming in some systems outside your home area, your phone may not be
recognized by the host system, which is the system in which you’re traveling. You
may not be able to place a call.
Note: It may not be necessary to have three NAMs for your phone if your
service provider has service or roaming agreements for each area in which
you wish to use your phone. Contact your service provider for details.
15.2.1 Selecting the NAM for your phone
① Press
②
Note: You need at least one active number to make calls. You cannot
MENU 4
Selection
Highlight the phone number you want to use and press
change from one NAM to another during a call.
)
> 4 > 5 (
Settings
>
Network Services
>
SELECT
NAM
.
Contact your service provider for more specific information on how roaming works
with your phone and for information about coverage limitations.
15.2 NAM selection
The service provider programs your phone with the phone number and system
information into your phone’s memory when your phone is first activated. This is
called a Number Assignment Module (NAM).
- 69 -
- 70 -

16. USE YOUR PERSONAL ASSISTANT
① To move forward or backward through the calendar, use
or .
Your phone can be your personal assistant. It can wake you up in the morning and
remind you of meetings, birthdays, and tasks. You can check the current time,
calculate a tip at dinner, and convert currencies.
With a calendar, clock, alarm clock, and phone book, you have everything you need to
keep track of your life.
16.1 Use the calendar
The calendar application allows you to enter appointments
and reminders into the phone.
Your phone must be switched on for the calendar to work. Do
not switch on the phone, however, where wireless phone use
is prohibited or where the use of the phone could cause interference or danger.
16.1.1 View the calendar
Press
①
②
③
If you select the
day currently on display.
If you select the
calendar.
MENU
Press
SELECT
Today’s day and date appear.
Press
SELECT
You can select the Current day’s notes or all notes list.
> 6 (
Calendar
.
.
Current Day Select
All List View
).
, you can view the notes of the
, you can view the all notes of the entire
When you reach the date you want, press
②
the select you want.
SELECT
and scroll to highlight
16.1.3 Add a calendar note
This option enables you to add a note. You can also set an alarm for any
calendar note.
Go to the day you want, then press
①
The list of note appears.
Press
②
The
Enter the information and press
③
The current date appears.
.
ADD
field appears.
Note:
SELECT
ENTER
• If you do not want to change the date, just press
The
Time:
field appears.
• If you want to change the date for this note, do so and press
④ Enter the time when you need to make this call using the hh:mm format
and press OK. Select AM or PM and press
Select either
⑤
No Alarm
or
Set Alarm
• If you don’t want to set an alarm, select
• If you select
Enter the date on which you want the alarm to sound and press
⑥
The alarm time field appears.
⑦ Enter the time at which you want the alarm to sound using the hh:mm
format and press OK.
Set Alarm
, the alarm date field appears.
.
.
OK
.
SELECT
and press
No Alarm
.
SELECT
.
OK
.
.
.
OK
16.1.2 Move from day to day
After you set the date, whenever you press Menu 6, your phone displays the
current date and day.
- 71 -
Select either
⑧
or PM and press
AM
16.1.4 View the day’s notes
- 72 -
SELECT
.

You can review notes you’ve written for certain days.
① To review notes for a certain day, open the calendar and scroll to the day
you want.
16.2.2 Turn off the alarm clock when it rings
• When the alarm clock rings:
Press
②
SELECT
The following options are available:
, scroll to note list and press
• Details
• Add Entry
• Edit Entry
• Delete Entry
• Delete All For Day
• Delete All Entries
16.2 Alarm clock
You can set the alarm clock to ring at any time. The alarm
clock’s volume is determined by the current ringing volume
and tone settings.
If you have selected the
tone, then your alarm clock quietly beeps once.
Silent
or
One Beep
ringing
SELECT
.
• Press
• Press
If you let the alarm ring for 1 minute or more without pressing a key, it stops
ringing, waits 5 minutes, and then rings again. This continues until you press
Stop.
OK
to turn it off.
SNOOZE
to set the alarm to go off again in 5 minutes.
16.2.3 Turn off the alarm clock altogether
If you decide that you don’t want the alarm to ever go off, you can turn it
completely off.
① Press
②
If you have selected the
only once. The best profile to use when using the alarm clock is
Outdoor
settings.
Clock
Press
MENU 4
).
OFF
> 2 > 2 (
.
, unless these profiles have been modified from their original
Settings
Silent
or
Meeting
>
Phone settings
profile, your alarm beeps
>
Set Alarm
General
or
16.2.1 Set the alarm clock
① Press
② Enter the time for which you want to set the alarm using the hh:mm format
Any existing numbers are replaced with the newly entered numbers.
③
MENU 4
Clock
).
The Set alarm clock message appears.
and press OK.
Select either
> 2 > 2 (
or PM and press
AM
Settings
- 73 -
>
Phone settings
SELECT
.
>
Set Alarm
16.3 Calculator
Your phone’s calculator adds, subtracts, multiplies, divides,
and converts currencies.
16.3.1 Use the calculator
①
Press
MENU 7 (Calculator
).
- 74 -

② Enter the first number in the calculation.
If you need to enter a number with a decimal point, press to indicate
it.
③ Then, based on the type of calculation that you need to perform, use one of
the following actions:
If you want to… Then…
Add
Subtract
Multiply
Divide
Press * (for + symbol)
Press ** (for – symbol)
Press *** (for * symbol)
Press **** (for / symbol)
17. GAMES
You phone includes for exciting games that you can play
whenever the phone is turned on:
Breakout
Snake
Press
①
② Use or to scroll to the game you want to play and press
MENU 8 (Games
) to display the listing of these games.
SELECT
.
Or, you can press Options, then use or to scroll to:
Equals, Add, Subtract, Multiply, Divide
press
SELECT
Enter the second number in the calculation and press
④
⑤ Use or to scroll to
Note: Repeat steps
Press
.
CLEAR
Equals
④
and ⑤ as many times as necessary.
to erase any mistakes.
and press
, or
OPTIONS
SELECT
Exit
.
. Then
.
17.1 Breakout
This game places an object, which represents a ball, in the middle of the screen.
At the right of the screen are the blocks. At the left of the screen is a bar.
① Use the following keys as cursors to move the bar:
② Bounce the ball using bar, and break the block.
The more blocks are broken, the higher the score. If the ball hits the left wall
instead of the bar, the game is over.
(down), (up).
17.2 Snake
This game places an object, which represents a piece of food, in the middle of the
screen. At the bottom of the screen is a line that represents the snake.
① Use the following keys as cursors: 2 (up), 4 (left), 6 (right), and 8 (down).
② Move the snake toward the food and watch the snake grow.
The longer the snake’s tail grows, the higher the score. If the snake hits its own
tail or the surrounding wall, the game is over.
- 75 -
- 76 -

18. REFERENCE INFORMATION
18.2 Troubleshooting
18.1 Emergency Calls
IMPORTANT!
This phone, like any wireless phone, operates using radio signals, wireless and
landline networks, and user-programmed functions. Because of this, connections
in all conditions cannot be guaranteed. Therefore, you should never rely solely on
any wireless phone for essential communications (e.g. medical emergencies).
Remember, to make or receive any calls, the phone must be switched on and be
used in a service area that has adequate signal strength. Emergency calls might
not be possible on all wireless phone networks or when certain network services
and/or phone features are in use. Check with local service providers.
Always ensure that your phone is properly charged before attempting any
emergency calls. If you allow your battery to become empty, you will be unable to
receive or make calls, including emergency calls. You must then wait a few
minutes after the charging begins to place any emergency calls.
18.1.1 Make an emergency call
① If the phone is not on, switch it on.
② Enter the emergency number for your present location (for example, 911 or
any other official emergency number—emergency numbers vary by
location).
18.2.1 No service
If you’re outside the wireless service area, No service will display on your
phone. No calls can be made or received, however, emergency 911 calls may
still be possible.
18.2.2 What if the call doesn’t go through?
Your phone can make and receive calls only when it’s switched on and in the
wireless network’s service area.
No service
the wireless service area. No calls
can be made or received.
This number is restricted
you tried to call are restricted (see
“Restrict calls”).
Means that you’re probably outside
Means calls to the phone number
③ Press
If certain features are in use (Keyguard, fixed dialing, restrict calls, and so on),
you might first need to turn those features off before you can make an
emergency call. Consult this guide and your local cellular service provider.
When making an emergency call, remember to give all of the necessary
information as accurately as possible. Remember that your wireless phone
might be the only means of communication at the scene of an accident—do
not terminate the call until given permission to do so.
.
- 77 -
- 78 -

19. TECHNICAL INFORMATION
Weight 305g
Size (H x W x D) 175.5 x 66.6 x 55.3 mm
Wireless Networks TDMA800 / AMPS
Frequency Range
Number of Channels 832
Number of NAMs 2
Memory Locations 100
Memory Capacity
SAR Head Section: 0.90mW/g
824.04-848.97 MHz (TX)
869.04-893.97 MHz (RX)
Alpha: 20 digits per location
Numeric: 20 digits per location
031008– Rev. 00c
- 79 -
