Telex SS-2002RM, SS-2002, SS-1002 User Manual
User Instructions
Model SS-1002
Single Channel
Intercom Speaker
Station
Model SS-2002
Two Channel
Intercom Speaker
Station
Model SS-2002RM
Two Channel
Rack Mount
Intercom Speaker
Station
Audiocom® Intercom Systems
9350-7741-000 Rev A, 10/2002
1
FCC Statement
This equipment uses, and can radiate radio frequency energy that may cause interference to radio communications if not installed in accordance with this manual. The equipment has been tested and found to
comply with the limits of a Class A computing device pursuant to Subpart J, Part 15 of FCC Rules which
are designed to provide reasonable protection against such interference when operated in a commercial
environment. Operation of this equipment in a residential area may cause interference which the user (at
his own expense) will be required to correct.
This product meets Electromagnetic Compatibility Directive 89/336/EEC
2
Table of Contents
Introduction............................................................................... 4
Description ................................................................................ 4
Features ..................................................................................... 4
Installation ................................................................................. 6
Unpacking ..................................................................................................................................... 6
Configuration Pre-check .............................................................................................................. 6
DIP Switches.................................................................................................................................. 6
Power-Up ..................................................................................................................................... 14
Sidetone Adjustment................................................................................................................... 14
Operation................................................................................. 15
Channel Select (SS-2002 & SS-2002RM Only) ........................................................................ 15
Headset/Headphone/Speaker/Microphone Selection .............................................................. 15
Receiving Calls ............................................................................................................................ 15
Calling an Intercom Channel .................................................................................................... 15
Specifications........................................................................... 16
General ........................................................................................................................................ 16
Dynamic-mic Headset/Handset ................................................................................................. 16
Panel Microphone ....................................................................................................................... 16
Intercom Channels, Balanced mode (SW1 set to BAL position) ............................................ 16
Intercom Channels, Unbalanced mode (SW1 set to UNBAL position).................................. 16
Speaker Output Power ............................................................................................................... 17
Dimensions .................................................................................................................................. 17
3
Introduction
Thank you for purchasing the Audiocom SS-1002/SS-2002/SS-2002RM Intercom Speaker Station. We hope the many design
features of this product will satisfy your intercommunication requirements for many years to come. To get the most out of
your new intercom station, please take a few moments to look through this booklet before using the Intercom Speaker Station
for the first time.
Description
The Intercom Speaker Stations may be used with a headset, or with the built-in speaker and the panel microphone or an optional
gooseneck microphone. Another alternative is to use headphones and either the built-in panel microphone or an optional gooseneck microphone. As an alternative to a headset, a telephone style handset may also be used. The SS-1002 is a single-channel
station; the SS-2002 & SS-2002RM provide switch selectable access to either of two intercom channels. Both the SS-1002 and
SS-2002 come in three versions to suit a variety of applications. The “S” box is a portable version. It has a carrying handle and
dual “loop-through” intercom connectors which permit stations to be quickly interconnected using prefabricated cables. The “P”
box is a stationary version. It also has dual “loop-through” connectors for quick interconnection, but the case is designed for
desktop or console-mount applications. The “U” box is designed for permanent, in-the-wall mounting. It uses push type wire
terminals for connection to the intercom system. In addition, the SS-2002RM can be used on a desktop or mounted in a standard
19” equipment rack (using the optional RM-14 Rack Mount Kit).
Features

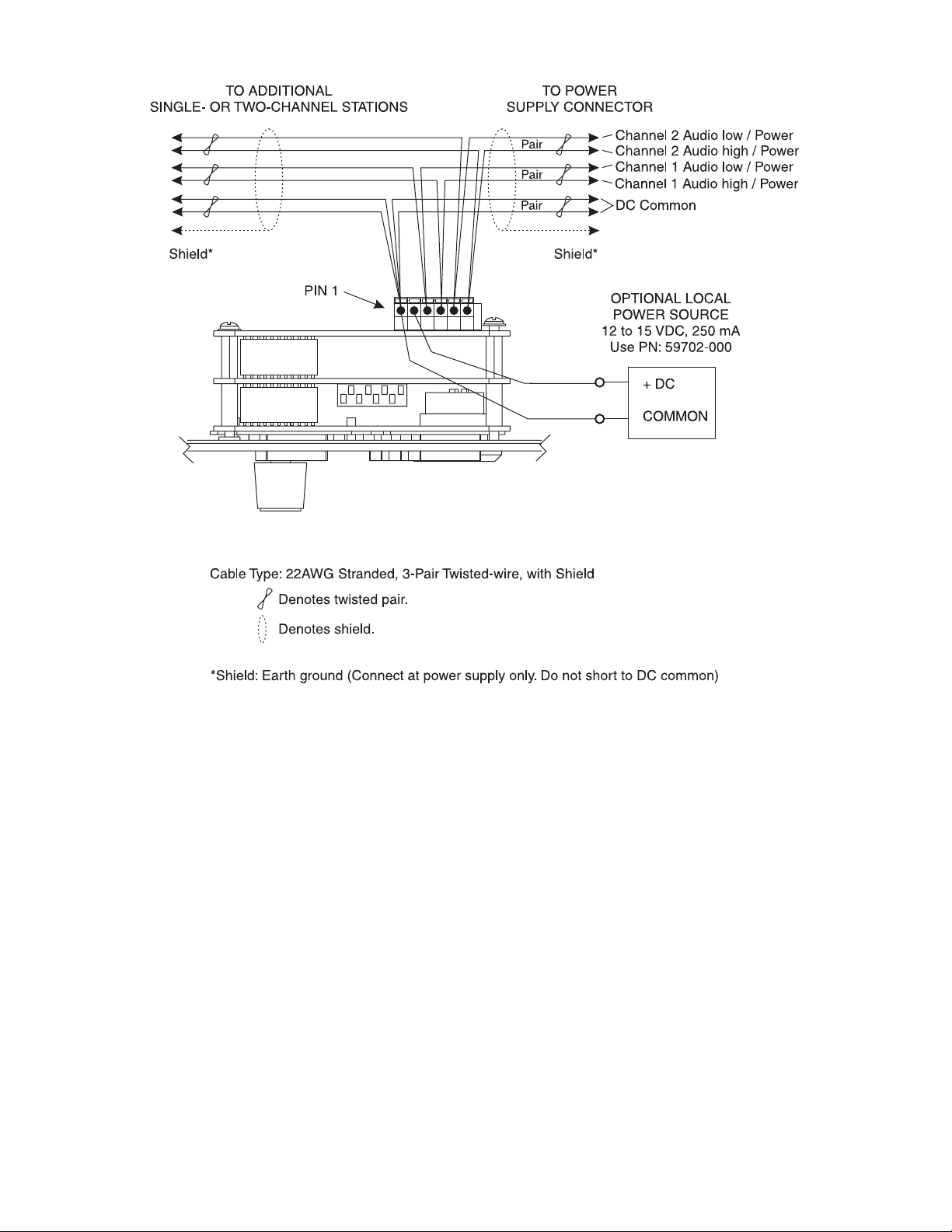

1. Channel and Power connections: The “U” box uses quick release terminals to connect audio and power wires. For the
“S” box and “P” box versions, the terminal connections are brought out to the dual, loop-thru XLR connectors on the
side of the box. These permit several stations to be connected in a string, or daisy-chain, using prefabricated intercom
cables.
2. Configuration DIP switches: These switches control the following features:
Call Beep: In addition to a flashing call key indication for incoming calls, an incoming call beep tone can also be used.
Headset Microphone Type Selection: Either a balanced or unbalanced dynamic microphone can be selected.
DC call enable: This may be turned on to use the intercom station with intercom systems that use DC call signaling.
3. Panel Mic Key: Selects the Panel Mic connector / Built-in Mic (11) in the on position and the headset connector (10) in
the off position.
4. Speaker Key: Selects the built-in speaker in the on position and the Headset connector (10) in the off position.
5. Channel Select Key (SS-2002 & SS-2002RM only): Selects intercom channel 1 or 2. The key lights green for channel 1
and red for channel 2.
6. Volume Control: Adjusts intercom listen volume to headphones or speaker.
7. Intercom Listen Key: Both momentary (push-to-listen) and latching (hands-free listen) are possible.
8. Call Key: Used to send call signals on the intercom channel. Flashes for incoming calls.
9. Intercom Talk Key: Both momentary (push-to-talk) and latching (hands-free talk) are possible. All models are also
equipped with a “mic kill receive” circuit, which allows an operator at a remote master station (such as the US-2000A)
to turn off the talk key on all stations on the intercom line.
10. Dynamic-Mic Headset Connector: 4-pin male XLR connector accepts headsets with monaural headphones and either a
balanced or unbalanced dynamic microphone. Also accepts a telephone style handset. Can also be used with headphones when a Panel Mic is connected. Can also be used with a handheld microphone along with the internal speaker.
11. Panel Mic Connector: Accepts an electret gooseneck microphone such as the Telex MCP-90.
12. Built-in Panel Microphone: Active when the Panel Mic key is pressed and a gooseneck microphone is not inserted in
the Panel Mic connector.
13. Sidetone Trimmers: These adjust the level of the user’s own voice in the headphones when using full-cushion headphones. (Eliminates the muffled sensation when talking with the ears completely covered.) When using the speaker or
open-ear style headphones, the sidetone trimmers are adjusted to eliminate the user’s voice from the headphones or
speaker. This helps to prevent feedback.
14. Balanced / Unbalanced Selector Switch: This switch sets the intercom station for compatibility with either Audiocom
(balanced) or Clear-Com* (unbalanced) intercom systems.
* Brand names mentioned are the property of their respective companies.
4
Figure 1 - SS-1002 / SS-2002 features.
Figure 2 - SS-2002RM features.
5
Installation
Unpacking
Each SS-1002 / SS-2002 / SS-2002RM is supplied with the following items. Contact the shipper or your Audiocom dealer
immediately if anything is damaged or missing. Be sure to fill out and return the product registration card to Telex to properly
register your intercom station.
For SS-1002 / SS-2002 units:
ytitnauQytitnauQ
ytitnauQytitnauQnoitpircseDnoitpircseD
ytitnauQ
1noitatSmocretnI2002SSro2001SS
1dracnoitartsigerdnaytnarraW
1snoitcurtsnIresU
For SS-2002RM units:
ytitnauQytitnauQ
ytitnauQytitnauQnoitpircseDnoitpircseD
ytitnauQ
1noitatSmocretnIMR2002SS
1dracnoitartsigerdnaytnarraW
1snoitcurtsnIresU
4)esupotksedrofMR2002SSfomottobotylppa(teefrebbuR
noitpircseDnoitpircseD
noitpircseD
noitpircseDnoitpircseD
noitpircseD
Configuration Pre-check
Before making connections, read the configuration notes that follow, and make sure that all internal controls are properly set
for your intended usage. If you need to access the internal controls, remove the four screws on the front that secure the
intercom station faceplate to the mounting box, then lift out the faceplate for all versions except the RM version. To access the
internal controls for the RM version, remove the 10 screws securing the cover on the box and then lift the cover.
DIP Switches
Table 1 lists the DIP switch descriptions and factory default settings.
hctiwShctiwS
hctiwShctiwS
hctiwS
rebmuN
1eviecerllikciM
2
3
4
5
6desutoNeract'noDnepO
epyt
noitpircseDnoitpircseD
noitpircseDnoitpircseD
noitpircseD
langisllaC
dohtem
llacgnimocnI
peeb
enohporciM
peebrekaepS
llacgnimocnirof
sgnitteSsgnitteS
sgnitteSsgnitteS
sgnitteS
nO=desolC,ffO=nepO
llikcimon-delbasiD:desolC
evitcallikcim-delbanE:nepO
)LABNUottes1WS(CD:desolC
)LABottes1WS(mocoiduA:nepO
delbasiD:desolC
delbanE:nepO
decnalabnU:desolC
decnalaB:nepO
)nepOotteseb
delbasiD:nepO
tsum3hctiwsPID(delbanE:desolC
tluafeDtluafeD
tluafeDtluafeD
tluafeD
gnitteS
nepO
nepO
nepO
nepO
nepO
7desutoNeract'noDnepO
8desutoNeract'noDnepO
6
