Telefunken TF-LED29S21 User manual

LED TV/ Телевизор цветного изображения c жидкокристаллическим экраном

Table of contents

TF-LED29S21

Instruction manual

Руководство по эксплуатации

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents Before you start

Utilization of the product Important safeguards Installation

Base installation Wall mounting

Connection

Outdoor antenna connection Other connections

Operation

Control elements

Front panel

Back panel Remote controller

Changing the battery

General operations

Signal sources

Teletext operations

OSD operation

Channel menu Picture menu Sound menu Timer menu Option menu

USB operation

General playback information Operations of file playback

General information

Troubleshooting

Causes of interference Accessories Specifications

2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 7 8 8 8 9 9

9 10 10 10 11 11 11 13 13 13 14 14

Before you start

Utilization of the product

If you want to dispose of this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Before you start

Important safeguards

• Before connecting the power cord to the LED TV, make sure that the voltage designation corresponds to the local electrical supply.

• Please unplug the power cord from the outlet and contact a service center for repair if following occurs: any obvious abnormality appears in the unit, such as smoke, peculiar smell or strange sound; liquid has been spilled or other objects have fallen into the unit; no picture or sound; cover or panel is broken; although you have operated the unit following the operating instructions, it still cannot work normally.

• This unit can be connected to a power supply outlet without the third ground contact as well as with a ground contact.

• Always disconnect the power cord and antenna during a thunderstorm.

• Do not fix the power cord with a metal nail.

• Unplug the power cord from the AC outlet; also unplug the signal cables from the input ports when the unit is unused for long periods of time.

• When unplugging the plug, always hold the wide slot, do not touch the metal part, and do not destroy, twist, pull or heat the power cord.

• Please contact the service center immediately if you found that the cable core is bare or has been broken.

• Please replace the AC outlet if the metal plug cannot be inserted into the power socket

completely or it cannot be fastened even when it was pushed in, otherwise, any accidents of shocks and fires could happen.

• Never touch the antenna or power plug

during a thunderstorm.

• Do not touch the power plug with wet

hands.

• Do not use any non-rated power socket with numerous devices plugged into it. The wire of non-designated capacity may cause fire due to heat generation.

• All instructions must be read and understood well before you operate the unit. Heed all warnings and follow all instructions.

• Please use the accessories provided by the manufacturer. Using inadequate accessories may result in accidents.

• Please adjust the product through the panel buttons or the remote controller, do not remove the cover or attempt to service the product by yourself. Do not disassemble back cover and do not make maintenance by yourself to avoid the electric shock.

• Excessive pressure on the panel may damage the unit.

• Do not place the product on an unstable cart, stand surface, tripod, bracket, or table. The product may fall, causing serious accidents as well as damage to the product.

• Please place the product on a flat surface in a well-ventilated location. Keep it away from open fire, direct sunlight, vibration, high temperature and humidity.

• Do not place any vases, potted plants,

Before you start

cups, medicines or any other liquid containing objects on the unit. Spillages may cause fire, electric shock or breakdown.

• Do not install the unit in locations with a strong magnetic or current field as it may cause malfunction. Picture deterioration due to electromagnetic radiation in this environment is also possible.

• Do not place any fire source such as candles close or on this product. If tipped over or fallen down, it may cause damage or fire.

• Do not place the unit into closed space of TV for better ventilation; it can reduce the product lifetime. Keep a space at least 10 cm at above, left, and right of the TV.

• Please place all the signal cords behind the rear panel.

• Do not overexert or touch the panel when carrying the product. Do not transport the LED TV with the display faced up or down.

• Do not transport the unit with the power cord or the connection cable connected as it may damage the power cord, connection cable or connection terminal which may cause fire, electric shock or breakdown.

• Make sure that 2 persons or more carry the device heavier than 18 kg. Dropping or tipping over the device may damage it.

• The temperature of the product’s body becomes a little higher after a long period of use. This indicates that heat exchange is in normal working mode, thus please do not let children or anyone who is sensitive to temperature touch the unit.

Installation

Wall mounting

For wall mounting the back panel of this unit is equipped with 4 screw holes (4 mm diameter, 135 mm horizontal spread distance x 100 mm vertical spread distance). A VESA wall-mount bracket should be used for wall mounting (the bracket is not included and should be acquired separately). Manufacturer is not responsible for improper mounting resulting in damage of the unit.

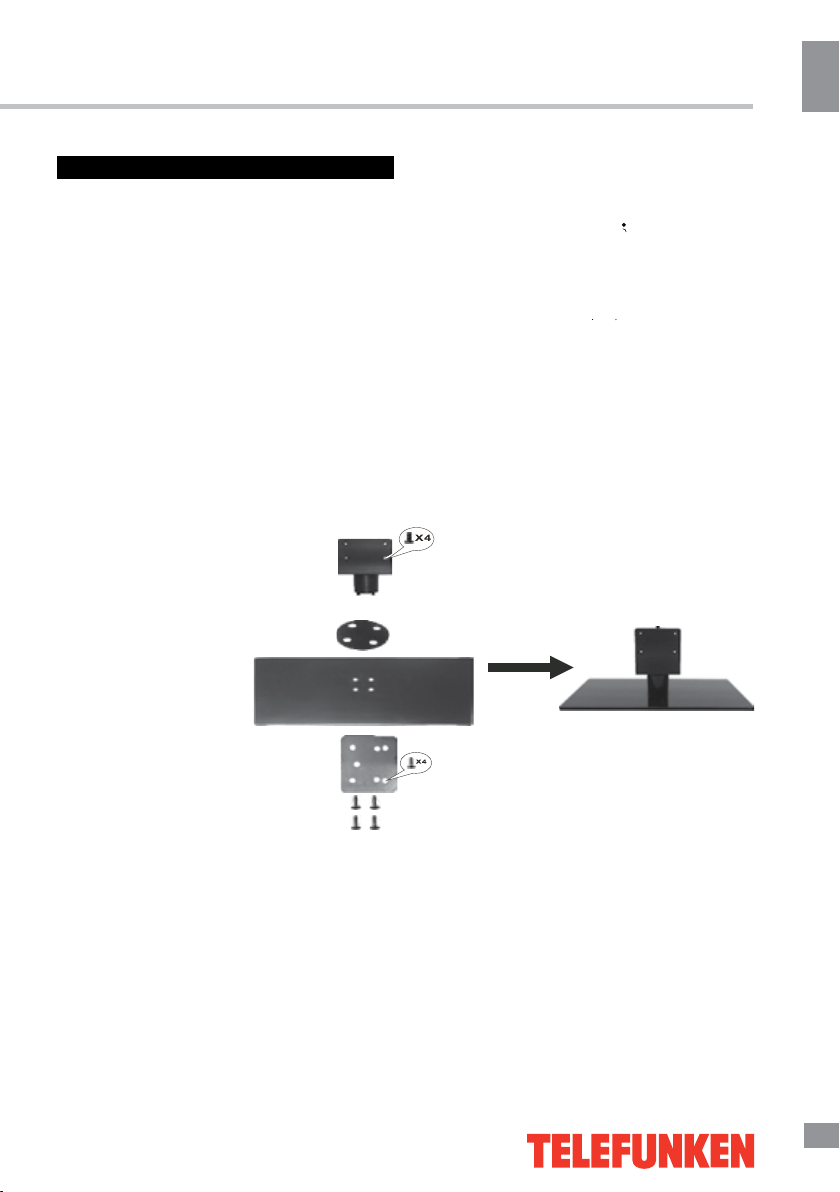

Stand installation

Place the LED TV on a solid flat surface. Use soft material to place over the front screen to avoid any damage. First, use the fixing elements to assemble a stand as shown below. Fasten with 4 screws. Then align the stand with the slots in the lower part of the unit and fix the two parts by 4 screws.

All images provided herein are schematic drawings of real objects and may differ from their real life images.

Wall or ceiling mounting implements must be durable and sufficient enough to support the weight of the unit.

Connection

Before you start

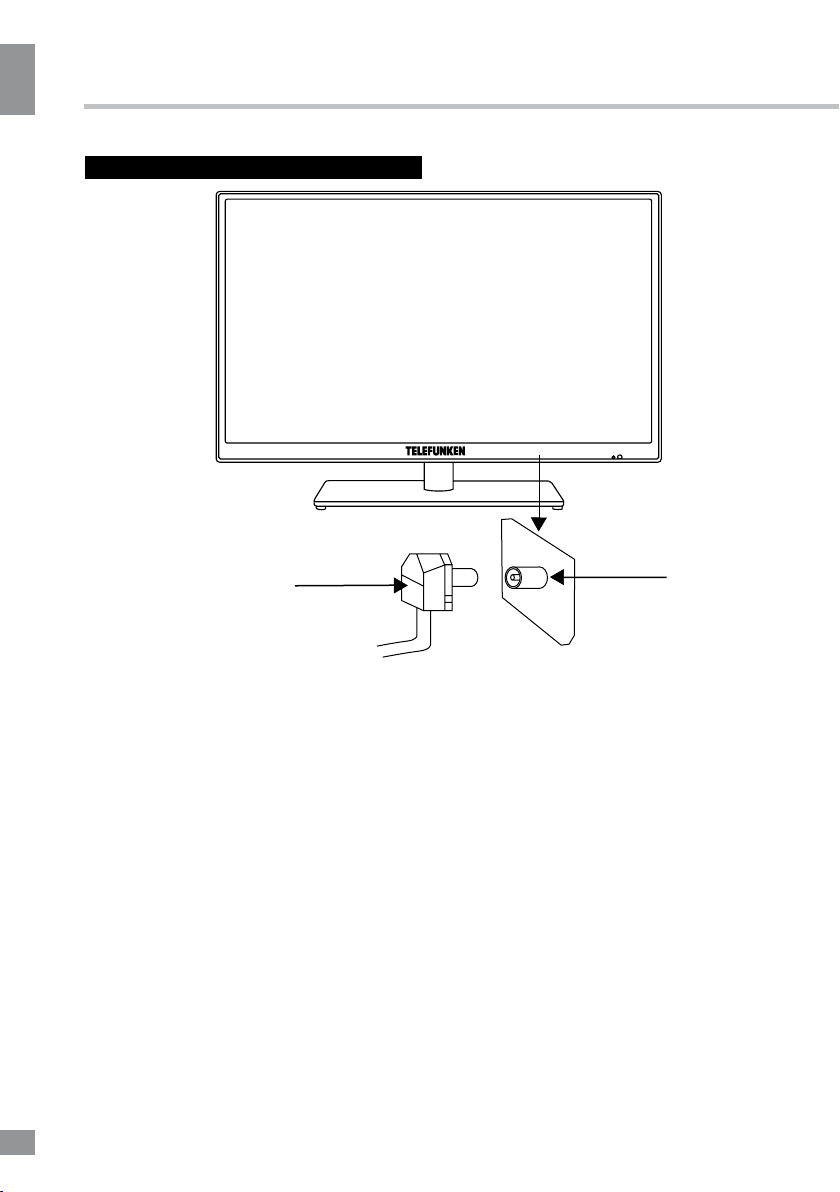

Antenna cable connector

75 Ohm co-axis cable

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω impedance converter to plug in antenna input terminal on the rear of the cabinet.

Other connections

• Connect a TV or CATV antenna to the

antenna jack.

• Connect a video source to the Composite

video input jack with RCA cable.

• Connect an audio source to the proper

Audio input jacks (left and right).

• Connect PC audio input to PC main unit

with related audio cable in PC mode.

• When using the unit as a computer screen, connect the PC to the PC jack of the unit by the relevant cable.

• If the video source has a HDMI output jack, you can connect the signal to the unit by HDMI cable (not included).

TVRF antenna jack

• Component input is intended for receiving component video signal if connected to the component output of external signal source. To receive audio signal for component video, please use Left and Right audio inputs of this unit.

• Connect an external device (e.g., VCR-/ DVD-recorder) to the proper Audio/Video output jacks of this unit with AV RCA cable.

• Connect your headphones or earphones (not included) to the headphone socket of this unit. When headphones are connected, the sound output through the built-in speakers of this unit is mute.

Operation

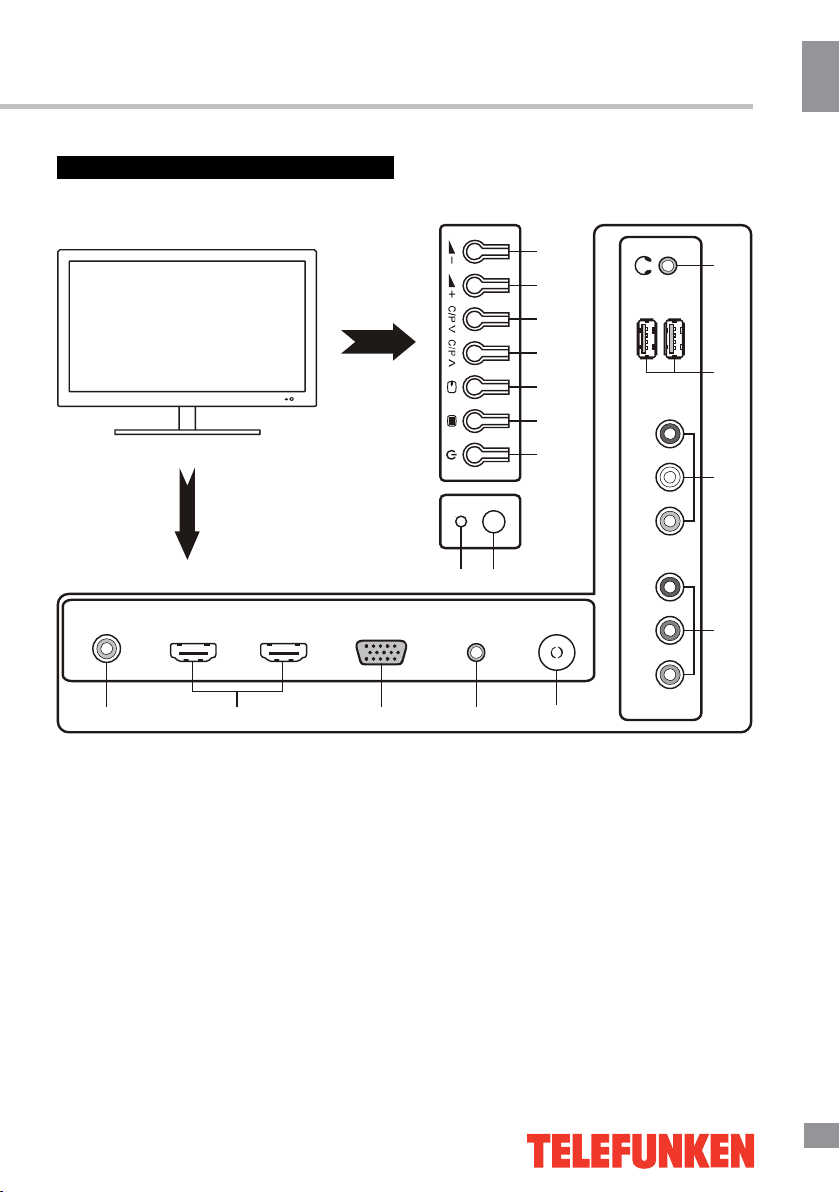

Control elements

VIDEO OUT

HDMI1

HDMI2

USB1

VGA

VGA AUDIO

ANT

COMPONENT IN AV IN USB2

Y Pb Pr VIDEO L-AUDIO-R

1112 10

1. Power indicator

2. Remote control sensor

3. VOLUME- button

4. VOLUME+ button

5. PROGRAM- button

6. PROGRAM+ button

7. SOURCE button

8. MENU button

9. STANDBY button

10. VGA audio input

11. Antenna input

12. VGA input

13. HDMI1/HDMI2 inputs

14. USB1/USB2 ports

15. Component input (YPbPr)

16. AV input

17. Earphone output

18. Video output

Operation

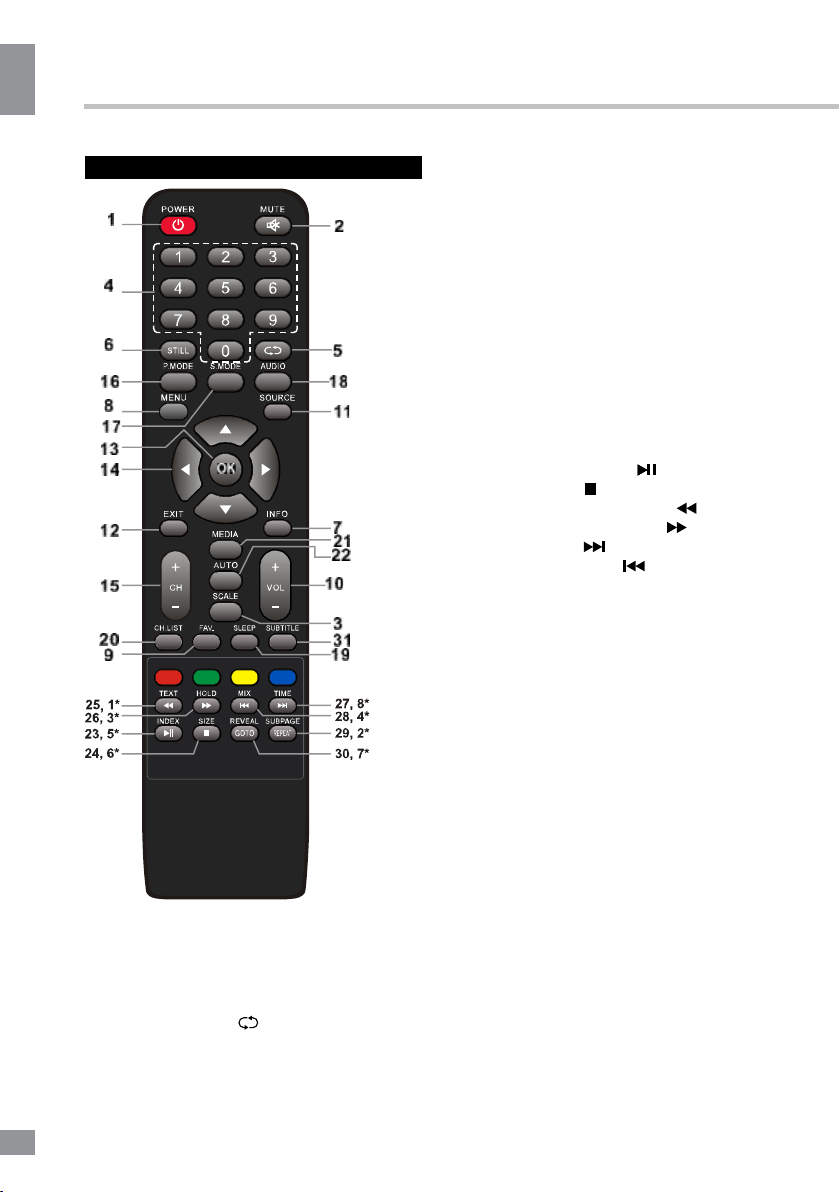

Remote controller (RC)

9. FAV. button

10. VOL+/- button

11. SOURCE button

12. EXIT button

13. OK button

14. Cursor (UP/DOWN/LEFT/RIGHT) buttons

15. CH+/- button

16. P.MODE button

17. S.MODE button

18. AUDIO button

19. SLEEP button

20. CH.LIST button

21. MEDIA button

22. AUTO button

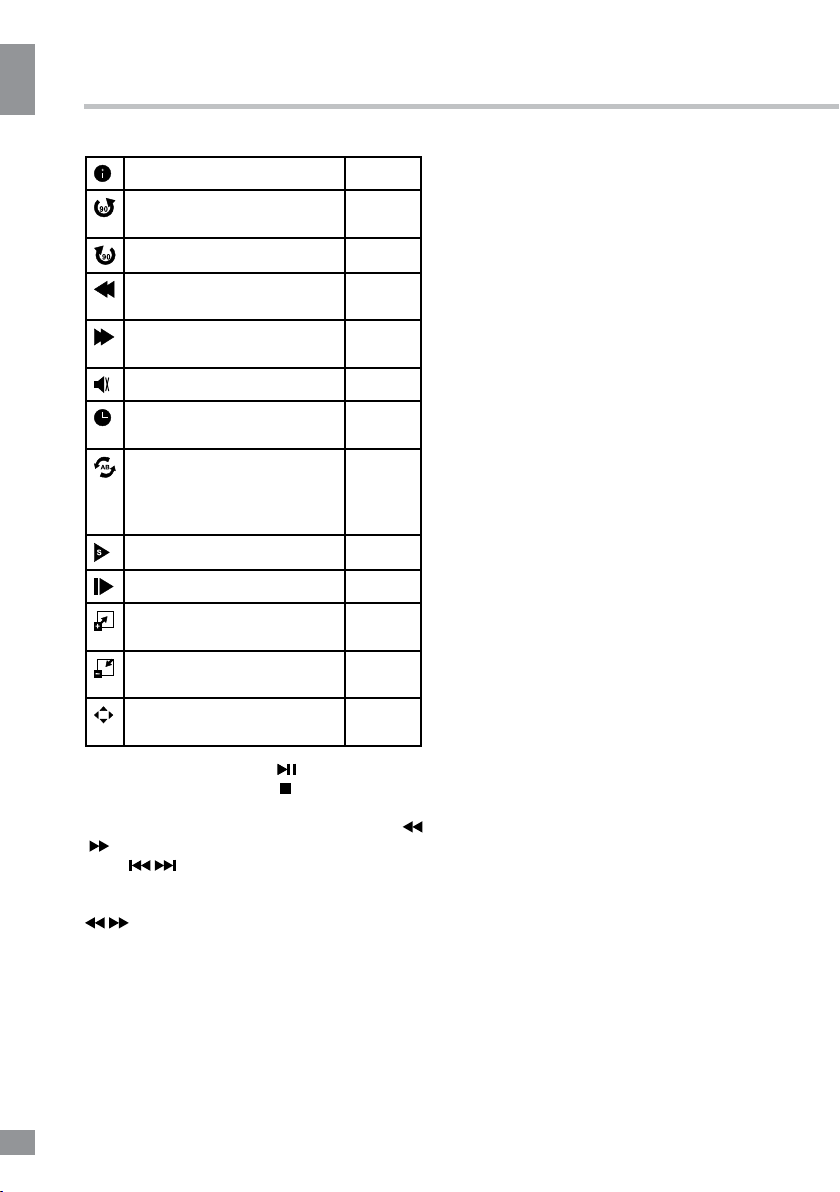

Media control buttons

23. PLAY/PAUSE (

24. STOP ( ) button

25. FAST BACKWARD ( ) button

26. FAST FORWARD ( ) button

27. NEXT ( ) button

28. PREVIOUS ( ) button

29. REPEAT button

30. GOTO button

31. SUBTITLE button

Teletext control buttons

1*. TEXT button 2*. SUBPAGE button 3*. HOLD button 4*. MIX button 5*. INDEX button 6*. SIZE button 7*. REVEAL button 8*. TIME button

) button

Operation

TV control buttons

1. POWER/STANDBY button

2. MUTE button

3. SCALE button

4. Number buttons

5. RETURN ( ) button

6. STILL button

7. INFO button

8. MENU button

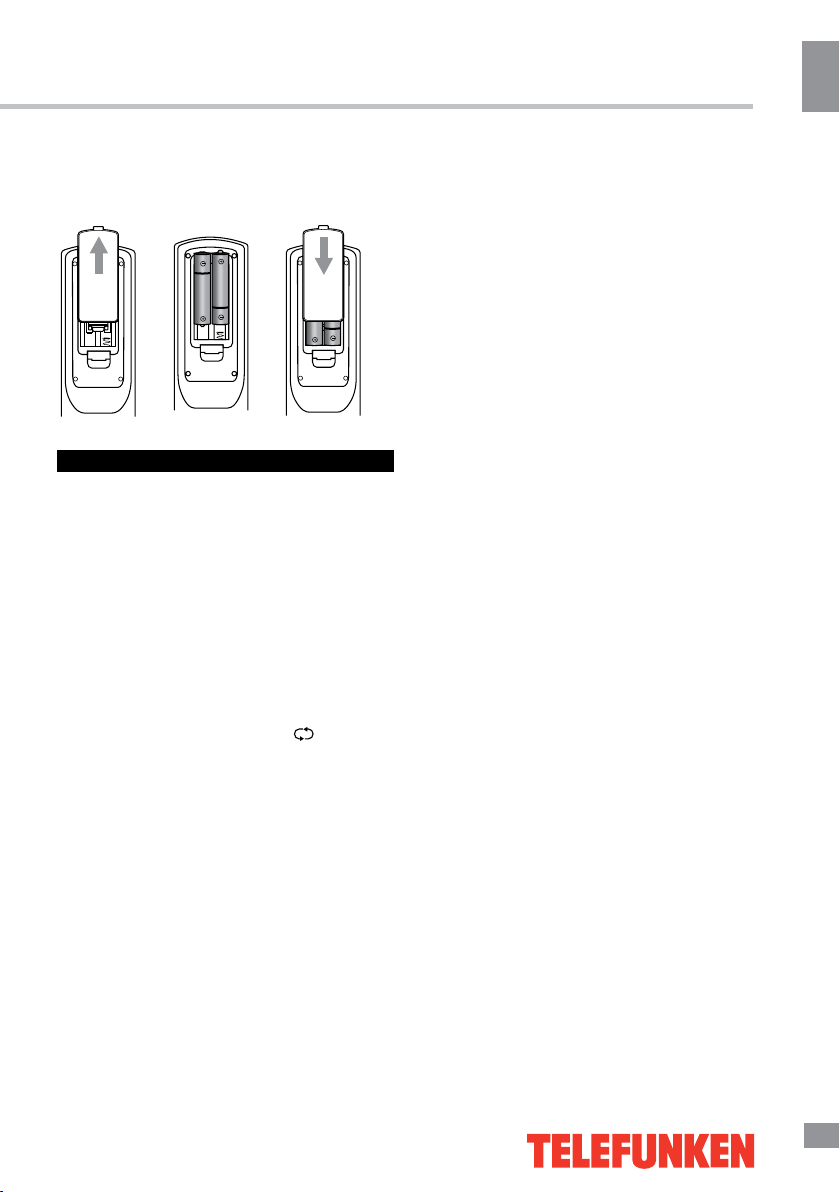

Changing the battery

1. Remove the battery compartment cover on the back of the RC.

2. Insert two AAA batteries into the battery compartment making sure that the correct polarity is observed.

3. Put the cover back.

• The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.

• Take the battery out of the RC if it is not used for a long time.

• Do not mix new and used batteries or different types of batteries. Weak batteries can leak and severely damage the RC.

Operation

• Do not expose the RC to shock, liquids, and do not place it in an area with high humidity.

General operations

• Press POWER button on the unit or on the RC to switch on the power. Press POWER button again to turn the TV to the standby mode. To switch the power off completely please unplug the power cord from the electric outlet.

• Press VOL- button repeatedly to decrease the volume; press VOL+ button repeatedly to increase the volume.

• Press SLEEP button repeatedly to set the sleep time (from 10 to 240 min).

• Press button on the RC to select from the present channel and the previously displayed channel.

• Press SCALE button repeatedly to select a screen display size from the available list: 4:3/16:9/14:9/Zoom1/Zoom2/Panorama. Available aspects may differ for different signal sources.

• Press MUTE button to cut off sound, press this button again or adjust volume to resume sound.

• Select the TV function mode. Press CH-/CH+ buttons to select previous or next channels; or press number buttons to enter a channel number directly.

• Press P.MODE button repeatedly to cycle through the available video picture modes from the following types: User => Dynamic => Standard => Mild.

• Press S.MODE button repeatedly to cycle through the available sound modes from the following types: User => Standard => Music => Movie => Sports.

• Press INFO button to display the preset TV channel play information.

• Press STILL button to freeze the picture on or off.

• Press FAV. button to show the favourite channel list.

• Press AUDIO button in TV mode repeatedly to switch between various Nicam

sound modes (can be unavailable for some channels).

Signal sources

Press SOURCE button, then press DOWN/ UP cursor buttons on the RC or CH+/CHbuttons on the panel to select a source from available source list: TV - AV - YPbPr - HDMI1

- HDMI2 - VGA - USB1 - USB2. Press ENTER button on the RC or MENU button on the panel to confirm. Press SOURCE to exit.

Teletext operations (option)

Select a TV channel in order to pick up the picture signal of Teletext. Teletext button functions are as follows:

TEXT Press this button to enter into TEXT mode. Press this button again to enter mixed mode. Press the button again to return to the channel you are watching.

HOLD: Press this button to stop the move to the next page. Press this button again to cancel operation.

MIX: Press this button to mix the teletext and current TV signal image (transparent background).

TIME: Press to display the exact time determined by the Teletext network.

INDEX: Press this button to go to the index page.

SIZE: Press this button to enlarge the top part of the page. Press this button again to enlarge the bottom part of the page. Press this button third time to normal size text page view.

REVEAL: Press this button to reveal the concealed information. Press this button again to conceal the information.

SUBPAGE: Press this button to select subpage. Input the number of sub-page and use numeric buttons in the format 0001 for sub page 1. The teletext will search for the sub page. Press SUBPAGE button again to exit the subpage mode.

Red/Green/Yellow/Blue buttons: Press these 4 color buttons to access directly to corresponding color page displayed at the lower parts of teletext screen.

Operation

Move Menu Enter Exit

OSD operation

1. Press MENU button to enter the setting

menu displayed on the screen.

2. Press LEFT/RIGHT cursor buttons on the RC or VOL+/- buttons on the panel to select setting page.

3. Press DOWN cursor button or OK button on the RC or CH- button on the panel to go to the parameter list.

4. Press UP/DOWN cursor buttons on the RC or CH+/- buttons on the panel to select a parameter to adjust.

5. Press OK button or LEFT/RIGHT cursor buttons on the RC or VOL+/- buttons on the panel to enter submenu or to adjust parameter, then press UP/DOWN cursor buttons on the RC or CH+/- buttons on the panel to select a parameter, and press OK button on the RC to confirm.

6. Press EXIT button to quit the menu.

Some menu items may be in grey color, in this case they are not adjustable. Pictures of OSD menu are for reference only; they may differ from the real screens.

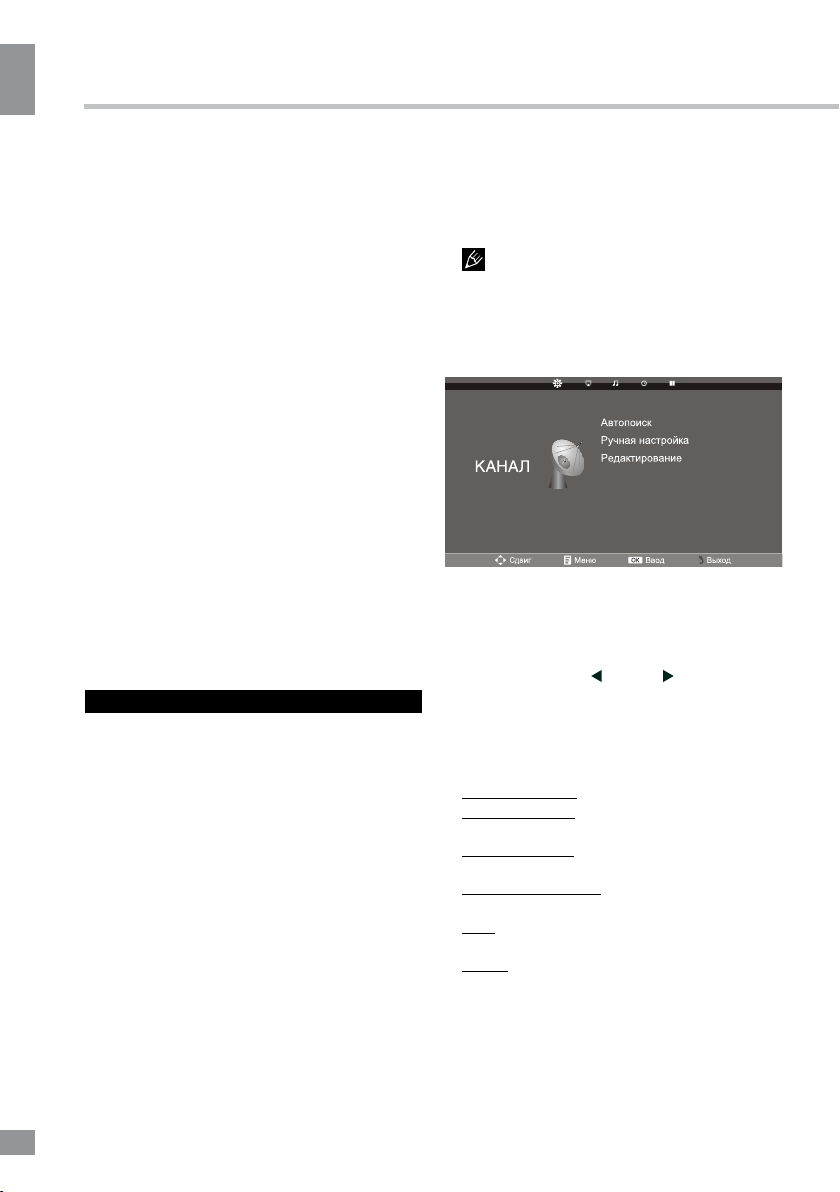

Channel setting (only for TV source)

Auto Tuning

Manual Tuning

CHANNEL

Programme Edit

Current Channel: select channel number. Color System: select corresponding color

system (PAL/SECAM/NTSC).

Sound System: select corresponding sound

system (DK/BG/I).

Fine-tune: perform fine adjustment of the

current frequency.

AFC: set On/Off automatic frequency

correction.

Search: press LEFT/RIGHT buttons; the unit will search for next available channel downward or upward and save it under the current number.

• Programme Edit: this item allows

you to sort TV programs according to your preferences. Enter into program edit menu:

Delete: Select the channel you want to delete. Press red button to delete the channel.

Rename: Highlight the needed channel. Press green button; then press UP/DOWN buttons to select a symbol. Press LEFT/RIGHT buttons to select the next symbol. Press OK button to confirm.

Move: Highlight the needed channel. Press yellow button; select the position to put the channel into. Press yellow button to confirm.

Skip: Highlight the needed channel. Press blue button; now this channel will be skipped when you select previous/next channels.

Favorite: Select the channel you want to edit. If this channel is your favorite channel, you can add the mark to the channel as your favorite channel by pressing FAV. button.

Operation

• Auto tuning: press OK button to start

automatic search of available channels. To stop the process press MENU or EXIT button to display “Do you want to exit tuning? Yes No ”, then press LEFT cursor buttons to exit searching.

• Manual tuning: Press OK button to enter

into manual tuning menu:

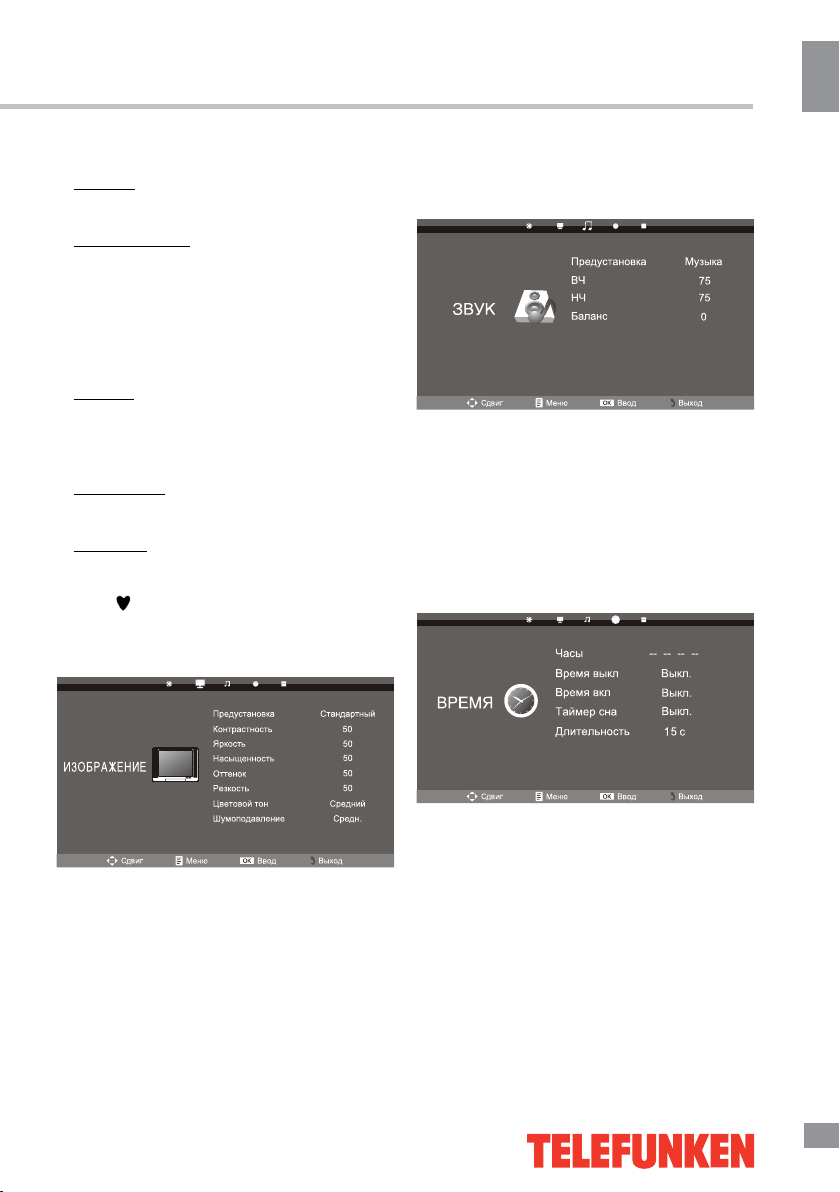

Picture setting

Picture Mode Contrast Brightness


Move Menu Enter Exit

• Picture Mode: User/Dynamic/Standard/

Mild.

Color

Tint

Sharpness Color Temperature Noise Reduction

Medium

Middle

User

50 50 50

Operation

Move Menu Enter Exit

Operation

• Contrast, Brightness, Color, Tint (adjust

the tone of color when your system is in NTSC), Sharpness

• Color Temperature: Cool/Medium/Warm.

• Noise Reduction: Digital noise reduction

effect for reducing the video noise level: Off/ Low/Middle/High.

Sound setting

Sound Mode Treble Bass

SOUND

Move Menu Enter Exit

Balance

• Sound mode: Standard/Music/Movie/

Sports/User.

• Treble: adjust treble frequency (only in

User sound mode).

• Bass: adjust bass frequency (only in User

sound mode).

• Balance: adjust balance between left and

right speaker.

User

50 50

Timer setting

• OSD timer: select the period of time after

which the OSD will be hidden.

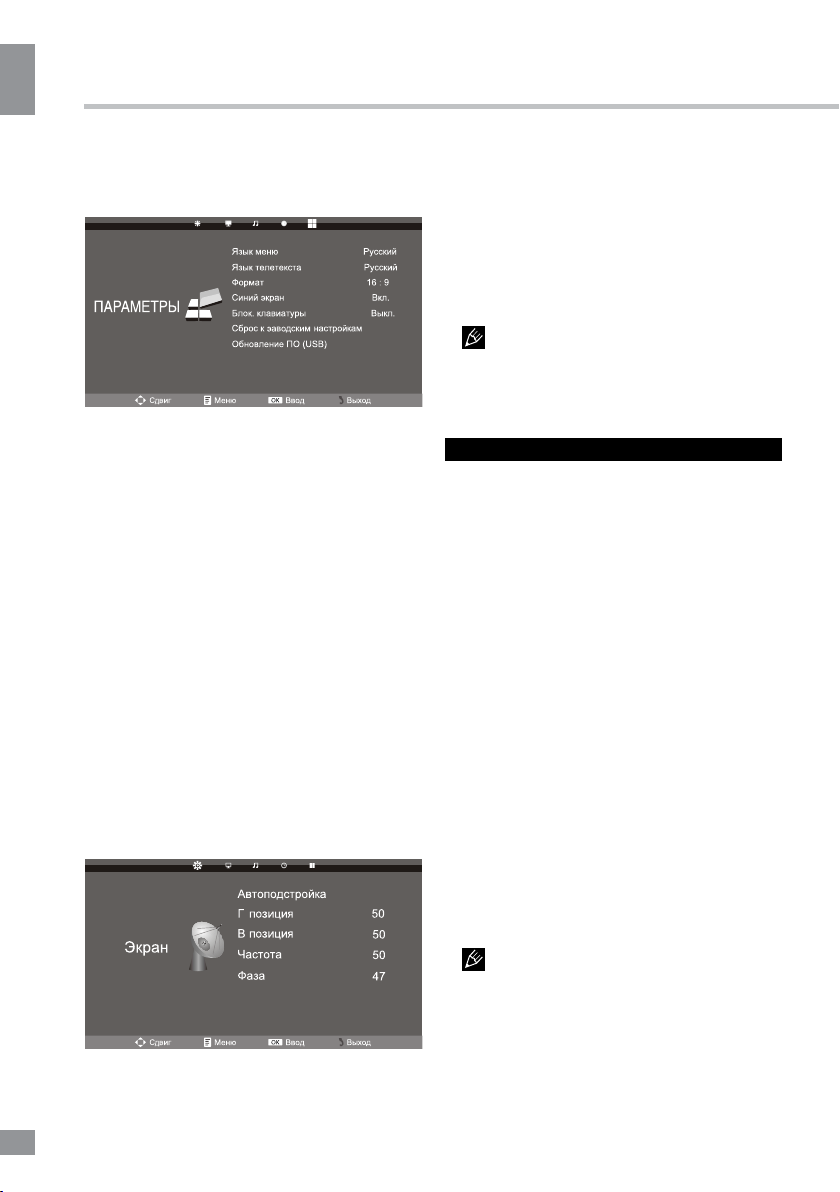

Option setting

OSD Language TTX Language

Scale

OPTION

Move Menu Enter Exit

Blue Screen Keyboard Lock Reset Software Update(USB)

• OSD Language: select the language of

the OSD menu.

• TTX Language: select teletext language.

• Scale: 4:3/16:9/14:9/Zoom1/Zoom2/

Panorama. The set of available aspects can vary depending on the current signal source.

• Blue screen: set on or off blue screen

activation when no signal.

• Keyboard lock: select ON to lock all

buttons on the panel. Set OFF to unlock the buttons.

• Reset: reset the parameters to initial

factory settings.

• Software upgrade: this option is intended

for using by qualified technicians only.

English

West

16:9

TIME

Move Menu Enter Exit

• Clock: select and adjust Date/Month/Year/

Hour/Minute.

• Off Time: select Off/Once/Every Day, and

adjust Hour/Minute.

• On Time: select Off/Once/Every Day, and

adjust Hour/Minute/Source/Channel/Volume.

• Sleep timer: select the period until

automatic switch-off of the unit (10-240 min).

Clock

On Time Sleep Timer OSD Timer

-- -- -- --

15 S

Screen setting (only for PC/VGA

mode)

Auto Adjust

Horizontal Pos.

SCREEN

Vertical Pos.

Clock

Phase

• Auto adjust: automatical setting of the

parameters.

• Horizontal Position: adjust horizontal

+ 22 hidden pages

Telefunken TF-LED29S21 User manual

Specifications and Main Features

Frequently Asked Questions

User Manual
