Telefunken TF-LED22S12T2 User Manual

LED TV Телевизор цветного изображения c жидкокристаллическим экраном

TF-LED22

Instruction manual

Руководство по эксплуатации

S12T2

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents Before you start

Utilization of the product Important safeguards Installation

Base installation Wall mounting

Connection

Outdoor antenna connection Other connections

Operation

Control elements

Front panel Back panel

Remote controller

Changing the battery

General operations

OSD operation

Picture menu Sound menu Channel

Time menu Setup menu Lock menu Electronic programme guide Digital programme recording TimeShift function CI information

USB operation

Background information Operations of file playback

General information

Troubleshooting

Causes of interference Accessories Specifications

2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 7 8 9 9

11 11 12 12 12 12

13 13

13 14 14 14 15 15

Before you start

Utilization of the product

If you want to dispose of this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Please unplug the power cord from the AC outlet and contact a service center for repair if following occurs: any obvious abnormality appears in the unit, such as smoky, peculiar smell or strange sound; liquid has been spilled or other objects have fallen into the unit; no picture or sound; cover or panel is broken; although you have operated the unit following the operating instructions, it still cannot work normally.

• This unit can be connected to a power supply outlet without the third ground contact as well as with a ground contact.

• Always disconnect the power cord and antenna during a storm.

• Do not fix the power cord with a metal nail.

• Unplug the power cord from the AC outlet; also unplug the signal cables from the input ports when the unit is unused for long periods of time.

• When unplugging the plug, always hold the wide slot, do not touch the metal part, and do not destroy, twist, pull or roast the power cord.

• Please contact the service center immediately if you found that the core is showed in the air or has been broken.

• Please replace the AC outlet if the metal bolt cannot be inserted into the power socket completely or it cannot be fastened even when it was pushed in, otherwise, any accidents of shocks and fires would happen.

• Never touch the antenna lie or power plug

if it stars to thunder.

• Do not touch the power plug with wet

hands.

• Do not use any non-rated power socket with numerous devices jointed on one power socket or cable device. The wire of nondesignated capacity may cause the fire due to the generation of heat.

• All instructions must be read and understood well before you operate the unit. Heed all warnings and follow all instructions.

• Please use the accessories provided by the manufacturer. Using inadequate accessories may result in accidents.

• Please adjust the product through the panel buttons or the remote controller, do not remove the cover or attempt to service the product by yourself. Do not disassemble back cover and do not make maintenance by yourself to avoid the electric shock.

• Over-press the panel may destroy the product.

• Do not place the product on an unstable cart, stand surface, tripod, bracket, or table. The product may fall, causing serious accidents as well as the damage to the product.

• Please place the product on a flat surface in a well-ventilated location. Keep it away from the burning-light, direct sunlight, vibration, high-temperature and humidity.

• Do not place any vase, potted plant, cup, medicine and any container with water on this

Before you start

product. If the liquid is spilt, it may cause the fire, electric shock or breakdown.

• Do not install it at the place on the strong magnetic field or current field. It may cause break down. This equipment may be observed deterioration of the picture by electromagnetic radiation in electromagnetic environment.

• Fasten the wheel of the product or shelf with wheels when installing this product. If it moves or is tipped over, it may be damaged.

• Do not place any fire source such as candlelight close to this product or place it on this product. If it is tipped over or fallen down, it may cause damage or fire.

• Do not place the unit into closed space of TV for better ventilation; it can reduce the product lifetime. Keep a space at least 10 cm at above, left, and right of the TV.

• Please place all the signal cords behind of rear panel.

• Do not overexert or touch the panel when you convey the product. Do not transfer the LED TV up or down display direction.

• Do not transport it with the power cord or the connection cable connected. If you move this product with the power cord or the connection cable connected, damaged power cord, connection cable or connection terminal may cause fire, electric shock or breakdown.

• 2 persons or more shall transport the device, which is heavier than 18 kg. If you drop or tip over the device, it may damage it.

• The temperature of the product’s body becomes a little higher after a long period use. This phenomenon indicates that heat exchange in normal working mode, thus please do not let children or anyone who is sensitive of temperature to touch.

All images provided herein are schematic

drawings and may differ from real objects.

Installation

Base installation

Cover a flat stable surface with a soft cloth. Place the TV unit facedown on the cloth. Insert the two support legs and fix them with the supplied screws as shown on the picture.

Wall mounting

Separate the stands from the cabinet

•

before wall mounting.

• For wall mounting the back cabinet of this unit is equipped with 4 screw holes. Spread distance between the holes is 100*100 mm. A VESA wall-mount bracket should be used for wall mounting (the bracket is not included and should be acquired separately). Manufacturer is not responsible for improper mounting resulting in damage of the unit.

Wall or ceiling mounting implements must be durable and sufficient enough to support the weight of the unit.

Before you start

WARNING In order to avoid damage, make sure to secure the unit on the wall according to the wall mounting instruction.

Before you start

Connection

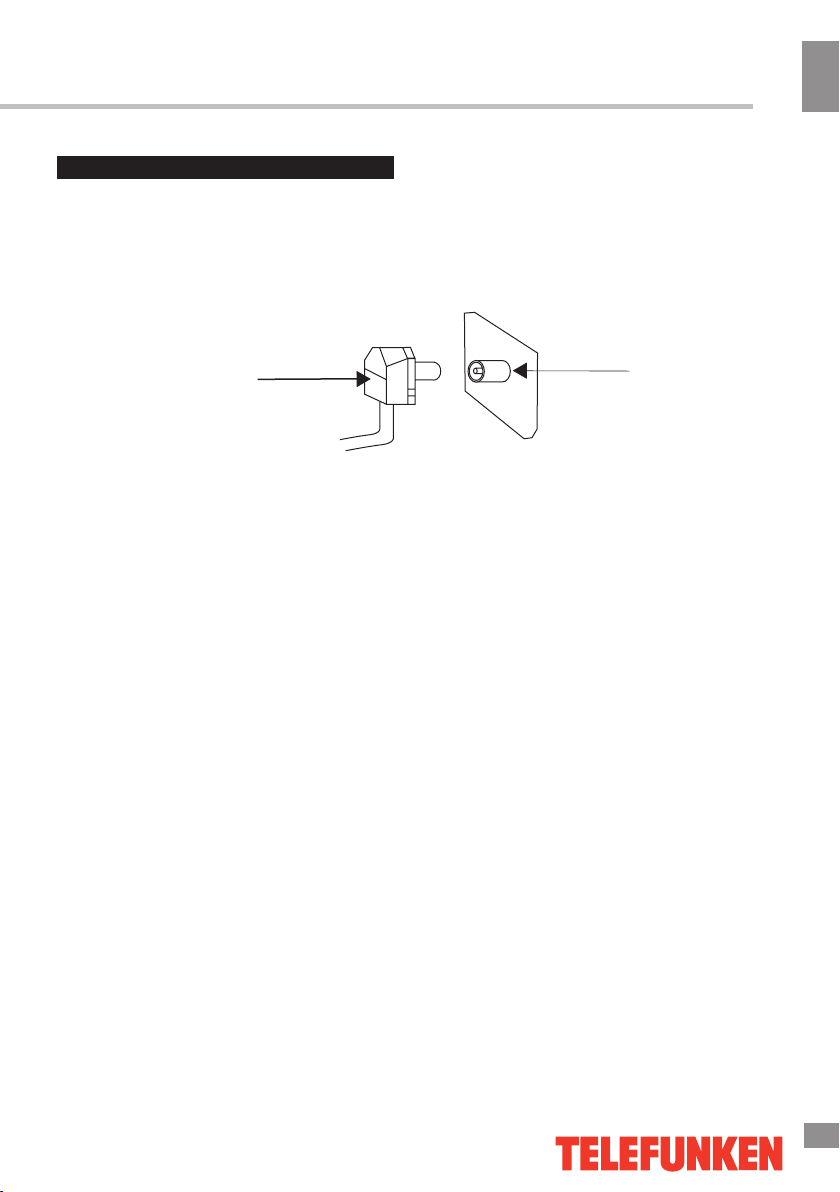

Antenna cable connector

75 Ohm co-axis cable

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω impedance converter to plug in antenna input terminal on the rear of the cabinet.

Other connections

• Connect the video source to the AV IN

input using an RCA cable.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• If the video source has a HDMI output jack, you can connect the signal to the monitor by the HDMI cable (not included).

TVRF antenna jack

• SPDIF coaxial output is intended for transmitting multi-channel sound to an external decoder (e.g. in 5.1-CH format). Coaxial audio cable should be used for connection (not included).

• Connect your headphones or earphones (not included) to the headphone socket of this unit. When earphones are connected, the sound output through the built-in speakers of this unit is mute.

• PCMCIA slot is used for CI modules that are obtained from your digital TV provider.

Control elements

Operation

Front panel

Button panel

Back panel

The back panel terminals are (from top to bottom):

USB port

PCMCIA (CI+) slot

Composite AV input

HDMI input

Headphone socket

Coaxial audio output

TVRF antenna input

Button panel

Operation

\ buttons

Scan up/down through the channel list. In the menu system, they act like the up/down direction buttons on the remote and adjust menu controls.

\ buttons

Decrease/increase the volume. In the menu system, they act like the right/left direction buttons on the remote and adjust menu controls.

\ button

Turns the TV on and puts it into standby. While the TV is on, it is used to open the main menu and to return to the previous menu. Outside the menu, press and hold the button for 3 seconds to go to the list of signal sources. Press and hold it more than 3 seconds to put the TV into standby.

Operation

Remote controller (RC)

List

8 9

10 11

REC

1. SOURCE button

2. Number buttons

3. TV button

4. MENU button

5. Cursor (UP/DOWN/LEFT/RIGHT) buttons/OK button/ZOOM-/ZOOM+ buttons

6. LIST button

7. VOL+/VOL- buttons

8. MUTE button

9. TEXT button

10. SUBTITLE button

11. Red button

Timeshift

19 20

12. Green button

13. POWER/STANDBY button

14. GUIDE button

15. EXIT button

16. RETURN button

17. INFO button

18. CH+/CH- buttons

19. TIMESHIFT button

20. REC button

21. LANG/Blue button

22. Yellow button

Changing the battery

1. Remove the battery compartment cover

on the back of the RC.

2. Insert the batteries into the battery compartment making sure that the correct polarity is observed.

3. Install the cover back.

1 2 3

• Use two AAA batteries for the RC. The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.

• Take the battery out of the RC if it is not used for a long time.

• Do not mix new and used batteries or different types of batteries. Weak batteries can leak and severely damage the RC.

• Do not expose the RC to shock, liquids, and do not place it in an area with high humidity.

CAUTION! Incorrect installation of the batteries may

lead to an explosion.

Please replace used batteries with the

batteries of the same or comparable type.

General operations

Operation

• Connect the plug of the power cord to the power supply outlet, the power indicator will light showing that the unit is in standby mode. To switch on the unit, press POWER button on the panel or on the RC; when the TV is on, the power indicator is off. Press POWER button again to switch the unit to the standby mode, the power indicator will light up. To switch off the unit completely, disconnect the power cord plug from the power supply outlet.

• Press VOL- button on the unit or on the RC repeatedly to decrease the volume; press VOL+ button on the unit or on the RC repeatedly to increase the volume.

• Press RETURN button on the RC to select from the present channel and the previously displayed channel.

• Press MUTE button to mute sound, press this button again or adjust volume to resume sound.

• In TV mode press CH+/CH- buttons on the RC to select previous or next channel; or press number buttons to enter a channel number directly.

• Press INFO button to display the preset TV channel information.

• Press ZOOM+/- buttons repeatedly to select a screen format. Available aspects may differ for different signal sources.

• Press SOURCE button, then press cursor buttons on the RC to select a source from available source list: DTV => ATV => AV => HDMI => USB; You can press TV button to access TV source mode directly.

• Press GUIDE button to access the electronic program guide in DTV mode.

• Press LIST button to enter the recorded list.

• Press SUBTITLE button to enter the subtitle l

anguage menu in DTV mode.

• Press LANG button to enter the audio

language menu in DTV mode.

TELETEXT operations (option)

• Select the TV source mode. Then press CH-/CH+ buttons to select TV channel in order to pick up the picture signal of Teletext.

• Teletext button functions are as follows:

TEXT: Press this button to enter into Teletext mode. Follow the guides on screen and use the color buttons to navigate the Teletext.

Red/Green/Yellow/Blue buttons: Press these 4 color buttons to access directly to corresponding color page displayed at the lower parts of teletext screen.

Operation

OSD operation

1. Press MENU button to enter the setting menu displayed on the screen.

2. Press LEFT/RIGHT cursor buttons on the RC to select setting page.

3. Press OK button on the RC to go to the parameter list.

4. Press UP/DOWN cursor buttons on the RC to select a parameter to adjust.

5. Press LEFT/RIGHT cursor buttons on the RC to adjust the selected parameter.

6. Press MENU button to return to the previous menu page. Press EXIT button on the RC to quit the menu.

Some menu items may be in grey color, in this case they are not adjustable. Pictures of OSD menu are for reference only; they may differ from the actual menu tabs.

Picture menu

• Picture Mode: Dynamic/Standard/Mild/

Personal. When Personal mode is selected, you can adjust contrast, brightness, colour, tint (NTSC signal only) and sharpness of the image.

• Colour Temp: Cold/Normal/

Warm.

• Noise Reduction: Dynamic noise

reduction effect for reducing the video noise level. Select the Off/Low/Middle/High/Default mode.

• Aspect ratio: select the screen aspect

ratio.

• DCR: when DCR is enabled,

brightness automatically increases in dark images and decreases in bright ones.

Sound menu

• Sound mode: Standard/Music/Movie/

Sports/Personal. When Personal mode is selected, you can adjust treble and bass.

• Enjoy Music: enable this option to

enhance the way music sounds.

• Auto Volume: reduce the

difference between channel and program volume automatically.

• Surround Sound: enable or disable the

surround sound effect.

• AD Switch (in DTV mode): This is an

auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

• Audio Language: select the language

of audio (available for some DTV channels).

• Subtitle

(available for some DTV channels).

• TT Language: select the language of

the Teletext.

• SPDIF Mode: Select the digital audio

output mode: PCM/AUTO/OFF.

Language

: select subtitle language

Channel menu

Operation

• Auto Tuning: press OK buttons to select

the country and tune type for channels to start automatic search and saving of available ATV channels. After the search is finished, the unit will skip to searching DTV channels.

• ATV Manual Tuning: Current CH: select channel number.

Sound System: select corresponding sound

system.

Fine-Tune: perform fine adjustment of the

current frequency.

Search: press LEFT/RIGHT buttons; the unit will search for next available channel downward or upward and save it under the current number.

• DTV Manual Tuning: press LEFT/RIGHT

cursor buttons to select channel number. Press OK button to start searching. If the selected channel number is available, the channel will be saved under the selected number. Press MENU button to quit.

• Programme Edit: this item allows

you to sort TV programs according to your preferences. Enter the program edit menu:

Delete: Select the channel you want to delete.

Press red button to delete the channel.

Move (not available for DTV channels with LCN): Highlight the needed channel. Press green button; select the position to put the channel into. Press green

Fav: Highlight the needed channel. Press yellow button to add that channel to the list of favourites.

Skip: Highlight the needed channel. Press blue button; now this channel will be skipped when you select previous/next channels.

• Signal Information: view the information

on the current signal.

• CI Information (only in DTV mode): this

function enables you to watch some encrypted services (pay services). Please insert a CI card into the PCMCIA slot according to the arrow on the CI card.

• The function can only be gotten when

CI slot is available.

• It is possible for you to change CI (Common Interface) menu screen and service by consulting your dealer.

• Please do not insert or pull out the CI card when power on. During initialization of the CI card, please don’t operate the TV.

• Do not insert or pull out the CI card frequently so as to avoid any damages of the TV and the CI card.

• Schedule List (only in DTV mode): view the list of scheduled programs.

• Recorded List (only in DTV mode): view the list of recorded

• First Time Installation: run the initial setting procedure.

button to confirm.

programs.

Operation

signal stream time or set the system time.

for the automatic switch off/on of the TV.

automatic switch-off of the unit.

which the OSD menu stays visible.

automatic switch-off of the TV if no input is given.

Operation

Time menu

• Clock: You can display either the DTV

• Off Time/On Time: select the time

• Sleep Timer: select the period until

• OSD Timer

• Auto Standby: enable or disable the

• Time Zone: select your time zone.

• World Clock: display the world clock.

: select the time during

• Soundbar Ready: use this option

to connect external equipment such as soundbar, DVD player, etc.

• Teletext: toggle the Teletext on or off.

• Hearing Impai

is on, the screen will give some information to people whose hearing is impaired. When Off, the information will be hidden.

• PVR File System (in DTV mode): Select Disc: select the storage used for PVR. Time Shift Size: select the time for Time

Shift.

Format: format the USB. Speed Check: display the speed of the

storage.

• Reset: restore TV settings

to their initial factory defaults.

• Software update (USB): Update TV

software using a USB storage device.

red: When Hearing Impaired

Lock menu

Setup menu

• Password: You can set your private

password. Press the number buttons on the remote control to set the new password. When the new password has been put in twice, the setting is finished successfully. The TV will go back to previous menu. The default password is 0000.

• Language: select the language of

the on-screen display (OSD) menu.

• Blue Screen: enable or disable a

blue screen showing when the TV signal is weak.

• Block Program (in TV/DTV mode): select

this option to lock the available channel you want.

• Parental Guidance

to age-restricted content.

: set the access

+ 28 hidden pages
