Tektronix VX4357 User Manual
Specifications and Main Features
- Configuration: 32 single pole double throw (SPDT) relays.
- Relay Type: Aromat Corporation S2EB-5V model (in accordance to CDS agreement).
- Contact Ratings:
- Maximum power switching capability: AC power maximum 1000 VA, dc power 90 W.
- Maximum voltage that can be switched: 250 V ac, 48 V dc.
- Maximum current that can be switched: 5 A (less than 40 activities in a minute).
- One Connector Maximum Power Dissipation: 1 Watt. Per Operating Insertion & Displacement Max Sound Level.
- Operational Speed per Maximum: 100 invocations in a second.

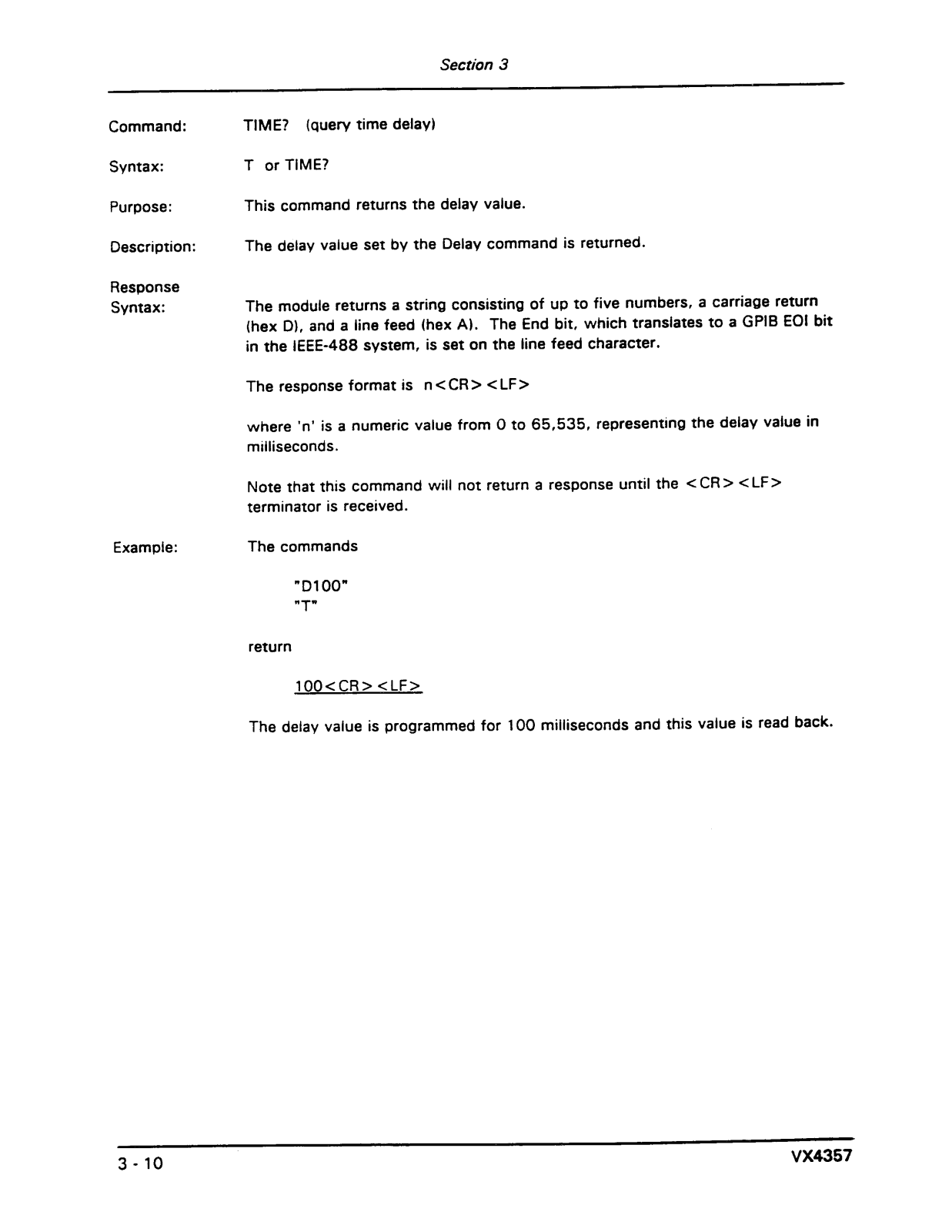

- Programmable Relay Time Delay: Intervals from 0 to 65,535 milliseconds.
- Maximum Conditions Recommended:
- OPM-40 Operation Life 30V dc 3.0A: 2x 10^6.
- OPM-40 Operation Life 250Vac 4.0A: 10^6.
- OPM-40 Operation Life 130Vac 5.0A: 1 x 10^6.
- Duty Cycle: Continuous Operation
- Harmonic Specifications Of The Signal Path:
- Thermal single line offset down to less than 10 micro volts.
- Isolation – Wiper to Open Contact less than 300 mil oohms.
- Crosstalk Between Channels:
- 1 kHz Crosstalk Less than -85 dB.
- 10 kHz Crosstalk Less than -55dB.
- 100 kHz Crosstalk Less than -36dB.
- 1 MHz Crosstalk Less than -18dB
- On Power Supply:
- Voltage: 4.75 V dc minimum and 5.25 V dc maximum
- Current: 2.2 amps PTP as Peak Module, Ipt4 only.
- Cooling: Fans in the mainframe offer assistance
- Environmental Conditions:
- Operating Temperature: 0 Degrees Celsius and upwards to plus 50 degrees Celsius.
- Storage Temperature: Minus 40 degrees Celsius up to plus 85 degrees Celsius
- Humidity: Humidity is less than Ninety Five percent R.H whilst at non condensing (Temperature range from zero to thirty Degrees Celsius)
- Size: Measurements are two hundred and sixty two mm x three hundred and fifty seven mm x thirty point five mm(10.3inches x 13.9inches x 1.2inches)
- Weight: One point six Zero kilograms which is equivalent to three point five six pounds
- Connectors: The connectors included are two DD-50P.
- Fuses: Fuses are listed at five volt five-amp fast blow Littelfuse Model Number 273005 SA
Frequently Asked Questions
- What is the total number of relays in the vx4357?
There are in total of 32 individually operated single pole double throw relays in the VX4357.
- What is the total switching power that is maximally supported by the vx4357?
While using ac the maximum power reaches up 1000 volt amps and for dc it is 90 watts.
- What is the highest switching voltage and current ratings that are achievable?
While using ac the maximum voltage levels are 250 volts and in terms of current 5 amps but if using dc the maximum voltage is 48 volts.
- What are the maximum delay times that could be set for the relays?
The programmable relay delay can be set from zero up to sixty five thousand five hundred thirty five milliseconds.
- In ideal conditions how long the relays are expected to work for?
The lifetime expectancy of the product is ten raised to the power of six operations for forty OPM and 250 volt ac.
- The Maximum number of Operations for the VX4357 is set at Approximately 2 x 10^6 for the amper extension of 3.0 with the maximum voltage being 40 OPM 30 V dc.
- What is the voltage range for the VX4357?
The supply voltage is considered to be 5 but the acceptable region as per the module’s capacity ranges between 4.75 to 5.25 with a maximum amp of 2.2 per unit.
- How large is the VX4357 module?
In terms of metric system the dimensions are 262mm x 357mm x 30.5 mm and in terms of inches the size is expected to be 10.3 in x 13.9 in x 1.2 ina .
- What is the mass of the VX4357?
The approximate weight for the module is considered to be 1.60 kg (3.56 lbs).

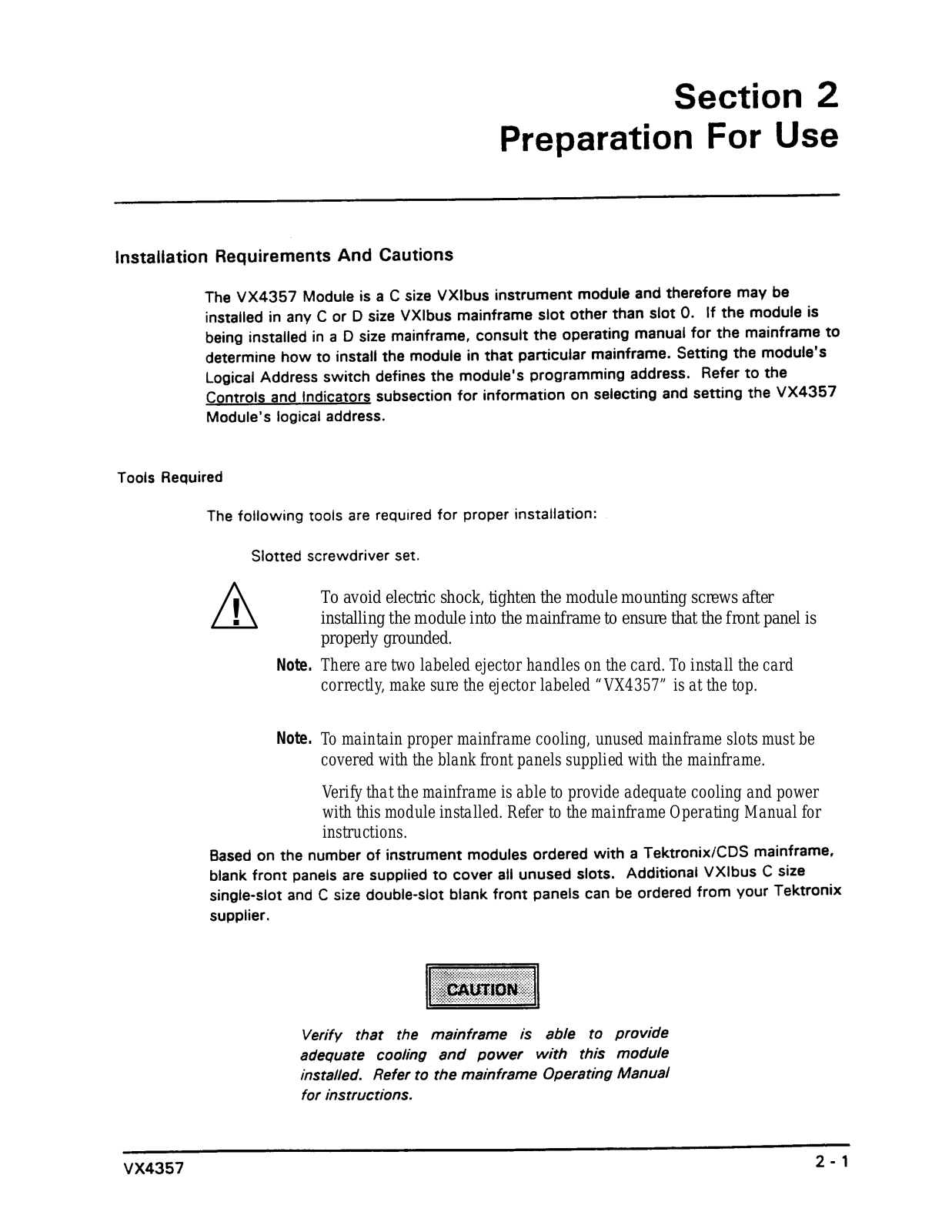

User Manual
