Tektronix TPS2024, TPS2014, TPS2012 Datasheet

Digital Storage Oscilloscopes

TPS2012 •TPS2014 •TPS2024

TPS2000 Series Oscilloscopes Deliver
Powerful Productivity from Bench to Field

As an engineer or technician, you must

often make floating, or differential,

measurements. You face faster edges

and clocks due to the migration of

higher performance technologies to

widely implemented electronic systems

and subsystems, with the pressure to

conform to customer specifications or

industry requirements.

And you may need to develop and test

designs in a variety of challenging

environments that demand versatility.

You can quickly tackle these tough

challenges to speed the design, trouble-

shooting, installation, and maintenance of

components and systems with the world’s

first 4-isolated-channel, full featured,

battery-powered oscilloscope – the

TPS2000 Series.

Features & Benefits

100 MHz and 200 MHz
Bandwidths

Sample Rates Up to
2 GS/s Real-time

2 or 4 Fully Isolated and
Floating Channels, Plus
Isolated External Trigger

8 Hours of Continuous Battery
Operation with Two Batteries
Installed, Hot-swappable for
Virtually Unlimited Freedom
from an AC Power Source

Optional Power Application
Software Offers the Broadest
Range of Power Measurements
at its Price Point

Quickly Document and Analyze
Measurement Results with
OpenChoice
Integrated CompactFlash
Mass Storage

FFT Standard on All Models

Advanced Triggers to Quickly
Capture the Event of Interest

Easily Operate the
Oscilloscope with Traditional,
Analog-style Knobs and
Multi-language User Interface

Simplify Setup and Operation
with Autoset Menu, Autorange,
Waveform and Setup
Memories, and Built-in,
Context-sensitive Help

Adjust the Oscilloscope to
Your Operating Environment
with Backlit Menu Buttons/
Display and Brightness/
Contrast Controls

11 Automatic Measurements

®

Software or

Applications

Industrial Power Design,
Troubleshooting, Installation,
and Maintenance

Advanced Electronics Design,
Troubleshooting, Installation,
and Maintenance

Automotive Design and Test

Education

1

Oscilloscopes

•

www.tektronix.com/tps2000

Digital Storage Oscilloscopes

TPS2012 •TPS2014 •TPS2024

Four IsolatedChannelTMinputs and isolated
external trigger input for quick, accurate,
affordable floating and differential
measurements.

Make Floating and
Differential Measurements –
Quickly, Accurately,
Affordably

Make floating and differential measure-

ments much more quickly and accurately,

and speed verification of power supply per-

formance, complex control circuits and the

effects of neutral current for differential

voltages, up to 30 V

floating on four

RMS

channels simultaneously, when the

TPS2000 Series is paired with its

standard P2220 passive probe.

Easily perform these measurements up to

600 V

CAT II (or 300 V

RMS

CAT III) floating

RMS

when the oscilloscope is coupled with its

optional P5120 passive, high-voltage probe.

Accurately characterize rise and fall times

and other waveform parameters in circuits

with different low levels or ground references,

while removing ground loop interference,

with just 37 pf capacitance to chassis on

each of four isolated channels.

TM

Innovative IsolatedChannel

technology

makes these measurements possible – all

designed with your safety in mind.

Perform three-phase power measurements
of variable frequency drives.

Speed the Design and Test
of Industrial Power Systems
and Subsystems

The TPS2000 Series easily addresses the

unique challenges that plague industrial

power designers and technicians. You

regularly confront high voltages and

currents, and must often make potentially

hazardous floating measurements. With the

TPS2000 Series’ power bundle

(TPS2PBND), which includes the P5120

passive, high-voltage probes and TPS2PWR1

power measurement and analysis software,

you can use a single instrument to make a

broad range of measurements.

Easily evaluate these high voltages and

currents, or debug power electronics control

circuits, with differential voltages up to

600 V

CAT II (or 300 V

RMS

CAT III) floating.

RMS

Accurately measure three-phase power

and circuits with different low levels or

ground references.

Quickly perform a broad range of power-

specific measurements, such as switching

loss, harmonic distortion measurements to

the 50th harmonic, and dv/dt and di/dt

cursor measurements.

Conduct harmonic distortion measurements
with TPS2PWR1 software.

Capture elusive glitches – the first time –
with digital real-time (DRT) sampling
technology.

Quickly Debug and
Characterize Signals with
DRT Sampling Technology

Characterize a wide range of signal types

on four channels simultaneously with the

TPS2000 Series’ unique digital real-time

(DRT) sampling technology. This acquisition

technology makes it possible to capture

high-frequency information, such as glitches

and edge anomalies, that eludes other

oscilloscopes in its class, so that you can

be sure to get a complete view of your

signal to speed debug and characterization.

Easily Analyze and Document
Your Measurement Results

2

Oscilloscopes

•

www.tektronix.com/tps2000

Quickly reveal signal interference, cross-talk

and the effects of vibration with frequency

domain analysis using the TPS2000 Series’

standard Fast Fourier Transform (FFT) feature.

Easily analyze and document your measure-

ment results with integrated CompactFlash

®

mass storage or OpenChoice

software.

Digital Storage Oscilloscopes

TPS2012 •TPS2014 •TPS2024

Easily correlate your measurements
between bench, lab and field with
the TPS2000 Series’ portability.

Correlate Your
Measurements from Bench
to Lab to Field

*1

Use the TPS2000 Series on your bench, in

the lab, or in the field, with the industry’s

longest continuous battery life – 8 hours

and beyond – in a highly mobile package.

Harness the power of virtually unlimited

freedom from an AC power source with

hot-swappable batteries. Easily correlate

measurements between bench, lab, and

field with its portability.

Optimize Your Productivity
with Versatility

Intuitively operate the oscilloscope with

familiar, analog-style knobs per channel.

Reduce your measurement time with

features like autoset, autorange, automatic

measurements, 10X to 1000X vertical

position control, probe check wizard, and

context-sensitive help. Effectively work in a

variety of challenging environments – from

bright daylight to dimly lit areas – using

backlit menu buttons and brightness/

contrast controls.

*1

Please refer to Environmental and Safety specifications.

Harness the power of virtually unlimited
freedom from an AC power source with
hot-swappable batteries.

Easily use the oscilloscope even in
environments that challenge operation,
with features such as analog-style knobs
per channel, backlit menu buttons, and
brightness/contrast controls.

Speed documentation and analysis of measurements results with OpenChoice®software
and integrated CompactFlash mass storage.

Oscilloscopes

•

www.tektronix.com/tps2000

3

Digital Storage Oscilloscopes

TPS2012 •TPS2014 •TPS2024

Characteristics

TPS2000 Series Electrical Characteristics

Feature TPS2012 TPS2014 TPS2024

Isolated Channels 2 4 4
Bandwidth*1(MHz) 100 100 200
Sample Rate (GS/s) Per Channel 1.0 1.0 2.0
Record Length 2.5 K points
Display (1/4 VGA LCD) Color
Battery Operation Capacity for two hot-swappable battery packs.

Automatic Measurements 11
Isolated External Trigger Yes

Input (Impedance Isolated)
Vertical Resolution 8-bits (normal or with averaging)
Vertical Sensitivity 2 mV to 5 V/div on all models with calibrated fine adjustment
DC Vertical Accuracy ±3%
Vertical Zoom Vertically expand or compress a live or stopped waveform
Max Input Voltage (1 MΩ)

Float Voltage

*2

*2

Position Range 2 mV to 200 mV/div ±2 V; >200 mV to 5 V/div ±50 V
Bandwidth Limit 20 MHz
Linear Dynamic Range ±5 div
Time Base Range 5 ns to 50 s/div 5 ns to 50 s/div 2.5 ns to 50 s/div
Time Base Accuracy 50 ppm
Input Impedance 1 MΩ ±2 % in parallel with 20 pF
Input Coupling AC, DC, GND
Horizontal Zoom Horizontally expand or compress a live or stopped waveform
FFT Standard
RS-232, Centronics – Standard

Parallel Ports
PC Connectivity Standard
Integrated CompactFlash Standard

Mass Storage
Power Measurements Optional package that offers instantaneous power waveform analysis,

One standard battery pack offers 4 hours of battery operation.

Optional second battery pack extends battery operation to 8 hours.

Continuous battery operation is possible by hot-swapping charged batteries

300 V

CAT II at BNC signal to BNC shell, 1000 V

RMS

earth ground with optional P5120 passive, high-voltage probe

600 V

CAT II or 300 V

RMS

between any two channel commons with each of the channel commons

not being more than ±600 V

CAT III BNC shell to earth ground, 1200 V

RMS

from earth ground

RMS

CAT II at probe tip to

RMS

RMS

CAT II

waveform analysis, harmonics analysis, switching loss,

phase angles, dv/dt and di/dt cursors

*1 Bandwidth is 20 MHz at 2 mV/div, all models. Bandwidth is 200 MHz typical at 5 mV/div, 200 MHz models only. Bandwidth is 200 MHz typical between 40 ºC and 50 ºC, 200 MHz models only.

*2 Please refer to Environmental and Safety specifications.

4

Oscilloscopes

•

www.tektronix.com/tps2000

Acquisition Modes

Peak Detect – High frequency and random glitch
capture. Captures glitches as narrow as 12 ns
typical using acquisition hardware at all time/div
settings from 5 µs/div to 50 s/div.

Sample – Sample data only.

Average – Waveform averaged, selectable: 4, 16,

64, 128.

Single Sequence – Use the Single Sequence
button to capture a single triggered acquisition
sequence at a time.

Scan/Roll Mode – At acquisition time base
settings of ≥100 ms/div.

Trigger System (Main Only)

Trigger Modes – Auto, Normal, Single Sequence.

Trigger Types

Edge (rising or falling) – Conventional level-driven
trigger. Positive or negative slope on any channel.
Coupling selections: AC, DC, Noise Reject, HF Reject,
LF Reject.

Video – Trigger on all lines or individual line,
odd/even or all fields from composite video, or
broadcast standards (NTSC, PAL, SECAM).

Pulse Width (or Glitch) – Trigger on a pulse width
less than, greater than, equal to, or not equal to a
selectable time limit ranging from 33 ns to 10 sec.

Trigger Source

2-channel models – CH1, CH2, Ext, Ext/5, Ext/10.

4-channel models – CH1, CH2, CH3, CH4, Ext,

Ext/5, Ext/10.

Trigger View

Displays trigger signal while trigger view button
is depressed.

Trigger Signal
Frequency Readout

Provides a frequency readout of the trigger source
with 6-digit resolution.

Cursors

Types – Voltage, Time.

Measurements – ∆T, 1 /∆T (frequency), ∆V,

3

, di/dt*3.

dv/dt*

Digital Storage Oscilloscopes

TPS2012 •TPS2014 •TPS2024

Autoset Menu for Multiple Signal Types

Signal Type Autoset Menu Choices

Square wave Single-cycle, Multi-cycle, Rising or Falling Edge
Sine Wave Single-cycle, Multi-cycle, FFT Spectrum
Video (NTSC, PAL, SECAM) Video (NTSC, PAL, SECAM) Field: All, Odd, or Even Line:

All or Selectable Line Number

Nonvolatile Storage

Nonvolatile Storage Standard (with CompactFlash Mass Storage)
Reference Waveform Display Two 2500 point reference waveforms
Waveform Storage 96 or more reference waveforms per 8 MB
Setups 4000 or more front panel setups per 8 MB
Screen Images 128 or more screen images per 8 MB

(the number of images depends on file format selected)

Save All 12 or more Save All operations per 8 MB.A single

Save All operation creates 2 to 9 files (setup, image,

plus one file for each displayed waveform)

Measurement System

Automatic Waveform Measurements – Period,
Frequency, +Width, –Width, Rise time, Fall time,
Max, Min, Peak-to-Peak, Mean, Cycle RMS.

Waveform Processing

Operators – Add, Subtract, Multiply, FFT.

FFT – Windows: Hanning, Flat Top, Rectangular;

2048 sample points.

Sources –

2-channel models: CH1 – CH2, CH2 – CH1,
CH1 + CH2, CH1 x CH2.
4-channel models: CH1 – CH2, CH2 – CH1,
CH3 – CH4, CH4 – CH3, CH1 + CH2, CH3 + CH4,
CH1 x CH2, CH3 x CH4.

Autoset Menu – Single-button, automatic setup
of all channels for vertical, horizontal and trigger
systems, with undo autoset.

Autorange – Allows the user to adjust waveforms
on the oscilloscope screen and change test points
without resetting the oscilloscope.

Display Characteristics

Display – 1/4 VGA, passive color LCD with color
on black background with adjustable multi-level
contrast and brightness controls.

Interpolation – Sin(x)/x.

Display Types – Dots, vectors.

Persistence – Off, 1 sec, 2 sec, 5 sec, infinite.

Format – YT and XY.

I/O Interface

Printer Port (standard) – Centronics-type Parallel.

Graphics File Formats – TIFF, PCX (PC Paint
Brush), BMP (Microsoft Windows), EPS
(Encapsulated Postscript) and RLE.
Printer Formats – Bubble Jet, DPU-411,
DPU-412, DPU-3445, Thinkjet, Deskjet, Laser
Jet, Epson Dot (9- or 24-pin), Epson C60,
Epson C80.
Layout – Landscape and Portrait.

RS-232 Port (standard) – 9-pin DTE.

RS-232 Programmability – Full talk/listen modes.

Control of all modes, settings and measurements.
Baud rate up to 19,200.

*3Requires TPS2PWR1 power application package.

Oscilloscopes

•

www.tektronix.com/tps2000

5

Digital Storage Oscilloscopes

TPS2012 •TPS2014 •TPS2024

Mass Storage CompactFlash Memory –

Accepts any Type 1 CompactFlash card,
up to and including 1 GB (card not included).

Built-in Clock/Calendar

®

OpenChoice

Seamless connection from oscilloscope to
PC through RS-232.

Transfer and save settings, waveforms,
measurements, and screen images.

Includes a Windows desktop data transfer
application in addition to convenient Microsoft
Word and Excel Toolbar Add-ins.

Environmental and Safety

Temperature –

Operating: 0 ºC to +50 ºC.
Non-operating: –40 ºC to +71 ºC.

Humidity –

TPS2000 Series oscilloscopes are not intended for
use in wet or damp conditions.
Operating:

high: 50 ºC / 60% RH.
low: 30 ºC / 90% RH.

Non-Operating:

high: 55 ºC to 71 ºC / 60% RH max wet bulb.
low: 30 ºC to 0 ºC / < 90% RH max wet bulb.

Altitude –

Operating: up to 3,000 m.
Non-operating: 15,000 m.

Pollution Degree 2 – Do not operate in an
environment where conductive pollutants may be
present (as defined in IEC61010-1:2001).

Enclosure Rating – IP30: when the CompactFlash
card and power analysis software are installed (as
defined in IEC60529:2001).

Electromagnetic Compatibility –

Meets the intent of Directive 89/336/EEC. Meets or
exceeds: Australian EMC Framework, demonstrated
per Emission Standard AS/NZS 2064.1/2.

General Certifications –

Russian GOST EMC regulations; Chinese Metrology
Certification (CMC).

Safety – UL61010-1: 2004. CAN/CSA22.2
No. 1010.1: 2004. EN61010-1: 2001.
Do not float the P2220 probe common lead to
>30 V
or 300 V
high-voltage probe or an appropriately rated
high-voltage, differential probe when floating the
common lead above 30 V
of such high-voltage probe.

PC Communications Software –

. Use the P5120 (floatable to 600 V

RMS

CAT III) or similarly rated passive,

RMS

, subject to the ratings

RMS

RMS

CAT II

Versatile Hanger.

CAT Ratings

Overvoltage Categories

Category Examples of Products

CAT III Distribution-level mains,

CAT II Local-level mains, appliances,

CAT I Signal levels in special equipment

Materials –

TPSBAT battery contains less than 8 grams
equivalent Lithium.

Physical Characteristics

INSTRUMENT
Dimensions mm in.

Width 336.0 13.24
Height 161.0 6.33
Depth 130.0 5.10

Weight kg lbs.

Instrument only 2.7 6.0
with 1 battery 3.2 7.0
with 2 batteries 3.7 8.0

INSTRUMENT SHIPPING
Package Dimensions mm in.

Width 476.2 18.75
Height 266.7 10.50
Depth 228.6 9.00

Battery/Charger.

in this Category

fixed installation

portable equipment

or parts of equipment,

telecommunications, electronics

P2220 Probe.

Ordering Information

TPS2012, TPS2014, TPS2024

Digital Storage Oscilloscopes.

Standard Accessories

Probes – P2220 200 MHz, 1X/10X switchable
passive probe (one per channel).

Battery (1) – Lithium-Ion battery with fuel gauge
for 4-hour battery life. Two batteries required for
8 hours continuous battery operation.

TDSPCS1 OpenChoice
PC Connectivity Software – A collection of

programs that enable fast and easy communication
between MS Windows PCs and TPS2000 Series
oscilloscopes.

Documentation – 1 each set of instruction
manuals (see below for the appropriate language
manual part number).

AC Adapter with Power Cord.

NIM/NIST-Traceable Certificate of Calibration.

Front Protective Cover.

6

Oscilloscopes

•

www.tektronix.com/tps2000

Digital Storage Oscilloscopes

TPS2012 •TPS2014 •TPS2024

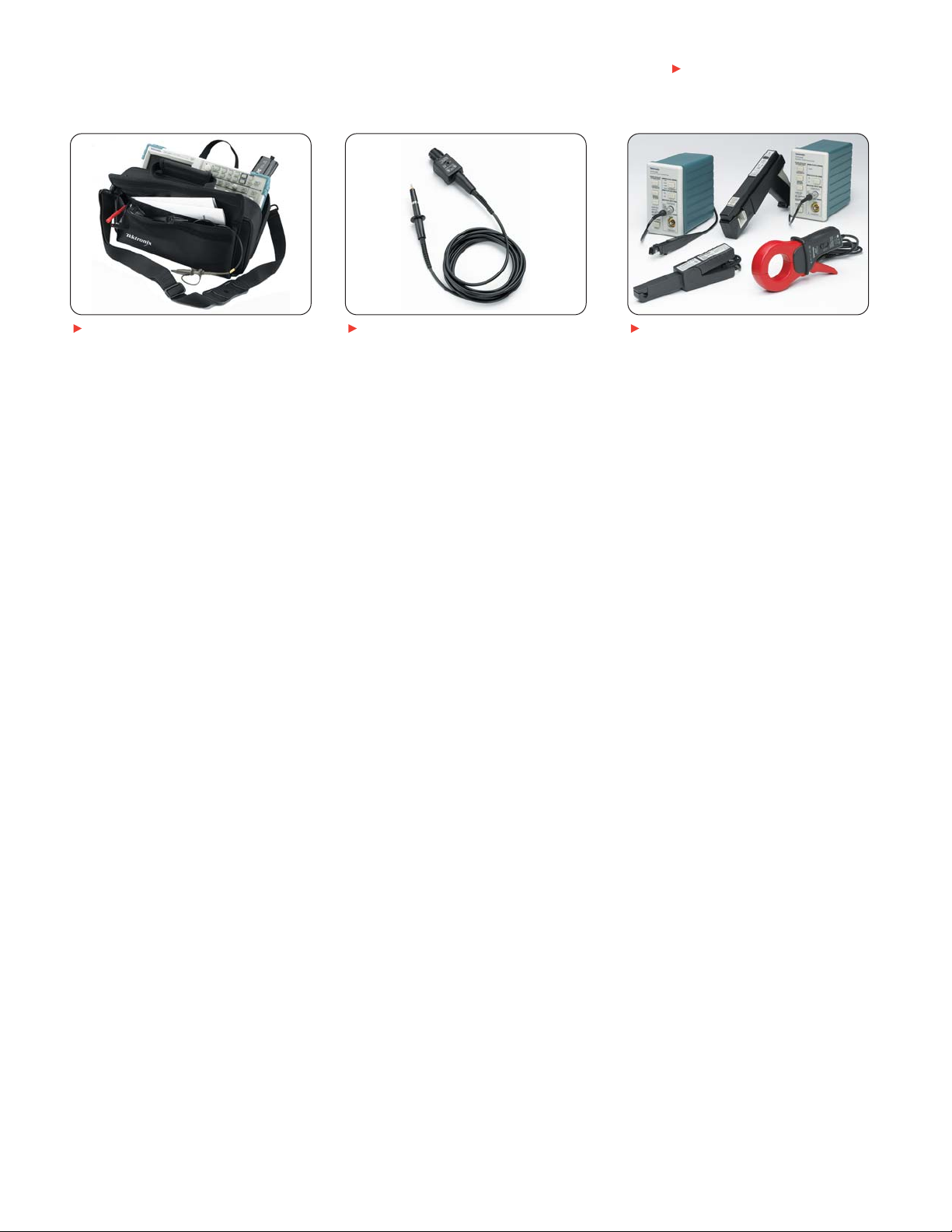

Soft Carrying Case. P5120 Probe. Current Probes.

Recommended Accessories

TPS2PBND – Power bundle for TPS2000 Series
oscilloscopes. Includes (4) P5120 passive,
high-voltage probes and TPS2PWR1 power
measurement and analysis software.

TPS2PWR1 – Power measurements application
package. Instantaneous power waveform analysis,
waveform analysis, harmonics analysis, switching
loss, phase angles, dv/dt and di/dt cursors.

WSTRO – WaveStar

TM

software; Windows
98/2000/ME/NT 4.0 application for waveform
capture, analysis, documentation and control from
your PC. Provides enhanced oscilloscope data
measurement, analysis, remote setup and
charting features.

TPSBAT – Additional battery.

TPSCHG – Battery charger.

AC2100 – Soft case for carrying instrument.

HCTEK321 – Hard case for carrying instrument.

343-1689-00 – Versatile hanger.

Service Manual – English only (P/N 071-1465-xx).

Programmer Manual – English only

(P/N 071-1075-xx).

156-9413-00 – CompactFlash memory card,
32 MB or more.

Recommended Probes

A621 – 2000 A, 5 to 50 kHz AC current probe/BNC.

A622 – 100 A, 100 kHz AC/DC current probe/BNC.

P5120 – Passive high-voltage probe

(1000 V CAT II tip to ground; 600 V CAT II
reference to earth ground).

P5205 – High-voltage active differential probe
(1300 V
required).

, 100 MHz). (1103 power supply

pk-pk

P5210 – High-voltage active differential probe
(5600 V
required).

, 50 MHz). (1103 power supply

pk-pk

CT2 – 2.5 A, 200 MHz AC current probe.

CT4 – AC current probe up to 2000 A

(TCP202 and 1103 power supply required.)

pk-pk

.

TCP202 – 15 A, 50 MHz AC/DC current probe.
(1103 power supply required.)

TCP303/TCPA300 – 15 A, 15 MHz AC/DC current
probe/amplifier.

TCP305/TCPA300 – 50 A, 50 MHz AC/DC current
probe/amplifier.

TCP312/TCPA300 – 30A, 100 MHz, DC/AC current
probe/amplifier.

TCP404XL/TCPA400 – 500 A, 2 MHz AC/DC cur­rent probe/amplifier.

International Power Plugs

Opt. A0 – North America power.

Opt. A1 – Universal EURO power.

Opt. A2 – United Kingdom power.

Opt. A3 – Australia power.

Opt. A5 – Switzerland power.

Opt. A6 – Japan power.

Opt. A10 – China power.

Opt. A99 – No power cord or AC adapter.

Accessory Cables

RS-232, 9-Pin female to 25-Pin male, 4.6 m
(15 ft.), for Modems – Order 012-1241-00.

RS-232, 9-Pin female to 9-Pin female, null
modem, for computers – Order 012-1651-00.

RS-232, 9-Pin female to 25-Pin female, null
modem, for computers – Order 012-1380-00.

RS-232, 9-Pin female to 25-Pin male, null
modem, for printers – Order 012-1298-00.

Centronics, 25-Pin male to 36-Pin Centronics,

2.4 m (8 ft.), for Parallel Printer Interfaces –

Order 012-1214-00.

International User Manual
Language Options

Opt. L0 – English (071-1441-xx).

Opt. L1 – French (071-1442-xx).

Opt. L2 – Italian (071-1443-xx).

Opt. L3 – German (071-1444-xx).

Opt. L4 – Spanish (071-1445-xx).

Opt. L5 – Japanese (071-1446-xx).

Opt. L6 – Portuguese (071-1447-xx).

Opt. L7 – Simplified Chinese (071-1448-xx).

Opt. L8 – Traditional Chinese (071-1449-xx).

Opt. L9 – Korean (071-1450-xx).

Opt. LR – Russian (071-1451-xx).

Translated front panel overlay included with its
respective user manual.

Warranty Information

Three year warranty covering all labor and parts,
excluding probes and accessories.

Oscilloscopes

•

www.tektronix.com/tps2000

7

Digital Storage Oscilloscopes

TPS2012 • TPS2014 • TPS2024

Speed Product Development
with Best-in-class
Price/Performance

Tektronix’ extensive portfolio of proven,

state-of-the-art stimulus, probing, acquisi-

tion and analysis tools simplify and speed

each phase of product design – from

power-on and verification, through debug

and validation, to characterization and

test – to enable you to race products to

your customers when they need them,

if not before.

Tektronix Support
Completes the Solution

Anytime you need support, anywhere in

the world, depend on Tektronix Support

to give you the lowest possible exposure

to inconvenience, delay, or disruption

of operations.

www.tektronix.com/support

Unsurpassed technical expertise and

experience with 24-hour response to
technical questions

Industry-leading turn-around service time

90-day unconditional service warranty

No fine print, no exclusions, no surprises

Global support in more than 50 countries

ASEAN / Australasia / Pakistan (65) 6356 3900

Contact Tektronix:

Austria [phone]

Balkan, Israel, South Africa and other ISE Countries

[phone]

Belgium 07 81 60166

Brazil & South America 55 (11) 3741-8360

Canada 1 [phone]

Central East Europe, Ukraine and the Baltics [phone]

Central Europe & Greece [phone]

Denmark [phone]

Finland [phone]

France & North Africa [phone]

Germany [phone]

Hong Kong (852) 2585-6688

India (91) 80-22275577

Italy [phone]

Japan 81 (3) 6714-3010

Luxembourg [phone]

Mexico, Central America & Caribbean 52 (55) 56666-333

Middle East, Asia and North Africa [phone]

The Netherlands 090 02 021797

Norway 800 16098

People’s Republic of China 86 (10) 6235 1230

Poland [phone]

Portugal 80 08 12370

Republic of Korea 82 (2) 528-5299

Russia & CIS 7 095 775 1064

South Africa [phone]

Spain ([phone]

Sweden 020 08 80371

Switzerland [phone]

Taiwan 886 (2) 2722-9622

United Kingdom & Eire [phone]

USA 1 [phone]

USA (Export Sales) 1 [phone]

For other areas contact Tektronix, Inc. at: 1 [phone]

Updated 6 April 2005

8

Oscilloscopes

•

www.tektronix.com/tps2000

Our most up-to-date product information is available at:

www.tektronix.com

Product(s) are manufactured

in ISO registered facilities.

Copyright © 2005, Tektronix, Inc. All rights reserved. Tektronix products are covered
by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specification and price change
privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix,
Inc. All other trade names referenced are the service marks, trademarks or regis­tered trademarks of their respective companies.

04/05 TN/WOW 3MW-17750-3
