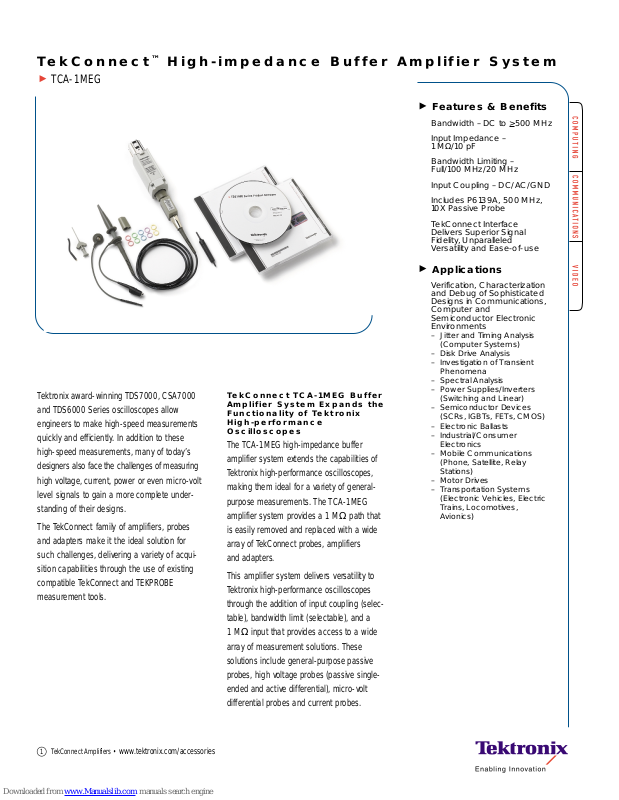

Tektronix TekConnect TCA-1MEG Specifications

Features & Benefits

Bandwidth – DC to >

500 MHz

Input Impedance –
1MΩ/10 pF

Bandwidth Limiting –
Full/100 MHz/20 MHz

Input Coupling – DC/AC/GND
Includes P6139A, 500 MHz,

10X Passive Probe
TekConnect Interface

Delivers Superior Signal
Fidelity, Unparalleled
Versatility and Ease-of-use

Applications

Verification, Characterization
and Debug of Sophisticated
Designs in Communications,
Computer and
Semiconductor Electronic
Environments

– Jitter and Timing Analysis

(Computer Systems)
– Disk Drive Analysis
– Investigation of Transient

Phenomena
– Spectral Analysis
– Power Supplies/Inverters

(Switching and Linear)
– Semiconductor Devices

(SCRs, IGBTs, FETs, CMOS)
– Electronic Ballasts
– Industrial/Consumer

Electronics
– Mobile Communications

(Phone, Satellite, Relay

Stations)
– Motor Drives
– Transportation Systems

(Electronic Vehicles, Electric

Trains, Locomotives,

Avionics)

TekConnect™High-impedance Buffer Amplifier System

TCA-1MEG

Tektronix award-winning TDS7000, CSA7000
and TDS6000 Series oscilloscopes allow
engineers to make high-speed measurements
quickly and efficiently.In addition to these
high-speed measurements, many of today’s
designers also face the challenges of measuring
high voltage, current, power or even micro-volt
level signals to gain a more complete under­standing of their designs.

The TekConnect family of amplifiers, probes
and adapters make it the ideal solution for
such challenges, delivering a variety of acqui­sition capabilities through the use of existing
compatible TekConnect and TEKPROBE
measurement tools.

TekConnect TCA-1MEG Buffer
Amplifier System Expands the
Functionality of Tektronix
High-performance
Oscilloscopes

The TCA-1MEG high-impedance buffer
amplifier system extends the capabilities of
Tektronix high-performance oscilloscopes,
making them ideal for a variety of general­purpose measurements.The TCA-1MEG
amplifier system provides a 1 MΩ path that
is easily removed and replaced with a wide
array of TekConnect probes, amplifiers
and adapters.

This amplifier system delivers versatility to
Tektronix high-performance oscilloscopes
through the addition of input coupling (selec­table), bandwidth limit (selectable), and a
1MΩ input that provides access to a wide
array of measurement solutions.These
solutions include general-purpose passive
probes, high voltage probes (passive single­ended and active differential), micro-volt
differential probes and current probes.

TekConnect Amplifiers • www.tektronix.com/accessories

1

TekConnectTMHigh-impedance Buffer Amplifier System

TCA-1MEG

With this tool,Tektronix high-performance
oscilloscopes may now perform measure­ments such as primary and secondary power
supply voltage levels, currents and elevated
voltages, and assess the power requirements
of the device-under-test.

For today’s high-speed measurement solutions,
having the 50 Ω and 1 MΩ terminations on
the same input path compromises signal
fidelity.By making the 1 MΩ path replaceable,
the TCA-1MEG high impedance buffer amplifier
system eliminates a permanent degradation of
the high-speed signal path.This also allows
users to easily and quickly configure each
channel for the input characteristics required
for their measurements. By exchanging the
TCA-1MEG for a high-performance 50 Ω
path or other high-speed probing solution,
maximum signal fidelity is maintained at the
oscilloscope’s input.

TekConnect Interface Delivers
Superior Signal Fidelity,
Unparalleled Versatility
and Ease-of-use

The TekConnect interface ensures superior
signal fidelity with useful bandpass up to
18 GHz at the oscilloscope input, while offering
unparalleled versatility with the world’s widest
array of accessory signal acquisition solutions
for high-performance, real-time oscilloscopes.
This interface delivers a more robust oscillo­scope interface for next-generation products
with multi-GHz analog bandwidths, overcoming
many of the inherent bandwidth limitations of
BNC-based interfaces.The TekConnect inter­face preserves a low voltage standing wave
ratio (VSWR) 50 Ω environment as well as a
reliable electrical connection.A convenient,
one-button release and locking mechanism
provides quick, easy installation and removal
of probes, amplifiers and adapters.

Characteristics

TekConnect Amplifiers • www.tektronix.com/accessories

2

Model Specifications

Bandwidth (–3 dB) DC to ≥500 MHz

(in a host instrument with bandwidth >1.5 GHz)
Probe Tip Bandwidth (with P6139A at –3dB) DC to ≥500 MHz (host instrument bandwidth >1.5 GHz)
BW Limit Full, 100 MHz ±25%, 20 MHz ± 25%
DC Gain Accuracy ±3% (TCA-1MEG with or without P6139A probe)*

1

Propogation Delay (Input-to-Output) <2 ns
Input Impedance 1 MΩ/10 pF (at DC)
Maximum Input Voltage (Derated with Frequency) 150 V

RMS

CATI

100 V

RMS

CATII

Above 200 kHz derate at 20 dB per decade;

limit to 13 VpkAC at 3 MHz and above

*1Probe calibration required in TekConnect host instrument.

Nominal

Inputs 1 (TEKPROBE™ BNC 1 MΩ)
Input Coupling DC,AC or GND
Safety Certifications U.S. NRTL Listing UL3111-1

UL3111-2-032

Canadian Certification CAN/CSA C22.2 No.1010.1

CAN/CSA C22.2 No.1010.2.032

European Union Compliance EN61010-1/A2

EN61010-2-032

Other IEC61010-1/A2

IEC61010-2-032
GPIB Programmable Through Host Instrument Commands
Power Requirements TekConnect
Adapter Model Compatibility Refer to TDS7000 Series TekConnect Adapters Compatibility Table
Warranty One year

Dimensions mm in.

Length 180.08 4.255
Width 31.5 1.240
Height 46.1 1.815

Typical

Displayed System Input Offset ±0.2 div
Rise Time (calculated small signal tr= 0.4/F

3dB

) ≤0.8 ns (minimum rise time)

Linear Dynamic Range The lesser of ±5 divisions or the dynamic range of

the TekConnect host instrument

Linearity ±0.2%

TekConnectTMHigh-impedance Buffer Amplifier System

TCA-1MEG

TekConnect Amplifiers • www.tektronix.com/accessories

3

TekConnect™ Amplifier, Adapters and Probes Compatibility*

1

Oscilloscope TekConnect Amplifiers, Adapters and Probes

Accessory Type TDS6604 TDS7154 / TDS7404 / TCA-1MEG TCA-BNC TCA-SMA TCA-N

6 GHz CSA7154 / CSA7404 High Impedance Adapter Adapter Adapter

TDS7254 4 GHz / Buffer Amplifier (Standard w/ (Standard

1.5 GHz / 4 GHz (P6139A TDS7154 / w/TDS7404 /

1.5 GHz / Included) TDS7254 / CSA7404)

2.5 GHz CSA7154)

Instrument Input TekConnect TekConnect TekConnect TEKPROBE BNC TEKPROBE BNC SMA-to- N-to­Connection 1 MΩ-to-TekConnect 50 Ω-to- TekConnect TekConnect

TekConnect

Instrument Input TekConnect TekConnect TekConnect 1 MΩ/10 pF 50 Ω 50 Ω 50 Ω
Impedance Probes,Amplifier and Probes,Amplifier and Probes, Amplifier and

Adapter Dependent Adapter Dependent Adapter Dependent

Passive Voltage P6101B P6101B P6101B P6101B N/A N/A N/A
Probes (1X) w/TCA-1MEG w/TCA-1MEG w/TCA-1MEG

Passive Voltage P6139A P6139A P6139A P6139A N/A N/A N/A
Probes (10X) w/TCA-1MEG w/TCA-1MEG w/TCA-1MEG

50 Ω Divider P6150 w/TCA-SMA P6150 w/TCA-SMA P6150 w/TCA-SMA N/A P6158 P6150 N/A
Voltage Probes P6158 w/TCA-BNC P6158 w/TCA-BNC P6158 w/TCA-BNC

Active Voltage P6245 w/TCA-BNC P6245 w/TCA-BNC P6245 w/TCA-BNC N/A P6245 N/A N/A
Probes General P6243 w/TCA-BNC P6243 w/TCA-BNC P6243 w/TCA-BNC P6243

Active Voltage Probes P7260*

2

P7260*

2

P7260*

2

N/A P6249 N/A N/A

<3.3 V Logic P7240*

2

P7240*

2

P7240*

2

P6249 w/TCA-BNC P6249 w/TCA-BNC P6249 w/TCA-BNC

Differential Voltage P7330 P7330 P7330 N/A P6330 N/A N/A
Probes <3.3 V Logic P6330 w/ TCA-BNC P6330 w/ TCA-BNC P6330 w/ TCA-BNC

Differential P6248 w/TCA-BNC P6248 w/TCA-BNC P6248 w/TCA-BNC N/A P6248 N/A N/A
Voltage Probes P6247 w/TCA-BNC P6247 w/TCA-BNC P6247 w/TCA-BNC P6247
<8 V Logic P6246 w/TCA-BNC P6246 w/TCA-BNC P6246 w/TCA-BNC P6246

Differential ADA400A ADA400A ADA400A ADA400A N/A N/A N/A
Voltage Probes w/TCA-1MEG w/TCA-1MEG w/TCA-1MEG
Micro-volt

High Voltage P5205 w/ TCA-1MEG P5205 w/ TCA-1MEG P5205 w/ TCA-1MEG P5205 N/A N/A N/A
Probes Differential P5210 w/TCA-1MEG P5210 w/TCA-1MEG P5210 w/TCA-1MEG P5210

High Voltage Probes P5100 w/TCA-1MEG P5100 w/TCA-1MEG P5100 w/TCA-1MEG P5100 N/A N/A N/A
Single-ended P6015A w/TCA-1MEG P6015A w/TCA-1MEG P6015A w/TCA-1MEG P6015A

Current Probe TCP202 w/TCA-BNC TCP202 w/TCA-BNC TCP202 w/TCA-BNC N/A TCP202 N/A N/A
AC/DC <15 A

Current Probe AM503S w/ AM503S w/ AM503S w/ AM503S AM503S N/A N/A
AC/DC 5 mA to 20 A TCA-BNC or TCA-BNC or TCA-BNC or

TCA-1MEG TCA-1MEG TCA-1MEG

Current Probe CT6 w/TCA-BNC CT6 w/TCA-BNC CT6 w/TCA-BNC N/A CT6 N/A N/A
AC High Frequency CT1 w/TCA-1MEG CT1 w/TCA-1MEG CT1 w/TCA-1MEG CT1

Current Probe P6021 w/TCA-1MEG P6021 w/TCA-1MEG P6021 w/TCA-1MEG P6021 N/A N/A N/A
AC Low Frequency P6022 w/TCA-1MEG P6022 w/TCA-1MEG P6022 w/TCA-1MEG P6022

O/E Converter P6701B w/TCA-BNC P6701B w/TCA-BNC P6701B w/TCA-BNC N/A P6701B N/A N/A
Probes P6703B w/TCA-BNC P6703B w/TCA-BNC P6703B w/TCA-BNC P6703B

*1Firmware version 2.1 or greater required for all referenced oscilloscopes.
*

2

P7240, P7260 and P7330 are high-speed active and differential probing solutions for Tektronix oscilloscopes with TekConnect interface.These probes require no other ada pters.

Please refer to TekConnect Adapters data sheet for more information about adapters.

TekConnectTMHigh-impedance Buffer Amplifier System

TCA-1MEG

For the most up-to-date product information

visit our web site at

www.tektronix.com

Copyright © 2002, Tektronix, Inc. All rights reserved. Tektronix products are
covered by U.S. and foreign patents,issued and pending. Information in this publi­cation supersedes that in all previously published material. Specification and price
change privileges reserved. TEKTRONIX and TEK are registered trademarks of
Tektronix,Inc.All other trade names referenced are the service marks, trademarks
or registered trademarks of their respective companies.

03/02 HB/XBS 60W-15629-0

Ordering Information

TCA-1MEG – TekConnect-to-1MEG High-impedance
Buffer Amplifier.

Includes: Buffer Amplifier; Instruction/Service Manual;
1 – P6139A; Certificate of Traceable Calibration;
TDS6000,TDS7000 and CSA7000 Series product
software upgrade CD(s).

Service Options

C3 – Three years of Calibration Services
(initial certification + 2 calibrations).

C5 – Five years of Calibration Services
(initial certification + 4 calibrations).

D1 – Test data on delivery and with further
calibrations; Must order with C3.

D3 – Test data on delivery and with further
calibrations; Must order with C3.

D5 – Test data on delivery and with further
calibrations; Must order with C5.

R3 – Repair warranty extended to cover three years.
R5 – Repair warranty extended to cover five years.

Recommended
Accessories

Passive Voltage Probes

P6101B – 15 MHz, 1X, Passive.
P6139A – 500 MHz, 10X, Passive.

High Voltage Probes

P5205 – 1.3 kV

RMS

, 100 MHz, Active Differential.

P5210 – 4.4 kV

RMS

, 50 MHz, Active Differential.

P6015A – 20 kV,1000X,75 MHz, Passive.
P5100 – 2.5 kV,100X,250 MHz, Passive.

Micro-volt Differential Probe

ADA400A – 1 MHz, 100X/10X/1X/0.1X, Micro-volt
Differential Preamplifier.

Current Measurement Tools

AM503S – AC/DC, 5 mA to 700 Amp, Current
Amplifier Measurement System. (Extended Current
Capability by ordering additional Current Probes).

P6021 – AC, 60 MHz, Current Probe.
P6022 – AC, 120 MHz, Current Probe.

Cables and Terminations

012-0057-01 – 50 Ω BNC to BNC Coaxial Cable.
012-0482-00 – 50 Ω BNC to BNC Coaxial Cable,

Precision 1%, Male to Male.
011-0049-02 – 50 Ω feed through termination.

TekConnect Amplifiers

•

www.tektronix.com/accessories

4

Contact Tektronix:

ASEAN Countries & Pakistan (65) 6356 3900

Australia & New Zealand (65) 6356 3900

Austria [phone]

Belgium [phone]

Brazil & South America 55 (11) 3741-8360

Canada 1 [phone]

Central Europe & Greece [phone]

Denmark [phone]

Finland [phone]

France & North Africa [phone]

Germany [phone]

Hong Kong (852) 2585-6688

India (91) 80-2275577
Italy [phone]

Japan (Sony/Tektronix Corporation) 81 (3) 3448-3111

Mexico, Central America & Caribbean 52 (55) 56666-333

The Netherlands [phone]

Norway [phone]

People’s Republic of China 86 (10) 6235 1230

Poland [phone]

Republic of Korea 82 (2) 528-5299

Russia, CIS & The Baltics [phone]

South Africa [phone]

Spain [phone]

Sweden [phone]/4

Taiwan886 (2) 2722-9622

United Kingdom & Eire [phone]

USA 1 [phone]

For other areas contact Tektronix, Inc. at: 1 [phone]

Updated 8 February 2002
