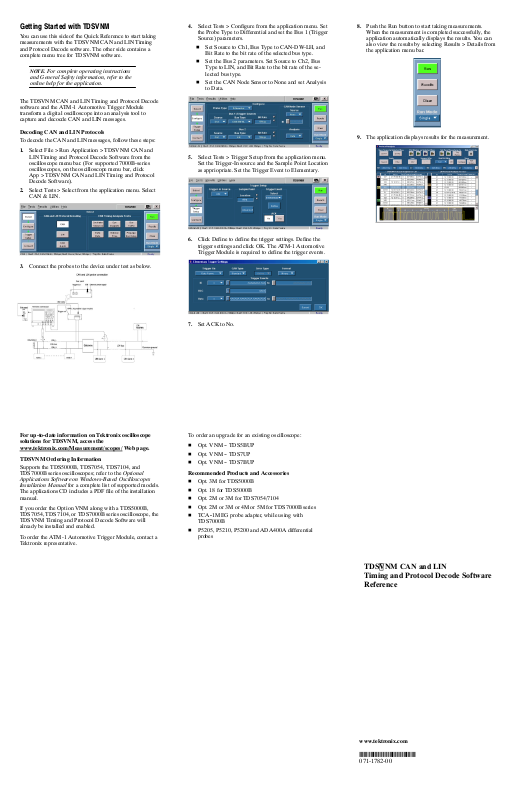

Getting Started with TDSVNM
You can use this side of the Quick Reference to start taking
measurements with the TDSVNM CAN and LIN Timing
and Protocol Decode software. The other side contains a
complete menu tree for TDSVNM software.
NOTE. For complete operating instructions
and General Safety information, refer to the
online help for the application.
The TDSVNM CAN and LIN Timing and Protocol Decode
software and the ATM-1 Automotive Trigger Module
transform a digital oscilloscope into an analysis tool to
capture and decocde CAN and LIN messages.
4. Select Tests > Configure from the application menu. Set
the Probe Type to Differential and set the Bus 1 (Trigger
Source) parameters.
H Set Source to Ch1, Bus Type to CAN-DW-LH, and
Bit Rate to the bit rate of the selected bus type.
H Set the Bus 2 parameters. Set Source to Ch2, Bus
Type to LIN, and Bit Rate to the bit rate of the selected bus type.
H Set the CAN Node Sensor to None and set Analysis
to Data.
8. Push the Run button to start taking measurements.
When the measurement is completed successfully, the
application automatically displays the results. You can
also view the results by selecting Results > Details from
the application menu bar.
Decoding CAN and LIN Protocols
To decode the CAN and LIN messages, follow these steps:
1. Select File > Run Application > TDSVNM CAN and
LIN Timing and Protocol Decode Software from the
oscilloscope menu bar. (For supported 7000B-series
oscilloscopes, on the oscilloscope menu bar, click
App > TDSVNM CAN and LIN Timing and Protocol
Decode Software).
2. Select Tests > Select from the application menu. Select
CAN & LIN.
3. Connect the probes to the device under test as below.
9. The application displays results for the measurement.
5. Select Tests > Trigger Setup from the application menu.
Set the Trigger-In source and the Sample Point Location
as appriopriate. Set the Trigger Event to Elementary.
6. Click Define to define the trigger settings. Define the
trigger settings and click OK. The ATM-1 Automotive
Trigger Module is required to define the trigger events.
For up-to-date information on Tektronix oscilloscope
solutions for TDSVNM, access the
www.tektronix.com/Measurement/scopes/
TDSVNM Ordering Information
Supports the TDS5000B, TDS7054, TDS7104, and
TDS7000B series oscilloscopes; refer to the Optional
Applications Software on Windows-Based Oscilloscopes
Installation Manual for a complete list of supported models.
The applications CD includes a PDF file of the installation
manual.
If you order the Option VNM along with a TDS5000B,
TDS7054, TDS7104, or TDS7000B series oscilloscope, the
TDSVNM Timing and Protocol Decode Software will
already be installed and enabled.
To order the ATM-1 Automotive Trigger Module, contact a
Tektronix representative.
Web page.
7. Set ACK to No.
To order an upgrade for an existing oscilloscope:
H Opt. VNM -- TDS5BUP
H Opt. VNM -- TDS7UP
H Opt. VNM -- TDS7BUP
Recommended Products and Accessories
H Opt. 3M for TDS5000B
H Opt. 18 for TDS5000B
H Opt. 2M or 3M for TDS7054/7104
H Opt. 2M or 3M or 4M or 5M for TDS7000B series
H TCA--1MEG probe adapter, while using with
TDS7000B
H P5205, P5210, P5200 and ADA400A differential
probes
TDS VNM CAN and LIN
Timing and Protocol Decode Software
Reference
www.tektronix.com
*P071178200*
071-1782-00
TDSVNM Menu Tree
File
Recall Default
Recall
Save
Recall Recent
Preferences
Minimize
Exit
Select
Math Destination for
Single--ended probes
Reference Level
Do Autoset Every Time
CAN and LIN
Protocol Decoding
Timing Analysis Tests
Probe Type
Bus1 (Trigger
Source)
Bus1 Source
Bus2 Source
CAN Node Sensor Source
Bus1 Source
Bus2Source
CAN Node Sensor Source
CAN
LIN
CAN & LIN
Oscillator Tolerance
Eye Diagram
Bus Traffic
Data Rate
Wakeup Time
Propagation Delay
Single--ended | Differential
Source
Bus Type
Bit Rate
Math1 | Math2 | Math3 | Math4
Units | Mid | Hysteresis
Slope| Units | Mid | Hysteresis
Timing: Eye, Bit Rate, Differential Skew*, Rise
and Fall Time, Unit Interval , Select All
Amplitude: Differential Output Voltage
AC CM Voltage*
Ch1 | Ch2 | Ch3 | Ch4 | Ref1 | Ref2 | Ref3 | Ref4 *
Ch1Ch2 | Ch3Ch4 | Ch1Ch3 | Ch2Ch4 | Ref1 | Ref2 | Ref3 | Ref4 **
CAN--DW--HL | CAN--DW--LH | CAN--SW | CAN --FT--HL | CAN--FT--LH | LIN
Tes ts
Configure
Trigger Setup
Bus2
CAN Node Sensor
Analysis
Trigger--In Source
Sample Point
Trigger Event
Trigger Setup
{
}
ACK
Source
Bus Type
Bit Rate
Source
ID
Data | Timing
AuxIn|Ch1|Ch2|Ch3|Ch4
Location
Select
Input ID
Wakeup Time
No
Yes
Ch1 | Ch2 | Ch3 | Ch4 | Ref1| Ref2 | Ref3 | Ref4 | None*
Ch1Ch2 | Ch3Ch4 | Ch1Ch3 | Ch2Ch4 | Ref1 | Ref2 | Ref3| Ref4 | None**
CAN--DW--HL | CAN--DW--LH | CAN--SW | CAN --FT--HL | CAN--FT--LH | LIN | None
Ch1 | Ch2 | Ch3 | Ch4 | Ref1| Ref2 | Ref3 | Ref4 | None*
Ch1Ch2 | Ch3Ch4 | Ch1Ch3 | Ch2Ch4 | Ref1 | Ref2 | Ref3| Ref4 | None**
Elementary | Logical | Advanced
Define
Settling Latency Time
Trigger Level
Trigger Slope
Connect
Results
Details
Utilities ATM-1 License Installation
Help
Help Topics
About TDSVNM
About ATM-1
* Displayed when the Probe Type is Differential.
** Displayed when the Probe Type is Single-ended.
{ Available only for protocol decoding.
} Available only for Wakeup Time test.
