teko Astra-TRC Operation Manual

Astra-TRC Bracelet

Wireless Transmitter

Operation Manual

Rev. TRC bracelet-v1_2_en

This Operation Manual describes principles of functioning, proper
use, maintenance and service of the wireless transmitting device
Astra-TRC Bracelet (hereinafter “bracelet”) (Figure 1).
The manufacturer reserves the right to make improvements in the
bracelet design without prior notice. The alterations shall be in­cluded into a new edition of Operation Manual.

1 Function

1.1 The bracelet is a small-sized radio transmitter provided with

an independent battery, and designed to generate and transmit
encoded signals upon pressing a button.

1.2 Encoded signals shall be transmitted after the button is

pressed. The LED indicator illuminating within 2-3 s. denotes sig­nal transfer.

1.3 The indicator will flash on each 2s within 0,2s for a period of

5 min. confirming to the police that the button
was pressed, and that the activation of the but­ton wasn’t false.

1.4 The bracelet will stop transmitting signals

in 20 seconds after pressing the button, regard­less of how long you press the button, even if it
is still pressed.

1.5 The bracelet is powered from a 3V battery,

type СR2430.

1.6 If light intensity is inferior and the LCD in-

dicator blinks when the button is pressed, it in­dicates that the battery in the bracelet is low.

1.7 The manufacturer guarantees a minimum

communication range 50m between Astra-RVC
receiver (hereinafter referred to as receiver) and
the bracelet in line of sight in the area with dry
ground in the absence of strong radio interference, and objects in­terfering with and reflecting radio waves. The communication
range between the receiver and the bracelet can be cut down to
30m inside concrete buildings and in presence of radio interfe­rence.

2 Specifications

Operating frequency, МHz .................................. . 433,82 - 434,02

Power supply voltage, V, max ....................................................... 3

Output capacity, mWt, max ......................................................... 10

Current consumption:

- in standby mode, µА, max........................................................... 5

- in radio transmission mode, mА, max ....................................... 35

Overall dimensions (without band) ............................... 52,3×36×13

Weight (with battery), kg, max .................................................. 0,04

Operating Conditions

Temperature range, оС ......................................... .from 0 up to +50

Relative air humidity, ...................................... .up to 95 at + 35 C

Without moisture condensation

3 Delivery Set

Radio transmitting device

Astra-TRC bracelet ................................................................ 1 pcs.

Battery СR2430 (included) .................................................... 1 pcs.

Operation Manual ................................................................. 1 copy.

4 Structure

The bracelet is designed as a wrist watch, and consists of a cover
and a base (Figure 2).
The front cover contains a button and a printed circuit board with
radio elements.
The printed circuit board contains an indicator controlling opera­tion of the bracelet.

Figure 2

5 Registration of the Bracelet in Receiver
Memory

5.1 After transportation in conditions differing from those of

operation keep bracelet unpacked under supposed operation
conditions for at least 2 hours.

5.2 Bracelets shall be registered in turns in any order. In case
of successful registration, receiver will “save” in its nonvolatile
memory a unique factory number of the bracelet, and will
attribute a serial number in the order of registered bracelets.

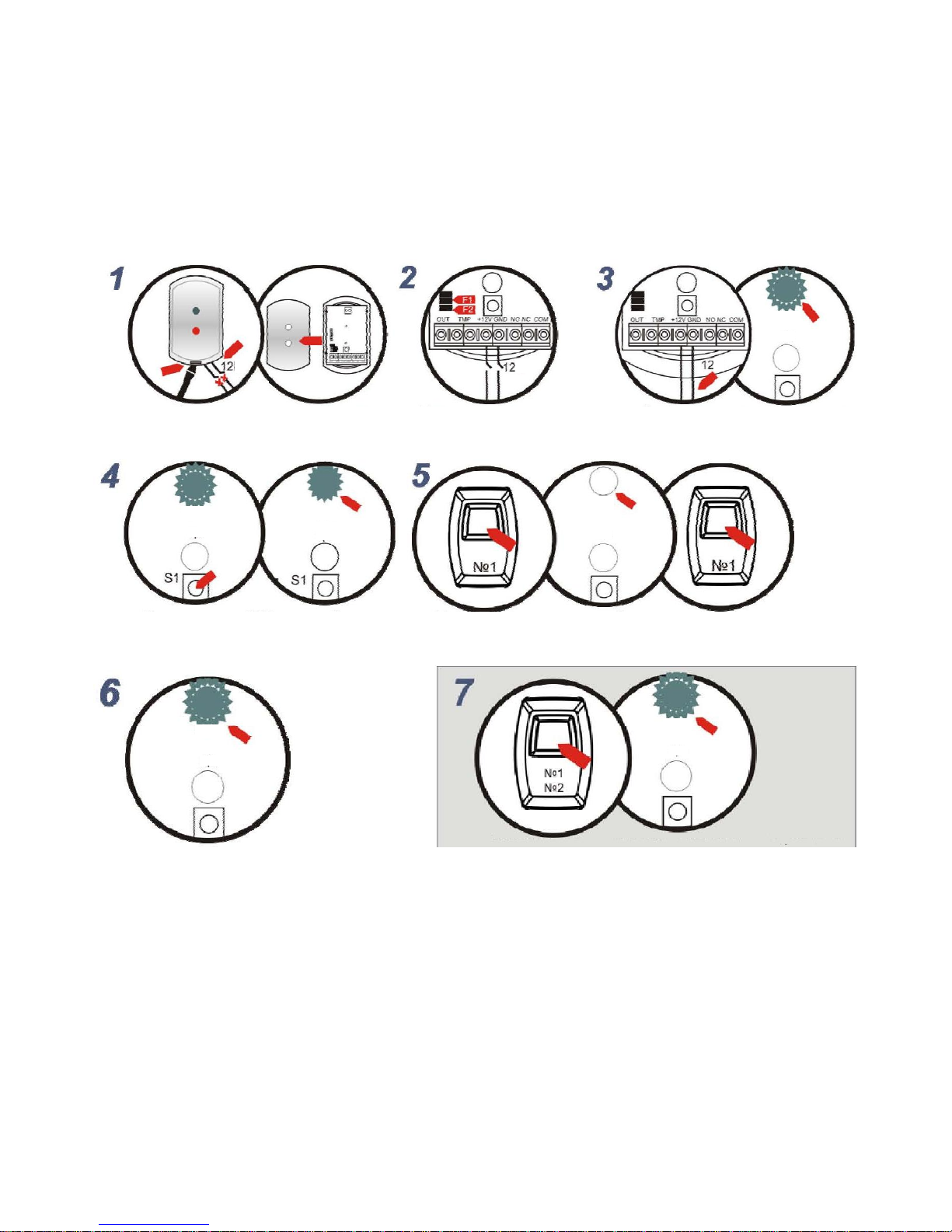

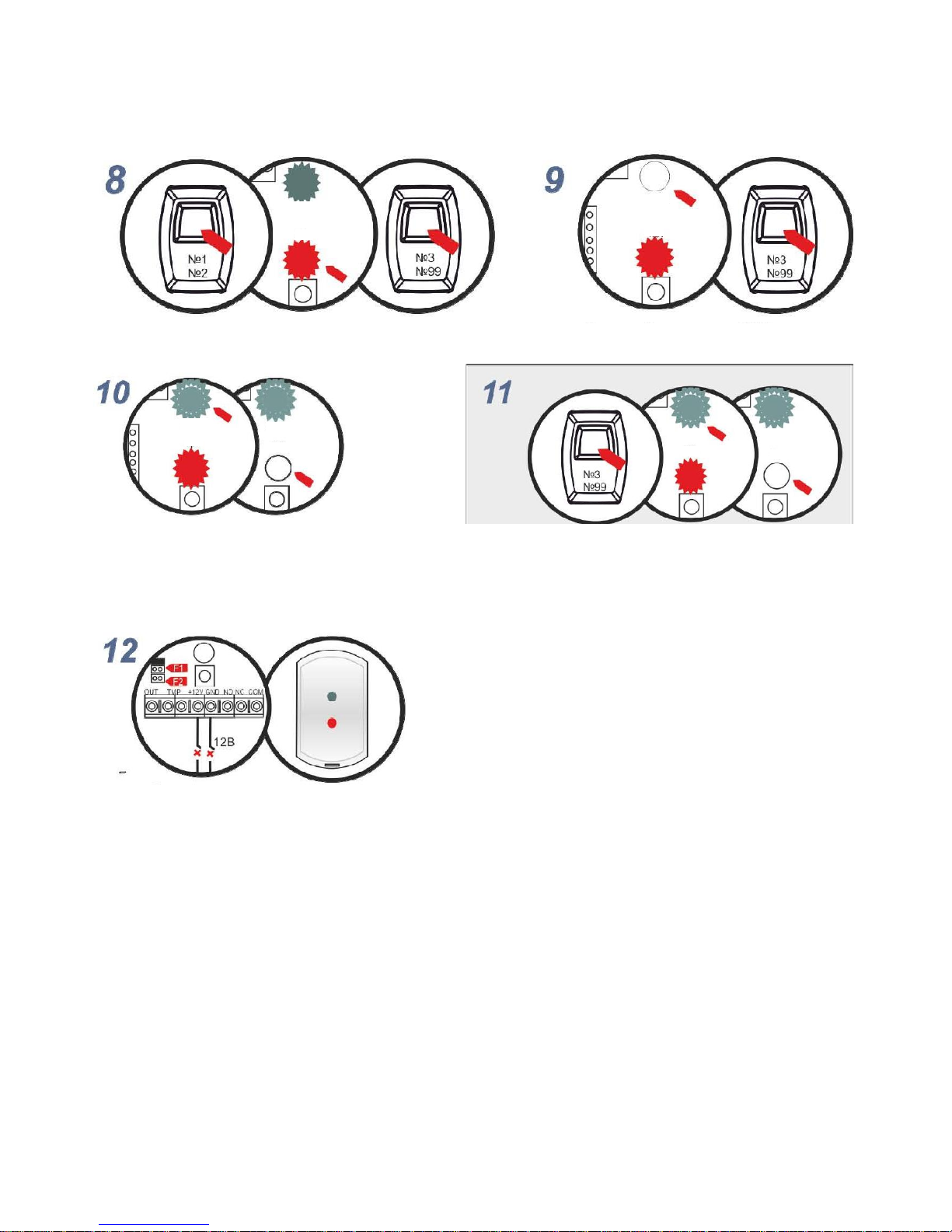

An illustrated manual describing registration of bracelets is
provided in Appendix A.

5.3 Clear the receiver memory before registration of the first

bracelet.

1) Remove the front cover from the receiver by pushing a base
clip from the cover slot.

2) Install jumpers on F1 and F2 plugs.

3) Power the receiver up.

4) A green receiver indicator will blink once per 4 seconds.

5) Press and hold the button on the receiver until the green indi-

cator is off. The receiver memory is clear.

6) Power the receiver off.

5.4 Registration of First Two Bracelets

1) Remove the front cover from the receiver by pushing a base

clip from the cover slot.

2) Install jumpers on F1 and F2 plugs of the receiver.

3) Power the receiver up.

A green receiver indicator will blink once per 4 seconds, a red
indicator is off.

4) Briefly press the button on the receiver. The green indicator

will illuminate. The receiver will switch to the registration mode for

30 s.

5) Press the button on the bracelet which is to be registered.

The green indicator on the receiver will be off.

6) Press again the button on the bracelet which is to be regis-

tered.
The green indicator on the receiver will be blinking 2 times per 1
second within 4 seconds. It will indicate successful registration.
The green indicator will blink 2 times and switch to the standard
mode (blinks 1 time per 4 seconds). It will indicate a failed regis­tration.
Possible causes of failed registration:
– the bracelet has been earlier registered – if you press the button
on the bracelet a red indicator will illuminate on the receiver;
– the registration procedure is wrong – repeat registration steps
til 5.4 or 5.5.

7) Power the receiver down.

8) Remove jumpers from F1 and F2 plugs.

9) Close the receiver cover.

Figure 1

Rev. TRC bracelet-v1_2_en

2

5.5 Registration of the Third and the Following Bracelets

1) Remove the front cover from the receiver by pushing a base

clip from the cover slot.

2) Install jumpers on F1 and F2 plugs of the receiver.

3) Power the receiver up.

A green receiver indicator will blink once per 4 seconds, a red
indicator is off.

4) Briefly press the button on the receiver. The green indicator

will illuminate. The receiver will switch to the registration mode for

30 s.

5) Press the button on one of the first two registered bracelets

or key fobs. The red receiver indicator will illuminate.

6) Immediately, press the button on the bracelet which is to be

registered. The green indicator on the receiver will be off.

7) Press again the button on the bracelet which is to be regis-

tered. The green indicator on the receiver will be blinking 2 times
per 1 second within 4 seconds, and the red indicator will be off. It
will indicate successful registration.
The green indicator on the receiver will blink 2 times and switch
to the standard mode (blink 1 time per 4 seconds). It will indicate a
failed registration.
Possible causes of failed registration see in p.5.4.

8) Power the receiver off.

9) Remove jumpers from F1 and F2 plugs of the receiver.

10) Close the receiver cover.

6 Battery Replacement

1) Unscrew the holding screw

in the base of the bracelet.

2) Remove the cover of the

battery compartment.

3) Remove old battery.

4) Install a new battery in max-

imum 10s.

5) Replace the cover of the

battery compartment.

6) Tighten the holding screw in

the base.

7 Recycling

The bracelet does not pose threat to life and health of people, as
well as to the environment. After the expiry of its service life pe­riod, the bracelet shall be disposed of without special precautions
in respect to the environment.
The waste batteries must be returned to the trading organization,
service center, and manufacturer or to a recycling organization.

8 Manufacturer Warranties

8.1 The manufacturer warrants that the bracelet will meet re-

quirements of technical specifications if a user follows all shipping,
storage, mounting and operating guidelines.

8.2 The warranted shelf life is 1 year 6 month from manufacturing
date.

8.3 The warranted service life is 1 year from the commissioning
date, but not more than 1 year 6 months from manufacturing date
(the warranty doesn’t cover the battery).

8.4 The manufacturer must repair or replace the bracelet within
the warranty period.

8.5 The warranty does not become effective in the following
cases:

– failure to comply with this Operation Manual;
– mechanic damage of the bracelet;
– if the bracelet is improperly repaired by anyone other than the

manufacturer.

8.6 The warranty applies only to the bracelet. All other equipment
of other manufacturers used with the bracelet is subject to other
manufacturer’s warranties.

In no case shall the manufacturer be liable for any death,
physical injury or property damage, or any other accidental
or intentional loss based on claim that the bracelet failed to
perform its functions.

Sales:
Controlex GmbH

Warranty service and
technical support:

ТЕКО-TD

Philosophenweg 31-33
47051 Duisburg, Germany
Phone: +49 (0) 203 / 393 91 188
Fax: +49 (0) 203 / 393 91 189
GSM: +49 (0) 178 / 218 48 22
E-mail: [e-mail]
Web: www.controlex.eu

Prospect Pobedy str. 19
420138 Kazan, Russia
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

[e-mail]

Web: www.teko.biz

Made in Russia
