Page 1
67,2
135,9
A
R2,4
116,7
15 13,5
3,56
0,50
0,5
30,23
2,54 2,03
62,10
R3
93
4,95
3,7
2,54
67,2
56,6
2,54
6,35
107,3
116,7
A
93,14
3,56
17,8 17,5

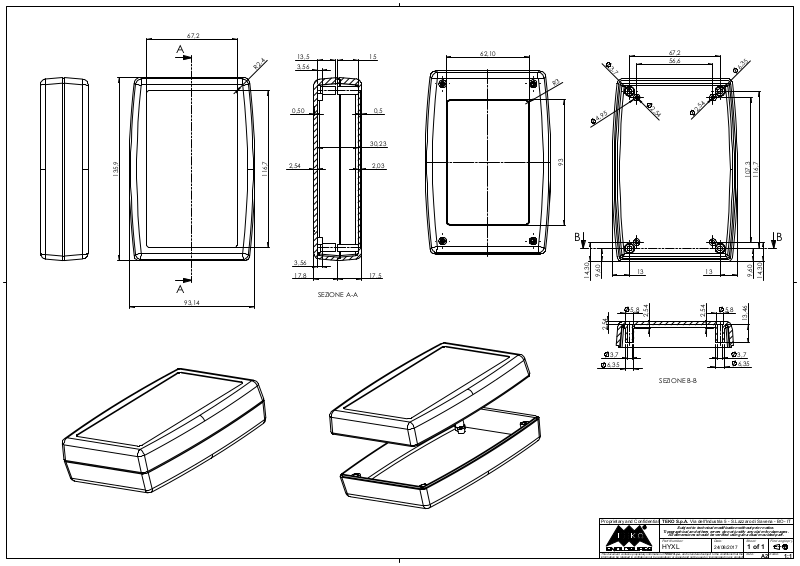

SEZIONE A-A
9,60
14,30
2,54
3,7
6,35
13 13
5,8
2,54
2,54
5,8
13,46
3,7
6,35
9,60
14,30
BB
SEZIONE B-B
Proprietary and Confidential
TEKO S.p.A.
Tipographical and others errors do not justify any claim for damages.
All dimensions should be verified using an actual moulded part.
Part Number:
HYXL
This document contains proprietary information of
information be retained in confidence not be reproducer or copied and not be used or incorporated in any product
TEKO S.p.a.
Via dell'Industria 5 - S.Lazzaro di Savena - BO - IT
Subject to technical modification without prior notice.
Date:
24/08/2017
and is tendered subject to the conditions that the
Sheet:
1 of 1
Size:
First angle prj.
Scale:
A2
1:1
