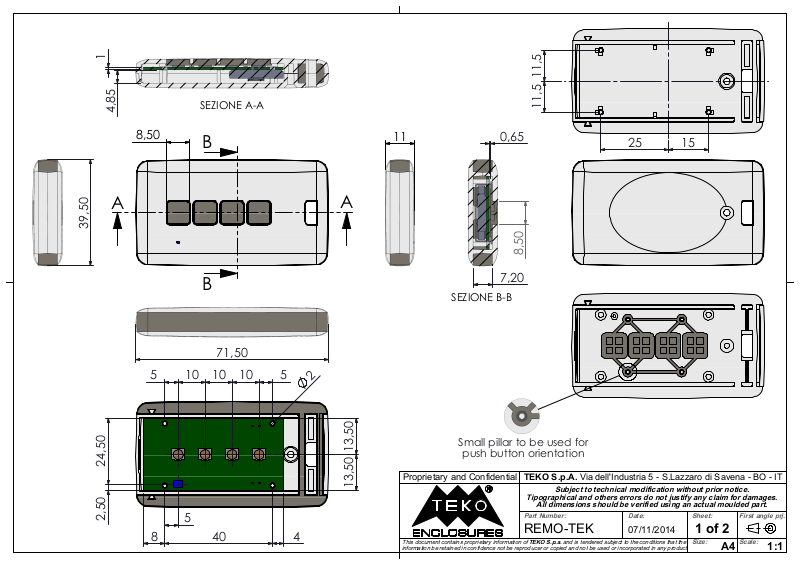

Page 1
1
11,5 11,5
4,85
A
39,50
SEZIONE A-A
8,50
B
B
71,50
5 10 10 10 5
2
A
11
0,65
7,20
SEZIONE B-B
25 15
8,50
2,50 24,50
5
8 40 4
13,50 13,50
Small pillar to be used for
push button orientation
Proprietary and Confidential
TEKO S.p.A.
Tipographical and others errors do not justify any claim for damages.
All dimensions should be verified using an actual moulded part.
Part Number:
REMO-TEK
This document contains proprietary information of
information be retained in confidence not be reproducer or copied and not be used or incorporated in any product
TEKO S.p.a.
Via dell'Industria 5 - S.Lazzaro di Savena - BO - IT
Subject to technical modification without prior notice.
Date:
07/11/2014
and is tendered subject to the conditions that the
Sheet:
1 of 2
Size:
First angle prj.
Scale:
A4
1:1

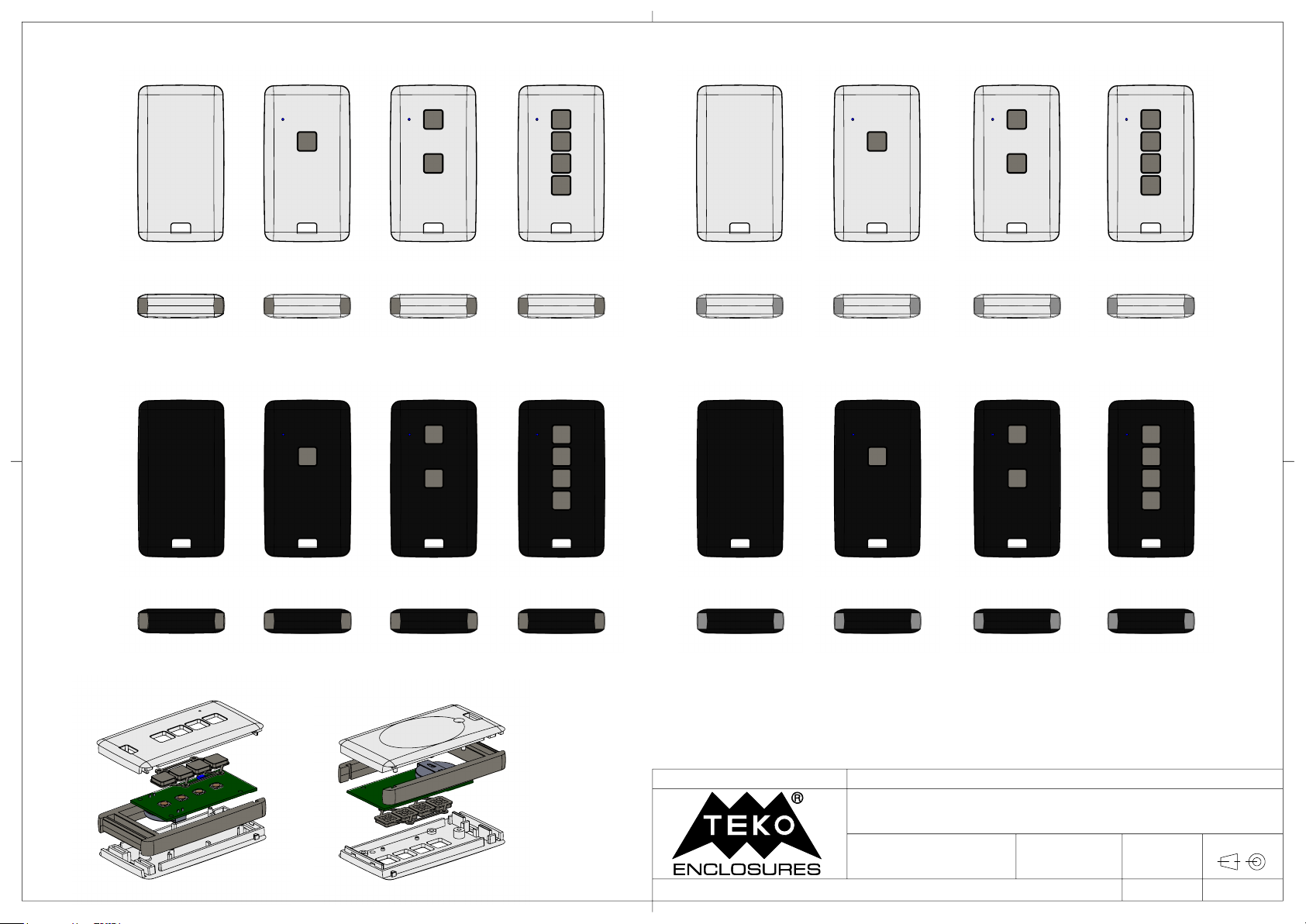

Page 2
Light gray plastic side bumper
Polished chrome side bumper
13120.30 13121.30 13122.30 13124.30
13124.2313122.2313121.2313120.23
13124.4713122.4713121.4713120.47
13124.4413122.4413121.4413120.44
Proprietary and Confidential
TEKO S.p.A.
Tipographical and others errors do not justify any claim for damages.
All dimensions should be verified using an actual moulded part.
Part Number:
REMO-TEK
This document contains proprietary information of
information be retained in confidence not be reproducer or copied and not be used or incorporated in any product
TEKO S.p.a.
Via dell'Industria 5 - S.Lazzaro di Savena - BO - IT
Subject to technical modification without prior notice.
Date:
07/11/2014
and is tendered subject to the conditions that the
Sheet:
2 of 2
Size:
First angle prj.
Scale:
A4
1:1
