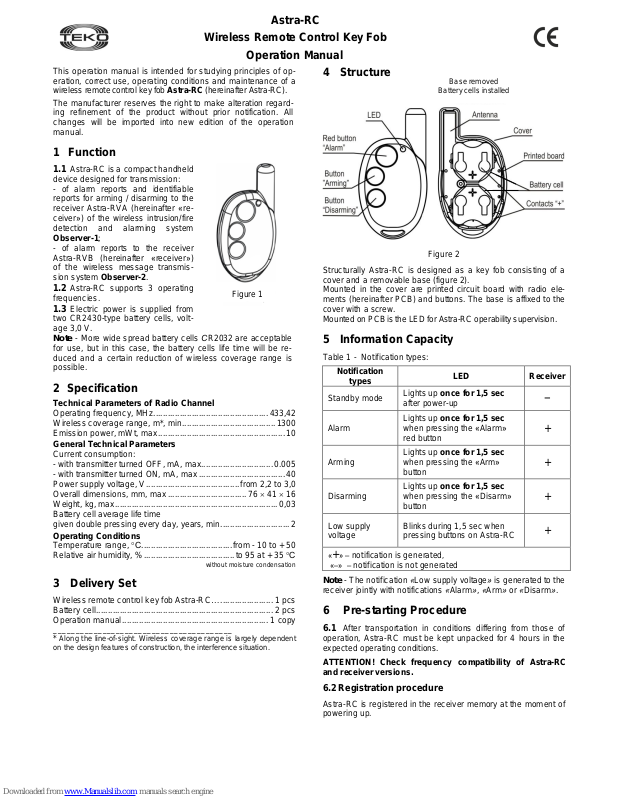

teko Astra-RC Operation Manual

Astra-RC

Wireless Remote Control Key Fob

Operation Manual

This operation manual is intended for studying principles of op­eration, correct use, operating conditions and maintenance of a
wireless remote control key fob Astra-RC (hereinafter Astra-RC).

The manufacturer reserves the right to make alteration regard­ing refinement of the product without prior notification. All
changes will be imported into new edition of the operation
manual.

1 Function

1.1 Astra-RC is a compact handheld

device designed for transmission:

- of alarm reports and identifiable
reports for arming / disarming to the
receiver Astra-RVA (hereinafter «re­ceiver») of the wireless intrusion/fire
detection and alarming system
Observer-1;

- of alarm reports to the receiver
Astra-RVB (hereinafter «receiver»)
of the wireless message transmis­sion system Observer-2.

1.2 Astra-RC supports 3 operating

frequencies.

1.3 Electric power is supplied from

two CR2430-type battery cells, volt­age 3,0 V.

Note - More wide spread battery cells СR2032 are acceptable
for use, but in this case, the battery cells life time will be re­duced and a certain reduction of wireless coverage range is
possible.

2 Specification

Technical Parameters of Radio Channel

Operating frequency, MHz ................................................ 433,42

Wireless coverage range, m*, min ....................................... 1300

Emission power, mWt, max ..................................................... 10

General Technical Parameters

Current consumption:

- with transmitter turned OFF, mA, max .............................. 0.005

- with transmitter turned ON, mA, max .................................... 40

Power supply voltage, V ....................................... from 2,2 to 3,0

Overall dimensions, mm, max ................................. 76  41  16

Weight, kg, max .................................................................... 0,03

Battery cell average life time

given double pressing every day, years, min ............................. 2

Operating Conditions

Temperature range, °С ...................................... from - 10 to + 50

Relative air humidity, % ...................................... to 95 at + 35 °С

without moisture condensation

3 Delivery Set

Wireless remote control key fob Astra-RC… ...................... 1 pcs

Battery cell .......................................................................... 2 pcs

Operation manual ............................................................. 1 copy

________________________________________

* Along the line-of-sight. Wireless coverage range is largely dependent

on the design features of construction, the interference situation.

4 Structure

Figure 2

Structurally Astra-RC is designed as a key fob consisting of a
cover and a removable base (figure 2).
Mounted in the cover are printed circuit board with radio ele­ments (hereinafter PCB) and buttons. The base is affixed to the
cover with a screw.
Mounted on PCB is the LED for Astra-RC operability supervision.

5 Information Capacity

Table 1 - Notification types:

Notification

types

LED

Receiver

Standby mode

Lights up once for 1,5 sec
after power-up

−

Alarm

Lights up once for 1,5 sec
when pressing the «Alarm»
red button

+

Arming

Lights up once for 1,5 sec
when pressing the «Arm»
button

+

Disarming

Lights up once for 1,5 sec
when pressing the «Disarm»
button

+

Low supply
voltage

Blinks during 1,5 sec when
pressing buttons on Astra-RC

+

«+» – notification is generated,
«–» – notification is not generated

Note - The notification «Low supply voltage» is generated to the
receiver jointly with notifications «Alarm», «Arm» or «Disarm».

6 Pre-starting Procedure

6.1 After transportation in conditions differing from those of

operation, Astra-RC must be kept unpacked for 4 hours in the
expected operating conditions.

ATTENTION! Check frequency compatibility of Astra-RC
and receiver versions.

6.2 Registration procedure

Astra-RC is registered in the receiver memory at the moment of
powering up.

Figure 1

Base removed

Battery cells installed

2

Astra-RCv7_1_en

Step-1

Place Astra-RC on the installation surface and dismantle it:

- Loosen the screw;

- Put a screwdriver bit into the slot on the Astra-RC housing

and lift the base. If the base comes off with difficulty, do the
same from the other side;

- Take the base off.

Step-2

Set the registration mode on the receiver according to proce­dure described in the «Astra-RVA» operation manual or Ob­server-1(2) system operation manual (available for free down­loading from www.controlex.eu) or Quick Start Guide.

Step-3

Turn Astra-RC ON, replace the battery cells (during registra­tion it is enough to install one battery cell).

Step-4

Make sure the registration procedure is completed according
to the procedure described in the «Astra-RVA» operation
manual or Observer-1(2) system operation manual or Quick
Start Guide.
Once the registration procedure completed successfully, as­semble Astra-RC:

- install the base on its place;

- drive the screw.

In case the registration procedure is failed, repeat steps 2 – 4.

Step-5

If necessary, carry out authority assignment procedure to enable
arm / disarm functions of Astra-RC by following the instructions
described in the Observer-1 system operation manual or Quick
Start Guide.

7 EC Conformity Declarations

This product is in conformity with the provisions of:
R&TTE Directive 1999/5/EC, Article 10.5;
EN 60950: 2001 Safety of information technology equipment;
EN 50371 Generic standard to demonstrate the compliance of low­power electronic and electrical apparatuses with the basic restrictions
related to human exposure to electromagnetic fields (10 MHz - 300
GHz) – General public;
EN 301489-17 V1.1.1 (09-2000) Electromagnetic Compatibility and
radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific conditions
for wideband data Hiperlan equipment;
EN 300220-1 V1.3.1 (2000-09) Electromagnetic compatibility and Radio
spectrum Matters (ERM); Short range devices; Technical characteristics
and test methods for radio equipment to be used in the 25 MHz to 1 000
MHz frequency range with power levels ranging up to 500 mWt; Part 1:

Parameters intended for regulatory purposes.

8 Recycling

8.1 The product is not a danger to life, human health and the environ­ment. On expiry of its lifetime recycling is done without taking special
measures to protect the environment.

8.2 Recycling of battery cells should be done by delivering used cells to
a trading organization, service centre, manufacturer, or to an organiza­tion accepting used batteries.

9 Warranty Terms

9.1 The manufacturer guarantees the compliance of the product to
specifications on condition that user observes required conditions of
transportation, storage, installation and operation.

9.2 The storage warranty period is 1 year and 6 months from the date of
manufacture.

9.3 The operation warranty period is 1 year from the date of putting into
operation but no longer than 1 year 6 months from the date of manufac­turing.

9.4 The manufacturer guarantees replacement or repair of the product
during the warranty period.

9.5 The warranty doesn’t come into effect in the following cases:

- not adherence to instructions of the operation manual;

- mechanical damage of the product;

- repair of the product by any third-party service apart from the manu­facturer.

9.6 Warranty applies only to the product. All equipments from third-party
manufacturers used in conjunction with the device, including batteries,
are subject to their own warranty terms and conditions.

The manufacturer bears no responsibility for death, injury, proper­ty damage or other incidental or premeditated loss based on us­er's statement that the device failed to implement its functions.
