OWNER’S MANUAL

TP-329

INTRODUCTION

Thank you for selecting the Oregon Scientific™ TP329 as your product of choice. This product is a portable, easy-to-use two-way radio transceiver. You can use it to contact your family and friends at shopping malls, amusement parks, or even sports events!

The transceiver has 14 channels and 38 CTCSS (Continuous Tone Coded Squelch System) codes. If someone else is using the same channel as yours, and you do not want to hear that person, you can select another channel or use the CTCSS feature. You can talk with a person who has the same transceiver if both are tuned to the same channel and/or CTCSS code.

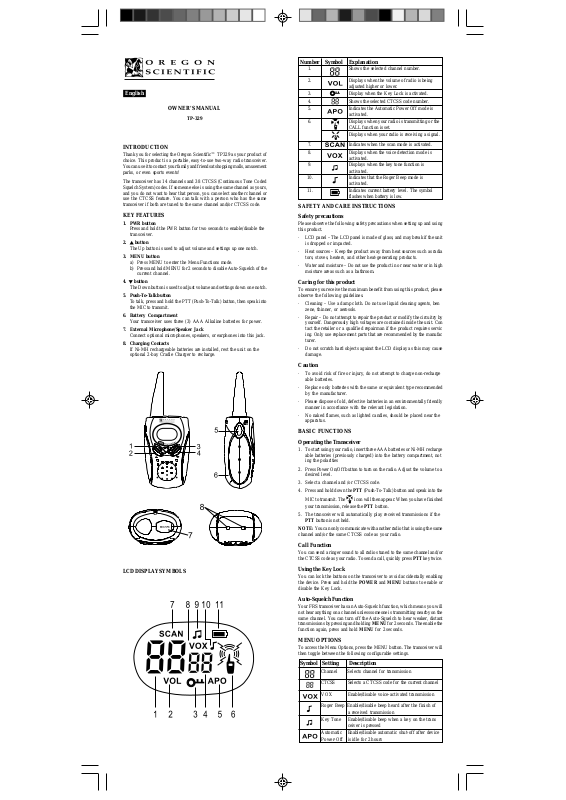

KEY FEATURES

1. PWR button

Press and hold the PWR button for two seconds to enable/disable the transceiver.

button

The Up button is used to adjust volume and settings up one notch.

3. MENU button

a) Press MENU to enter the Menu Functions mode. b) Press and hold MENU for 2 seconds to disable Auto-Squelch of the

current channel.

button

The Down button is used to adjust volume and settings down one notch.

5. Push-To-T alk button

To talk, press and hold the PTT (Push-To-Talk) button, then speak into the MIC to transmit.

6. Battery Compartment

Your transceiver uses three (3) AAA Alkaline batteries for power.

7. External Microphone/Speaker Jack

Connect optional microphones, speakers, or earphones into this jack.

8. Charging Contacts

If Ni-MH rechargeable batteries are installed, rest the unit on the optional 2-bay Cradle Charger to recharge.

LCD DISPLAY SYMBOLS

Number Symbol Explanation

1. Shows the selected channel number.

2. Displays when the volume of radio is being

3. Display when the Key Lock is activated.

4. Shows the selected CTCSS code number.

5. Indicates the Automatic Power Off mode is

6. Displays when your radio is transmitting or the

7. Indicates when the scan mode is activated.

8. Displays when the voice detection mode is

9. Displays when the key tone function is

10. Indicates that the Roger Beep mode is

11. Indicates current battery level. The symbol

adjusted higher or lower.

activated.

CALL function is set. Displays when your radio is receiving a signal.

activated.

flashes when battery is low.

SAFETY AND CARE INSTRUCTIONS Safety precautions

Please observe the following safety precautions when setting up and using this product.

· LCD panel – The LCD panel is made of glass, and may break if the unit is dropped or impacted.

· Heat sources – Keep the product away from heat sources such as radia tors, stoves, heaters, and other heat-generating products.

· Water and moisture – Do not use the product in or near water or in high moisture areas such as a bathroom.

Caring for this product

To ensure you receive the maximum benefit from using this product, please observe the following guidelines.

· Cleaning – Use a damp cloth. Do not use liquid cleaning agents, ben zene, thinner, or aerosols.

· Repair – Do not attempt to repair the product or modify the circuitry by yourself. Dangerously high voltages are contained inside the unit. Con tact the retailer or a qualified repairman if the product requires servic ing. Only use replacement parts that are recommended by the manufac turer.

· Do not scratch hard objects against the LCD display as this may cause damage.

Caution

· To avoid risk of fire or injury, do not attempt to charge non-recharge able batteries.

· Replace only batteries with the same or equivalent type recommended by the manufacturer.

· Please dispose of old, defective batteries in an environmentally friendly manner in accordance with the relevant legislation.

· No naked flames, such as lighted candles, should be placed near the apparatus.

BASIC FUNCTIONS Operating the Transceiver

1. To start using your radio, insert three AAA batteries or Ni-MH recharge able batteries (previously charged) into the battery compartment, not ing the polarities

2. Press Power On/Off button to turn on the radio. Adjust the volume to a desired level.

3. Select a channel and /or CTCSS code.

4. Press and hold down the PTT (Push-To-T alk) button and speak into the MIC to transmit. The your transmission, release the PTT button.

5. The transceiver will automatically play received transmissions if the

PTT button is not held.

NOTE: Y ou can only communicate with another radio that is using the same

channel and/or the same CTCSS code as your radio.

Call Function

You can send a ringer sound to all radios tuned to the same channel and/or the CTCSS code as your radio. To send a call, quickly press PTT key twice.

Using the Key Lock

You can lock the buttons on the transceiver to avoid accidentally enabling the device. Press and hold the POWER and MENU buttons to enable or disable the Key Lock.

Auto-Squelch Function

Your FRS transceiver has an Auto-Squelch function, which means you will not hear anything on a channel unless someone is transmitting nearby on the same channel. You can turn off the Auto-Squelch to hear weaker, distant transmissions by pressing and holding MENU for 2 seconds. The enable the function again, press and hold MENU for 2 seconds.

MENU OPTIONS

To access the Menu Options, press the MENU button. The transceiver will then toggle between the following configurable settings.

icon will then appear. When you have finished

Symbol Setting Description

Channel Selects channel for transmission

CTCSS Selects a CTCSS code for the current channel

VOX Enable/disable voice-activated transmission

Roger Beep Enable/disable beep heard after the finish of

a received transmission

Key Tone Enable/disable beep when a key on the trans

ceiver is pressed Automatic Enable/disable automatic shut-off after device Power-Off is idle for 2 hours

NOTE: When you are finished configuring the current setting, press MENU again to confirm and move to the next setting. To confirm the changes but quit the Menu Options, press PTT.

Selecting a Channel

Select between the 14 channels of the transceiver to use to communicate with others. To transmit, the transmitter and the receiver must be on the same channel.

Scanning

When you are selecting a channel, you can also activate the channel scan function by pressing and holding display. If a valid signal is present, the transceiver will pause on the current active channel. Press a button to set this as your channel. Otherwise, the scan mode will then immediately search for the next channel if no button is pressed after 5 seconds. During scan, pressing PTT or MENU key will stop the scan mode and exit the menu. Or, pressing MENU key will stop scanning and go to the next setting.

Selecting a CTCSS code

The CTCSS is like having a sub-channel within a channel, giving you greater communication flexibility. It lets you talk and listen to other transmitters set to BOTH the same channel and CTCSS code. There are 38 CTCSS codes to choose from (see Appendix).

Scanning the CTCSS

You can also activate the CTCSS scan function by pressing and holding or . will be shown on the display. If a valid signal is present, the transceiver will pause on the current active CTCSS channel. Press a button to set this as your CTCSS channel. Otherwise, the scan mode will then immediately search for the next CTCSS channel if no button is pressed after 5 seconds. During scan, pressing PTT or MENU key will stop the scan mode and exit the menu. Or, pressing MENU key will stop scanning and go to the next setting.

Setting VOX

This setting automatically detects and transmits your voice through the selected channel, without needing to push and hold PTT. Select between 3 levels of VOX by pressing this function is enabled.

LCD Symbol Description

0 VOX disabled 1 Low sensitivity – only audibly loud voices are

2 Normal sensitivity – ideal setting for voice-

3 High sensitivity – all detected sounds (includ

Roger Beep Mode

If the Roger Beep mode is enabled, the receiving party will hear a beep tone when you finish transmitting a message. This avoids situations where messages are interrupted because the other party is not aware that the transmission is not finished. Press function. Icon

Key Ton e

The Key Tone function, if enabled, causes the unit to beep whenever a button is pressed. Press function. Icon ‘

APO Function (Automatic Power Off)

This function enables your transceiver to automatically shut itself off if left idle for 2 hours. Press tion. Icon

NOTE: To re-enable the transceiver after automatic shut-off, simply press PWR button.

CHARGING CONTACTS (OPTIONAL)

You can directly charge Ni-MH rechargeable batteries without taking batteries out from the battery compartment by using an optional 2-bay cradle charger (sold separately). You can recharge up to two radios at the same time. The LED on the cradle charger will light red when the transceivers are charging. Complete charging takes about 14 to 1 6 hours.

Located inside the transceiver’s battery compartment is a charging switch, which enables the recharging of batteries. When placed on the cradle. The switch must be set to ‘ON’ when rechargeable batteries are used and recharged using the cradle. If alkaline batteries are used, the switch should be set to ‘OFF’.

WARNING: Do not put transceivers into the charger when using alkaline batteries.

CAUTION: The cradle charger does not automatically switch off after the batteries have been fully recharged. As such, there is a danger of overcharging, which may shorten the batteries’ lifespan heavily.

will be shown if activated.

’ will be shown if activated.

will be shown if activated.

or . will be shown on the

or key. The icon is displayed when

transmitted (useful for noisy environment)

activated transmission

ing noise) are transmitted

or to activate or deactivate the Roger Beep

or to activate or deactivate the Key Tone

or key to activate or deactivate the APO func-

APPENDIX Channel Frequencies

Channel Frequency (in MHz) Channel Frequency (in MHz)

01 462.5625 08 467.5625

02 462.5875 09 467.5875 03 462.6125 10 467.6125 04 462.6375 11 467.6375 05 462.6625 12 467.6625 06 462.6875 13 467.6875

07 462.7125 14 467.7125

CTCSS Privacy Codes

Channel Frequency (in Hz) Channel Frequency (in Hz)

01 67.0 20 131.8 02 71.9 21 136.5 03 74.4 22 141.3

04 77.0 23 146.2 05 79.7 24 151.4 06 82.5 25 156.7

07 85.4 26 162.2 08 88.5 27 167.9 09 91.5 28 173.8 10 94.8 29 179.9 11 97.4 30 186.2 12 100.0 31 192.8 13 103.5 32 203.5 14 107.2 33 210.7 15 110.9 34 218.1 16 114.8 35 225.7 17 118.8 36 233.6 18 123.0 37 241.8

19 127.3 38 250.3

THE FCC W ANTS YOU TO KNOW

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

. Consult your local RadioShack store or an experienced radio/TV

technician for help. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAFETY INFORMATION

Your wireless handheld portable transceiver contains a low power transmitter. When the Push-To-Talk (PTT) button is pressed, it sends out radio frequency signals. The device is authorized to operate at a duty factor not to exceed fifty percent. In August 1996, the Federal Communications Commission adopted RF exposure guidelines with safety levels for handheld wireless devices.

CAUTION

To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least two inches from your face and speak in a normal voice, with the antenna pointed up and away from your face. If you wear the handset on your body while using the headset accessory, use only the supplied belt clip for this product. When transmitting, take it out of the belt to ensure the antenna is at least one inch (2.5cm) from your body.

Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations.

SPECIFICATIONS

RX Frequency ................................................ 462.5625 - 467.7125 MHz

Channels. ............................................................................................... 14

Modulation type ................................................................................. FM

Antenna impedance .................................................................... .50 Ohm

Microphone .................................................................... condenser Type

Power supply ............................................................... 3 × AAA Alkaline

Sensitivity at 12dB Sinad ............................................................... .0.5µV

Adjacent Channel Rejection ........................................................... 45dB

Audio Squelch .................................................................................. Auto

Audio output power .................................................... 100mW @ 8 Ohm

Audio Distortion ................................................................................. 7%

RF Output Power ...................................................... 500 mW @4.5VDC

Harmonic Emissions ................................................................. > = 46dB

Dimensions (HWD) ........................................................... 87×54×36mm

Weight(without batteries) ................................................................... 74g

ADDITIONAL RESOURCES

Visit our website (www.oregonscientific.com) to learn more about your transceiver and other Oregon Scientific™ products such as digital cameras, hand-held organizers, alarm clocks, and weather stations. The website also includes contact information for our customer service department, in case you need to reach us.
