User Manual

LP8 818 BLANCO VR01/

LP8 818 INOX VR01

www.teka.com

Page 2

1) Safety Information..........................................11) Safety Information..........................................1

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date.

Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself .

If you can not solve the problems by yourself , please ask for the help of professional technicians.

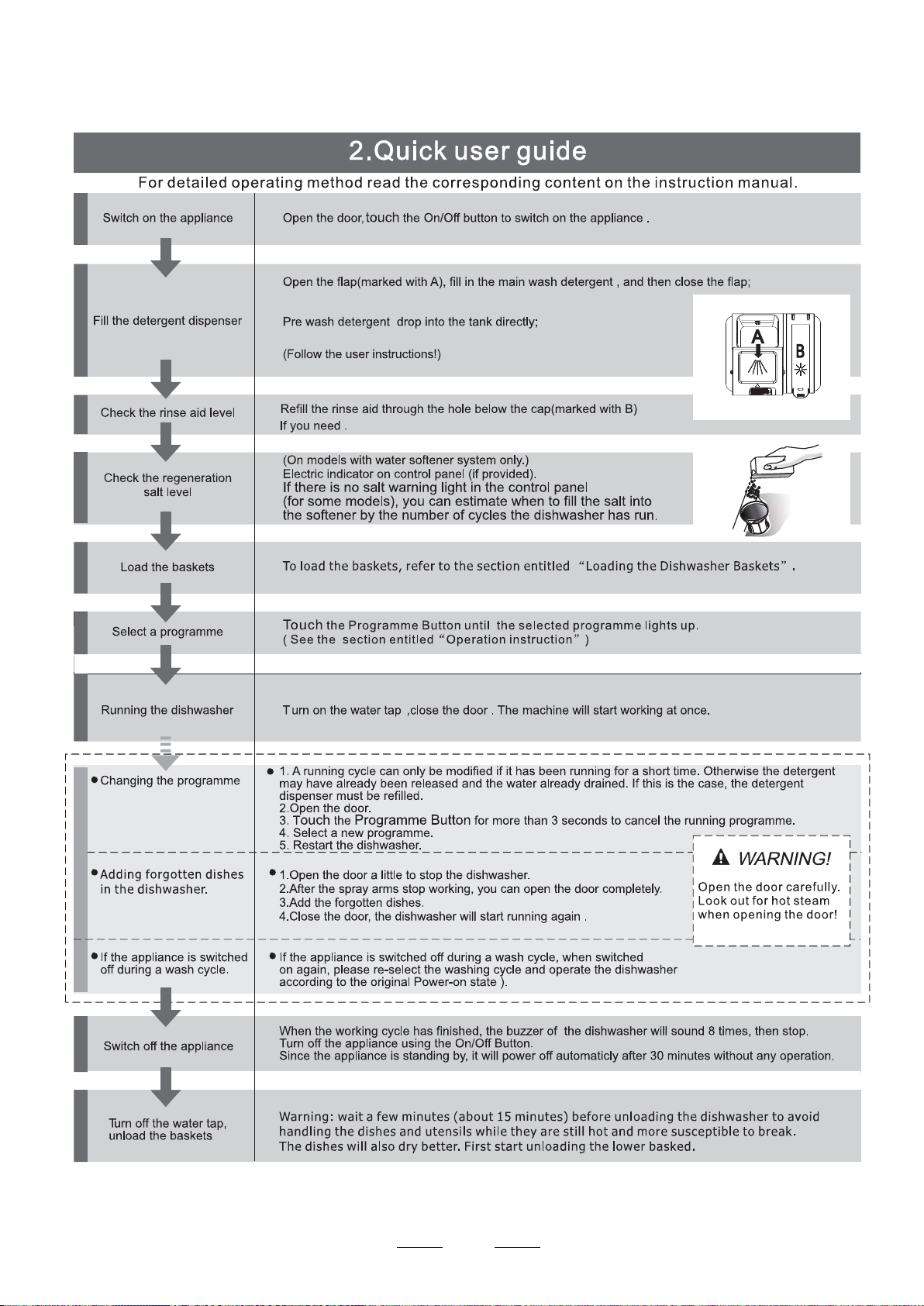

2) Quick operation guide..................................... 22) Quick operation guide..................................... 2

3) Operation Instruction...................................... 33) Operation Instruction...................................... 3

Control Panel...................................................3

Dishwasher Features.................................... ...3

4) Prior using for the first time.............................. 44) Prior using for the first time.............................. 4

A Water Softener.......................................... 4

B Loading the Salt into the Softener.................5

C Fill the Rinse Aid Dispenser.........................5

D Function of Detergent .................................6

5) Loading the Dishwasher Basket...................... 95) Loading the Dishwasher Basket...................... 9

Attention before or after loading the Dishwasher

Baskets........................................................ 9

Loading the upper Basket...............................10

Loading the Lower Basket...............................10

Cutlery Basket........................................... .. 10

6) Starting a washing program............................116) Starting a washing program............................11

Wash Cycle Table...........................................11

Turning on the Appliance................................12

Change the program.......................................12

At the end of the Wash Cycle...........................12

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

This user manual shall also be got from the manufacturer or responsible vendor.

7) Maintenance and cleaning..............................137) Maintenance and cleaning..............................13

Filtering System.............................................13

Caring for the Dishwasher...............................14

8) Installation instruction....................................158) Installation instruction....................................15

Positioning the Appliance...............................15

About Power Connection................................15

Water Connection..........................................16

Start of dishwasher........................................17

9) Troubleshooting Tips......................................189) Troubleshooting Tips......................................18

Before calling for service.................................18

Error codes...................................................19

Technical information.....................................20

Loading the baskets according to En50242Loading the baskets according to En50242

Page 3

1.IMPORTANT SAFETY INFORMATION1.IMPORTANT SAFETY INFORMATION

When using your dishwasher,

WARNING! WARNING!

follow the precautions listed below:

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. For EN60335-1 This appliance is not intended for use by persons (including children )with reduced physical, sensory or mental capabilities, or lack of experience and knowledge ,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. For IEC60335-1 This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance . Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.

1-11-1

Page 4

EARTHING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug. The plug must be plugged into an appropriate outlet that i s i nstalled a nd earthed in a ccordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure

panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

1-21-2

Page 5

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic it ems n check th e m anufacturer's

ot so marked, recommendations. Use only det ergent and rins e add itives des igned for an aut omatic dish washer. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Children should be supervised to ensure that they do not play with the appliance. The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused. The maximum number of place settings to be washed is 12. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is 0.04MPa.

1-31-3

Page 6

Disposal Disposal

Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: PE for polyethylene, e.g. sheet wrapping material PS for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips PP polypropylene, e.g. Salt filler ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .

WARNING! WARNING!

Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

1-41-42233

Page 7

Page 8

3.Operation Instruction3.Operation Instruction

IMPORTANTIMPORTANT

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

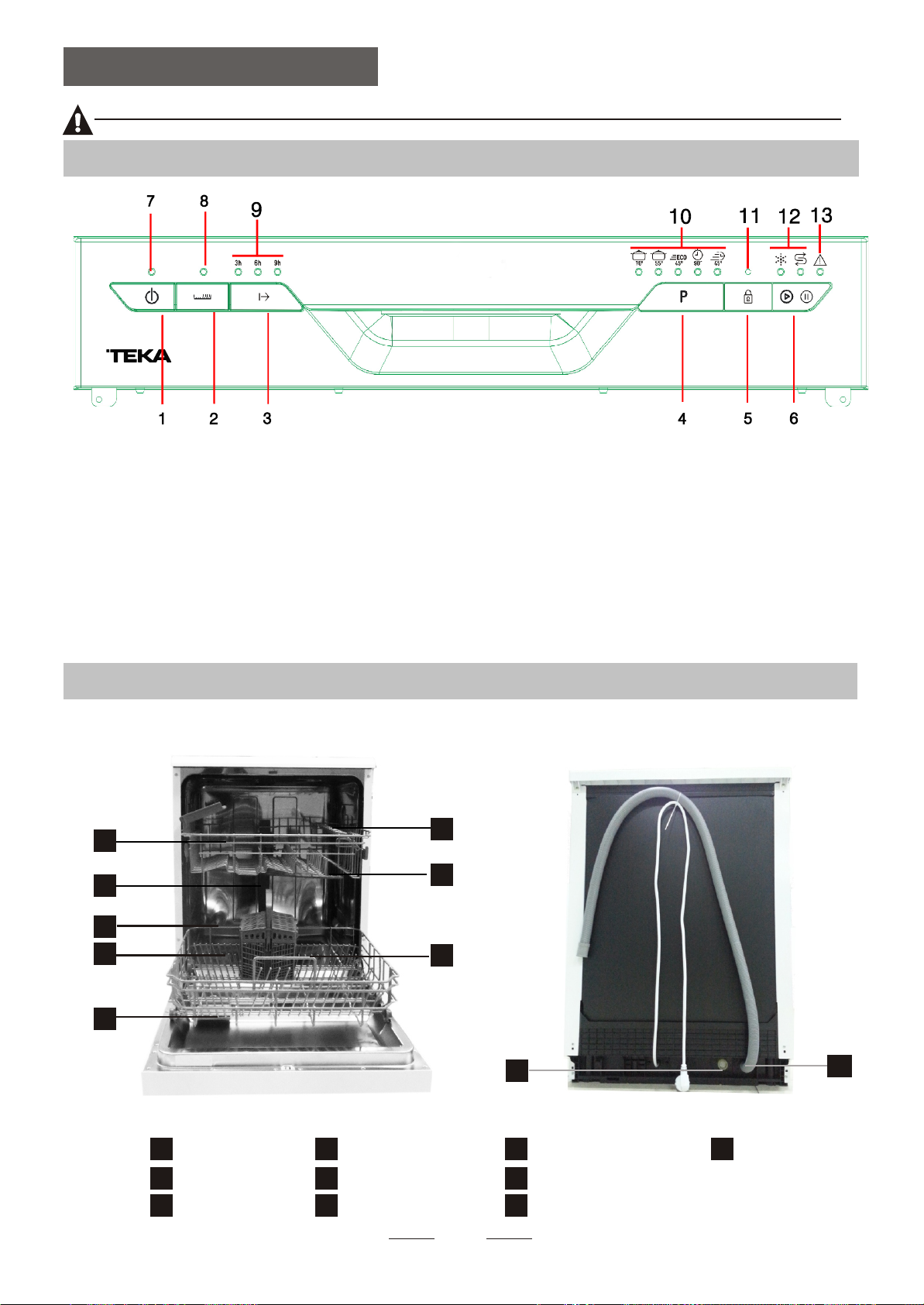

Control PanelControl Panel

1---On/Off Button

2---Half load functions Button: To select Half load functions. (With this Half load function you can only use it when you have only about or less than 6 place setting dish wave, and you will see less water and energy consumption , can only be used with Intensive, Normal, ECO,Glass and 90 min .)

3---Delay Button 4---Program Button

5---Child lock Button

6---Start /Pause Button: To start the selected

washing program or pause the washing program when the machine is working.

7---Power indicator 8---Half load indicator 9---Delay indicators: to show the delay time (3h/6h/9h )

10---Program indicators 11---Child lock indicators

12---Salt and rinse aid warning light 13---Water faucet indicator

Dishwasher FeaturesDishwasher Features

Front view

3 4

Back View

Upper Basket

Inner pipe

Lower Basket

Salt Container

Dispenser

Cup Shelf

Spray arms

Filter assembly

Inlet pipe connector

Drain pipe

Page 9

4.Prior using for the first time4.Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener

B. Add 1.5Kg dishwasher salt and then full fill the salt container with water

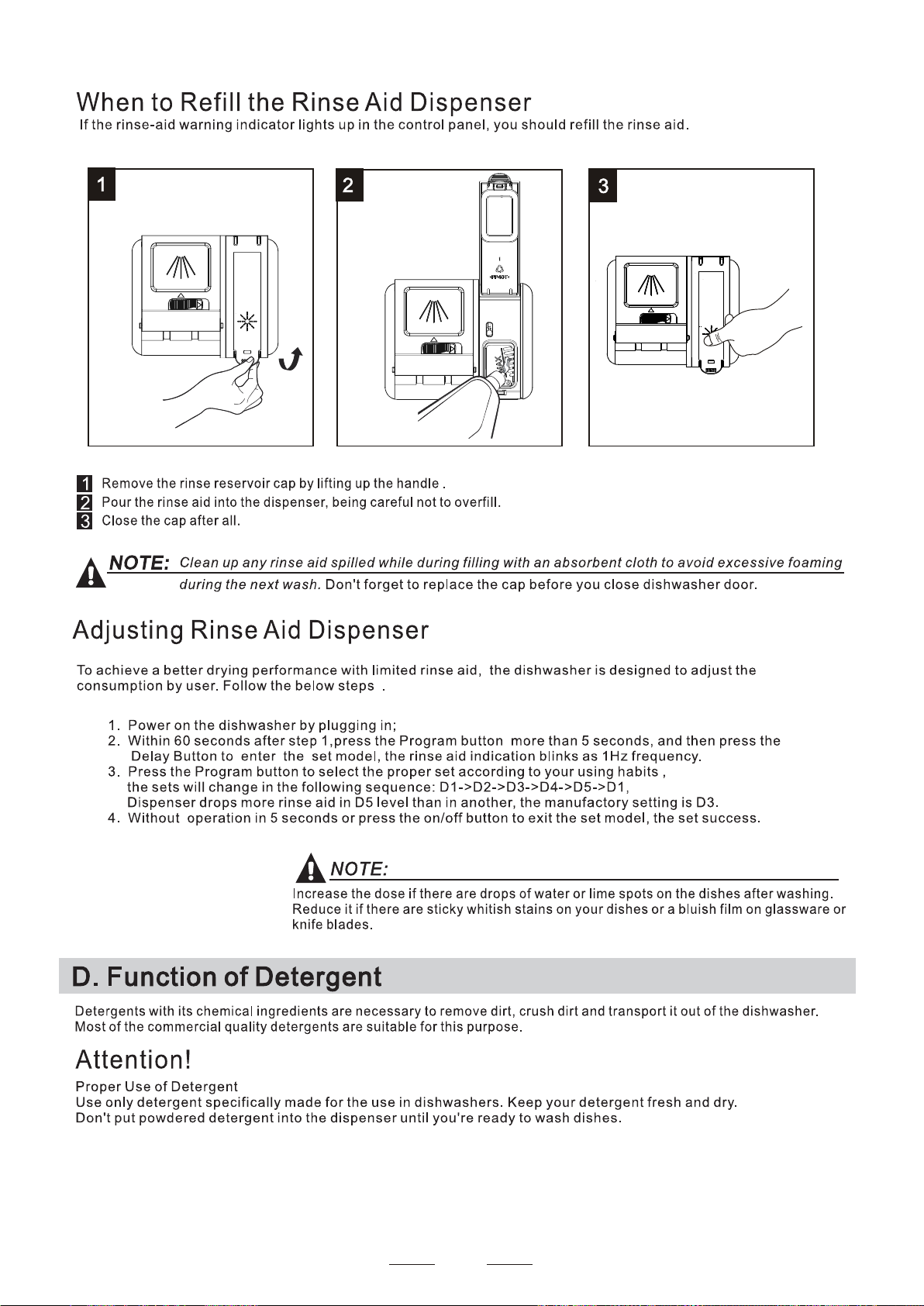

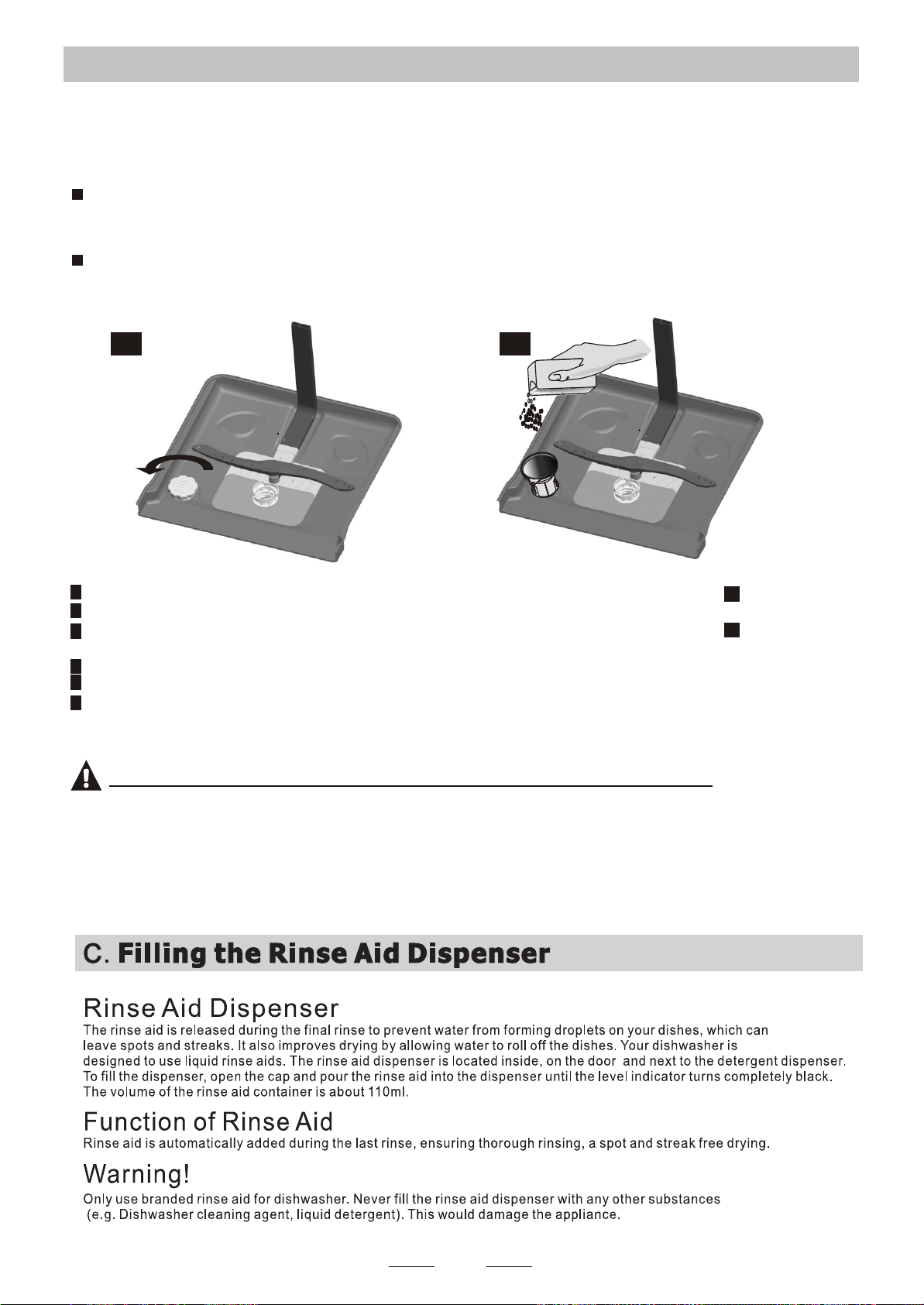

C. Fill the rinse aid dispenser

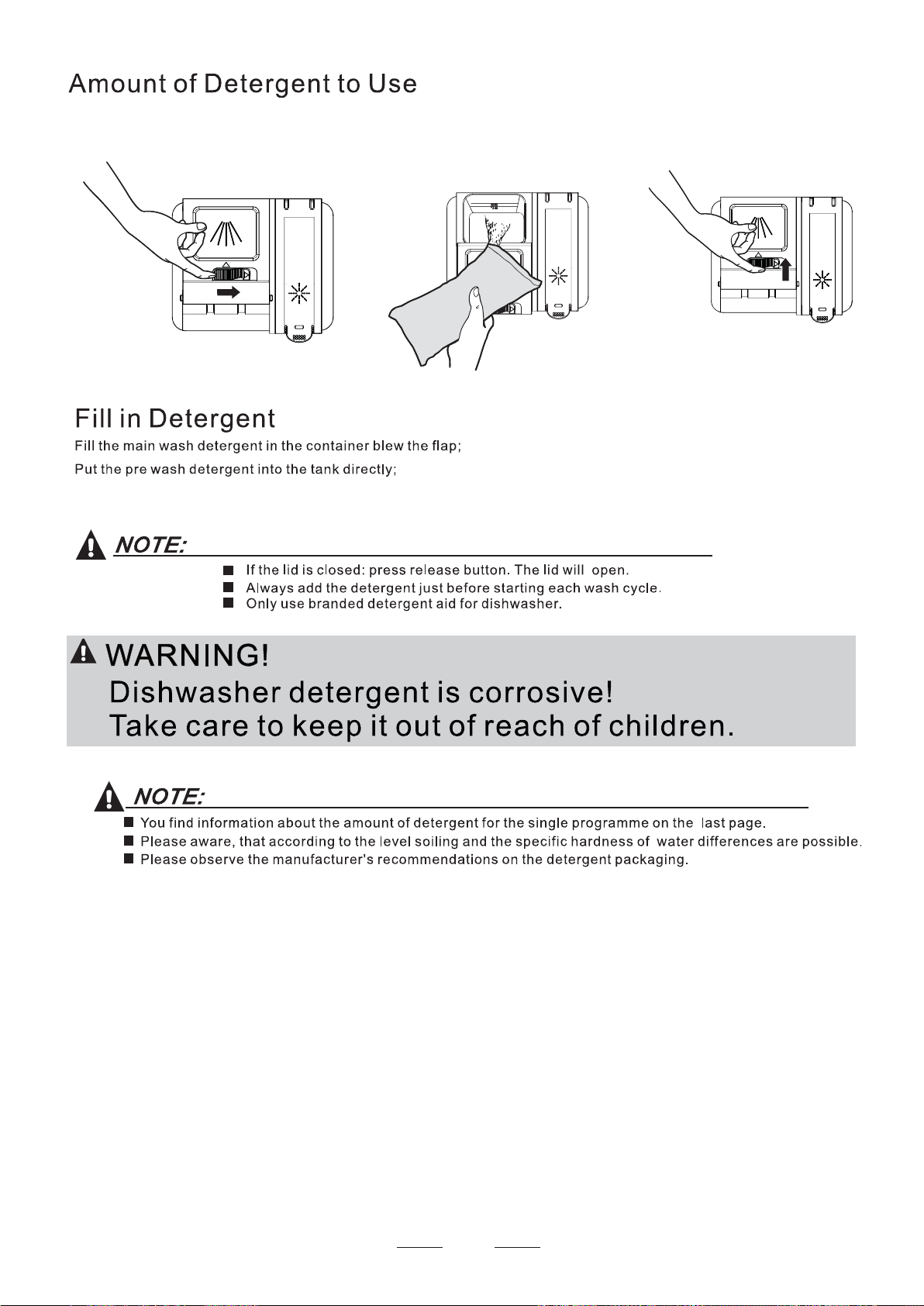

D. Fill in detergent

A. Water SoftenerA. Water Softener

The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level o f salt consumption.

Note:1Note:1

Note:2Note:2

Please follow the steps below for adjustment in salt consumption.

1. Switch on the appliance;

2. Press the Start/Pause button for more than 5 seconds to start the water softener set model within 60seconds after the appliance was switched on;

3. Press the Start/Pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;

4. Press the Start/Pause button to end the set up model.

WATER HARDNESS

6-11

12-17 2.1-3.0

18-22 31-40 22-28 3.1-4.0

23-34 4.1-6.0

35-55 61-98 43-69 6.1-9.8

¡ã

dH=1.25 Clarke=1.78 fH=0.178mmol/l

dH: German degree

¡ã

fH: French degree Clark: British degree

¡ã

0~90~5 0~0.94

10-20

21-30

41-60

¡ã

Clarke

0~6

7-14

15-21

29-42

mmol/l

1.0-2.0

Selector Position

H1( Rapid Light bright)

H2(90 Min Light bright)

H3(90 Min Rapid Light bright)

H4(ECO Light bright)

H5(ECO Rapid Light bright)

H6(ECO 90 Min Light bright)

The manufactory setting: H3 (EN 50242)H3

Salt c on sumption

(gram/cycle)

Contact your local water board for information on the hardness of your water supply.

NOTE:NOTE:

If your model does not have any water softener, you may skip this section.

WATER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

Page 10

B. Loading the Salt Into the SoftenerB. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

11 22

OpenOpen

A After the lower basket has been removed, unscrew and remove the cap from the salt container. B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.

Full fill the salt container with water,It is normal for a small amount of water to come out of the

salt container.

D After filling the container , screw the cap tightly back clockwise. E The salt warning light will stop being after the salt container has been filled with salt.

F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short

program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models),you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

Page 11

Page 12

Page 13

Page 14

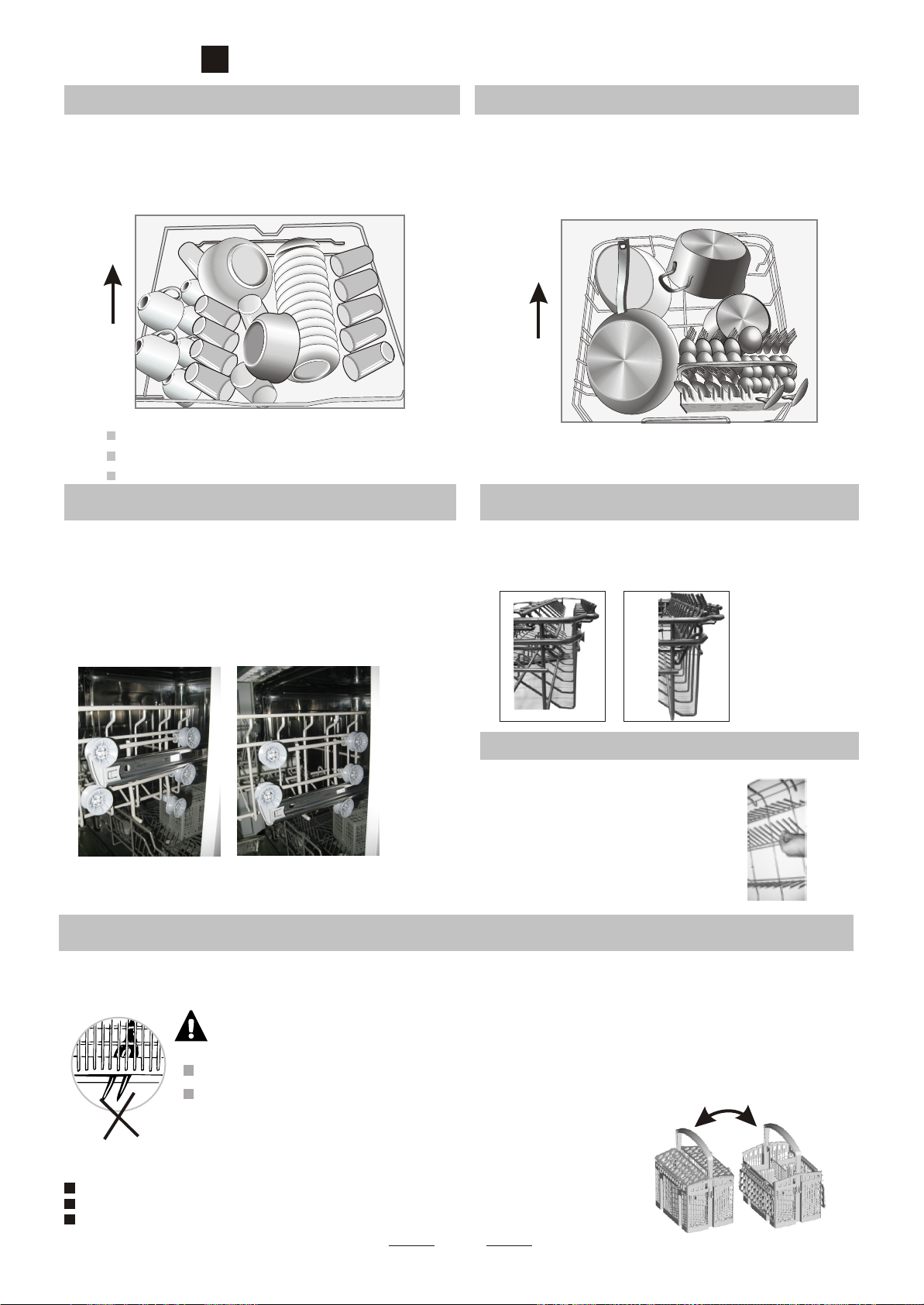

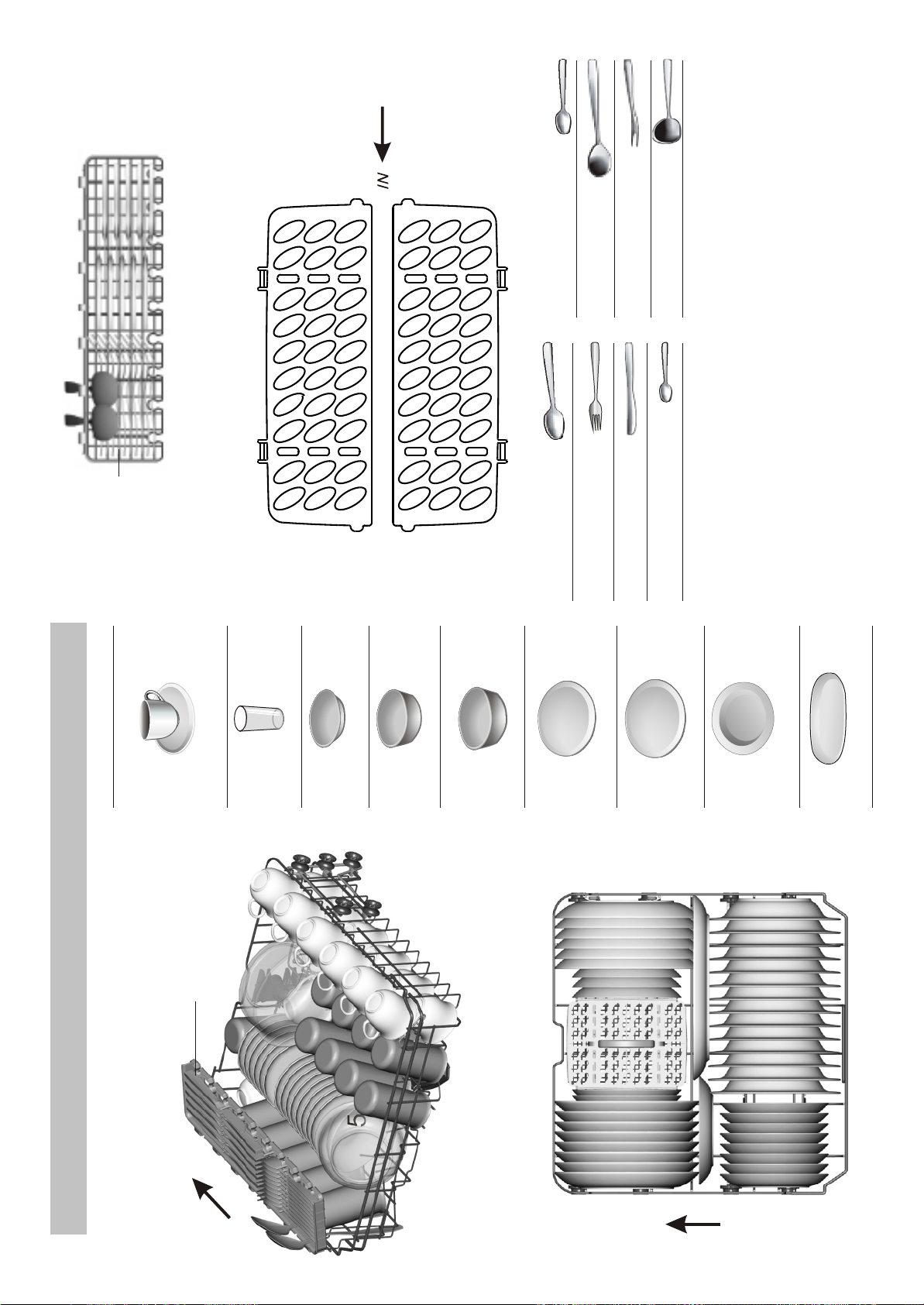

5.Loading the Dishwasher Baskets5.Loading the Dishwasher Baskets

RecommendationRecommendation

Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing in the dishwasher the following cutlery/dishesFor washing in the dishwasher the following cutlery/dishes

Are not suitable

Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or copper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres

Are of limited suitability

Some types of glasses can become dull after a large number of washes

Silver and aluminum parts have a tendency to discolour during washing

Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher BasketsAttention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

1.Items such as cups, glasses, pots/pans, etc. are faced downwards.

2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.

3.All utensils are stacked securely and can not tip over.

4.All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE:NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.

Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage to glasses, they must not touch. Load large items which are most difficult to clean into the lower basket. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the DishesRemoving the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Page 15

The Method Loading Normal DishwareThe Method Loading Normal Dishware

Loading the Upper BasketLoading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Please be reminded that:

Pots, serving bowls, etc, must always be placed top down. Deep pots should be slanted to allow water to flow out.

The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms..

Loading the Lower BasketLoading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Folding back the cup shelives

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Lower positionLower position

Upper positionUpper position

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

WheelsWheels

Cutlery BasketCutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

WARNING!

Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket

making sure that:

They do not nest together.They do not nest together. Silverware is placed with the handles-down.Silverware is placed with the handles-down. But place knives and other potentially dangerous utensils are placed handles-up. But place knives and other potentially dangerous utensils are placed handles-up.

1010

Page 16

6.Starting a washing program6.Starting a washing program

Wash Cycle TableWash Cycle Table

( )

NOTE:NOTE:

ProgramProgram

Intensive

For heaviest soiled crockery, and normally soiled pots pans dishes etc with dried on soiling.

Means: need to fill rinse into the Rinse-Aid Dispenser.

Description

Cycle Selection

Information

Description

of Cycle

Pre-wash(50 ) Wash (60 ) Rinse Rinse Rinse(70 ) Drying

Detergent

pre/main

5/25g

(1 or 2 pieces)

Running

time(min)

170

Energy

(Kwh)

1.6

Water

(L)

18.5

Rinse

Aid

Normal

(*EN5 0242)

90 min

Rapid

For normally soiled loads, such as pots, plates,glasses and lightly soiled pans.

This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

For normally soiled loads that need quick wash.

A shorter wash for lightly soiled loads that do not need drying.

Prewash(45 ) Wash (55 ) Rinse Rinse (65 ) Drying

Prewash Wash (45 ) Rinse(65 ) Drying

Wash(65 ) Rinse Rinse (65 ) Drying

Wash (45 ) Rinse(50 ) Rinse (55 )

5/25g

(1 or 2 pieces)

5/25g

(1 or 2 pieces)

30g

(1 piece)

25g

180

190

1.3

0.91

1.35

0.75

12.5

NOTE:NOTE:

*EN 5 0242 : This program is the test cycle. The information for comparability test

in accordance with EN 50242, as follows:

Capacity: 12 setting Position Upper basket: upper wheels on rails Rinse aid setting: 6 PI:0.49W; P :0.45W.

Left-on mode duration: Power will be cut off automatically after program finished for 30 minutes.

Turning On the ApplianceTurning On the Appliance

Starting a cycle wash

Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled Loading the Dishwasher ).

Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid ).

Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

Close the door, press the Power button, to switch on the machine.

Press the program button , the wash program will be changed as follows direction: Intensive->Normal->ECO->90 Min->Rapid;

If a program is selected, the response light will light. Then press the Start/Pause button, the dishwasher begins to start.

1111

Page 17

NOTE:NOTE:

When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start.

Change the Program...Change the Program...

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the Detergent " ).

Press the Start/Pause button , the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle. . ." ).

NOTE:NOTE:

If you open the door during a wash cycle , the machine will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door . After you close the door ,the machine will keep on working after 10 seconds.

If your model has broken remember function, the machine will go on to finish the selected program after the power cut.

Forgot to Add a Dish?Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

Press the Start/Pause button

Open the door a little to stop the washing.

After the spray arms stop working,you can open the door

completely.

Add forgotten dishes.

Close the door

Press the Start/Pause button, the dishwasher will run

after 10 seconds.

At the end of the Wash CycleAt the end of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

Switch Off the Dishwasher

The program light is on but is not blinking, only in this case the programme has ended.

1.Switch off the dishwasher by pressing the Power button.

2.Turn off the water tap!

Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

Unloading the dishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING! WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

1212

Page 18

7.Maintenance and Cleaning7.Maintenance and Cleaning

Filtering SystemFiltering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter).

Main filter

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter

Larger items, such as pieces of bones or glass, that could block

the drain are trapped in the coarse filter. To remove the items

caught by the filter, gently squeeze the tap on the top of this

filter and lift out.

Fine filter

This filter holds soil and food residues in the sump area and

prevents it from being redeposit on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

The dishwasher must never be used without the filters.

WARNING! WARNING!

Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

NOTE:NOTE:

OpenOpen

When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Step 1 Turn the filter in anti-clockwise direction,

Step 2 lift the filter assy up

1313

Page 19

Remarks:

- Inspec t the f ilters f or blo ck ing afte r every time the dish washer has been used .

- By un screwing the c oa rse filt er, you can remove the filter system. Remove any food remnants an d clean the filter s under running water.

The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coar se fil te r and the fin e filt er, use a cleani ng brush. Reas semble t he filte r parts as sh own in the figu res on the last p ag e and reinsert the en tire a ssembly in the dishwas he r, positioning it in i ts seat and p ressing downwards.

When cleani ng the f il ters, don 't knock on them. Otherwise, the filte rs co ul d be cont orted and the p erformance of the dishwas her cou ld be decreased.

The cont rol pane l can be clea ne d by using a lightly dampened cloth . After cl eaning, make sur e to dry it thoroughl y.

For the exterior, use a good appliance polis h wax. Never us e sharp objects, scour ing pads or h arsh cle an ers on any part of the dishwasher.

Cleaning the Door

To clean the edge aroun d the d oor, you should use only a soft warm, damp cloth. To avoid penetration of w ater i nto the door lo ck and electrical compon ents, do not use a s pray cle aner o f any k ind.

Never us e a spr ay cleaner to clean t he door pane l as it may da mage the door lock and elec trical components . Abrasive agents or some paper towels should not be used be cause of the ri sk of scratchin g or le aving sp ots on the stainless steel surface.

Protect Against Freezing

please t ake frost protec tion measures on the dishwas her in winter. E very fter washing cycles, please o perate a s follow s

1.Cut off the elect rical po wer to the dish washer.

2.Turn off the water su pply and disco nnect th e water inlet p ipe fr om the water valve.

3.Drain t he water from the inl et pip e and w ater valve. (Use a pa n to gather the water )

4.Reconnec t the w ater inlet pip e to the water valve.

5.Remove the filt er at the bot tom of the tu b and u se a sponge t o soak up water in the sum p.

：

If your dishwa sher can not work becau se of the ice, pleas e c ontact professi on al ser vice per sons.

time a

Cleaning the Spray Arms

It is n ecessary to clea n the spray arms regu larly fo r hard water chem icals wi ll clog the spray a rm jet s a nd bea rings.

To remove the u pp er spr ay arm, hold the nut, ro tate t he arm clockwise to remove it .

To remove the l ower spray arm, pull out the spray a rm upwar d.

Was h the arms in soapy and warm water and use a sof t brush to clean th e jets. Replace them after ri nsing them thoro ughly.

Page 20

After Every Wash

After every wash , turn off the wate r supply to t he appliance and leave th e door slightly open so that mo isture and odo urs are not t rapped i nside.

Remove the Plug

Before c leaning or per fo rming maintenan ce, always remove t he plug from th e sock et.

No Solvents or Abrasive Cleaning

To clean the exte rior and rubber parts of the dishwasher, do not use solv ents or abrasi ve cleanin g produc ts. Only use a clot h with warm s oapy wat er. To remove spots o r stains from the surfa ce of the interior, use a cloth dampened with wate r an a l ittle vinegar, or a cleaning product m ade specifically f or dishwashe rs.

Position the appliance in the desired locati on . Th e back should rest against the wall behind it, and the sides, along th e adjacent cabinets or walls. The dishwash er is equipped with water supply an d drai n hoses that can be posit ioned either t o the r ight o r the l eft side s to fa cilitate prop er insta llation.

When not in Use for a LongTime

It is r ecommend t hat you run a wash c ycle wit h the dishwasher e mpty a nd then remove the plug from the socket, tu rn off the wa ter su pp ly and leave the do or of the applianc e slight ly open. This will help t he door seals to la st lon ge r and prevent odours from forming within the applian ce.

Moving the Appliance

If the applian ce must be moved, t ry to k eep it in the ve rtical position. If ab solutely nece ssary, it can be positione d on its back.

Seals

One of the factors that cause odour s to fo rm in the dishwashe r is fo od tha t remain s trappe d in th e seals. Periodic cleaning with a damp sponge will prevent t his from occ urring.

Once the appli an ce is positi oned for levelli ng, the height of the dishwashe r ma y be al tered vi a adjustment of the screwing level of the feet. In any ca se, the appl ia nce sh ould not be inclined more tha n 2 .

For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing Connection from the power cord.

Please l ook at th e rating label to know the ratin g voltag e and connect the dishwasher to t he appro priate power s upply. Use the requir ed fuse 10 amp, time delay f use or circuit breaker recomme nded a nd pro vide sep arate ci rcuit serving only t his appliance.

Ensure t he volta ge and frequen cy o f the pow er being corresponds to those on the ra ting pla te. Only insert the plug in to an e lectric al socke t which is eart hed properly. If th e electr ical socket to which the ap pliance must be connec te d is not appropriate for the plug , re pl ace th e sock et , rather than using a adaptors or the like as they cou ld cau se overh ea ting a nd b ur ns .

Page 21

Water ConnectionWater Connection

Cold Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING! WARNING!

Please close the hydrant after using.

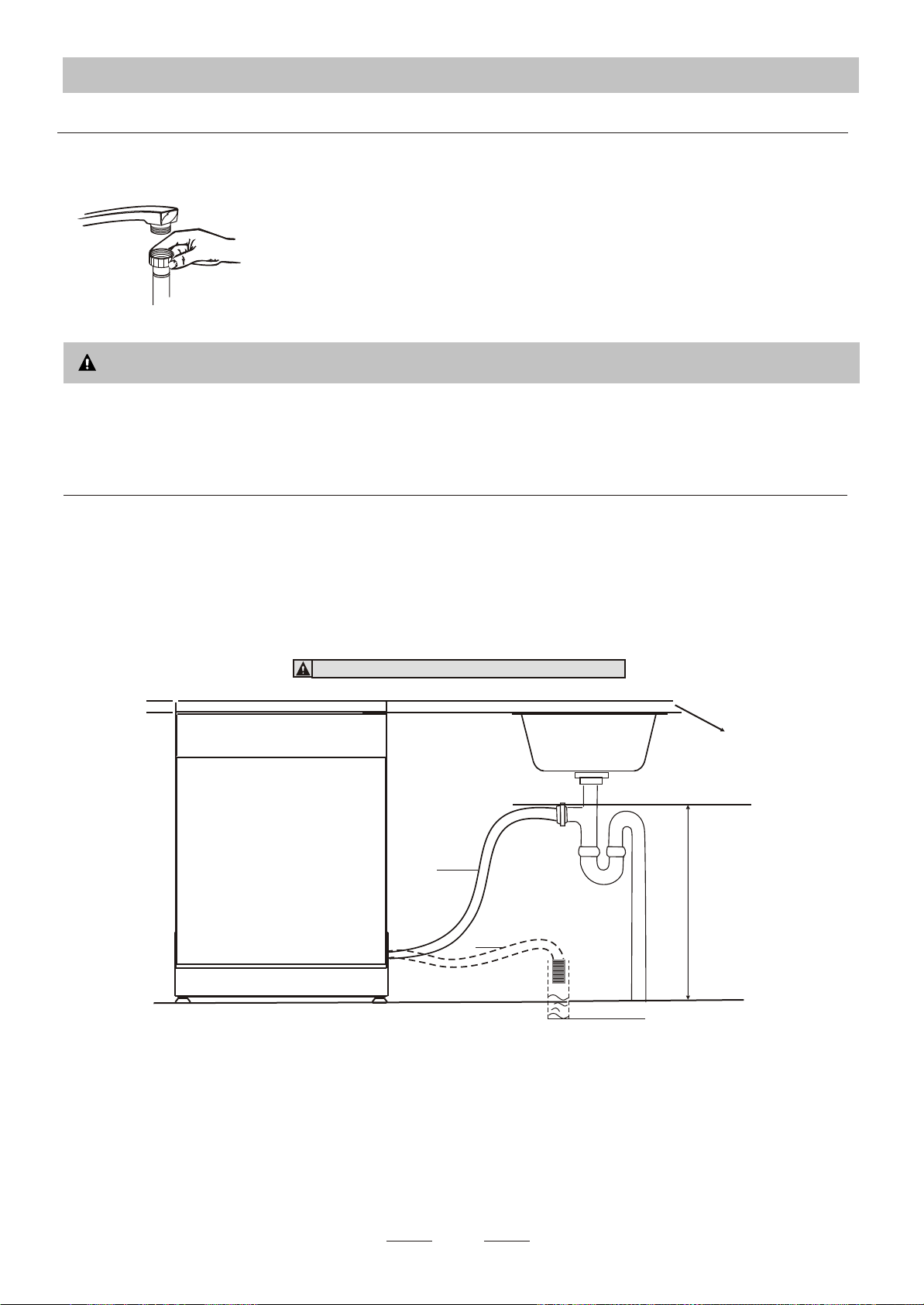

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, BPLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

Front

Counter

NOTE The top of the hose must be less than 1000mm.

Drain pipe

1616

MAX 1000mm

¦Õ40mm

Page 22

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed .

Start of Dishwasher Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly 2 The inlet valve is open 3 Fill hose connections are fully tightened and not leaking 4 The wires are tightly connected 5 The power is switched on 6 The inlet and drain hoses are knotted 7 All packing materials and printings should be taken out from the dishwasher

Attention:Attention:

After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

1717

Page 23

9.Troubleshooting Tips9.Troubleshooting Tips

Before Calling for Service Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem Possible CausesWhat to Do

Dishwasher doesn't

start

Fuse blown, or the circuit breaker acted

Power supply is not turned on

Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher

Make sure the dishwasher is turned on and the door is closed securely.

Make sure the power cord is properly plugged into the wall socket.

Technical problems

General problems

water not pumped

from dishwasher

Suds in the tub

Stained tub interior

White film on

inside surface

Water pressure is low

Door of dishwasher not properly closed.

Kink in drain hose

Filter clogged

Kitchen sink clogged

Improper detergent

Spilled rinse-aid

Detergent with colourant was used

Hard water minerals

Check that the water supply is connected properly and the water is turned on.

Make sure to close the door properly and latch it.

Check drain hose.

Check the coarse filter (see section titled " Cleaning The Filter ")

Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.

Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared. Repeat if necessary.

Always wipe up rinse-aid spills immediately.

Make sure that the detergent is the one without colourant.

To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.

Noise

There are rust

stains on cutlery

Knocking noise

in the wash cabinet

Rattling noise

in the wash cabinet

Knocking noise

in the water pipes

The affected items are not corrosion resistant.

A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.

The lid of the softer is loose

A spray arm is knocking against an item in a basket

Items of crockery are loose in the wash cabinet

This may be caused by on-site installation or the cross-section of the piping.

1818

Always run the quick wash program . without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.

Check the lip .Ensure the fix is fine.

Interrupt the program, and rearrange the items which are obstructing the spray arm.

Interrupt the program, and rearrange the items of crockery.

This has no influence on the dishwasher function. if in doubt, contact a suitably qualified plumber.

Page 24

Problem Possible Causes What to Do

The dishes

are not clean

The dishes were not loaded correctly.

The program was not powerful enough.

Not enough detergent was dispensed.

Items are blocking the path of spray arms.

See notes in " Loading the Dishwasher Baskets ".

Select a more intensive program. See" Wash Cycle Table ".

Use more detergent, or change your detergent.

Rearrange the items so that the spray can rotate freely.

Unsatis

-factory washing result

Unsatis

-factory drying result

Cloudiness

on glassware

Black or gray

marks on dishes

Detergent left in

dispenser cups

The dishes

are not drying

The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.

Combination of soft water and too much detergent.

Aluminum utensils have rubbed against dishes.

Dishes block detergent cups.

Improper loading

Too little rinse-aid

Dishes are removed too soon

Wrong program has been selected

Use of cutlery with a low-quality coating

Clean and/or fit the filter combination correctly. Clean the spray arm jets. See "Cleaning the Spray Arms".

Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.

Use a mild abrasive cleaner to eliminate those marks.

Re-loading the dishes properly.

Load the dishwasher as suggested in the directions.

Increase the amount of rinse-aid/refill the rinse-aid dispenser.

Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once t he dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.

In short program the washing temperature is lower. This also lowers cleaning performance. Choose a program with a long washing time.

Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error CodesError Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes

The Rapid light flicker fleetly

The ECO light flicker fleetly

The 90 min and Rapid lights flicker fleetly

If overflow occurs, turn off the main water supply before calling a service.

WARNING! WARNING!

If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Meanings

Longer inlet time.

Overflow.

Not reaching required temperature.

1919

Possible Causes

Faucets is not opened, or water intake is restricted,or water pressure is too low.

Some element of dishwasher leaks .

Malfunction of heating element .

Page 25

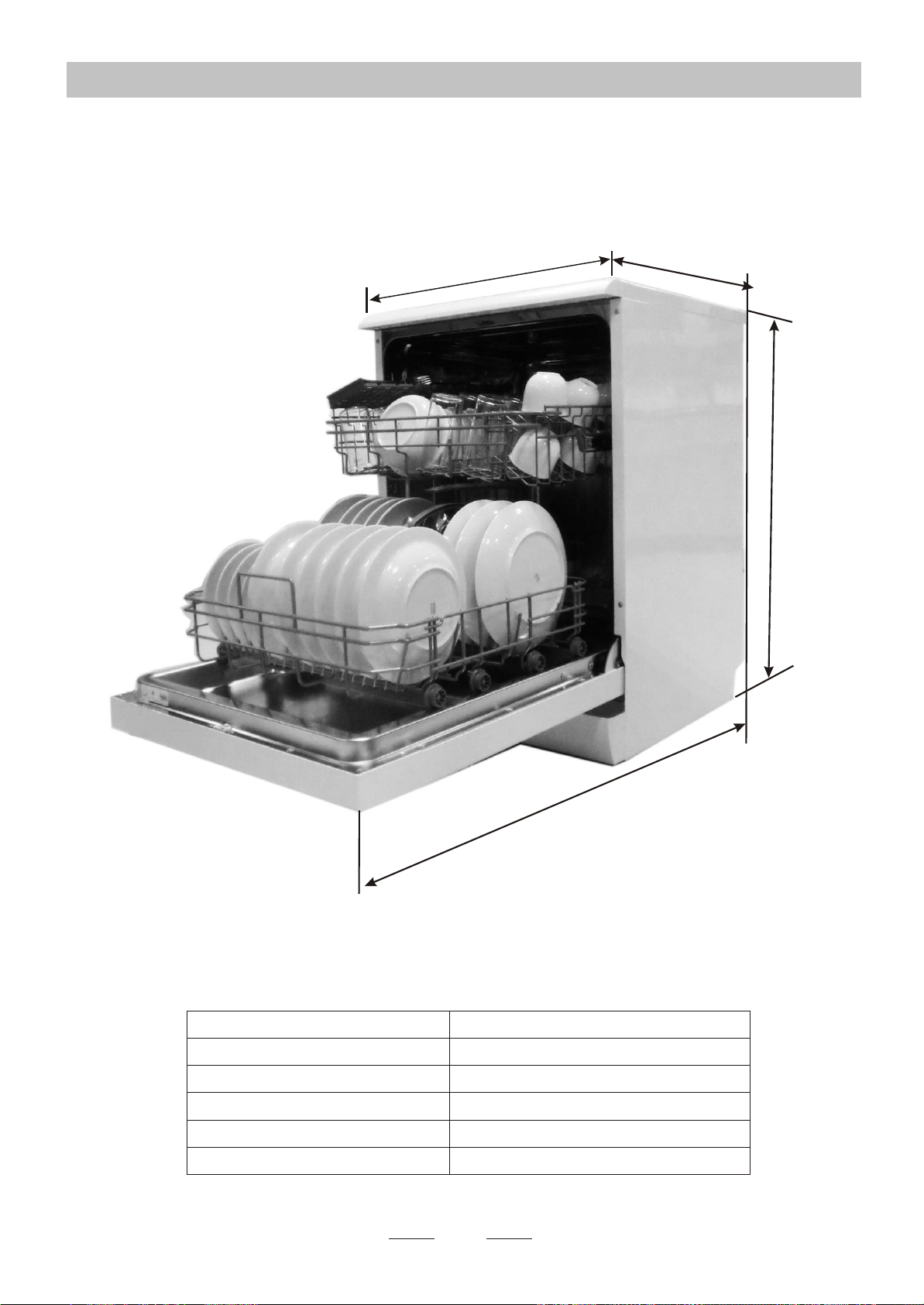

Technical InformationTechnical Information

598598

(with the door closed)

604

845845

751

Height : 845mm Width : 598mm

Depth : 604mm(with the door closed)

Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 place settings

2020

Page 26

hel

ShelfShelf

ares

flat

he ligh

e t

Note: P

4444444444

33 33 33 33

kg.

n 1

les

y b

Note: P

y b

weigh

Cutte

otal

22 22 22 22

44 44 44

11 11 11 11

55 55

7 7

55 55 55

11 11 11

44 44 44 44

11 11 11 11 11

55 55 55 55 55 55

Dessert spoons

Soup spoons

Serving forks

Serving spoons

Forks

Gravy ladles

TeaspoonsTeaspoons

Knives

dan

s i

abili

mpa

Inf

tio

osi

ower

sCap

bask

6Rin

6 :

ng ti

t se

i a

e s

: ng

t se

i a

e s

Rin

r sett

sett

h EN

Cap

e up th

n of

COP

Dessert dishes

Dinner plates

7 7

Large serving bowl

bas

Cups

ShelfShelf

Saucers

Glasses

Small serving bowl

Medium serving bowl

1010

0 1

Soup plates

Oval platter

Low

Loading the baskets according to En50242: Loading the baskets according to En50242:

1.Upper basket:1.Upper basket:

Page 27

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer

Type / Description

Standard place settings

Energy efficiency class

Annual energy consumption

Energy consumption of the standard cleaning cycle

Power consumption of off-mode

Power consumption of left-on mode

Annual water consumption

Drying efficiency class

Standard cleaning cycle

Program duration of the standard cleaning cycle

Noise level

Mounting

Could be build-in

TEKA

LP8 818 BLANCO VR01 LP8 818 INOX VR01

A++

258 kWh

0.91 kWh

0.45 W

0.49 W

3080 litre

ECO 45

190 min

49dB(A) re 1 pW

Free standing

Yes

Height

Width

Depth (with connectors)

Power consumption

Rated voltage / frequency

Water pressure (flow pressure)

84.5 cm

59.8 cm

60.4 cm

1760-2100 W

AC220-240 V/ 50 Hz

0.4-10 bar = 0.04-1 Mpa

NOTE

A + + + (highest efficiency) to D (lowest efficiency)

Energy consumption 258 kWh per year, based on 280 standard cleaning cycles using cold water fill and

2 2

the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.

Water consumption 3080 litre per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.

A (highest efficiency) to G (lowest efficiency)

This program is suitable for cleaning soiled normally soiled tableware and that it is the

most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

- LVD 2014/35/EU

- EMC2014/30/EU

- ERP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.

Page 28

Page 29

www.teka.com

Asped mos eriatius sit atet hicil et velit
