Page 1
EN

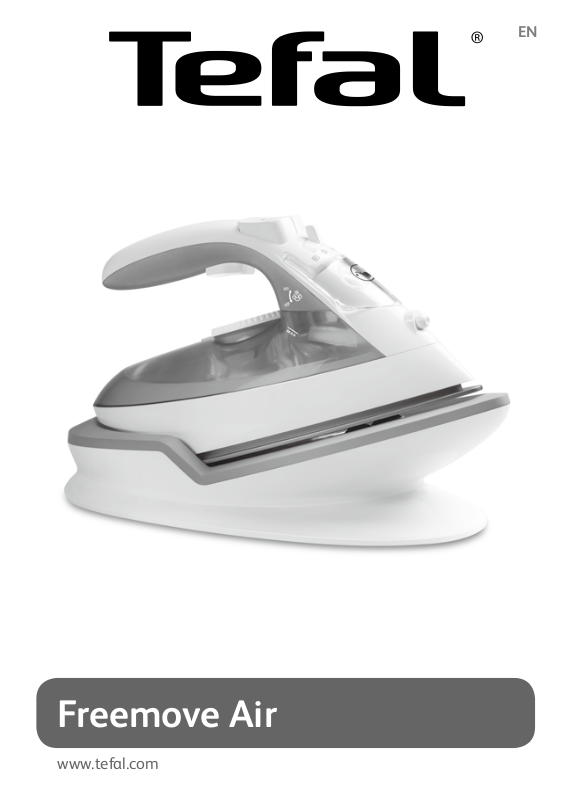

Freemove Air
www.tefal.com
Page 2
Page 3
STEAM BOOST
www.tefal.com
Page 4
EN
SUMMARY
IMPORTANT SAFETY RECOMMENDATIONS
Important safety recommendations ....................................................... p. 5
Before first use .................................................................................................. p. 7
Recommendation ............................................................................................. p. 7
PREPARATION
Which water should I use? ............................................................................ p. 8
Filling the water tank ...................................................................................... p. 8
USE
Adjusting the temperature and steam .................................................. p. 10
Steam Ironing .................................................................................................. p. 11
Dry ironing ........................................................................................................ p. 11
Getting more steam ...................................................................................... p. 11
Vertical steam ironing .................................................................................. p. 12
Dampening clothing (Spray) ..................................................................... p. 13
While ironing ................................................................................................... p. 13
IRON STORAGE AND MAINTANANCE
Storing your iron ............................................................................................. p. 14
Auto off .............................................................................................................. p. 15
Descaling the steam chamber (once per month) ............................. p. 15
Cleaning the soleplate .................................................................................. p.16
IS THERE A PROBLEM WITH YOUR IRON?
Problems, possible causes, solutions ................................................ p. 17-18
4
Page 5
Important safety recommendations
• Please read these instructions carefully before first
use. This product has been designed for domestic and
indoor use only. Any commercial use, inappropriate
use or failure to comply with the instructions, the
manufacturer accepts no responsibility and the
guarantee will not apply.
• Never unplug the appliance by pulling the power
cord. Always unplug your appliance: before filling the
water tank or rinsing the water tank, before cleaning
the appliance, after each use.
• The appliance must be used and placed on a flat,
stable, heat-resistant surface. When you place the
iron on the iron rest, make sure that the surface on
which you place it is stable.
• This appliance is not intended to be used by persons
(including children) with reduced or impaired physical, sensory or mental capacities or persons lacking
appropriate knowledge or experience, unless a person responsible for their safety provides either supervision or appropriate instructions concerning use of
the appliance prior to its use.
• Children should be supervised to ensure they do not
play with the appliance.
• This appliance may be used by children aged 8 or
over and persons lacking appropriate knowledge or
experience or persons with reduced or impaired
physical, sensory or mental capacities provided that
they have been thoroughly instructed regarding use
of the appliance, are supervised, and understand the
risks involved. Children shall not play with the
5
Page 6
appliance. Cleaning and user maintenance shall not
be made by children without supervision. Keep the
iron and its cord out of reach of children less than
8years of age when it is energized or cooling down.
• The surfaces of your appliance can reach very
high temperatures when functioning, which
may cause burns. Do not touch the hot surfaces
of the appliance (accessible metal parts and
plastic parts adjacent to the metallic parts).
• Never leave the appliance unattended when it is
connected to the mains. Before storing the appliance,
once it is unplugged, please wait until it has cooled
down (around 1 hour).
• The appliance must not be used if it has been dropped, if it has any visible damage, if it leaks, or if it
functions abnormally in any way. Do not attempt to
dismantle your appliance: have it examined at an Approved Service Centre to avoid any danger.
• The iron should only be used with the base provided
(for cordless irons).
• Check the electrical power for sign of wear or damage
prior to use. If the electrical power cord is damaged,
it must be replaced at an Approved Service Centre to
avoid any danger.
The iron must always be placed on its base and never on its heel (for cordless irons) .
• Your iron and its base must be used and placed on a stable surface. When you place the
iron on its base, ensure that the surface on which the base is placed is stable.
• For your safety, this appliance conforms to all applicable regulations (Low Voltage
Directive, Electromagnetic Compatibility, Environment, etc).
• Your steam iron is an electrical appliance: it must be used under normal conditions of
use. It is designed for domestic use only.
• Always plug your steam iron:
- into a mains circuit with voltage between 220 V and 240 V,
- into an earthed electrical socket.
- Connecting to the wrong voltage may cause irreparable damage to the appliance and
will invalidate your guarantee. If you are using a mains extension lead, ensure that it
is correctly rated (16A) with an earth, and is fully extended.
6
Page 7
• Completely unwind the power cord before plugging into an earthed socket.
• The soleplate of your iron can reach extremely high temperatures, and can cause burns:
do not touch them. Never touch the electrical power cords with the soleplate of the iron.
• Your appliance emits steam, which can cause burns. Always handle the iron with care,
especially when ironing vertically. Never direct the steam towards people or animals.
• Never immerse your steam iron in water or any other liquid. Never place it under a
running tap.
• The plug must be removed from the socket-outlet before the water tank is filled with
water.
Before first use
When you first use the iron, some smoke or a harmless odour may be produced or there
may be a small discharge of particles. This will not affect the use of the iron and will
disappear quickly.
What water to use?
• Your appliance was designed to operate using untreated tap water. However, it is
necessary to periodically clean the steam chamber to remove any mineral deposits.
• Do not use pure demineralised or pure distilled water, water from clothes dryers, scented
or softened water, rain water, filtered, bottled or boiled water, water from refrigerators,
batteries or air conditioners, pure distilled water or rain water as these may damage
the iron. These types of water contain organic waste, mineral elements that become
concentrated when heated and cause spitting, brown staining, leaking or premature
wear on your iron.
Environment protection first !
i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.
7
Page 8
OK
BEFORE FIRST USE
Remove any labels from the soleplate before
heating the iron.
Before using the steam function in your iron for
the first time, we recommend that you allow the
iron to operate a few moments in a horizontal
position without coming into contact with your
laundry. Keeping the iron in this position, push
the steam button several times.
During the first few uses, the appliance may
produce smoke, a harmless odour and a light
emission of particles. These are simply the
engineering residues from the manufacturing
process burning off. These are harmless and will
quickly disappear.
Recommendation
• Do not place the iron on its heel or flat during the resting period,
but on its base.
8
Page 9
PREPARATION
Which water should I use?
• Your appliance was designed to operate using untreated tap water.
However, it is necessary to periodically clean the steam chamber to
remove any mineral deposits.
• Do not use pure demineralised or pure distilled water, water from
clothes dryers, scented or softened water, rain water, filtered,
bottled or boiled water, water from refrigerators, batteries or
air conditioners, pure distilled water or rain water as these may
damage the iron. These types of water contain organic waste,
mineral elements that become concentrated when heated and
cause spitting, brown staining, leaking or premature wear on your
iron.
If your water is very hard, mix 50% untreated tap water
with 50% distilled water (available in hardware stores).
Filling the water tank
• Set the steam control to
• Open the water tank cover.
• Unplug the iron before filling it.
• Fill the water tank to the mark “MAX”.
• Close the water tank cover.
9
Page 10
Beep
Bip
OK
USE
• Plug in the base.
• The flashing green light located on the base indicates that the
iron is heating up.
• When the green light stops flashing the iron is ready to use.
• The flashing red light and beep sounds after around 30s when
the iron is not on its base: the iron must be replaced on the base
for recharging
10
Page 11
Adjusting the temperature and steam
Max.
• Adjust the temperature and steam control, referring to the table
below.
OK
FABRIC
LINEN / COTTON
WOOL
SILK
SYNTHETIC
(Polyester, Acetate, Acrylic,
Polyamide)
TEMPERATURE
CONTROL
POSITION
Max
•••
••
•
STEAM CONTROL
POSITION
= STEAM ZONE
• The temperature indicator green light turns on.
• The green light will turn solid automatically once the soleplate
achieves the desired temperature.
11
Page 12
• Your iron heats up quickly: start with fabrics that are
ironed at a low temperature and finish with those that
require a higher temperature.
• If you lower the thermostat temperature, place the
iron on its base and wait (around 10 minutes) until the
temperature drops to avoid burning the fabric.
• If you are ironing a fabric with a mixture of fibres: adjust
the ironing temperature to the most delicate fibre.
• The iron will not heat up if the thermostat control is set
to “MIN”.
Steam Ironing
• During your ironing session, hold down the trigger located under
the handle (at least 5 secs at a time) to obtain a constant flow of
steam and guarantee the best results. When the trigger is released,
the steam stops.
Dry ironing
• Set the temperature according to the fabric to be ironed.
max.
• Set the steam control to
.
Getting more steam
• Set the thermostat control to “MAX” or “•••”.
12
Page 13
STEAM BOOST
STEAM BOOST
1
sec.
NO
max.
1
sec.
• Press the steam boost button periodically.
• To avoid water dripping on the laundry, maintain an interval of a
few seconds in between each press.
Vertical steam ironing
• Hang the item on a hanger. The steam is very hot; never
steam iron clothing while it is being worn - always use a
hanger.
• Set the thermostat control to “MAX”.
• Press the steam boost button in pulses (during 1 second),
moving the iron from top to bottom.
• To avoid water dripping on the laundry, maintain an interval
of a few seconds in between each press
13
Page 14
• Hold the iron at a distance of a few centimeters from the
clothing to avoid burning delicate fabrics.
Dampening clothing (Spray)
• Press repeatedly on the spray button to moisten clothing and
remove stubborn creases.
• Ensure that there is water in the tank before using the spray
button.
NO
NO
OK
While ironing
• Do not lay the iron on its heel or flat during the resting period,
but on its base.
14
Page 15
1h
IRON STORAGE AND
MAINTENANCE
Storing your iron
• Unplug the iron and wait for the soleplate to cool (1 hour ).
• Empty the water tank.
• Set the steam control to
• Wrap the cord around the iron’s base.
15
15
.
Page 16
8 min.
Max.
• Carry the iron and the base with two hands.
Auto off
• The electronic system cuts the base power supply and the red light
located on the base flashes and a beep sounds if the iron remains
still for more than eight minutes on the base.
• To restart the iron, remove it from the base.
Descaling the steam chamber
(once per month)
• Allow the iron to heat up on the base, with the tank full and the
thermostat set to maximum.
• Place your iron over the sink
• Keep the steam control to anti calc.
16
16
Page 17
NO
1H
• Shake the iron gently and in a horizontal position, over the sink,
until some of the water (and the impurities) have drained through
the soleplate.
• Place the iron back on the base to dry the soleplate.
Cleaning the soleplate
• While the soleplate is still warm, clean it with a damp cloth.
• Never use chemical or abrasive products.
1717
Page 18
IS THERE A PROBLEM WITH YOUR IRON?
PROBLEMS
Water is leaking
from the holes in
the soleplate.
The iron leaks
at the start of
ironing.
A brown
discharge
coming from
the soleplate
is staining the
clothing.
The soleplate is
dirty or brown
and may stain
clothing.
POSSIBLE CAUSES
You are using the steam when
the iron is not hot enough.
You are using the
(steam boost) too often.
You have stored the iron
horizontally without emptying
the water tank or setting the
steam control to
The chosen temperature is too
low and does not allow the
formation of steam.
The steam control dial is not set
when filling the water
to
tank.
You are using chemical
descaling agents.
You are not using the right type
of water.
Clothing fibres are building up
in the holes of the soleplate and
burning.
The temperature of the iron is
too hot.
You are using starch. Clean the soleplate as indicated
Your laundry has not been
rinsed sufficiently or you are
ironing a new item of clothing
before washing it.
button
.
SOLUTIONS
Wait for the indicator light to turn
off.
Wait a few seconds between each
use.
See the chapter on "Storing your
iron".
Position the thermostat in the
steam range.
Ensure that the steam control dial is
when filling the water tank.
set to
Do not introduce a descaling agent
into the water tank.
Clean the steam chamber and see
the chapter on "What water should
I use?"
Clean the steam chamber and
the soleplate with a damp cloth.
Periodically vacuum the holes in the
soleplate.
Consult the chapter " adjusting
temperature and steam"
above. Spray the starch on the
reverse side of the clothing to be
ironed.
Ensure that your laundry is
sufficiently rinsed to eliminate
potential soap deposits or chemical
products on new items of clothing.
18
18
Page 19
PROBLEMS POSSIBLE CAUSES SOLUTIONS
Your iron
produces little
to no steam.
The soleplate
is scratched or
damaged.
The iron steams
once the water
tank has been
filled.
The spray does
not spray water.
The water tank is empty. Fill it up.
Your iron is clogged up with
limescale.
Your iron has been used for too
long in the dry ironing function.
The chosen temperature is too
low and does not allow the
formation of steam.
You have placed your iron on a
metallic iron rest or ironed over
metal zips or fasteners.
The water tank is too full. Do not exceed the max level for filling.
The water tank is not full
enough.
Refer to the "Descaling the steam
chamber" chapter
Clean the steam chamber.
See the chapter “Adjusting the
temperature and steam”.
Always place your iron on its base rest
when not in use.
Do not iron over metal zips or fastners.
Add water to the water tank.
If you have any problems or queries please call our Customer Relations
team first for expert help and advice: consult our website for contact details
www.tefal.co.uk
1919
Page 20
1800142635 - 22/16 - FMP
Loading...
