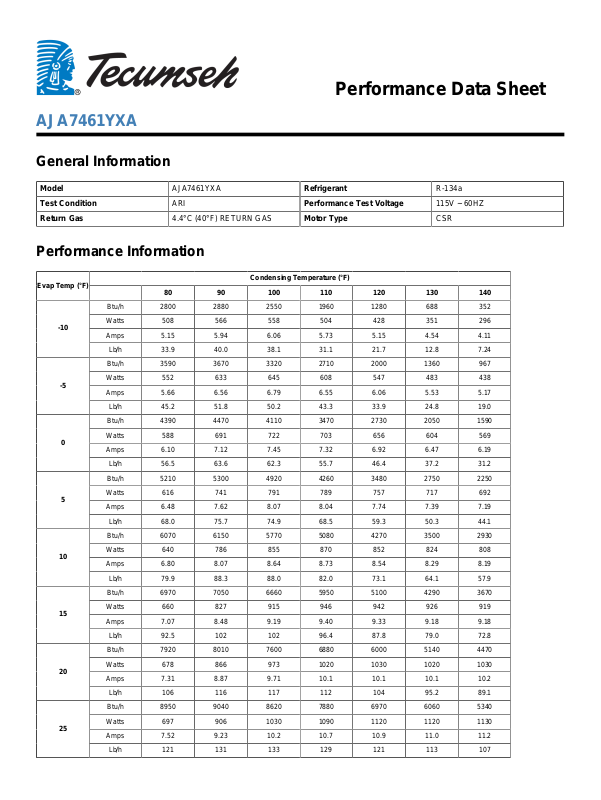

Tecumseh AJA7461YXA Performance Data Sheet

Performance Data Sheet

AJA7461YXA

General Information

Model AJA7461YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSR

Performance Information

Evap Temp (°F)

-10

-5

0

5

10

15

20

25

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 2800 2880 2550 1960 1280 688 352
Watts 508 566 558 504 428 351 296
Amps 5.15 5.94 6.06 5.73 5.15 4.54 4.11

Lb/h 33.9 40.0 38.1 31.1 21.7 12.8 7.24

Btu/h 3590 3670 3320 2710 2000 1360 967
Watts 552 633 645 608 547 483 438
Amps 5.66 6.56 6.79 6.55 6.06 5.53 5.17

Lb/h 45.2 51.8 50.2 43.3 33.9 24.8 19.0

Btu/h 4390 4470 4110 3470 2730 2050 1590
Watts 588 691 722 703 656 604 569
Amps 6.10 7.12 7.45 7.32 6.92 6.47 6.19

Lb/h 56.5 63.6 62.3 55.7 46.4 37.2 31.2

Btu/h 5210 5300 4920 4260 3480 2750 2250
Watts 616 741 791 789 757 717 692
Amps 6.48 7.62 8.07 8.04 7.74 7.39 7.19

Lb/h 68.0 75.7 74.9 68.5 59.3 50.3 44.1

Btu/h 6070 6150 5770 5080 4270 3500 2930
Watts 640 786 855 870 852 824 808
Amps 6.80 8.07 8.64 8.73 8.54 8.29 8.19

Lb/h 79.9 88.3 88.0 82.0 73.1 64.1 57.9

Btu/h 6970 7050 6660 5950 5100 4290 3670
Watts 660 827 915 946 942 926 919
Amps 7.07 8.48 9.19 9.40 9.33 9.18 9.18

Lb/h 92.5 102 102 96.4 87.8 79.0 72.8

Btu/h 7920 8010 7600 6880 6000 5140 4470
Watts 678 866 973 1020 1030 1020 1030
Amps 7.31 8.87 9.71 10.1 10.1 10.1 10.2

Lb/h 106 116 117 112 104 95.2 89.1

Btu/h 8950 9040 8620 7880 6970 6060 5340
Watts 697 906 1030 1090 1120 1120 1130
Amps 7.52 9.23 10.2 10.7 10.9 11.0 11.2

Lb/h 121 131 133 129 121 113 107

Btu/h 10100 10100 9720 8960 8020 7070 6290

30

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 -3.269235E+04 -5.508051E+03 -5.188104E+01 -6.381337E+02
C2 8.224185E+01 -4.603648E+01 -1.662552E-01 3.488889E-01
C3 1.071641E+03 1.614976E+02 1.531844E+00 1.917274E+01
C4 3.341961E-01 -1.016849E-01 -2.449336E-03 -9.129789E-03
C5 1.889709E+00 8.481354E-01 3.713205E-03 3.555859E-02
C6 -9.862852E+00 -1.363214E+00 -1.290071E-02 -1.688788E-01
C7 1.609957E-02 2.489827E-03 1.195031E-05 3.072745E-04
C8 1.069784E-03 -5.125546E-04 1.454291E-05 1.630421E-04
C9 -1.118724E-02 -2.415221E-03 -7.705472E-06 -1.441778E-04

C10 2.826876E-02 3.712248E-03 3.515547E-05 4.719974E-04

Watts 717 947 1090 1170 1210 1220 1240
Amps 7.71 9.58 10.7 11.3 11.7 11.9 12.2

Lb/h 136 148 151 147 140 132 127

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
