Technika BELLISSIMO Instructions For Use And Installation
Instructions for Use and Installation
Multifunction Ovens
Mechanical Timer models
Contents
2
For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Use and Care
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Oven & accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How to use your oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Positioning the oven trays & shelves. . . . . . . . . . . . . . . . . . . . . 9
Cooking modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mechanical timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
The oven light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cooling ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Practical cooking advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

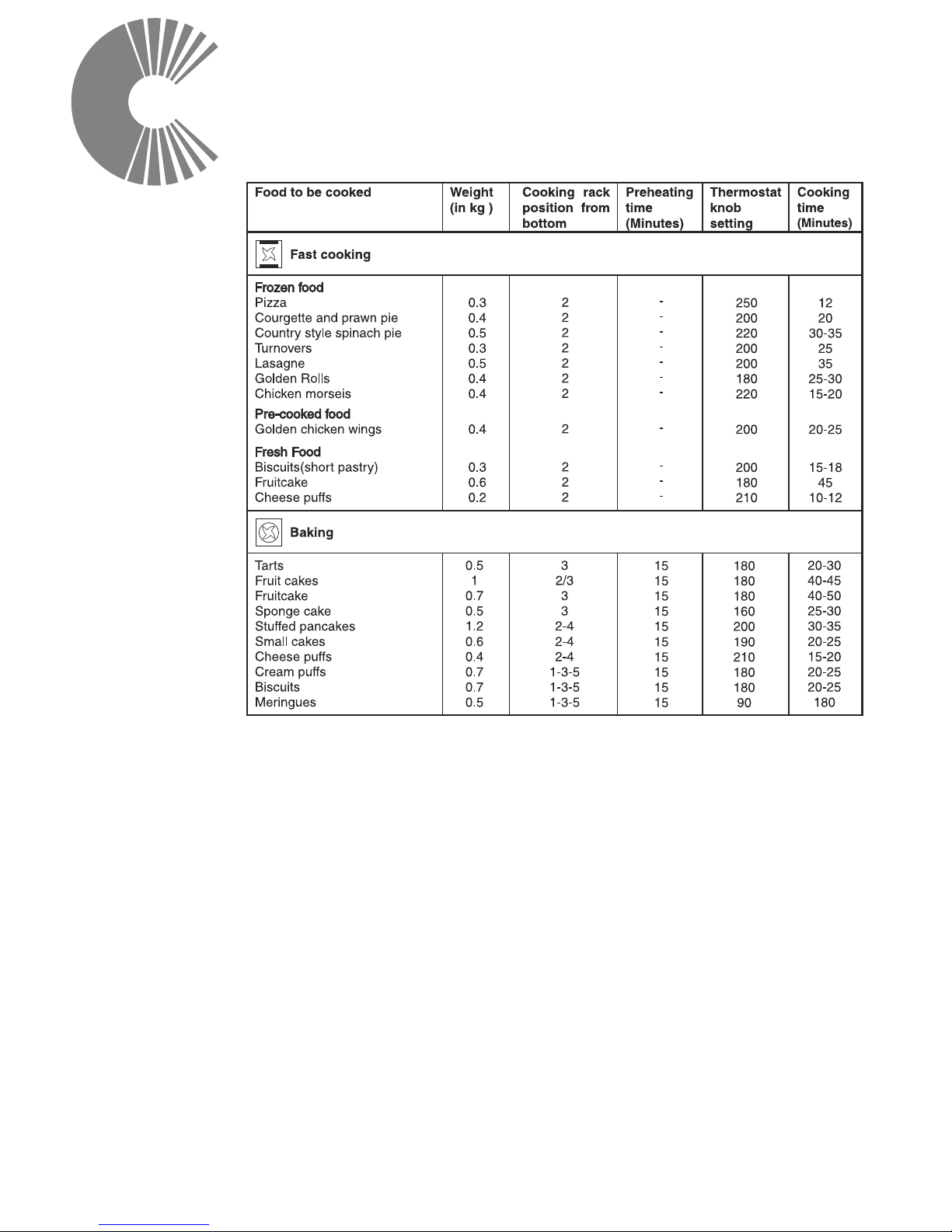

Cooking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
How to remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . 20
Replacing the oven lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation

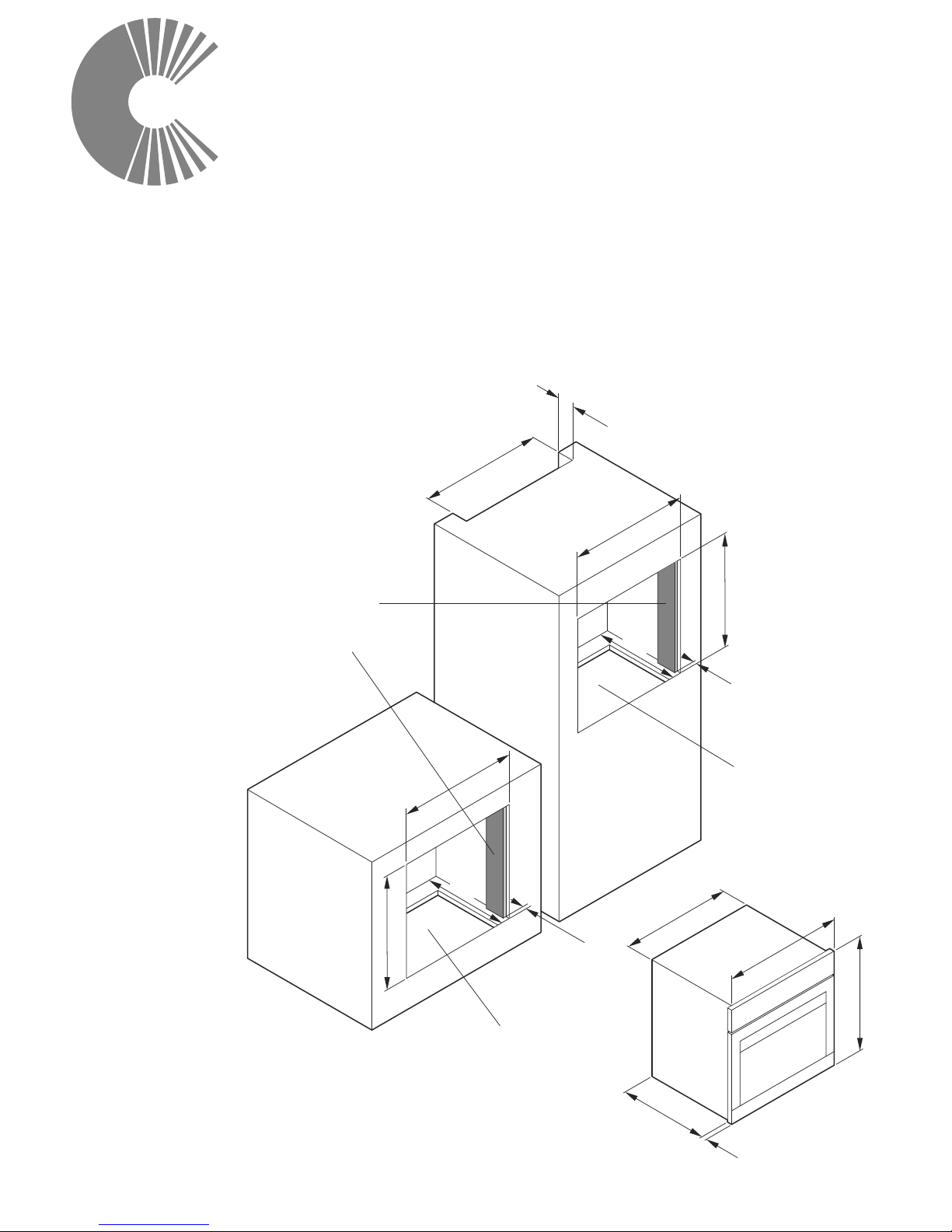

Cabinet details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
For Your Safety
We recommend that you read the instructions in this owner's
manual carefully before use for the best performance and to
extend the life of your appliance. It will provide you with all the
information you need to ensure its safe installation, use and
maintenance. Retain this owner's manual for future reference.
When handling the appliance, we recommend you always use the
handles recessed into the sides of the oven to prevent personal
injury or damage to the appliance.
To maintain the efficiency and safety of this appliance, we
recommend that you do the following:
· Always call the Technika service department if there are any
faults with your appliance.
· Always use original spare parts available from Technika.
· This appliance is designed for non-commercial, household use
and it must not be altered in any way.
· This appliance can only be used safely when it is correctly
connected to an efficient earthing system in compliance
with current electrical safety standards.
· If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
· During use, the appliance becomes hot. Care should be
taken to avoid touching heating elements inside the oven.
WARNING: Accessible parts will become hot when in use.
To avoid burns and scalds, children should be kept away.
· This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
· Young children should be supervised to ensure that they do
not play with the appliance.
· DO NOT use a steam cleaner to clean the appliance.
Packaging items such as plastic bags, polystyrene, nails, etc. are
potentially dangerous, and therefore appropriate measures must
be taken to prevent children and the disabled from coming into
contact with them.
3
For Your Safety
Avoid the following:
· Touching the appliance with wet parts of the body.
· Using the appliance while barefoot.
· Improper or dangerous operation.
· Obstructing the ventilation or heat dissipation slots.
· Allowing power supply cables of other appliances to come into
contact with hot parts of the oven.
· Exposing the appliance to atmospheric agents such as rain, or
direct sunlight.
· Using the oven for storage purposes.
· Using flammable liquids near the appliance.
Authorised personnel must be contracted to...
· Install the appliance according to these installation instructions
and any local requirements.
· Replace the temperature probe if it is damaged. The probe is
part of thermostat. Only use the temperature sensing probe
recommended for this oven.
Technika Service Department must be contacted...
· If in doubt about the operation of the appliance.
· If in doubt about the soundness of the appliance after removing
it from its packaging.
· If the power supply cable has been damaged or needs to be
replaced.
· If the appliance requires a service.
· If you need spare parts.
4
For Your Safety
WARNINGS:
· DO NOT steam clean the oven.
· Only use the appliance to cook food and nothing else.
· Check that the appliance has not been damaged
immediately after it has been unpacked.
· Disconnect the appliance from the electrical mains if it is
not functioning properly and before cleaning or performing
maintenance.
· Use oven gloves to place cookware in the oven or when
removing it.
· Always grip the oven door handle in the centre.
· Make sure the knobs are in the ‘ ’ or ‘ ’ position when the
appliance is not in use.
· Technika will not accept any liability as a result of any
damage due to incorrect installation or improper use.
5
6
Use and Care
Controls
Cooking Mode
Selection Knob
Cooking Temperature
Selection Knob
60
8 Function Model
180
220
MAX
160
120
100
°C
Oven
Temperature
Indicator Light
10
20
30
40
50
60
70
80
90
100
110
120
60
6 Function Model
180
220
MAX
160
120
100
°C
10
20
30
40
50
60
70
80
90
100
110
120
60
5 Function Model
180
220
MAX
160
120
100
°C
10
20
30
40
50
60
70
80
90
100
110
120
Use and Care
7
Oven & accessories
Depending on which model you have, ovens are supplied with a
side hinged or a bottom hinged door, chrome wire Shelf Supports
or chrome wire/telescopic Shelf Supports and a range of shelf
options as shown below. There are five shelf positions for all
models, some models include two telescopic supports.
Grill Tray with
removable insert
Oven Shelf
Shelf Supports
Wire Shelf
Supports
Telescopic
Supports
Grill tray with
removable insert
Oven Shelf
Baking Tray
(If Supplied)
Bottom Hinged Door
Side Hinged Door
Use and Care
How to use your oven
This multi-function oven combines the advantages of traditional
convection ovens with modern fan assisted ovens in a single
appliance. It is an extremely versatile appliance that allows you to
choose easily and safely between different cooking modes. The
various cooking modes are selected by means of a cooking mode
selection knob, located on the control panel.
To operate the oven:
· Ensure that manual mode is selected (page 12)
· Turn the cooking mode selection knob to the desired cooking
mode (explanation of cooking modes is on pages 10 to 11)
· Turn the cooking temperature selection knob to the desired
temperature (cooking guide is on pages 17 to 18) or to ‘MAX’ if
Grilling.
The first time you use your appliance, we recommend that you set
the thermostat to the highest setting, set the cooking mode
selection knob to a cooking mode and leave the oven on for about
half an hour with nothing in it and the oven door closed. Then,
open the oven door and allow the oven to cool. Any odour that may
be detected during this initial use is due to the evaporation of
substances used to protect the oven during storage.
Note: Place tray on the bottom shelf position of the oven to prevent
any spillages from dripping onto the bottom of the oven. Never
place anything (including foil and oven trays) on the bottom of
the oven when it is in operation because this could damage
the enamel. Only place your cookware (dishes, trays, aluminum
foil, etc.) on the oven shelves provided with the appliance.
8
If supplied, use the chrome
wire handle shown left
when removing the trays
from the oven.
Use and Care
Positioning the oven trays & shelves
The Grill Tray or Oven Shelf can be located in any of the five height
positions in the oven if your oven does not have Telescopic Shelf
Supports. Oven Shelves cannot be fitted to the Telescopic
Support. Only fit the Grill Tray to the Telescopic Support.
Refer to the ‘Cooking Guide Table’ for the recommended shelf
position. When fitting the trays or shelves, ensure they are fitted
between the two wires that are closest together as shown below.
Oven Shelves have a stop so that they are not fully withdrawn by
accident. To fully remove the Oven Shelves, lift the front of the
shelf slightly and withdraw fully from the oven. Note that the Grill
Tray does not have a stop position and can be fully withdrawn
without interruption, so be careful not to accidentally fully withdraw
the tray.
To remove the Oven Shelf
Support, push down on the
wire below the locking pin,
pull away from the oven wall
until you can release the top
of the support from the
holes in the oven wall.
Replace in reverse
procedure.
Fit Trays and
Shelves
between bars
as shown right
Oven Shelf fitted to chrome
wire Shelf Support
Grill Tray fitted to Telescopic
Shelf Support
9
