Technika 32F22B-FHD, 32F22W-FHD/DVD, 40F22B-FHD, 40F22B-FHD/DVD, 40F22W-FHD/DVD User Manual

LED TV with Freeview HD, Saorview & USB PVR

User Guide

Model No

50F22B-FHD

Important safety instruction

Please read these instructions. All
the safety and operating instructions
should be read before the appliance
is operated.

Warnings

• Television sets which weigh 20kg or more must be

lifted and carried by at least 2 people.

• This television does not contain any parts that

are serviceable by the user. In case of a fault, contact
the manufacturer or authorised service department.
Exposing the internal parts inside the TV may
endanger your life. The manufacturers guarantee does
not extend to faults caused by repairs carried out by
unauthorised third parties.

• To reduce the risk of fi re, electric shock or damage

to the TV, do not expose it to dust, rain or moisture.
Never expose the TV to dripping or splashing and do
not place objects fi lled with liquids on or near the TV.

• Do not connect any external devices (DVD player,

games console etc) when the TV is switched on.
Disconnect both the TV and device from the mains
before connecting. Only switch appliances on when
the connection process is complete.

• Do not place the television in a confi ned space and

do not obstruct the ventilation openings at the rear of
the television.

• When installing on a wall, ensure the TV is at

least 5cm from the wall for ventilation.

• Always ensure that the TV’s ventilation openings

are not covered with items such as newspapers, table­cloths, curtains, etc.

• Dispose of this television and any components

including batteries in an environmentally friendly
manner. If in doubt, please contact your local authority
for details of recycling.

Safety

• For your safety, this appliance is fi tted with a fused

3 pin mains plug. Should the fuse need to be replaced,
ensure that any replacement is of the same amperage
and approved with the BSI mark.

• Never try and replace the mains plug unless

you have adequate qualifi cations and are legally
authorised to do so. In the event that a replacement
mains cable is required, contact the manufacturer for a
suitable replacement.

• Never use the television if it is damaged in any way.

• Always place the television on a fl at level surface

avoiding anywhere which may be subject to
strong vibration.

• The ideal distance to watch the television is

approximately fi ve times the length of the diagonal
measurements of the TV screen.

• Ensure the television is not placed on top of the

power cable as the weight of the television may
damage the cable and cause a safety hazard.

• Never place mobile phones, speakers or any

other device which may cause magnetic or radio
interference, near the television. If interference is
apparent, move the device causing the interference
away from the television.

• To disconnect the apparatus from the mains, please

use the mains plug located on the underside/rear of
the TV.

• Ensure that the mains plug is always easily

accessible.

WARNING: Excessive noise when using
earphones and headphones can cause loss of
hearing.

Maintenance

• To clean your TV, wipe with a soft, dry cloth. If the

surfaces are extremely dirty, use a soft cloth dipped
in a soap and water solution or a weak detergent
solution.

• Never use alcohol, paint thinner or benzene to clean

this unit.

• Before using a chemically treated cloth, read the

instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the
television through the display panel surface,
a malfunction may occur.

Packaging

• The safest way to transport your item is in the

original box/packaging - please save your packaging
for this.

• You will need the original box/packaging in the

event of warranty/service repair or support. We are
unable to carry out warranty/service if you are unable
to package the item correctly.

4

5

Important information regarding use of video
games, computers, captions or other  xed image
displays

The extended use of  xed image program material can cause
a permanent “shadow image” on the LCD/LED panel, also
known as “screen burn”.

This “shadow image” can appear in the background during
normal viewing. This type of irreversible LCD/LED panel
deterioration can be limited by observing the following steps:

Batteries

• Do not expose batteries to high temperatures,

excessive heat, prolonged sunshine or fi re as this may
cause leakage, explosion or ignition.
Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or

mix old and new batteries.

• Dispose of batteries in an environmentally

friendly way.

• Certain regions may regulate the disposal of

batteries. Please consult your local authority.

1. Reduce the brightness/contrast setting to a minimum
suitable viewing level.

2. Do not display the  xed image for extended periods
of time.

3. Turn the power o when not in use.

Examples of images that are more likely to cause “screen burn”
are as follows (this is not an exhaustive list):

• TV channel logos: e.g. shopping channel logos

and pricing displays - especially if they are bright and
stationary. Moving or low-contrast graphics are less
likely to cause ageing of the screen.

• Time displays.

• Teletext: Do not view a stationary page for a long

period of time

• TV/DVD menus: e.g. listings of DVD disc content.

• Pause mode: Do not leave the TV in pause mode

for long periods of time, e.g. when watching DVDs or
videos.

Important: Once ‘shadow image/screen burn’
occurs, it will never disappear and is not
repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be

disposed of with household waste. Please
dispose of the product at a designated
collection point for recycling of WEEE.
For your nearest facilities, please see
www.recycle-more.co.uk or in store
for details.

Trademarks

HDMI

The terms HDMI and HDMI High-De nition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing, LLC in the United States and
other countries.

HDTV

The “HD TV” Logo is a trademark of DIGITALEUROPE.

HDTV 1080p

The “HD TV 1080p” Logo is a trademark of DIGITALEUROPE.

DVB

The DVB logo is the registered trademark of the Digital Video
Broadcasting (DVB) project.

FREEVIEW HD

The FREEVIEW HD words and logos are trade marks of DTV
Services LTD. © DTV Services Ltd.

SAORVIEW

SAORVIEW is a registered trademark owned by RTÉ.

ROI: Waste electrical products should not be
disposed of with household waste. Separate
disposal facilities exist. Check with your local
authority or retailer for recycling advice.

5

7

CONTENTS

Manufacturers Guarantee Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

What is Included in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Attaching / Detaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Securing the TV to a wall / Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

TV Buttons and Input Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-23

Channel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Lock Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Network Confi guration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7 Day TV Guide and Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

USB Record - Freeview / Saorview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-33

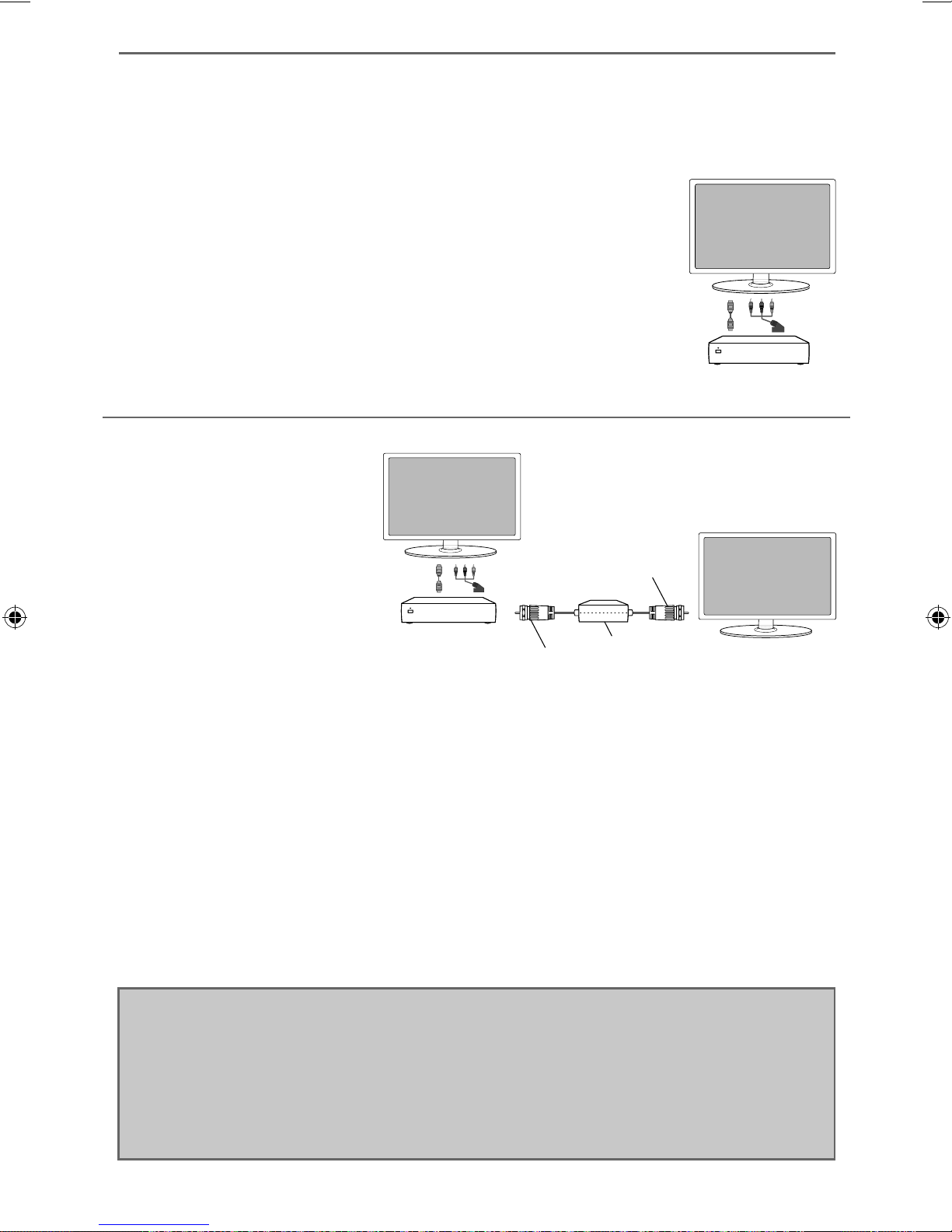

Using your TV with a Sky digital set top box . . . . . . . . . . . . . . . . . . . . . . . . 29

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31

Technical Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

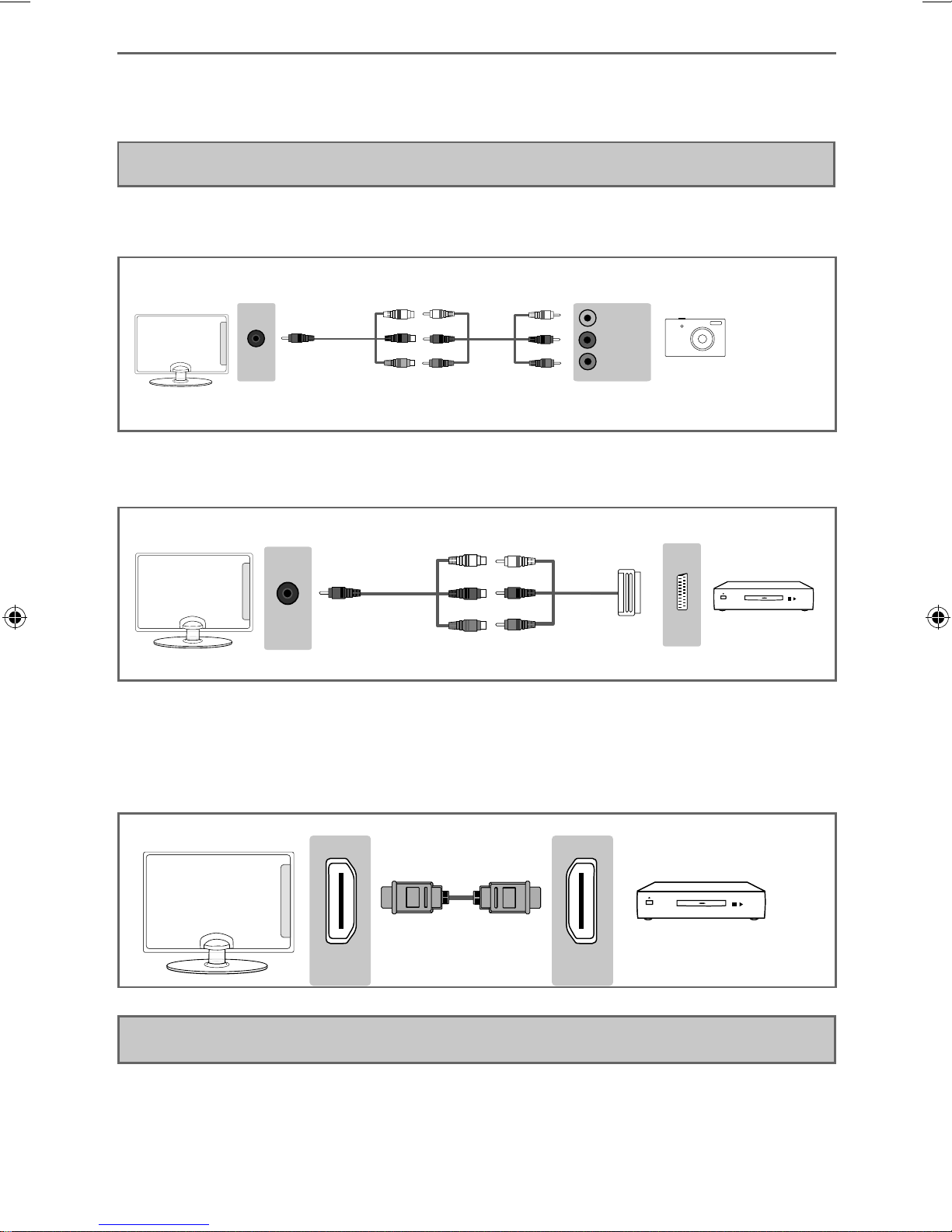

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-15

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a
trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

7

What is Included in the Box

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories

1 x User Guide

User Guide

1 x Quick Start Guide

Quick Start

Guide

1 x Remote Control

2 x AAA Batteries

1 x Mini Composite / AV

1 x TV

1 x RF Cable

1 x Mini Component / YPbPr

1 x Stand plus screws

Please save your box/packaging as you will need this in the event of warranty/service repair or support.
We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.

8

9

Attaching/Detaching the stand

ATTACHING THE STAND

Attaching the stand

To complete the stand installation you will require a cross head screw driver

Screws that are included.

4 x M(4x16)

Used for attaching the stand
to the TV set ( g.2)

(fi g.1) Place the TV set on a fl at and clean
surface with the panel facing downwards
to avoid damage.

1

(fi g.2) Secure the stand to the rear of
the TV set using the 4 x M(4x16) screws
provided.

4 x

2

When securing the self-tapping screw/s into the base of the stand (on fi rst installation) the screw/s will be naturally
tight as they create a thread in the plastic of the stand neck in order to support a TV of this size.

a) Ensure the cross head screw driver tip fi ts correctly into the head of thescrew and that it is not too big or small.
b) Screw in all screws individually and partially before tightening all of thescrews fully.

c) If they become very tight try loosening them slightly and then re-tightening them once again as this will continue
the process of creating the thread for the screws.

M(4x16)

Detaching the stand

Remove the screws highlighted then remove the stand from the rear of the TV set.

4 x
M(4x16)

9

Securing the TV to a Wall/Wall Mounting

SECURING THE TV TO A WALL

Securing the TV to a Wall

For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These
are available from supermarket websites and other websites and are an easy, inexpensive and an effective
way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and
then tethered to the wall or the furniture the TV is stood on.

Note - Please ensure that children do not climb on the TV set.

A) Using one or both of the top wall-mounting
holes and screws (the screws are already supplied
in the wall mounting holes) fasten one end of the
fastening cord/s to the TV.

The Royal Society for the Prevention of Accidents is urging people to take care with fl at-screen televisions.

RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling fl at-screen televisions on to
themselves. They are unsteady on their feet and are attracted by colourful television images.”

The risk is increased as televisions become lighter.

B) Secure the other end of the fastening cord/s to
your wall. (you will need screws/fi xings suitable
for your wall type - available separately from most
DIY stores).

Wall Mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any

electrical wires, water or gas pipes

.

1) Remove the four screws highlighted that are supplied in the wall mounting
holes.

2) The wall mount can now be easily attached to the mounting holes on the
rear of the TV.

For VESA wall mounting information please refer to the Technical
Specifi cation page.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards
so that the TV’s screen is ‘face on’. See fi g 1 and 2.

g 1 fig 2

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes.
Using other screws which are longer could cause irreparable damage to internal parts.

INCORRECT

Viewing angle

10

TV

CORRECT

TV

Viewing angle

11

Remote Control

REMOTE CONTROL

STANDBY - Switch on TV when in standby or vice versa

1

MUTE - Mute the sound or vice versa
DTV - Switch to digital source
RADIO - Switch to radio whilst in digital source
USB - Switch to USB source
DVD - Switch to DVD source

NUMBER BUTTONS - 0 – 9 to select a TV channel directly.

2

TV GUIDE - Opens the 7 Day TV Guide (digital mode)

- To return to the previous channel viewed

VOL (+/-) - To increase / decrease the sound level

3

P.MODE - Scrolls through picture mode options
S.MODE - Scrolls through sound mode options
FAV - To display favourites menu
CH (+/-) - To increase or decrease the channel being watched
MENU - To display OSD menu
EXIT - To exit all menus

and adjust the system settings to your preference
SOURCE - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current
programme

- Allows you to navigate the on-screen menus

1

2

3

ASPECT - To switch the screen between the different picture

4

formats
SLEEP - Press repeatedly to cycle through the sleep options
AUDIO - To change the audio language (if available)
SUBTITLE - To switch the dialogue at the bottom of the screen
(on/off)
TEXT - To enter/exit Text
TEXT HOLD - Teletext mode - Hold current page which is
displayed (Analogue TV)
DISPLAY - To switch off the screen when listening to radio
TEXT/DVD ZOOM - Zoom function for Teletext and DVD
DVD MENU/RECORD - Access the DVD root menu and USB
record function

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback/Eject Disc
(To EJECT the disc press/hold the

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

DVD SETUP/REC LIST - Opens up DVD Menu or Opens the list
of what has been previously recorded

GOTO - To go to a specifi c chapter
A-B - Press once to set point, press a second time to return
to point
ANGLE - Select different angle of DVD

REPEAT - To repeat playback

button for 4 seconds)

4

For Models with Integrated DVD players

For Models with PVR Function

For Models with USB Playback

11

TV Buttons and Input Source Menu

TV BUTTONS AND INPUT SOURCE MENU

1

2

3

4

5

6

7

Volume up and menu right

1

Volume down and menu left

2

Programme/Channel up and menu up

3

Programme/Channel down and menu down

4

Displays Menu/OSD

5

Displays the input source menu

6

Standby Power On/Off

7

Choosing Mode Input/Source

To switch between the different input/
connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.

2) Press [\/] or [/\] to select the input you require.

3) Press [OK].

B) Using the buttons on the Television:

Freeview/Saorview TV

Analogue TV

Composite/AV

Component / YPbPr

VGA/PC

1) Press [SOURCE].

2) Scroll up / down using CH+/ CH- buttons to
the input/source you require.

3) Press Vol+ to change input/source to the
one selected.

For further information on input/connections
please view ‘Connections’ pages.

12

USB Media

Example of Source menu

depending on the TV model

13

Connections

CONNECTIONS

Digital Audio

Output

A

EARPHONE

H

A

LAN* Network Connection

B

Digital Audio Digital Optical Audio output

C

HDMI 1 HDMI Input

D

HDMI 2 HDMI Input (ARC)

E

VGA PC VGA-PC Input

F

VGA PC Audio In 3.5mm PC Audio Input

RF IN RF / TV Aerial Input

G

B

IJ

C

Y Pb Pr

D

CI CARD IN

AV IN

KL

USB

VG A/P C(Audio in)

F

G

VGA/PC IN

E

M

Earphones Earphone Input

H

I

HDMI 3 HDMI Input

J

YPbPr HD Input (Ypbpr)

K

AV in Audio/Video Input

L

CI CARD IN Common Interface module

M

2 x USB USB port

*The LAN/Ethernet port is used only for Pay TV services and Freeview HD (Freeview services are only
available in the UK). It is not intended to be used for internet/network use.

13

Connections

CONNECTIONS

Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.

Connecting to a device with Composite AV/Video output

TV Source should be set to Composite/AV

L (white)

R (red)

Mini
AV in

Connecting to a device with SCART output (using SCART to AV cable)

TV Source should be set to Composite/AV

Video
(yellow)

Mini
AV in

Scart

Connecting to a device with HDMI output

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.

TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)

HDMI HDMI

Note: This model TV can not be used as a PC/laptop monitor via the HDMI input. The HDMI Input is
provided to view digital content with compatible external devices

14

15

Connections

CONNECTIONS

Connecting to a device with Component/YPbPr output

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component/YPbPr

Y (green)

PB (blue)

Mini

YPbPr

Mini
AV in

Video (yellow)
is not connected

Connecting to a device with VGA/PC output (Laptop or Desktop Computer)

TV Source should be set to VGA/PC

PR (red)

L (white)

R (red)

VGA/PC

in

VGA/PC

(audio

in)

VGA/PC

out

Audio

out

Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)

When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.

There are two options when connecting a device via the 3.5mm Earphone Output and the
Digital Optical Audio Output

3.5mm

earphone

Digital

audio

out

(optical)

OPTION 1 for 3.5mm EARPHONE Output

OPTION 2 for Digital Optical Audio Output

3.5mm
audio

in

Digital

audio

(optical)

in

Connecting an Ethernet/Network cable

The Ethernet port is used only for Pay TV services and Freeview HD (Freeview services are only available in
the UK). It is not intended to be used for internet/network use.

Ethernet
port

Ethernet
port

15

17

TV Menu Operation

CHANNEL MENU

To access this menu, press [MENU] button on the remote control.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and

analogue devices

Freeview/Saorview Manual Tuning* - Allows you to manually tune your digital signal

Analogue Tuning - Allows you to manually tune your analogue signal

Channel Edit - Allows you to delete, move, skip and favourite channels

Important: To receive Freeview/Saorview channels, in particular HD
channels, you will need a Digital TV aerial and be in a good Freeview/
Saorview coverage area. You can check the coverage for your area at
www.freeview.co.uk or www.saorview.ie

Please note that any Freeview HD channels found during tuning will
be placed in channel positions above 100.
For example, 101 (BBC1 HD) 102 (BBC2 HD) etc.

*Freeview channels are only available in the UK, Saorview channels
are only available in the ROI.

Signal Information - Allows you to view signal frequency, signal quality and signal strength

CI Information - Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to

a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be

inserted into the COMMON INTERFACE PORT (CI Card In)

Schedule List - Lists your programme reminders

Software Update (OAD) - Switch on/off OAD updates

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change
the length of time before the menu exits automatically - see ‘OSD Timer’ in the Time Menu

17

TV Menu Operation

PICTURE MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets:

Dynamic Recommended settings for fast moving pictures

Standard Standard settings

Mild Set to be lighter in colour and less bright

Personal Lets you manually alter all the settings

Economy Power saving mode which reduces the energy used by up to

25% (by reducing the power to the LED/LCD panel).

In Economy mode, the TV will switch itself to Standby mode

after 3-5 hours in the event that the TV buttons or remote

control buttons are not pressed (change the picture mode

to another setting to de-activate this function)

You can make the following adjustments in

Contrast - Switch the balance between black and white.

Brightness - Increase or decrease the brightness of the picture.

Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture

(only available in VGA/PC source mode).

Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature Choose from the following presets:

Normal Default settings

Warm Increases red within the picture

Cold Increases blue within the picture

Personal mode:

18

19

TV Menu Operation

PICTURE MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a

number of different options to best meet your needs

Auto

Automatically displays the best picture format so the
picture is in the correct position, black lines maybe

viewable at the top/bottom and/or sides.

16:9

Fills the screen with
a regular 16:9 signal
and 4:3 picture
format will be
stretched to fi ll
the screen

Point to Point

Displays picture in its original resolution.
Only available when the TV is set to HDMI
input source.

4:3

Displays the 4:3
picture in its
original size.
Side bars are
shown to fi ll the
16:9 screen

Zoom1 and

Zoom2

The picture
is the correct
proportion
but zoomed
in to fi ll the
screen

Noise Reduction - Choose from the following presets:

Off Turns noise reduction off

Low Minor system adjustment

Middle Medium system adjustments

High Maximum system adjustments

Screen - Allows you to adjust screen settings when TV is used a PC monitor and the TV is set to

the VGA/PC source.

19

SOUND MENU

TV Menu Operation

Sound Mode - Choose from the following presets

Standard Default settings

Music Emphasises music over voices

Movie Provides live and full sound for movies

Sports Emphasises sound for sports

Personal Selects your personal sound settings

Balance - To switch the sound between the left and right speakers

Auto Volume Level (AVL) - When ‘on’ is selected, the volume will attempt to stay at a constant level

regardless of TV programme and advertisements

Surround Sound - Choose from the following options:

Off Off

TM

TruSurround TruSurround

from two speakers, complete with rich bass, high frequency detail and clear dialog

Audio Description - This allows the user to increase and decrease the AD (Audio Description) volume level.

(Audio Description is a service available on certain programmes. It provides a description of what is

happening during the selected programme for a person who is visually impaired)

Digital Output - This is the digital COAX audio output. Choose from the following options:

creates an immersive, feature-rich surround sound experience

Tip: Equaliser settings can only be
adjusted when the sound mode ‘Personal’
is selected.

Off To turn off Digital Output

Auto Selects the best settings automatically

PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code

modulation (PCM) is a digital representation of an analogue signal)

Audio Delay - Enables the user to adjust setting to sync picture and audio

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and
DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

20

21

TV Menu Operation

TIME MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Clock - Shows the date and time

Time Zone - Change your current time zone

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of

time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before

disappearing

Auto standby - Set Auto standby between 3 hours, 4 hours and 5 hours ( to turn off this function you must

exit Home Mode in the Picture Menu)

21

TV Menu Operation

SETUP MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Language - Allows you to change the language of the menu

Audio Language - Shows the current audio language

Subtitle Language - Shows the current subtitle language

Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles

on the screen which provide a description of what is happening during the selected program.

Blue Screen - Changes the background when there is no input between clear and a blue background (Only

available on some sources)

Network Confi guration - Allows you to manually set your network settings on the TV (for more

information please see ‘Network Confi guration’ page

First Time Installation - Allows you to access the First Time Installation menu and retune the TV set

HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user

to operate multiple devices with one remote control. (only available with compatible devices)

Reset TV - This resets the menus to factory settings and clears all the TV channels from the television.

Software Update (USB) - From time to time we may release new fi rmware to improve the operation of

the television (available to download). This menu lets you install the new software/fi rmware onto the

television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer

to the ‘product support’ section of the website

22

23

TV Menu Operation

LOCK MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password

Use the

Change Password - Allows you to change the password

Channel Lock - Allows you to lock certain channels manually

Parental Guidance - Allows you to set the rating to block certain content based on age information

TV Button Lock - Allows you to lock the buttons on the side of the TV set

Default Source - Allows the user to set the default source. The default source is the source the TV starts on

when fi rst switched on

Default Channel - Allows the user to set a channel as the default channel on the Digital source. The

default channel is the channel the TV starts on when fi rst switched on

Max Volume - Allows you to adjust and set the maximum volume

Source Lock - Allows you to lock the source menu

◄ button to quit the password input or use the ► button to clear. Default password is 0000

23

Network Confi guration

NETWORK CONFIGURATION

For the network confi guration to work the TV will need to be connected to your home network via an
Ethernet cable, with these requirements in place the TV will connect to the network automatically.

If you are looking to change the confi guration to a static IP address this can be done by following the
instructions below.

23

1

1) In the Setup Menu you will need to highlight and select Network Confi guration.

2) When the Network menu appears highlight and select Wired Network.

3) Next the Wired Network menu will appear please highlight and select Confi guration.

45

6

4) The Network Confi guration menu allows you to choose between DHCP and Static.

DHCP - will automatically connect the TV to your home network (this is the default setting and is

highly recommended)

Static - is an advanced option and allows you to manually change the IP, Netmask, Gateway and DNS

information.

5) If the static option is chosen you will able to scroll down and manually change the IP, Netmask,
Gateway and DNS information.

6) When the connection process is completed with either DHCP or Static option the Success screen will
appear.

24

25

7 Day TV Guide and Channel List

7 DAY TV GUIDE

TV Guide is available in Saorview/Freeview TV mode. It provides information about forthcoming
programmes (where supported by the Saorview/Freeview channel). You can view the start and end
time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear..

2) Navigate through the menu using

You can now:

Record a programme by pressing RED (USB device must be connected)
View a previous day by pressing GREEN
View the next day by pressing YELLOW
Set a reminder by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide

.

Channel List

To view the channel list, please ensure that the TV is set to either the analogue or digital source and
no menus or TV notifi cations are displayed.

1) Press [OK] on the remote control and the
channel list menu will appear.

2) Scroll through the channel list by using buttons then
press [OK] to view the channel that is currently highlighted.

You can also:

View HD channels by pressing RED
View standard defi nition channels by pressing GREEN
View radio channels by pressing YELLOW
View all channels by pressing BLUE

3) Press [EXIT] to exit the channel list.

25

USB Record - Freeview/Saorview

USB RECORD  FREEVIEW/SAORVIEW MODE

USB RECORD – FREEVIEW/SAORVIEW MODE
Built into this television is a USB record facility. This function is available in Freeview/Saorview mode
when used in conjunction with a compatible USB memory stick or USB hard drive. The benefi ts of this
are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)

• One button record, if you decide you want to record the current programme

• Easy programmable recording from the 7 day TV Guide

• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads
from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a
selection
of tested and compatible memory sticks available to purchase directly from the helpline/web site.

Minimum Specifi cation - USB Memory Stick

Read Speed 80 MB/s (Mega Byte Per Second)

Write Speed 40 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear
of this user guide.

Pause Live TV (Time Shift)

Pausing Live TV is very simple.

- Press the play/pause button and the television will pause and the live

content will be recorded. To resume watching press play/pause again.

- Press fast forward to go forward in a recording (i.e. to skip adverts)

- Press fast rewind to go back in a recording (i.e. if you fast forwarded too

far)

Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart
time shift you must press play/pause button.

One Button Record

At any point in time you may decide to record the current channel that you are watching. To do this you
need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or
record one channel while the television is in standby mode.

Note: USB record function is only available in Freeview/Saorview TV mode. Due to copyright laws and
illegal copying/recording it is not possible to record to/from any other input/output source.

26

27

USB Mode/Media Player

USB MODE/MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB
Memory Stick.

On switching to USB source the below menu screen will appear. The content will be divided into Photo,
Music, Movie and Text based on fi le type.

1) You can navigate through the menus using the
scroll

wish to play/view press [OK] button.

3) You can now access the item. Press OK to view.

buttons. To confi rm the item you

2) Select the drive you require. (If your drive only
has 1 partition you will only see 1 item).

4) Whilst viewing your media, you can control
the item by using the remote control buttons
(below) or by pressing (Info) to access the
on-screen playback menu, you can now make
your selection by using the
buttons on the remote control.

Fig.A

and (OK)

Tip: If you experience a playback issue, please ensure the fi les being used are the correct format
(example - the picture plays but no sound) See technical specifi cation page for compatible fi le types

Note: USB extension cables are not recommended as they can cause a reduction in picture/audio quality
and stoppages during play back of USB content.

27

29

General Information

USING YOUR TV WITH A SKY DIGITAL SET TOP BOX

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located
in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables
(available separately) .

If connecting by SCART, select the ‘Input source’ on the TV as SCART. If your TV does
not have SCART, please refer to ‘Connections’ pages in this user guide for alternative
ways to connect.

If connecting by HDMI, select the ‘Input source’ on the TV as HDMI (if the TV has more
than 1 HDMI port, ensure you select the input source to match the HDMI numbered port

SCART adapter
or HDMI cable

on the rear of the TV).

If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky

Sky Box

remote control (Revision 9 or later) and you will need to program a 4 digit code into it.
See bottom of this page.

Option 2) Connecting your TV
to your Sky box (when your
Sky box is located in a different
room to the TV)

Please note, if you are adding a ‘Magic
Eye/TV Link’ to your system so that
you can use your Sky remote control
to change the Sky channel in the room
where the 2nd TV is located, please

HDMI cable or
SCART adapter

RF/COAX cable from
Sky Box to 2nd TV

refer to the instructions included
with the TV link/magic eye in order to
ensure the RF or RF2 output on your
Sky box is powered on. (The red LED
light on the TV link/magic eye will light

Sky Box

Connect to RF
or RF2 output
on the Sky box

up if the RF / RF2 output is correctly set
up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be
found on our web site.

Connect to the
Aerial/RF input
on the 2nd TV

TV Link/Magic Eye
(optional)

2nd TV in
another room

1) To tune the TV to the Sky box, on the 2nd TV, select the ‘Analogue’ input source.

2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you
no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store
the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is
the best option for you)

3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per
point 2 above.

4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue
Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)

5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the
Sky box/channel is found, press ‘OK’ to store it.

If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky remote control (Revision 9 or
later) and you will need to programme a 4 digit code into it. See below.

Using a Sky remote or a universal remote to operate your TV

Sky remote control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to
program a 4 digit code into it. Please note - you will need a Sky Revision 9 remote control (or later). The code
required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to the latest

version, you can do so on our website.

Universal remote control - If you wish to use a Universal remote control to operate your TV, please refer to the
website for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you
have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

29

General Information

FREQUENTLY ASKED QUESTIONS

General
(For TV models with
digital optical audio
output)

General Why are some options in the

General Can I stop my TV automatically

TV I have tuned in Digital TV but I

TV I have re-tuned my television

VCR/DVD
Recorder

I would like to have louder
sound by connecting additional
speakers. For TV models with
digital optical audio output.

menu unavailable and greyed
out.

turning o after 4hrs?

am not receiving any or all of the
channels and/or the channels I
receive are breaking up.

but when I switch it o it is not
storing the channels.

I have connected the TV to my
VCR or DVD Recorder via SCART
but it is not recording.

1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to
connect to an ampli er/surround sound system. Please note this will deactivate the TV’s built
in speakers.

2) Connect a digital optical audio cable from the TV’s digital optical audio output to your
ampli er/surround systems digital optical audio input.

Some options are only available in certain sources, i.e. HDMI. They are
unavailable in the other sources where they have no a ect.

Yes, in the ‘Time’ menu settings, scroll down to Auto standby and select OFF.

1) Check you are in an area that can receive Freeview/Saorview, visit www.freeview.co.uk or
www.saorview.ie

2) Check you are using an aerial that is able to receive a good digital signal. In most cases,
you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent
digital coverage, you may be able to use a loft type aerial but it is highly likely that you will
also need to connect a booster between the back of the TV and the TV aerial wall socket.
Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/
indoor type aerial.

If the TV does not save the channels when you power it o , it’s likely the channel database
has become corrupt.

1) Turn o the TV.

2) Remove the RF/Aerial cable from the rear of the TV and then turn the TV back on again.

3) Using the remote control, press Menu followed by 8-8-8-8 to enter the initial setup/ rst

time installation menu.

4) Press OK (let the TV run the full tuning process).

5) Once completed, turn o the TV, reconnect the RF/Aerial cable then turn the TV back

on again.

6) Repeat steps 3 & 4.

In addition to connecting via SCART, you should connect the aerial cable from the wall
socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to
the TV.

Game Consoles I have connected my

Playstation/Xbox to the TV via
HDMI, but I am not receiving
any pictures or sound on my
Television.

Game Consoles I have connected my

Playstation/Xbox to the TV via
Component cables (red, green
& blue) but I am not receiving
any sound.

System Lock I have changed the password

on the television and now
forgotten it.

USB Mode I have inserted a USB Memory

Key, but the TV does not
recognise it.

USB Mode Using a USB portable hard drive

/ larger than 32GB.

1) Ensure the TVs’ source is set to HDMI.

2) Check your settings on your Playstation/Xbox are as per the Playstation/Xbox
instruction manual.

Component cables only provide HD pictures. For the sound you will need to connect the red
& white audio cables on the Playstation/Xbox to the red & white phono inputs (or mini AV
input where  tted) on the rear of the TV. Please refer to the ‘Connections’ pages.

There is a master password of 4711, to gain access to the TV menu and reset the
normal password.

Ensure the USB Memory Key is formatted to type FAT32.

If you wish to use a portable hard drive larger than 32GB, please note that it must be
formatted to the FAT32  le system in order to operate on this TV. Windows XP/Vista
computers are only capable of formatting up to 32GB, therefore, you will need a software
programme/utility to format larger hard drives.
Please refer to the website, www.umc-uk.co.uk, for more information.

30

31

General Information

FREQUENTLY ASKED QUESTIONS

USB Record I cannot change the channel,

access the menu or use the red
button.

USB Record When using the USB to record

the picture ‘breaks up’ or
experience loss of sound.

Freeview HD I cannot access all Freeview

channels.

Freeview HD I cannot  nd the Freeview HD

channels.

During time shift you cannot change the channel, access the menu or use the red button.

Check the USB memory stick meets the minimum read speed requirements. Standard
de nition channels require a read speed of 20 MB/s (Mega Byte per second) and a

write Speed of 6 MB/s (Mega Byte per second) HD channels require the read speed of 80
MB/s (Mega Byte per second) and a write speed of 40 MB/s (Mega Byte per second). USB 3.0
sticks should be used where possible.

Some data channels for Freeview can only be obtained when the TV’s ethernet port is
connected to your router.

Freeview HD channels found during tuning will be placed in channel positions above 100.
For example, 101 (BBC1 HD), 102 (BBC2 HD) etc.

31

TECHNICAL SPECIFICATION

Product  che

General Information

Trademark

Technika

Model ID 50F22B-FHD

Energy e ciency class A+

Visible screen size (diagonal) 127 cm / 50inches

On mode power consumption 65.0 W

Annual energy consumption *1 95 kWh

Standby power consumption *2 <0.50 W

O mode power consumption 0 W

Screen resolution 1920 (H) x 1080 (V)

*1: Energy consumption XYZ kWh per year, based on the power consumption of the television
operating 4 hours per day for 365 days. The actual energy consumption will depend on how the
television is used.
*2: When the TV is turned o with the remote control/standby button and no function is active.

Additional Technical Information

RF 75 ohm Antenna / Analog / DVB

Inputs 3 x HDMI, 1 x VGA/PC, 2 x USB, 1 x RJ45 (Ethernet),

1 x 3.5mm jack for PC audio input,

1 x Mini Component/YPbPr,

1 x Mini Composite/Video & L/R Audio shared for

Composite/Video & Component/YPbPr,

Sound Outputs 1 x 3.5mm Headphone/Audio out, 1 x Digital Optical Audio

Out

Speaker / Ampli er Watts (RMS) 2 x 10 / 2 x 8

Voltage and power consumption 110 - 240V ~ 50/60Hz

65/95/110W (home mode/standard/max)

(<0,5W in Standby)

(0W in OFF mode)

Dimensions including stand (mm)

Net weight (Kgs) 12.9

Wall Mounting VESA 200 x 200 (mm)

1130W x 700H x 215D

32

33

General Information

TECHNICAL SPECIFICATION

Compatible fi les in USB Mode

Media File Ext.

.mpg/.mpeg

/.dat

.ts/.trp/.tp/.

m2ts

.vob MPEG-2

.mp4

.rm/.rmvb Rm codec

Movie

Music


.mkv

.avi

Motion JPEG JPEG

.asf,wmv VC1

.flv/.swf

.mp3 --

.wma/.asf --

.ogg -- OGG Sample Rate: ~48KHz

.m4a/.aac -- AAC HEAAC

.jpg/

.jpeg

.bmp BMP

.png

Video Decoder

Video Audio

MPEG-1, MPEG-2

MPEG-2, H.264,VC1,AVS

MPEG-4, Xvid, H.264

MPEG-1, MPEG-2, MPEG-4,

H.264

MPEG-2, MPEG-4,

Xvid, H.264

H.264, AVC, Sorenson

H.263

Progressive JPEG Max Resolution: 1024×768

Baseline JPEG

Non-Interlaced

Interlaced Max Resolution: 1200×800

MP3, WMA,AAC,
LPCM,DTS(DMP)，

IMA-aDPCM/MS-A

AAC, LPCM,

DPCM,LBR(cook),

AC3

G711A/mu-law

MPEG1/2 (Layer1，

Layer2，Layer3)

WMA

WMA pro

MP3, WMA,

Remark

Max Solution: 1920×1080
Max Data Rate: 40 Mbps

Max Solution: 640×480
Max Data Rate: 10 Mbps

Max Solution: 1920×1080
Max Data Rate: 40 Mbps

Sample

Rate: 16KHz~48KHz
BitRate: 32K~448Kbps
BitRate: 128Kbps~320Kbps
Sampling rate : 8KHz-48KHz
BitRate: <768Kbps
Sampling rate : ~96KHz

Sample Rate: 8K~48KHz
Bit Rate: 24K~384Kbps

Max Resolution:

1920×8×1088×8

Max Resolution:

9600×6400

Max Resolution:

9600×6400

33

TEC/MAN/0092
