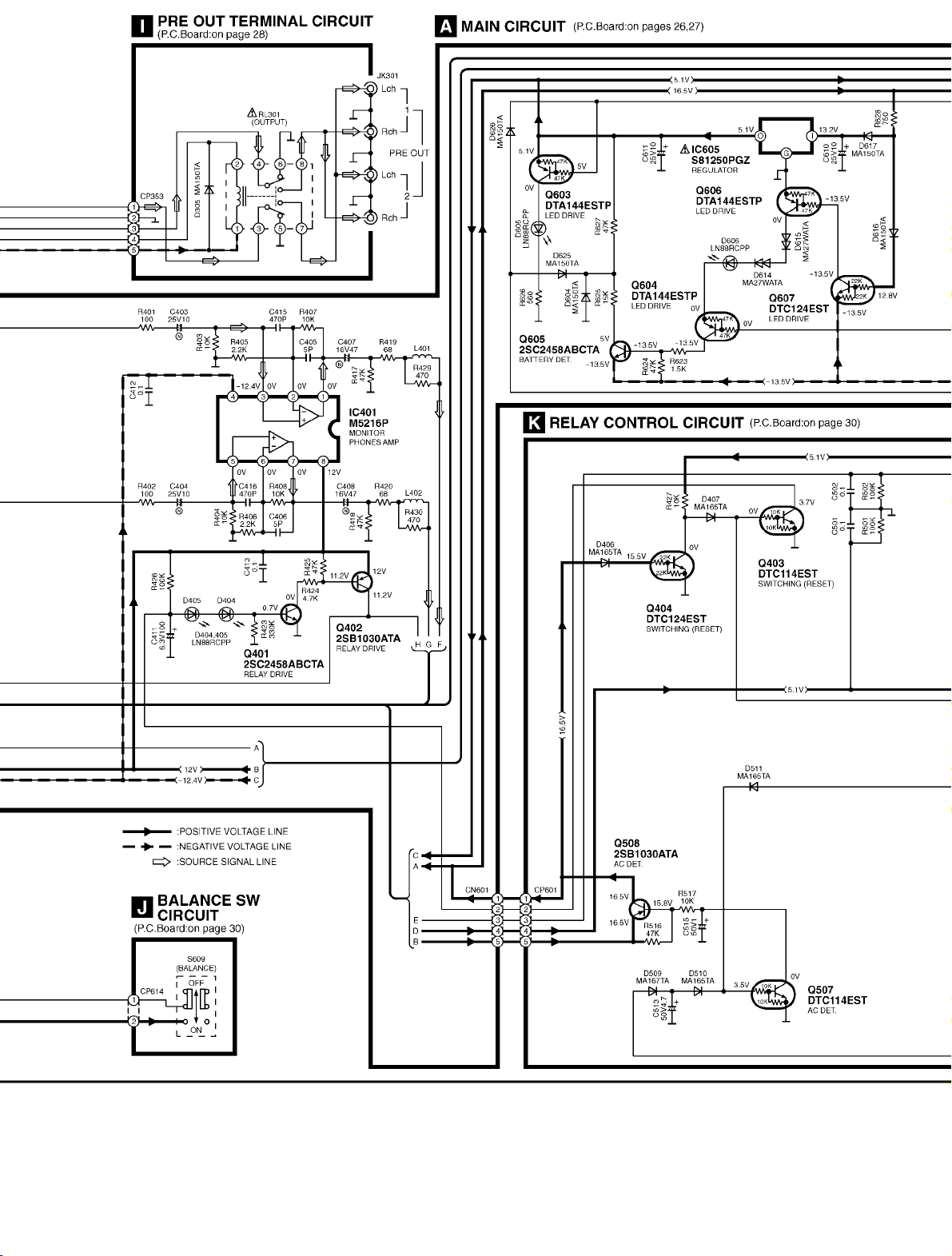

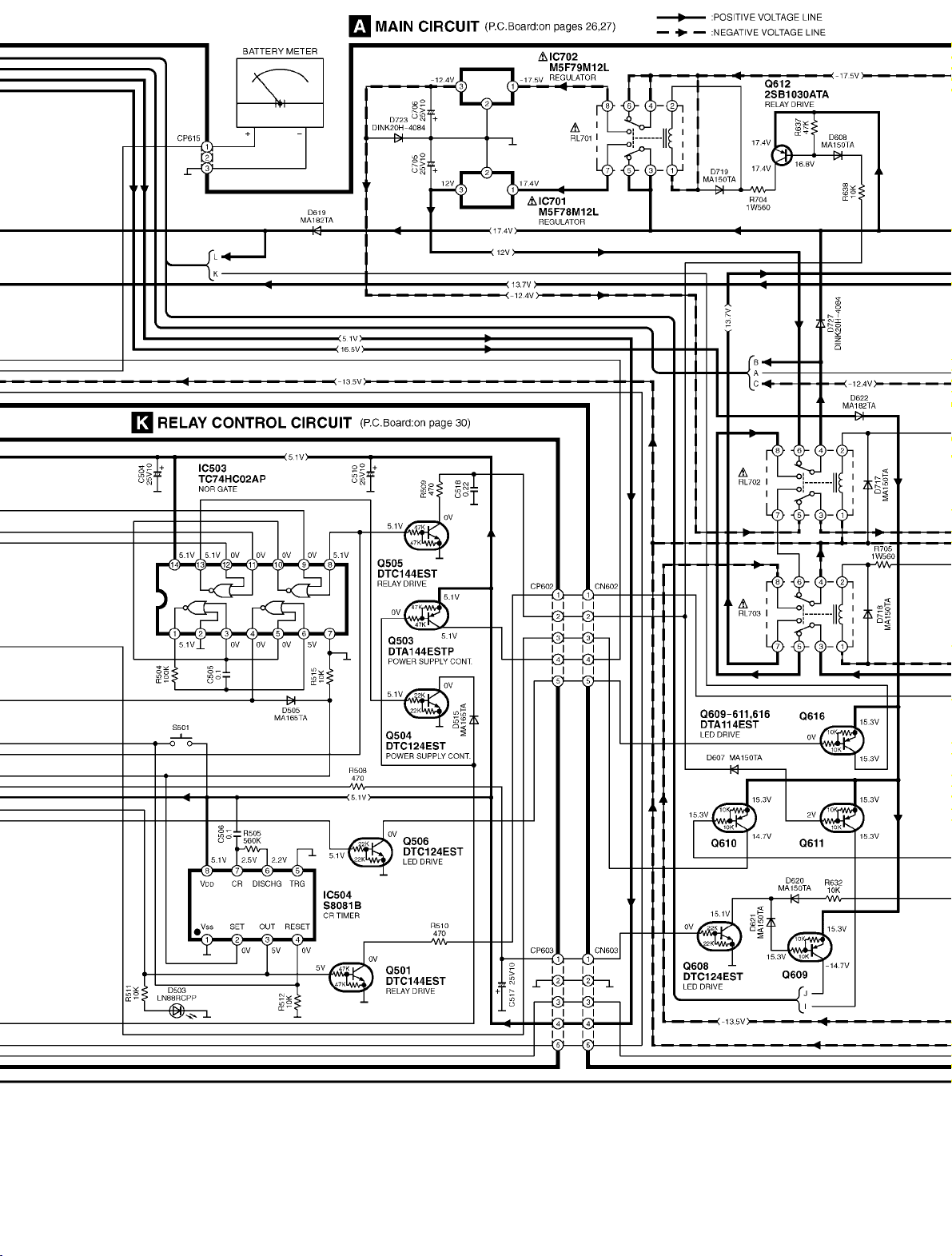

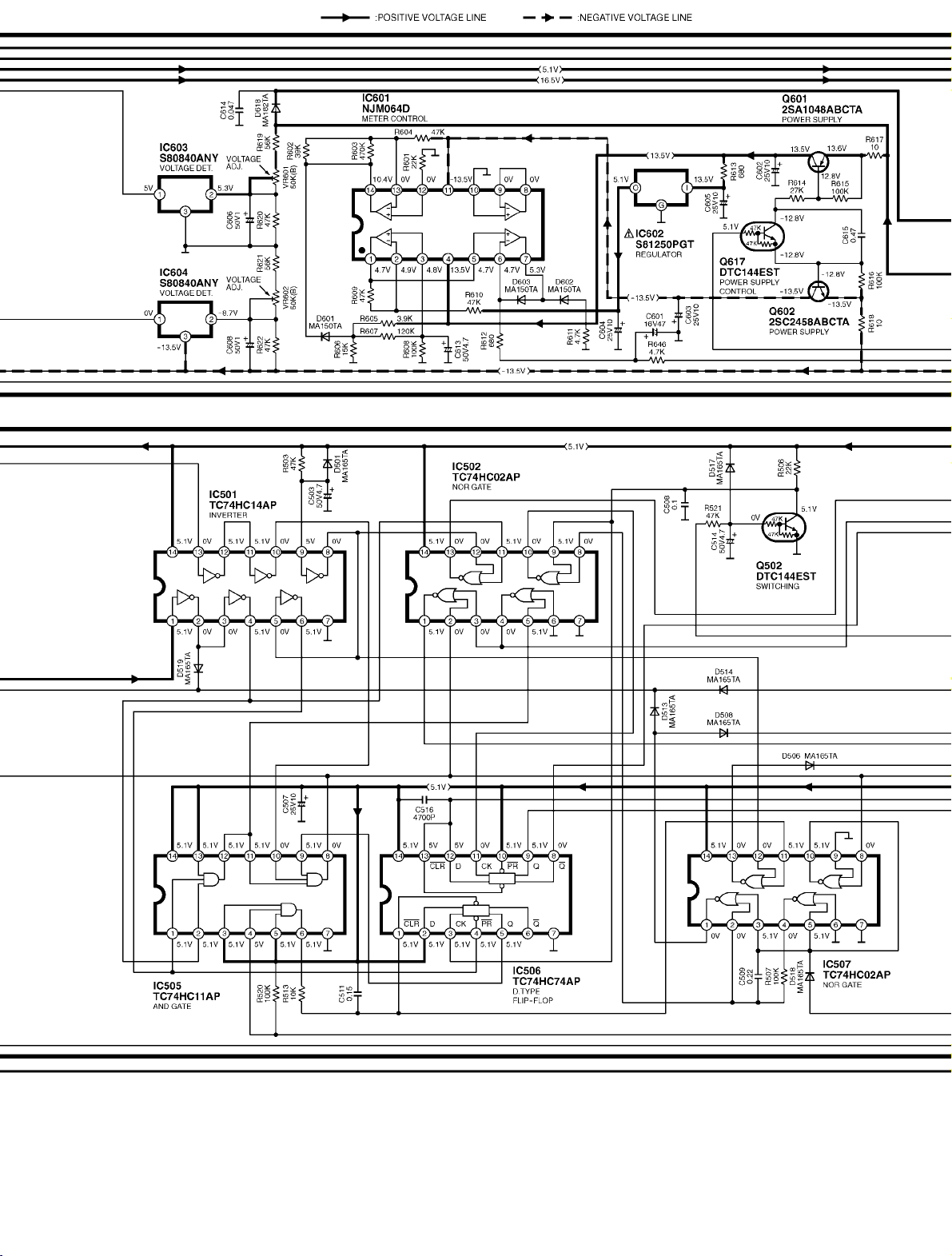

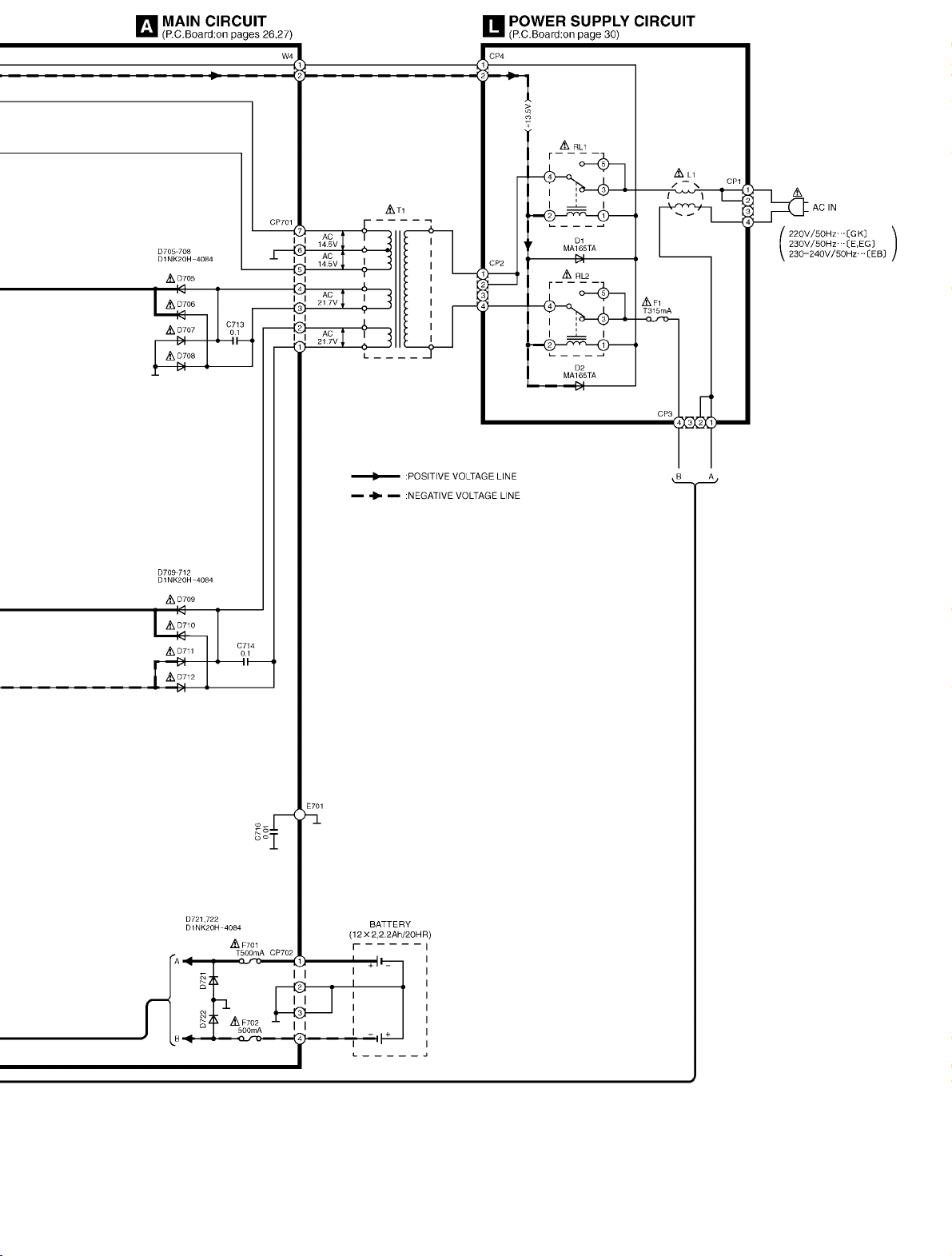

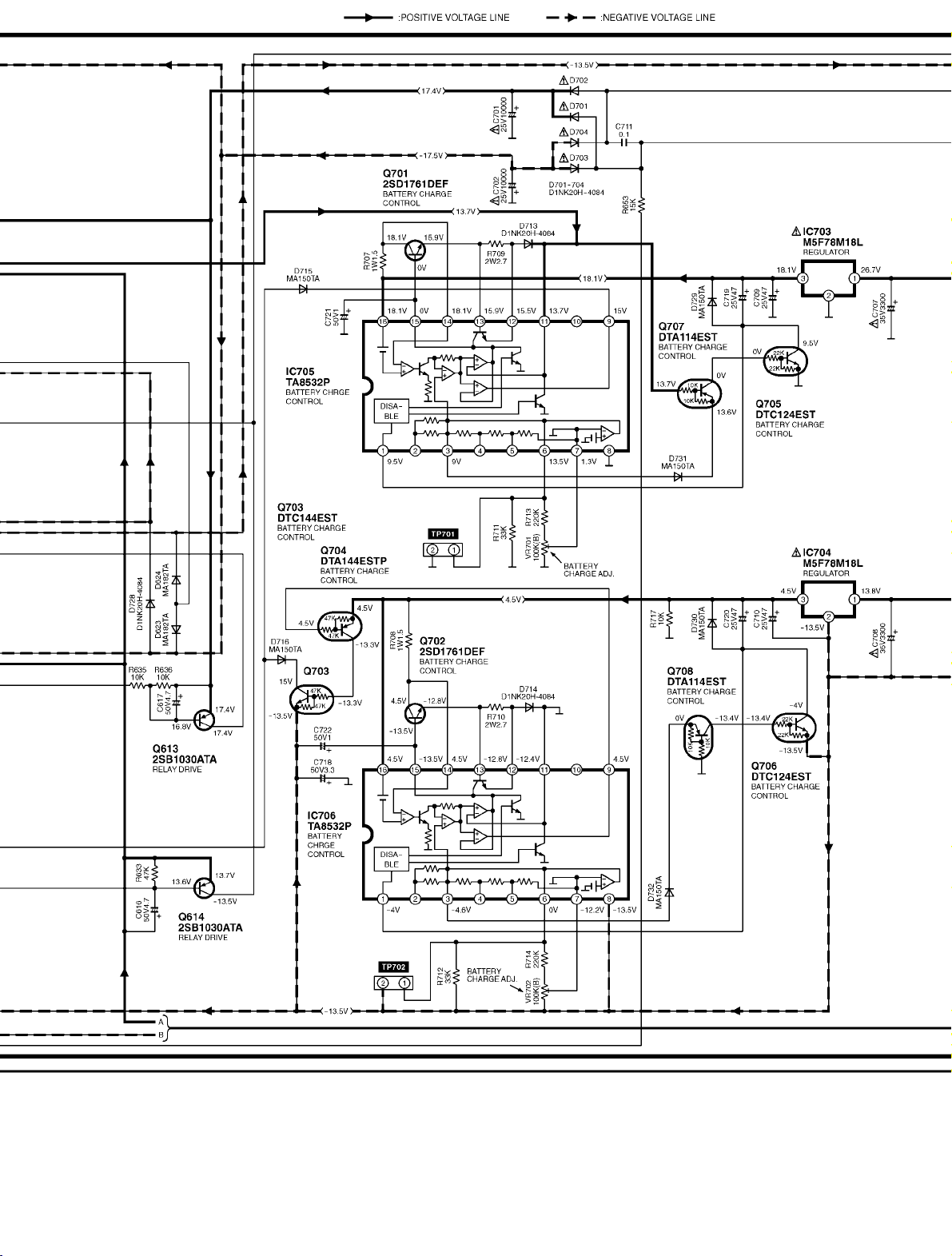

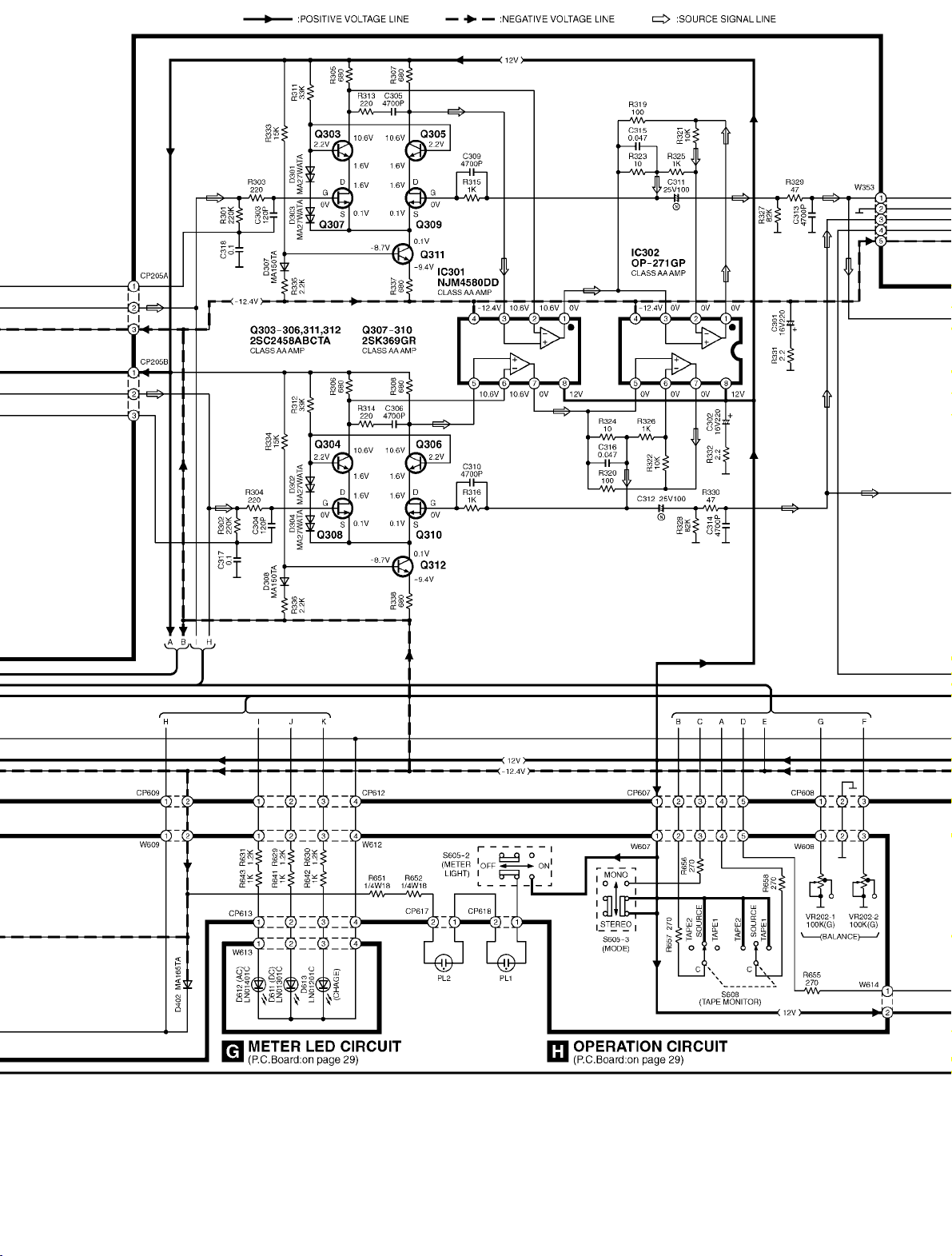

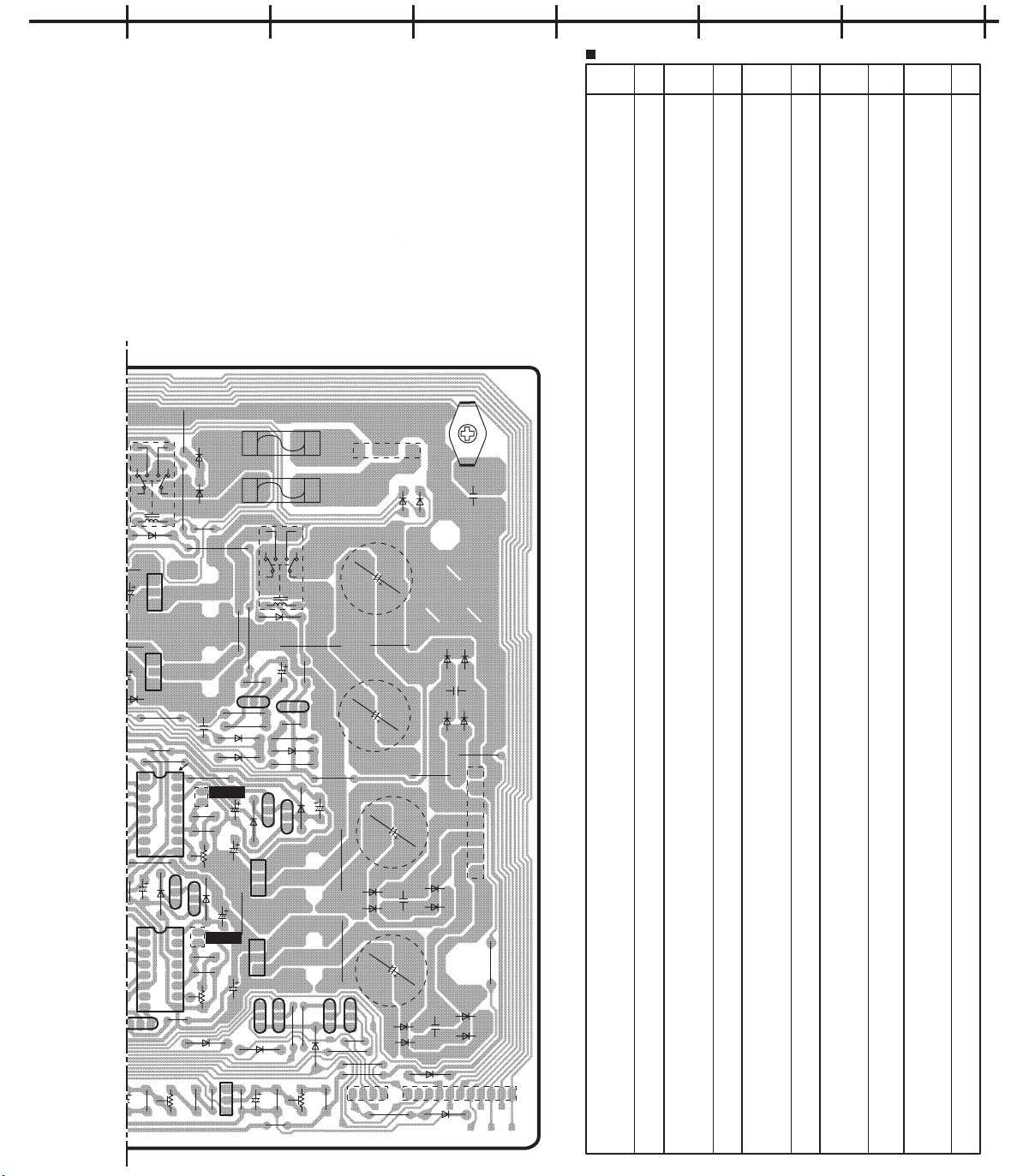

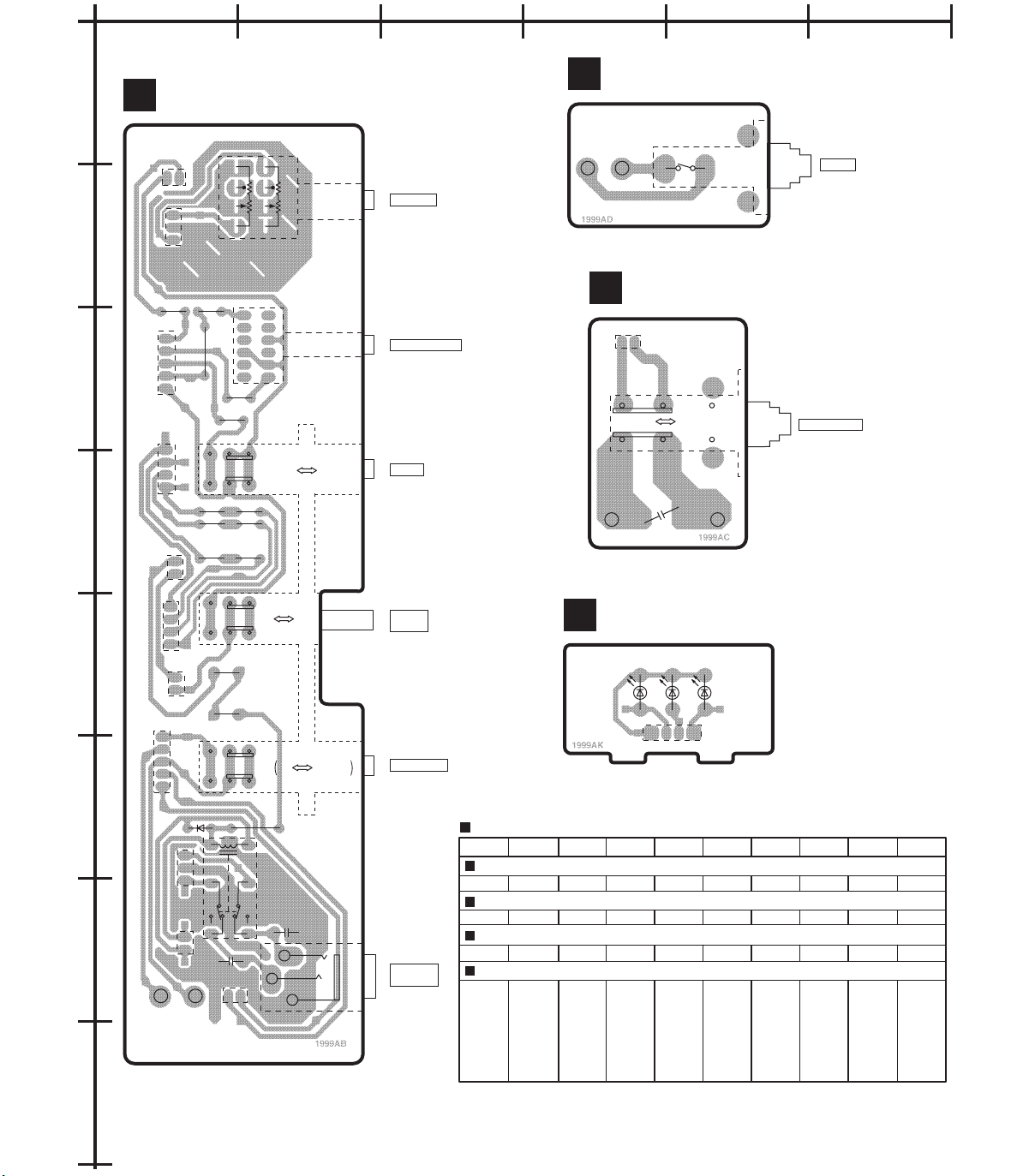

Technics SU-S-3000 Service Manual

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin

mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark 0 or the BSI mark 1 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL 2 OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A

Figure B

Fuse cover

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

2. Replace the fuse and close or attach the fuse cover.

Figure A

Fuse (5 ampere)

Figure B

Fuse (5 ampere)

Rear of this unit

Battery (not included)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Plug

Lever

Lead upward

Label facing out

Battery case (included) (Slits facing up)

Screw (included)

Screwdriver (included)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Rear of this unit

AC power supply cord (included)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

To household AC outlet

MAIN POWER button

PUSH OPEN

MAIN POWER indicator

CHARGE

POWER button

MAIN POWER button

OPERATION

Power amplifier (not included)

(included)

SU-C3000

Power amplifier (not included) Power amplifier (not included)

INPUT INPUT

(included) (not included)

SU-C3000

Ground wire (not included)

Tuner (not included)

CD player (or CD changer) (not included)

Tape deck (not included)

PLAY (OUT)REC (IN)OUTPUTOUTPUT

SU-C3000

GND

Turntable (not included) Second CD player, etc. (not included) Second tape deck (not included)

OUTPUT

PLAY (OUT)REC (IN)OUTPUT

Power amplifier (not included)

Graphic equalizer (not included)

INPUT

(not included)

OUTPUT

INPUT

SU-C3000

(not included)

SU-C3000

(included)

Graphic equalizer (not included)

Tape deck (not included)

TAPE REC (OUT)

(not included)

REC (IN)

OUTPUTINPUT

TAPE PLAY (IN)

PLAY (OUT)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

BATTERY
