Technics SA-GX 19O User Manual

Technics _

AV control stereo receiver

SA-GX19O

Operating Instructions

Before connecting, operating of adjusting this product,
please read these instructions completely.

RQT2694-P

Dear Customer

Thank you for purchasing this Technics product.
For optimum performance and safety, please read
these instructions carefully.

Table of con tents

The model number and serial number of this product can be
found on either the back or the bottom of the unit.

Please note them in the space provided below and retain

them for future reference.

MODEL NUMBER ........ S..A-.G.X.I.9.0.......................

SERIAL NUMBER .......................................

CAUTION:

This phrase is applied only for U.S.A.:
Any unauthorized changes or modifications to this equipment

would void the user's authority to operate this device.

Before use

Precautions ........................................ 3

Accessories ........................................ 4

Front panel controls .............................. 5

Connections

Equipment connections .......................... 6

Antenna connections ............................. 7

Speaker connections ............................. 9

Listening

Basic operations .................................. 10

To adjust the tone quality .............................. 11

To adjust the sound balance ........................... 11

To mute the sound level ............................... 11

When listening through headphones ..................... 11

Listening to radio broadcasts ................... 12

Direct access tuning .................................. 12

Sequential tuning ...................................... 13

Preset tuning ......................................... 14

Recording

Making a recording ............................... 16

Tape recording on the tape deck or digital compact

cassette deck (DCC) ................................... 16

VCR (VCR 1) recording from an audio source ............ 16

Using the remote control

WARNING:

TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

A CAUTION

CAUTION: TO REDUCE THE RISK OF

,_The exclamation point within an equilateral

ELECTRIC SHOCK, DO NOT
REMOVE SCREWS.

NO USER-SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to

alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

triangle is intended to alert the user to the
presence of important operating and main-

tenance (servicing) instructions in the literature
accompanying the appliance.

i

I

Remote control operation ....................... 17

When there seems to be a

problem

Product service .................................... 22

Troubleshooting guide ........................... 23

Reference

Technical specifications ............. Back cover

Precautions

Before using this umt please read these operating instructions
carefully. Take special care to follow the warnings indicated on
the unit itself as well as the safety suggeshons listed below.

Afterwards keep them handy for future reference.

Safety

1. Power Source -- The umt should be connected to power sup-

ply only of the type described in the operating instructions or
as marked on the unit.

2. Polarization -- If the unit is equipped with a polarized AC

power plug (a plug having one blade wider than the other),
that plug will fit into the AC outlet only one way. This is a safe-
ty feature If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet. Do
not defeat the safety purpose of the polarized plug.

3. Power Cord Protection -- AC power supply cords should be
routed so that they are not likely to be walked on or pinched

by items placed upon or against them Never take hold of the
plug or cord If your hand is wet, and always grasp the plug
body when connecting or disconnecting it.

4. Nonuse Periods --When the unit is not used, turn the power
off When left unused for a long period of time, the unit should
be unplugged from the household AC outlet.

Installation

Environment

1. Outdoor Antenna Grounding -- If an outs,de antenna _scon-

nected to the receiver, be sure the antenna system is ground-
ed so as to provide some protection against voltage surges

and built-up static charges. Section 810 of the National Elec-
trical Code, ANSlINFPA No. 70-1990, provides information

with respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna

discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding electrodes,

and requirements for the grounding electrode. See figure
below

ANTENNA
LEAD IN

WIRE

CLAMP

|

.ANTENNA

DISCHARGE UNIT
(NEC SECTION 810-20)

3ONDUCTORS

810-21)

POWER SERVICE GROUNDING
ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC- NATIONAL ELECTRICAL CODE

Placement

1. Ventilation -- The unit should be s_tuated so that its location
or position does not interfere with its proper ventilation. Allow
10 cm (4") clearance from the rear of the unit.

2. Foreign Material -- Care should be taken so that objects do
not fall into and liquids are not spilled into the unit. Do not sub-

ject this unit to excessive smoke, dust, mechanical vibration,
or shock

3. Magnetism -- The unit should be situated away from equip-

ment or devices that generate strong magnetism.

4. Stacking -- Do not place heavy objects, other than system
components, on top of the unit.

5. Surface -- Place the unit on a flat, level surface.

6. Carts and Stands -- The unit should be used only with a cart
or stand that is recommended by the

manufacturer. The unit and cart combination
should be moved with care.

Quick stops, excessive force, and uneven
surfaces may cause the unit and cart com-

bination to overturn.

7. Wall or Ceiling Mounting -- The unit should not be mounted

to a wall or ceiling, unless specified in this operating instruc-
tions.

Maintenance

Clean the cabinet, panel and controls with a soft cloth lightly
moistened with mild detergent solution.

Do not use any type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.

Service

1. Damage Requiring Service --The umt should be serviced by

qualified service personnel when:
(a) The AC power supply cord or the plug has been damaged,

or

(b) Objects have fallen or liquid has been spilled into the unit;

or

(c) The unit has been exposed to rain; or

(d) The unit does not appear to operate normally or exhibits a

marked change in performance; or

(e) The unit has been dropped, or the enclosure damaged.

2. Servicing -- The user should not attempt to service the unit
beyond that described in the operating instructions. All other
servicing should be referred to qualified service personnel.

2. Water and Moisture --Do not use this unit near water - for ex-
ample, near a bathtub, washbowl, swimming pool, or the like.
Damp basements should also be avoided.

3. Heat -- The unit should be situated away from heat sources

such as radiators and the like.

It also should not be placed in temperatures less than 5°C

(41° F) or greater than 35°C (95° F).

3

_iiiiiiiiiiiiii_ii_i_ii_iiiiiiL_iii_iiiiii;iiiiii!_!_!;!_!;!i!_!i!i!iiiii_iii_i_i_i_ii_!_iiii_iiiiiiiiiiiiiiiii_iiiii_iii_i_iii_i_ii_i_ii_

Please check and identify the supplied ac-
cessories

Listening caution

@

Selecting fine audio equipment such as the unit you've just pur-
chased is only the start of your musical enjoyment. Now it's time
to consider how you can maximize the fun and excitement your
equipment offers. This manufacturer and the Electronic In-
dustries Association's Consumer Electronics Group want you to
get the most out of your equipment by playing it at a safe level.
One that lets the sound come through loud and clear without an-

noying blaring or distortion-and, most importantly, without affec-

ting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level"

adapts to higher volumes of sound. So what sounds "normal"
can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level

BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and

clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

[_ AC supply cord 1 pc.

[_ AM loop antenna set (RSA0010)

[_ FM indoor antenna (SSA272) ................. 1 pc.

power

(For USA: SJA172-A or SJAr72-1)
(For Canada: SJA172-A or SJA172)

• AM loop antenna ........................ 1 pc.

• AM antenna holder ...................... 1 pc.

• Screw .................................. 1 pc.

Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening for a

lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of

fun and enjoyment. Since hearing damage from loud noise is
often undetectabte until it is too late, this manufacturer and the

Electronic Industries Association's Consumer Electronics Group

recommend you avoid prolonged exposure to excessive noise.

This list of sound levels* is included for your protection.

*The level used here is different from that displayed on the
system's display.

Decibel

Level

Example

30

Quiet library, soft whispers

40

Living room, refrigerator, bedroom away from traffic

50

Light traffic, normal conversation, quiet office

60

Air conditioner at 20 feet, sewing machine

70

Vacuum cleaner, hair dryer, noisy restaurant

80

Average city traffic, garbage disposals, alarm clock at
two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER
CONSTANT EXPOSURE

90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad

_ Remote control transmitter 1 pc.

(EUR643850)

Batteries (UM-4, "AAA", R03) ............... 2 pcs.

4

Information courtesy of the Deafness Research Foundation.

/

No. Name

_) Power switch (POWER)

_) Tuning buttons (TUNING)

(_) Band select button (BAND)

_) FM mode select button

(FM AUTOIMONO) 12

(_) Memory button (MEMORY) 14

Direct tuning button

(DIRECT TUNING) 12

(_ Numeric buttons (1 - 0) 12,15

Muting button (MUTING) 11

Re?. page

10

13

12

No. Name Re?. page

(_ Bass control (BASS) 11

_) Treble control (TREBLE) 11

(_) Volume control (VOLUME) 10

(_) Headphone jack (PHONES) 11

_) Speaker select buttons (SPEAKERS) 10

TapeNCR 21DCC monitor button

(TAPE/VCR 21DCC IMONITOR] ) 10,16

Input select buttons 10

_) Balance control (BALANCE) 11

5

I Stereo connection cable (not included) I

White (L)_ IC_

Red (R)

CD changer (or CD player)
(not included)

Tape deck, second VCR (audio line on-
ly) or digital compact cassette deck
(DCC) (not included)

REC (IN)

OUTPUT

Only for turntable
with ground terminal

\

I Antenna terminals i_ _b

See pages 7-8. YOUTPUT / /

/

GND /

/""- "_L Turntable
/ , . /-_--_ [(not included)

r _ _

Speaker terminals

See page 9.

ANUDIOI IAUDIO VIDEO

VCR (not included)

i i I t

REMOTE

CONTROL

OU] A_, I"v At.. OtJlL[]

OUT OUT

I°_°°"°_" I

I VIDEO

IN

AC power cord
(included)

Household
AC outlet

(AC 120 V/60 Hz)

Connect this
cord after all

other cables
and cords are
connected.

TV (not included)

J

Connection

cable for
remote control

(not included)

REMOTE

I i This unit

CONTROL

cord

(not included)

(or CD player)

I CD changer

(not included)

"REMOTE CONTROL OUT" terminal

[]

Connect the connection cable for remote control to a
Technics tape deck andlor CD changer (or CD player) which

has the appropriate remote control terminal as shown at the

left.
If a tape deck is not being used, the CD changer (or CD

player) can be connected directly (dotted line).

For a tape deck and/or CD changer (or CD player) with a
remote control sensor, this connection is not necessary.

_-_ "SWITCHED" AC outlet

Power to the outlet is controlled by the power switch of this
unit Audio equipment rated up to the indicated power
ratings can be connected here.

For proper remote.control operation
Connect the power cords of the tape deck and CD changer
(or CD player) as shown at the left.

FM indoor antenna i.cl. ed)

_FM outdoor antenna .ot i,,cl.dem

This antenna is normally sufficient for reception of FM broad-

casts.

FM Indoor antenna

(included)

/"-_,,-- Adhesive tape

Attach to a wall (using a tape) facing in the direction of best recep-
tion.

The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the FM indoor antenna (included) does not provide

satisfactory reception.

FM outdoor antenna

(not included)

75-ohms coaxial

included)

An outdoor antenna should be installed by a qualified technician
only.

--How to connect an FM indoor antenna--

(_ Pull off the plastic on the tip of

the antenna wire. ZZ:E],,--1_EE:_Z_ --_

(_ Twist the wire and connect as _"

shown below. --_'_"_

Twist

wire

For best reception sound quality:

An FM outdoor antenna is recommended.

Disconnect the antenna if an FM outdoor antenna is installed.

--How to connect a 75-ohms coaxial cable--

(_ Remove a piece of the outer

vinyl insulator.

20 mm (25132")

(_ Twist the shield braid to

expose the core wire.
q_).__ q_l__,,,_ Core wire

10 mm (3/8")

(_ Connect the shield braid and the

core wire as shown at the right.

Shield braid

wire

?

AM loop antenna J.cl.ded)

AM outdoor antenna (noti.eJ.d )

This antenna is normally sufficient for reception of AM broad-

casts.

AM loop antenna

(included)

AMANT

AM LOOPANT

L. ,.J

Install the AM antenna holder (included) at the rear panel of this
unit and then attach the AM loop antenna to the AM antenna

holder.

Insert the tab into
the hole and then

Rear

of this unit

push the holder

The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the AM loop antenna (included) does not provide satisfac-
tory reception.

AM outdoor antenna

(not included)

Vinyl-covered wire

(not included)

AM AI_

AM LOOPANT

Use 5- 12 m (16-40 ft.) of vinyl-covered wire horizontally at the
window, or convenient location.

When the unit is not in use, disconnect the outdoor antenna to
prevent possible damage that may be caused by lightning. Never
use an outdoor antenna during an electrical storm.

Be sure to connect the AM loop antenna even when an outdoor
antenna is used.

AM loop antenna
(included)

AM antenna holder
(included)

Pay attention to the following points when mounting the

antenna.

• Do not mount it horizontally (Doing so will impair reception).

• Do not mount it close to power cords, speaker wires or metal
surfaces (Doing so will result in noise).

• Do not mount it close to a tape deck. When the tape deck is be-

ing used, chirping or beeping sounds may result.

When mounting the antenna to a column, a wall
or rack

antenna holder

(included)

Screw (included)

8

RightspeakerLeftspeaker

(not included) (not included)

1 15 mm 2

,i, j

Twist

m!

To prevent damage to circuitry,

never short-circuit positive (+) and
negative (-) speaker wires.

• "B" terminals

For connection to a second pair of speakers.

•Speakerimpedance

The impedance of any speaker used with this unit must be 8
ohms.

3

9

]

2 3 5

I o

'.'': ...... O

,,.c_a

©

0

O-

__J

POWER

Before operation, set VOLUME to the "0" position.

..... _WER..... Press PovvER to Switch on

the power.

_ S_AKE_ .... Press A and/or Bt0 Select

('_ A the speaker system(s) to be

TAPE/VCR 21DCC

_J used.

_"''_ A and B reler to the speaker terminals

at the rear of the unit.

FM I_1 I__1, I ..,

Illuminates

IIII I

If the button is pressed once more, the
indicator will switch off and no sound

will be heard from the speakers.

L__

VOLUME

Start the desired source.

(Refer to the appropriate operating in-

structions for details.)

_ VOLU'ME........ Turn voLUME to adjust the

volume level.

After listening is finished

Be sure to reduce the volume level, and switch the power to the
standby condition by pressing POWER.

__PreSS tO seiecithe desirea

_ source.

_ VCR 1: TOlisten tovideo tapes (VCR 1)

\ / TAPFJVCR_OCC

_> _ : To listen to tape, video

tapes (VCR 2) or digital
compact cassette (DCC).
The tape monitor in-
dicator will appear.
(See below.)

CD: To listen to compact discs
TUNER: To listen to radio broadcasts

PHONO: To listen to phono discs

When tape monitor indicator illuminates or is
fleshing (approx. 3 seconds)

This indicates that the tape monitor function of this unit is ON.
To listen to sources other than a tape, VCR 2 or DCC, be sure to
turn off the indicator by pressing TAPENCR 21DCC _.

Illuminates or _lashing

FM /._1/ I, I ._

LI/_1 /

SPEAKERS

t I I

tJ J....

Headphones (not included)
Plug type:
1/4 inch phone plug stereo type

MUTING VOLUME

©

J

i

I-1 TM ...... 1--

BALANCE

(3

BASS TREBLE

© ©

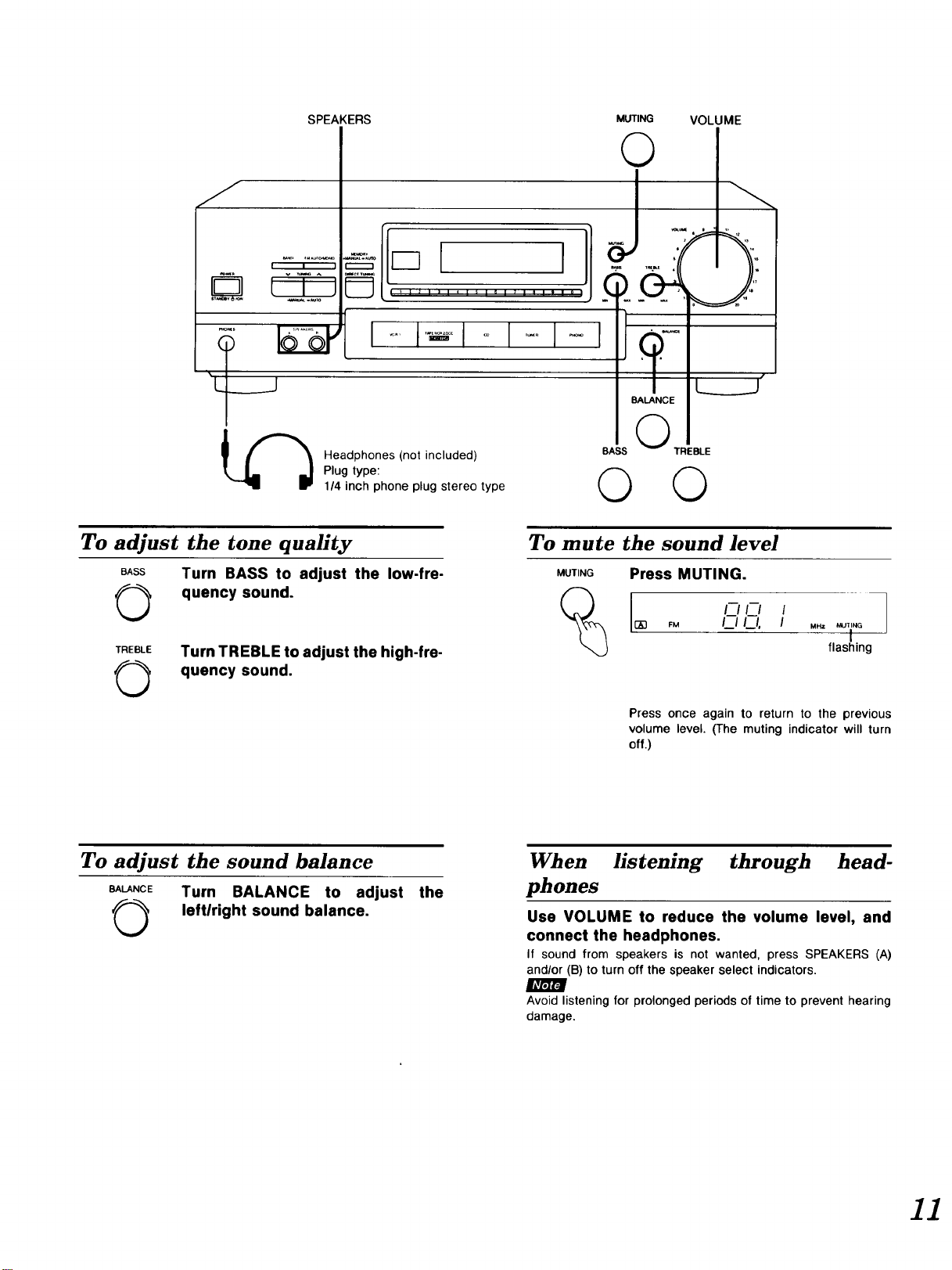

To adjust the tone quality

BASS Turn BASS to adjust the Iow-fro-

Q_ quency sound.

TREBLE

Turn TREBLE to adjust the high.fre.
quency sound.

©

To adjust the sound balance

_LANCE Turn BALANCE to adjust

leftlright sound balance.

the

To mute the sound level

MUTING Press MUTING.

FM I II I, I MHz MLITING

flashing

Press once again to return to the previous
volume level. (The muting indicator will turn
off.)

When listening through head-

phones

Use VOLUME to reduce the volume level, and

connect the headphones.

If sound from speakers is not wanted, press SPEAKERS (A)
and/or (B) to turn off the speaker select indicators.
jv_?/;J'FJ.
Avoid listening for prolonged periods of time to prevent hearing
damage.

11

Direct access tuning

Specify the frequency using the numeric buttons to directly tune
to the desired broadcast station.

5 1

2 FM 3

AUTO/MONO

TUNER

L BANO J Press BAND to select "FM" or "AM". _ T III1,11I I I I ...

DIRECTTUNING Press DIRECT TUNING. [-- -- -- --

[_ ........................................................................................................................

[. ^ J flashing (approx. 10

Press TUNER.

!r-q

I........ i _ .... !,I,;0,

While' cursor display is [QEI FM /1\_---I/ M,=

0

66 !:

I

C)-

L_____J'

IIII I

I._1I._l, I ..,

Illuminates

12

"_ ,__conds)

i-TI3-1_c_] Press the appropriate numeric but- If the desired FM frequency is 107.9

tons to enter the frequency.

If the frequency has been input correctly, the fre-

quency display will blink. [] "-'* [] "-* [] -_ []

1. If no button is pressed while the cursor display
is flashing, the display will return to the frequen-
cy which is currently being received. To re-
specify the frequency, repeat the procedure
from step 3.

2. If the frequency has not been input correctly,
an error message will be displayed. In this

case, re-enter the frequency.

When the FM stereo broadcast is received:

This unit will automatically switch to FM stereo reception and the

FM stereo indicator will illuminate.

OUARTZ

L_K STiREO ' ' ' I ' I. I

Illuminates

I I._1 I, _1 ..=

MHz

LOCK II II I I__I

rQUARTZ

(33 rM I I._1 I, _1

Ium nates when tuned

MHz

If noise is excessive in the FM stereo mode

Press FM AUTO/MONO. (The FM stereo indicator will switch off.)
The broadcast will be monaural, but noise will be reduced. Ifthe

button is pressed once more, stereo mode will be resumed.

Sequential tuning

If the frequency is not known, use the tuning control for sear-
ching.

0

....

_B

©

TUNER I II I I

5b I

_2

2 ,.,

"-t

I 'r°'" [ !

-, I_1 .... l_I_

t__.__j'

p,

gO FM I II I, I MS,

%

L BAND I Press BANDto select "FM" or "AM", [gO iM I_lllllll_ll I MHz !

Illuminates

v TUNING^ Press V or A to tune to the desired _-_.,z-- _____ --

r n -,, - _ . I Lock STEREO II II I I I I

/ I / oroaacasz, lgO F, II I I "-I ,.,

_ J Tuning intervals -- ' --

FM: 200 kHz interval

AM: 10 kHz interval

If either button is pressed and held down until the
frequency begins to change, the broadcast sta-
tions can be tuned automatically when a broad-

cast station is found.

Tuning may stop automatically if any jamming is
encountered.

13

Preset tuning

By presetting the desired broadcast stations into the memory
channels of this unit, broadcast stations can be selected simply
by pressing numeric button(s). (Refer to page 15 for tuning.)

-Before presetting

How many broadcast stations can be preset?

A total of 30 FM and AM stations can be preset.

How is presetting done?

The two following methods are available.

• Automatic memory presetting
Automatic memory presetting allows this unit to automatical-
ly search for broadcast stations and then preset them into

memory.
With this function, searching proceeds from the frequency

currently being displayed and continues through higher fre-
quencies, (up to 107.9 MHz for FM, up to 1710 kHz for AM)
and broadcast stations are preset in the order in which they

are located.
With this method, the channel ranges that can be preset into

the memory for different bands (FM or AM) are set as
follows.

Channel

_ FM _l

For FM broadcast stations ........................ 1-30

For AM broadcast stations ....................... 21 -30

Automatic memory presetting

J

Press TUNER.

....... e'_'N'D..... Press BAN Dto seiect ,_FM ;,

L

3_ 'settothe frequency from which you

want to start automatic memory preset-

ting. (Follow steps 3 and 4 on page 12.)

If the FM stations (channels 1-30) are preset and then
the AM stations (channels 21 -30) are preset:

Because this unit can accommodate a total of 30 preset
channels, the settings for FM channels 21-30 will be replac-
ed by the AM settings which were subsequently preset, and

the channel allotment will be as shown below.

Channel

For FM broadcast stations ........................ 1-20

For AM broadcast stations ....................... 21-30

• Manual memory presetting

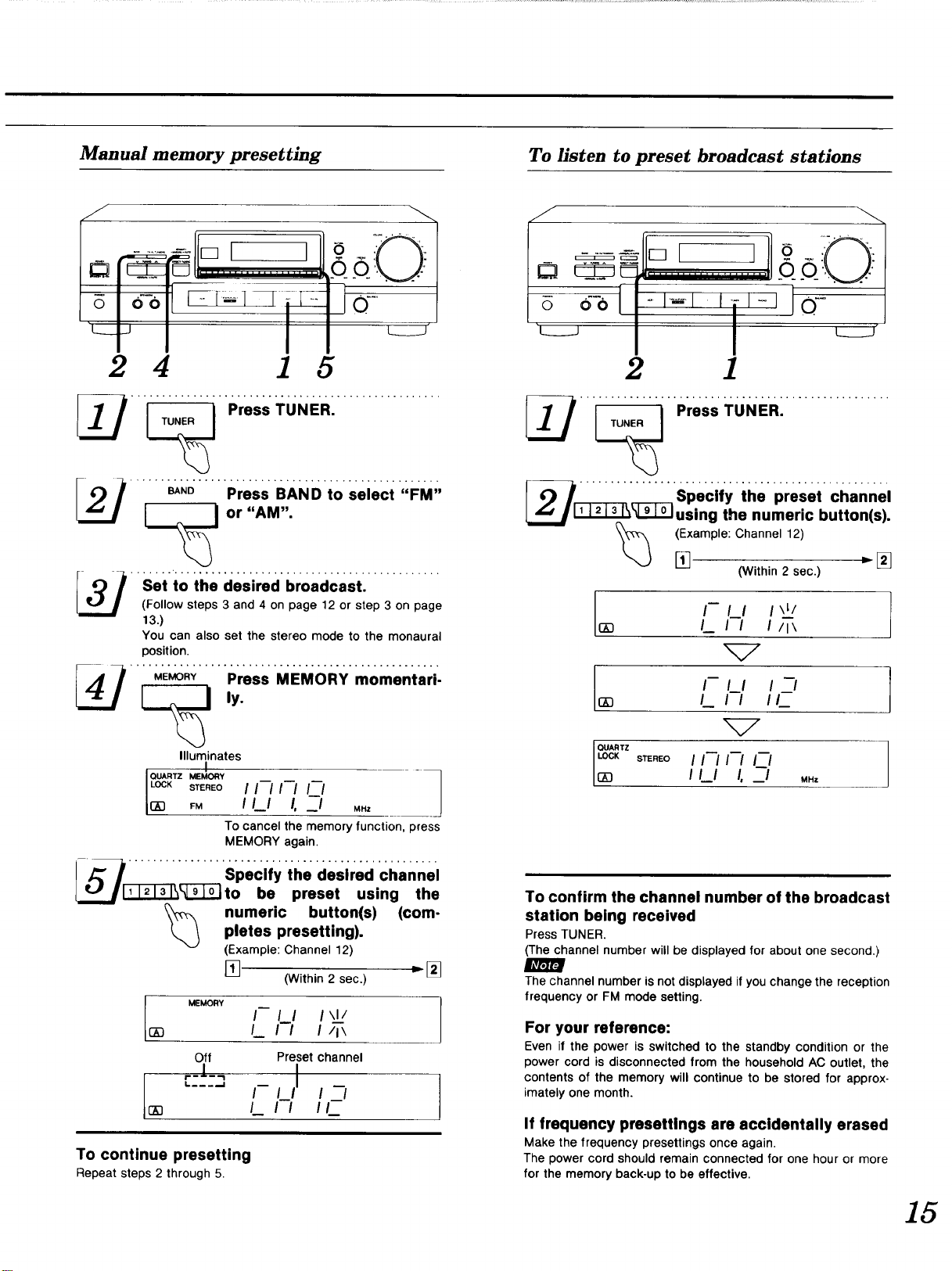

The desired broadcast stations can be preset into the
desired channels by the user.
This can also be used as a method for changing selected
broadcast stations that were preset in "Automatic memory
presetting".

Please remember this:

If a new broadcast station is preset into a channel, the set-

ting for the broadcast station which was previously entered
in that channel will be automatically erased.

..... "E_:;R_.... Press MEMoRYontiithe ire.

[ _ j quency begins to change.

'_'k_-" (Automatic memory presetting will

start.)
To stop press MEMORY once again.

When a broadcast station is preset

The memory indicator and the preset channel number will be
displayed for approximately 1 second.

MEMORY

i L_/ /

r-_ I II I

When presetting is completed

The last broadcast station to be preset will be displayed.

I

Illumi!ates

- I

e errJ

Correct presetting may not be possible in cases where.the broad-
cast waves are too strong or too weak. In such cases, carry out
presetting manually.

14

Manual memory presetting

To listen to preset broadcast stations

660 _

5 db rlm]W

Io-

I

24 15

" _'Press'TuNERI .................

BANV Press BAND to select "FM"

L_ I

[ 3 i Set to the desirod br0adcast. ............

(FOllow steps 3 and 4 on page 12 or step 3 on page

13.)

You can also set the stereo mode to the monaural
position.

.... M'E""MORY..... Press M EM0 RY m0mentari.

_-_--_E_I I 6(3. i

_1::_::___i_ .....................

5 d-o[ -I='1 I_'1-1 Q-

'L___J _'

2 1

[ ";"Tu"E":.................

I__ ........ SpecifY ihe preset channel

_JI11213 I\9_L__gJusing the numeric button(s).

(Example: Channel 12)

[] =%

(Within 2 sec.)

I-- I I I \_/

L t-I I/1_

I 1 I I I

L t_ IIZ

Illuminates

I

K"TZsTE,EOII I! I /.__1

FM I /._1 /, __1 ,.,

To cancel the memory function, press

MEMORY again.

_._l-Tl-_-_............... Specify ihe desi;ed channei

_to be preset using the

numeric button(s) (com-

pletes presetting).

(Example: Channel 12)
[] (Within 2 sec.) _ []

MEMORY --

Off Preset channel

I /._1 I\l_/

/_ I I I/1\

,._1_. I

r'_ "---'= I._ III-- I_I II_I--I

To continue presetting

Repeat steps 2 through 5.

QUARTZ

•OCK S_.EO // // / /._/

I LI I. _1 ,,,

To confirm the channel number of the broadcast

station being received

Press TUNER.

(The channel number will be displayed for about one second.)

J_r

The channel number is not displayed if you change the reception
frequency or FM mode setting.

For your reference:

Even it the power is switched to the standby condition or the
power cord is disconnected from the household AC outlet, the

contents of the memory will continue to be stored for approx-
imately one month.

If frequency presettlngs are accidentally erased

Make the frequency presettings once again.

The power cord should remain connected for one hour or more

for the memory back-up to be effective.

15

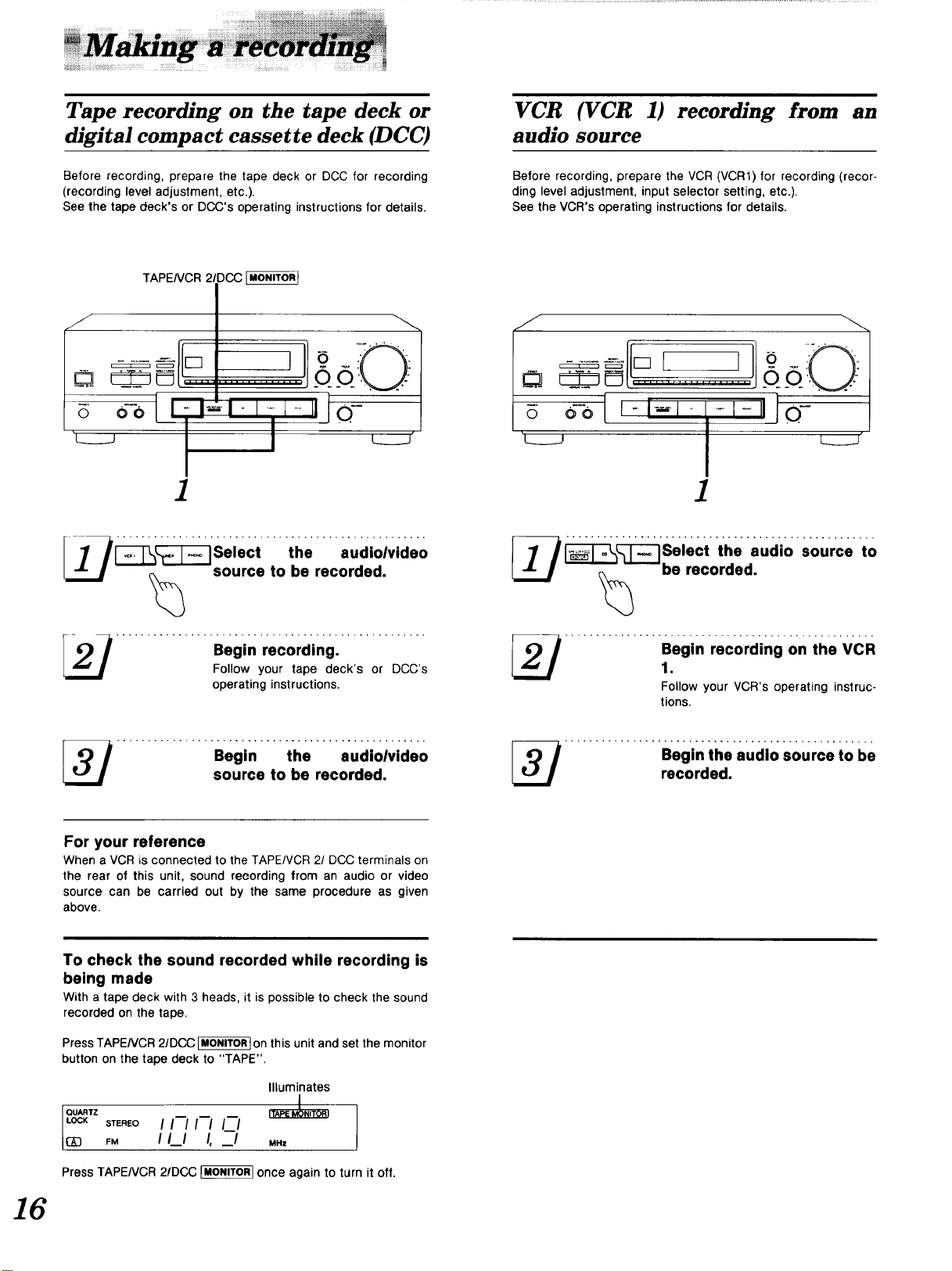

Tape recording on the tape deck or

digital compact cassette deck (DCC)

VCR. (VCR 1) recording from an

audio source

Before recording, prepare the tape deck or DCC for recording
(recording level adjustment, etc.).

See the tape deck's or DCC's operating instructions for details.

TAPENCR 21DCC

J

I°0

_; (5-o [_[-I_ I _ I-l II

1

]___S...€, .....ih;....,U;_.oivid;0

source to be recorded.

O.-

L_____J

Before recording, prepare the VCR (VCR1) for recording (recor-

ding level adjustment, input selector setting, etc.).
See the VCR's operating instructions for details.

'L.____J L_____J"

1

S;;,ectt"e;..d,oSo"roeio

be recorded.

_' ................ Begin recordingl ..............

Follow your tape deck's or DCC's

operating instructions.

Begin the audiolvideo

source to be recorded.

For your reference

When a VCR is connected to the TAPE/VCR 2/DCC terminals on
the rear of this unit, sound recording from an audio or video

source can be carried out by the same procedure as given
above.

To check the sound recorded while recording is
being made

With a tape deck with 3 heads, it is possible to check the sound
recorded on the tape.

Press TAPENCR 2/DCC _ on this unit and set the monitor

button on the tape deck to "TAPE".

Illuminates

QUARTZ

LOCK S_E_eO II II I /__1
(_ FM I/._1 _ __1 MH,

................ Begin recoiding on the VCR

................aeoin;he"udiosouicetobe

1.

Follow your VCR's operating instruc-
tions.

recorded.

16

Press TAPENCR 2/DCC _ once again to turn it off.

,ilililililiiii_ii,i,_i,_iiiiiiiiiiiil

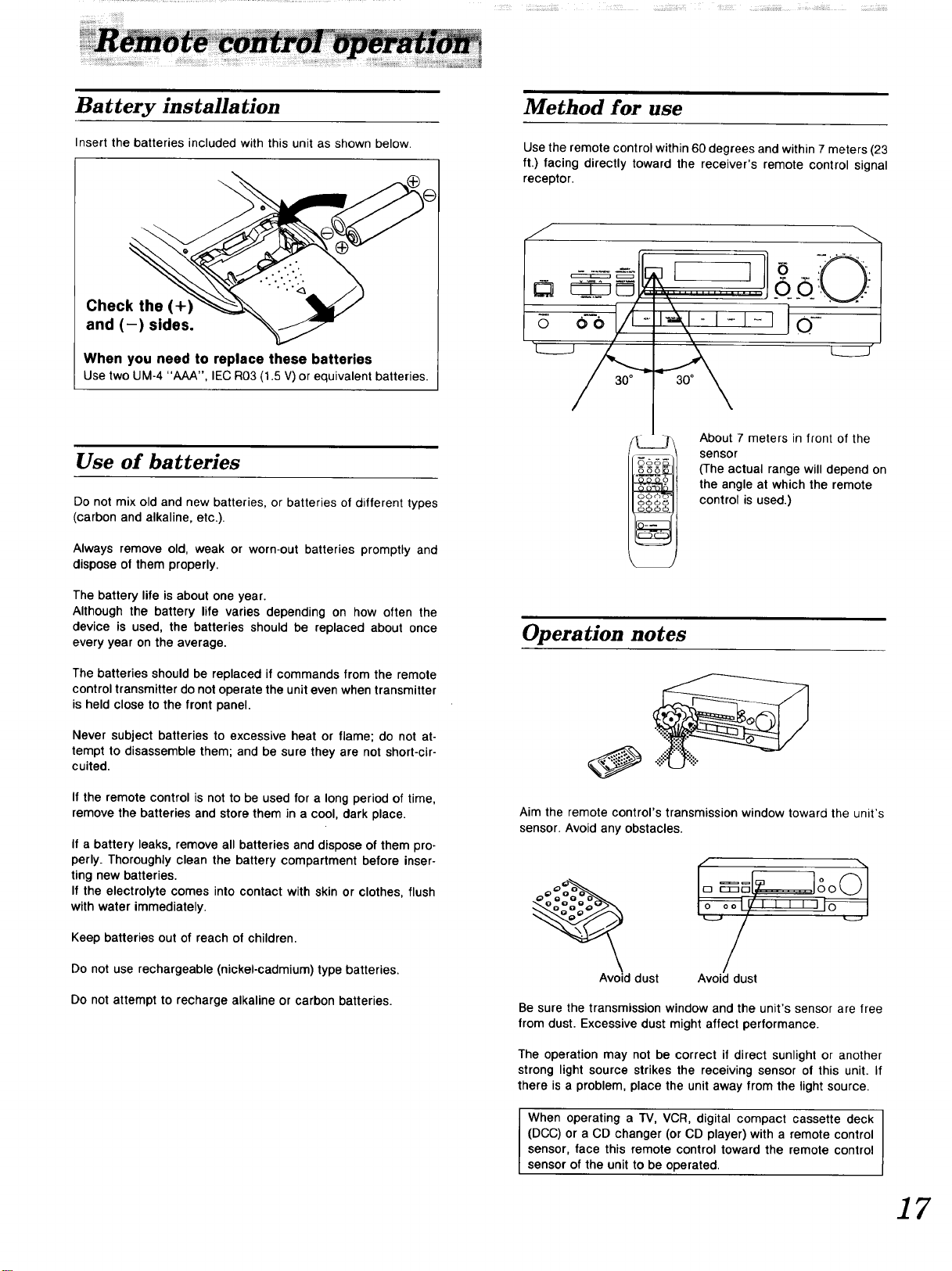

Battery installation

Insert the batteries included with this unit as shown below.

Check the (+)

1-) sides.

When you need to replace these batteries

Use two UM-4 "AAA", IEC R03 (1.5 V) or equivalent batteries.

Use of batteries

Do not mix old and new batteries, or batteries of different types

(carbon and alkaline, etc.).

Always remove old, weak or worn-out batteries promptly and
dispose of them properly.

Method for use

Use the remote control within 60 degrees and within 7 meters (23

ft.) facing directly toward the receiver's remote control signal
receptor.

J

[_ T ......'..

.................,.,

About 7 meters in front of the

sensor

(The actual range will depend on
the angle at which the remote
control is used.)

The battery life is about one year.
Although the battery life varies depending on how often the

device is used, the batteries should be replaced about once
every year on the average.

The batteries should be replaced if commands from the remote
control transmitter do not operate the unit even when transmitter
is held close to the front panel.

Never subject batteries to excessive heat or flame; do not at-
tempt to disassemble them; and be sure they are not short-cir-

cuited.

If the remote control is not to be used for a long period of time,
remove the batteries and store them in a cool, dark place.

If a battery leaks, remove all batteries and dispose of them pro-

perly. Thoroughly clean the battery compartment before inser-
ting new batteries.

If the electrolyte comes into contact with skin or clothes, flush

with water immediately.

Keep batteries out of reach of children.

Do not use rechargeable (nickel-cadmium) type batteries.

Do not attempt to recharge alkaline or carbon batteries.

Operation notes

Aim the remote control's transmission window toward the unit's
sensor. Avoid any obstacles.

l ==lsoOl

_°oo°o o

Avoid dust

Be sure the transmission window and the unit's sensor are free
from dust. Excessive dust might affect performance.

_t/t t t t i°1_

Avoid dust

The operation may not be correct if direct sunlight or another
strong light source strikes the receiving sensor of this unit. If

there is a problem, place the unit away from the light source.

When operating a TV, VCR, digital compact cassette deck
(DCC) or a CD changer (or CD player) with a remote control

sensor, face this remote control toward the remote control
sensor of the unit to be operated.

]7

i!_!_!i!i!'!ii!i!iiiiiiiiiiiiiiiiiiiiiiill_!i __iiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiii!ii!ii!!iL___i_iiiiiiiiii!!ii!iiiiii!iii!iiii

Remote _

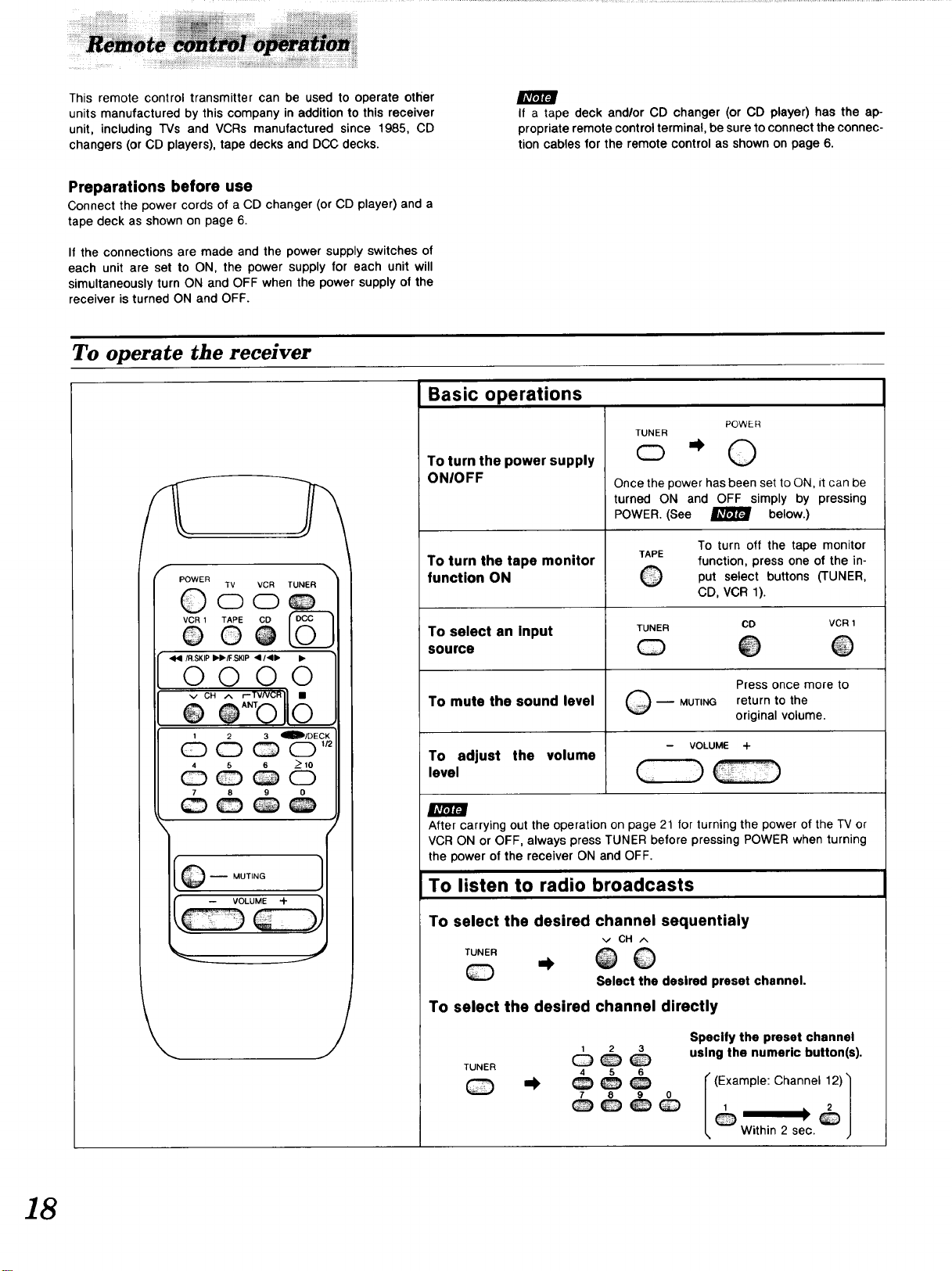

This remote control transmitter can be used to operate otl'ier
units manufactured by this company in addition to this receiver

unit, including TVs and VCRs manufactured since 1985, CD
changers (or CD players), tape decks and DCC decks.

Preparations before use

Connect the power cords of a CD changer (or CD player) and a
tape deck as shown on page 6.

If the connections are made and the power supply switches of
each unit are set to ON, the power supply for each unit will
simultaneously turn ON and OFF when the power supply of the

receiver is turned ON and OFF.

To operate the receiver

If a tape deck andlor CD changer (or CD player) has the ap-
propriate remote control terminal, be sure to connect the connec-
tion cables for the remote control as shown on page 6.

Basic operations

To turn the power supply
ONIOFF

TUNER

POWER

o '* @

Once the power has been set to ON, it can be
turned ON and OFF simply by pressing

POWER. (See below.)

gg_

f

POWER

TV VCR TUNER

©oo

VCR 1 TAPE CO I Occ ]

©©@

<HI/RSKIP ••/F SKIP <1/4• •

0000

V CH _ r-TVNCR ] •

o 0"'0 IO

0 0 _ CD'"

4 5 6 __10

__0

7 8 9 0

@ -- MUTING 1

L

I

I

To turn the tape monitor
function ON

To select an Input
source

To mute the sound level

To adjust the volume
level

After carrying out the operation on page 21 for turning the power of the TV or
VCR ON or OFF, always press TUNER before pressing POWER when turning

the power of the receiver ON and OFF.

TAPE

©

TUNER CD VCR 1

o @ ®

To turn off the tape monitor
function, press one of the in-
put select buttons (TUNER,
CD, VCR 1).

Press once more to

_ MUTING return to the

-- VOLUME +

original volume.

To listen to radio broadcasts

To select the desired channel sequentialy

J

TUNER

vCH^

© @Q

Select the desired preset channel.

To select the desired channel directly

18

1 2 3

TUNER _ _ _

4 5 6

7 8 9 0

Specify the preset channel
using the numeric button(s).

_"(Example: Channel 12) _

1 2

Within 2 sec. ,

To operate a CD changer (or CD player)

For detailed information concerning CD changer (or CD player)
operation, please read the operating instructions for each unit

carefully.

Sequential play

CD ),

© -_ Q

Direct access play

r

POWER

TV VCR TUNER

Oooo

MCR 1 TAPE CD _DCC

00@

/R.SKIP IHIz'/F.SKIP _/<lll_ II_

@ OQ
0

1 2 3 _/DECK

7 8 9 0

- MUTING 1

CD

Q-l,

_/DECK 112 1 2 3

O -I, o_o

4 5

GO

Select the desired disc.

(only for a Technics CD changer)

Play will start from
the selected track. _m

When a CD changer (or CD player) Is
connected to this unit by using the connection

cable for the remote control:
Select a two-digit track number by pressing

I_I_/F.SKIP.

To skip a track

To stop play

1 2 3

7 8 9 0

Select the desired track number.
To select a track between 1 and 9:

Press the corresponding number on the
keypad.
To select a two-digit track number:
First press >10, and then press the
numbers for the two digits.

CD _1<1/R.SKIP I_I_/F.SKIP

@ "_ Q 0

19

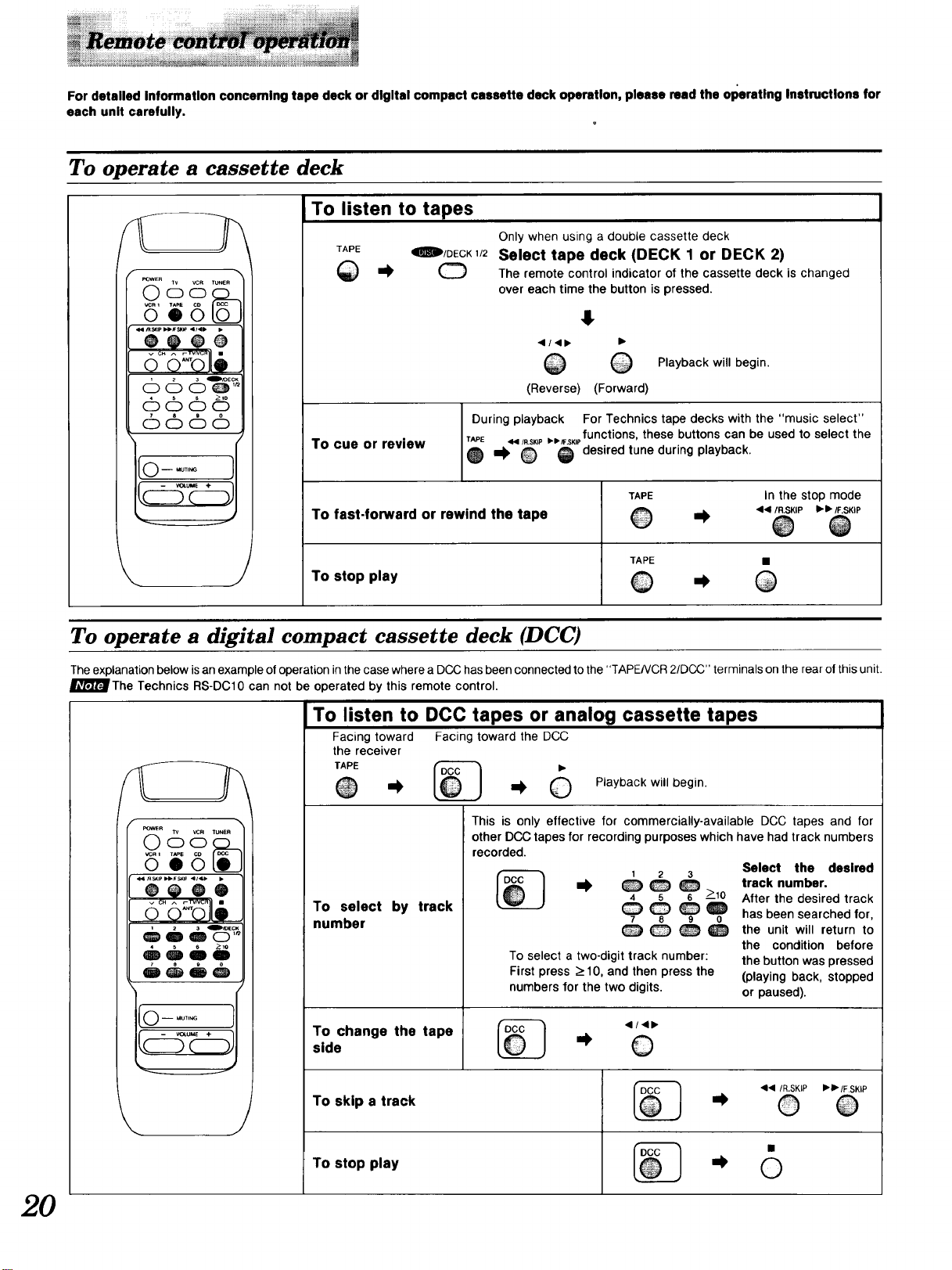

For detailed Information concerning tape deck or digital compact cassette deck operation, please read the ol)eretlng Instructions for

each unit carefully.

o

To operate a cassette deck

To listen to tapes

Only when using a double cassette deck

Select tape deck (DECK 1 or DECK 2)

The remote control indicator of the cassette deck is changed
over each time the button is pressed.

4/41_ •

@ Q Playback will begin.

(Reverse) (Forward)

During playback For Technics tape decks with the "music select"

TAPE ._,.SK,P="_.S_Juncti°ns' these buttons can be used to select the
_) m), O O desired tune during playback.

f FC_ER W TUNER "_

vcn i T_pI: cD

0o_@!

©co

_ _lP _ 4/4k k

e_eo

, _ 3 _ECK

4 _ S 2m

0000

66 c:bcb

TAPE _)/DECK 1/2

To cue or review

(o...... /

To fast-forward or rewind the tape

TAPE In the stop mode

Q -, @ @

4<1/R.SKIP I_ll,/F.SKIP

\ J

To stop play

TAPE •

© ,, @

To operate a digital compact cassette deck (DCC)

The explanation below is an example of operation in the case where a DCC has been connected to the "TAPENCR 21DCC" terminals on the rear of this unit.

The Technics RS-DC10 can not be operated by this remote control.

To listen to DCC tapes or analog cassette tapes

Facing toward Facing toward the DCC
the receiver

VCRI TAPE

Ooo_

OeO _

®_ee

__(D '_

oogl i

5 /

TAPE _ 8

To select by
number

ml_ _ Playback will begin.

This is only effective for commercially-available DCC tapes and for
other DCC tapes for recording purposes which have had track numbers

recorded.

1 2 3

track

7 8 9 0

To select a two-digit track number:

First press > 10, and then press the

numbers for the two digits.

Select the desired
track number.

After the desired track
has been searched for,

the unit will return to
the condition before

the button was pressed
(playing back, stopped
or paused).

'1o...... /

To change the tape

side

4 / 41k"

©

20

To skip a track

To stop play

441 /R.SKIP I_ I_ IF.SKIP

© ©

0

For detailed information concemlng TV or VCR operation, please read the operetlng instructions for each unit carefully.

The explanations below are examples of operation in the case where a TV and VCR have been connected according to the method given on page

6 of these instructions.

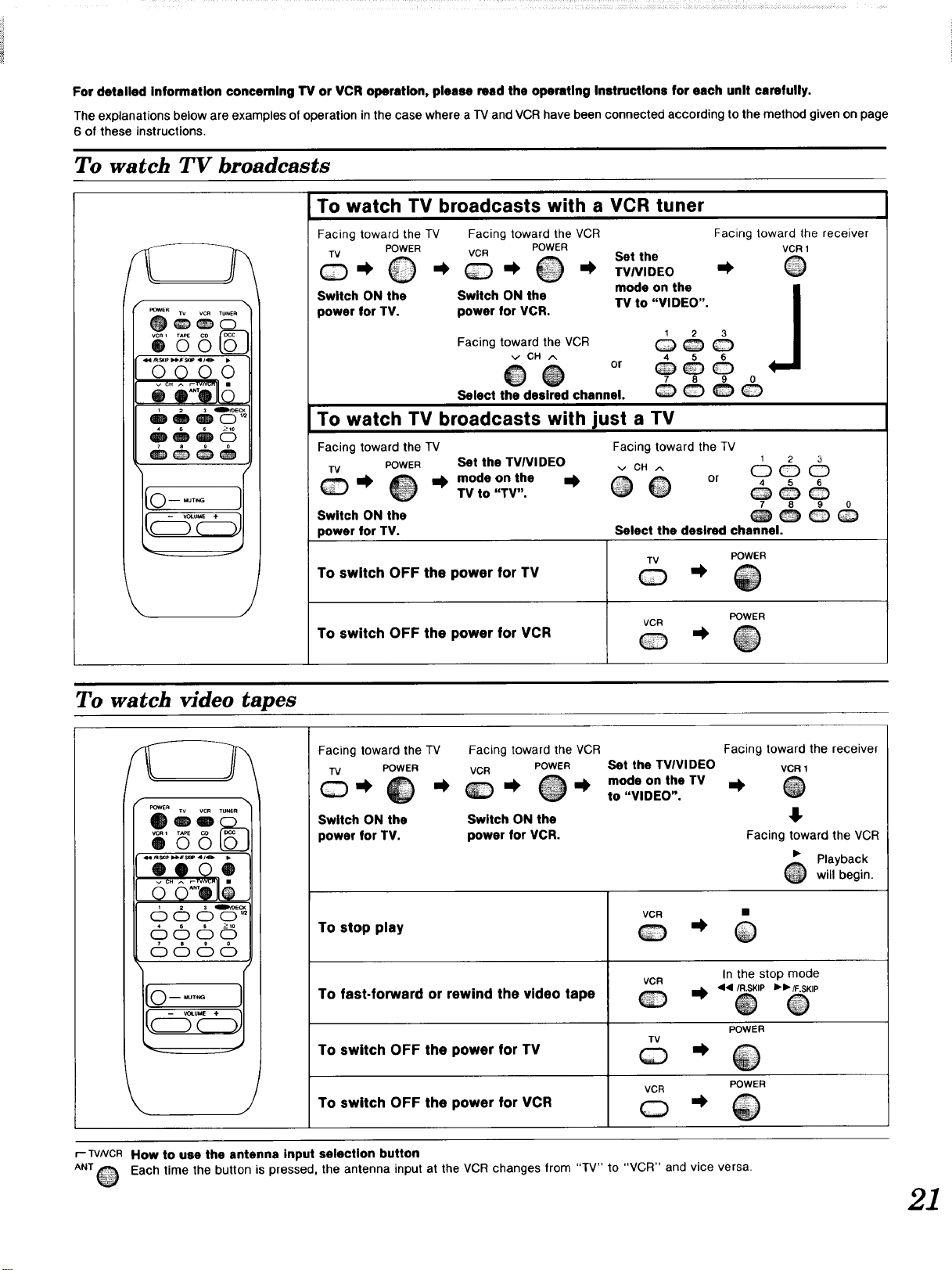

To watch TV broadcasts

To watch TV broadcasts with a VCR tuner

F

O000

,o.e._._l16

[©...... 1

\ /

Facing toward the TV Facing toward the VCR

TM MCR

Switch ON the Switch ON the
power for TV. power for VCR.

POWER POWER

Facing toward the VCR

vCH ^

Set the
TVIVIOEO
mode on the
TV to "VIDEO".

@@ or

Select the desired channel.

To watch TV broadcasts with just a TV

Facing toward the TV

TV POWER Set the TVIVIDEO

_ _ _ mode on the m_

TV to "TV".

Switch ON the
power for TV.

To switch OFF the power for TV

To switch OFF the power for VCR

Facing toward the TV

Select the desired channel.

TV POWER

VCR

Facing toward the receiver

VCR 1

-_ ©

1 2 3

4 5 6

7 8 9 0

1 2 3

7 8 9 0

POWER

•, @

To watch video tapes

Facing toward the receiver

-_ @

f

_ER TV TUN_

®'o6

Facing toward the TV Facing toward the VCR

"IV POWER VCR POWER

Switch ON the Switch ON the
power for TV. power for VCR.

Set the TVIVIDEO

mode on the TV

to "VIDEO".

oeoe

o o"'®lie •

VCR •

© c5c_ 85
6cb_

[0 ...... ]

J

\ /

r--TV/VCR How to use the antenna Input selection button

ANT_ Each time the button is pressed, the antenna input at the VCR changes from "TV" to "VCR" and vice versa.

To stop play

To fast-forward or rewind the video tape

To switch OFF the power for TV

To switch OFF the power for VCR

VCR

TV

VCR

* ©

In the stop mode

I_ 44/R.SKIP I_I_/F.SKIP

@ @

POWER

-,@

POWER

-, @

VCR 1

Facing toward the VCR

_ Playback

will begin.

21

Bm"=!

If you operate a TV, VCR or alternative CD changer (or CD
player) using this remote control, the unit may fail to operate
due to the differing nature of the remote control signal.

If the remote control falls to operate:
It is necessary to reprogram the signal within the remote con-

trol by following this simple procedure.

VCR ! TAPE CD

POWER TV VCR TUNER

000

For CD changer (or CD player) operation
POWER CD PressPOWERandCD simultaneously,hold

for 2 seconds.

Do notattempt to removethe cover(s)or repair the unityourself.
Refer servicingto qualified personnelonly.

Product information

For product service, product information or assistance with pro-
duct operation, refer to the servicenter directory.

For TV operation
POWER TV Press POWER and TV simultaneously, hold

for 2 seconds.

For VCR operation

POWER VCR Press POWER and VCR simultaneously,

O hold for 2 seconds.

To restore the previous memory contents, carry out the
same operations one more time.

Depending on ihe model, there may be cases where opera-

tion is still not possible even if the remote control signal is

switched over due to differences in frequency range
characteristics.

22

Before requesting service for this unit, check the chart below for
a possible cause of the problem you are experiencing. Some sim-
ple checks or a minor adjustment on your part may eliminate the
problem and restore proper operation.

If you are in doubt about some of the check points, or if the
remedies indicated in the chart do not solve the problem, refer to
the directory of authorized service centers (enclosed with this
unit) to locate a convenient service center, (_'r consult your

Technics dealer for instructions.
(In U.S.A. consult MSC Authorized Servicenters for detailed in-

structions.)

I Problem Probable cause(s) Suggested remedy I

While listening to FM broadcasts

An unusual hissing noise is
heard when listening to the
broadcast in stereo, but not
heard when listening
monaurally.

Noise Is excessive in both
stereo and monaural broad-
casts.

The FM stereo indicator or
the quartz lock indicator

flickers, without completely
illuminating.

Excessive distortion in the
sound of stereo broad-
casts.

A slight noise may be heard because the method
used for modulation of FM stereo broadcasts is
different than that used for monaural broadcasts.

Poor location and/or direction of the antenna.
Transmitting station is too far away.

Poor location and/or direction of the antenna.
Transmitting station is too far away.

Nearby building or mountain.

• Try reducing the treble sound by using the treble con-
trol.

• Try changing the location, height andlor direction of
the antenna.

• If an indoor antenna is being used, change to an
outdoor antenna.

• Try using an antenna with more elements.

• Try changing the location, height and/or direction of
the antenna.

• If an indoor antenna is being used, change to an
outdoor antenna.

• Try using an antenna with more elements.

While listening to AM broadcasts

An unusual "beat" sound is
heard.

A low-pitched "hum" sound
is heard when the
broadcast is tuned.

A strange hissing noise is
produced continuously or
Intermittently.

Unit is being used at the same time as the

television set.
Interference from adjacent broadcast signal.

The AM loop antenna connection wires are too
close to the power cord.

The power supply frequency from the power cord
is modulated and heard from the speakers.

Caused by the "discharge phenomenon" and the
"oscillation phenomenon" of electric appliances

(such as fluorescent lights, TV, small series-type
motors, rectification equipment, etc.).

• Turn off the television set, or use this unit farther
away from it.

• Try reducing the treble sound by using the treble con-
trol.

• Place the antenna connection wires and the power
cord farther apart.

• Install a special outdoor antenna.

• Try placing this unit farther away from such equip-
ment.

• Install noise-prevention equipment on this unit or on
the electric appliance.

Problems noted at all times

Power will not switch ON.

No sound is heard when the

power is switched ON.

Sound stops during a
performance, or no sound

Is heard when the power is
switched ON.

(The word "OVERLOAD"
appears on the display.)

Remote control transmitter • Insert the batteries so that the positive (+) and
does not function, negative (-) polarities are correct.

The power cord plug is not completely inserted.

Connections are incomplete or incorrect to the
speaker systems, etc.

The incorrect input selector has been pressed.

The speaker select indicators are turned off.
The protection circuitry has functioned because

the positive and negative speaker connection
wires are "shorted", speaker systems with an
impedance less than the indicated rated
impedance of this unit are used or under severe
use, such as loud volume, excessive power and in

an excessively hot environment.
Batteries are incorrectly installed.

The remote control transmitter batteries are • Replace them with new batteries.
drained.

There is an obstruction between the remote • Remove the obstruction.
control transmitter and the receiver, TV or VCR.

The remote control transmitter is not correctly • Face the remote control transmitter correctly toward
facing the receiver, TV or VCR. the signal receptor of each unit.

• Confirm that the power cord plug is connected

completely.

• Check to be sure that all connection wires are
correctly connected.

• Check to be sure that the correct selector is
pressed.

• Turn on the speaker select indicator(s).

• Switch off the power, and after determining and
correcting the cause, switch on the power once
again.

• Use a speaker system of the proper impedance
rating.

23

• AMPLIFIER SECTION

Rated minimum sine wave

RMS power output
40 Hz-20 kHz both channels driven

0.8% total harmonic distortion

100 W per channel (8 Q)

1 kHz continuous power output

both channels driven

0.8% total harmonic distortion 103W per channel(8 Q)

Total harmonic distortion

rated power at 40 Hz-20 kHz 0.8% (8 _)
half power at 1 kHz 0.07% (8 L3)

Dynamic headroom (Power amplifier section) 2 dB(8 Q)

SMPTE intermodulation distortion 0.5% (8 _)
Frequency response

PHONO RIAA standard curve +0.8 dB
CD, VCR 1, TAPE/VCR 21DCC 10 Hz-70 kHz, +3 dB

Input sensitivity

PHONO 0.4 mV (3 mY, IHF '66)

CD, VCR 1, TAPENCR 2/DCC 27 mV (200 mV, IHF '66)

SIN (IHF, A)

PHONO 68 dB (71 dB, IHF '66)

CD, VCR 1, TAPE/VCR 2/DCC 70 dB (85 dB, IHF '66)

Input Impedance

PHONO 47 k_

CD, VCR 1, TAPEIVCR 2/DCC 22 kQ

Tone controls

BASS 50 Hz, +10 dB to -10 dB

TREBLE 20 kHz, +10 dB to -10 dB

Low frequency damping factor 30 (8 Q)
Load impedance

AorB 8_
A and B 8

• FM TUNER SECTION
Frequency range 87.9-107.9 MHz

Sensitivity 11.2 dBf (2 HV, IHF '58)
50 dB quieting sensitivity

MONO 18.3 dBf (4.5 HV, IHF '58)

STEREO 38.3 dBf (45 IJV, IHF '58)

Total harmonic distortion

MONO 0.2%

STEREO O.3%

SIN

MONO 75 dB

STEREO 7O dB

Frequency response 20 Hz-15 kHz, +1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 1 dB
Image rejection at 98 MHz 45 dB
IF rejection at 98 MHz 80 dB

Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB

Stereo separation

1 kHz 40 dB
10 kHz 30 dB

Carrier leak

19 kHz -35 dB

38 kHz -50 dB

Antenna terminal 75 Q (unbalanced)

• AM TUNER SECTION
Frequency range 530-1710 kHz

Sensitivity 20 IJV, 330 pV/m
Selectivity 55 dB
Image rejection at 1000 kHz 40 dB
IF rejection at 1000 kHz 60 dB

Matsushita Consumer Electronics
Company, Division of Matsushita

Electric Corporation of America

One Panasonic Way Secaucus,
New Jersey 07094

Printed in Singapore

• GENERAL

Power consumption
Power supply
Dimensions (W x H x D)

Weight

Notes:

1. Specifications are subject to change without notice. Weight
and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Panasonic Sales Company,
Division of Matsushita Electric of

Puerto Rico, Inc. ("PSC")

Ave. 65 de Infanteria. Km. 9.5
San Gabriel Industrial Park, Carolina,

Puerto Rico 00985

160 W

AC 120V, 60Hz

430 x 136 x 305 mm

(16-15116" x 5-11132" x 12")

6.6 kg (14.5 lb.)

Matsushita Electric of Canada Limited

5770 Ambler Drive, Mississauga,
Ontario L4W 2T3

RQT2694-P

H1094J0
