Technics SA-EX320 User Manual
Specifications and Main Features
- Model: SA-EX320
- Input: AC, 120V, 60 Hz frequency
- Typical current: 185 W (2 W when not in use)
- External dimensions: 430 x 136 x 309 mm (16-15/16” x 5-1/32” x 12-5/32”)
- Weight: 7.5 kg (16.5 lbs)
- AMPLIFIER SECTION:
- Rated Minimum Sine Wave RMS Power Output :
- 80 W per channel (8 Ω) from 40 Hz to 20 kHz, with total harmonic distortion (THD) of 0.8% and with thermal noise 0.6 dB
- 83 W per channel (8 Ω) at 1 kHz with 0.05% distortion
- Power Output (Dolby Pro Logic Operation) – 2 Channel PCM Output:
- Front 2 x 80 W (8Ω) at 1 kHz with a bandwidth of 200 Hz to 40 kHz
- Center Speaker 80 W (8 Ω)
- Surround 80W (8 Ω)
- Tone Controls: BASS (50 Hz, Able to boost or cut the audio range +10 to -10 decibels), TREBLE (20 kHz Able to boost or cut the audio range +10 to -10 decibels)
- Input Sensitivity: PHONO 0.4 mV; CD, TAPE MONITOR, TV/DVD/DSS, VCR 27 mV
- Frequency Response:
- PHONO: RIAA standard curve plus 0.8 dB
- CD, TAPE MONITOR, TV/DVD/DSS, VCR: 10 Hz thru 70 kHz, plus 3 dB
- Load Impedance:
- Front Speaker: 8 Ω
- Center Speaker: 8 Ω
- Surround Speakers: 4 —8 Ω
- FM TUNER SECTION:
- Frequency Range: 87.9-107.9 MHz
- Sensitivity: 117 A (2 pV, IHF ‘58)
- Total Harmonic Distortion: MONO 0.2% STEREO 0.3%
- AM TUNER SECTION:
- Bandwidth: 530 - 1710 kHz
- 20uV, 330pV/m – Sensitivity:
- Video Section:
- Voltage Output: 1 +0.1 Vp-p
- Input Maximum Voltage: 1.5 Vp-p
- The Load Impedance: 75Ω
Frequently Asked Questions
Q: How many watts does the SA-EX320 crank out?
A: An output of 80 W is produced on a single channel at 8 Omega with a total harmonic distortion of 0 8 percent for the frequency range of 40 hertz to 20 kilohertz.
Q: Is it possible to connect a subwoofer to this?
A: A subwoofer may be connected but the system has no section giving an amplifier for the subwoofer drivers. An auxiliary amplifier might be necessary.
Q: With these dividable power arrays, what sorts of speakers work best with them? And what impedance rating can the speakers be?
A: With an impedance of 8 Ω on front and center speakers and 4 to 8 Ω on surround speakers, this receiver works with such speakers without any problems.

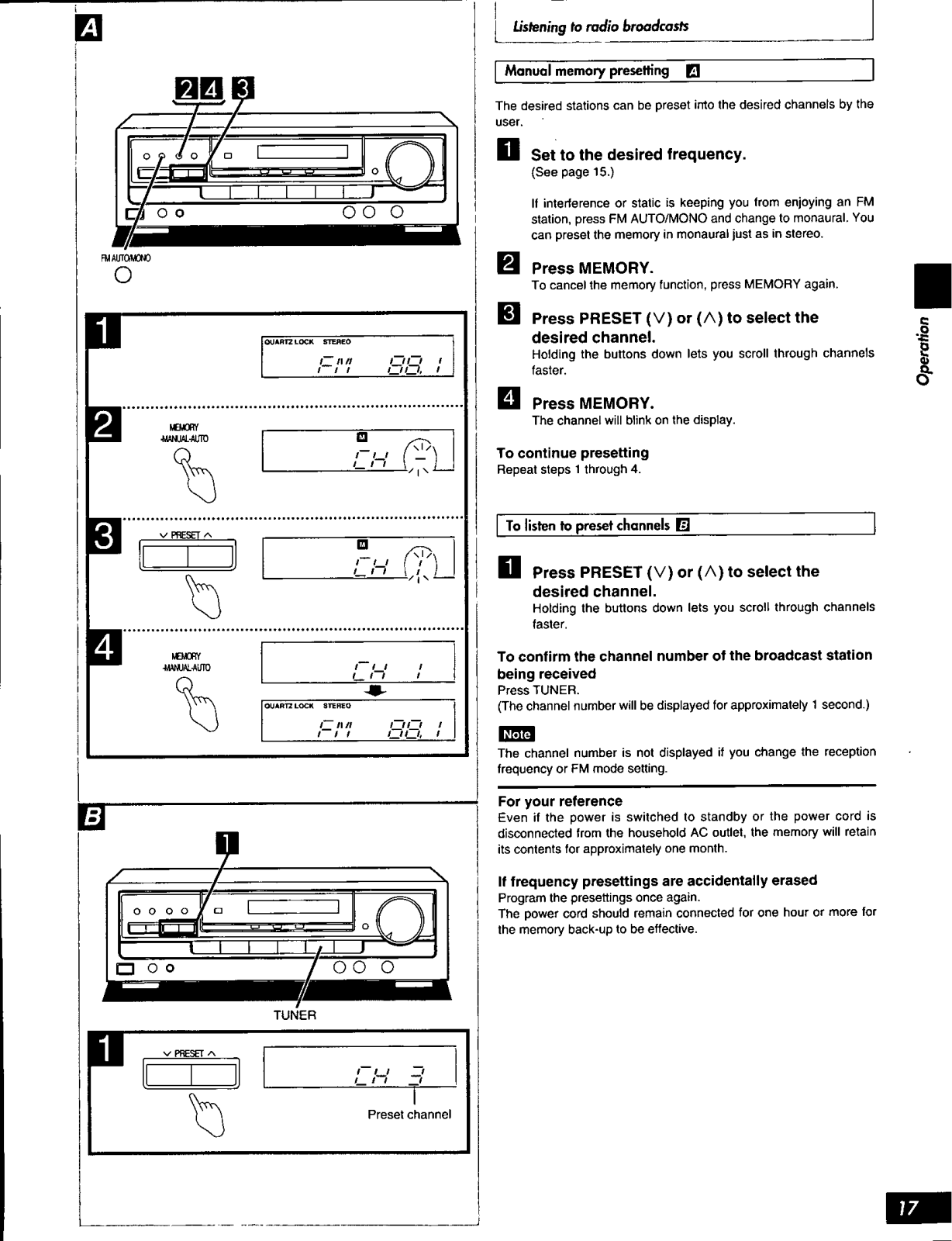

Q: The switches to the left of the top of the SA-EX320 unit enable you to listen to any radio station, but how do you tune in to a specific radio station?
A: You can tune stations using the tuning buttons, select the FM or AM band, and search for stations manually or automatically.
Q: Is this unit compatible with a Dolby Pro Logic Sorround System?
A: Yes, SA-EX320 is compatible with a Dolby Pro Logic and has surround and 3 stereo modes.
Q: There is no sound emitted from the unit; what should I do?
A: Make sure the speaker indicator is on, verify that all connections are in order, and confirm that the tape monitor or muting functions are OFF.
Q: How do I reach Technics service department?
A: The product service department phone number is located on the servicenter directory provided with the product or on the passed offer nga meter that is placed at every Technics dealer.
