Specifications and Main Features
- Model: Technics SA-EX300 / SA-EX100
- Power Output (DIN 1 kHz, T.H.D. 1%):
- SA-EX300: 250 W (8 Ohm)
- SA-EX100: 210 W (8 Ohm)
- Continuous Power Output:
- SA-EX300: 230 W (8 Ohm)
- SA-EX100: 2 x 80 W (8 Ohm)
- Total Harmonic Distortion:
- Rated Power at 40 Hz~20 kHz: 0.5% (8 Ohm)
- Half Power at 1 kHz: 0.03% (8 Ohm)
- FM Tuner Section:
- Frequency Range: 87.50-108.00 MHz
- Sensitivity (IHF usable sensitivity): 1.5 µV/75 Ohm
- Total Harmonic Distortion (STEREO): 0.3%
- AM Tuner Section:
- Frequency Range: AM 522-1611 KHz (9 kHz steps)
- Sensitivity: AM 20 µV, 330 µV/m
- Power Consumption:
- SA-EX300: 200 W
- SA-EX100: 160 W
- Dimensions (W x H x D):
- SA-EX300: 480 x 136 x 358 mm
- SA-EX100: 430 x 136 x 309 mm
- Weight:
- SA-EX300: 8.7 kg
- SA-EX100: 6.2 kg
- Tone Controls:
- Bass: 60 Hz, +10 to -10 dB,
- Treble: 20 kHz, +10 to -10 dB,
- Headphones Output Level and Impedance: 430 mV/330 Ohm
- Speaker Impedance:
- Front: 8-16 Ω
- Center: 8-16 Ω (SA-EX300 Only)
- Speakers for Surround: 4-16 Ohm ( Only available for SA-EX300 Model).
Frequently Asked Questions
- Which speakers does SA-EX300 support?
It supports surround range from 8-16 to 4-16 and center channel speakers between 8-16 ohms.
- What is the max power for SA-EX100?
Stated above the max power output for SA-EX100 is 210 W for an 8 Ohm impedance.
- Does this device allow access to both FM and AM radios?
Absolutely Yes, FM and AM capabilities are integrated into this device.
- What is the working procedure of Sleep Timer?
A sleep timer can be set to the unit for 30,60, or 90 minutes intervals.
- Is Dolby pro logic supported by this device?
Yes, for greater sound quality the SA-EX300 model supports Dolby Pro Logic.
- And what power source is required for this device?
230-240V 50Hz/60Hz AC.

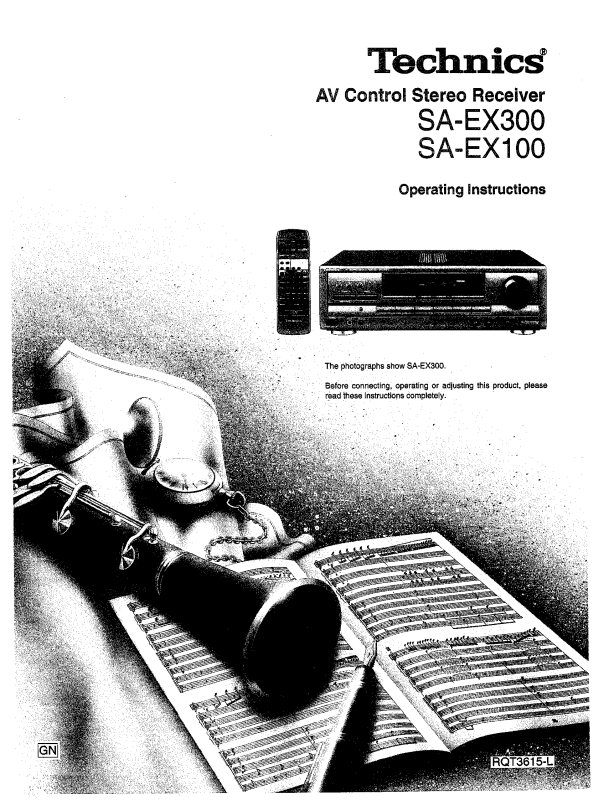

User Manual
