Technicolor TC7200.U User Manual
WLAN Modem
Manual
Installation, Tips & Tricks
Your ambition. Our commitment.
Tel. 0800 888 310 | upc-cablecom.biz
Corporate Network • Internet • Phone • TV
upc cablecom business
Förrlibuckstrasse 181
8005 Zürich
upc-cablecom.biz
64
Manual WLAN Modem Manual WLAN Modem
65
Introduction
Welcome to the superfast Internet world of upc cablecom.
In the following, we will show you how to set up your WLAN modem correctly, and we
will give you tips how to improve wireless transmission.
For optimal wireless transmission, you require a wireless receiver that supports the wireless standard 802.11n. Older standards also work, but have a lower transmission capacity.
For details, please refer to chapter “Tips & Tricks”.
If your computer does not have a built-in wireless receiver, we recommend an external
WLAN USB stick.
Contents
Introduction 64
1 Automatic installation 66
2 Manual installation – modem cabling 67
3 Manual WLAN set-up 68
3.1 Windows XP 68

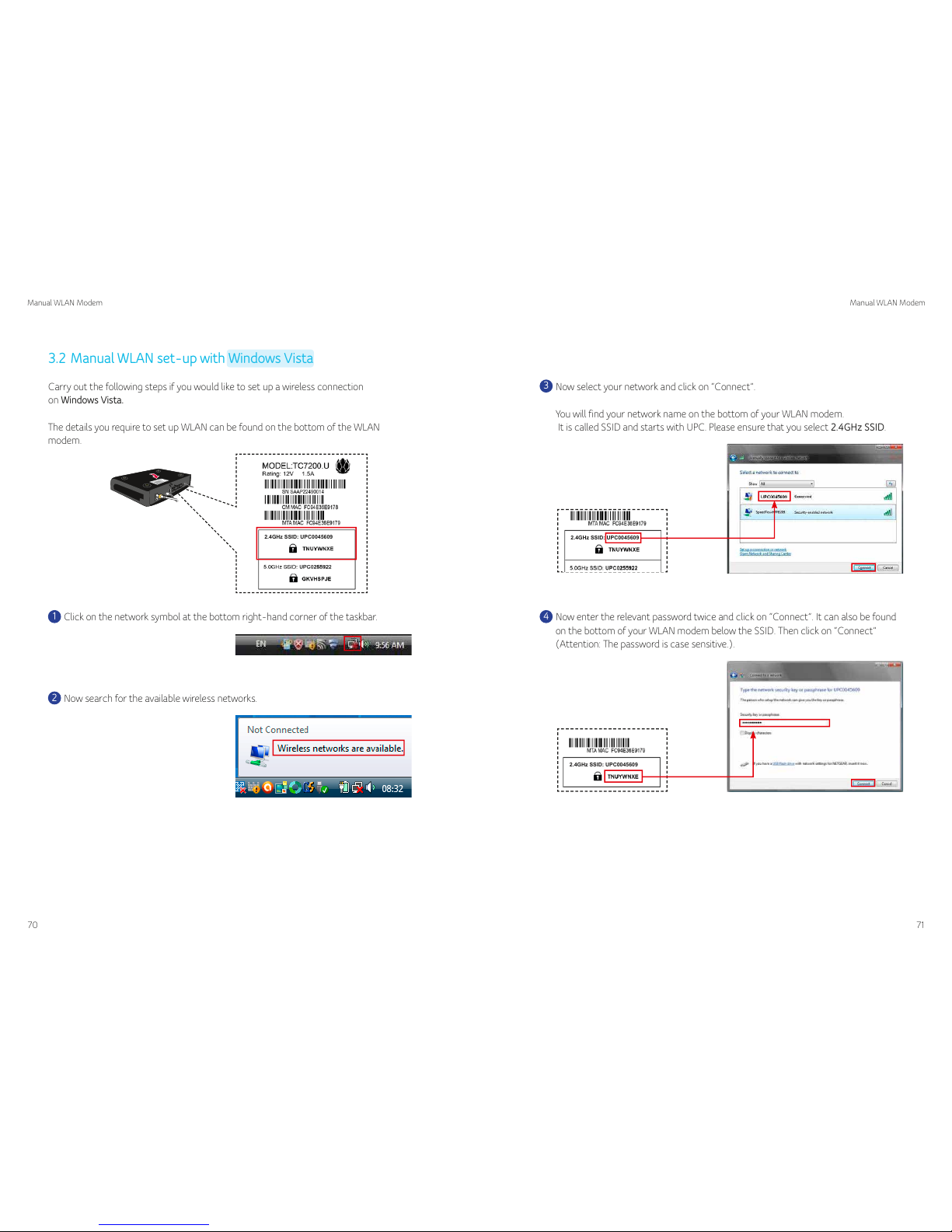

3.2 Windows Vista 70

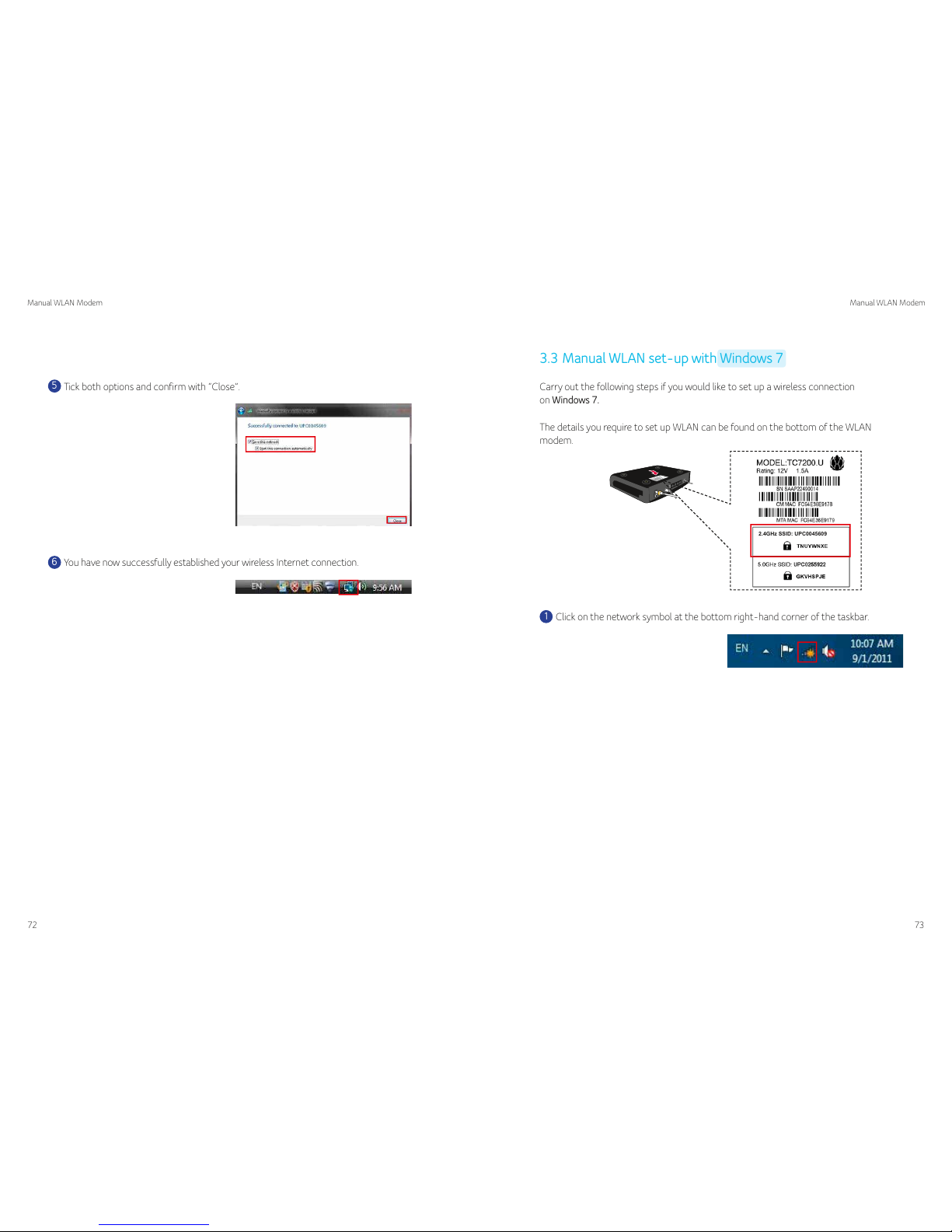

3.3 Windows 7 73

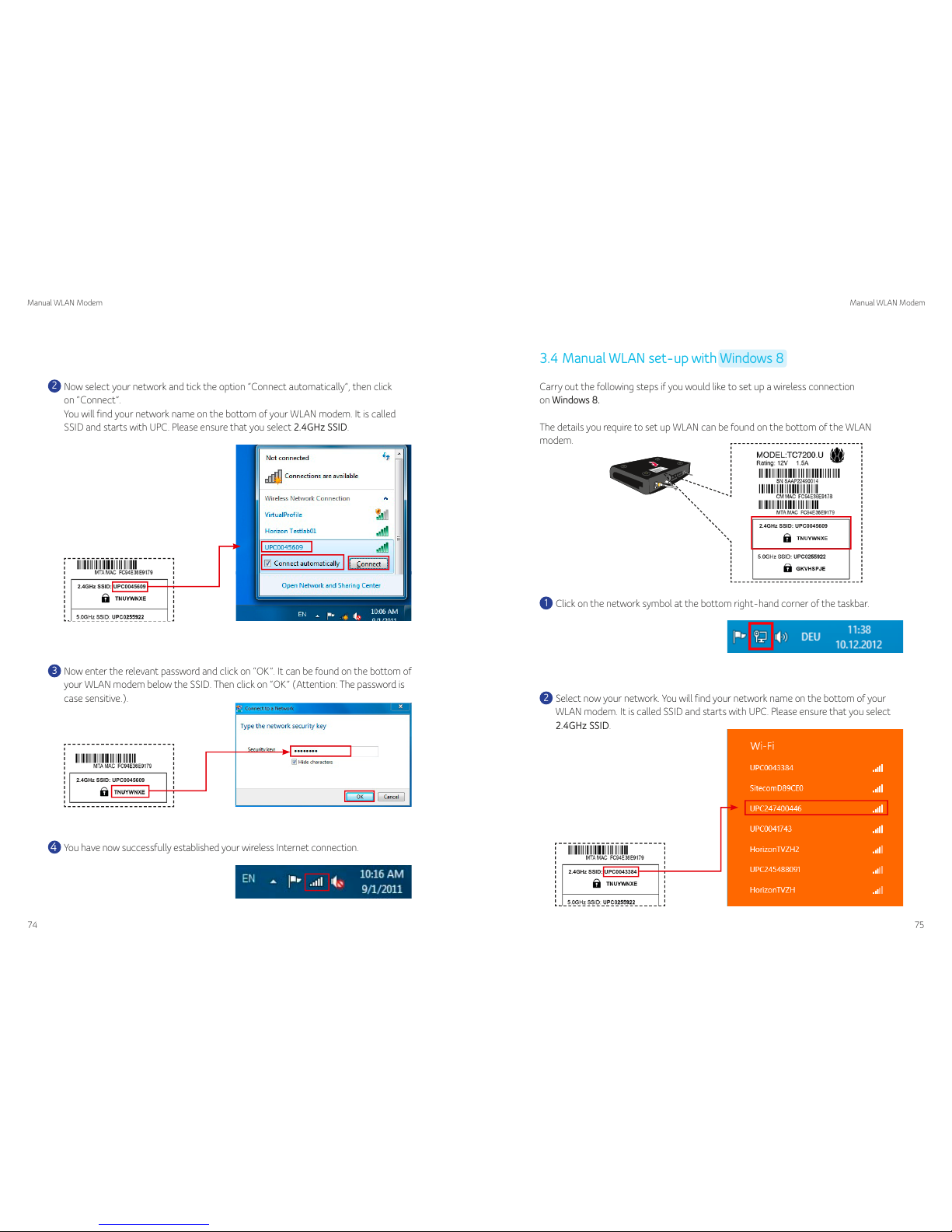

3.4 Windows 8 75
3.5 MAC OS X 77
4 Tips & Tricks 79
4.1 Important information 79
4.2 Optimising wireless transmission 79
4.3 Optimising Windows XP settings 80
4.4 Integrating additional devices in the WLAN 81
4.5 Information on terminal devices 81
4.6 Security, WLAN name and password 82
4.7 Advanced settings 82
4.8 Deactivating the WLAN function 83
4.9 Continuing to use your own WLAN router 83
66
Manual WLAN Modem Manual WLAN Modem
67
2 Manual installation – modem cabling 1 Automatic installation from the Installer CD
(Windows & MAC)
If your computer does not have a CD/DVD drive, please follow the instructions for
manual installation described in the following section.
The installation is very simple with the Installer CD that comes with the Internet &
Phone Manual. This shows you how to correctly cable your WLAN modem step by step.
In addition, the Installer CD also establishes the wireless connection between the WLAN
modem and your computer and, with a Windows XP operating system, optimises the
settings used for Internet access.
The later Windows or Mac OS X operating systems have already been configured for
very high bandwidths and do not usually need to be adjusted.
Connect the WLAN modem and the cables as described. For manual installation, the
WLAN modem does not need to be connected to the computer.
Online
Phone 1
1
If you would like to operate your modem from the same cable box as your Digital TV
Mediabox, connect it using the multimedia adapter a .
Otherwise, connect your WLAN modem directly to the TV socket
b
or c .
2
Connect the power supply unit to the power outlet and the WLAN modem.
3
You can connect a computer directly with the network cable. This requires no further
installation.
4
If your telephone line is also operated by upc cablecom, connect your telephone to
“Linie 1” now.
› The modem activation process can take up to 30 minutes and is complete when the
“Online” LED is lit up constantly. With Phone, the LED “Phone 1” should also be lit up.
68
Manual WLAN Modem Manual WLAN Modem
69
The details you require to set up WLAN can be found on the bottom of the WLAN
modem.
Carry out the following steps if you would like to set up a wireless connection
on Windows XP.
1
Right-click on the network symbol at the bottom right-hand corner of the taskbar.
3
Select your network and click on “Connect”.
You will find your network name on the bottom of your WLAN modem.
It is called SSID and starts with UPC. Please ensure that you select 2.4GHz SSID.
4
Now enter the relevant password twice and click on “Connect”.
It can be found on the bottom of your WLAN modem next to the SSID (Attention: The
password is case sensitive.).
5
You have now successfully established your wireless Internet connection.
2
Now search for the available wireless networks.
3.1 Manual WLAN set-up with Windows XP
3 Manual WLAN set-up
2.4GHz SSID: UPC0045609
2.4GHz SSID: UPC0045609
2.4GHz SSID: UPC0045609
