ABOUT THIS SETUP AND USER GUIDE

About this Setup and User Guide

In this Setup and User Guide

The goal of this Setup and User Guide is to show you:

 Set up your MediaAccess Gateway and local network

 Configure and use the main features of your MediaAccess Gateway.

For more advanced scenarios and features visit the documentation pages on www.technicolor.com

Used Symbols

The danger symbol indicates that there may be a possibility of physical injury.

The warning symbol indicates that there may be a possibility of equipment damage.

The caution symbol indicates that there may be a possibility of service interruption.

The note symbol indicates that the text provides additional information about a topic.

Te r m i n o l o g y

Generally, the MediaAccess TG789vn v3 will be referred to as MediaAccess Gateway in this Setup and User Guide.

Typographical Conventions

Following typographical convention is used throughout this manual:

 This sample text indicates a hyperlink to a Web site.

Example: For more information, visit us at www.technicolor.com

 This sample text indicates an internal link.

Example: If you want to know more about guide, see “About this Setup and User Guide” on page 1.

 This sample text indicates an important content-related word.

Example: To enter the network, you must authenticate yourself.

 This sample text indicates a GUI element (commands on menus and buttons, dialog box elements, file names, paths and

folders).

Example: On the File menu, click Open to open a file.

DMS-CTC-20101206-0033 v1.0

ABOUT THIS SETU

P AND USER GUIDE

DMS-CTC-20101206-0033 v1.0

1 GETTING STARTED

1 Getting Started

Introduction

This chapter gives you a brief overview of the main features and components of the MediaAccess Gateway. After this chapter we will start with the installation.

Do not connect any cables to the MediaAccess Gateway until instructed to do so.

DMS-CTC-20101206-0033 v1.0

1GETTING START

1.1 Features at a Glance

Introduction

This section provides a brief overview of the main features of your MediaAccess Gateway.

IPv6 Ready

Your MediaAccess Gateway is IPv6 ready. Internet Protocol version 6 (IPv6) is the next generation of Internet technologies aiming to effectively support the ever-expanding Internet usage and functionality, and also to address security concerns that exist in an IPv4 environment.

Internet connection features

 Broadband Internet access via the integrated DSL modem.

The first chapters describe how to connect your MediaAccess Gateway to the Internet.

 Broadband Internet access via the Gigabit WAN port.

The first chapters describe how to connect your MediaAccess Gateway to the Internet.

 3G (Fall-back) High-speed Internet Access via the optional mobile USB adaptor.

For more information, see “3.5 Setting Up the 3G Fall-Back WAN Connection” on page 32.

 Internet Security for your entire network.

For more information, see “10 Internet Security” on page 97.

 Useful network tools like UPnP, Dynamic DNS and many more.

For more information, see “9 Network Services” on page 83.

Local networking features

 Wired access for your local network devices via the Ethernet interface.

For more information, see “3.3 Connecting Your Network Devices to the MediaAccess Gateway” on page 28.

 Wireless access for your local network devices via the integrated IEEE 802.11n wireless access point.

For more information, see “5 The MediaAccess Gateway Wireless Access Point” on page 43.

 An Integrated Media Server allowing you to share your media with media players and other network devices. For more

information, see “8 Sharing Content” on page 69.

Telephony features

The MediaAccess Gateway offers Voice over IP (VoIP) connectivity for traditional phones and IP phones. For more information see “6 Telephony” on page 51

ECO label

Technicolor’s ECO label guarantees you that the MediaAccess Gateway is able to reduce its power consumption to an absolute minimum. For more information, see “7 Saving Energy” on page 65.

MediaAccess Gateway configuration tools

 The MediaAccess Gateway Setup CD allows you to configure your MediaAccess Gateway and helps you to connect

your computers to the MediaAccess Gateway.

 The MediaAccess Gateway GUI allows you to configure your MediaAccess Gateway via your web browser.

For more information, see “4.1 MediaAccess Gateway GUI” on page 36.

DMS-CTC-20101206-0033 v1.0

1 GETTING STARTED

Internet

MediaAcces Gateway

Internet

Modem/Router MediaAcces Gateway

1.2 User Scenarios

Scenarios

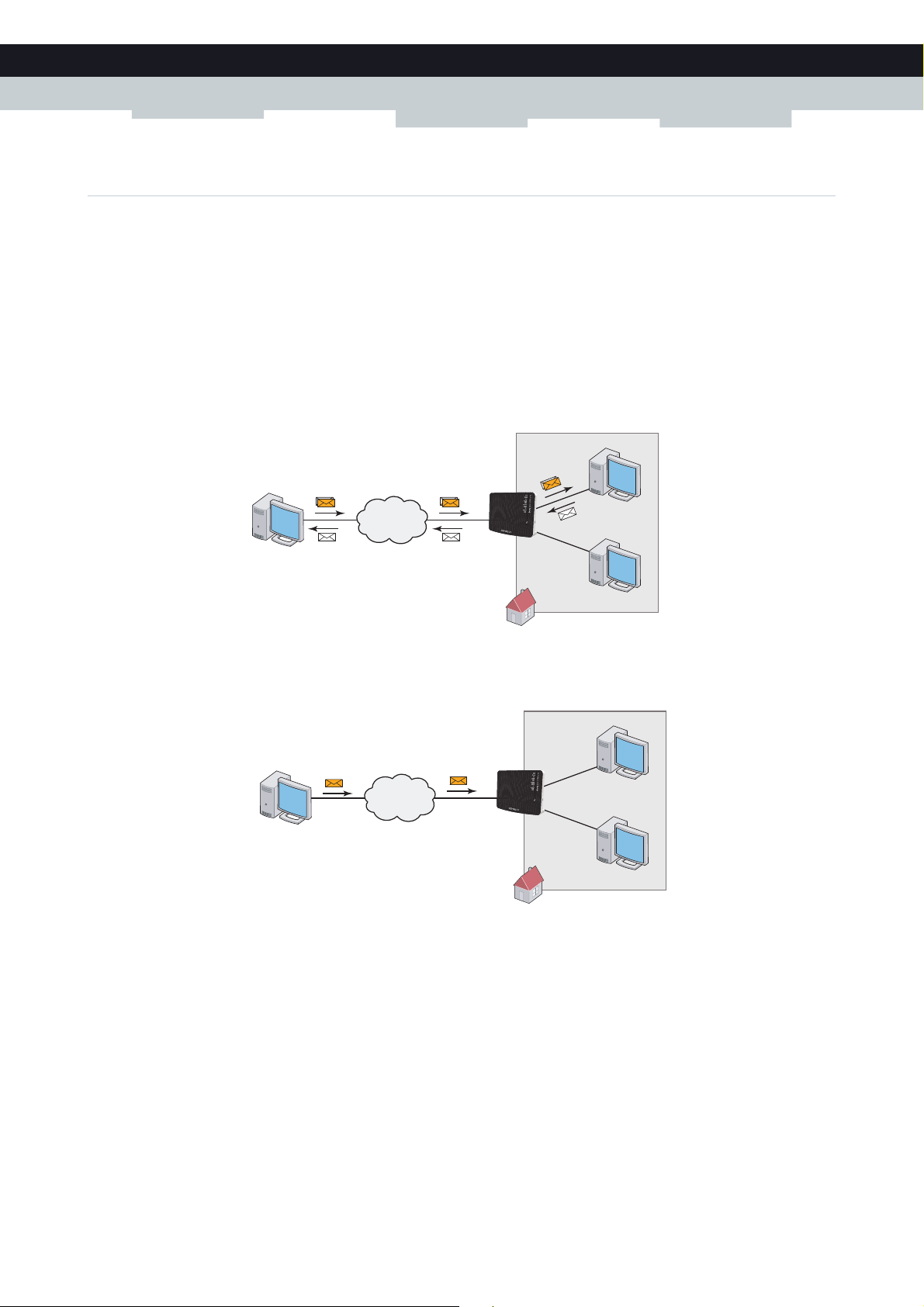

Depending of the architecture of your home network, you can use the MediaAccess Gateway in either of the following scenarios:

 DSL Gateway

 Local Router

DSL Gateway

The MediaAccess Gateway is connected to the DSL network of your service provider and brings the Internet to your home.

Local Router

The MediaAccess Gateway is placed behind another gateway or modem. In this setup the gateway or modem in front of the MediaAccess Gateway will establish the connection to the Internet:

This scenario is used when:

 The Internet connectivity is provided by another device (for example, a cable modem). The MediaAccess Gateway is

used to add specific services to your home network.

 Your service provider is using Ethernet in the First Mile (EFM).

The Ethernet signal is directly coming into your home.

 Your service provider is using Ethernet To The Home (ETTH).

MediaAccess Gateway is directly connected to the terminator of your service provider’s fiber-optic network and your local network

DMS-CTC-20101206-0033 v1.0

1GETTING START

1.3 Components

Overview

This section provides an overview of the different components of the MediaAccess Gateway:

1.3.1 Power 7

1.3.2 Local Network Connection 8

1.3.3 Broadband Connection 9

1.3.4 Voice Connection 10

1.3.5 Buttons 11

1.3.6 Status LEDs 12

To p i c Page

DMS-CTC-20101206-0033 v1.0

1.3.1 Power

Overview

1 GETTING STARTED

Power inlet

The power inlet () allows you to connect the power supply.

Only use the power supply delivered with your MediaAccess Gateway.

Power switch

The power switch () allows you to power on/off your MediaAccess Gateway.

DMS-CTC-20101206-0033 v1.0

1GETTING START

1.3.2 Local Network Connection

Overview

Wireless Access Point

The built-in WiFi-certified wireless access point provides wireless access to your WiFi-certified wireless clients.

For more information, see “5 The MediaAccess Gateway Wireless Access Point” on page 43.

Ethernet switch

The Ethernet switch () allows you to connect an Ethernet device (for example, a computer) to your local network. For more information, see “3.3 Connecting Your Network Devices to the MediaAccess Gateway” on page 28.

A LED may be provided per Ethernet port to indicate link integrity (or activity).

LED Status Description

Solid on Device connected.

Blinking Device connected and sending/receiving data.

Off No device connected.

USB Port

The USB port () can be used to:

 Connect a USB mass storage device to share your content (for example, music, movies,...):

 On your local network via the Network File server or the UPnP AV Media Server.

 On Internet via FTP.

For more information, see “8 Sharing Content” on page 69.

 Connect a 3G mobile adaptor to set up a 3G connection that can work as a backup for your main Internet connection.

For more information, see “3.5 Setting Up the 3G Fall-Back WAN Connection” on page 32.

DMS-CTC-20101206-0033 v1.0

1.3.3 Broadband Connection

WAN

DSL

Overview

1 GETTING STARTED

DSL port

This port can be used to connect your MediaAccess Gateway to your service provider’s DSL network.

For more information, see “3.1 Connecting the MediaAccess Gateway to your Service Provider’s Network” on page 22.

WAN port

This port allows you to use your MediaAccess Gateway as Local Router. For more information, see “1.2 User Scenarios” on

page 5.

DMS-CTC-20101206-0033 v1.0

1GETTING START

PSTN

1.3.4 Voice Connection

Overview

Phone Port

The Phone ( ) port allows you to connect a traditional phone to your MediaAccess Gateway. This way you will be able to make phone calls over the Internet and save on communication costs, especially for long-distance calls.

For more information, see “6.1 Setting Up Your Telephone Network” on page 52.

PSTN Port (optional)

The PSTN port allows you to connect the MediaAccess Gateway to the traditional telephone network, i.e. the Public Switched Telephone Network (PSTN). When the VoIP connection is not available, the MediaAccess Gateway will automatically switch from VoIP to the traditional telephone network.

If your MediaAccess Gateway does not have a PSTN port, this means that:

 Your MediaAccess Gateways has an integrated filter

The MediaAccess Gateway separates the phone signal from the signal coming from the DSL port. Your MediaAccess Gateway has an integrated filter if the product name printed on the label of your MediaAccess Gateway ends with “wIF” (with Integrated Filter). If this suffix is not present, then your MediaAccess Gateway does not have an integrated filter.

- or -

 Your MediaAccess Gateway is VoIP-only

All calls passing through the MediaAccess Gateway will be done via VoIP.

Be aware that, if you are not connected to the traditional telephone network, emergency calls will not be possible when your Internet connection is down or your MediaAccess Gateway is powered off.

For more information, see “6.1.1 Connection to the Traditional Telephone Network” on page 53.

DMS-CTC-20101206-0033 v1.0

1.3.5 Buttons

Reset

Overview

1 GETTING STARTED

WPS button

The WPS ( ) button allows you to add new wireless clients to your network in a swift and easy way, without the need to enter any of your wireless settings manually.

For more information, see “5.1 Connecting Your Wireless Client via WPS” on page 44.

ECO button

The ECO ( ) button allows you to disable your wireless access point. You can do this when you do not have any devices that are connected to the wireless access point. This allows you to save the energy that the MediaAccess Gateway would be using for the wireless access point. For more information, see “ECO button” on page 68.

Reset button

The Reset button allows you to reset your MediaAccess Gateway to factory defaults.

For more information, see “11.7 Reset to Factory Defaults” on page 116.

DMS-CTC-20101206-0033 v1.0

1GETTING START

1.3.6 Status LEDs

Introduction

On the front panel of your MediaAccess Gateway, you can find a number of status LEDs, indicating the state of the device.

Power

Ethernet

USB

Wireless

Voice

Broadband

Internet

Upgrade

WPS

Power LED

Colour State Description

Green Solid on Power on, normal operation

Blinking Bootloader active (during upgrade)

Red Solid on Power on, self-test failed, indicating device malfunction

Orange Solid on Bootloader selftest

Blinking Bootloader active (during upgrade)

Off The MediaAccess Gateway is powered off.

Ethernet LED

Colour State Description

Green Solid on Network device connected to the Ethernet switch.

Blinking Network device connected to the Ethernet switch and sending/receiving

data.

Off No Ethernet connection on your local network

DMS-CTC-20101206-0033 v1.0

1 GETTING STARTED

USB LED

Colour State Description

Green Solid on Device(s) connected to the MediaAccess Gateway’s USB port

Off No device connected to the MediaAccess Gateway’s USB port

Wireless LED

Colour State Description

Green Solid on No wireless activity, WPA2-PSK or WPA-PSK encryption

Blinking Wireless activity, WPA2-PSK or WPA-PSK encryption

Orange Solid on No wireless activity, WEP encryption

Blinking Wireless activity, WEP encryption

Red Solid on No wireless activity, no security

Blinking Wireless activity, no security

Red/green Toggling Wireless client registration phase

Off Wireless access point disabled

Broadband LED (if you are using the DSL Gateway scenario)

Colour State Description

Green Solid on DSL line synchronised

Blinking Trying to detect carrier signal or pending DSL line synchronisation

Off MediaAccess Gateway powered off.

Broadband LED (if you are using the Local Router scenario)

Colour State Description

Green Solid on Connected to the WAN device

Off Not connected to the WAN device

Internet LED

Colour State Description

Green Solid on Connected to the Internet, no activity

Red Solid on Failed to setup the Internet connection

Off No Internet connection

DMS-CTC-20101206-0033 v1.0

Blinking Connected to the Internet, sending/receiving data

1GETTING START

TV LED

Colour State Description

Green Solid on Set-Top Box (STB) connected to the MediaAccess Gateway

Off No STB connected to the MediaAccess Gateway

Phone LED

Colour State Description

Green Solid on Registered at your VoIP provider, no activity.

Off Not registered to your VoIP provider.

Blinking Unknown STB connected to the MediaAccess Gateway

Blinking Registered at your VoIP provider, activity.

Upgrade LED

Colour State Description

Blue Solid on Software upgrade ongoing

Off No software upgrade ongoing

Do not power off your MediaAccess Gateway or disconnect any cables as long as the Upgrade LED is on. Interrupting the upgrade procedure may damage your MediaAccess Gateway.

WPS LED

Colour State Description

Green Solid On Client successfully registered via WPS

Orange Blinking WPS registration ongoing

Red Blinking Error occurred

For more information about WPS, see “5.1 Connecting Your Wireless Client via WPS” on page 44.

DMS-CTC-20101206-0033 v1.0

1 GETTING STARTED

1.4 Preparing for the Installation

DSL service requirements

This section is only applicable if you are using your MediaAccess Gateway as DSL gateway. For more information, see

“1.2 User Scenarios” on page 5.

Make sure that:

 Your service provider activated the DSL service on your telephone line by your service provider.

 You have the installation information (for example, user name, password, service profile,...) provided by your service

provider at hand.

Local connection requirements

Wireless connection

If you want to connect your computer using a wireless connection, your computer must be equipped with a WiFi-certified wireless client adapter.

Wired connection

If you want to connect a computer using a wired connection, your computer must be equipped with an Ethernet Network Interface Card (NIC).

Start with the installation

You are now ready to start with the installation of your MediaAccess Gateway.

DMS-CTC-20101206-0033 v1.0

1GETTING START

DMS-CTC-20101206-0033 v1.0

2 GUIDED INSTALLATION

2 Guided Installation

Introduction

In the guided installation, the Setup wizard on the Setup CD will assist you with the installation of your MediaAccess Gateway.

If you do not want to use the Setup CD or if the Setup CD is not included in your package, follow the installation procedure described in “3 Manual Installation” on page 21.

Requirements

To use the guided installation you must comply with the following requirements:

 Your computer must run one of the following operating systems:

 Microsoft Windows 7 and higher

 Microsoft Windows 7 x64 and higher

 Microsoft Windows Vista and higher

 Microsoft Windows XP Service Pack 2 (SP2) and higher

 Mac OS X 10.6 (Snow Leopard)

 Mac OS X 10.5 (Leopard)

 Mac OS X 10.4 (Tiger)

 You must have administrative rights on your computer.

If you do not comply with these requirements, use the “3 Manual Installation” on page 21.

Running the Setup wizard

To start the Setup wizard:

1 Insert the Setup CD into your computer's CD- or DVD drive.

2 If your computer runs:

 Microsoft Windows: The Setup CD starts automatically.

If the Setup CD does not autostart, see “The Setup CD does not start automatically” on page 110.

 Mac OS X: Double-click Menu in the window with the content of the Setup CD.

3 Select the language of your choice and click OK.

4 The Setup wizard will now guide you through the installation of your MediaAccess Gateway.

DMS-CTC-20101206-0033 v1.0

2 GUIDED INSTALL

5 At the end of the installation, the following screen appears:

Select Go to the Technicolor Gateway web interface if you want to go to the MediaAccess Gateway GUI after closing the wizard. On the MediaAccess Gateway GUI, you can configure all services of your MediaAccess Gateway.

6 Click Finish.

7 The CD menu appears.

ATION

CD Menu

On the CD Menu, you can click:

 Initial Setup to connect your computer to the MediaAccess Gateway and configure your local network.

 Reconfigure my Technicolor Gateway to fully reconfigure your MediaAccess Gateway.

If you reconfigure your MediaAccess Gateway via the CD menu, the MediaAccess Gateway will be reconfigured from scratch. All your current settings will be lost. If you only want to make small changes to your configuration (for example, changing the security), we recommended you to do this via the MediaAccess Gateway GUI. For more information, see “4.1 MediaAccess Gateway GUI” on page 36.

 Setup my computer to connect your computer to the MediaAccess Gateway network.

 Documentation to view a list of the documentation that is available for your MediaAccess Gateway.

 Visit technicolor.com to visit the online support sections.

Actual available items depend on the Setup CD delivered with your MediaAccess Gateway.

DMS-CTC-20101206-0033 v1.0

2 GUIDED INSTALLATION

In case of problems

If you encounter problems during this installation please refer to “11.1 Setup Troubleshooting” on page 110.

Backup your configuration

Once you successfully installed your MediaAccess Gateway, it is recommend to backup your configuration. This will allows you to return to this configuration when needed (for example, after misconfiguration).

For more information, see “4.2 Backing Up/Restoring your Configuration” on page 41

DMS-CTC-20101206-0033 v1.0

2 GUIDED INSTALL

ATION

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTALLATION

3 Manual Installation

Installation

This chapter will help you to manually install your MediaAccess Gateway.

Setting up your network

Proceed as follows:

1 Connect your MediaAccess Gateway to your service provider’s network.

For more information, see “3.1 Connecting the MediaAccess Gateway to your Service Provider’s Network” on page 22.

2 Power on the MediaAccess Gateway.

For more information, see “3.2 Powering on the MediaAccess Gateway” on page 27.

3 Connect your computer to the MediaAccess Gateway.

For more information, see “3.3 Connecting Your Network Devices to the MediaAccess Gateway” on page 28.

4 Configure your MediaAccess Gateway.

For more information, see “3.4 Configure the MediaAccess Gateway” on page 31.

5 Connect your phones.

For more information, see “6 Telephony” on page 51.

6 Share your content or media on your local network, continue with “8 Sharing Content” on page 69.

7 If you purchased the mobile USB adapter, setup the 3G backup connection.

For more information, see “3.5 Setting Up the 3G Fall-Back WAN Connection” on page 32.

8 Once you successfully installed your MediaAccess Gateway, it is recommend to backup your configuration. This will

allows you to return to this configuration when needed (for example, after misconfiguration). For more information, see

“4.2 Backing Up/Restoring your Configuration” on page 41.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTAL

LATION

3.1 Connecting the MediaAccess Gateway to your Service Provider’s Network

Identifying your setup

If you are using the MediaAccess Gateway as:

 DSL Gateway, continue with “3.1.1 Setting up your MediaAccess Gateway as DSL Gateway” on page 23.

 Local Router, continue with “3.1.2 Setting up your MediaAccess Gateway as Local Router” on page 26.

For more information, see “1.2 User Scenarios” on page 5, you can use your MediaAccess Gateway in either of the following scenarios

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTALLATION

DSL + Voice

Voice

DSL + Voice

Service

Provider

Filter/Splitter

LINE

PHONE

MODEM

3.1.1 Setting up your MediaAccess Gateway as DSL

Gateway

Introduction

This section helps you to connect the MediaAccess Gateway to your service provider’s network.

Signal arriving at your home

The Line signal that arrives at your home consists the following components:

 A Phone signal carrying the traffic for telephony.

This Phone signal is only used for communication over the traditional telephone network (PSTN). Voice over IP communication will be carried by the DSL signal.

 A DSL signal carrying the Internet traffic.

DSL Gateways have a built-in solution to remove the Phone component. No additional devices are needed, you can connect them directly to the Line.

Telephones do not have this capability, so here you have to use a filter or splitter to remove the DSL signal.

What does a filter/splitter look like

A splitter/filter is a box that typically has the following connectors:

 A Line input

This connector must be connected to the input signal that needs to be filtered.

 A Phone/PSTN output

This connector offers filtered output signal. It only contains the Vo i c e component and can only be used for connecting phones.

 A Modem/DSL output (optional)

This connector offers unfiltered output. It contains both the Phone and DSL signal and can be used to connect your MediaAccess Gateway.

Connecting the cables

The procedure to be followed depends on the fact if this filter has been integrated into your MediaAccess Gateway or not.

Check the label of your MediaAccess Gateway. If the product name contains:

 “wIF” (for example MediaAccess TG789vn v3 wIF) then your MediaAccess Gateway has an integrated filter. No external

filters are needed. Follow the steps described in “Scenario 2: A MediaAccess Gateway without integrated filter” on page 24.

 No “wiF” (for example MediaAccess TG789vn v3) then your MediaAccess Gateway does not have an integrated filter.

Follow the steps described in “Scenario 2: A MediaAccess Gateway without integrated filter” on page 24.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTAL

DSL

LATION

Scenario 1: A MediaAccess Gateway with integrated filter

Proceed as follows:

1 Take the DSL cable. This is the gray cable that is included in your box.

2 Plug one end of the cable in the grey DSL port on the back of your MediaAccess Gateway.

3 Plug the other end of the cable:

 In the DSL/Modem output of your splitter/filter.

 Directly into the telephone wall outlet if there is no splitter/filter between the network terminator and your local

phone network.

Scenario 2: A MediaAccess Gateway without integrated filter

Proceed as follows:

1 Take the DSL cable. This is the grey cable that is included in your box.

2 Plug one end of the cable in the grey DSL port on the back of your MediaAccess Gateway.

3 Plug the other end of the cable into the DSL/MODEM output port of your filter/splitter.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTALLATION

PSTN

If your MediaAccess Gateway has a black PSTN port on the back, you are able to use the PSTN (this is the traditional telephone network) as a backup for your Voice over IP connection. When the VoIP connection is down, the MediaAccess Gateway will automatically switch back to the PSTN network.

To setup this backup connection:

1 Take a Telephone Cable

2 Plug one end of the cable in the black PSTN port on the back of your MediaAccess Gateway.

3 Plug the other end of the cable into the Phone output port of your filter/splitter.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTAL

WAN

LATION

3.1.2 Setting up your MediaAccess Gateway as Local

Router

Procedure

Proceed as follows:

1 Take an Ethernet cable. If your box contains an Ethernet cable with red connectors, you can use that cable.

2 Plug one end of the cable in the red WAN port on the back of your MediaAccess Gateway.

3 Plug the other end of the cable into the Ethernet port of your Internet gateway/modem.

The WAN port can only be used to connect your MediaAccess Gateway to an Internet gateway/modem. You can not use it to connect other devices (for example, a computer) to the MediaAccess Gateway.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTALLATION

3.2 Powering on the MediaAccess Gateway

Procedure

Proceed as follows:

1 Connect the power cord to the power port of the MediaAccess Gateway.

2 Plug the other end of the power cord into an electrical outlet.

3 Press the power button to turn on the MediaAccess Gateway.

4 Wait at least two minutes to allow the MediaAccess Gateway to complete the start up phase.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTAL

LATION

3.3 Connecting Your Network Devices to the MediaAccess Gateway

Choose your connection method

To connect your device via:

 A wireless connection, continue with “3.3.1 Setting up a Wireless Connection” on page 29.

 A wired connection, continue with “3.3.2 Setting up a Wired Connection” on page 30.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTALLATION

3.3.1 Setting up a Wireless Connection

The MediaAccess Gateway access point

Your MediaAccess Gateway is equipped with a wireless access point that supports the following standards:

 IEEE 802.11n

 IEEE 802.11g

 IEEE 802.11b

Requirements

Your network device must be equipped with a WiFi-certified wireless client.

Connection speed

When setting up your wireless network, keep in mind that the following factors may have a negative impact on your wireless connection speed:

 The obstacles (walls, ceilings,...) between the wireless client and the access point.

 Distance between the wireless client and the access point.

 To fully benefit from the improved connection speed offered by the IEEE 802.11n standard, it is recommended to only

connect IEEE 802.11n wireless clients to your MediaAccess Gateway. Connecting older (for example, IEEE 802.11g) wireless clients may also slow down connection speed of the IEEE 802.11n capable clients.

If you have problems with your wireless performance, see “Poor Wireless Connectivity or Range” on page 113.

To set up a wireless connections

For more information on how to setup a wireless connection between your network device and your MediaAccess Gateway, see “5 The MediaAccess Gateway Wireless Access Point” on page 43.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTAL

LATION

3.3.2 Setting up a Wired Connection

Requirements

 Both your network device (for example, a computer, a gaming console,...) and MediaAccess Gateway must have a free

Ethernet port.

 Your network device must be configured to obtain an IP address automatically. This is the default setting.

Ethernet cable

In your package, you will find a cable with yellow connectors. This is the Ethernet cable.

Procedure

Proceed as follows:

1 Connect one end of the Ethernet cable to one of the yellow Ethernet ports of your MediaAccess Gateway:

You can not use the red WAN port to connect to the local Ethernet network. The WAN port can only be used to connect your MediaAccess Gateway to your broadband source.

For more information, see “1.2 User Scenarios” on page 5.

2 Connect the other end of the Ethernet cable to your network device.

The MediaAccess Gateway does not support Power over Ethernet (PoE). All network devices that are connected to the MediaAccess Gateway must be powered by their own power source.

3 Your network device is now connected to your network. No additional configuration is needed unless specified by your

service provider.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTALLATION

3.4 Configure the MediaAccess Gateway

Introduction

If your service provider did not preconfigure your MediaAccess Gateway, you may have to configure the MediaAccess Gateway via its Graphical User Interface (GUI).

Requirements

JavaScript must be enabled on your web browser (this is the default setting). For more information, consult the help of your web browser.

Procedure

Proceed as follows:

1 Open your web browser.

2 The MediaAccess Gateway informs you that you have not yet configured your MediaAccess Gateway.

If this window does not appear, browse to http://dsldevice.lan default: 192.168.1.254

3 Click Setup my Technicolor Gateway.

4 The Easy Setup wizard appears. This wizard will guide you through the configuration of your MediaAccess Gateway.

Click Next and follow the instructions.

) and click Technicolor Gateway on the menu on the left-hand side.

or to the IP address of your MediaAccess Gateway (by

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTAL

LATION

3.5 Setting Up the 3G Fall-Back WAN Connection

Introduction

Many SOHO (Small Offices, Home Offices) and SME (Small/Medium Enterprises) businesses choose DSL as their access technology for a Wide Area Network (WAN) connection because this is typically cheaper than using leased lines. A dropout of a DSL line can however have expensive consequences due to inaccessibility of the Internet and E-mail. Therefore backup solutions are available that provide an alternative path when the DSL line is down.

For example it is possible to switch to 2G / 3G mobile access technologies such as GPRS, UMTS, HSDPA, HSUPA, HSPA+, WIMAX and LTE when internet connectivity is not available via the main WAN connection. By plugging a mobile USB adapter into one of the USB ports of your MediaAccess Gateway, IP connectivity via a 2G / 3G network becomes possible.

3G is an umbrella-term to indicate the third generation mobile telephony technology. The services associated with 3G provide the ability to transfer both voice data and non-voice data. 3G networks are the successors of the 2G networks, such as the GSM networks and provide new services and higher data transfer speeds.

What do I need?

To start using 2G / 3G as a connection on the MediaAccess Gateway, you need:

 A mobile USB adapter

Only use the mobile USB adapters provided by your service provider.

 A registered Security Identity Module (SIM) card.

Configure 2G / 3G as WAN connection

Proceed as follows:

1 Configure your mobile connection.

For more information, see “3.5.1 Managing your Mobile Connection with the MediaAccess Gateway GUI” on page 33.

2 Insert your mobile USB adapter.

For more information, see “3.5.2 Inserting a Mobile USB Adapter” on page 34.

3 Now your mobile connection is up and ready to use.

If you need to remove your mobile USB adapter, make sure the MediaAccess Gateway is powered off first.

Result

MediaAccess Gateway will automatically enable your 3G backup connection when both of the following conditions are met:

 The main Internet connection has been unavailable for at least 60 seconds.

 The MediaAccess Gateway received a request to access the Internet (for example, when browsing to an Internet web

site).

The MediaAccess Gateway will automatically disable the 3G connection in either of the following cases:

 The main Internet connection is available again. In this case the MediaAccess Gateway switches back to the main Internet

connection.

 No Internet traffic has been detected during the last 10 seconds. For example, you finished surfing the Internet.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTALLATION

3.5.1 Managing your Mobile Connection with the

MediaAccess Gateway GUI

Introduction

You can view and manage the parameters of your mobile connection via the MediaAccess Gateway GUI.

Procedure

To manage your mobile USB connection via the MediaAccess Gateway GUI:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “4.1.1 Access” on page 37.

2 On the Broadband Connection menu, click Internet Services.

3 Click View more... for the mobile USB connection. The Overview page of the mobile USB connection is shown.

4 In the location bar, click Configure. The Configure page of the mobile connection appears.

5 Under Mobile Information, update the following fields if necessary:

 APN:

The public APN used to access the Internet, or the private APN to access a local network.

 Operator Mode:

2G / 3G / automatic (let the MediaAccess Gateway choose the best operator mode)

 Pin:

The PIN code of your SIM card.

6 Click Apply to apply your configuration changes.

Configuration changes via the MediaAccess Gateway GUI are automatically saved.

DMS-CTC-20101206-0033 v1.0

3 MANUAL INSTAL

LATION

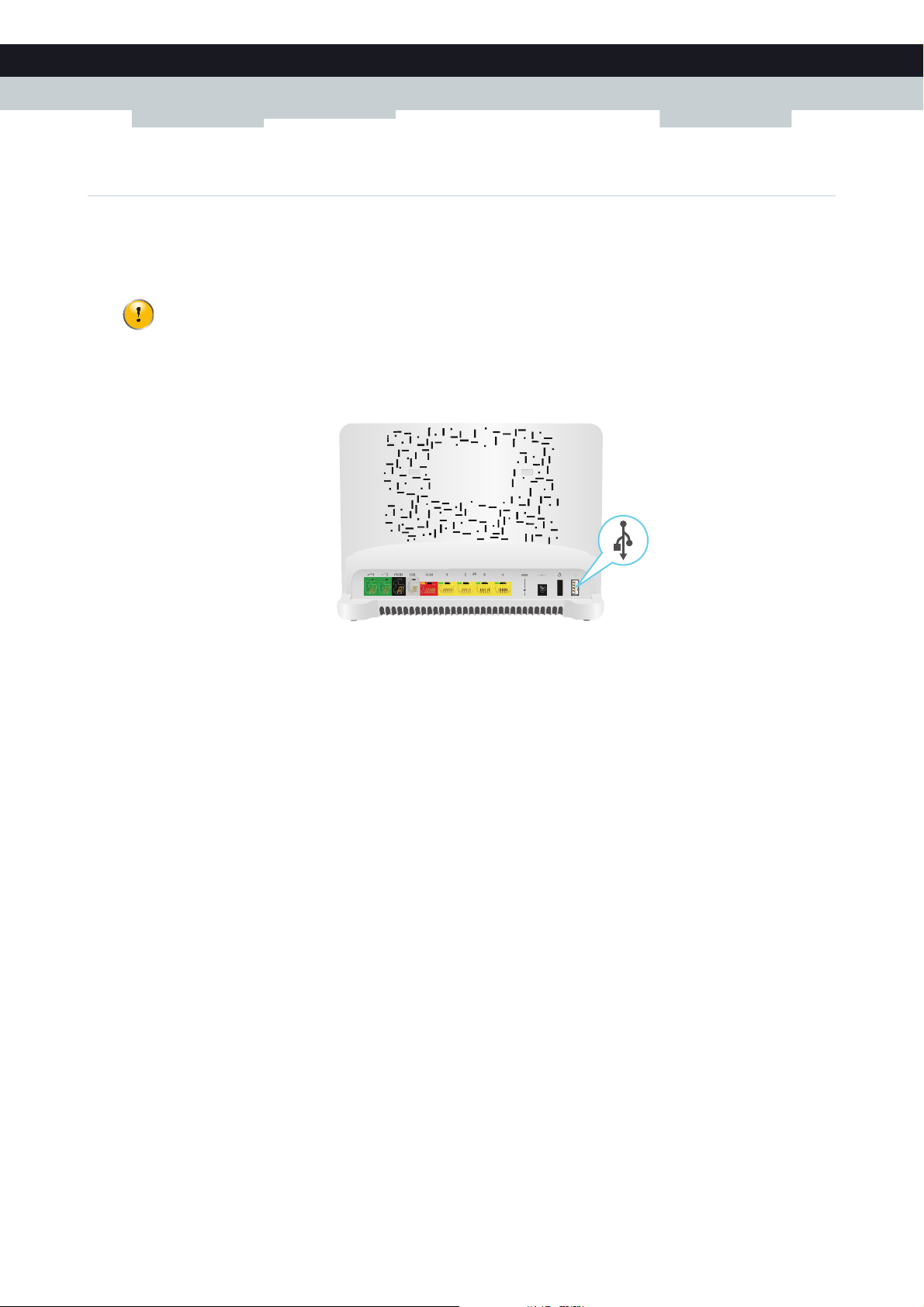

3.5.2 Inserting a Mobile USB Adapter

Procedure

Once the mobile connection is configured you can proceed as follows to insert the mobile USB adapter:

1 Power off the MediaAccess Gateway.

If you do not power off the MediaAccess Gateway first, the mobile USB adapter will not be detected.

2 Insert your SIM card into the mobile USB adapter.

3 Plug the mobile USB adapter in (one of) the USB port(s) of your MediaAccess Gateway:

4 Power on the MediaAccess Gateway.

DMS-CTC-20101206-0033 v1.0

4 CONFIGURATION TOOLS

4 Configuration Tools

Configuration Tools

You can use the following tools to configure your MediaAccess Gateway:

 The MediaAccess Gateway Setup CD allows you to configure your MediaAccess Gateway and helps you to connect

your computers to the MediaAccess Gateway. For more information, see “2 Guided Installation” on page 17.

 The MediaAccess Gateway GUI allows you to configure your MediaAccess Gateway via your web browser.

For more information, see “4.1 MediaAccess Gateway GUI” on page 36.

DMS-CTC-20101206-0033 v1.0

4CONFIGURATIO

N TOOLS

4.1 MediaAccess Gateway GUI

Introduction

The MediaAccess Gateway Graphical User Interface (GUI) allows you to configure your MediaAccess Gateway using your web browser.

Requirements

JavaScript must be enabled on your browser (this is the default setting). For more information, consult the help of your web browser.

DMS-CTC-20101206-0033 v1.0

4 CONFIGURATION TOOLS

4.1.1 Access

Accessing the MediaAccess Gateway GUI

Proceed as follows:

1 Open your web browser.

2 Browse to http://dsldevice.lan

3 If you have protected your MediaAccess Gateway with a user name and password, the MediaAccess Gateway will

prompt you to enter these. Enter your user name and password and click OK.

For more information, see “4.1.3 Protecting Access to the MediaAccess Gateway” on page 40.

4 The MediaAccess Gateway GUI appears.

or to the IP address of your MediaAccess Gateway (by default: 192.168.1.254).

Access the MediaAccess Gateway via UPnP

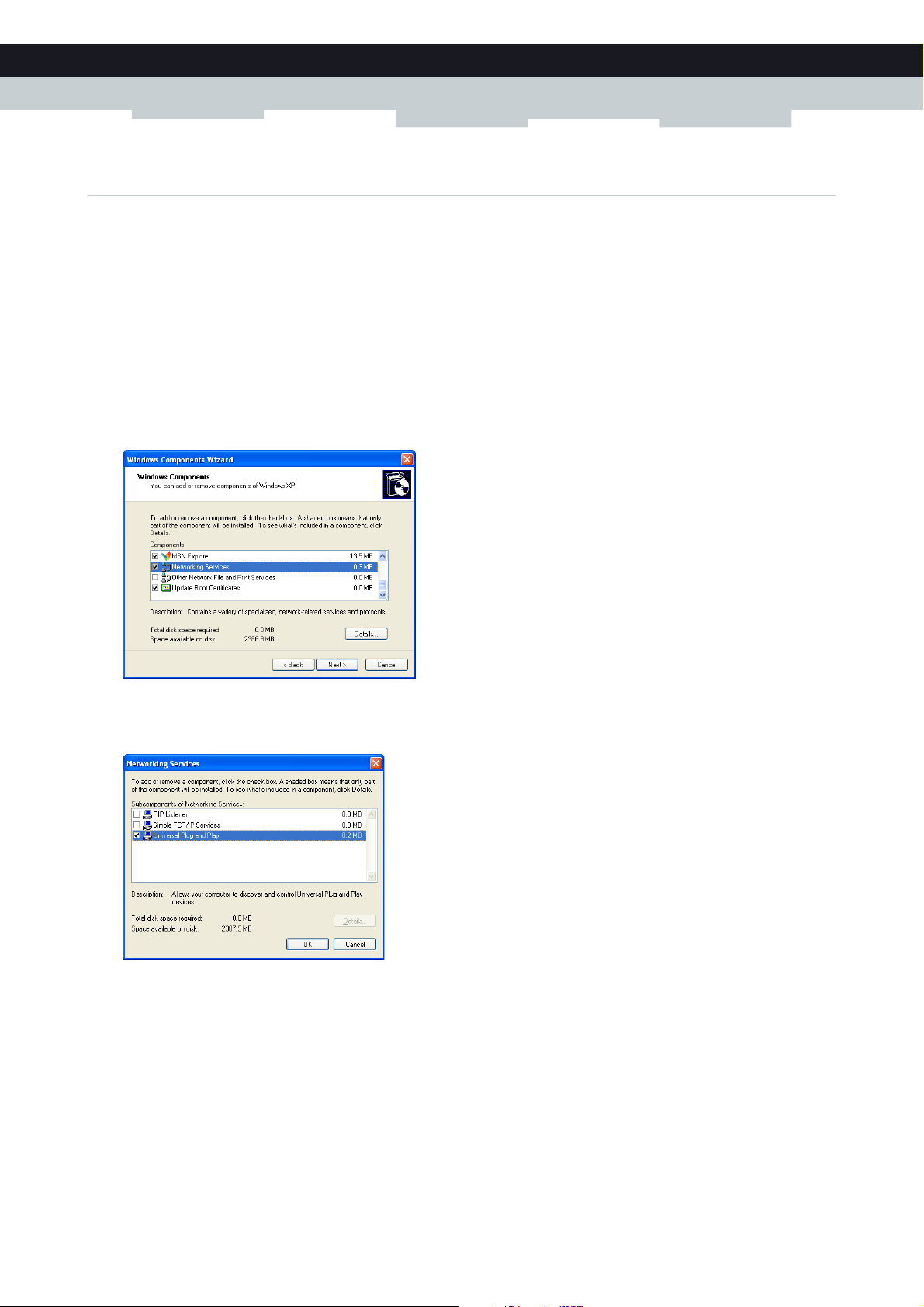

You can also access the MediaAccess Gateway GUI using the Internet Gateway Device (IGD) icon if your computer runs one of the following operating systems:

 Microsoft Windows 7

 Microsoft Windows Vista

 Microsoft Windows XP

For more information, see “9.1 UPnP” on page 84.

Remote access

It is also possible to access the MediaAccess Gateway GUI from the Internet. For more information, see “4.3 Access From

the Internet” on page 42.

DMS-CTC-20101206-0033 v1.0

4CONFIGURATIO

4.1.2 Components

Overview

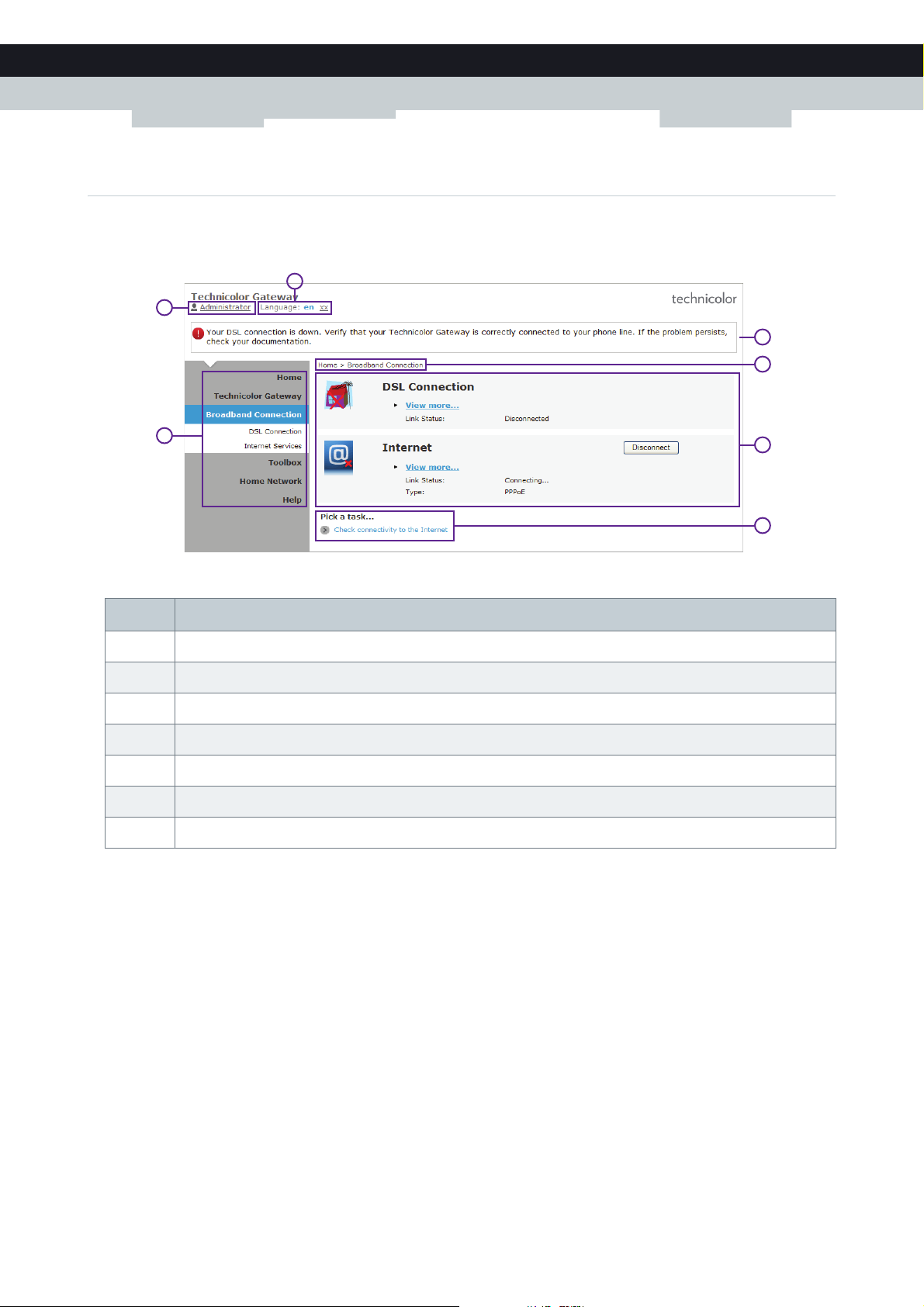

Depending on your user right and location on the GUI, the following components can be available:

N TOOLS

Label Description

1 Menu

2 Login section

3 Language bar

4 Notification area

5 Navigation bar

6 Content pane

7 Tasks pane

Login section

In the login section you can see the current user name.

By clicking the user name, you can:

 Change your password.

 Switch to another user.

Language bar

If more than one GUI language is available, a language bar is showed. This language bar allows you to change the language of the MediaAccess Gateway GUI.

Notification area

The notification area displays:

 Error messages, indicated by a red traffic light.

 Warning messages, indicated by an orange traffic light.

 Information messages, indicated by a green traffic light.

If none of these events occur, the notification is not shown.

Navigation bar

The Navigation bar displays your current position in the MediaAccess Gateway GUI.

Some page are available in different configuration levels. These pages have additional links (for example, Overview,

Configure) in the right part of the navigation bar that allow you to switch between the configuration levels.

Content pane

The content pane displays the information and configurable items of the selected item.

Tasks pane

To allow a quick configuration of your MediaAccess Gateway, some pages may offer you a number of related tasks in the Pick a task list. These tasks will guide you to the page where you can perform the selected task.

DMS-CTC-20101206-0033 v1.0

4CONFIGURATIO

N TOOLS

4.1.3 Protecting Access to the MediaAccess Gateway

Introduction

To prevent that every user on your local network can access the MediaAccess Gateway, the MediaAccess Gateway is secured with a user name and password.

Default user name

The default user name is Administrator.

Default password

The default password is either blank or the ACCESS KEY printed on the label of your MediaAccess Gateway. This depends on the settings chosen by your Service Provider.

It is recommended to change the default password settings.

Choose a password that your can easily remember or write it down. If you forget your password the only option is to reset your MediaAccess Gateway. For more information, see “11.7 Reset to Factory Defaults” on page 116.

Protected items

The following items are protected by these is will secure access to:

 The MediaAccess Gateway GUI.

 The embedded FTP Server.

for more information, see “8.3 The FTP Server” on page 78.

How to change your password

Proceed as follows:

1 On the Toolbox menu, click User Management.

2 In the Pick a task list, click Change my password.

3 Enter your new password and click OK.

4 Your new password is now active. The next time that you log on to the MediaAccess Gateway GUI you will have to enter

this password.

This password will also be used by the network file server and FTP server.

For more information about the network file server and FTP server, see “8 Sharing Content” on page 69

DMS-CTC-20101206-0033 v1.0

4 CONFIGURATION TOOLS

4.2 Backing Up/Restoring your Configuration

Introduction

Once you have configured your MediaAccess Gateway to your needs, it is recommended to backup your configuration for later use. This way you can always return to your working configuration in case of problems.

Backing up your configuration

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Technicolor Gateway menu, click Configuration.

3 In the Pick a task list, click Save or Restore Configuration.

4 Under Backup current configuration, click Backup Configuration Now.

5 The MediaAccess Gateway prompts you to save your backup file.

6 Save your file to a location of your choice.

Do not edit the backup files, this may result in corrupt files making them worthless as configuration backup.

Restoring your configuration

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Technicolor Gateway menu, click Configuration.

3 In the Pick a task list, click Save or Restore Configuration.

4 Under Restore saved configuration, click Browse and open your backup file.

Backup files usually have.ini as extension.

5 The MediaAccess Gateway restores your configuration.

DMS-CTC-20101206-0033 v1.0

4CONFIGURATIO

N TOOLS

4.3 Access From the Internet

Modes

To access your MediaAccess Gateway from the Internet, you can choose between two modes:

 Permanent Mode (Remote Access):

The remote session ends when you disable remote assistance or after restarting your MediaAccess Gateway.

 Temporary Mode (Remote Assistance):

The remote session ends when you disable remote assistance, after restarting your MediaAccess Gateway or after 20 minutes of inactivity.

To enable Remote Assistance / Remote Access.

Enabling remote assistance is only possible when you are connected to the Internet.

To enable remote assistance/access:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 Complete and check the following parameters:

 Mode:

Select the mode that you want to use.

 URL:

Contains the URL that must be used to access the MediaAccess Gateway from the Internet.

 User name and Password:

Contains the user name and password are needed to access your MediaAccess Gateway remotely. If wanted you can change the automatically generated password in the Password box.

3Click Enable Remote Assistance.

Accessing your MediaAccess Gateway from the Internet

Proceed as follows:

1 Open your web browser.

2 Type the URL that was listed in the URL field on the Remote Assistance page (for example https://141.11.249.150:51003).

You can replace the IP address in this URL by the dynamic DNS host name if you enabled and configured Dynamic DNS. For more information, see Dynamic DNS.

Example: https://141.11.249.150:51003 can be replaced by https://mygateway.dyndns.org:51003.

3 Enter the user name and password that you specified on the Remote Assistance page.

4 The MediaAccess Gateway GUI appears.

It is now possible for a remote user to access your MediaAccess Gateway via the specified URL using the provided user name and password.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCESS GATEWAY WIRELESS ACCESS POINT

5 The MediaAccess Gateway Wireless Access Point

Introduction

This section will help you set up your wireless network.

What you need to set up a wireless network

To set up a wireless network, you need the following components:

 A Wireless Access Point (already integrated into your MediaAccess Gateway)

 A Wireless client the device that you want to connect (for example, a computer, smartphone, network printer,...)

Wireless Access Point

The wireless access point is the heart of your wireless network. The wireless access point:

 Connects different wireless devices.

 Secures the data sent over wireless connection.

The MediaAccess Gateway comes with an integrated wireless access point.

Wireless client

The wireless client allows you to connect a device, typically a computer, to a wireless access point. Both built-in and external (for example via USB) clients are available.

Devices like media players and smartphones may also have a built-in wireless client. Check the documentation of your device for more information.

Check the documentation of your computer if you are not sure if your computer is equipped with a wireless client.

Configuring your wireless clients

For more information on how to establish a wireless connection to the MediaAccess Gateway, see:

 “5.1 Connecting Your Wireless Client via WPS” on page 44

 “5.2 Connecting Your Wireless Client without WPS” on page 46

 “5.3 Connecting Your Wireless Client via QR Code” on page 47

Secure your wireless connection!

When using an unsecured connection, everyone who is within the range of your MediaAccess Gateway can access your network. If not:

 People may use your connection to access the Internet.

 Hackers may use your connection to commit computer crimes.

You can easily prevent this by securing your wireless access point. For more information, see “5.4 Securing Your Wireless

Connection” on page 48.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCE

SS GATEWAY WIRELESS ACCESS P

5.1 Connecting Your Wireless Client via WPS

WPS

Wi-Fi Protected Setup (WPS) allows you to add new wireless clients to your local network in a swift and easy way, without the need to enter any of your wireless settings (network name, wireless key, encryption type).

Requirements

 Your wireless client must support WPS. Check the documentation of your wireless client for this.

Both Windows 7 and Windows Vista Service Pack 1 have native WPS support.

 Your MediaAccess Gateway must use WPA(2)-PSK encryption (default encryption) or no encryption. WPS with WEP

encryption is not possible.

WPS Methods

The following WPS methods are supported by your MediaAccess Gateway:

 Push Button Configuration (PBC):

You have to put both your Wireless USB Adaptor and access point in registration mode.

 PIN code entry:

You have to enter a PIN code on the Wireless Configuration Utility.

OINT

Procedure for PBC

Proceed as follows:

1 Shortly press the WPS button on the MediaAccess Gateway:

2 The WPS button LED starts blinking orange. This indicates that the MediaAccess Gateway is now searching for wireless

clients that are in registration mode. You now have two minutes to start WPS on your wireless client.

3 Start WPS on your wireless client.

4 The MediaAccess Gateway is now exchanging the security settings.

5 At the end of the procedure the status of the WPS LED will change to either of the following:

 Solid green

This indicates that you have successfully registered your wireless client. You are now connected to the MediaAccess Gateway network.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCESS GATEWAY WIRELESS ACCESS POINT

1234-5678

 Blinking red

This indicates that the MediaAccess Gateway could not find your wireless client. Use the same procedure to try again (you do not need to wait until the LED turns off).

Procedure for PIN code entry

Proceed as follows:

1 Check the label on your MediaAccess Gateway and write down the following information:

 The PIN code that is printed next to the WPS logo.

 The Network Name.

This is the default network name (SSID). If you already configured a new network name, write down the new one.

2 Go the WPS PIN code page of your wireless client.

3 Enter the PIN code,

Do not include the hyphen when entering the PIN code. For example, if your PIN code is 1234-5678, then enter

12345678.

4 Your wireless client may prompt you to select your access point. If this is the case, select the access point with the network

name that you wrote down.

Troubleshooting

If you are having trouble connecting your wireless client via WPS, this may be cause by one of the following reasons:

 WPS can not be correctly executed:

Configure your wireless manually. For more information, see “5.2 Connecting Your Wireless Client without WPS” on

page 46.

 Your wireless client is out of range:

If possible move your wireless client closer to your MediaAccess Gateway or use a wireless repeater to extend the range of your wireless network.

 Another device is interfering on the selected wireless channel:

Change the wireless channel of your MediaAccess Gateway. For more information, see “Change the wireless channel” on

page 113.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCE

SS GATEWAY WIRELESS ACCESS P

OINT

5.2 Connecting Your Wireless Client without WPS

Before you start

Before you can connect a wireless client (for example, a computer) to your wireless network you need to know the wireless settings that are currently used by the MediaAccess Gateway, i.e.:

 The Network Name (SSID)

 The wireless key

What Network Name (SSID) is my MediaAccess Gateway using?

If you did not change the SSID, your MediaAccess Gateway uses the Network Name that is printed on the back panel label of your MediaAccess Gateway.

What wireless key is my MediaAccess Gateway using?

If you did not change the security settings, no wireless key is used.

If your service provider did choose to use a default wireless key, use the Wireless Key that is printed on the bottom panel label of your MediaAccess Gateway.

Forgot your wireless key?

If you have changed the wireless settings manually and you can’t remember your settings, try one of the following:

1 Use a computer that is already connected to your network.

If none of your computers is connected yet, connect one with an Ethernet cable. For more information, see

“3.3.2 Setting up a Wired Connection” on page 30.

2 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

3 On the Home Network menu, click Wireless.

4 In the upper-right corner, click Details.

5 Under:

 Configuration, you can find the network name (SSID).

 Security, you can find the encryption.

Connecting your wireless client

Configure your wireless client with the same wireless settings as your MediaAccess Gateway (network name and wireless key). For more information, consult the documentation of your wireless client.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCESS GATEWAY WIRELESS ACCESS POINT

5.3 Connecting Your Wireless Client via QR Code

Introduction

The MediaAccess Gateway allows you to generate a Quick Response (QR) code that contains all wireless settings that are needed to connect. You are then able to connect to the wireless network by scanning the generated code.

Target devices

This connection method is typically used for tablet computers and smartphones.

Requirements

Your wireless device must have:

 A camera to scan the code.

 An application (app) to interpret the QR code and connect to a wireless network.

For example: if you are using Android on your device, you could download Bar Code Scanner from Google Play.

Procedure

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 Under Home Network, click Wireless.

3 Under Pick a Task, click Generate QR code image.

4 The wireless QR code appears.

You can now:

 Scan the code directly from your screen.

 Print this page and scan the code from the paper version.

5 Your QR code app shows you the wireless settings used by your MediaAccess Gateway and offers you to connect to its

wireless network. Connect to the network.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCE

SS GATEWAY WIRELESS ACCESS P

5.4 Securing Your Wireless Connection

Introduction

You can protect the wireless communication between the wireless clients and your MediaAccess Gateway with a wireless key. This means that:

 Only clients which use the correct Network Name (SSID) and wireless key can connect to your network.

 All data passing through your wireless access point is secured and encrypted.

Encryption types

Over the years a number of encryption types have been developed. The list below gives you an overview of the supported encryption types ordered by descending security level; you will find the highest level of security at the top of the list:

 WPA-PSK Encryption:

The wireless connection is secured with a pre-shared key that has been defined by the user. Wireless clients must be configured with this key before they can connect to the MediaAccess Gateway. The MediaAccess Gateway supports the following WPA-PSK versions (ordered by descending security):

 WPA2-PSK:

The most recent and most secure version of WPA-PSK. Choose this version if you are sure that all your wireless clients support WPA2-PSK.

 WPA-PSK + WPA2-PSK:

This is a mixed mode. In this mode WPA2-PSK, is the preferred encryption type but wireless clients do not support WPA2-PSK, can still use WPA-PSK as encryption type. Choose this option if not all of your wireless clients support WPA2-PSK or if you are not sure. Wireless clients that support WPA2-PSK will use WPA2-PSK, the others will use WPA-PSK.

 WPA-PSK:

The first version of WPA-PSK. Choose this option if you are sure that none of your wireless clients support WPA2-PSK.

If you want to configure WPA2-PSK on the built-in wireless utility of Windows XP Service Pack 2 (SP2), you first have to:

 Upgrade your Windows XP to Service Pack 3.

- or -

 Install the following update: http://support.microsoft.com/kb/917021.

 WEP Encryption:

The least safe encryption type used for wireless connections. Like WPA-PSK it uses a user-defined key, but WEP has been proven to have security issues.

Although the MediaAccess Gateway allows you to use WEP or no security, we strongly advise against using one of them! Use WPA(2)-PSK instead.

OINT

Configuration

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 Under Home Network, click Wireless.

3 The Wireless Access Point page appears. In the upper-right corner, click Configure.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCESS GATEWAY WIRELESS ACCESS POINT

4 In the Security Mode list, select one of the following modes:

 WPA-PSK

 WPA2-PSK

 WPA-PSK + WPA2-PSK

For more information, see “Encryption types” on page 48.

5 In the WPA-PSK Encryption Key box, type a the key of your choice. The key must be in one of the following formats:

 8 to 63 alphanumeric characters. For example: MyKey123

 8 to 64 hexadecimal characters (characters from 0 to 9 and from A to F). For example: C54F48A5.

6 Click Apply.

7 Reconnect your wireless client(s) to the MediaAccess Gateway using these new security settings.

For more information, see “5.1 Connecting Your Wireless Client via WPS” on page 44 or “5.2 Connecting Your Wireless

Client without WPS” on page 46.

DMS-CTC-20101206-0033 v1.0

5 THE MEDIAACCE

SS GATEWAY WIRELESS ACCESS P

OINT

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

6 Telephony

Voice over IP (VoIP)

VoIP is a technology in which telephone calls are made over the Internet. This allows you to save on communication costs, especially for long-distance calls.

The expensive solution

To be able to make your phone calls over the Internet you could either:

 Buy an IP phone.

These IP phones are special phones that you can connect to your Internet Gateway.

 Install VoIP software on your computer and make your phone calls via your computer.

The Technicolor solution

With the MediaAccess Gateway you can make both VoIP and traditional telephone calls using a traditional analogue phone.

If your MediaAccess Gateway is not powered, the traditional telephone network (if connected) will automatically selected. This way you are still able to make emergency calls.

In this chapter

This chapter covers following topics:

To p i c Page

6.1 Setting Up Your Telephone Network 52

6.2 Address Book 56

6.3 Telephony Services 58

6.4 Viewing Call Logs 63

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

6.1 Setting Up Your Telephone Network

Procedure

To set up your telephone network, follow these steps:

1 Connect your traditional phone(s), DECT base station or fax to the green Phone port(s) on the back panel of your

MediaAccess Gateway.

2 Connect your MediaAccess Gateway to the traditional network.

For more information, see “6.1.1 Connection to the Traditional Telephone Network” on page 53.

3 Configure the VoIP service on your MediaAccess Gateway.

For more information, see “6.1.2 Configuring the MediaAccess Gateway VoIP Service” on page 54.

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

6.1.1 Connection to the Traditional Telephone Network

Combining VoIP with the traditional telephone network

Some service providers use the traditional telephone network (PSTN) as a backup solution for your VoIP connection. This way, you can still make calls over the traditional network if the VoIP service is down (for example, your MediaAccess Gateway is powered off).

Be aware that, if you are not connected to the traditional telephone network, emergency calls will not be possible when your Internet connection is down or your MediaAccess Gateway is powered off.

Applicability

If your MediaAccess Gateway:

 Has an integrated filter, no additional connections are needed.

The DSL port must be directly connected to your telephone outlet. Do not put any filter or splitter between them!

How do I know if my MediaAccess Gateway has an integrated filter?

Check if the product name printed on the label of your MediaAccess Gateway ends with “wIF” (with Integrated Filter). If this suffix is not present, then your MediaAccess Gateway does not have an integrated filter.

 Does not have an integrated filter, check if your MediaAccess Gateway has a PSTN port on the back panel (for more

information, see “PSTN Port (optional)” on page 10). If your MediaAccess Gateway has:

 A PSTN port:

Connect the PSTN port to the Phone output of your filter or splitter.

 No PSTN port, no connections are needed.

This is a VoIP-only variant. All calls passing through the MediaAccess Gateway will be done via VoIP.

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

6.1.2 Configuring the MediaAccess Gateway VoIP Service

Introduction

If your VoIP service has not been configured yet, follow the instructions in this section.

How can I check if the VoIP service has already been configured?

If the Phone LED is:

 Solid or blinking green then the VoIP service is configured correctly. No configuration is needed.

 Off then telephony service is not configured (yet). Follow the instructions below.

Requirements

Your Internet connection must be up and running before you can configure Internet telephony.

Configuring the VoIP settings

Proceed as follows:

1 Enter the proxy and registrar settings.

2 Enter your VoIP account settings.

Enter the proxy and registrar settings

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click Te l e p h o n y .

3 In the Navigation bar, click Expert configure.

4 Complete the following fields based on the settings provided by your VoIP provider:

 Proxy:

Type the URL (for example: sip.provider.com) or IP address of the proxy.

 Registrar:

Type the URL (for example: sip.provider.com) or IP address of the registrar.

 Registrar Port and Proxy Port.

In most cases the default port (5060) will be used. Only change these values if your provider is using other port numbers.

5 Click Apply.

Enter your VoIP account settings

Proceed as follows:

1 In the Navigation bar, click Configure.

2 Under Service Configuration, select Enable Telephony.

3 Under Te l e p h o n e N u m b e r s , complete the following fields:

 SIP URI:

The Uniform Resource Identifier (URI) of your SIP account (for example: 035051979, john.doe,...). This is the telephone number that people have to dial to call you.

 Username:

The user name of your VoIP account (for example: 035051979, john.doe,...).

DMS-CTC-20101206-0033 v1.0

 Password:

The password of your VoIP account.

 Displayname:

The name that you want people to see on the display of their phone when you are calling.

Your VoIP provider may not support this feature.

 Abbreviated number:

An internal number to call the phones associated with this VoIP account.

 Port:

The phone port that you want to associate with this VoIP account. select

 All to use this VoIP account for all connected phone.

 Phone 1/2 to use this VoIP account for the phone connected to the Phone 1/2 port of your MediaAccess Gateway.

4 Click Apply.

Verifying Telephone Connectivity

Proceed as follows to verify the voice connection:

1 Make sure the MediaAccess Gateway is turned on.

2 Make sure the Internet telephony service is enabled and configured. The Phone LED must be solid green.

3 Pick up your phone, wait for the dialling tone, and dial the number.

6 TELEPHONY

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

6.2 Address Book

Introduction

The Address Book page allows you to:

 Store your contacts on the MediaAccess Gateway GUI.

 Initiate a call or send a message by clicking the phone number or e-mail address in the contact details.

Everyone with access to the MediaAccess Gateway GUI can view and use the address book.

Accessing the Address Book page

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click Address Book.

3 The Address Book page appears.

For each contact, you can provide the following information:

 Business: to make a call to the contact’s business telephone number

 Home: to make a call to the contacts home telephone number

 Mobile: to make a call to the contact’s mobile telephone number

 Other or SIP uri: to make a call to the contact’s VoIP telephone number

 E-mail to send an E-mail message to the contact with your e-mail client.

Managing contacts

Click... To . . .

Add Add a contact

Edit Edit a contact

Delete Delete a contact

All information provided per contact is optional except for the last and first name. The information can be updated or completed at any time.

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

Making a phone call from the address book

Proceed as follows:

1 Browse to the Address Book page.

2 Click on the phone number of your contact.

3 The following page appears:

4 Pick up the phone.

5 The MediaAccess Gateway is now initiating the call. Your contact’s phone is now ringing.

6 At the end of the conversation, click Done to go to the Last Calls page. This page allows you to view the statistics of

your last calls (including the call that you just made).

You can use the buttons in the Remote Number column to make a new call to one of the contacts in your call log.

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

6.3 Telephony Services

Introduction

Telephony services add extra functionality to your phone. For example: putting a call on hold, transferring calls,...

Requirements

Before you can use a service, must both be:

1 Supported by your service provider.

2 Activated on your MediaAccess Gateway.

Checking if a telephone service is activated/supported

To check which services are supported or activated, proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “4.1 MediaAccess Gateway GUI” on page 36.

2 On the Toolbox menu, click Te l e p h o n y .

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 Under Tel ep ho ny Se rv ic es , you can see the services that are supported by your provider.

In the Activated column, you can see if this service is also activated on the MediaAccess Gateway.

6 To (de)activate a service, proceed with “6.3.1 Activating a Telephony Service on your MediaAccess Gateway” on page 59.

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

6.3.1 Activating a Telephony Service on your MediaAccess

Gateway

How can I (de)activate a service on my MediaAccess Gateway?

You can (de)activate services in two ways:

 Via the MediaAccess Gateway GUI.

 Via (de)activation codes on your phone.

Activating a Telephony Service via the MediaAccess Gateway GUI

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “4.1 MediaAccess Gateway GUI” on page 36.

2 On the Toolbox menu, click Te l e p h o n y .

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 In the Navigation bar, click Configure.

6 Under Telephony services you can now activate or deactivate the services of your choice:

To :

 Activate a service select the check box next to the service.

 Deactivate a service clear the check box next to the service.

7 Click Apply.

Activating a Telephony Service via Your Phone

To (de)activate one of the services just dial the corresponding code on your phone. For example, to activate Call Hold dial *94; to deactivate the service dial #94.

To know which code to use:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “4.1 MediaAccess Gateway GUI” on page 36.

2 On the Toolbox menu, click Te l e p h o n y .

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 In the Te l e ph on y Se rv ic e s table, you can find the activation and deactivation codes.

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

Yo u

on hold

dial tone

Yo u

active

You press

R, 2

Yo u

active

Yo u

active

on hold

You press

R, 0

Yo u

active

Yo u

active

on hold

You press

R, 1

Yo u

active

Yo u

on hold

You press

R, 1

Yo u

dial tone

on hold

Yo u

active

on hold

You press

R, 9

6.3.2 Common Telephony Services

Introduction

This section provides an overview of the functions that will be available if you activate one of the following services:

 Call Hold service

 Call Waiting service

 Conference Call (3 Party) service

 Call Transfer

For more information on the other services, please contact your service provider.

Call Hold service

If the Call Hold service is activated, you can use the following functions:

To . . . Press... Illustration

Put an active call on hold and enable a call set up (the

R, 2

dial tone is generated)

Terminate the call on hold R, 0

Terminate an active call and switch to the call on hold R, 1

Retrieve the call on hold (when there is no active call) R, 1

Terminate an active call and enables a call set up (the

R, 9

dial tone is generated)

DMS-CTC-20101206-0033 v1.0

Call Waiting service

Yo u

active

Yo u

active

incoming

You press

R, 1

Yo u

active

Yo u

active

incoming

You press

R, 0

Yo u

on hold

active

Yo u

active

on hold

You press

R, 2

Yo u

on hold

active

Yo u

active

incoming

You press

R, 2

Yo u

active

Yo u

on hold

active

You press

R, 3

Yo u

on hold

Yo u

active

You press

R, 2

Yo u

active

Yo u

on hold

You press

R, 3

If the Call Waiting service is activated, you can use the following functions:

To . . . Press... Illustration

Terminate an active call and switch to an incoming call R, 1

Reject an incoming call R, 0

Switch between an active call and a call on hold R, 2

6 TELEPHONY

Switch between an active call and an incoming call R, 2

Conference Call (3 Party) service

If the Conference Call (3 Party) service is activated, you can use the following functions:

To . . . Press... Illustration

Establish a conference call (or 3 party connection) R, 3

During a conference call: put B and C on hold R, 2

DMS-CTC-20101206-0033 v1.0

During a conference call: retrieve B and C when they are on hold

R, 3

6 TELEPHONY

Yo u

active

Yo u

on hold

active

You press

R, 4

Call Transfer

If the Call Transfer service is activated, you can use the following functions:

To . . . Press... Illustration

Transfer a call R, 4

DMS-CTC-20101206-0033 v1.0

6.4 Viewing Call Logs

Introduction

The Call Logs page on the MediaAccess Gateway GUI lists:

 Successful incoming calls.

 Missed incoming calls.

 Successful outgoing calls.

 Failed outgoing calls.

Viewing the telephony statistics

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click Te l e p h o n y .

3 The Te l e p h o n y page appears:

6 TELEPHONY

On this page you can see an overview of your last calls.

4 To view more detailed statistics, click View telephony statistics and logs in the Pick a task list.

Used icons

The call logs use the following icons to illustrate the call type:

Icon Ty p e

Successful outgoing phone call

Successful incoming call

Failed outgoing call

Failed incoming call

Calling a contact from the call log

You can immediately start a new call to one of these contacts by clicking the button in the Remote Number column.

DMS-CTC-20101206-0033 v1.0

6 TELEPHONY

DMS-CTC-20101206-0033 v1.0

7 SAVING ENERGY

7 Saving Energy

Code of Conduct

To prove its commitment to protect the environment, Technicolor has signed the Code of Conduct, a global agreement to reduce the power consumption of broadband access devices.

For more information, see “7.1 Code of Conduct” on page 66.

Technicolor power saving innovations

To further reduce the power consumption, Technicolor has developed the ECO Manager. This system constantly monitors the services provided by the MediaAccess Gateway and automatically switches unused services to an ECO-friendly state. For more information, see “7.2 ECO Manager” on page 67.

Next to this automated tool, you can also choose to manually disable services that you will not be using. For more information, “7.3 Manually Switching Off Services to Reduce Power” on page 68.

DMS-CTC-20101206-0033 v1.0

7 SAVING ENERGY

7.1 Code of Conduct

Power states

Code of Conduct provides rules for the power consumption in:

 Full power state:

This is the normal operation mode of the device, where all functionality is enabled.

 Low power state:

When there is no user traffic on the device, the device should switch to low power mode. This is a state in which devices are only allowed to use a limited amount of energy to be able to power its components and respond to user activity.

Example

Take the following example:

 The user switches off his computer at 20:00.

 There are no other devices connected to the MediaAccess Gateway.

The MediaAccess Gateway switches to low power mode. This results in a considerable drop in the overall power consumption of the MediaAccess Gateway.

Power

Consumption

Full power limit

Low power limit

User traffic

20:00

No user traffic

Time

DMS-CTC-20101206-0033 v1.0

7 SAVING ENERGY

No User Traffic

User Traffic

Time

20:00

Time

Power

Consumption

Full power limit

Low power limit

7.2 ECO Man age r

Introduction

The MediaAccess Gateway constantly monitors the user activity and uses this information to optimise the power consumption:

For example:

 The MediaAccess Gateway reduces the clock frequency of the central processor when there is no or low user activity.

This lowered clock frequency will result in a lower power consumption of the MediaAccess Gateway.

 Disable the USB port(s) when they are not used

 Switch the wireless interface to power reduction mode.

Wireless access point power reduction mode

When the MediaAccess Gateway access point switches to power reduction mode, the access point is switched off and is only power on periodically to be able to detect new clients. If new clients are detected the wireless access point is fully powered again. This is only possible if there are no devices connected to the MediaAccess Gateway.

Power reduction is enabled by default, but it is possible to disable it via the MediaAccess Gateway GUI. To configure power reduction:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 Under Home Network, click Wireless.

3 In the Navigation bar, click Configure.

4 Under Configuration:

 Select Power Reduction Enabled to enable power reduction.

 Clear Power Reduction Enabled to disable power reduction.

5 Click Apply.

DMS-CTC-20101206-0033 v1.0

Example

If we use the same example as in the previous section, you can see that the MediaAccess Gateway is now able to further reduce the power consumption in periods where less action is required from the MediaAccess Gateway.

7 SAVING ENERGY

7.3 Manually Switching Off Services to Reduce Power

ECO button

If you are not using the wireless access point of your MediaAccess Gateway, you might consider to disable the wireless access point permanently. This allows you to further reduce the power consumption.

To turn the wireless interface:

 Off, press the ECO ( ) button until the Wireless LED is off.

 On, press the ECO ( ) button until the Wireless LED is on.

Zero power consumption

If you will not be using your MediaAccess Gateway for a longer time (for example: you are going on holiday), you should consider to turn off the MediaAccess Gateway. This way no energy will be consumed at all.

However, be aware that if you turn off the MediaAccess Gateway, all services provided by the MediaAccess Gateway that require access to the Internet will not be available. For example:

 You will not be able to browse to Internet websites, listen to radio streams etc.

 No VoIP calls can be made/received

You will no longer be able to make or receive phone calls over the Internet. Your phone calls will automatically be done via the traditional phone network (if available).

 No Digital TV is provided

If your set-top box is connected to your MediaAccess Gateway, it will no longer be able to connect to the Internet, hence not be able to service your TV set.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTENT

8 Sharing Content

Introduction

The MediaAccess Gateway allows you to share the content stored on your USB storage device with other users on your network or even access this shared content from the Internet.

Features

 The MediaAccess Gateway supports USB 2.0

 The following file systems are supported:

 NTFS (optional)

 FAT32

 FAT16

 HFS+ (optional)

 EXT2/EXT3 (optional)

 You can connect up to five USB storage devices (via a USB hub).

 Each USB storage device can have up to 10 partitions. If your device has more partitions the extra partitions will be

ignored.

Content Sharing Servers

The MediaAccess Gateway offers three types of services to share your content. The following table gives a you a brief overview of the main functions:

Network File Server UPnP AV Media Server FTP Server

Function

Access

Accessible from

Type of content shared

For more information, see...

Store and access your data on your local network.

Read and write Read-only Read and write

Local network Local network Internet and Local network

All files from all partitions and disks that are connected.

“8.1 The Network File Server” on page 71

Make media files available for UPnP AV capable devices like Media players, Set-Top boxes from your local network.

Media files (music, movies and pictures) from all partitions and disks that are connected.

“8.2 The UPnP AV Media Server” on page 74

Store and access your data from the Internet.

All files that are stored in the Shared folder of the managed partition.

“8.3 The FTP Server” on page 78

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTE

Configuration

All servers are enabled by default. The only thing that you need to do is to plug your USB memory stick or external hard disk in (one of) the USB port(s) of your MediaAccess Gateway.

By using a USB hub, you can connect up to five USB mass storage devices to the MediaAccess Gateway.

Do not remove your USB storage device without stopping it first, otherwise data might be lost! For more information, see “8.5 Safely Removing your USB Storage Device” on page 82.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTENT

8.1 The Network File Server

Introduction

The Network Server allows you to share the content on your USB storage device(s) with other devices that are connected to your local network (mostly computers).

These devices have read and write access to this USB device(s).

Configuration

The Network File Server is enabled by default and ready for use.

To change the default settings, proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under Network File Server (Windows Networking), you can change the following settings:

 Server Name:

Enter the name that you want to use to access the MediaAccess Gateway.

 Server Description:

Add a short description for what kind of data is stored on the USB storage device.

 Wo rkgrou p:

Enter the same workgroup as used by your computer(s).

 Server Enabled:

Select this option to enable the Network File Server

5 Click Apply.

6 All users connected to the MediaAccess Gateway can now access the data on stored your USB storage device.

7 If you want to limit the number of folders that can be accessed, continue with “8.4 Managing your Shared Content” on

page 80.

Accessing the shared content on Windows

Proceed as follows:

1 Open Windows Explorer.

2 In the address bar, type two backslashes followed by the name that you entered in the Server Name box (default:

\\Technicolor).

If you did not provide a server name, type \\192.168.1.253.

If you made changes to the DHCP settings, the IP address may diff. For more information, see “Getting the IP

address of your USB storage device” on page 115.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTE

3 An Explorer windows appears. The storage devices that are attached to your MediaAccess Gateway are listed as folders.

If the storage device has multiple partitions an index number will be added at the end (for example: Disk_a1 and Disk_a2).

If multiple storage devices are inserted the first one is listed as Disk_a1, the second one as Disk_b1, and so on.

If the partition is a managed partition, only the Media and Shared folders of the managed partition are displayed:

For more information on managed partitions, see “8.4 Managing your Shared Content” on page 80.

4 If you plan to frequently use this folder, it might be useful to map this folder as a network drive. For more information, see

the help of your operating system.

Accessing the shared content on Mac

Proceed as follows:

1 On the Go menu, click Connect To Server.

2 The Connect To Server window appears.

In the Server Address box, type smb://<server name>, where <server name> is the Server Name you assigned to your USB storage device (default: smb://Technicolor).

If you did not provide a server name, type smb://192.168.1.253.

If you made changes to the DHCP settings, the IP address may diff. For more information, see “Getting the IP

address of your USB storage device” on page 115.

DMS-CTC-20101206-0033 v1.0

3 The following window appears:

Select Guest and click Connect.

4 If prompted, select the partition that you want to open and click OK:

8 SHARING CONTENT

5 Your USB storage device is now mounted and is displayed on your desktop.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTE

8.2 The UPnP AV Media Server

Introduction

Your MediaAccess Gateway has a built-in DLNA-certified UPnP AV media server. This section describes how to use and configure this media server.

UPnP AV

UPnP AV (AV stands for Audio and Video) is a protocol especially designed to share media files on your local network.

DLNA-certified

The Digital Living Network Alliance (DLNA) is an organisation that imposes requirements to ensure the interoperatability of your media devices and standardize the communication between them.

Buying a DLNA-certified device like the MediaAccess Gateway guarantees you that it will seamlessly integrate with your other DLNA-certified devices.

To allow you to access your media in a quick and easy way, the MediaAccess Gateway scans your storage device for meta data information (for example, title, artist, album) and stores it in a database. When you are looking for a file, the MediaAccess Gateway can simply query the database instead of having to go through all the files.

This database will only be created if the following conditions are met:

 Your disk or partition must have at least 250MB of free space

 Your disk or partition must not be read-only.

UPnP AV network components

A UPnP AV network consists of the following components:

 The UPnP AV server is directly connected to your media files and makes them available on the network. In your network

the MediaAccess Gateway will fulfil this role.

 The UPnP AV client is a software application or hardware device that allows you to play or view the media files provided

by your UPnP AV media server.

DMS-CTC-20101206-0033 v1.0

8.2.1 Configuring the UPnP AV Media Server

Introduction

The Network File Server is enabled by default and ready to use.

Enabling/disabling the UPnP AV Media Server

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under UPnP AV Media Server, click Server Enabled.

5 Click Apply.

8 SHARING CONTENT

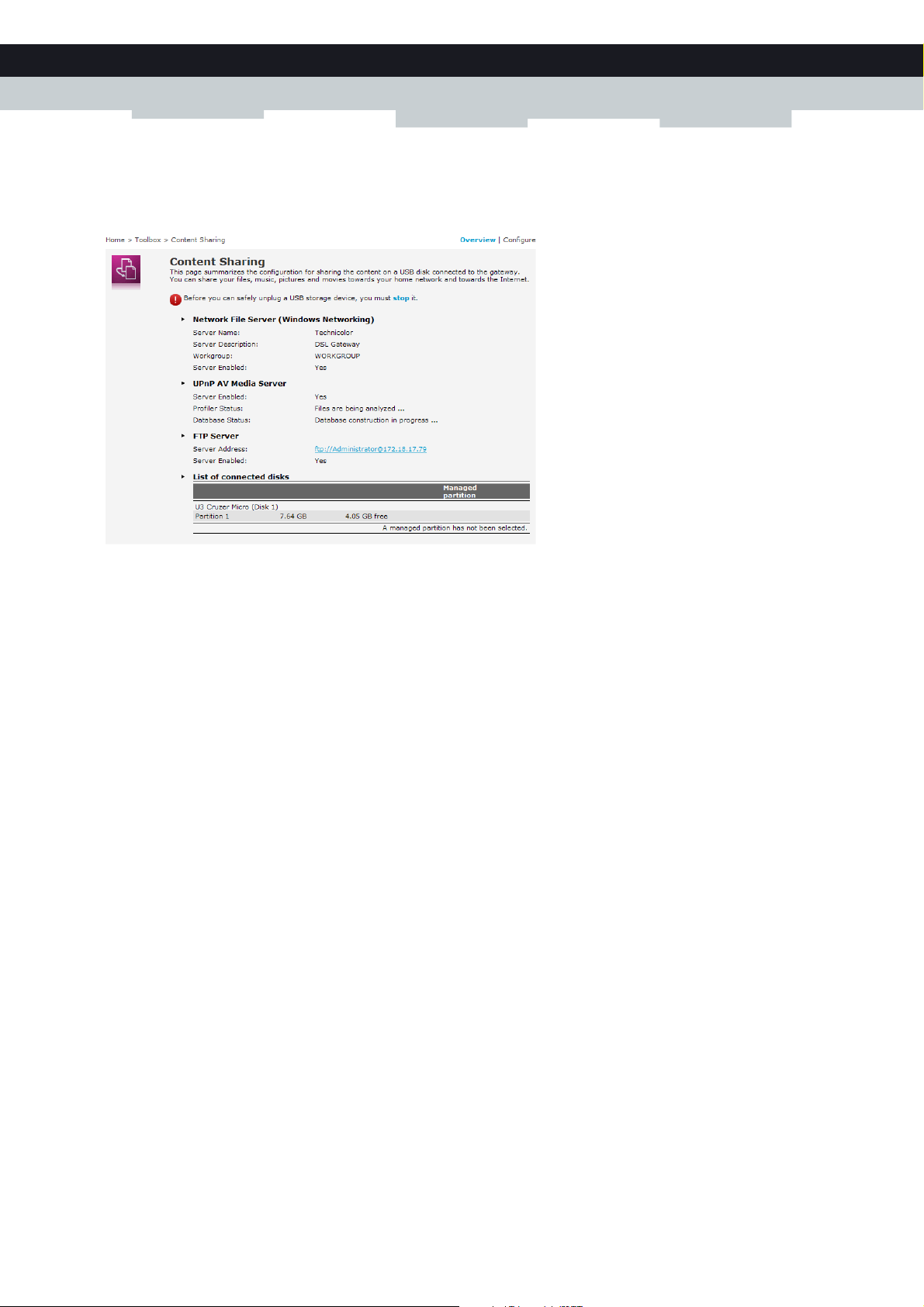

Media Database

When you plug in your USB storage device, the MediaAccess Gateway will automatically start building the media database. This database contains all meta data of the media files stored on your USB storage device.

To view the status of the media database:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under UPnP AV Media Server, you can find the Database Status.

5 If you want to rebuild the database, click Rebuild.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTE

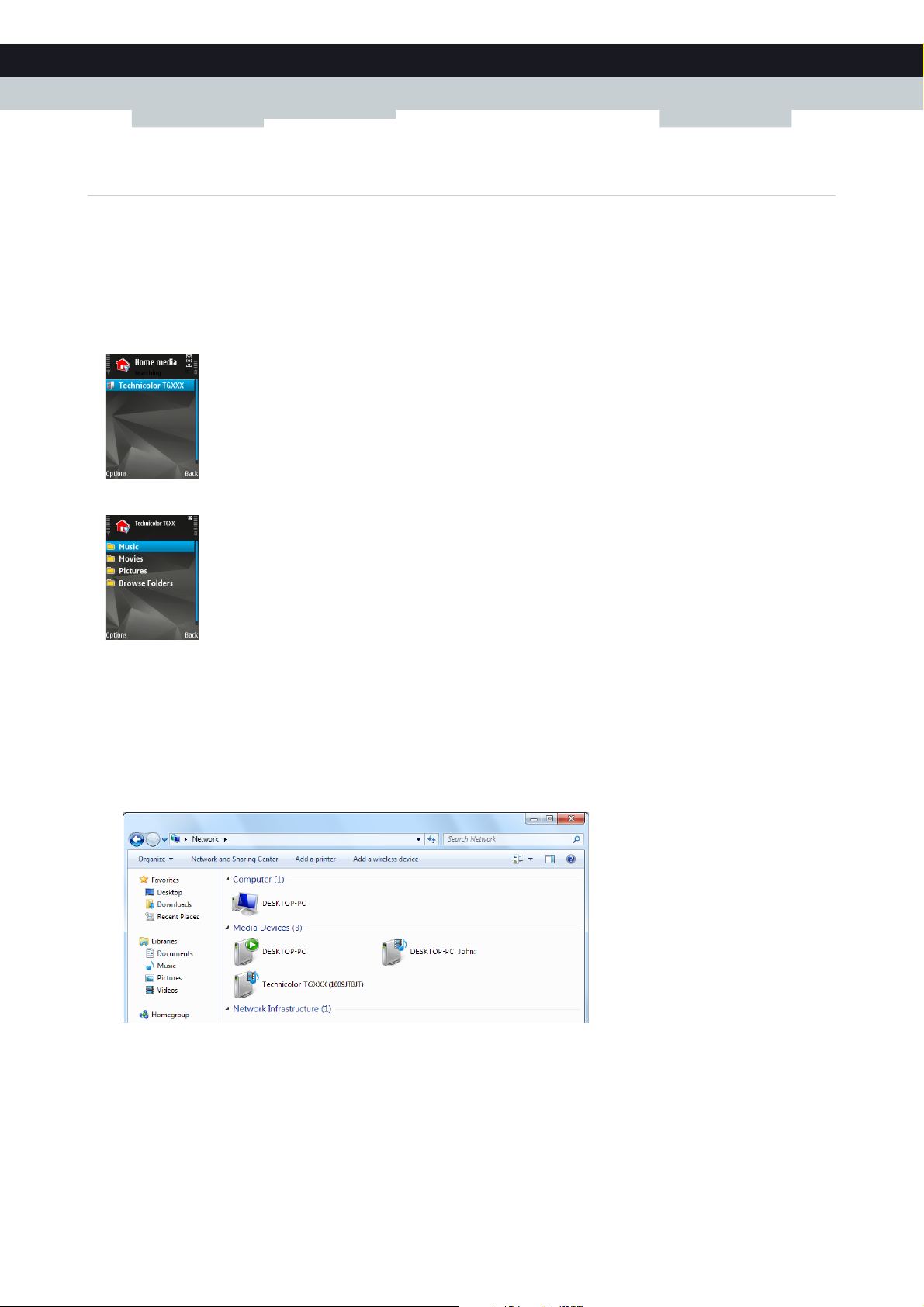

8.2.2 Using the UPnP AV Media Server

Introduction

The UPnP AV Media Server lists all audio, video and picture files located on the connected USB storage device. All UPnP AV renderers (for example, a DLNA-certified Set-Top box) that are connected to your network are able to view this list and play or view items from this list.

On your UPnP AV renderer, the MediaAccess Gateway’s UPnP AV media server will be listed as Technicolor TGXXX. Below you can find a screenshot taken on a smartphone with a UPnP AV client.

Via this entry, you can browse to your media files.

Windows 7

Windows 7 has native support for UPnP AV. It automatically detects UPnP AV and makes your media files available for playback on your Windows Media Player.

Proceed as follows:

1 On the Windows Start menu, click Network.

2 The Network window appears:

Under Media Devices you will find the MediaAccess Gateway’s UPnP AV Media Server (displayed as Technicolor TGXXX).

3 Double-click the MediaAccess Gateway’s UPnP AV Media Server to access your media files.

DMS-CTC-20101206-0033 v1.0

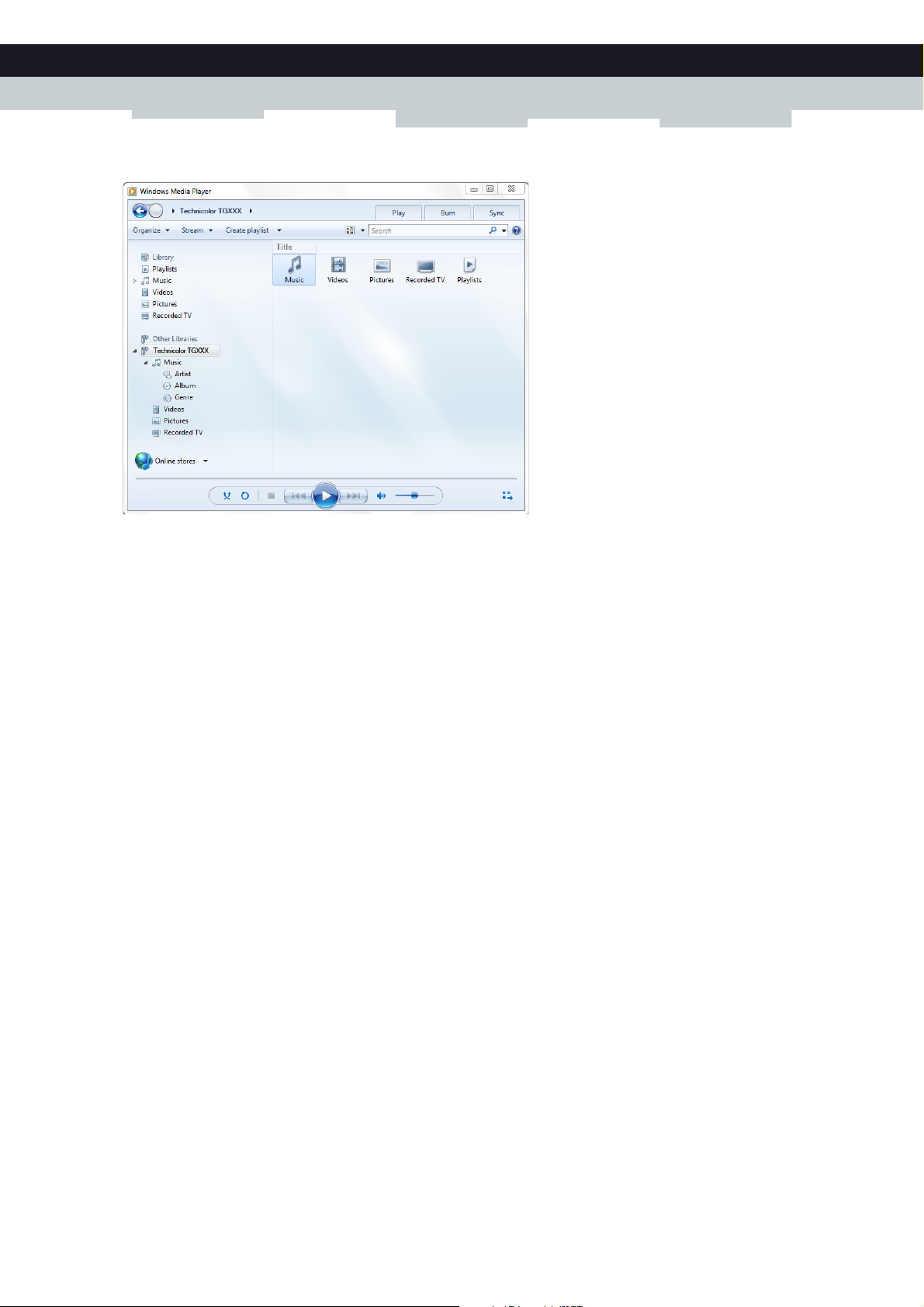

4Windows Media Player starts up.

8 SHARING CONTENT

Your MediaAccess Gateway’s UPnP AV Media Server is listed on the left. This entry allows you to browse to your media files.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTE

8.3 The FTP Server

Introduction

The MediaAccess Gateway allows you to access your shared content by FTP. This can be useful if you want to be able to access your shared content from the Internet.

Via FTP you can download and upload all types of files both from your local network and the Internet.

Setting up the FTP server

Proceed as follows:

1 Protect your account with a password.

2 Enable the FTP Server and select the managed partition.

Protect your account with a password

If you did not yet configure your login to the MediaAccess Gateway GUI with a password:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click User Management.

3 In the Pick a task list, click Change my password.

4 Leave the Old Password box empty.

5 Type your new password both in the New Password box and Confirm New Password box.

Enable the FTP Server and select the managed partition

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under FTP Server, click Server Enabled.

5 Under List of connected disks, click the radio button next to the partition to make it managed.

6 The MediaAccess Gateway now creates a Media and Shared folder on the selected partition. The Shared folder will be

used as root location for FTP sessions.

7 Click Apply.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTENT

Result

The Shared folder and its subfolders are now accessible using FTP. The other folders are not accessible via FTP.

If you are connected to the Internet, the link to the FTP server is displayed under FTP Server:

On the MediaAccess Gateway network, you can also access the FTP server using its local address (192.168.1.253).

Additional configuration

Because most service providers use dynamic IP addresses, the IP address of your Internet connection may change frequently. This implies that the link to the FTP server will also change every time the public IP changes. With Dynamic

DNS, you can assign a host name to the IP address (for example mygateway.dyndns.org). For more information, see “9.3 Dynamic DNS” on page 93.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTE

8.4 Managing your Shared Content

Managed Partition

If you select your drive or partition as managed partition, users only have access to the following folders:

 Media

 Shared

All other folders will be hidden from the user. These hidden folders are still on the USB storage device, but you can not access them. If you connected more than one USB storage device, those devices will also be hidden.

Media folder

Use the Media folder to share your audio, video and picture files. This folder can only be accessed via the following servers:

 The Network File Server

For more information, see “8.1 The Network File Server”.

 UPnP AV Media Server.

For more information, see “8.2 The UPnP AV Media Server”.

If your partition is managed, the UPnP AV server will only use the media files that are located in the Media folder.

Shared folder

The Shared folder is a folder to share files both on the local network and the Internet. This folder can only be accessed via the following server:

 The Network File Server

For more information, see “8.1 The Network File Server”.

 FTP Server

For more information, see “8.3 The FTP Server”.

The FTP Server can only be used with a managed partition.

Ummanaged vs. managed

The following table compares the two modes:

Access via Accessible folders

Unmanaged Managed

Network File Server All Media and Shared folder.

UPnP AV Media Server All Media folder.

FTP Server Not available in this mode. Shared folder.

Setting up the managed partition

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTENT

4 Under List of connected disks, click the radio button next to the partition you want to configure as Managed Partition.

5 Click Apply.

Result

The MediaAccess Gateway creates following folders:

 Media:

Use this folder to share your media files with others users on your network. You can store your media files in following subfolders:

 Movies

 Music

 Pictures

 Shared:

Use this folder to share your other data with other users on your network. Optionally, users can also access this folder using FTP. For more information, see “8.3 The FTP Server” on page 78.

If the above folders already exist, the existing folders are used.

DMS-CTC-20101206-0033 v1.0

8 SHARING CONTE

8.5 Safely Removing your USB Storage Device

Introduction

If you just unplug your USB storage device from the MediaAccess Gateway you may loose your data. To avoid this you must first stop your USB storage device.

Stopping your USB storage device

Proceed as follows

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Click Stop.

5 Unplug your USB storage device from the MediaAccess Gateway.

DMS-CTC-20101206-0033 v1.0

9 NETWORK SERVICES

9Network Services

In this chapter

In this chapter we will take a closer look at following features:

To p i c Page

9.1 UPnP 84

9.2 Assigning a service (HTTP, FTP,...) to a Computer 91

9.3 Dynamic DNS 93

“9.4 Network Time Server” on page 94 94

Feature availability

Depending on the configuration offered by your service provider, some features may not be available on your MediaAccess Gateway. For more information, contact your service provider.

DMS-CTC-20101206-0033 v1.0

9NETWORK SERV

ICES

9.1 UPnP

Introduction

UPnP is designed to automate the installation and configuration of a (small) network as much as possible. This means that UPnP-capable devices can join and leave a network without any effort of a network administrator.

Supported Operating Systems

The following operating systems support UPnP:

 Windows 7

 Windows Vista

 Windows XP

If your computer is running Windows XP, you first have to install the UPnP component. For more information, see

“9.1.4 Installing UPnP on Windows XP” on page 89.

UPnP and the MediaAccess Gateway

UPnP offers you the following functions:

 You can access the MediaAccess Gateway GUI without having to remember the address of the MediaAccess Gateway.

For more information, see “9.1.1 Accessing Your MediaAccess Gateway via UPnP” on page 85.

 If you are using a PPP connection to connect to the Internet, you can enable/disable your Internet connection without

having to open the MediaAccess Gateway GUI. For more information, see “9.1.2 Managing your Internet connection via UPnP” on page 86.

 You do not have to manually create port mappings to run services on a computer. The automatic port configuration

mechanism for UPnP-enabled games and applications will do this for you. If the application is UPnP-enabled, UPnP will create these entries automatically. For more information, see “9.2 Assigning a service (HTTP, FTP,...) to a Computer” on

page 91.

DMS-CTC-20101206-0033 v1.0

9 NETWORK SERVICES

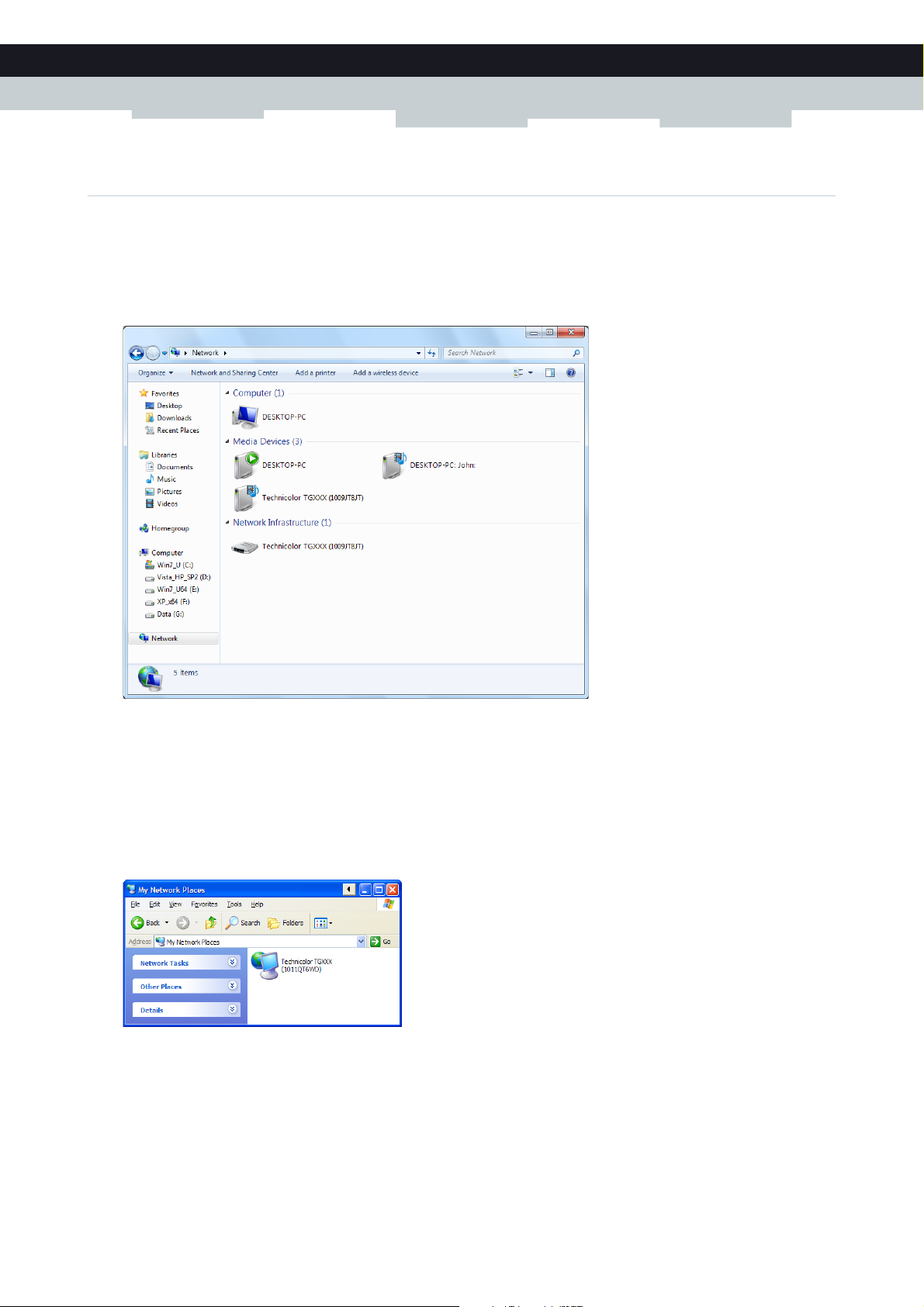

9.1.1 Accessing Your MediaAccess Gateway via UPnP

Windows 7/ Vista

If you computer runs Windows 7/ Vista:

1 On the Windows Start menu, click Network.

2 The Network window appears:

3 Right-click your MediaAccess Gateway (displayed as Technicolor TGXXX) and click View device web page.

4 The MediaAccess Gateway GUI appears.

Windows XP

If you computer runs Windows XP:

1 Go to My Network Places.

2 The My Network Places window appears:

3 Double-click your MediaAccess Gateway (displayed as Technicolor TGXXX).

4 The MediaAccess Gateway GUI appears.

DMS-CTC-20101206-0033 v1.0

9NETWORK SERV

ICES

9.1.2 Managing your Internet connection via UPnP

Applicability

This section only applicable if you are using a PPP connection to the Internet.

Windows 7/ Vista

If you computer runs Windows 7/ Vista:

1 On the Windows Start menu, click Network.

2 The Network window appears:

3 Right-click your MediaAccess Gateway (displayed as Technicolor TGXXX).

4 If you are currently:

 Connected to the Internet, click Disable to disconnect from the Internet.

 Not connected to the Internet, click Enable to connect to the Internet.

Windows XP

Proceed as follows:

1 On the Windows Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears.

Click (Network and Internet Connections) > Internet Connections.

DMS-CTC-20101206-0033 v1.0

9 NETWORK SERVICES

3 The Network Connections window appears;

4 If you right-click the Internet Connection icon, you can connect/disconnect your connection to the Internet.

Disabling this feature

To prevent that users can connect/disconnect you can enable Extended Security. This feature is enabled by default.

For more information, see “9.1.3 Configuring UPnP on the MediaAccess Gateway” on page 88.

DMS-CTC-20101206-0033 v1.0

9NETWORK SERV

ICES

9.1.3 Configuring UPnP on the MediaAccess Gateway

Introduction

On the MediaAccess Gateway GUI you can:

 Enable/Disable UPnP.

 Enable/Disable Extended Security.

Enable/Disable UPnP

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click Game & Application Sharing.

3 Under Universal Plug and Play:

 Select the Use UPnP check box, to enable UPnP.

 Clear the Use UPnP check box, to disable UPnP.

4 Click Apply.

Extended Security

If Extended Security is enabled, only limited UPnP operation between the host and the MediaAccess Gateway is allowed:

 A local host is not allowed to connect/disconnect the MediaAccess Gateway Internet connection. You can then only

connect/disconnect the Internet connection via the MediaAccess Gateway GUI

 Address translation mappings can only be added or changed via UPnP for the host on which the UPnP application is

running.

Extended Security is enabled by default.

Enable/Disable Extended Security

Proceed as follows:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click Game & Application Sharing.

3 Under Universal Plug and Play, select Use Extended Security.

4 Click Apply.

DMS-CTC-20101206-0033 v1.0

9 NETWORK SERVICES

9.1.4 Installing UPnP on Windows XP

Adding UPnP

If you are running Microsoft Windows XP, it is recommended to add the UPnP component to your system.

Proceed as follows:

1 In the Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears.

Click Add or Remove Programs.

3 The Add or Remove Programs window appears.

Click Add/Remove Windows Components.

4 The Windows Components Wizard appears:

In the Components list, select Networking Services and click Details

5 The Networking Services window appears:

Select Universal Plug and Play or UPnP User Interface and click OK.

6 Click Next to start the installation and follow the instructions in the Windows Components Wizard.

7 At the end of the procedure the wizard informs you that the installation was successful. Click Finish to quit.

Adding IGD Discovery and Control

Your Windows XP system is able to discover and control Internet Gateway Devices (IGD), like the MediaAccess Gateway on your local network. Therefore, it is recommended to add the IGD Discovery and Control client to your system.

Proceed as follows:

1 On the Windows taskbar, click Start.

DMS-CTC-20101206-0033 v1.0

9NETWORK SERV

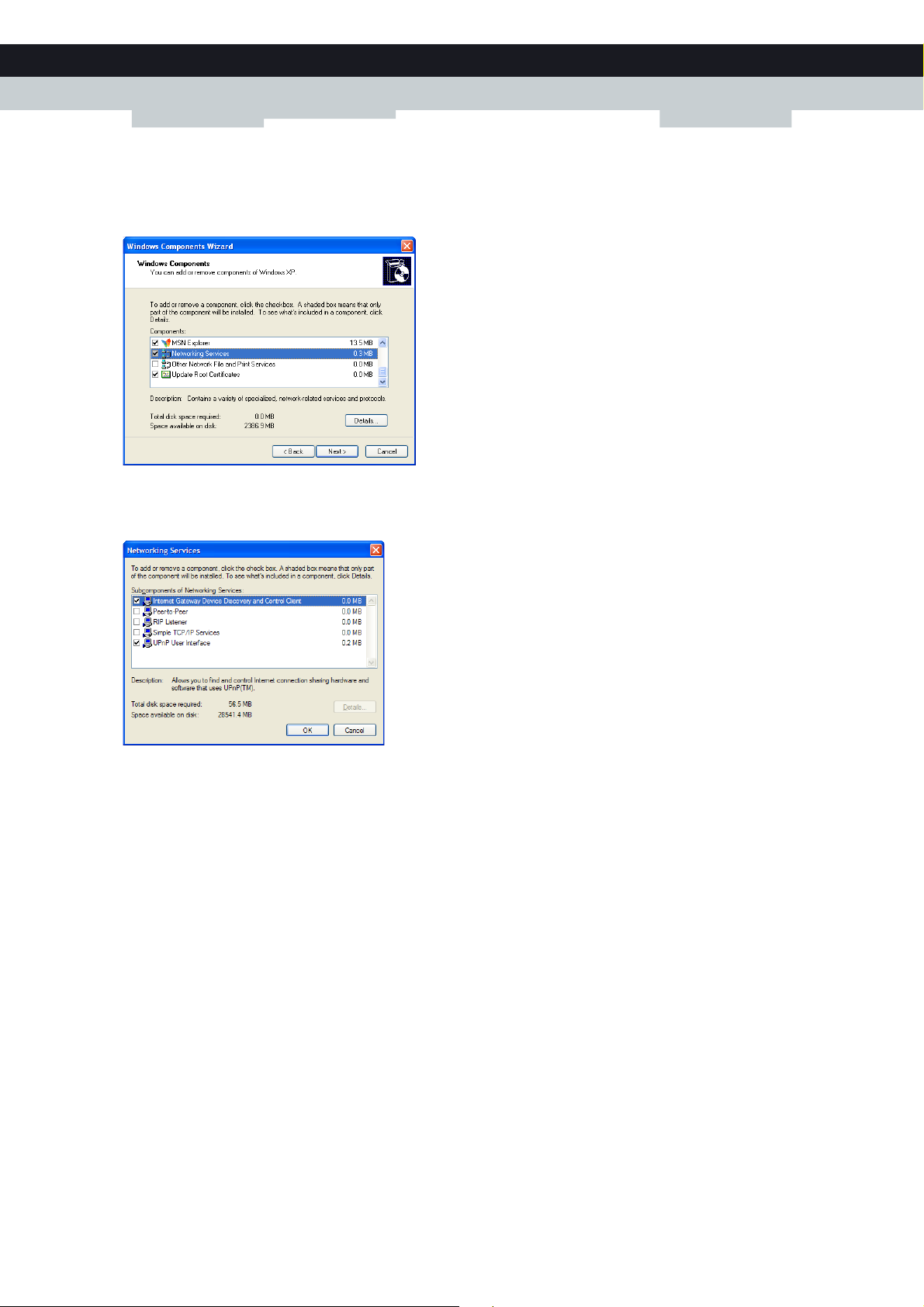

2 Select (Settings >) Control Panel > Add or Remove Programs.

3 In the Add or Remove Programs window, click Add/Remove Windows Components.

4 The Windows Components Wizard appears:

Select Networking Services in the Components list and click Details.

5 The Networking Services window appears:

ICES

Select Internet Gateway Device Discovery and Control Client and click OK.

6 Click Next to start the installation and follow the instructions in the Windows Components Wizard.

7 At the end of the procedure, the wizard informs you that the installation was successful. Click Finish to quit.

DMS-CTC-20101206-0033 v1.0

9 NETWORK SERVICES

Internet

9.2 Assigning a service (HTTP, FTP,...) to a Computer

Introduction

The MediaAccess Gateway allows you to use one Internet connection for multiple computers. This means that all your computers share one public IP address, as if only one computer were connected to the outside world.

Issue

When the MediaAccess Gateway receives an incoming message, the MediaAccess Gateway has to decide to which computer it has to send this message.

If the incoming message is a response to an outgoing message originating from one of your computers, the MediaAccess Gateway sends the incoming message to this computer.

Internet

If your are running a server or an application that acts as a server (for example a HTTP server, Internet game), the initial message will come from the Internet and the MediaAccess Gateway has no information to decide to which computer it should forward the incoming message.

Solution

To avoid this problem you can do either of the following:

 Enable UPnP.

 Assign a game or application to a local networking device.

UPnP

UPnP is a technology that enables seamless operation of a wide range of games and messaging applications. Your computer will use UPnP to communicate to the MediaAccess Gateway which services are running on the computer.

For example, when you start a UPnP-enabled application on your computer, it will automatically create the necessary port mappings on this computer and on the MediaAccess Gateway.

For more information on UPnP, see “9.1 UPnP” on page 84.

DMS-CTC-20101206-0033 v1.0

9NETWORK SERV

ICES

Assign a game or application to a local networking device

If you assign a game or application to a local networking device, you will basically tell the MediaAccess Gateway that if it receives requests for a specific game or application, it has to forward these messages to a specific computer.

Proceed as follows to do so:

1 Browse to the MediaAccess Gateway GUI.

For more information, see “Accessing the MediaAccess Gateway GUI” on page 37.

2 On the Toolbox menu, click Game & Application Sharing.

3 In the Pick a task list, click Assign a game or application to a local network device.

4 In the Game or application list, click the service you want to run on the computer. For example, HTTP Server (World

Wide Web).

If the service is not available in the list, click Create a new game or application in the Pick a task list. For more information, click Help on the MediaAccess Gateway GUI.

5 In the Device list, select the computer to which you want to assign the service. Your computer will be listed with its

computer name.

6 All incoming requests for the selected service will now be directed to the selected device. The MediaAccess Gateway will

also configure its firewall to allow this service.

DMS-CTC-20101206-0033 v1.0

Technicolor MediaAccess TG789vn v3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ABOUT THIS SETUP AND USER GUIDE

In this Setup and User Guide

Used Symbols

Te r m i n o l o g y

Typographical Conventions

1 GETTING STARTED

Introduction

1.1 Features at a Glance

Introduction

IPv6 Ready

Internet connection features

Local networking features

Telephony features

ECO label

MediaAccess Gateway configuration tools

1.2 User Scenarios

Scenarios

DSL Gateway

Local Router

1.3 Components

Overview

1.3.1 Power

Overview

Power inlet

Power switch

1.3.2 Local Network Connection

Overview

Wireless Access Point

Ethernet switch

USB Port

1.3.3 Broadband Connection

Overview

DSL port

WAN port

1.3.4 Voice Connection

Overview

Phone Port

PSTN Port (optional)

1.3.5 Buttons

Overview

WPS button

ECO button

Reset button

1.3.6 Status LEDs

Introduction

Power LED

Ethernet LED

USB LED

Wireless LED

Broadband LED (if you are using the DSL Gateway scenario)

Broadband LED (if you are using the Local Router scenario)

Internet LED

TV LED

Phone LED

Upgrade LED

WPS LED

1.4 Preparing for the Installation

DSL service requirements

Local connection requirements

Start with the installation

2 GUIDED INSTALLATION

Introduction

Requirements

Running the Setup wizard

CD Menu

In case of problems

Backup your configuration

3 MANUAL INSTALLATION

Installation

Setting up your network

3.1 Connecting the MediaAccess Gateway to your Service Provider’s Network

Identifying your setup

Introduction

Signal arriving at your home

What does a filter/splitter look like

Connecting the cables
