SETUP AND USER GUIDE
MediaAccess TC8717T
SAFETY INSTRUCTIONS
AND REGULATORY NOTICES
Before you start installation or use of this product, carefully read these instructions!
When using this product, always follow the basic safety precautions to reduce the
risk of fire, electric shock and injury to persons, including the following:
!
Always install the product as described in the documentation that is included
with your product.
Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Do not use this product to report a gas leak in the vicinity of the leak.
Directive
Unless express and prior approval by Technicolor in writing, you may not:
Disassemble, de-compile, reverse engineer, trace or otherwise analyse the equipment,
its content, operation, or functionality,
or otherwise attempt to derive source code (or the underlying ideas, algorithms,
structure or organization) from the equipment,
or from any other information provided by Technicolor, except to the extent that this
restriction is expressly prohibited by local law;
Copy, rent, loan, re-sell, sub-license, or otherwise transfer or distribute the equipment
to others;
Modify, adapt or create a derivative work of the equipment;
Remove from any copies of the equipment any product identification, copyright or
other notices;
Disseminate performance information or analysis (including, without limitation,
benchmarks) from any source relating to the equipment.
Such acts not expressly approved by Technicolor will result in the loss of product warranty
and may invalidate the user's authority to operate this equipment in accordance with FCC
Rules.
Technicolor disclaims all responsibility in the event of use that does not comply with the
present instructions.
Safety instructions
Climatic conditions
This product:
Is intended for in-house stationary desktop use; the maximum ambient temperature
may not exceed 40°C (104°F).
Must not be mounted in a location exposed to direct or excessive solar and/or heat
radiation.
Must not be exposed to heat trap conditions and must not be subjected to water or
condensation. Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
Must be installed in a Pollution Degree 2 environment (Environment where there is no
pollution or only dry, nonconductive pollution).
Cleaning
Unplug this product from the wall socket and computer before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Water and moisture
Do not use this product near water, for example near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement or near a swimming pool. Transition of the product from a
cold environment to a hot one may cause condensation on some of its internal parts. Allow
it to dry by itself before re-starting the product.
Secure handling and disposal of used batteries
NOTE: Only use the battery qualified for this equipment.
Remember to dispose batteries properly according to local regulation, i.e. at a battery
collection point. Batteries may not be disposed with domestic waste.
Interface classifications
The external interfaces of the product are classified as follows:
Phone: TNV circuit, not subjected to over voltages (TNV-2)
Cable, MoCA, RF: TNV circuit subject to overvoltages (TNV-1)
All other interface ports (e.g. Ethernet, USB, etc.), including the low voltage power
input from the AC mains power supply: SELV circuits.
Electrical powering
The powering of the product must adhere to the power specifications indicated on the
marking labels.
USB
The device is to be connected to an identified USB port complying with the requirements
of a Limited Power Source.
Accessibility
The plug on the power supply cord serves as disconnect device. Be sure that the power
socket outlet you plug the power cord into is easily accessible and located as close to the
equipment as possible.
Overloading
Do not overload mains supply socket outlets and extension cords as this increases the risk
of fire or electric shock.
Servicing
To reduce the risk of electric shock, do not disassemble this product. None of its internal
parts are user-replaceable; therefore, there is no reason to access the interior. Opening or
removing covers may expose you to dangerous voltages. Incorrect reassembly could cause
electric shock if the appliance is subsequently used.
If service or repair work is required, take it to a qualified service dealer.
Damage requiring service
Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
When the power supply or its plug are damaged.
When the attached cords are damaged or frayed.
If liquid has been spilled into the product.
If the product has been exposed to rain or water.
If the product does not operate normally.
If the product has been dropped or damaged in any way.
There are noticeable signs of overheating.
If the product exhibits a distinct change in performance.
Immediately disconnect the product if you notice it giving off a smell of burning or smoke.
Under no circumstances must you open the equipment yourself; you run the risk of
electrocution.
Regulatory information
You must install and use this device in strict accordance with the manufacturer's instructions
as described in the user documentation that is included with your product.
Before you start installation or use of this product, carefully read the contents of this
document for device specific constraints or rules that may apply in the country where you
want to use this product.
In some situations or environments, the use of wireless devices may be restricted by the
proprietor of the building or responsible representatives of the organization.
If you are uncertain of the policy that applies on the use of wireless equipment in a specific
organization or environment (e.g. airports), you are encouraged to ask for authorization to
use this device prior to turning on the equipment.
Technicolor is not responsible for any radio or television interference caused by
unauthorized modification of the device, or the substitution or attachment of connecting
cables and equipment other than specified by Technicolor. The correction of interference
caused by such unauthorized modification, substitution or attachment will be the
responsibility of the user.
Technicolor and its authorized resellers or distributors are not liable for any damage or
violation of government regulations that may arise from failing to comply with these
guidelines.
North-America - United States of America
Important safety instructions
The cable distribution system should be grounded (earthed) in accordance with ANSI/
NFPA 70, the National Electrical Code (NEC), in particular Section 820,93,
Grounding of outer Conductive Shield of a Coaxial Cable.
Leave 5 to 8 cm (2 to 3 inches) around the product to ensure proper ventilation to it.
Never push objects through the openings in this product.
Federal Communications Commission (FCC) radio frequency interference statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including
interference that may cause undesired operation.
RF-exposure statement
When the product is equipped with a wireless interface, then it becomes a mobile or fixed
mounted modular transmitter and must have a separation distance of at least 20 cm (8
inches) between the antenna and the body of the user or nearby persons. In practice, this
means that the user or nearby persons must have a distance of at least 20 cm (8 inches)
from the modem and must not lean on the modem in case it is wall-mounted.
With a separation distance of 20 cm (8 inches) or more, the M(aximum) P(ermissible)
E(xposure) limits are well above the potential this module is capable to produce.
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.
This device meets all the other requirements specified in Part 15E, Section 15.407 of the
FCC Rules.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Restricted frequency band
This product is equipped with an IEEE802.11b/IEEE802.11g/IEEE802.11n wireless
transceiver and may only use channels 1 to 11 (2412 to 2462 MHz) on U.S.A. territory.
SETUP AND USER GUIDE
MediaAccess TC8717T
Copyright
Copyright ©1999-2014 Technicolor. All rights reserved.
Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from Technicolor. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be
construed as a commitment by Technicolor. Technicolor assumes no responsibility or liability for any errors or inaccuracies that may appear in
this document.
TECHNICOLOR WORLDWIDE HEADQUARTERS
1, rue Jeanne d’Arc
92443 Issy-les-Moulineaux
France
http://www.technicolor.com
Trademarks
The following trademarks may be used in this document:
AutoWAN sensing™ is a trademark of Technicolor.
Adobe®, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incorporated, regis-
tered in the United States and/or other countries.
Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and other countries.
Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
CableLabs® and DOCSIS® are registered trademarks of CableLabs, Inc.
EuroDOCSIS™, EuroPacketCable™ and PacketCable™ are trademarks of CableLabs, Inc.
DECT™ is a trademark of ETSI.
DLNA® is a registered trademark, DLNA disc logo is a service mark, and DLNA Certified is a trademark of the Digital Living Network Alli-
ance. Digital Living Network Alliance is a service mark of the Digital Living Network Alliance.
Ethernet™ is a trademark of Xerox Corporation.
Microsoft®, MS-DOS®, Windows®, Windows NT® and Windows Vista® are either registered trademarks or trademarks of Microsoft Corpo-
ration in the United States and/or other countries.
MoCA® name and the MoCA logo are registered trademarks of Multimedia over Coax Alliance.
UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.
UPnP™ is a certification mark of the UPnP™ Implementers Corporation.
Wi-Fi®, WMM® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance®. Wi-Fi CERTIFIED, Wi-Fi ZONE, Wi-Fi Protected
Access, Wi-Fi Multimedia, Wi-Fi Protected Setup, WPA, WPA2 and their respective logos are trademarks of the Wi-Fi Alliance®.
Other brands and product names may be trademarks or registered trademarks of their respective holders. All other logos, trademarks and
service marks are the property of their respective owners, where marked or not.
Document Information
Status: v1.0 (June 2014)
Reference: DMS-CTC-20140127-0004
Short Title: Setup and User Guide MediaAccess TC8717T
CONTENTS
About this Setup and User Guide ..................................................................................1
1 Getting started.......................................................................................................... 3
1.1 Features at a glance .................................................................................................................................. 4
1.2 Getting to know the Gateway ................................................................................................................. 5
1.2.1 Front panel...................................................................................................................................................................... 6
1.2.2 Top panel ....................................................................................................................................................................... 8
1.2.3 Back panel ....................................................................................................................................................................... 9
1.2.4 Bottom panel ................................................................................................................................................................. 11
1.3 Preparing for the installation...................................................................................................................12
2 Setup ........................................................................................................................13
2.1 Connect the Gateway to your service provider’s network ..................................................................14
2.2 Power on the Gateway ............................................................................................................................15
2.3 Connect your wired devices....................................................................................................................16

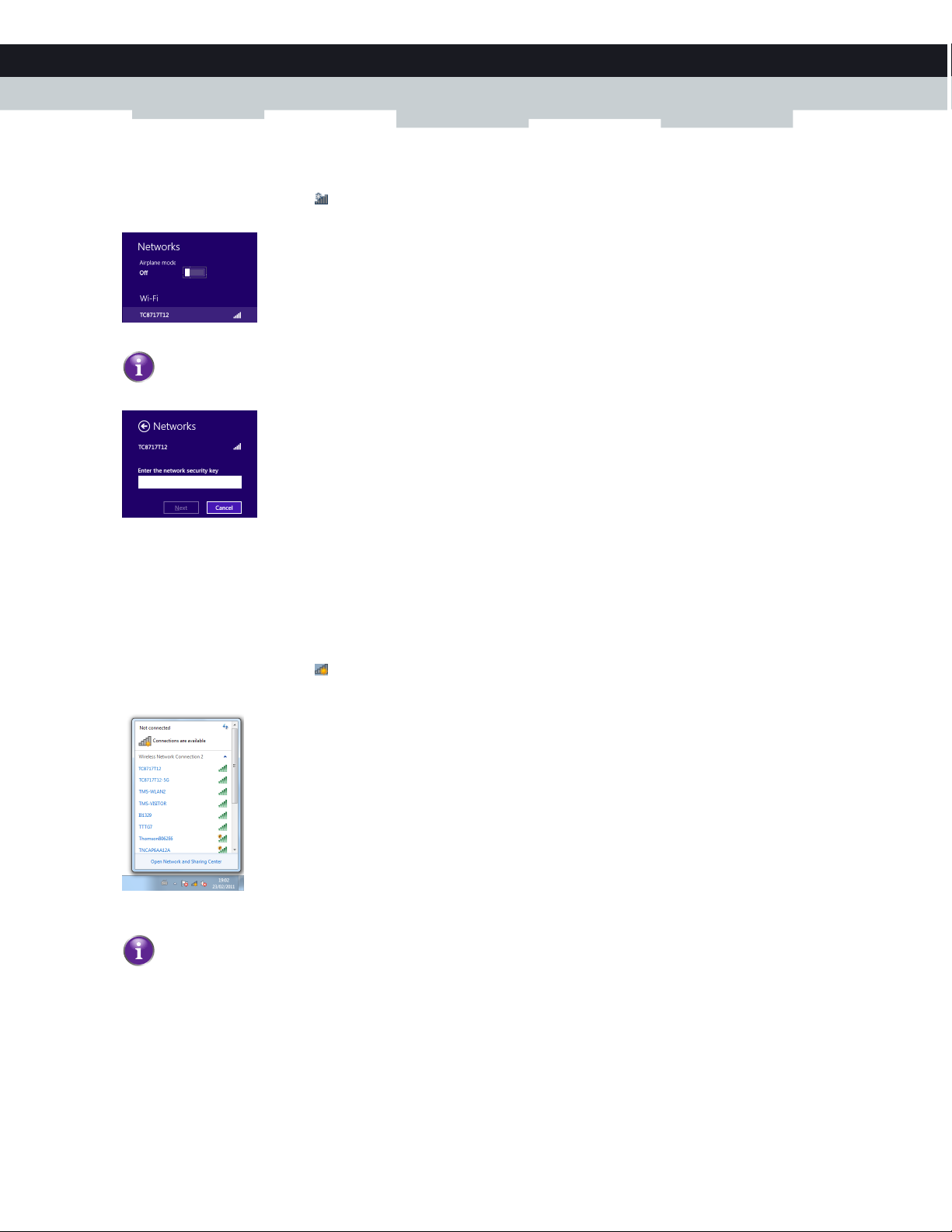

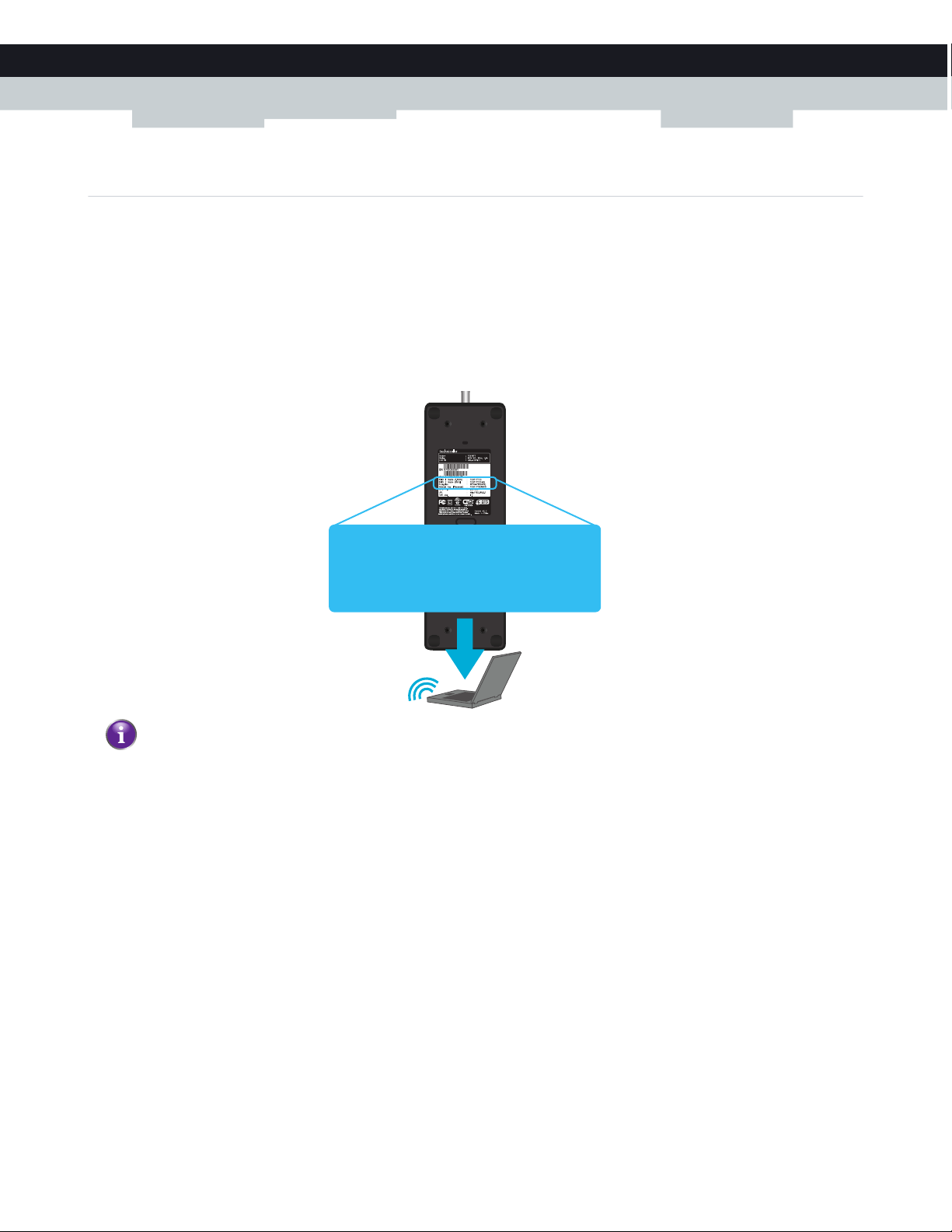

2.4 Connect your wireless devices................................................................................................................17
2.4.1 How to connect your wireless client via WPS............................................................................................................18
2.4.2 How to manually connect your wireless client ..........................................................................................................20
3 Admin Tool ............................................................................................................. 25
3.1 Components ............................................................................................................................................ 26
3.2 How to change the default Admin Tool password ............................................................................. 28
3.3 How to backup or restore a configuration ........................................................................................... 29
4 The Gateway wireless access point.......................................................................... 31

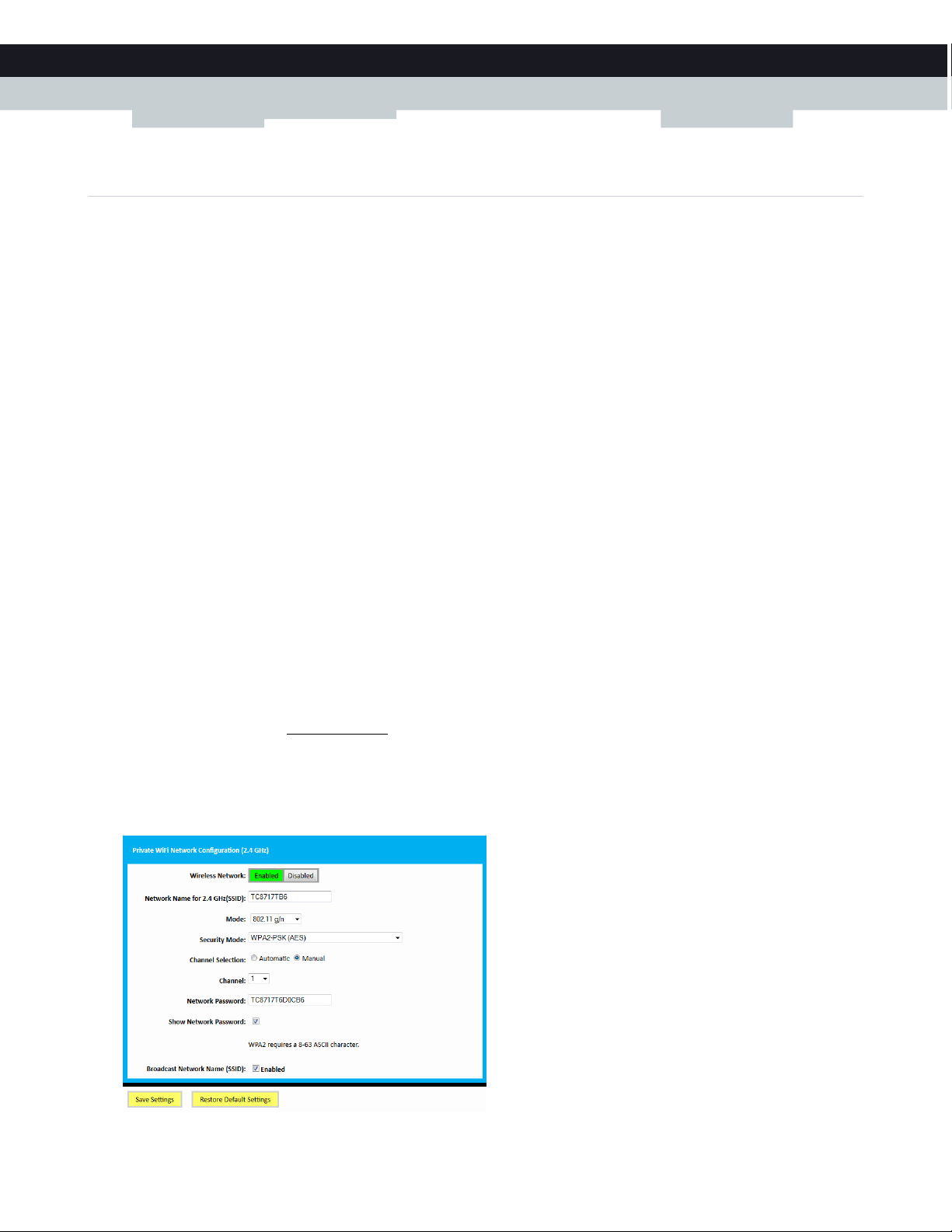

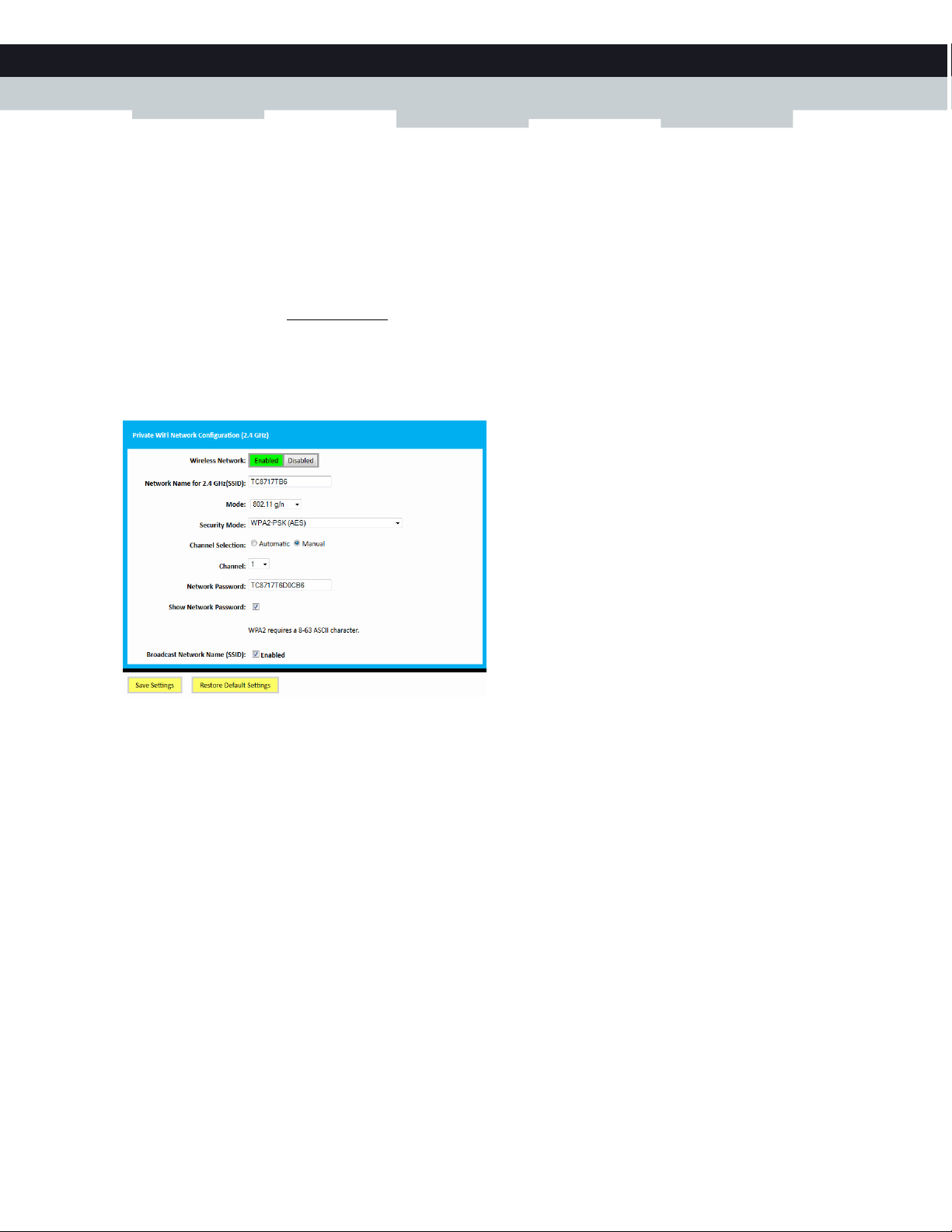

4.1 How to configure the wireless settings ..................................................................................................32
4.2 How to start a WPS session via the Admin Tool ................................................................................ 34
4.3 Prevent devices from accessing your wireless network....................................................................... 36
5 Sharing content ........................................................................................................37
5.1 The network file server ........................................................................................................................... 39
5.2 The UPnP AV media server ...................................................................................................................41
6 Internet security ...................................................................................................... 43
6.1 Parental control ....................................................................................................................................... 44

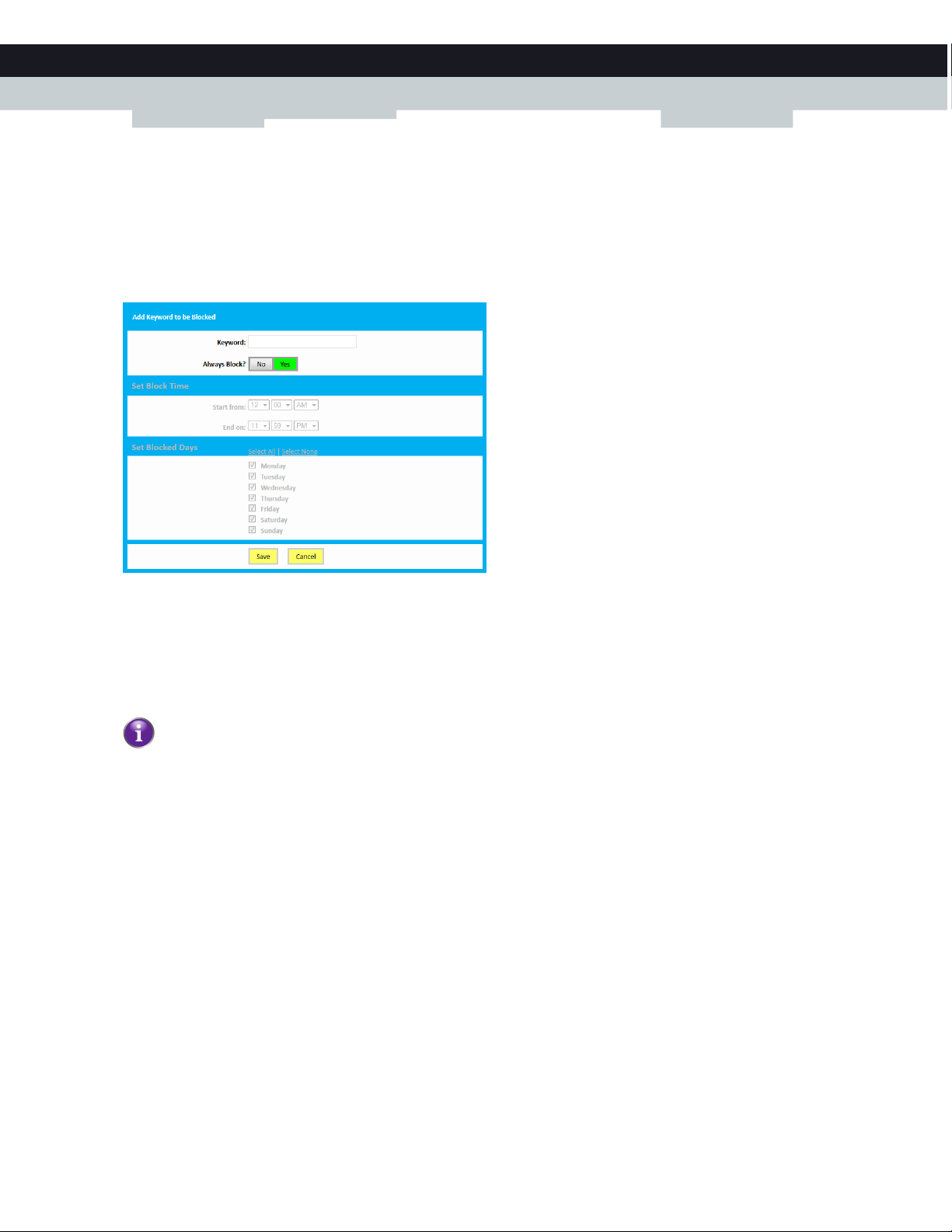

6.1.1 Manage sites ................................................................................................................................................................. 45
6.1.2 Manage services ........................................................................................................................................................... 47
6.1.3 Manage devices............................................................................................................................................................49

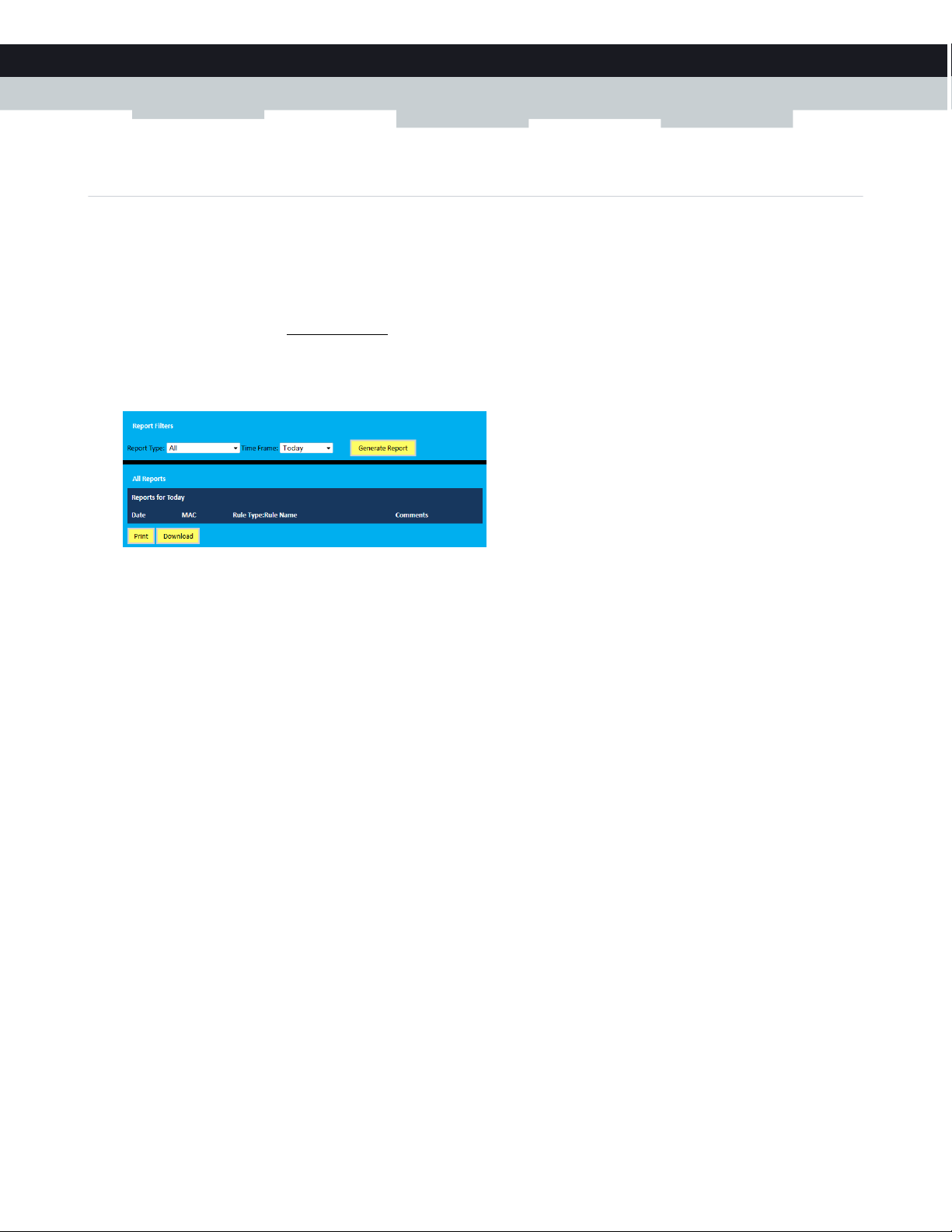

6.1.4 View parental control reports ......................................................................................................................................51
6.2 Firewall...................................................................................................................................................... 52
DMS-CTC-20140127-0004 v1.0
i
CONTENTS
7 Advanced configuration.......................................................................................... 53
7.1 Port configuration for applications and services.................................................................................. 54
7.1.1 UPnP.............................................................................................................................................................................. 56
7.1.2 Port forwarding............................................................................................................................................................. 58
7.1.3 Port triggering ..............................................................................................................................................................60

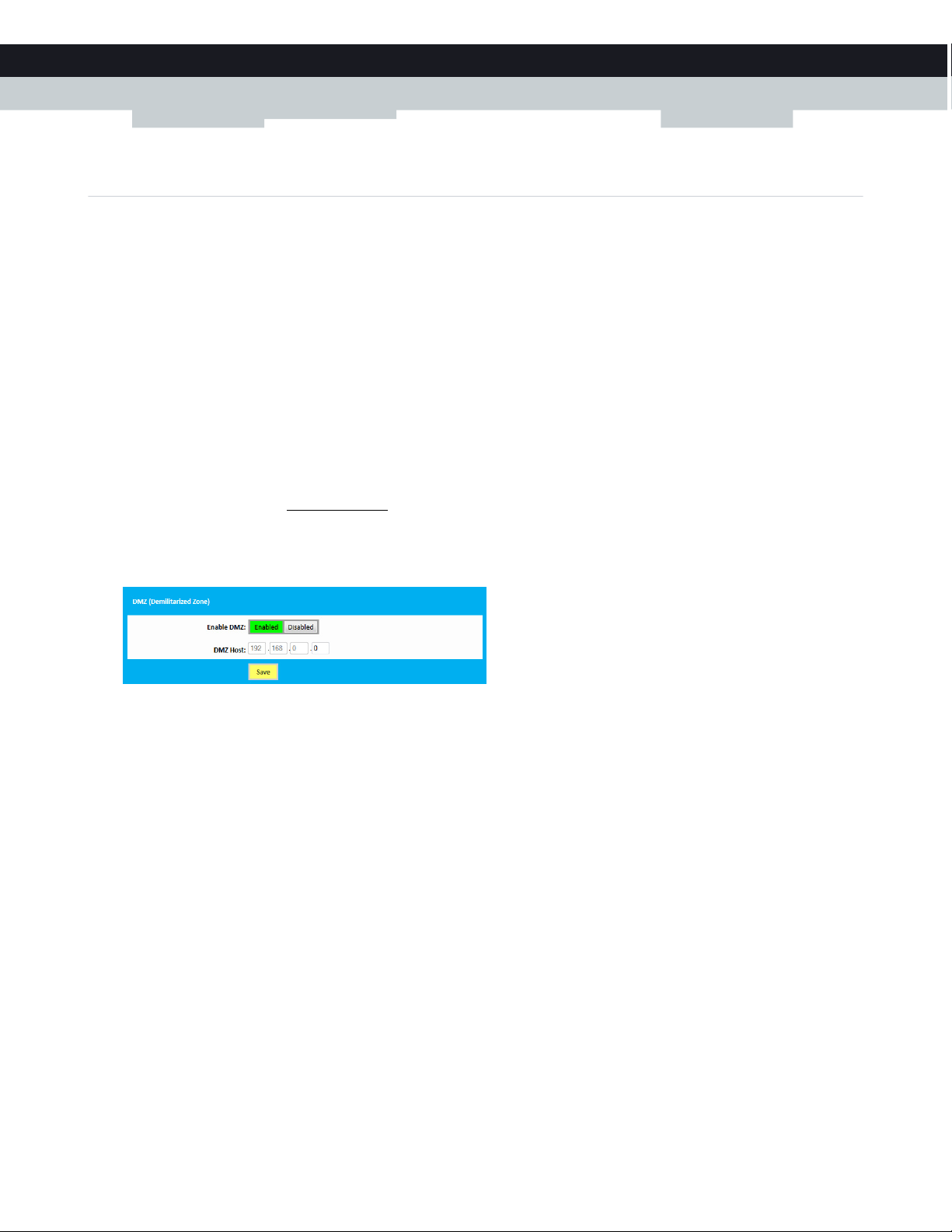

7.1.4 Configure a DMZ Host............................................................................................................................................... 62

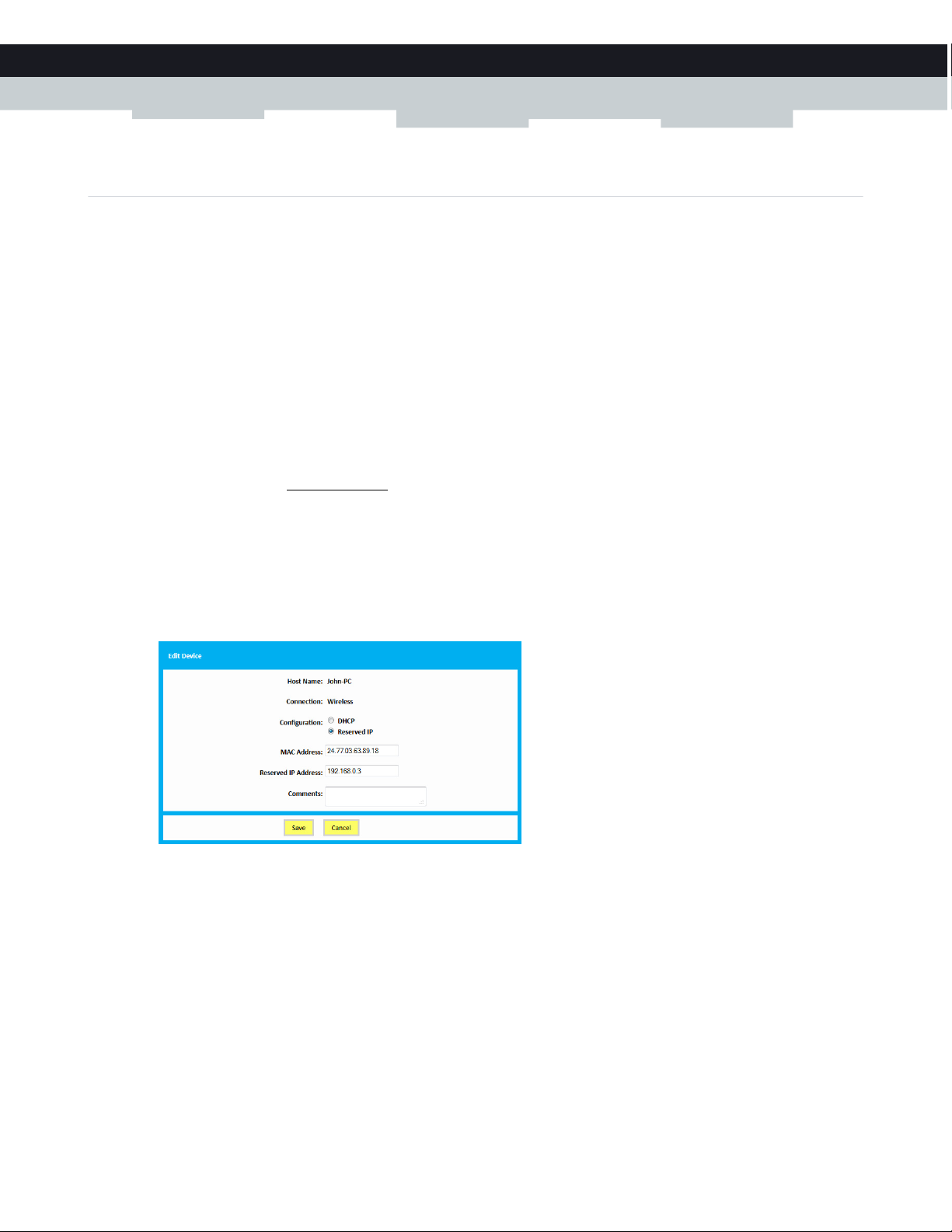

7.2 Assigning a reserved IP to a device ...................................................................................................... 63
8 Support.................................................................................................................... 65
8.1 Wireless connection troubleshooting ................................................................................................... 66
8.2 Network diagnostic tools........................................................................................................................68
8.3 Gateway reset and restore options ....................................................................................................... 69
DMS-CTC-20140127-0004 v1.0
ii
ABOUT THIS SETUP AND USER GUIDE
About this Setup and User Guide
In this Setup and User Guide
The goal of this Setup and User Guide is to show you:
Set up your Gateway and local network
Configure and use the main features of your Gateway.
For more advanced scenarios and features visit the documentation pages on www.technicolor.com.
Used symbols
The danger symbol indicates that there may be a possibility of physical injury.
The warning symbol indicates that there may be a possibility of equipment damage.
The caution symbol indicates that there may be a possibility of service interruption.
The note symbol indicates that the text provides additional information about a topic.
Terminology
Generally, the MediaAccess TC8717T will be referred to as Gateway in this Setup and User Guide.
Typographical conventions
Following typographical convention is used throughout this manual:
This sample text indicates a hyperlink to a Web site.
Example: For more information, visit us at www.technicolor.com.
This sample text indicates an internal link.
Example: If you want to know more about guide, see “About this Setup and User Guide” on page 1.
This sample text indicates an important content-related word.
Example: To enter the network, you must authenticate yourself.
This sample text indicates a GUI element (commands on menus and buttons, dialog box elements, file names, paths and
folders).
Example: On the File menu, click Open to open a file.
DMS-CTC-20140127-0004 v1.0
1
ABOUT THIS SETUP AND USER GUIDE
DMS-CTC-20140127-0004 v1.0
2
1 GETTING STARTED
1 Getting started
Introduction
This chapter gives you a brief overview of the main features and components of the Gateway. After this chapter we will start with
the installation.
Do not connect any cables to the Gateway until instructed to do so.
DMS-CTC-20140127-0004 v1.0
3
GETTING
1
ARTED
ST
1.1 Features at a glance
Introduction
This section provides a brief overview of the main features of your Gateway.
Superior wireless performance
The integrated IEEE 802.11n 2.4 GHz 3x3 and IEEE 802.11ac 5 GHz 3x3 wireless access points are optimized for high-speed
video and data transfer over wireless.
Each access point has multiple wireless transmitters and receivers. This allows it to handle multiple data streams at the same time
and boost the wireless transmission rate and data stream reliability.
IPv6 Ready
Your Gateway is IPv6 ready. Internet Protocol version 6 (IPv6) is the next generation of Internet technologies aiming to
effectively support the ever-expanding Internet usage and functionality, and also to address security concerns that exist in an
IPv4 environment.
Internet connection features
Broadband access via the integrated DOCSIS 3.0 16x4 Cable Modem
Parental control allows you to restrict access to specific websites, services or your network.
For more information, see “6.1 Parental control” on page 44.
The Gateway has an integrated firewall to protect you from malicious attacks.
For more information, see “6.2 Firewall” on page 52.
Advanced network tools like port forwarding, port triggering and DMZ.
For more information, see “7 Advanced configuration” on page 53.
Local networking features
MoCA 2.0 to interconnect your local MoCA devices (for example, your set-top box) via your coax network.
Wireless access for your local network devices via the integrated IEEE 802.11b/g/n 2.4 GHz and 5 GHz wireless access
points.
For more information, see “2.4 Connect your wireless devices” on page 17.
Wired access for your local network devices via the Ethernet interface.
For more information, see “2.3 Connect your wired devices” on page 16.
An integrated file and media server allowing you to share your media with media players and other network devices. For
more information, see “5 Sharing content” on page 37.
Telephony features
The Gateway offers connectivity for traditional phones and IP phones.
For more information see “2.5 How to connect your phone” on page 27.
DMS-CTC-20140127-0004 v1.0
4
1 GETTING STARTED
Support for auto dial alarm systems
The Gateway offers support for auto dial alarm systems. When the alarm is triggered, the Gateway will terminate all calls to make
the primary line available for the alarm call.
For connecting the alarm system to the Gateway, please contact your service provider for more information. This
installation must be done by qualified technicians.
Battery backup (sold separately)
When the power is down the Gateway will automatically switch to the integrated rechargeable battery, if you purchased a battery.
This guarantees that the following functions will not be impacted:
The connected phones or dial function for a connected alarm system
All voice-related features
Easy configuration
The Admin Tool allows you to configure your Gateway and network via your web browser.
For more information, see “3 Admin Tool” on page 25.
DMS-CTC-20140127-0004 v1.0
5
GETTING
1
ARTED
ST
1.2 Getting to know the Gateway
This section introduces you to the different components of the Gateway:
1.2.1 Front panel 6
1.2.2 Top panel 8
1.2.3 Back panel 9
1.2.4 Bottom panel 11
Topic Page
DMS-CTC-20140127-0004 v1.0
6
1 GETTING STARTED
1.2.1 Front panel
Introduction
On the front panel of your Gateway, you can find a number of LEDs that allow you to check the state of the services offered by
the Gateway.
Power LED
State Description
Solid on The Gateway is powered on from the electrical outlet.
Blinking Power failure or running on battery.
Off The Gateway is powered off.
US/DS LED
State Description
Solid on Upstream and downstream channel locked.
Blinking Locking upstream or downstream channel.
Off The Gateway is powered off.
DMS-CTC-20140127-0004 v1.0
7
GETTING
1
Online LED
2.4 GHz LED
ARTED
ST
State Description
Solid on Connected to your service provider’s network.
Blinking Connecting to your service provider’s network.
Off Not connected to your service provider’s network.
State Description
Solid on One or more wireless clients connected to the 2.4 GHz access point, no wireless activity
Blinking One or more wireless clients connected to the 2.4 GHz access point, wireless activity.
Off The 2.4 GHz access point is disabled.
5 GHz LED
State Description
Solid on One or more wireless clients connected to the 5 GHz access point, no wireless activity
Blinking One or more wireless clients connected to the 5 GHz access point, wireless activity.
Off The 5 GHz access point is disabled.
Phone 1 LED
State Description
Solid on The telephone connected to the Phone 1 port is on the hook.
Blinking The telephone connected to the Phone 1 port is off the hook or the home alarm is triggered.
Off No telephone connected to the Phone 1 port.
DMS-CTC-20140127-0004 v1.0
8
1 GETTING STARTED
Phone 2 LED
State Description
Solid on The telephone connected to the Phone 2 port is on the hook.
Blinking The telephone connected to the Phone 2 port is off the hook or the home alarm is triggered.
Off No telephone connected to the Phone 2 port.
Battery LED
State Description
Solid on Battery level is OK or recharging.
Blinking If the Power LED is:
Solid on: bad battery
Blinking: low battery
Off If the Power LED is:
Blinking: the battery level is OK.
Off: bad battery or no battery installed.
DMS-CTC-20140127-0004 v1.0
9
GETTING
1
ARTED
ST
1.2.2 Top panel
WPS button (item A)
A
The WPS ( ) button allows you to add new wireless clients to your local network in a swift and easy way, without the need to
enter any of your wireless settings (network name, wireless network key, encryption type).
For more information about WPS, see “2.4.1 How to connect your wireless client via WPS” on page 18.
10
DMS-CTC-20140127-0004 v1.0
1.2.3 Back panel
Overview
1 GETTING STARTED
A
B
C
D
E
F
Reset button (item A)
The Reset button allows you to:
Restart the Gateway.
Restore the factory defaults of the Gateway.
For more information, see “8.3 Gateway reset and restore options” on page 69.
USB ports (item B)
The USB ( ) ports allow you to:
Connect a USB mass storage device to share your content (for example, music, movies,...) on your local network via the
Network File server or the UPnP AV media server. For more information, see “5 Sharing content” on page 37.
Power or charge a USB device.
Tel ports (item C)
The Te l ( ) ports allows you to connect a traditional phone or DECT base station to your Gateway.
Single line customers can use the Tel 1 port to connect an auto dial alarm system.
For more information, see “2.5 How to connect your phone” on page 27.
Ethernet switch (item D)
The Ethernet switch () allows you to connect an Ethernet device (for example, a computer) to your local network. For more
information, see “2.3 Connect your wired devices” on page 16.
All Ethernet ports on the Gateway are Gigabit Ethernet ports and have a maximum speed of 1 Gbps (Gigabit per second).
DMS-CTC-20140127-0004 v1.0
11
GETTING
1
Each Ethernet port has two LEDs:.
LED LED status Description
ARTED
ST
Top LED
(Green)
Bottom LED
(Amber)
Solid on Connected to a Gigabit Ethernet device.
Blinking Connected to a Gigabit Ethernet device and sending/receiving data.
Off Not connected to a Gigabit Ethernet device.
Solid on Connected to a 100Mbps/10Mbps device.
Blinking Connected to a 100Mbps/10Mbps device and sending/receiving data.
Off Not connected to a 100Mbps/10Mbps device.
MoCA/Cable port (item E)
The MoCA/Cable port allows you to connect to your local coax network and to the broadband network of your services
provider.
The MoCA LED indicates the status of the MoCA interface:
State Description
Solid on The MoCA interface is enabled, no MoCA activity..
Blinking The MoCA interface is enabled, MoCA activity.
Off The MoCA interface is disabled or the Gateway is powered off.
Power inlet (item F)
The power inlet (Power) allows you to connect the power cord.
12
DMS-CTC-20140127-0004 v1.0
1.2.4 Bottom panel
AB
Product label (item A)
The label on the bottom of the Gateway contains information about your Gateway, like:
Device information
Wireless security settings
For the network name, two values are available:
SSID 1 Name (2.4Ghz) is the network name of the 2.4 GHz access point and is of the following format:
TC8717TXX (where X is an alphanumeric character).
SSID 2 Name (5Ghz) is the network name for the 5 GHz access point and is of the following format:
TC8717TXX-5G (where X is an alphanumeric character).
The other values are common for both access points.
1 GETTING STARTED
Battery compartment (item B)
During a power failure the Gateway can automatically switch to the auxiliary emergency power via the rechargeable battery (if
installed). This is to guarantee that the following services are not interrupted during power failure::
The connected phones or dial function for a connected alarm system
Basic voice features.
Do not remove the battery, unless instructed by your service provider.
DMS-CTC-20140127-0004 v1.0
13
GETTING
1
ARTED
ST
1.3 Preparing for the installation
Local connection requirements
Wireless connection
If you want to connect your computer using a wireless connection, your computer must be equipped with a Wi-Fi Certified
wireless client adapter.
Wired connection
If you want to connect a computer using a wired connection, your computer must be equipped with an Ethernet Network
Interface Card (NIC).
Start with the installation
You are now ready to start with the installation of your Gateway, proceed with “2 Setup” on page 13.
14
DMS-CTC-20140127-0004 v1.0
2 Setup
Setup procedure
Complete the following steps to setup the Gateway:
1 Connect your Gateway to your service provider’s network.
For more information, see “2.1 Connect the Gateway to your service provider’s network” on page 14.
2 Power on the Gateway.
For more information, see “2.2 Power on the Gateway” on page 15.
3 Connect your wired devices to the Gateway.
For more information, see “2.3 Connect your wired devices” on page 16.
4 Connect your wireless devices to the Gateway.
For more information, see “2.4 Connect your wireless devices” on page 17.
5 Connect your phones.
For more information, see “2.5 How to connect your phone” on page 27.
2 SETUP
Optional configuration
After completing the setup procedure, the Gateway is ready for use. Optionally, you can further configure the Gateway to your
needs (for example, change the wireless security) using the Gateway’s Admin Tool.
For more information, see “3 Admin Tool” on page 25.
DMS-CTC-20140127-0004 v1.0
13
2
SETUP
2.1 Connect the Gateway to your service provider’s network
Introduction
This section helps you to connect the Gateway to your service provider’s network.
Connecting the cables
Proceed as follows:
1 Take one end of the coaxial cable and connect it to your cable splitter.
2 Connect the other end to the MoCA/Cable port of the Gateway.
MoCA/Cable
14
DMS-CTC-20140127-0004 v1.0
2.2 Power on the Gateway
Procedure
Proceed as follows:
1 Take the power cord that is included with your Gateway.
2 Connect the small end of the power cord to the Power port on the back of the Gateway.
2 SETUP
Power
3 Plug the other end of the power cord into an electrical outlet.
4 Wait at least two minutes to allow the Gateway to complete the start up phase.
DMS-CTC-20140127-0004 v1.0
15
2
SETUP
2.3 Connect your wired devices
Requirements
Both your network device (for example, a computer, a gaming console, etc.) and Gateway must have a free Ethernet port.
Your network device must be configured to obtain an IP address automatically. This is the default setting.
All Ethernet ports on the Gateway are Gigabit Ethernet ports and have a maximum speed of 1 Gbps (Gigabit per second).
Procedure
Proceed as follows:
1 Take the yellow Ethernet cable that is included in your box.
2 Plug one end of the Ethernet cable into one of the yellow Ethernet ports on the back of the Gateway:
16
3 Plug the other end of the Ethernet cable into the Ethernet port of your network device.
4 Your network device is now connected to your network. Use the same procedure to connect your other Ethernet devices
(computers, network printers and so on).
DMS-CTC-20140127-0004 v1.0
