PHTJ 14 / 19

Pompe à chaleur haute température avec équipement hydraulique

(chauffage seulement) -

Fluide réfrigérant R 407 C

High temperature heat pump with hydraulic equipment

(heating only) -

R 407 C refrigerant

Refrigeratore d’acqua in versione pompa di calore alta temperatura con sezione idronica

incorporata (unicamente riscaldamento) -

Fluido refrigerante R 407 C

Bomba de calor de alta temperatura con equipamiento hidráulico

(sólo calefacción) -

Fluido refrigerante R 407 C

Hochtemperatur-Wärmepumpe mit Hydraulikmodul

(Nur Heizen) - Kältemittel R 407 C

Bomba de calor alta temperatura com equipamento hidráulico

(somente aquecimento) -

Fluído refrigerante R 407 C

Novembre 2008

10 1

1 520 - F

.GB.I.E.D.P

- 02

NOTICE

D’INSTALLATION

INSTALLATION

INSTRUCTION

MANUALE

D’INST

ALLAZIONE

MANUAL

DE INSTALACIÓN

AUFSTELLUNGS-

HANDBUCH

INSTRUÇÕES

DE INSTALAÇÃO

(Etiquette signalétique)

Page 2

SUMMARY

1 - GENERALITIES

1.1 - GENERAL SUPPLY CONDITIONS

• Generally speaking, the material is transported at the consignee’s risk.

•

The consignee must immediately provide the carrier with written reserves if he finds any damage caused during transport.

1.2 - RECOMMENDATIONS

• Prior to all servicing or other actions on the equipment, installation, commissioning, operation, or maintenance, the personnel in charge of these operations shall become familiar with the instructions and recommendations provided in the installation manual of the unit as well as the elements of the project's technical file.

• The personnel responsible for receiving the unit must conduct a visual inspection in order to identify all damage to which the unit may have been subjected during transport: refrigerating circuit, electrical cabinet, cassis and cabinet.

• The unit must be installed, started, maintained, serviced by qualified and authorised personnel, in compliance with the requirements of all directives, laws and regulations and in accordance with standard trade practices.

• During installation, troubleshooting and maintenance operations, the use of pipes as a step: under the stress, the pipe may rupture and the refrigerant may cause serious burns.

MARKING

This product marked conforms to the essential requirements of the Directives:

- Low voltage no. 2006/95/EC.

- Electromagnetic Compatibility no. 89/336 EEC, modified 92/31 and 93/68 EEC.

1 - Generalities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 - Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 - Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4 - Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5 - Operation of "ECH" electronic control . . . . . . . . . . . . . . . . . . . . . . 6

6 - Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7 - Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

8 - Maintenance instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9 - Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

10 - Circulator curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

11 - Pressure tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

12 - Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

R 407 C

• Fluid R 407 C is not a pure fluid but a blend composed of:

- 23% R 32 + 25% R 125 + 52% R 134 A.

• The compressors approved for operation with this fluid are filled beforehand with polyalcohol oil. Contrary to mineral oil, it is very hygroscopic: it absorbs the humidity of the ambient air very quickly. This can modify its lubricant properties and lead in time to the destruction of the compressor.

MAINTENANCE INSTRUCTIONS

- Never add oil to the appliance; the compressor is filled with polyalcohol oil, a special oil which cannot tolerate the presence of other oils.

2 - The instruments used for:

- filling,

- pressure measurements,

- emptying under vacuum,

- recovering the fluid,

must be compatible and only used for the R 407 C fluid.

3 -

The weight of the refrigerant contained in the storage bottle must be checked constantly. Do not use it from the moment the remaining weight is less than 10% of the total weight.

4 - In the case of a new charge:

- do not use the charging cylinder,

- use a balance and a dip pipe type R 407 C cylinder,

- charge the weight of R 407 C as per the value indicated on the unit’s identification plate,

- IMPORTANT: see instruction 3 above.

5 - The charge must be undertaken in liquid phase. 6 - In case of leakage, do not complete the charge: recover

the remaining refrigerant for recycling and perform a total charge. Recovery, recycling or the destruction of the fluid must be done in compliance with the laws in force in the country concerned.

7 - If the refrigerant circuit is opened, you must:

- avoid the entry of air into the circuit as much as possible,

- replace the filter drier,

perform the "vacuum operation" at a minimum level of

0.3 mbar (static).

8 - Do not release R 407 C fluid into the atmosphere. This

fluid is a fluorinated greenhouse gases, covered by the Kyoto Protocol with a Global Warming Potential (GWP) = 1653 - (EC Directive 842 / 2006).

APPLIANCES FILLED WITH R 407 C

Page 3

5 6 8 7

1 - Sound-proofed hermetic compressor. 2 - Plate water heat exchanger. 3 - "Plate-Fin" air heat exchanger. 4 - Injection circuit exchanger. 5 - Fan motor. 6 - Fan protection grille. 7 - Electrical box. 8 - Microprocessor control unit display

keyboard.

9 - Circulating pump. 10 - Pressure gauge. 11 - Water inlet connector. 12 - Water outlet connector. 13 - Filling / drainage of the water circuit. 14 - Air vent. 15 - Hole for connecting cables.

Materials:

- Copper piping.

- Painted sheet metal cabinet.

- Copper / aluminium air heat exchanger.

- Stainless steel water heat exchanger.

- Plastic grille.

2 - PRESENTATION

2.1 - DESCRIPTION

1.3 - VOLTAGE

• Before carrying out any operation, check that the voltage indicated on the unit corresponds to the mains voltage.

• Before initiating maintenance or servicing on the installation, check that its power supply is disconnected and locked out.

1.4 - USE OF EQUIPMENT

• This device is designed for heating buildings. This appliance is not designed to be used by people (including children) whose physical, sensory or mental capacities are impaired, or who lack experience or knowledge, unless they are supervised or have received instructions on how to use the appliance by a person who is responsible for their safety. Children must be supervised to ensure that they do not play with the appliance or its accessories.

1.5 - OPERATING CONDITIONS

• Refer to the technical specifications, the nominal conditions and operating limitations in the technical manual.

PHTJ 14 PHTJ 19

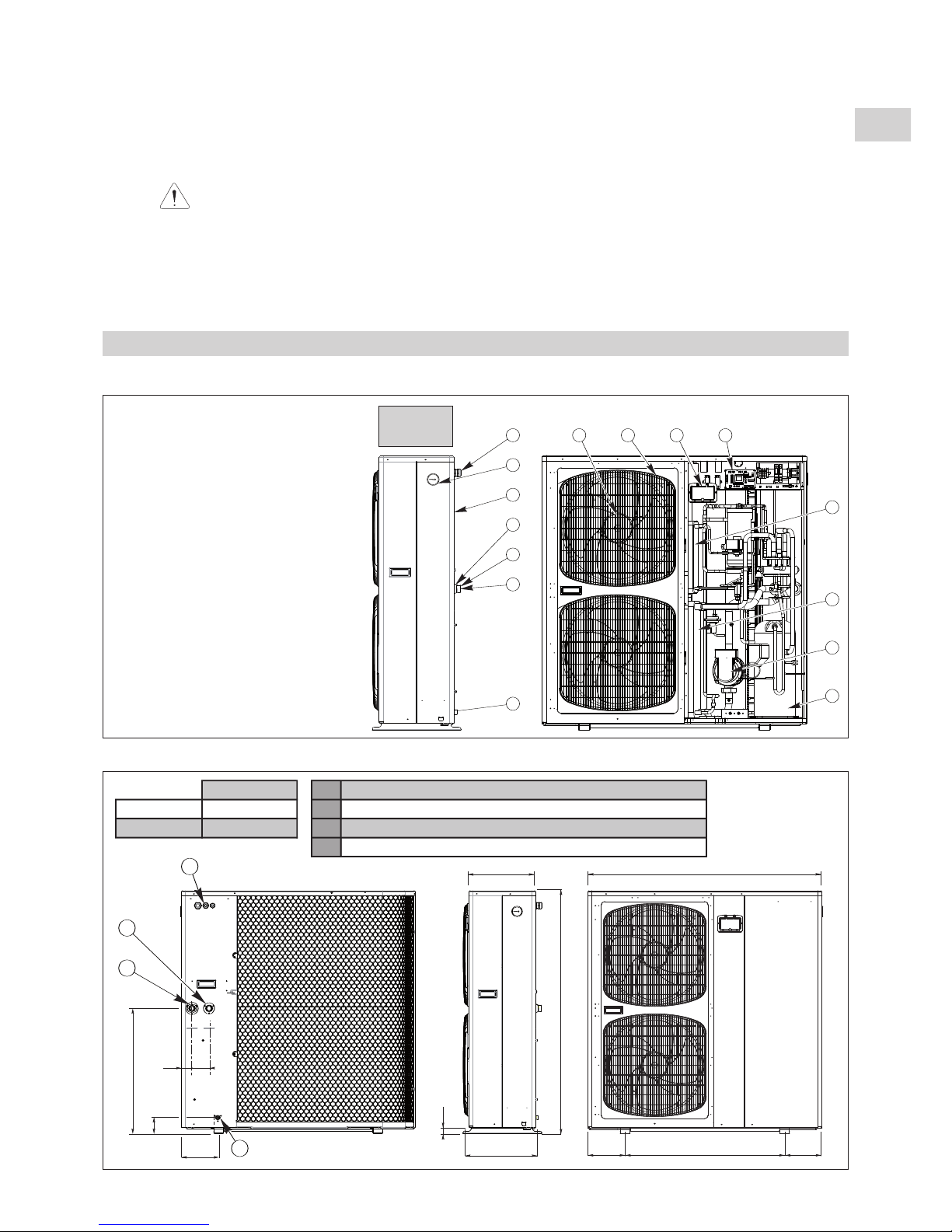

2.2 - DIMENSIONS AND WEIGHT

Weight (kg) PHTJ 14 141 PHTJ 19 145

1 Water inlet connection 1" (male) with air vent valve 2 Water outlet connection 1" (male) 3 Water circuit fill/drain - 1/2" male 4 Holes for electric cables

340

1,235

190 190810

370

1,190

185

8754

635.5

IMPORTANT

Page 4

3 - INSTALLATION

• Protection index of the unit: IP

24.

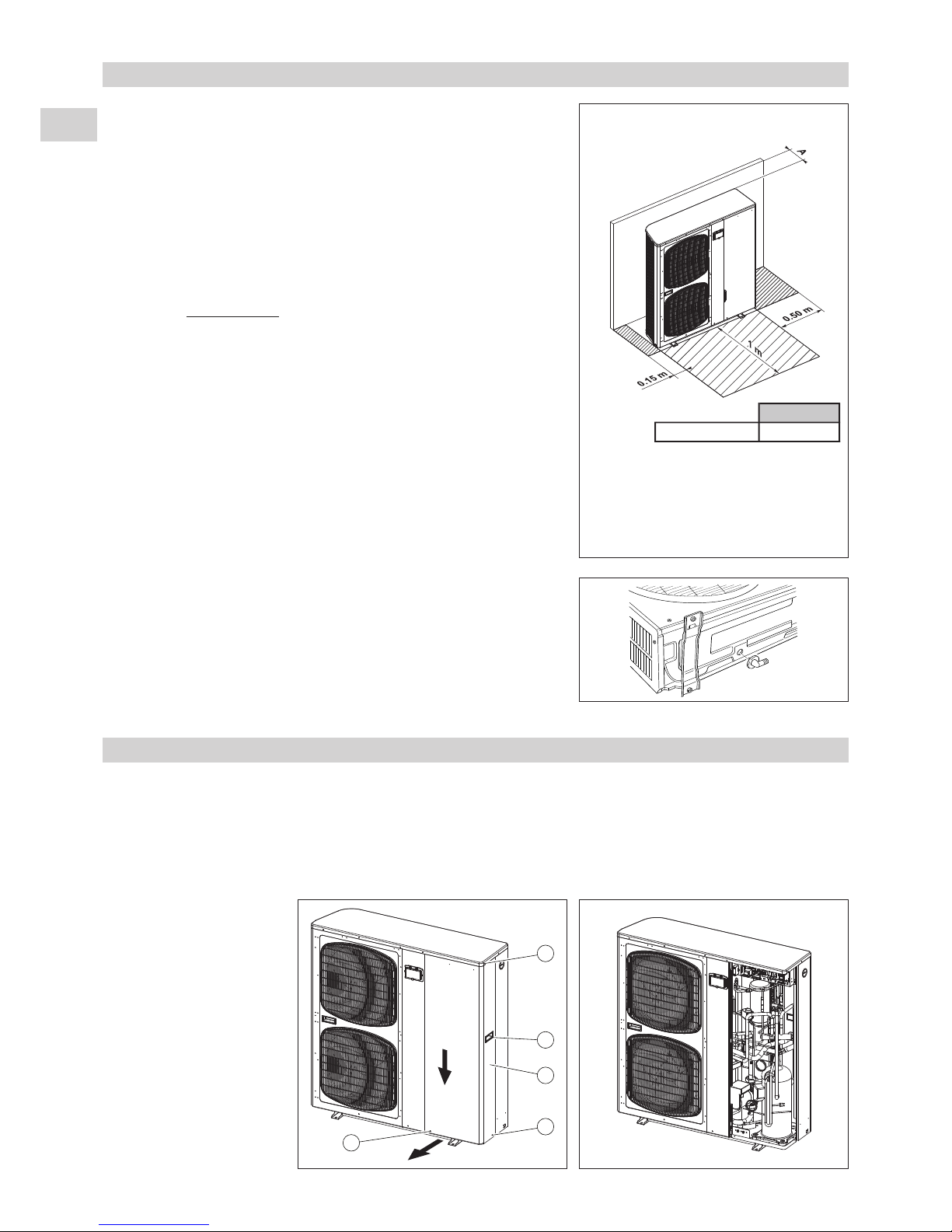

• Select the location for the unit on the basis of the following criteria:

- the unit must be installed outside,

the unit must not be installed near the following:

. sources of heat, .

combustible materials,

. return / air intake of an adjacent building.

it is necessary to make sure that the free space around the unit is

provided (see the minimum dimensions on the drawing opposite),

- installation must be simple and make maintenance work easy,

- the unit must be fixed on a hard base and must be protected from risks of flooding,

- the unit must be raised

approximately 100 mm above the ground to facilitate the drainage of condensate from the tank and to prevent it from being encased in ice, of if required to connect the drainage of condensate (see below),

- use the anti-vibration mountings supplied, making sure that they are not compressed too much when the fastening screws are tightened,

- due to disturbance which may be caused by the noise, the blown air must not be directed towards surrounding windows,

- vibrations and noise must not be transmitted to a nearby building,

avoid:

. exposure to salty air or sulphuric gas, . the proximity of the extractor fan, . projections of mud (next to a roadway or path, for example), . areas where there is strong wind blowing against the unit's air

exhaust.

DRAINAGE OF condensate

- If necessary, use the accessory part supplied to connect the condensate drainage tube.

- The base has 2 drainage holes (one on each side).

- For condensate drainage, place the splined elbow in one of the holes, depending on the unit's inclination or the preferred side, and plug the other hole with the plastic cover.

- In this case, the tank and the drain line must be protected against freezing risks.

4 - CONNECTIONS

4.1 - DISASSEMBLY

• To remove side panel A:

- remove the 3 retaining screws

- lower the panel

(1) using the handle C,

pull the lower part of the panel toward you

(2).

A (m) *

PHTJ 14/19 0.25

* This dimension does not account for the

following cases:

- Installation of the hydraulic filter with shut-off valves positioned behind the unit: provide 0.30 m.

- Installation of a heater unit behind the unit: provide 0.30 m.

Minimum space above the device: 0.70 m.

Page 5

4.2 - HYDRAULIC CONNECTION

• Connect the water pipes to the corresponding connections. See Ø and position on page 3.

• Install the hydraulic filter (supplied) on the water intake. Connect it using 2 isolation valves (not supplied) for cleaning purposes.

•

Install a shut-off valve (not supplied) if a fill / drainage connection is used.

•

CAUTION: This device is not fitted with an expansion tank or a safety valve

. These elements must be incorporated into the installation’s hydraulic circuit. For installation of an electric heating module, install this safety valve in direct connection with the module (without isolation

valve).

NOTE:

"Water connection hose" accessories may be used (refer to the accessories paragraph).

4.3 - ELECTRICAL CONNECTION

4.3.1 - GENERAL:

• The acceptable voltage variation is: ± 10% during operation.

• The electrical connection conduits must be fixed.

• Use the cable clamps at the rear of the unit and route the wires under the electric panel, at the level of the terminal strips.

• Class 1 unit.

• The electrical installation must comply with the standards and regulations applicable where the unit is being installed (in particular NF C 15-100 ≈ IEC 364).

4.3.2 - POWER SUPPLY

• The power supply must come from an isolation and electric protection device (not supplied) in accordance with existing regulations.

• Protection must be guaranteed by a

double-pole circuit breaker for single-phase devices and a three-pole circuit breaker for three-phase devices (not supplied). See ratings in the table below. Note:

The unit is designed to be connected to a power supply having a TT neutral regime (neutral to ground) or TN.S regime (to neutral) as per NF C 15-100.

POWER SUPPLY CABLE

• Cross-section: see table below.

• The sections are given as an indication only. They have to be verified and adapted, if necessary, according to the installation conditions and the standards in force.

• Make the electrical connections to the terminal board as per the electrical diagrams.

CURRENTS AND CROSS-SECTIONS

CAUTION: In the case of a three-phase power supply, prior to commissioning the unit, make sure that the phase rotation

order is correct. If the rotation order is not respected, the compressor will turn backwards (and make an abnormal noise). T

o fix this, simply invert the 2 phases.

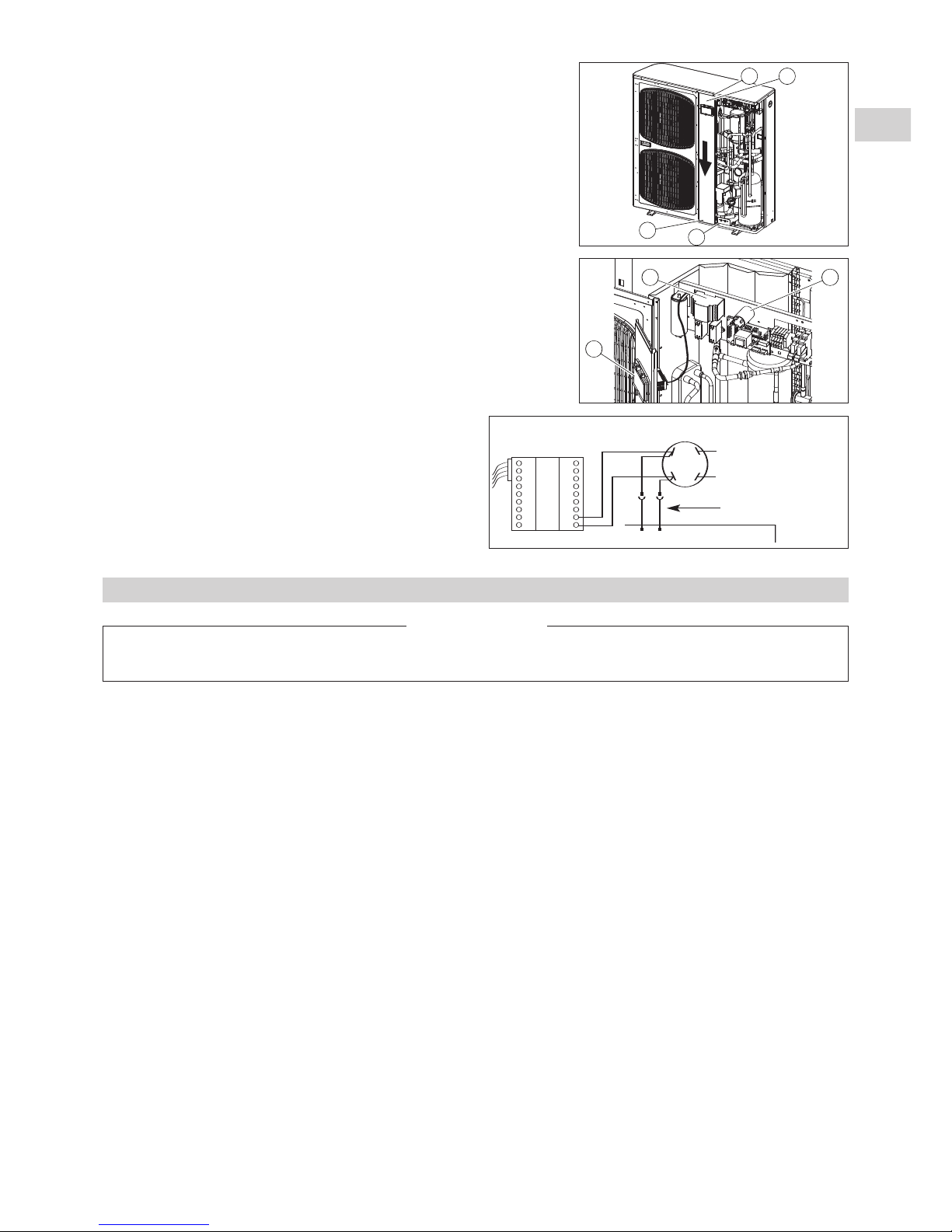

4.3.3 - CONTROL BY EXTERNAL CONTACT

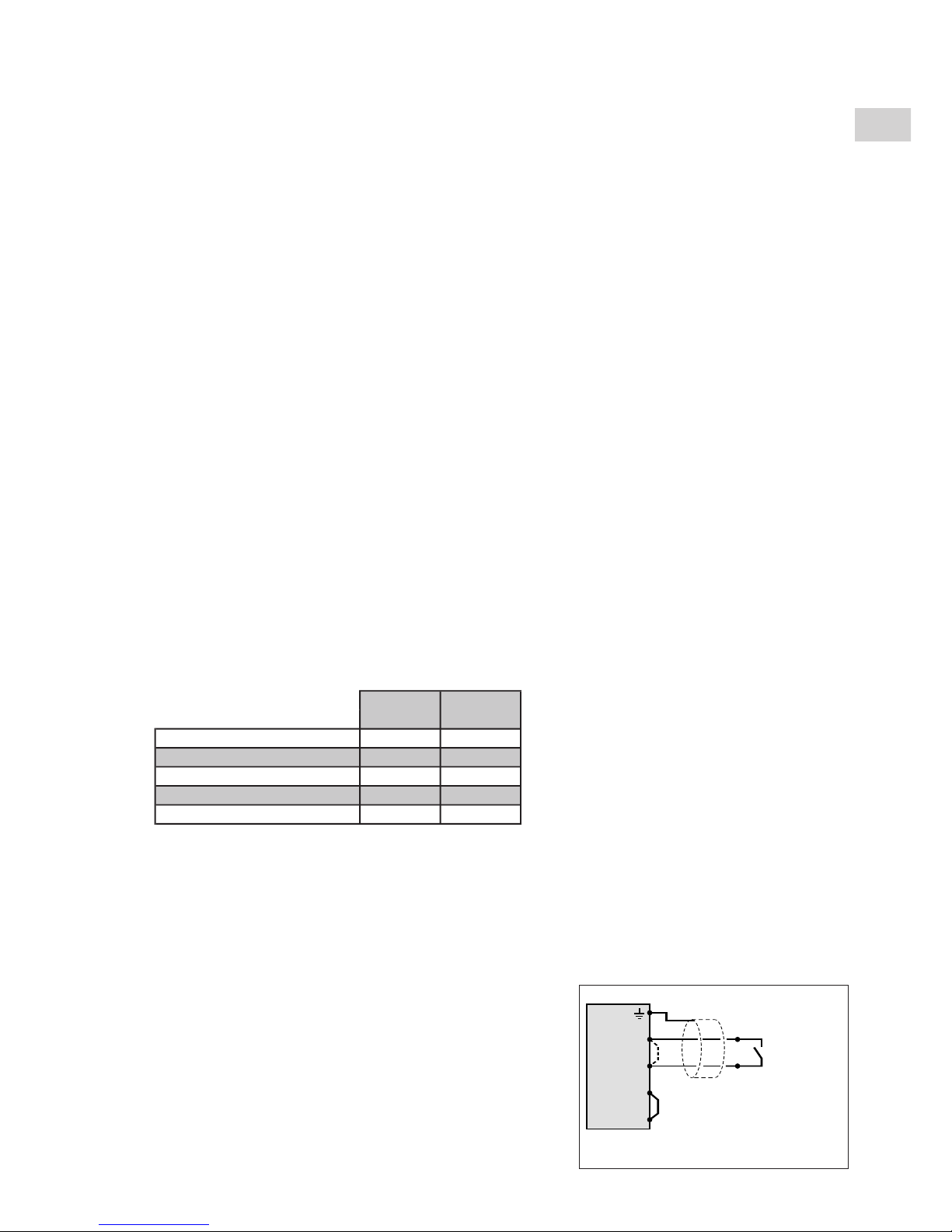

• The unit can be controlled remotely by connecting a good-quality, potential-free external contact (not supplied) (contact closed = operation authorised, contact open = stand-by).

• The On / Stand-by signal is connected to terminals 1 and 2 of the PCB located in the switch box (remove the existing bridge - see diagram).

•

The wiring of this contact must not be routed near power cables in order to avoid electromagnetic disturbances.

•

Use shielded cable with twisted pair (shielding grounded on generator side).

• Max. connection cable length: 100 m.

•

Minimum wire size: 0.5 mm

PHTJ 14 PHTJ 19

230/1/50 400/3N/50

Nominal current A 24.8 14.9 Max. current A 32 17.8 Starting current A 45 101

Protection rating A 40 20

3 G 6 mm25 G 4 mm

Cross-section of power cable

PHTJ

On/Stand-by

(k) Jumper to be removed

(

Page 6

6 4 2

3 9 1

4.3.4 - REMOTE CONTROL

• See paragraph "accessories".

4.3.5 - MISCELLANEOUS

• Alarm transfer:

Potential-free changeover contact (2A

- 250 VAC max.) available on the unit's terminal strip (terminals 5 (common), 6

and 7 of the printed circuit) for remote signaling. See schematic.

- In case of alarm:

- contact open between terminals 5 and 6,

- contact closed between terminals 5 and 7.

5 - OPERATION OF “ECH” ELECTRONIC CONTROL

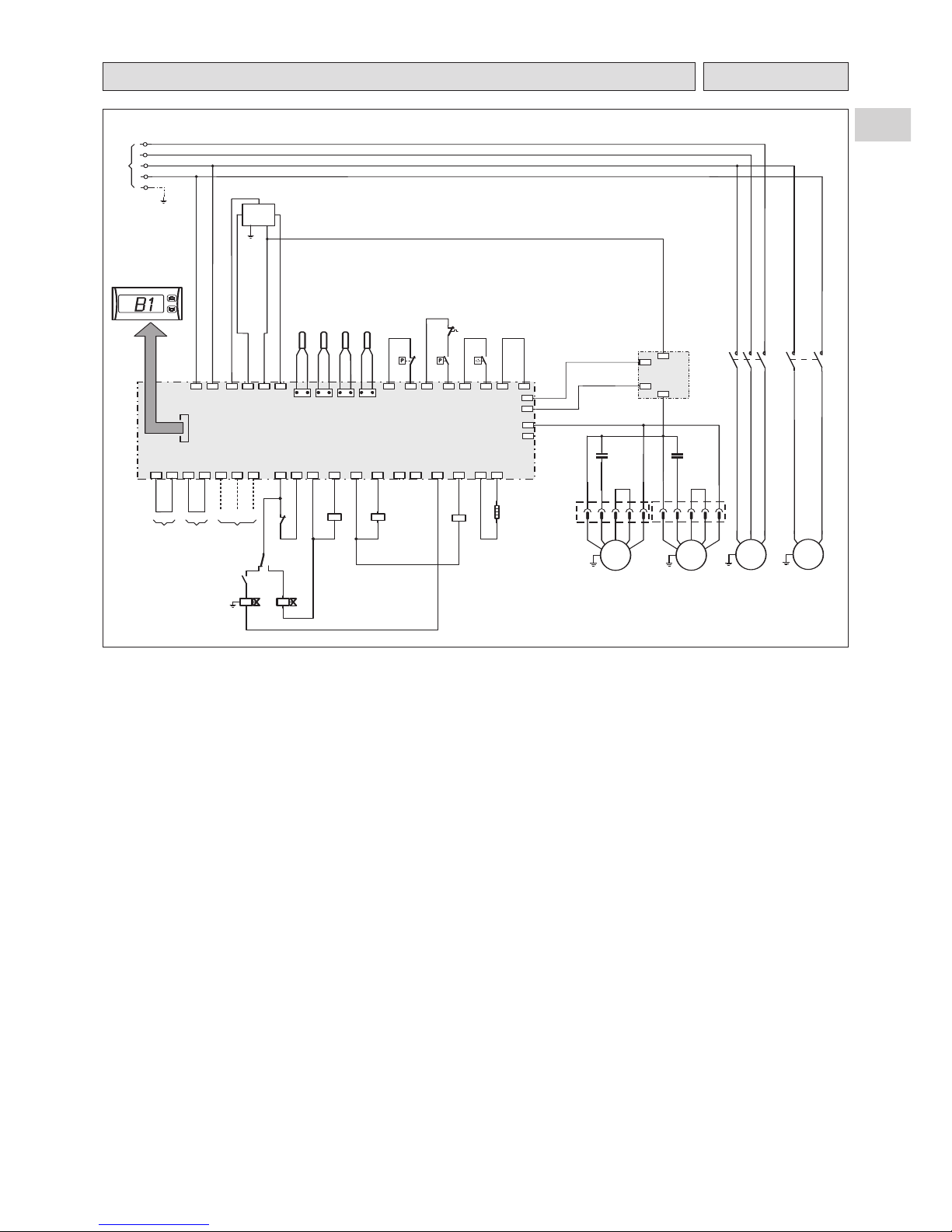

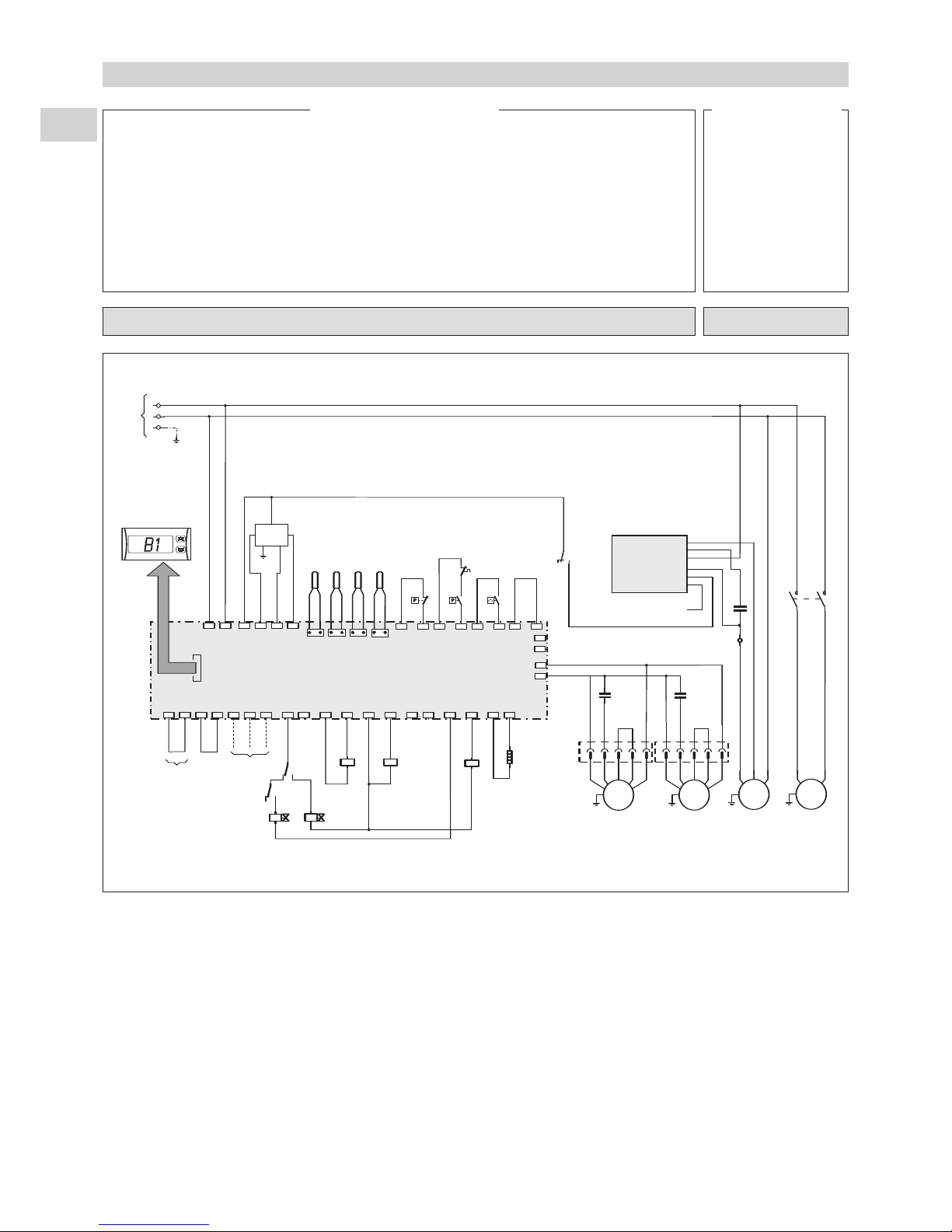

• See the wiring diagrams at the back of the manual.

5.1 - DELIVERY STATE

• The control unit is supplied fitted in the machine and factory pre-set.

•

All the connections are made except those concerning the available signals or the options.

5.2 - PRINCIPLE

• The microprocessor controls the operation of the machine and of the associated alarms.

It continuously compares the water temperature measured by the probe

SD1 and the setpoint temperature

value entered via the keyboard. Each operating request produced by the control unit is

indicated by the light (

6) (see below).

This light flashes if a safety delay is in progress. It stays on when the compressor is operating.

• The

control probe SD1 is located on the water inlet in the factory.

• The controller is connected on a printed circuit board on which the inputs and outputs are connected. On this board:

- 12 V supply transformer,

- the alarm report relay,

- the 230 V circuit fuse (4 A - 250 V - 5x20 - fast - breaking capacity: 1.5 kA).

5.3 - PRESENTATION

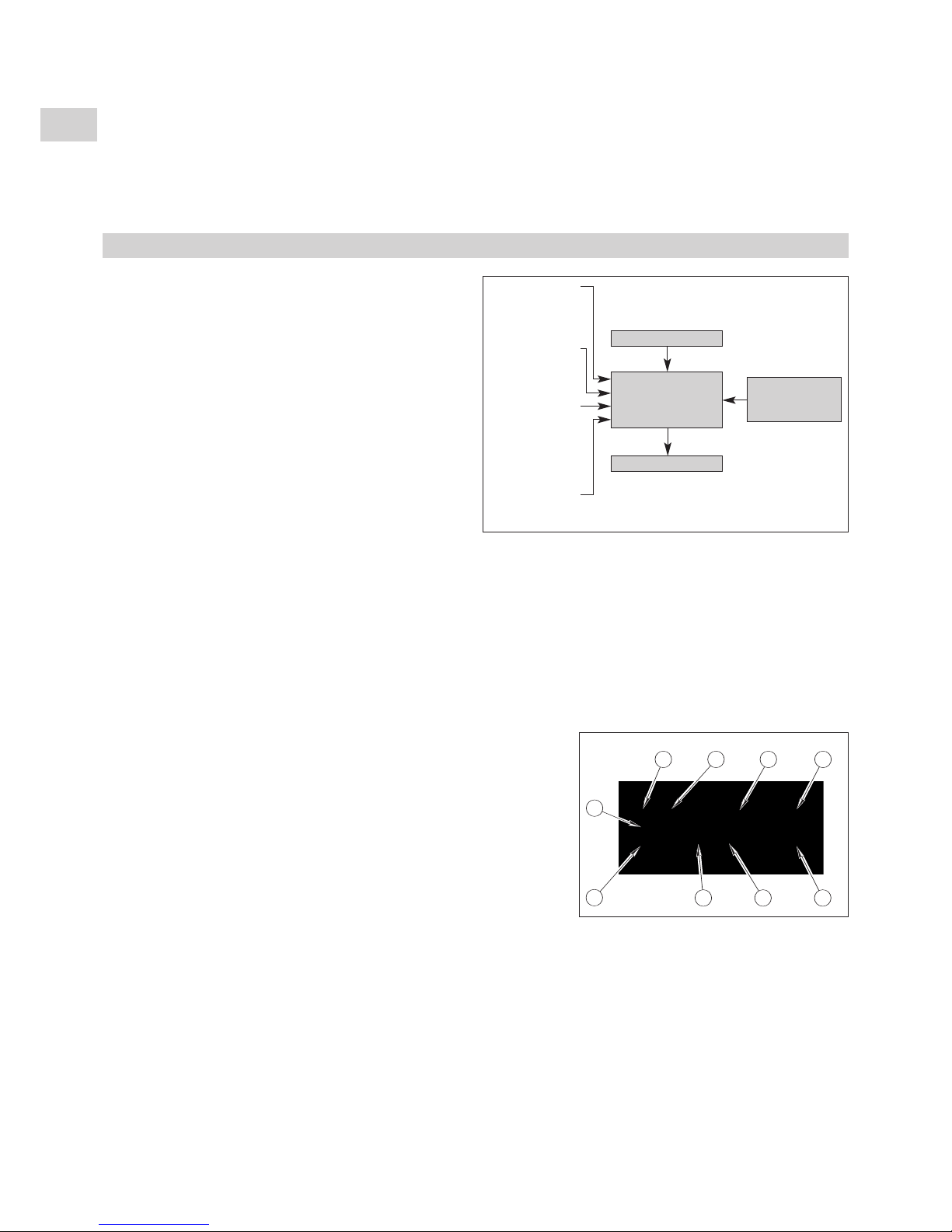

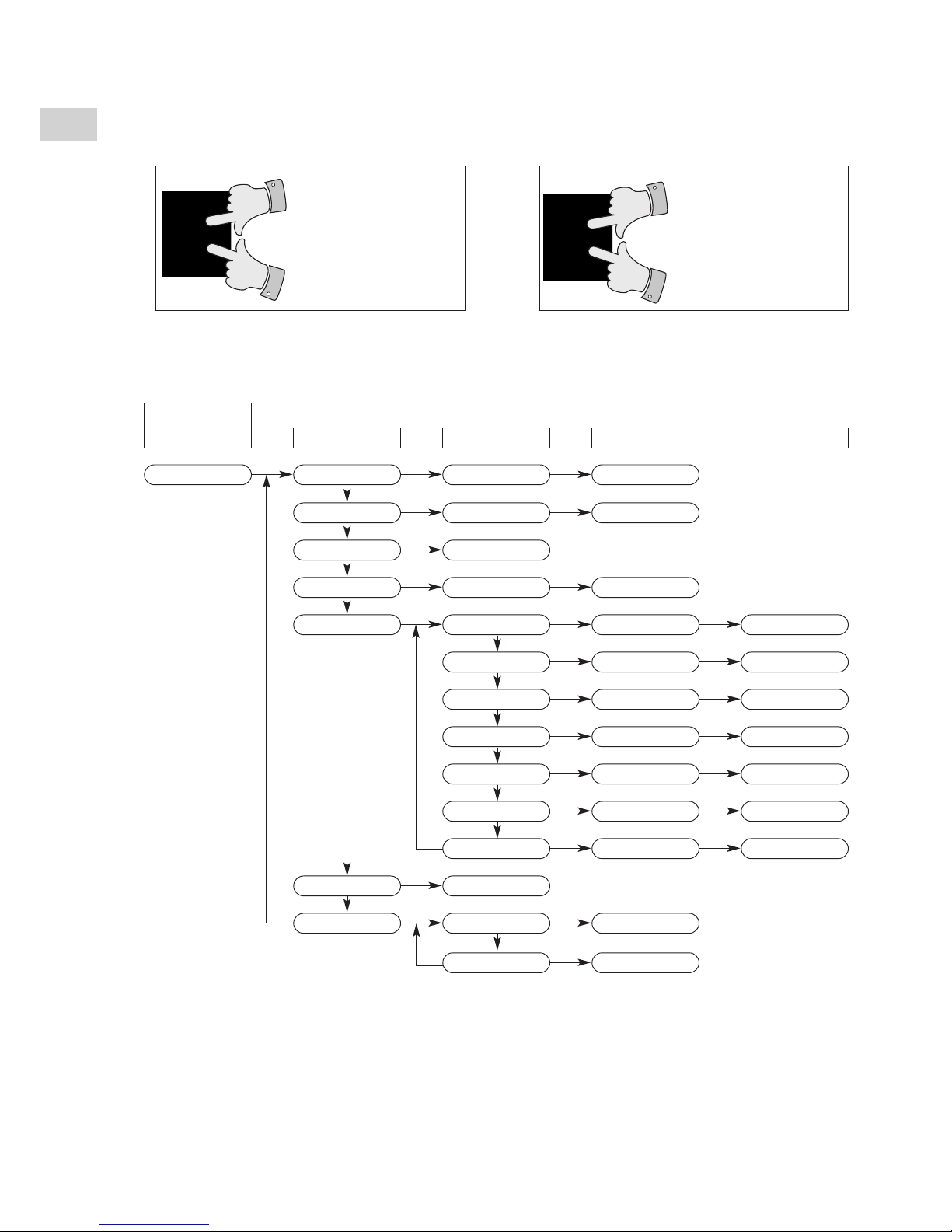

5.3.1 - DISPLAY KEYBOARD

(1) Key for:

- Local On / Off control,

- access to parameters (in combination with button (2)),

- alarm clearance,

- hour counter reset.

(2) Key for:

access to parameters (in combination with button (

1)). (3) LED display. (4) Cooling mode indicator (not used). (5) Heating mode indicator. (6) Compressor on indicator. (7) Defrosting indicator. (8) Anti-freeze on indicator. (9) Decimal point: if illuminated when the operating time is displayed, the value must be multiplied by 100.

DIGIT

AL INPUTS

12 V

SUPPL

TRANSFORMER

ACTUA

TORS

SD1 Water inlet

temperature probe

(for control)

SD2 W

ater

outlet temperature

probe

(for anti-

freeze protection)

SD3

Air heat

exchanger

temperature probe

(for defrosting and

pressure

adjustment)

SD4 Outside

temperature probe

ECH 210 BDT

CONTROLLER

AI1 AI2 AI3 AI4

Page 7

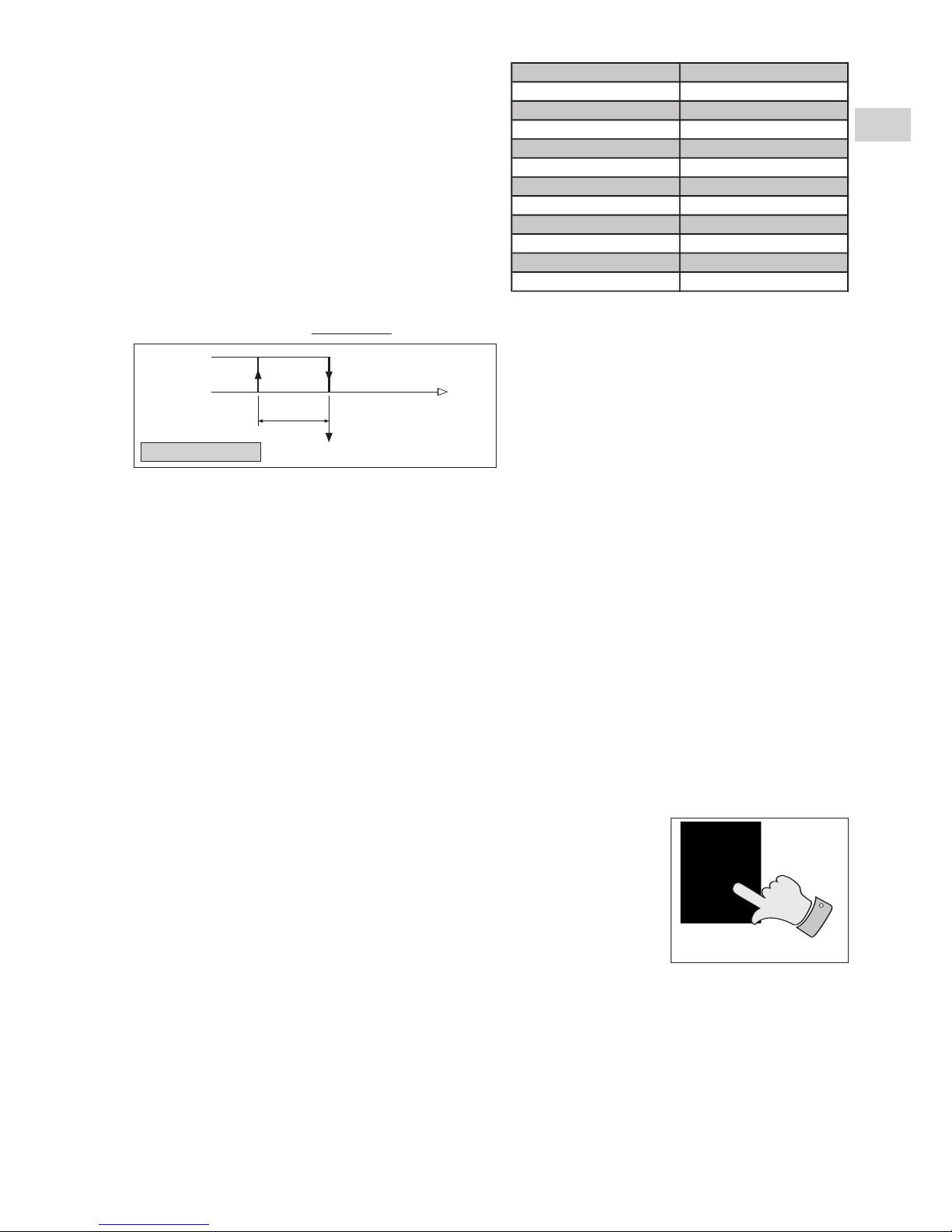

5.3.2 - CTN TYPE TEMPERATURE PROBE

• 10 kΩ at 25° C.

5.4 - OPERATING MODES

• The machine only operates in heating mode.

5.5 - STARTING

The unit is factory configured for remote control by contacts (see other possibilities in paragraph 4.3.3).

• Initial condition:

- machine hydraulically and electrically connected ready to operate,

- the remote stand-by contact is open (= stand-by).

•

Turn the installation on:

- the display comes on and shows the water temperature (read by the control probe SD1). The mode indicator lamps (4) and (5) flash to signal remote stand-by,

- the unit's circulating pump starts.

•

To start the unit:

- close the remote stand-by contact (not supplied) if connected (see paragraph 4.3.3),

- the Heating (5) indicator lights up.

- The compressor "ON" indicator light (

6) comes on if necessary (see diagram paragraph 5.4). If the light flashes, it means

that the compressor is starting required but that a safety delay is in progress. This light stays on when the compressor has started.

•

o stop the unit

- open the remote stand-by contact,

- the compressor operation indicator lamp (

6) goes out and the operating mode indicator lamps (4) and (5) flash,

- the unit's circulating pump remains in operation.

•

Complete stop:

- the unit can be completely stopped with the circulating pump shut-down by pressing and holding the ON/OFF button (1) for 2 seconds. The display unit goes blank, only the decimal indicator lamp (

9) remains illuminated.

This shut-down takes priority

Note:

Shut-down of the circulating pump is delayed 1 minute after the compressor stops.

Temperature (°C) Ohmic value (Ohm)

-20 67 740

-10 42 450 0 27 280

10 17 960 20 12 090 25 10 000 30 8 313 40 5 820 50 4 161 60 3 021 70 2 229

Compressor

control

Water temperature

Hysteresis heating mode (factory set at 4k)

Heating setpoint

Heating

2 seconds

Page 8

5.6 - PARAMETERS - DISPLAYING AND ADJUSTING

5.6.1 - GENERAL

• Parameter access is structured within a multi-level menu, see the diagram below. Simultaneously pressing the

"ON/OFF" (1) and "Mode" (2) buttons for a brief moment (less than 2 seconds) gives access to the next level. Simultaneously pressing for a long moment (longer than 2 seconds) turns you to the previous level.

• Button (

1) or button (2) is used to scroll through the entries ("Label") within the same level or to increase or decrease a

parameter value.

5.6.2 - PARAMETER ACCESS DIAGRAM

t < 2 sec. --> Upper level

t > 2 sec. --> Return to the

previous level

(*) Accessible to qualified personnel only after entering the password (PSS).

Note 1: Indicator lamps (6), (7), (8) flash when levels 1 and above are accessed. Note 2:

The normal display (level 0) returns automatically after 5 minutes if no buttons are pressed.

Level 0

Normal display

Level 1 Level 2 Level 3 Level 4

Temperature S1 Alarm active

Set value SET

Heating setpoint HEA

Setpoint value

Temperature probes TP

Probe code t01…t04 Temperature value

Alarms Err Alarm code E00...

Digital inputs Id (*) Input code 01… input status

Parameters PAr (*) Config. para. CnF

Parameters codes H01…

Parameter value

Compressor parameter CP

Parameters codes C01…

Parameter value

Fan parameter FAn

Parameters codes F01…

Parameter value

Alarm parameter ALL

Parameters codes A01…

Parameter value

Pump para. PUP

Parameters codes P01…

Parameter value

Frost. para. Fro

Parameters codes r01…

Parameter value

Defrost. para. dFr

Parameters codes d01…

Parameter value

Password PSS Password value

Hour counters OHr Comp. counter 1 OH1 Counter value

Pump counter OHP Counter value

Page 9

5.6.3 - SET POINT ADJUSTMENT

• Simultaneously press buttons (1) and (2) for at least 2 seconds, "SET" is displayed.

•

Press the 2 buttons again, "

HEA" is displayed.

• Simultaneously press the 2 buttons again for 2 seconds. The setpoint value appears. If needed, modify the value with the buttons.

• Press the 2 buttons simultaneously to validate the setpoint.

• Return to the normal display by simultaneously pressing the 2 buttons for more than 2 seconds.

Reminder: control on the installation return temperature.

Note: For substitution and boiler overhaul applications, the configuration and parameterisation of each machine are factory-set for optimum operation.

5.6.4 - DISPLAY OF TEMPERATURES, ALARMS, AND HOUR COUNTERS

Accessible directly via the menu, see diagram 5.6.2.

• Temperatures "TP": Displays the values indicated by each temperature prob:

t01: water inlet temperature. t02: water outlet temperature. t03: Air exchanger temperature. t04: outside air temperature.

• Alarms "

Err":

Displays the list of all current alarms (scroll through the alarm messages with buttons (

1) and/or (2)).

• Hour counters "

OHr": Displays the operating time of the compressor ("OH1") and the circulating pump ("OHP"). The counter can be reset by a long press (> 2 seconds) on button (1) when the counter value is displayed.

5.6.5 - ACCESS TO THE TECHNICAL PARAMETERS "PAr"

For qualified personnel after entering the password "PSS". Any incorrect adjustment may lead to serious malfunctions.

• Go to the “PSS” section in the menu. Briefly and simultaneously press buttons (1) and (2). The "---" message appears. Enter the password using buttons (1) and (2) and validate it by simultaneously pressing buttons (1) and (2). It is now possible to enter the parameters section "

PAr ". CAUTION: After modifying one or more technical parameters, the controller must be turned off then back on again to reset it with its new parameters.

5.7 - ALARMS

• When an alarm occurs:

- the alarm report is activated,

- the corresponding code flashes on the display unit. See table,

the unit stops if necessary (see table below).

• Remedy the fault.

IMPORTANT NOTE: All work must be carried out by qualified, experienced personnel.

• The alarms are normally reset automatically.

•

Caution: the alarms:

- HP,

- LP (low pressure),

- Anti-freeze,

- W

ater flow rate,

have an event counter that shifts to

manual reset if the alarm occurs several times during the last hour.

• The "refrigerating circuit" alarm is reset manually.

• The alarms are reset by briefly pressing the "

ON/OFF" button (1).

• When the alarm is cleared:

- the alarm report is de-activated,

- the display reverts to normal (not flashing),

- the machine can re-start (if it was stopped).

•

Special features of the alarm relay:

the potential-free change-over contact (2

- 230 V

AC max.), on the wiring board's terminal strip, originates from the relay

located on this board,

- the relay is actuated in the absence of an alarm (contacts: 5/6 closed and 5/7 open),

in the case of alarm or power supply loss, the relay is released (contacts: 5/6 open and 5/7 closed).

PHTJ14

PHTJ19 PHTJ14 PHTJ19

HEA Heating set point

55° C 48° C 20 to 58° C 20 to 52° C

Adjustment ange

Factory setting

Parameters

Code

Page 10

SUMMARY TABLE OF ALARMS

(*) The insufficient heat exchange alarm is activated if the temperature difference between the water inlet and outlet (after the

compressor has been operating for a few minutes) is insufficient (coolant charging problem, three-phase compressor running “backwards”, jammed switch-over valve, faulty temperature probe, problem on the equipment; etc.).

5.8 - SPECIAL OPERATING FEATURES

• Reduction of water volume

- the controller uses a self-adapting algorithm that analyses the compressor's operating time and can indicate deviations of the current set point (and the corresponding hysteresis) in case of too short operating times (in order to extend the operating times),

- for special applications, in which case the dimensioning of the unit and the circuit are carefully designed, this function can be deactivated. To do this, set the parameter

C08 to 0 in the "CP" section of the parameterization menu.

• Defrosting:

- if the temperature detected by probe SD3 drops below the frosting temperature (dependent of the outside temperature), a time counter is activated. This counter records the operating time in icing conditions. This status is indicated by the flashing frosting indicator lamp (

7),

- after an accumulated operating time of 30 minutes, a defrosting operation is launched (inversion of the refrigerating cycle and shut-down of the fan) until the temperature detected by probe SD3 rises above the end of frosting temperature threshold. The defrosting phase is indicated by the (steady) illumination of indicator lamp (

7).

Note:

The ventilation can restart after defrosting is completed to prevent excessive pressure build-up. For special climatic conditions, the factory-set time counter value of 30 minutes can be adjusted.

To do this, modify

parameter

d03 in the defrosting section "dFr".

• Evaporation pressure regulation:

- the ECH controller is equipped with a variable voltage regulator for the fan's power supply,

based on temperature information (read by the

SD3 probe located on

the evaporator), the controller varies the supply voltage of the electric fan according to the diagram opposite.

•

Circulating pump control

- the pump is actuated when the unit operating or in stand-by mode,

- the pump is stopped when the unit is completely

OFF. The shut-down

of the pump is delayed 1 minute after the compressor stops.

An anti-

freeze device forces pump operation if the outside temperature (probe

SD4) drops below 0

°C,

- an "anti-sticking" device forces pump operation (if stopped) for 3 seconds every 24 hours.

Alarm Code Inhibition delay

Compressor

stop

Fan stop

Circulating pump

shut-down

Remarks

Fault on probe 1 E40 X X

Fault on probe 2 E06 X X

Fault on probe 3 E07 X X

Fault on probe 4 E42 X X

Forced circulating pump operation

H.P. (high pressure) E01 X

B.P. (low pressure) or maximum discharge temperature

E02 30'' at start-up X X

From probe

SD2 (water outlet).

Threshold: 4° C

10'' in operation X X X

If passage

30'' at start-up reset

manual

5 min at start-up Manual reset.

+ Inactive in

5 min in operation anti-freeze phase.

Configuration error

Anti-freeze (water heat exchanger)

Water flow rate

Insufficient heat exchange (*)

Max. water temperature

E45XX

E46

30''

From probe SD1 (water inlet). Threshold: 70° C adjustable (A25)

E41

E44

E05

60''XX

Max. voltage (100%)

Min. voltage (60%)

Evaporation temperature

Page 11

• Condensate tank heating cord control:

Actuated if the outside temperature (probe

SD4) drops below 0

°C (regardless the unit's operating mode). The "heating

element" indicator light (8) illuminates.

•

Operating mode selection:

The regulator is configured in the factory for On/Stand-by

control using an external contact

- In stand-by mode, the circulating pump continues to function.

Note:

It is possible to shut the unit down completely (circulating pump stopped) by pressing the ON/OFF button (1).

- This configuration is adapted to system applications,

- For other applications, complete shutdown (“

OFF”) by remote contact (instead of stand-by) can be achieved by

modifying the configuration.

In the "

CnF" configuration section, change the parameter H20 from 7 (remote stand-by) to 4 (remote OFF). In the

case of remove "OFF" complete shut-down, the display is of

f. Only the decimal indicator lamp

flashes.

The stand-by mode is indicated by the extinction of the heating mode indicator lamps.

•

Pre-ventilation:

- Generally speaking, in order to condition the air heat exchanger, the fan always starts at full speed a few seconds before the compressor.

•

Anti short-cycle time delays:

- The compressor control features a time delay system in order to respect:

• a maximum number of starts per hour (10),

• a minimum stop time.

•

Cycle inversion valve:

- The valve is actuated during defrost cycles.

•

Control hysteresis:

- See the operating diagrams in paragraph 5.4.

- The factory setting for hysteresis in heating mode is 4k. Modification is possible. To do this, modify parameter

C04

(heating hysteresis) in the compressor section "CP".

6 - ACCESSORIES

6.1 - WATER CONNECTION HOSES

• Length 1 m, insulated, female:

- Ø 1” code 70600055 for PHTJ 14 and 19.

6.2 - CONDENSATE TANK HEATING CORD KIT (if not factory installed)

• Code 70200055.

• This accessory is recommended for units installed in where defrosting is frequent.

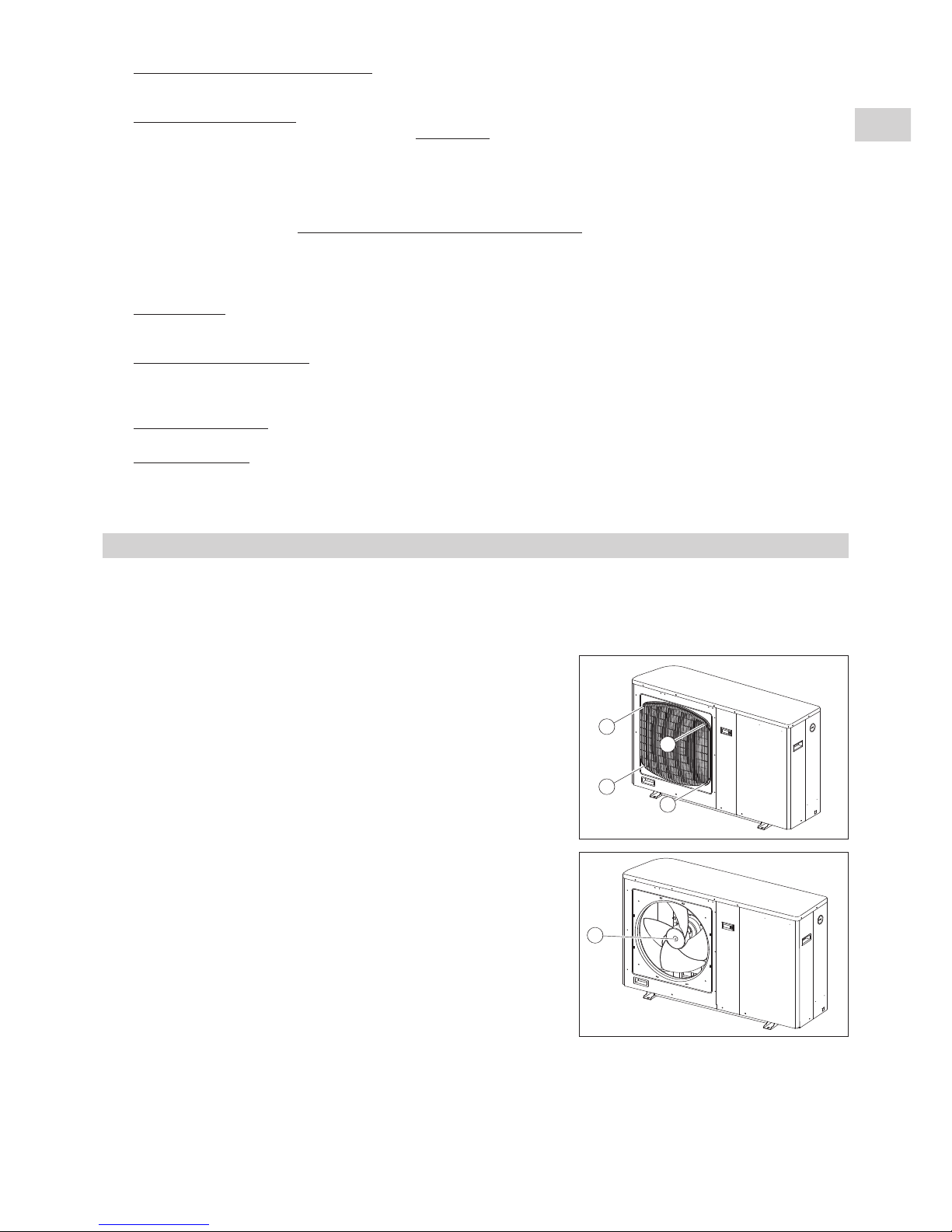

• Remove the fan's protective grille (4 screws

A).

• Remove the fan blade (nut

B).

Page 12

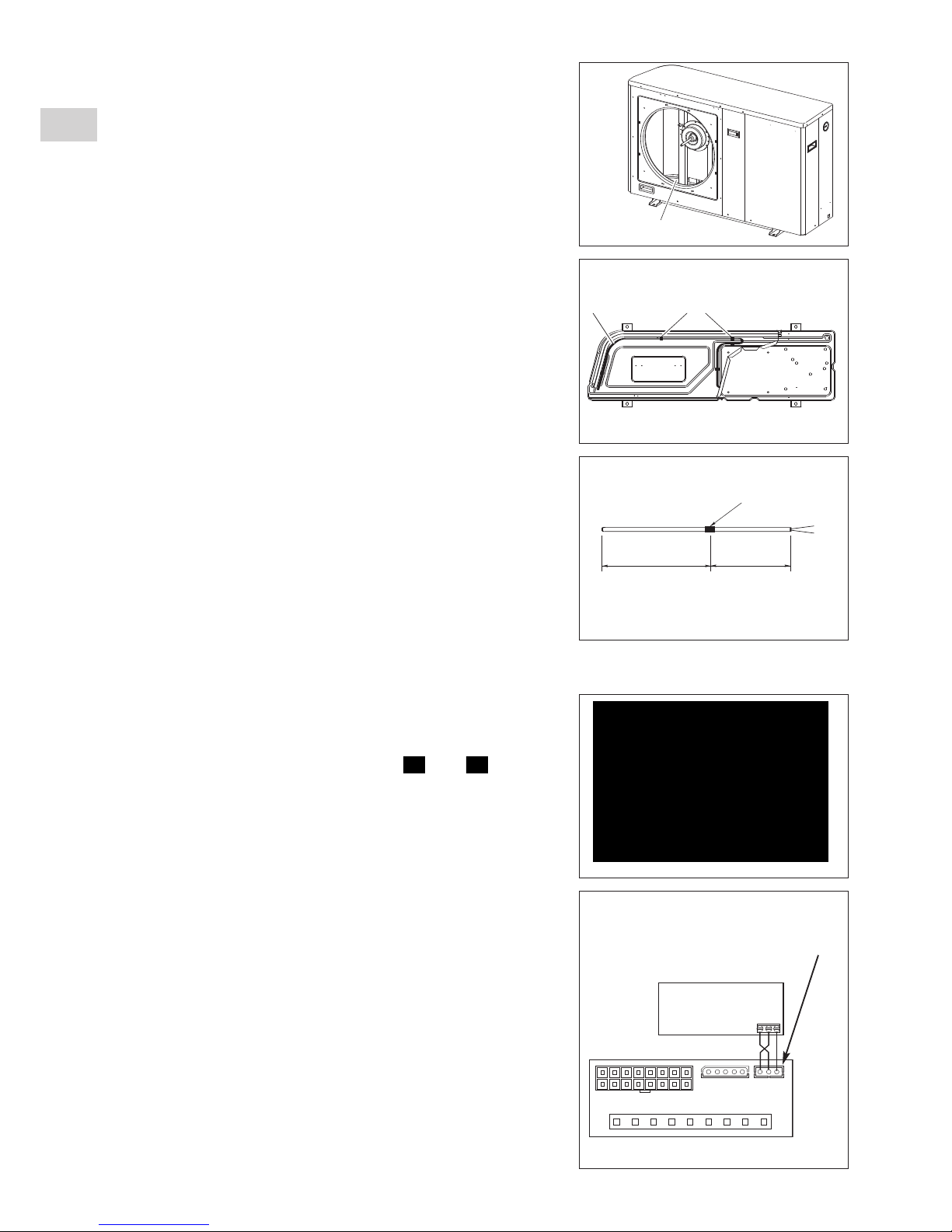

• Place the heating element in the bottom of the tank, as close as possible to the fin tube exchanger

• Position the isolated end on the left side and along the exchanger to the back of the separating panel. Form a loop and return along the separating panel.

•

Use the aluminium adhesive strip to hold the heating cord in place, or as required, metal clips welded in the tank.

•

Pass the end of the heating cord through the grommet in the separating panel with the fan wires.

•

Connect the two wires on the printed circuit board between terminals 47 and 48.

Note: The wire heats up over a length of 1.5 m. Be sure not to place the heating portion in contact with the wires. Make sure that the fan blade cannot come into contact with the

heating element.

6.3 - REMOTE CONTROL

• Code 70250055.

• The functions and display are exactly the same as those on controller.

• The only difference concerns the buttons and which are separated by the “

ON/OFF” and “Mode” buttons.

•

Reminder: the parameters are accessed by simultaneously pressing the “

ON/OFF” and “Mode” buttons.

•

The controller is designed to be installed inside sheltered rooms.

•

Connection:

the control is delivered with a connecting it to the “ECH” controller

- to extend the link, max. length: 100 meters, use twisted pair shielded cable with a cross section of at least 0.5 mm

(shielding of the ground

on unit side).

CAUTION: Do not route this cable near power cables. The operation must take performed with the unit's power supply off

and locked out.

1.50 m

1 m

Heating cord location

Heating cord Adhesive strips or clips

Black identifying mark

Heating portion Non-heating

portion

CONN A

CONN B

SERIAL KEYB

24 25 26

Connector: blue wire

= terminal 24 red wire = terminal 25 black wire = terminal 26

Back of “ECH” controller

REMOTE CONTROL

Page 13

7 - STARTING

Before carrying out any work on the installation, make sure that it is switched off and that access to it is prevented.

Any work must be carried out by personnel qualified and authorised to work on this type of machine.

IMPORTANT NOTE

6.4 - RS 485 COMMUNICATION INTERFACE (MODBUS protocol)

• Code 70250056.

•

After removing the side panel, also remove the front panel

A (remove the

three retaining screws

B and pull the panel downwards).

• Secure the communication interface

C on the left-hand side of the electric

panel.

• Connect the cable (supplied) between the communication interface

C and

the controller D.

• Connect the module's 230 VAC power supply in the following manner with the black and blue wires delivered with the accessory.

• Connection of the communication bus and protocol detail: refer to the corresponding technical file.

N2 U2

BUS ADAPTER

B A

E Filter

C interface

Blue (N2)

Black (U2)

Existing wires to disconnect from the filter and to connect to the wires of the accessory

Blue (N2)

Black (U2)

Wiring board

7.1 - CHECK

• That hydraulic connections are properly tight and that the hydraulic circuit functions correctly:

- purge of circuits,

- position of valves,

- hydraulic pressure (2 bar).

• That there are no leaks.

• That the machine is stable.

• That the power cables are well fixed to their connection terminals. Terminals that are poorly tightened may cause overheating and malfunctions.

• That the electric cables are well insulated from any sections of sheet metal or metal parts which could damage them.

• That probe, control and power cables are properly separated.

• That the machine is earthed.

• That there are neither tools nor other foreign objects in the units.

7.2 - WATER QUALITY

• In order for the heat pump to operate under good conditions and provide optimum performance, it is essential to ensure that the system’s water circuit is clean. If the water circuit becomes clogged, this will significantly affect the machine’s performance.

The circuit must therefore be cleaned with suitable products in compliance with current standards as soon as

it is installed, both for new and renovation work. W

e recommend the use of products which are compatible with all metals and synthetic materials and approved by of

ficial

bodies. Recommendations regarding water quality:

- PH: 6 to 9

- TH: 10 to 20°F

Dry material in suspension: < 2 g/l

Granulometry: < 0.4 mm

- Chloride: 50 mg/l maximum

Conductivity: 50 to 500

µS/cm

- Resistivity: 1 to 10 kΩ

- Fibre: no fibres

Any disorder which may occur on our machines due to the poor quality of the fluid in the installation will not be covered by the TECHNIBEL warranty.

Page 14

7.3 - STARTING-UP THE UNIT

• Power up the unit.

• Turn the water on.

• Start the appliance (see paragraph 5).

CAUTION: On three-phase units, make sure that the phase rotation order is correct. If the rotation order is not respected, the compressor will turn backwards (and make an abnormal noise). T

o fix this, simply invert the 2 phases.

7.4 - CHECKS TO BE MADE

• Water flow-rate.

• The generator is equipped with 1/4 SAE pressure taps at the circulator inlet and outlet, to enable the pressure drop to be measured using a hydraulic pressure gauge. Use the circulator curves in paragraph 10 to find the water flow rate.

Note: In order for the device to operate correctly, there must be a constant flow of water. It must correspond to the data

given in the circulator graphs (in paragraph 10), particularly for the high temperature application (water outlet greater than 55° C).

• Hydraulic circuit pressures.

• Control system operation.

• Sealing of the cooling circuit (according to the decree of 7th May 2007).

IMPORTANT: If antifreeze is added (monopropylene glycol), a minium rate of 15% to 20% is needed to avoid any risk of corrosion.

• The LP pressure switch cuts at 0.5 bar.

• The HP pressure switch cuts at 29 bar.

8 - MAINTENANCE INSTRUCTIONS

8.1 - MAINTENANCE

All equipment must be properly maintained in order to provide optimum performance over time. Faulty maintenance can result in the cancellation of the product guaranty. Depending on the products, maintenance operations consist in the cleaning of filters (air, water), internal and external exchangers, casings, and the cleaning and protection of condensate tanks.

Treating odours and the

disinfection of room surfaces and volumes also contributes to the cleanliness of the air breathed by users.

•

Carry out the following operations at least once a year (the frequency depends on the installation and operating conditions):

- check for leaks on the refrigerating circuit (according to the order of 7th May 2007).

- check for traces of corrosion or oil stains around the refrigerating components,

inspect the composition and the condition of the coolant and check that it does not contain traces of refrigerating fluid,

- cleaning the exchangers,

- checking the wear parts,

checking the operating instructions and points,

- check the safety devices: particularly check that the high and low-pressure controllers are properly connected on the refrigerating circuit and that they disengage the electrical circuit if triggered,

- de-dusting the electrical equipment cabinet,

checking that the electrical connections are secure,

- checking the earth connection,

- check the hydraulic circuit (clean the filter, water quality, purge, flowrate, pressure, etc.).

• Before carrying out any work on the installation, make sure that it is switched off and that access to it is prevented.

• Also check the discharge of the compressor capacitor for the single-phase voltages.

• Any work must be carried out by personnel qualified and authorised to work on this type of machine.

• Prior to all maintenance and servicing on the refrigerating circuit, one must first shut down the unit then wait a few minutes before installing temperature or pressure sensors. Certain equipment, such as the compressor and piping, may reach temperatures above 100°C and high pressures may lead to serious burns.

IMPORTANT NOTE

Page 15

100

110

120

2 2.543 3.5

100

120

1 1.5 2 2.5 3

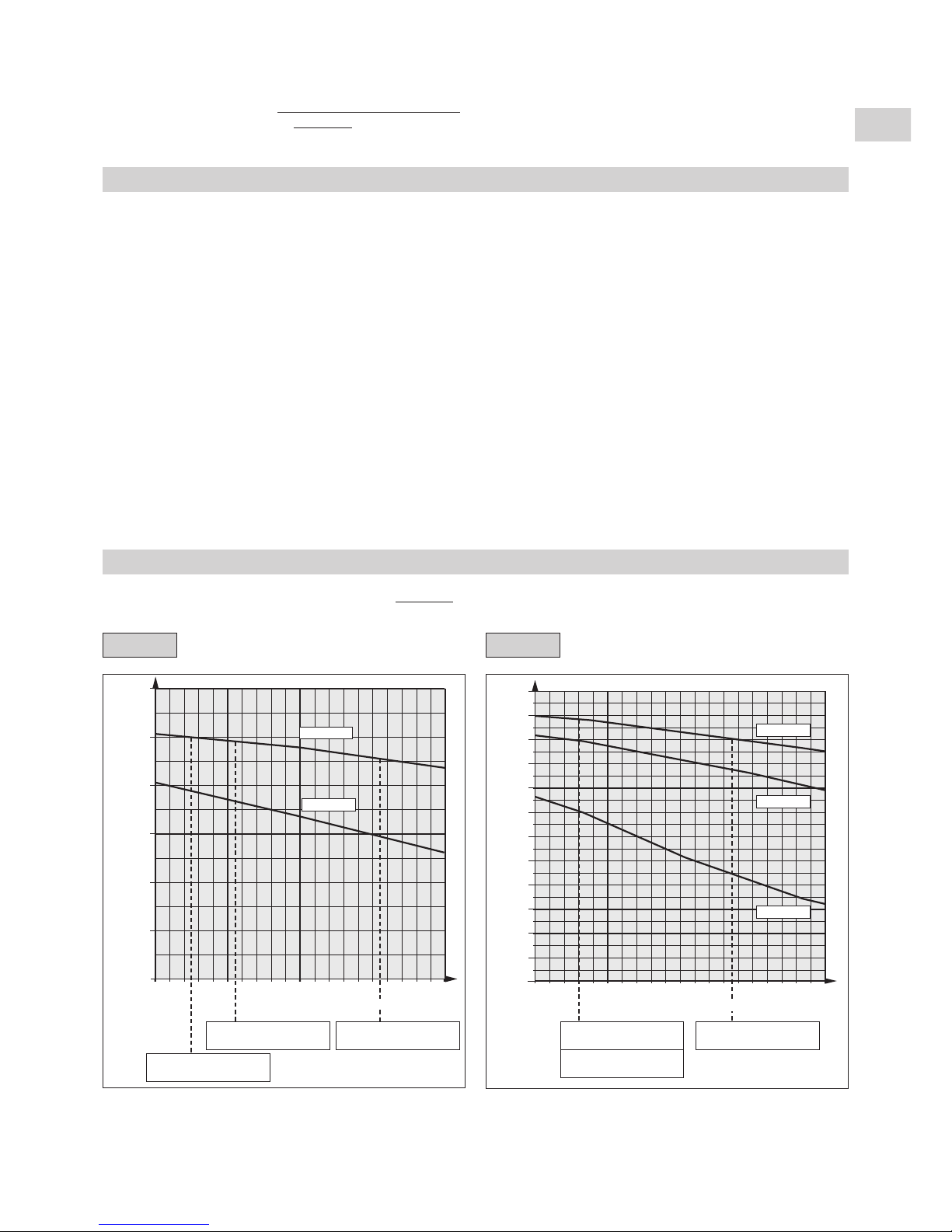

10 - CIRCULATOR CURVES

PHTJ 14

CIRCULATOR SXM 32 - 80

PHTJ 19

CIRCULATOR SXM 32 - 80 OEM

Manometric delivery head (kPa) of the circulator

Speed 1

Speed 2

Speed 1

Manometric delivery head (kPa) of the circulator

Speed 2

Speed 3

2.55 nominal at water

temperature 40/45 °C

1.55 nominal at water temperature 47/55 °C

Note: The water flow is selected according to the maximum

water outlet temperature at which the pump will operate (depending

on the application).

9 - TROUBLESHOOTING

• All maintenance and servicing operations on the refrigerating circuit must be conducted in accordance with standard trade practices and safety rules: recovery of the refrigerant, inert shielded (nitrogen) brazing, etc…

• All brazing operations must be conducted by qualified welders.

• For equipment loaded with R 407 C, refer to the specific instructions at the beginning of the installation manual.

• This unit is equipped with pressurised equipment, for example piping. Use only genuine parts listed in the spare parts list for replacing defective refrigeration components.

• Pipes may only be replaced by copper tubing in compliance with standard NF EN 12735-1.

•

Leak detection, in the case of pressure testing:

- Never use oxygen or dry air, as the risk of fire or explosion is present.

- Use dehydrated nitrogen or a nitrogen and refrigerant mix indicated on the manufacturer's plate.

- For units equipped with pressure gauges, the test pressure must not exceed the gauges' maximum allowable pressure rating.

• All part replacement with other than genuine parts, all modifications of the refrigerating circuit, all replacement of refrigerant by a fluid other than that indicated on the manufacturer's plate, all use of the unit outside the application limits defined in the documentation, shall result in the cancellation of PED EC marking compliance which shall fall under the liability of the individual who carried out these modifications.

• The technical information, relative to the safety requirements of the various applicable directives, is indicated on the manufacturer's plate of the unit and mentioned on the 1

page of this manual.

1.25 nominal at water temperature 55/65 °C

ater flowrate (m

/h)

8.2 - GENERATOR SHUT-DOWN DURING WINTER

• 2 possibilities:

1) Drain the unit and disconnect the power supply.

Unit full of water and power on

: as the unit is equipped with an antifreeze device which actuates the water circulating

pump when the temperature drops below zero, it is imperative to ensure that the water can circulate within the unit.

3,36 nominal at water temperature 40/45 °C

2.3 nominal at water

temperature 47/55 °C

2.3 maxi. at water outlet

temperature 60° C

Water flowrate (m3/h)

Page 16

11 - PRESSURE TABLES

PHTJ 14

45° C 55° C 65° C 45° C 55° C 65° C

-16 1.31 1.34 19.04 23.30

-15 1.40 1.43 19.04 23.30

-14 1.49 1.52 19.03 23.30

-13 1.57 1.60 19.03 23.30

-12 1.66 1.69 1.76 19.03 23.30 28.18

-11 1.74 1.77 1.84 19.03 23.30 28.14

-10 1.83 1.86 1.93 19.03 23.29 28.12

-9 1.96 1.99 2.06 19.02 23.29 28.10

-8 2.08 2.11 2.18 19.02 23.29 28.10

-7 2.18 2.24 2.31 19.02 23.29 28.10

-6 2.28 2.35 2.42 19.02 23.29 28.09

-5 2.34 2.46 2.53 19.02 23.29 28.09

-4 2.41 2.57 2.64 19.01 23.29 28.08

-3 2.47 2.68 2.75 19.01 23.29 28.07

-2 2.54 2.78 2.86 19.01 23.29 28.07

-1 2.60 2.89 2.97 19.01 23.29 28.06 0 2.67 3.00 3.08 19.01 23.28 28.05 1 2.73 3.11 3.19 19.00 23.28 28.05 2 2.85 3.22 3.30 19.00 23.28 28.04 3 3.04 3.40 3.47 19.04 23.28 28.03 4 3.28 3.58 3.64 19.09 23.28 28.01 5 3.52 3.77 3.81 19.13 23.28 28.00 6 3.74 3.95 3.98 19.17 23.28 27.98 7 3.90 4.08 4.15 19.18 23.28 27.97 8 4.03 4.22 4.28 19.17 23.22 27.95 9 4.14 4.29 4.41 19.14 23.17 27.94

10 4.21 4.37 4.54 19.10 23.11 27.92 11 4.28 4.45 4.67 19.06 23.05 27.90 12 4.35 4.53 4.80 19.03 23.00 27.89 13 4.43 4.61 4.93 18.99 22.94 27.87 14 4.50 4.68 5.06 18.95 22.89 27.85 15 4.57 4.76 5.19 18.92 22.83 27.83 16 4.64 4.84 5.32 18.88 22.77 27.82 17 4.71 4.92 5.45 18.84 22.72 27.80 18 4.79 5.00 5.58 18.80 22.66 27.78 19 4.86 5.07 5.71 18.77 22.61 27.77 20 4.93 5.15 5.80 18.73 22.55 27.75 21 4.98 5.20 5.85 18.73 22.54 27.71 22 5.03 5.24 5.88 18.73 22.52 27.67 23 5.09 5.29 5.90 18.72 22.51 27.63 24 5.14 5.33 5.92 18.72 22.49 27.59 25 5.19 5.38 5.94 18.72 22.48 27.55 26 5.24 5.42 5.96 18.72 22.47 27.51 27 5.29 5.47 5.98 18.72 22.45 27.47 28 5.34 5.52 6.00 18.72 22.44 27.43 29 5.40 5.56 6.01 18.71 22.42 27.39 30 5.45 5.61 6.03 18.71 22.41 27.35 31 5.50 5.65 6.05 18.71 22.40 27.31 32 5.55 5.70 6.07 18.71 22.38 27.27 33 5.60 5.74 6.09 18.71 22.37 27.23 34 5.65 5.79 6.11 18.71 22.36 27.19 35 5.71 5.84 6.13 18.70 22.34 27.15 36 5.76 5.88 6.15 18.70 22.33 27.11 37 5.81 5.93 6.17 18.70 22.31 27.07 38 5.86 5.97 6.19 18.70 22.30 27.03 39 5.91 6.02 6.2 18.70 22.29 26.99 40 5.96 6.06 6.22 18.70 22.27 26.95 41 6.02 6.11 6.24 18.69 22.26 26.91 42 6.07 6.15 6.26 18.69 22.24 26.87 43 6.12 6.20 6.28 18.69 22.23 26.83

Low pressure

High pressure

Water outlet temperature

Outdoor dry bulb temperature (°C)

Page 17

PHTJ 19

45° C 55° C 60° C 45° C 55° C 60° C

-16

1.31 1.34 18.74 22.72

-15

1.40 1.43 18.74 22.72

-14

1.49 1.52 18.73 22.72

-13

1.52 1.59 18.73 22.72

-12

1.56 1.63 18.73 22.72

-11

1.59 1.66 18.73 22.72

-10

1.63 1.70 1.74 18.73 22.71 25.50

-9

1.71 1.78 1.82 18.72 22.71 25.48

-8

1.78 1.85 1.88 18.72 22.71 25.48

-7

1.82 1.93 1.99 18.72 22.71 25.48

-6

1.92 2.02 2.08 18.72 22.73 25.50

-5

1.98 2.11 2.17 18.72 22.75 25.52

-4

2.05 2.20 2.26 18.71 22.77 25.53

-3

2.11 2.29 2.35 18.71 22.79 25.55

-2

2.18 2.37 2.44 18.71 22.81 25.57

-1

2.24 2.46 2.53 18.71 22.83 25.59

2.29 2.55 2.62 18.71 22.84 25.61

2.35 2.64 2.71 18.70 22.83 25.63

2.47 2.73 2.80 18.75 22.88 25.64

2.66 2.89 2.95 18.84 22.90 25.66

2.90 3.05 3.10 18.94 22.92 25.67

3.14 3.22 3.25 19.03 22.94 25.68

3.36 3.38 3.40 19.12 22.96 25.69

3.52 3.54 3.55 19.18 22.98 25.70

3.65 3.72 3.78 19.17 22.92 25.68

3.76 3.79 3.91 19.14 22.87 25.67

3.83 3.87 4.04 19.10 22.81 25.65

3.90 3.95 4.17 19.06 22.75 25.63

3.97 4.03 4.30 19.03 22.70 25.62

4.05 4.11 4.43 18.99 22.64 25.60

4.12 4.18 4.56 18.95 22.59 25.58

4.19 4.26 4.69 18.92 22.53 25.56

4.26 4.34 4.82 18.88 22.47 25.55

4.33 4.42 4.95 18.84 22.42 25.53

4.41 4.50 5.08 18.80 22.36 25.51

4.48 4.57 5.21 18.77 22.31 25.50

4.55 4.65 5.30 18.73 22.25 25.48

4.60 4.70 5.35 18.73 22.24 25.44

4.65 4.74 5.38 18.73 22.22 25.40

4.71 4.79 5.40 18.72 22.21 25.36

4.76 4.83 5.42 18.72 22.19 25.32

4.81 4.88 5.44 18.72 22.18 25.28

4.86 4.92 5.46 18.72 22.17 25.24

4.91 4.97 5.48 18.72 22.15 25.20

4.96 5.02 5.50 18.72 22.14 25.16

5.02 5.06 5.51 18.71 22.12 25.12

5.07 5.16 5.53 18.71 22.11 25.08

5.12 5.20 5.55 18.71 22.10 25.04

5.17 5.25 5.57 18.71 22.08 25.00

5.22 5.29 5.59 18.71 22.07 24.96

5.27 5.34 5.61 18.71 22.06 24.92

5.33 5.39 5.63 18.70 22.04 24.88

5.38 5.43 5.65 18.70 22.03 24.84

5.43 5.48 5.67 18.70 22.01 24.80

5.48 5.52 5.69 18.70 22.00 24.76

5.53 5.57 5.70 18.70 21.99 24.72

5.58 5.61 5.72 18.70 21.97 24.68

5.64 5.66 5.74 18.69 21.96 24.64

5.69 5.70 5.76 18.69 21.94 24.60

5.74 5.75 5.78 18.69 21.93 24.56

Low pressure

High pressure

Water outlet temperature

Outdoor dry bulb temperature (°C)

Page 18

12 - WIRING DIAGRAMS

A1 Interface panel A2 Compressor starter A3 Fan speed control B1 Controller C1 M1 capacitor C11 M11 capacitor C2 M2 capacitor C3 Filter E1 High pressure switch

E2 Low pressure switch

EV1 Electrovalve (reversal) EV2 Electrovalve (injection

circuit)

F2 Safety thermostat J1 Water differential pressure

switch

KM2 Contactor compressor KM3 Circulator contactor M1 Fan M11 Fan

M2 Compressor M3 Circulating pump R1 Anti-freeze resistor

(accessory)

SD1 Water inlet probe SD2 Water outlet probe SD3 Condensation or defrosting

temperature probe

SD4 Outside air probe

Symbols of the components

B Blue G Grey M Brown L Purple P Pink N Black R Red W White

Colours of the wires

KM3

3231P356

L(BP)

G(HP)

5251

SD 4

SD 3

SD 2

SD 1

4847

KA2

434241

KA4

KM3

2524

N XP

CX1

M11

CX2

C11

SD1

SD2 SD3 SD4

A2A2

R RC L1

S ON N

KA4

EV1

KA2

EV2

KA4

ELECTRICAL DIAGRAM - PHTJ 14 - 230/1/50 10 05 840 - 02

Power supply

230/1/50+T

Filter

ater inlet

Water outlet

Defrosting

External

On / Of

Alarm

Anti-freeze

resistor

Fan 1 Fan 2

Compressor

Circulator

Controller

Interface panel

Starter

Terminal 23 on A1

Page 19

ELECTRICAL DIAGRAM - PHTJ 19 - 400/3N/50 10 05 841 - 02

KM3

135

KM2

T2 T3

123

3231P356

L(BP)

G(HP)

5251

SD 4

SD 3

SD 2

SD 1

4847

KA2

434241

KM2

KM3

2524

KM2

N XP PE

CX1

M11

CX2

C11

SD1

SD2 SD3

CN1

SD4

W XP V XP

EV2

KM2

EV1

KA2

Power supply

400/3N/50+T

Filter

Water inlet

Water outlet

Defrosting

External

On / Of

Heat / cool

Alarm

Anti-freeze

resistor

Fan 1 Fan 2

Compressor

Circulator

Controller

Interface panel

Page 20

Page 21

Page 22

Par souci d'amélioration constante, nos produits peuvent être modifiés sans préavis.

Due to our policy of continuous development, our products are liable to modification without notice.

Per garantire un costante miglioramento dei nostri prodotti, ci riserviamo di modificarli senza preaviso.

En el interés de mejoras constantes, nuestros productos pueden modificarse sin aviso prévio.

Unsere Produkte werden laufend verbessert und können ohne V

orankündigung abgeändert werden.

Com o objectivo de uma melhoria constante, os nossos produtos podem ser modificados sem aviso prévio.

R.D. 28 Reyrieux BP 131 01601 Trévoux CEDEX France Tél. 04 74 00 92 92 - Fax 04 74 00 42 00

el. 33 4 74 00 92 92 - Fax 33 4 74 00 42 00

R.C.S. Bourg-en-Bresse B 759 200 728

Technibel PHTJ 14/19, PHT 13, PHT 16 Installation Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
