TECHNICAL DATA & SERVICE MANUAL

INDOOR UNIT:

MPAF188R5TAA MPAF188C5TAA MPAF228R5TAA MPAF228C5TAA

0.8180.536.1 October 2008

Product Code No.

MPAF188R5TAA 38.7104.033

HEAT PUMP MODELS COOLING MODELS

MPAF228C5TAA 38.7104.038

SPLIT SYSTEM AIR CONDITIONER

MPAF228R5TAA 38.7104.034 MPAF188C5TAA 38.7104.037

Model No.

IMPORTANT! Please read before installation

This air conditioning system meets strict safety and operating standards. For the installer or service person, it is important to install or service the system so that it operates safely and efficiently.

For safe installation and trouble-free operation, you must:

• Carefully read this instruction booklet before beginning.

• Follow each installation or repair step exactly as shown.

• Observe all local, state and national electrical codes.

• Pay close attention to all warning and caution notices given in this manual.

•The unit must be supplied with a dedicated electrical line.

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

If necessary, get help

These instructions are all you need for most installation sites and maintenance conditions. If you require help for a special problem, contact our sale/service outlet or your certified dealer for additional instructions.

In case of improper installation

The manufacturer shall in no way be responsible for improper installation or maintenance service, including failure to follow the instructions in this document.

SPECIAL PRECAUTIONS

• During installation, connect before the refrigerant system and then the wiring one; proceed in the reverse orden when removing the units.

When wiring

ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH. ONLYA QUALIFIED, EXPERIENCED ELECTRICIANS SHOULD ATTEMPT TO WIRE THIS SYSTEM.

• Do not supply power to the unit until all wiring and tubing are completed or reconnected and checked, to ensure the grounding.

• Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram and these instructions when wiring. Improper connections and inadequate grounding can cause accidental injury and death.

• Ground the unit following local electrical codes.

• The Yellow/Green wire cannot be used for any connection different from the ground connection.

• Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible fire hazard.

• Do not allow wiring to touch the refrigerant tubing, compressor, or any moving parts of the fan.

• Do not use multi-core cable when wiring the power supply and control lines. Use separate cables for each type of line.

When transporting

Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp edges or thin aluminium fins on the air conditioner can cut your fingers.

When installing... ... In a ceiling or wall

Make sure the ceiling/wall is strong enough to hold the unit-weight. It may be necessary to build a strong wooden or metal frame to provide added support.

... In a room

Properly insulate any tubing run inside a room to prevent "sweating", which can cause dripping and water damage to walls and floors.

... In moist or uneven locations

Use a raised concrete base to provide a solid level foundation for the outdoor unit. This prevents damage and abnormal vibrations.

... In area with strong winds

Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable air baffle.

... In a snowy area (for heat pump-type systems)

Install the outdoor unit on a raised platform that is higher than drifting snow. Provide snow vents.

When connecting refrigerant tubing

• Keep all tubing runs as short as possible.

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the flare and union tubes before connecting them; screw by hand and then tighten the nut with a torque wrench for a leak-free connection.

• Check carefully for leaks before starting the test run.

NOTE:

Depending on the system type, liquid and gas lines may be either narrow or wide. Therefore, to avoid confusion, the refrigerant tubing for your particular model is specified as narrow tube for liquid, wide tube for gas.

When servicing

• Turn the power OFF at the main power board before opening the unit to check or repair electrical parts and wiring.

• Keep your fingers and clothing away from any moving parts.

• Clean up the site after the work, remembering to check that no metal scraps or bits of wiring have been left inside the unit being serviced.

• Ventilate the room during the installation or testng the refrigeration system; make sure that, after the installation, no gas leaks are present, because this could produce toxic gas and dangerous if in contact with flames or heat-sources.

WARNING

CAUTION

WARNING

Page

1. SPECIFICATIONS

1-1 Unit specifications

1-2 Major Component specifications

1-3 Other Component specifications

2. DIMENSIONAL DATA

3. PERFORMANCE DATA

3-1 Air Throw Distance Chart

4. ELECTRICAL DATA

4-1 Electric Wiring Diagram

4-2 Wiring System Diagrams

5. FUNCTION

5-1 Cool Mode Operation

5-2 Heat Mode Operation

5-3 Auto (cool/heat) Mode Operation

5-4 Dry Mode Operation

5-5 Fan Mode Operation

5-6 Auto Fan Speed

5-7 Forced Mode

5-8 Protection Operations in Cool and Dry Modes

5-9 Protection Operation in Heat Mode

5-10 I FEEL Function

5-11 NIGHT Function

5-12 Diagnostic

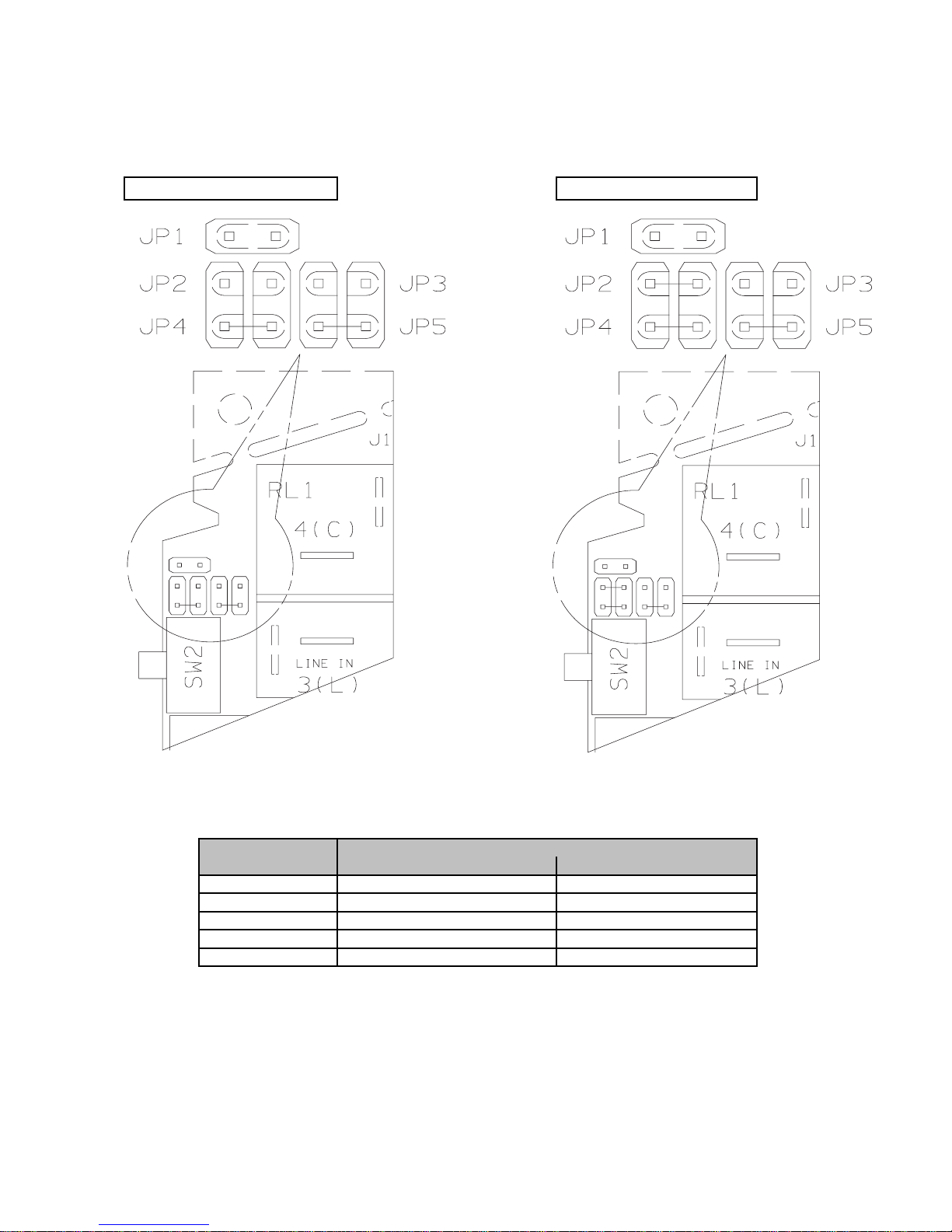

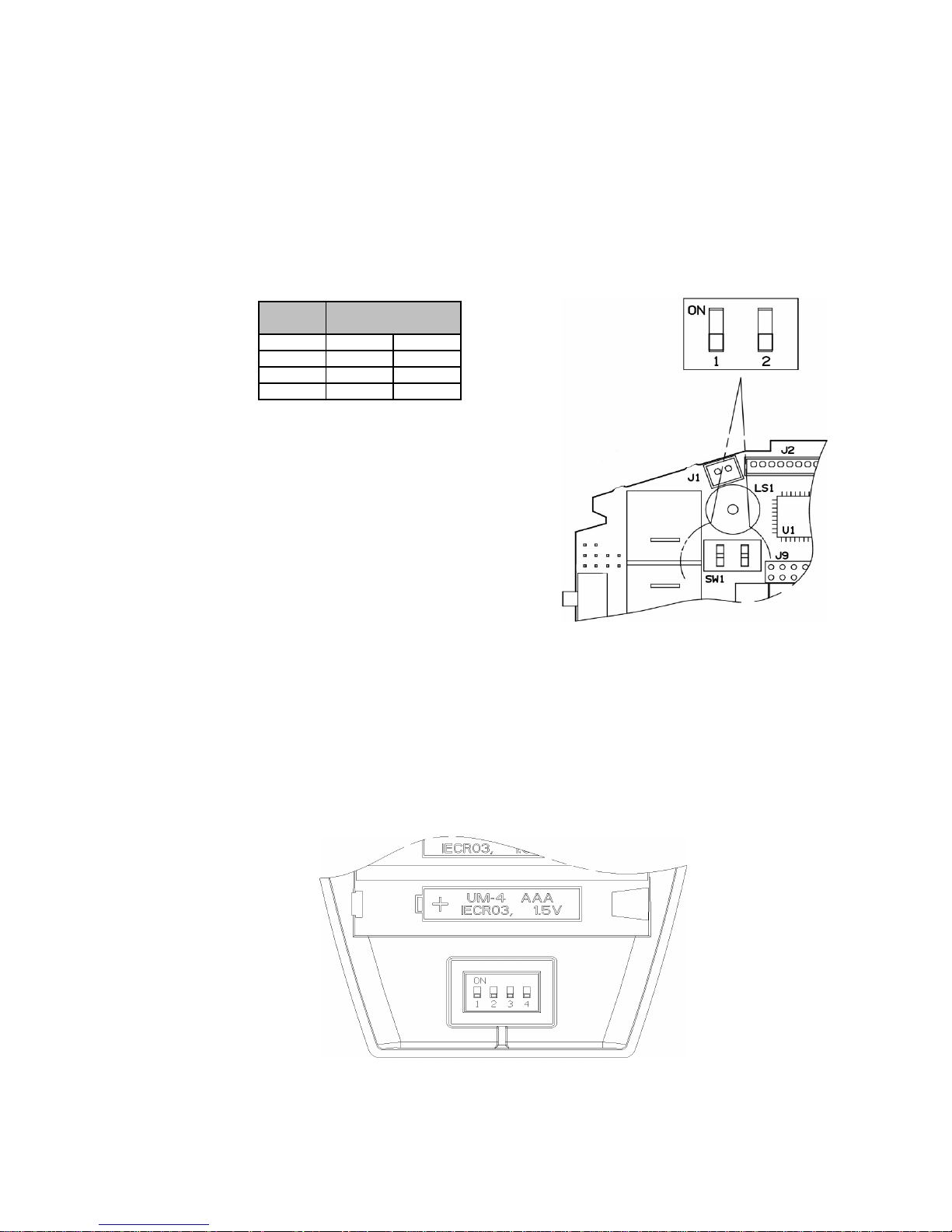

5-13 Jumpers Configuration

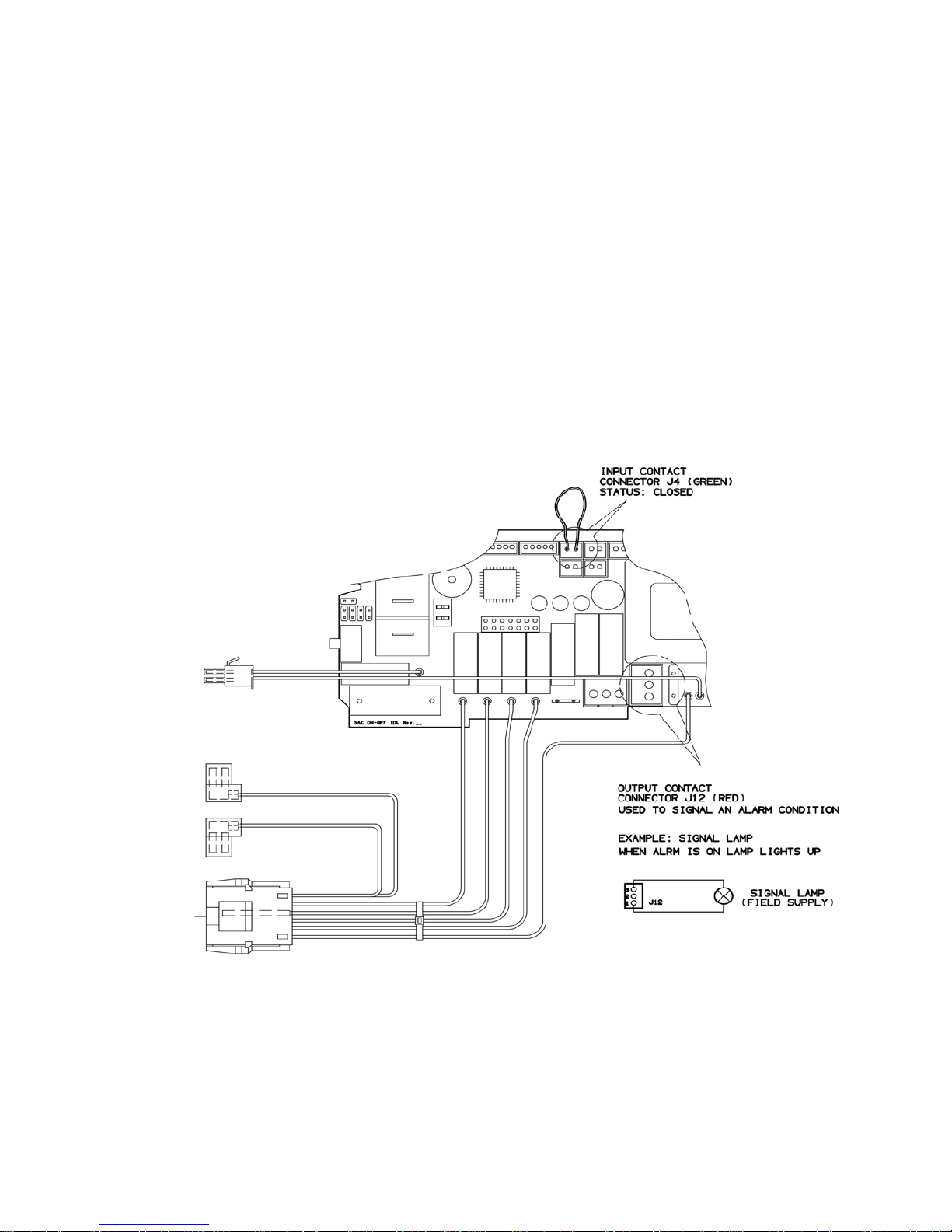

5-14 Contacts for Building Automation

5-15 Maintenance

6. TROUBLESHOOTING

6-1 Check before and after troubleshooting

6-2 Circuit Breaker Trips or Fuse Blows

6-3 Circuit Breaker in several minutes after turning air conditioner

6-4 Unit and Compressor do not run

6-5 Some parts of the Air Conditioner do not operate

6-6 Air Conditioner operates, but abnormalities aer observed

6-7 Poor Cooling or Heating

6-8 Excessive Cooling or Hating

6-9 If a Sensor is defective

7. CHECKING ELETRICAL COMPONENTS

7-1 Measurement of Insulation Resistance

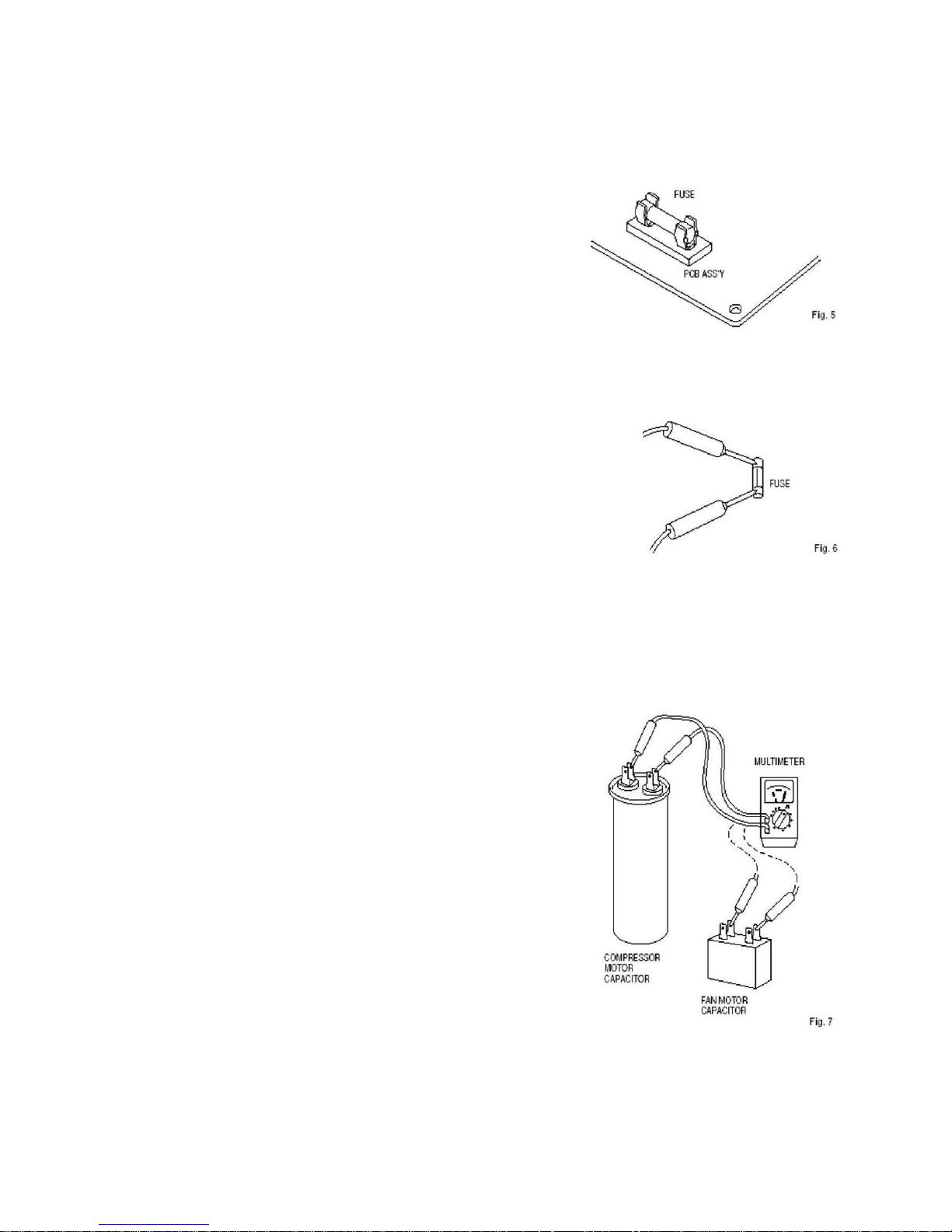

7-2 Checking Continuity of Fuse on PCB Ass'y

7-3 Checking Motor Capacitor

Table of Contents

1. SPECIFICATIONS

1-1 Unit Specifications

MPAF188R5TAA MPAF188C5TAA

Power source

oltage rating

Performance

Capacity Air circulation High/Med./Low m³/h

Features

Controls/Temperature controls Control unit Timer Fan speed Airflow direction Horizontal

Vertical Air Filter Power noise level High dB-A Refrigerant tubing connections Refrigerant Narrow tube mm(in.) tube diameter Wide tube mm(in.) Refrigerant Refrigerant tube kit / Air clean filter

Dimensions & Weight

Unit dimensions Height mm

Width mm Depth mm

Package dimensions Height mm

Width mm Depth mm

Weight Net kg

Shipping kg

Shipping volume

DATA SUBJECT TO CHANGE WITHOUT NOTICE

R410A

Flare type

Washable, Anti-Mold

Cooling Heating

See catalogue with the requested matching

880 / 710 / 580

360

Microprocessor/ I.C. thermostat

Wireless remote control unit

3 and Auto

ON/OFF 24 hours

285

Manual

Auto

12.7 (1/2)

Optional / Optional

0,11

220 - 240 V ~ 50 Hz

230 V - 50 Hz

1070

290

12 15

6.35 (1/4)

995 240

MPAF228R5TAA MPAF228C5TAA

Power source

oltage rating

Performance

Capacity Air circulation High/Med./Low m³/h

Features

Controls/Temperature controls Control unit Timer Fan speed Airflow direction Horizontal

Vertical Air Filter Power noise level High dB-A Refrigerant tubing connections Refrigerant Narrow tube mm(in.) tube diameter Wide tube mm(in.) Refrigerant Refrigerant tube kit / Air clean filter

Dimensions & Weight

Unit dimensions Height mm

Width mm Depth mm

Package dimensions Height mm

Width mm Depth mm

Weight Net kg

Shipping kg

Shipping volume

DATA SUBJECT TO CHANGE WITHOUT NOTICE

Wireless remote control unit

See catalogue with the requested matching

Microprocessor/ I.C. thermostat

880 / 710 / 580

220 - 240 V ~ 50 Hz

230 V - 50 Hz

Cooling Heating

290

12 15

0,11

995 240 360

1070

15.88 (5/8) R410A

Optional / Optional

285

Washable, Anti-Mold

Flare type

6.35 (1/4)

ON/OFF 24 hours

3 and Auto

Manual

Auto

1-2 Major Component Specifications

MPAF188R5TAA MPAF188C5TAA

Controller PCB

Part No. Controls Control circuit fuse Jumper setting JP1..JP5

Remote Control Uni

Fan & Fan Moto

Type Q'ty ……. Dia. and lenght mm Fan motor model…Q'ty No. Of poles…rpm (230 V, Hi/Me/Lo) Nominal output W Coil resistance (Ambient temp. 20 °C )

Ω

Safety devices Type

Operating temp. Open °C

Run capacitor µF

VAC

Flap Moto

Type Model Rating Coil resistance (Ambient temp. 25 °C )

Ω

Heat Exch. Coil

Coil Rows Fin pitch mm Face area

DATA SUBJECT TO CHANGE WITHOUT NOTICE

0,25

SAC ON-OFF IDU

SAC W-REM

Cross - flow

UF2Q-21SB5P…1

2… 1550/1250/1025

Aluminium plate fin / Copper tube

DC 12 V

400 ± 7%

1,3

440

MP24Z2

Stepping motor

24,07

YEL-ORG: 73,55

Microprocessor

250 V - 3,15 A

1…. Ø 88 / L 746

2,54mm-5pcs

1,5

79 ± 15

BRN-WHT: 163,7

VLT-ORG: 33,16

YEL-PNK: 43,72

termal protector

130 ± 8

VLT-WHT: 68,84

MPAF228R5TAA MPAF228C5TAA

Controller PCB

Part No. Controls Control circuit fuse Jumper setting JP1..JP5

Remote Control Uni

Fan & Fan Moto

Type Q'ty ……. Dia. and lenght mm Fan motor model…Q'ty No. Of poles…rpm (230 V, Hi/Me/Lo) Nominal output W Coil resistance (Ambient temp. 20 °C )

Ω

Safety devices Type

Operating temp. Open °C

Run capacitor µF

VAC

Flap Moto

Type Model Rating Coil resistance (Ambient temp. 25 °C )

Ω

Heat Exch. Coil

Coil Rows Fin pitch mm Face area

DATA SUBJECT TO CHANGE WITHOUT NOTICE

YEL-ORG: 73,55

79 ± 15

1,5

440

YEL-PNK: 43,72

termal protector

130 ± 8

0,25

Stepping motor

MP24Z2 DC 12 V

400 ± 7%

Aluminium plate fin / Copper tube

1,3

250 V - 3,15 A

SAC W-REM

1…. Ø 88 / L 746

Cross - flow

2,54mm-5pcs

SAC ON-OFF IDU

Microprocessor

BRN-WHT: 163,7

VLT-ORG: 33,16

VLT-WHT: 68,84

UF2Q-21SB5P…1

2… 1550/1250/1025

24,07

1-3 Other Component Specifications

Trasformer (TR

)

Rating Primary

Secondary

Thermal cut-off temp. (PTC) (on the board)

Thermistor

(

Coil sensor

)

Resistance

Ω

Thermistor ( Room sensor

)

Resistance

Ω

DATA SUBJECT TO CHANGE WITHOUT NOTICE

A040C5026AA

AC 230 V, 50 Hz

13 V - 5VA

NTC-THERMISTOR

10 at 25 °C

NTC-THERMISTOR

C 883 - 120°C

10 at 25 °C

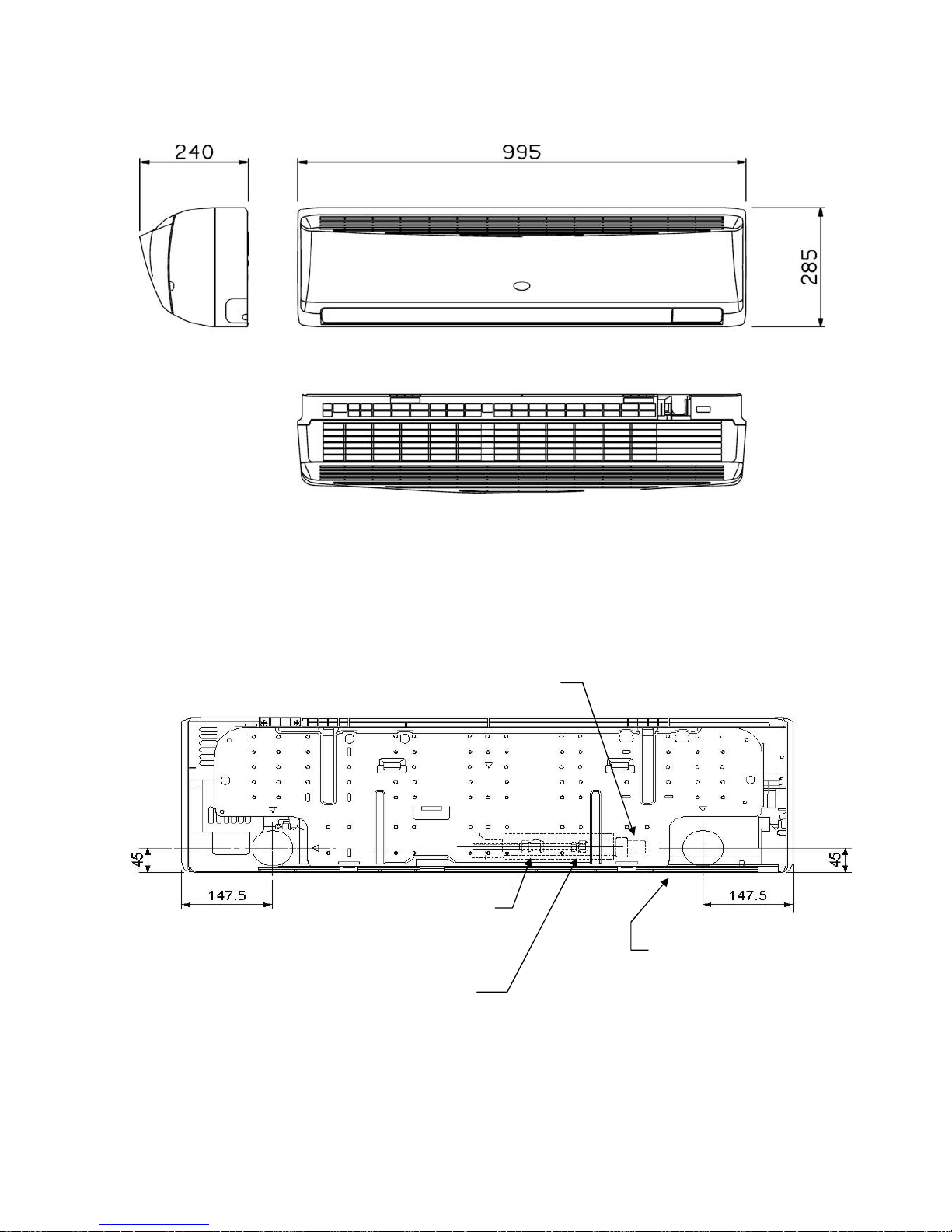

2. DIMENSIONAL DATA

REAR WIEW

dimension in mm

DRAIN HOSE D.18

WIDE TUBE

MPAF188xx - D.12,7 (1/2") MPAF228xx - D.15,88 (5/8")

NARROW TUBE D.6,35 (1/4")

CENTER OF TUBING HOLE

(2 PLACES)

3. PERFORMANCE DATA

3-1 Air Throw Distance Chart

Horizontal distance (m)

Axis air velocity (m/s)

Vertical distance (m)

Room air temp. : 27°C Fan speed : High

Cooling

0123456789

: Flap angle 0° , : Axis air velocity 0° : Flap angle 30°, : Axis air velocity 30°

Horizontal distance (m)

Axis air velocity (m/s)

Vertical distance (m)

Room air temp. : 20°C Fan speed : High

Heating

0123456789

: Flap angle 45° , : Axis air velocity 45° : Flap angle 60° , : Axis air velocity 60°

4. ELECTRICAL DATA

4-1 Electric Wiring Diagram

HEAT PUMP MODELS

COOLING MODELS

4-2 Wiring System Diagram

3-phase

15 (85 * ) 25

15 (65 * ) 20

* 3 Phase version

HEAT PUMP MODELS

1-phase

COOLING MODELS

1-phase 3-phase

model AB

power supply control line delayed fuse

2,5 1,5 16 A

GRF228

GRF188

MPAF188R5T MPAF228R5T

MPAF228R5T

GRF188R5T GRF228R5T

GRF228R7T

MPAF188C5T

GRF188L5T

MPAF188C5T

GRF188L7T

5.FUNCTION

5-1 Cool Mode Operation

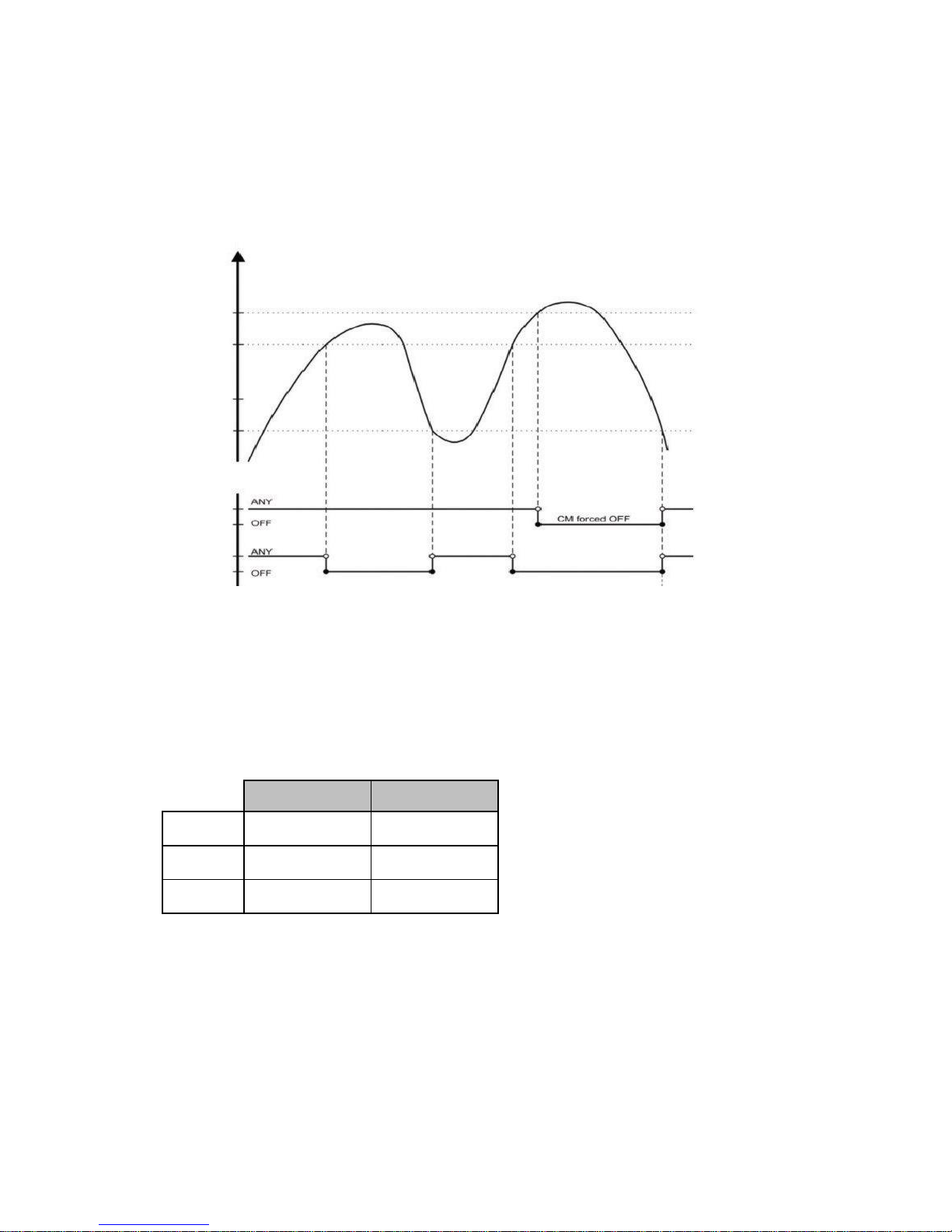

In Cooling Mode, the operation of the compressor (CM), Outdoor Fan (FMO) and Indoor Fan (FMI) are determined by the difference between the room air temperature (RAT) and the set point temperature (SPT) as shown in the graph.

NOTES

1. In this graph, the FMI is operating with the “Auto Fan Speed” setting. If the user has selected the Low, Medium or High fan speed, the FMI will run constantly at that speed only.

2. In addition to the temperature difference of above, the operations of the main components (CM, FMO, FMI) is also controlled by protection delays. That is: - the minimum off time of compressor is 3 minutes. -

- the minimum off time of compressor is 3 minutes. -

- the indoor fan can change speed only after it has operated at the same speed for 30 sec if in AUTO

and 1 sec for the other settings (High, Med, Low).

5-2 Heat Mode Operation

The Heating mode operation is similar to the Cooling mode operation. The CM, FMO and FMI are mainly controlled by the value of (RAT – SPT). In the graph above, the FMI is operating in AUTO speed mode. Therefore, the FMI speed changes automatically according to the (RT - SPT).

NOTES

1. After the CM has stopped, the FMI runs for 30s in order to purge heat from the indoor coil.

2. The FMI will not be turned on until the indoor coil temperature is warm enough to prevent the supply of

cool air (see COLD DRAFT PREVENTION feature for details). The indoor fan can change speed only after it has operated at the same speed for 30 sec if in AUTO and 1 sec for the other settings (High, Med, Low).

HEAT PUMP MODELS

5-3 Auto (cool/heat) Mode Operation

In Auto Mode, the unit switches automatically between the Auto Cooling and Auto Heating in order to maintain the room temperature (RAT) at the prescribed set point (SPT). The switching between the two modes is according to the above graph. Refer to the sections 5.1 COOLING MODE and 5.2 HEATING MODE for system operation details.

HEAT PUMP MODELS

5-4 Dry Mode Operation

Dry operation remove moisture from indoor air running, in cooling mode, at a low level without reducing the ambient temperature. This is done cycling ON and OFF indoor and outdoor units according to below.

ROOM DRY LEVEL

TEMP

≥ SPT+2°C LEVEL 0

Operation according to COOLING mode

CM on

< SPT+2°C LEVEL 1 FMO on

≥ SPT-1°C FMI switches between L and off (30 seconds)

RV off CM switches 9 minutes off and 3 minutes on

< SPT-1°C LEVEL 2 FMO switches 9 minutes off and 3 minutes ON

≥ 15°C FMI switches off and L during CM operation

RV off CM off

< 15°C DRY OFF ZONE FMO off

FMI off RV off

SPT = Set Point Temperature

5-5 Fan Mode Operation

With this mode, the indoor fan is turned on while CM, FMO and RV stay off all the time. The user can select between 3 speeds: HIGH, MEDIUM and LOW.

5-6 Auto Fan speed

With this option selected, the indoor fan speed changes automatically according to the difference between the detected air temperature (RAT sensor) and the set point (SPT):

COOLING MODE

2 ≤ (RAT – SPT):

HIGH speed

1 ≤ (RAT – SPT) < 2: MEDIUM speed (RAT – SPT) < 1: LOW speed

HEATING MODE

2 ≤ (SPT - RAT):

HIGH speed

(SPT - RAT) < 2: MEDIUM speed

NOTE

SPT = Set Point Temperature

5-7 Forced Mode

In this mode the system operates (COOLING or HEATING mode – fixed settings) or is switched off by means of the MODE button of the indoor unit control board. The operation modes can be selected pressing the button in a cyclic way (OFF Ö COOL Ö HEAT Ö OFF…). The settings are:

COOLING mode

SET POINT temperature = 25°C FAN SPEED = HIGH

HEATING mode

SET POINT temperature = 21°C FAN SPEED = HIGH

5-8 Protection operations in Cool and Dry Mode

This protection prevents ice formation on the indoor coil heat exchanger. The protection is activated by the indoor coil temperature (ICT sensor) and only after 6 minutes of compressor operation. This protection acts in 2 levels:

LEVEL 1

INDOOR FAN SPEED: ANY (as selected from remote controller) COMPRESSOR: ON OUTDOOR FAN: cycling (30 seconds ON B 30 seconds OFF).

LEVEL 2

INDOOR FAN SPEED: ANY (as selected from remote controller) COMPRESSOR: OFF for at least 6 minutes and until ICT ≥ 8°C OUTDOOR FAN: OFF for at least 6 minutes and until ICT ≥ 8°C

The system exit this protection routine when ICT temperature rises above 8°C.

5-9 Protection operations in Heat Mode

5-9.1 Cold draft

This feature prevents the supply of cold air forcing the indoor fan to a speed which cannot be changed by the user. As soon as the protection mode is exited speed can be changed manually through the remote controller. The protection acts in the following

5-9.2 Defrost

The defrost process is controlled by a detection algorithm designed in order to mantain optimal utilization of the heat pump capacity especially during negative outdoor temperature conditions. During DEFROST OPERATION the main components operates according to the following chart:

HEAT PUMP MODELS

6 sec.

30 sec.

6 sec.

5-9.3 Overheat

This feature prevents the build up of high pressure in the indoor heat exchanger during heating operation

MPAF188R5 MPAF228R5

A (°C)

60 60

B (°C)

55 54

C (°C)

49 49

ICT (°C)

FMO

5-10 I FEEL Function

As standard configuration the air conditioner operates detecting the room temperature through the sensor equipped in the wireless remote controller (icon I FEEL shown on the display). This feature provides a personalised environment since the temperature can be detected where the remote controller is located. It is possible to de-activate this option pressing the I FEEL button on the remote controller. In this case the I FEEL icon is no longer displayed and room temperature is detected through the sensor included in the indoor unit.

5-11 NIGHT Function

When this function is active, room temperature changes automatically to compensate for body temperature variations while sleeping. After 10 hours of operation system switches automatically to OFF state. This mode of operation is available both in COOLING and HEATING mode.

5-12 Diagnostic

With this feature is possible to have a visual signal that a trouble is occurring. This mode is always active and the signalling is made through the display board LEDS . In case of no troubles the LEDS status follows its normal function.

NOTES

 The troubles are showed according a priority list that is in case of more than one

trouble present, is always showed, at first, the one with the highest priority (1  2 3 etc).

 Sensor damaged means a situation where sensor is short-circuited or opened.  In case of damaged sensors, the system (CM, FMO, FMI etc), if in OFF state, does not start.

Priority TROUBLE

LD1(stby) LD2(opr) LD3(timer)

2 RAT damaged F O O 3 ICT damaged F F O

O = LED off

z = LED on

F = LED blinking

LEDS status Effects

System does not operate

5-13 JUMPERS CONFIGURATION

Jumpers are located on the indoor PCB near the MODE button.

Unit is shipped with jumpers set according to the following table:

JUMPER

HEAT PUMP MODELS JP1 open JP2 open JP3 open JP4 closed JP5 closed

HEAT PUMP MODELS COOLING MODELS

STATUS

COOLING MODELS

closed

open

closed

open

closed

5-14 Contacts for Building Automation

5-14.1 INPUT CONTACT (J4 - green)

The status of this input affects system operation according to the following: Contact OPEN : system does not operate (always OFF) – inputs from wireless remote controller are not processed Contact CLOSED: system operates in the normal way according to the inputs coming from wireless remote controller

5-14.2 OUTPUT CONTACT (J12)

This connector is directly tied to the contact (normally open) of a power relay which activates every time the following alarm condition occur:

• RAT damaged

•

ICT damaged

In this case when alarm happens, on poles 1 and 3 of J12 connector, 220 VAC-50Hz are available. Max electrical load: 1A- 240VA

5-15 Maintenance

Changing the Address of the Air Conditioner

In case of more than one air conditioner operating in the same room, it may be necessary to assign an address to each unit in order to avoid operation conflicts. Address is set acting on the dip-switches located on the indoor PCB and on the remote controller. The PCB settings must match the corresponding ones on the wireless remote controller.

How to change address of the air conditione

Dip switch is located on the indoor PCB near the buzzer. Set the PCB to the address desidered

UNIT

ADDRES

SW1 SW2

1 off off 2 off on 3 on off 4onon

As default switches SW1 and SW2 are in off status (PCB factory state).

How to change address on Remote Control Uni

Dip switch is located on the battery compartment.

1) Pull out the door and remove the batteries.

2) Set the switch SW1 and SW2 according to the indoor PCB settings (do not act on SW3 and SW4)

3) Insert the batteries and pull on the door

As default switches SW1 and SW2 are in off status (remote controller factory state).

SETTINGS

6 TROUBLESHOOTING

6-1 Check Before and After Troubleshooting

(A) Check power supply wiring.

• Check the power supply wires are correctly connected.

(B) Check power supply.

• Check that voltage is in specified range (±10% of the rating).

• Check that power is being supplied.

• WARNING: If the following troubleshooting must be done with power supplied, be careful not to touch any uninsulated live part that can cause

eletric shock

6-2 Circuit Breaker Trips or Fuse Blows

• When circuit breaker is set to ON, it trips in a few moments. Resetting is not possible.

• Measure insulation resistance. There is a possibility of ground fault. If resistance value is 1 Mohm or less, insulation is defective.

6-3 Circuit Breaker Trips in Several Minutes

After Turning Air Conditioner On

1 • There is the possibility of short circuit.

2 • The unit does not run.

6-4 Unit and Compressor Do Not Run

The unit does not run when air conditioner is in the follwing conditions:

• When the room temperature is below the setting temperature.

• During the protection modes.

6-5 Some Parts of the Air Conditioner Do Not Operate

6-6 Air Conditioner Operates, but Abnormalities are Observed

6-7 Poor Cooling or Heating

6-8 Excessive Cooling or Heating

6-9 A Sensor Is Defective

7 CHECKING ELETRICAL COMPONENTS

7-1 Measurement of Insulation Resistance

The insulation is in good condition if the resistance exceeds 1 MOhm

a) Power Supply Wires

Clamp the earthed wire of the power supply wires with the lead clip of the insulation resistance tester and measure the resistance by placing a probe on either of the power wires (fig.1). Then measure the resistance between the earthed wire and the other power wires (fig.1).

b) Unit

Clamp an alluminium plate fin or copper tube with the lead clip of the insulation resistance tester and measure the resistance by placing a probe on N terminal, and then on Lterminal the terminal plate (fig.2)

c) Measurement of Insulation Resistance

for Electrical Parts

Disconnect the lead wires of the disired electric part from terminal plate, PCB assy, capacitor, etc. Similary disconnect the connector. Then measure the insulation resistance (fig.1 to 4). Refer to electric wiring diagram.

NOTE

If the probe cannot enter the poles because the hole is too narrow then use a probe with a thinner pin.

7-2 Checking Continuity of fuse on PCB assy

Remove PCB assy from electrical component box (fig.5)

Then pull out the fuse from PCB assy

Check continuity of fuse by the multimeter (fig.6)

7-3 Checking Motor Capacitor

Remove the lead wires from the capacitor terminals, and then place a probe on the capacitor terminals as shown in fig.7. Observe the deflection of the pointer, setting the resistance measuring range of the multimeter to the maximum value. The capacitor is "good" if the pointer bounces to a great extent and the gradually returns to its original position. The range of deflection and deflection time deffer according to capacity of the capacitor.

R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France

Tél. 04.74.00.92.92 - Fax 04.74.00.42.00

R.C.S. Bourg-en-Bresse B 759 200 728

Technibel MPAF188R5TAA, MPAF188C5TAA, MPAF228R5TAA, MPAF228C5TAA Technical Data & Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
